Navimow S26 Catalogue

Trusted by Media, Proven by Performance

Navimow Residential Robotic Lawn Mower

X4 Series

X430 3,000 m² X450 5,000 m²

*available May 2026

i2 Series

i208 AWD 800 m²

H2 Series

H215 1,500 m² H230 3,000 m²

X3 Series

X350 5,000 m² X390 10,000 m²

i1 Series

i108 800 m²

Seamlessly Hands-Free Setup, One-Click Mowing Efficiency

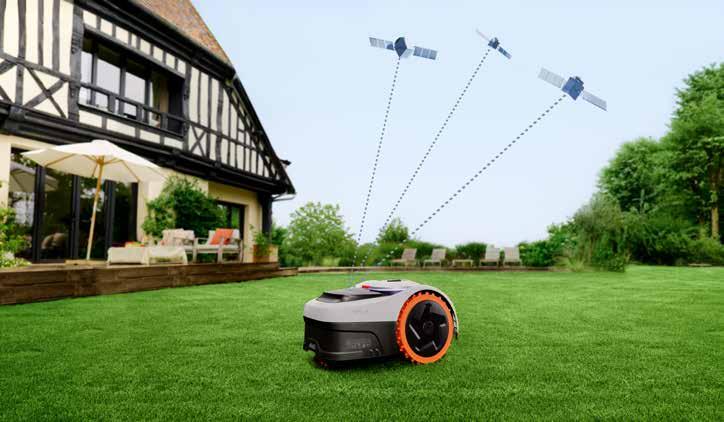

Antenna-Free Network RTK Positioning

Hassle-free deployment with an antennafree Network RTK access, eliminating needs for complex setup, guaranteeing consistent mowing performance in any weather and even the most challenging scenarios.

EFLS™ LiDAR+ Positioning System

Navimow redefines positioning with a deeply integrated system that fuses LiDAR's spatial awareness and Network RTK's satellite precision, with vision providing enhanced assistance, ensuring exceptional stability.

New Powerful Xero-Turn™ AWD, Never Hurts Grass

Exceptional AWD conquers all terrain, for stable climbing and obstacle navigation while delivering a smooth mow comparable to zero-turn mower, all without damaging grass through slipping or scratching.

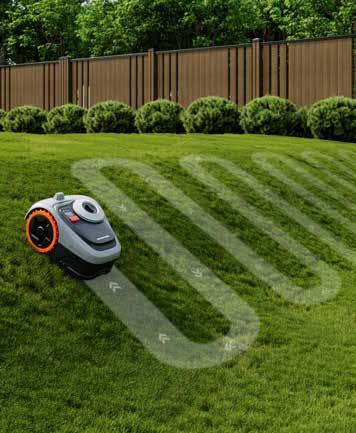

Auto Mapping, Freeing up Hands Entirely

Auto-recognizes boundaries and creates freehand virtual maps without requiring manual perimeter walking.

Available for all X Series, i2 AWD and H2 models

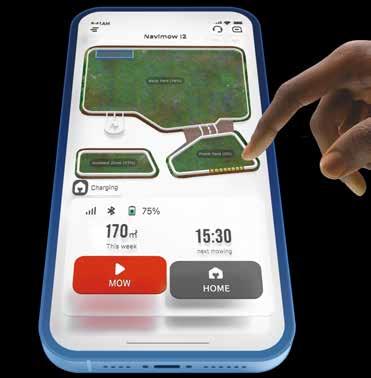

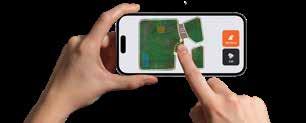

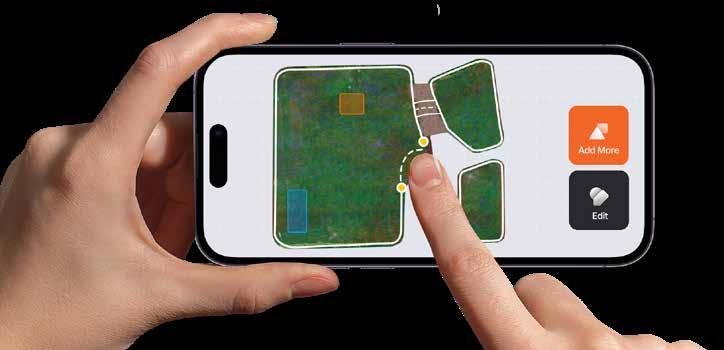

GeoSketch™: Real-Scene Map Editing

Transforms every garden corner into a real interactive map right on your phone. Visualize, edit, and command your mower with unparalleled accuracy.

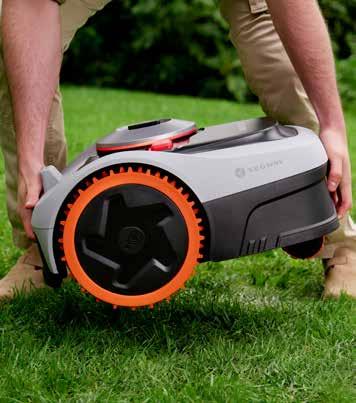

Quad-Layer Anti-Theft System

GPS tracking, Geo-fence alarm, lifted alarm and Apple Find My support. Even when powered off or offline, your mower can be located.

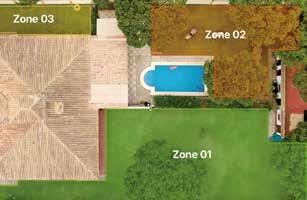

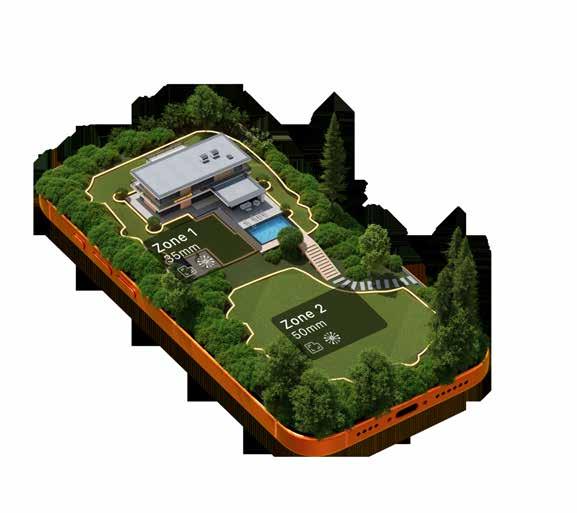

Up to 120 Zones & No-Go Zone Management

Easily set virtual zones or no-go zones like pools and flower beds for precise mowing. Schedule customizable mowing routine for each map with ease.

Integrated Intelligence for Your Yard

Start, stop, or schedule mowing sessions with voice control for a truly hands-free, next-gen experience.

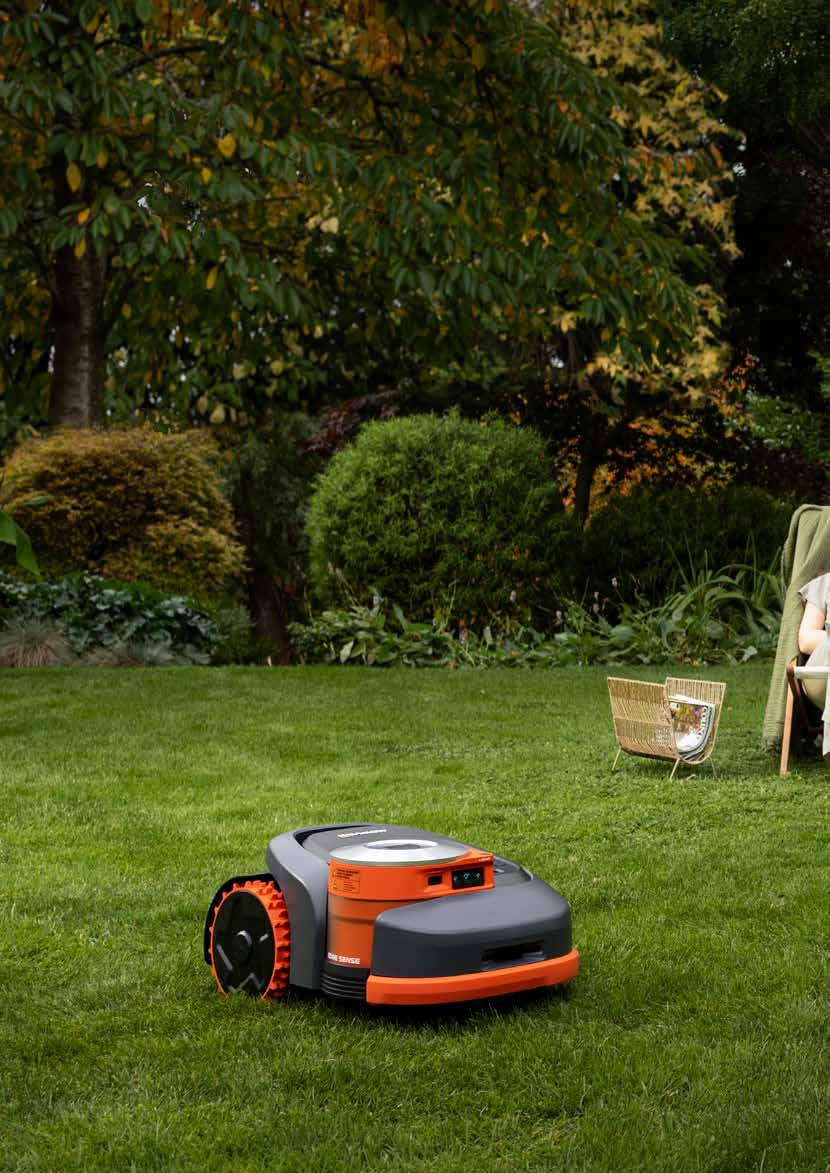

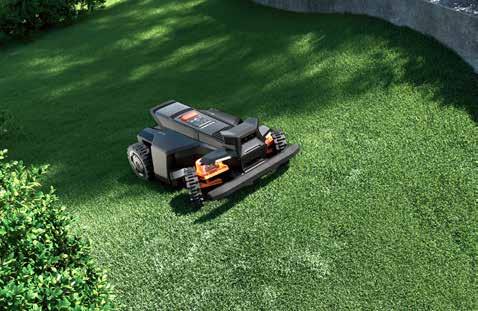

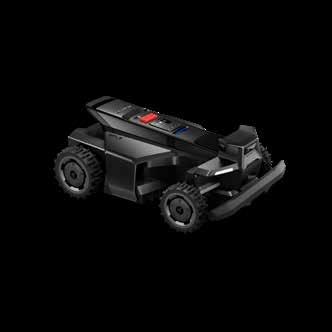

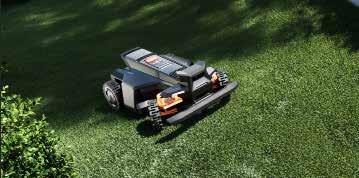

Navimow X4 Series

Conquer Where Others Stop. Care Where Others Compromise.

Ultimate AWD System with Zero-Turn, Dominating Every Surface with Perfection.

Achieve All-Terrain Mastery, Never Sacrifice Turf.

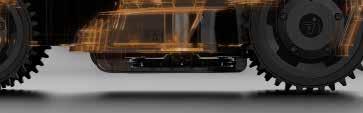

ORV-Tuned Dual Suspension

Overcomes vertical obstacles up to 7cm

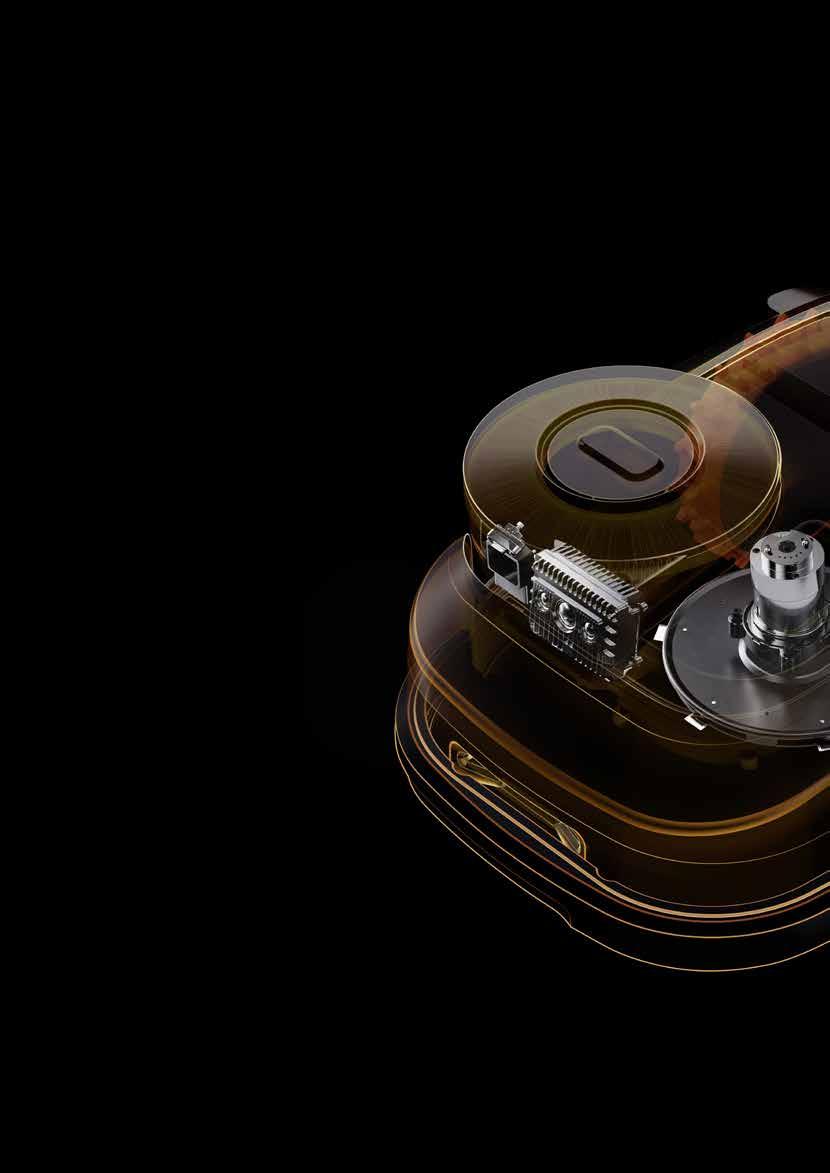

Hyper-Strong Cutting Motors

Effortless handles the toughest grass

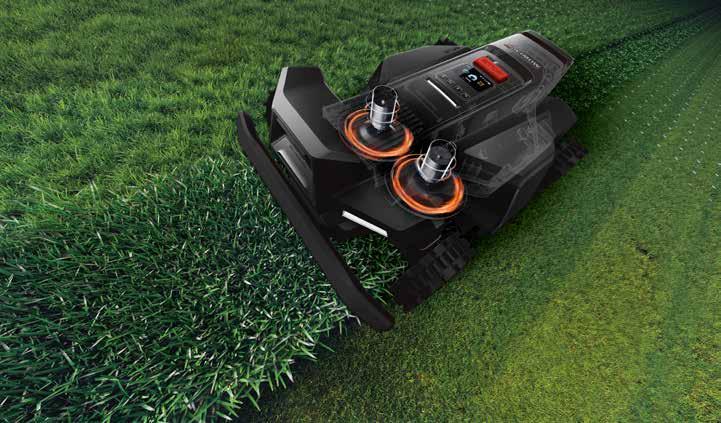

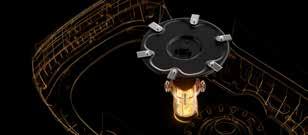

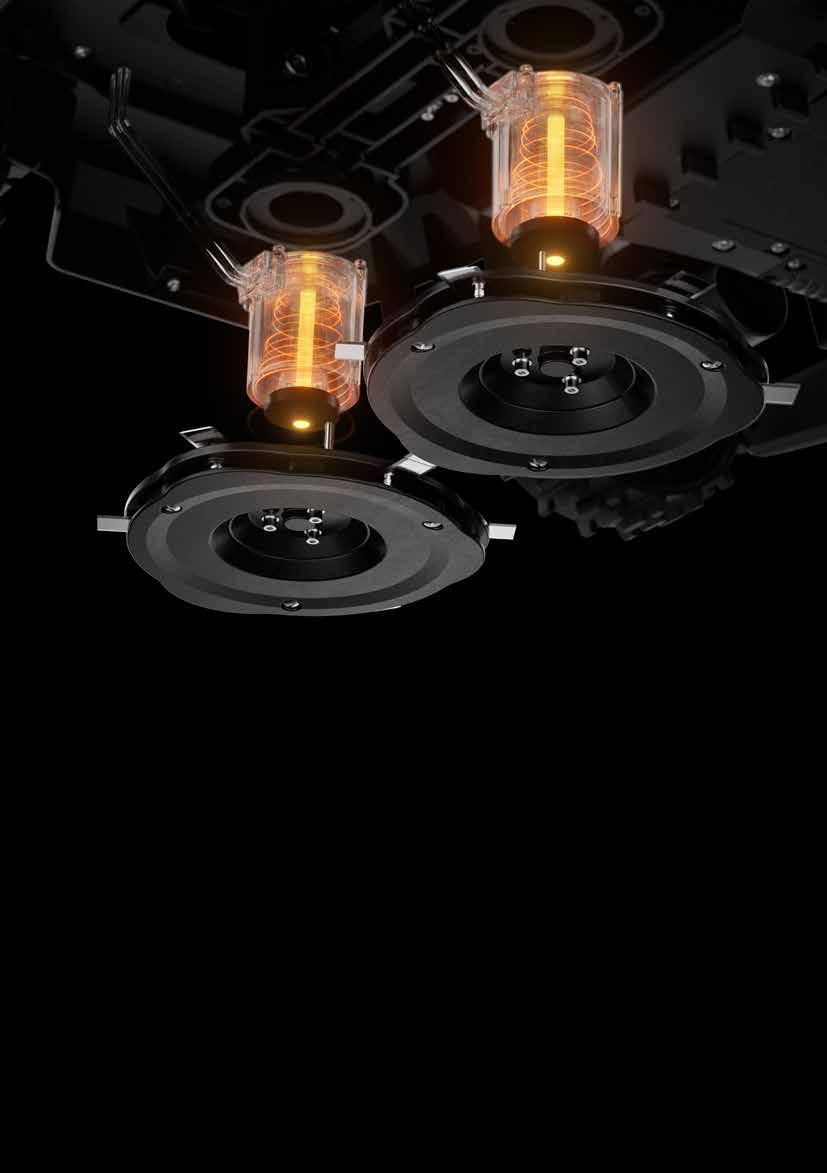

Adaptive Dual-Disc Cutting System

Cutting width: 430mm

Adjustable cutting height: 20-95mm

12-Blade Dual Disc System

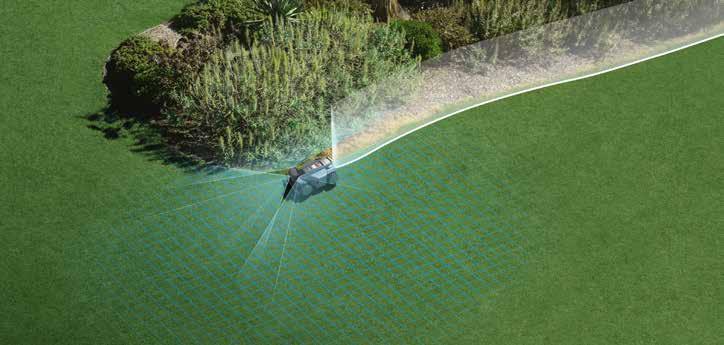

Triple Camera System (Front/Left/Right)

Leading obstacle avoidance with 360° sensory field, enhanced EFLS™ NRTK positioning

ToF Sensor

Providing a 0.1-2m 3D sensory range

Safety Bumper

Collision protection

Anti-Clogging Disc

Avoids excessive grass clipping build-up

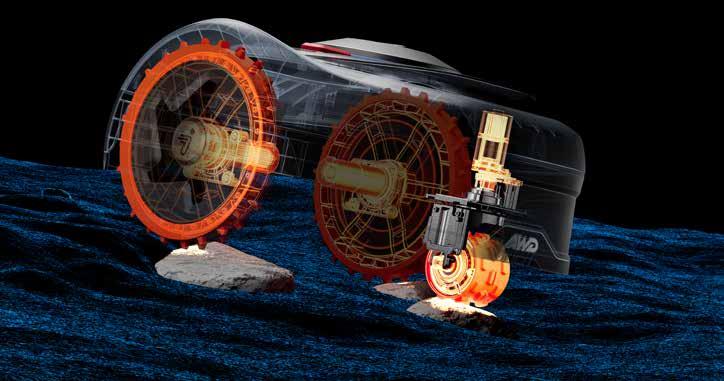

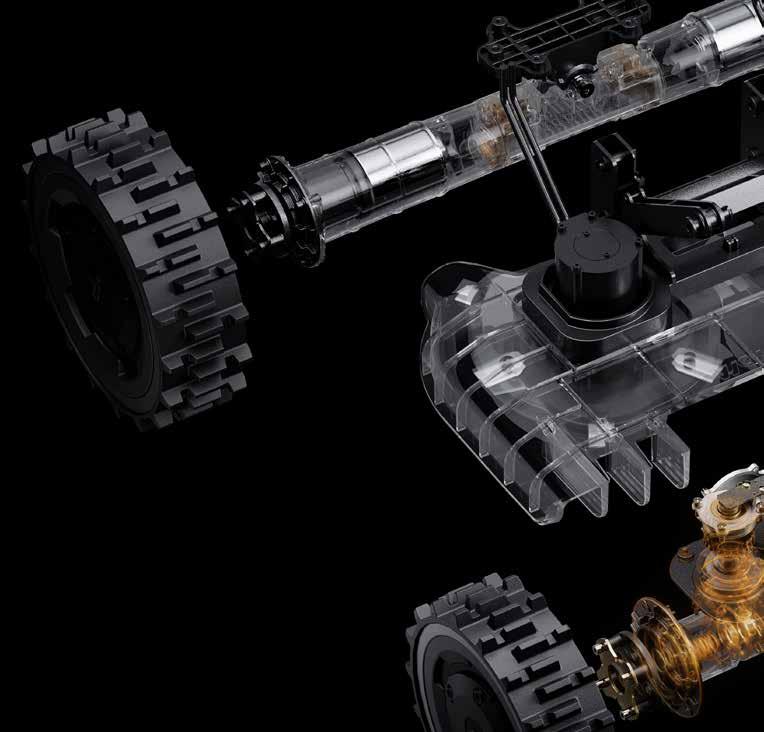

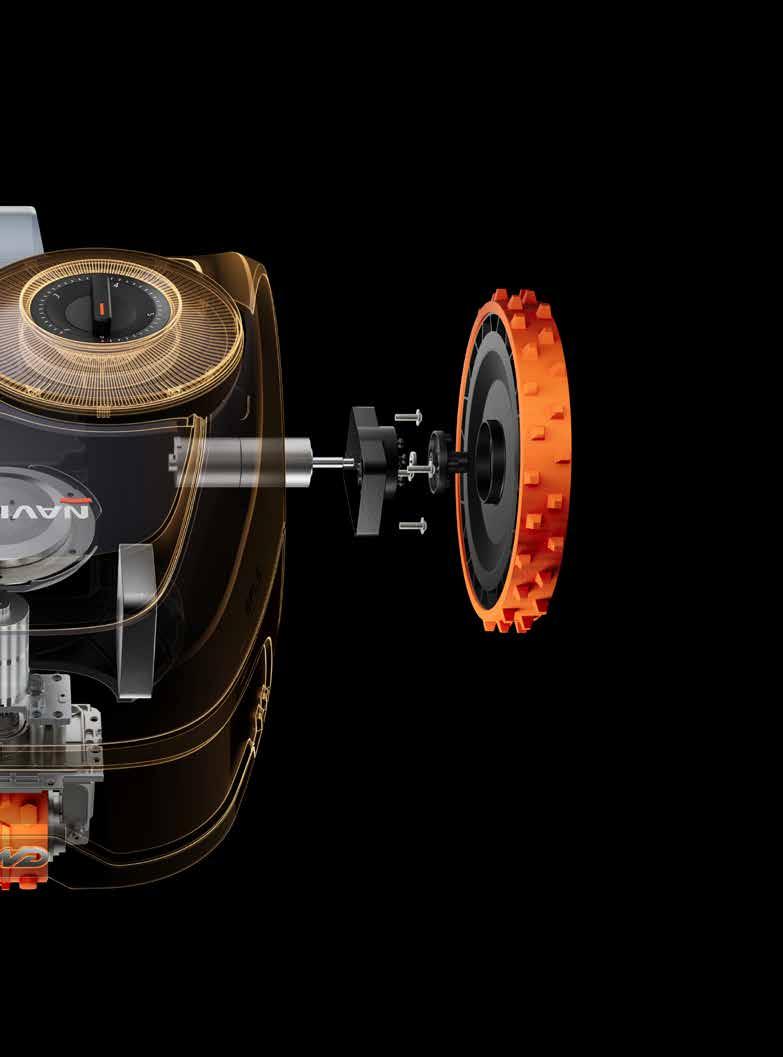

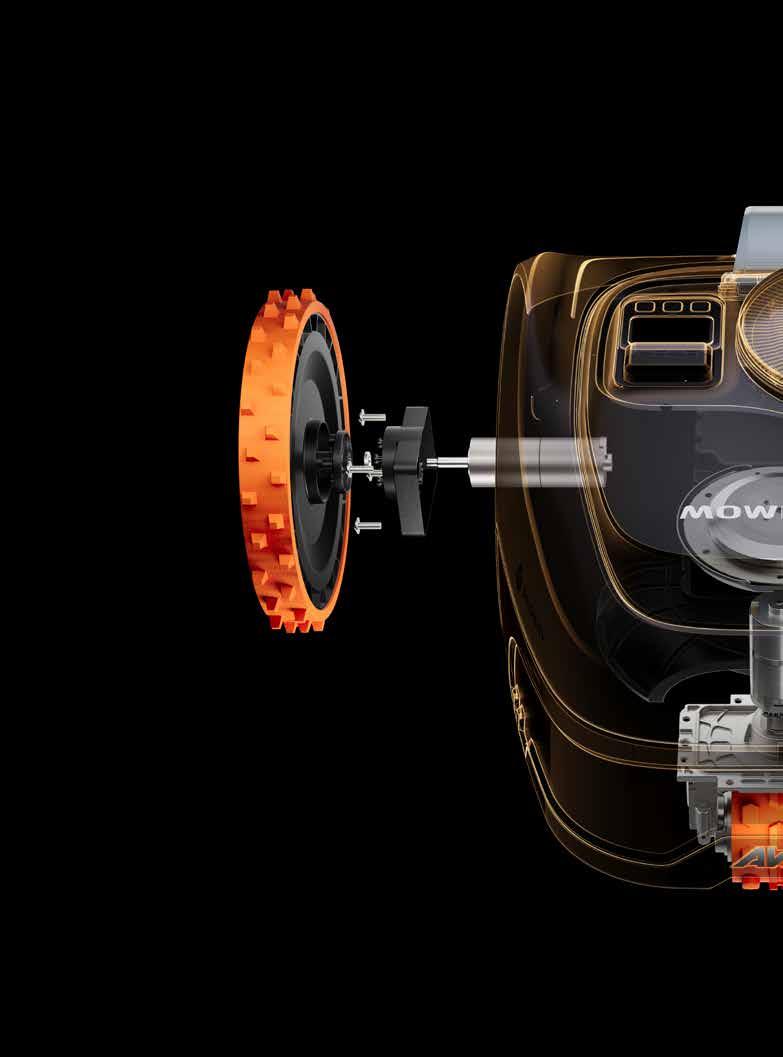

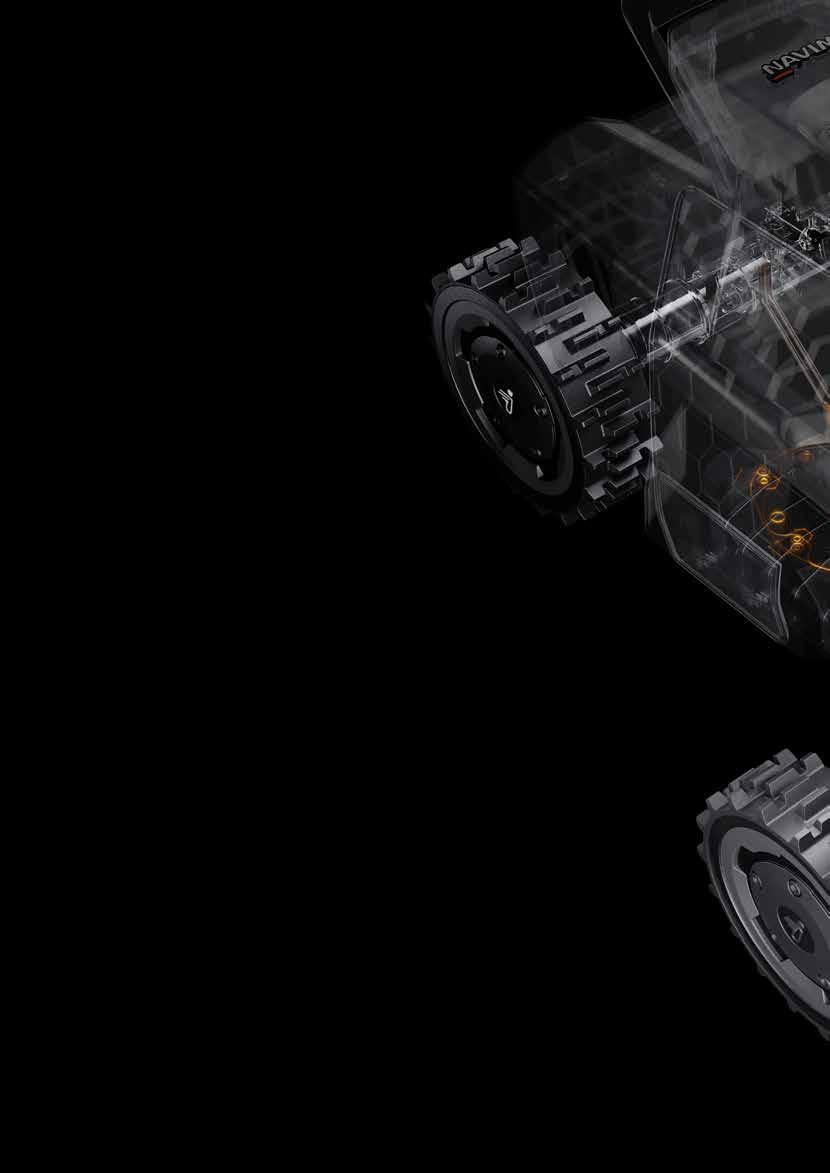

All-Wheel Drive System

X4's four-wheel hub motor provide industry-leading power and performance

Power unmatched. Our new ORV-tuned dual suspension system traverses obstacles up to 7cm and conquers slopes up to 84%.

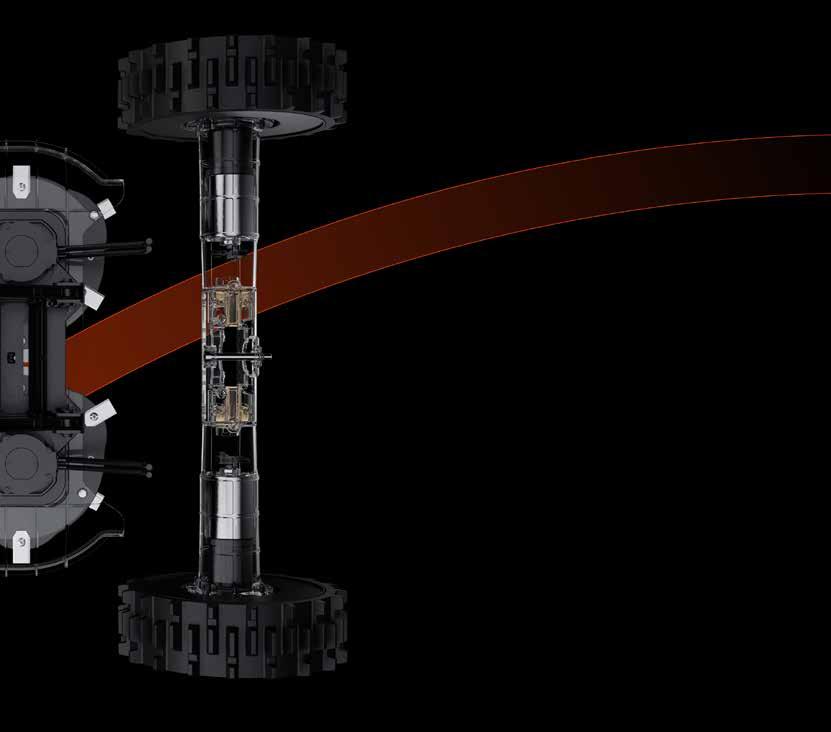

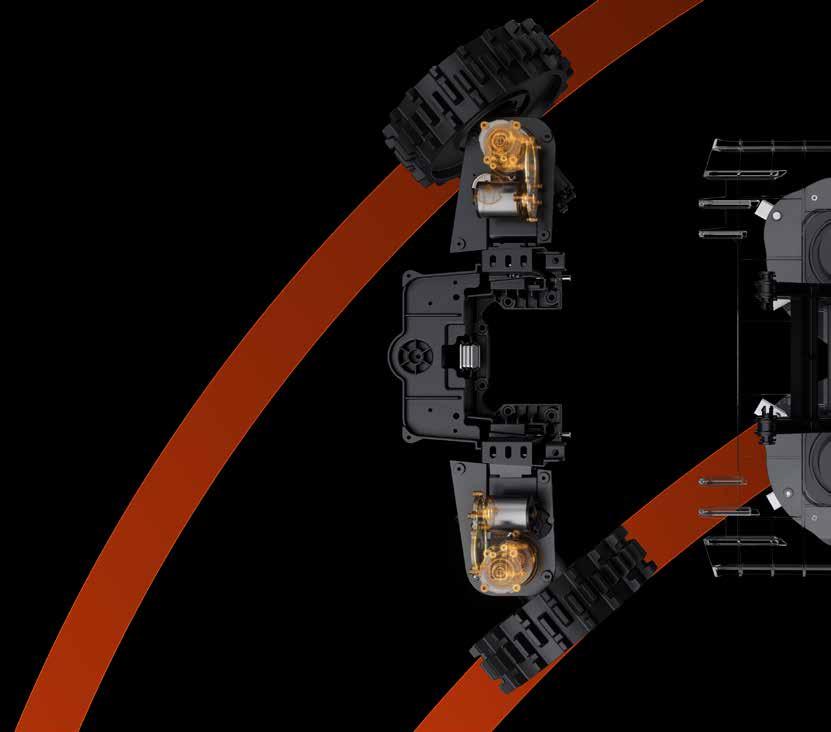

Pioneering Zero-Turn Steering for Damage-Free Turf

Unlike other products that rely on brute force overlay for traversing—often damaging lawns—our Xero-Turn™AWD expertly balances hyper-powerful wheel surges with agile obstacle handling, ensuring a smooth movement equivalent to zero-turn mowers without harming grass. Traction

Pioneering Application -Front Wheel Zero-Turn Steering

No Scraping

Switch between zero-turn and automotive-grade Ackerman steering, enabling flexible turning on any surfaces.

No Slipping

Patented TSC Technology adjusts torgue on low-adhesion surfaces like wet grass of soft grass in real-time.

No Grass Wearing

Reactively adapts to uneven and rough ground for a consistent cut instead of scraping off protruding grass.

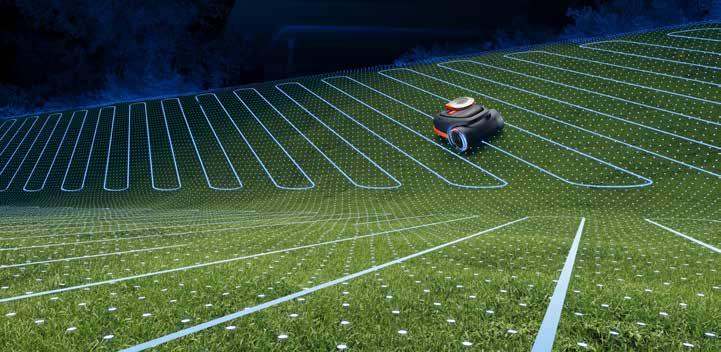

Perfect Finished, All Before Dusk

120 Zones & No-Go Zone Management Maintain Yards of

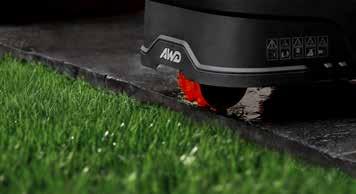

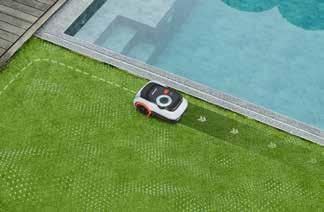

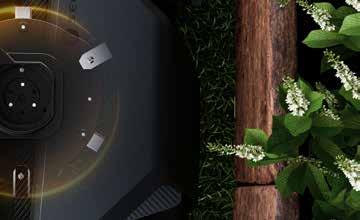

Zero-Distance Cutting Cut-to-Edge Perfection

Hands-Free Setup, Real-Scene Mapping

Auto Mapping, Freeing up Hands Entirely

Auto-recognizes boundaries and creates freehand virtual maps without requiring manual walking.

No Antenna Needed, Drop and Mow

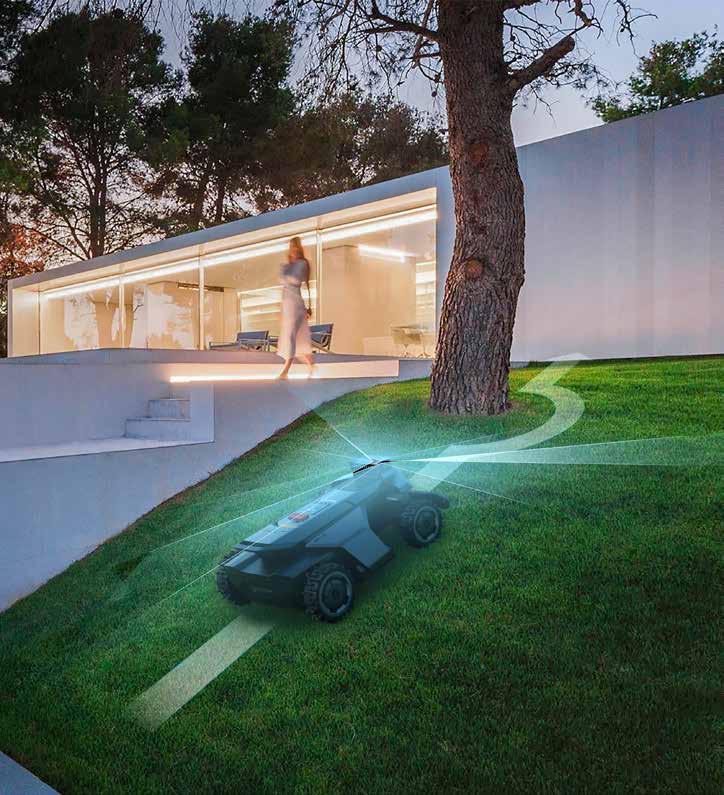

EFLS™ NRTK Positioning: Network RTK + 360°Vision + VIO

Upgraded triple-frequency Network RTK and 360° camera VSLAM and VIO technologies, ensuring centimeter-level precision and stable positioning without signal loss in all complex scenarios.

200+

obstacles recognized

Integrated with Smart Home Apps

Easily start, stop, or schedule mowing sessions with voice control for a handsfree experience.

Redefining Mowing with Seamless Intelligence

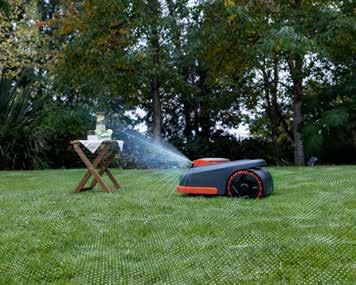

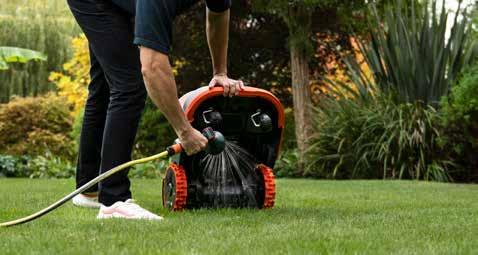

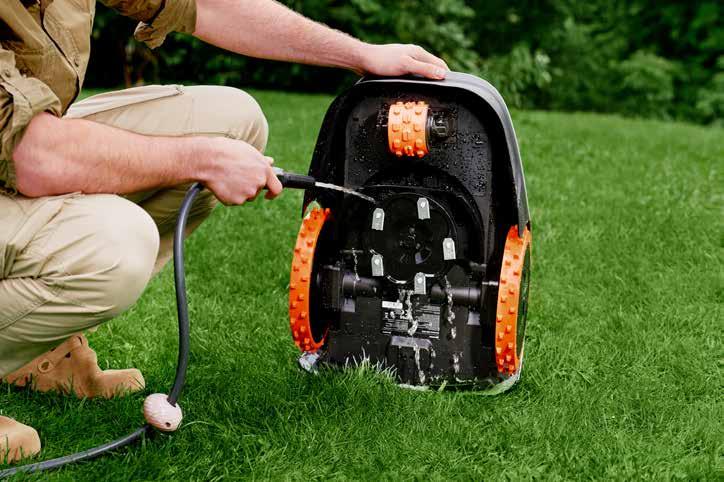

IPX6 Waterproof

Quick and easy to clean, supporting high-pressure washing for fast maintenance.

Noise level < 68dB(A)

Operates with lower noise, only ever as loud as a conversation.

OTA Updates

Seamless updates via the Navimow app, with regular new features and updates

3-Year Warranty

A 3-year warranty gives you complete peace of mind.

Full Weather Adaptability

Adapt and auto-adjust mowing plan during extreme weather.

Quad-Layer Anti-Theft

Supports GPS tracking, Geofence alarm, lifted alarm and Apple Find My, Even when powered off/offline.

Lawn Graphics

Add a creative flair to yard with Doodle. Creating stunning designs that make your lawn stand out.

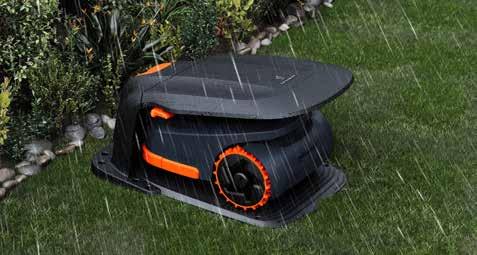

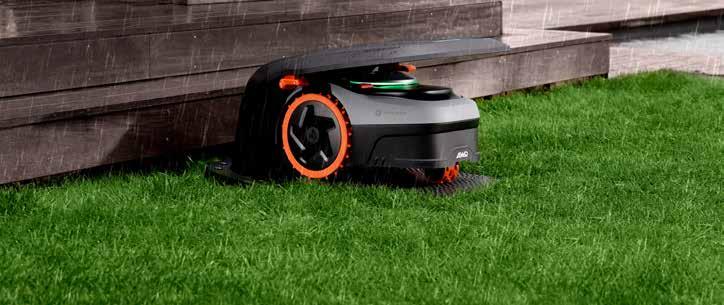

Rain Sensor

Built-in rain sensor candetect rains and pause mowing to return home.

Models X430 X450

Recommended Mowing Area

Locating System

EFLS™ NRTK (NRTK + 360°Vision + VIO)

Object Detection System VisionFence™ (360°RGB Camera + ToF)

Driving Engine 4WD with dual independent steering motors

Noise Level 68 dB(A)

Protection Level IP66

Weather Adaptive Weather Forecast + Rain Sensor

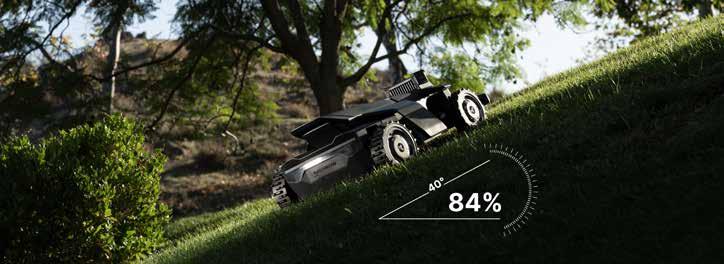

Maximum Slope Ability 84%(40°)

Antenna Installation Request No

Auto-Mapping Yes

Auto-Recharge Yes

Vertical Passing Ability 7 cm (15 cm of Gentle Slope)

Multi-zone Management 120

Cutting Height Adjustment Method Auto

Cutting

Floating Cut System Yes

Anti-Clogging Cutting Disc Yes

Cutting Disc 2 Discs, 12 Blades

GPS tracking GPS + Find My

Out-of-boundary Alarm Yes

Object Recognition

Smart Home Integration Alexa & Google Home

Warranty Device: 3 Years / Battery: 2 Years

OTA Updates Yes * Connect+ (Cellular Connection): 1 year free for X430 and 2 years free for X450, renewable for all models annually.

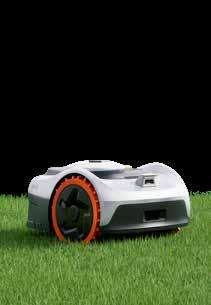

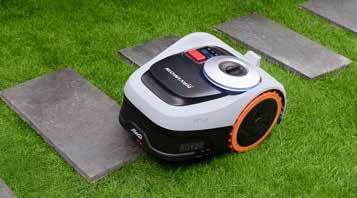

Navimow i2 Series

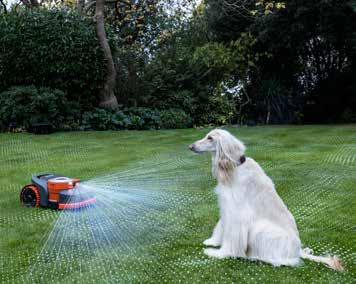

VisionFence™

Intelligent AI obstacle avoidance technology for worry-free mowing

EFLS™ NRTK

Access Network RTK for antenna-free deployment. The upgraded triple-frequency Network RTK and vision dual-fusion system delivers ultra-precise, centimeter-level accuracy

Xero-Turn™ AWD

All-new drive system for maximum traversibility and agile turns, delivering powerful terrain mastery and grass-friendly care

Adjustable Cutting Height

Fully adjustable from 20 to 60mm

Large Wheels

Large 24.8 cm front wheels drive powerful performance for a smoother mow even in the toughest of environments

Built-In 4G Module

Stable connectivity anywhere and seamless access to Network RTK as needed

Dual Automotive-Grade Technology

ESC & TCS deliver better stability and effectively minimize slippage

*ESC (Electronic Stability Control)

*TCS (Traction Control System)

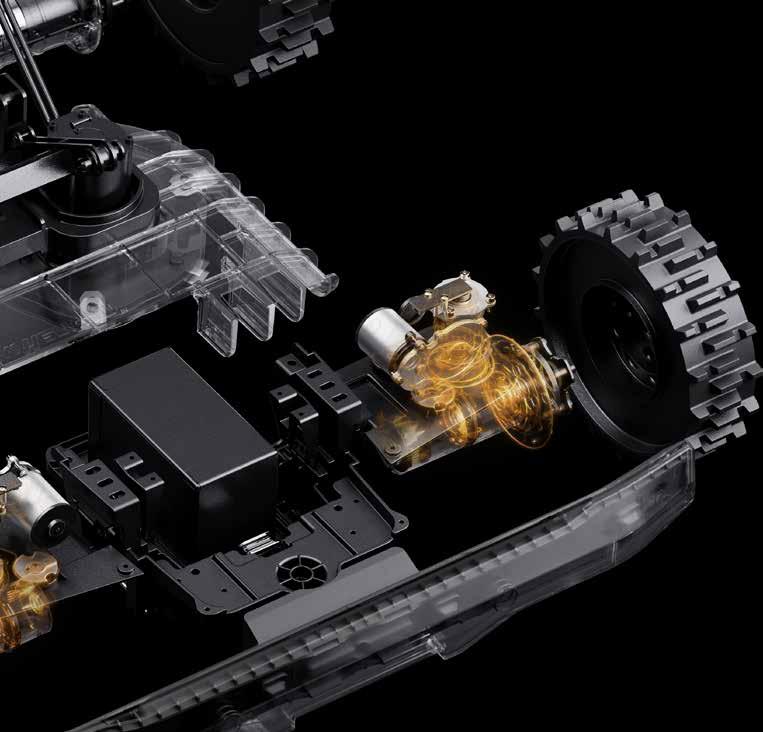

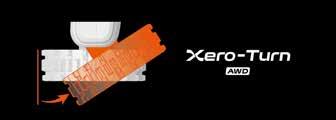

Pioneering Xero-Turn™ AWD Technology Power

with Next-Level Performance

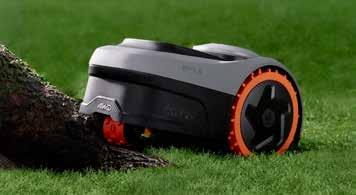

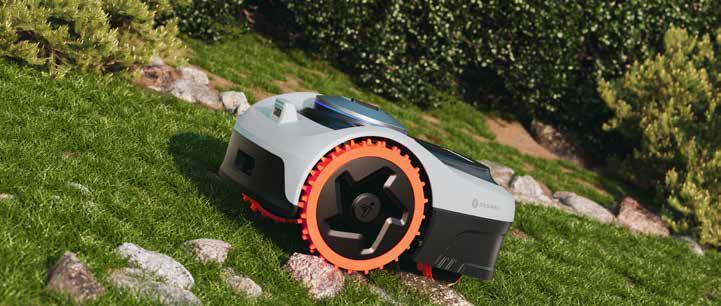

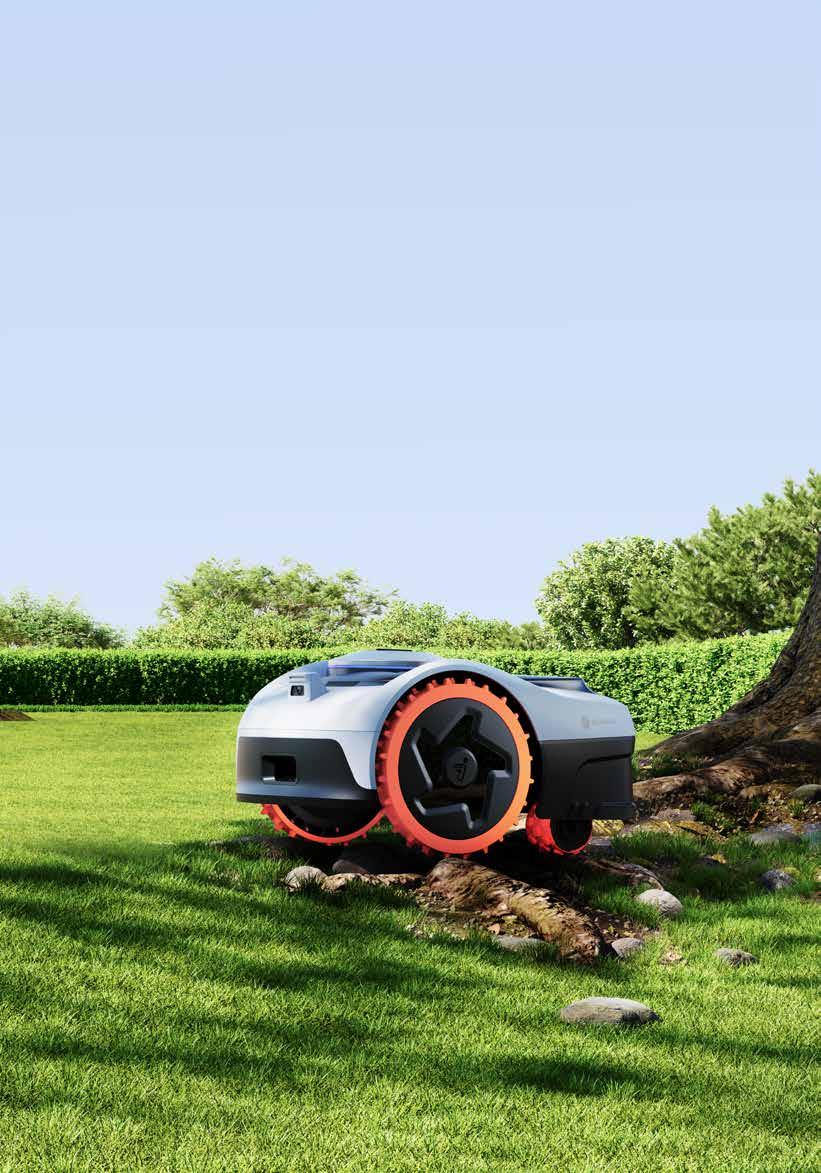

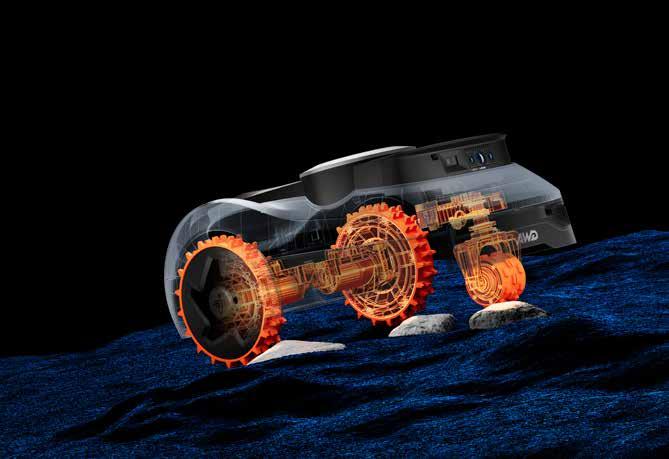

Power to Conquer: Xero-Turn™ AWD Powered, All-Terrain Mastery

Equipped with an all-wheel-drive system and 24.8 cm off-road wheels, the mower easily conquers complex landscapes while maintaining smooth, stable movement across uneven terrain.

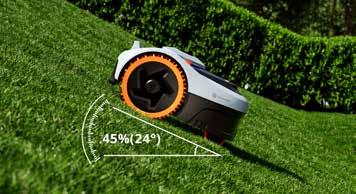

It handles slopes up to 45% (24°) and traverses root-heavy areas, 4cm vertical steps, and uneven stone paths with ease. Whether on gravel paths or rugged terrain, it stays in control without getting stuck.

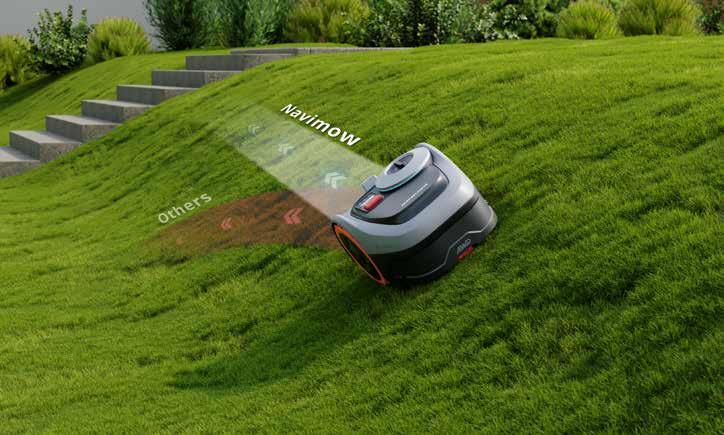

AWD × Built-In ESC (Electronic Stability Control) Synergy Handles 45%

Slope with All-Round Stability

Unlike other two-wheel products, the mower dynamically adjusts its slope trajectory to maintain straight and stable movement in any direction, delivering consistent, even mowing on slopes.

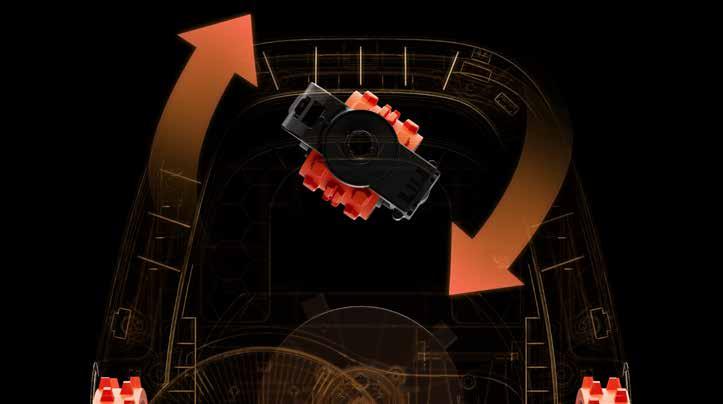

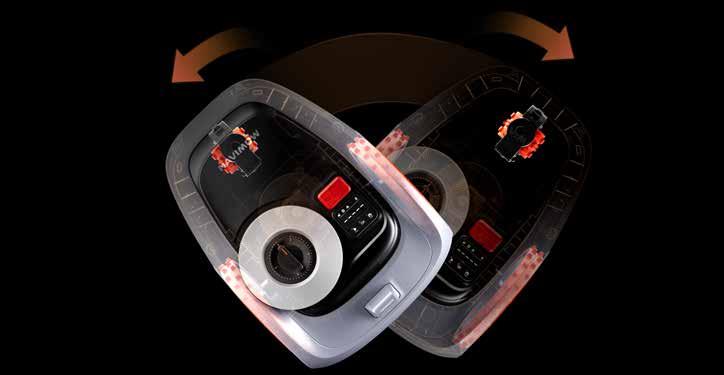

Flexi Zero-Turn Pivoting without Scraping Grass

Our concentric rear-wheel design delivers smooth zero-turn pivoting without turf tearing, eliminating dragging and scraping that can damage your lawn. Enjoy flawless, turf-friendly turns with every pass.

AWD × TCS (Traction Control System) Synergy

Minimal Slippage and Damage

With TCS (Traction Control System) reacting in just 25ms, traction is constantly adjusted to match ground conditions. Even on wet or slick grass, the mower glides with minimal slippage, protecting your lawn from bruising or ripping.

Power that Adapts: Adaptive Drive, 30% Energy Boost*

The third rear wheel activates only when needed, adjusting to terrain changes and reducing energy use. This improves efficiency and extends runtime by up to 30%.

*Energy efficiency data based on internal controlled lab testing. Adaptive all-wheel drive (3AWD) demonstrated up to 30% longer runtime compared with continuous 3AWD operation. Actual results may vary depending on terrain and mowing conditions.

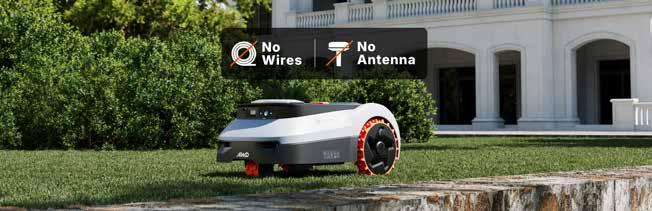

No Wires, No Antenna, Easy Deployment

Network RTK Access, No Antenna Needed

Connect instantly with just one tap using the Network RTK, and enjoy a completely wire-free, easy-to-install setup. A local antenna is also included in the box, giving you the flexibility to choose your preferred installation method for optimal connectivity.

For more information about the Network RTK, Scan the QR code to visit our

Enhanced Triple-Frequency Network RTK Performance

An upgrade from dual to triple-frequency Network RTK delivers 30% more accuracy and improved signal stability.

Vision-Enhanced for Precise Positioning, Anywhere

Vision-enhanced fusion positioning ensures centimeter-level precision,even in narrow passages and densely obstructed environments.

Hands-Free Auto Mapping, Minimal Human Effort

Simply place the mower and tap once in the app, it will automatically scan and map your entire lawn, creating a precise lawn map effortlessly with intelligent boundary detection.

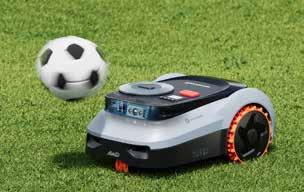

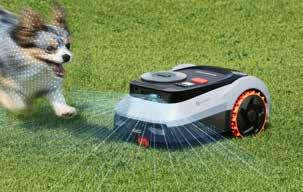

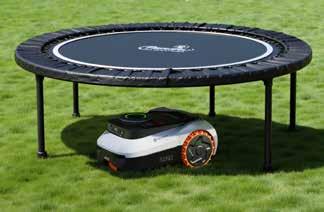

VisionFence™: AI-Powered 150+ Obstacle Avoidance

The mower uses advanced vision and AI algorithms to accurately detect pets, tools, and even tiny obstacles as small as 1 cm. It intelligently decides whether to mow or avoid them, rerouting within 0.1 seconds while maintaining a safe distance of at least 1 meter for safety.

Your Smart Mowing Companion

Voice Command Convenience with Smart Home Compatibility

Compatible with major smart home systems such as Alexa, Google Home, it allows you to control your mower effortlessly with a single voice command, letting you enjoy a truly handsfree, smart mowing experience.

Smart Anti-Theft System

Dual Alarms: Instant app notifications when the mower is lifted or exits the boundary, keeping your unit safe.

Real-Time GPS Tracking: Track your mower’s live location anytime in the Navimow App for added security.

5 Extreme Weather-Adapted Mowing

Capable of identifying five weather conditions-wind, frost, rain, snow, and high temperature, and automatically adjusts mowing to avoid operating in adverse weather, protecting both the grass and the device.

Highly Durable, Built to Last

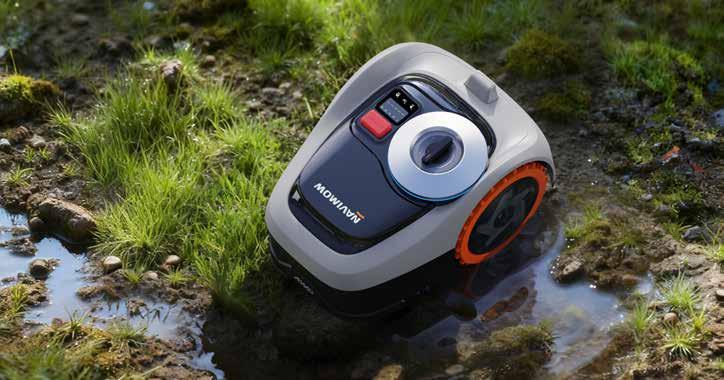

IP66 Rated, Completely Waterproof & Dustproof

Built to withstand rain, dust, and dirt. Easy to rinse clean for effortless maintenance.

59dB(A) Ultra Quiet Mowing

Delivers low-noise mowing for your comfort, without disturbing family, pets, or neighbors.

3-Year Warranty

Up to 3-year warranty for carefree long-term use.

Locating System EFLS™️ NRTK (NRTK + Vision)

Object Detection System

Driving Engine 3 AWD Noise Level

Weather Adaptive

Maximum Slope Ability

Antenna Installation Request No

Auto-Mapping

Auto-Recharge

Out-of-Boundary Alarm Yes

(140°RGB Camera)

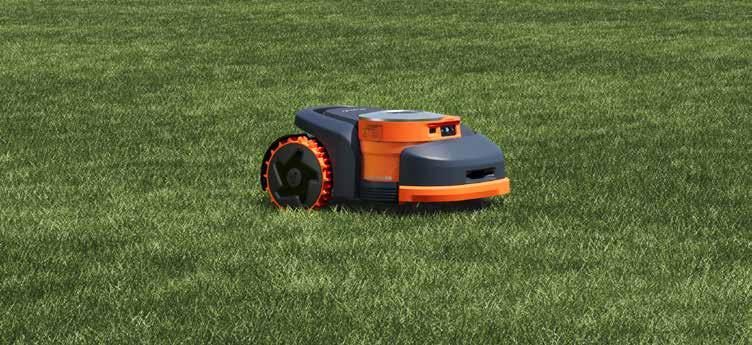

Navimow i2 LiDAR Pro

Intelligent Precision, Engineered to Overcome. i210 LiDAR PRO | i220 LiDAR PRO

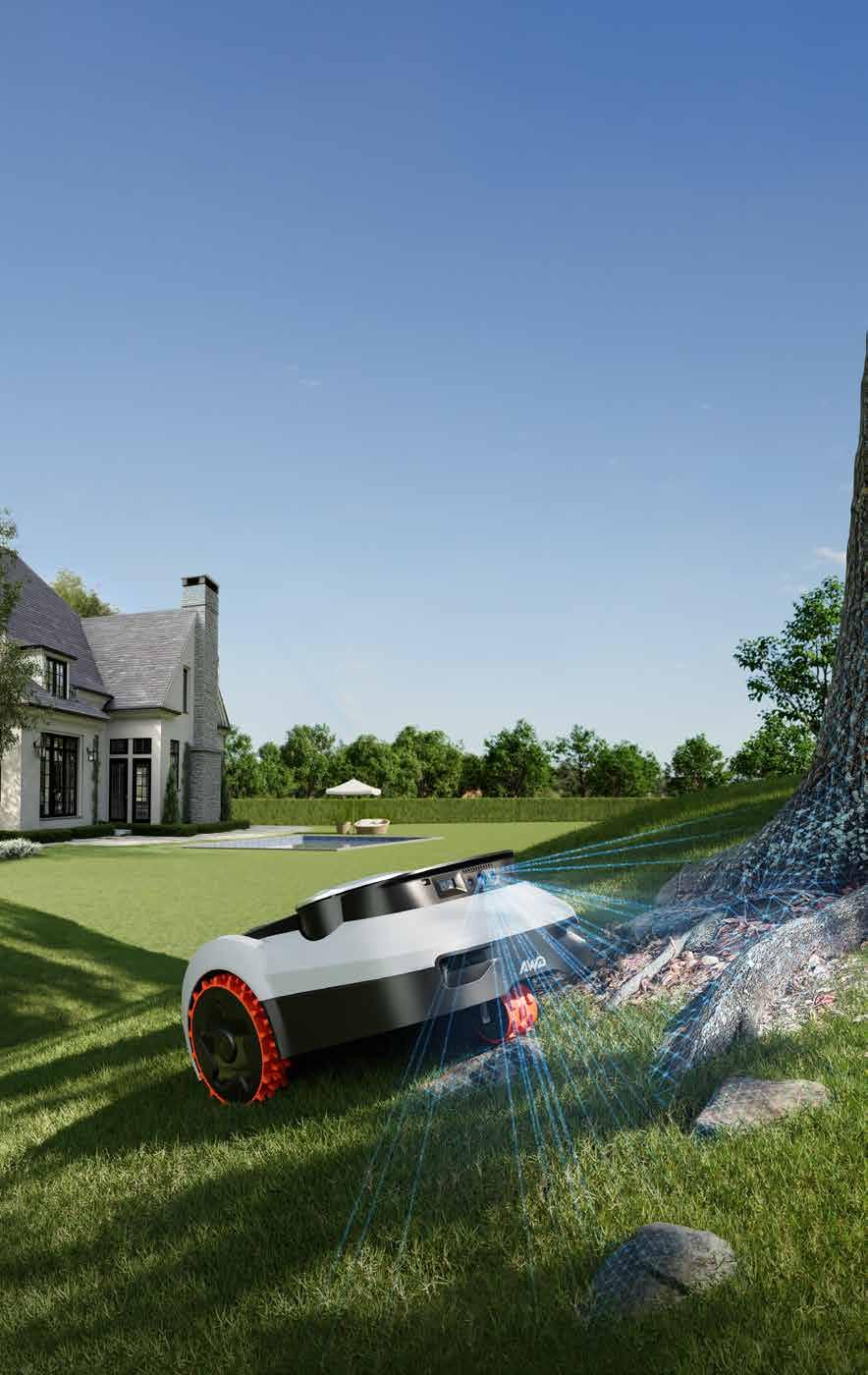

High-Res Solid-State LiDAR+NRTK +Vision: Triple Fusion System

EFLS™ LiDAR+ features our most advanced navigation ever. Its revolutionary Triple Navigation System integrates the spatial awareness of LiDAR, the real-time object intelligence of Vision, and Network RTK's precise satellite positioning for unmatched performance.

More Precise

Approx. 200,000 points/sec super dense point cloud

4X resolution, sharper Details vs Others

LiDAR-powered sensing off 200+ obstacles

Reacts Faster

70m ultra-long detection range

50ms Scan Interval

Suspended object perception and animal friendly

Navigate without Limits

More Durable

Built-in solid-state LiDAR

Unmatched durability proven through 60+ reliability tests

Withstands 50G vibration shocks, handling daily bumps and scrapes

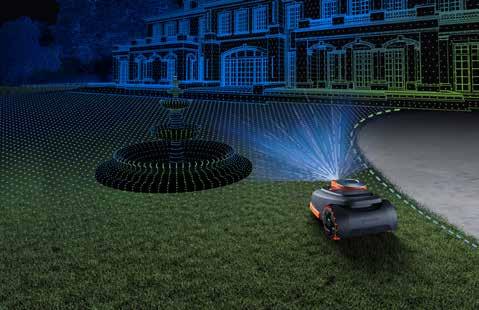

Next-Generation High-Res LiDAR Precision Mapping to the Next Level

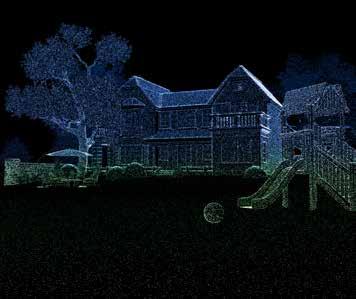

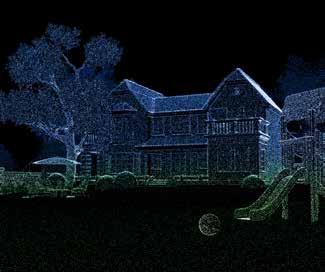

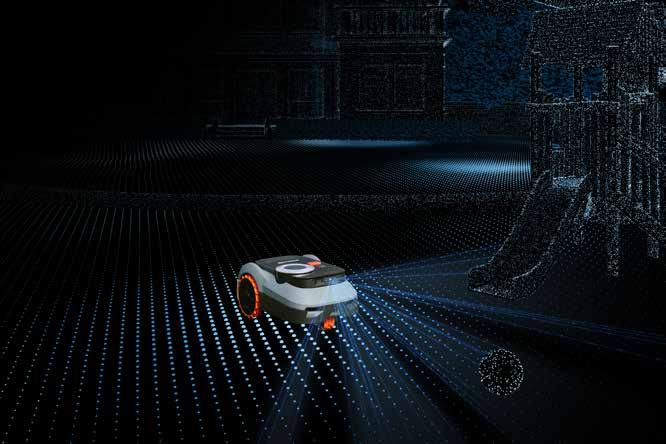

Groundbreaking 3D Spatial Intelligence

Pioneering LiDAR technology scans your space at nearly 200,000 points per second, meticulously crafting an ultra-dense 3D point cloud that leaves no dead zones. Every tiny detail is captured for rock-steady navigation day in, day out.

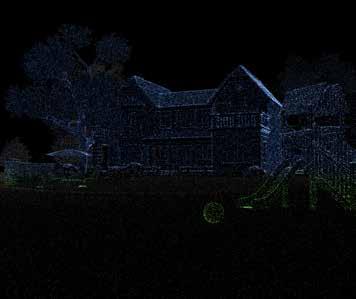

Insufficient Precision

Low Resolution

Short Detection Range

Slow Reaction Time

GeoSketch™: Realistic

Visualization of Your Yard

Powered by high-res LiDAR and vision tech, i2 LiDAR transforms every garden corner into a real interactive map right on your phone. Visualize, edit, and command your mower with unparalleled accuracy. Drag and drop to customize your mow to perfection.

200,000 Pts/Sec - More Precise

>4x Higher Resolution - Sharper Details

70m Long Detection Range - Sees Farther

50ms Scan Interval - Reacts Faster

Intelligent Precision, Engineered to Overcome

Solid-state LiDAR, AWD-driven, and all-scene mastery for precision mowing without limits.

EFLS™ LiDAR⁺

Triple Fusion System

High-Res LiDAR + Network RTK + Vision

Seamless deployement, effortless obstacle avoidance

Xero-Turn™

AWD Technology

The power to conquer. i2 LiDAR Pro tackles any terrain, mowing effectively without damaging grass.

No Wires, No Antenna, No Limits

Setup in minutes. You've never met a robot mower like this!

GeoSketch™: A Realistic Visualization of Your Yard No wires, no antenna, flexible charging dock location! Connect, press start, and your mower handles the rest! Our latest triple fusion system grants you immediate liberation from lawn care.

Transforms every garden corner into a real interactive map right on your phone.

Simply Drop and Mow VisionFence™

LiDAR + Vision, advanced perception, 200+ obstacles avoided.

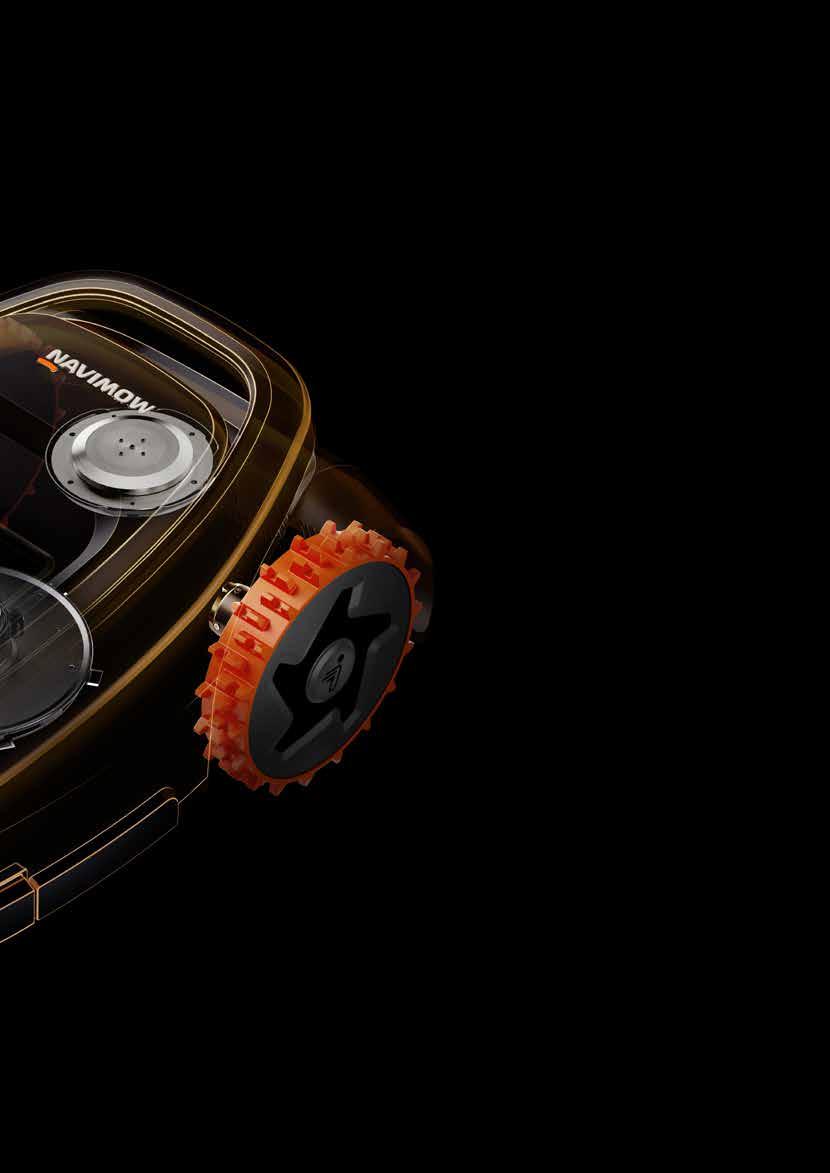

180° Concentric Steering Wheel

· Flexi Zero-Turn Pivoting

· Prevents turf damage by eliminating

Xero-Turn™ AWD Unstoppable Power with Impeccable Care

100w Peak Power Meets 6 Blades

Powerful Mowing Right Down to Details

Off-Road Wheels for 55% Slopes and Total Control

The AWD Enhancers: Built-in ESC and TCS

Automotive-grade ESC ensures straight slope mowing through precise power control.

Powerful traction confidently tackles wet slopes and complex terrain, preventing getting stuck.

Intelligent, Secured. Lawn Care Reinvented

Voice Control, Smart Mowing

Seamlessly connects with Alexa and Google Home, bringing effortless elegance to your lawn care with simple voice commands. EdgeSense™ for seamless adaption

Tailor cutting height and schedule for up to 20 zones. Multi-Zone Customization

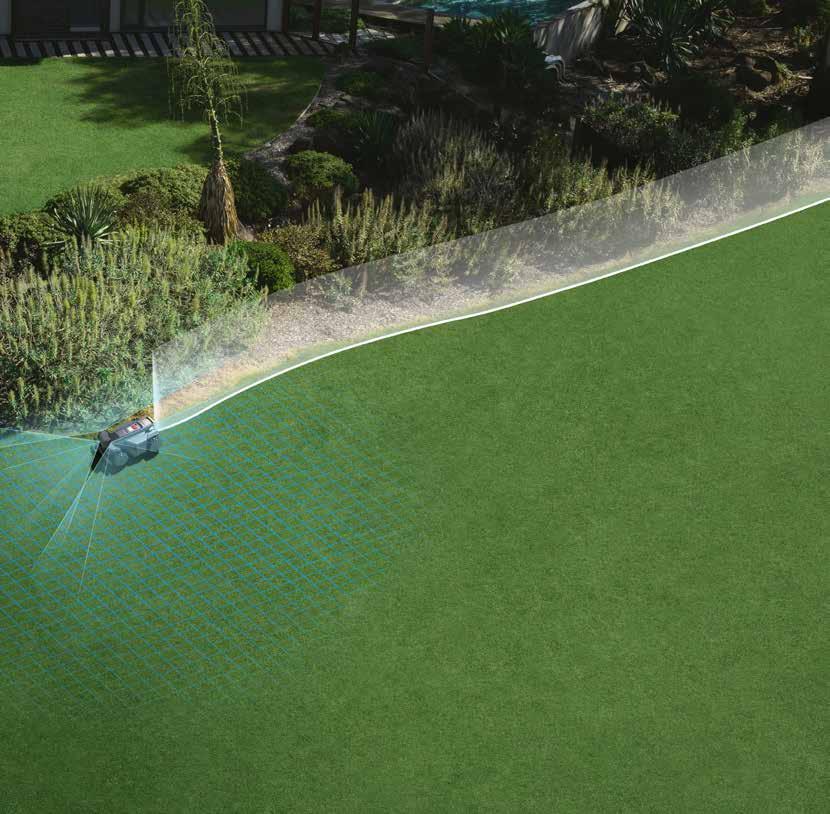

Ride-on Boundary Cutting

Locating System EFLS™ LiDAR+ (LiDAR+NRTK+Vision)

Object Detection System

Navimow H2 Series

Always on Track. Master Every Scene.

AI triple fusion system: High-res solid-state LiDAR + Network RTK + Vision for absolute precision and reliability.

Unwavering Precision. Engineered for Complex Yards.

AI Triple Fusion System

High-res solid-state LiDAR + Network RTK + Vision

Ultimate navigation

GeoSketch™

Real-scene map in app

Intuitive editing

LiDAR-Driven Slope Mastery

Terrain Adapt + Electronic Stability Control

Drop and Mow

No wires

No antenna

Automatic mapping

EdgeSense™

Zero-edge cutting with ride-on boundary mode

Cuts just 5 cm from walls

Unstoppable Cutting Performance

100W peak power motor

Anti-clogging disc + 6 blades

Rugged off-road tires

Identifies 200+ obstacles

1 cm detection precision

Animal friendly VisionFence™

High-Resolution LiDAR

A Generational Leap, Redefining Precision Mapping

Groundbreaking 3D Spatial Intelligence

Pioneering LiDAR technology scans your space at nearly 200,000 points per second, meticulously crafting an ultra-dense 3D point cloud that leaves no dead zones. Every tiny detail is captured for rock-steady navigation day in, day out.

AI Triple Fusion System: LiDAR + NRTK + Vision

The H2 Series redefines navigation with a deeply integrated system that fuses LiDAR's spatial awareness and Network RTK's satellite precision, with vision providing enhanced assistance. The breakthrough? It seamlessly switches positioning modes in just 1 ms (faster than you can blink) for uncompromising performance.

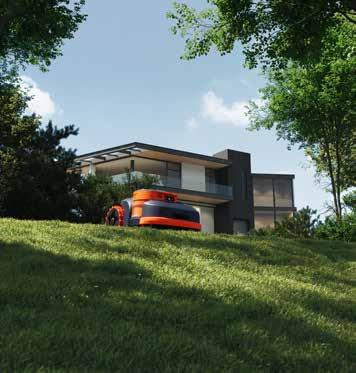

LiDAR-Driven Slope Mastery

With 3D Terrain Adapt tech, complex lawns are broken into optimal work zones, picking efficient mowing paths especially for inclines.

Paired with a new ESC (Electronic Stability Control) system, H2 precisely regulates wheel speeds during turns to optimize the mower's center of gravity, tackling 45%(24°) slopes with absolute stability. No slipping, no struggle, just flawless cuts with effortless grace.

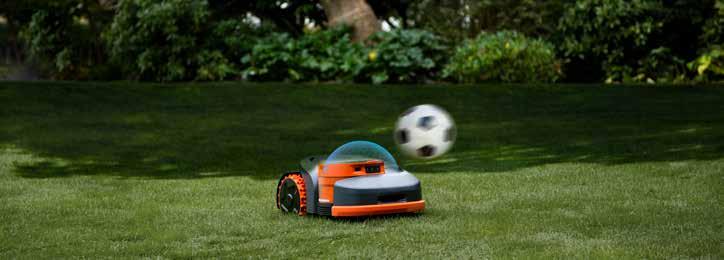

VisionFence™: Total Peace of Mind LiDAR + Vision Pinnacle Perception. 200+ Obstacle Avoidance

1 cm Detection Accuracy:

Precision beyond limits. No detail too small. High-res LiDAR and vision empower H2 to flawlessly avoid even the smallest obstacles--chair legs, pet toys, and more.

Suspended Objects:

With 3D LiDAR perception, the mower intelligently assesses clearance (including swings, trampolines and more) passing underneath only when space permits. It confidently avoids risky area like car undercarriages.

Animal Friendly:

LiDAR's long detection range ensures early detection of over 20 animal types and maintains a 1-meter safe distance during operation,while a 3-direction bumper sensor provides an extra layer of physical safety.

Built-In Solid-State LiDAR Module.

Built to Endure

Unmatched durability proven through 60+ rigorous reliability tests and 50G vibration shocks, setting a new benchmark that far exceeds industry standards. It takes on bumps and falling objects, maintaining unwavering performance throughout.

Skip the Setup. Just Drop, and Mow. Truly Effortless

No wires, no antenna, and flexible charging dock location thanks to our latest LiDAR navigation. Unbox, connect, press start to perform right away. Giving you back time, freedom, and a perfect lawn without the hassle. Voice control via Alexa and Google Home. Garden care has never been this easy!

Unstoppable Cutting Performance for Tough Lawns Powerful Mowing Right Down to Details

100W peak power motor, 6 blades, and an anti-clogging disc help shred thick grass without hesitation.

Engineered with rugged off-road tires to maximize traction while taking care to avoid damage to grass.

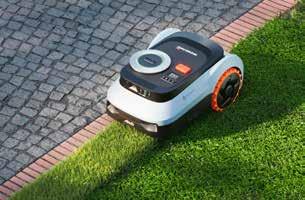

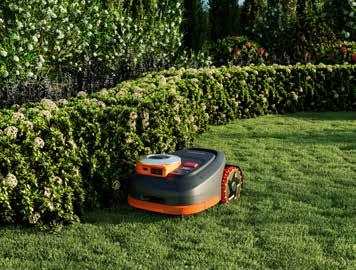

delivering flawless cuts along the edges.

Transforms messy borders into crisp, clean lines.

Relax, Everything's Handled

30-Zone Management

Schedule up to 30 unique areas so that every patch is perfectly manicured.

In-App Adjustable Cutting Height

Customize cutting height (2-7 cm) in app.

Quadruple Anti-Theft System

GPS tracking, geo-fence alarm, lifted alarm and Apple Find My support ensure your mower stays protected, even when powered off or offline.

Our Proximity Unlock automatically recognizes your phone to disable alarms when you're nearby.

Built-in rain sensor and weather forecasting keep your H2 one step ahead. When it detects heavy rain, snow, frost, strong wind, or extreme heat, it pauses mowing and heads home automatically.

IP66 Waterproof & Dustproof

Hassle-free daily cleaning. Just rinse it off without worry.

Whisper-Quiet at 60 dB(A)

Operates with nothing butquiet, peaceful and comfortable "whisper."

Up to 3-Year Warranty

A 3-year warranty gives you complete peace of mind.

Models H215

(Cellular Connection): 1 Year free for all H2 models, renewable annually.

Locating System

LiDAR+ (LiDAR + NRTK + Vision) EFLS™ LiDAR+ (LiDAR + NRTK + Vision) Object Detection System
