The industry demands reliable pneumatic pilot valve panels and we deliver these with our Burkert Air cabinet solutions.
Pneumatics are central to process control systems, and Burkert, as a local manufacturer of process pneumatics and field instruments, understands both the automation and instrumentation needs of your operation. Burkert Air offers a comprehensive, ready-to-install solution for integrating
pneumatic valves and I/O. Each cabinet is manufactured from stainless steel for maximum durability, and is equipped with all necessary fittings and bulkheads.
Our electro-pneumatic valve islands are designed to help you streamline your process and operations. By providing a fully assembled system, Burkert Air can be delivered to site faster, significantly reducing on-site labour requirements, and improving product cost.
Features + Benefits
Four manifold sizes in hardwired or networked variants:
• 8, 12, 16, and 24 station with Type 8652 for Industrial Ethernet
• 8, 12, 16, and 24 station with Type 8640 for 24VDC traditional hardwired
All panels are 316 stainless steel with wall mounting brackets for easy installation.
All panels are supplied with general arrangement (GA), electrical and pneumatic drawings as standard
All panels are built in-house at Burkert Australia’s HQ in Sydney
All panels are fully tested QA / FAT certificate supplied as standard
Quick delivery (typically 3-4 weeks)
Customised versions available on request

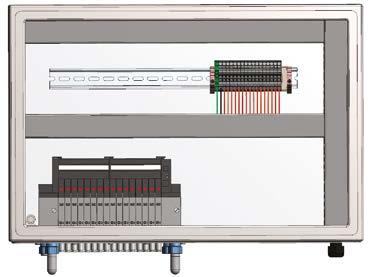

Technical Features 16 Station

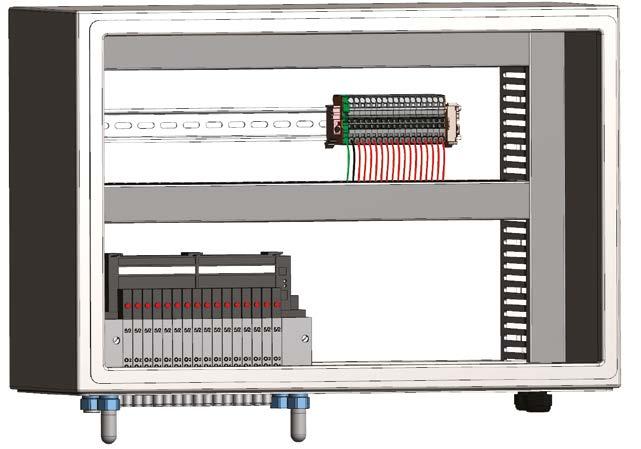

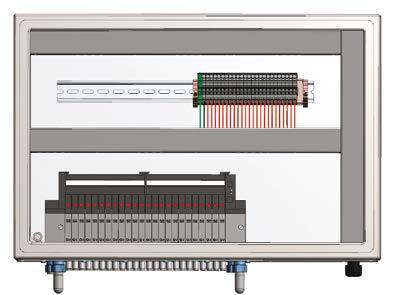

24VDC Hardwired Version Shown

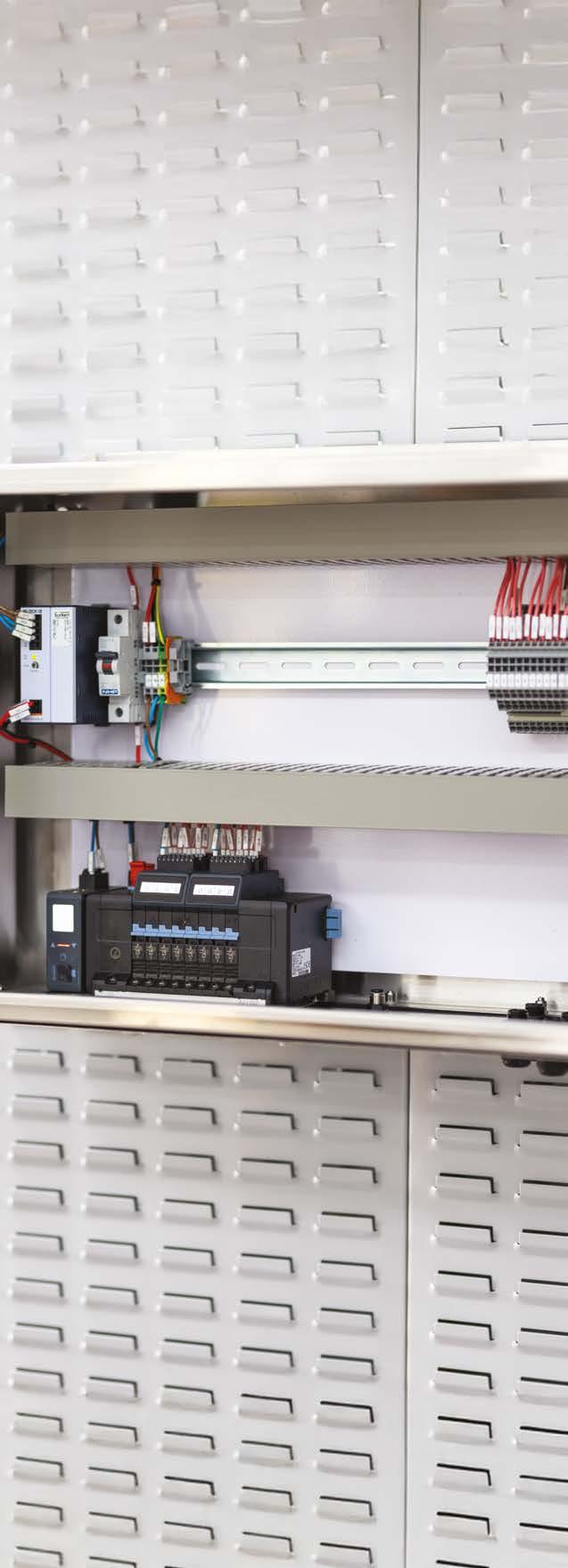

316 stainless steel enclosure complete with wall mounting brackets
All pilot valves are pre-wired to DIN terminals with terminal and wire markers
Cable duct with sufficient space for incoming multicore cable
Type 8640 AirLINE Quick electropneumatic valve manifold with 5/2-way H function, ~300LPM pilot valves including hot swap, check valve and manual override as standard
Burkert’s unique AirLINE quick manifold prevents the need for internal pneumatic tubing
Vent ports supplied with plastic silencers
Spare compressed air supply ports plugged
5/2-way H function pilot valves supplied as standard
6mm port plugs also supplied to allow for 3/2-way C or D function if required
Plate and fittings are 316 stainless steel
1 x 16mm gland for multicore cable entry

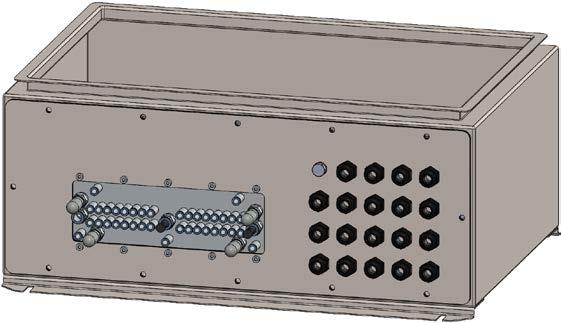

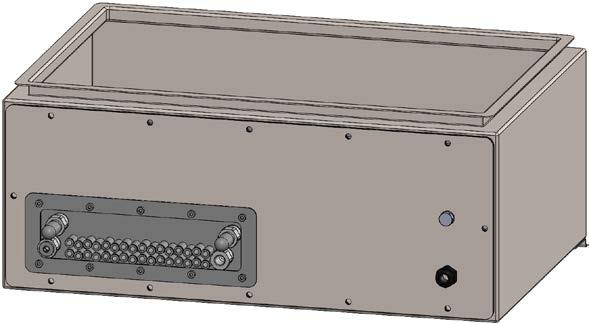

Removable gland plate for increased flexibility and customisation
M12 panel vent

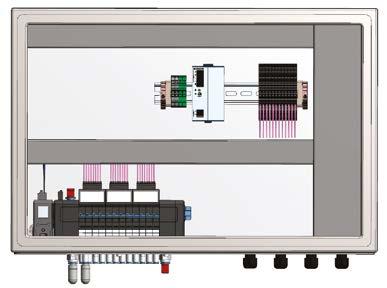

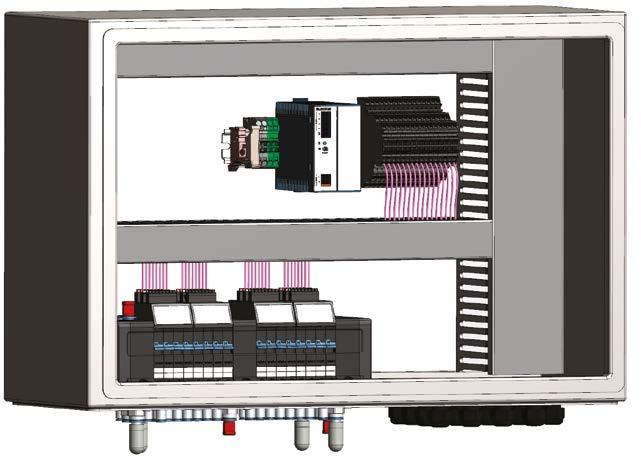

16 Station

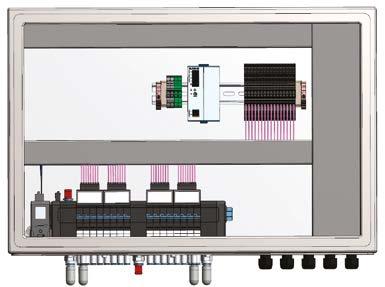

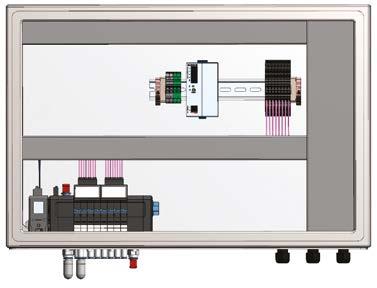

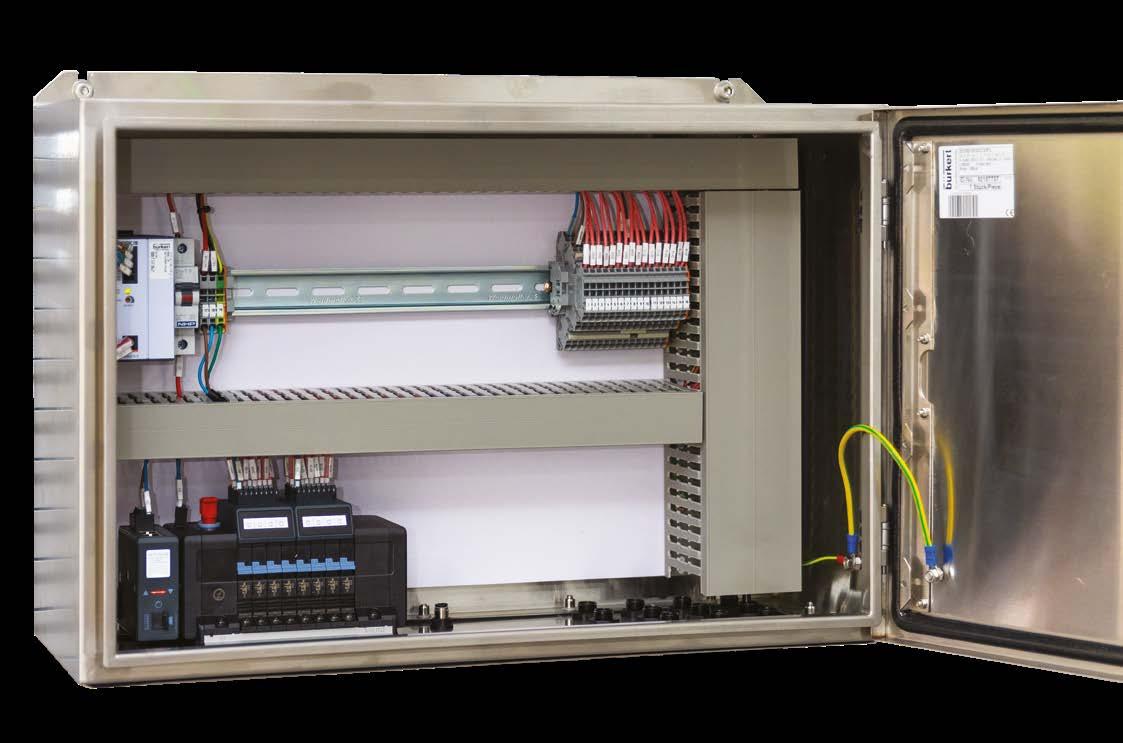

Industrial Ethernet Version Shown
316 stainless steel enclosure with wall mounting brackets
Vent ports supplied with plastic silencers
5/2-way H function
pilot valves supplied as standard
6mm port plugs also supplied to allow for 3/2-way C or D function if required
All digital inputs (for opened / closed feedback from field actuators) are pre-wired to triple deck marshalling terminals from the valve manifold
Burkert Type 1573 power supply 24VDC (2A)
Marshalling terminals for incoming 240VAC supply
Type 8652 with with: 5/2-way H function, ~300LPM pilot valves including hot swap, check valve and manual override; digital inputs for field actuator feedback; and air pressure monitoring as standard. Ethernet IP, Profinet, Modbus TCP & EtherCAT protocols are included and selectable via software.
Burkert’s unique AirLINE quick manifold prevents the need for internal pneumatic tubing
Plate and fittings are 316 stainless steel
16mm cable glands for incoming power, Ethernet comms and feedback cabling
Spare compressed air supply ports plugged
Removable gland plate for increased flexibility and customisation
M12 panel vent
Ready-to-Assemble Cabinets
Panel Sizes
Accessories
Pneumatic Fittings
Adaptor G 1/8
Adaptor G 1/4
Adaptor G 3/8
Swivel Elbow G 1/8
Elbow G 1/4
Elbow G 3/8
Adaptor G 1/8
Adaptor G 1/4
Adaptor G 3/8
Accessories
Air Preparation Units
FILTER REGULATOR KITS
TECHNICAL DATA
to +50 °C at 10 barg Max. supply pressure 0 to 16 barg
Control rage 0.5 to 10 barg

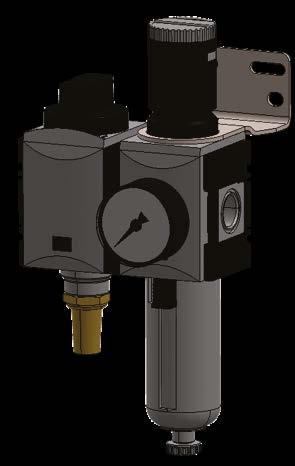

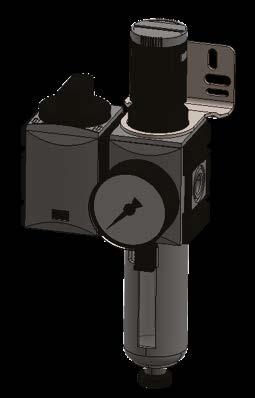

Filter-regulator assemblies to suit Burkert valve panels condition air, removing moisture and odours from air supply, reducing the chance of premature failure of the valve manifold.
Burkert Type TPM001 filter regulator kits can be offered to accompany each panel. Available in G1/4” and G½” versions:
• 92182624 = G¼” ~2200 LPM flow (size 1)
• 92182625 = G½” ~5200 LPM flow (size 2)
Body material: plastic Grivory
GV-6H with 60% glass fibre
3/2-way manual ball valve with NBR seals
5 micron filter with semi-automatic drain
Push to lock and padlockable regulator adjustment knob
At Burkert we provide a number of solutions for our customers so they can get what they need, when they need it. Fast and efficient 24/7 ordering through our eShop, strong collaboration with our technical sales staff and working personally with our team of Burkert experts for customised projects.
Service. On-site + off-site support for faults, analysis, plus system implementation and optimisation.
Installation. Assistance to get you up and running. Upgrades or new installs, our team can support with on-site installation.
Calibration. On-site inspection + re-calibration of sensors and transmitters to ensure your system is running optimally.
Training. Online Academy with certified trainers or hands on training for engineers + maintenance teams.
Maintenance. On-site health checks and review of application performance can increase efficiencies + reduce downtime. Quick turnaround on parts and repairs.
