DIAMOND NEEDLE FILE SETS NEEDLE FILES AND SCRAPERS BLADES
CERAMICS 20-21
NOGA O-RING
NOGA V CUT
KEYWAY BURR
DOUBLE BURR
NOGAGRIP 1 HANDLE
NOGAGRIP 3 HANDLE
K HOLDER
L HOLDER BLADES
SETS AND KITS 23-27
CONVEXED CERA-CUT
CONCAVED CERA-CUT
CERA-CUT HANDLE BLADES
NOGA SOFT CUT TOOL
NOGA HARD CUT TOOL
NOGA CUT HANDLE
NOGA CUT BLADES
CONVEXED DISPOSABLE CERA-CUT
CERAMIC DOUBLE BURR
CERAMIC DOUBLE BURR BLADE
SPECIALTY TOOLS AND BLADES 28-31

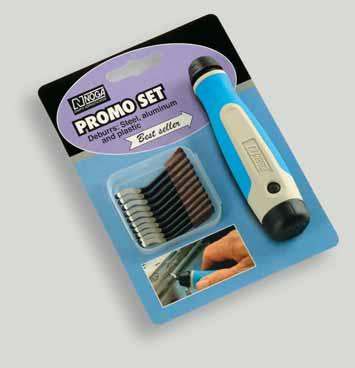

PROMO SETS

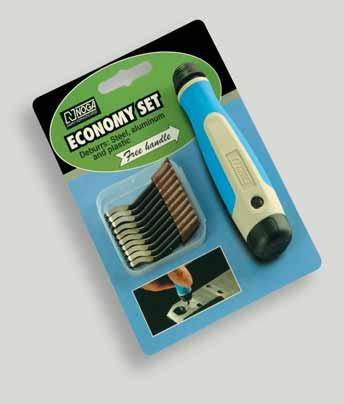

ECONOMY SETS

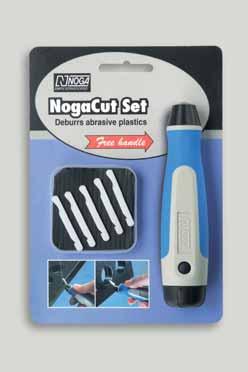

NOGACUT SET

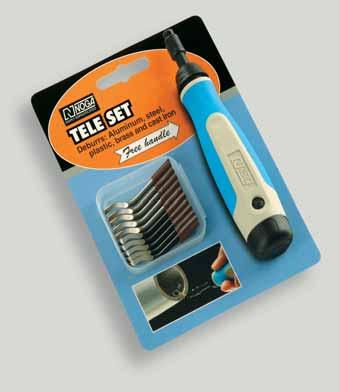

TELE SETS THE SET
PLATINUM BOX
GOLD BOX
SILVER UNIKIT
BRONZE UNIKIT
PLASTIC EDGE OFF SET
TROUBLE SHOOTER SET
MAGIC SET
PV HANDLE
SPECIAL TOOLS
TRIO SET
REAMER
SPECIAL BLADES
deburringsystem
NOGA BURR 3 NG1003
Will do almost all of your deburring jobs. Includes: NG-1 handle, S10, S20 and S35 blades.
NOGA BURR 5 NG1005
Same as NG1003 but with 2 extra blades. Suitable for coarse to extra fine deburring operations.
Includes: NG-1 handle, S10, S20, S35, S101 and S202 blades.

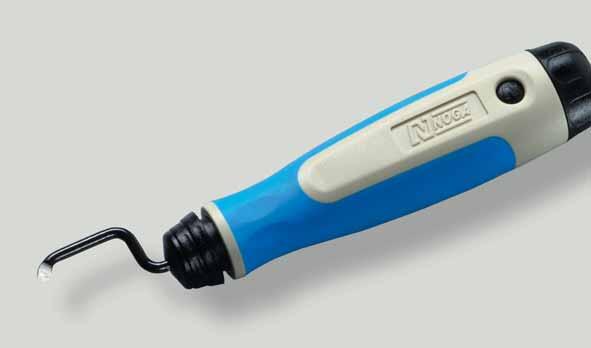

SUPER BURR NG3003
For heavy duty jobs. Includes: NG-3 handle, S holder, S100, S20 and S30 blades.
HANDLESHOLDER

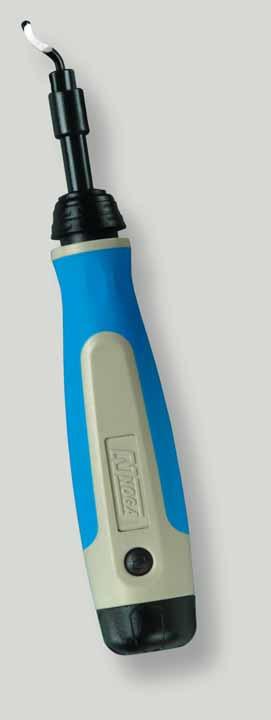

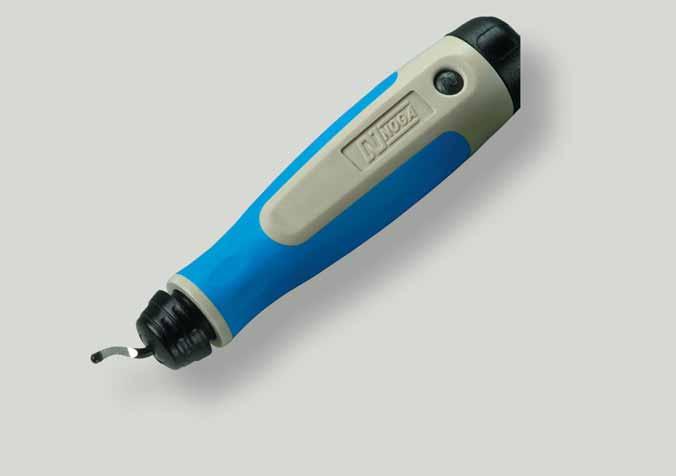

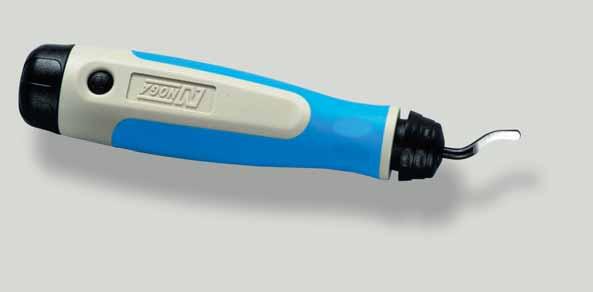

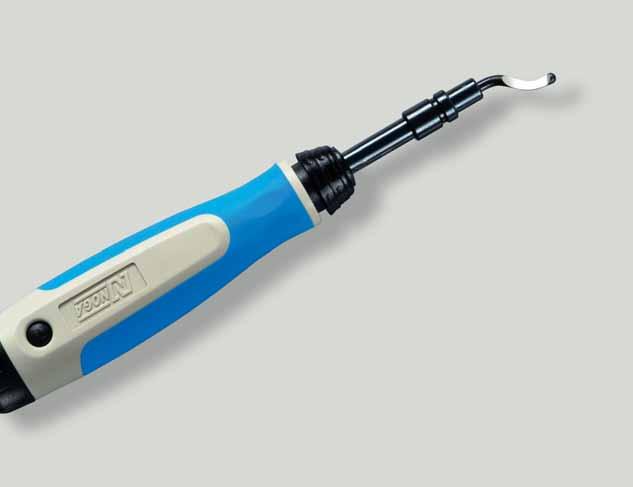

NG-1 Handle NG1000
NogaGrip-1 holds all S blades (3.2mm). Spare blades are kept inside the handle. Designed for maximum comfort in your hand.
NG-3 Handle NG3000
NogaGrip-3 holds all blade holders. Spare blades are kept inside the handle. Designed for maximum comfort in your hand.
S Holder EL02003
Holds S blades (3.2mm). S holder telescopes from 30-115mm. Length: 131mm.
HEAVY DUTY ø3.2mm
BLADES

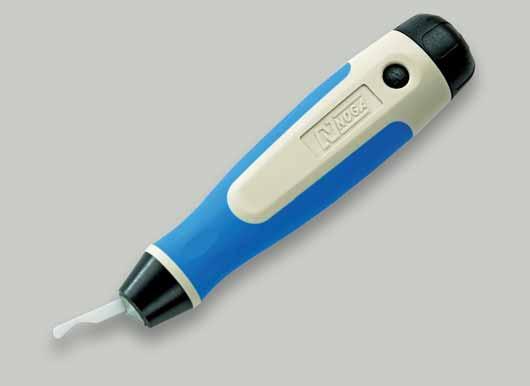

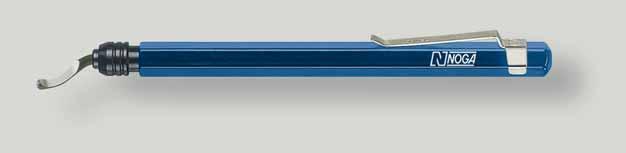

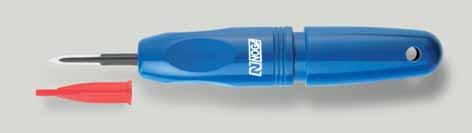

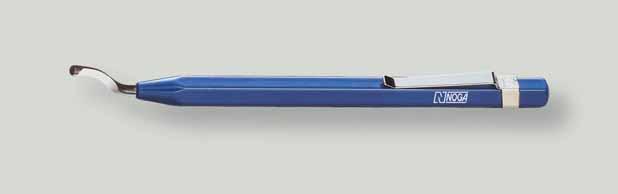

EDGE OFF EO1000
Disposable tool. A handy pocket clip is a standard feature of this tool. Includes: S10 blade mounted in an 8mm painted hexagonal aluminum handle.

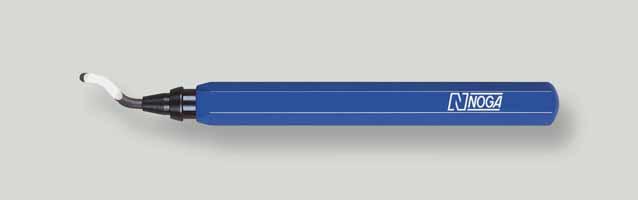

RAPID BURR RB1000
Steel housing for long life of handle. Blade is replaceable. Holds 3.2mm blades. Includes: 12mm hexagonal aluminum painted handle and S10 blade.
Order No.
steel, aluminum and plastic
abrasive material
brass and cast iron
stainless steel
both int. and ext. burrs
straight edges on most materials
cross holes in difficult to reach places plastic and hard materials
fine edges on all materials
holes as small as 1.5mm Dia.
brass and cast iron fine edges
deburringsystem
MAGIC BURR 2 NG2002
Will do almost all of your deburring jobs. Includes: NG-2 handle, N1 and N2 blades.
MAGIC BURR 4 NG2004
Same as NG2002 with two extra blades for cross holes in difficult to reach places Includes: NG-2 handle, N1, N2, N3 and N6 blades.
HANDLESHOLDER
NG-2 Handle NG2000
NogaGrip-2 holds N blades (2.6mm). Spare blades are kept inside the handle. Designed for maximum comfort in your hand.
NG-3 Handle NG3000
NogaGrip-3 holds all blade holders. Spare blades are kept inside the handle. Designed for maximum comfort in your hand.
N Holder EL01033
Holds 2.6mm blades. N holder telescopes from 25-115mm. Length: 131mm.

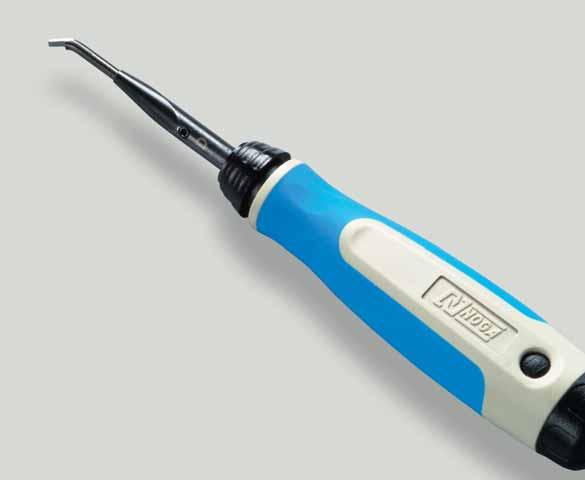

TELE BURR NG3002
Holds 2.6mm N blades. Highly popular tool. Includes: NG-3 handle, N holder, N1 and N2 blades.
LIGHT DUTY ø2.6mm
TEDDYBURR TB1000
BLADES
Order No.
Design for hard to reach locations. Blade is replaceable. Steel housing for long life of handle. Includes: 8mm painted hexagonal aluminum handle and N1 blade.
steel, aluminum and plastic
abrasive material
brass and cast iron
stainless steel
plastic and hard materials
both int. and ext. burrs
cross holes in difficult to reach places
deburringsystem

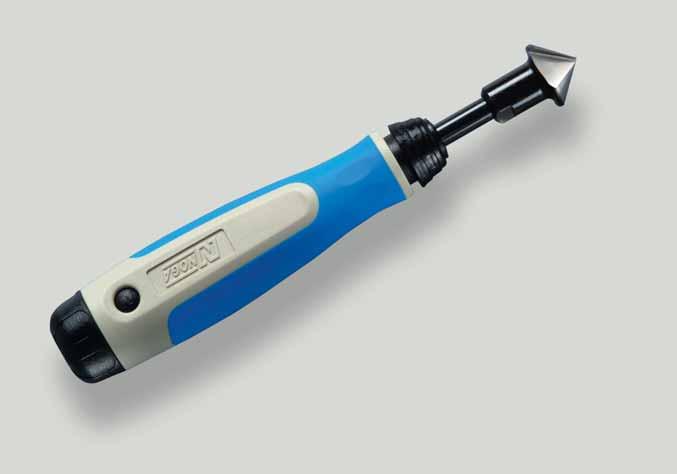

COUNTERSINK
NG3100
The standard tool for countersinking.
Useful for chamfering deep holes. Includes: NG-3 handle, C holder and C20 countersink (20mm).
HANDLEHOLDER
NG-3 Handle NG3000
NogaGrip-3 holds all blade holders. Designed for maximum comfort in your hand.
C Holder CH3000
Holds C12, C20 and C30 countersinks. M7 external thread. Has an hexagonal cross section to prevent rotating inside handle. Length: 131mm.
COUNTERSINKS

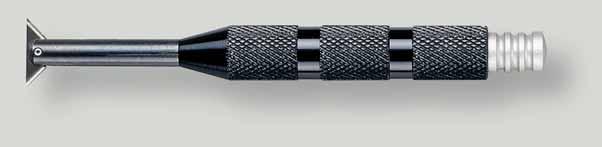

MINI REVERSIBLE RC1000
Very fine tool for deburring both back and front sides of holes.
Range: 3-5.5mm.
Includes: steel handle and R1 blade.

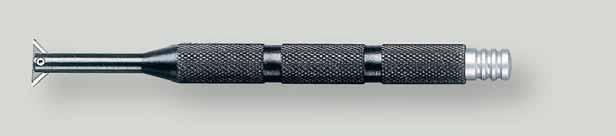

MEDIUM REVERSIBLE RC2000
Range: 5-10mm.
Includes: steel handle and R2 blade.
LARGE REVERSIBLE RC2200
Range: 10-22mm.
Includes: steel handle and R3 blade.
TO REPLACE THE BLADE
Pull the aluminum knob out of the handle. At its end there is an hexagonal key. Use this key to replace the blade.
deburringsystem
PATENTED
PATENTED
H.D. EXT. ROTODRIVE NG3500
Chamfers the O.D. on bars and tubes. Range: 8-28mm.
Includes: NG-3 handle, H.D. external RotoDrive holder, and EX28 countersink.

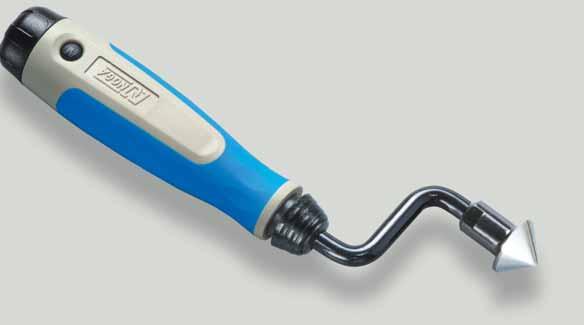

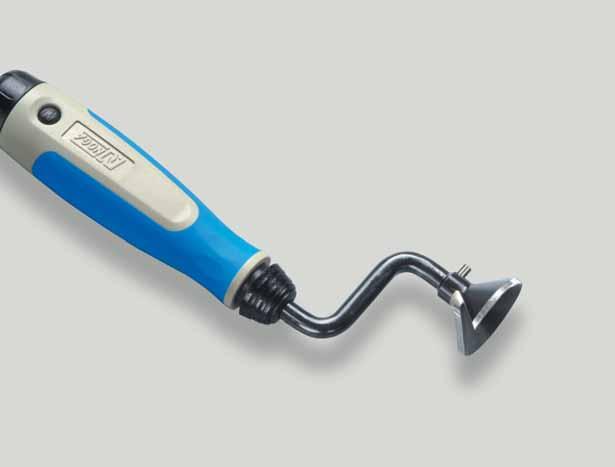

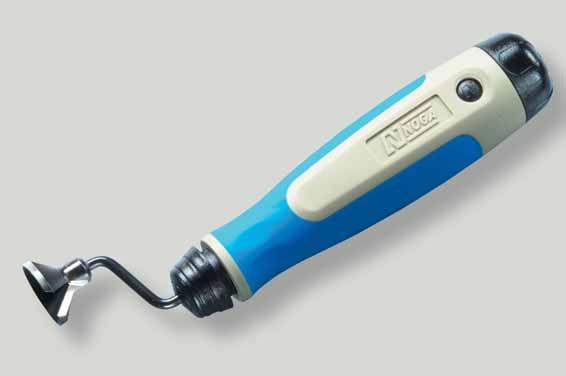

H.D. ROTODRIVE NG3400
40mm displacement allows for heavy duty burrs to be removed. Continuous rotation of countersink enables very fast chamfering.
Includes: NG-3 handle, H.D. cranked RotoDrive holder and C20 countersink.
HANDLESHOLDERS
NG-1 Handle NG1000
NogaGrip-1 holds all S blades (3.2mm). Designed for maximum comfort in your hand.
NG-3 Handle NG3000
NogaGrip-3 holds all blade holders. Designed for maximum comfort in your hand.
H.D. RotoDrive Holder EL0802
Heavy duty crancked holder. External M7 thread to hold C12, C20 and C30 countersinks. h 40mm.
H.D. Ext. RotoDrive Holder EL0902
Heavy duty crancked holder. Accepts EX28 external countersink. h 40mm. h h
COUNTERSINKS
EXT. ROTODRIVE NG1700
Chamfers the O.D. on bars and tubes. Quickest way to chamfer O.D. on almost all materials. Range: 4-18mm. Includes: NG-1 handle and external RotoDrive EX18 countersink.

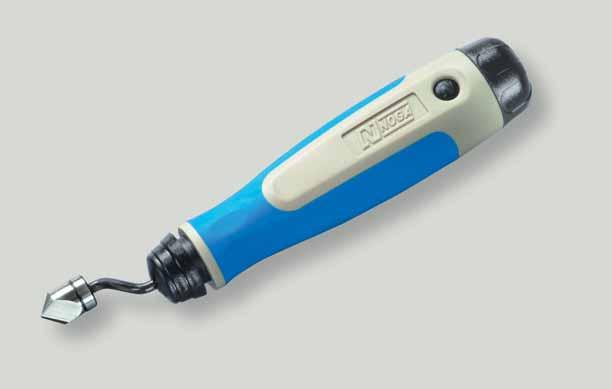

ROTODRIVE NG1200
The quickest way to chamfer by hand. Single flute countersink provides a smoother cut. Includes: NG-1 handle and RD10.4 RotoDrive countersink.
deburringsystem
MINI SCRAPER NG3700
Ideal for tool and die makers. Includes: NG-3 handle, D holder, triangular mini scraper D50 blade and hex key.
HANDLES
UNI Handle UH1000
A unique Handle which can hold Noga T120 scraper blade.
NG-3 Handle NG3000
NogaGrip-3 holds all blade holders. Designed for maximum comfort in
BLADE & HOLDER
T 120 BT1200
Heavy Duty scraping. Double ended.
- Made of CR115.
Hardness 58-60Rc.
- Blade dimensions 7.4x120mm.
- Included angle 60°
SC Handle SC1300
12mm anodized handle. Knurled locking collar to control blade
Holds: D50, D66, D75, D77 and T80 Length: 120mm.
D Holder EL05003
D holder is designed to hold D50 and D66 blades. A 3mm setscrew is holding the blade. Hex key included. Length: 131mm.
SCRAPERS

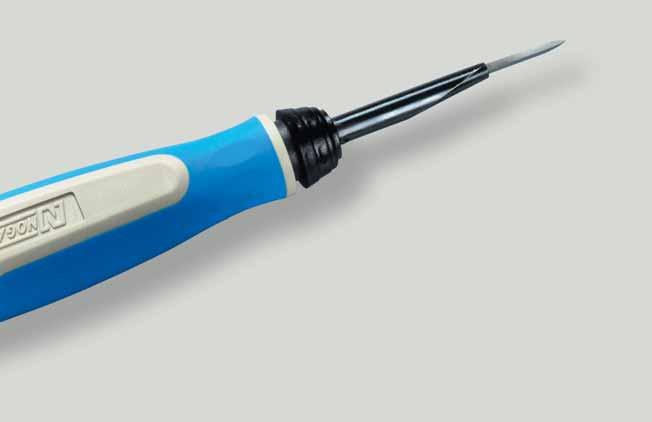

INTERNAL SCRAPER NG3710
Ideal for cross-holes deburring. Includes: NG-3 handle, D holder and Internal scraper D66 blade.

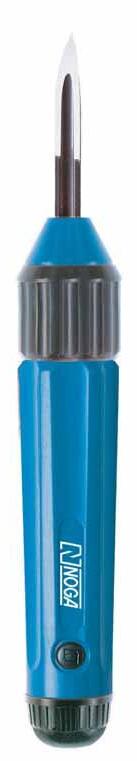

ADJUSTABLE SCRAPER SC8000
Ideal for scraping, trimming and deburring almost all materials. Includes: 12mm anodized handle and T80 double ended triangular scraper.
BLADES
Bushing Scraping Straight Edge Holes
Pipe Cross Holes
deburringsystem
Adjustable Mini Scraper YT1100
The best mini scraper for tool and die makers. Includes: YT handle (YT1000) and D75 H.S.S triangular mini scraper (BD7501). Size: 75x2.5mm.
Adjustable Scraper YT1200
Ideal for scraping, trimming and deburring almost all materials.
Includes: YT handle (YT1000) and T80 double ended triangular medium scraper (BT8001). Size: 80x4.2mm.
HANDLE

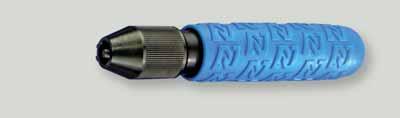

YT Handle YT1000
The perfect grip on: Noga adjustable scrapers
Needle files
Pins
Drills
• Quick change
• Fits every hand
• Flexible collet
Range: 2.2-4.5mm.
YT PRODUCTS

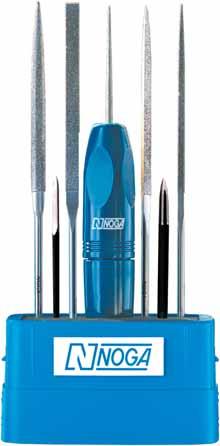

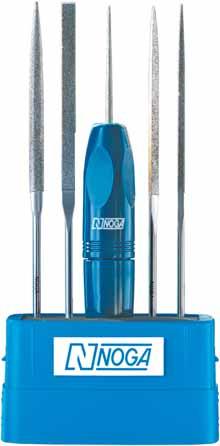

DIAMOND NEEDLE FILES SETS
The files are of Swiss made blanks electroplated with ultra high concentration of precisely graded diamond particles. A must for any tool and die shop, extruders, and repairs of hardened alloys and ceramic.
Total length - 140 mm.
Coated length - 70 mm.
Shank - ø 3 mm.
Grit size: D126
YT 3000 - Includes 5 files as shown below, D75 HSS Triangular Scraper, T80 double ended triangular Scraper and YT1000 handle.
YT 3300 - Includes 5 files and YT1000 handle.
deburringsystem
NOGA O-RING BURR
NG1100
Removes burrs from internal O-ring grooves.
Range: 0-3mm (groove width).
Includes: NG-1 handle and O-ring blade.
HANDLES
NG-1 Handle NG1000
NogaGrip-1 holds all S blades (3.2mm). Designed for maximum comfort in your hand .
NG-3 Handle NG3000
NogaGrip-3 holds all blade holders. Designed for maximum comfort in your hand.
HOLDERS
K Holder EL04003
Holds K blades with M3 screw. Length: 135mm.
PATENTED
L Holder EL07013
Holds L blades. Blades are held in a 3mm square hole and tightened with 4mm setscrew. Length: 131mm.

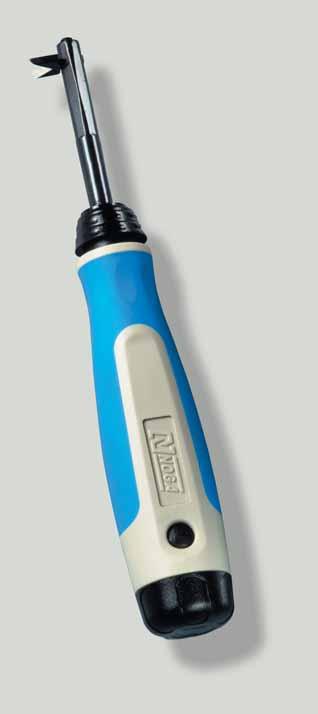

NOGA V CUT NG3200
For deburring sheet metal 1-8mm.
Includes: NG-3 handle, L holder and L3 blade.

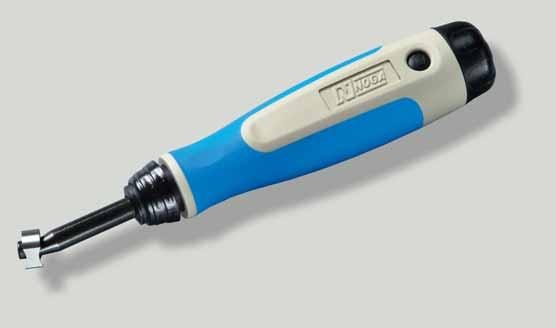

KEYWAY-BURR NG3300
Effectively removes burrs from internal and external keyways. Range: 2.4-11mm. Includes: NG-3 handle, K holder and N80K blade.

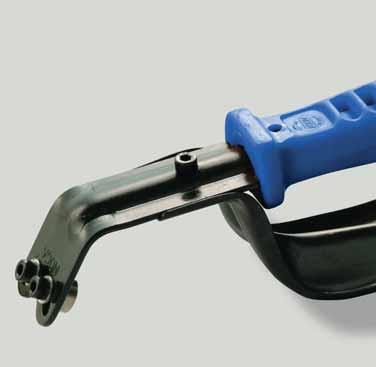

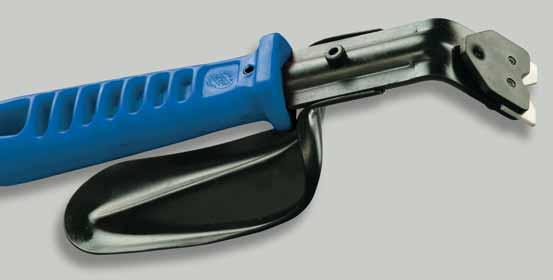

DOUBLE BURR DB1000
Simultaneously removes burrs from both sides of sheet metal. DB handle with safety guard to protect your hand. Unique round cutting blades can be rotated and reversed for long life. For corners, use one blade only. Range: 0-12mm. Includes: DB handle, hand guard and two N80 blades.
All blades are made of H.S.S.. Hardness 62-64Rc except N80M42 and N80KM42, 65-67Rc.
BN8010
BN8043
BN7001
BN8110
BN8143 BN9009
deburringsystem
HANDLE
CONVEXED CERA-CUT
CONCAVED CERA-CUT CR2300
Ideal for all plastic materials and soft metals. Ideal for curved edges and small ridges. Blade can be replaced. Includes: Cera-Cut handle and 15mm concaved radius blade.

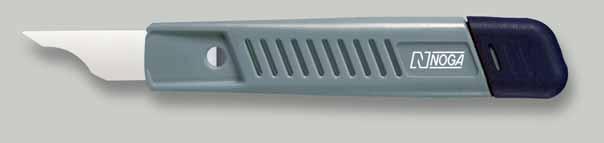

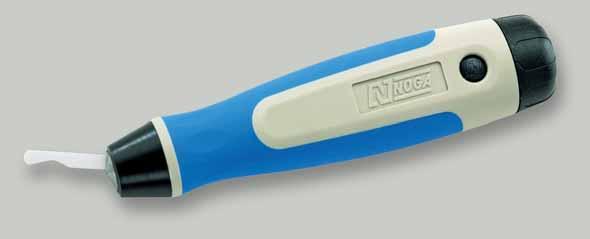

CERA-CUT Handle CR2100
A unique plastic handle that holds the blade by its self gripping taper. Storage space for spare blades. Length: 135mm.
BLADES
To remove blade
1.Remove the cap from the rear of the tool.
2.Insert the cap in the round hole and turn 90°
3.Pull the blade out.
To insert blade
1.Insert the blade into the groove.
2.To secure the blade in place, hold the blade and lightly tap the handle against a solid surface.
for surface cleaning and parting line deflashing
for curved edges and small ridges
CERAMIC TOOLS
HANDLE
NOGA-CUT Handle NC5000
Can hold NogaCut blades only CR6000 & CR6100.
NOGA SOFT CUT TOOL NC5100
Ideal for deburring soft abrasive plastics
Includes: NogaCut handle NC5000 and NogaCut blade 65° CR6000.
NOGA
HARD CUT TOOL NC5200
Ideal for deburring hard abrasive plastics
Includes: NogaCut handle NC5000 and NogaCut blade 75° CR6100.
deburringsystem

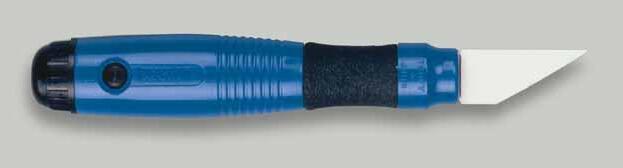

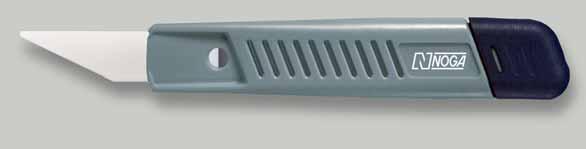

CERA-CUT CR1100
Ideal for deburring plastics and other soft materials. Extremely long life. Disposable tool.
Includes:
250mm convexed radius ceramic blade, mounted in ergonomically held handle with soft grip.
CERAMIC DOUBLE BURR DB5000
Ideal for deburring both sides of a workpiece simultaneously. Blade can be replaced. Range: 1-11 mm.
Includes:
BLADES Order No.
V-shaped ceramic blade mounted in ergonomically designed DB handle with safety guard to protect your hand. Material

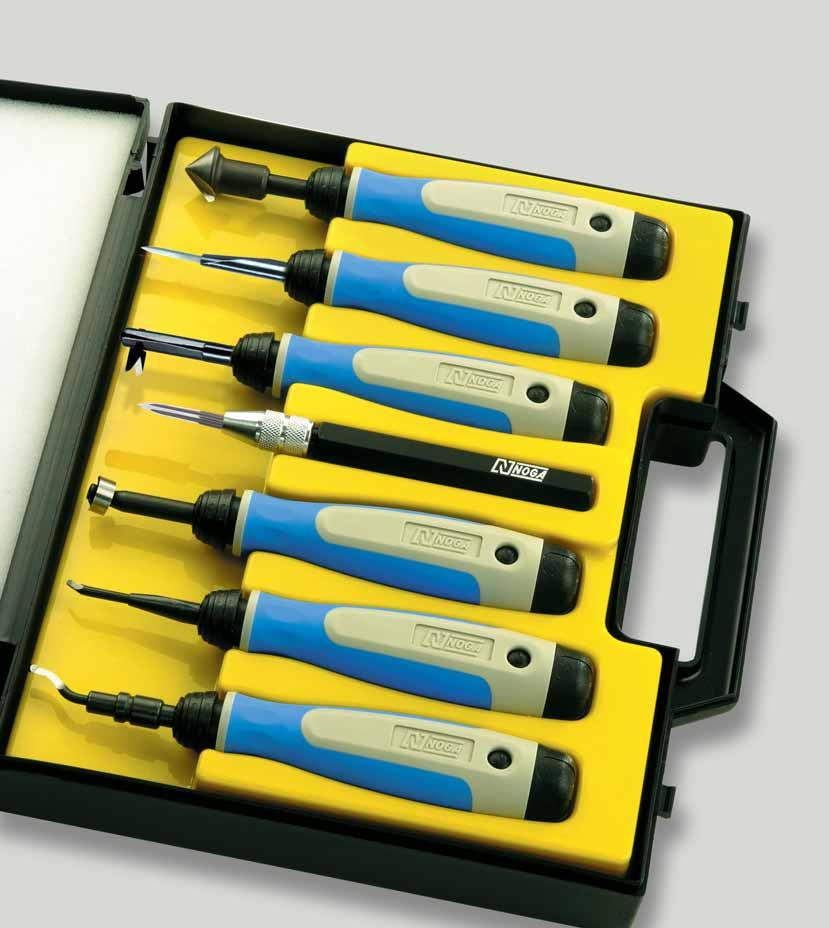

The 7 most popular deburring tools you need to carry for any deburring application. Packed in one handy box.
Pack dimensions: 270x230x50mm.
Includes: Adjustable Scrapr SC8000
Keyway Burr NG3300
“V” Cut NG3200
Mini Scraper NG3700
Countersink NG3100
Internal Scraper NG3710
Super Burr NG3003

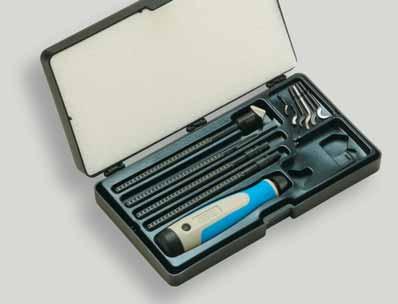

KITS

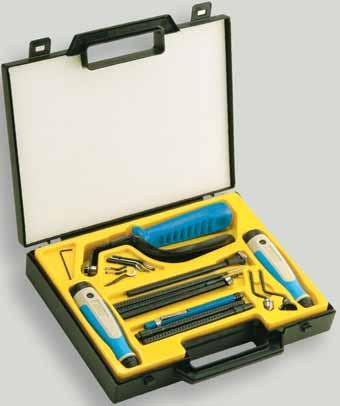

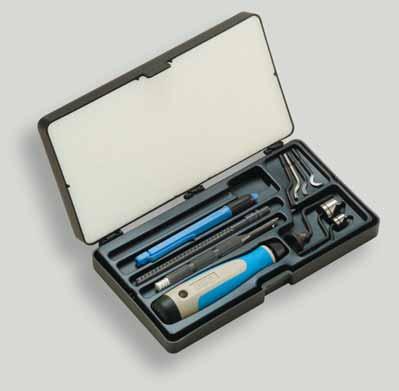

PLATINUM BOX NG9500
Collected to meet the total requirements of tool and die makers and for deburring specialists
Includes:
Double Burr
NogaGrip 1 handle
NogaGrip 3 handle
Teddy Burr handle
S holder
N holder
K holder + N80K
D holder + D50
D holder + D66
C holder + C20
18mm external RotoDrive blade
10.4mm countersink RotoDrive.
Blades: N1, N2, S10, S20, S30 and S150.
Hex key (1.5mm).
Pack dimensions: 270 x 230 x 50mm

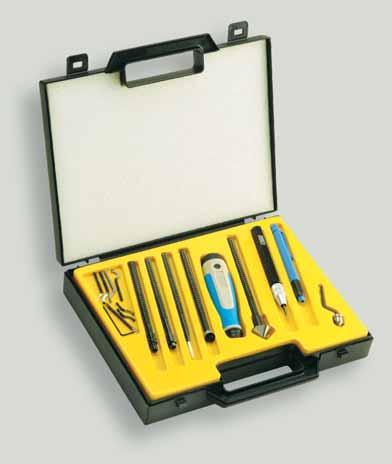

GOLD BOX NG9400
The most complete box for professional machinists
Includes:
NogaGrip 3 handle
Adjustable scraper
Plastic Edge Off handle.
S holder
N holder
C holder+C20
D holder+D50
K holder+N80K
Blades: N1, N2, S10, S20, S30, S150, D66 and 10.4
Countersink RotoDrive.
Hex key (1.5mm).
Pack dimensions: 270 x 230 x 50mm
deburringsystem
SILVER UNIKIT NG9300
Most suitable for MRO
Includes: NogaGrip 3 handle
S holder
Medium reversible countersink
Plastic Edge Off handle
3.2mm RotoDrive countersink
10.4mm RotoDrive countersink
16.5mm RotoDrive countersink
18mm External RotoDrive
Blades: S10, S20 and S30.
Pack dimensions: 215 x 120 x 40mm
BRONZE UNIKIT NG9200
Most economical deburring kit for all machinists
Includes: NogaGrip 3 handle
N holder
S holder
C holder + C20
D holder + D50
Blades: N1, N2, S10, S20, S30 and S150
Pack dimensions: 215 x 120 x 40mm

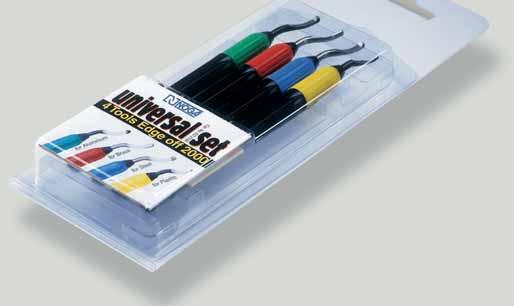

PLASTIC EDGE OFF SET EO2100
The most economical set
Includes:
EO handle +S10 blade, green sleeve (for aluminium)
EO handle +S20 blade, red sleeve (for brass & cast iron)
EO handle +S100 blade, blue sleeve (for steel)
EO handle +S150 blade, yellow sleeve (for plastic)
Pack dimensions: 222 x 78 x 22mm
SETS AND KITS
Advantages:
NOGA TROUBLE SHOOTER SET
SP1010
Deburring, Scraping and countersinking
Includes:
RB handle
S20 blade
S100 blade
S150 blade
RD16.5 RotoDrive countersink
RDE18 External RotoDrive countersink
D50 Modified Mini Scraper blade
Pack dimensions: 125 x 78 x 48mm

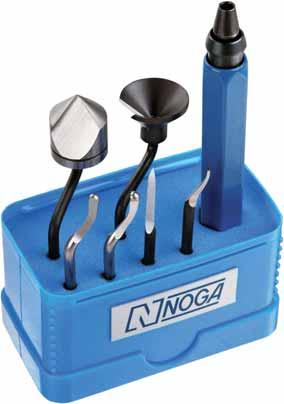

1. The handle can hold both types of blades rotating and fixed. 2. The set includes best moveable/popular blades.

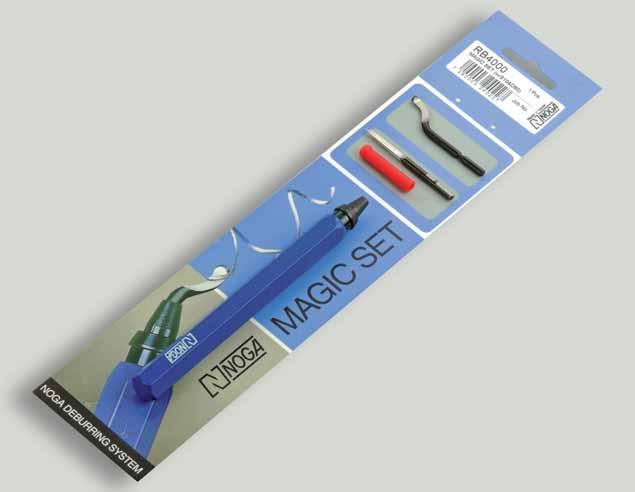

The new MAGIC SET includes Rapid Burr RB1000 and modified D50 Mini Scraper Blade.
S Swivel blade
To insert S blade, push black sleeve down while pushing the blade into handle.
D Scraper blade
Step 1: Insert the Scraper and gently push until it stops by the ball.
Step 2: Rotate Scraper until it slides in under the ball.
Step 3: Push sleeve down while pushing scraper to its final position.
MAGIC SET RB4000
deburringsystem
UNIVERSAL HANDY CHUCK HOLDER
PV1000
Aluminum handle with non slip covering.
A 3 jaw chuck helps with the quick and secure clamping of a wide variety of tools, blades and blade holders such as scrapers, countersinks, files etc. Hardness 58HRC.
SOFT GRIP SG1000
Ergonomically held handle. Two holes accepts both S and N blades. Includes: SG handle, S100 and N10 cobalt blades.
ø 3.2 mm
ø 2.6 mm
LIZA BURR LB1000
Double end blade holder to utilize both N and S blades. Telescopes from 20-110mm with N blades. 20-94mm with S blades.
Includes: Uni-handle, SN holder, N1 and N2 blades.
LEADER NG3800
Chamfering straight or curved edges. Ensures 45° chamfering. Includes: NG-3 handle, LD holder and L1 blade.
TO INSERT BLADE:
2
TO REMOVE BLADE: Repeat as above but pull out.
1.Hold handle in left hand and blade in right hand.
.Push blade in and turn clockwise simultaneously.
SPECIALTY TOOLS
NOGA SLOT CLEANER NG3210
Used to relieve corners of narrow slots from 3.5mm. Includes: NG-3 handle, L holder and L5 blade. (L7 double end blade for cutting in two directions is also available)
NOGA MINI CUT NG3220
Used for deburring small ridges in difficult to reach places. Range: 0-2.5mm. Includes: NG-3 handle. L holder and L4 blade.
NOGA CORNER CLEANER NG3230
Effective corner relief. Wide range of applications. Includes: NG-3 handle. L holder and L6 blade.
THREAD CLEANER NG1600
For cleaning damaged internal threads. Minimum Dia. 9mm. Maximum thread pitch 3mm. Includes: NG-1 handle and TC blade (See page 19).
Shallow Steps Cross Holes Straight Edge
Curved Edge Holes Deep Holes
deburringsystem

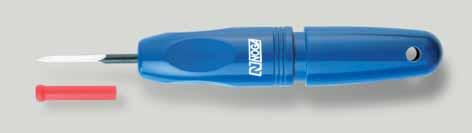

PLASTIC RAPID BURR RB1400
Holds all S blades (3.2mm). The blade is replaceable. Includes: plastic handle and S100 blade.
PLASTIC EDGE OFF EO2000
Most competitive tool. Holds all S blades (3.2mm). The blade is replaceable.
Includes: plastic handle and S10 blade.
PLASTIC REAMER SP8100
Deburr both inside and outside edges of tube. Made of plastic body. Have 3 cutters. Reamer for aluminum, brass and copper tubing. Range: 4-42mm.

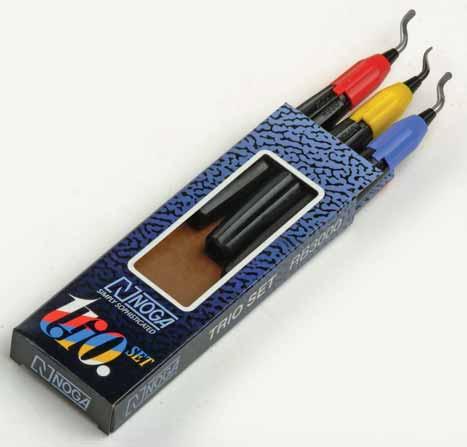

NOGA TRIO
RB3000
Standard set
Includes:
RB handle +S20 blade, red sleeve (brass & cast iron)
RB handle +S100 blade, blue sleeve (steel & aluminium)
RB handle +S150 extra fine blade, yellow sleeve (plastic)
Pack dimensions: 175 x 50 x 20mm
SPECIALTY BLADES
BladesWorks best on
N1 Carbide
N1 Diamond
N2 Carbide
N1 LH
N1 LH TiN
S10 Carbide
S10 Diamond
S10 LH
S10 LH TiN
S100 TiN
S20 Carbide
S101 LH
S101 TiN
S150 TiN
S30 TiN
S60 TiN
S80
S80 TiN
S70
BS1500
L1
L5
L6
L7
Order No.
BN1029
BN1028
BN2031
BN1026
BN1027
BS1016
BS1014
BS1011
BS1013
BS1019
BS2015
BK1011
BK1012
BK3103
BS3003
BS6003
BS8001
BS8003
BS7001
BS1510
BL1001
BL5001
BL6001
BL7001
hardened steel & special plastics
glass & ceramics
hardened steel & hard plastics
steel, aluminum & plastic
steel, aluminum & plastic. For long life.
hardened steel & plastic
glass & ceramics
steel, aluminum & plastic
steel, aluminum & plastic. For long life.
stainless steel & plastic. For long life.
hardened materials & plastic
H.D. shank for steel, aluminum & plastic
H.D. shank for steel, aluminum & plastic. For long life.
holes as small as 1.5mm Dia. For long life.
both int. & ext. burrs. For long life.
cross holes in difficult to reach places. For long life.
shallow steps
shallow steps. For long life.
straight edges
Special blade for deburring rubber and soft materials
