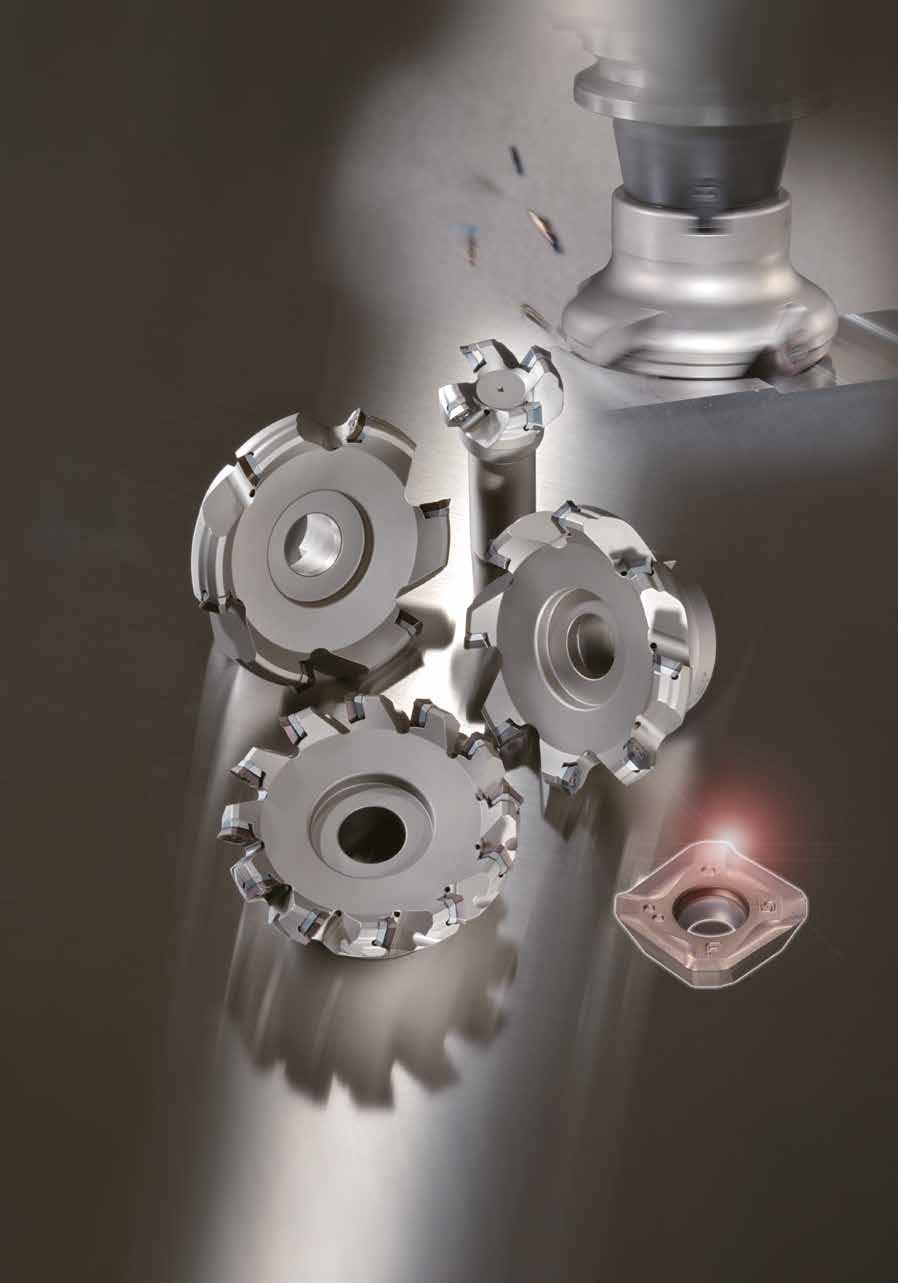

High-Rake, General-Purpose Face Milling Cutter
SEC-WAVEMILL
Unique chipbreaker design achieves low cutting force and high-quality surface finish
Next-Generation Coated Carbide Grades for Milling
ACS1000/ACS2500/ACS3000 now available for WGX series
¢ Features
Reduced Cutting Force
¢ General Features
SEC-WaveMill WGX Type employs a unique chipbreaker design to provide lower cutting force and higher-quality surface finish than conventional cutters. Lineup of insert grades and chipbreakers has been significantly expanded, and employment of the ACM series enables machining of stainless steel and exotic alloys.
Also applicable to any work material using the general-purpose grade ACU2500 or the new generation coated carbide grades ACS1000/ACS2500/ACS3000.
· High-rake chipbreaker designed for use with the WGX type achieves low cutting force
High Quality

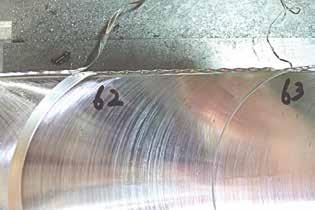

· Additional edge chamfer reduces burrs and edge chipping
Wide Ranging Product Lineup
· Improved runout precision and unique wiper flat shape ensure excellent surface finish quality
· Can be used for a wide variety of machining applications.
¢ Insert Shape Features

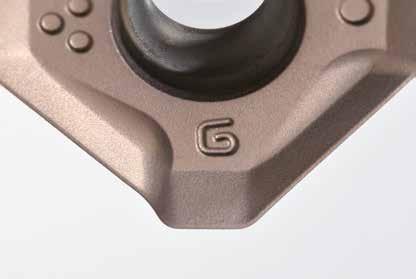

General-purpose G Type Chipbreaker
¢ Product Range
A wide selection of grades along with 4 types of chipbreakers and wiper inserts are available.

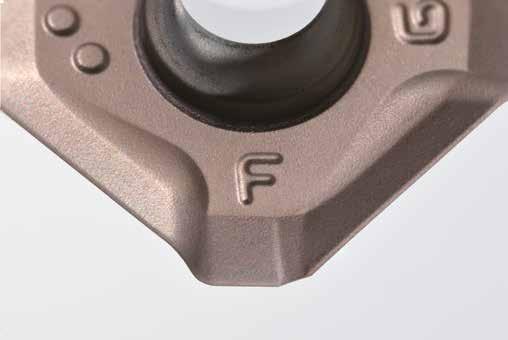

(1) Unique wiper flat shape for improved surface roughness (2) Large rake angle and cutting edge rake angle for improved sharpness
General-purpose G Type Chipbreaker
LowCuttingForce
GoodSurfaceFinish
1/2orLessRunout
¢
Insert Grades Selection Guide
New-generation coated carbide grades ACS1000/ ACS2500/ACS3000 now available!
Enhanced lineup of coated grades in addition to cemented carbide and cermet for milling steel, stainless steel, cast iron, and aluminum alloy.
¢ Grade Features

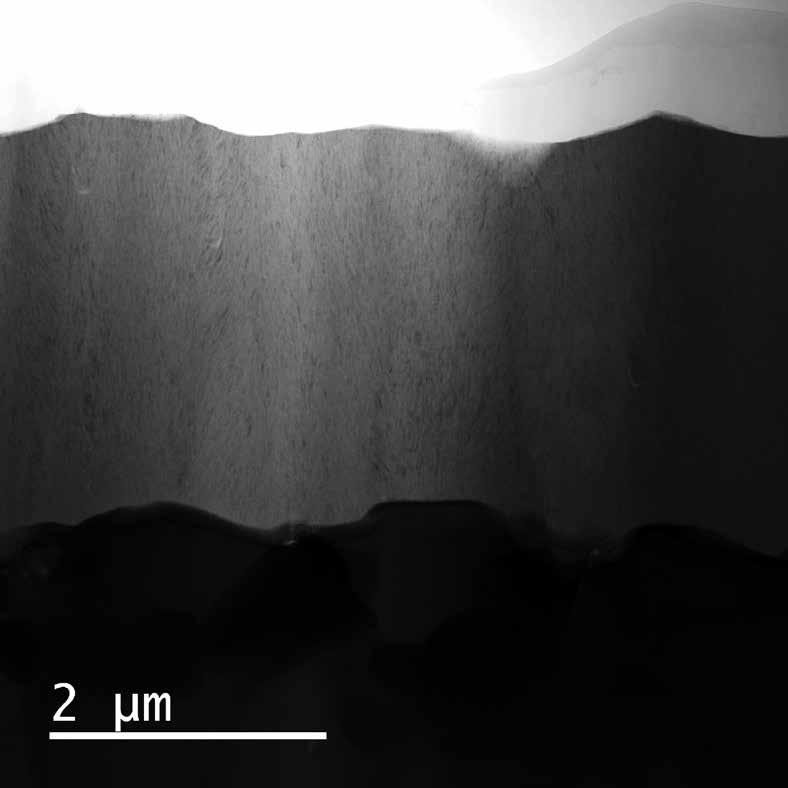

New ABSOTECH™ (absolute technology) coating technology that realises absolute stability
PVD coating with excellent wear and chipping resistance
ACP200/ACP300/ACK300/ACM300
Realises superb stability due to a carbide substrate optimised for steel, cast iron, and stainless steel with a highly chipping-resistant coating.
ACP100/ACK200/ACM200
Realises superb stability in high-efficiency machining due to a carbide substrate optimised for steel, cast iron, and stainless steel with a highly wear-resistant coating.
DL1000
Coat (DLC (Diamond-like Carbon))
Second only to diamond in terms of hardness, this flat and smooth coating has a low coefficient of friction and provides excellent adhesion resistance to deliver better machined surface quality.
Body – Shell Type
General Milling of Steel and Cast Iron Identification Details
Body – Dimensions
Type: WGX, Standard Pitch
Type: WGXM, Medium Pitch
Type: WGXF, Fine Pitch
General Milling of Steel and Cast Iron
(Extra Fine Pitch)
Inserts are sold separately. Take note of the cutter mounting size (DCB) when selecting a cutter. Sizes ø160mm and above do not have coolant holes. For mounting the ø80 and ø100mm sized cutters marked with * to an arbor, use a JIS B1176 hex socket bolt (ø80: M12 x 30 to 35mm, ø100:
45mm).
WGX F 13 050 R S
