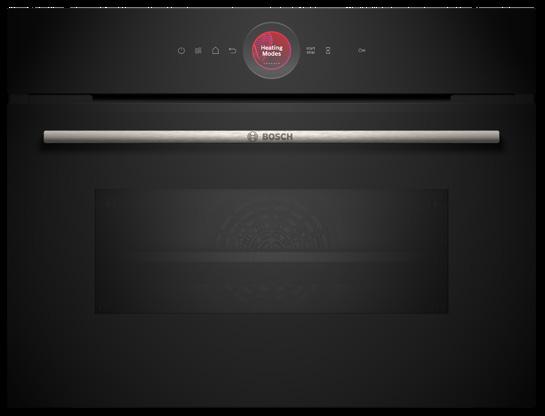

Product Description
Heating Methods
Comfort and Safety

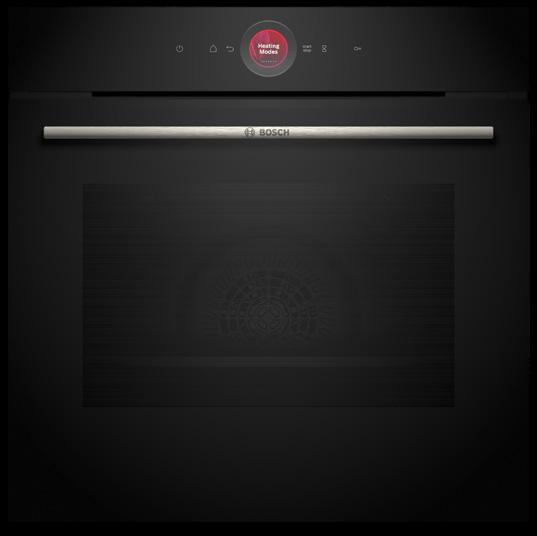

14 Heating methods: 4D Hot Air, Top/ bottom heat, Hot Air Grilling, Gentle Hot Air, Gentle Top/bottom heat, Full width grill, Half width grill, Pizza setting, Bottom heat, Low temperature cooking, Defrost, Plate warming, Keep Warm, Air Fry
Oven Capacity: 71 Litres
Temperature range 30°C – 300°C
TFT touch display Plus Temperature proposal
Actual temperature display
Oven door with SoftOpen and SoftClose
Dish Assist
PerfectRoast plus PerfectBake plus Electronic clock
Rapid heating-up
LED interior lighting
Child lock
Quadruple glazed door, CoolTouch door
HomeConnect ready on Wi-Fi
Cleaning
Pyrolytic self-cleaning Full glass inner door
Design Digital control ring
Cavity inner surface: Enamel Bar handle
Accessories*
1 x Combination grid
1 x Enamel baking tray
1 x Universal pan (optional: telescopic rails HEZ638070)
Product Specs Overall: (H x W x D):
59.5 x 59.4 x 54.8cm
Aperture: (H x W x D):
58.5-59.5 x 56.0-56.8 x 55.0cm Rating: 3600W
Barcode 4242005326679
14 Heating methods: 4D Hot Air, Top/ bottom heat, Hot Air Grilling, Gentle Hot Air , GentleTop/bottom heat, Full width grill, Half width grill, Pizza setting, Bottom heat, Low temperature cooking, Defrost, Plate warming, Keep Warm, Air Fry
Oven Capacity: 71 Litres
Temperature range 30°C – 300°C
TFT touch display Plus Temperature proposal
Actual temperature display
Oven door with SoftOpen and SoftClose
Dish Assist
PerfectRoast plus Electronic clock
Rapid heating-up
LED interior lighting
Child lock
Triple glazed door, CoolTouch door
HomeConnect ready on Wi-Fi
EcoClean Direct (back panel, ceiling, side liners)
Cleaning Assistance (programme) Full glass inner door
Digital control ring
Cavity inner surface: Enamel Bar handle
1 x Combination grid
1 x Enamel baking tray
1 x Universal pan
1 x air fry & grill tray (optional: telescopic rails HEZ638000)
Overall: (H x W x D):
59.5 x 59.4 x 54.8cm
Aperture: (H x W x D):
58.5-59.5 x 56.0-56.8 x 55.0cm Rating: 3600W
4242005326464
14 Heating methods: 3D Hot Air, Top/ bottom heat, Hot Air Grilling, Gentle Hot Air, Gentle Top/bottom heat, Full width grill, Half width grill, Pizza setting, Bottom heat, Low temperature cooking, Defrost, Plate warming, Keep Warm, Air Fry
Oven Capacity: 71 Litres
Temperature range 30°C – 300°C
TFT touch display
Temperature proposal
Actual temperature display
Oven door with SoftOpen and SoftClose
Dish Assist
Electronic clock
Rapid heating-up
Halogen interior lighting
Child lock
Triple glazed door, CoolTouch door
HomeConnect ready on Wi-Fi
EcoClean Direct (back panel)
Cleaning Assistance (programme) Full glass inner door
Digital control ring
Cavity inner surface: Enamel Bar handle
1 x Combination grid
1 x Enamel baking tray
1 x Universal pan
1 x air fry & grill tray
(optional: telescopic rails HEZ638000)
Overall: (H x W x D):
59.5 x 59.4 x 54.8cm
Aperture: (H x W x D):
58.5-59.5 x 56.0-56.8 x 55.0cm
Rating: 3600W
4242005326365
Product Description
Heating Methods

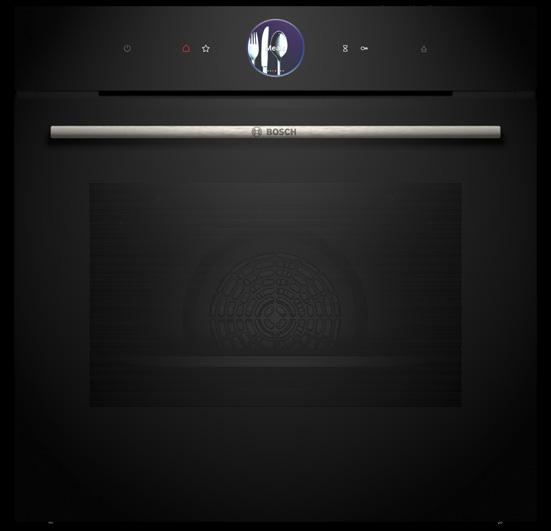

SERIES 8 MULTIFUNCTION OVEN WITH STEAM FUNCTION
21 Heating methods: 4D Hot Air, HotAir Eco, Top/bottom heat, Top/bottom heat Eco, Hot air grilling, Full width grill, Half width grill, Pizza setting, Bottom heat, Low temperature cooking, Preheating, Keep Warm, Air Fry. Steam, Defrost with steam, Regeneration with steam, Dough Proving with steam. Hot Air Grilling & Steam, Warming & Steam, 4D Hot Air & Steam, Top/bottom heat & Steam
Comfort and Safety Oven Capacity: 71 Litres
Temperature range 30°C – 250°C
TFT touch display Plus
Temperature proposal
Actual temperature display
Oven door with SoftOpen and SoftClose
Dish Assist
Steam Boost - add for 3min intensive steam with a touch of a button
Different steam intensities selectable: steam level high, steam level middle, steam level low
Electronic clock
Rapid heating-up
LED interior lighting
Child lock
Triple glazed door, CoolTouch door
HomeConnect ready on Wi-Fi
Cleaning EcoClean Direct (back panel)
Cleaning Assistance (programme)
Full glass inner door
Design Digital control ring
Cavity inner surface: Enamel
Bar handle
(Telescopic rails available as accessory)
Accessories*
Product Specs
1 x Enamel baking tray, 1 x Steam container, punched, size M, 1 x Steam container, punched, size XL, 1 x Steam container, unpunched, size M, 1 x Grid, 1 x Universal pan
Overall (H x W x D):
59.5 x 59.5 x 54.8cm
Aperture (H x W x D):
58.5-59.5 x 56.0-56.8 x 55.0cm
Rating: 3600W
Barcode 4242005327188

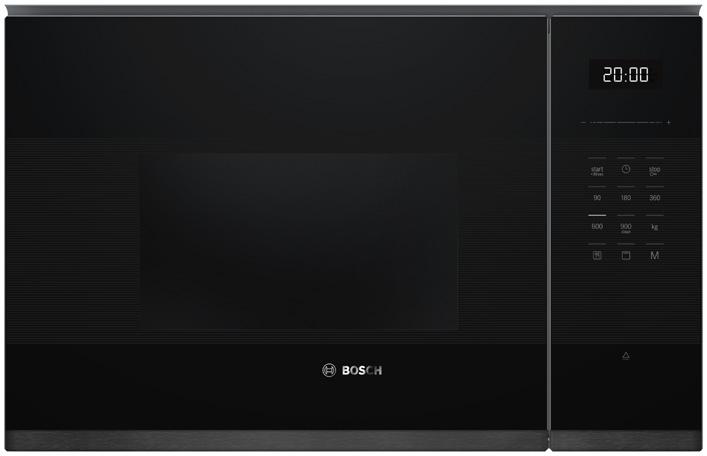

SERIES 8 BUILT-IN MICROWAVE OVEN
2D Hot Air, Top/bottom heat, Hot Air grilling, Gentle Hot Air, Gentle Top/bottom heat, Full width grill, Half width grill, Bottom heat, Plate warming, Air Fry, Circulating Air 5 Microwave power settings: 90W / 180W / 360W / 600W / Boost
Mircowave / Oven Combi: Top/bottom heat + MW, Grill + MW, Half width grill + MW, Hot Air grilling + MW
Oven Capacity: 45 Litres
Temperature range 30°C – 230°C
TFT touch display
Temperature proposal
Actual temperature display
Oven door with SoftOpen and SoftClose
Dish Assist
Electronic clock
Rapid heating-up
LED interior lighting
Child lock
Triple glazed door, CoolTouch door
HomeConnect ready on Wi-Fi
Cleaning Assistance (programme)
Digital control ring
Cavity inner surface: Enamel
Bar handle
1 x Combination grid 1 x Universal pan
Overall: (H x W x D):
45.5 x 59.4 x 54.8cm
Aperture: (H x W x D):
45.0 – 45.5 x 56.0 – 56.8 x 55.0cm
Rating: 3600W
4242005325924

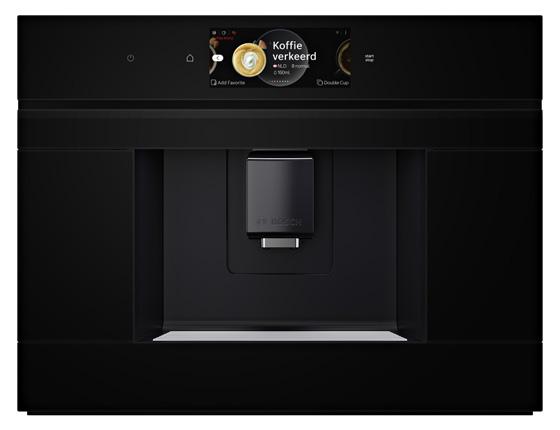

Comfort and Safety Flavour
Accessories*
Warm milk, milk froth and hot water function
Adjustable milk ratio for classic milk-mix beverages
Up to 32 different coffee specialties (within appliance and Home Connect app)
AromaSelect – 3 different aroma profiles (mild, balanced, distinctive)
Intelligent strength adjustment – adaptive coffee management based on strength and size
AromaDouble Shot - less bitternerss in large beverages due to two brewing processes
Home Connect: Smart connectivity to make everyday life easier
coffeeWorld: additional international coffee specialties are available in the app
coffeePlaylist: Simply enter several drinks you would like into the app in one go.
Cleaning program: The Home connect app reminds you when an action on the device is required during a cleaning program.
Convenience
TFT-Touchdisplay Pro - 6.8” TFT- colour display with touch and slide functionality for easy operation
oneTouch Function: All coffee and milk beverages are prepared at the touch of a button
superSilent: The most silent fully-automatic espresso makers
Favourites: Save up to 30 individual coffee preferences
Coffee outlet and milk frother height-adjustable: Up to15cm high
oneTouch DoubleCup: Prepare two cups simultaneously for all coffee or milk specialities at the touch of one button
Water tank removable for easy refilling (2.4l volume)
Performance
ceramDrive: Quiet premium grinder made of wear-resistant ceramic
In addition to beverages also available separately: milk foam, hot water
Reduced heat-up time: Fast first cup
Water pump with 19 bar pressure
Hygiene
Removable brewing unit - for easy and hygienic cleaning
autoMilk Clean: Automatic steam cleaning after every drink
Milk frother removable and dishwasher-proof
Automatic rinsing program when switching off, switching on
calc’nClean: Automatic cleaning and descaling programme - combined for less effort.
Reminds in time of water filter change, descaling, cleaning
Dishwasher-proof: beverage outlet, drip tray and drip pans
Miscellanous
Integrated milk container: easy to remove, fits into the fridge door, (0,7 ml)
Illuminated coffee outlet and stage
Bean container with aroma protection lid (500g volume)
Grinding fineness adjustable (multi-level)
Display language selectable
Child safety lock
1 x milk container, 1 x test strip, 1 x connection hose for milk frother, 1 x milk pipe, 1 x welcome-Box, 1 x assembly screws
Product Specs Overall (H x W x D): 45.5 x 59.4 x 38.5 cm
Aperture (H x W x D): 44.5 x 55.8 x 37.6 cm
Rating:1500W
Barcode 4242005310340
Price Excl. VAT* R 37 651.30
Price Incl. VAT** R 43 299.00
Disclaimer The above model is eligible for a 3 year warranty period.
Product Description
Heating Methods
Comfort and Safety

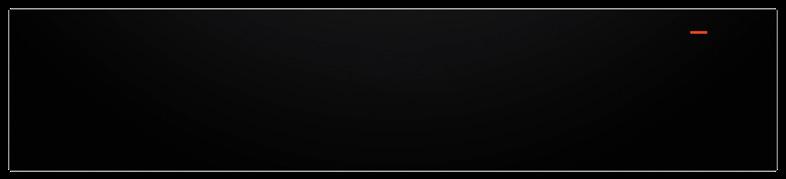

SERIES 8 WARMER DRAWER (29cm)
Heating plate made of toughened glass
Low temperature cooking, Keep warm, Plate warming, Cup warming
Cavity volume: 54 l
Loading up to 25 kg
Max. loading espresso cups: 192 PC
Max. loading plates: 40 PC
Touch control illuminated
Temperature control in 6 steps: ca. 30°C – 80°C (glass surface temperature)
Opening without handle (push/pull)
Favourite button (via Home Connect app)
Product Specs Overall: (H x W x D):
29.0 x 59.4 x 51.8cm
Aperture: (H x W x D):
29.0 x 56.0 – 56.8 x 55.0 cm
Rating: 810W
Barcode 4242005323029
SERIES 8 WARMER DRAWER (14cm)
Heating plate made of toughened glass
Low temperature cooking, Keep warm, Plate warming, Cup warming
Cavity volume: 20 l
Loading up to 25 kg
Max. load espresso cups: 64 PC
Max. load plates: 12 PC
Touch control illuminated
Temperature control in 6 steps: ca. 30°C – 80°C (glass surface temperature)
Opening without handle (push/pull)
Favourite button (via Home Connect app)
Overall: (H x W x D): 14.0 x 59.4 x 51.8cm
Aperture: (H x W x D): 14.0 x 56.0 – 56.8 x 55.0 cm
Rating: 810W
4242005311804 Price Excl.
R 13 912.17 R

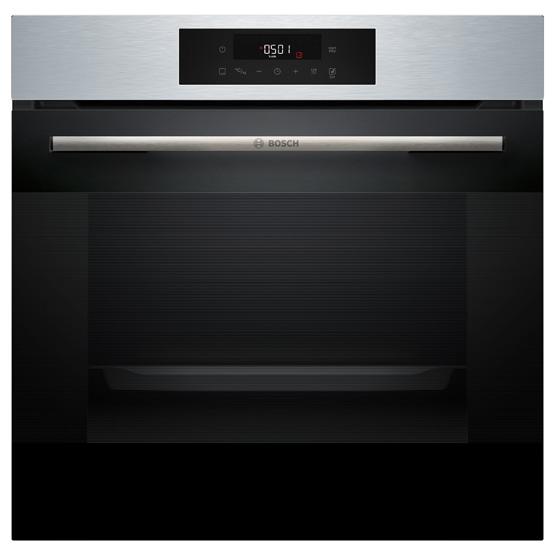

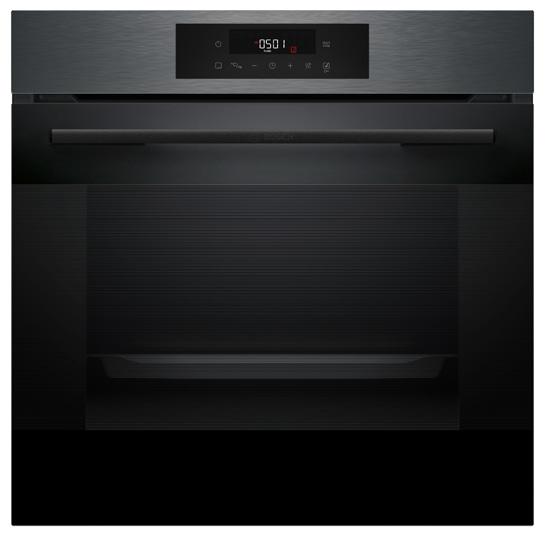

Product Description
Heating Methods 3D Hotair, Conventional heat, Hot air grilling, Full width grill, Pizza setting, Bottom heat, Hotair gentle, Air fry
Comfort and Safety Oven capacity: 76 Litres
Electronic clock
LED-touch control (red/white)
Temperature range 30 °C - 275 °C
AutoPilot 30
Oven door with SoftOpen and SoftClose
Halogen interior light
Integral cooling fan
Bar handle
Triple glazed door, CoolTouch door
Child lock
Cleaning
EcoClean Direct: coating of ceiling, back panel, side liners
EcoClean Direct program Full glass inner door
Design Touch control
Cavity inner surface: Enamel 1 level telescopic shelf
Accessories* 1 x air fry & grill tray 1 x combination grid 1 x universal pan
Product Specs
Hotair, Conventional heat, Hot air grilling, Full
grill, Pizza setting, Bottom heat, Hotair gentle, Air fry
Oven capacity: 76 Litres
Electronic clock
LED-touch control (red/white)
Temperature range 30 °C - 275 °C
AutoPilot 30
Oven door with SoftOpen and SoftClose
Halogen interior light
Integral cooling fan
Bar handle
Triple glazed door, CoolTouch door
Child lock
EcoClean Direct: coating of ceiling, back panel, side liners
EcoClean Direct program Full glass inner door
Touch control
Cavity inner surface: Enamel 1 level telescopic shelf
1 x air fry & grill tray 1 x combination grid 1 x universal pan
Overall (H x W x D): 59.5 cm x 59.4 cm x 54.8 cm
Aperture (H x W x D): 58.5 cm – 59.5 cm x 56.0 cm – 56.8 cm x 55.0 cm
Rating: 3600W
Barcode 4242005495085 4242005495078
Product Description
Heating Methods
Comfort and Safety

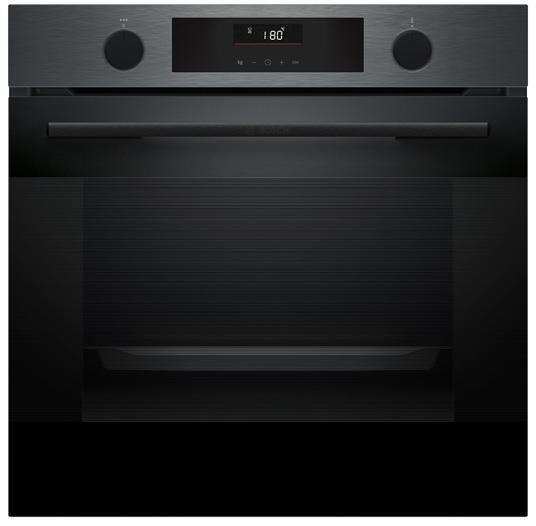

3D Hotair, Conventional heat, Full width grill, Pizza setting, Bottom heat, Hotair gentle, Air fry, Hotair steam 3D Hotair, Conventional heat, Full width grill, Pizza setting, Bottom heat, Hotair gentle, Air fry, Hotair steam
Oven capacity: 76 Litres
Cleaning
EcoClean Direct: coating of back panel
Cleaning Assistance (program) Full glass inner door
Design Display with knob control Cavity inner surface: enamel anthracite 1 level telescopic shelf
Accessories* 1 x air fry & grill tray 1 x combination grid 1 x universal pan
Product Specs
W
Rating: 3400W
Barcode 4242005495290
Incl.
Oven capacity: 76 Litres
Electronic clock
LCD display control
Temperature range 50 °C - 275 °C
AutoPilot 10
Halogen interior light
Integral cooling fan
Water bowl with a volume of 0.2 l
EcoClean Direct: coating of back panel
Cleaning Assistance (program) Full glass inner door
Display with knob control Cavity inner surface: Enamel 1 level telescopic shelf
1 x air fry & grill tray 1 x combination grid 1 x universal pan
Overall (H x W x D): 59.5 cm x 59.4 cm x 54.8 cm
Aperture (H x W x D): 58.5 cm – 59.5 cm x 56.0 cm – 56.8 cm x 55.0 cm
Rating: 3400W
4242005495283

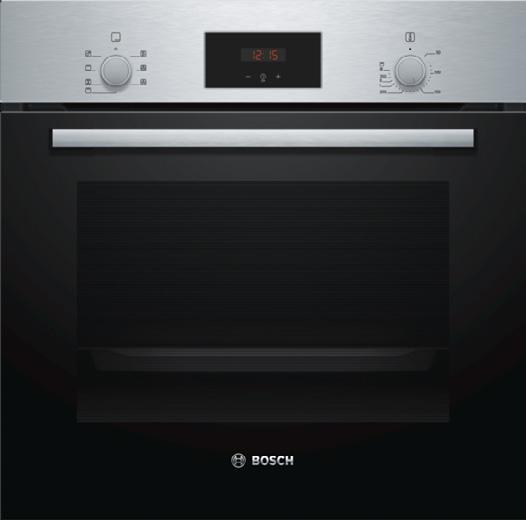

Product
Descriptionv
Heating Methods 3D hot air, Top / Bottom heat, Hot air grilling, Defrost, Hot air gentle, Full width variable grill Top / Bottom heat, Half width grill, Bottom heat, Full width variable grill
Comfort and Safety Oven capacity: 66 Litres
Electronic clock LED display control (red)
Temperature range 50 °C - 275 °C
Quick heat function
Halogen interior light Child lock
Cleaning Full glass inner door
Design Pop-out controls
Oven capacity: 71 Litres
Temperature range 50 °C - 275 °C
Mechanical timer Halogen interior light Integral cooling fan
Cleaning Assistance (program)
Enamelled cavity: Anthracite
Accessories* 1 x Combination grid 1 x Universal pan 1 x Combination grid 1 x Universal pan
Product Specs Overall (H x W x D):
Rating: 3300W
Barcode 42420054047185
Overall (H x W x D): 59.5 cm x 59.4 cm x 54.8 cm
Aperture (H x W x D): 57.5-59.7 cm x 56.0 – 56.8 cm x 55.0 cm
Rating: 2850W
4242005485321
Product Description
Heating Methods Top / Bottom heat, Half width grill, Bottom heat, Full width variable grill
Comfort and Safety Oven capacity: 71 Litres
Temperature range 50 °C - 275 °C
Mechanical timer
Halogen interior light Integral cooling fan
Cleaning Cleaning Assistance (program)
Design Enamelled cavity: Anthracite
Full-surface grill/broiler, Max Rotisserie, Gas bottom heating
Oven capacity: 60 Litres
Grill heating element: Electric 1.8 KW
Oven burner with Knob ignition
Thermoelectric ignition Oven light
Catalytic side liners
Full glass inner door - triple glazed door
Accessories* 1 x Combination grid 1 x Universal pan 1 x Grid 1 x Enamel baking tray 1 x Nozzle set for natural gas
Product Specs
(H
Rating: 2850W
Barcode 4242005485338
Overall (H x W x D): 59.2 x 59.7 x 57.0cm
Aperture: (H x W xD): 58.3 x 56.0 x 56.0cm
Rating: 1900W
4242002753256
Product Description
Heating Methods
Comfort and Safety
Cleaning

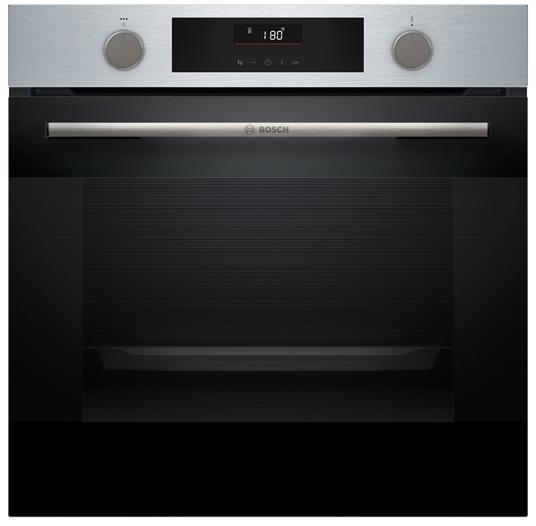

Bottom heat, Circulating air, Top/bottom heat, Top/ bottom heat gentle, Full width grill, Hot air grilling, Rotisserie
Oven capacity: 85 Litres
Temperature range 30°C-250°C
Electronic clock
Oven interior light – 2 elongated
halogen lights
Integral cooling fan
Child lock
Automatic switch off
Catalytic side liners and back panel Full glass inner door
Design Rotary Knobs, Touch control

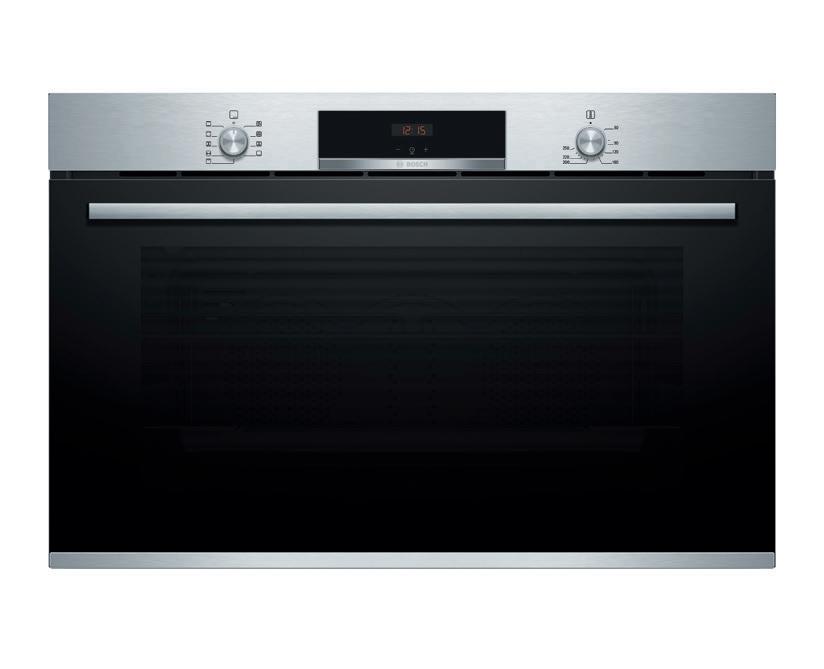

Bottom heat, Circulating air, Top/bottom heat, Top/bottom heat gentle, Full width grill, Hot air grilling, Rotisserie
Oven capacity: 112 Litres
Temperature range 30°C-250°C
Electronic clock
Oven interior light – 2 elongated halogen lights
Integral cooling fan
Child lock
Automatic switch off
Catalytic side liners and back panel Full glass inner door
Pop-out controls, touch controls Oven cavity with removable rack supports 1-fold telescopic rail
Accessories* 1 x Grid 1 x Universal Pan 1 x enamel baking tray 1 x combination grid 1 x universal pan
Product Specs Overall: (H x W x D): 47.5 x 89.6 x 57.2 cm Aperture (H x W x D): 47.7-48.0 x 86.0-86.4 x 56.0cm
Rating: 3100W
Barcode 4242005034673
Overall (H x W x D): 59.4 x 89.6 x 57.0cm
Aperture (H x W x D): 60.0-60.4 x 86.0-86 x 56.0cm
Rating: 3300 W
4242005034727 Price Excl. VAT* R 23 477.39 R 25 390.43
Product Description
Heating Methods
SERIES 6
BUILT-IN MICROWAVE WITH GRILL - BLACK
900 W Microwave, Quartz grill
5 power levels:
900 W / 600 W / 360 W / 180 W / 90 W
1200 W quartz grill
Comfort and Safety
Cleaning
AutoPilot - 8 automatic programmes
4 defrost programs
3 cooking programs in microwave function
1 combi program
Memory function (1 setting)
LED display, with touch control
User-friendly electronics: extremely easy and comfortable operation
Quick Start
Side opening door with viewing window
31.5cm glass turntable
Stainless steel interior, 25 litres
Cleaning Assistance (program)
Design Electronic door opening
Glass oven door Side-hinge opening door, left hinged
Accessories* 1 x grid
1 x turntable
Product Specs Overall (H x W x D):
38.2 cm x 59.4 cm x 38.8 cm
Aperture (H x W x
Rating: 1450W
Barcode
4242005513109
While Stocks Last
BEL554MS0
4242005038992
SERIES 2
BUILT-IN MICROWAVE WITH GRILL
800 W Microwave, Quartz grill
5 Power levels:
800W / 600W / 360W / 180W / 90W
Grill 1kW
Grill and microwave power levels combinable
AutoPilot - 8 automatic programmes
4 defrost programs
3 cooking programs in microwave function
1 combi program
Favourite button
Quick start 30 seconds
LED display for displaying cooking times and time of day
User-friendly electronics: extremely easy and comfortable operation
Automatic safety switch-off
29cm glass turntable
Stainless steel interior, 25 litres
Cleaning Assistance (program)
Rotary Control
Grey painted cavity
Glass oven door Side-hinge opening door, left hinged
1 x Glass Turntable 1 x Grid
Overall (H x W x D):
38.2 x 59.5 x 37.5cm
Aperture (H x W x D):
38.0 – 38.2 x 56.0-56.8 x 55.0 cm
Rating: 1270W
4242005290741
Product Description
Comfort and Safety

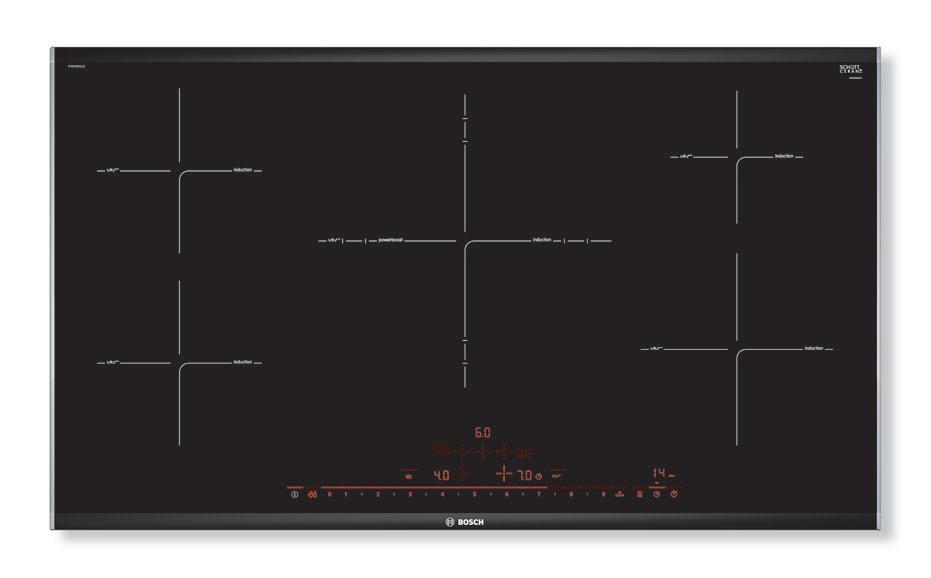

5 Induction cooking zones, including 1 triple ring
DirectSelect Premium touch control
PerfectFry sensor, automatic temperature control, with 5 temperature settings
17 power levels
PowerBoost function
PanBoost
Digital display
Switch off timer for every cooking zone
Count-up timer
Automatic pan recognition sensor
PowerManagement Function
Wipe protection function
QuickStart Function
Energy consumption display
Wipe protection function
Digital 2-step Residual heat indicator for each zone
Childproof lock
Safety switch-off
Design Comfort Profile Minimum worktop thickness 30mm
Product Specs
Overall: (H x W x D):
5.1 x 91.6 x 52.7cm
Aperture: (H x W x D):
5.1 x 88.0 x 49.0-50.0cm
Rating: 11100W
Barcode
4242002838854

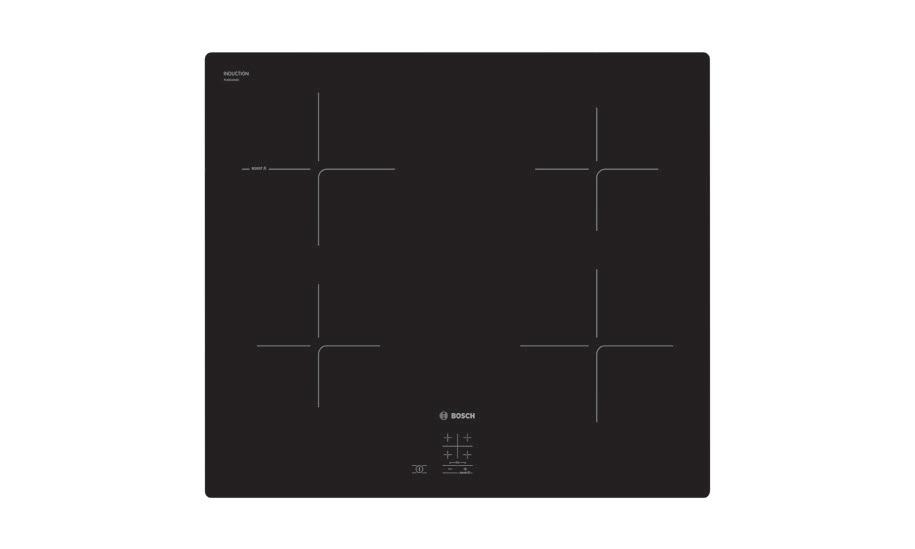

4 Induction cooking zones
TouchSelect 9 power levels
PowerBoost function, rear left zone
Digital display
QuickStart function
QuickStop function
Childproof lock
Safety switch-off
Frameless Min. worktop thickness: 16mm
Overall (H x W x D): 5.1 x 59.2 x 52.2 cm
Aperture (H x W x D):
5.1 x 56.0 x 49.0-50.0 cm
Rating: 4600W
4242005293957
Product Description SERIES 8
Comfort and Safety
5 HighSpeed cooking zones, incl. triple zone, 1 dual zone, 1 combiZone
DirectSelect Premium touch control
PerfectFry sensor, automatic temperature control, with
5 temperature settings
17 power levels
PowerBoost function
Digital display
Switch off timer for every cooking zone
Count-up timer
Keep warm function for all cooking zones
Wipe protection function
restartFunction
Wipe protection function
Individual tunable energy consumption display
Digital 2-step Residual heat indicator for each zone
Childproof lock Safety switch-off
Design Comfort Profile
Minimum worktop thickness: 16mm
Product Specs Overall: (H x W x D): 4.4 x 91.6 x 52.7cm
Aperture: (H x W x D): 4.4 x 88.0 x 50.0cm
Rating: 10700W
Barcode 4242002929040
4 HighSpeed cooking zones
Touch Control
17 power levels
Electronic display
Digital 2 stage residual heat indicator
Childproof lock
Safety switch-off
ReStart Function
Frameless
Minimum worktop thickness: 20mm
Overall: (H x W x D): 5.1 x 59.2 x 52.2cm
Aperture: ( x W x D): 5.1 x 56.0 x 49.0 - 50.0cm
Rating: 6600W
4242005280261

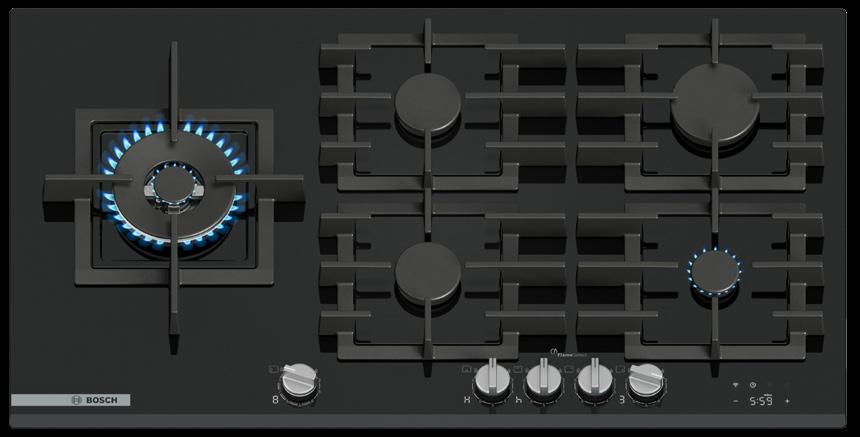

Product
Comfort and Safety

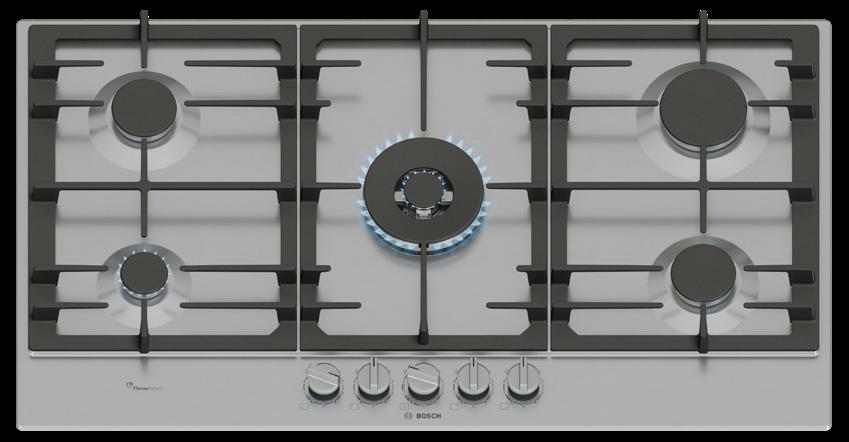

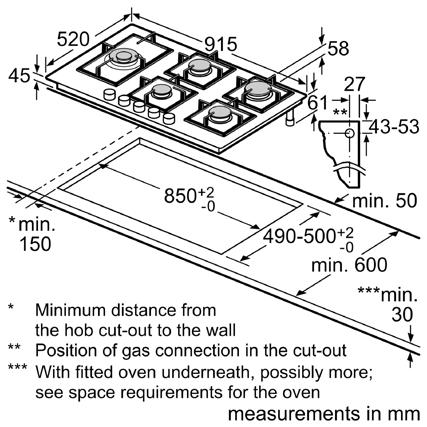

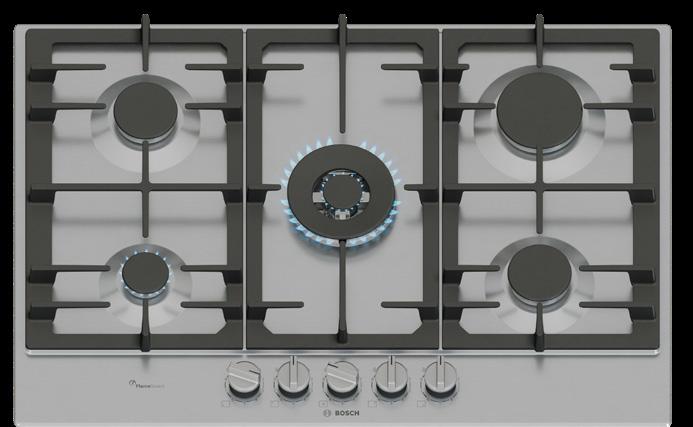

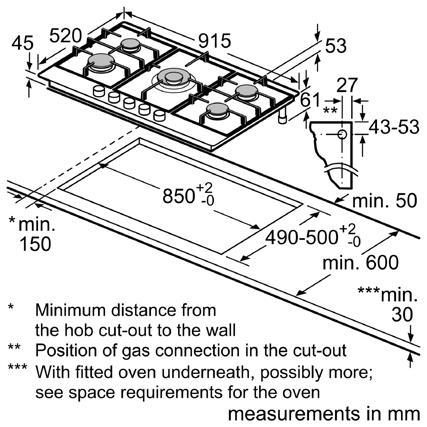

Gas burners 1 Dual Wok burner, 5.0 kW 1 Rapid burner, 3.0 kW 2 Standard burner 1.75 kW 1 Economy burner 1 kW
FlameSelect
Flame failure safety device
Electronic ignition via front control 5 Gas burners
Design Stainless steel surface, brushed steel Continuous cast iron pan supports (dishwasher safe) Sword knobs
Product Specs Overall (H x W x D): 5.1 x 91.5 x 52.0cm
(H x W x D): 4.5 x 85.0 x 49.0 – 50.0cm
KW 1 Economy burner 1.0 KW
FlameSelect
Electronic Ignition via front controls
Flame failure device
Stainless steel surface, brushed steel, Cast iron pan supports
x W x D): 45 x 75.0 x
Design
Product Specs
KW
Electronic ignition via front control
1 Economy burner 1 kW
FlameSelect
Flame failure safety device
Electronic
Design Tempered glass surface
Semi continuous cast iron pan supports (dishwasher safe)
Sword knobs, illuminated Digital display, with residual heat indicator

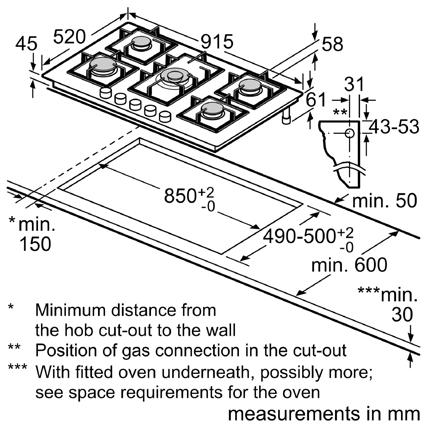

Product Specs Overall (H x W x D): 5.4 x 91.5 x 52.0cm Aperture (H x W x D): 4.5 x 85.0 x 49.0 – 50.0cm
Barcode 4242005496495
Flame failure safety device
Electronic ignition via front control
Tempered glass surface
Semi continuous cast iron pan supports (dishwasher safe) Sword knobs
4242005496464 Price Excl. VAT* R 17 825.22 R 14 260.00 Price Incl. VAT** R 20 499.00 R 16 399.00

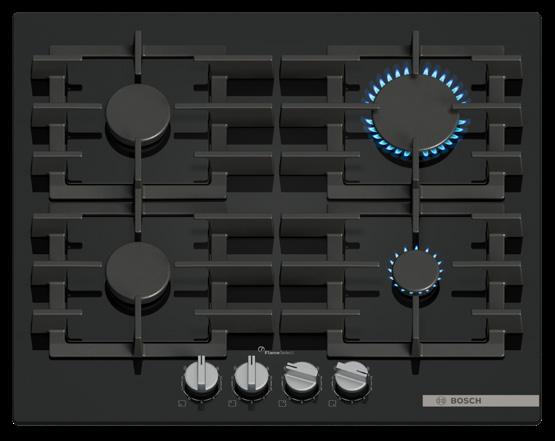

Comfort and Safety

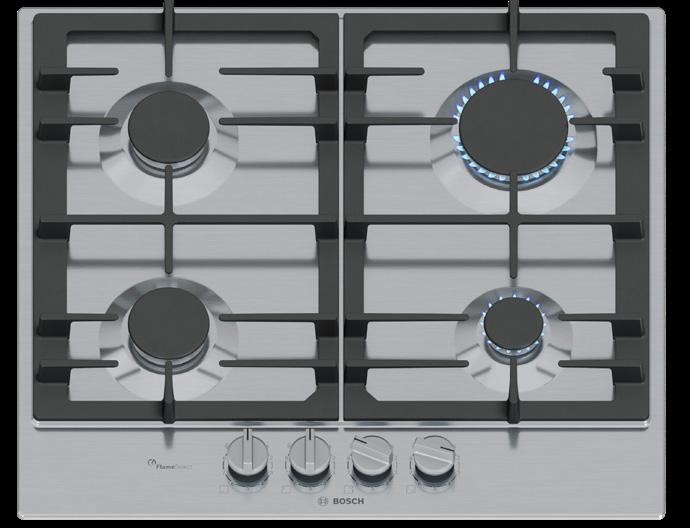

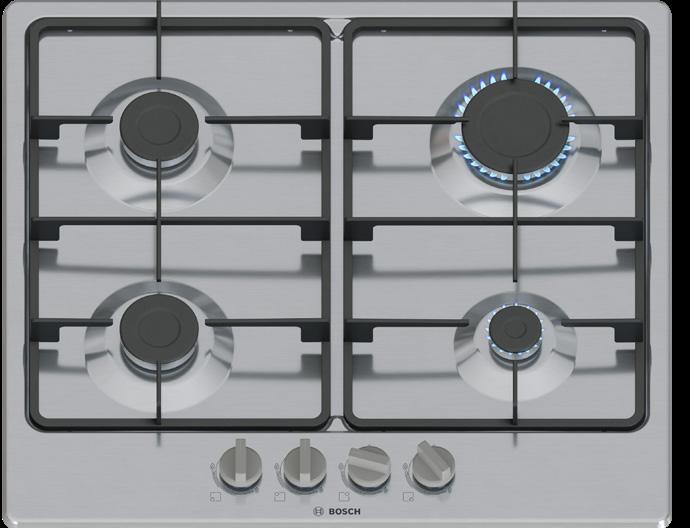

4 Gas burners
1 High Speed, 3.0 kW
2 Standard burner 1.75 KW
1 Economy burner 1.0 KW
FlameSelect
Electronic Ignition via front controls
Flame failure device
Design Cast iron pan supports
Tempered glass, black for a flush or slightly raised installation

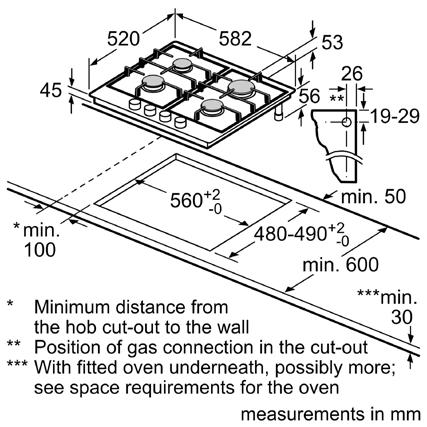

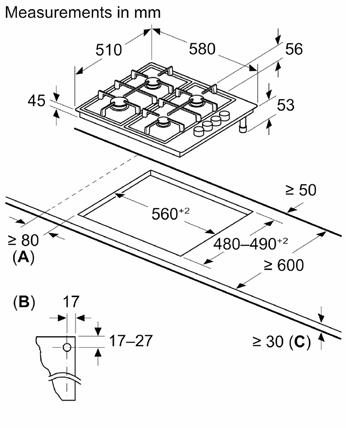

Product Specs Overall (H x W x D): 45 x 59.0 x 52.0cm Aperture (H x W x D): 4.5 x 56.0 x 56.2 x 48.0 -49.2cm

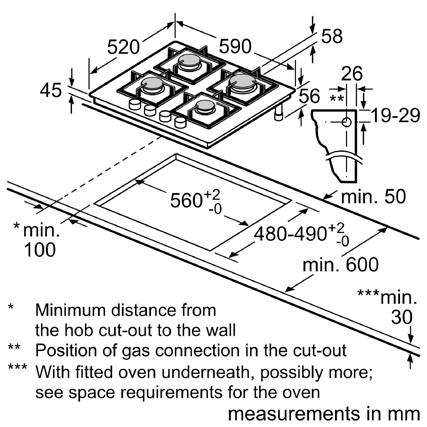

4 Gas burners
1 High Speed 3.0kW
2 Standard 1.75kW
1 Eco burner 1.0kW
Flame failure safety device
Electronic ignition via front control
Tempered glass hob, black Steel single pan supports Removable knob, cylindrical knobs
Overall (H x W x D): 4.5 x 59.0 x 52.0cm Aperture (H x W x D): 4.5 x 56.0-56.2 x 48.0-49.0cm
Product Specs Refer to page 34 for installation guidelines
Product Description
SERIES 6

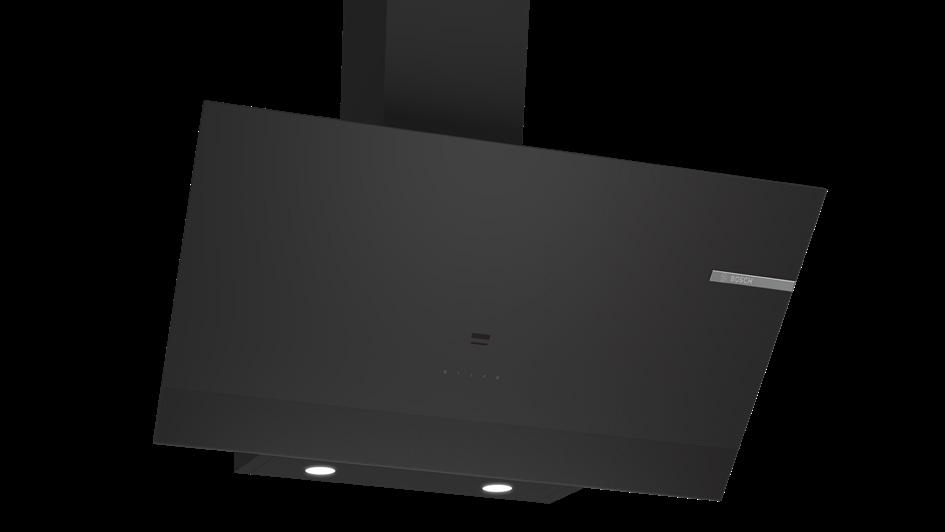

90CM WALL MOUNTED EXTRACTOR, BLACK WITH GLASS CANOPY EXHAUST OR RECIRCULATION OPERATION
Comfort and Safety Touch Select Basic Controls
2 speeds plus intensive setting
Powerboost position
Gesture control with integrated infrared sensor
Saturation indicator for grease filter
Metal grease filter, dishwasher safe
Design Inclined black glass design 2 X 3 W LED lights
Minimum Clearance Above Cooking Point
Special Accessories*
Product Specs
Gas Appliances: 65.0cm Electrical Appliances: 55.0cm
DWZ6HK1H4
Carbon filter
DWZ1GK6K2 Chimney extension
Refer to page 35 for installation guidelines
Rating: 234 W
Maximum extraction: 700 m³/h
Noise level, normal use: 59 dB
Barcode 4242005463206

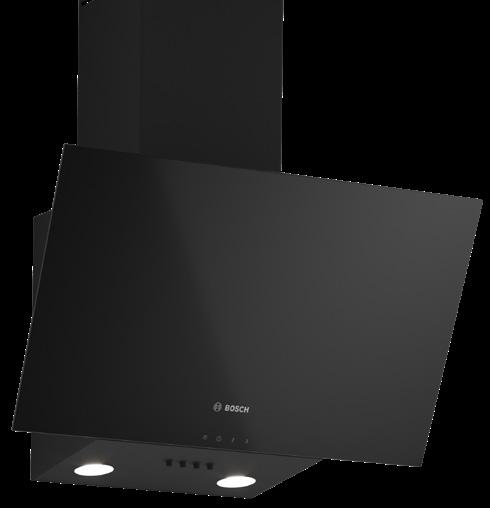

SERIES 2 60CM WALL MOUNTED EXTRACTOR, BLACK WITH GLASS CANOPY EXHAUST OR RECIRCULATION OPERATION
Push buttons for extractor speeds 3 Speed settings
Metal grease filter, dishwasher safe
Inclined black glass design 2 X 5 W LED lights
Gas Appliances: 65.0cm Electrical Appliances: 45.0cm
DWZ6BK5E2
Carbon Filter
DWZ1BK6K2 Chimney extension
Refer to page 35 for installation guidelines
Rating: 77 W
Maximum extraction: 360 m³/h
Noise level, normal use: 64 dB

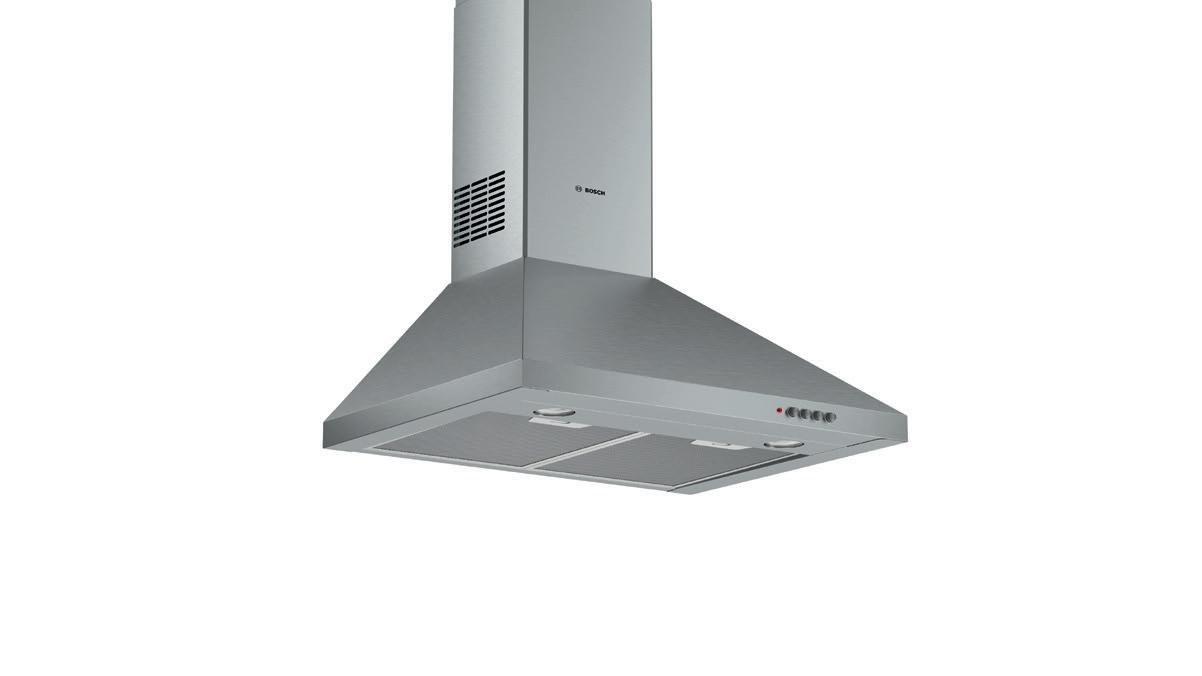

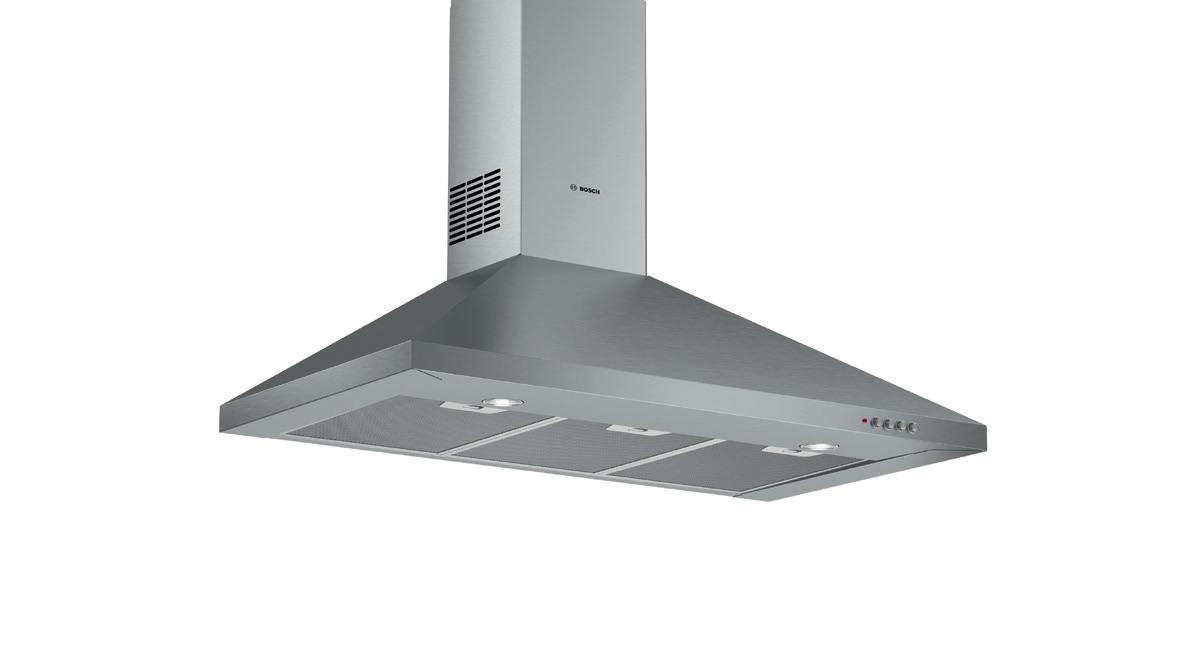

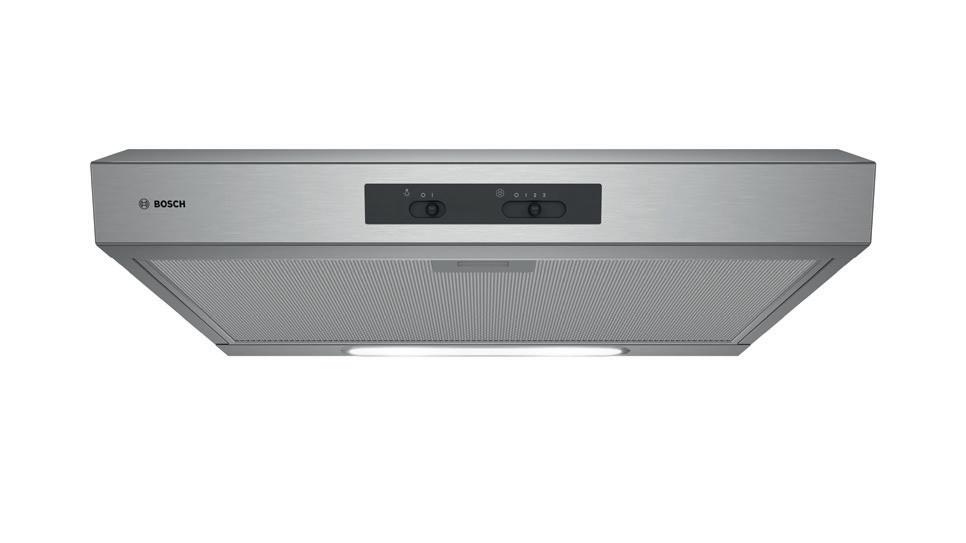

Product Description SERIES 2
Comfort and Safety Push buttons for extractor speed and lights 3 speed settings Metal grease filter, dishwasher safe
Push buttons for extractor speed and lights 3 speed settings Metal grease filter, dishwasher safe
Design Stainless Steel 2 x 5W LED Stainless Steel 2 x 5W LED
Minimum Clearance Above Cooking Point
Electrical Appliances: 50.0cm Gas Appliances: 65.0cm (from upper edge of pan support)
Special Accessories* DWZ6HP1U2 recirculation Kit
Product Specs Refer to page 34 for installation guidelines
Rating: 135 W
Maximum Extraction: 380m3/h Noise Level, normal use: 64dBm3/h
Barcode 4242005033300
Electrical Appliances: 50.0cm Gas Appliances: 65.0cm (from upper edge of pan support)
DWZ6HP1U2 recirculation Kit
Refer to page 35 for installation guidelines
Rating: 135 W
Maximum Extraction: 380m³/h
Noise Level, normal use: 64dB
4242002985336

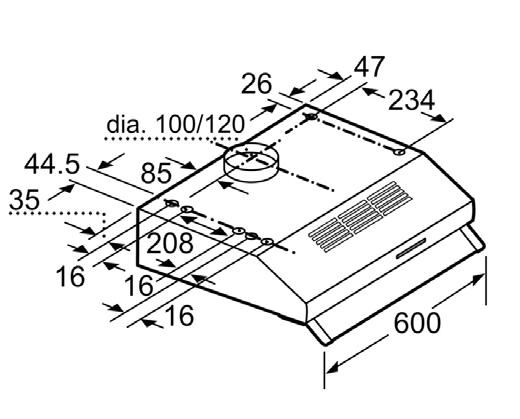

Product Description
SERIES 2

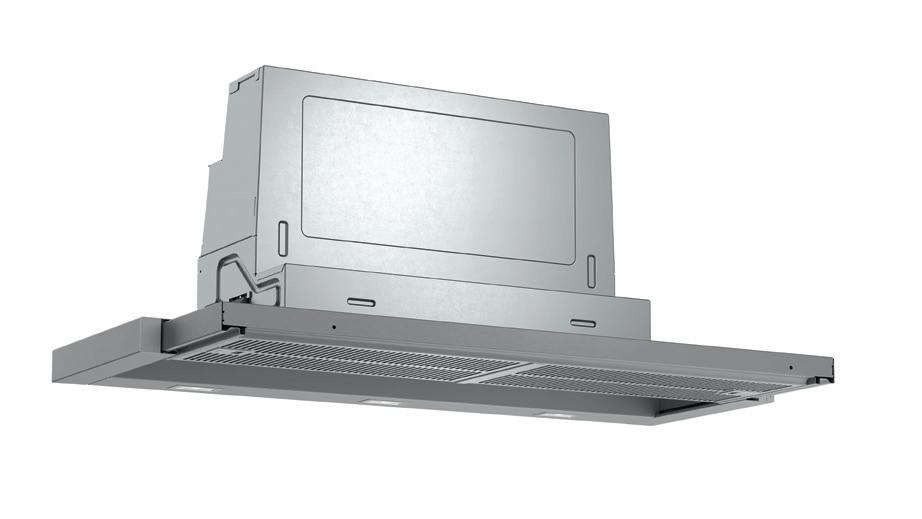

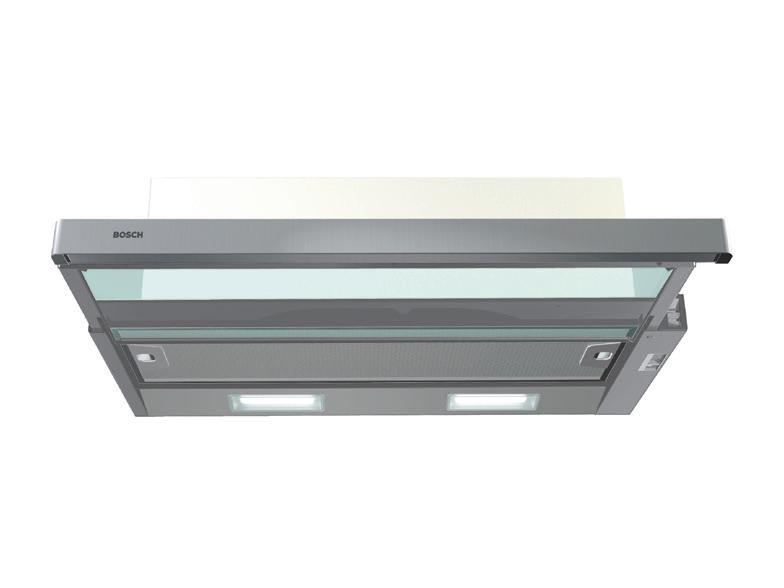

Comfort and Safety Slide switch for extractor speeds
Pull-out vapour with glass
3 Speed settings
Metal grease filter, dishwasher safe
Design
Minimum Clearance Above Cooking Point
Special Accessories*
Product Specs
2 X 4 W LED lights
Gas Appliances: 65.0cm
Electrical Appliances: 50.0cm
DHZ2900 Carbon Filter
Refer to page 35 for installation guidelines
Rating: 181 W
Maximum extraction: 300 m³/h
Noise level, normal use: 62 dB
SERIES 4
Electronic control via Push button controls with digital display
3 speeds plus 2 intensive setting
Automatic 10 minute run on facility
Efficient BLDC- technology
Soft light and dimmer function
Saturation indicator for metal and charcoal filter
Metal grease filter, dishwasher safe
2 x 3W LED lights
Gas Appliances: 65.0cm
Electrical Appliances: 55.0cm (from upper edge of pan support)
DSZ4565 / DWZ2IT1I4
Recirculation Kit
DSZ4985
Handle Strip
DSZ4961
Lowering Frame
DSZ4920
Installation Kit for 90cm wide wall unit
Refer to page 34 for installation guidelines
Rating: 146 W
Max. extraction: 397 m 3 /h
Noise Level, normal use: 53dB
Barcode
Product Description
Comfort and Safety Slide switch for extractor speeds and light 3 Speed settings Metal grease filter, dishwasher safe

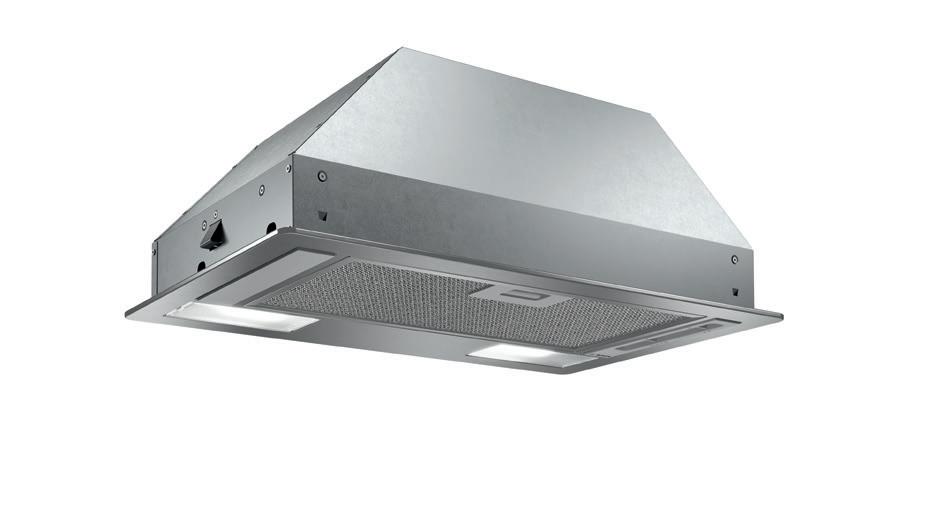

Design For installation in a cupboard, above a hob 2 x 4W LED lights
Minimum Clearance Above Cooking Point
Special Accessories* DWZ0IN0T0 Recirculation Kit
Product Specs Refer to page 35 for installation guidelines
Power rating: 121 W Normal Extraction: 302 m3/h Noise Level, normal use: 62 dB
Push Button Controls 3 speeds plus intensive setting Automatic reset from intensive to normal setting Metal grease filter, dishwasher safe
2 x 1 W LED lights
Standard recirculation kit
Refer to page 36 for installation guidelines
Rating: 277 W
Maximum extraction: 600 m³/h
Noise level, normal use: 61 dB
Product Description
Comfort and Safety 3 speed settings Metal grease filter, dishwasher safe Adjustable Glass Visor
Slide switch for extractor speeds 3 Speed settings Metal grease filter, dishwasher safe
Design LED lightning 2 x halogen lights
Minimum Clearance Above Cooking Point
Special Accessories*
Gas Appliances: 65.0cm Electrical Appliances: 65.0cm
Product Specs Refer to page 35 for installation guidelines
Rating: 166 W
Max. extraction: 330 m3/h Noise Level, normal use: 52 dB
Barcode
Gas Appliances: 65.0cm Electrical Appliances: 65.0cm
Refer to page 36 for installation guidelines
Rating: 252 W
Maximum extraction: 220 m³/h
Noise level, normal use: 67 dB
Disclaimer The
