INTRODUCTION

Technology hub

Welcome to our comprehensive Technical Catalogue, featuring premium components designed specifically for leisure vehicles and special-purpose vehicles. Within this catalogue, you will find authentic products from the renowned brands PREMtec and RV innotec , known for their unwavering commitment to innovation, functionality, and quality.

The products contained therein are meticulously developed and manufactured to address the unique requirements of vehicle manufacturers, ensuring they meet the stringent standards of the automotive industry.

By placing a strong emphasis on cutting-edge solutions and durable performance, the product developers are always striving to empower all partners with components that not only enhance vehicle functionality but also elevate the overall user experience.

As you explore our catalogue, you will discover a curated selection of parts that embody the dedication to excellence and the passion for catering to the evolving needs of the market. We are confident that our range of solutions will serve as a valuable resource in the pursuit of performance-driven solutions for future vehicle projects.

Ltd.

BRUNNER

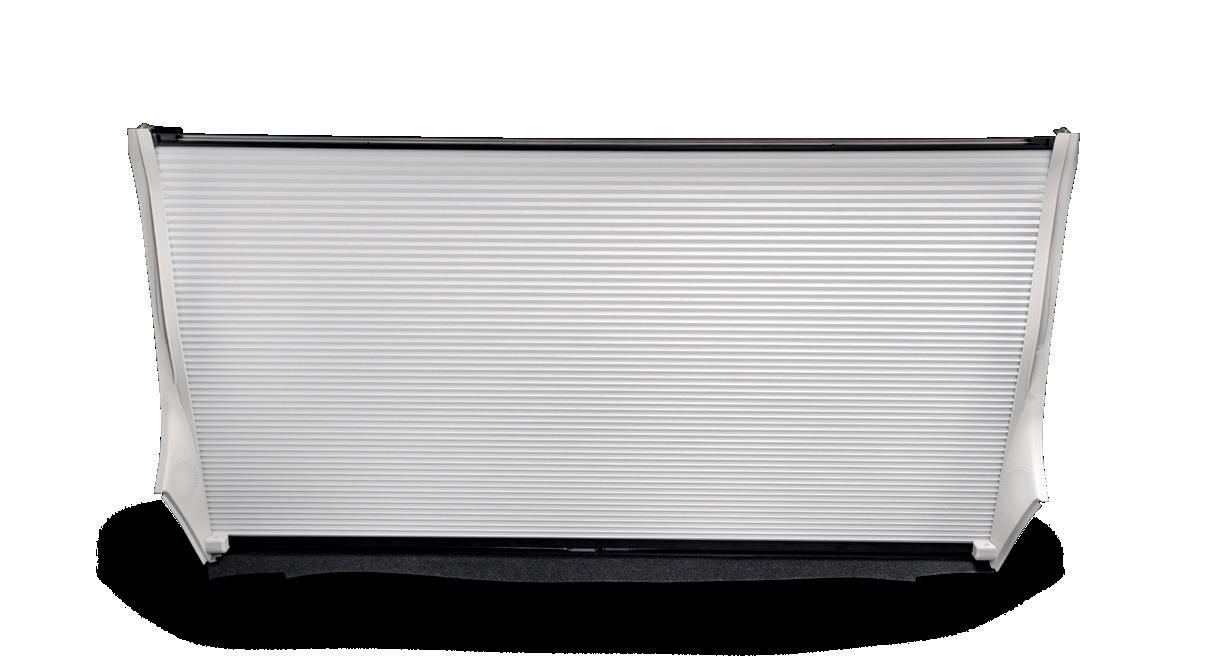

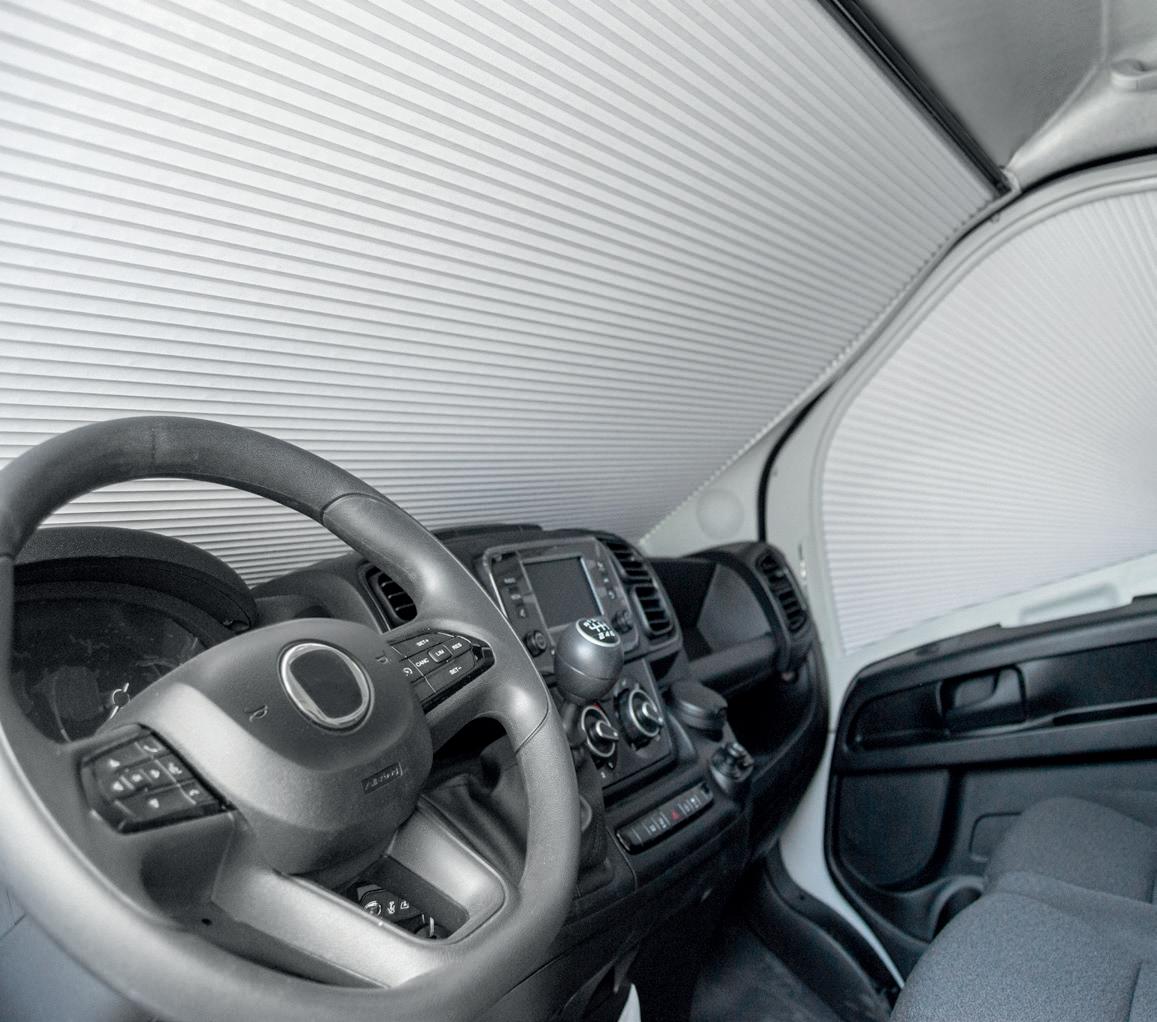

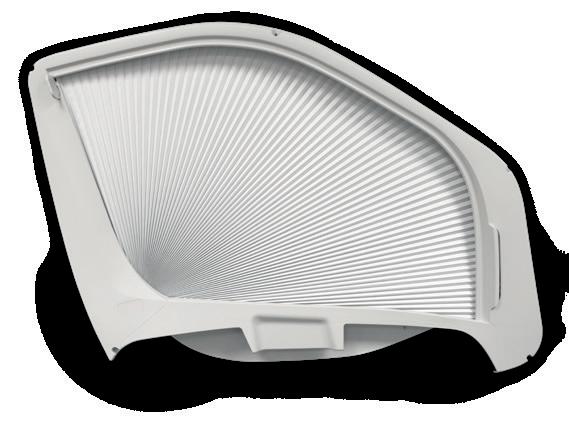

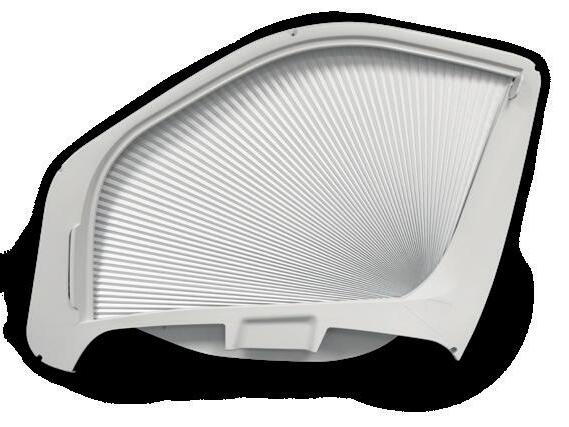

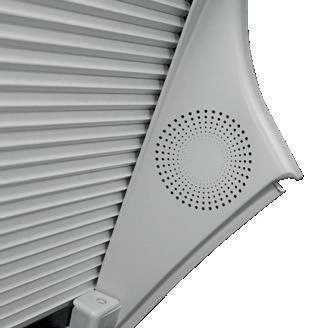

Dark S TAR TO MEET THE HIGHEST DEMANDS

The double pleated cabin blind for Fiat Ducato 250/290 and similar models. This innovative darkening system has been specially designed to protect your private area in the vehicle from prying eyes. At the same time, it ensures pleasant temperatures thanks to cold and heat insulation.

PRODUCT FEATURES:

Frame parts made of plastic (PP) and aluminium

Darkening by means of double pleated material (polyester with aluminium coating)

Infinitely adjustable (windscreen blind)

Simple, quick installation

Suitable for Fiat Ducato X250/X290 and equivalent models from Citroen and Peugeot

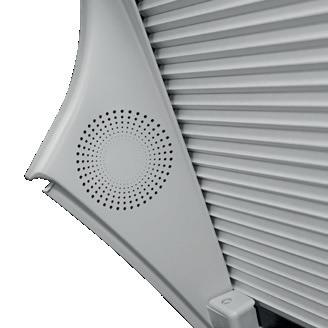

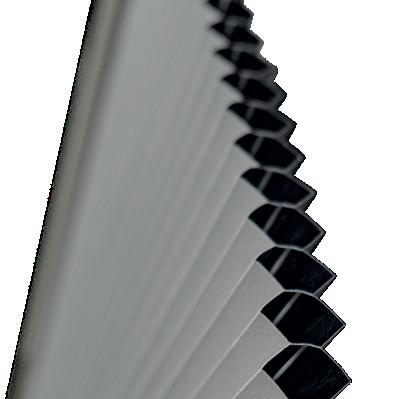

Double honeycomb pleating: guarantees optimal insulation and high durability

handle for easy movement of the blind

Continuous adjustment from bottom to top allows you to achieve optimal

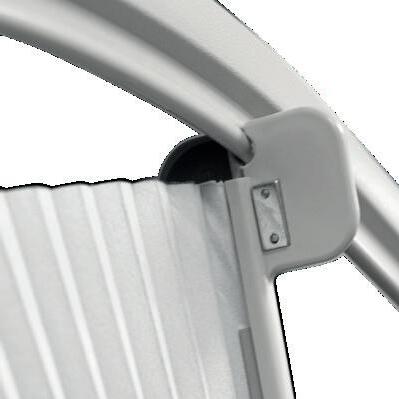

track: Continuous guide for the blackout fabric

Snap-in

Sliding

WINDSCREEN SUNSHADE

UNIVERSAL - FOR VERSIONS WITH/WITHOUT MIRROR AND SENSOR

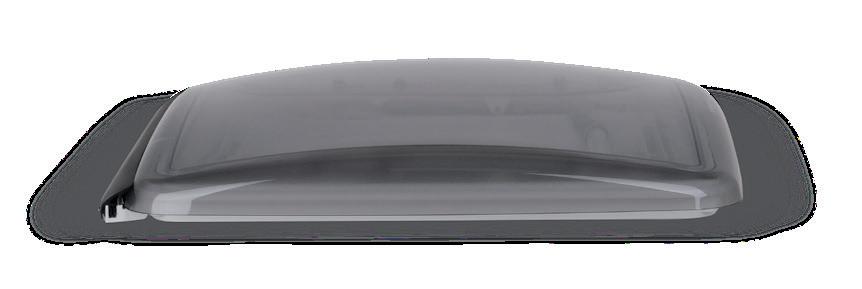

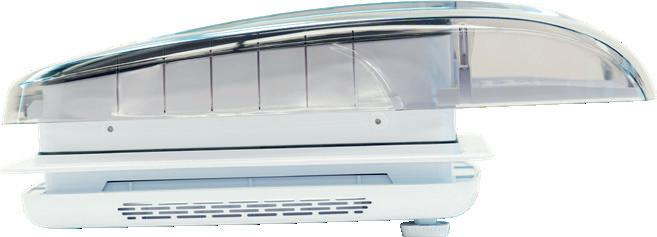

RoofSTAR A

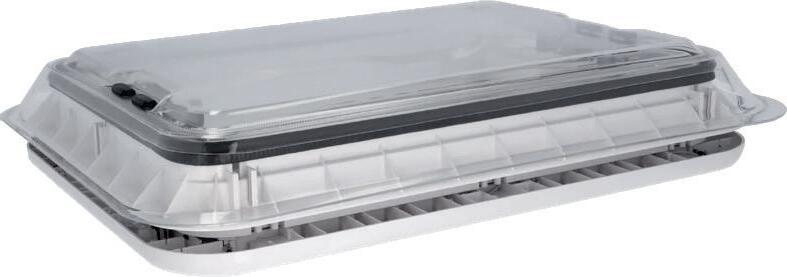

NEW DIMENSION IN ROOFLIGHTS FOR RECREATIONAL VEHICLES

The RoofSTAR rooflights hoods have been specially developed to meet the highest demands. They combine a completely new, innovative design with simultaneous weight savings. The extremely flat design also significantly improves aerodynamics, wind resistance and noise development while driving.

PRODUCT FEATURES:

Effective darkening: Both roofSTAR versions have an integrated roller blind system that guarantees effective darkening.

Flexible: The roofSTAR-4 and roofSTAR-7 can be easily retrofitted.

Water management: A lot of time was invested in the effective water drainage system.

Spoiler effect: The standard rubber sealing lip on the hinge side prevents the entry of gushing water and effectively minimises driving noise.

Extremely flat: The external height has been reduced by 50% to just 72 mm.

Particularly light: The weight, especially of the roofSTAR-7, has been reduced by up to 2 kg.

Unique: For the first time, a motorised version is available for the 400 x 400 mm dimension with our roofSTAR-4.

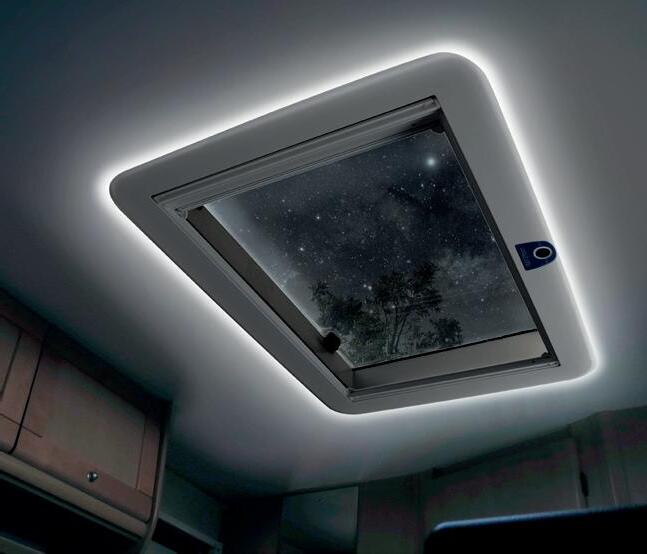

With lighting: For both models roofSTAR-4 and roofSTAR-7 we offer optional high-quality LED lighting.

Water management: A significant amount of time has been invested in developing an effective water drainage system

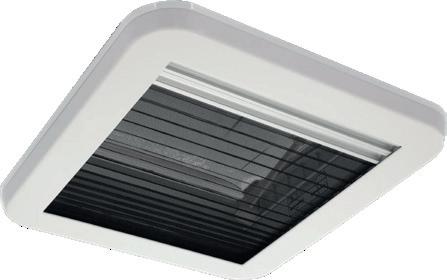

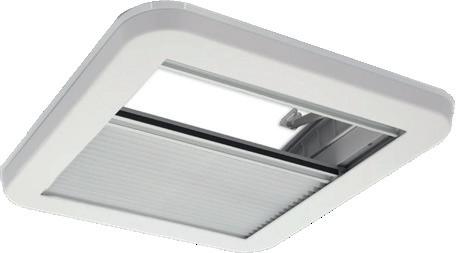

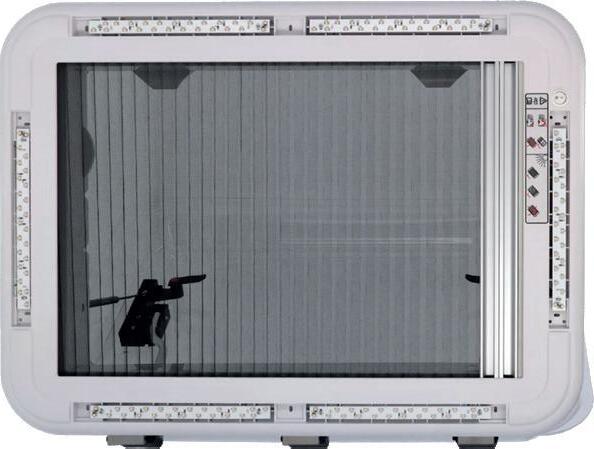

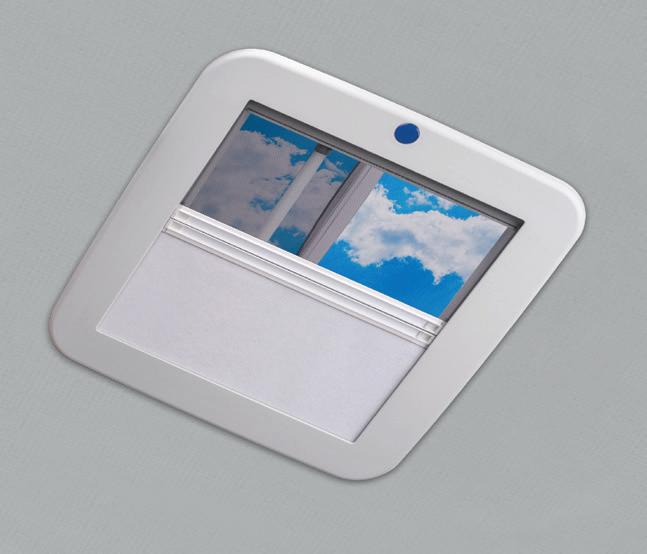

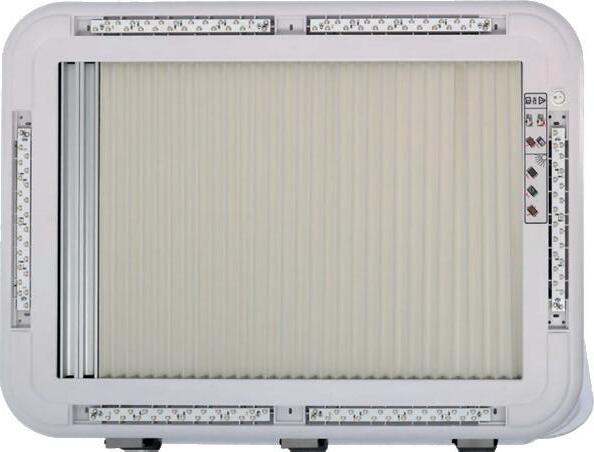

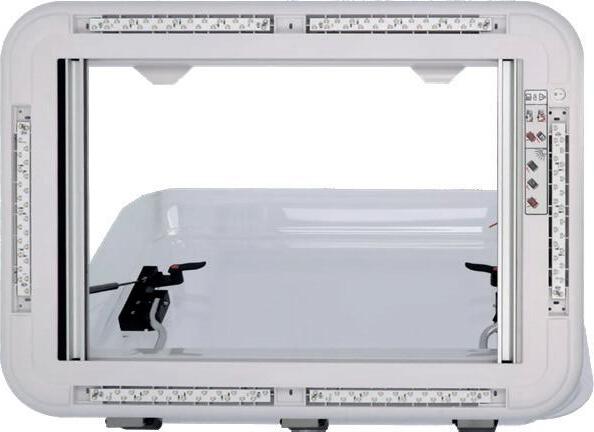

Inner frame with blackout curtains and roller mosquito net.

Option frame with integrated LED

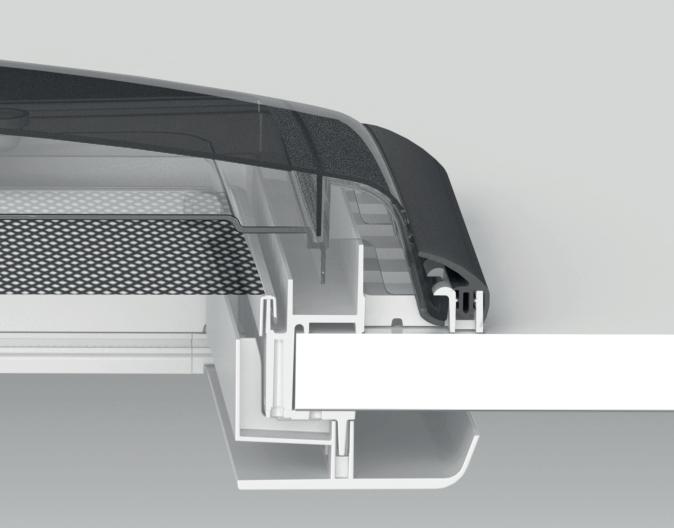

Extremely easy to install: 8 mounting brackets allow for easy installation on roofs with a thickness between 25 and 45 mm

Spoiler effect: the standard rubber seal on the hinge side prevents water overload and effectively reduces running noise

Particularly stable: both versions are made of UV-resistant ASA and PMMA material

roofSTAR 4

* Please note: the motorised versions of roofSTAR 4 and 7 are currently undergoing a technical improvement process and are therefore not available at short notice.

roofSTAR 7

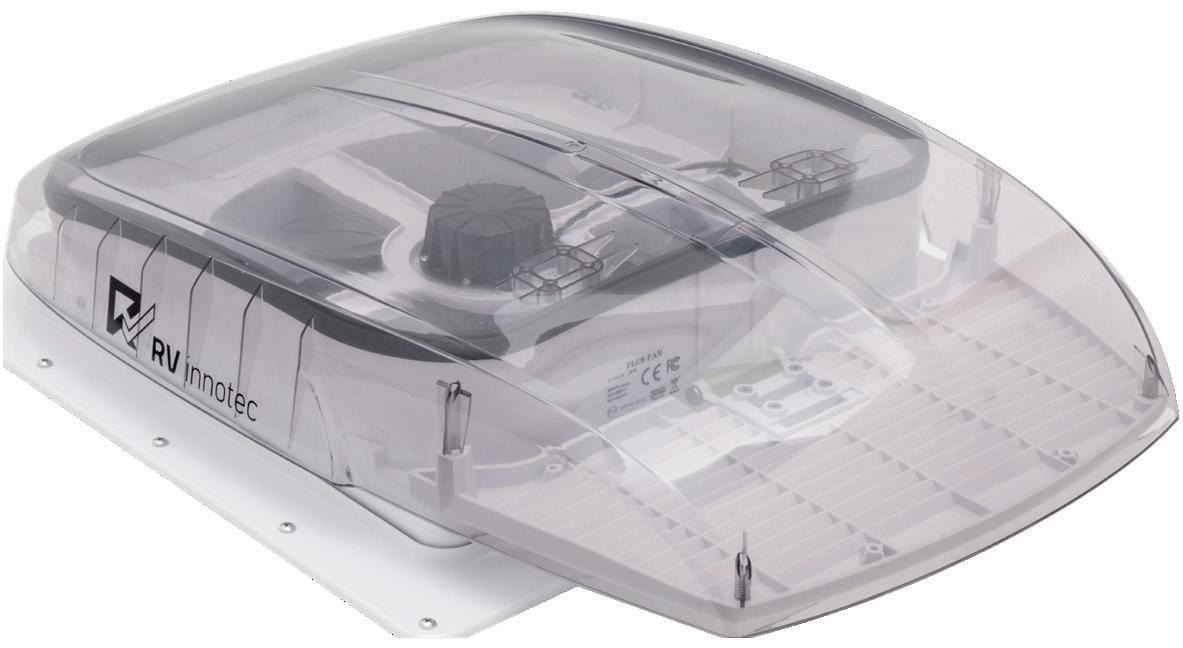

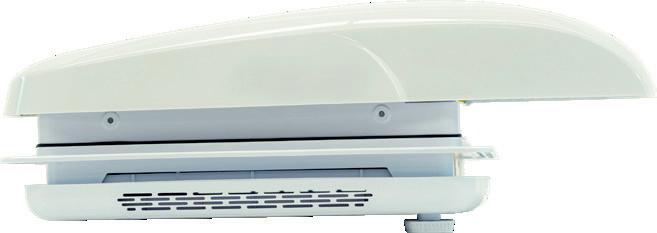

PLUS FAN PLUS FAN

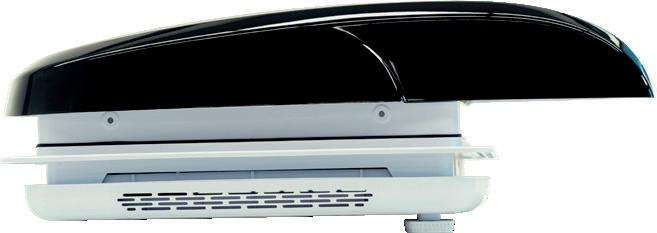

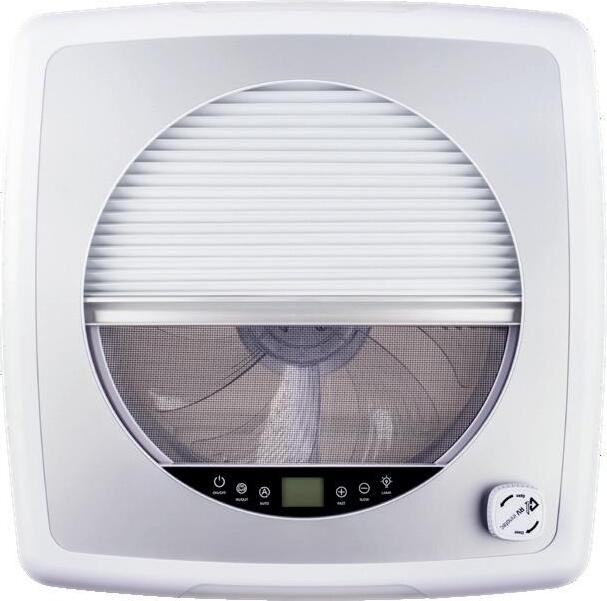

PLUS FAN AN INNOVATIVE PRODUCT THAT WILL ACCOMPANY YOU ON YOUR MOTORHOME ADVENTURES

The Plus Fan, manufactured by RVinnotec, offers an integrated solution for ventilation, air circulation and rain protection. Compatible with 400 mm x 400 mm roof holes, its innovative design prevents water from entering even when the vehicle is in motion. It comes complete with a pleated blind, adjustable lighting and remote control.

Effective ventilation: 10 speeds in delivery mode (max 47 dB) and 10 speeds in extraction mode (max 53 dB)

Room temperature thermostat

With adjustable intensity LED lighting

PLUS FAN

Includes mosquito net and blackout blind

Knob for manual opening/closing

Protection rating: IPX4 (360° water spray)

With remote control

Available with skylight in white, black or transparent smoked glass

Reliable air exchange, even with the lid closed

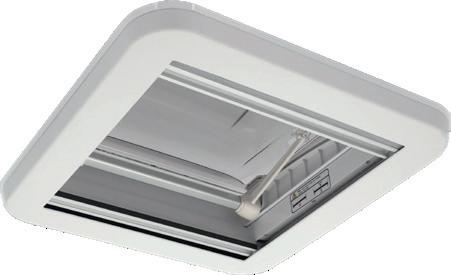

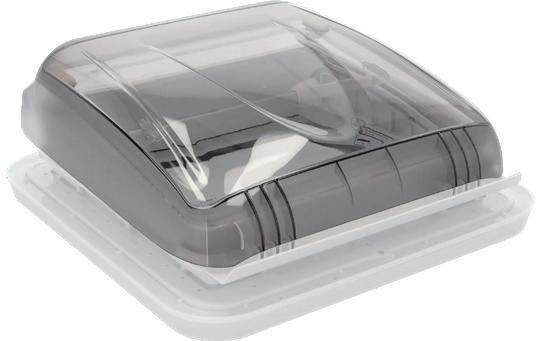

ROOF HATCH

SKY DOME

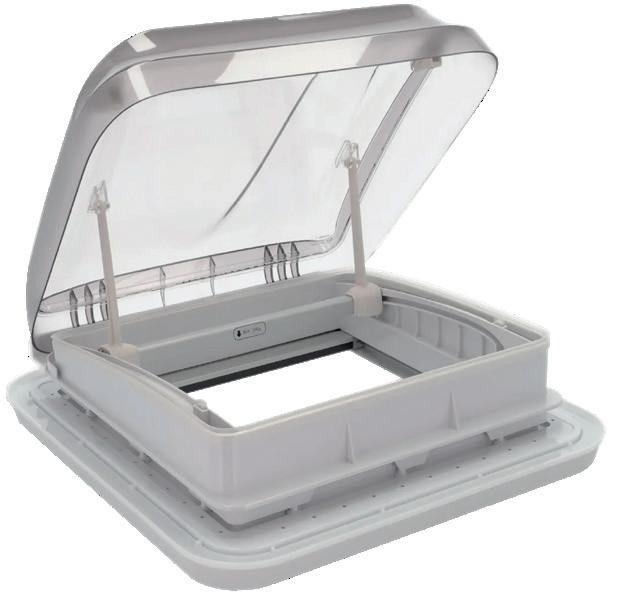

SKY DOME 4

PRODUCT FEATURES:

High-quality product with CE conformity and TÜV Rheinland certification

The internal seal can be removed for permanent ventilation

Aerodynamically shaped acrylic glass cover

Quick and robust locking and unlocking mechanism

High-quality acrylic glazing in impact-resistant modification

Aluminium operating handle

Equipped with dimmable LED lighting (optional)

SKY DOME 4

UV-resistant glazing and frame materials

ECE approval

Equipped with fly and sun protection, each with high-quality single-pleated fabrics.

Fly screen for rigidity and temperature stability with polyester fabric

With magnetic closure of the aluminium end bars (intuitive operation)

Two opening positions

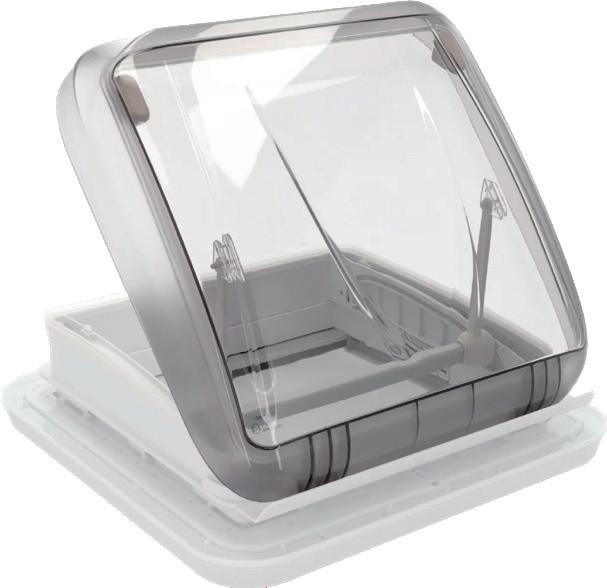

SKY DOME

PRODUCT FEATURES:

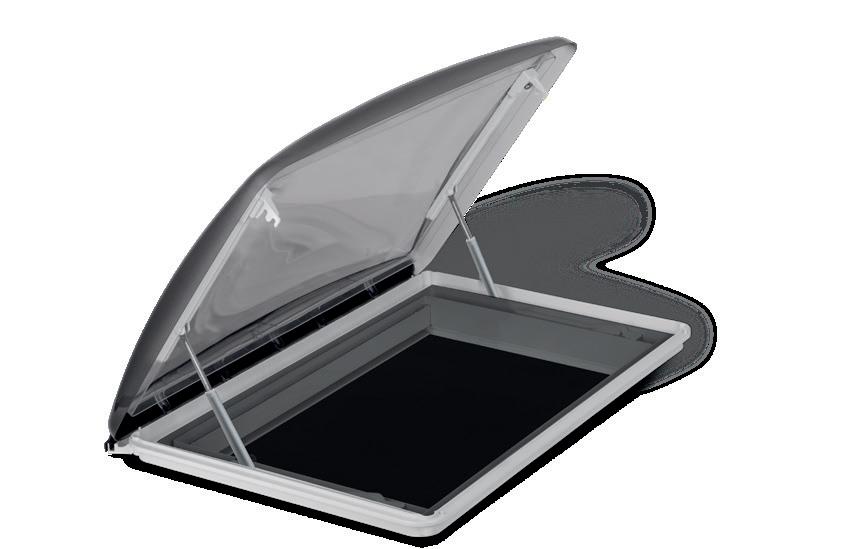

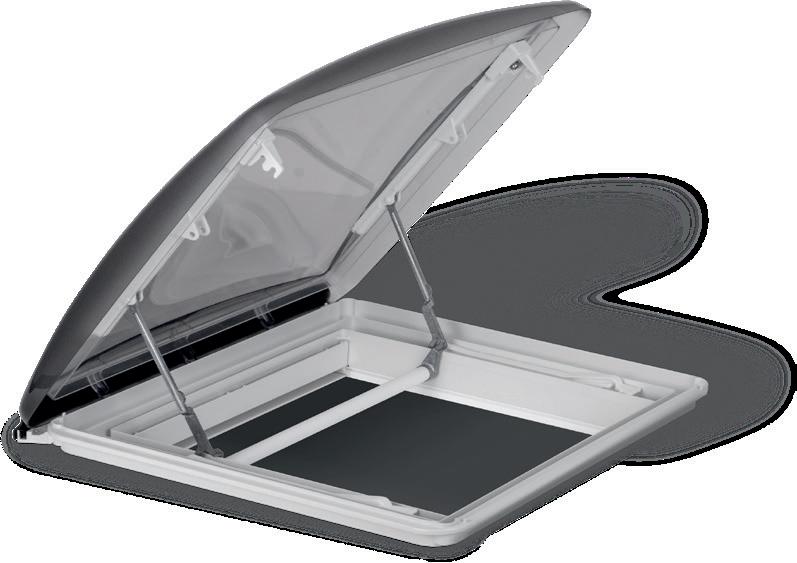

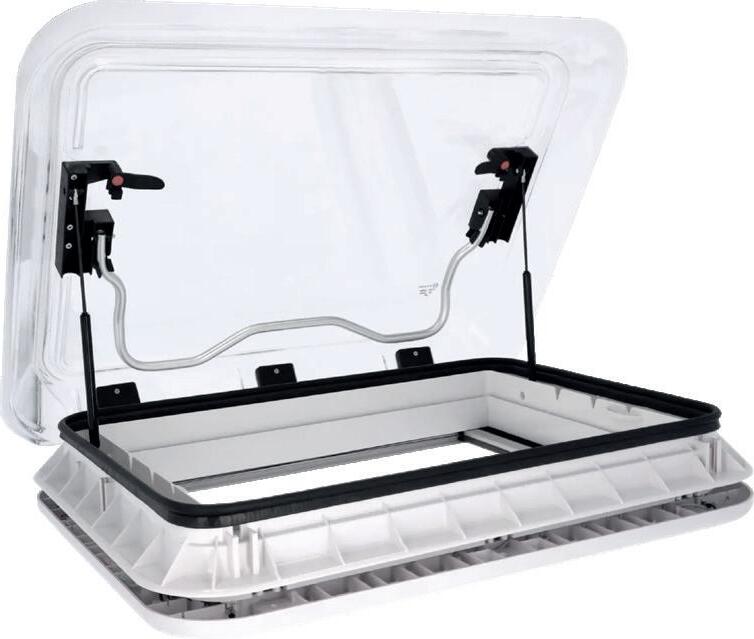

SKY DOME 7

High-quality product with CE conformity and TÜV Rheinland certification

The internal seal can be removed for permanent ventilation

Equipped with an aerodynamic dome in smoky grey with double glazing and 2-position opening

Opening mechanism supported by gas pressure springs

Aluminium operating handle

Equipped with dimmable LED lighting (optional)

UV-resistant glazing and frame materials

SKY DOME 7

ECE approval

Equipped with fly screen and sun protection, both made from high-quality single-pleated fabrics.

Fly screen mesh for rigidity and temperature stability with polyester fabric

With magnetic closure on the aluminium end bars (intuitive operation) Two opening positions, night ventilation position additionally secured

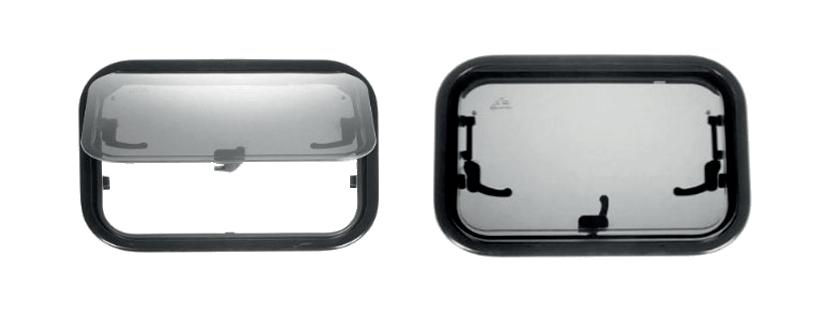

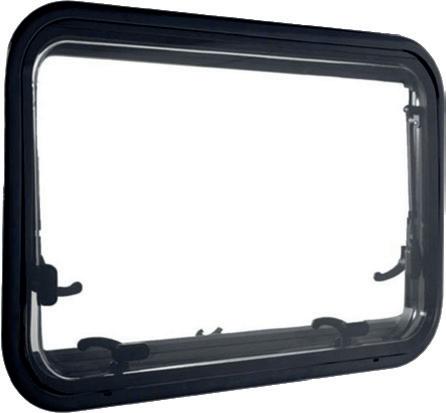

WINDOW SERIES

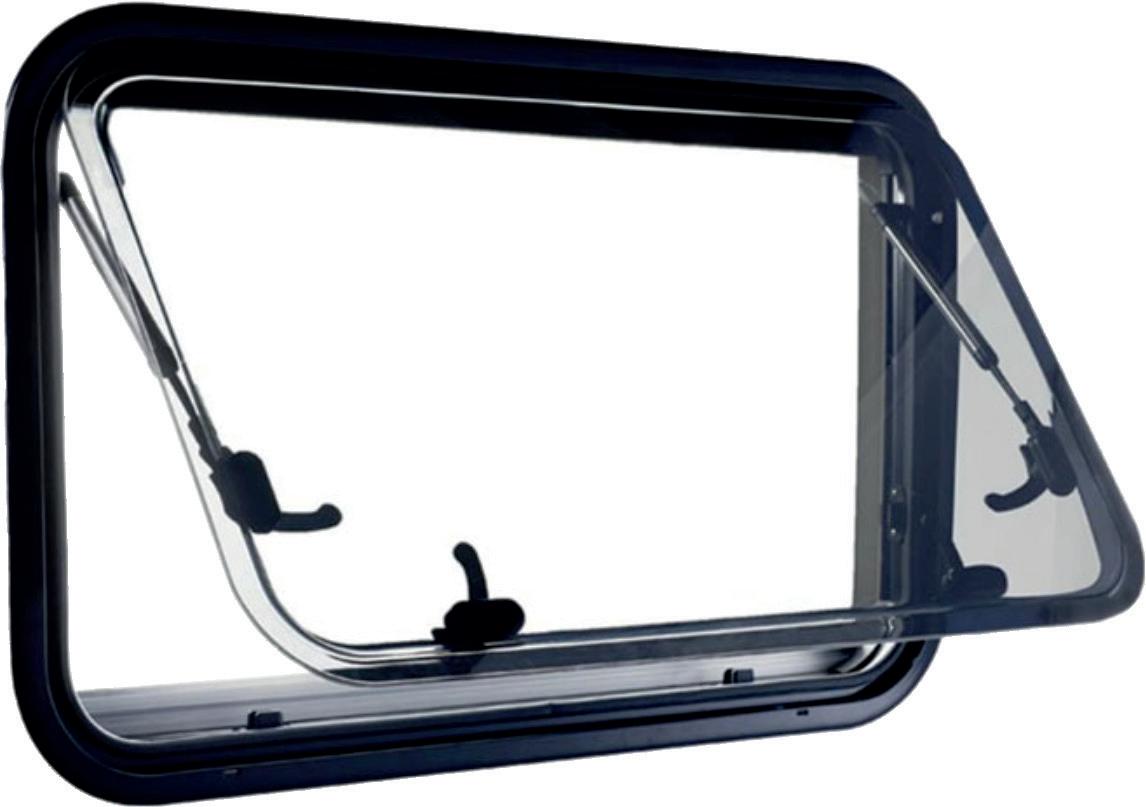

FLAT HINGED ACRYLIC WINDOWS

PRODUCT FEATURES:

Double glazing made of acrylic glass with flat outer pane

UV-resistant, high-quality acrylic glass

ECE certified

Powder-coated frame

Frame colour: matt black (other colours available on request)

Stepless pane positioning or click-clack stand

Ergonomic safety locking bolts

Suitable for wall thickness: 25-34 mm

Different mounting brackets depending on wall thickness

Optional: installation with a one-piece mounting frame

Can be combined with various blackout and fly screen systems (see RV LUX)

Various glass tints: grey, privacy black and opal

WINDOW SERIES

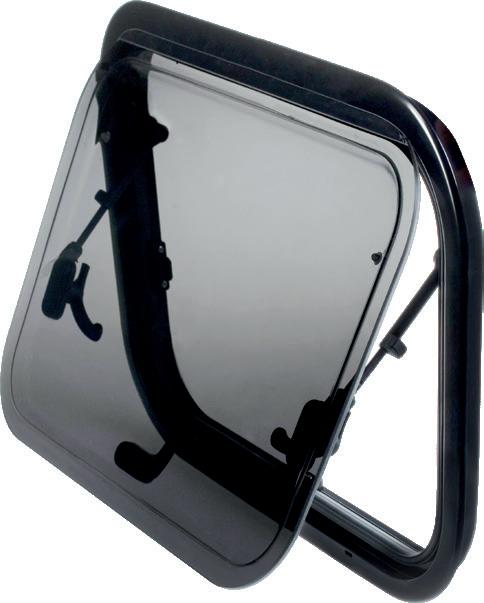

CURVED HINGED ACRYLIC WINDOWS

PRODUCT FEATURES:

Acrylic double glazing

UV-resistant, high-quality acrylic glass

ECE-certified

Powder-coated aluminium frame

Suitable for wall thicknesses: 25-34 mm

Mod. 3J-CFAW - R5000

Different mounting brackets depending on wall thickness

Optional: installation with a one-piece mounting frame

Can be combined with various blackout and fly screen systems (see RV innotec RV LUX)

Frame colour: matt black

WINDOW SERIES

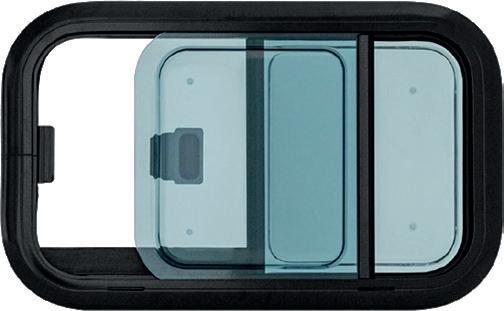

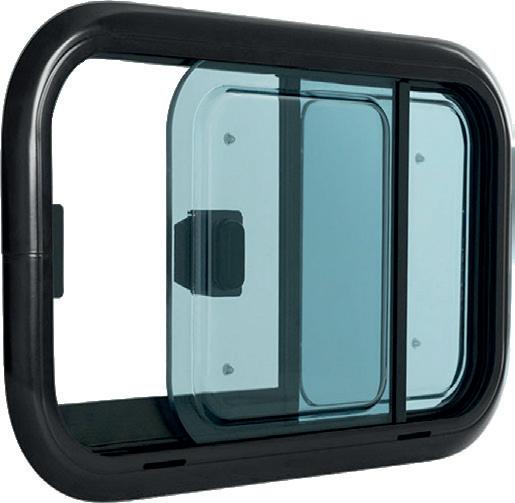

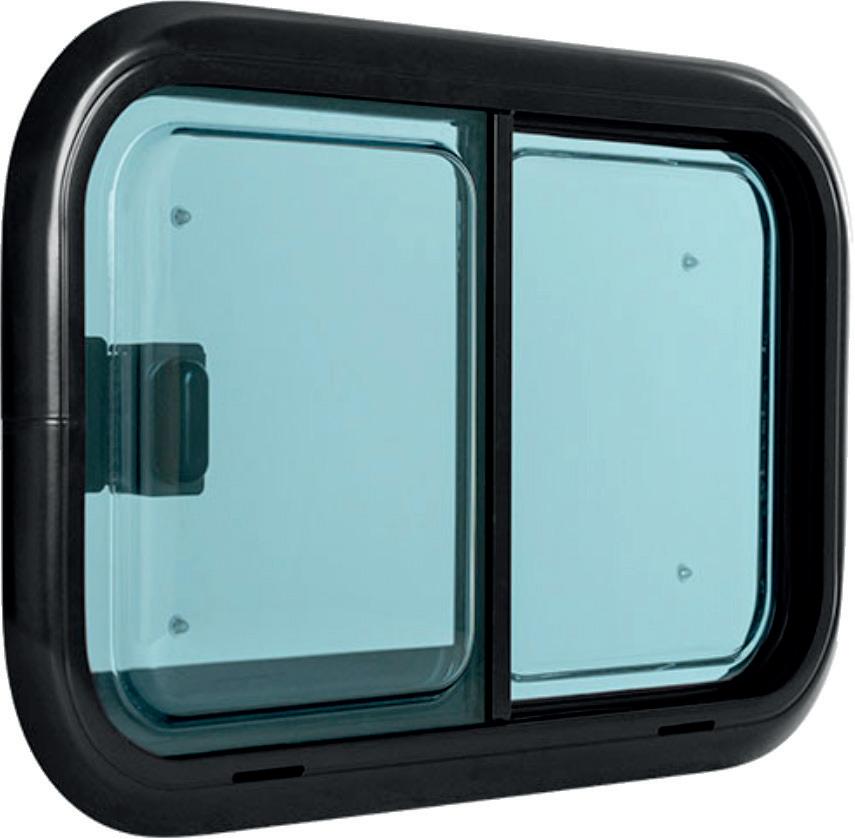

DOUBLE SLIDING WINDOWS

Mod. 3J-DSW

PRODUCT FEATURES:

Double glazing made of acrylic glass with flat outer pane

UV-resistant, high-quality acrylic glass

ECE certified

Powder-coated, high-strength, curved aluminium frame

Frame colour is matt black (other colours available on request)

Stepless pane positioning or click-clack stand

Ergonomic safety locking bolts

Suitable for wall thickness: 25-34 mm with curved outer surface (radius 5000 mm)

Different mounting brackets depending on wall thickness

Optional: installation with a one-piece mounting frame

Can be combined with various blackout and fly screen systems (see RV LUX)

Various glass tints: grey, privacy black and opal

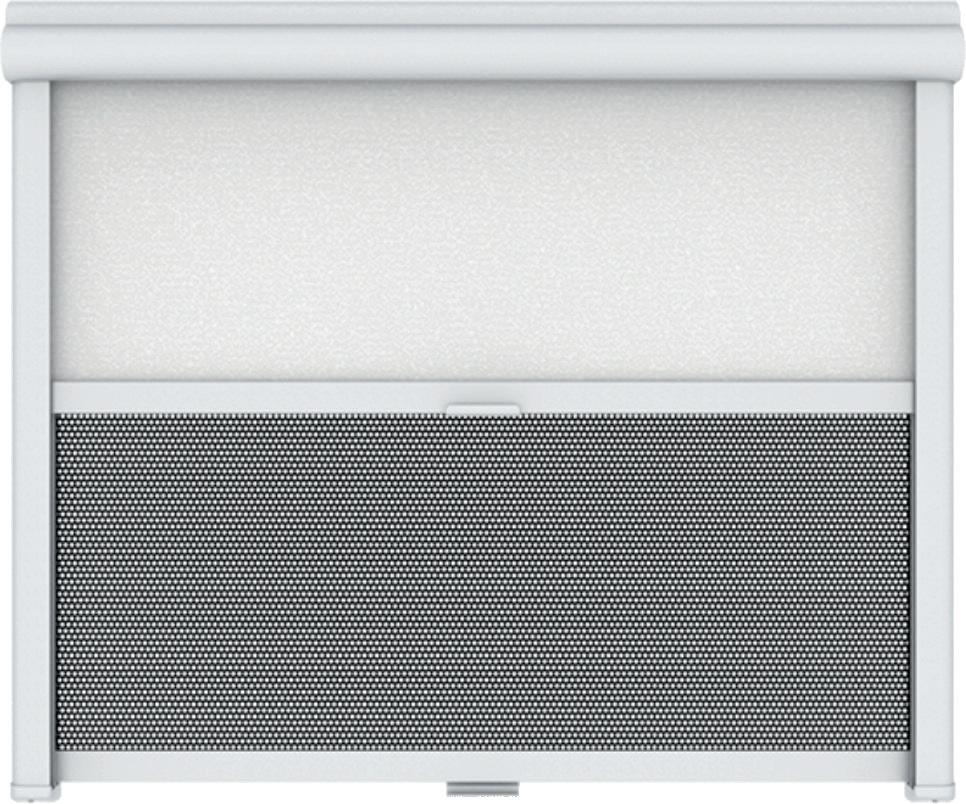

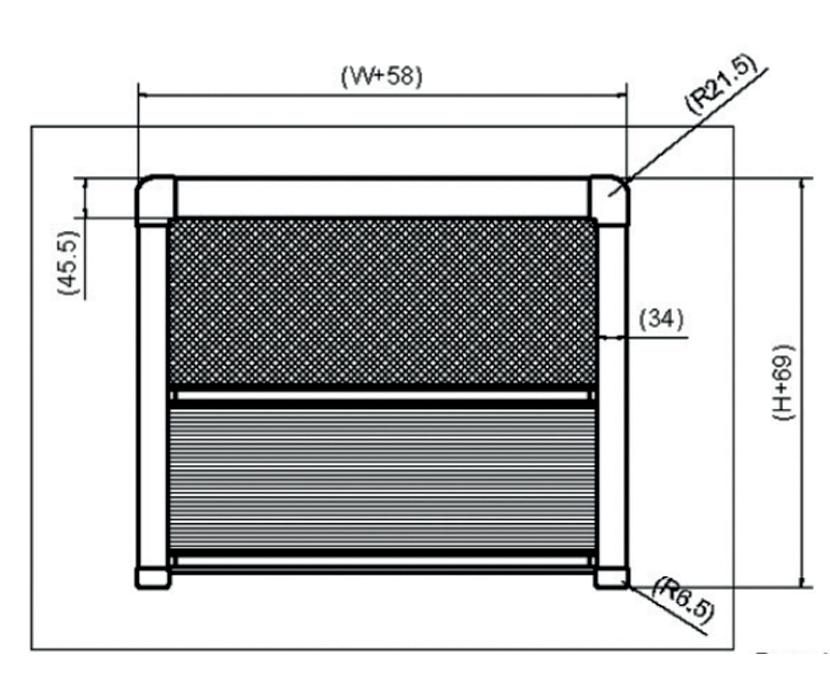

WINDOW BLINDS

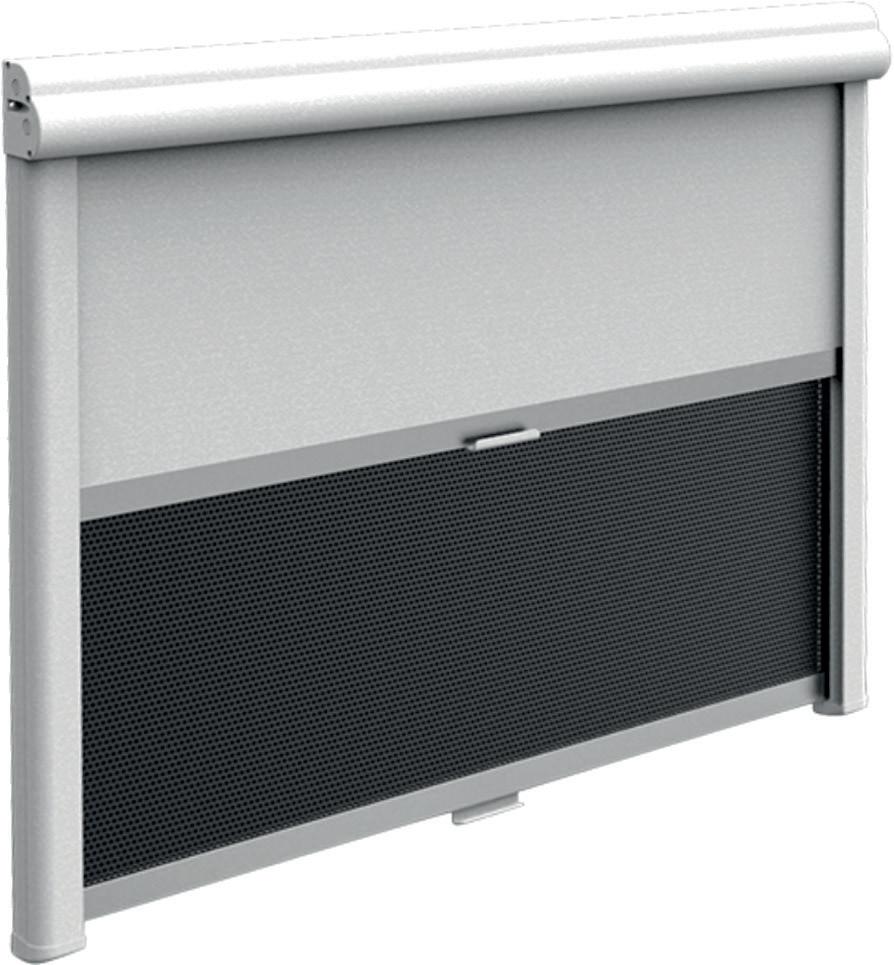

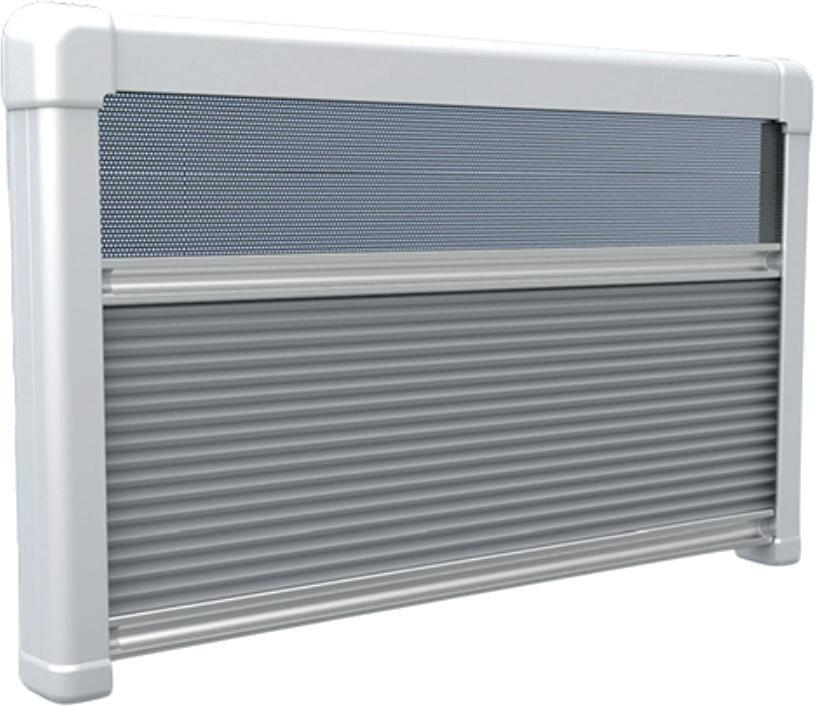

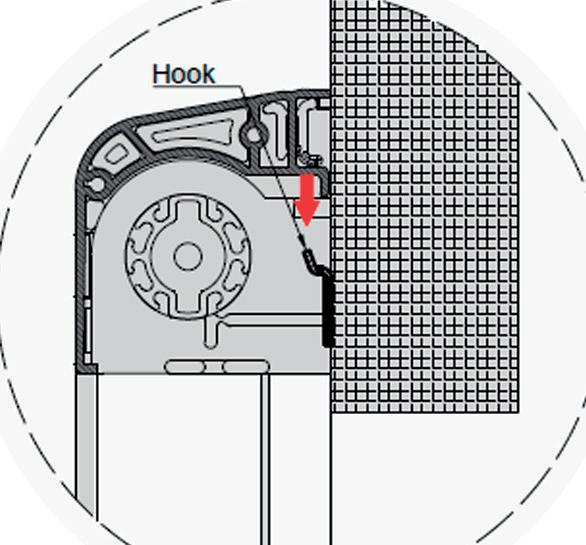

3-SIDED ROLLER BLIND

Roller darkening and flynet fabric

PRODUCT FEATURES:

Elegant and functional design

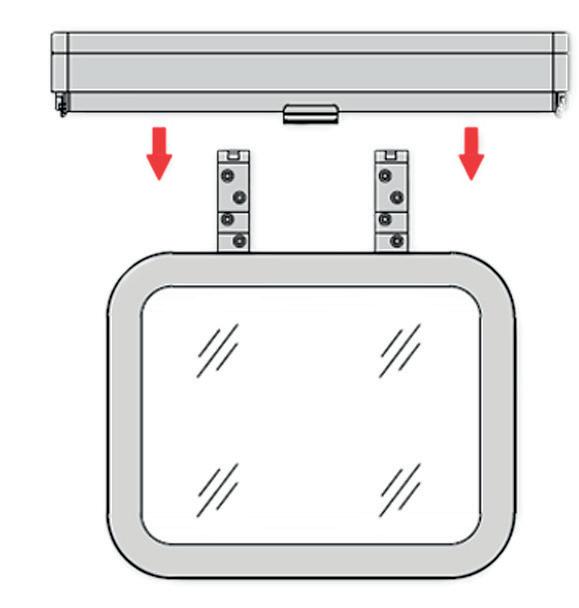

Easy installation with 4 screws on the cassette or by clipping onto the bracket (recommended for very wide roller blinds)

Simplified installation process in combination with our aluminium frame windows

Available for all window sizes

Blackout can be positioned at different heights

Both roller blind systems have a braked, controlled return to the end position

Cassette and guide rails available in aluminium or plastic

Standard colour RAL 9003 (other colours available on request and depending on quantities)

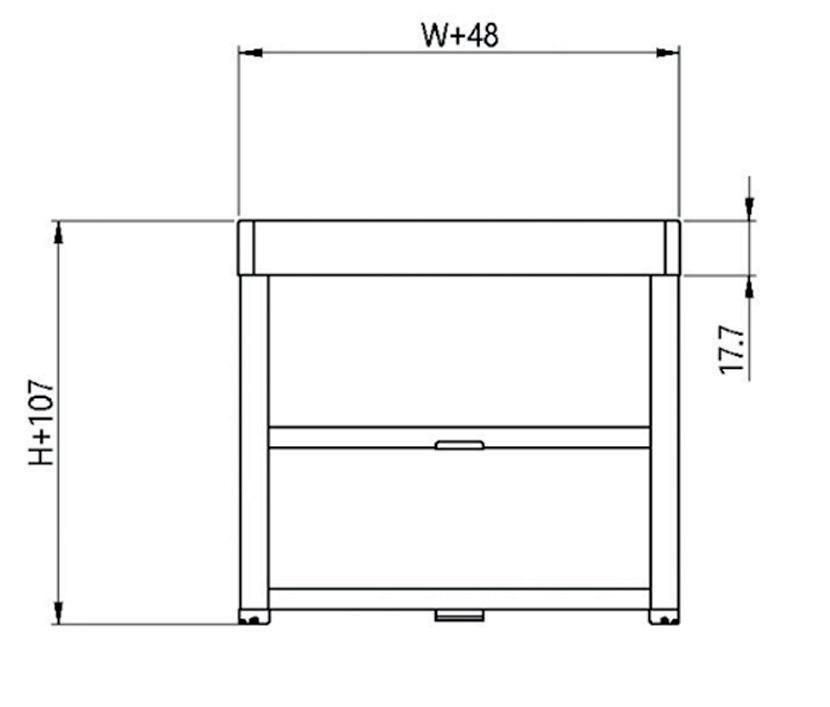

SIZE OF THE BLINDS: REFER TO THE WINDOW SIZES

WINDOW BLINDS

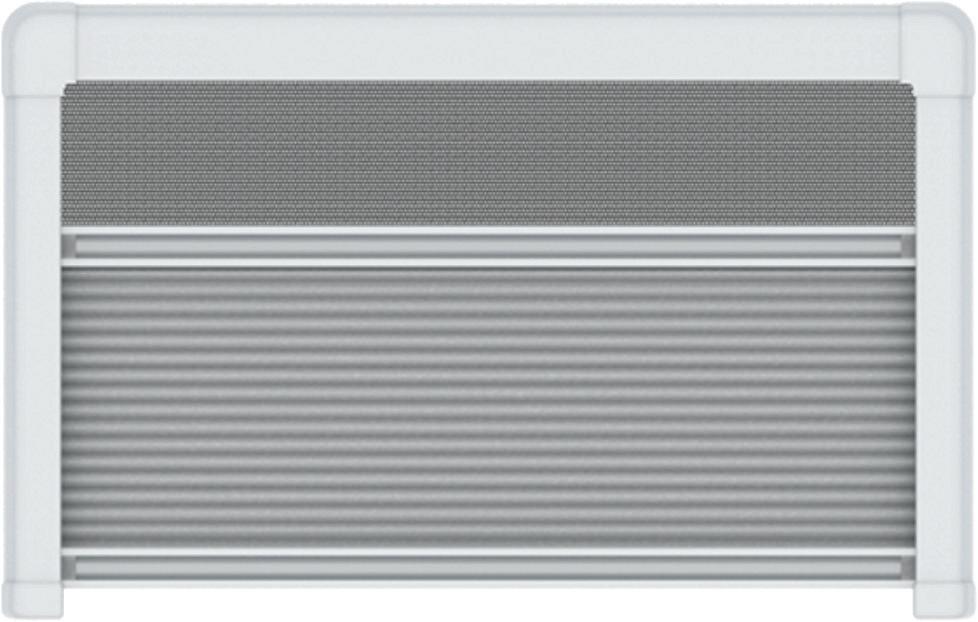

3-SIDED PLEATED BLIND

Darkening Y-Pleat - Flynet: Roller flynet

PRODUCT FEATURES:

Elegant and functional design

Easy installation with 4 screws on the cassette or by attaching to a bracket (recommended for very wide roller blinds)

Simplified installation process in combination with our aluminium frame windows

Available for all window sizes

Stepless positioning of blackout blind with permanent fly screen

Blackout option with single pleated fabric or with thermally insulated and robust Duette honeycomb material

Blackout system arrangement for privacy in the vehicle

Cassette and guide rails available in aluminium or plastic

Standard colour RAL 9003 (other colours available on request and depending on quantities)

SIZE OF THE BLINDS: REFER TO THE WINDOW SIZES

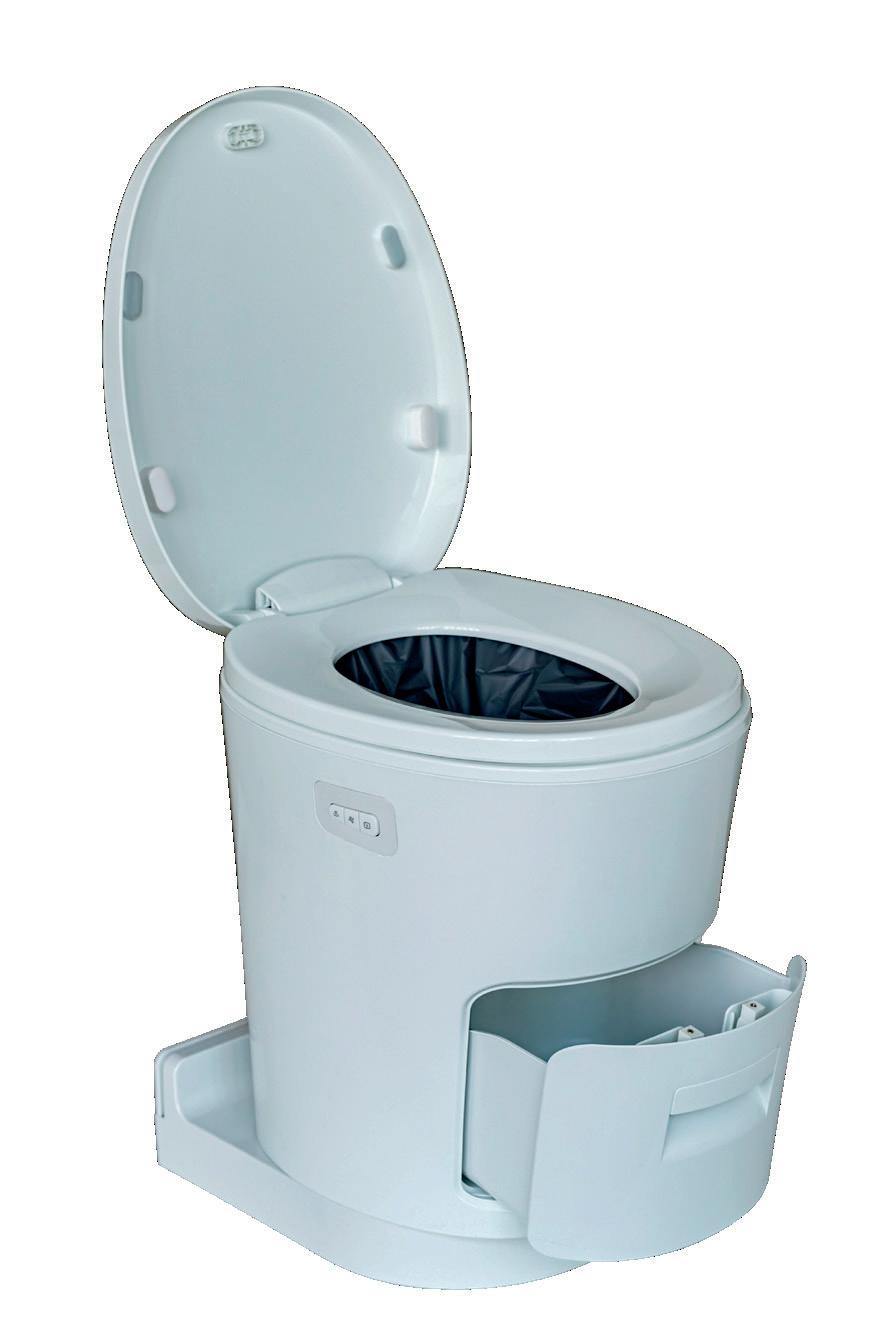

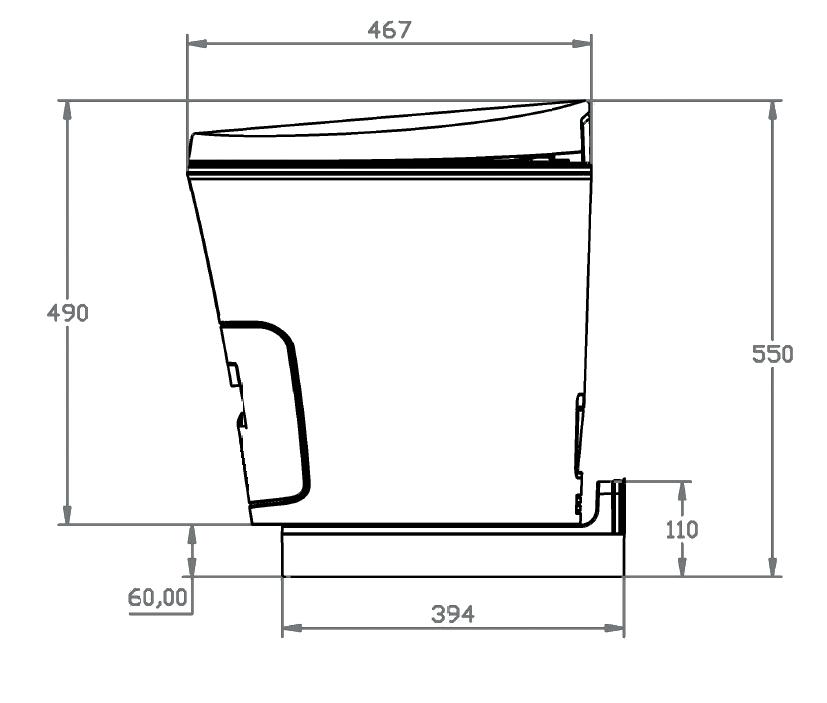

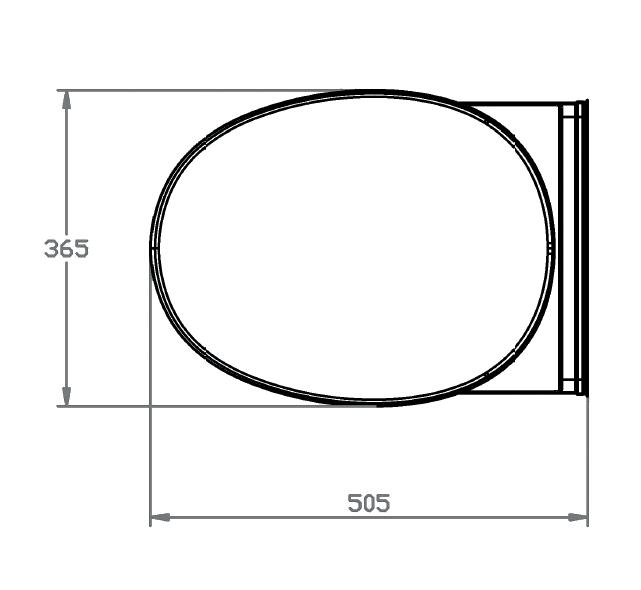

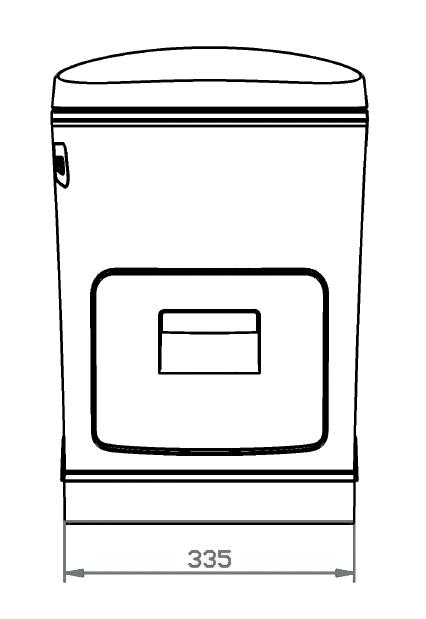

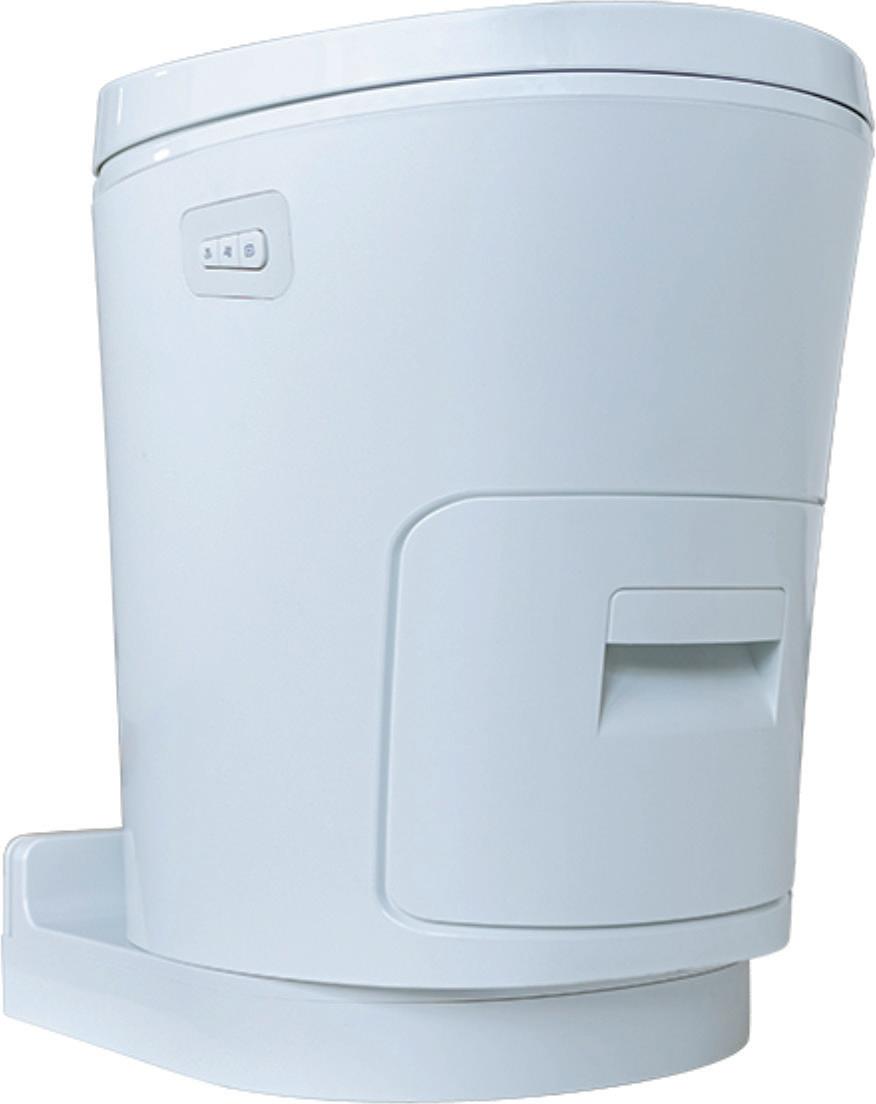

LUX R2

WATERLESS TOILET SANITARY

PRODUCT FEATURES:

No chemicals - waterless operation

Modern, timeless and easy-to-clean design

Use of high-quality materials

Toilet bags available in 2 materials (biodegradable and perfumed bags)

Bag management in residual waste or suitable disposal stations

No water consumption

Weight reduction due to no water flushing

Can be used anywhere as it is battery operated (no wiring required)

Side-mounted, practical positioning of the control buttons

Soft-close function

Magnetic locking of the lid/seat when closed to minimise noise

Corner installation possible with the use of a space-saving lid

Available with console or turntable

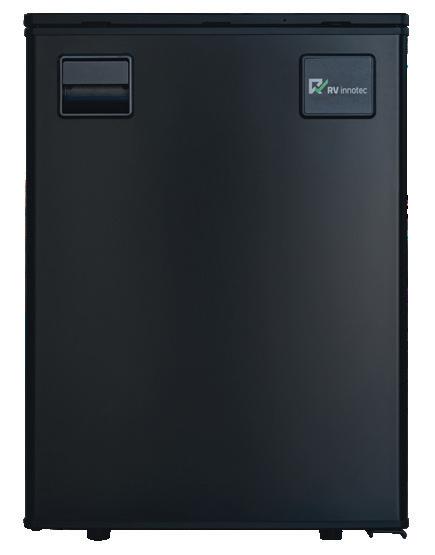

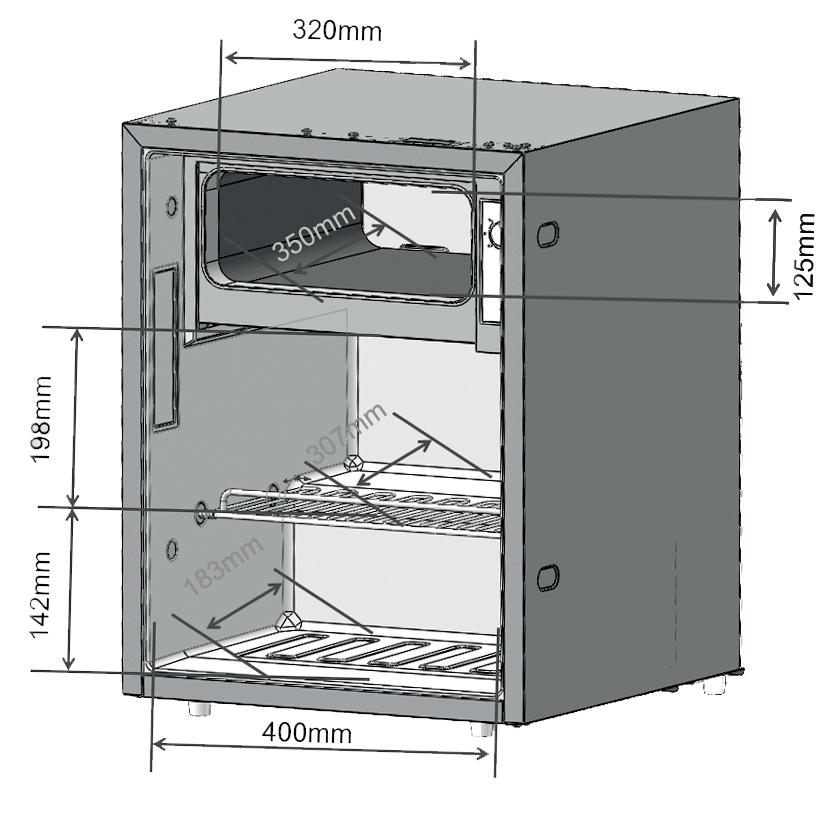

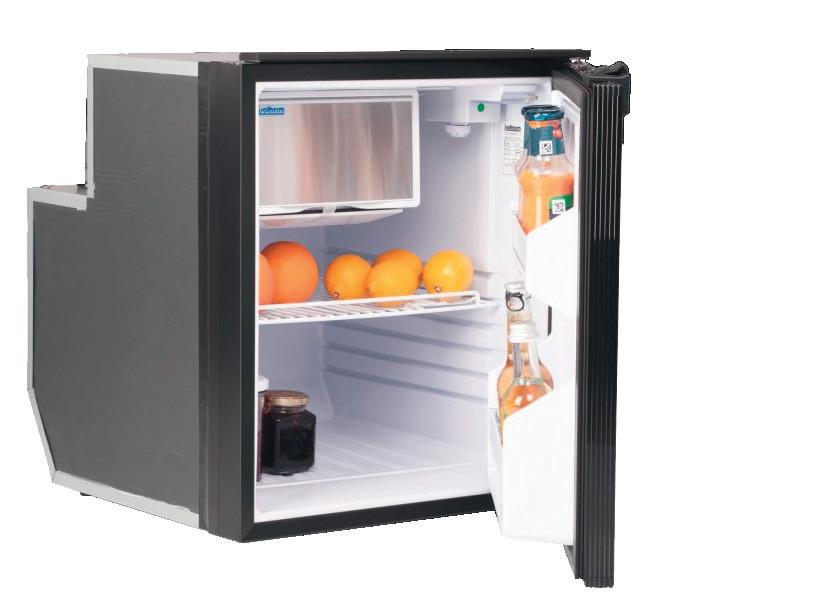

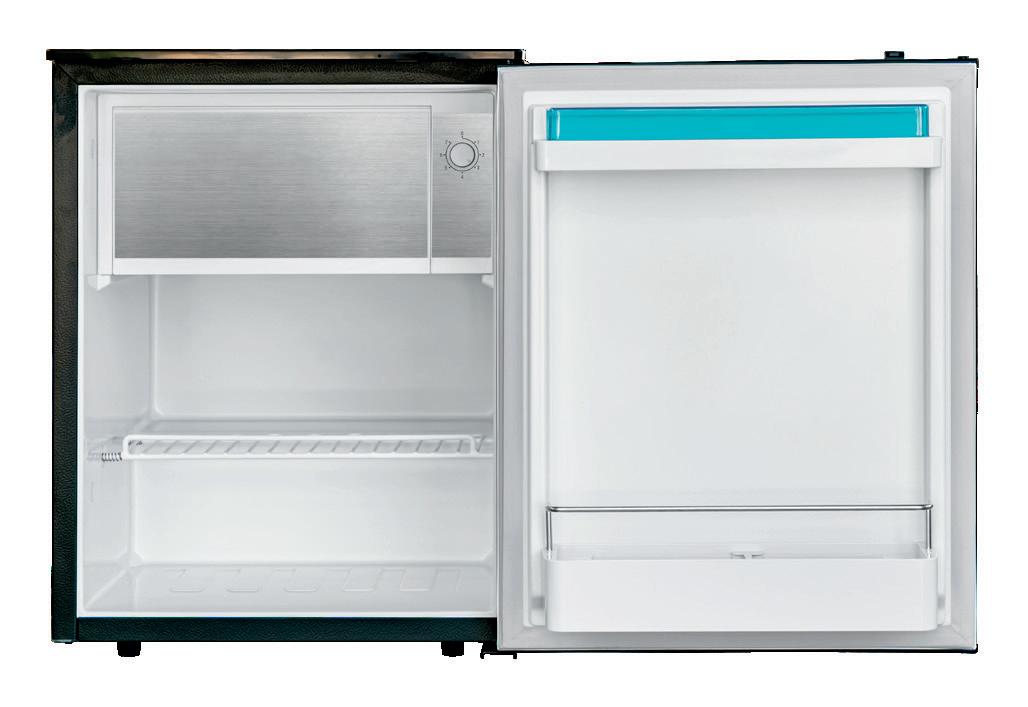

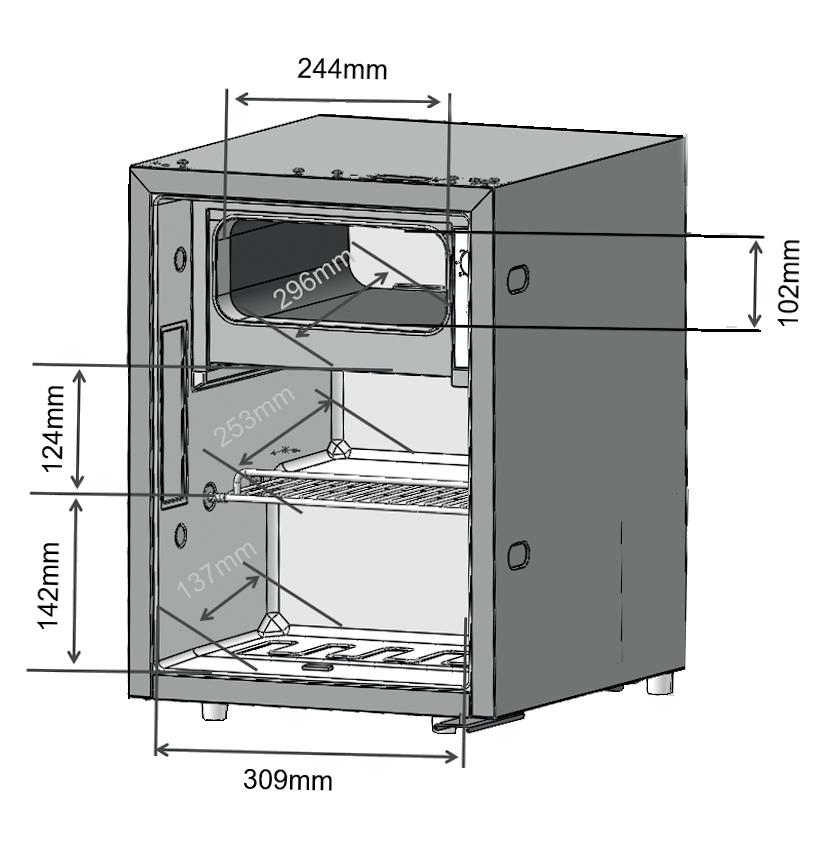

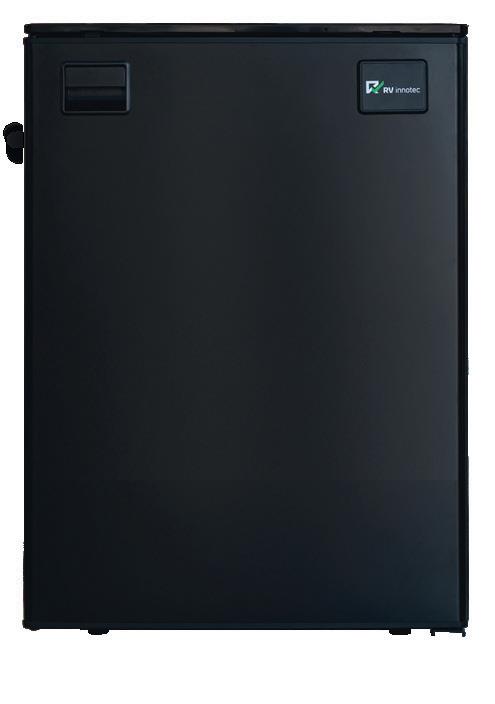

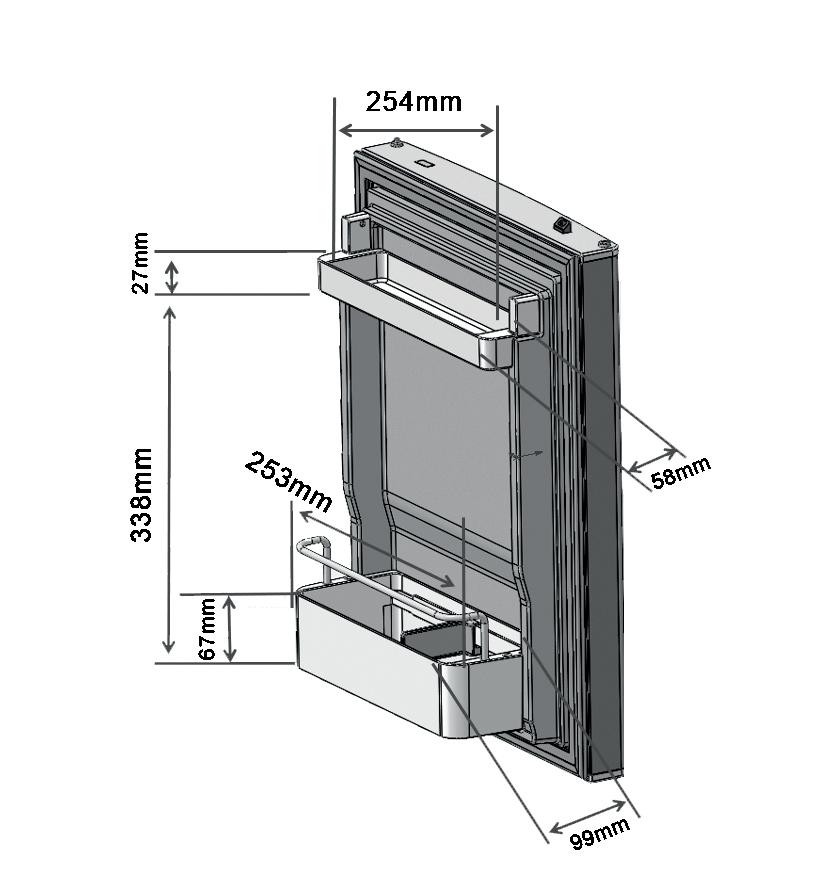

COMPRESSOR FRIDGES

BCD SERIES

It has a flush fitting electronic control panel in the side wall, and has an infrared sensor for illuminating the interior.

The panel has soft-touch buttons for power and temperature setting, a bright LED light for illumination and a power on indicator.

A sleek looking, high quality compressor fridge with built in freezer box. It features a powerful speed-controlled compressor, which reduces noise when operating.

The compressor runs at mid speed during start-up, but then switches to high speed for temperature pull down, and then switches to a quiet low speed while maintaining the required temperature.
