About BroadbentStanleyLtd.
•Over150yearsofmachinetoolmanufacturingheritage.
•Suppliesheavydutymachinetoolsworldwide.
•ProductswidelyusedacrossOil&Gas,Aerospace,Power Generation,Rail&more.
What Are Manual Lathes?
•Manuallathesaremachinetoolsforturningoperationswheretheoperatorcontrolsfeedandspeed.
•Idealfortoolrooms,customcomponentsandbespokeproductiontasks.
•BroadbentStanleyoffersawiderangetosuitvariousindustrialturningneeds.
Manual Lathe Range Overview
BroadbentStanleyLatheSeries
•BSSeries–generalpurposemanuallathes
•PASeries–heavydutyandindustrystandardmodels
•PBSeries–largercapacityheavydutylathes
•PC/PH/PKA–largecapacityandpoweroptionsonrequest

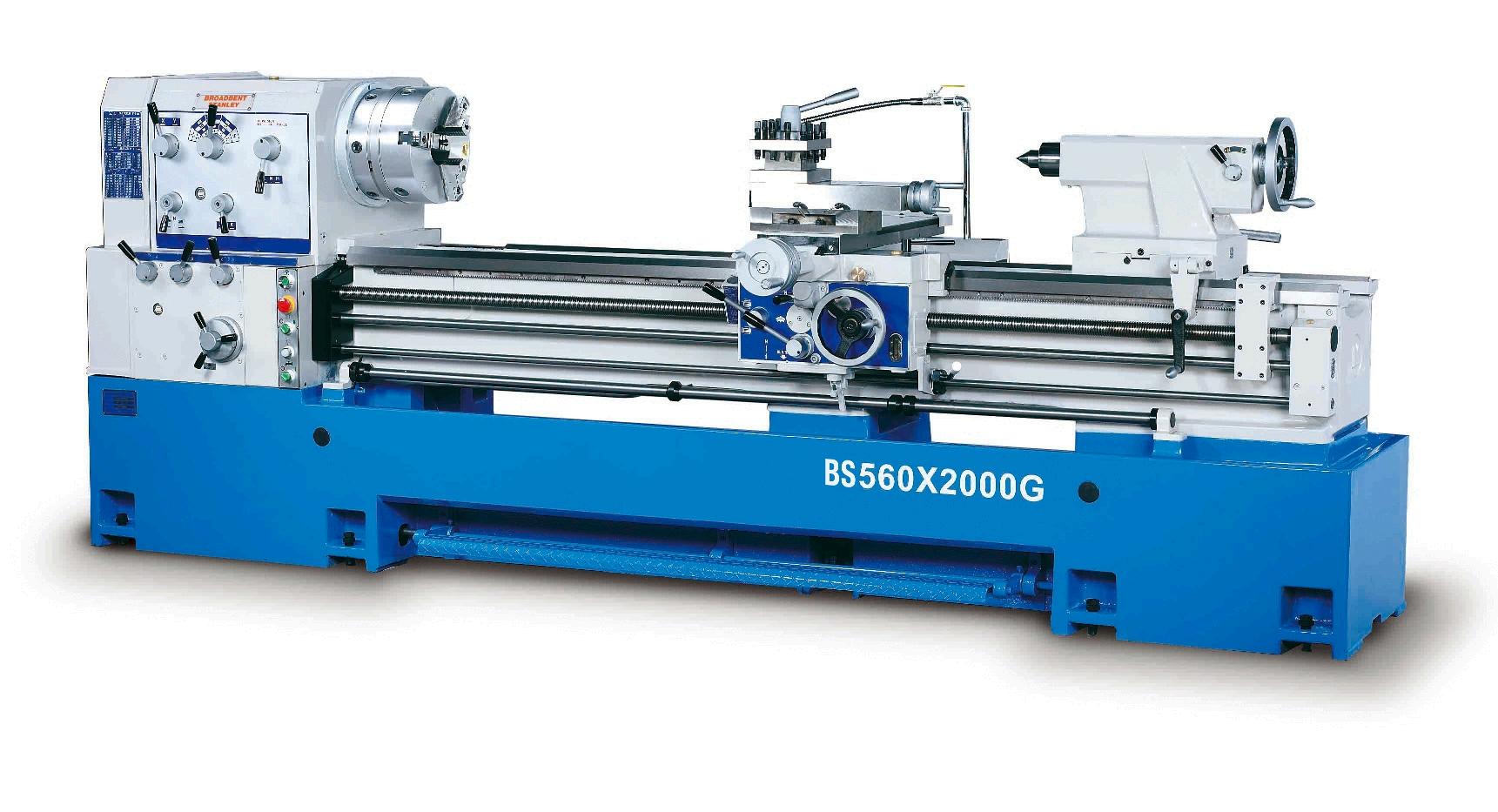

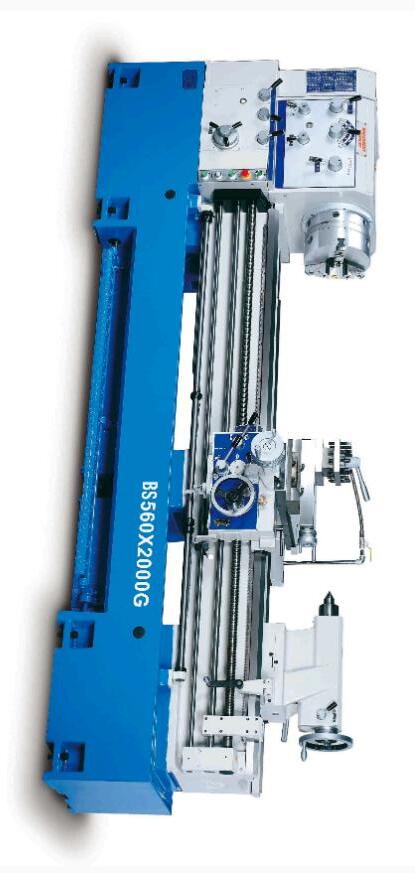

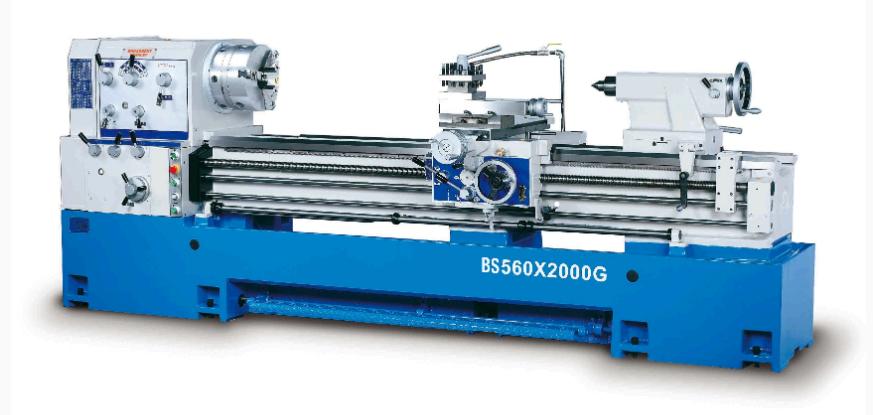

BSSeriesHighlights
• Developed over many years with high build quality.
• Swing capacities from 430mm to 1060mm.
• Centre distances up to 8310mm.
• Suitable for toolroom and general turning tasks.

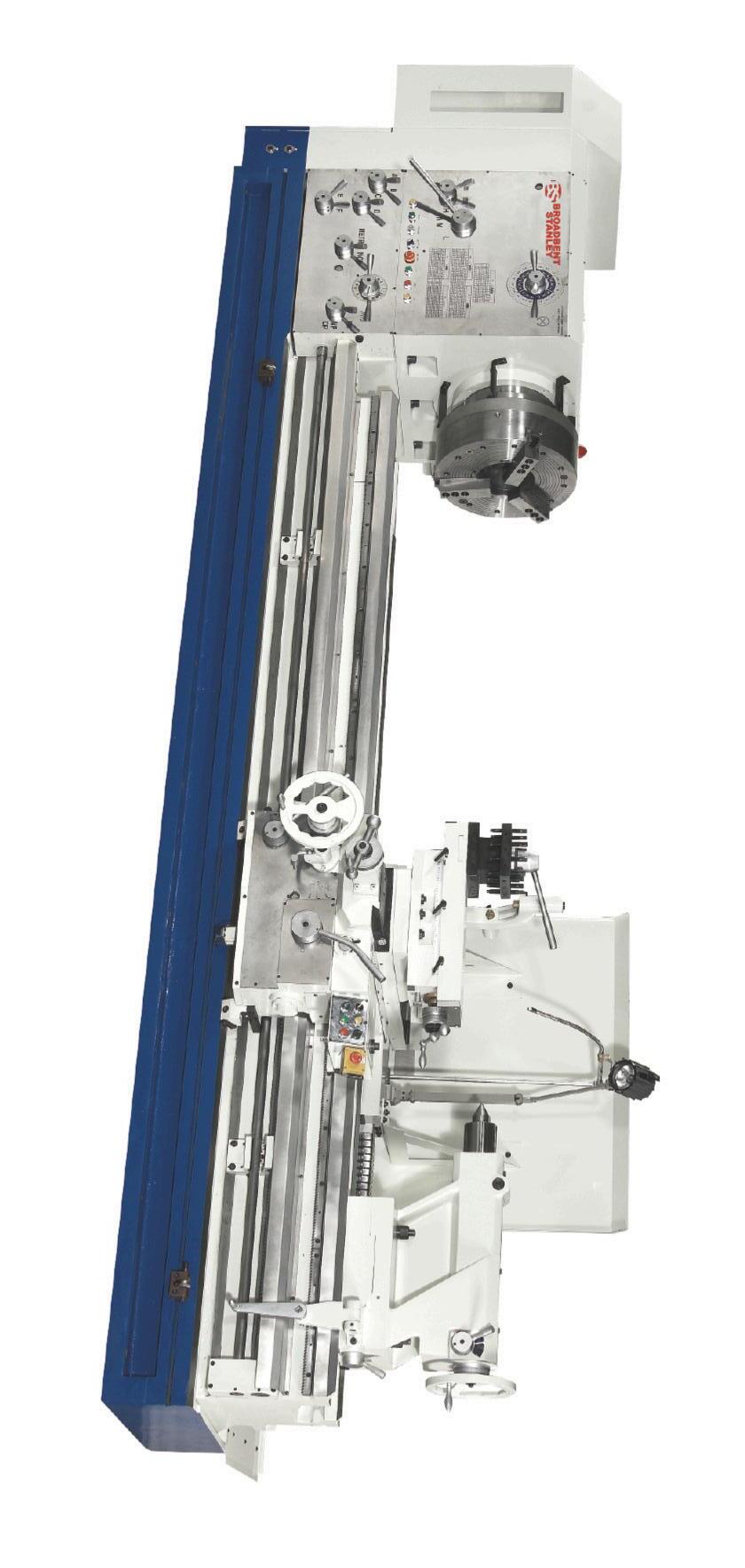

PASeriesHeavyDutyLathes
PA Series Features
SmartFactorySystems
•Knownwidelyinoil&gas,rail,shipbuilding&powergeneration.
•Robustconstructionandlargespindleboreoptions.
•Bedlengthsavailableupto12,000mm.
PB Series Overview
PBSeries–LargerHeavyDutyLathes
• Even greater capacity and ruggedness.
• Swing over bed up to 1530mm.
• Offers exceptional performance for heavy turning applications.

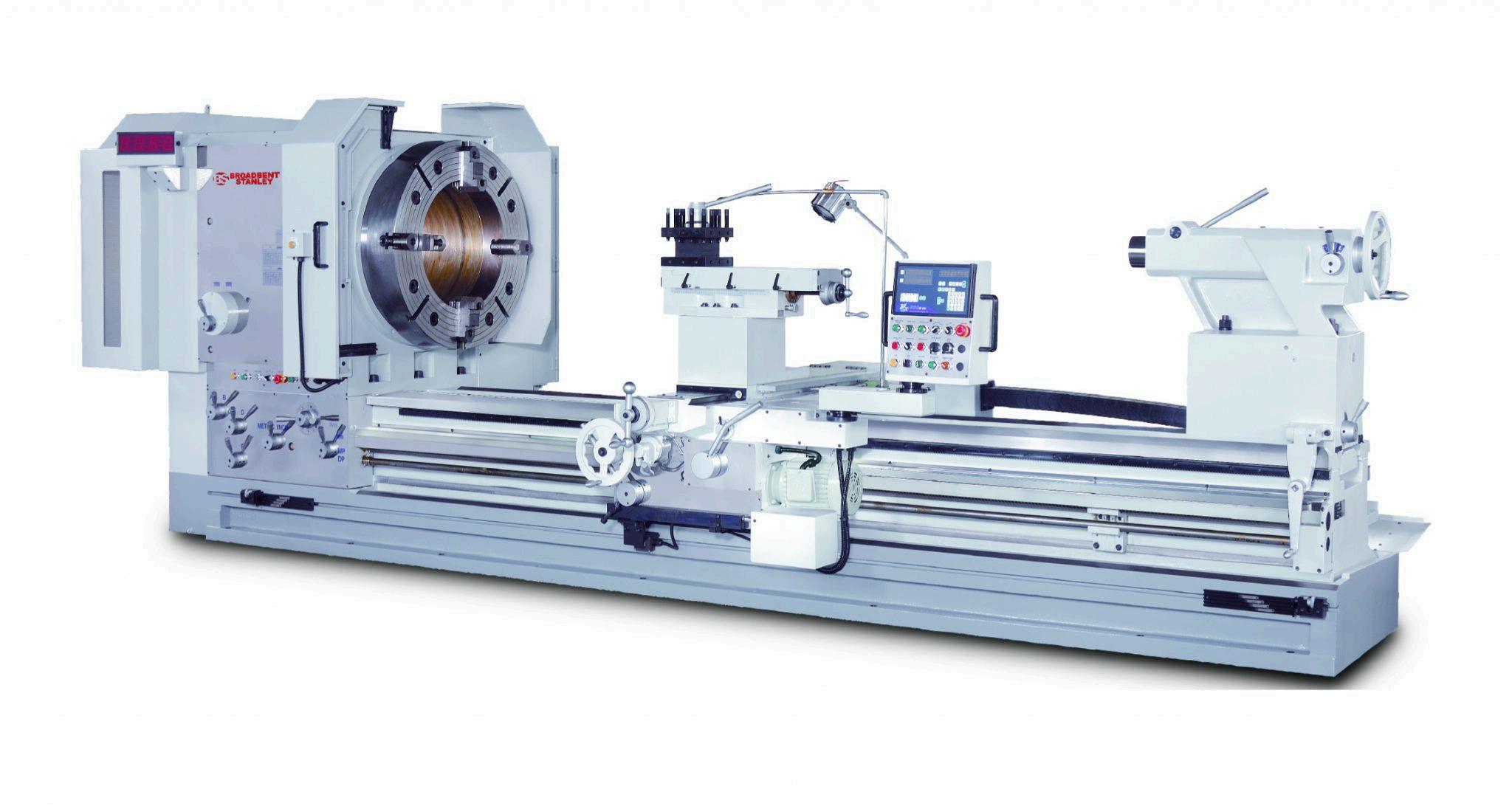

PC / PH / PKA Series
SpecialisedHeavyDutyModels
• PC — heavy duty turning machines with up to 2050mm swings.
• PH — more rigid four-shear bed for tough machining.
• PKA — largest models with up to 200HP spindle power.
• Tailored for power generation, mining, and shipbuilding.
Custom Adjustments
Adaptability&Flexibility
•Machinescanbecustom-spec’dbasedoncustomerrequirements.
•BroadbentStanleysupportschangesinmachinespecification,bedlength,spindlebore,etc.
•Ensuresfitforpurposeandoptimalperformance.
