Agricultural Range & Green Spaces
AGRICULTURAL MULCHERS WITH SWINGING HAMMERS

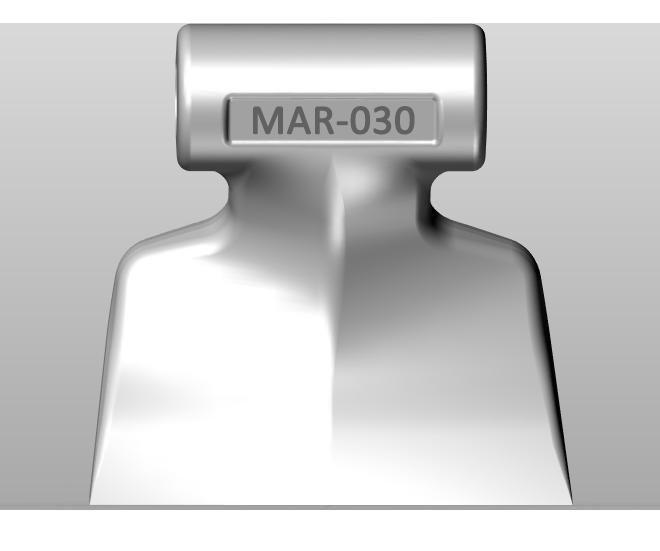

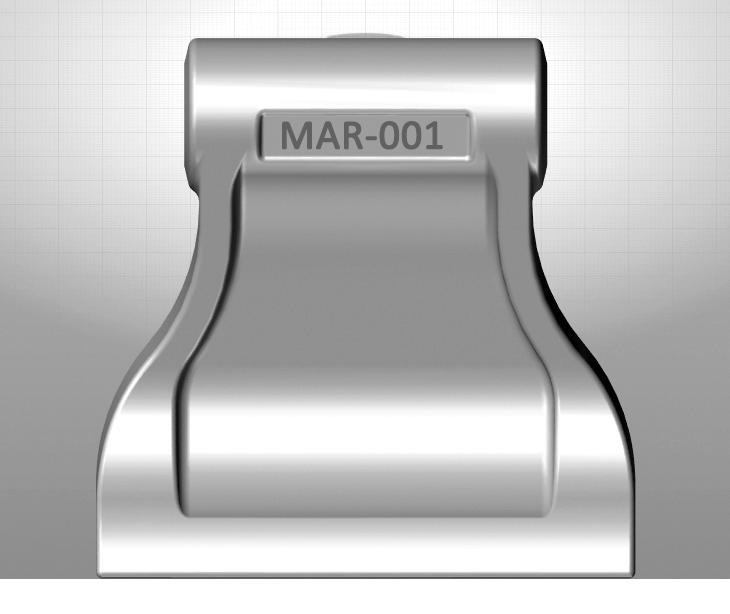

The base of the hammer is of 80 mm compared with 60 mm of a standard hammer, and that avoids problems generated by the side blows in the bars. (Much more stable). Thanks to the width of Serrat hammer (125 mm) we need fewer elements of cutting to cover the width of the crusher and it means a very important economy at the level of operating costs.
With a mulcher with Serrat hammers we can work on a material until 100 mm of diameter and we safe time between 30 % and 40 % and an investment of exploitation of less 30 %.
Mar-001.
f Chassis monocoque between 6 mm and 12 mm with entry in staircase and 3 lines of counter hammers allowing to measure the entry of the material as in a funnel and avoiding obstructions of the material after having entered the chamber of grinding, and avoiding projections in the direction of the tractor.
f The tension of the belts is made by moving axes avoiding the roller tensor and the inverted flexions of the belts. In the part of the rotor there is no breaking point due to the tension of belts considering that the pulley leans on the internal track of the movement and only the axis supports the transmission of the power, not the effort radial nerve made by the belts. The greasing is made by the center of the axis so that the grease divides up in the movement thanks to the centrifugation.
f Forged and tempered steel hammer. Gearbox Serrat drawn specially for agricultural mulchers, all its bearings are conical ball rollers.

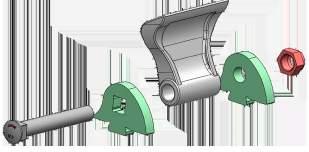

GIROSTOP
The exclusive hammer coupling system with pivot GIROSTOP is the only one in this type of machines. The advantages are countless and below some of them:
1.st- Thanks to its square anchorage head, the pivot GIROSTOP never rotates in the hammer support. This advantage is very important because not turning, the hammer support will never be consumed and if the support in the lower part is not consumed it will increase the reliability of the rotor.
2.nd- Thanks to the immobility of the pivot, the hammer is obligated to turn over the pivot and for that we can obtain that the bolt and the hammer do not get jammed because of dust and dirt.
3.rd- The completely flat pivot head avoiding twist of cable or grass into it.
4.th- Thanks to this immobilization system, the maintenance and the change of the hammers will be much more safe and convenient.
GEARBOX SERRAT
Gearbox with tapered roller bearings.
FREEWHEEL
The freewheel is equipped on our machines and gives us the advantage of not transmitting the inertia of the rotor to the tractor’s transmission when disengaging the PTO.

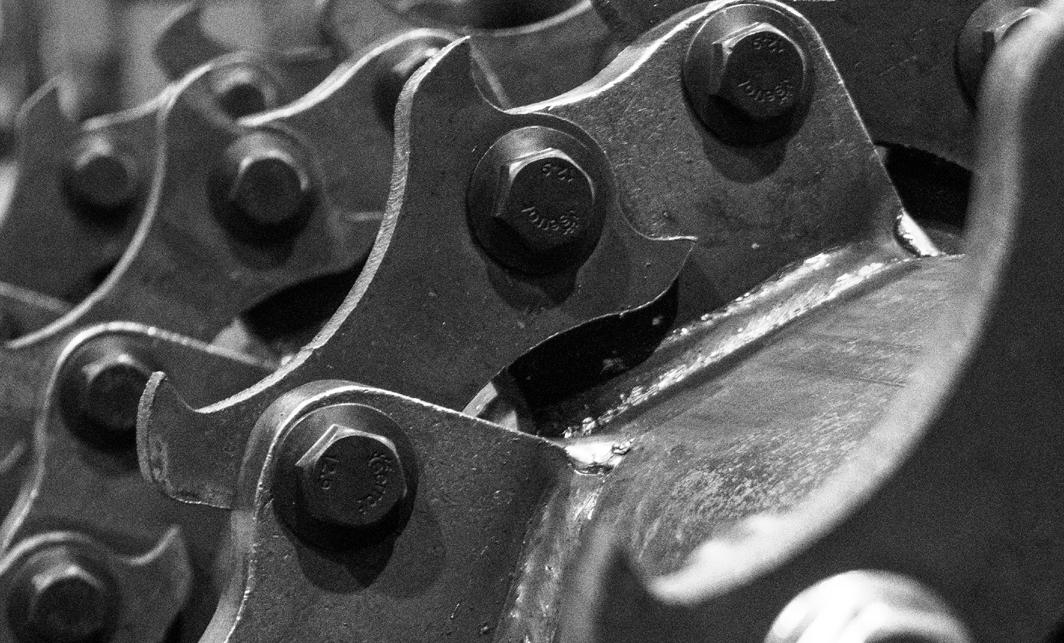

ROTOR POLSER

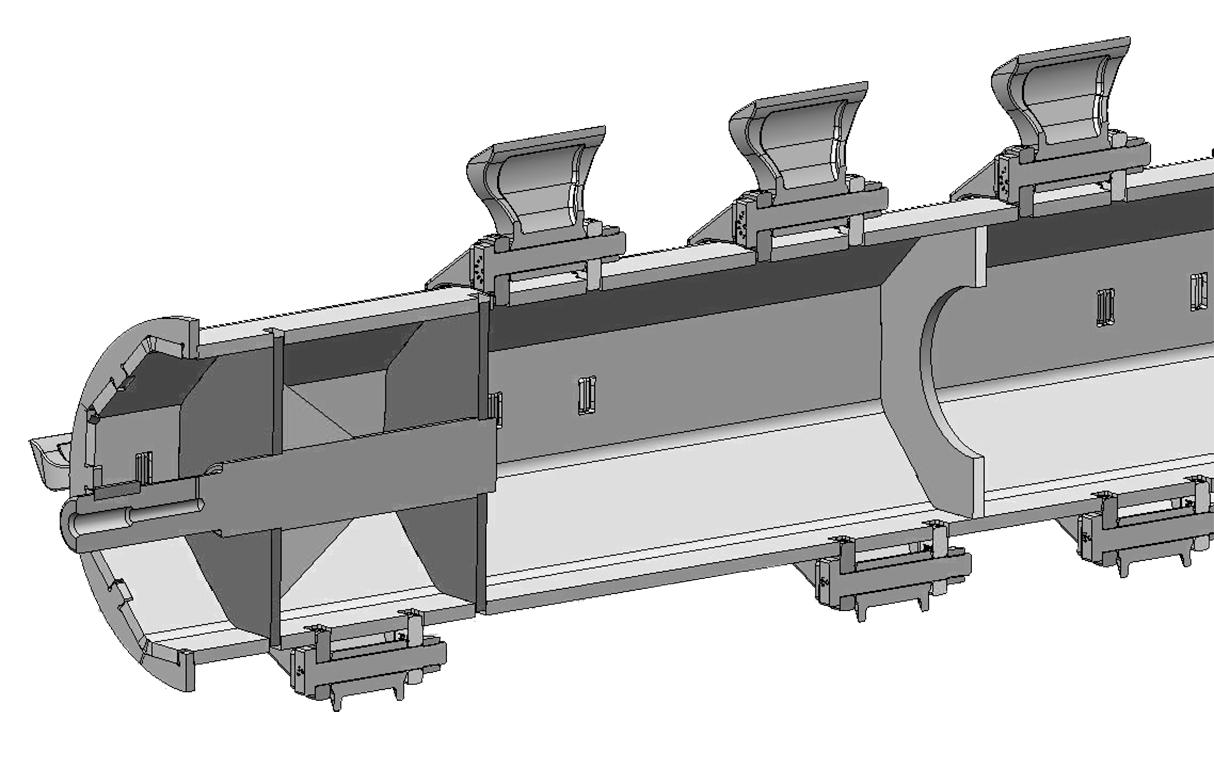

Rotor POLSER, made in a plate of hardox and with a mechanical assembly.
f Rotor POLSER, made in a plate of hardox and with a mechanical assembly. Ingenious rotor designed and manufactured in an octagonal shape providing more strength when the hammer reverses itself due to impacts.
f Forged steel supports with high precision position guaranteeing a perfect operation and positioning of the cutting elements.
f Gear plates of octagonal shape improving the power transmission.
f Internal plates to structure the rotor.
f Tubular rotor of Ø 350 mm.
f Steel-plate chassis, thickness 4 mm.
f Forged hammers SERRAT.
f For tractors between 20 - 40 HP.
f For material up to Ø 30 mm.
f Roller Ø 140 mm.
f Tubular rotor of Ø 400 mm.
f Steel-plate chassis, thickness 6 mm.
f Forged hammers SERRAT special “grass”.
f For tractors between 30 - 80 HP.
f For material up to Ø 50 mm.
f Roller Ø 180 mm.
f Special configuration for frontal works.
f Hydraulic front hood.
TRIGON
f Tubular rotor of Ø 420 mm.
f Steel-plate chassis, thickness 8 mm.
f Forged agricultural hammers SERRAT.
f For tractors between 40 - 80 HP.
f Its fixed configuration allows to choose the position of the gearbox to centre the machine to the work.
f Roller Ø 180 mm.
f For material up to Ø 60 mm.

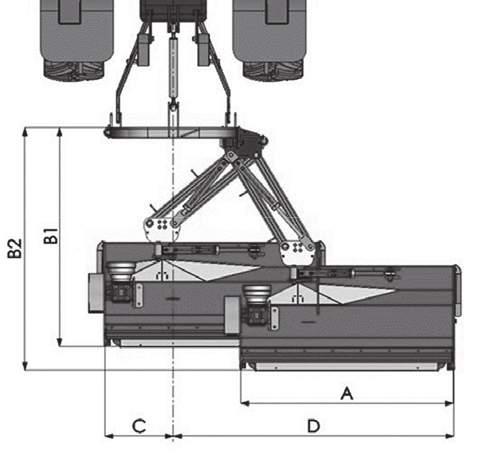

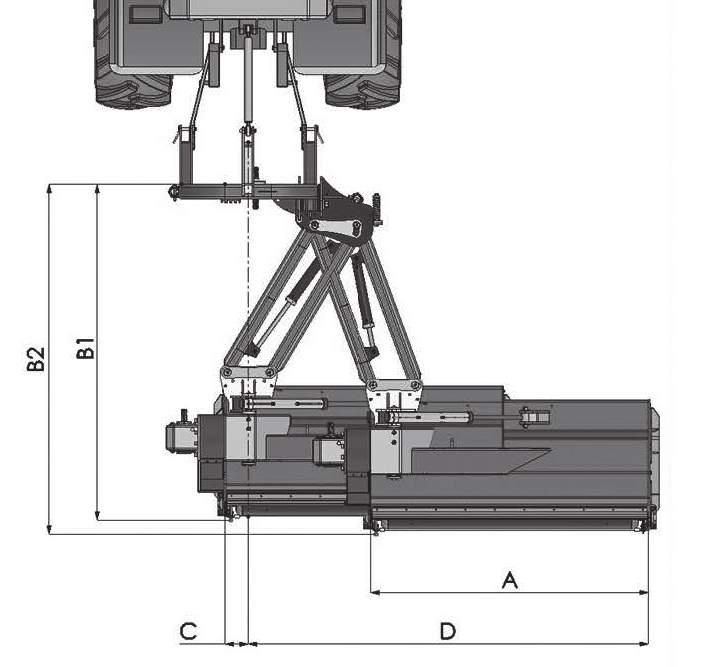

SIDE SHIFT
f Its moveable composition allows the tractor to circulate along the center of the street and the machine to mulch next to the tree.
REVERSIBLE SIDE SHIFT
f Reversible and movable composition for front and rear PTO or reversible tractors.
f Rotor POLSER of Ø 450 - 500 mm.
f Steel-plate chassis, thickness 10 mm.
f Forged agricultural hammers SERRAT.
f For tractors between 60 - 120 HP.
f For material up to Ø 80 mm.
f Roller Ø 180/210 mm.
FIXED WITH REAR HOOD
f Rear hydraulic hood with sieve.
SIDE
f Its moveable composition allows the tractor to circulate along the center of the street and the machine to mulch next to the tree.
SIDE SHIFT WITH REAR HOOD
f Rear hydraulic hood with sieve.
REVERSIBLE SIDE SHIFT
f Reversible and movable composition for front and rear PTO or reversible tractors.
T-2300
f In a single passage is capable of cutting and pouring the grass at the feet of fruit trees or vineyards, and that without any additional cost in time of work.
f 1 or 2 side exit.
f Special configuration for frontal works. f Hydraulic front hood.
f Rotor POLSER of Ø 550 mm.
f Steel-plate chassis, thickness 10 mm.
f Forged agricultural hammers SERRAT.
f For tractors between 60 - 130 HP.
f For material up to Ø 100 - 120 mm.
f Roller Ø 180/210 mm.
f 3 lines of counter hammers.
FIXED WITH REAR HOOD
f Rear hydraulic hood with sieve. f 11 lines of counter hammers.
SIDE SHIFT
SIDE SHIFT WITH REAR HOOD
f Rear hydraulic hood with sieve. f 11 lines of counter hammers. f Hidraulic lateral offset.
f Reversible for front and rear PTO or reversible tractors.
REVERSIBLE SIDE SHIFT
f Reversible and movable composition for front and rear PTO or reversible tractors.
f Rotor POLSER of Ø 550 mm.
f Steel-plate chassis, thickness 10 mm.
f Forged agricultural hammers SERRAT.
f For tractors between 50 - 110 HP.
f Rear tine retainers.
f Side plates.
f Rear gum over the roller.
f Rotor POLSER of Ø 550 mm.
f Steel-plate chassis, thickness 10 mm.
f Roller Ø 180/210 mm.
f Forged agricultural hammers SERRAT.
f For tractors between 80 - 150 HP.
f For material up to Ø 150 mm.
f 3 lines of counter hammers.
FIXED
SIDE SHIFT
REVERSIBLE SIDE SHIFT
WOLKAVIA
f Rotor POLSER of Ø 650 mm.
f Steel-plate chassis, thickness 12 mm.
f Forged agricultural hammers SERRAT.
f For tractors between 120 - 280 HP.
f Thanks to his large diametre, it retains the remains more time in its interior and mulch them 3 times more than a conventional machine.
f 3 lines of counter hammers.
MAYDER
f Rotor POLSER of Ø 650 mm.
f Steel-plate chassis, thickness 8 mm.

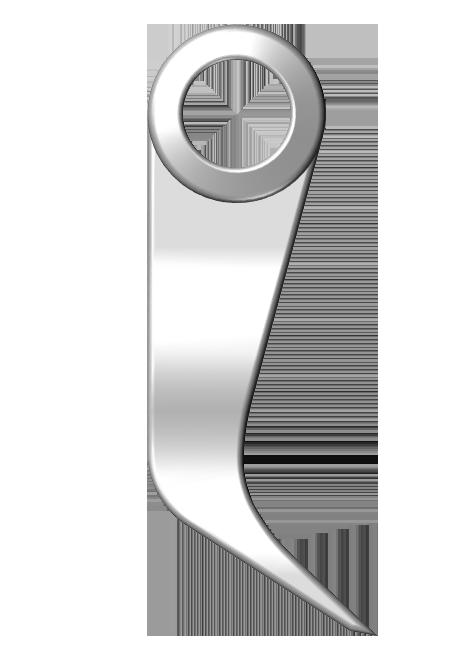

f Stamped hammers or Y blades.
f For tractors between 100 - 150 HP.
f Rear hydraulic hood.
MAYDER +
f Rotor POLSER of Ø 725 mm.
f Steel-plate chassis, thickness 12 mm.
f For tractors between 120 - 270 HP.
f Double side belt transmission.
f Rotor POLSER of Ø 450 mm.
f Steel-plate chassis, thickness 10 mm.
f Forged agricultural hammers SERRAT.
f Hydraulic folding exclusive design by SERRAT.
f For tractors between 100 - 140 HP.
f Different working until 4 m.
f The inside belt transmission allows us to approach the lateral edges as close as possible to the feet of the trees and towards the field edge.
f Rotor POLSER of Ø 550 mm.
f For tractors between 125 - 220 HP.
f Different working widths can until 6.30 m.
f Rotor POLSER of Ø 650 mm.
f For tractors between 250 - 400 HP.
f Different working widths 6.30 m and 7.30 m.
LEYKAZA
f Rotor POLSER of Ø 600 mm.
f Steel-plate chassis, thickness 8 mm.
f Forged agricultural hammers SERRAT.
f For tractors between 300 - 450 HP.
f Hydraulic folding exclusive design by SERRAT.
f Direct cardan rear machine.

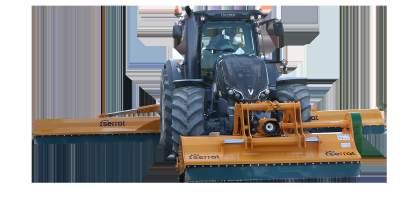

f Composition of two machines working width of 9.5 meters with a front machine of 3 m.
F.R.D. T-3000
F.R.S.: Frontal Reversible Shide Shift.
BRALAKC Agricultural PICK-UP RANGE
The BRALAKC feeder knives system is an exclusive design of SERRAT TRITURADORAS. These exclusive feeder knives are the result of years of experience that SERRAT has developed in self-feeder mulchers.
Thanks to this innovative system we can obtain two essential factors collecting the pruning remains from the ground.
f Firstable, an absolute efficiency on the collection of the material thanks to the helical mounting system.
f On the other hand, thanks to its curved design, we can obtain a continuous feeding and without any obstruction, a fundamental factor in these type of machines when working in pruning cordons of high dimensions and volume.
RHENDUEL
The RHENDUEL system is an ingenious perfect cutting system for self-feeder mulchers. Its main advantage is that with this system we can obtain a very fine chipwoods like sawdust thanks to its special blades. In addition, the power required by the tractor, to mulch with this system of blades, it can decrease up to 40 %, a very important factor to be taken into account to safe fuel and safe money.
Thanks to the fineness and the homogeneity of the chipwoods, it was possible to obtain that in machines with pneumatic charge like BIOMASS it were possible the transport through flexible and to load the material into biomass trailers.
It must be remembered that the fineness of the material, facilitates a multitude of activities in the field, for example:
1.- The incorporation of the woodchips into the ground is much faster with this system and in a short period of time the material will disappear from the ground.
2.- In nuts cultivation, where normally the harvest is mechanic, is fundamental to use these machines, because otherwise, we could have some problems during the harvest with big piece of wood causing large losses for the farmers.

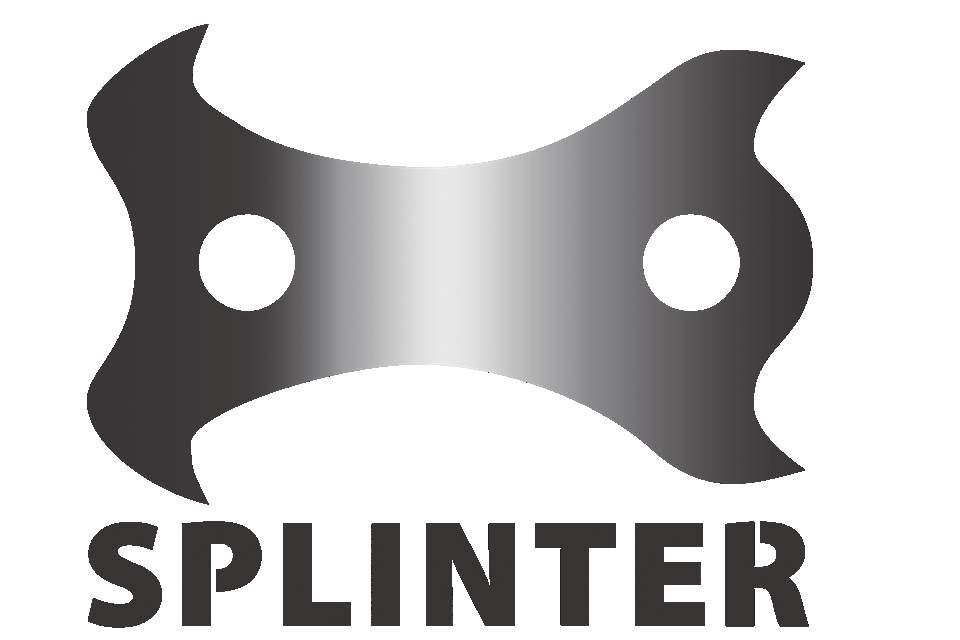

SPLINTER

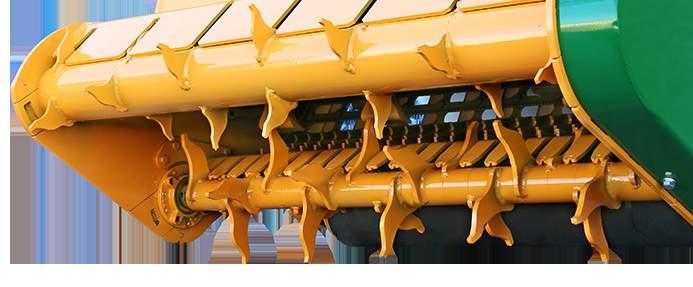

ROTOR WITH SPLINTER BLADES: Its main characteristic is that this rotor with blades is made up of two spirals in which the effort is distributed throughout the entire rotor, giving it a very high rigidity. In addition, these blades are reversible, having two cutting edges useful cut. It is a rotor intended for wood shredding works of pruning remains and clearing.
f Tubular rotor of Ø 400 mm.
f Steel-plate chassis, thickness 8 mm.
f Forged agricultural hammers SERRAT.
f For tractors between 60 - 100 HP.
f For material up to Ø 50 mm.
f High torque hydraulic motor reversible.
f Reversible toothed rear screen.
f Feeder with system BRALAKC.
f Tubular rotor of Ø 450 mm.
f Steel-plate chassis, thickness 10 mm.
f For tractors between 60 - 120 HP.
f For material up to Ø 80 mm.
f Rotor SPLINTER of Ø 350 mm.
f Steel-plate chassis, thickness 8 mm.
f Treated blades.
f For tractors between 60 - 120 HP.
f For material up to Ø 60 mm.
f Feeder with system BRALAKC.
f Rotor SPLINTER of Ø 450 mm.
f Steel-plate chassis, thickness 10 mm.
f For tractors between 70 - 140 HP.
f For material up to Ø 80 mm.
f Rotor SPLINTER of Ø 550 mm.
f Steel-plate chassis, thickness 8 mm.
f For tractors between 90 to 160 HP.
f For material up to Ø 100 mm.

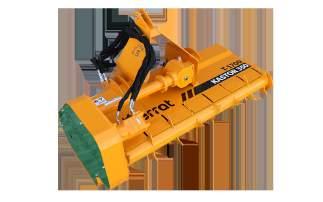

KASTOR
f Mulcher with reversible hydraulic feeder, ideal for pruning of vineyard, table grapes, chestnut-trees, olive trees, almond-trees, citrus fruits, walnuts, hazel, nuts, etc.
f Rotor with system RHENDUEL of Ø 350 mm.
f Steel-plate chassis, thickness 8 mm.
f Treated blades.
f For tractors between 60 - 90 HP.
f High torque hydraulic motor reversible.
f Feeder with system BRALAKC.
f Double lines of counter hammers RHENDUEL.
f For material up to Ø 80 mm.
f Rotor with system RHENDUEL of Ø 450 mm.
f Steel-plate chassis, thickness 10 mm.
f For tractors between 60 - 120 HP.
f For material up to Ø 100 mm.
f Rotor with system RHENDUEL of Ø 550 mm.
f Steel-plate chassis, thickness 10 mm.
f For tractors between 100 - 160 HP.
f For material up to Ø 140 mm.
INTERPIQUET
f Rotor with system RHENDUEL of Ø 625 mm.
f Steel-plate chassis, thickness 15 mm.
f For tractors between 220 - 350 HP.
f 3 lines of counter hammers RHENDUEL.
f For material up to Ø 250 mm.

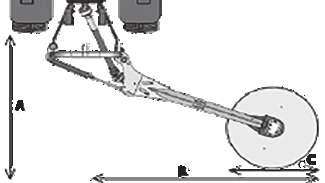

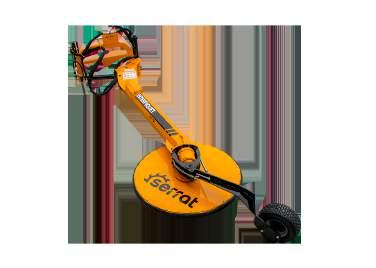

f Mechanical driven swing arm mower can be used to mow around trees, posts, crash barrier, etc. Without any damage.
f For tractors between 40 - 100 HP.
f Cutting width of 1,200 mm (47 inches).
f Backwardation from the axis of the tractor of 3,100 mm (122 inches).
f Lenght for the transport of 3,000 mm (118 inches).
f 3 retractable knives.

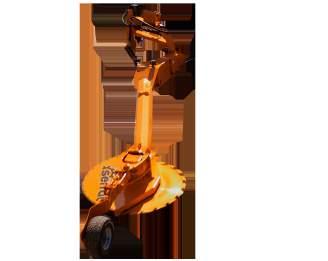

HIGH CUT
f Mechanically operated vertical axis disc for cutting fruit tree trunks. Up to 150 - 200 mm in diameter.
f For tractors between 70 to 105 HP.
f 24 tooth HighCut disc.

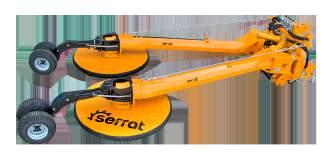

DOBLE
f Double mechanical driven swing arms mower.
f For tractors between 70 to 105 HP.
f Cutting width of 6,200 mm - 6,500 mm.
f Cutting diameter of 1,200 mm.
f Length for the transport of 3,400 mm.
Green Spaces Range
DAP MINI DAP
f Non-wear steel-plate chassis, thickness 8 mm.
f Tubular rotor of Ø 400 mm.

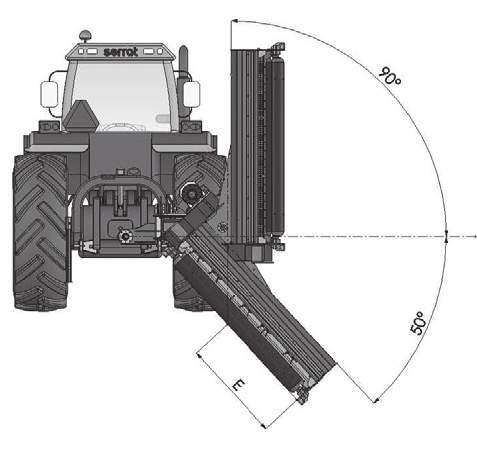

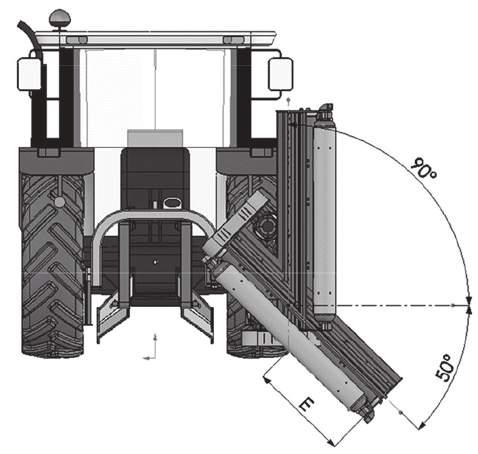

f Angulation +90º / - 50º.
f Forged hammers SERRAT.
f For tractors between 35 to 80 HP.
f GIROSTOP System.
f Gearbox with freewheel included.

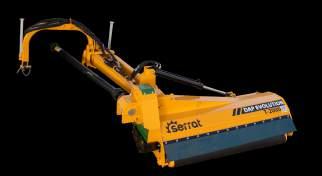

DAP EVOLUTION
f Rotor POLSER of Ø 450 mm.
f For tractors between 70 to 120 HP.
f Double bearing on rear roller.
MODEL
f Non-wear steel-plate chassis, thickness 10 mm.
f Rotor POLSER of Ø 550 mm.
f For tractors between 120 to 180 HP.
f Double bearing on rear roller.
f Non-wear steel-plate chassis, thickness 10 mm.
f Rotor POLSER+ of Ø 550 mm.
f For tractors between 140 to 200 HP.
f Forestry SERRAT hammer swinging 360º.
f Double bearing on rear roller.
Instagram YouTube
All figures and illustrations contained in this manual are generic representations to be taken merely as graphic general information supplementing texts, without expecting from them any rigour in terms of measures, shapes or parts layout
