Bosch IDS EDGE & EDGE MAX

Inverter-driven performance with Edge & Edge Max cold-climate capability, delivering single- and multi-zone flexibility, backed by Bosch reliability.

▶ Up to 18 SEER2 / 10.8 HSPF2

▶ Cold-climate capable inverter operation

▶ Supports multiple indoor units per home

▶ Ducted and wall-mounted indoor options

▶ Compact outdoor unit design

▶ Quiet operation as low as 57 dB(A)

▶ Dual fuel compatible with AHRI-rated coil

▶ Retrofit-friendly with existing line sets

▶ Standard filter rack included

▶ ENERGY STAR® and AHRI® certified

▶ Designed for easy installation

▶ Intuitive controls

▶ Support readily available

▶ Spare parts readily available

▶ Easy to maintain and service

▶ On-board diagnostics

NEW

The Competitive Edge in Installation Flexibility

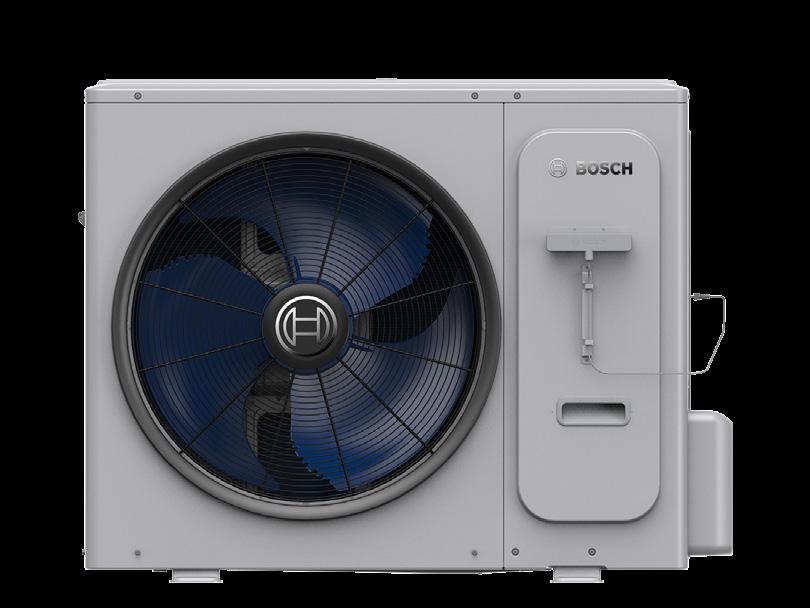

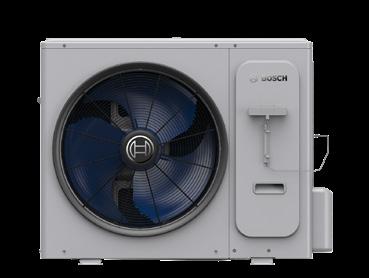

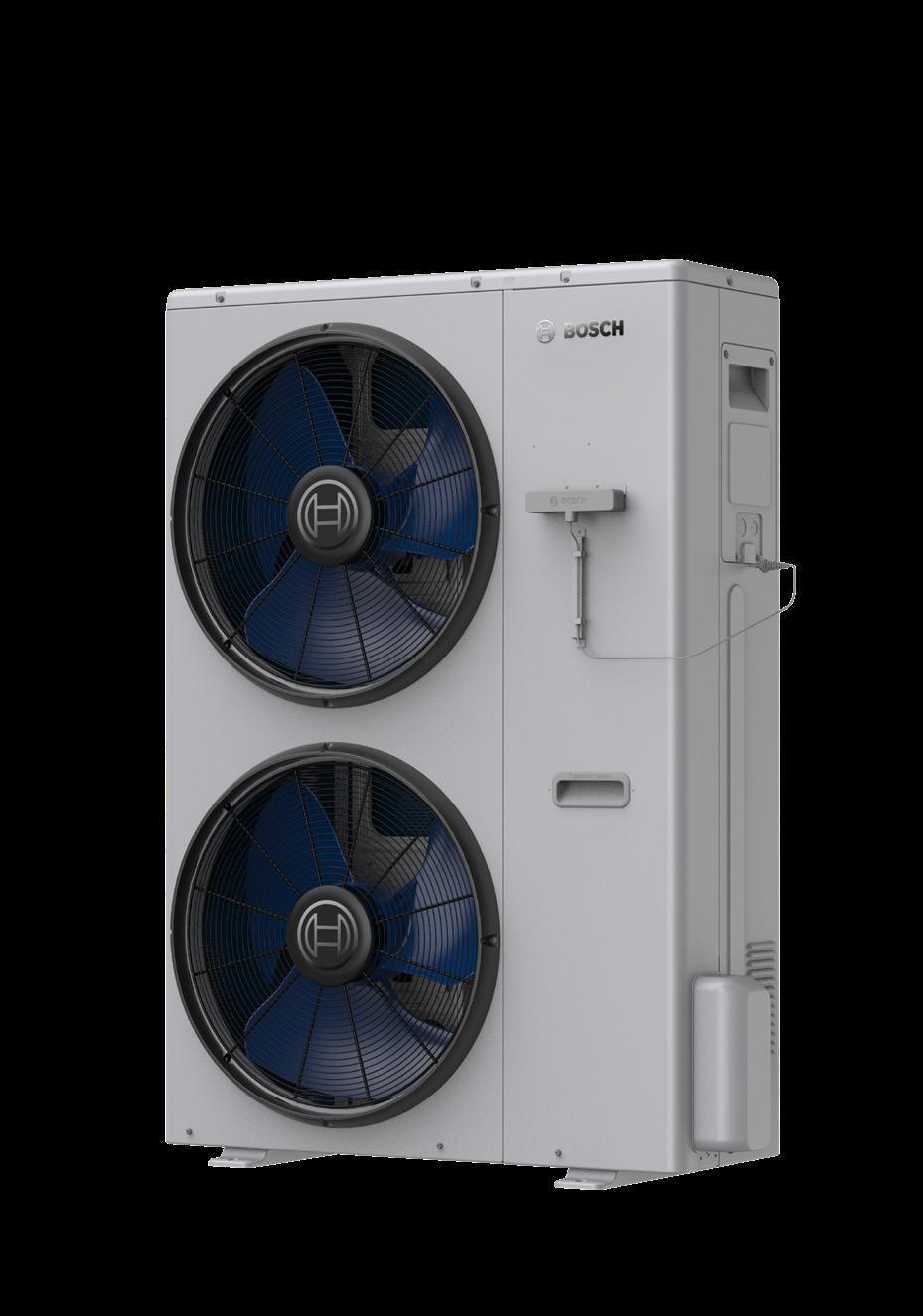

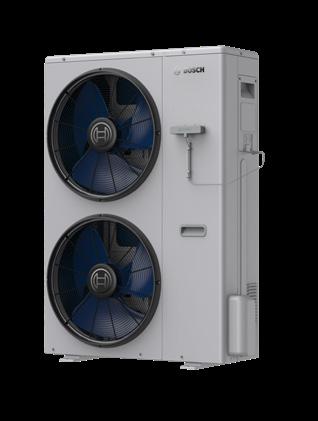

IDS Edge is a compact, side-discharge outdoor unit built for a wide range of residential installs. Available in Edge and Edge Max configurations, it delivers efficient, dependable heating and cooling, with Max models providing cold-climate performance down to -22°F and maintaining 100% capacity at 5°F.

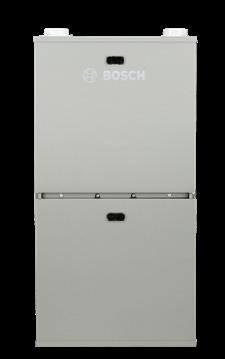

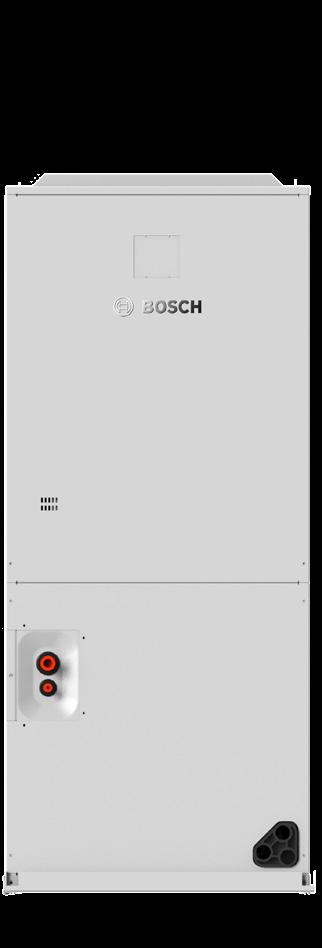

IDS Edge pairs easily with IDS air handlers, BMAC cased coils, and BGH97 furnaces. For multi-zone applications, it supports compatible ducted and ductless indoor options, giving you the flexibility to design the system around the home. With inverterdriven operation, a compact footprint, and R-454B refrigerant, IDS Edge is a future-ready solution for retrofit or new construction.

Designed for Installation

Bosch IDS Edge and Edge Max are engineered to simplify installation in the field, supporting a wide range of residential system layouts. The system works with standard 24V thermostats and pairs with a variety of indoor options. Whether replacing an existing system or installing new, IDS delivers flexibility without added complexity.

Performance & Reliability

IDS Edge systems are built on a compact, inverter-driven platform designed for long service life and dependable performance. Features like corrosion-resistant coil coatings, self-cleaning condenser fan operation, a heated base pan, and built-in fault diagnostics help protect the system in demanding climates.

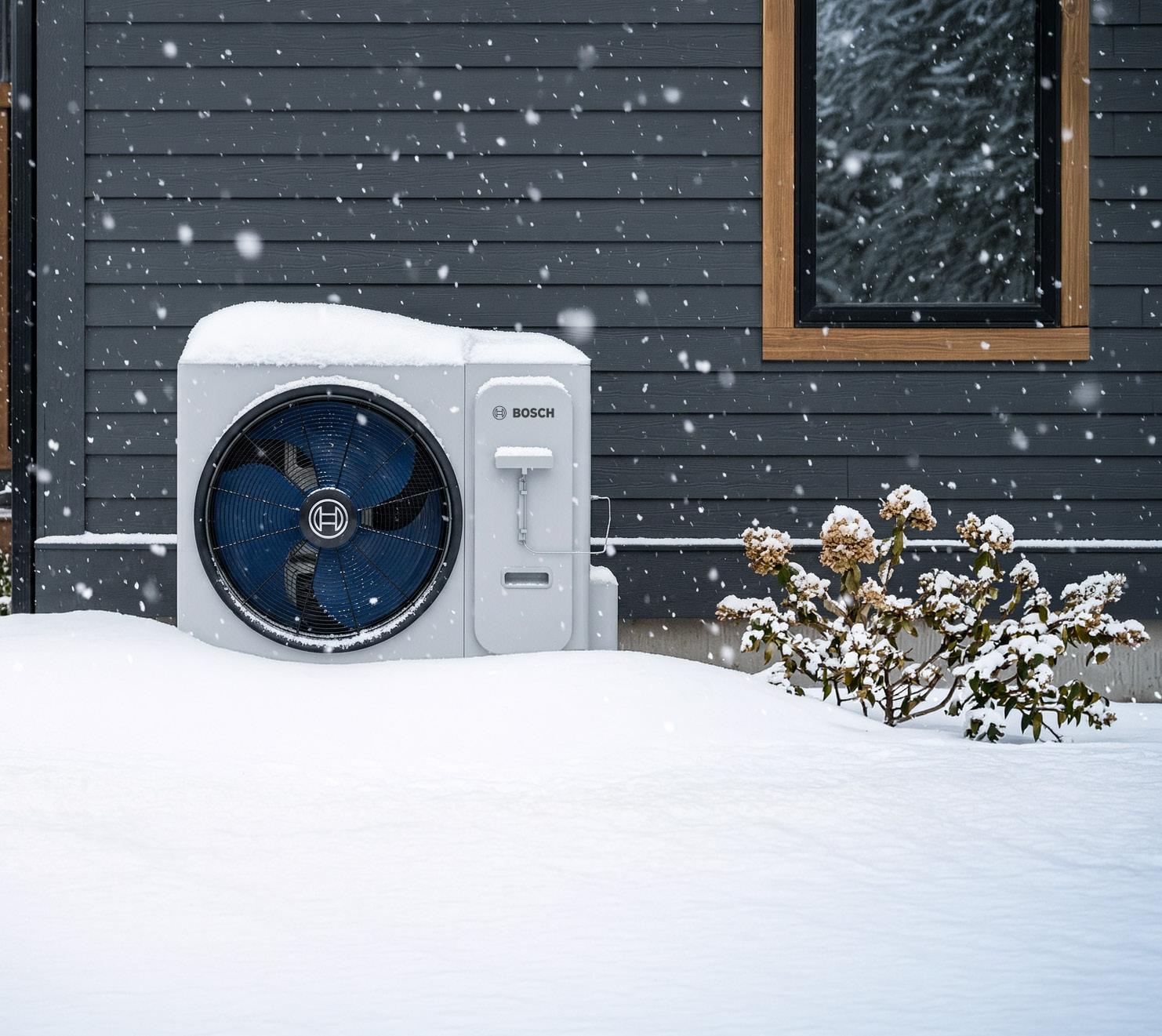

Heating down to -22°F with full capacity at 5°F provides dependable performance, making IDS Edge Max a viable replacement for traditional fossil fuel systems.

Designed to Pair. Built to Perform.

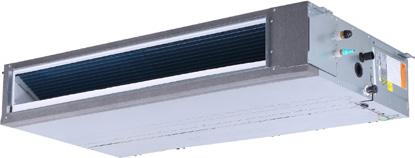

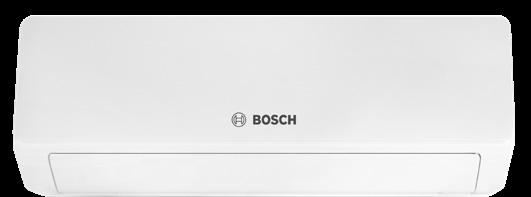

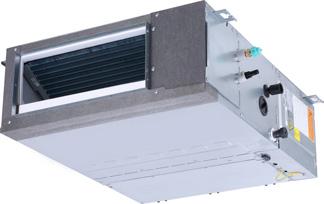

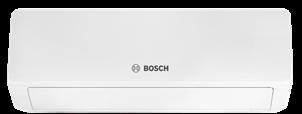

Bosch IDS Edge & Edge Max systems are designed to pair with a wide range of indoor solutions, including air handlers, dual-fuel furnaces, ducted units, wall-mounted units, and 4-way cassettes. This flexible pairing approach allows contractors to design systems that fit the home, the application, and the installation, all while delivering consistent comfort & reliable performance.

the Edge Multi AHU and the other Multi IDUs, its application is both single zone and multi-zone.

Example 1: A 5Ton ODU, with a total lineset within 492 ft., with one 4 Ton MULTI AHU, one 12k Wall Mounted Multi AHU, one 18K Wall Mounted. Total of 6.5 Ton, which is 130% of Capacity Ratio of the ODU. Example 2: A 3Ton ODU, with a total linset that exceeds 492 ft., can be paired with two 12k Wall Mounted Multi AHU, and one 12K 4-Way Cassette. Total of 3 Ton, which is 100% of Capacity Ratio of the ODU. MULTI-ZONE IDU CAPACITY SELECTION

Case 1: No Edge Multi AHU included. (Wall-Mounted, 4-Way Cassette, Compact 4-Way Cassette, Slim Ducted). ▶ Max ratio is 130% of the ODU capacity.

Case 2: One or more Edge Multi AHU include. Total lineset within 492ft (150m).

▶ Max ratio is 130% of the ODU capacity.

Case 3: One or more Edge Multi AHU include. Total lineset exceed 492ft (150m) but within the specification.

▶ Max ratio is 100% of the ODU capacity.

*Separate panel is required. refer to the accessory table.
