Bosch CF Series NEW water source heat
pump
Achieve a high level of comfort with an efficient, commercial water source heat pump from Bosch

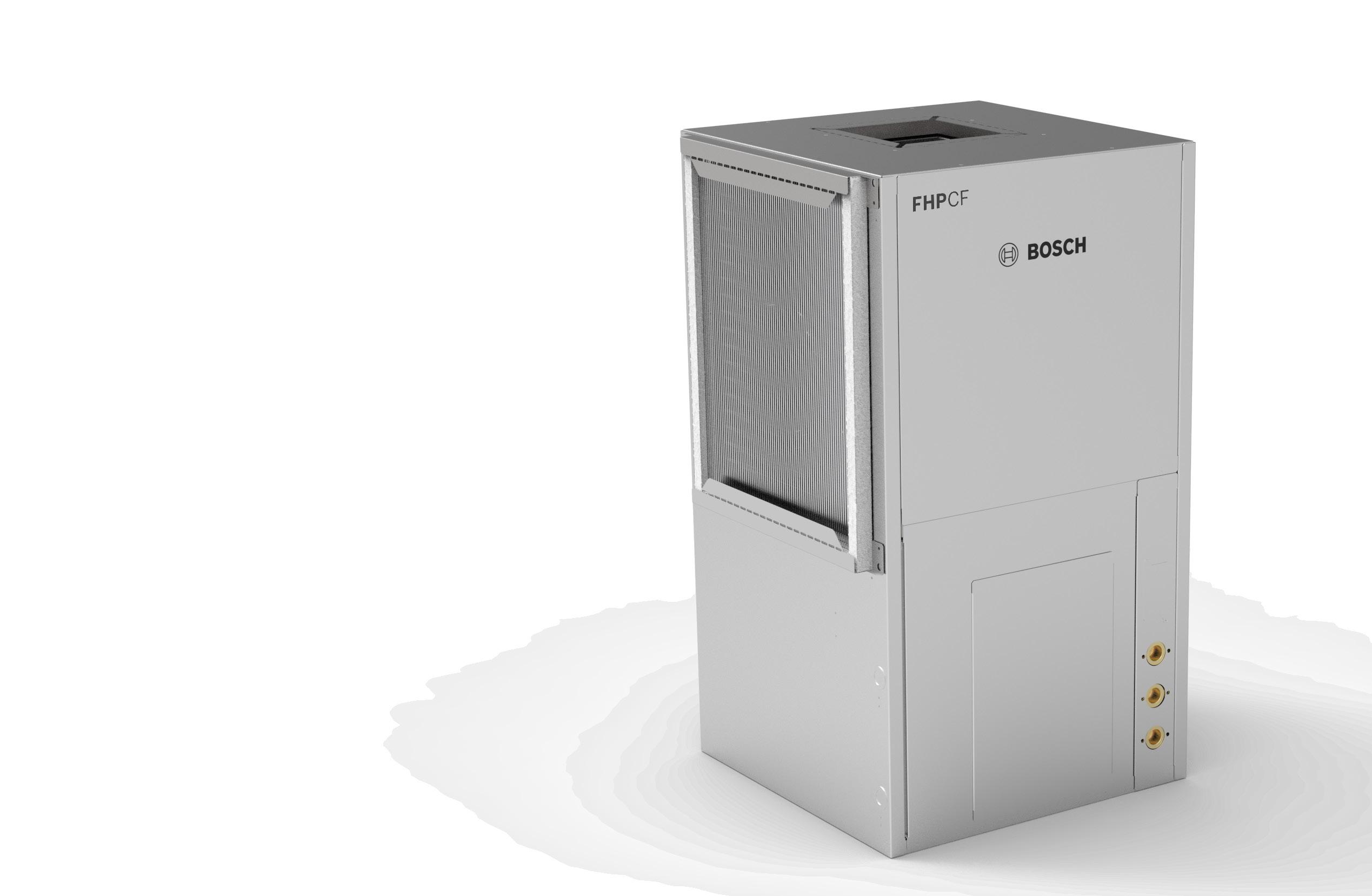

The Bosch CF Series water-to-air heat pump is a high-performance solution for commercial and industrial buildings. Featuring either single or two speed compressor technology, a swinging electrical box, a slide out blower, and improved air coil serviceability, the CF heat pump is a breeze to install and maintain. Equipped with R-454B refrigerant, the CF Series meets the criteria for a lower global warming potential A2L refrigerant. The system has a 5-year compressor warranty, as well as a 1-year warranty on parts. §
The Bosch CF is a High-Performance Heat Pump Solution
Standard Features
▶ Swinging electrical box
▶ Slide out blower(1)
▶ Improved air coil serviceability (1)
▶ ASHRAE 90.1 Compliance
▶ Available in vertical, horizontal, & counterflow sizes
▶ Copper or Cupro-nickel water coil
▶ Left or right front water connections
▶ Uncoated or Duo-Guard air coil
▶ ½” 1.5 lb dual density fiberglass insulation
▶ ECM Constant Airflow (size 018-070) and ECM Constant Torque blowers available
▶ 75 and 100 VA transformers available
▶ Galvanized steel cabinet
▶ Stainless steel drain pan
▶ Floating compressor base pan
▶ Extended range capable
▶ 2” MERV 8 and 13, or 4” MERV 13 filter
▶ Side access and bottom access filter rack options available
Serviceability

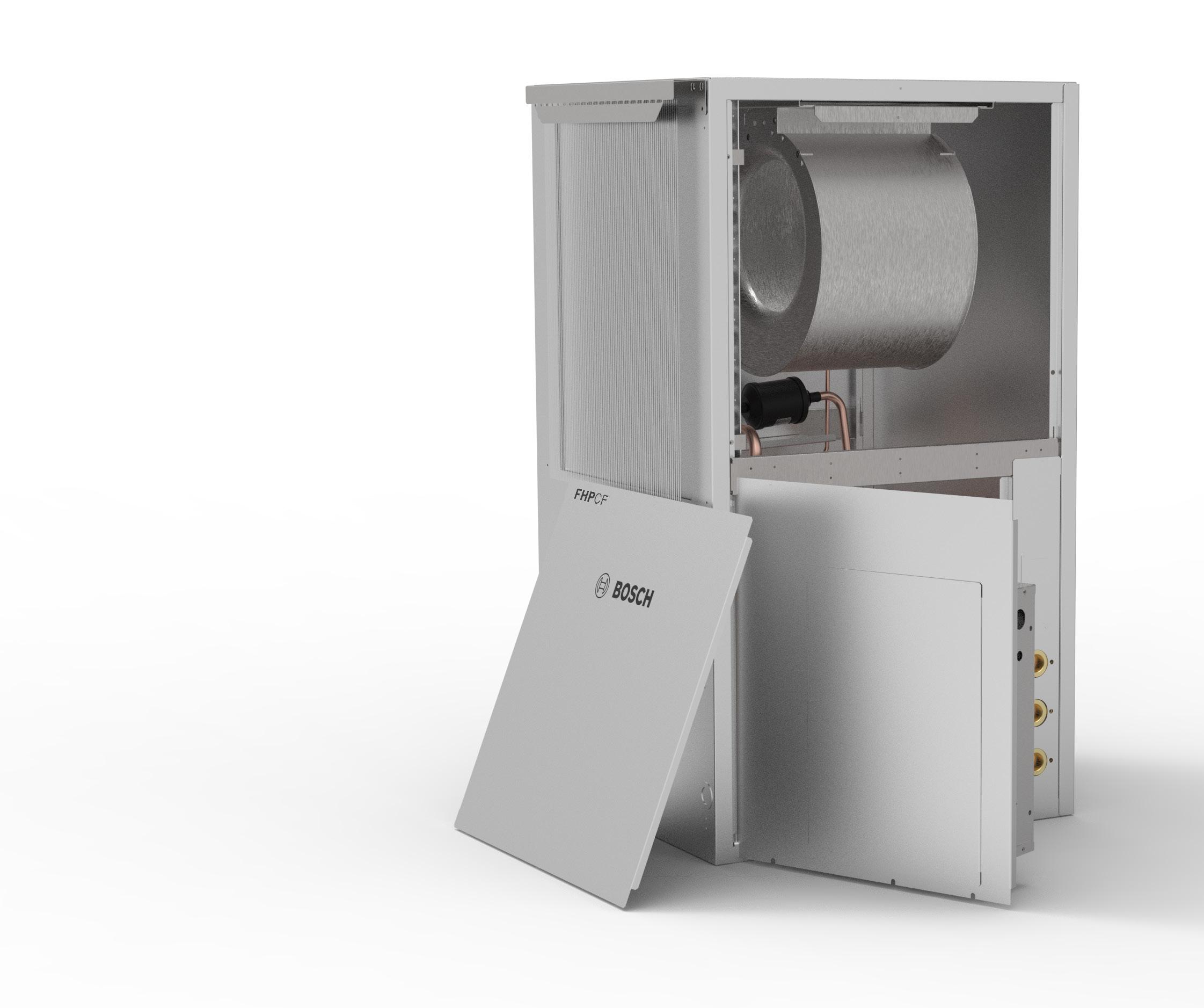

The CF features a swinging electrical box for easy access to the compressor and internal components. Vertical units have better air coil serviceability and a slide-out blower for hassle-free maintenance.
Environmentally Friendly
These highly efficient units not only reduce your operating costs, but play their part in reducing carbon dioxide emissions, a leading cause of global warming. Equipped with R-454B refrigerant, the CF Series meets the criteria for a lower global warming potential A2L refrigerant.
Quality & Reliability
Rigorous factory testing and over 40 years of experience ensure hassle-free operation and top-quality heat pumps. Our ISO 9001-2008 and ISO 14001-2004 certified facilities guarantee consistent quality in every unit.
Unit Protection Module Controller
▶ Water coil freeze protection
▶ Air coil freeze protection
▶ Brownout (low voltage) protection
▶ Condensate overflow switch
▶ High and low pressure switches
