SLIMPATIO 68

Open elegance

2 1/2” 4 3/4”

SlimPatio 68 is a highly insulated sliding system with ultra-slim profiles and a concealed frame that combines comfort with elegance. Thanks to the clever design, this sliding door allows maximum natural light and provides optimal panoramic views. The integrated innovative technologies guarantee ultimate performance concerning wind-, water tightness, and thermal insulation, meeting the highest standards. SlimPatio 68 offers the design freedom required to create contemporary living spaces, combining ultimate brightness with maximum comfort.

Architect:

DFG

FLEXIBILITY ABOVE ALL

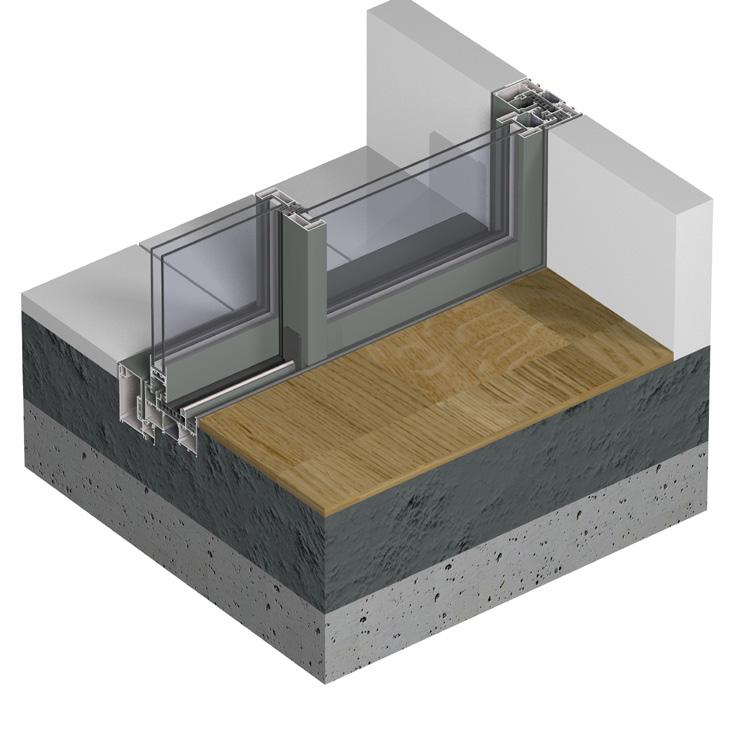

This sliding door offers a wide range of opening possibilities, from elements which slide over 2- and 3-rail solutions allowing you to open up to 6 leaves over a very slim central closing option of only 2 15/16 inches wide, to a single- and double-rail pocket solution that allows you to slide the elements into the wall.

AMPLE DIVERSITY

The Reynaers SlimPatio 68 offers a multitude of opening types with cutting edge thermal performance. It is available as a double- or triple-rail system with the following configurations. We recommend that you discuss the options with your retailer, who should be able to offer advice on which choices fit your particular opening.

2-RAIL 3-RAIL

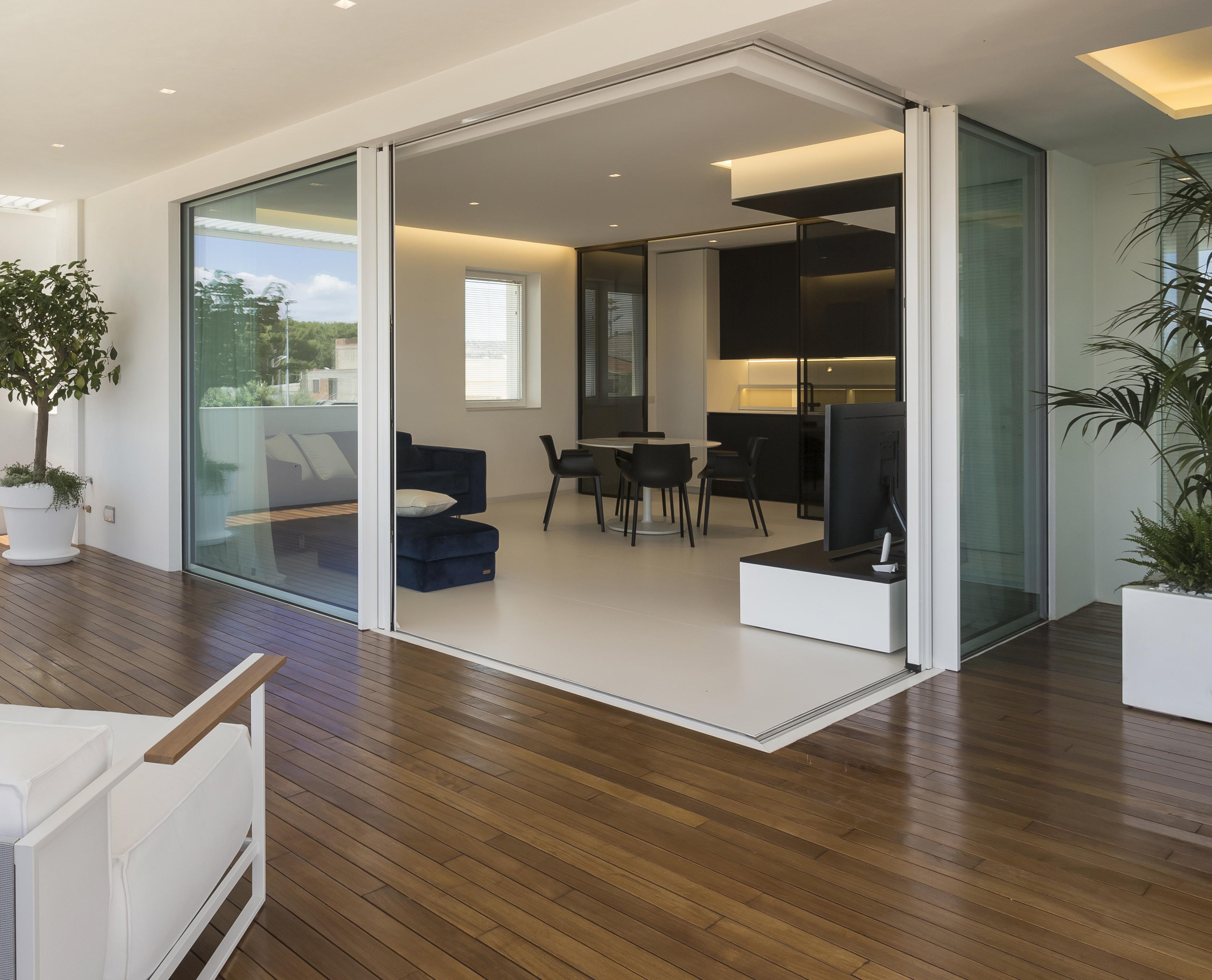

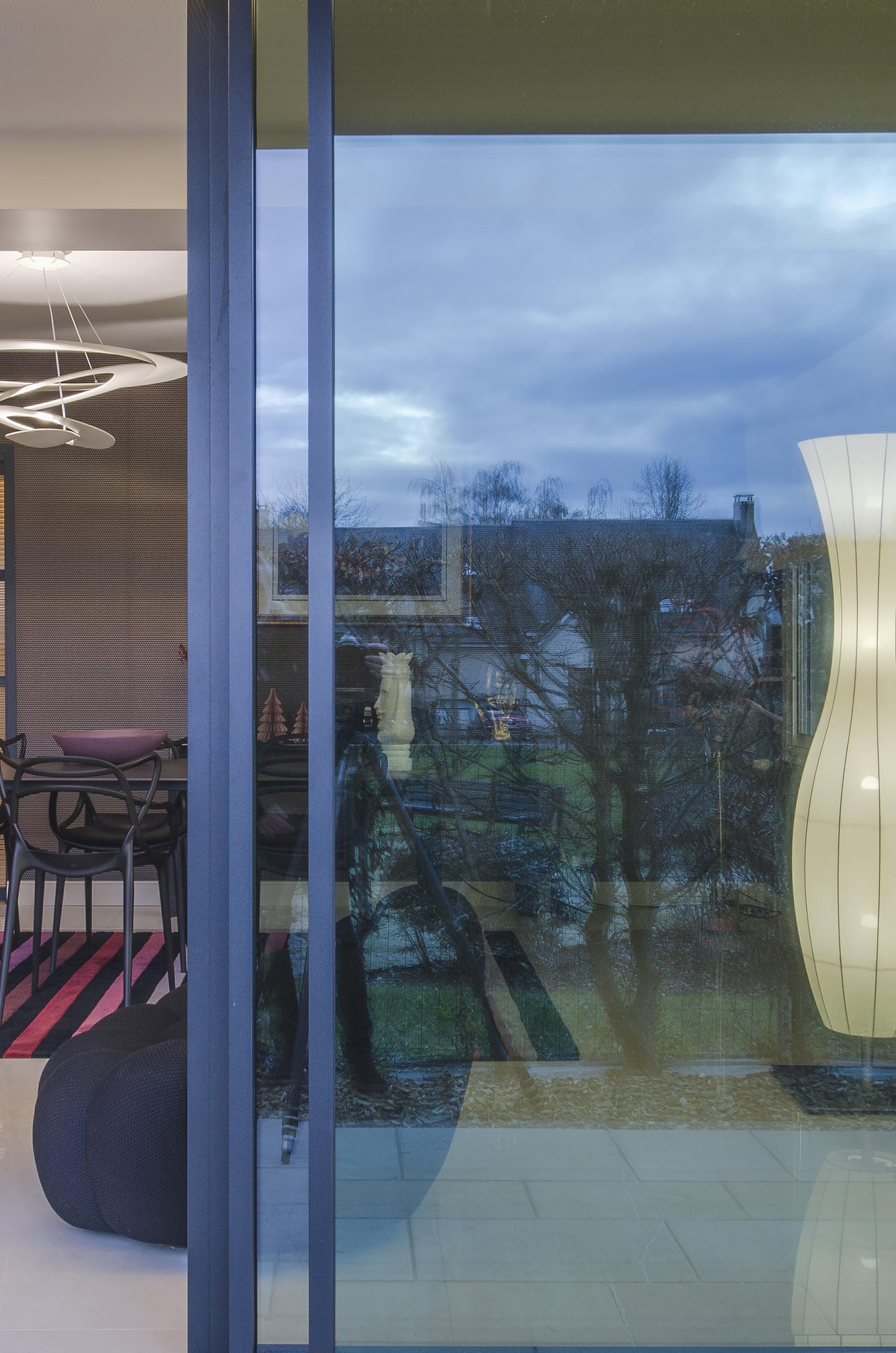

Architect: Nardelli Photo: Annon i Architect: Audevart Photo: Miara

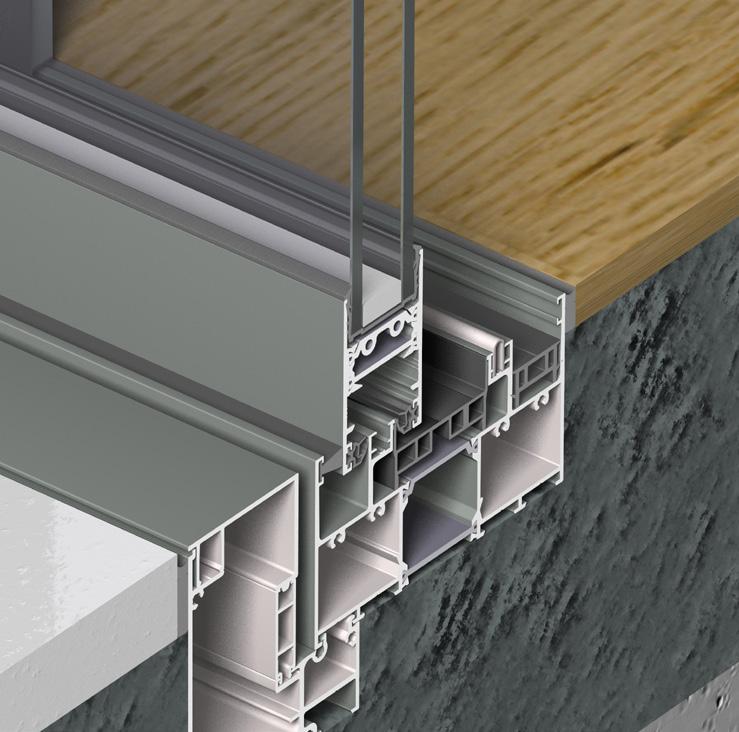

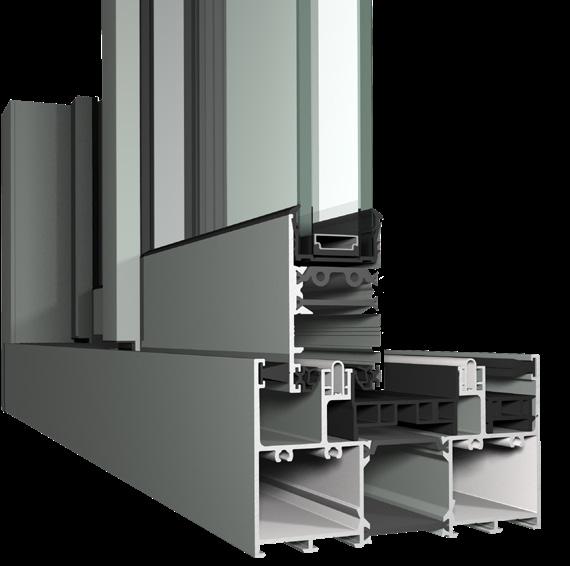

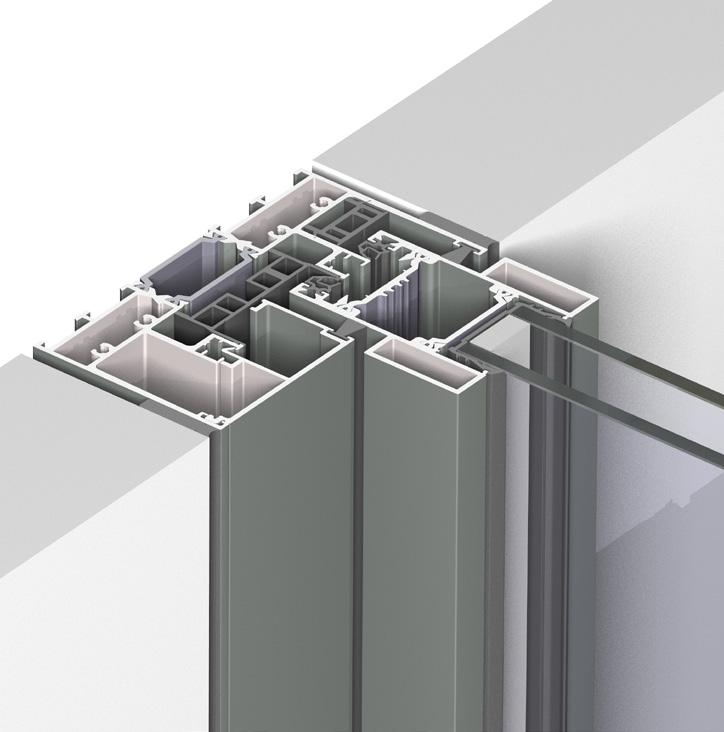

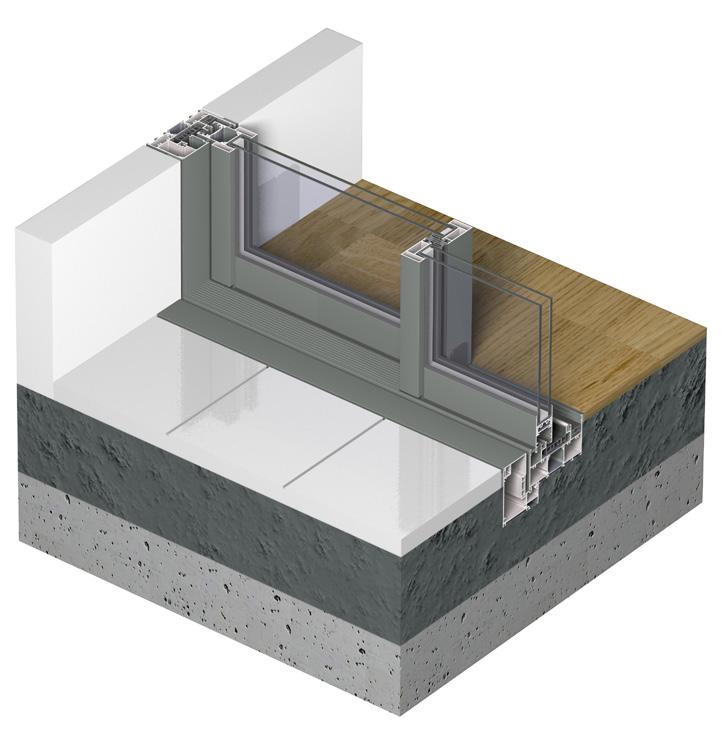

TECHNICAL CHARACTERISTICS Variants 2-RAIL 3-RAIL Visible width / height Built-in frame 2 11/16” Vent 1 5/16” Meeting section 1 5/16” Overall system depth Frame 4 3/4” Vent 2 1/2” Maximal frame height 120” Maximal vent weight 550 lbs Rebate height 11/16” Glass thickness from 1” up to 1 7/16” Glazing method with EPDM in accordance with the envelope principle Thermal insulation 1 1/4” and 1 7/16” fiberglass reinforced polyamide strips Outside View Concealed Frame Outside View Inside View Bottom Profile Outside View

REYNAERS ALUMINIUM • t. +1 480 272 9688 www.reynaers.us • info@reynaers.us 07/2021 – 00.SP68.00 – Publisher Responsible at Law: D. Willems 21430 N 15th Lane, Suite 100 | Phoenix, AZ 85027 | USA

PERFORMANCE SPECIFICATIONS (1) ENERGY Thermal Insulation (2) (Btu/hr∙ft²∙°F) per NFRC 102 Glazing Double Triple Uw 0.28 0.23 SHGC 0.09 0.13 COMFORT Acoustic performance(3) ASTM E90-09/1332 STC 40 OITC 33 Air tightness, max. test pressure(4) (cfm/ft²) 0.08 Water tightness(5) (psf)

AAMA Rating AAMA/WDMA/CSA 101/I.S.2/A440, NAFS CW

9

PG60 This table shows classes and values of performances, which can be achieved for specific configurations and opening types. (1) All results based on gateway sizes; vary depending on glass/profile combinations | Above Uw & SHGC values do not necessarily work in combination. (2) Uw is the measure of heat transfer through the fenestration product with glass. The lower the Uw, the better the thermal insulation of the element. (3) The sound reduction index measures the capacity of the sound reduction performance of the frame and glass. (4) The air tightness test measures the volume of air that would pass through a closed window at a certain air pressure. (5) The water tightness testing involves applying a specified air pressure differential while simultaneously spraying water on to the exterior face of the assembly at the rate of 5 gal/hr/ft².

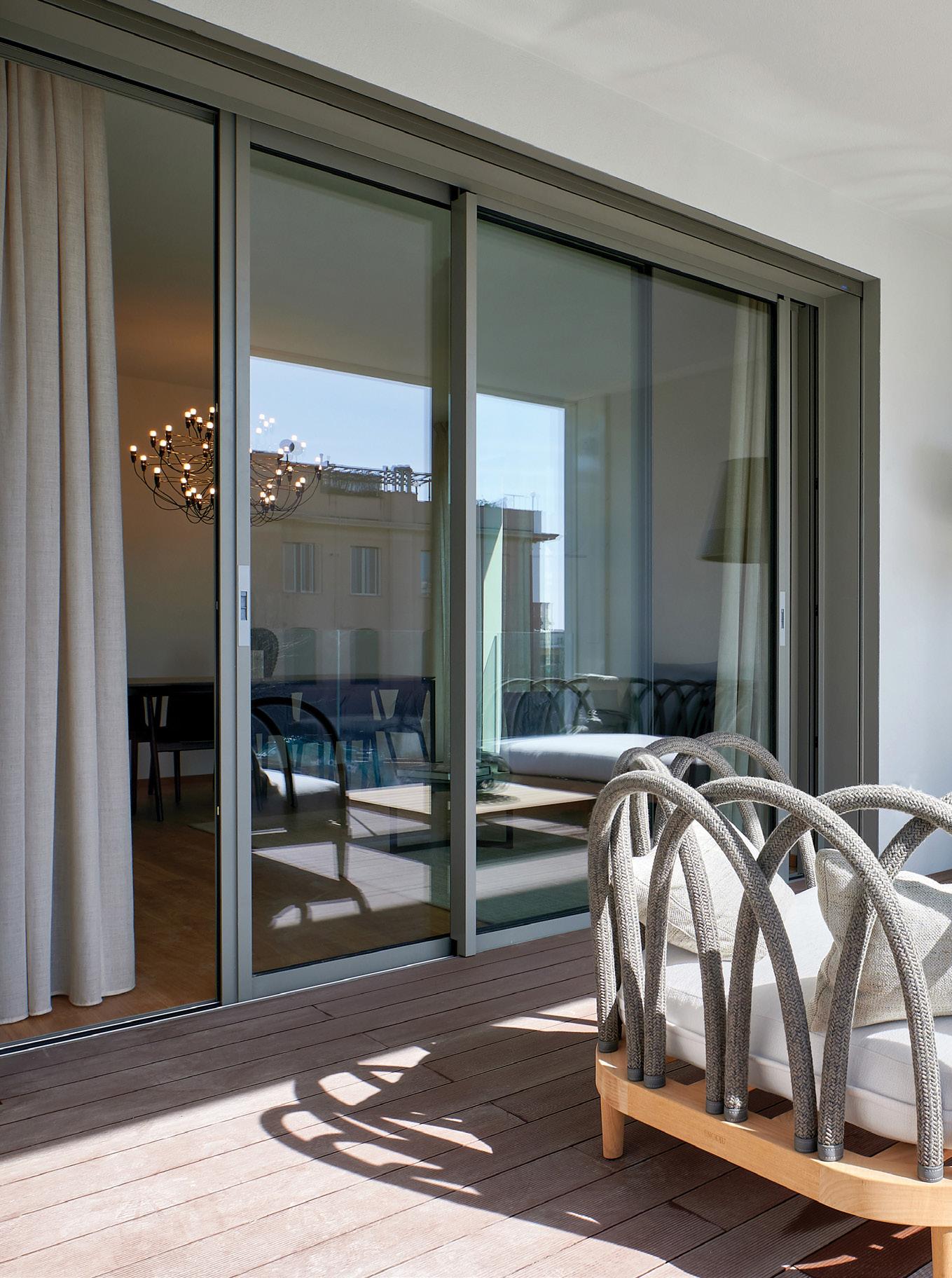

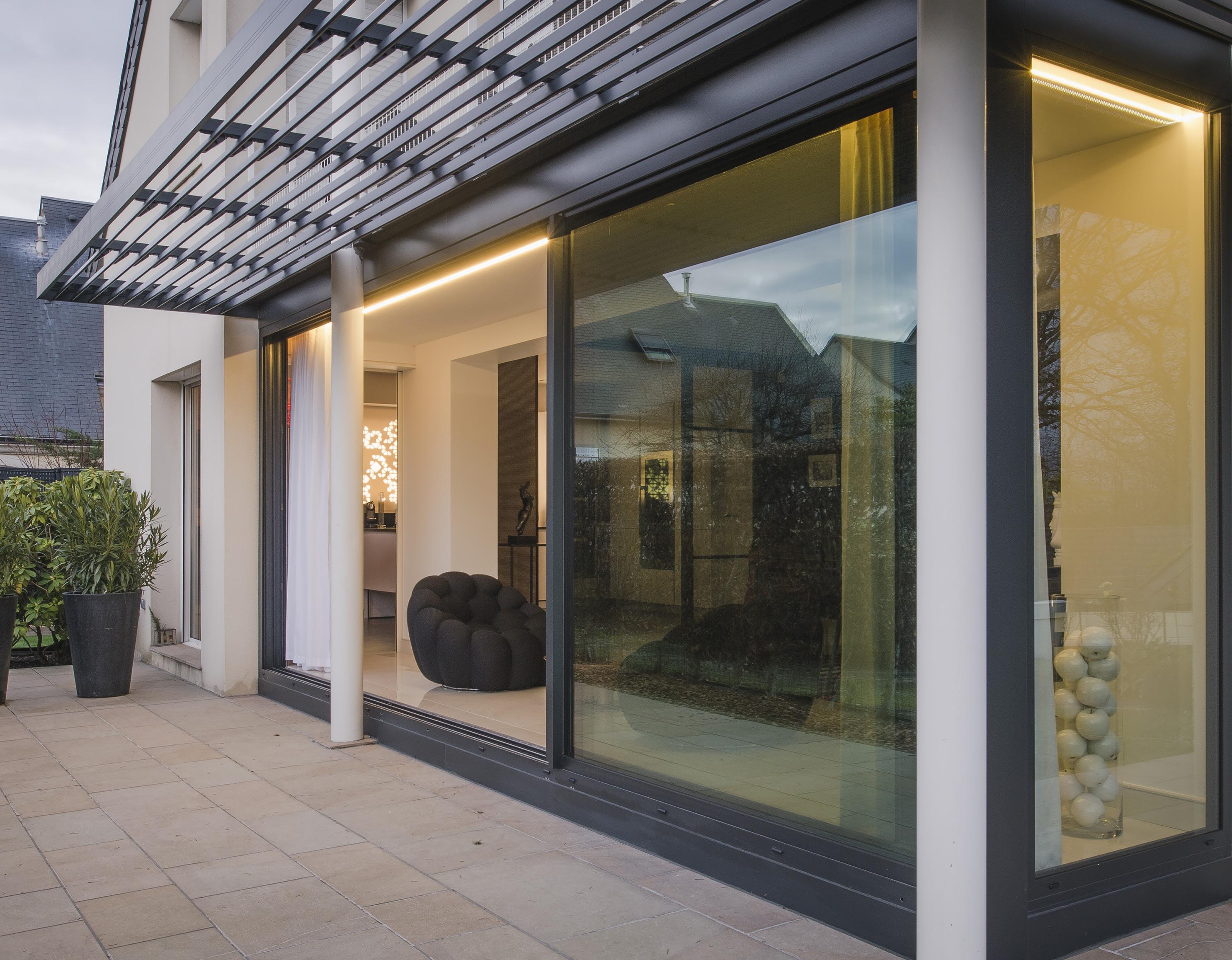

Architect: Audevart Photo: Miara
