THE HUB INTEGRATED LIVING AND LEARNING

INTEGRATED LIVING AND LEARNING THE HUB

ARCHITECTURE DESIGN -III

in order to have a functioning student community which is quite far from the school, the building need to have the quality of mini campus .And Also for the students, they need study places and community spaces to have the learning space.

Bangmod area is known for its vibrant ,university town atmosphere, with KMUTT being a major stakeholder, By taking advantage of these existing facts ,this proposal tries the solve the problem by having interaction nodes and spaces for students along its circulation while creating a mini campus space for students and also for community to reflect the 21st century model

CONCEPT ZONING

To foster interaction by connecting compact private rooms through shared common spaces that lead to the courtyard. This idea explores to create the spatial frame work where circulation becomes integrated into interactive common spaces .

Pull the mass up with court yard in middle

In order to have tightly knitted group, the community have layers of privacy and it is achieved by dividing zones between public and private areas.

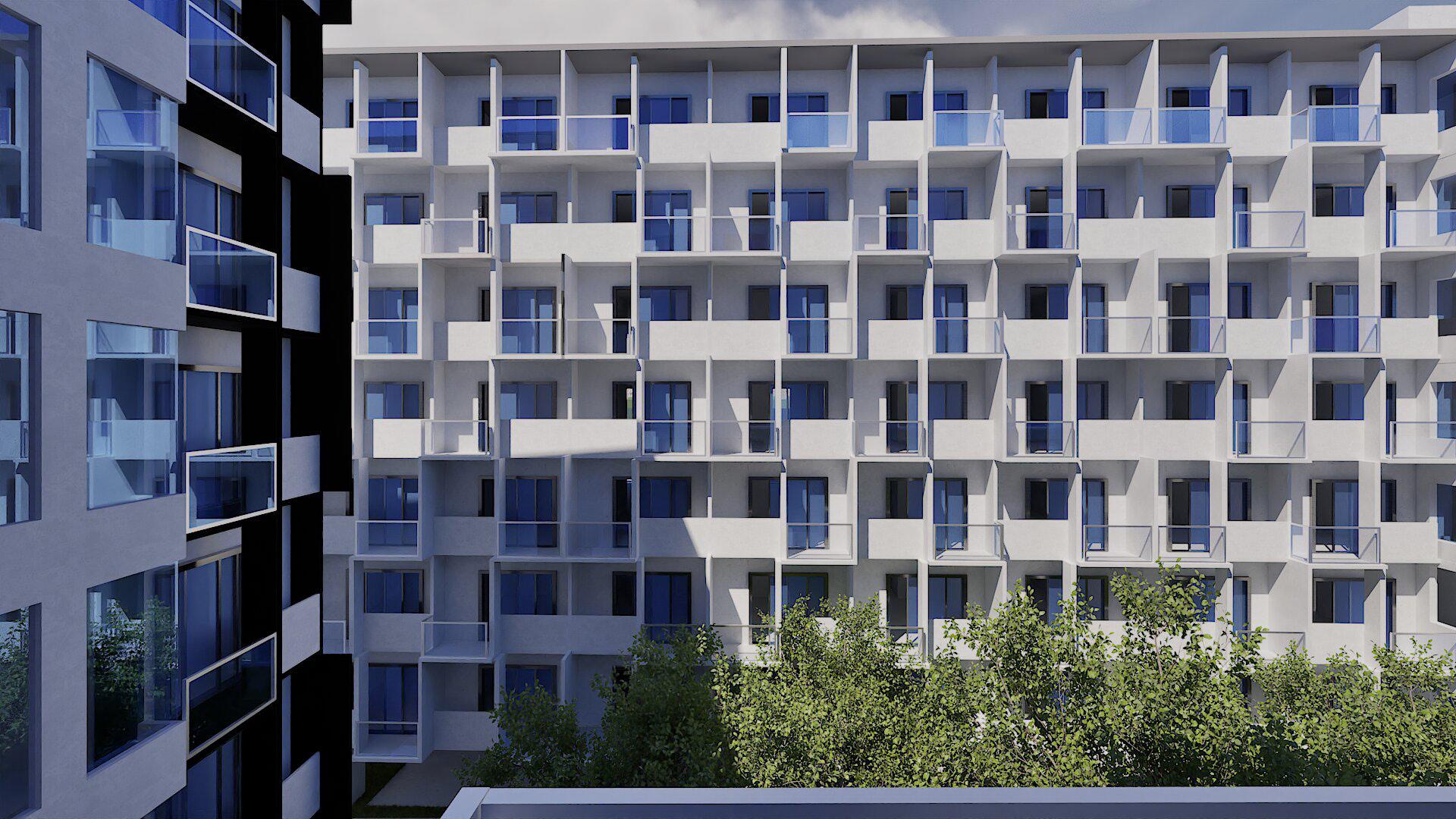

Along the circulation cores, common area for residents have been added facing to the court yard to have visual interaction.

Adding mini-campus as a communal space both for communities and for students acting as interaction nodes

Connection between these communal areas is achieved by bridges connected to each of the circulation cores,

MINI CAMPUS AREA

COMMON AREA FOR STUDENT

RESIDENTIAL AREA

GREEN AREA

PUBLICALLY ACCESSIBLE ZONE FOR MINI CAMPUS AREA

PRIVATE SECTIOR FOR RESIDENTS

SITE ANALYSIS AND USER ANALYSIS

The site exist quite far from the KMUTT Bangmot Campus mostly surrounded by typical thai neighbourhood while near the heavy traffic lanes of Phutthabucha 36 Traffic point.On the right side of the site, there is FARM LUCK which is a good place for students to eat .The target users are students from KMUTT.

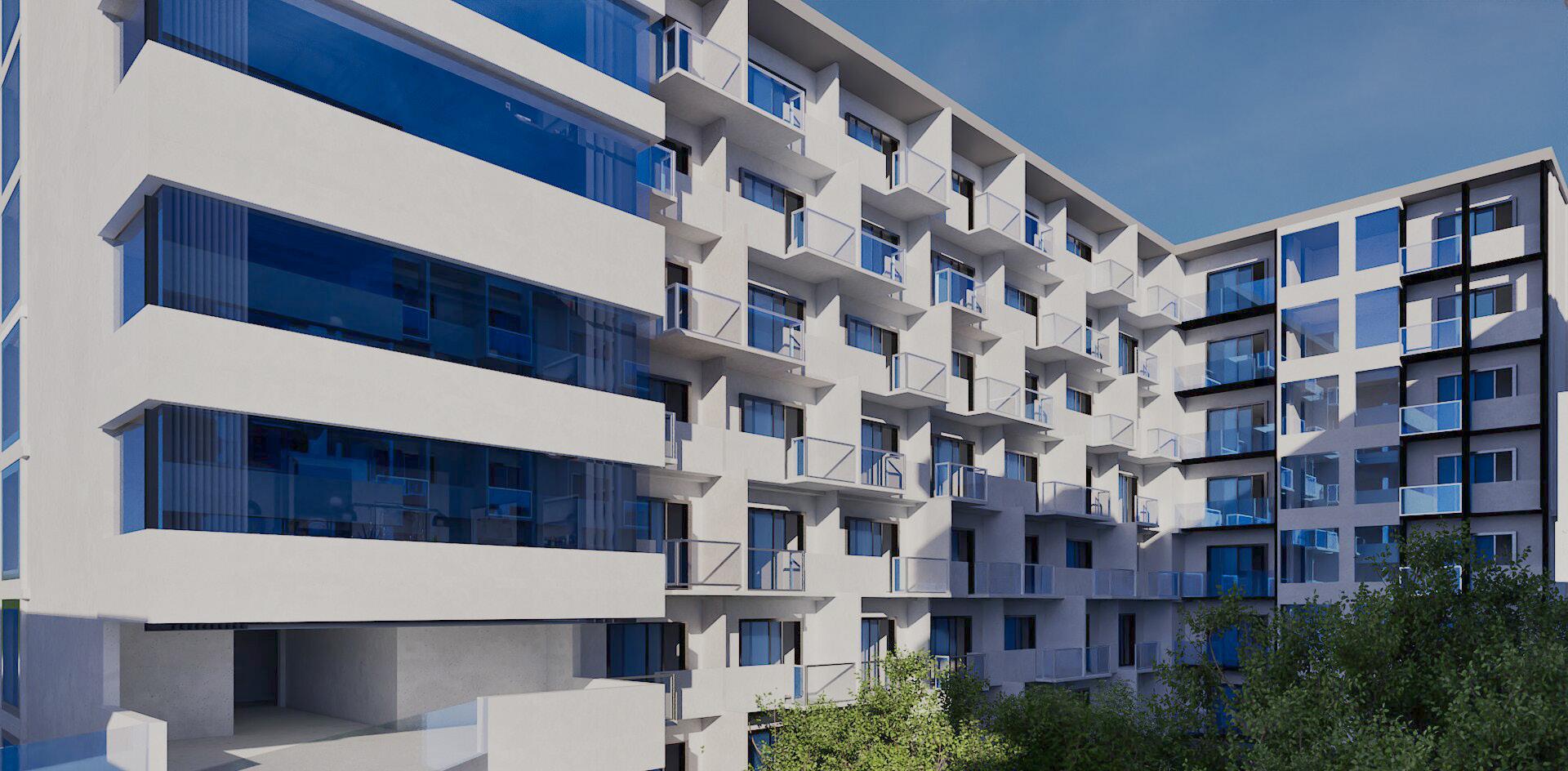

According to Bangkok sun orientation, shading devices are required to help reduce the intense sun.

South and southwest facade received the most sunlight particularly in afternoon

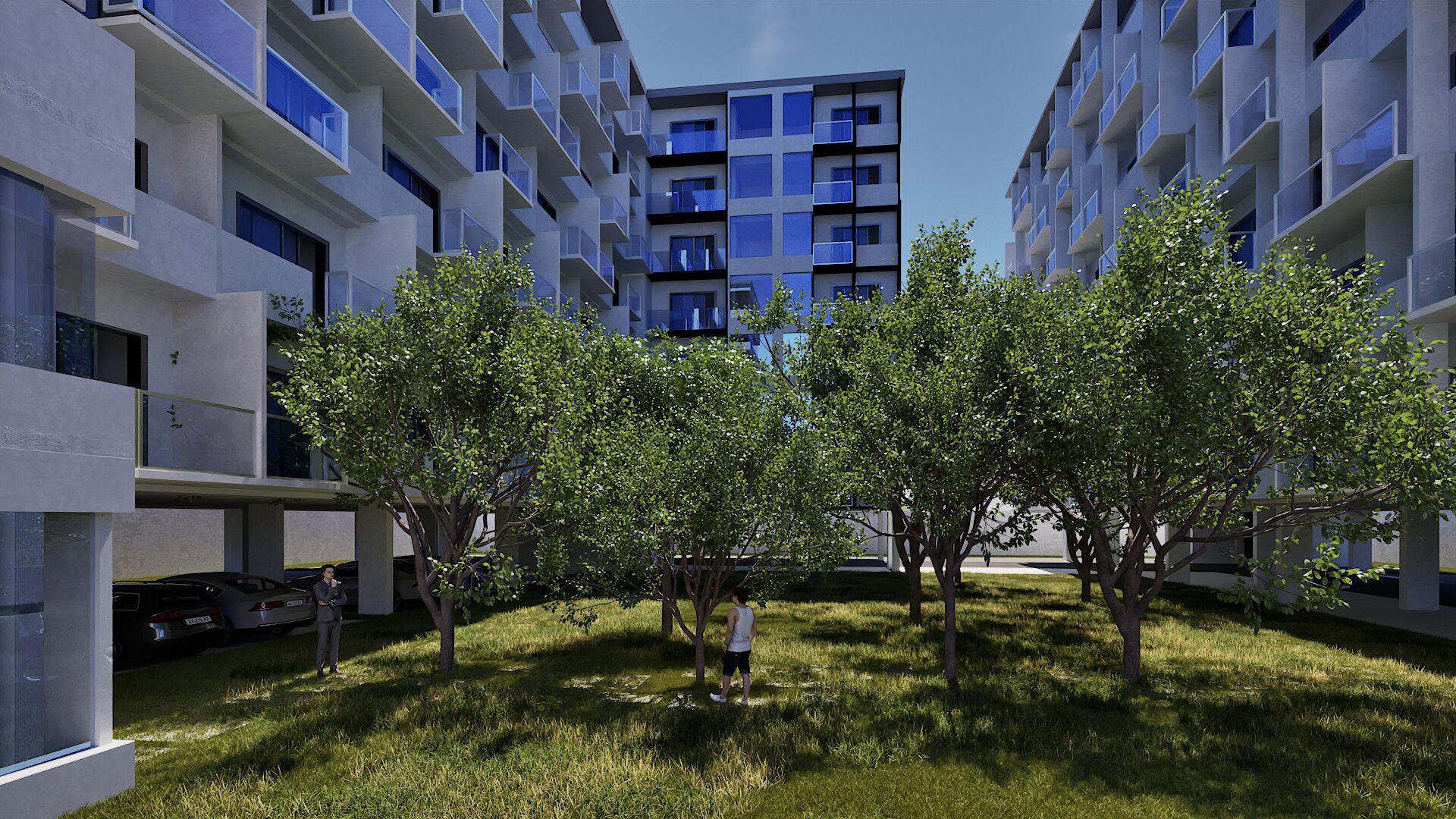

By maintaining the trees in the courtyard,the pathway is used for the community to have leisure times.

Scale 1:200

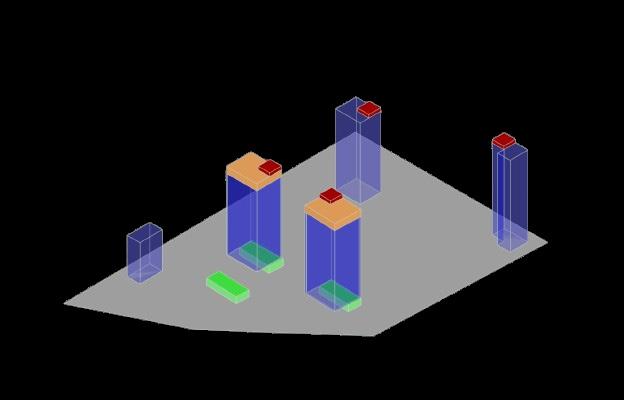

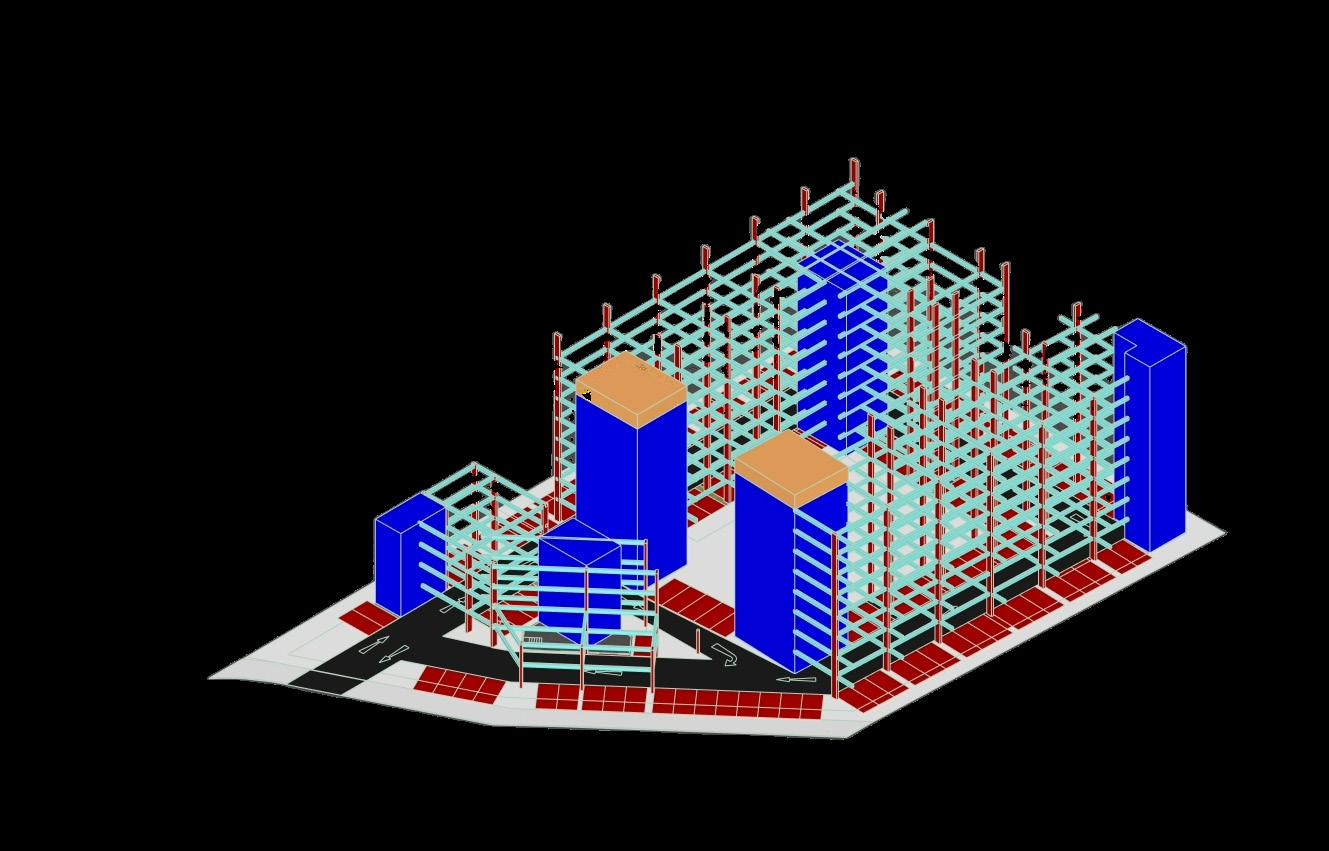

Septictanks arepositioned beneath the core while water tanks are positioned at thetop with elevator machine room. Circulation cores with electrical and sanitation system.
