DECADES OF EXCELLENCE
www.bharatsteels.in
OUR GROUPOF COMPANIES
BHARAT STEEL(CHENNAI) PVT. LTD.
SteelTrading &Distribution
STEELSERVICES PVT. LTD.
Steel Services Center
ROOFINGS & STRUCTURES
Metal Roofing Sheet Manufacturer
PEB Building Manufacturer
G2
CRAYON
METFRAASTEELBUILDINGS PVT. LTD
Our mission is to maintain top-quality systems and procedures in all operations.
Customer Satisfaction on-time delivery
PRODUCTRANGE
Flat Products

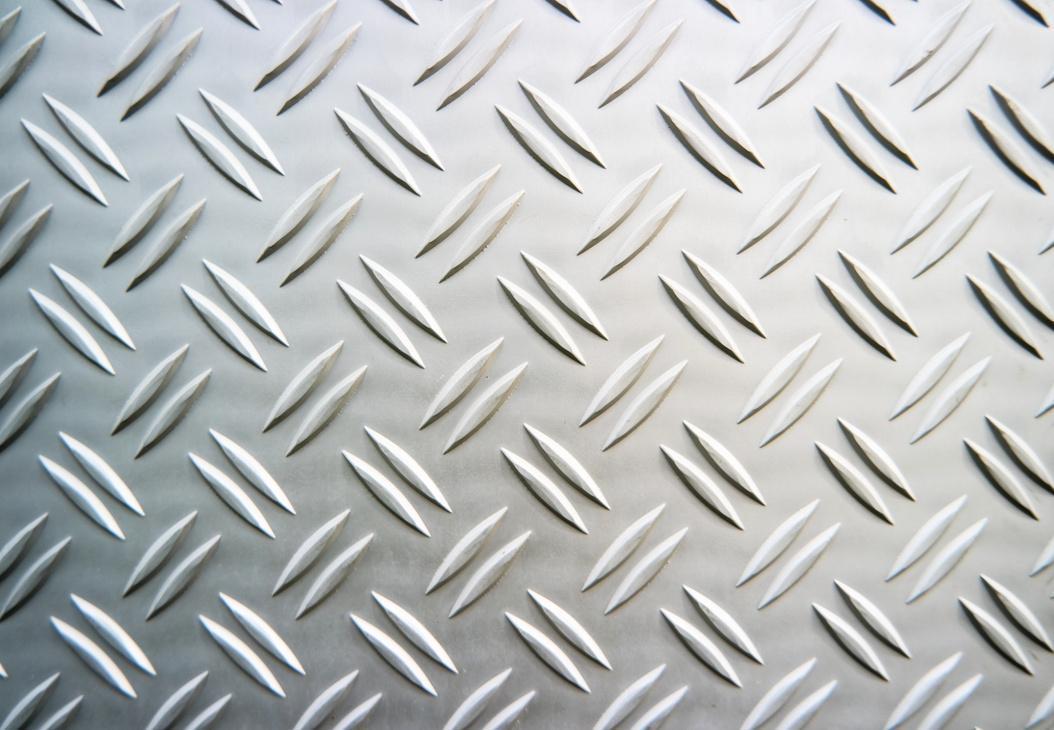

Chequered Coil & Plate
MetricTon Over AnnualTrade
Long Products
MS Channels
MS Rounds Joists

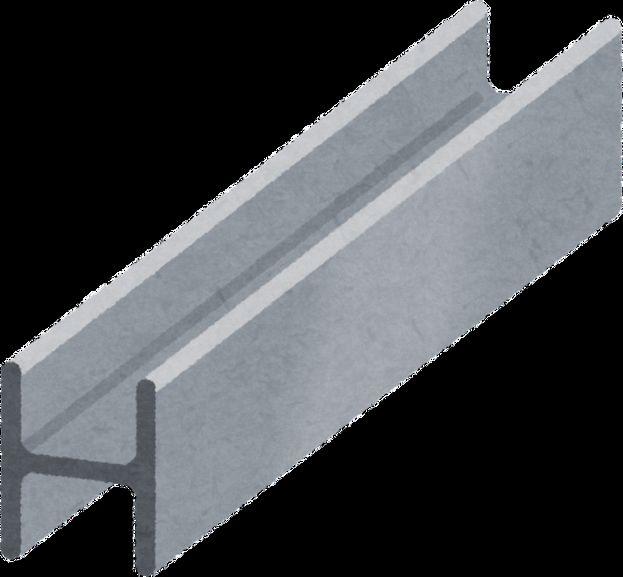

NPB Beams
MSAngles
TMT Bars
MS Flats

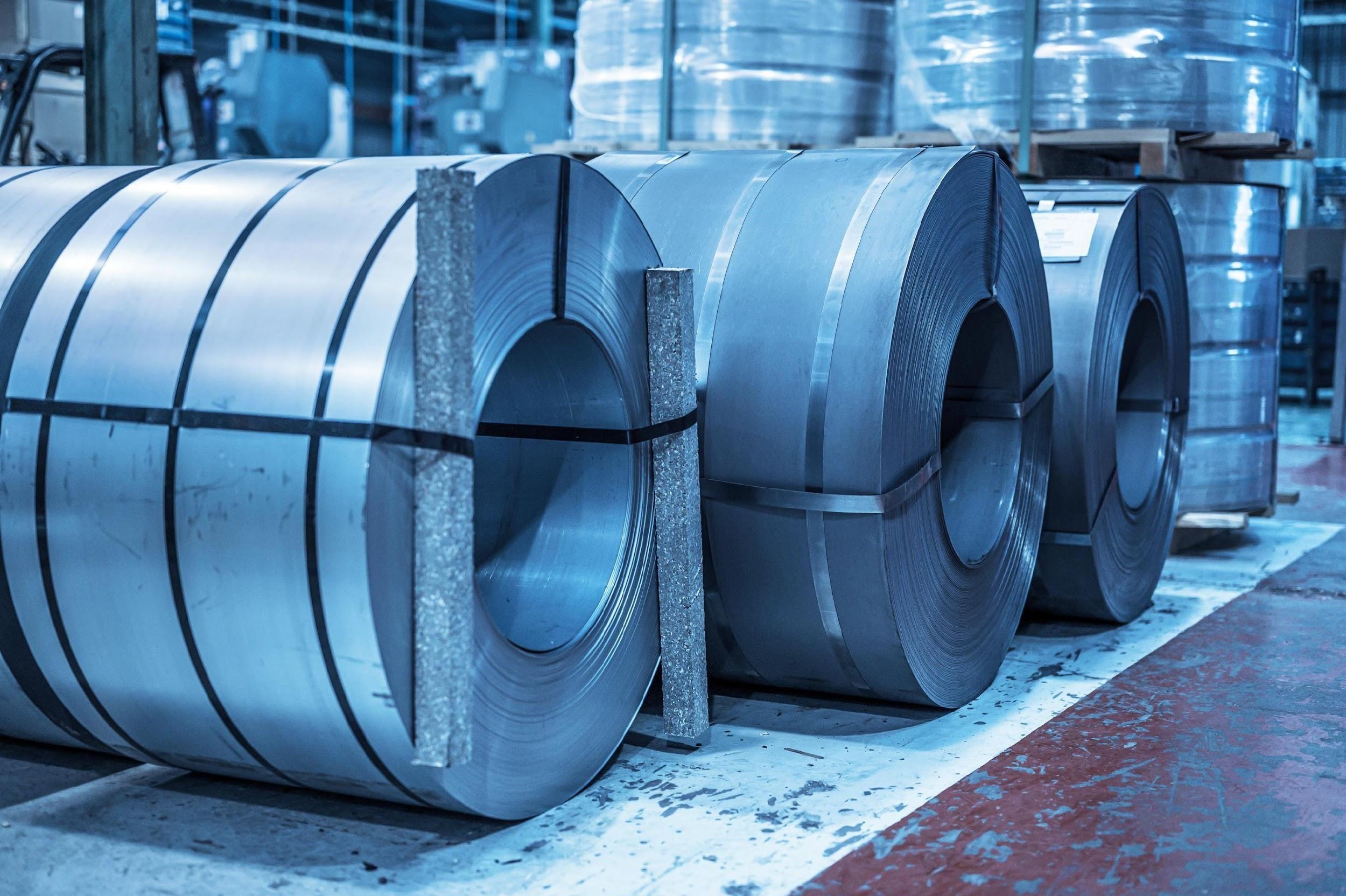

HR Coils
Sheets & Plates
SPECIFICATION
QUALITYSYSTEM

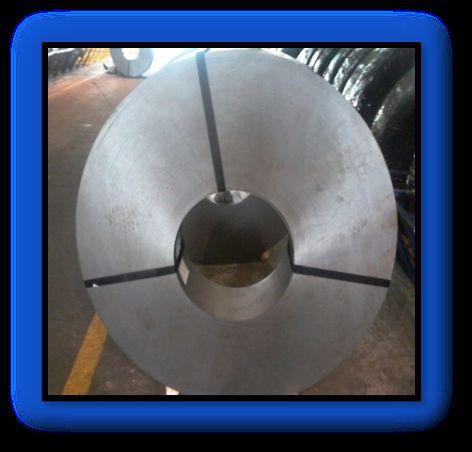

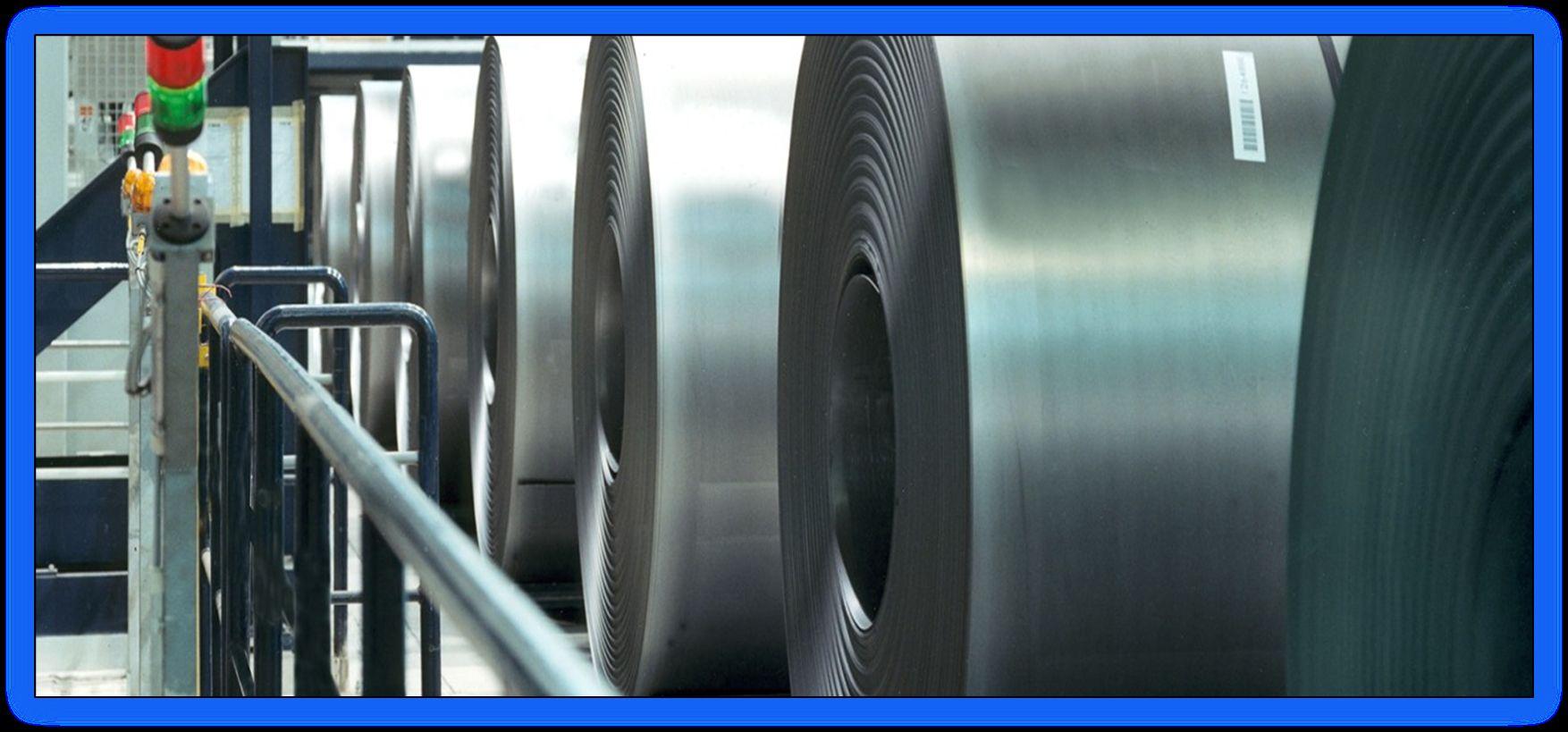

MOTHER COIL INSPECTION
PROCESS
INSPECTION
PARAMETER / DEFECT
CHECKING
Incoming coil will be inspected as per the check points
•First off inspection
Length
Diagonal
•Last off inspection
•Pre delivery inspection
•Sample size- 20 Nos
Thickness
Burr
Core Lamination
Width
Breakway
Dent
Line Mark
Wrinkles

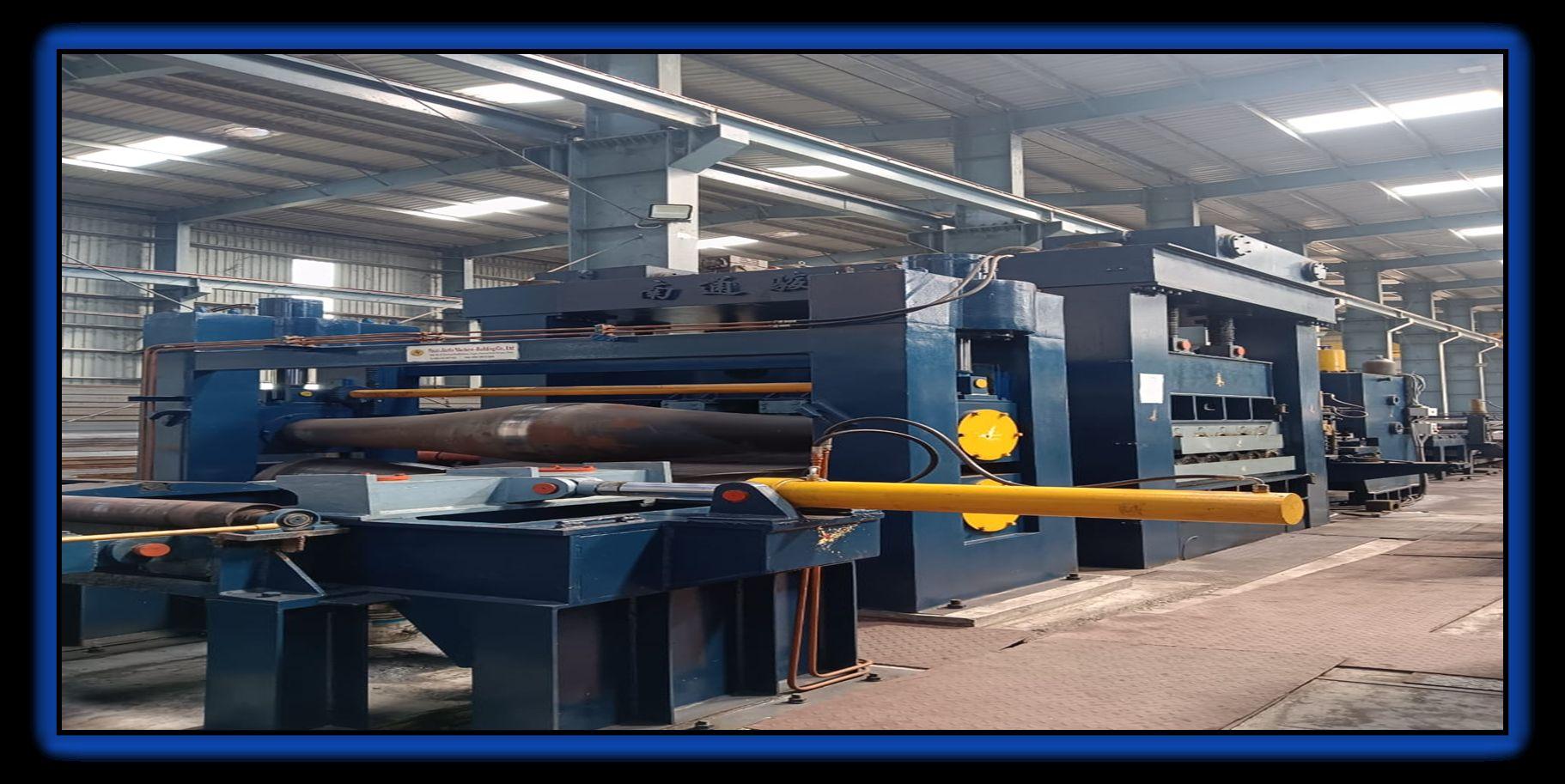

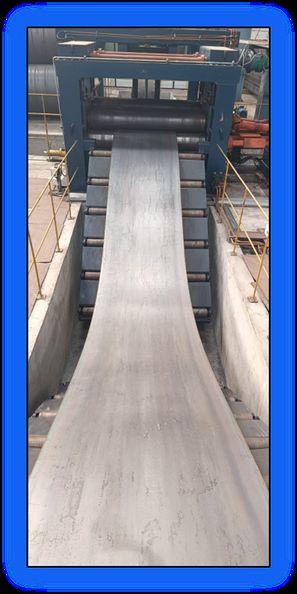

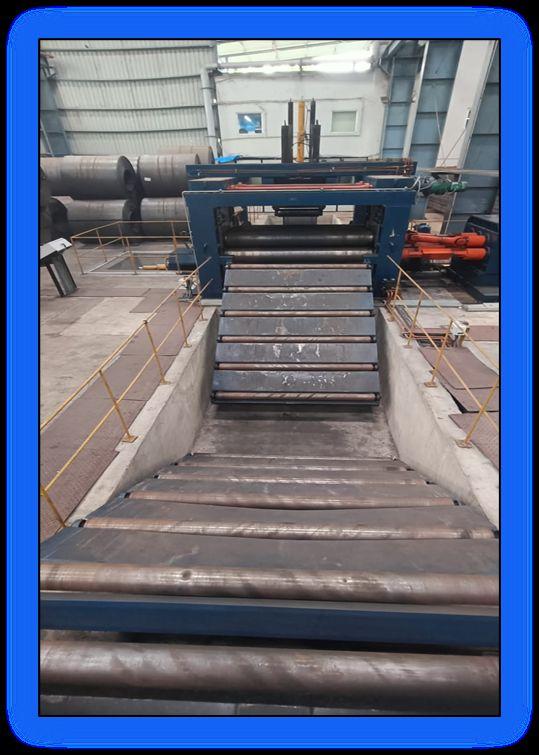

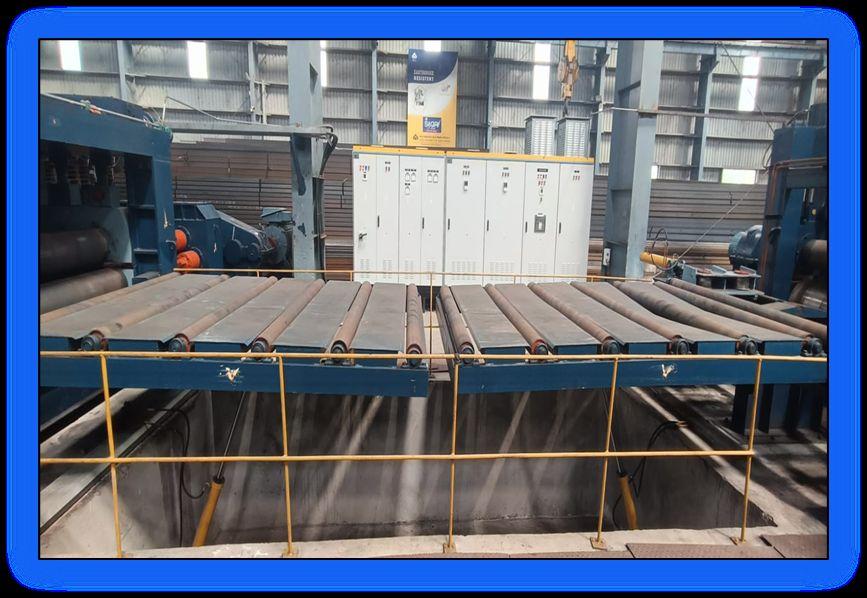

LOOPPITARRANGEMENT 25MM MACHINE
Equipped with loop pit between Coarse leveller and Fine leveller Sheets passes through loop pit after coarse leveller will ensure reduction of internal stresses thus by improving flatness.

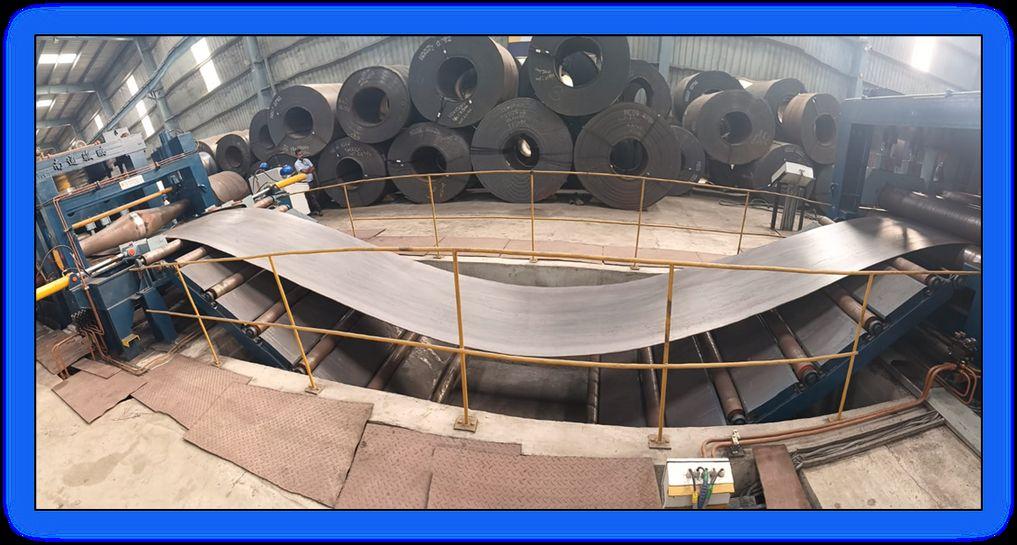

CONDITION OF 20 MMTHICK COIL SHEETINTHE LOOPPIT.

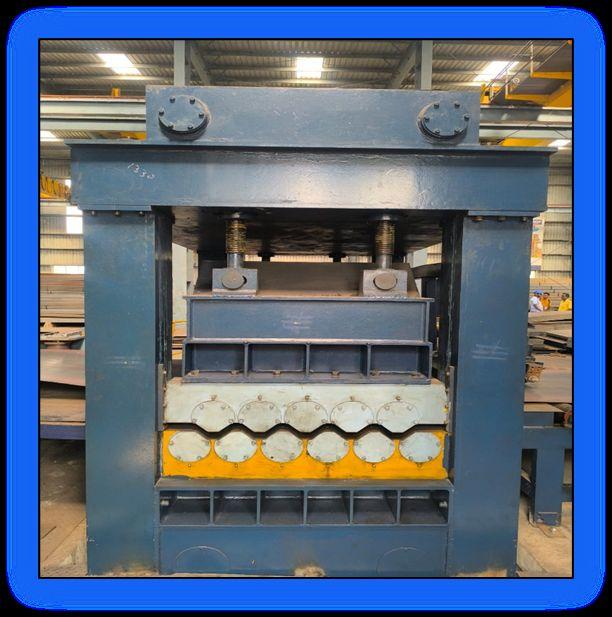

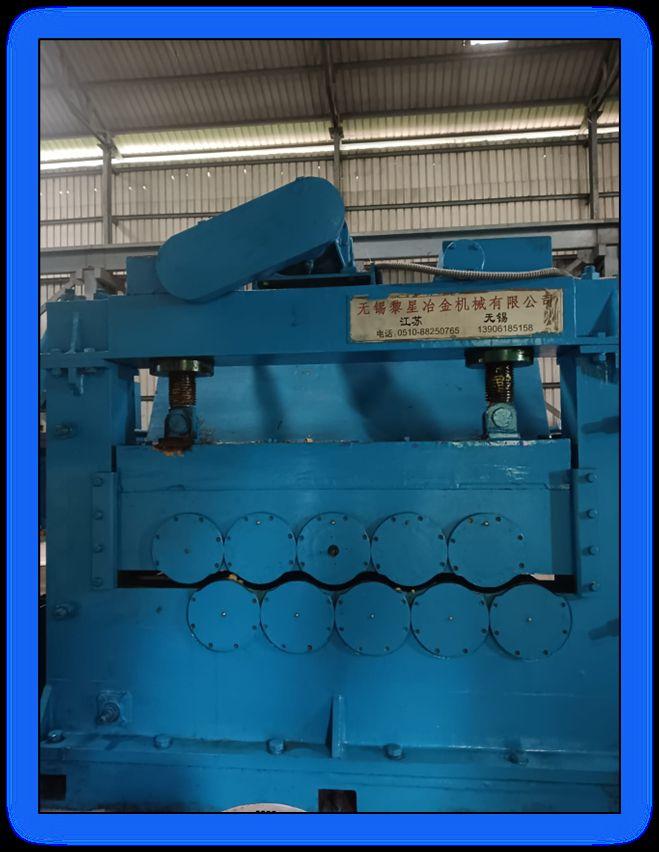

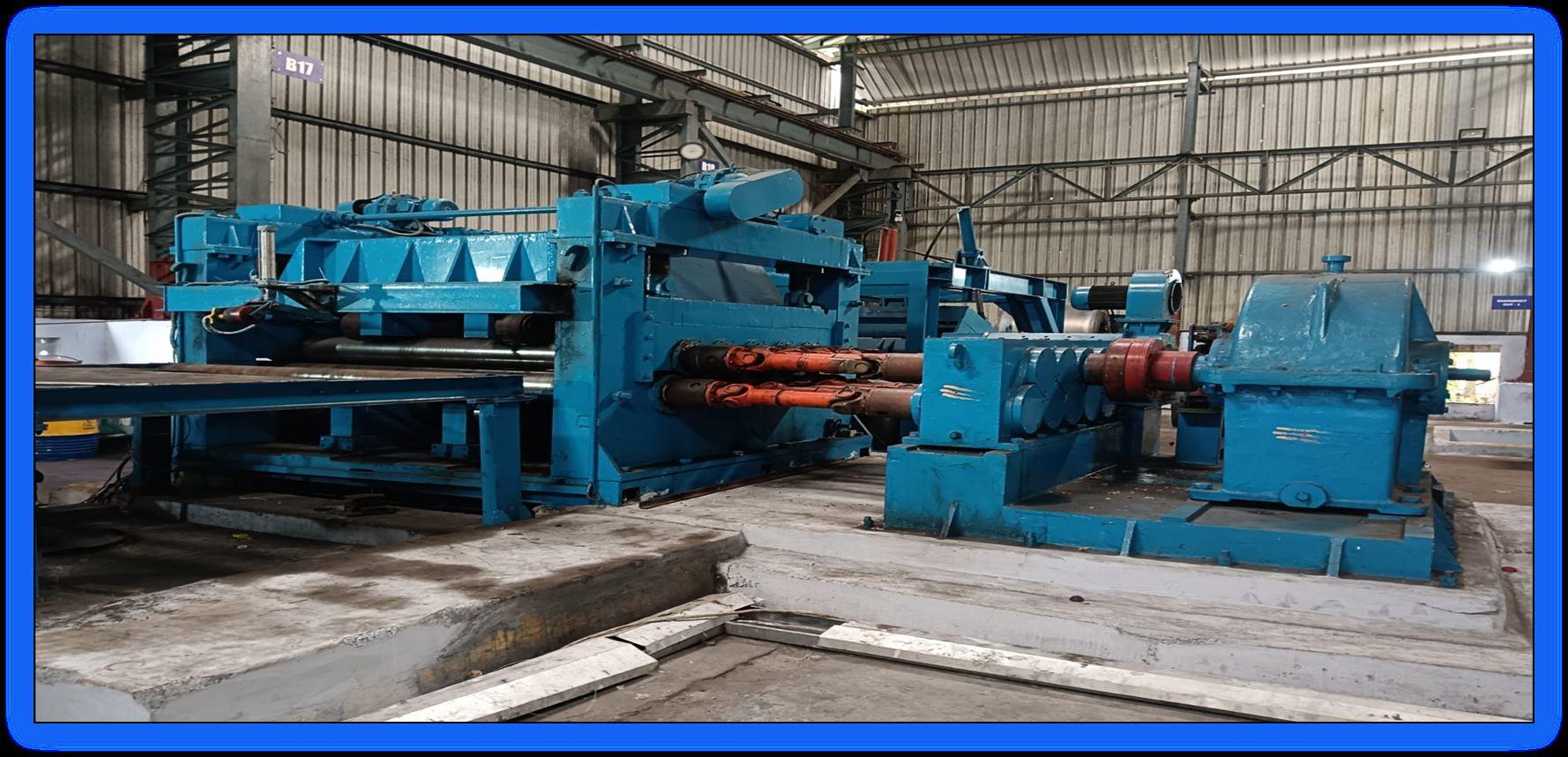

COARSE LEVELLER WITH 5 ROLLERS FOR PRE-LEVELLINGTHE SHEET ENTERING
LEVELLER SPECIFICATION

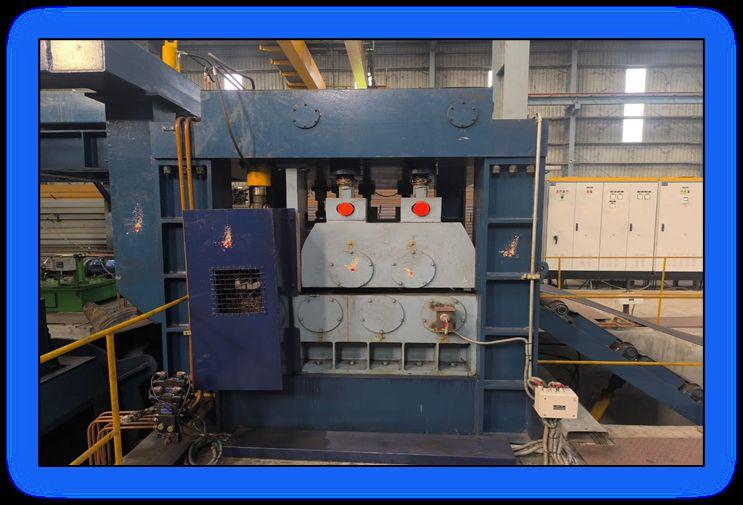

FINE LEVELLER WITH 11 ROLLERS FOR FINAL-LEVELLINGTHE SHEET ENTERING

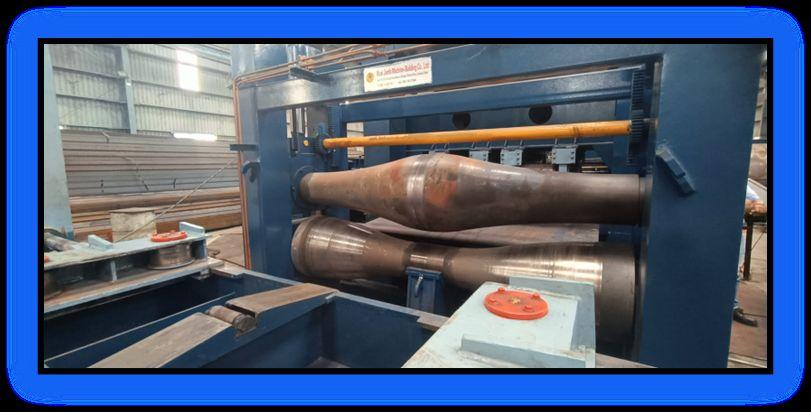

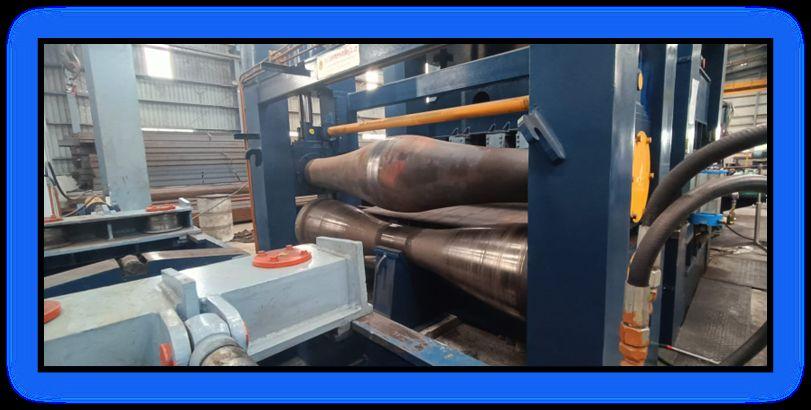

Equipped with concave rollers before fine leveller.
These levellers will exert pressure on the sheets and reduce centre bow issue and allow the sheets to pass through fine Leveller.
Only two service centre has this facility in southern India.
Ensure Good Flatness.

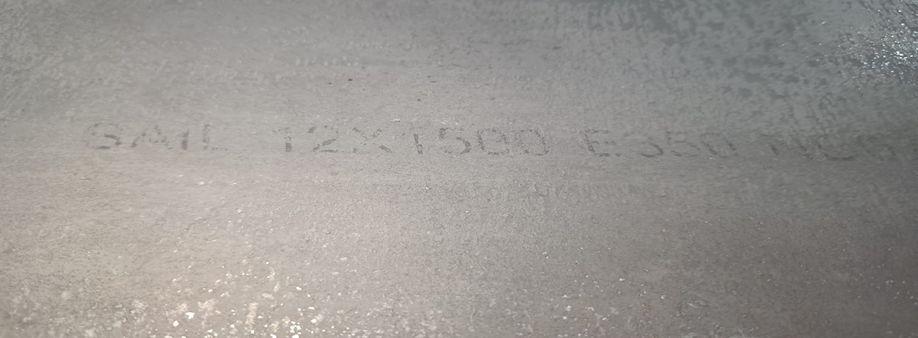

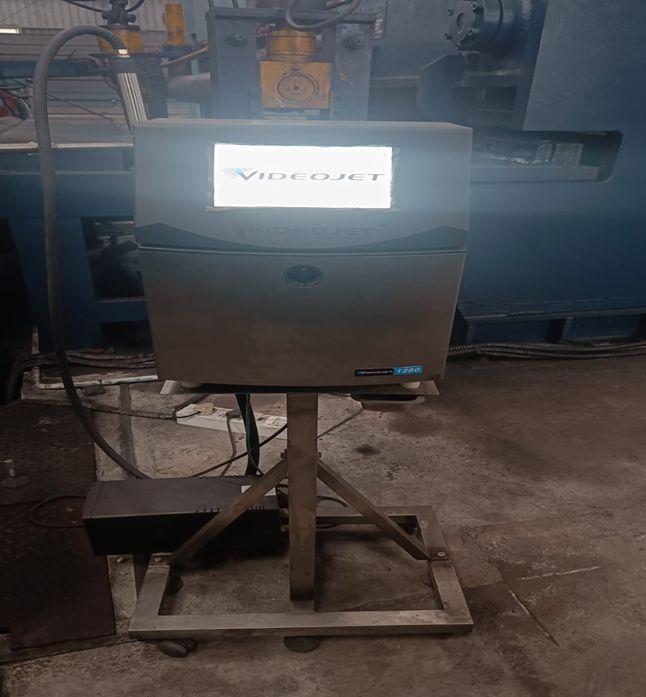

EMBOSSING FACILITY
This will give us the details like Source, Size and Grade of the plate
CTL-2. 2MM X 6MM X 2000MM

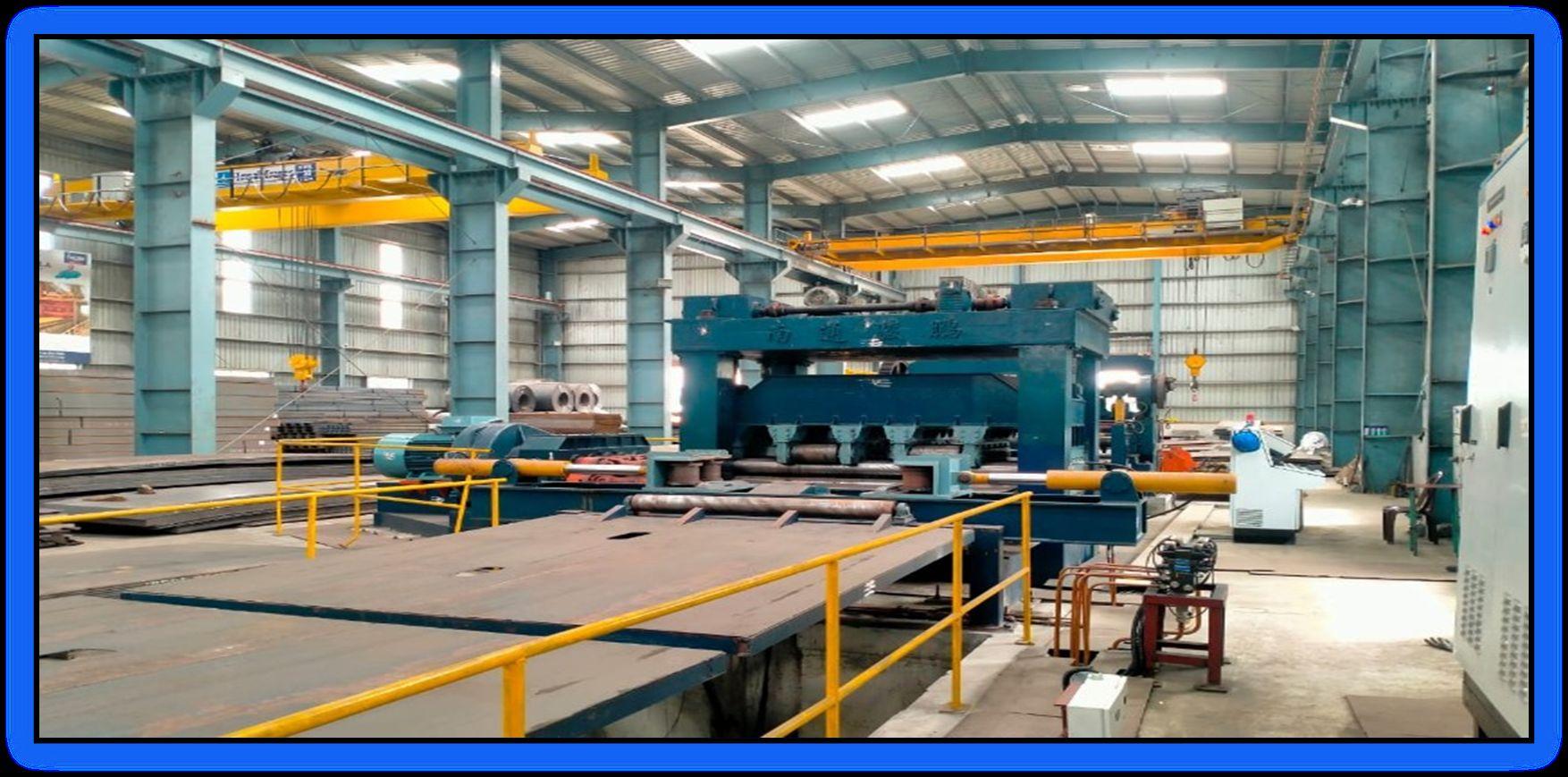

LEVELLER 6MM MACHINE
FINE LEVELLER WITH 11 ROLLERS FOR
FINAL-LEVELLINGTHE SHEETENTERING
PRE-LEVELLINGTHE SHEETENTERING www.bharatsteels.in
COARSE LEVELLER WITH 5 ROLLERS FOR
G2 STEELSERVICES PVT. LTD
G2 Steel Services Pvt Ltd has been an authorized dealer of SAILand RINL since 2007, serving traders and consumers across Tamil Nadu
PROCESS SPECIFICATION G2
G2 CAPACITYDETAILS
LEVELLER 25MM MACHINE G2 SALEM
25MM Machine Leveller with 12 rollers
For sheet Entering
OTHER FACILITIES
In house Weigh Bridge having capacity of 100 tons
2 nos.

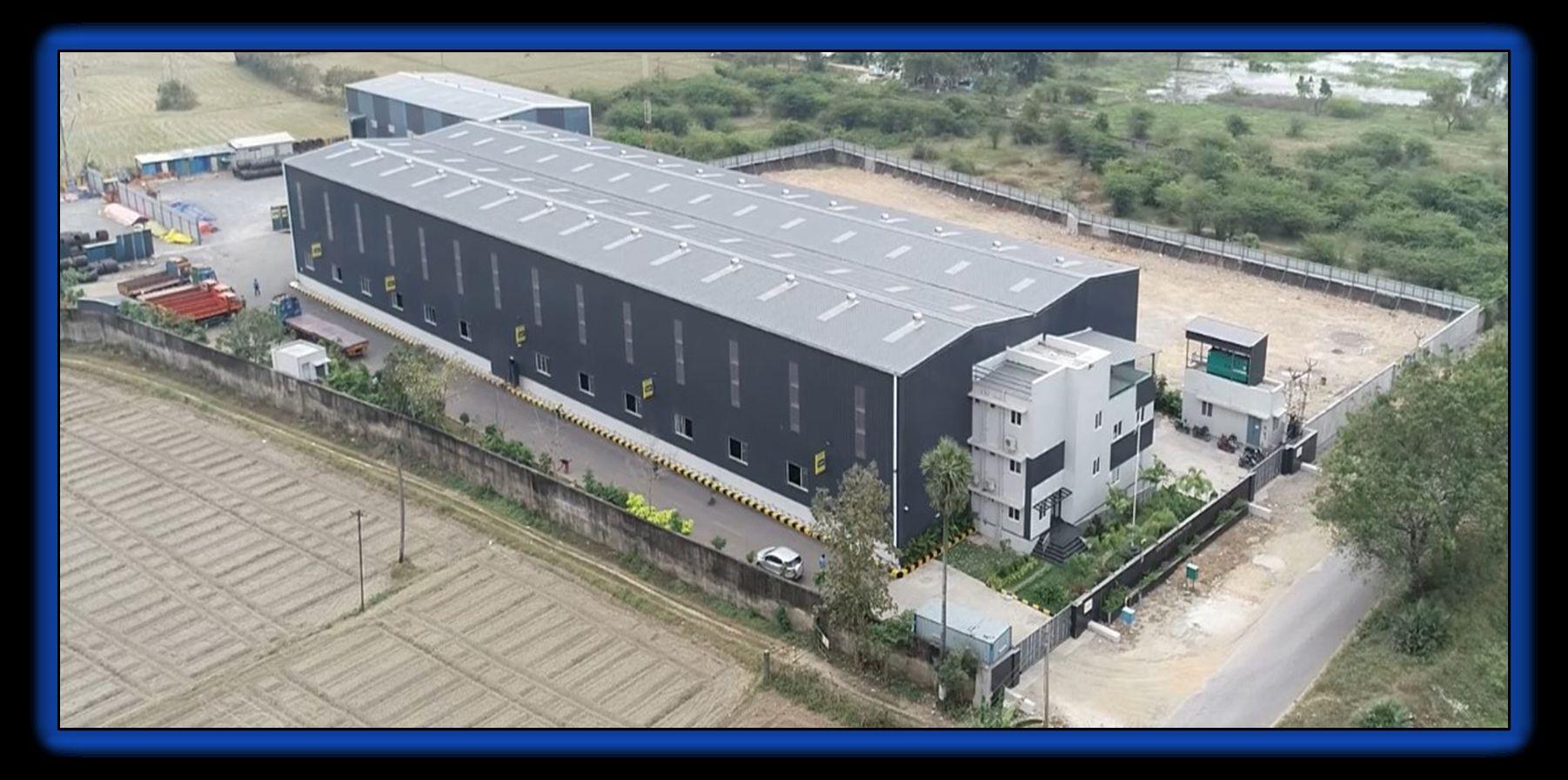

3 warehouse facilities for storing purpose
4 Escort mobile cranes for loading & unloading of processed plates

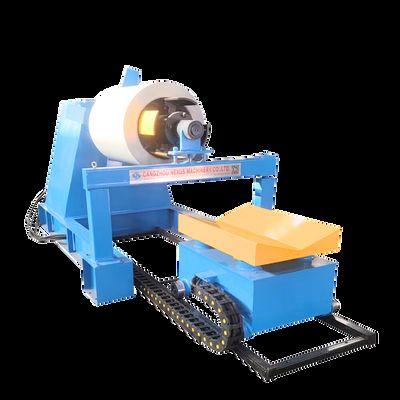

DoubleArm coil lifter with 35 ton capacity for material handling
Coil car trolley for shifting the coils and plates stored in processing area to delivery area
10 EOT Cranes Solar Back Up
Sq.ft of covered spaces
www.bharatsteels.in
QUALITYPARAMETERS

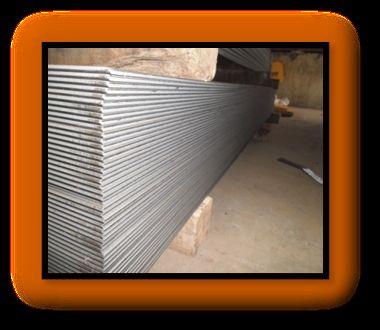

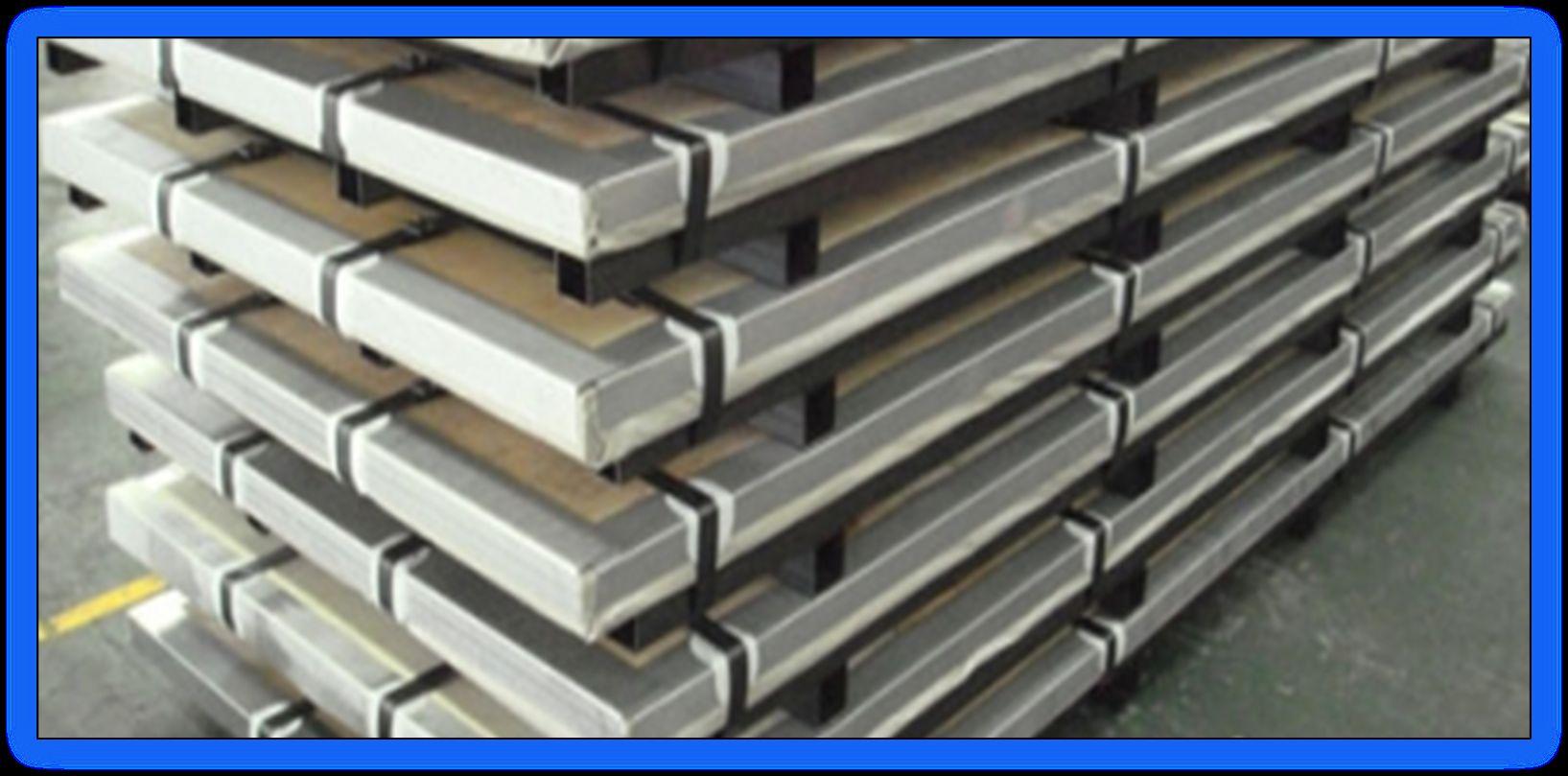

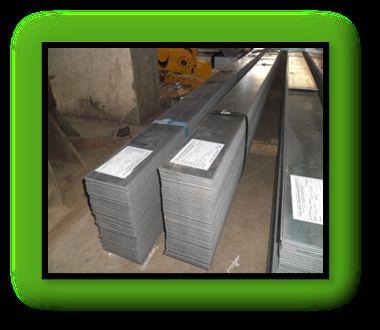

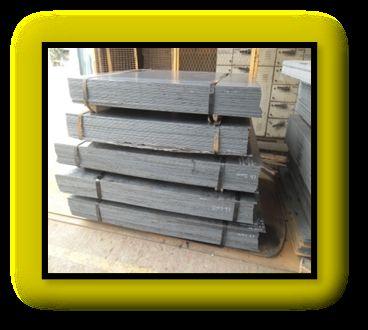

PACKING STANDARD - HR

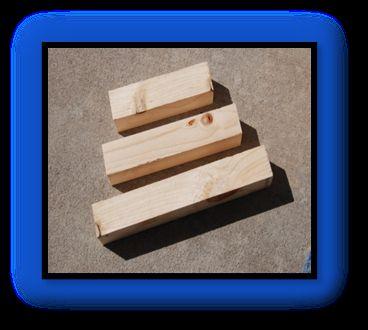

Wooden pieces placed at the bottom based on lot size.
Patti strap on both sides of the lot.
Identification stickers.

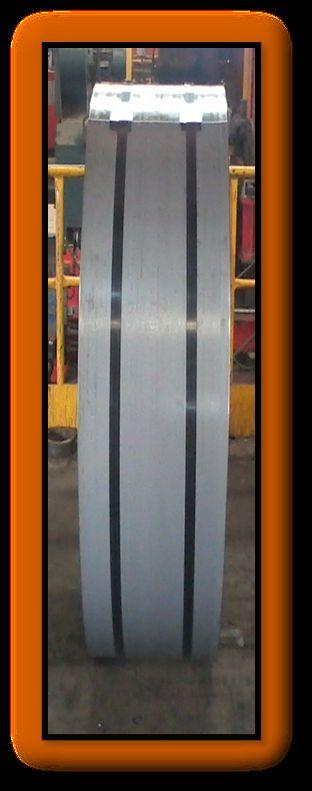

PACKING STANDARDS SLITTED COILS
Wooden pieces placed at the bottom
Baby coil packed with patti strap on both sides

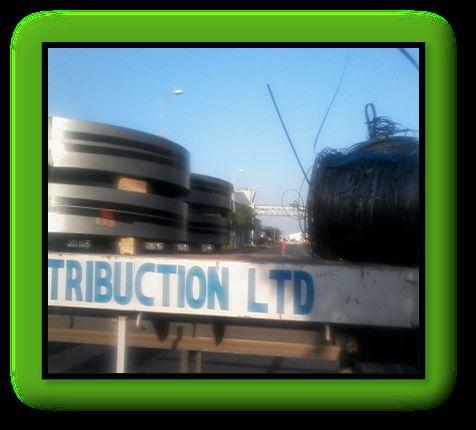

Coil placed in horizontal bed position on the truck

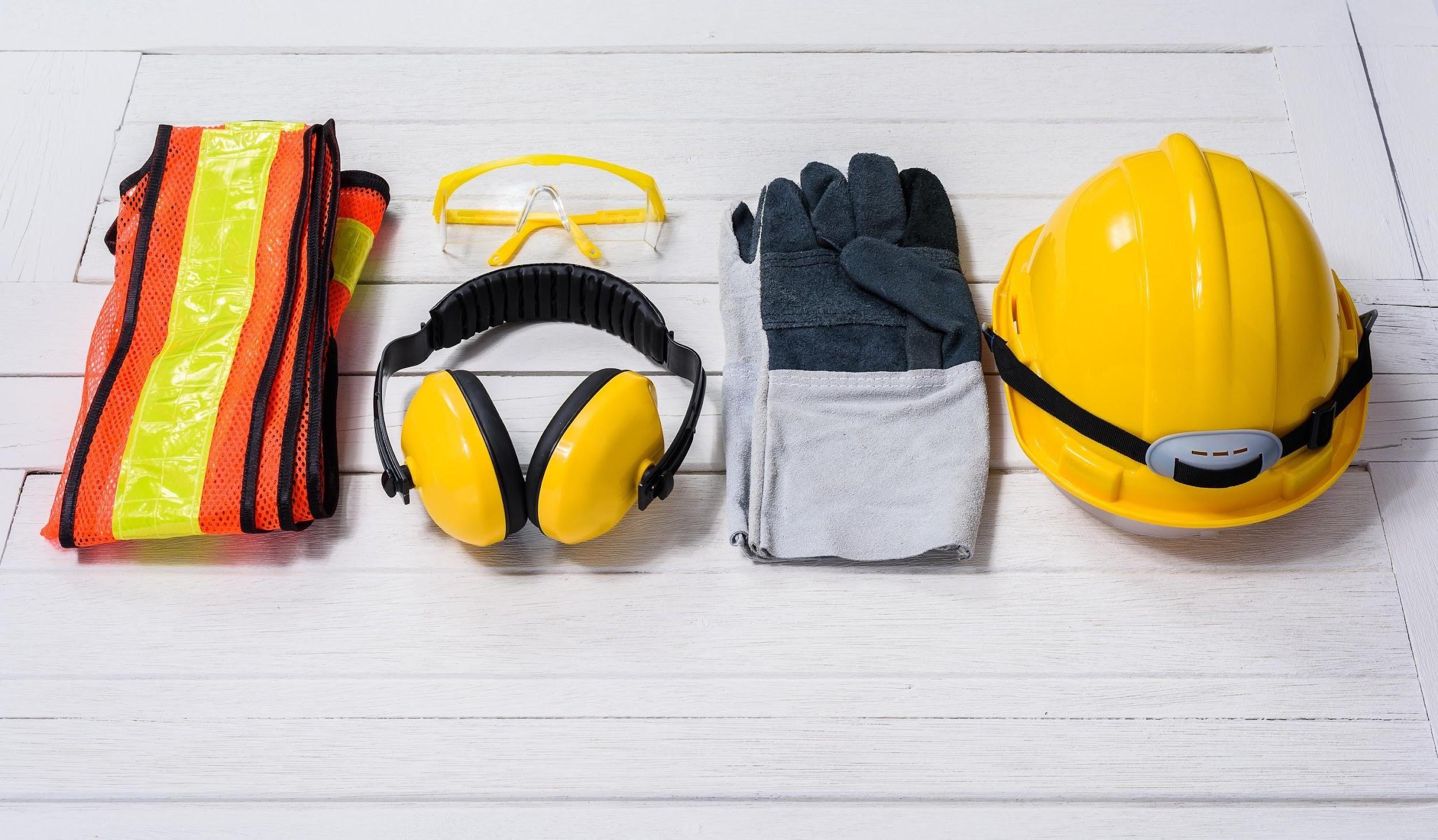

SAFETYSTANDARDS
We ensure 100% safety of our employees.
Following are mandatory on the shop floor. Shoes
Safety
