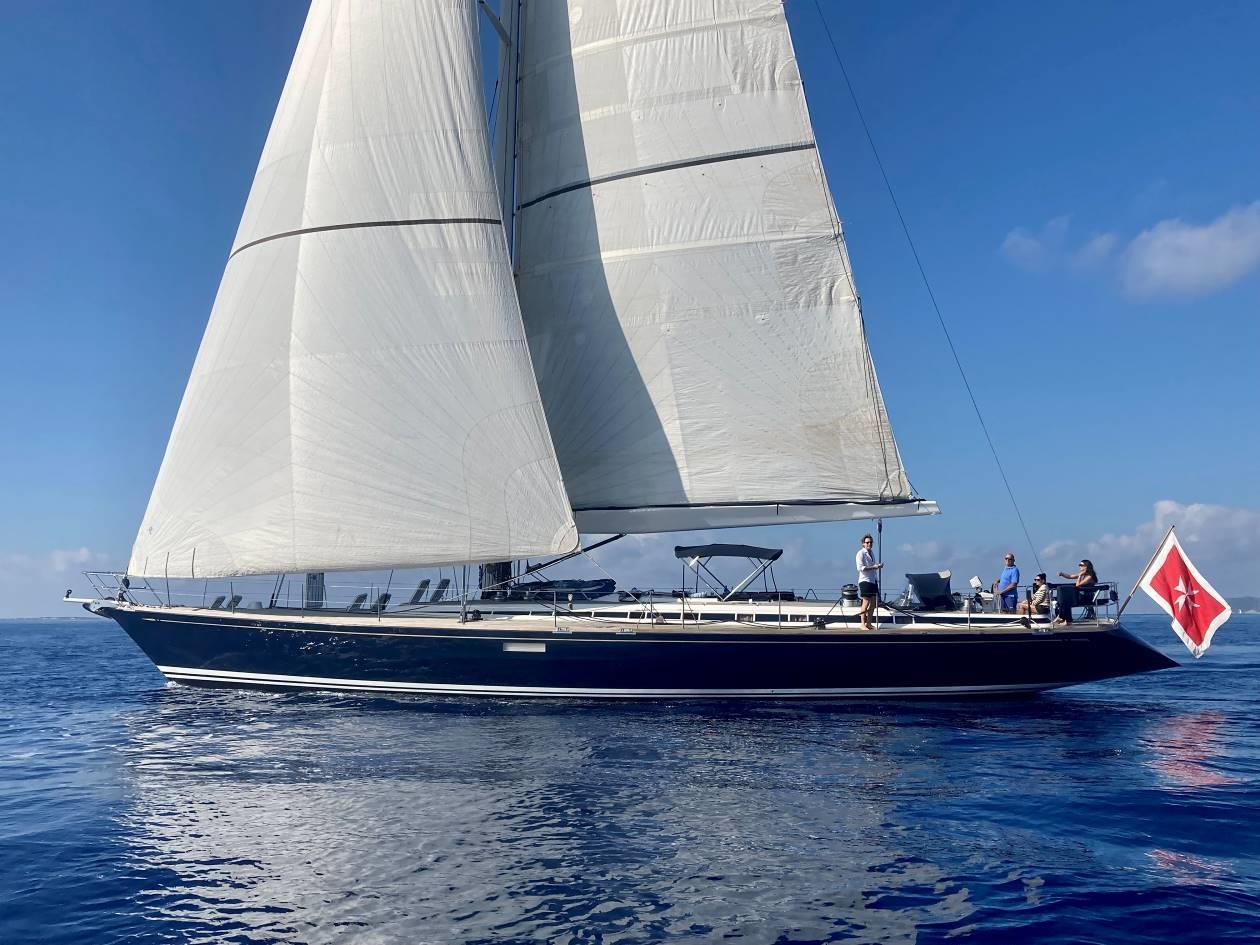

TUGELA I
Builder: NAUTOR SWAN
Naval architect: German Frers
Designer : German Frers
Type: Swan 77
Year: 2003
Lying: Marseille, France
Flag: Malta
Price: EUR 1,090,000 – VAT Paid
COMMENTS: TUGELA I is a perfect blend of timeless design and modern innovation. Built with exceptional craftsmanship, it’s a yacht you can trust for its reliability and strength, no matter where your adventures take you. Her iconic lines make it instantly recognizable and admired wherever it goes, drawing attention at every mooring. Under sail, she offers the pure joy of sailing, combining elegance, performance, and comfort. TUGELA I is more than a yacht it’s your gateway to exploring the world’s wonders in style and complete independence.
Classification: Pleasure Yacht
Construction:
*Hull: Composite
*Superstructure: Composite
*Deck: Composite + teak
Colour:
*Hull: Blue
*Superstructure: White
*Deck: White + teak
Cabins: Guests 3/4 for up to 8/10 Crew 1/2 for up to 2/4
Length overall: 24.00 m
Maximum beam: 6.00 m
Draft: 3.40 m
Displacement: 56.00 t
Keel: . t - standard bulb keel (all lead)
Gros tonnage: 71.42 t
Spars:
OFFSHORE SPARS carbon mast – New 2010
OFFSHORE SPARS carbon boom – New 2010
OFFSHORE SPARS carbon spinnaker pole – New 2010
OFFSHORE SPARS carbon spinnaker jockey pole – New 2010
Standing rigging: Rod rigging – New 2018
Running rigging: Renewed as needed (lastly in 2024)
Furling system: RECKMANN – Serviced 2018
Sails: NORTH SAILS complete set
Deck hardware: LEWMAR winches
NAVTEC hydraulic system – Serviced 2022
Steering: stainless wire cables (new 2017) to the aluminium quadrant
Windlass: LEWMAR hydraulic + remote control
Bow Thruster: 15 kW SIDE POWER SE300 Electric - 48 V - New 2020

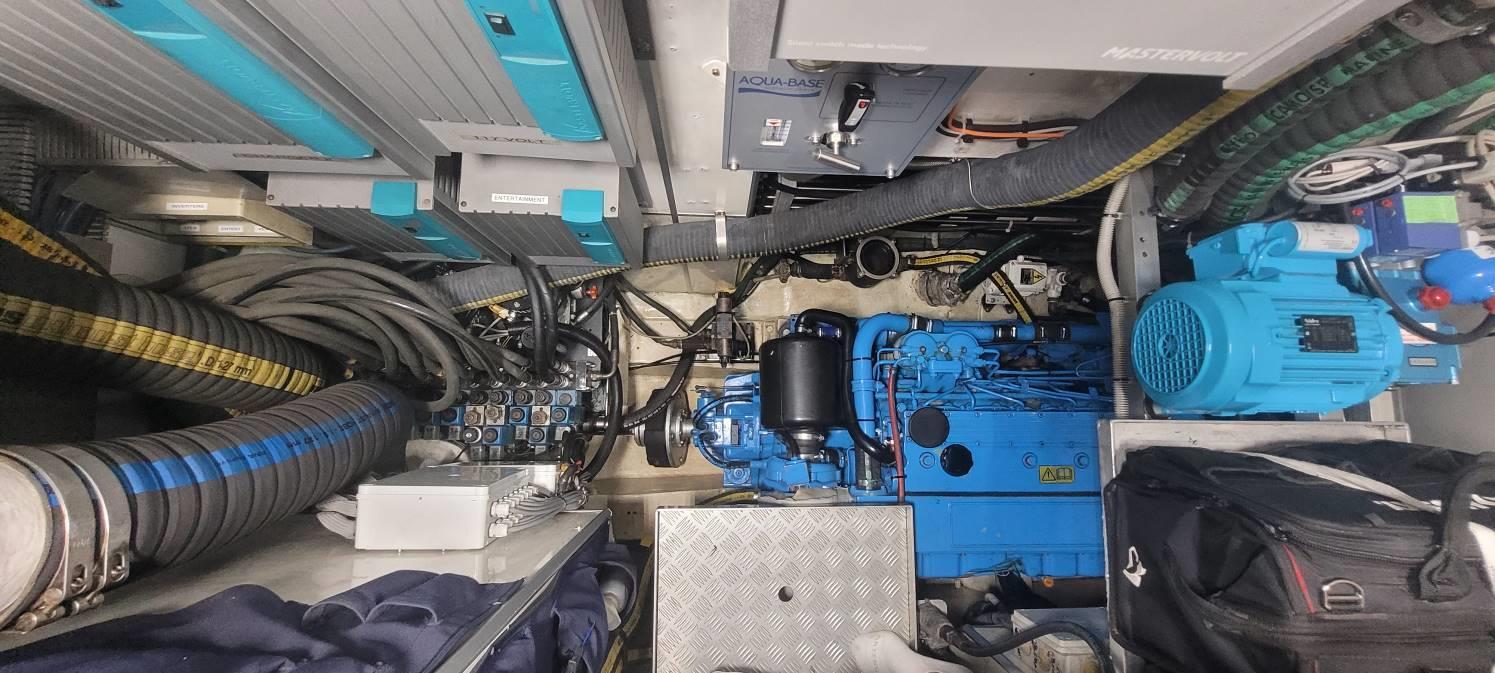

Engine:

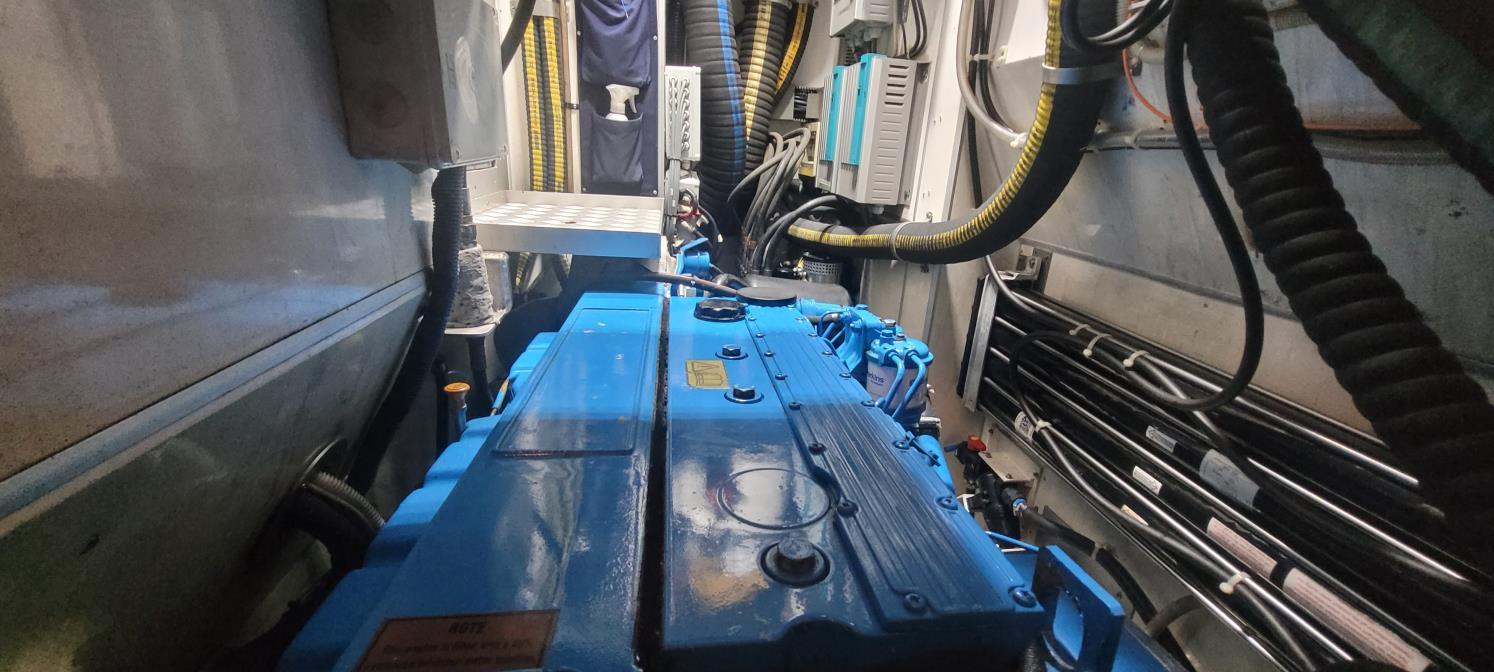

220 HP PERKINS SABRE M225 Ti - 220 HP @ 2,500 rpm
Major rebuild (2019)
Serviced (2024)
Propeller 3-blade bronze MAXPROP (Serviced 2020)
Gearbox ZF-Hurth 2.52:1
*Performances: 7.60 knots @ cruising speed & 1,500 rpm
10.00 knots @ maximum speed
*Consumption: 10 l/h @ 7.6 knots cruising speed & 1,500 rpm
*Range: 1,425 NM @ 7.6 knots cruising speed & 1,500 rpm
Generator: 17.5 kW CUMMINS ONAN – New 2009 – With sound shield & PTO
Major refit (2021)
Serviced (2024)
Batteries: Service
800 Amp/24 V – Lead acid type – New 2022
Entertainment 240 Amp/24 V – Lead acid type – New 2023
Engine 135 Amp/24 V – Lead acid type – New 2025
Generator 135 Amp/24 V – Lead acid type – New 2025
Bow thruster 200 Amp/24 V – Lead acid type – New 2025
Fuel: 1,740 l (2 x 870 l)
Water: 1,390 l (2 x 695 l)
Boiler:
100 l (2 x 50 l)
Water maker: 240 l/h AQUA-BASE YK4 - New 2022
Refrigerator: 3 + 1
Deep freezer: 1
Air conditioning: 6 x MARINE AIR SYSTEM A/C units

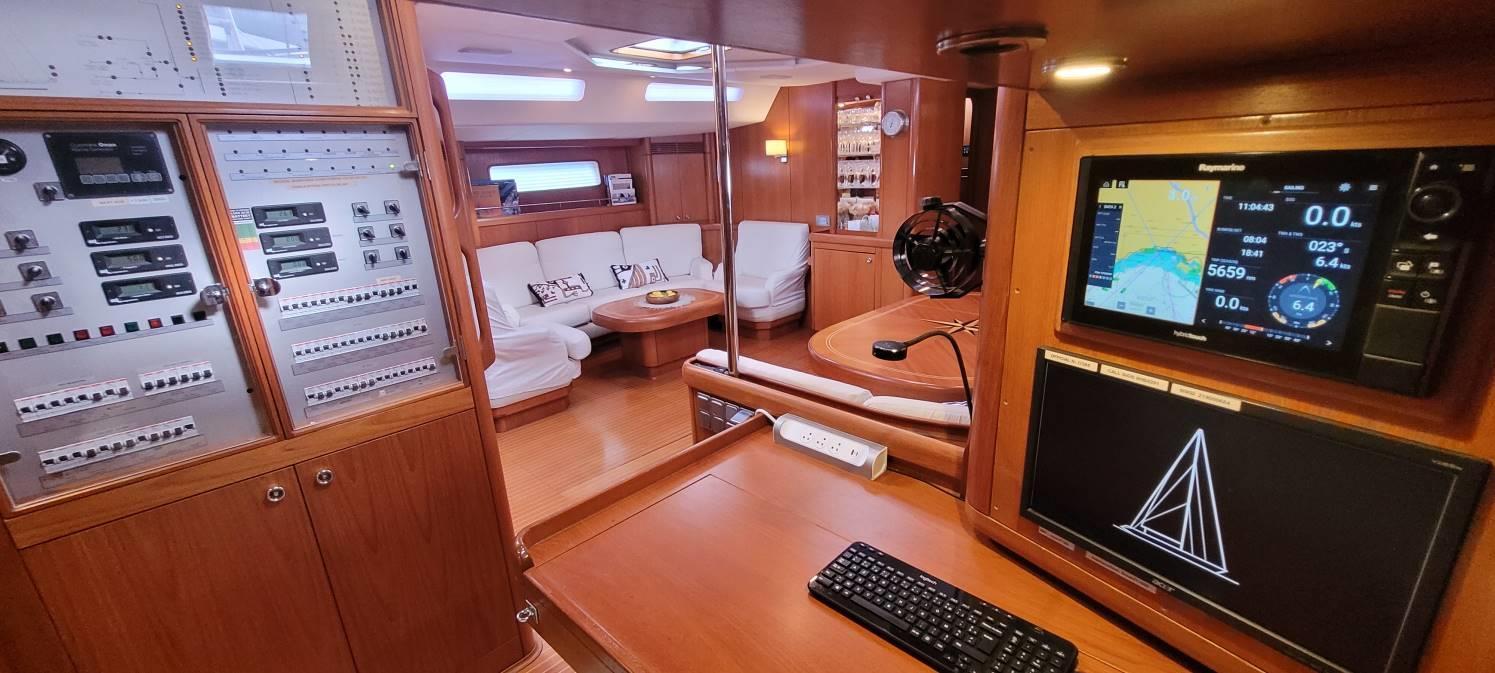

Electronic:
*Instruments: B&G Hydra 2000 pack with 20/20 displays
*Sounder: B&G Hydra 2000
*Self-steering: RAYMARINE
Spare OCTOPUS Auto-pilot engine
*AIS Class B: RAYMARINE
*Computer: SHUTTLE PC equipped with keyboard, LCD screen, printer, etc.
*Sat phone: Fleet broadband 250
Iridium GO!
*VHF radio: B&G DSC
*GPS: RAYMARINE
*Chart plotter: 3 x RAYMARINE
*Radar: RAYMARINE
*Audio: Living Control system, HP inside & outside, 2 x Bluetooth receivers
*TV: 5 x TV screens, 2 x Apple TV, 1 x Google Chromecast
*Wi-Fi: PEPWAVE 4G Router

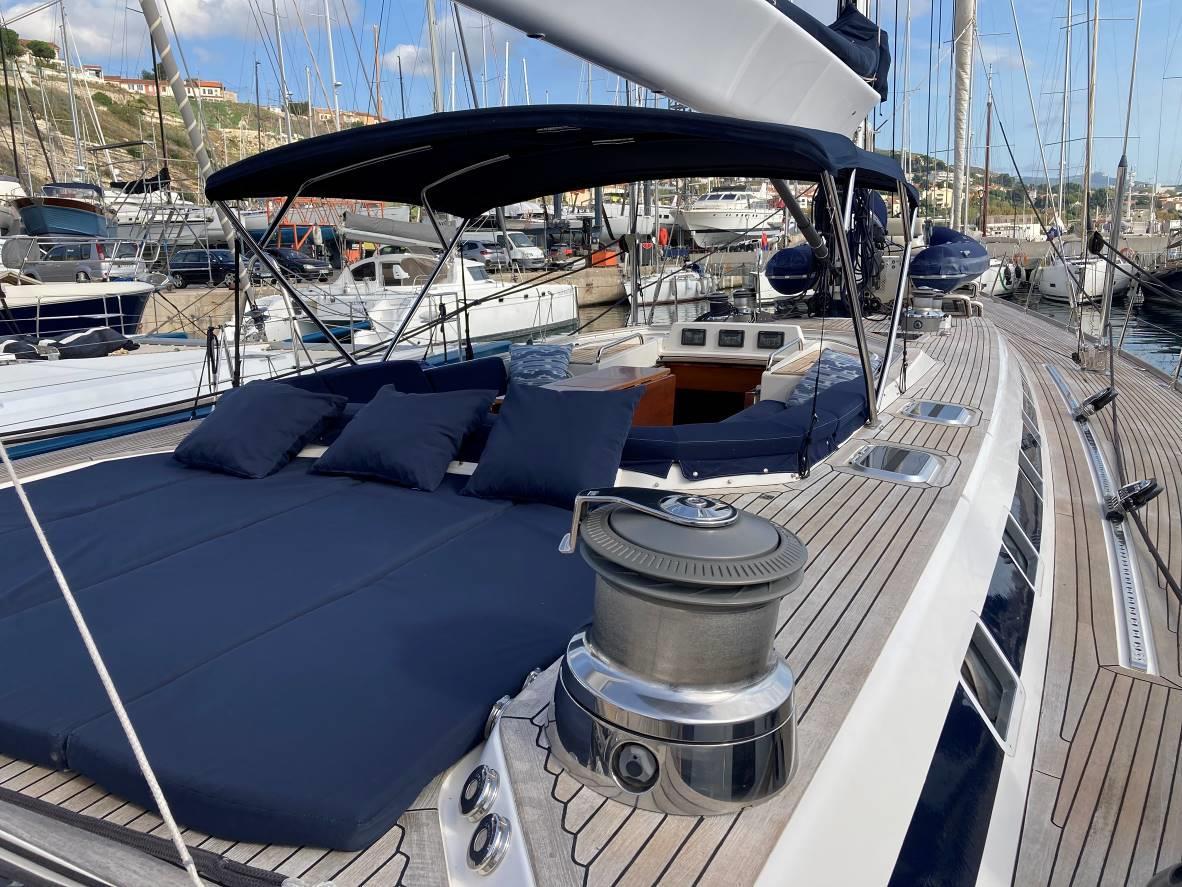

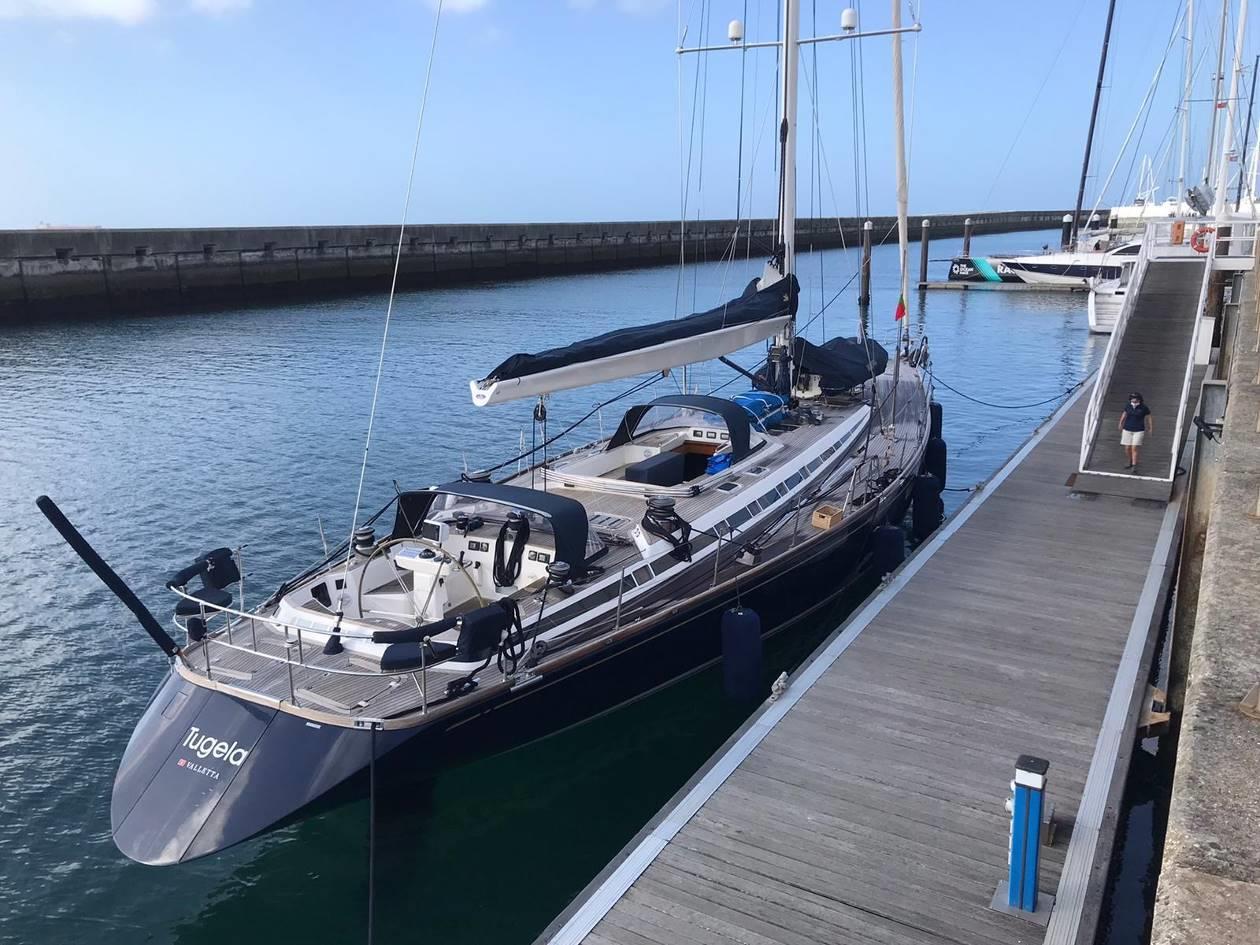

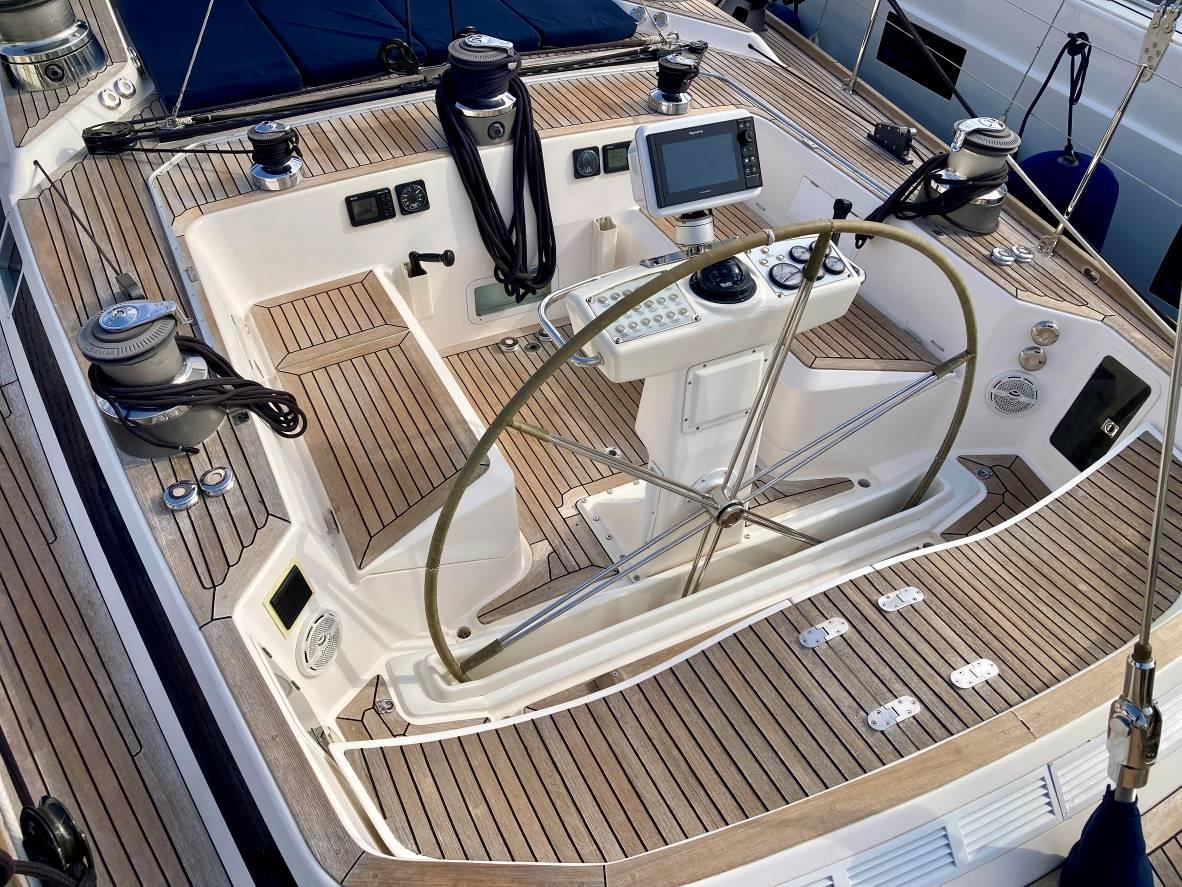

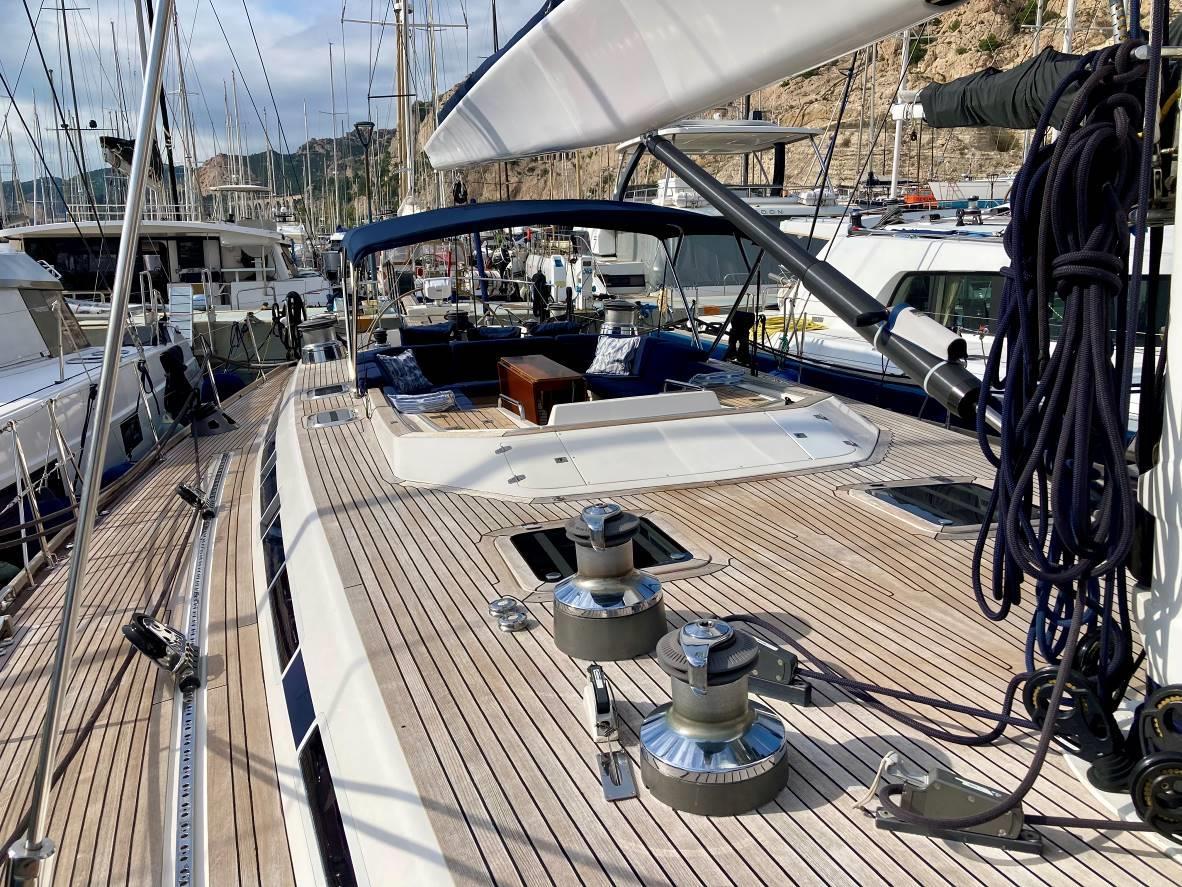

DECK AND COCKPIT
Teak laid up throughout the deck and in the 2 cockpits 2 cockpits
Swim platform: Hydraulic platform inside transom door, with ladder
Passarelle: 3.20 m carbon gangway
Bimini top: Bimini, sprayhoods for both forward and aft cockpit, very big sun awning, rain transparent covers for forward cockpit.
Cushions: Forward cockpit cushions (new 2023), aft cockpit cushions, sunbed mattresses

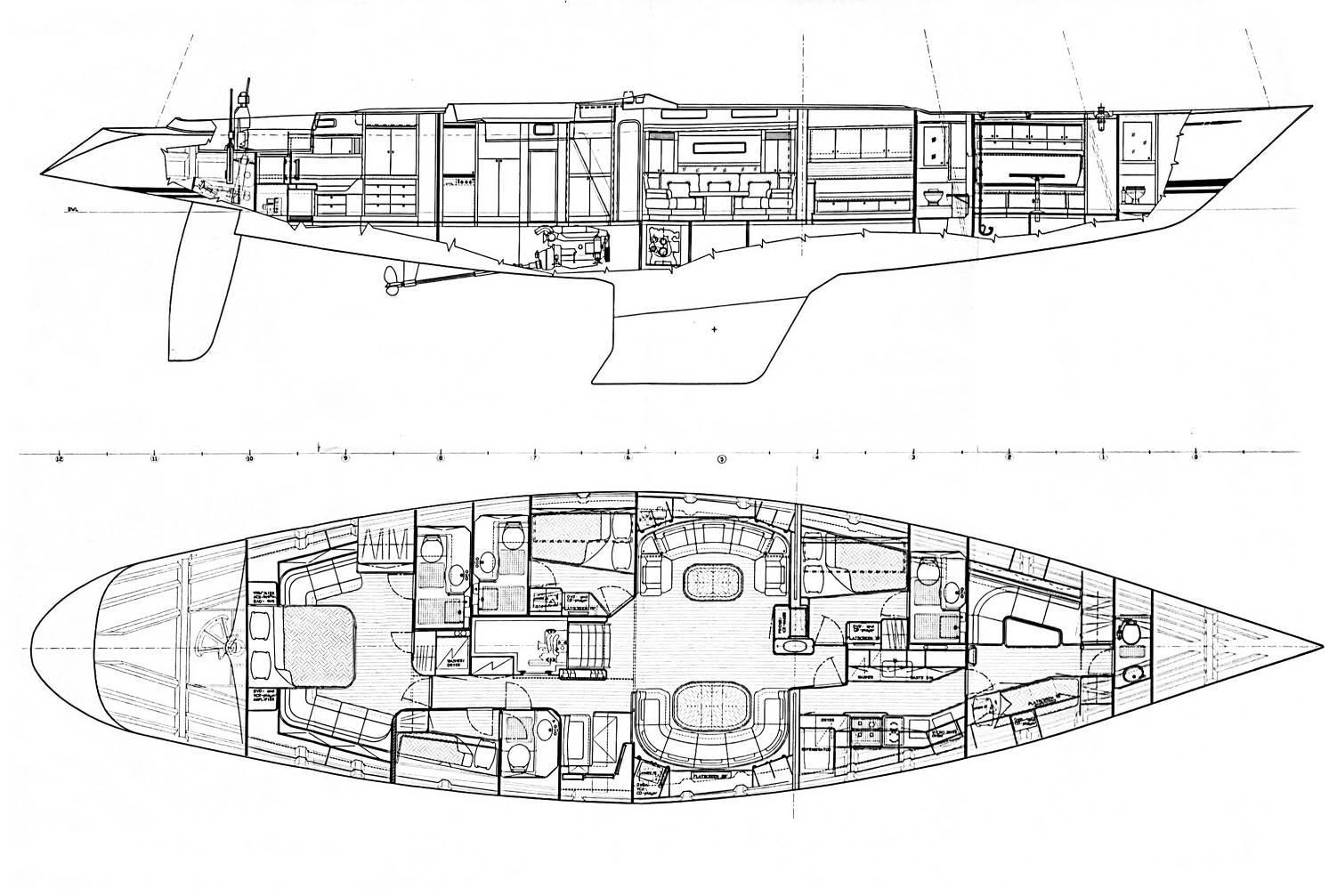

ACCOMMODATION
Guests in 3 to 4 cabins for up to 8 to 10

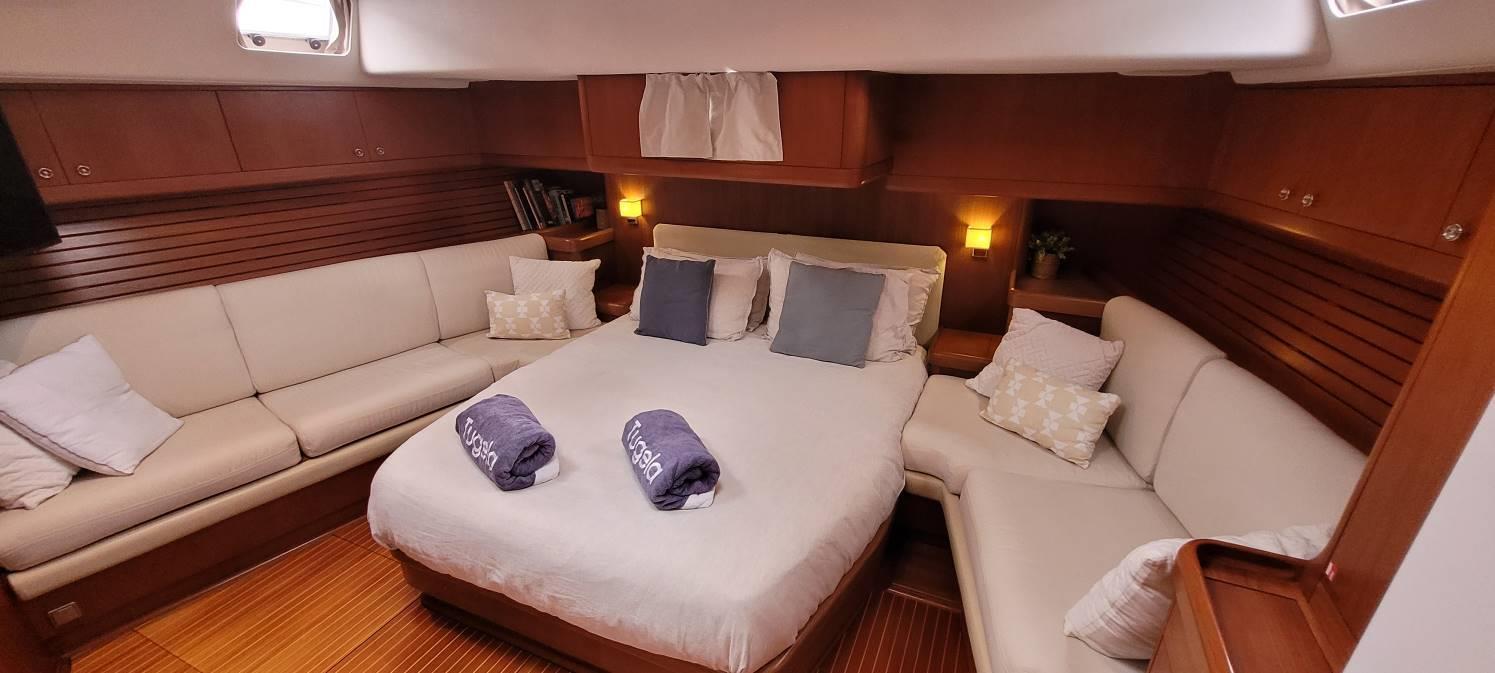

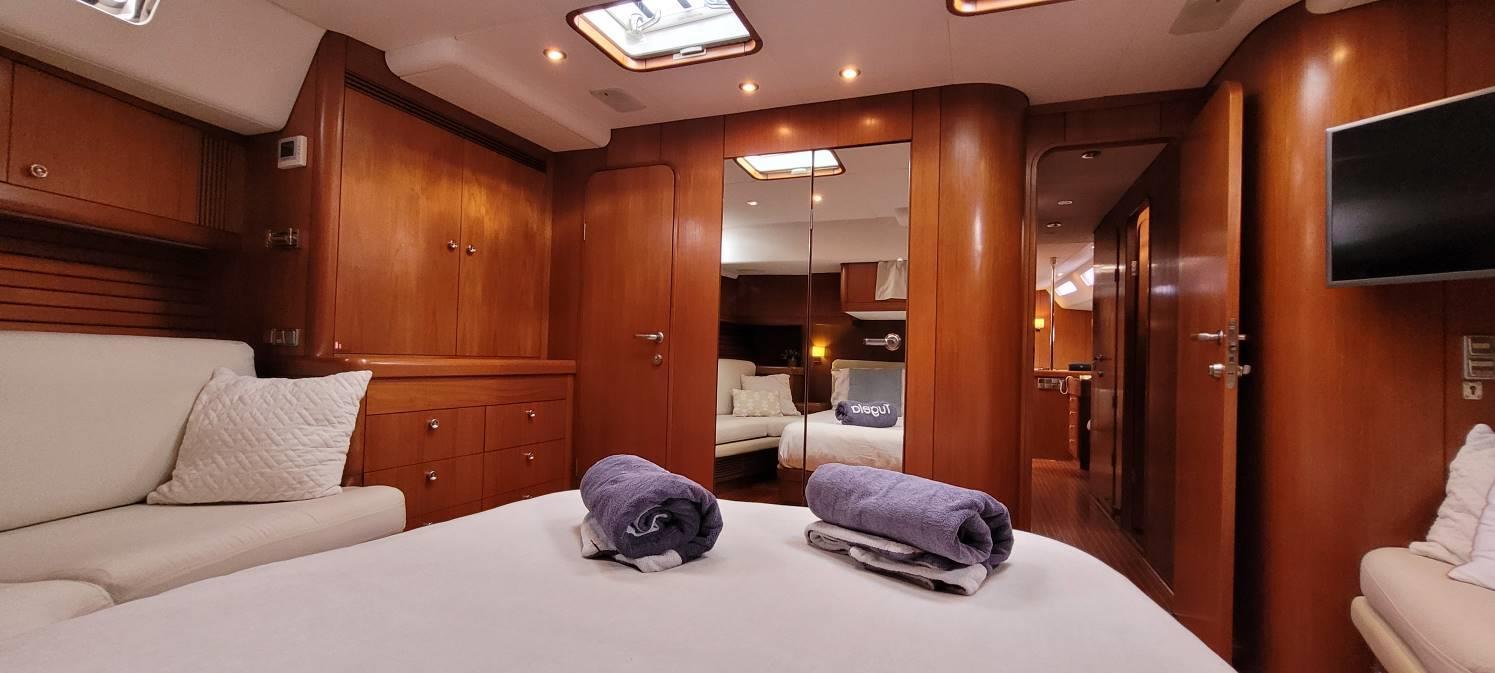

• Owner’s cabin:
Owner's aft cabin with double bed on the centreline and sofas on both sides. Custom stowage under the bed

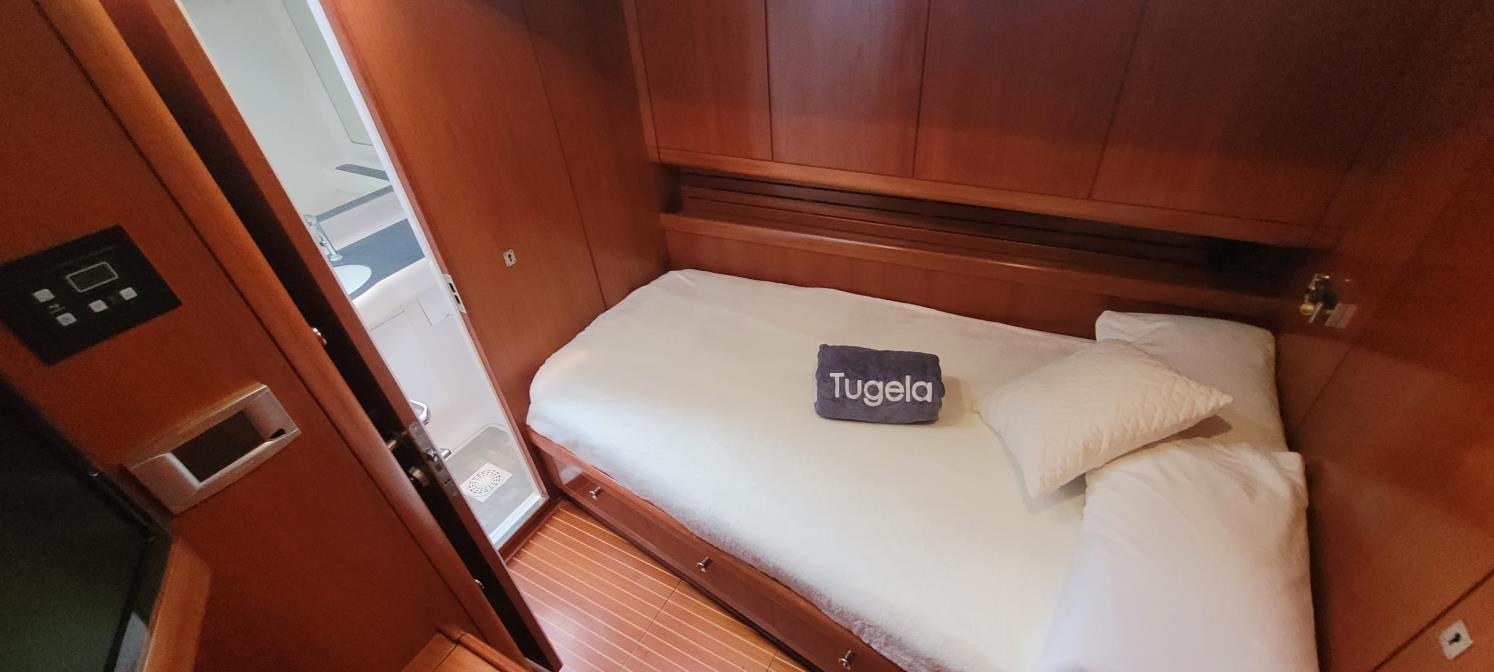

• Guests’ cabins:
Starboard aft cabin: Single bed + Pullman
Aft port guest cabin: Double bed + Pullman
Forward port guest cabin: Double bed + Pullman
• Bathrooms: En-suite
Crew in 1 to 2 cabins for up to 2 to 4

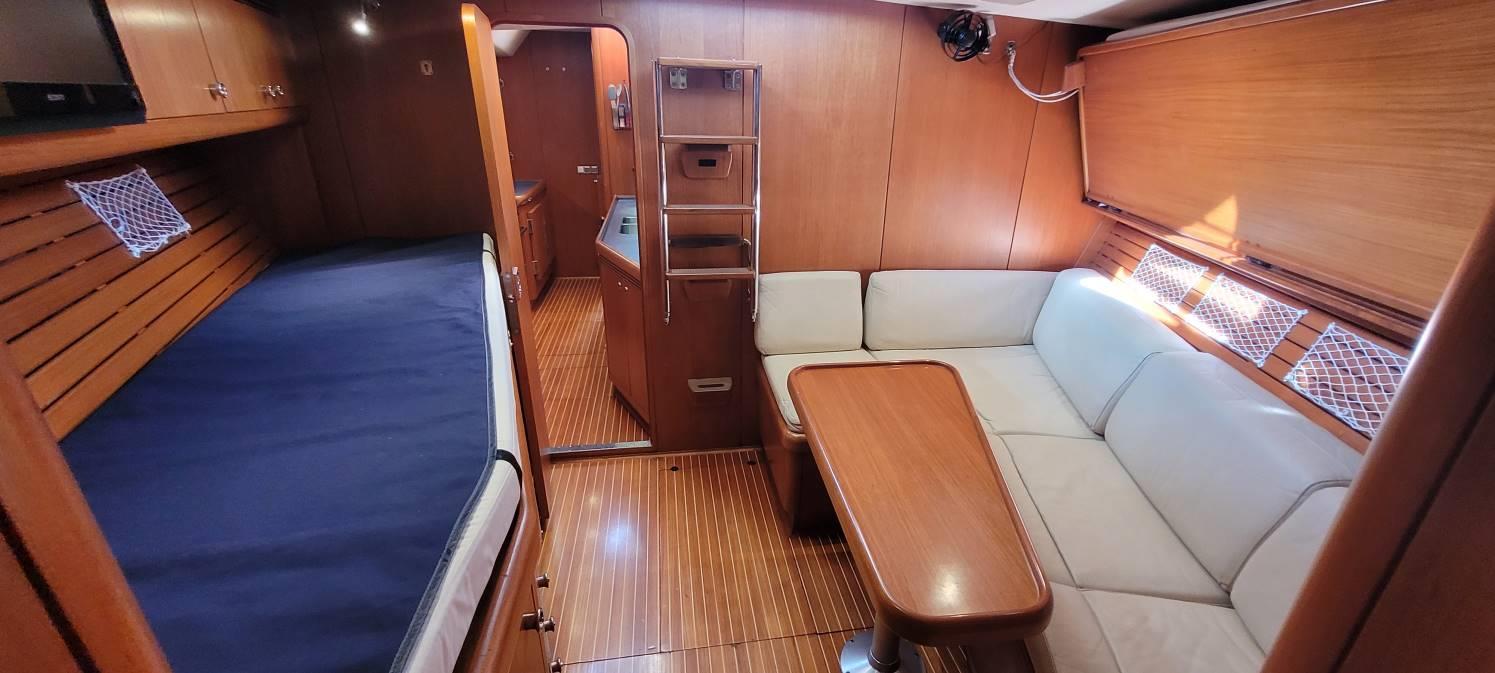

• Crew-mess: Single bed + Pullman
• Captain cabin: Single bed + Pullman (Aft port – also used for the guests when only 2 crew)
• Bathrooms: En-suite (one in crew-mess, one in captain's cabin)
On the starboard side near the companionway

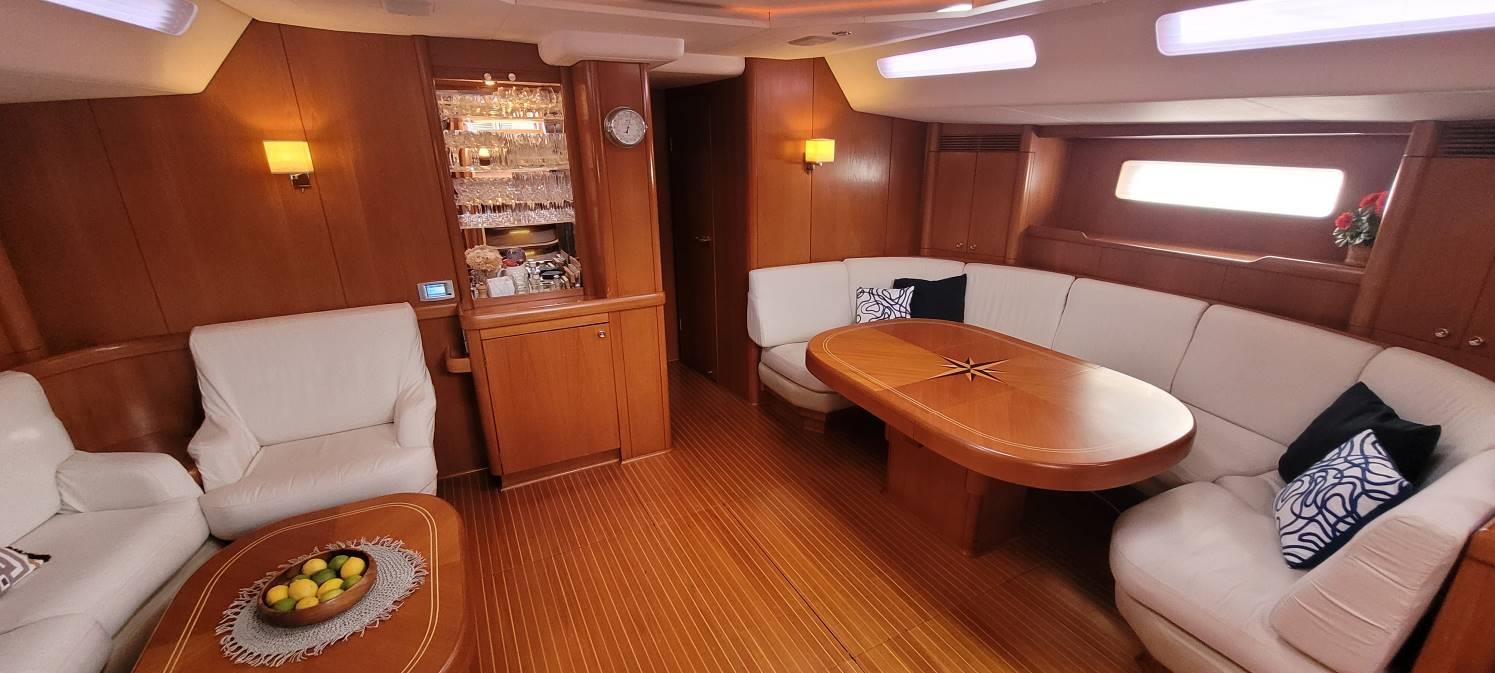

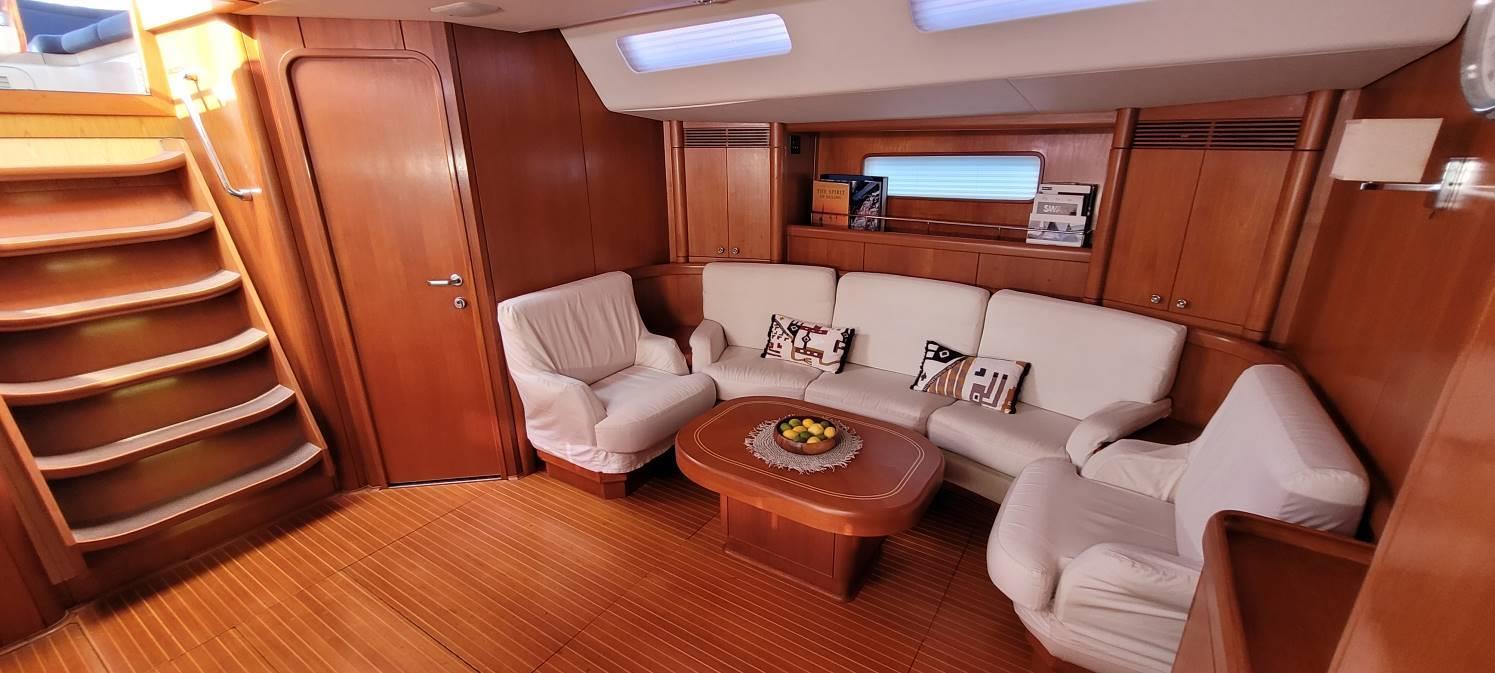

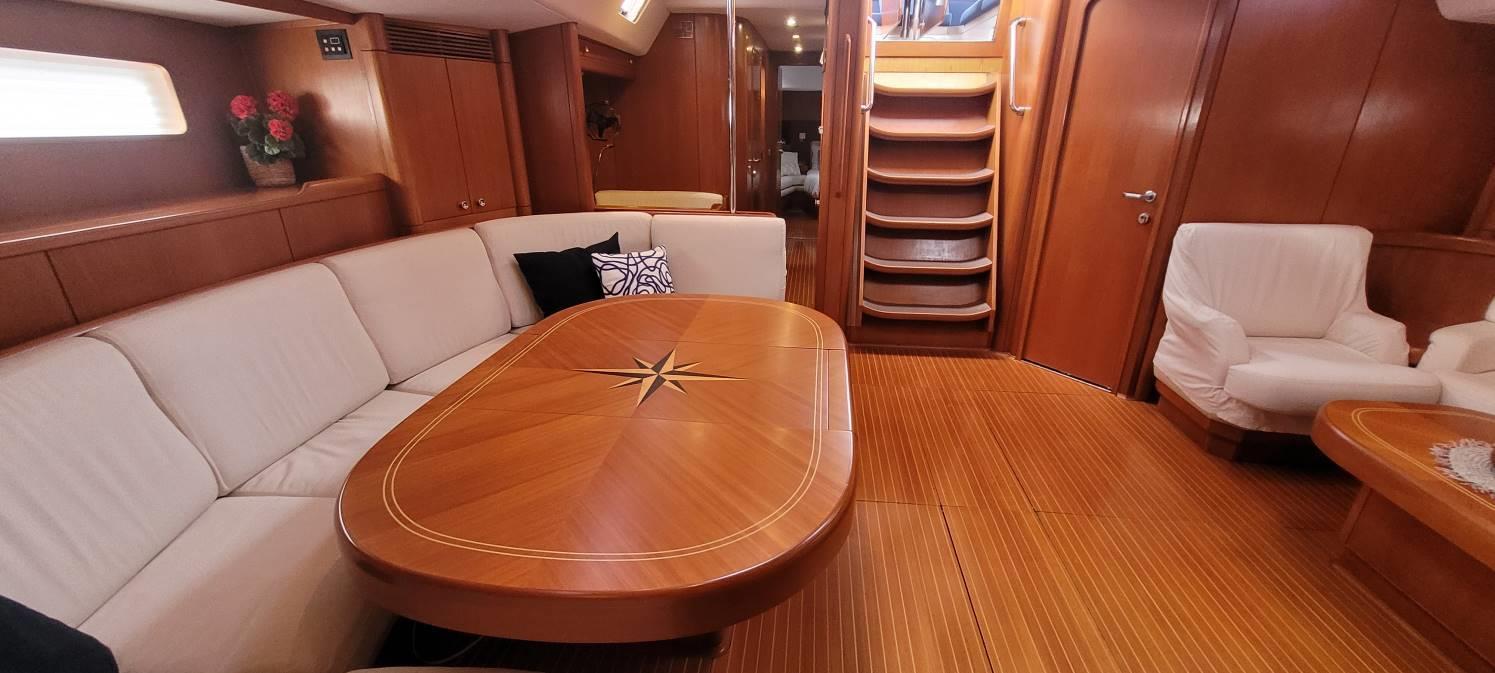

SALOON
Spacious with a dining table and a large U sofa on port, and on starboard another U sofa and a small table

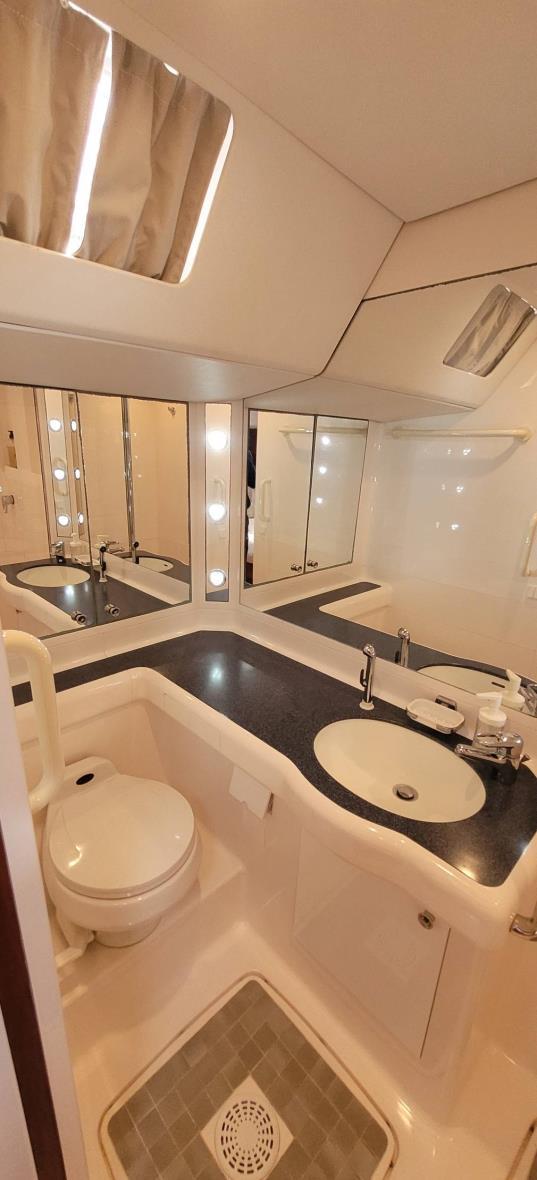

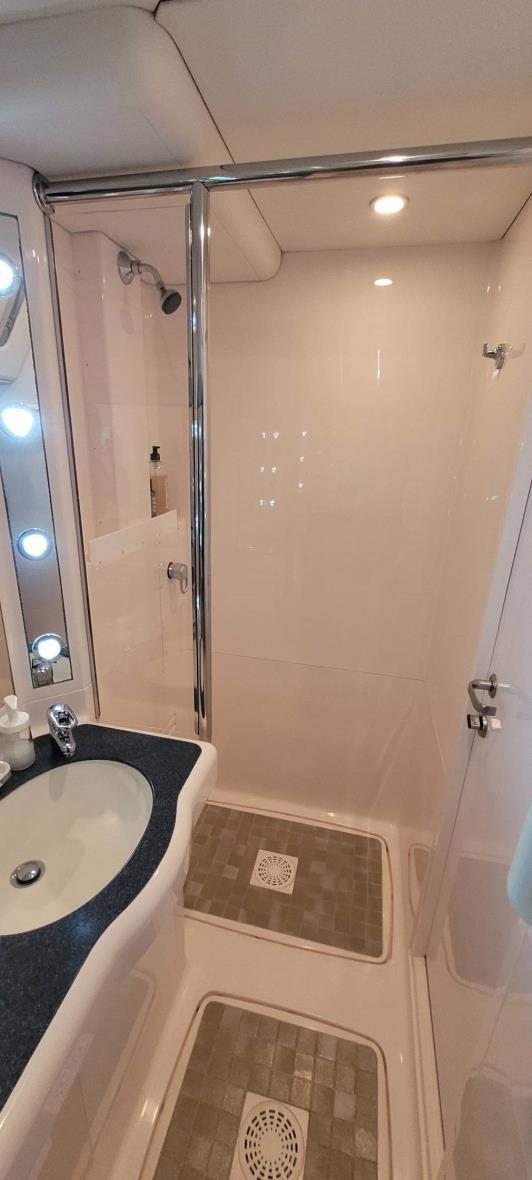

SHOWER ROOM/HEAD
5

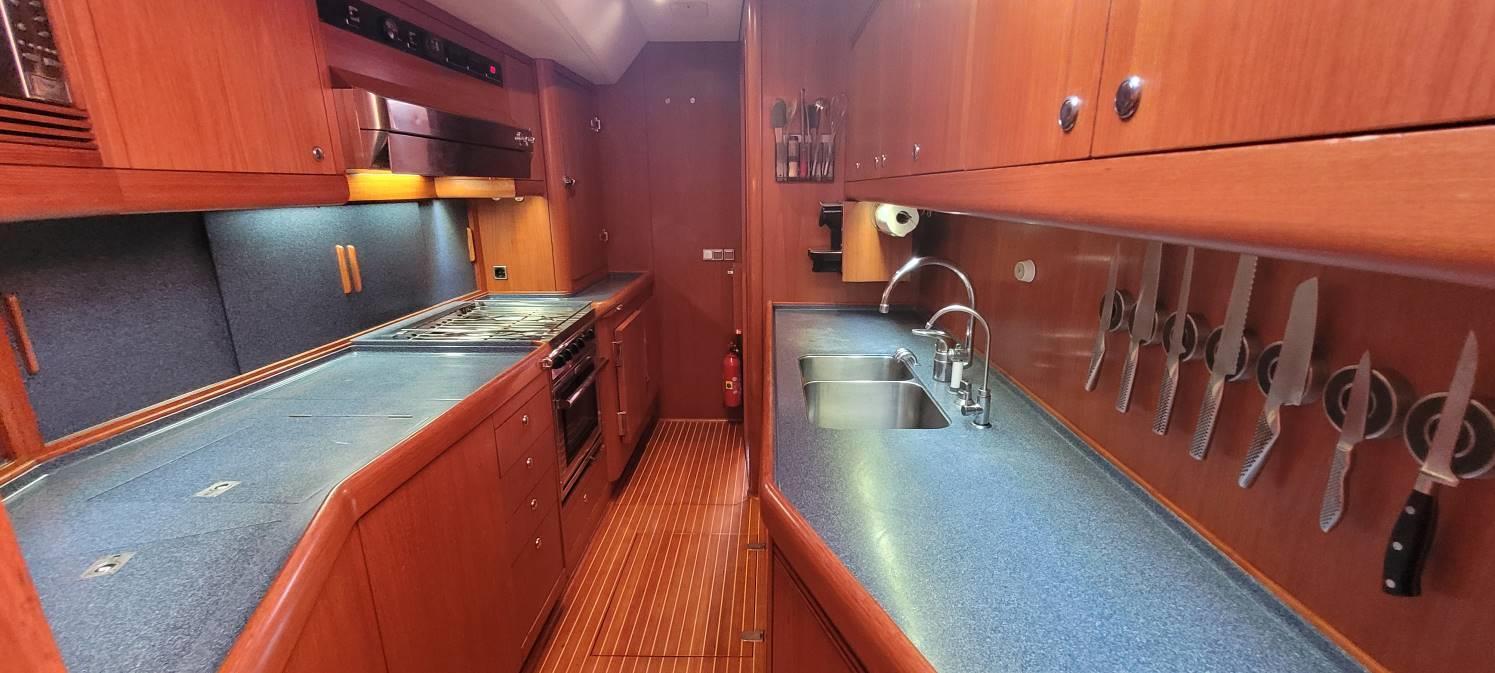

GALLEY
Forward of the saloon with all the amenities for cooking at sea
DOMESTIC EQUIPMENT
Cooker-Oven: FORCE 10, 4 gas hobs cooker with oven - New 2022 2 induction stoves
Dishwasher MIELE
Microwave: PANASONIC
Refrigerators: 3 + 1 for the drinks in the saloon
Deep Freezer: 1
Washing machine: SIEMENS – New 2019
Drying machine: BEKO – New 2018
Air Conditioning: 6 x MARINE AIR SYSTEM A/C units
ENTERTAINEMENT
Audio: Living Control system, HP inside & outside, 2 x Bluetooth receivers TV: 5 x TV screens, 2 x Apple TV, 1 x Google Chromecast Wi-Fi: PEPWAVE 4G Router
COMMUNICATION EQUIPMENT
AIS Class B: RAYMARINE
Computer: SHUTTLE PC equipped with keyboard, LCD screen, printer, etc. Sat phone: Fleet broadband 250 Iridium GO! VHF radio: B&G DSC
CREW AREA
Forward in front of the galley with access from the galley & the deck

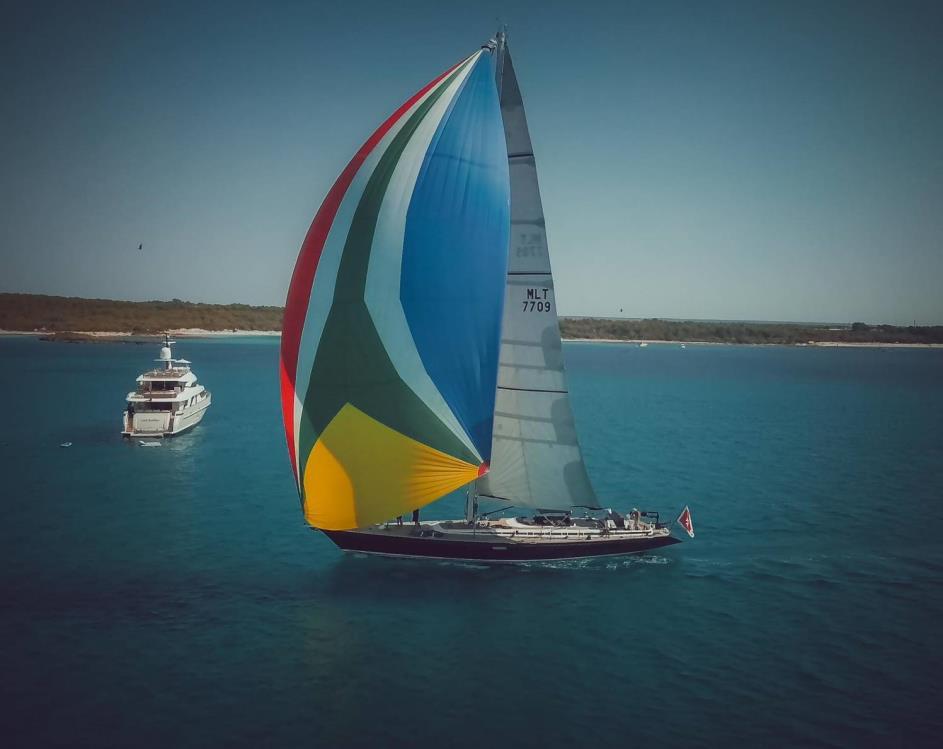

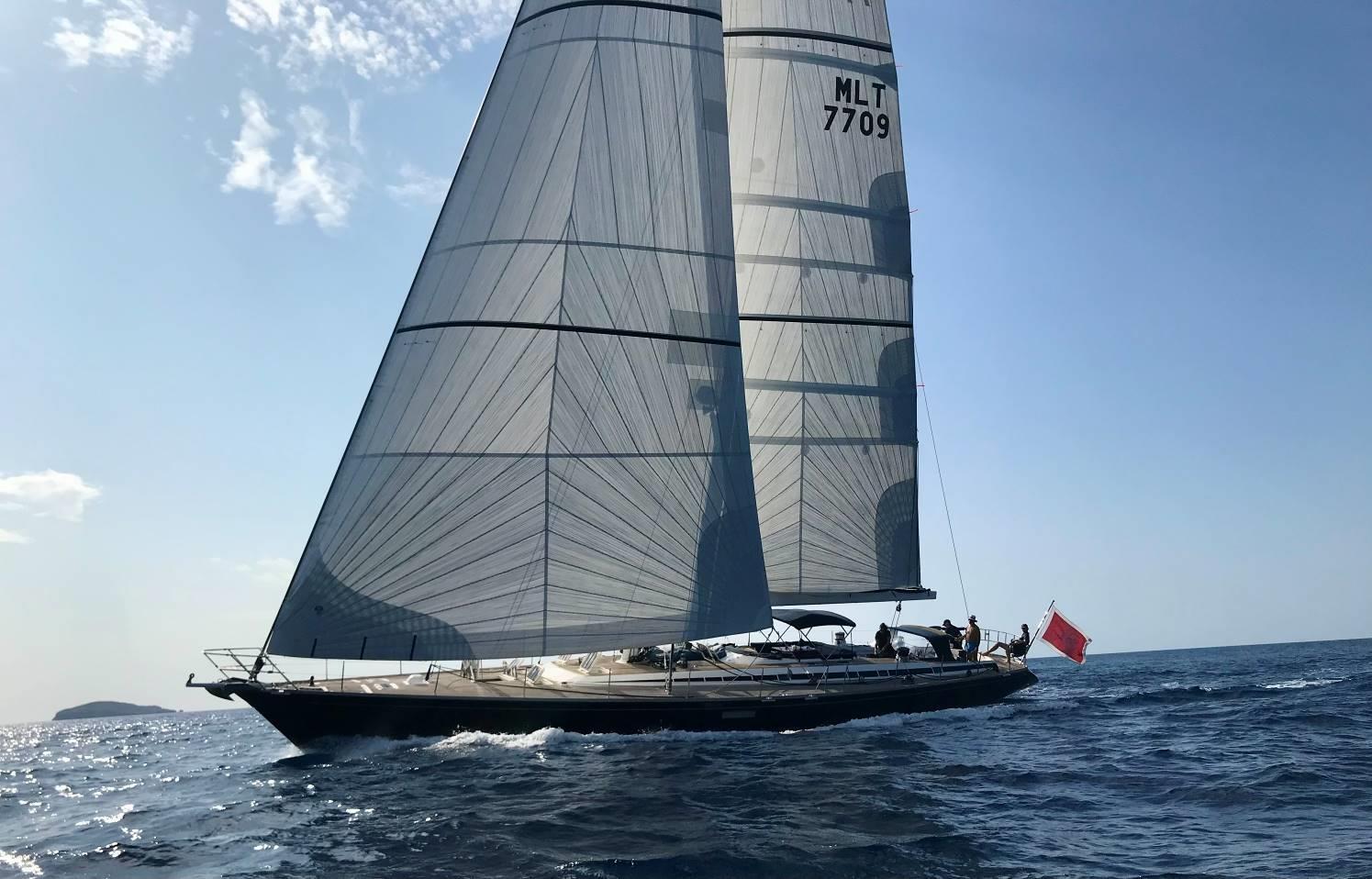

SAILS AND RIGGING
Sails: Complete NORTH SAILS set
• Main sail Fully battened spectra carbon triradial cut (2015) 3DL race sail (2014)
• Genoa 120% spectra carbon triradial cut (2015) 100% 3DL (2014)
• Staysail Inner Jib Clearance Cruising Laminates (2021)
• Asymmetric Spinnaker (2013)
• S2 spinnaker (2012)
• S3 spinnaker (2015)
• Trysail (2003)
Rigging:
• Spars OFFSHORE SPARS carbon mast – New 2010 OFFSHORE SPARS carbon boom – New 2010
OFFSHORE SPARS carbon spinnaker pole – New 2010
OFFSHORE SPARS carbon spinnaker jockey pole – New 2010
• Standing rigging Rod rigging – New 2018
• Running rigging Renewed as needed (lastly in 2024)
• Furling system
ELECTRICITY
Circuits
RECKMANN – Serviced 2018
24 & 230 V, and 115 V for U.S system
Shore power Yes
Generator: 17.5 kW CUMMINS ONAN – New 2009 – With sound shield & PTO
Major refit (2021)
Serviced (2024)
Batteries
Inverter/charger
Service
800 Amp/24 V – Lead acid type – New 2022
Entertainment 240 Amp/24 V – Lead acid type – New 2023
Engine 135 Amp/24 V – Lead acid type – New 2025
Generator 135 Amp/24 V – Lead acid type – New 2025
Bow thruster 200 Amp/24 V – Lead acid type – New 2025
MASS SINE 24 V/5,000 W for service equipment 230 V - New 2022
MASS SINE 24 V/1,500 W for entertainment equipment 230 V
MASS SINE 24 V/1,000 W for service equipment 115 V
MASS SINE 24 V/ 500 W for ventilation - New 2024
PLUMBING & TANKS
Boilers 100 l (2 x 50 l)
Pumps: Greywater
Bilge pumps
Shower
Water pressure
Toilets
4 x SEALAND Vacuum-flush system - Serviced 2024 1 x SANIMARIN Electric macerator pump
Water purifier: IDRANIA Idrapure 5 osmoser (new membranes and filters 2024
Water maker: 240 l/h AQUA-BASE YK4 - New 2022
Tanks: Fuel: 1,740 l (2 x 870 l) Water: 1,390 l (2 x 695 l)
Black water: TBC
Grey water: 150 l (5 x 30 l)
Fuel purifier: SEPAR
Air Conditioning: 6 x MARINE AIR SYSTEM A/C units
MOORING
Windlass: LEWMAR hydraulic + remote control
Anchor: CQR
Chain: 100 m
SAFETY
Life rafts: 2 x 6 person
Jon buoy: 2
Life jackets: 19
Fire-fighting: Extinguishers with Softex CO2 system in engine room and genset compartment
6x handheld fire extinguishers
Alarms: Yes
Bilge Pumps: 2 manual/automatic electric submersible pumps + back-up manual pump
EPIRB: 1
Medical kit: MSOS Distant Ocean Medical kit
TENDERS AND TOYS

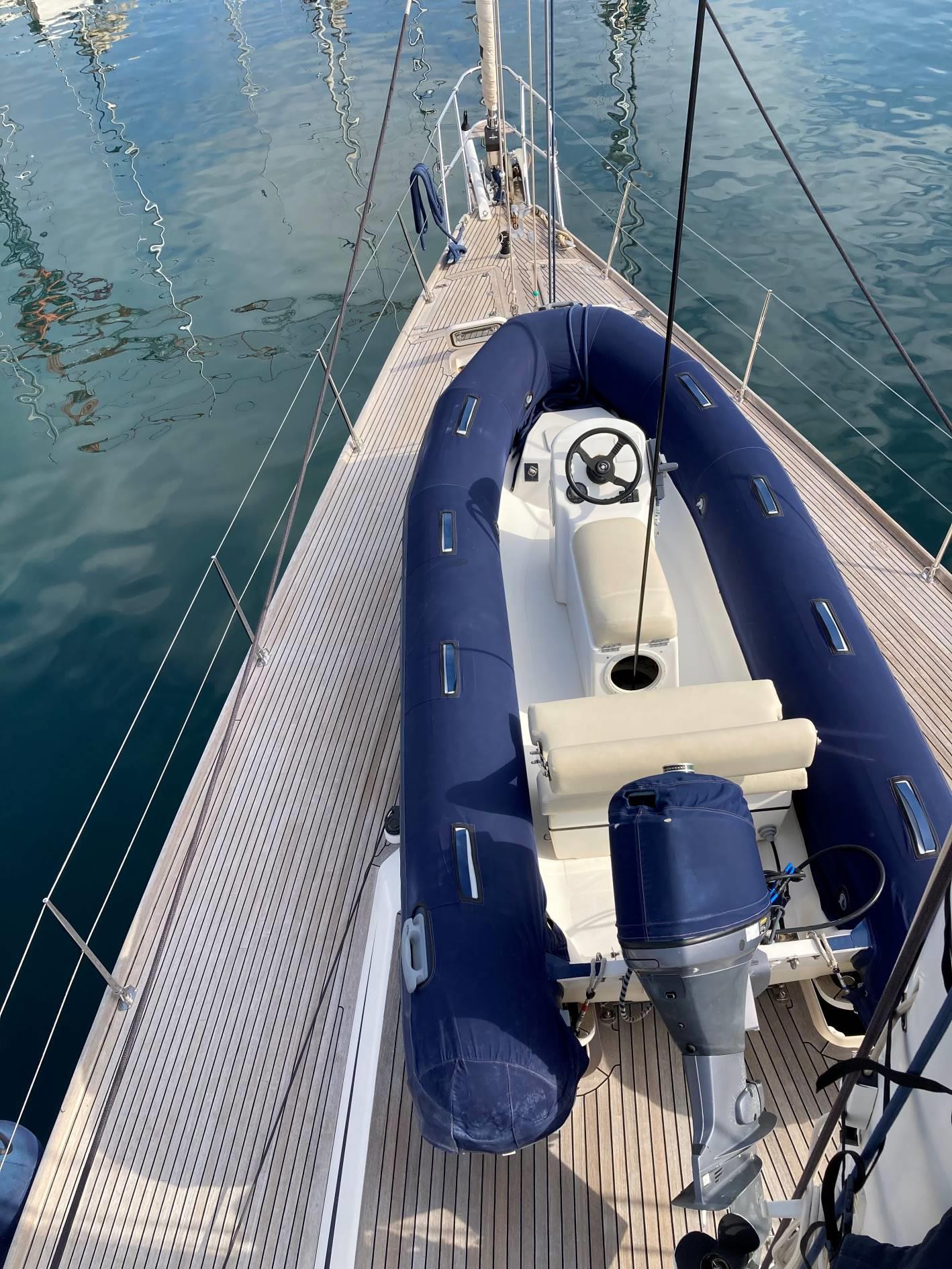

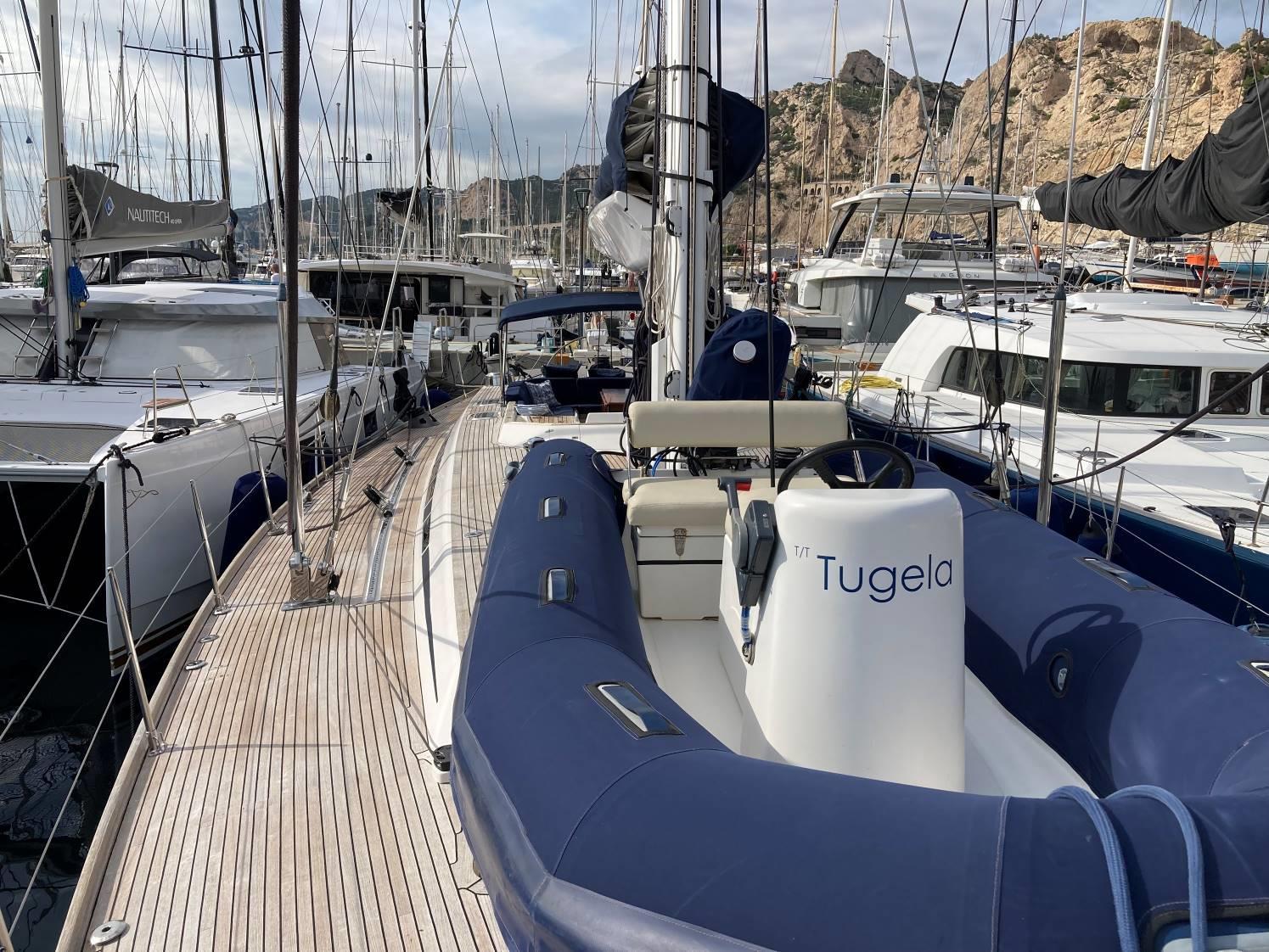

Tender: 4.50 m Avon Rib (new tubes in 2021) with 2008 60 HP YAMAHA outboard
Toys: 2 x Stand Up Paddle boards
Wakeboard (never used) and water skis
Fishing rods
Snorkelling gears
Diving gear
MISCELLANEOUS
40” Container workshop and storage with many spare parts and tools
VAT STATUS
VAT Paid
Detail given in good faith with no guarantee nor warrant for accuracy or conditions. A Buyer should instruct his surveyor to investigate such details as he desires validated. This is NOT a contractual document.
