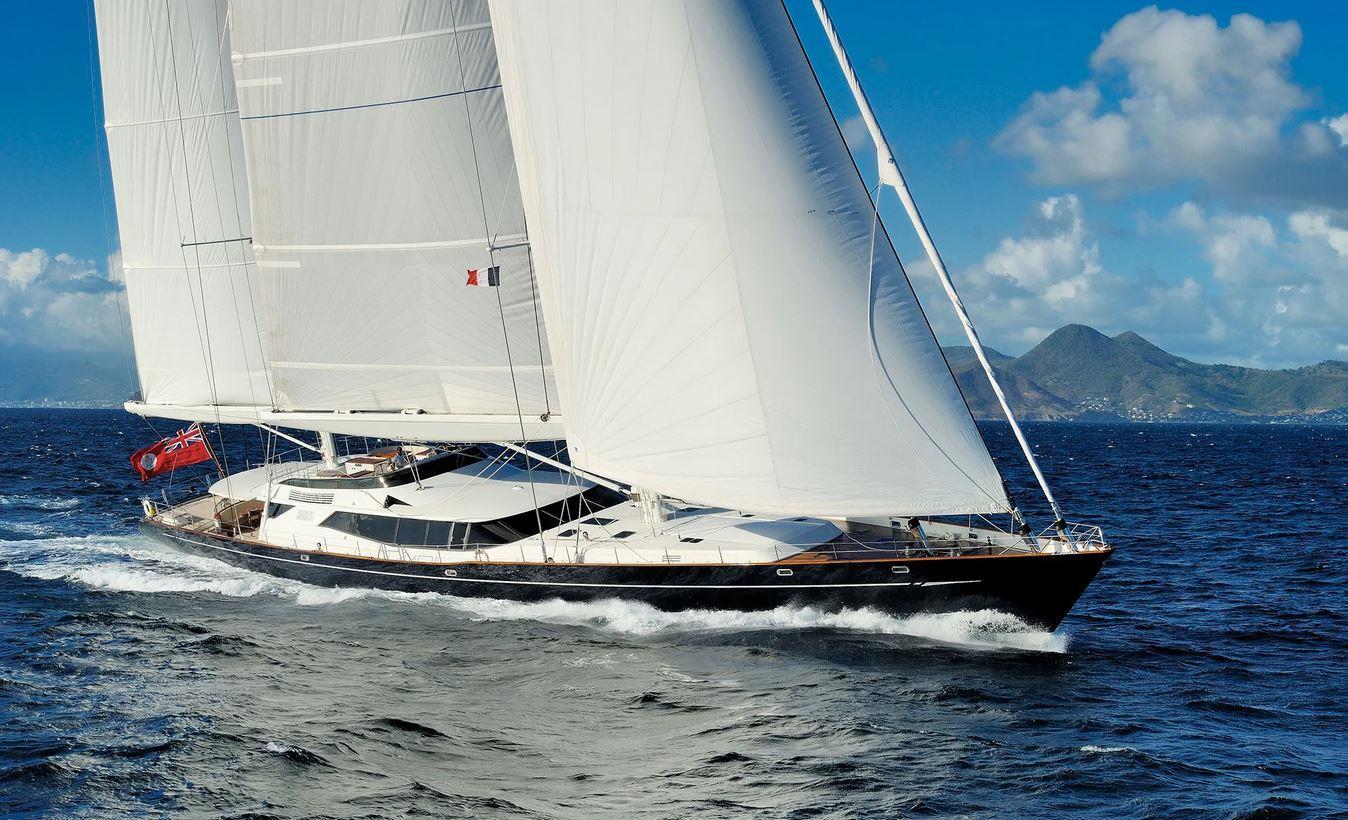

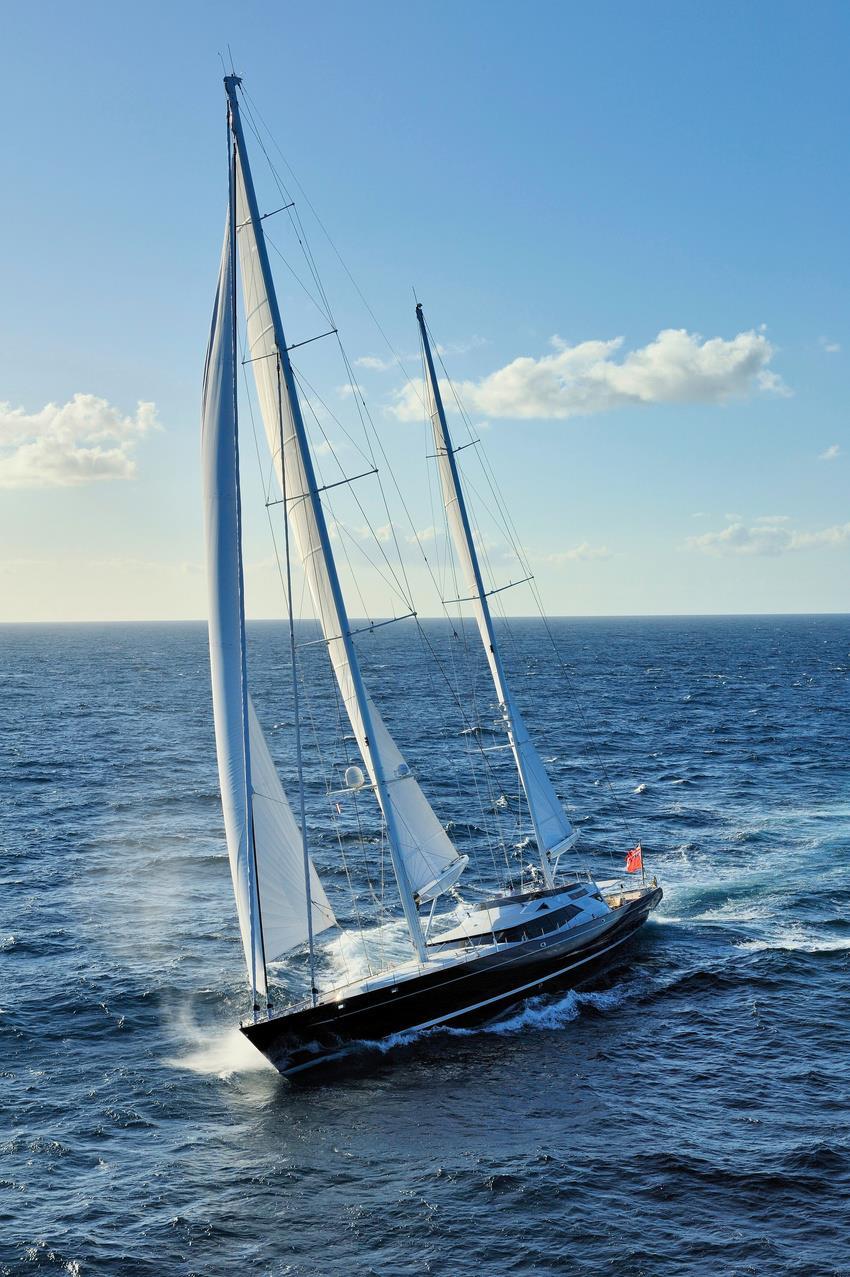

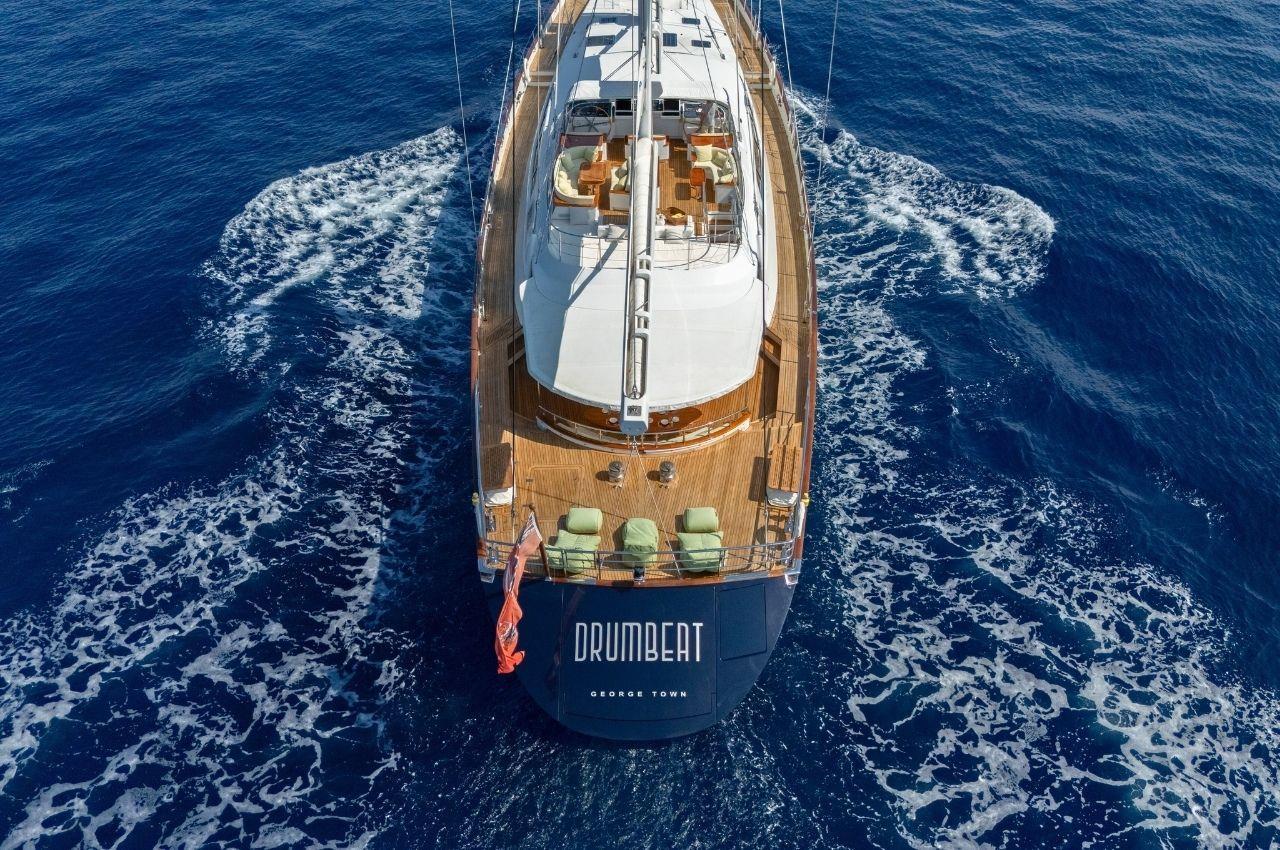

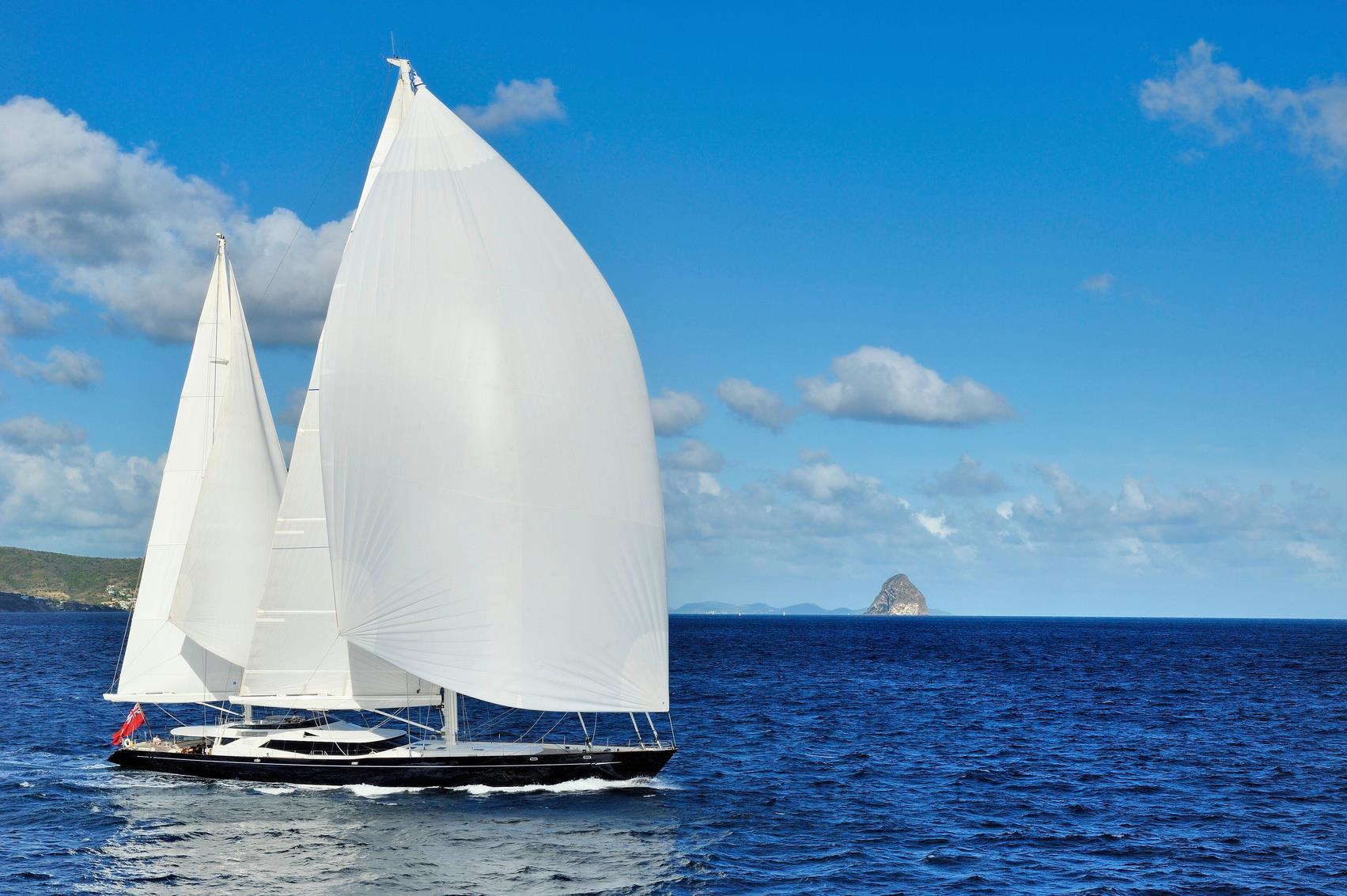

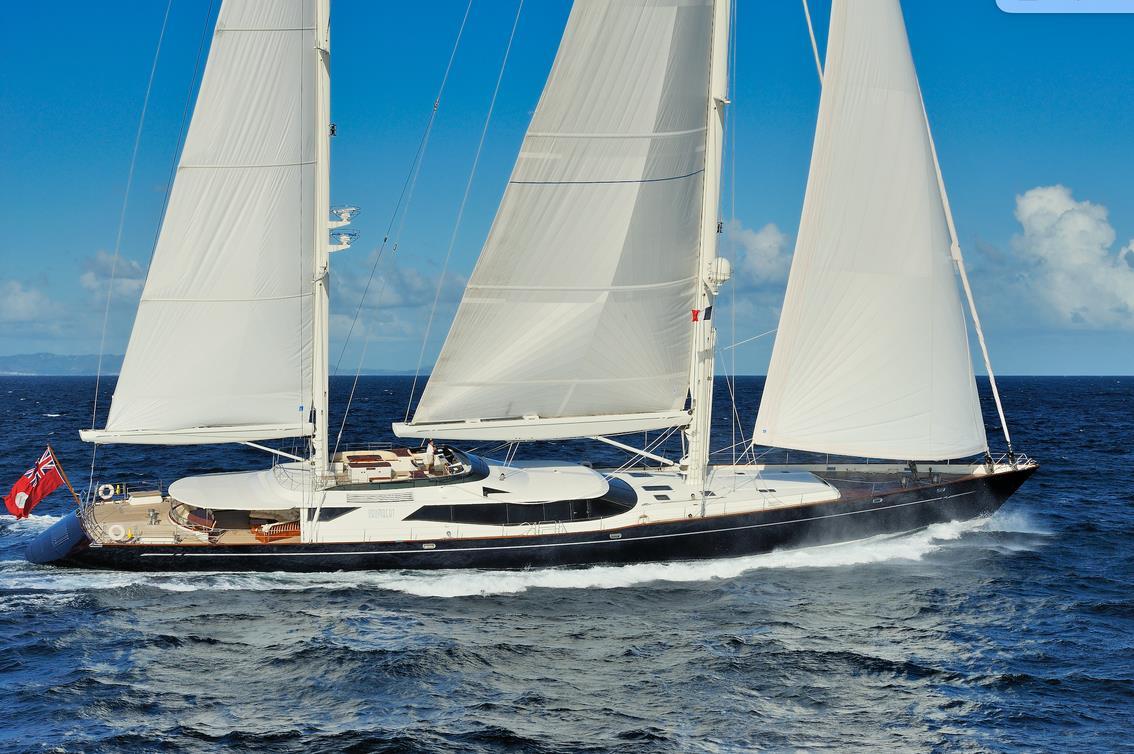

DRUMBEAT

Builder: Alloy Yachts, New Zealand
Naval architect: Dubois Naval Architects
Type: Long Range Ketch Rigged Sailing Yacht
Year: 2002 Refit: 2022
Lying: South France
Flag: Cayman Islands Commercial Registry
Price: EUR 19,800,000 – ex VAT
COMMENTS:

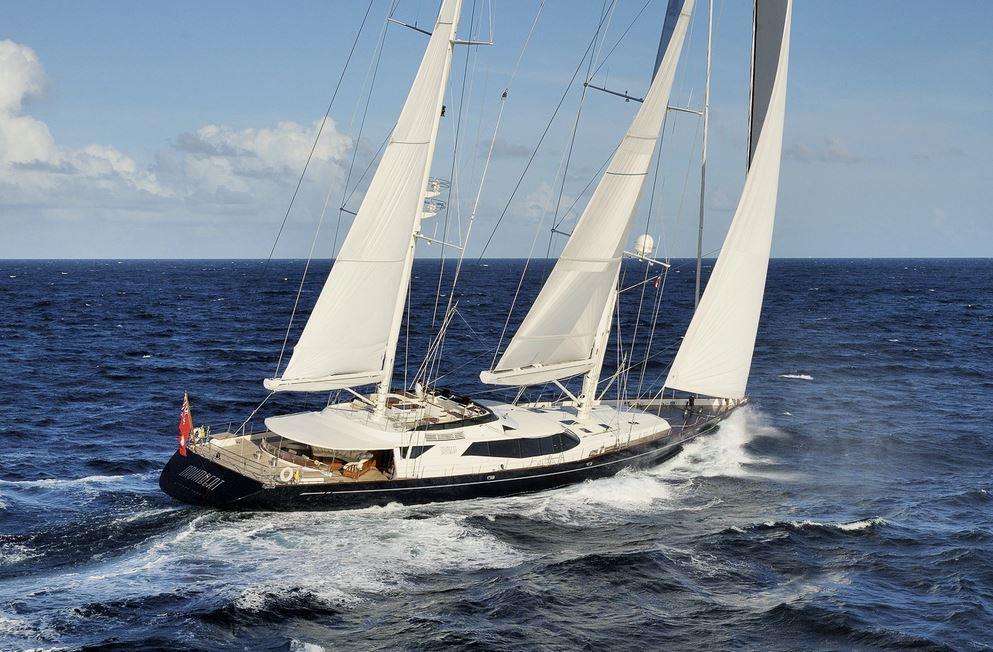

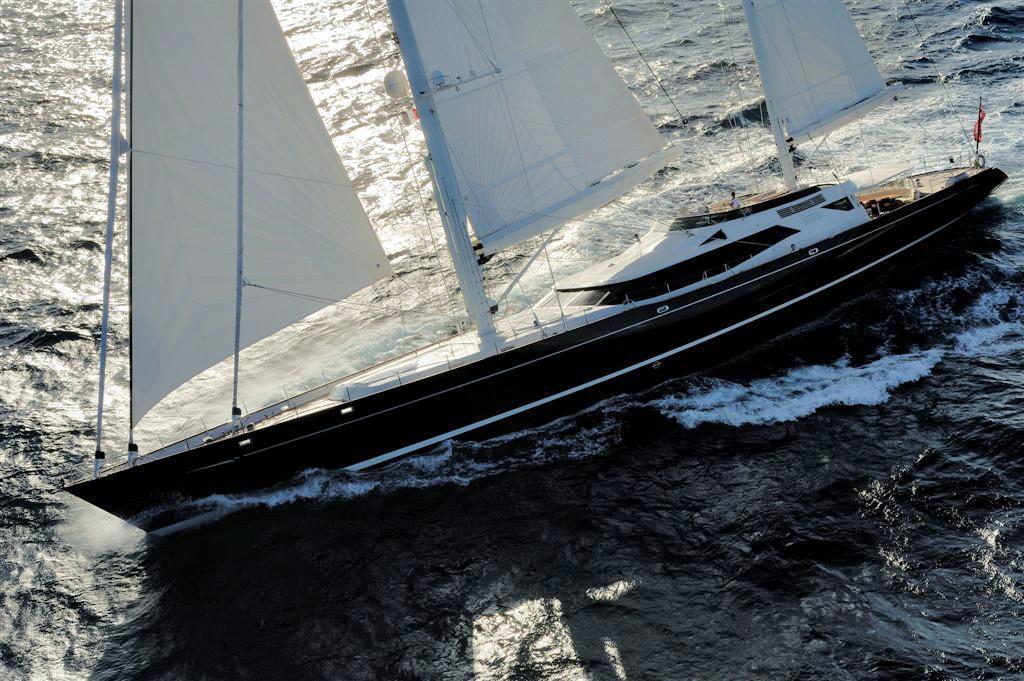

DRUMBEAT is an extremely fast and comfortable cruising yacht designed by Dubois Naval Architects. She has long-range abilities under sail or power. She provides exhilarating sailing at speeds up to 23 knots and regularly at 16/17 knots.

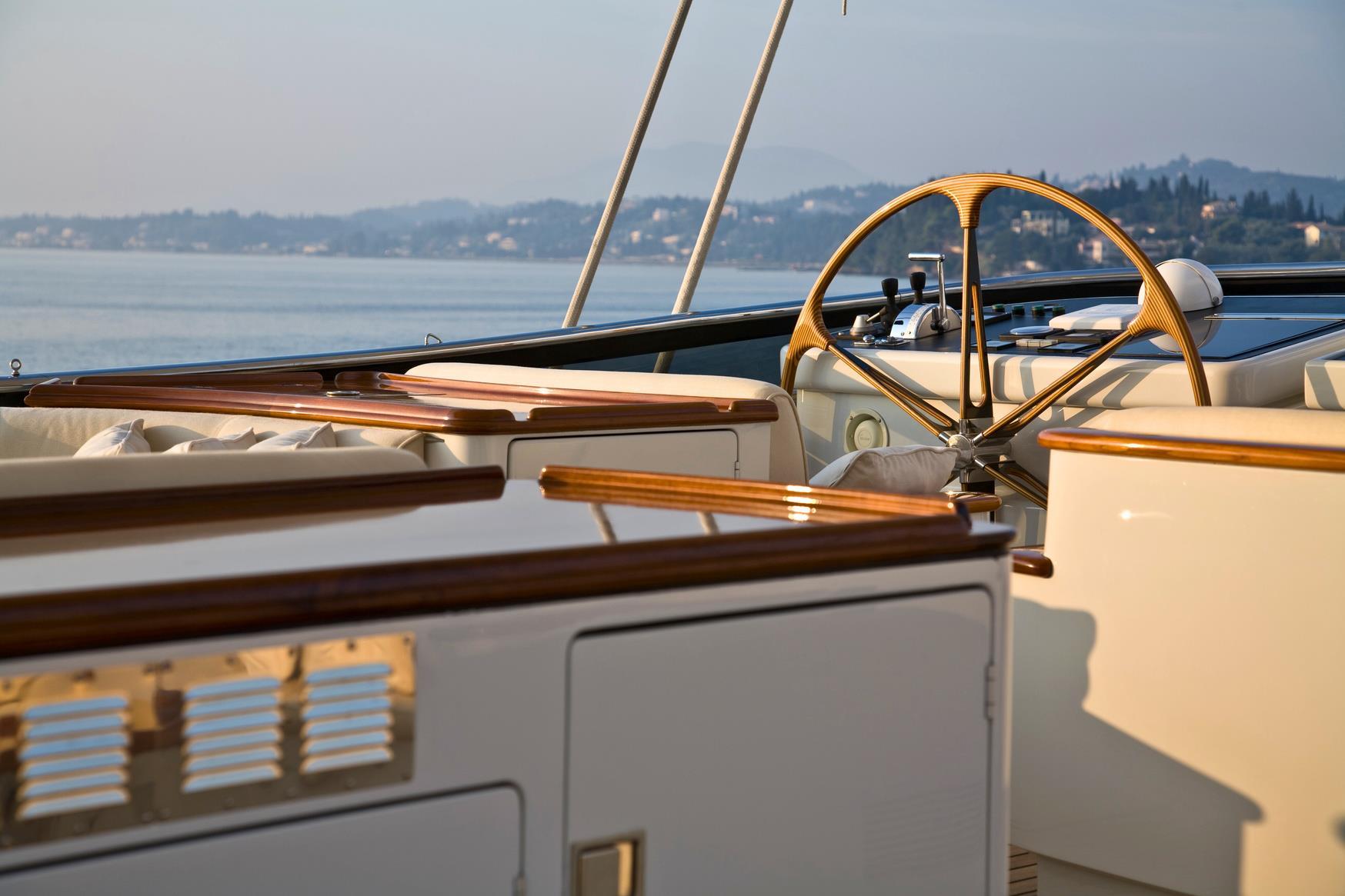

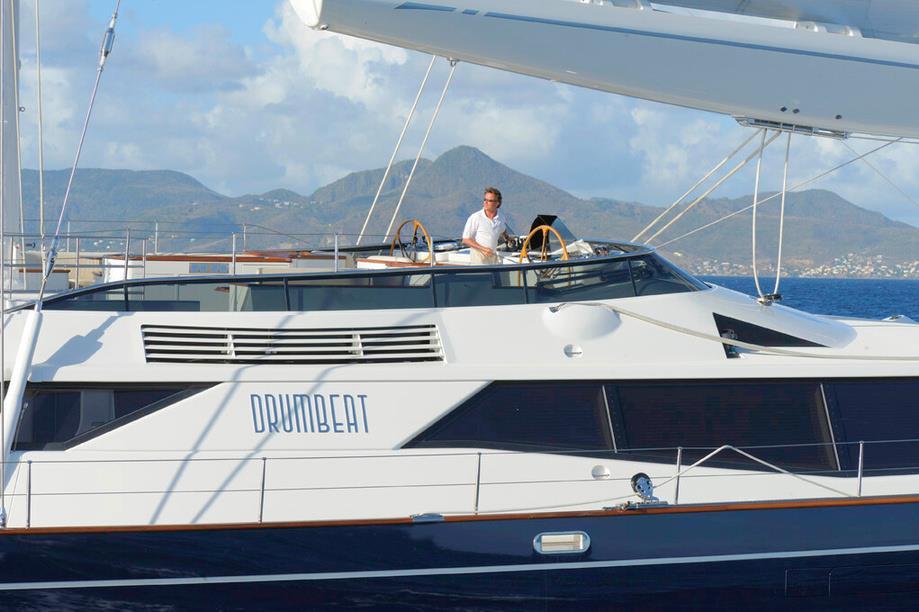

There is a large flybridge area, which acts as the principal helm position and provides lots of room for active participation when sailing.
At main deck level, there is a large and well-protected cockpit with a permanent awning for shade, this is an ideal place for relaxing drinks, sundowners or for informal dining.
The main saloon leads straight on from the cockpit, all at deck level and surrounded by glass windows, giving 360º visibility.
Key Features:
World-class Alloy Yachts
Same Owner since 2007 and Captain since 2009
Lloyd Register 20-year class survey completed
Exhilarating sailing performance

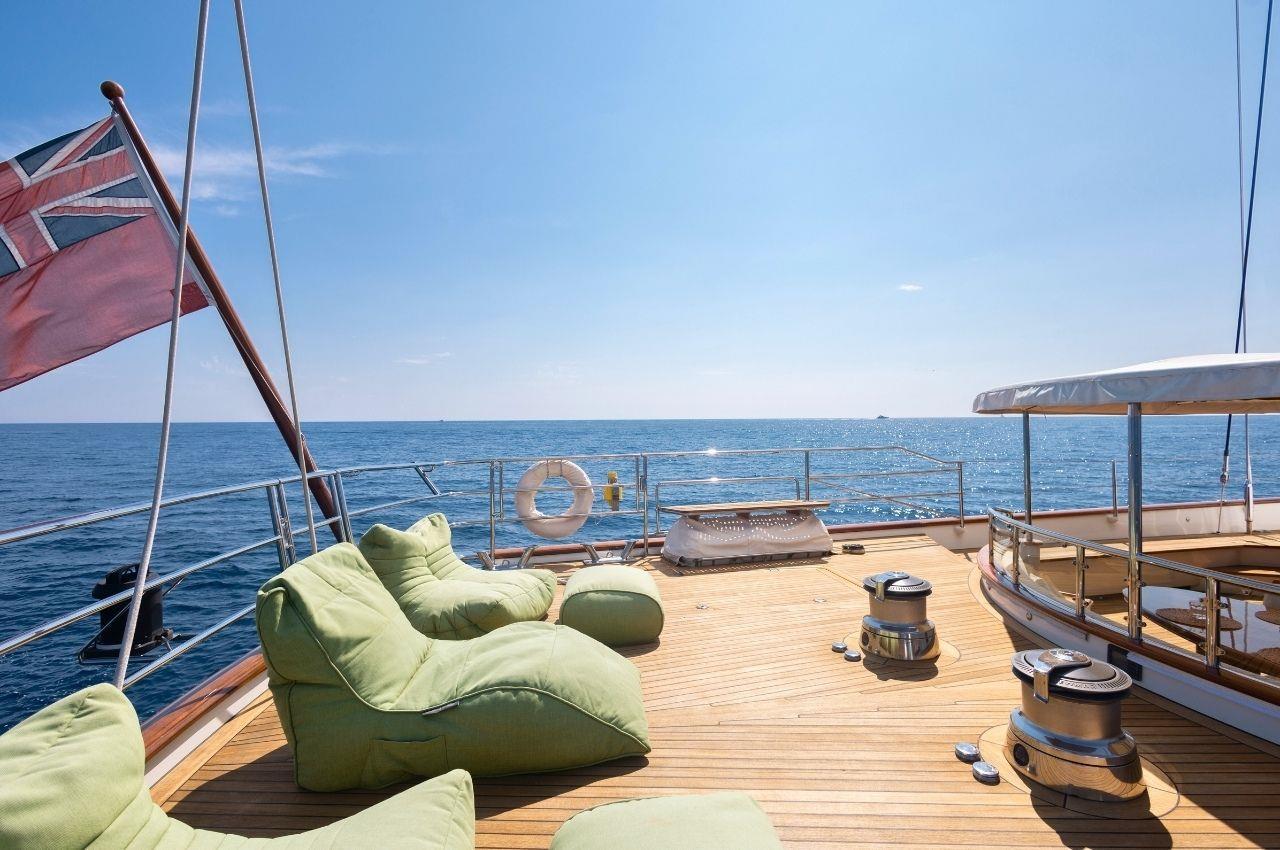

Huge exterior deck space for lounging and dining
Accommodates up to 11 guests
All-aluminium construction
Marten spars carbon masts and booms
Regular & periodical refits (2009 – 2016 – 2019 – 2022)
Panamax Rig 8,000nm range
Enviable charter record
Classification:
Lloyd Register R A1 Yachts, Mono, G6 MCH
20-year class survey completed in 2022
MCA – Yacht Code Part A for Commercial Vessel
Construction:
*Hull: Aluminium
*Superstructure: Aluminium
*Deck: Aluminium + teak
Colour:
*Hull: Blue with white stripe
*Superstructure: White
*Deck: White + teak
Cabins:
Guests 5 cabins for up to 11
Crew 6 cabins for up to 10
Tonnage: 370.00 t
Keel: 91.00 t (bulb)
Steering: Hydraulic by WAGNER - Dual Helm station
Rudder: Aluminium built on aluminium stock balanced with partial skeg
Spars:
MARTEN SPARS carbon main & mizzen masts
MARTEN SPARS carbon main & mizzen booms
Standing rigging: Rod Nitronic
Running rigging: Spectra
Furlers: RECKMAN for blade, staysail & reacher
In boom systems for main and mizzen sails
Sails: NORTH SAILS complete set from 2019 & 2023
Sail area:
*Upwind: 1,212 m²
*Downwind: 1,419 m²
Deck hardware: LEWMAR winches
ALLOY captive winches
Windlass: 2 x hydraulic MAXWELL VWC 11000 ground tackle
Bow & Stern Thruster:
Engine:
2 x 110 HP Custom-built Alloy Yachts – fully serviced in 2019
Hydraulic & hinged retractable
1,040 HP CATERPILLAR 3412E (12 cylinders) – Rebuilt in 2024
Runt 28,462 hours as of August 2025
Gear Box ZF 11960
Propeller HUNDESTED controllable pitch
VP 10 FR EL 4 blades bronze 1,500mm diameter
Shaft 140 MM 316 L AISI - replaced in 2019
Shaft Tube Heavy Wall Aluminium - replaced in 2019
*Performances: 14 knots @ maximum speed
12 knots @ cruising speed
10 knots @ economical speed
*Consumption: 110 l/h @ economical speed
*Range: 8,000 NM @ economical speed
Generator: 2 x 90 kW NORTHERN LIGHTS – New from 2018 – Rebuilt in 2024
Port runt 20,402 h as of August 2025
Starboard runt 20,753 h as of August 2025
Batteries: Service
800 Amp/24 V DC
Emergency 250 Amp/24 V DC
Engine 24 V DC 1100CCA
Generators 24VDC 600 CCA
Fuel:
49,200 l (7 tanks)
Water: 10,600 l (4 tanks)
Boiler: Custom
Water maker: 2 x HEM units – 12,600 l per day
Refrigerator: Yes
Deep freezer: Yes
Air conditioning: CONDARIA
Electronic:
*Instruments: B&G HYDRA 2000
*Sounder: B&G FURUNO FCV627
*Self-steering: LT HYD
*Gyrocompass: MKI replaced in 2020
*BNWAS: FURUNO (Bridge Navigational Watch Alarm)
*AIS Class B: FURUNO
*Satcom VSAT: 2 x INTELLIAN Ka-Band V80G
*Iridium phone: GMDSS
*Phone exchange: PANASONIC TFA100.1
*Intercom: PANASONIC
*VHF radio: 2 fixed units GMDSS 6 hand-sets
*GPS: FURUNO GP170
*Chart plotter: TRANSAS
*Radar: 2 x FURUNO FAR1518 – New 2020
*PLC: Main system Schneider PLC & HMI upgraded & rebuilt in 2022
Sailing system Schneider Comp upgraded & rebuilt in 2022
HULL, DECK & COCKPIT
Teak Deck:
• 18 mm thick x 55 mm wide
• fully replaced in 2017
LEWMAR Winches:
• 4 x 111 foredeck and mast
• 2 x 111 aft deck
ALLOY Captive Winches:
• 2 x in Lazarette Reach sheet
• 2 x sheet and halyard – Lazarette
• 3 x Main sheet and halyard-control room 2 x Staysail sheet deck locker
• 2 x Blade sheet deck locker
Mooring:
• Anchors Windlass: 2 x hydraulic MAXWELL VWC 11000 ground tackle
• Anchors: 2 x 200 kg custom Plow Type Marine in stainless steel
• Chains: 2 x 120 m of 19 mm galvanised Studlink
Boat Crane & Davits: Tender launch pole

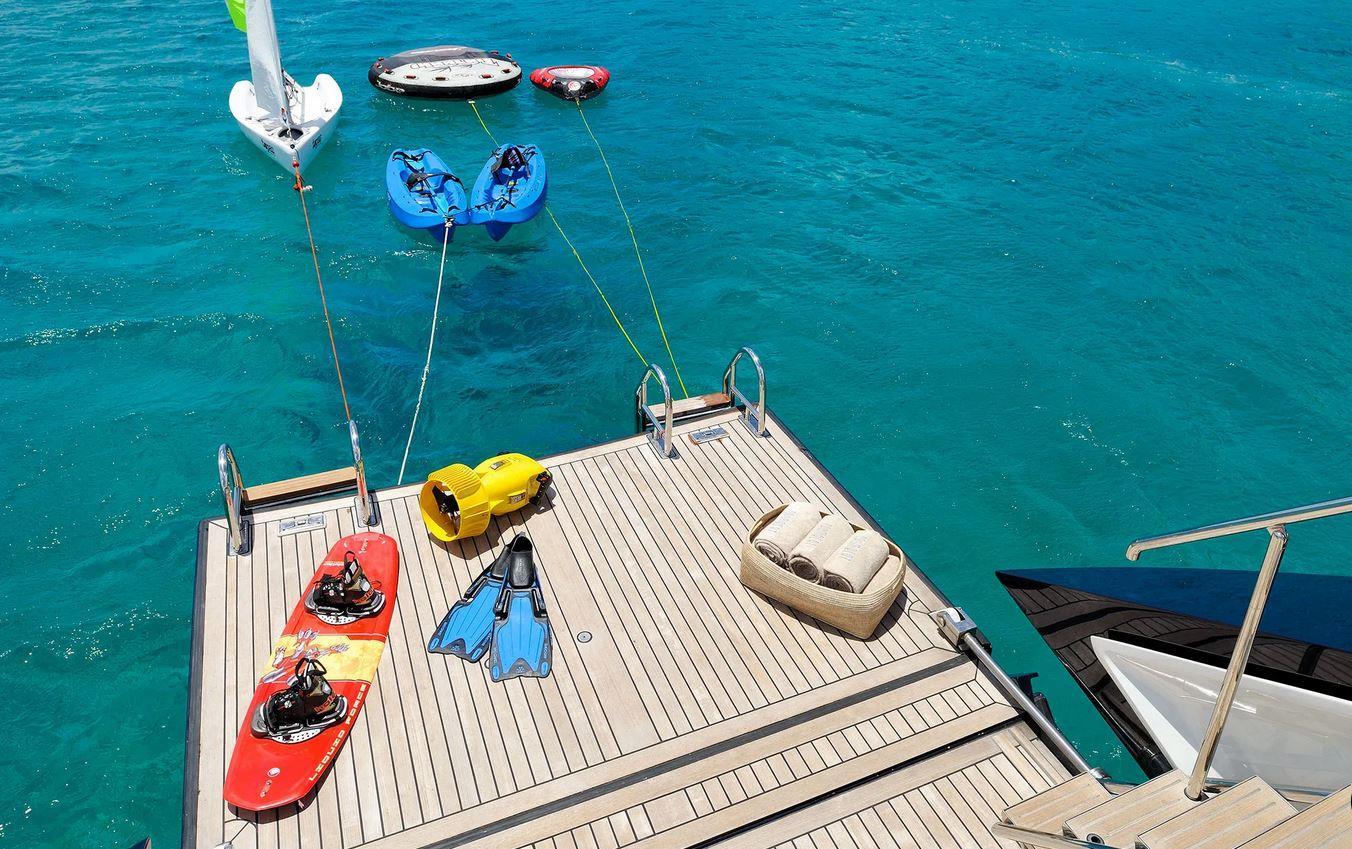

Swimming Platform: Transom opens - swim and boarding platform
Searchlight: Hand-held unit & Remote
Awning: Retractable Dodger/Canvas Awning Custom Built
Boarding Ladder: 2 X hydraulic; Side Ladder & Passarella
New painting in 2019:
• Hull Topsides in AWLGRIP system Midnight Blue
• Superstructures in AWLCRAFT system 2000 Fleet White

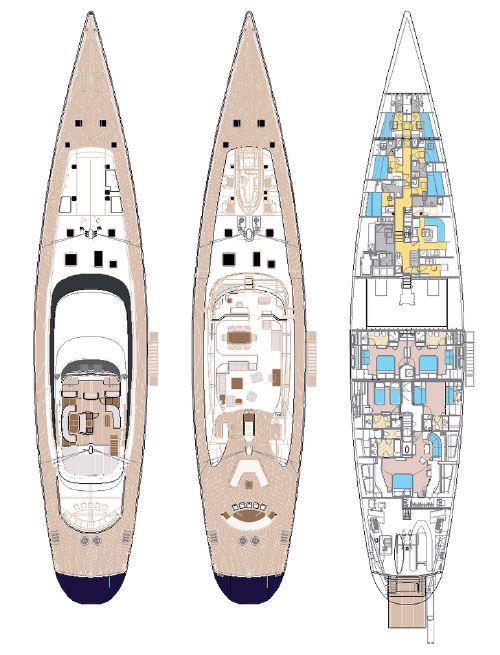

ACCOMMODATION
Very spacious, comfortable, and luminous Guests’ area on the main deck with the cabins below aft of the engine room Crew area below up front of the engine room
NAVIGATION STATION & CHART TABLE
Up front of the main deck with chart table & helm steering chair

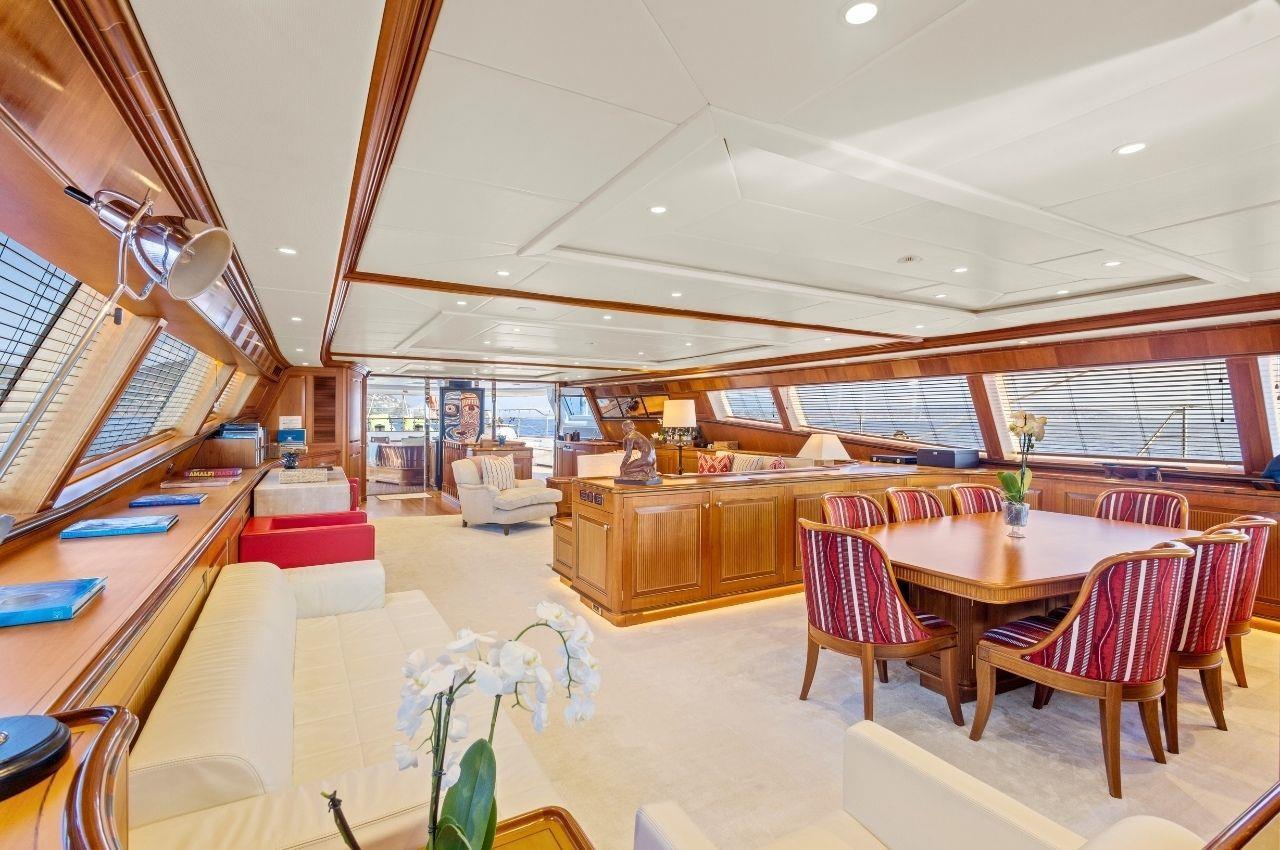

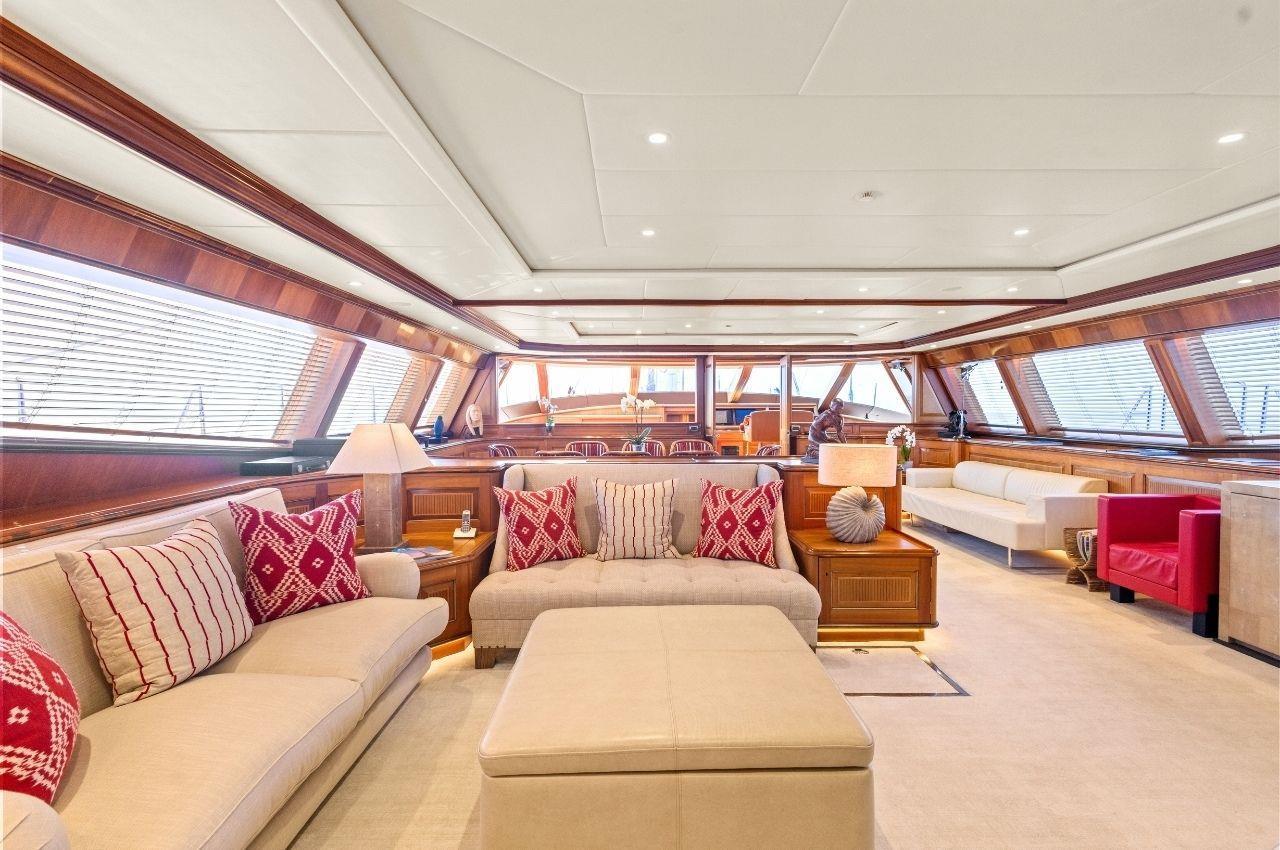

SALOON
On the main deck is a large salon aft and a dining table in front

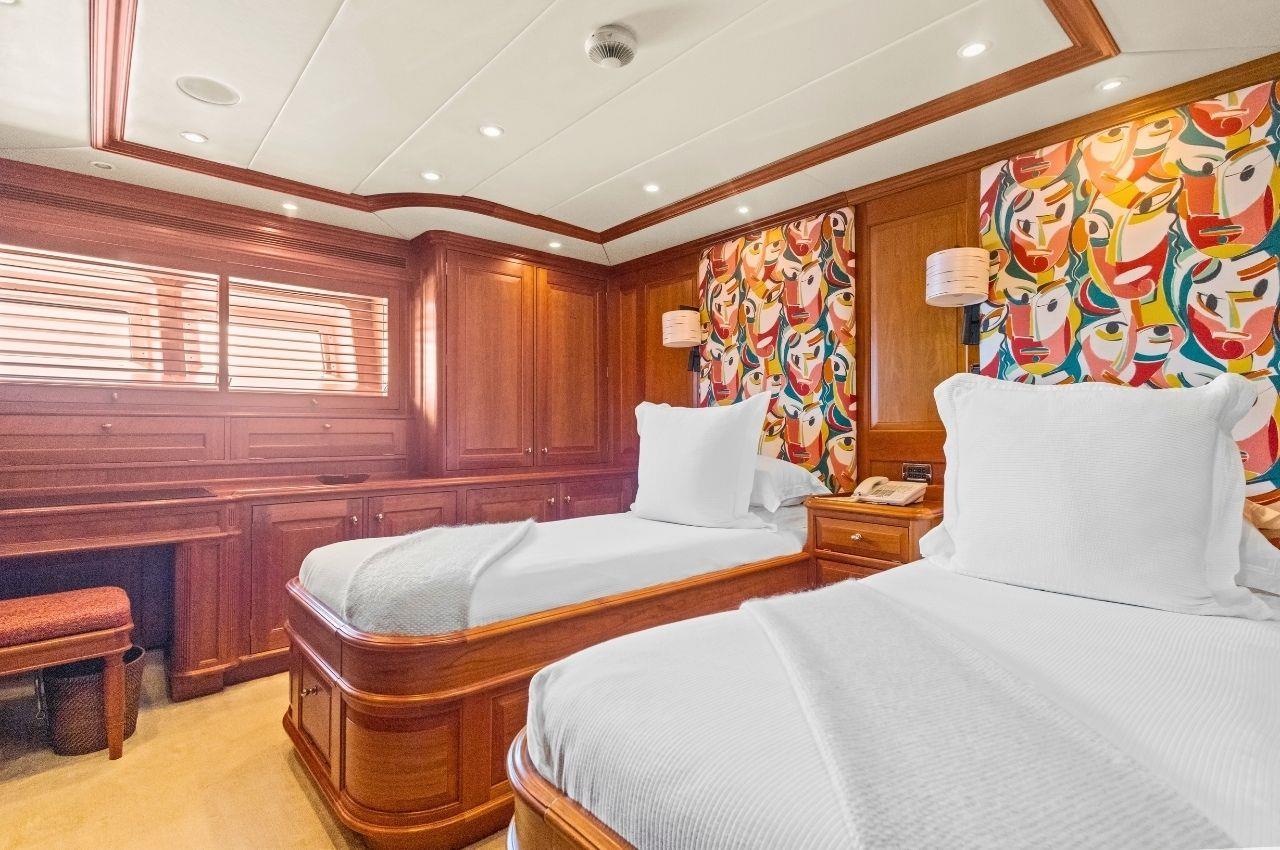

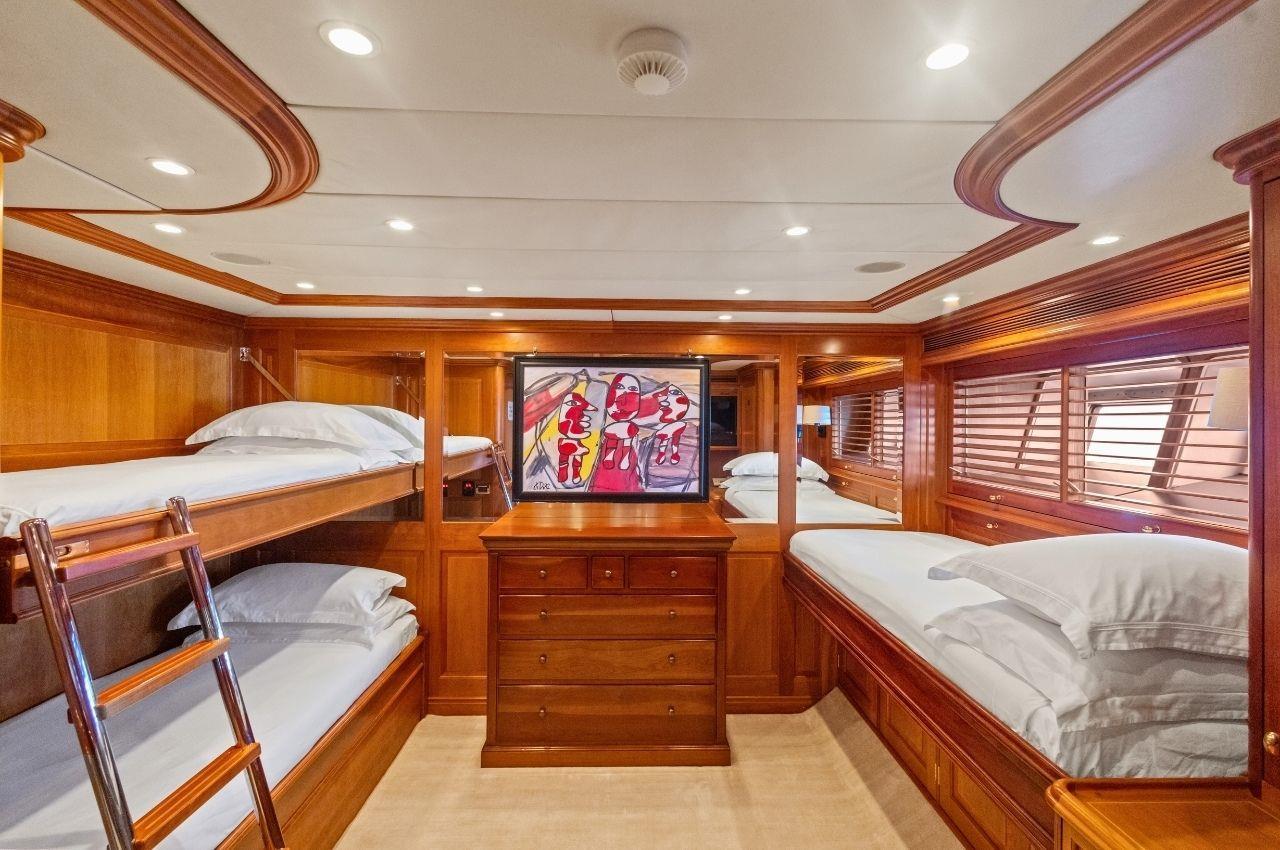

CABINS
Owner 1 Master Suite
VIP 2 double-bed cabins
Guests 1 twin cabin
Guests 1 twincabinwith additional pullman bed

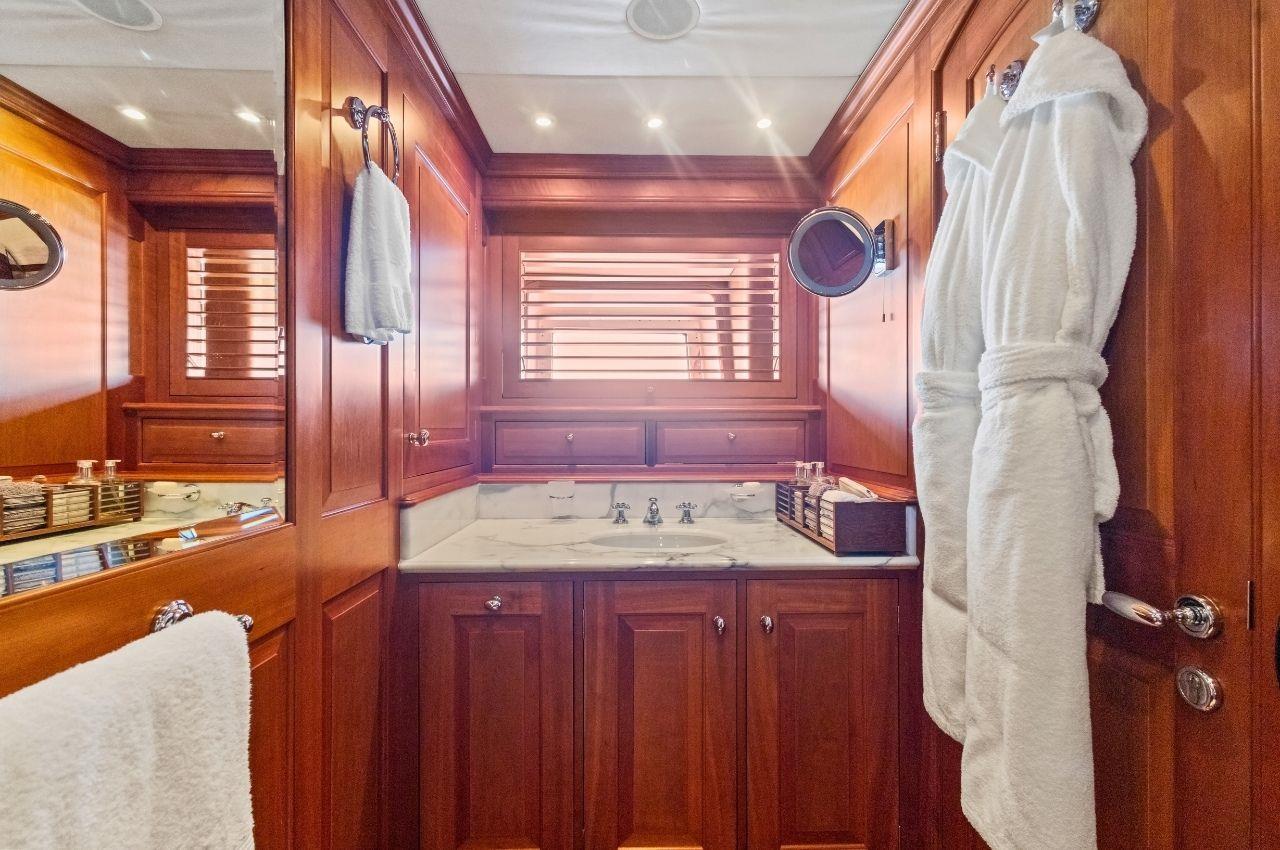

SHOWER ROOM/HEAD
Guests 5
Crew 5
GALLEY
On the port side, forward of the main deck, below with all the amenities.
DOMESTIC EQUIPMENT
Main galley
Stainless steel sink with ISE
1 x MIELE Combo Microwave pro
1 x MIELE H6267BP Oven
1 x MIELE H6890BP Oven
MIELE Induction Hob- Multizone
MIELE induction HOB 2 zones
Refrigeration
Custom Built Fridge and Freezer approx. 600 l each
In-floor deep freezers - 660 l
Crew fridge – 140 litres
Icemaker on flybridge
Pantry
Crew Mess
Laundry
Bar refrigerator
MIELE coffee maker
MIELE pro dishwasher
Stainless steel sink with ISE Disposal
Bar refrigerator
MIELE Microwave
MIELE Dishwasher
Stainless steel sink with ISE
Instant hot water
Icemaker
2 x MIELE Dryers
2 x MIELE Washer
2 x MIELE washers
2 x MIELE dryers
Ironing machine
Bars Saloon bar with fridge
ENTERTAINEMENT
TV: Flat screen TV 122" in the saloon
Flat screen TV 33" in each guest cabin
Flat Screen in crew mess
Sound system: BOSE system in saloon and each cabin (Stereo, Video, DVD)
COMMUNICATION EQUIPMENT
Satcom VSAT 2 x INTELLIA Ka-Band V80G 2 x STARLINK with 2 antennas
Iridium GMDSS
Cellular system
VHF radio 2 fixed units GMDSS 6 handsets
Phone exchange PANASONIC TDA100.1
Intercom PANASONIC
CREW AREA
Upfront with galley on port, laundry & crew mess on starboard, and crew cabins on both sides of a central corridor
SAILS AND RIGGING
Sails: Mostly NORTH SAILS from 2023
• 455 m² NORTH SAILS main sail – New 2019
• 365 m² NORTH SAILS mizzen – New 2023
• 432 m² NORTH SAILS blade – New 2023
• 209 m² NORTH SAILS stay sail – New 2023
• 639 m² NORTH SAILS reacher – New 2023
Rigging:
• Spars: Masts Carbon MARTEN SPARS main & mizzen – repainted 2019 Booms Carbon MARTEN SPARS main & mizzen – repainted 2019
• Standing rigging: Nitronic Rod
• Running rigging: Spectra
• Furlers: RECKMAN for blade, staysail & reacher In boom systems for main and mizzen sails
• Ring Measurements:
o I 54.80 m
o P
m
o J 17.00 m
o E 18.00 m
o Mizzen P 37.00 m
o Mizzen E 10.50 m
o Spars Main mast: 58.00 m Mizzen Mast: 44.00 m

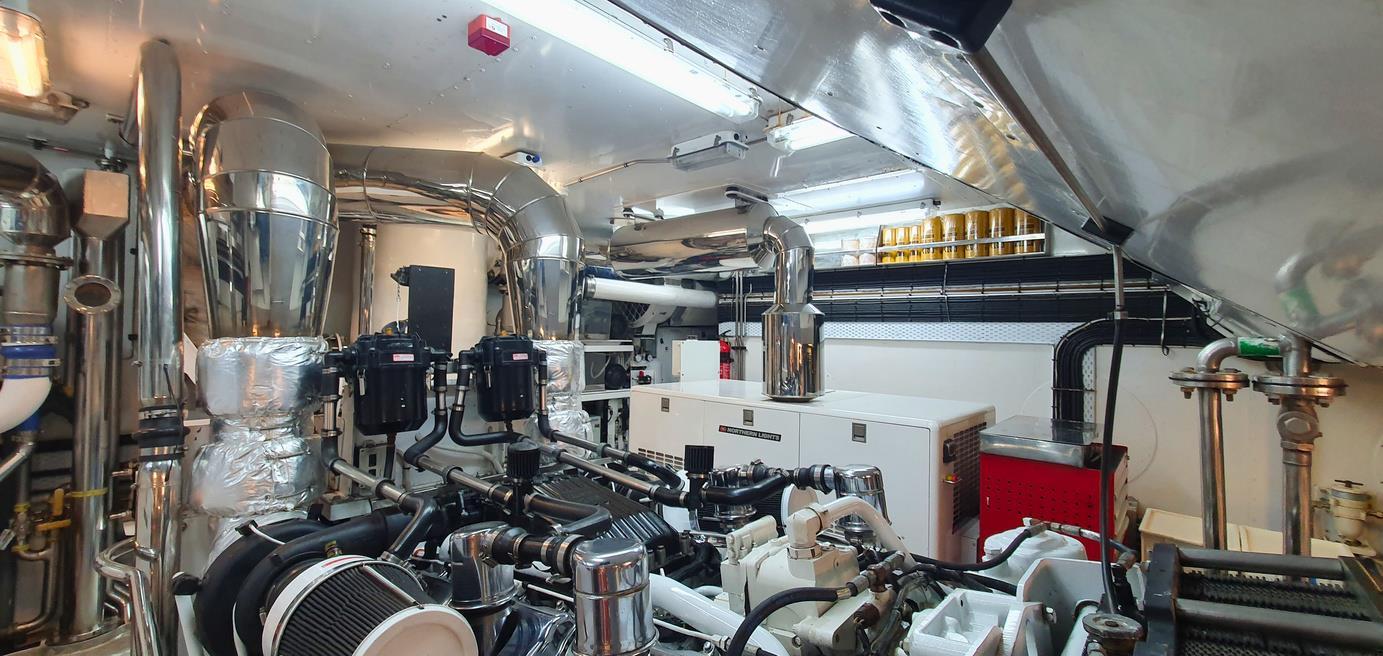

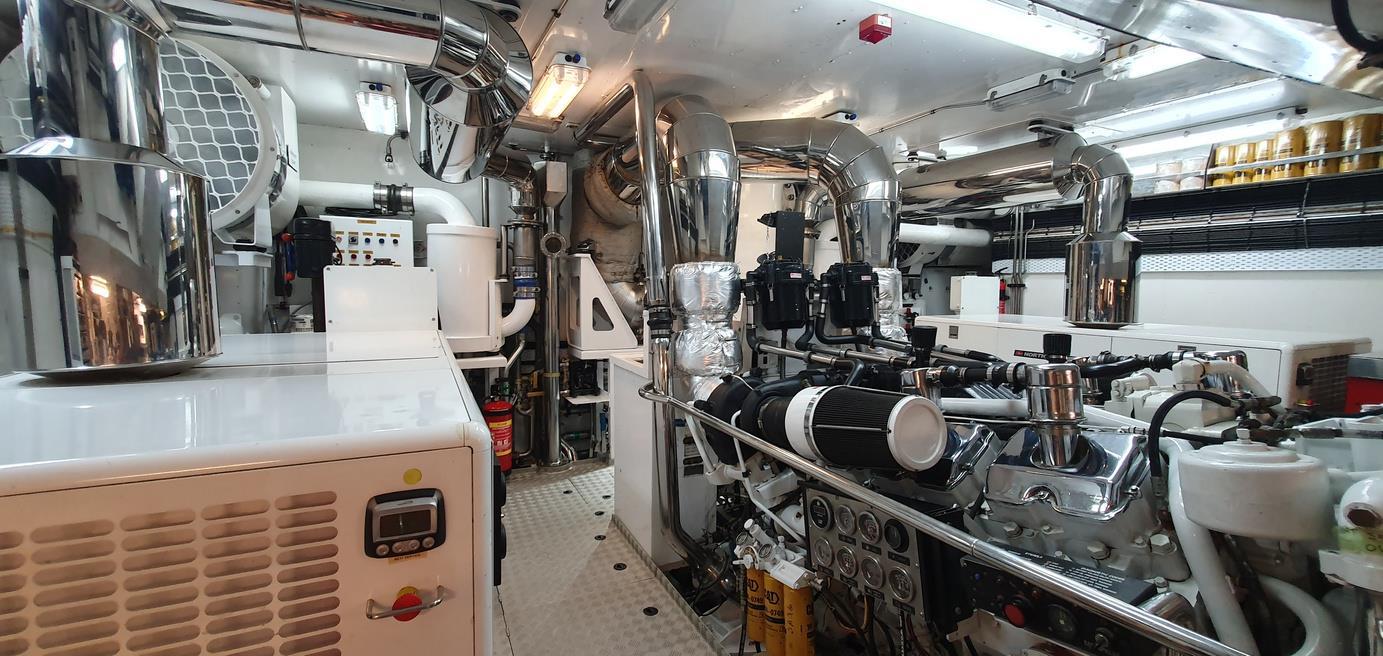

MACHINERY
Main Engine 1,400 HP CATERPILLAR 3412E (12 cyl)
Engine Hours 28,462 hours as of August 2025 - Rebuilt in 2024
Gear Box ZF 11960
Propeller HUNDESTED controllable pitch
Shaft
VP 10 FR EL 4 blades bronze 1500mm diameter
140 MM 316 L AISI - replaced in 2019
Shaft Tube Heavy Wall Aluminium - replaced in 2019
Generator: 2 x 90 kW NORTHERN LIGHTS – New from 2018
Port runt 15,928 h as of August 2024
Starboard runt 15,889 h as of August 2024
Thrusters
Custom built ALLOY Yachts Hydraulic Bow 1 Stern Thrusters
Hinged retractable - 110 hp each
Fully serviced in 2019
Steering Hydraulic by WAGNER, Dual Helm station
ELECTRICITY
Circuits 12, 24 & 220 V
Electricity AC 400 Volts 50Hz
DC 24 Volts
Shore power ASEA shore power converter - full electrical service in 2022
Batteries Service 800 Amp/24 V DC
Emergency 250 Amp/24 V DC Engine 24 V DC 1100CCA
Generators 24VDC 600 CCA
Charger Yes
Inverter Yes
Generator: 2 x 90 kW NORTHERN LIGHTS – New from 2018 – Rebuilt 2024
Port runt 20,402 h as of August 2025
Starboard runt 20,753 h as of August 2025
PLUMBING & TANKS
Boilers: Custom-made in New Zealand
Pumps: Grey & black water
Bilge pumps
Fire/Bilge Pump MP pumps 28 BCT, YANMAR emergency portable
Shower
Sea water
Water pressure
Toilets ACTANA
Water makers: 2 x HEM units, 3 membranes each 9 l per minute, 12,600 l per Day
Fuel system WESTFALIA with 3 x RACCOR 1000 fuel filters 2 x pneumatic fuel transfer pumps
Separator & filters WESTPHALIA
water
49,200 l in 7 tanks
l in 4 tanks
l in 1 tank
l
l Hydraulic Fluid 1,500 l in 2 tanks (Service and storage)
Air Conditioning: CONDARIA 2 chiller units replaced in 2016 All fan coils replaced in 2016 – 2019 – 2022
MOORING
Windlasses: 2 x hydraulic MAXWELL VWC 11000 ground tackle
Anchors: 2 x 200 kg custom Plow Type Marine in stainless steel Chains: 2 x 120 m of 19 mm galvanised Studlink
SAFETY
Safety According to MCA Yacht Code Part A for 22 passengers Fire Fighting According to MCA Yacht Code Part A
TENDERS AND TOYS
CASTOLDI Jet Tender 21’ with 240HP inboard engine & outboard drive CORMORANT 470 was replaced in 2019 with SUZUKI DF60A TL - Crew Tender
2 x sailing dinghy Topaz
2 x kayak
2 x Apollo AV1 underwater scooter
2 x Yamaha Jet Pod Pro sea scooter
1 x windsurfer
2 x Inflatable paddle board
1 x inflatable kayak
3 x wakeboard
2 x waterski
3 x doughnut
20 x snorkelling sets
6 x diving equipment
MISCELLANEOUS
2 x sailing dinghy Topaz
2 x kayak
2 x Apollo AV1 underwater scooter
2 x Yamaha Jet pod Pro sea scooter
1 x windsurfer
2 x Inflatable paddle board 1 x inflatable kayak
3 x wakeboard
2 x waterski
3 x doughnut
20 x snorkelling sets
6 x diving equipment
REFIT
2025 – 2026
New Paint: hull, superstructure, masts, and booms. Alwlgrip painting system New rigging
Full hydraulic service, including valve and hoses replacement VPP and gearbox: fully checked and rebuilt Engine Room: main Engine and generators controlled and revised Electronics: new control panels
All pumps and valves fully serviced 2022 - 2023
• New air handlers of all the guest Cabins
• Pumps & valves fully serviced
• New gyro compass
• New GPS
• New radar
• New main PLC
• New sailing PLC
• New sails by NORTH SAILS: mizzen, blade, reacher & staysail
2019
• New main sail
• Hull superstructure boom & mast new painting
• Rigging fully dismounted checked partially replaced and controlled
• CATERPILAR Main Engine fully rebuilt
• ZF gear Box fully rebuilt
• New propeller shaft
• New propeller shaft tube
• Propeller fully serviced
• Thrusters fully dismounted and serviced
• All hydraulic system fully serviced
• New refrigeration plant
• Pumps & valves fully serviced
• New crew tender
• CASTOLDIE guests tender fully rebuilt
• Interior: saloon redecorated
2016
• 2 new NORTHERN LIGHTS generators
• 2 new air conditioning chiller units
• New teak deck
VAT STATUS
VAT not paid
Detail given in good faith with no guarantee nor warrant for accuracy or conditions. A Buyer should instruct his surveyor to investigate such details as he desires validated. This is NOT a contractual document.
