APOLLO 99
Builder: Sunreef Yachts
Naval architect: Sunreef Yachts
Designer: Balo Design
Type: Sunreef 80 ECO
Year: 2023
Lying: Saint Marteen, Carribean, France
Flag: Malta
Price: EUR 6,700,000 – Ex VAT
COMMENTS:

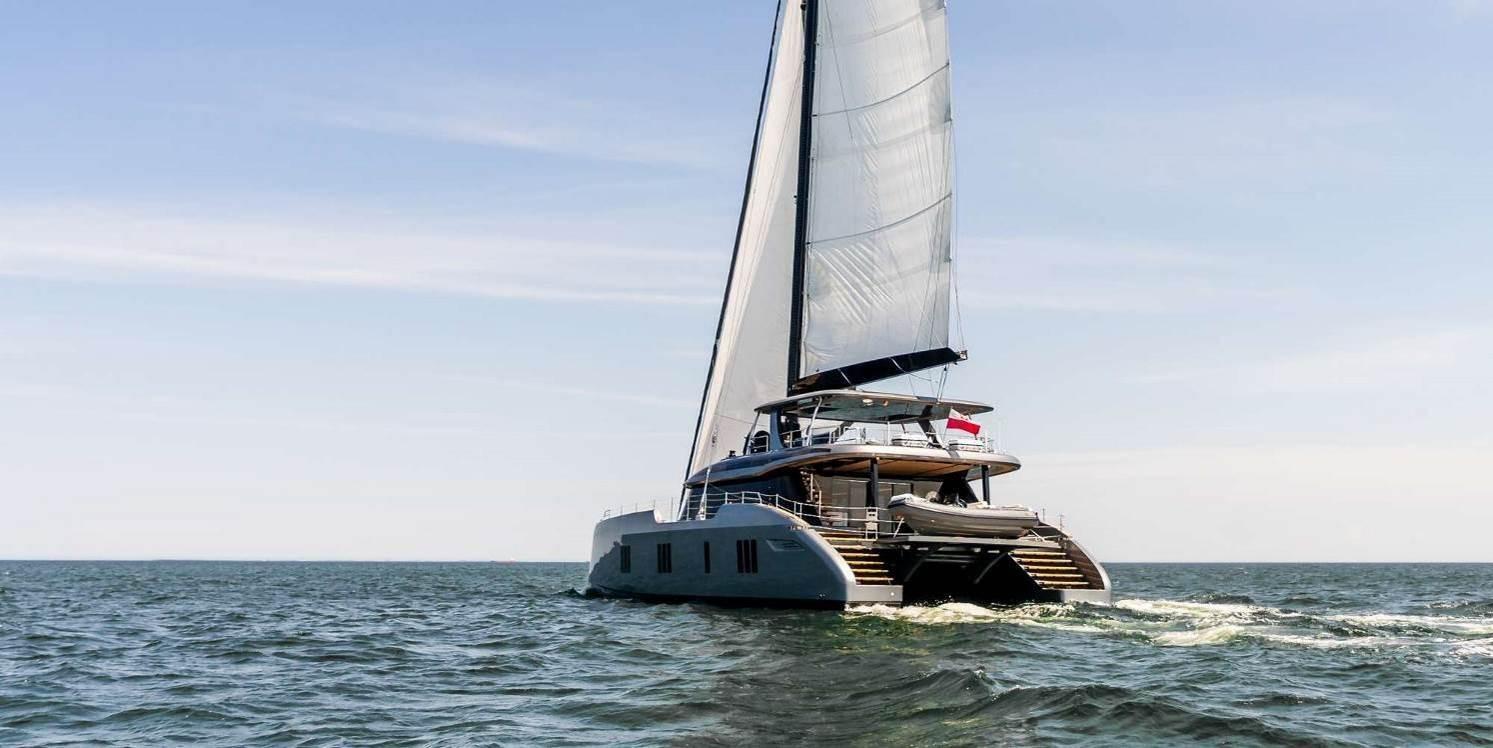

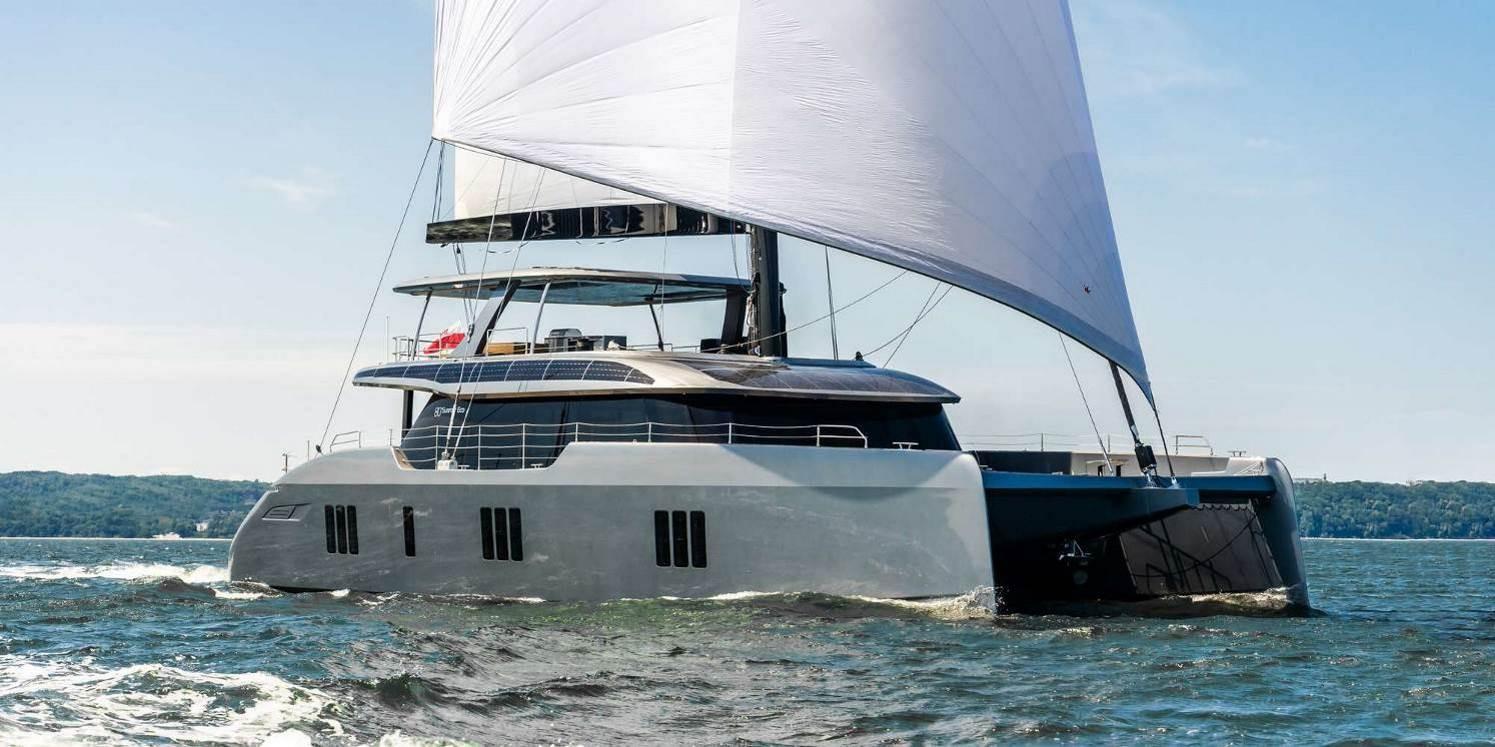

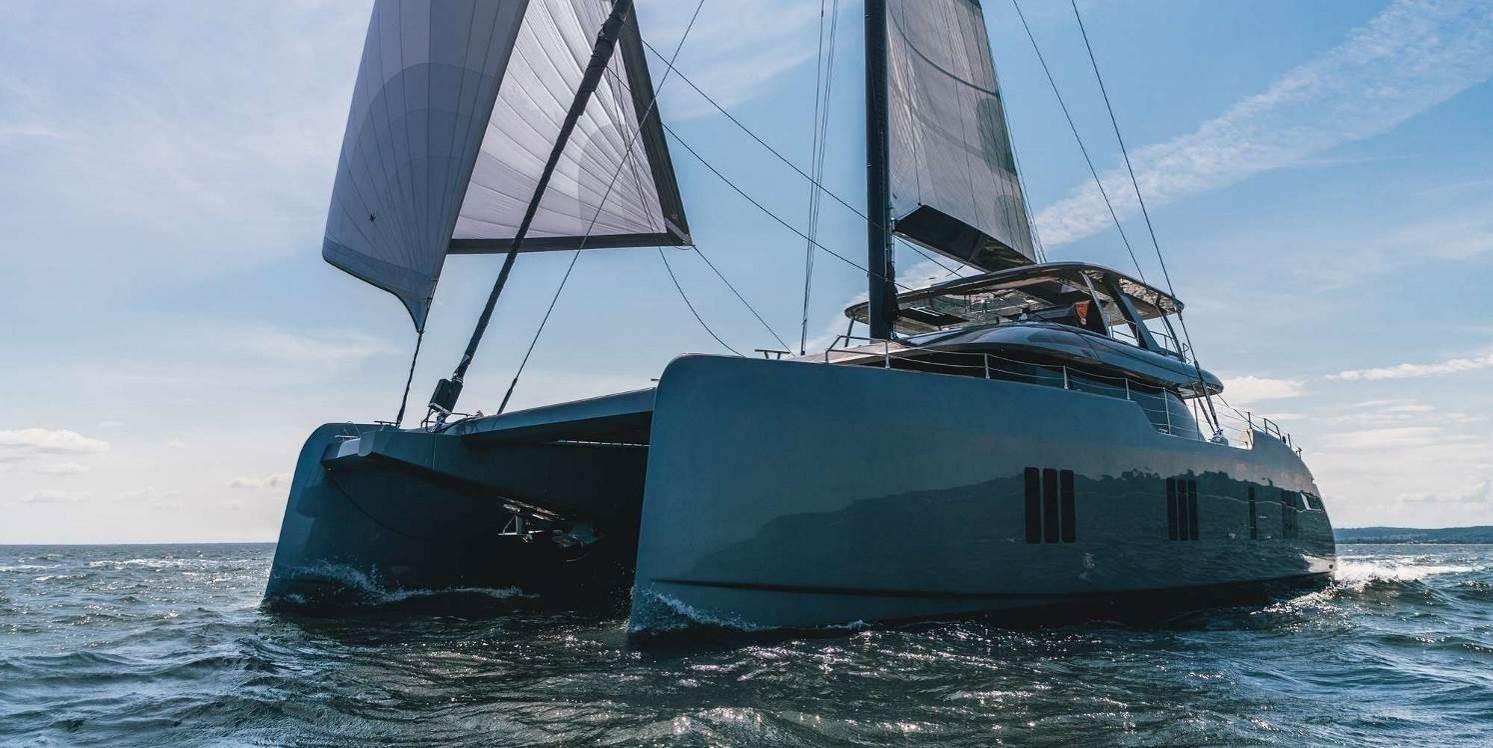

The Sunreef 80 Eco, APOLLO 99, is a fully customized catamaran, combining luxury with sustainable technology.
APOLLO 99’s generous 23.87m length and 11.53m beam, intelligent design, accommodation for up to 8 guests, and ecologically sound navigation are all testaments of the nautical innovation of the Polish Shipyard Sunreef Yachts.
This brand-new yacht is a pinnacle of eco-responsible luxury craftsmanship that combines electric propulsion, superyacht living spaces, reliable sailing performance, and the latest green technologies in the industry.

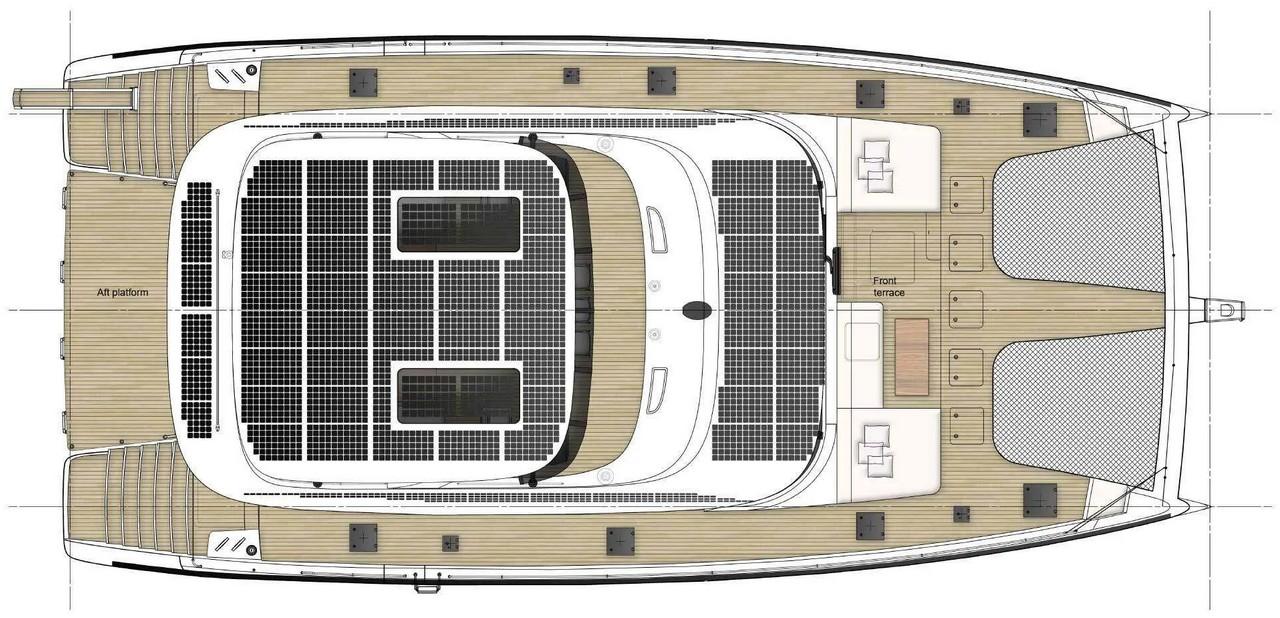

With its proprietary solar power system, this remarkable vessel can generate 45.5 kW of energy from her total area of 164m² of solar panels integrated into the yacht’s various composite structures, including the mast, boom, superstructure, and hull sides. Its contemporary interior blends eco-friendly materials, neutral tones, and large panoramic windows. It accommodates up to 8 guests in 4 cabins, including a sumptuous master suite.
Classification: Malta Commercial Coded CE – Cat 0
Construction:
*Hull: Composite
*Superstructure: Composite
*Deck: Composite
Colour:
*Hull: Grey
*Superstructure: Grey
*Deck: Grey
Cabins: Guests 4 for up to 8 Crew 3 for up to 4/5
Length overall: 23.87 m
Water Line Length: 23.84 m
Maximum beam: 11.53 m
Draft: 2.60 m
Displacement: 154.00 t
Spars: 33.10 m carbon mast 10.39 carbon “Park Avenue” boom
Standing rigging: Rod rigging for the 2 upper & lower shrouds, and the forestay & inner stay
Running rigging: Spectra
Furling system: 2 BAMAR electric for Genoa jib, and gennaker
Sails: Fully battened mainsail in Hydranet, 3 reef square top Genoa in Hydranet Gennaker in Hydranet
Sail area:
*Upwind: 352 m²
*Downwind: 762 m²
Deck hardware: All electric HARKEN winches 16 ANTAL jammers
Windlass: 3,500 W/24 V QUICK Duke DK6
Capstan: 2 x QUICK
Bow Thruster: 2 x 24 V SIDE POWER SE300/300TC
Engine: 2 x 180 kW (2 x 241 HP) Electric ENGIRO Gmbh – 370W-29014
*Performances: 8 knots @ cruising speed
*Consumption: 38 l/h @ cruising speed when running the generator
*Range: 1,105 NM @ cruising speed
Generator: 2 x 110 kW VOLVO Penta D3 150 – 230 V AC - giving 69 kW @ 2,625 rpm
Batteries: Propulsion 553 kW
Service 30 x 109.2 Amp/2.8 kW/25.6 V for service - Model EPT Generator 2 x 165.0 Amp – Model ODYSSEY EnerSys AGM Extreme Thrusters 16 x 100.0 Amp/12 V – Model ODYSSEY EnerSys AGM Extreme
Fuel: 6,000 l (2 x 3,000 l)
Water: 1,600 l (2 x 800 l)
Boiler: 2 x 100 l QUICK
Water maker: 280 l/h SEA RECOVERY Aquamatic – 220V
Refrigerator: MIELE
Deep freezer: MIELE
Air conditioning: 200,000 BTU
1 x 1.5 kW – TERMODINAMICA VRV8E1 (batteries room) 1 x 1.4 kW – TERMODINAMICA VRV50E2 (interior)
Electronic:
*Instruments: RAYMARINE
*Sounder: RAYMARINE
*Self-steering: RAYMARINE
*AIS Class B: RAYMARINE AIS700
*Computer: WAGO System
*Screens: RAYMARINE & EXOR
*Satcom: STARLINK
Iridium phone
*Inmarsat C: FURUNO
*VHF radio: RAY90 VHF with dual station
Cobham SAILOR VHF Dual
*GPS: RAYMARINE
*Chart plotter: 3 x RAYMARINE Axiom XL 16'
*Radar: RAYMARINE RD424HD 24" – 4 kW - 60 NM
*Weather: Navtex FURUNO System

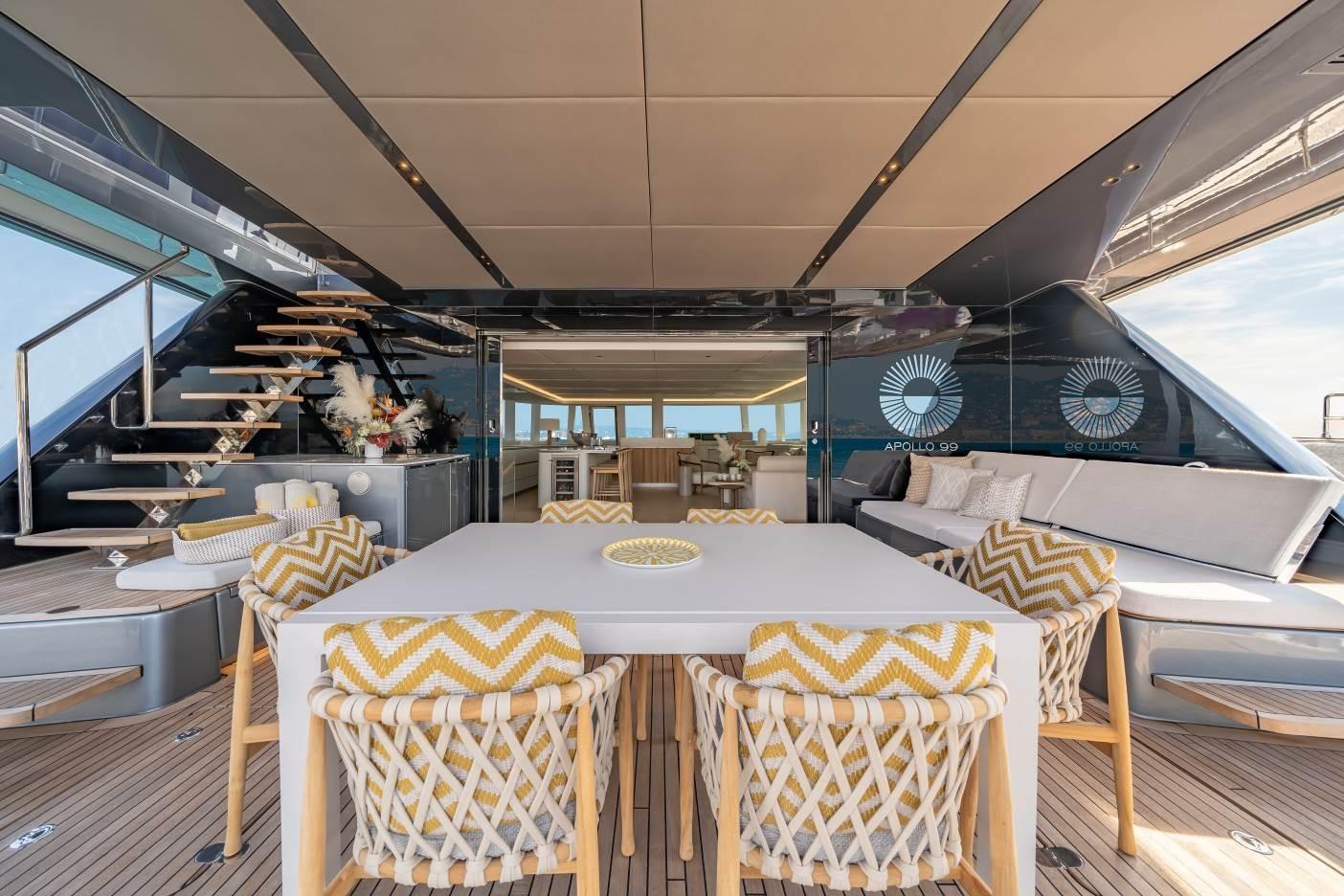

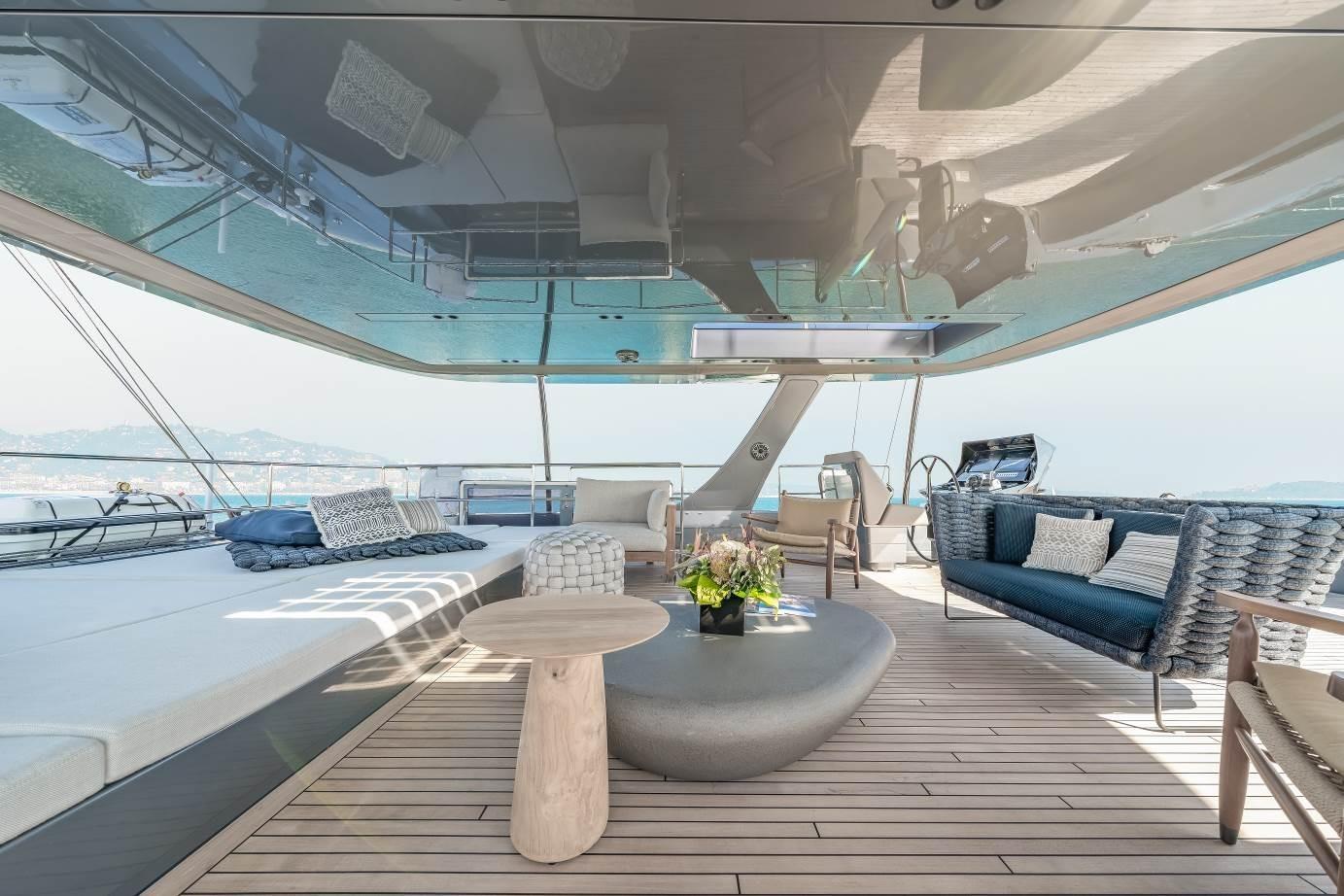

DECK AND COCKPIT
All electric winches

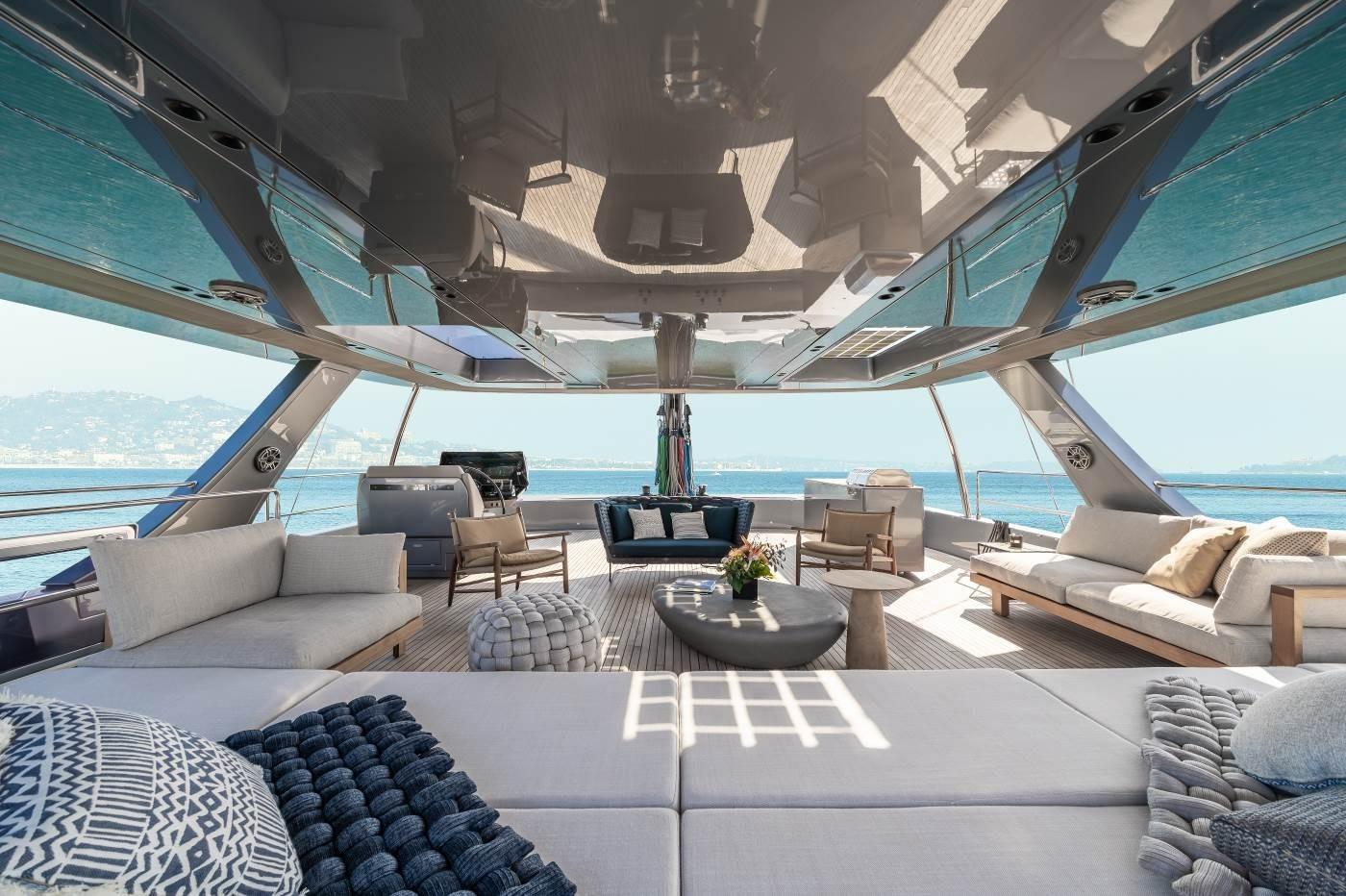

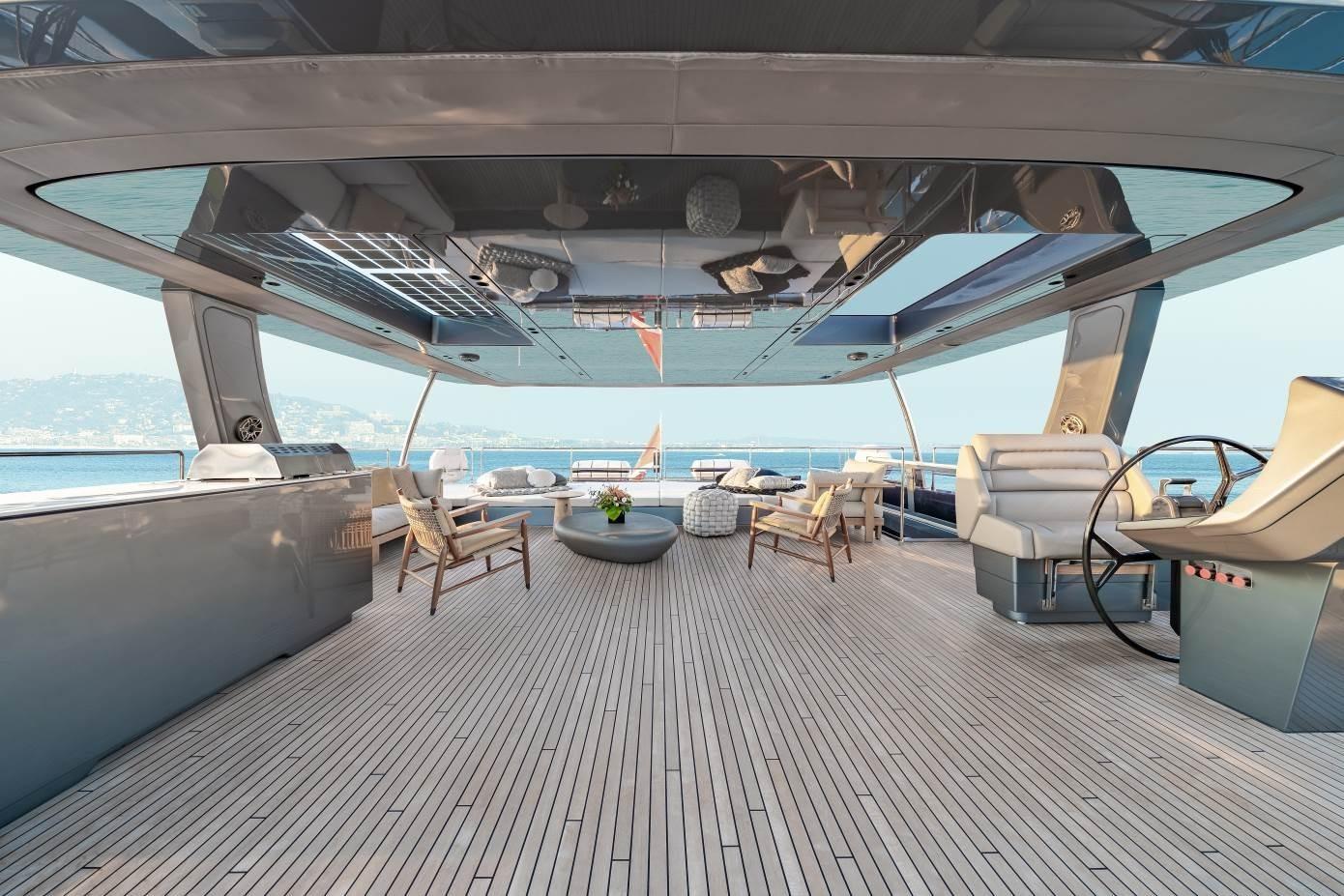

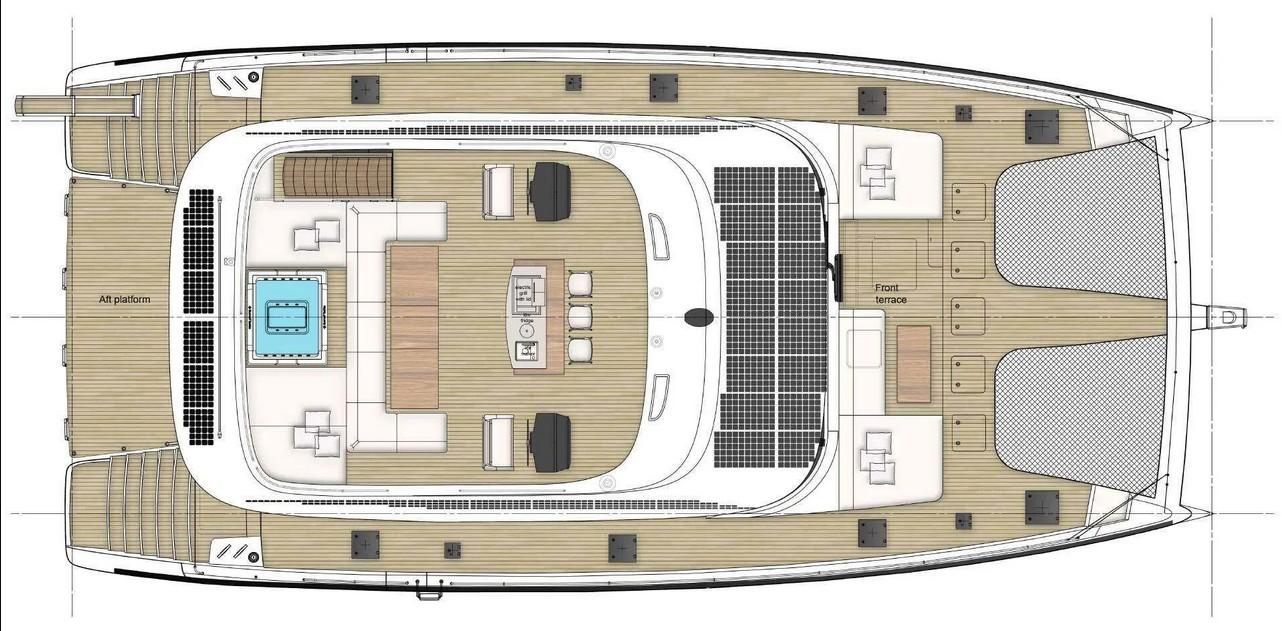

Full composite hard top Bimini on the flybridge with integrated lights
Bimini windshield - transparent canvas only for the front
Bimini windshield - transparent canvas for 3 more sides
Cockpit windshield - transparent canvas
Rigid wave breaking window on the flybridge
Hydraulic BESENZONI gangway
Shower head on the cockpit ceiling with a mixing valve
Cover kit (Steering wheel, Navigation station, Flybridge table)
Hydraulic aft platform 1,200kg capacity
Cockpit and skirts floor covered with teak
Flush deck hatches
Flybridge in lacquer
Flybridge covered with teak
Hulls’ topsides in metalized lacquer
ACCOMMODATION

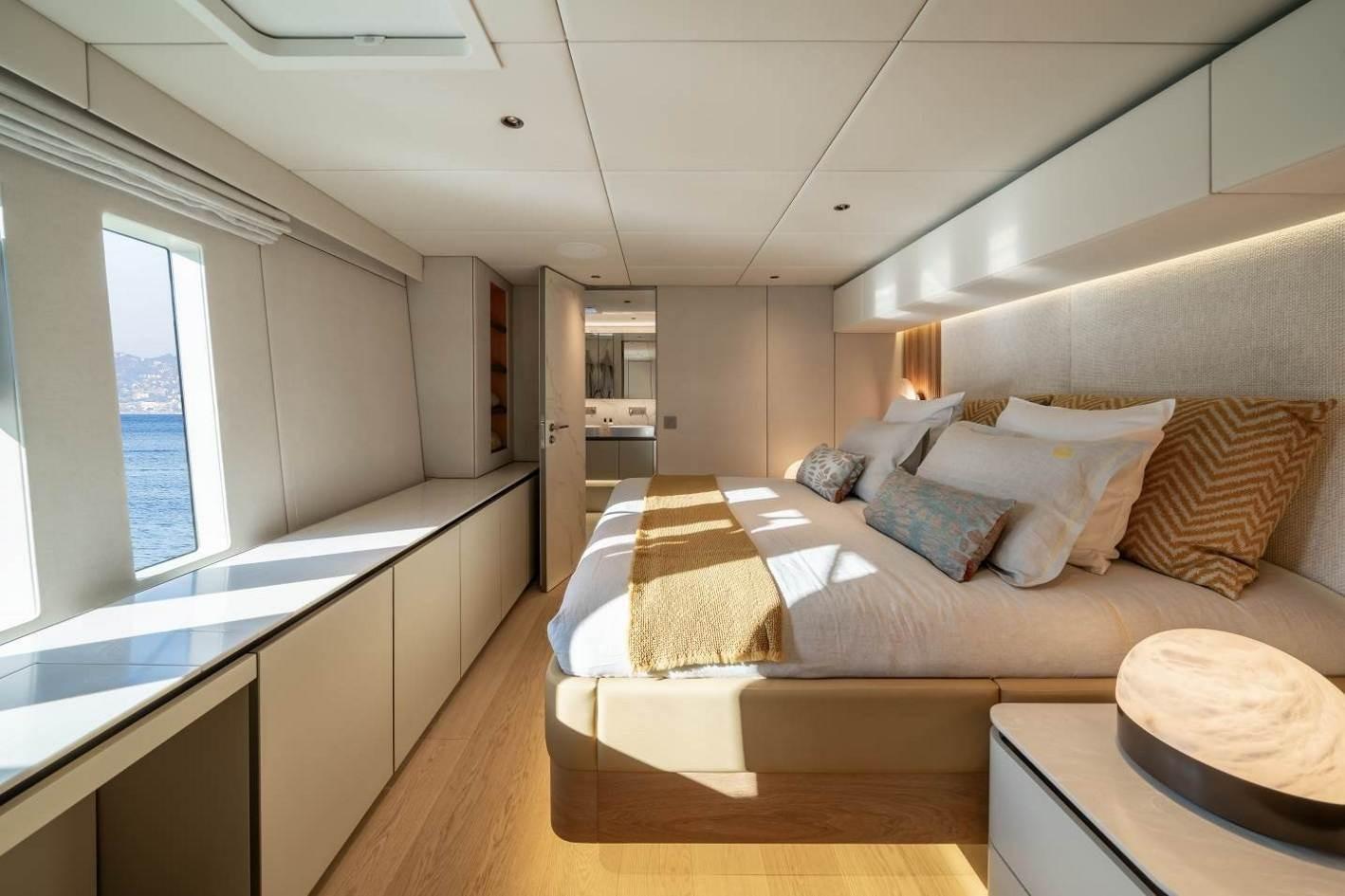

4 spacious cabins, including a luxurious master suite with a walk-in dressing area, desk, sofa, retractable TV, and an expansive ensuite bathroom.
Electrically recessed Sky screen blinds in the saloon (manual in the cabins)
Upgrade wood from category A to category C
Wooden floor in the salon
English oak all through the interior
Glued carpets in cabins
Air conditioning throughout the boat, including in the forepeak
Accessories with brushed finishing

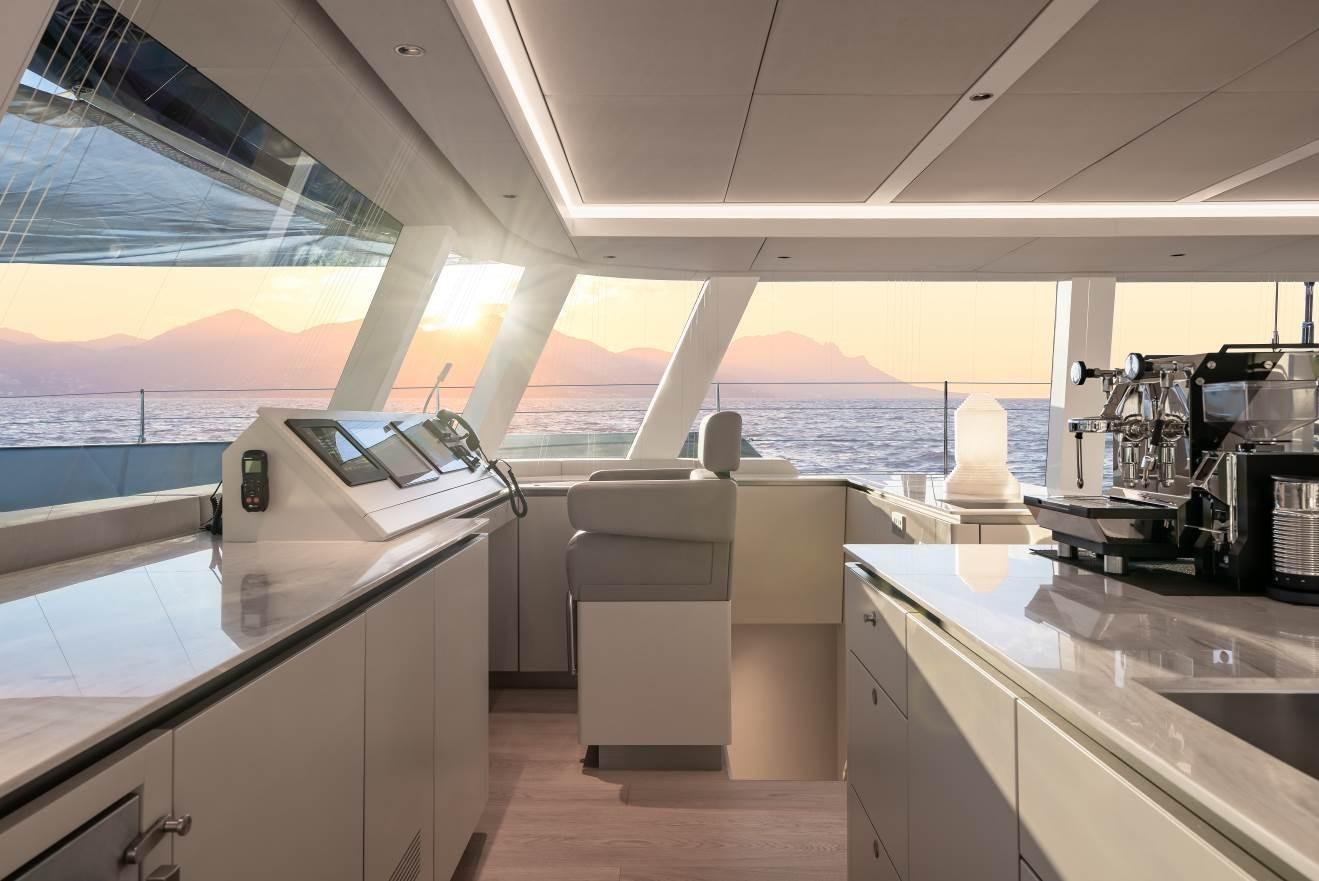

CHART TABLE
Forward on the starboard side of the salon

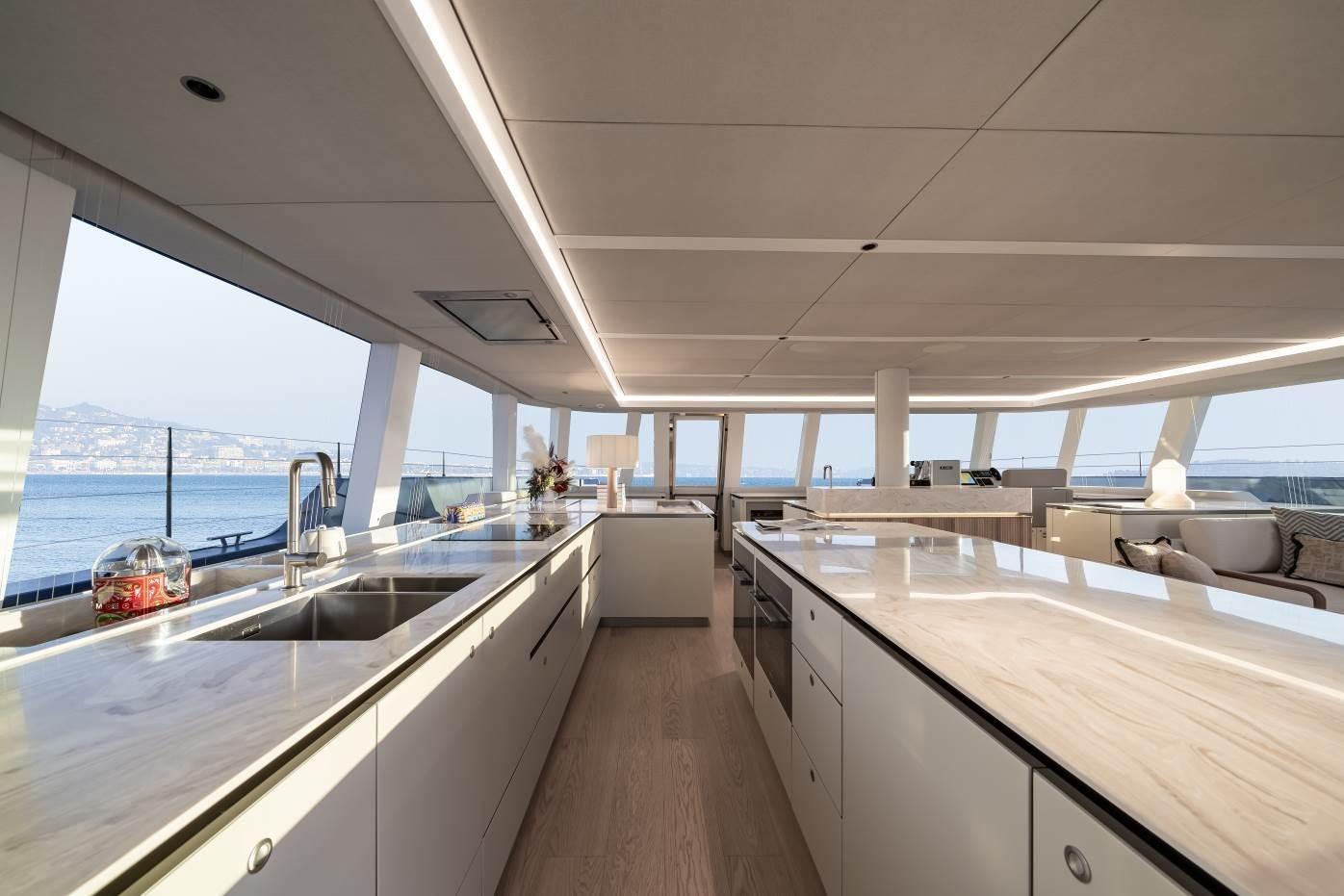

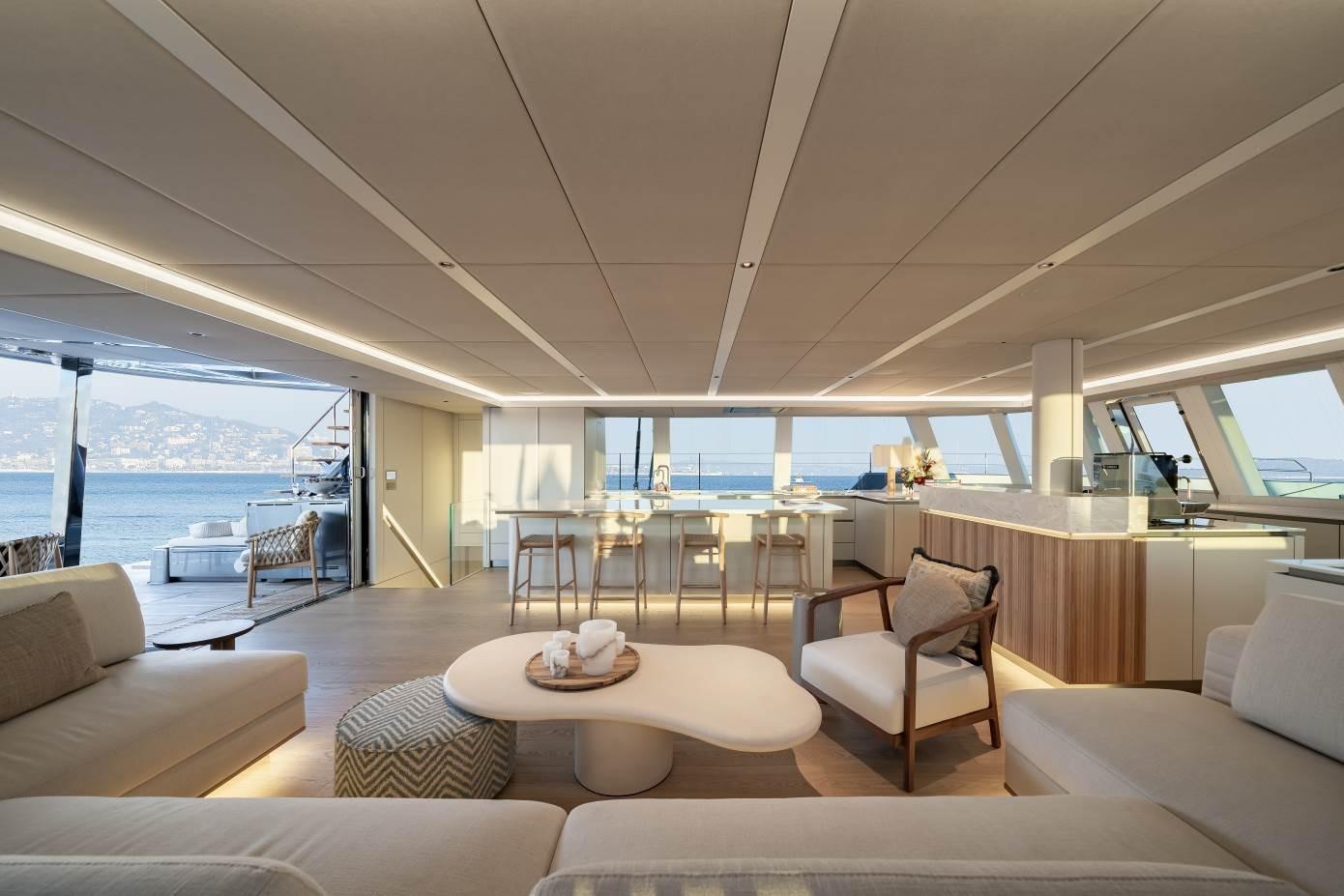

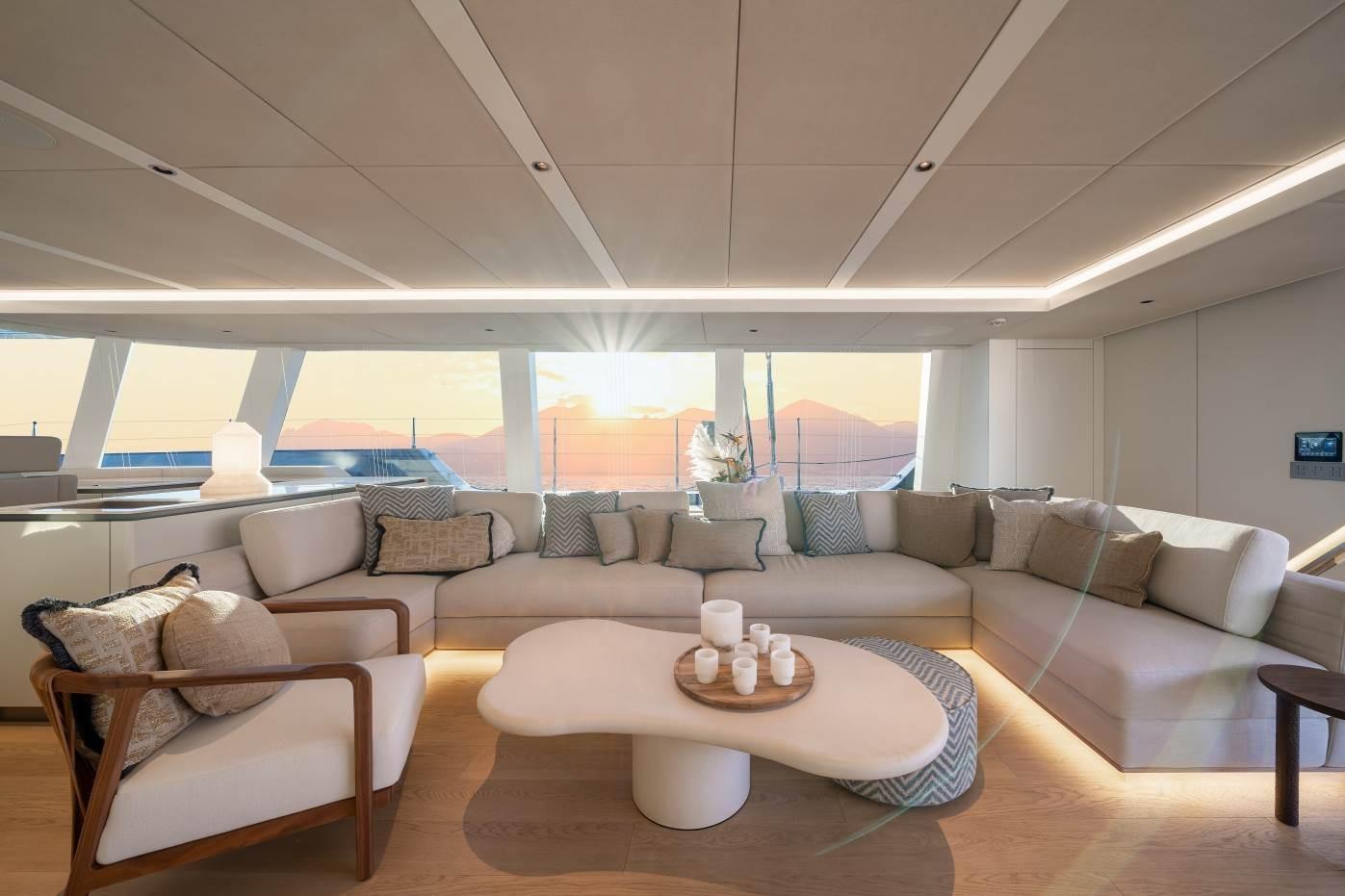

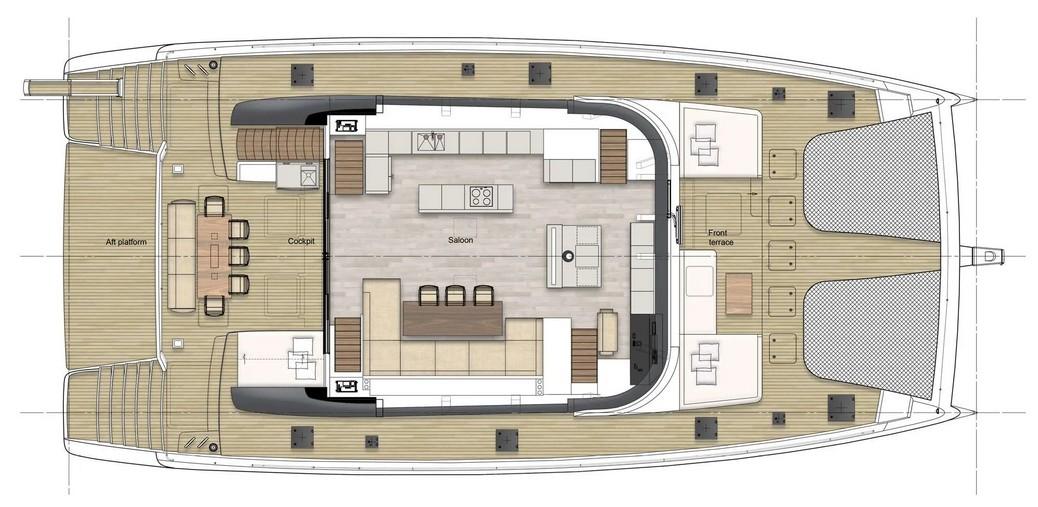

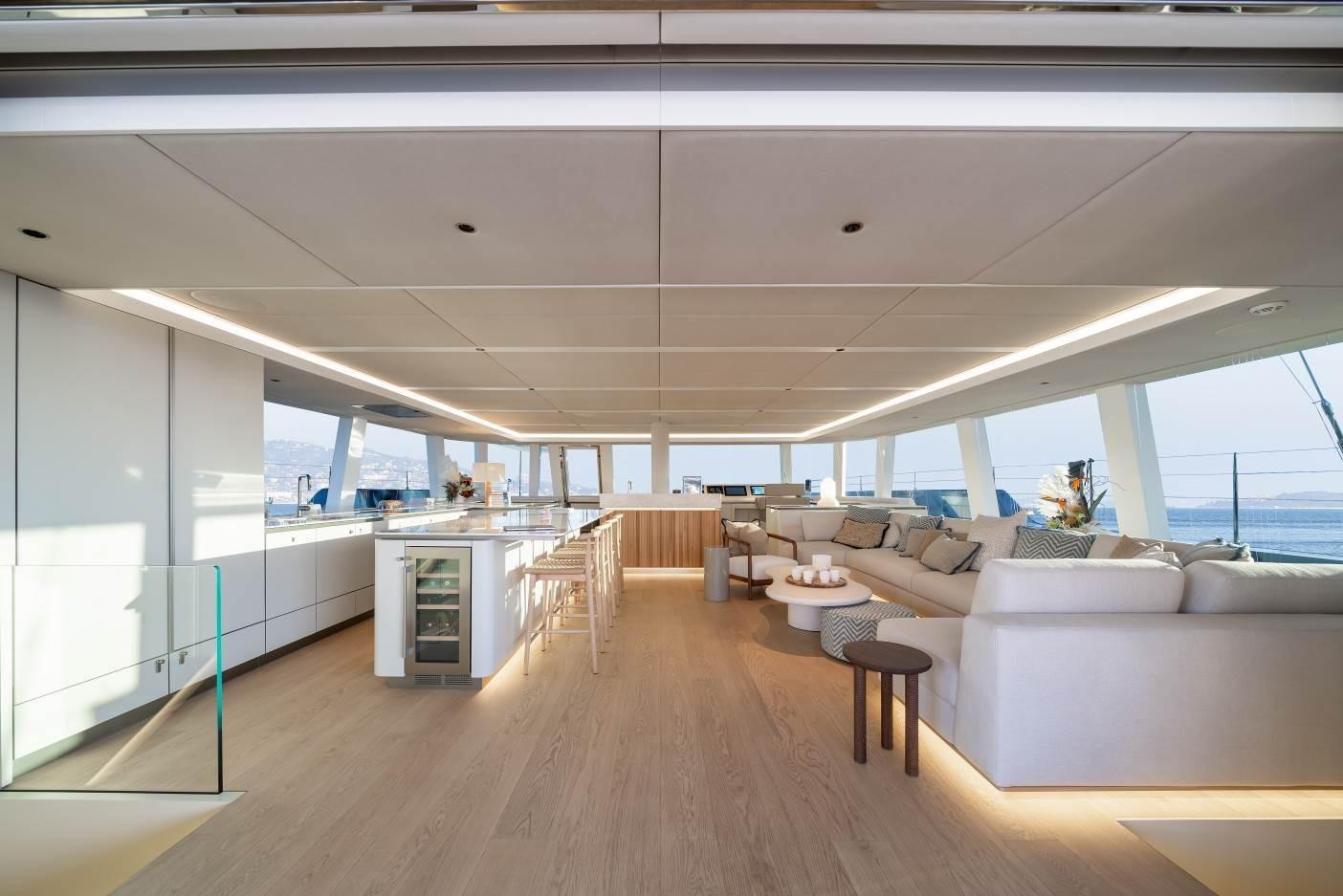

SALOON
Spacious and luminous, with galley on the port side, dining table and U sofa on the starboard side, and navigation station & chart table up front

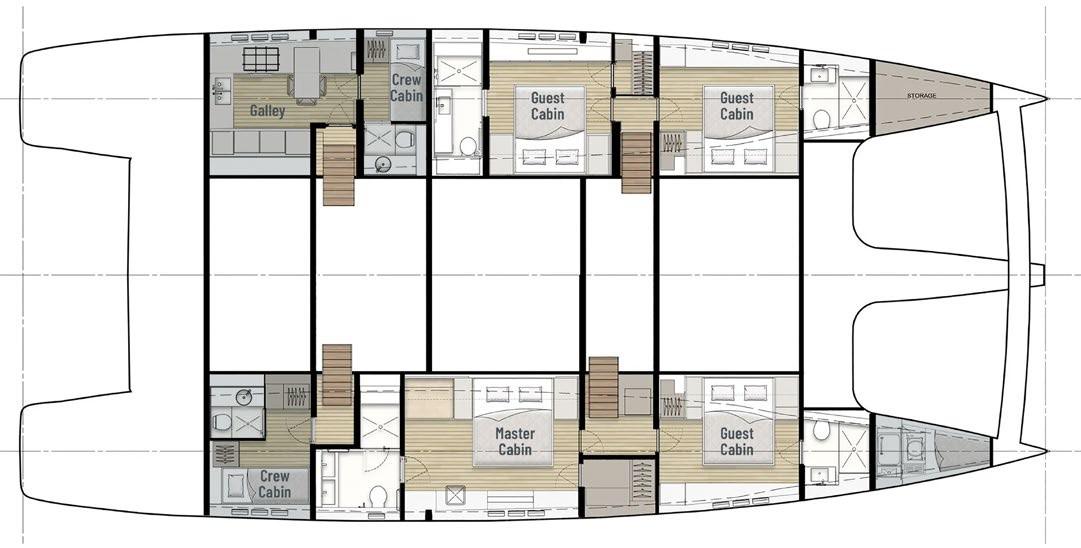

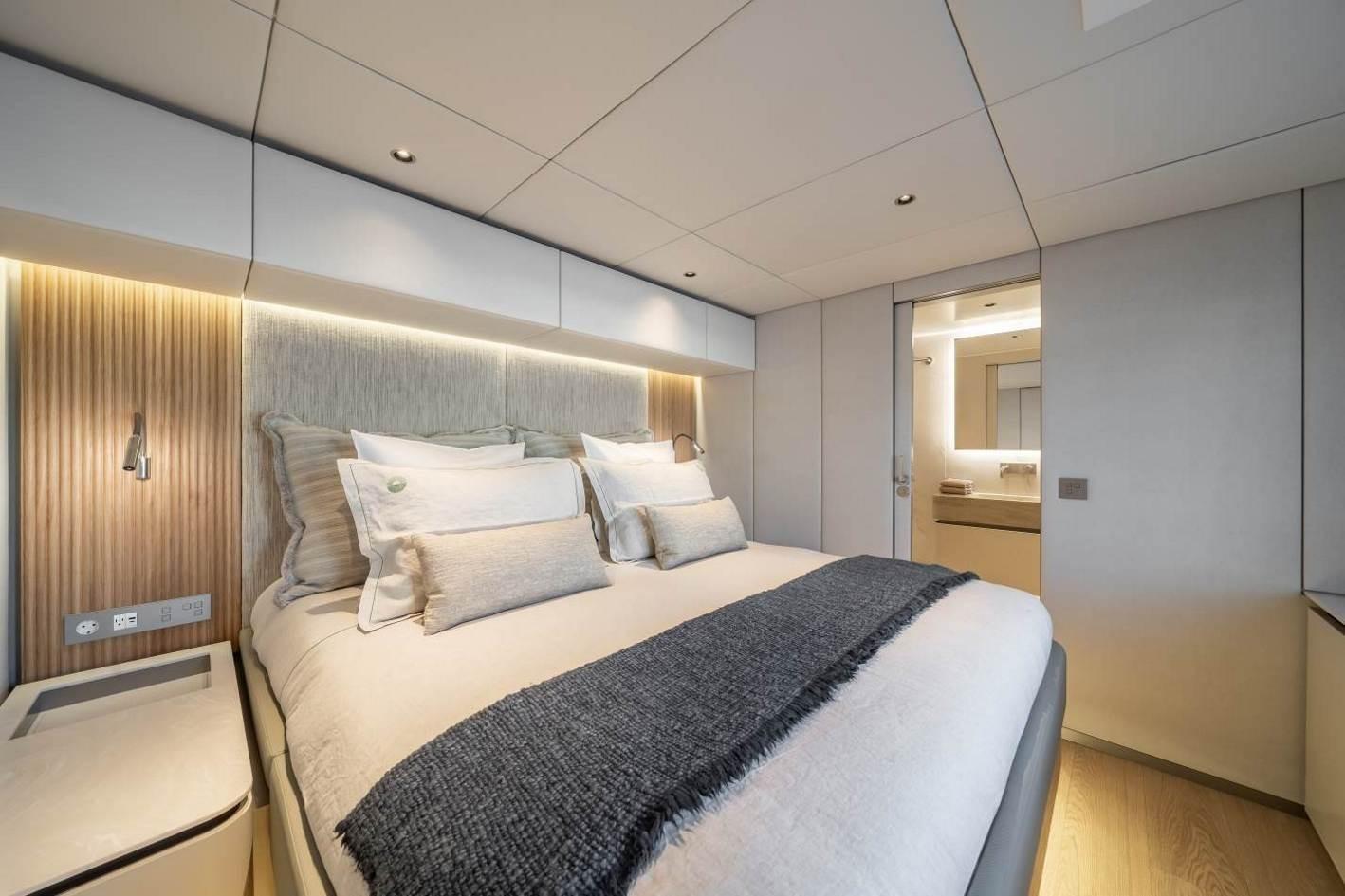

CABINS
Guest: 4 for up to 8
Crew: 2 for up to 4

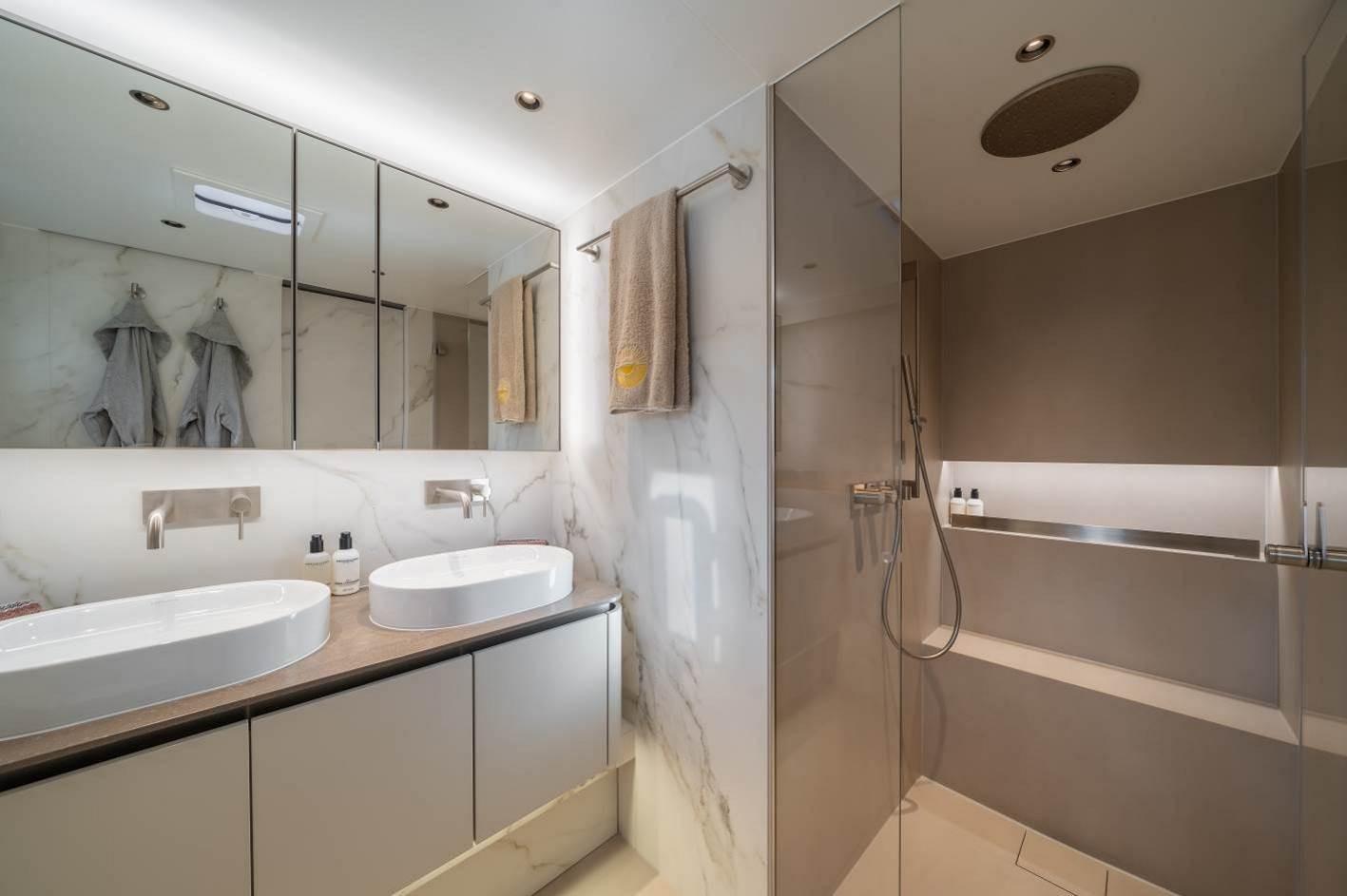

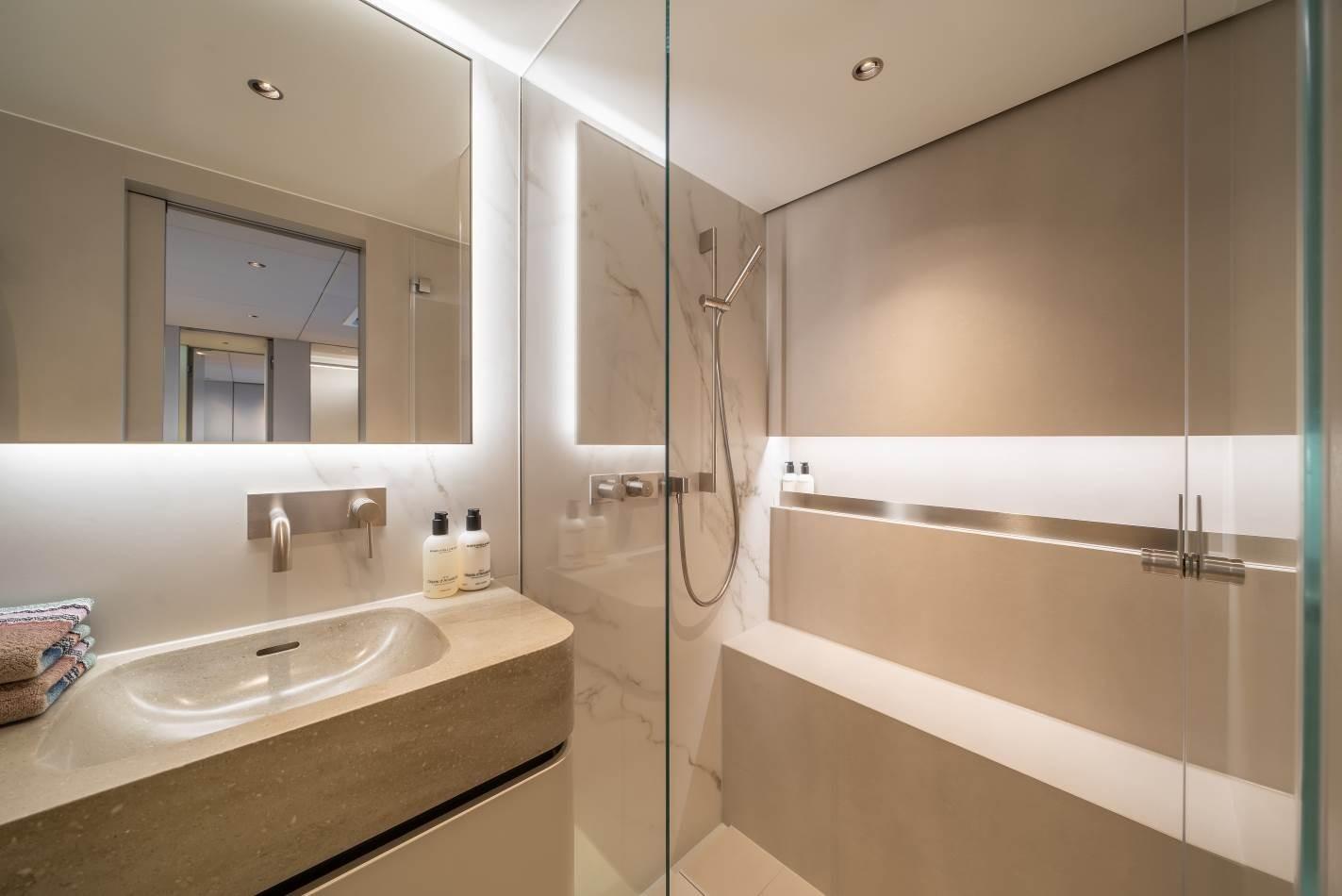

SHOWER ROOM/HEAD
All bathroom walls are finished with sintered quartz
Guests 4
Crew 4
Deck 2
GALLEY
Galley appliances upgrade to a MIELE Wine cooler in the saloon
DOMESTIC EQUIPMENT
Cooker-Oven: MIELE
Dishwasher MIELE
Microwave: MIELE
Refrigerators: 2 x full-size MIELE
3 compact (1 x MIELE + 2 x VITRIFRIGO)
Deep Freezer: 2 x full-size MIELE + 1 compact
Ice maker: 3 x VITRIFRIGO
Wine cooler: MIELE (Saloon)
Washing machine: MIELE
Drying machine: MIELE
Air Conditioning: 200,000 BTU
1 x 1.5 kW – TERMODINAMICA VRV8E1 (batteries room) 1 x 1.4 kW – TERMODINAMICA VRV50E2 (interior)
ENTERTAINEMENT
TV: Widescreen LED TV 55” (saloon)
Lifting system (up & down) TV
Sound system: Yamaha Home Cinema Receiver 7.2
5 x ceiling premium speakers
1 x active subwoofer, 2 waterproof speakers in the cockpit, 4 in the flybridge, and 4 waterproof speakers in the front terrace
Yamaha Power Network Receiver + 2 x premium speakers Safe (2 units)
COMMUNICATION EQUIPMENT
AIS Classe B: RAYMARINE AIS700
Computer: WAGO System
Screens: RAYMARINE & EXOR
Satcom: STARLINK
Iridium phone
Inmarsat C: FURUNO
VHF radio: RAY90 VHF with dual station
Cobham SAILOR VHF Dual
4G/LTE Wi-Fi antenna worldwide

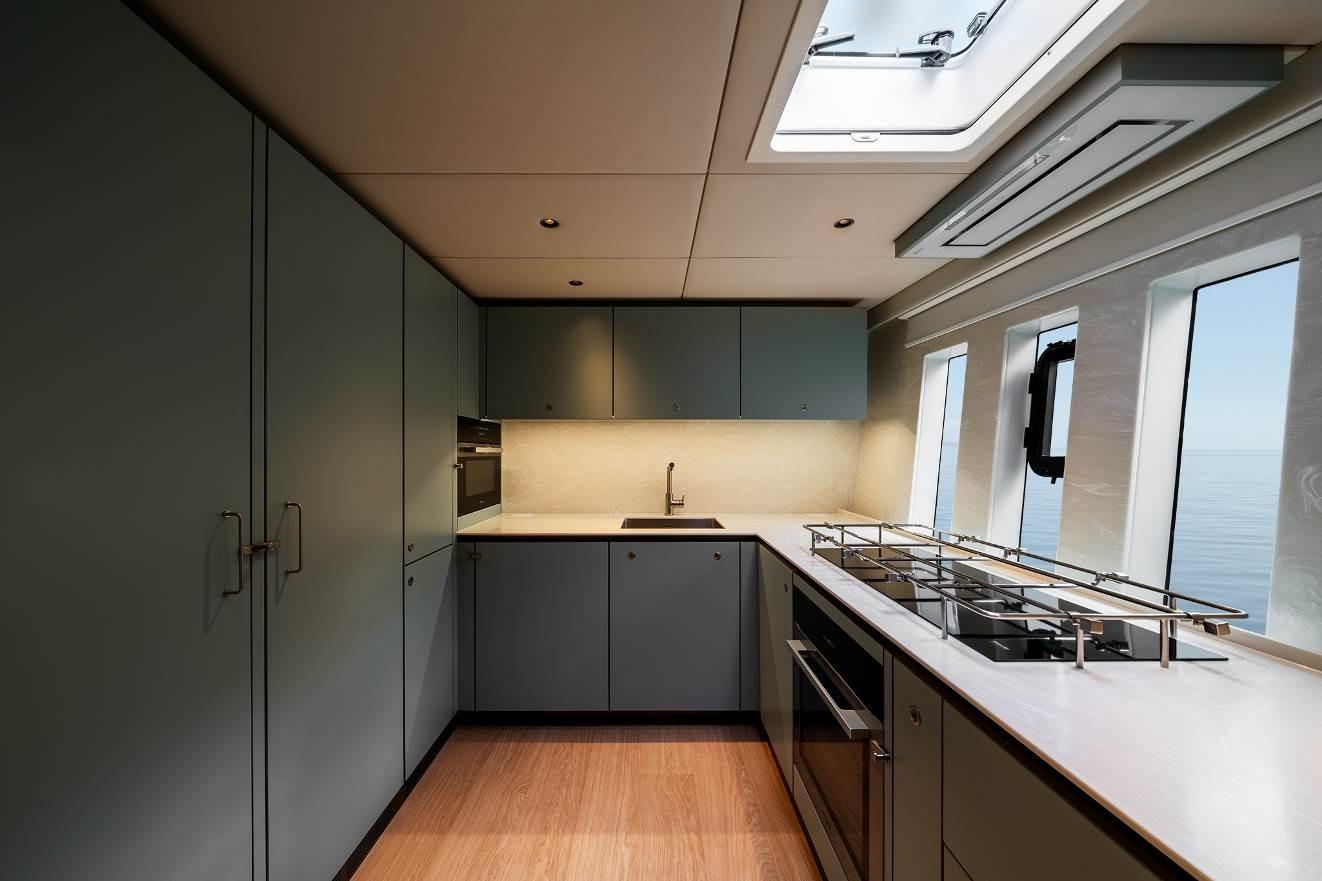

CREW AREA
2 bunk beds cabins
2 bathrooms
1 galley
SAILS AND RIGGING
Sails:
212 m² full batten main sail with square top in Hydranet
140 m² Genoa jib in Hydranet
550 m² gennaker in Hydranet
Gennaker runner (extra)
Rigging:
Spars
33.10 m carbon mast
10.39 m carbon “Park Avenue” boom
Standing rigging Rod rigging for the 2 upper & lower shrouds, and the forestay & inner stay
Running rigging Spectra
Furling system 2 BAMAR electric for Genoa jib, and gennaker
ELECTRICITY
12, 24, 110 & 220 V circuits
Shore power
Solar panels
230V / 50Hz / 63 Amp with dual connection
45.5 kW of clean energy from 164m² of solar panels (Solar panel rating
18.0 kW 24V DC 220V AC)
Batteries: Propulsion 553 kW
Service 30 x 109.2 Amp/2.8 kW/25.6 V for service - Model EPT
Generator 2 x 165.0 Amp – Model ODYSSEY EnerSys AGM Extreme Thrusters 16 x 100.0 Amp/12 V – Model ODYSSEY EnerSys AGM Extreme
Chargers
VICTRON Energy battery chargers:
6 x 80V/450V | Model EPT | service batteries – Location: tech. com under saloon floor
2 x 24V | Model QUATRO 24-5000| thrusters starting batteries – Location: forepeak storage port + stbd
2 x 24V/12AMP | Model BLUE SMART| engine & generator starting batteries – Location: engine room port + stbd
Inverter 2 x Model EPT Aradex VP600 – Output voltage 400V AC / 50 Hz 120 V AC/ 50Hz/ 3,000 W + 10 sockets –VICTRON ENERGY PHOENIX 24/3000 Lights Underwater lights LED Secret lights
PLUMBING AND TANKS
Boilers 2 x 100 l QUICK
Pumps: Bilge 8 x electric automatic –GIANNESCHI – Flow rate 60l/min
2 x electric manual –GIANNESCHI – Flow rate 90l/min
2 x electric diaphragm –GIANNESCHI – Flow rate up to 65l/min
Shower
Water pressure 2 x 24V (Automatic shut off) GIANNESCHI Ecoinox 2
Fuel transfer pump
Sea water pumps
Toilets: Fresh water system – 8 x TECMA Electric
Water maker: 280 l/h SEA RECOVERY Aquamatic – 220V
Waste water: Treatment system
Water filter
Tanks: Fuel: 6,000 l (2 x 3,000 l)
Water: 1,600 l (2 x 800 l)
Grey/Black water:1,400 l (2 x 700 l)
Air Conditioning: 200,000 BTU
1 x 1.5 kW –
1 x 1.4 kW –
TERMODINAMICA VRV8E1 (batteries room)
TERMODINAMICA VRV50E2 (interior)
MOORING
Windlass: 3,500 W/24 V DC
Anchor:
Chain:
SAFETY
130 kg Ultra Marine (polished stainless-steel)
110 kg Ultra Marine (polished stainless-steel)
119 m of 14 mm galvanized
110 m of 14 mm galvanized
Complete rescue equipment for 16 persons
Life rafts: 2 for up to 16
Life jackets: 16 for the guests + 5 for the crew
Satellite tracking system - AIS system
Shrouds cutter
Searchlight + control unit
Fog horn
External camera with colour and night vision (2 pcs)
EPIRB
TENDERS AND TOYS
Williams 505 Diesel
2 x Seabob jets
1 x E‐foil Board
4 x SUP
MISCELLAENOUS
Safe (2 units)
Electric diving compressor 100 l/min - 90-330bar
Diving bottles holder
Sink with a retractable faucet for the bar module
Low fridge for the bar module
Ice maker for the bar module
Electric Stainless-Steel BBQ
Y-spoke carbon steering wheel 1100mm
VAT STATUS
VAT Not Paid
Detail given in good faith with no guarantee nor warrant for accuracy or conditions. A Buyer should instruct his surveyor to investigate such details as he desires validated. This is NOT a contractual document.
