RG GLASS WALL
RG Glass wall
The use of glass offers unrivalled transparency in the office space. A key design element of Bene’s RG glass wall is its nominal joint detailing, giving it an almost seamless appearance.
The glass wall is composed of minimal horizontal profiles that fix to the ceiling and floor and hold generously sized glass panels, which seemingly retreat in to the architecture of the room.
The wall system can be single- or double-glazed with a variety of glass thicknesses, depending on static and acoustic requirements. The RG glass wall represents the middle-ground between rigid architectural elements and flexible interior fitting systems.

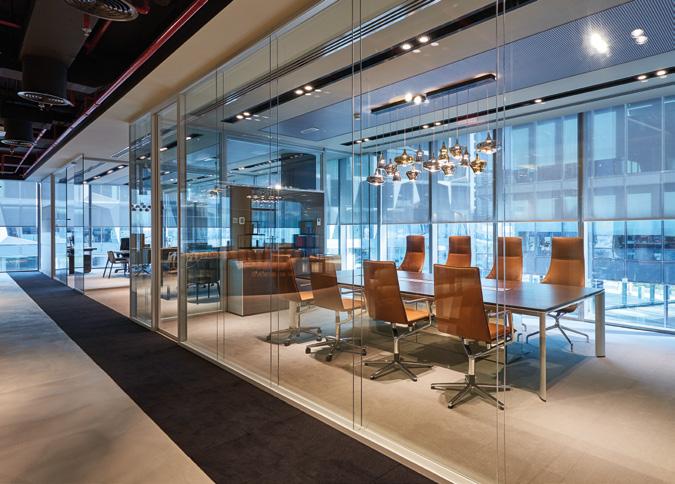

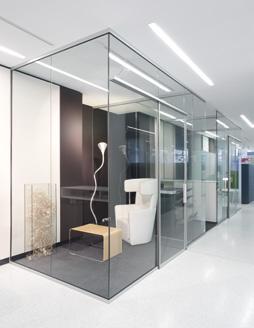

Thanks to nominal joint detailing, the frameless design of Bene RG glass allows for the most transparent finish imaginable.
25 mm and 45 mm floor and ceiling profiles ensure a clean appearance.
Acoustic requirements up to 51 dB are available in the single- and double-glazed version for room heights up to 400 cm.

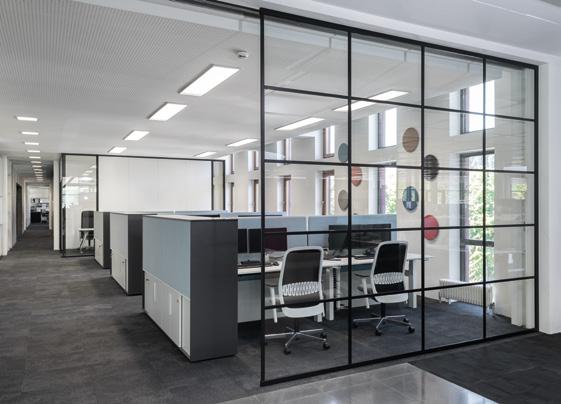

Due to the perfect integration of function and design in the Bene range, the RG glass wall can be combined with a variety of Bene wall systems. 1 2 5 6 3 4
A variety of door solutions are available for different applications, from single or double-leafed doors without visible hinges.
The running profile for the frameless sliding door is directly fixed to the glass. Sliding doors can be locked at handle height.
TECHNICAL DETAILS
CONSTRUCTION: Single-glazed and double-glazed
FLEXIBILITY: Reversible partitioning, very easy refitting
GLAZING: Glass thicknesses of 10 mm, 12 mm, 16 mm
LEVELLING: Tolerance compensation at floor +/- 3 mm or +/-15 mm and ceiling +/- 15 mm
STANDARD: ETAG 003
ACOUSTICS / SOUND PROTECTION: Single-glazed: up to 38 dB (Rw) corresponds to 1 x 16mm LSG acoustic glass
Double-glazed: up to 51 dB (Rw) corresponds to 2 x 16 mm LSG acoustic glass
COLORS: All aluminium profiles, anodised A6 / C0, powder coated black matt similar to RAL 9005, as well as special colors upon request. Glass seals to elements can be black or light grey.
WALL ELEMENT, VERTICAL SECTION
FEATURES
JUNCTIONS, CONNECTIONS AND BANDRASTER
Different variants of junction and connection elements allow flexibility in the implementation of customer requirements, considering the architectural features. The glasses are glued with a transparent VHB duct tape. The Bandraster made from aluminium are used for cabling and installation of on-site switches and plug sockets in cavity wall boxes or to connect draywall or other Bene wall systems.
ELECTRICAL BLINDS
The electrical horizontal blinds are integrated into the double-glazed RG corridor wall. Several adjacent blinds can be adjusted to exactly the same height using a synchronised controller. The slats are available in black, white, aluminium and RAL upon request and in widths of 25 mm.
Bandraster for T-connection to R-Platform
Connection to the wall double-glazed
T-joints with VHB gluing
90° connection bevelling
Linear connections
90° connections (straight)
Variable 0-90° connections optional bevelling
Three-sided / four-sided connections
R-Platform T-connection to bandraster single-glazed
DOOR OPTIONS
FRAMELESS HINGED DOORS
Frameless hinged doors include a continuous hinge profile and provide maximum transparency. Hinged doors can be either full room height or with an over door panel. Single- or double-leaf doors can be installed in the single-glazed glass wall.

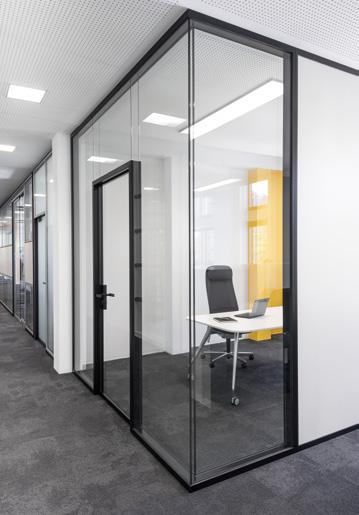

HINGED DOORS WITH FRAME
Hinged doors with frame include a continuous hinge profile for high acoustic requirements. Hinged doors are available for different applications either full room height or with a glass over door panel, singleor double-leaf doors, for installation in single- or double-glazed walls.
Double hinged door with over door panel, stationary door and framed by a continuous door hinge at a room height of up to 350 cm
Hinged door at full room height up to 300 cm ceiling height
Glass door handle
Internal lock box, adhesion of lock box optionally in black or light grey
Double-hinged door in solid-core with frameless head panels at room height up to 350 cm
Full room height hinged glas door with frame, room height up to 300 cm
Hinges are not visible thanks to a continous door hinge with concealed pivot bearing
FRAMELESS SLIDING DOORS
The frameless sliding doors present a sheer look and offer maximum transparency whilst providing perfect function. Sliding doors, available as single- or doubleleafed, at room height or with over door panel can be integrated in the single-glazed glass wall.
DOOR CLOSER
Door closer can be installed optionally at any time at the glas door. For solid-core doors these are integrated concealed in the door leaf. Additionally they can be provided with an opening limiter and a grid fixing unit for machanical fixing of doors.
Sliding door at full room height without vertical profiles up to 300 cm ceiling height
Double-leafed sliding door with over door panel and one long handle for a room height at up to 350 cm
The lock is located at the customary handle height. The closure within the sliding rail leaves the soil untouched
The minimalistic look of the sliding rail conveys lightness and elegance
Ceiling connection, glass hinged door with frame double-glazed with over door panel
Horizontal section, single-leaf glass hinged door with frame single-glazed
Floor connection, glass hinged door with frame double-glazed with over door panel with compensation profile and floor seal
Horizontal section, solid core hinged door with frame double-glazed
Sliding
TECHNICAL DETAILS
3
4
2
Sliding
Hinged doors frameless2
Hinged door at room height or with over door panel (10 mm ESG)3
Hinged door at room height (12 mm ESG)
Hinged door with over door panel (12 mm ESG)3
hinged doors frameless2
