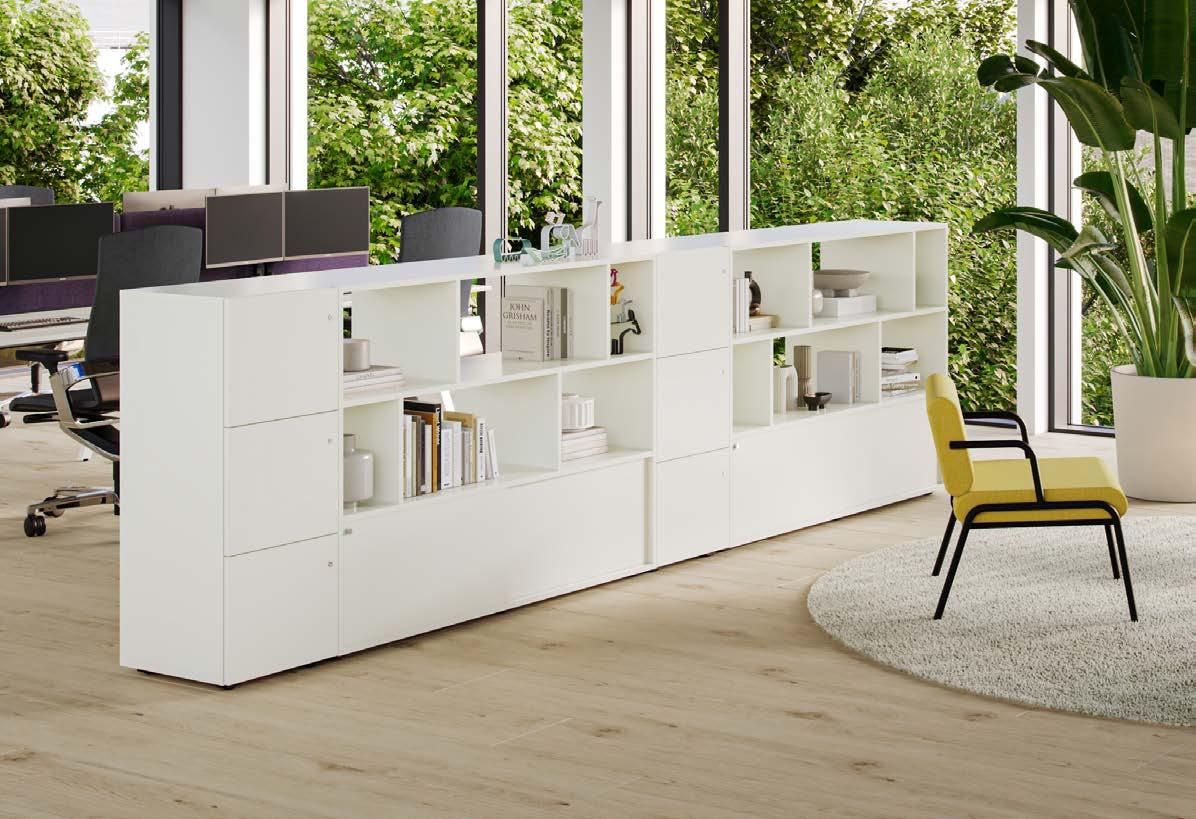

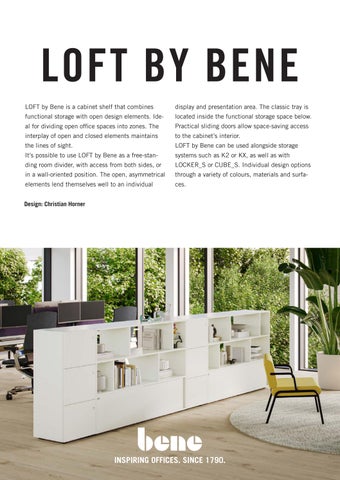

LOFT BY BENE LOFT by Bene is a cabinet shelf that combines functional storage with open design elements. Ideal for dividing open office spaces into zones. The interplay of open and closed elements maintains the lines of sight. It’s possible to use LOFT by Bene as a free-standing room divider, with access from both sides, or in a wall-oriented position. The open, asymmetrical elements lend themselves well

to an individual display and presentation area. The classic tray is located inside the functional storage space below. Practical sliding doors allow space-saving access to the cabinet’s interior. LOFT by Bene can be used alongside storage systems such as K2 or KX, as well as with LOCKER_S or CUBE_S. Individual design options through a variety of colours, materials and surfaces.

Design: Christian Horner

INSPIRING OFFICES. SINCE 1790.

LOFT BY BENE PRODUCT DESCRIPTION

PRODUCT DESCRIPTION LOFT by Bene consists of a sliding door cabinet on the bottom and an open shelf on the top. The sliding door cabinet can be used either from one side (with two sliding doors) or as a version with access from both sides (one door slides on each side). The top shelf element is always open and is accessible from both sides. The open part can be configured with two or four compartment dividers.

8 5 7

4 9

Illustration: LOFT with access from both sides

Top: 19 mm chipboard.

Intermediate bottom: 19 mm chipboard.

Visible sides: 19 mm chipboard. 50 mm hole spacing for installing shelves.

Compartment divider: Available as two or four; chipboard 19 mm.

Sliding door: 16 mm chipboard.

Upper shelf: 19 mm chipboard. 10

Rear wall: 16 mm chipboard.

Bottom: 19 mm chipboard. 11

Middle panel: 19 mm chipboard. 50 mm hole spacing for installing shelves.

Shelves: 19 mm chipboard.

Adjustment leg: Plastic in colour AS asphalt. Base height 25 mm or base height 37 mm, 6 adjustment legs per cabinet, +20 mm height-adjustable. Optionally available with base panel (plastic) or steel base, each in the colour AS asphalt.

2 © Bene GmbH, 08/2026

LOFT BY BENE PRODUCT DESCRIPTION

PRODUCT DESCRIPTION BASE LOFT can be configured with different versions and base heights and is thus compatible with other Bene storage spaces.

LOFT

KX 1

LOFT

KX 2

LOFT

LOCKER_S

CUBE_S

Base height 25 mm · 6 adjustment legs in AS asphalt, height adjustable +20 mm · base profile (plastic)

Base height 37 mm · 6 adjustment legs in AS asphalt, height adjustable +20 mm · optional base profile (plastic)

Base height 45 mm · steel profile in AS asphalt, height adjustable +20 mm.

1 2

when 25 mm tops are used for top and bottom when 19 mm tops are used for top and bottom

FRONT Sliding doors The sliding doors run in a milled running profile along the floor. The one-sided version has two sliding doors on one side, with a choice whether the left or right door slides in front. For the version with access from both sides, one sliding door can be opened on each side.

The following configurations are available for the fronts:

Lock

Handle

Lock All cabinet fronts can be configured to be lockable or not lockable. · with lock (optionally with changeable cylinder) · with lock (with locking group) · without lock or lock hole

Keys Cabinets with lockable front are always delivered with 2 keys: one flat key and one folding key.

Lock and handle Handle Optionally available with or instead of the lock. The handle is made of powder-coated diecast aluminium and is available in white or black.

LOFT one-sided: Two sliding doors on one side, preferably with the left or right sliding door in front. Suited locks for one key.

LOFT with access from both sides: One sliding door on each side. Individual locks for different keys.

3 © Bene GmbH, 08/2026

LOFT BY BENE PRODUCT DESCRIPTION

PRODUCT DESCRIPTION CHANGEABLE CYLINDER - CONVERSION FROM Z70 TO Z60 Z70 locking system - up to and including calendar week 36 Sep. 2025 The Z70 changeable cylinder covers key numbers from B51004 - B52994.

Z60 locking system - from delivery calendar week 37 Sep. 2025 The Z60 changeable cylinder covers key numbers from 26001 - 26200.

The Z60 changeable cylinder fits into all existing locks. lock

lock

Z60 changeable cylinder

Z70 changeable cylinder

Z70 folding key cap: colour slate

from delivery calendar week 37 2025 - Z60 folding key cap: colour black

Z60 flat key

Z70 flat key

CONFIGURATION OPTIONS - in furniture - as a set (one changeable cylinder, one flat key and one folding key) - service key

locking system Z70

up to and including calendar week 36 September 2025

random (no definition)

locking system Z60

from delivery calendar week 37 September 2025

random (no definition) A: B51104 according to key code

26001 - 26200

B: B51204 C: B51304 D: B51404

Repeat orders are only possible as a set (always consists of a changeable cylinder, a flat key and a folding key) no individual keys are available!

locking group E: B51504 F: B51604

The service key for the Z70 system is not compatible with the Z60 system. Each system requires its own service key!

G: B51704 H: B51804 according to key code

B51004 - B52994

4 © Bene GmbH, 08/2026

LOFT BY BENE PRODUCT DESCRIPTION

PRODUCT DESCRIPTION LOAD CAPACITY OF THE SHELVES The load capacity indicated in the table applies for all shelves. 150 kg / m2 Shelf length [cm]

57.1

77.1

max. compartment load [kg]

FRAME CHARACTERISTICS There is the possibility to configurate the frame optically different to the carcass, so it will be accentuated. Therefore exist several options:

circumferential

left side + top + bottom

top + bottom

right side + top + bottom

5 © Bene GmbH, 08/2026

LOFT BY BENE DIMENSIONS AND INNER WIDTHS

DIMENSIONS AND INNER WIDTHS GENERAL INFORMATION As a rule, the dimensions are variable, but certain recommended values for widths, depths, and heights are pre-defined. Detailed information is available in the pCon products.

CABINET WITH 2 COMPARTMENT DIVIDERS

CABINET WITH 4 COMPARTMENT DIVIDERS

Recommended values Widths: 1,000 | 1,200 mm Depth: 445 mm Height: 3 | 3.5 (1,300 mm) | 3.5 (1,430 mm) | 4 OH (file height)

Recommended values Widths: 1,600 | 1,800 mm Depth: 445 mm Height: 3 | 3.5 (1,300 mm) | 3.5 (1,430 mm) | 4 OH (file height)

Limits:

fix

fix fix

fix

445 - 600 1

1.000 - 1.300 1

1.130- 1.520 1

fix 1.130- 1.520 1

fix

445 - 600 1

1.400 - 1.800 1

fully variable

INNER WIDTHS LOFT with 25 mm adjustment legs, optional with base profile (plastic) LOFT with 37 mm adjustment legs, optional with base profile (plastic)

326

326 326

326

3.5 OH height 1,430 mm

368

364 364

424

368

324

269 369

323

154 354

329

326

158

323

326

164

358

3.5 OH height 1,300 mm

329

326

3 OH (file height) 1,130 mm

364

357

326 326

365

326 326

326

377

326

LOFT with 45 mm K2 steel profile

4 OH height 1,520 mm Dimensions in mm

6 © Bene GmbH, 08/2026

LOFT BY BENE COLOURS & MATERIALS

COLOURS & MATERIALS MATERIALS AND SURFACES The following materials and colours are available for this product: •. . . . . . . . . . available, price acc. to price list –. . . . . . . . . . not available

Colour configuration for the one-sided LOFT:

Carcass

Interior

- carcass (frame, open shelf, compartment dividers)

•

- front (sliding doors)

•

- interior (shelves + middle panel in the sliding door cabinet)

•

- rear wall

•

Product LOFT, one-sided

Front

Metal, SZ black powder-coated

Rear wall

Metal, WI white powder-coated

Interior

Veneer

Front

Melamine

Carcass

Colour configuration for LOFT with access from both sides:

LOFT, access from both sides - carcass (frame, open shelf, compartment dividers)

•

- front (sliding door, fixed front, rear wall)

•

- interior (shelves + middle panel in the sliding door cabinet)

•

Handle Colours and colour illustration included  “Colours & materials”

LOFT BY BENE COLOURS & MATERIALS

COLOURS & MATERIALS MELAMINE

MW white

MQ office white

MSW snow white

MC canvas

MP platinum

MA aluminium

MH stone grey

TM clay

MS slate

MD urban grey

MB basalt

MJG jade green

DISCONTINUATION: OCTOBER 2027

EZ oak vicenza

MEK oak kendal

MAK maple classic

MBK beech classic

NG walnut grey

MNP walnut pavia

LOFT BY BENE COLOURS & MATERIALS

COLOURS & MATERIALS VENEER

EF oak natural

EY oak sylt

EG oak grey

ER oak amaretto

EV oak vulcano

NF american walnut

NR walnut siena

NB walnut umbra

NA walnut anthracite

KD chestnut natural

KP chestnut brown

KQ chestnut grey

AK canadian maple

BJ bamboo

BG beech grey

BU beech natural

Veneers also available in matt finish.
