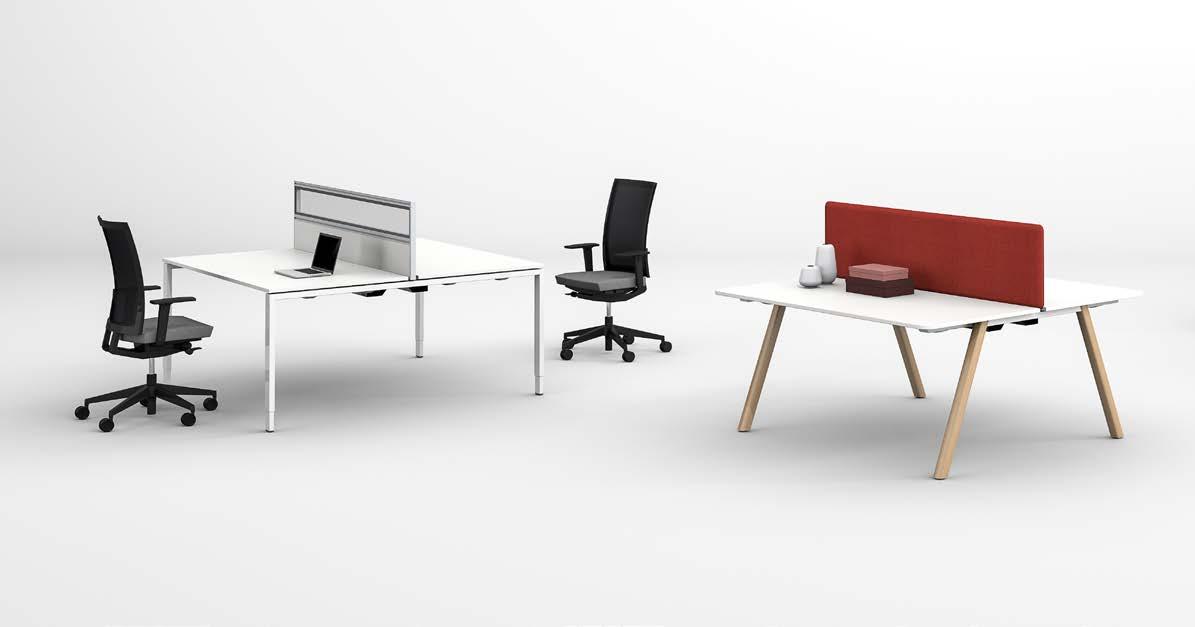

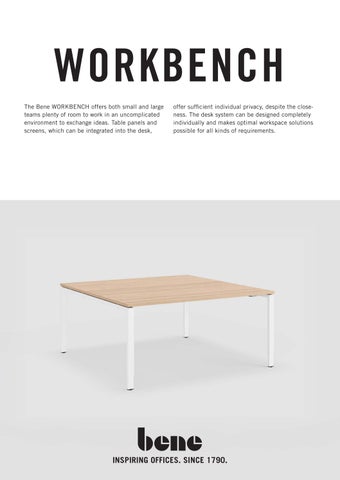

WORKBENCH The Bene WORKBENCH offers both small and large teams plenty of room to work in an uncomplicated environment to exchange ideas. Table panels and screens, which can be integrated into the desk,

offer sufficient individual privacy, despite the closeness. The desk system can be designed completely individually and makes optimal workspace solutions possible for all kinds of requirements.

INSPIRING OFFICES. SINCE 1790.

WORKBENCH PRODUCT DESCRIPTION

PRODUCT DESCRIPTION

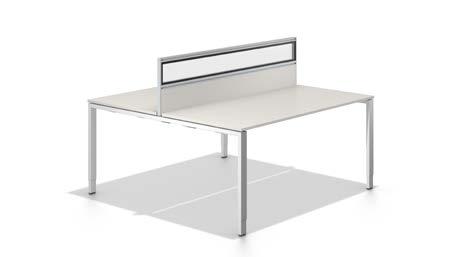

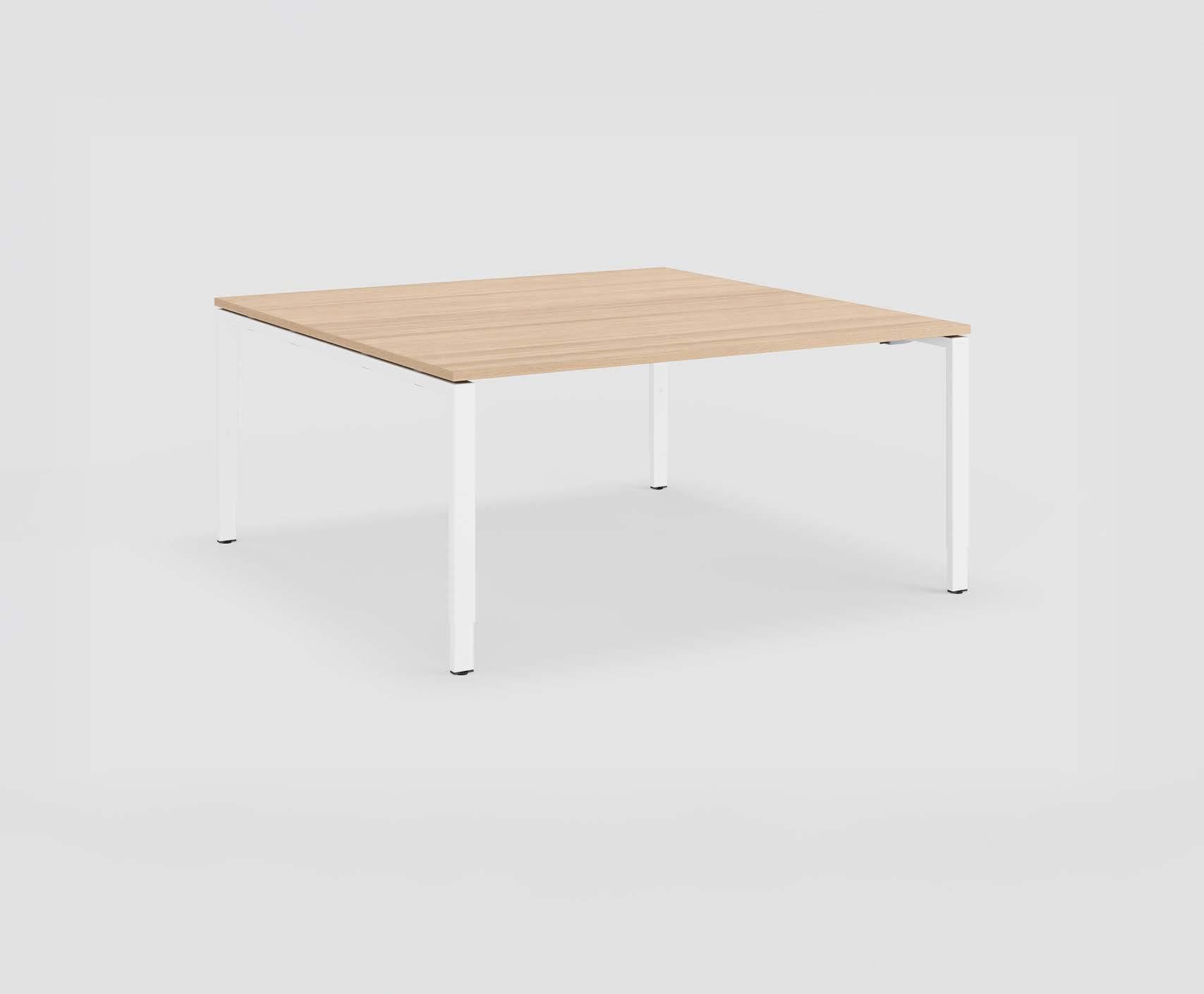

WORKBENCH BASIC

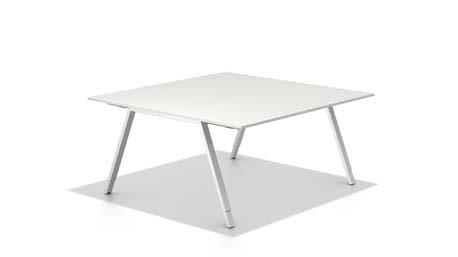

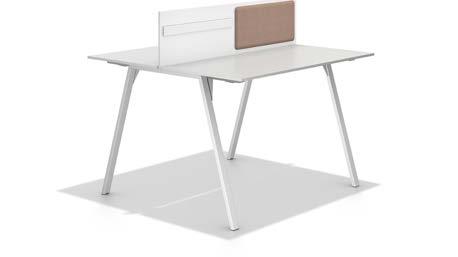

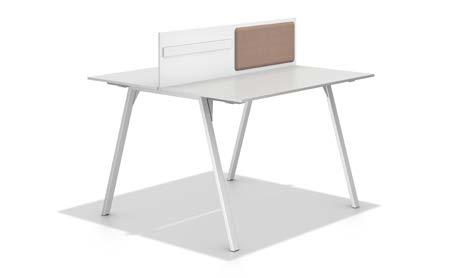

WORKBENCH DELTA BY BENE

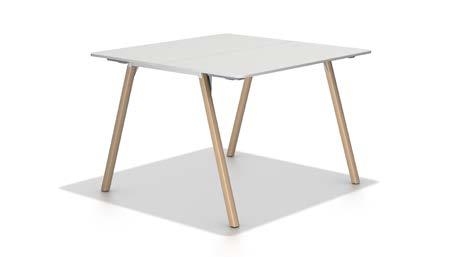

WORKBENCH DELTA BY BENE WOOD

WORKBENCH DELTA BY BENE HIGH

WORKBENCH DELTA BY BENE HIGH WOOD

2 © Bene GmbH, 08/2026

WORKBENCH PRODUCT DESCRIPTION

PRODUCT DESCRIPTION 1

Table top: Three board thickness are available: 13 mm compact top, 19 mm, or 25 mm chipboard

Edge (circumferential): Chipboard 19 mm / 25 mm: 2 mm mono-edge,

Frame: versions: Basic rectangular, Delta by Bene, Delta by Bene High, Delta by Bene wood, Delta by Bene High wood.

1 2

7 4

5 10 11 2

1 8

9 3

1 2 3 4 5 6 7 8 9 10 11

Table top Frame Slab-end Foldable cable tray T Handle and retainer for sliding top Universal adapter Plate connector Diecast- clamps Table top clip Plug box or cable box Cable outlet Information on additional options such as cable chain and cable collector  product data sheet „cable & media management“

3 © Bene GmbH, 08/2026

WORKBENCH OVERVIEW AND DIMENSIONS

OVERVIEW AND DIMENSIONS DESKTOP SHAPE BASIC DESK Rectangle RE

DEFINITION OF WORKBENCH SIDES / TOP SHAPE DIRECTION Rectangle RE with Soft Edge 3

user side 2 (N)

800 - 2.400

N in gap (S)

800 - 2.400

1.400 1.600

left side (L)

1.600

desk top 2 (P2) right side (R) desk top 1 (P1)

user side 1 (N)

DESK TOP SHAPES COMMUNICATION SEGMENT 2 Lateral at workbench rectangular ME

Lateral at workbench rounded MR 1.400 1.600

1.400 1.600 400

800

400

800

FURTHER INSTALLATION DESK 2 Rectangle RE 800 - 2.400

1.400 1 1.600

only for Basic rectangular only for rectangle RE desk 3 only for Delta frame 1 2

Dimensions in mm

4 © Bene GmbH, 08/2026

WORKBENCH FRAME VERSIONS

FRAME VERSIONS 740

740

650

200

850 200

740

1.070

850

BASIC RECTANGULAR 1 · Rectangular pipe 60 x 30 mm, steel · White, black or aluminium coloured · Levelling: +10 mm by means of adjustment leg · Range of height adjustment: fixed or in 20 mm grid with tool

DELTA BY BENE · Rectangular pipe 60 x 30 mm, steel · White, black or aluminium coloured · Levelling: +10 mm by means of adjustment leg · Range of height adjustment: fixed or in 20 mm grid with tool

DELTA BY BENE WOOD · Wooden tube 57 x 53,5 mm, to steel pipe · Metal parts only WI white · Wood in natural oak (HC) or graphite oak solid (HD) · Levelling: +10 mm by means of adjustment leg · Range of height adjustment: fixed

DELTA BY BENE HIGH · Rectangular pipe 60 x 30 mm, steel · White, black or aluminium coloured · Levelling: +10 mm by means of adjustment leg · Range of height adjustment: fixed

DELTA BY BENE HIGH WOOD · Wooden tube 57 x 53,5 mm, to steel pipe · Metal parts only WI white · Wood in natural oak (HC) or graphite oak solid (HD) · Levelling: +10 mm by means of adjustment leg · Range of height adjustment: fixed

not possible for tables rectangle RE with Soft Edge

5 © Bene GmbH, 08/2026

WORKBENCH OPTIONS

OPTIONS CABLE OUTLET

Cable outlet ø 80 mm

Quick and easy to pass cabling through the table top. The outlet cover can be slip to one side so that the cable can pass though it. · 1-2 units per table top possible · cable outlet is inversely arranged at the second desk top · available in SZ black coloured, AL aluminium coloured or WI white coloured Possible positions RE

PLUG BOX The plug box is milled flush into the table top and can be equipped with a connection plug board. Quick and easy access to the plug board is enabled by opening the aluminium flap. Cannot be combined with sliding top and cable flap.

Plug box 315 x 215 mm

· 1 to maximum 2 plug boxes per desk top are possible · position per desktop shape specified as fixed · position in the centre up to desk width of 1.400 mm · position left or right from desk width of 1.600 mm upwards Plug box and integral connection plug boards  “Cable and media management” price list Possible positions RE

CABLE BOX The cable box enables quick and easy access to the cable tray. The plastic frame and the metal flap are available in white, black or aluminum.

Cable Box 327 x 152 mm

· 1 to maximum 2 pieces per desk top are possible · position per desktop shape specified as fixed · position in the centre up to desk width of 1.400 mm · position left or right from desk width of 1.600 mm upwards Cannot be combined with sliding top and cable flap. Possible positions RE

6 © Bene GmbH, 08/2026

WORKBENCH OPTIONS

OPTIONS BFRIENDS POWER MODULE The bFRIENDS Power Module is available in three sizes - S, M and L. It can be fitted to all tables wherever a cable outlet is possible. An existing cable outlet hole (diameter 80 mm) can also be replaced by a Power Module. Installation in combination with a sliding table top or cable flap is not possible. More information on the possible colours and colour configurations  Product data sheet „bFRIENDS“

bFRIENDS Power Module parts/structure

bFRIENDS Power Module types Type S with power socket or USB charging socket (A+C) charging port USB-A 18W / USB-C 22W

Type M with power socket or USB charging socket (A+C) charging port USB-A 18W / USB-C 22W

Type L with power socket and/or USB charging socket (A+C) charging port USB-A 18W / USB-C 22W (possible are: 2 x power socket | 2 x USB | 1 x power socket + 1 x USB)

USB-Charger (A+C) or power socket

Sleeve

Insert

Base

Fastener

Possible positions of the bFRIENDS Power Module Fixed positions. 1 or 2 cable outlet holes per panel possible: left / right / left and right Not possible in combination with sliding top and cable flap.

RE, NG

7 © Bene GmbH, 08/2026

WORKBENCH OPTIONS

OPTIONS CABLE FLAP

Cable flap depth 180 mm

Cable flaps allow for easy, ergonomically correct and quick access to cable management. Only makes sense in connection with a cable tray. Combination with sliding top is not possible. If a shortened sliding top is selected, the depth of the cable flap is reduced. (depending on selected T-Panel) · version possible as table top or variation · the cable flap is divided in the centre from a desk width of 1.401 mm upwards · installation on universal adapters included Possible positions RE

FOLDABLE CABLE TRAY T

Foldable cable tray T for fix workbench top

The cable tray is aimed at providing virtually invisible cable management. Vertical cable routing can be done by means of cable chains which can be hooked in along the entire length of the cable tray. · foldable cable tray only possible up to a desk width of 999 mm · colour: SZ black Cable chains  pricelist cable and media management. Possible positions RE

SLIDING TOP The sliding top has a sliding mechanism with a latching function for locking. It can be easily slid to the front by loosening the catch and thus allowing cable management access. Only in combination with a cable tray. Combination with cable flap is not possible. Possible positions

Sliding length 190 mm

8 © Bene GmbH, 08/2026

WORKBENCH OPTIONS

OPTIONS PREPARATION FOR CONNECTION OF T-PANEL (UNIVERSAL ADAPTER) Every T-Panel element will be fixed on universal adapters. This enables different elements to be connected. T-Panel cannot be connected using table top clamp. · 2 units up to a desk width of 1.400 mm · 3 units from a desk width of 1.401 mm upwards Universal adapter

Gap dimensions for cable feedthrough T-Panel Multi

T-Panel Curve

T-Panel Pure

3 - 4 mm

2 mm / 12 mm

for cable flap: 2 mm for fixed tabletop / sliding top: 12 mm

for cable flap: 3 - 4 mm for fixed tabletop / sliding top: 3 - 4 mm

T-Panel Acoustic

T-Panel Basic

1mm / 11 mm

for cable flap: 1 mm for fixed tabletop / sliding top: 11 mm

for cable flap: 2 mm for fixed tabletop / sliding top: 11 mm

2,5 mm / 11,5 mm

for cable flap: 2,5 mm for fixed tabletop / sliding top: 11,5 mm

CONNECTION OF SUPPORTING PEDESTAL · pedestals in the heights 538 mm (9 HE) and 588 mm (10 HE) (means of support mounts) · only in connection with cable flap or sliding top reasonable · width of cable tray and desk frame stay like at the standard slab-end · due to tilting danger no excess length of desk top is accepted · modesty panels only on trailing edge, desk depth must be bigger than pedestal depth Pedestal height 538 mm: height adjustment of desk from 680 mm Pedestal height 588 mm: height adjustment of desk from 720 mm

Possible positions RE

9 © Bene GmbH, 08/2026

WORKBENCH OPTIONS

OPTIONS FIXED PEDESTAL CONNECTION · fixed pedestal with height 740 mm (no height adjustment of desk) · desk frame width always standard, depending on type of slab-end · later deconstruction to frame only limited possible · no desk excess length of desk top on connection side possible Possible positions RE

SIDEBOARD CONNECTION · sideboard is used as a frame replacement · maximum 2 sideboards per desk possible (connection only on one side) · connection is only possible as from desk width 1.600 mm · inserting angle always 90 ° Possible positions RE

COMMUNICATION SEGMENT Assembly lateral at Workbench · material: Chipboard 19 / 25 mm or compact board 13 mm The gap between the desk tops increases by 2 mm, if a communication segment is chosen. The increase ensures the availability of certain options.

EXCESS LENGTH OF DESK TOP Depending on the shape of the table top, the table top can be enlarged in different directions by the specified dimensions. RE user side

user side

left

right

left

user side

left: right: user side:

0 - max. 200 mm 0 - max. 200 mm 0 - max. 100 mm

right

left: right: user side:

0 - max. 200 mm 0 - max. 200 mm 0 - max. 100 mm

WORKBENCH COLOURS AND MATERIALS

COLOURS AND MATERIALS MATERIALS AND SURFACES The following materials and colours are available for this product. • . . . . . . . . . . available - . . . . . . . . . . not available

Table top Melamine Veneer

Table top, Melamin • •

Frames

WI white

AL aluminium

SZ black

AP polished aluminium

HC oak, natural

HD oak, graphite

Steel pipe

•

Delta by Bene

Steel pipe

•

Delta by Bene wood

Metal parts

•

Wooden feet

•

AL anodised aluminium • -

SZ black, powder-coated • •

Basic rectangular

Options Cable outlet Plug box Cable box Foldable cable tray T

WI white, plastic • -

AL aluminium, plastic • -

SZ black, plastic • -

Table top, Compact • •

WI white, powder-coated • -

AL aluminium, powder-coated • -

Included colour representations, restrictions on colour and panel combinations  see following pages or product data sheet „colours & materials“

WORKBENCH COLOURS & MATERIALS

COLOURS & MATERIALS MELAMINE

MW white

MQ office white

MSW snow white 1

MC canvas

MP platinum

MA aluminium

MH stone grey 1

TM clay 1

MS slate

MD urban grey 1

MB basalt

MJG jade green 1

DISCONTINUATION: OCTOBER 2027

EZ oak vicenza 1

MEK oak kendal 1

MAK maple classic 1

MBK beech classic 1

NG walnut grey 1

MNP walnut pavia 1

not available for compact top

WORKBENCH COLOURS & MATERIALS

COLOURS & MATERIALS VENEER

EF oak natural 1

EY oak sylt 1

EG oak grey 1

ER oak amaretto 1

EV oak vulcano 1

NF american walnut 1

NR walnut siena 1

NB walnut umbra 1

NA walnut anthracite 1

KD chestnut natural 1

KP chestnut brown 1

KQ chestnut grey 1

AK canadian maple 1

BJ bamboo

BG beech grey 1

Veneers also available in matt finish.

FENIX™

white

black

WORKBENCH COLOURS & MATERIALS

COLOURS & MATERIALS METAL SURFACE POWDER-COATED

white

aluminium coloured

black

ALUMINIUM ANODISED

AL aluminium
