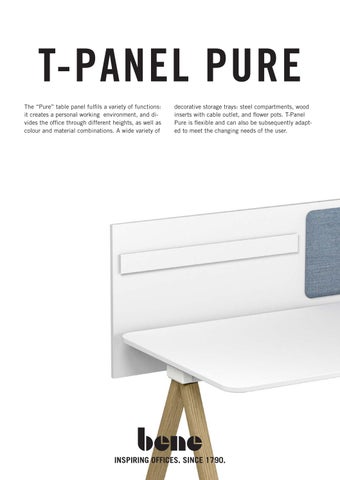

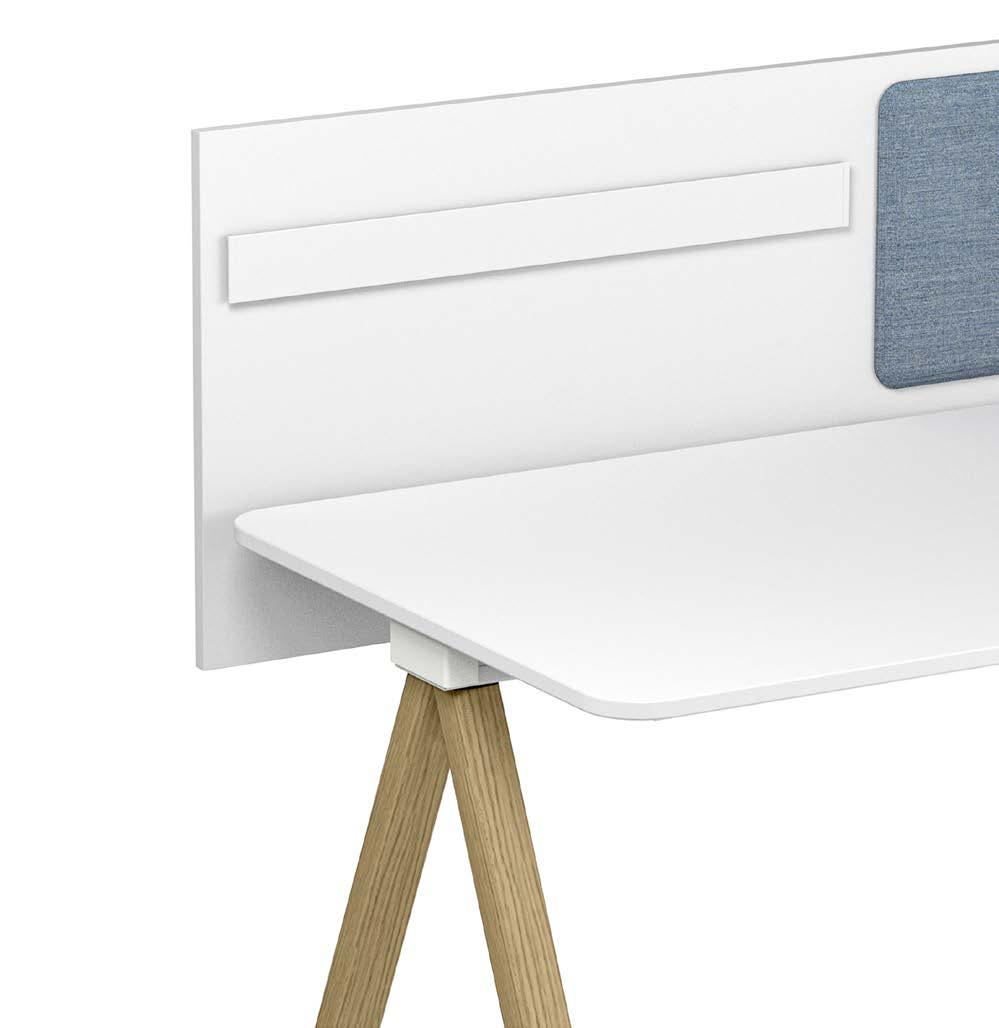

T-PANEL PURE The “Pure” table panel fulfils a variety of functions: it creates a personal working environment, and divides the office through different heights, as well as colour and material combinations. A wide variety of

decorative storage trays: steel compartments, wood inserts with cable outlet, and flower pots. T-Panel Pure is flexible and can also be subsequently adapted to meet the changing needs of the user.

INSPIRING OFFICES. SINCE 1790.

T-PANEL PURE PRODUCT DESCRIPTION

PRODUCT DESCRIPTION 1

T-Panel Pure: Can be used for LEVEL and LEVEL PURE family, Consult, Workstation and Workbench. The base consists of a 19 mm melamine top. Surface: melamine or veneer

T-Panel Pure Extend: Can be used for LEVEL and LEVEL PURE family, Consult or Workstation. The wall comprises of a 19 mm vertical surface. Surface: available in melamine or veneer with adjustable legs 2

POTENTIAL CONNECTION OPTIONS / CONNECTION POSITIONS OF THE PANEL TO THE TABLE SIDES

behind desk top with 2 mm gap

behind desk top with 20 mm gap

in the gap between desk tops

behind shortened desk top

centrally on connecting bar

V, VL, VR, L, R, VS

V, VL, VR, VS

V, L, R, VS

Workbench

LEVEL and LEVEL PURE family

Table top positioning Workstation Consult (T-Panel Pure Extend)

T-Panel Extend not in combination with Light cantilever leg.

Definition of table top sides / desk top shape alignment The desktop shapes illustrated are shown in a left-sided version. Right-handed versions are mirror-inverted to these. Visitor side (V) Visitor's laterally side (S) laterally User side (U) (VS) front (F)

Visitor's side laterally (VS) front (F)

Visitor side (V) laterally (S) User side (U)

left side (L)

Visitor side (V)

User side (U)

right side (R)

Visitor's side left (VL)

Visitor's side right (VR)

left side (L) User side (U)

right side (R)

POTENTIAL ATTACHMENT SOLUTIONS TO ADJACENT ELEMENTS (WORKSTATION ONLY)

The panel with the relevant nominal table width, nominal table depth, side length, or specified width (with leg lengths) must be used in all cases for pricing purposes.

Nominal length 2 3

Nominal length

The following illustrations explain the connections of the individual panels to corners as well as their use with different table top shapes The possible installation positions are also highlighted.

0° - 180°

2 3

2 © Bene GmbH, 08/2026

T-PANEL PURE OVERVIEW AND DIMENSIONS

OVERVIEW AND DIMENSIONS T-PANEL PURE Behind shortened desk top Extension position: visitor side Height 290 420 615

800 - 2.400 1.005

Lift Desk Twin, Twin Table centred on connecting bar Height 475

1.135

605

With 2 mm or 20 mm gap Extension position: visitor side

545 740

1.005 1.135

1.330

800

Height 415

1.200 / 1.400 / 1.600 /1.800

800 - 2.400 1.005 1.135

1.330

With 2 mm or 20 mm gap Extension position: left / right Height 415 545 740

600 / 800 / 900 /1.000

In the gap between desk tops Extension position: visitor side

1.005

Height 290

1.135

420

1.330

615

800 - 2.400 1.005 1.135 1.330

T-PANEL PURE EXTEND With 2 mm or 20 mm gap Extension position: visitor side Height 1.005

800 - 2.400

With 2 mm or 20 mm gap Extension position: left / right Height 1.005

1.135

1.330

600 / 800 / 900 /1.000

Dimensions in mm

3 © Bene GmbH, 08/2026

T-PANEL PURE OVERVIEW AND DIMENSIONS - LEVEL / LEVEL PURE

OVERVIEW AND DIMENSIONS - LEVEL / LEVEL PURE T-PANEL PURE With 2 mm or 20 mm gap Extension position: visitor side Height 437 567 762

800 - 2.000 1.005 1.135

T-PANEL PURE EXTEND LEVEL TWIN, LEVEL PURE TWIN centred on connecting bar Height 475 605

1.200 / 1.400 / 1.600 /1.800 1.005

With 2 mm or 20 mm gap Extension position: visitor side Height 1.005

800 - 2.000

1.135

1.330

800

1.330

Dimensions in mm

4 © Bene GmbH, 08/2026

T-PANEL PURE OPTIONS

OPTIONS ATTACHMENT SCREEN GLASS Only possible if an organisation profile is present! Height: 203 mm, widths: from 400 – 2.000 mm possible Surface: perspex, colour: PW white satin finish or PC smoke clear Colour adapter: WI white

PANEL OPTIONS DESK SIDE / REAR SIDE

Panel without options Depth 19 mm Surfaces: melamine or veneer

Organisation profile & pin board Covers are available in the fabric groups P0-P5, per Bene seating furniture collection. Combination only possible with the “old” Panel accessories.

Pin board Covers are available in the fabric groups P0-P5, per Bene seating furniture collection. The pin board is divided from a panel width of 2.000 mm upwards.

Pin board & organisation rail long Covers are available in the fabric groups P0-P5, per Bene seating furniture collection. Combination only possible with the “old” Panel accessories.

partial pin board & organisation rail short Covers are available in the fabric groups P0-P5, per Bene seating furniture collection. The position of the pin board and the organisation rail can be changed.

Organisation profile Colour: WI white powder-coated, SZ black powder-coated or AL anodised aluminium

Organisation rail long Colour: WI white powder-coated, SZ black powder-coated or AL anodised aluminium T-Panels in combination with Accessories, check the configuration of the T-Panels and the hook-in height. © Bene GmbH, 08/2026

T-PANEL PURE COLOURS AND MATERIALS

COLOURS AND MATERIALS MATERIALS AND SURFACES The following materials and colours are available for this product. • . . . . . . . . . available, price acc. to price list - . . . . . . . . . . not available

Surface Melamine Veneer Fabric (P0-P4) PW white perspex satin finish or PC smoke clear

Panel • • • -

Attachment screen glass •

6 © Bene GmbH, 08/2026

T-PANEL PURE COLOURS AND MATERIALS

COLOURS & MATERIALS MELAMINE

MW white

MQ office white

MSW snow white

MC canvas

MP platinum

MA aluminium

MH stone grey

TM clay

MS slate

MD urban grey

MB basalt

MJG jade green

DISCONTINUATION: OCTOBER 2027

EZ oak vicenza

MEK oak kendal

MAK maple classic

MBK beech classic

NG walnut grey

MNP walnut pavia

T-PANEL PURE COLOURS AND MATERIALS

COLOURS & MATERIALS VENEER

EF oak natural 1

EY oak sylt 1

EG oak grey 1

ER oak amaretto 1

EV oak vulcano 1

NF american walnut 1

NR walnut siena 1

NB walnut umbra 1

NA walnut anthracite 1

KD chestnut natural 1

KP chestnut brown 1

KQ chestnut grey 1

AK canadian maple 1

BJ bamboo

BG beech grey 1

Veneers also available in matt finish.

T-PANEL PURE COLOURS AND MATERIALS

COLOURS & MATERIALS

Various material collections are available as cover materials:Xtreme Plus, Urban Plus, Inn, Era, Step, Step Melange, Soft Next, Remix, Mainline Flax, Focus, Bonsai Reboot, Panama, Fiord, Steelcut, Assam, Focus Melange, Artisan, The Cool, Steelcut Trio, Hallingdal, Elle, Coda. More information about the specific fabric collections is available at www.bene.com. Our outdoor fabrics can also be used on products for indoor use. However, this does not mean that the indoor products are suitable for outdoor use.

Sagging / warping Wood and wood-based materials change their dimensions under the influence of the climatic conditions: they expand. This means that, over a length of 1 m, it is relatively common for a board to sag up to as much as 5 mm. Due to the nature of the material wood, these slight deformations are within the tolerance and do not constitute grounds for complaint.
