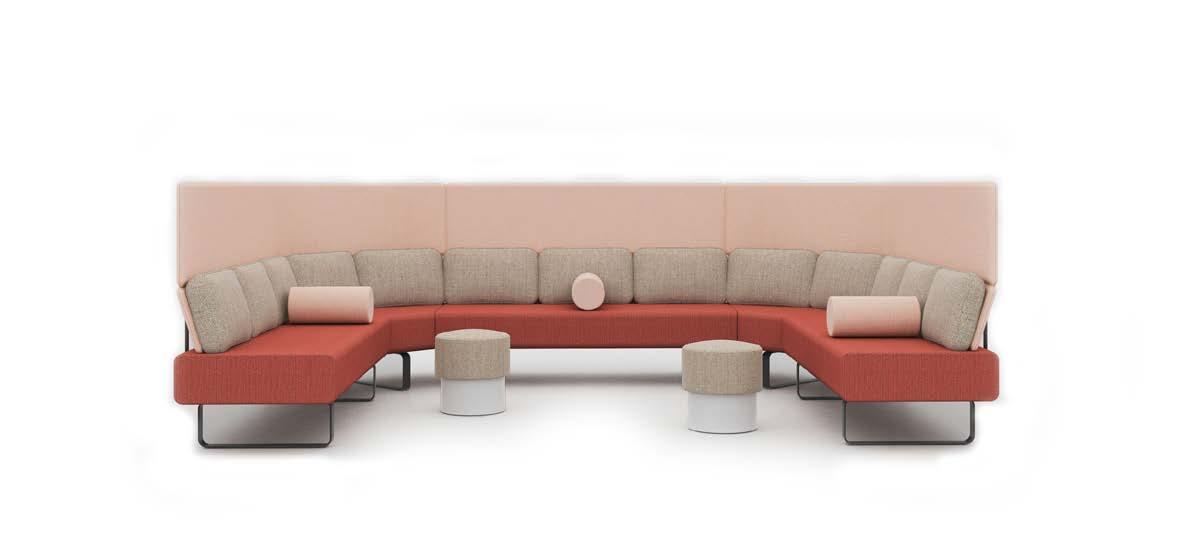

SETTLE SPACE FOR ENCOUNTER Settle down, get comfy, and engage with colleagues. With its soft shapes and high quality materials, Bene’s upholstered furniture range brings a homely feel to the office. SETTLE consists of individual furniture elements as well as optional modular components that can be combined to create a wide variety of different settings. An optional high backrest can be added to provide additional screening and to incor-

porate a work ledge to create a dynamic room setup. Integrated plug boards enable access to the network and power, allowing for media-supported collaboration. SETTLE can be used in a variety of zones and areas in modern office layouts and works perfectly in combination with other existing Bene product ranges, such as NOOXS, TIMBA, and PARCS.

Design: Pearson Lloyd

INSPIRING OFFICES. SINCE 1790.

SETTLE PRODUCT DESCRIPTION

PRODUCT DESCRIPTION

Back panel:The substructure is made of plywood.

Back Panel Connection Plate

Cushions: For backrest 600 x 360 mm or 450 x 360 mm (with side armrest).

Frame: Powder-coated steel,dark grey with plastic glides

Bench: widths 1.200, 1.500 or 1.800 mm, depth 720 mm, seat depth 495 mm.

2 3

Covers are available in the fabric groups P0 - P5, imitation leather P2 & leather groups L1, L5 in accordance with the Bene seating furniture collection. Colour configuration options: single-coloured, different colour for recessed elements or different colour for recessed elements and back panel. All upholstered elements contain dimensionally stable polyurethane foam padding. Optionally in flame-resistant version according to BS 5852 Part 2, Ignition Source 5 (Crib 5). Sofa, SETTLE 45° and 90° can only be used as a connection element between 2 linear elements and not as an end piece.

OVERVIEW & DIMENSIONS SOFA, SETTLE, 2-SEATER WITHOUT BACKREST

SOFA, SETTLE, 2-SEATER LOW

SOFA, SETTLE, 2-SEATER HIGH 1.200

1.200 1.223

1.200 814

459 * Weight: ~35,5 kg

~47 kg

~61,5 kg

SOFA, SETTLE, 3-SEATER WITHOUT BACKREST

SOFA, SETTLE, 3-SEATER LOW

SOFA, SETTLE, 3-SEATER HIGH 1.800

1.800 1.223

1.800 814

459

* Weight: ~45 kg

~58,5 kg

~78,5 kg

SOFA, SETTLE, 45° LOW

SOFA, SETTLE, 45° HIGH

SOFA, SETTLE, 90° LOW

SOFA, SETTLE, 90° HIGH

646

948

646

948 1.223

814

1.223

814 * Weight: ~26 kg

~36 kg

~40,5 kg

SOFA, SETTLE, 2-SEATER INDENTED BACKREST

SOFA, SETTLE, 3-SEATER SIDE ARMRESTS

1.500

~58,5 kg

1.800

814

Dimensions in mm * Weight: ~49,5 kg

~63 kg

* Weight without packing.

2 © Bene GmbH, 08/2026

SETTLE OPTIONS

OPTIONS WORK LEDGE Rectangular chipboard surface (19 mm) with skid frame. Ledge surface available in widths of 900 (2-seater) or 1.500 mm (3-seater). Table top depth: 300 mm and table top height: 1.065 mm. Ledge available in melamine or veneer finish. Frame: Powder-coated steel, dark grey with plastic glides Weight: ~14,5 - 17 kg depending on size (weight without packing)

PILLOW ROLL Measurements: Width: 200 mm, depth: 425 mm and height: 200 mm. Covers are available in the fabric groups P0 - P5, imitation leather P2 & leather groups L1, L5 in accordance with the Bene seating furniture collection. Weight: ~0,36 kg (weight without packing)

POWER BOX Available with either 4x Power sockets or 3x power sockets with 2x RJ45-CAT6. Starter Cable: 5.000 mm

3 © Bene GmbH, 08/2026

SETTLE COLOURS & MATERIALS

COLOURS & MATERIALS The following materials and colours are available for this product. •. . . . . . . . . . . available -. . . . . . . . . . . not available Surface Melamine Veneer Fabric (P0-P5) Imitation leather (P2) Leather (L1, L5)

Work Ledge • • -

Sofa elements • • •

Pillow roll • • •

Included colour representations, restrictions on colour and panel combinations as well as permitted collections  see following pages or product data sheet „colours & materials“

4 © Bene GmbH, 08/2026

SETTLE COLOURS & MATERIALS

COLOURS & MATERIALS FABRIC, IMITATION LEATHER AND LEATHER

Various collections are available for the cover: Xtreme Plus, Urban Plus, Era, Step, Step Melange, Soft Next, Remix, Mainline Flax, Focus, Bonsai Reboot, Chance, Fiord, Steelcut, Fox, Assam, Focus Melange, The Cool, Steelcut Trio, Hallingdal, Opera, Elle, Coda, Ultra, Spectrum. More information about the specific fabric and leather collections is available at www.bene.com. Our outdoor fabrics can also be used on products for indoor use. However, this does not mean that the indoor products are suitable for outdoor use.

5 © Bene GmbH, 08/2026

SETTLE COLOURS & MATERIALS

COLOURS & MATERIALS DESK EXTENSION MELAMINE

MW white

MQ office white

MSW snow white

MC canvas

MP platinum

MA aluminium

MH stone grey

TM clay

MS slate

MD urban grey

MB basalt

MJG jade green

DISCONTINUATION: OCTOBER 2027

EZ oak vicenza

MEK oak kendal

MAK maple classic

MBK beech classic

NG walnut grey

MNP walnut pavia

SETTLE COLOURS & MATERIALS

COLOURS & MATERIALS VENEER

EF oak natural 1

EY oak sylt 1

EG oak grey 1

ER oak amaretto 1

EV oak vulcano 1

NF american walnut 1

NR walnut siena 1

NB walnut umbra 1

NA walnut anthracite 1

KD chestnut natural 1

KP chestnut brown 1

KQ chestnut grey 1

AK canadian maple 1

BJ bamboo 1

BG beech grey 1

BU beech natural 1

Veneers also available in matt finish.

SETTLE THE BENE RESPONSIBILITY

THE BENE RESPONSIBILITY Bene plays a pioneering role in the field of sustainability. This spans all company divisions – from product development, procurement, production, and logistics to product recycling. From the first sketch through to series production, ecological requirements are always an important factor in the product development process. It includes selecting environmentally compatible materials, such as certified timbers from sustainably managed forests, using recycled materials and increasing the use of renewable raw materials. Other important requirements for a sustainable product design are labelling the materials, their ability to be repaired, and a long service life for the components used, with the aim to integrate them into a second product life cycle. To guarantee a high recyclability standard for our products at the end of their service life, we avoid composites as much as possible and develop furniture that allows for disassembly by material type. Bene products are sourced and made in Europe. 99.9% of all deliveries reach us from a European country. Around 94% of all raw material supplies come from Austria and Germany. Around 93% of the raw materials comes from suppliers within 500 kilometres of our production site. SUSTAINABLE RAW-MATERIALS At Bene, the following materials are used as a matter of course: · chipboards low in formaldehyde · glues low in formaldehyde · water-based varnish systems · recyclable materials · materials with a high recycling share · PVC-free synthetics

Bene guarantees products free from: · CMR substances · halogenated solvents in synthetics · chlorinated hydrocarbons · heavy metal pigments · materials with azo pigments · Coatings with biocidal effects (such as wood preservatives, pesticides).

CONTRIBUTION TO BUILDING CERTIFICATIONS In the context of ecological building certification, design systems such as furniture and dividing walls help to achieve a good result and a higher score. Bene's products make a contribution towards the LEED, WELL Building Standard, DGNB, BREEAM, etc. certifications. Criteria include, for example, environmental product declarations, indoor air quality, acoustics and convertibility.

SETTLE Example configuration · SETTLE 3-seater · With side armrest · 1.800 x 814 mm · Total weight 65,94 kg

Environmental key figures · 99,5 % sortable by type · 91,6 % recyclable · 56,9 % of contents are renewable raw materials · 10,8 % recycled production materials

Materials Fabrics 9.38 kg / 4.26 % Plastic 15.95 kg / 7.25 %

Steel 61.38 kg / 27.89 % Wood 133.34 kg / 60.60 %

For each standard product configuration, Environmental Product Declarations (Lifecycle Data Sheets / LCDS) can be provided. These are prepared in accordance with EN ISO 14040, EN ISO 14044 and the applicable Product Category Rules (PCR) of the International EPD® System for UN CPC 3811, 3812 and 3814. The LCDS include the Product Carbon Footprint (PCF) covering the entire life cycle (cradle-to-cradle). Environmental information from Bene: https://bene.com/en/bene/sustainability
