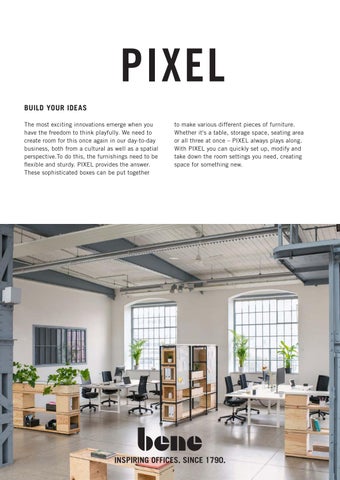

PIXEL BUILD YOUR IDEAS The most exciting innovations emerge when you have the freedom to think playfully. We need to create room for this once again in our day-to-day business, both from a cultural as well as a spatial perspective.To do this, the furnishings need to be flexible and sturdy. PIXEL provides the answer. These sophisticated boxes can be put together

to make various different pieces of furniture. Whether it's a table, storage space, seating area or all three at once – PIXEL always plays along. With PIXEL you can quickly set up, modify and take down the room settings you need, creating space for something new.

INSPIRING OFFICES. SINCE 1790.

PIXEL PRODUCT DESCRIPTION

PRODUCT DESCRIPTION PIXEL BOX CLOSED Basic module.

PIXEL BOX WITH OPENINGS ON THE SIDE Optional.

PIXEL BOX WITH LARGE OPENING ON THE SIDE Optional.

· 12 mm pine plywood, untreated or lacquered · adjustment leg: synthetic material, black · holder: steel (foldable), black

· dimension of the cut-out: height 280 mm, width 130 mm

· dimension of the cut-out: height 280 mm, width 260 mm

PIXEL POD 1/2 PIXEL Box.

PIXEL TRAY Connecting element and storage.

PIXEL TOP 19 MM + 38 MM Closes the PIXEL Box.

· 12 mm pine plywood, untreated or lacquered · adjustment leg: synthetic material, black · holder: steel (foldable), black

· 12 mm pine plywood, untreated or lacquered · adjustment leg: synthetic material, black · closes the box

· melamine chipboard 19 mm or lightweight honeycomb panel with melamine surface 38 mm (optionally with stacking connector) · with mounted connectors

PIXEL WHEEL TRAY L / M Baseplate on castors.

PIXEL TRAY 144 | 180 Multi-function desktop.

PIXEL TOP 144 | 180 Multi-function desktop.

· 12 mm pine plywood, untreated or lacquered · 4 swivel castors with clamps · maximum load: 200 kg

· 12 mm pine plywood, untreated or lacquered · adjustment leg: synthetic material, black · joins 4 / 5 boxes together · horizontal connecting or end element · optionally with attaching hook

· lightweight honeycomb panel with melamine surface 38 mm · colours & materials: melamine, MW white · joins 4 / 5 boxes together · horizontal end piece · optionally with attaching hook and stacking connector

PIXEL PAD Seat surface.

PIXEL SOFT PAD Seat pad.

· 20 mm cellular rubber padding in black · in flame-retardant version

Two foam options are available: · core made of foam padding in flame-resistant version according to BS 5852 Part 2, Ignition Source 5 (Crib 5) or natural latex 85 kg/m³ · fabric or imitation leather cover, P0-P5 according to the Bene seating furniture collection · the bottom side always made of black corovin fabric · set of up to 3 pieces (in the same design)

2 © Bene GmbH, 10/2026

PIXEL PRODUCT DESCRIPTION

PRODUCT DESCRIPTION PIXEL RACK M Mobile support frame.

PIXEL RACK L Mobile support frame.

· available in 4 heights · offers space for 2 boxes per level · height adjustment possible via rail grid · steel, powder-coated, black · 4 swivel castors with clamps · maximum load: 105 kg

· available in 4 heights · offers space for 4 boxes per level · height adjustment possible via rail grid · steel, powder-coated, black · 4 swivel castors with clamps · maximum load: 200 kg

PIXEL RACK MEDIA Perfect support for interactive work. · steel, powder-coated, black · 8 swivel castors with clamps · maximum load: 40 kg · wall-mounted bracket “CHIEF RMF3 & CHIEF RMT3“ · a screen compatible with the wall-mounted bracket (optimised for “NEC MultiSync ME502, ME552, M651“) · optimised for screens from 40 – 65 inch · for more information  see price list or product data sheet “Media Hardware” 2 x PIXEL TRAY 180 or PIXEL Top 180 as well as wall bracket and screen must be ordered separately.

PIXEL RACK HANDLE Rack handle for PIXEL Rack M. · steel, powder-coated, black · can be retro-fitted

3 © Bene GmbH, 10/2026

PIXEL PRODUCT DESCRIPTION

PRODUCT DESCRIPTION PIXEL PLANT POT The trough allows for easy planting for PIXEL Box or PIXEL Pod. · Material made of 100 % PCR polystyrene (post consumer recycling material), always in black, recyclable and reusable after its life cycle.

PIXEL PEN TRAY

PIXEL TOOL TRAY

PIXEL ORGANISATION INLAY

· steel, powder-coated, black · hooks on to the side of PIXEL Box or PIXEL Pod

· 12 mm pine plywood, untreated · suitable for PIXEL Box and PIXEL Pod · adjustable organisation grid

PIXEL WHITEBOARD HOLDER

PIXEL WHITEBOARD

· steel, powder-coated, black · suitable for PIXEL Rack and PIXEL Box

· whiteboard laminate on plywood base plate · must be ordered with PIXEL Whiteboard Holder · vertical or horizontal alignment

4 © Bene GmbH, 10/2026

PIXEL FUNCTIONAL PRINCIPLE

FUNCTIONAL PRINCIPLE ROW CONNECTION

STACKING CONNECTION

Joint 6 mm

OPTIONS ATTACHING HOOK

STACKING CONNECTOR

For PIXEL Top 180 and PIXEL Tray 180. Hinged attaching hook for securing PIXEL Top 180 and PIXEL Tray 180 on PIXEL Tower. Can be added later.

For PIXEL Top 38 mm, 144 or 180. Allows stacking PIXEL elements.

5 © Bene GmbH, 10/2026

PIXEL HEIGHT ADJUSTMENT

HEIGHT ADJUSTMENT height of standing table: 1.160

height of sit-down table: 790

366 183

Joint 6 mm

183

381 198

198

6 © Bene GmbH, 10/2026

PIXEL OVERVIEW AND DIMENSIONS

OVERVIEW AND DIMENSIONS PIXEL BOX CLOSED

PIXEL BOX WITH OPENINGS ON THE SIDE

PIXEL BOX WITH LARGE OPENING ON THE SIDE

W: 360 D: 360 H: 381

PIXEL POD

PIXEL TRAY

W: 360 D: 360 H: 198

PIXEL TOP 19 MM + 38 MM W: 360 D: 360

W: 360 D: 360 H: 60,7

H: 40 H: 59

PIXEL WHEEL TRAY L

PIXEL TRAY 180

W: 721 D: 721 H: 198

PIXEL WHEEL TRAY M

PIXEL TOP 180

W: 1.804 D: 360 H: 59

W: 1.804 D: 360 H: 61

PIXEL TRAY 144

PIXEL TOP 144

W: 1.443 D: 360 H: 61

W: 1.443 D: 360 H: 59

W: 721 D: 360 H: 198

PIXEL PAD

PIXEL SOFT PAD W: 320 D: 320 H: 20

W: 340 D: 340 H: 40

Measurements in mm

7 © Bene GmbH, 10/2026

PIXEL OVERVIEW AND DIMENSIONS

OVERVIEW AND DIMENSIONS PIXEL RACK L

PIXEL RACK M

W: 820 D: 820 H: 564 | 1.021 | 1.478 | 1.935

W: 820 D: 460,5 H: 564 | 1.021 | 1.478 | 1.935

PIXEL RACK MEDIA

W: 1905 D: 460,5 H: 1935

PIXEL RACK HANDLE

PIXEL PEN TRAY

PIXEL TOOL TRAY

PIXEL ORGANISATION INLAY PIXEL WHITEBOARD HOLDER

W: 213 D: 74 H: 26

W: 455 D: 25 H: 229

W: 358 D: 213 H: 26

W: 334 D: 334 H: 129

W: 550 D: 94 H: 59 PIXEL WHITEBOARD

PIXEL PLANT POT

PIXEL PLANT POT W: 360 D: 360 H: 265 capacity: 19,4 l

W: 360 D: 360 H: 158,5 capacity: 12,6 l

W: 1.080 D: 10 H: 680

Measurements in mm

8 © Bene GmbH, 10/2026

PIXEL PIXEL SETTINGS

PIXEL SETTINGS #01 STOOL

#02 STOOL

#03 BENCH

1x .......

3x .......

2x .......

1x .......

3x .......

1x .......

#04 SIT-DOWN TABLE

#05 HIGH TABLE

#06 PLATFORM

4x .......

8x .......

20x .......

4x .......

2x .......

6x ....... 6x .......

4x .......

#07 BREAK-OUT AREA

#08 LECTERN

#09 WHEEL LOUNGE

4x .......

8x .......

4x .......

3x ....... 4x ....... 4x .......

1x ....... 1x ....... 1x .......

#10 LECTERN ON CASTORS

#11 BENCH

#12 SHELVES

8x .......

2x .......

8x .......

4x .......

2x .......

6x .......

1x .......

#13 SHELF

#14 SHELF

#15 SHELVES

6x .......

9x .......

4x .......

5x .......

6x .......

5x .......

4x ....... 1x .......

3x .......

6x .......

4x .......

9 © Bene GmbH, 10/2026

PIXEL PIXEL SETTINGS

PIXEL SETTINGS #16 TABLE COMBINATION 3x .......

#17 TABLE COMBINATION 6x .......

3x .......

4x .......

3x .......

4x .......

3x .......

2x ....... 2x .......

2x .......

#19 TABLE COMBINATION 8x ....... 4x .......

#18 TABLE COMBINATION 7x .......

6x ....... 5x .......

3x .......

4x .......

3x .......

4x .......

2x .......

#20 TABLE COMBINATION

#21 TABLE COMBINATION

12x .......

4x .......

8x .......

5x .......

2x .......

3x ....... 2x ....... 2x .......

2x .......

#22 SHELVES

#23 BAR

20x .......

26x ......

16x .......

7x .......

8x .......

4x .......

5x .......

3x ....... 3x ....... 3x ....... 2x .......

#24 BAR AND TABLE COMBINATION 18x .......

4x ....... 4x .......

9x ....... 8x ....... 5x .......

2x ....... 2x ....... 1x .......

10 © Bene GmbH, 10/2026

PIXEL PIXEL RACK SETTINGS

PIXEL RACK SETTINGS #01 4x .......

2x .......

6x .......

2x .......

#01

#01.1

#02

#02.1

#02.2

#02.3

2x .......

4x ....... 1x .......

2x .......

1x .......

#02 8x .......

5x .......

12x .......

4x ....... 3x .......

6x ....... 1x .......

3x .......

1x .......

3x .......

1x .......

#02.4

1x ....... 1x .......

#03 5x .......

2x .......

4x .......

2x .......

4x .......

2x .......

1x ....... 1x ....... 1x .......

2x .......

1x ....... 2x .......

11 © Bene GmbH, 10/2026

PIXEL PIXEL RACK SETTINGS

PIXEL RACK SETTINGS #04

#04

4x .......

2x .......

4x .......

2x .......

1x .......

2x .......

#04.1

1x .......

#05

#06

1x .......

2x .......

1x .......

2x .......

1x .......

2x .......

1x ....... 1x .......

1x ....... 1x ....... 1x ....... 1x ....... 1x ....... 1x .......

#07

2x .......

#08 2x .......

2x .......

1x .......

1x ....... 2x .......

#09 3x .......

#10 2x ....... 4x .......

1x ....... 3x .......

2x ....... 1x ....... 1x .......

2x .......

1x ....... 1x .......

12 © Bene GmbH, 10/2026

PIXEL PIXEL RACK SETTINGS

PIXEL RACK SETTINGS #11

#12

2x .......

4x .......

2x .......

1x .......

2x ....... 2x .......

1x .......

#13

#13.1

#13.2

6x ....... 1x .......

1x .......

2x ....... 2x .......

1x .......

2x .......

1x .......

2x .......

13 © Bene GmbH, 10/2026

PIXEL PIXEL TOWER LYING - BUILDING BLOCKS

PIXEL TOWER LYING - BUILDING BLOCKS 3x .......

4x .......

12x ......

8x .......

2x .......

6x .......

4x .......

1.800 mm

721 mm

1.066 mm

2x .......

#01.1 - Workplace Application

#01.2 - Workplace Application

#01.3 - Workplace Application

#01.4 - Workshop Application #01

#01.5 - Workshop Application

#01.6 - Meeting Application

14 © Bene GmbH, 10/2026

PIXEL PIXEL TOWER UPRIGHT - BUILDING BLOCKS

PIXEL TOWER UPRIGHT - BUILDING BLOCKS 3x .......

4x .......

12x ......

8x .......

4x .......

6x .......

4x .......

841 mm

1.981 mm

1x .......

#01.1 - Workplace Application

#01.2 - Workplace Application

#01.3 - Workplace Application

#01.4 - Workplace Application

#01.5 - Workshop Application

#01.6 - Workshop Application

#01

#01.7 - Meeting Application

#01.8 - Meeting Application

15 © Bene GmbH, 10/2026

PIXEL PIXEL RACK TOWER MEDIUM - BUILDING BLOCKS

PIXEL RACK TOWER MEDIUM - BUILDING BLOCKS 2x .......

2x .......

1x .......

529 mm

6x .......

4x ....... 1x .......

912 mm 1.939 mm

4x .......

2x .......

1x ....... 1x .......

2x .......

1x .......

#01.1 - Workplace / Meeting Application

#01.2 - Workplace / Meeting Application

#01.3 - Workshop Application

#01

PIXEL PIXEL RACK TOWER LARGE - BUILDING BLOCKS

PIXEL RACK TOWER LARGE - BUILDING BLOCKS

8x .......

12x ......

8x .......

6x .......

1x ....... 1x ....... 1x .......

912 mm

889 mm

4x ....... 1.938 mm

4x .......

1x .......

2x ....... 4x .......

1x .......

#01.1 - Workplace Application

#01.2 - Workplace Application

#01.3 - Workplace Application

#01.4 - Workshop Application

#01.5 - Workshop Application

#01

#01.6 - Meeting Application

PIXEL PIXEL RACK WALL - BUILDING BLOCKS

PIXEL RACK WALL - BUILDING BLOCKS

12x ......

8x .......

6x .......

1x ....... 1x ....... 1x .......

1.992 mm

2x .......

529 mm

4x ....... 1.939 mm

3x .......

4x ....... 4x .......

2x .......

#01.1 - Workplace Application

#01.2 - Workplace Application

#01.3 - Workplace Application

#01.4 - Workshop Application

#01.5 - Workshop Application

#01 #01.6 - Meeting Application

#01.7 - Meeting Application

PIXEL SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS

Row connection PIXEL Top 144 | 180 / PIXEL Tray 144 | 180 Mounting PIXEL Top 144 | 180 PIXEL Tray 144 | 180

To ensure the stability, secure the brackets by folding them over.

No further stacking is permitted on a PIXEL Top. To stack higher, use PIXEL Trays.

Place the PIXEL Boxes on top of each other correctly!

No third level is permitted when a platform is used.

Don’t build higher than three PIXEL Boxes.

Don’t stand on a PIXEL Wheel Tray / PIXEL Rack. Only sit on the wheel lounge when the castors are blocked.

max. 5 PIXEL Boxes

max. 2 PIXEL Boxes

Position PIXEL Top 180 and PIXEL Tray 180 only in a flush arrangement.

Use of PIXEL supports in FRAME_S Board H type 10 PIXEL Boxes per side / total max. 20 PIXEL Boxes Maximum load: 200 kg

Sitting / standing on PIXEL settings

PIXEL COLOURS & MATERIALS

COLOURS & MATERIALS The following materials and colours are available for this product. • . . . . . . . . . . available - . . . . . . . . . . not available

Natural pine, untreated

Natural pine, lacquered

Steel, powdercoated, black

Whiteboard laminate

Fabric / Imitation leather (P0-P5)1

Melamine

Cellular rubber padding (black)

PIXEL Box

•

PIXEL Pod

•

PIXEL Tray 144 | 180

•

PIXEL Wheel Tray M | L

•

PIXEL Top

•

PIXEL Pad

•

PIXEL Soft Pad

•

PIXEL Rack M | L

•

PIXEL Rack Media

•

PIXEL Pen Tray

•

PIXEL Tool Tray

•

PIXEL Organisation Inlay

•

PIXEL Whiteboard Holder

•

PIXEL Whiteboard

•

PIXEL Top 144 | 180

1 2

permissible fabrics  “Colours & materials”, materials overview only available in MW white

Information Wood is a natural product whose growth might result in colour differences and irregularities. The wood is subject to differences in structure and colour between parts of one furniture item or compared to other furniture items of the same material. As long as they remain within the nature of the materials used and are customary in trade, they do not constitute cause for a warranty claim. To meet the visual requirements, pine plywood was deliberately chosen as the base material for PIXEL. It may contain knots as well as cracks in the top layers. These design characteristics are proof of authenticity and not a valid reason for complaint.

PIXEL COLOURS & MATERIALS

COLOURS & MATERIALS PINE PLYWOOD

Natural untreated

PINE PLYWOOD LACQUERED

WI white

CV canvas

PL platinum

SG stone grey

DM clay

SR slate

UG urban grey

BS basalt

JG jade green

MW white

MQ office white

MSW snow white

MC canvas

MP platinum

MA aluminium

MH stone grey

TM clay

MS slate

MD urban grey

MB basalt

EZ oak vicenza

MJG jade green

MEK oak kendal

MAK maple classic

MBK beech classic

MNP walnut pavia

MELAMINE

PIXEL COLOURS & MATERIALS

COLOURS & MATERIALS STEEL POWDER-C.

SYNTHETIC MATERIAL

Black

PIXEL Soft Pad Various collections are available for the cover: Xtreme Plus, Urban Plus, Era, Step, Step Melange, Soft Next, Remix, Mainline Flax, Focus, Chance, Panama, Fiord, Steelcut, Fox, Assam, Focus Melange, Artisan, The Cool, Steelcut Trio, Hallingdal, Opera, Elle, Coda. More information about the specific fabric collections is available at www.bene.com. Our outdoor fabrics can also be used on products for indoor use. However, this does not mean that the indoor products are suitable for outdoor use.

PIXEL THE BENE RESPONSIBILITY

THE BENE RESPONSIBILITY Bene plays a pioneering role in the field of sustainability. This spans all company divisions – from product development, procurement, production, and logistics to product recycling. From the first sketch through to series production, ecological requirements are always an important factor in the product development process. It includes selecting environmentally compatible materials, such as certified timbers from sustainably managed forests, using recycled materials and increasing the use of renewable raw materials. Other important requirements for a sustainable product design are labelling the materials, their ability to be repaired, and a long service life for the components used, with the aim to integrate them into a second product life cycle. To guarantee a high recyclability standard for our products at the end of their service life, we avoid composites as much as possible and develop furniture that allows for disassembly by material type. Bene products are sourced and made in Europe. 99.9% of all deliveries reach us from a European country. Around 94% of all raw material supplies come from Austria and Germany. Around 93% of the raw materials comes from suppliers within 500 kilometres of our production site. SUSTAINABLE RAW-MATERIALS At Bene, the following materials are used as a matter of course: · chipboards low in formaldehyde · glues low in formaldehyde · water-based varnish systems · recyclable materials · materials with a high recycling share · PVC-free synthetics

Bene guarantees products free from: · CMR substances · halogenated solvents in synthetics · chlorinated hydrocarbons · heavy metal pigments · materials with azo pigments · Coatings with biocidal effects (such as wood preservatives, pesticides).

CONTRIBUTION TO BUILDING CERTIFICATIONS In the context of ecological building certification, design systems such as furniture and dividing walls help to achieve a good result and a higher score. Bene's products make a contribution towards the LEED, WELL Building Standard, DGNB, BREEAM, etc. certifications. Criteria include, for example, environmental product declarations, indoor air quality, acoustics and convertibility.

PIXEL Example configuration · PIXEL Box closed · 12 mm pine plywood, untreated · adjustment leg: synthetic material, black · holder: steel, black · Total weight 6,1 kg

Environmental key figures · 99 % sortable by type · 99 % recyclable · 94,3 % of contents are renewable raw materials · 1,61 % recycled production materials

Materials Steel 0,22 kg / 3,58 % Plastic 0,13 kg / 2,08 % Wood 5,77 kg / 94,34 %

For each standard product configuration, Environmental Product Declarations (Lifecycle Data Sheets / LCDS) can be provided. These are prepared in accordance with EN ISO 14040, EN ISO 14044 and the applicable Product Category Rules (PCR) of the International EPD® System for UN CPC 3811, 3812 and 3814. The LCDS include the Product Carbon Footprint (PCF) covering the entire life cycle (cradle-to-cradle). Environmental information from Bene: https://bene.com/en/bene/sustainability
