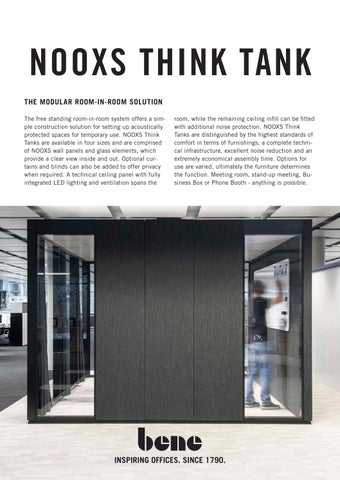

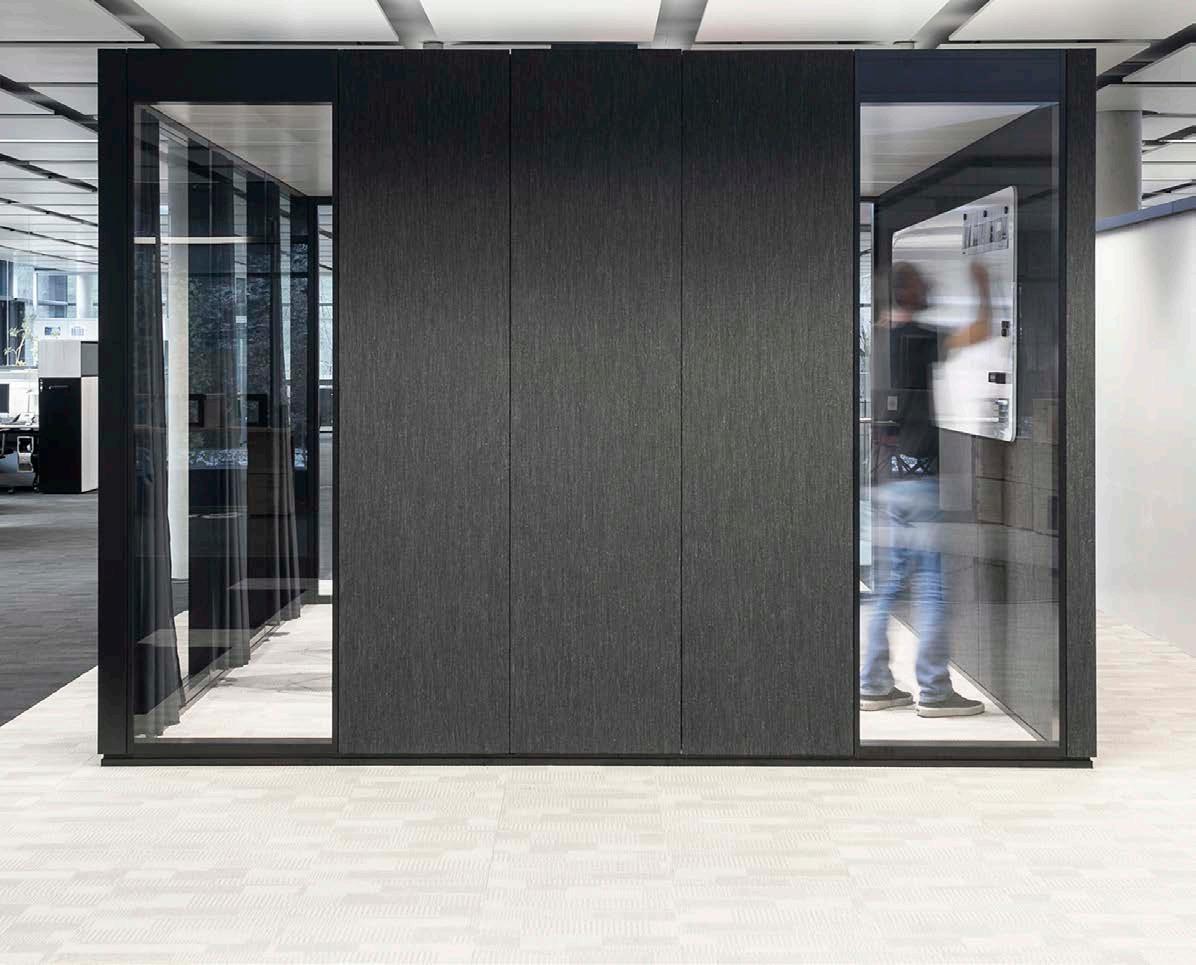

NOOXS THINK TANK HIGHLY MODULAR OFFICE PODS NOOXS Think Tank provides a practical solution for enhancing privacy and efficiency in open-plan offices. With its high modularity and sound insulation features, it serves as an effective tool for creating productive work environments. Thanks to its high degree of modularity and sound-insulating properties, it can be flexibly adapted to different requirements and applications – from phone booths and broadcasting boxes to meeting tanks.

NOOXS Think Tanks are available in various sizes and heights. They can be installed as freestanding units with minimal assembly effort. In addition to sound insulation, these self-contained units feature integrated ventilation and LED lighting systems, creating comfortable and productive working environments.

INSPIRING OFFICES. SINCE 1790.

NOOXS THINK TANK PRODUCT DESCRIPTION

PRODUCT DESCRIPTION ACOUSTIC VERSIONS Acoustic level: up to 39 dB R’w sound insulation (overall system) Speech level reduction (ISO 23351-1): up to class A (depending on the absorber surface)

Glass element: 8 mm LSG acoustic glass Rw 36 dB

Glass door: 10 mm TSG glazing and drop-down seal Rw 32 dB

Ceiling element with acoustic panels

Base profile (acoustically effective), black powder-coated matte

Wall element: Rw up to 38 dB

Adjustment legs: plastic, can be levelled up to + 25 mm

6 4

Specified sound insulation values were measured in an office environment by an independent testing institute in accordance with EN ISO 16283-1 and characterise the sound insulation properties of the entire room-in-room system, including all secondary sound paths. The sound insulation from room to room depends on the sound insulation of the installed partition wall system and the longitudinal sound insulation of the flanking components. Flanking components (e.g. floor partitions), connections that are not sealed on site and their penetrations (ventilation, water and electrical installations), which do not have the required sound insulation value, considerably reduce the sound insulation value from room to room. For this reason, Bene GmbH expressly points out that it assumes no warranty for the sound insulation from room to room in the installed state. R’w: Sound insulation value of the entire room-in-room system in accordance with EN ISO 16283-1 Rw: Sound reduction index of an individual wall element (EN ISO 10140-1 to 5) Speech level reduction according to ISO 23351-1 - this value depends on the ratio of the sound-reflecting surface to the absorber surface. This ratio influences the reverberation time, the weighted sound insulation (R’w) and, above all, the sense of well-being in the think tank. A reverberation time of approx. 0.2 to 0.3 s is perceived as pleasant. It is recommended that sufficient sound-absorbing surfaces (wall absorbers or acoustic ceilings) are always provided during planning.

2 © Bene GmbH, 10/2026

NOOXS THINK TANK PRODUCT DESCRIPTION

OVERVIEW & DIMENSIONS PHONE BOOTH 1

NOOXS THINK TANK MEET

1.203

1.803 - 4.003

1.227

1.203 - 4.003

only available with the “Corner Square” corner profiles

Minimum room height (building) = highest NOOXS element +300 mm. interior height: min. 2.050 - max. 2.500 mm, exterior height: min. 2.200 - max. 2.650 mm (+100 mm supply air module), special dimensions on request

Wall element B: 500 - 1.200 T: 100 H: 2.200 - 2.650

Wall element absorber 600 - 1.200 100 2.200 - 2.650

Technical element 400 - 1.200 100 2.200 - 2.650

Glass element 400 - 1.200 100 2.200 - 2.650

Hinged door 800 - 1.100 100 2.200 - 2.650

Note: please be aware that there is additional assembly work when you combine several Think Tanks in an order. Maximum floor unevenness: 25 mm

CORNER PROFILES The corner profile can be selected independently for the front and back. Corner Light · Flush-mounted version · No glass elements can be attached to either side of the corner · can be installed in niches

Corner Square · Flush-mounted version · Cabling routed inside · All elements can be attached · At least one wall element required in the overall configuration

Corner Curved · Cabling routed inside · All elements can be attached · At least one wall element required in the overall configuration

Materials · 12 mm chipboard in veneer, melamine or fabric · 12 mm lacquered MDF

Materials · Aluminium or · 16 mm chipboard in veneer, melamine or fabric

Materials · Aluminium or · 16 mm MDF in veneer or fabric

Measurements in mm

3 © Bene GmbH, 10/2026

NOOXS THINK TANK PRODUCT DESCRIPTION

PRODUCT DESCRIPTION 1

NOOXS THINK TANK 1 2 3 4 5

Ceiling element Wall element Technical element Glass element Hinged door

CEILING ELEMENT 1

Supply air module

Exhaust air module

Control module

Ceiling panel

Cover panel

Acoustic insulation panel

5 6

1 2

LIGHTING PHONE BOOTH

NOOXS THINK TANK MEET

Characteristics: LED stripes with stray discs, colour temperature approx. 3.000 K

Characteristics: LED stripes with stray discs, colour temperature approx. 3.000 K, dimmable at 3 levels

Note: by changing the NOOXS Think Tank height, the illumination of the room also changes.

4 © Bene GmbH, 10/2026

NOOXS THINK TANK PRODUCT DESCRIPTION

PRODUCT DESCRIPTION VENTILATION SYSTEM Phone Booth

NOOXS Think Tank Meet - small

NOOXS Think Tank Meet - large

approx. 59.4 m³ / h max. LWR up to 29 times / h

Normal operation up to 315 m³/h Rinsing stage up to 463 m²/h

Normal operation: up to 405 m³/h Purge stage: up to 694 m³/h

Characteristics: adjustable at 3 levels, LWR = maximum air exchange rate per hour measured when it is installed

NOOXS Think Tank Meet small - up to 2.803 mm external dimensions: from 251 m³/h at 23 dB(A) up to 463 m³/h at 37 dB(A), NOOXS Think Tank Meet large - from 2.804 to 4.003 mm external dimensions: from 259 m³/h at 25 dB(A) up to 694 m³/h at 45 dB(A) (noise emission inside, all values measured in rooms with absorber surfaces).

5 © Bene GmbH, 10/2026

NOOXS THINK TANK PRODUCT DESCRIPTION

PRODUCT DESCRIPTION NOOXS THINK TANK MOTION DETECTOR WITH A DELAYED CONTROL UNIT Note: The following explanation refers to the delivery status of the NOOXS Think Tanks. However, the values contained therein can be changed by specialised personnel. Further information can be found in the ‘NOOXS Think Tank control unit user manual’. AUTOMATIC OPERATION Lights, ventilation and air conditioning (if available) are activated automatically when the Think Tank is entered. In the delivery state (default values), level 2 is activated for all functions, but this can be changed by specialised personnel (Bene employee or facility manager) (see NOOXS Think Tank Control user manual). The user still has the option of using the membrane switch in the door frame to control the lighting, ventilation and (if available) the air conditioning in 3 stages according to their needs. When leaving the Think Tank - and therefore after the last presence detection - the system waits 100 seconds and then switches from the ‘active’ status to the ‘inactive’ status, in which the light in the Think Tank is dimmed by 50%. The system then waits another 100 seconds before automatically switching to ‘flush’ mode. Here, the light is switched off and the ventilation is raised for a further 100 s in order to exchange the air in the think tank as quickly as possible. The system then returns to standby mode. MANUAL OFF MODE In some situations, it may be useful to deactivate the system manually to switch off the light, ventilation and (if available) the air conditioning. The motion detector remains active in this mode. To do this, the I/O button must be pressed once briefly. As long as the motion detector recognises users in the Think Tank, the system remains switched off. After the last presence detection (user has left the room), the system waits 600 s (value: ‘Manual off timeout’) and then automatically switches to automatic mode, starting with the flushing phase, in order to clean the Think Tank before the next use (air exchange). CONTROL UNIT PROCESS - AUTOMATIC OPERATION ACTIVATION LIGHT/VENTILATION

LAST PRESENCE DETECTION

Status: Active

Status: Inactive

Light, ventilation and AC module (if available)  levels selectable, default level: 2 (or according to GUI settings)

Active to inactive timeout Default: 100 s

Status: On

Status: Flush

Inactive to flush timeout Default: 100 s Room light dimmed Default: 50%

Room ventilation flush time Default: 100 s all functions: Standby

Room ventilation flush level Default: depending on the room size

CONTROL UNIT PROCESS - MANUAL OFF MODUS ACTIVATION LIGHT/VENTILATION

MANUAL DEACTIVATION

LAST PRESENCE DETECTION

Status: Active

Status: Off

Light, ventilation and AC module (if available)  selectable in 3 levels

Lighting, ventilation and AC module (if available) deactivated

Manual off timeout Default: 600 s

STANDBY Status: On

AUTOMATIC ACTIVATION Status: Flush Room ventilation flush time Default: 100 s

all functions: Standby

Room ventilation flush level Default: depending on the room size

6 © Bene GmbH, 10/2026

NOOXS THINK TANK PRODUCT DESCRIPTION

PRODUCT DESCRIPTION CONTROL - NOOXS THINK TANK Light control and fan control Position: Hinged door, door frame inner side

Lighting and ventilation are controlled via the membrane keypad located on the inside of the door frame. With a short press of the button, lighting and ventilation can be adjusted in three power levels to suit personal needs. The preset performance values can be changed by the customer at any time. Detailed instructions can be found in the NOOXS Think Tank control user manual. From firmware version 1.08, a real-time clock with automatic time zone synchronisation and the “Calendar” tab enable recurring actions to be scheduled, such as air exchange in NOOXS Think Tanks at set times.

Phone Booth: There is no switch in the Phone Booth, instead it is controlled automatically via the motion detector.

SPRINKLER AND SMOKE DETECTOR FEED-THROUGH

CABLING DIAGRAM

The position of the sprinkler and smoke detector can be freely selected in the areas marked in grey. Installation is not possible in shaded areas. 1.203 100 1.803

Control cable (light and fan)

Starter cable for power (230 V) (must be ordered separately)

2.603

355

1.280

4.003

694

1.280

7 © Bene GmbH, 10/2026

NOOXS THINK TANK PRODUCT DESCRIPTION

PRODUCT DESCRIPTION WALL ELEMENT

Panelling – Wall element 1 16 mm chipboard

Panelling – Technical element 16 mm chipboard

Frame – Wall element 19 mm chipboard / plastic

Frame – Technical element aluminium

Cover profile in aluminium natural anodised A6 or black powder-coated (RAL 9011 matte)

Extension fittings steel

Hook-in clip plastic

Acoustic insulation board

2 4

TECHNICAL ELEMENT 3 1

1 6

Sound absorption according to ISO 11654 Rated sound absorption level αw0.80 (in acoustically activated areas), Absorption class = B

Different panelling can be selected on front 1 and front 2. As many as 2 shells on each front are possible (technical element). In the standard version of the wall element, the panelling is permanently glued on. 1

PANELLING OF TECHNICAL ELEMENTS Due to the construction of the ceiling element, the panelling on the outside and at deveded panels, also the lower panels on the inner side of the NOOXS Think Tank can be unhooked, to exchange them or to wire them later. fix

The technical element can be divided at each front with one or two horizontal 20 mm joint. Cables can be fed through the joint. The joint can be implemented at 2 fixed heights: · seating height, joint height 655 mm · standing height, joint height 985 mm

fix

detachable

Additional second joint possible: · for seating height, second joint height 1.508 mm · for standing height, second joint height 1.838 mm

8 © Bene GmbH, 10/2026

NOOXS THINK TANK PRODUCT DESCRIPTION

PRODUCT DESCRIPTION GLASS ELEMENT

HINGED DOOR 1

Surface - glass element Glass 8 mm LSG made of float glass with acoustic film Clear glass (KS), smoked glass (DP)

Surface - hinged door 10 mm TSG 1, clear glass (KS), smoked glass (DP) Solid (Standard and enhanced sound insulation)

Glass profile - glass element 3

Frame profile - hinged door 3

Cover profile 3

Extension fittings steel

Transitioning rail in black powder-coated (RAL 9011 matte)

Door closer type TS 92 with guide rail 2 optionally for glass doors, aluminium coloured or black powder-coated

1 2

1 Duty of notification regarding TSG - Spontaneous glass breakage A spontaneous glass breakage at tempered safety glass (TSG) may occur due to unavoidable impurity inclusion during production process. A delayed destruction of TSG without apparent external influence will be considered as spontaneous glass breakage. The risk of spontaneous glass breakage can be reduced by a fee-based heat soak test in accordance with EN 14179 standard. However, this process does not completely exclude the risk. Glasses tested in this way are called heat soaked tempered safety glass (TSG-H).

Further, qualified personnel should regularly check frameless glass constructions in order to detect possible damages, which can cause a glass breakage, timely. Impurity inclusions and related spontaneous glass breakage are physically unavoidable and therefore Bene will not accept claim of warranty. Door closer: The opening angle of the hinged doors with frame but without door closer is max. 175 ° and for solid core doors max. 134 °. The maximum opening angle is restricted by installing a door closer. Glass door with assembly to a post: Opening angle max. 120 °

Accessories: An opening limiter is used to prevent an open door from hitting adjacent walls. The opening limiter is no overload protection and will in most cases not replace a door stopper. Grid fixing unit: The grid fixing unit is used for mechanic fixing of doors which are supposed to be kept open for a temporary period. 3 Colours & materials Aluminium natural anodised A6 or black powder-coated (RAL 9011 dull matte)

Possible door opening directions Opening directions “inward” and “outward” permissible. Configuration Position of the wall, door elements and opening direction may be freely defined. Positions of the elements may also be changed subsequently according to the system specifications.

9 © Bene GmbH, 10/2026

NOOXS THINK TANK PRODUCT DESCRIPTION

PRODUCT DESCRIPTION END PANEL The end panel is a separately orderable item required for each open end of a NOOXS Think Tank configuration. It is included in the scope of delivery for the “Corner Light” corner profile. It can be ordered as a spare part if required. Material: 12 mm chipboard on an aluminium profile, available in melamine, veneer, lacquered MDF or fabric.

OPTIONS PHONE BOX TABLE Table made of chipboard 19 mm. Direction of top shape left or right. Dimensions: Width: 800 - 1.200 mm, depth: 349 mm and height: 122 mm Maximum load: 10 kg Assembly in wall or glass element at sitting or standing height (740mm / 1.070mm). Colours & materials based on the Bene collection in melamine, veneer or Fenix.

OCCUPANCY LIGHT The optional occupancy light is mounted above the pivot door element and is matched in width to the pivot door. It is connected to the NOOXS Think Tank control unit using the integrated connection cable and lights up in preset colours (free – green, occupied – red, flushing cycle – orange). The colours assigned to each usage status can be changed at any time by qualified personnel.

NOOXS Think Tank free

NOOXS Think Tank occupied

10 © Bene GmbH, 10/2026

NOOXS THINK TANK OPTIONS

OPTIONS PREPARATION FOR CONNECTION PLUG BOARD (TECHNICAL ELEMENT) A cut-out for a connection plug board (Bene 4-fold connection plug board) can be configured in the panelling for additional cabling - this must be ordered separately.

190

830

If the panelling is divided with a joint, then the permissible position for the cut-out is determined by the position of the joint.

1.160

The cut-out can be implemented at 3 fixed heights: · Bottom cut-out, 190 mm high · Seating height, 830 mm high · Standing height, 1.160 mm high

CABLE OUTLET FOR SCREEN (TECHNICAL ELEMENT) For additional cabling purposes a cable outlet can be configured in the panelling for cabling or assembly of a screen. The cable outlet can be implemented at 2 fixed heights: · Seating height, 1.145 mm high · Standing height, 1.305 mm high

1.040 1.145

1.370 1.305

If the panelling is divided with a joint, then the permissible position for the cable outlet is determined by the position of the joint. If there is a cut-out for a connection plug board, then the same position designation also applies to the cable outlet.

SCREEN ASSEMBLY (TECHNICAL ELEMENT) The following are required in order to assemble a screen on a 400 mm technical element: · NOOXS assembly set for TFT wall-mounted bracket · “Chief RMT3 & Chief RMF3” wall-mounted bracket (for screens weighing up to 56,7 kg) · a screen compatible with the wall-mounted bracket, e.g. “NEC ME432 / NEC ME502 / NEC ME552” for further information  see price list or product data sheet “Media Hardware” · 1 connection plug board with 3 power sockets (configurable via pCon Planner or Basket) · 1 starter cable Wall-mounted bracket, screen and cabling must be ordered separately.

11 © Bene GmbH, 10/2026

NOOXS THINK TANK OPTIONS

OPTIONS BUILT-IN COMPONENTS IN GLASS ELEMENT It is possible to fit out the glass elements with additional modules in order to create privacy; upgrading with these modules is also possible.

Slats Hidden integration directly in the glass element. Clearance angle of the slats: 45°. Available widths: 400 - 1.200 mm, in 100 mm increments. Available height: 1.200 - 2.650 mm. Colours & materials: available with melamine surface

Curtain Hidden integration directly in the glass element. Available height: 1.500 - 2.650 mm. Available widths for assembly in glass element: 400 - 1.200 mm. Other widths can be represented by the next shorter or longer width – folding differs slightly from the standard widths. Collection: SARAH ECO or SAM FR from JAB

WHITEBOARD · writable · magnetic The following components are required for installation and must be ordered separately: · NOOXS assembly set for whiteboard · Adeco AG „frameless whiteboard“ · Dimensions: from 900 x 700 mm to a maximum of 2480 x 1180 mm The whiteboard is fastened to the top of the wall element with one or two wires and mounting brackets. Whiteboards ≤ 1.200 mm require 1 vertical joint. Whiteboards from 1.500 to ≤ 2.000 mm require 2 vertical joints. Optional connectors can be ordered to connect several whiteboards. These are not required for individual whiteboards.

WHITEBOARD LAMINATE The NOOXS whiteboard laminate without magnetic function transforms every NOOXS wall element into a full-surface whiteboard. The whiteboard surface can be selected for each wall element in widths between 500 mm and 1200 mm. Colour & material: MW white melamine A division of the surface and combination with other materials is not possible.

12 © Bene GmbH, 10/2026

NOOXS THINK TANK COLOURS & MATERIALS

COLOURS & MATERIALS MATERIALS AND SURFACES The following materials and colours are available for this product. •. . . . . . . . . . available - . . . . . . . . . . not available

Surface

Wall element

Technical element

End panel

Glass element

Hinged door

Melamine

• • • • • • -

• • • • -

• • • -

•

• -

Surface

Corner Light

Corner Square

Corner Curved

Phone Box Table

Curtain

Melamine

• • • • -

• • • -

•

Veneer Fenix Whiteboard laminate, MW white melamine MDF varnished Fabric (P0-P5) 1 Fabric (P0-P5) 1, acoustic version (absorption) TSG safety glass LSG made of float glass with acoustic film

Veneer Fenix MDF varnished Fabric (P0-P5) 1 Anodised aluminium Curtain fabric Jab: SARAH ECO / SAM FR

permissible fabrics  “Colours & materials”, overview of fabric collections

Colours and colour illustration included  “Colours & materials”

NOOXS THINK TANK COLOURS & MATERIALS

COLOURS & MATERIALS MELAMINE

MW white

MQ office white

MSW snow white

MC canvas

MP platinum

MA aluminium

MH stone grey

TM clay

MS slate

MD urban grey

MB basalt

MJG jade green

DISCONTINUATION: OCTOBER 2027

EZ oak vicenza

MEK oak kendal

MAK maple classic

MBK beech classic

NG walnut grey

MNP walnut pavia

NOOXS THINK TANK COLOURS & MATERIALS

COLOURS & MATERIALS VENEER

EF oak natural

EY oak sylt

EG oak grey

ER oak amaretto

EV oak vulcano

NF american walnut

NR walnut siena

NB walnut umbra

NA walnut anthracite

KD chestnut natural

KP chestnut brown

KQ chestnut grey

AK canadian maple

BJ bamboo

BG beech grey

BU beech natural

Veneers also available in matt finish.

FENIX™

white

black

NOOXS THINK TANK COLOURS & MATERIALS

COLOURS & MATERIALS MDF SURFACES: Varnished, solid-coloured plastic

METAL SURFACE POWDER-COATED

WI white

BS basalt

black matte

(RAL 9011) GLASS (TSG & LSG)

KS clear glass

DP smoked glass

ALUMINIUM ANODISED

aluminium natural A6

FABRIC Different fabric collections are available as cover: Xtreme Plus, Urban Plus, Inn, Era, Step, Step Melange, Soft Next, Remix, Mainline Flax, Focus, Bonsai Reboot, Panama, Fiord, Steelcut, Assam, Focus Melange, Artisan, The Cool, Steelcut Trio, Hallingdal, Elle, Coda. Curtain fabric: SARAH ECO / SAM FR. More information about the collections is available at www.bene.com. Our outdoor fabrics can also be used on products for indoor use. However, this does not mean that the indoor products are suitable for outdoor use.

NOOXS THINK TANK THE BENE RESPONSIBILITY

THE BENE RESPONSIBILITY Bene plays a pioneering role in the field of sustainability. This spans all company divisions – from product development, procurement, production, and logistics to product recycling. From the first sketch through to series production, ecological requirements are always an important factor in the product development process. It includes selecting environmentally compatible materials, such as certified timbers from sustainably managed forests, using recycled materials and increasing the use of renewable raw materials. Other important requirements for a sustainable product design are labelling the materials, their ability to be repaired, and a long service life for the components used, with the aim to integrate them into a second product life cycle. To guarantee a high recyclability standard for our products at the end of their service life, we avoid composites as much as possible and develop furniture that allows for disassembly by material type. Bene products are sourced and made in Europe. 99.9% of all deliveries reach us from a European country. Around 94% of all raw material supplies come from Austria and Germany. Around 93% of the raw materials comes from suppliers within 500 kilometres of our production site. SUSTAINABLE RAW-MATERIALS At Bene, the following materials are used as a matter of course: · chipboards low in formaldehyde · glues low in formaldehyde · water-based varnish systems · recyclable materials · materials with a high recycling share · PVC-free synthetics

Bene guarantees products free from: · CMR substances · halogenated solvents in synthetics · chlorinated hydrocarbons · heavy metal pigments · materials with azo pigments · Coatings with biocidal effects (such as wood preservatives, pesticides).

CONTRIBUTION TO BUILDING CERTIFICATIONS In the context of ecological building certification, design systems such as furniture and dividing walls help to achieve a good result and a higher score. Bene's products make a contribution towards the LEED, WELL Building Standard, DGNB, BREEAM, etc. certifications. Criteria include, for example, environmental product declarations, indoor air quality, acoustics and convertibility.

NOOXS THINK TANK Example configuration · Phone Booth · Total weight 427,78 kg

Environmental key figures · 98,6 % sortable by type · 91,3 % recyclable · 37,1 % of contents are renewable raw materials · 49,4 % recycled production materials

Materials Plastic 29,92 kg / 7,00 % Aluminium 37,71 kg / 8,80 % Steel 37,95 kg / 8,87 % Glass 52,75 kg / 12,33 %

Wood 269,45 kg / 62,99 %

For each standard product configuration, Environmental Product Declarations (Lifecycle Data Sheets / LCDS) can be provided. These are prepared in accordance with EN ISO 14040, EN ISO 14044 and the applicable Product Category Rules (PCR) of the International EPD® System for UN CPC 3811, 3812 and 3814. The LCDS include the Product Carbon Footprint (PCF) covering the entire life cycle (cradle-to-cradle). Environmental information from Bene: https://bene.com/en/bene/sustainability
