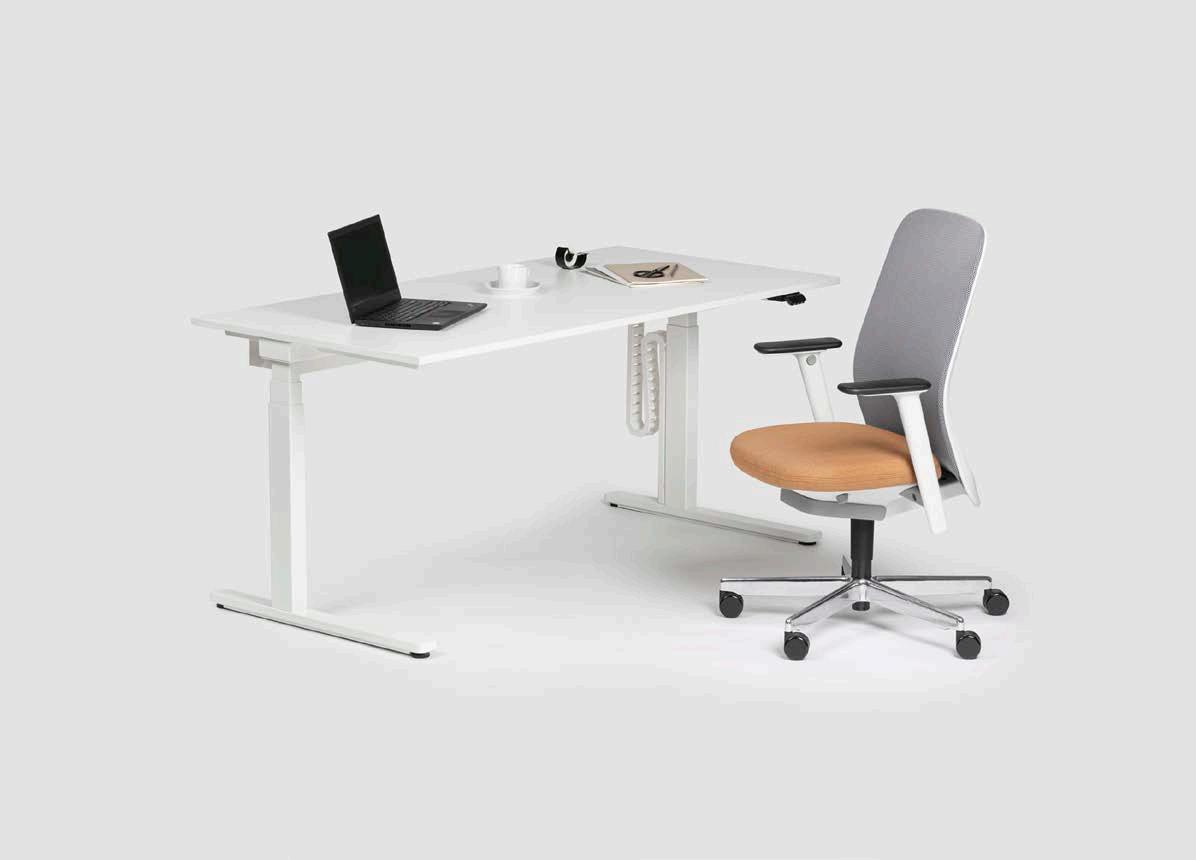

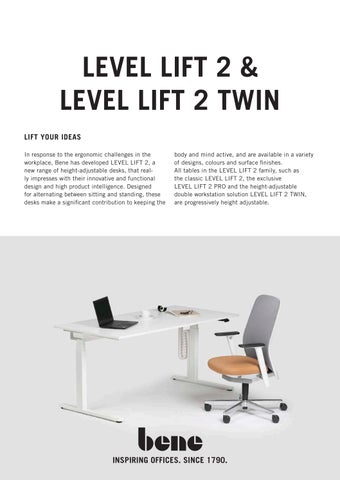

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN LIFT YOUR IDEAS In response to the ergonomic challenges in the workplace, Bene has developed LEVEL LIFT 2, a new range of height-adjustable desks, that really impresses with their innovative and functional design and high product intelligence. Designed for alternating between sitting and standing, these desks make a significant contribution to keeping the

body and mind active, and are available in a variety of designs, colours and surface finishes. All tables in the LEVEL LIFT 2 family, such as the classic LEVEL LIFT 2, the exclusive LEVEL LIFT 2 PRO and the height-adjustable double workstation solution LEVEL LIFT 2 TWIN, are progressively height adjustable.

INSPIRING OFFICES. SINCE 1790.

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN LEVEL LIFT 2 FAMILY

LEVEL LIFT 2 FAMILY LEVEL (LIFT)

LEVEL LIFT 2

LEVEL PURE (LIFT)

LEVEL PURE LIFT 2

CONSU

FIXED HEIGHT

FIXED HE

LEVEL

LEVEL PURE

CONSUL

LEVEL TWIN

LEVEL PURE TWIN

HEIGHT ADUSTABLE

HEIGHT A

LEVEL LIFT

LEVEL LIFT 2

LEVEL PURE LIFT

LEVEL PURE LIFT 2

CONSUL

LEVEL LIFT TWIN

LEVEL LIFT 2 TWIN

LEVEL PURE LIFT TWIN

LEVEL PURE LIFT 2 TWIN

LEVEL LIFT PRO

LEVEL LIFT 2 PRO

DELTA (LEVEL)

DELTA PURE (LEVEL PURE)

FIXED HEIGHT

DELTA BY BENE

DELTA PURE BY BENE

DELTA HIGH BY BENE

DELTA PURE HIGH BY BENE

CLASSIC (LEVEL)

CLASSIC PURE (LEVEL PURE)

CLASSIC PURE LIFT 2 (LEVEL PURE LIFT 2)

FIXED HEIGHT

CLASSIC

CLASSIC PURE

CLASSIC PURE LIFT 2

CLASSIC LIFT (LEVEL LIFT)

CLASSIC LIFT 2 (LEVEL LIFT 2)

CLASSIC PURE LIFT (LEVEL PURE LIFT)

HEIGHT ADUSTABLE

CLASSIC LIFT

CLASSIC LIFT 2

CLASSIC PURE LIFT

ELECTRIC HEIGHT ADJUSTMENT RASTOMAT ALSO AVAILABLE WITH ROUND COLUMN DESIGN ALSO AVAILABLE WITH DELTA WOOD DESIGN

2 © Bene GmbH, 08/2026

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN LEVEL LIFT 2 FAMILY

LEVEL LIFT 2 FAMILY CONSULT PURE

CONSULT PURE LIFT 2

LEVEL PURE (LIFT) MEETING

FIXED HEIGHT

CONSULT PURE

LEVEL PURE MEETING QUATTRO SINGLE- / MULTI-PART TABLETOP

LEVEL PURE LIFT 2 MEETING

LEVEL PURE MEETING SINGLE- / MULTI-PART TABLETOP

LEVEL PURE MEETING HIGH SINGLE- / MULTI-PART TABLETOP HEIGHT ADUSTABLE

HEIGHT ADUSTABLE

CONSULT PURE LIFT

CONSULT PURE LIFT 2

LEVEL PURE LIFT MEETING SINGLE- / MULTI-PART TABLETOP

LEVEL PURE LIFT 2 MEETING SINGLE- / MULTI-PART TABLETOP

LEVEL PURE LIFT MEETING QUATTRO SINGLE- / MULTI-PART TABLETOP

LEVEL PURE LIFT 2 MEETING QUATTRO SINGLE- / MULTI-PART TABLETOP

DELTA PURE MEETING (LEVEL PURE MEETING) FIXED HEIGHT

DELTA PURE MEETING BY BENE SINGLE- / MULTI-PART TABLETOP

DELTA PURE MEETING HIGH BY BENE SINGLE- / MULTI-PART TABLETOP

ELECTRIC HEIGHT ADJUSTMENT RASTOMAT ALSO AVAILABLE WITH ROUND COLUMN DESIGN ALSO AVAILABLE WITH DELTA WOOD DESIGN

3 © Bene GmbH, 08/2026

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN PRODUCT DESCRIPTION

PRODUCT DESCRIPTION The LEVEL LIFT 2 family is divided into two table types.

LEVEL LIFT 2

LEVEL LIFT 2 TWIN

· height adjustment by manual switch for the sitting and standing height

LEVEL LIFT 2 PRO A LEVEL LIFT 2 with high quality materials and design values. · MDF table top with waterfall edge · Fenix black · nanotech matte surface · round column · manual switch Premium 2 with sensor · divided sliding top · frame panel

4 © Bene GmbH, 08/2026

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN PRODUCT DESCRIPTION - LEVEL LIFT 2

PRODUCT DESCRIPTION - LEVEL LIFT 2

4 2

A solid desk for alternating at work between sitting and standing. T-leg or C-leg frame with 10 mm floor compensation. Various tabletop shapes: chipboard 19 mm or 25 mm with 2 mm mono edge, compact board 13 mm or MDF 25 mm with 1 mm mono bevel edge. 1

Tabletop

Support bracket

Multi-function head

Central frame

Control unit

Manual switch

Lift column

Cantilever leg

Corner column

Support column

2 1

9 7 6

4 5

10 6 8

The warranty period for electrical and electromechanical parts used in this table is 5 years. Covered by Bene’s warranty conditions (Bene product warranty DB-ZFP-400). © Bene GmbH, 08/2026

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN PRODUCT DESCRIPTION - LEVEL LIFT 2 TWIN

PRODUCT DESCRIPTION - LEVEL LIFT 2 TWIN Combination leg with 10 mm floor compensation. Various tabletop shapes: chipboard 19 mm or 25 mm with 2 mm mono edge, compact board 13 mm or MDF 25 mm with 1 mm mono bevel edge. 5 1

Tabletop

Support bracket

Multi-function head

Central frame

Control unit

Manual switch

Lift column

Combination leg

Column protection

Cover

3 7

8 7

The warranty period for electrical and electromechanical parts used in this table is 5 years. Covered by Bene’s warranty conditions (Bene product warranty DB-ZFP-400). © Bene GmbH, 08/2026

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN COLUMN TYPES

COLUMN TYPES Available in black, white, or aluminium. Levelling: +10 mm with adjustment screws LEVEL LIFT 2 C-leg, rectangular powdered 80 x 50 mm steel profile pipe, cantilever legs: die-cast aluminium frame

T-leg, rectangular powdered 80 x 50 mm steel profile pipe, T-leg column can be configured with two different cantilever legs. LIGHT: cantilever leg - more affordable entry-level cantilever leg - welded canted steel plate - powder-coated

DESIGN: die cast cantilever leg - die-cast aluminium - high stability - high form and design quality, tailored to the platform - powder-coated

ADDITIONAL INFO FOR CANTILEVER LEG Table depth (mm)

800

900

Design (for rectangular or round columns) 750 mm

850 mm

Light (for rectangular columns) 703 mm

T-leg, round powdered Ø70 mm steel profile pipe, cantilever legs: die-cast aluminium frame

Classic Lift Thickness of slab-end 38 mm, chipboard for melamine, 39 mm, chipboard for veneer, fastening construction and cover plate made of steel

HEIGHT ADJUSTMENT FOR LEVEL LIFT 2 & LEVEL LIFT 2 TWIN

LEVEL LIFT 2 TWIN round column powdered 99,5 x 80 mm steel profile pipe

rectangular column powdered 99,5 x 60 mm steel profile pipe

for 2-part column 25 mm - 1.209 19 mm - 1.203 13 mm - 1.197

25 mm - 714 19 mm - 708 13 mm - 702

for 3-part column 25 mm - 1.304 19 mm - 1.298 13 mm - 1.292

25 mm - 644 19 mm - 638 13 mm - 632

NOTE Frame type 1

Table depth 600 700 800 900 1.000

x x x x x

Tabletop shapes x K1 x W3

Cantilever leg Light

x x x

x2 x

Cantilever leg length changes depending on depth. The corner column with a extension dimension of 600 mm, is designed as a T-leg. 3 Only possible with 3-part column with increased collision protection. 1 2

x Measurements in mm

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN COLUMN TYPES

COLUMN TYPES Every electrically height-adjustable table in the LEVEL LIFT 2 family has at least two lifting columns (angled and combination tables: three lifting columns, LEVEL LIFT TWIN 2 tables: four lifting columns). Each lifting column has an electric motor. The following types of columns are used for LEVEL LIFT 2 / LEVEL LIFT 2 TWIN.

TWO-PART / THREE-PART TELESCOPIC RECTANGULAR COLUMN

THREE-PART TELESCOPIC ROUND COLUMN

· radius column R3 · without visible glides · 2-part rectangular column (JS36DR1-2-S); stroke length: 495 mm · 3-part rectangular column (JS36DR1-3-S); stroke length: 660 mm · lifting force 800 N / column · increased collision protection integrated in control unit · two identical columns per table · manual switch is connected to the control unit · includes separate control unit with integrated power supply unit

· radius column R3 · without visible glides · 3-part round column (JS36DC1-3-S) - Stroke length: 660 mm · lifting force 800 N / column · increased collision protection integrated in control unit · two identical columns per table · manual switch is connected to the control unit · includes separate control unit with integrated power supply unit

Maximum load 100 kg (PC, PC holder, T-Panel, etc. must be included in the calculation!) Type · Power supply input 220-240V / 50-60Hz / 2.5A · Maximum on-time 2 min. on, 18 min. off · Protection category II · Noise ~47dBA · Upward lift speed 38 mm / s Reference values for power consumption Load for power consumption · Stand-by 0,2 watts · Upward lift 100 kg 230 watts (two-part column) · Upward lift 100 kg 220 watts (three-part column)

8 © Bene GmbH, 08/2026

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN MANUAL SWITCH (ELECTRIC HEIGHT ADJUSTMENT)

MANUAL SWITCH (ELECTRIC HEIGHT ADJUSTMENT) HEIGHT ADJUSTMENT WITH MANUAL SWITCH There are three different types of manual switch. MANUAL SWITCH EASY 2

MANUAL SWITCH BASIC 2

MANUAL SWITCH PREMIUM 2

Dimension: W: 59,9 mm, H: 17,3 mm Colour: black Functions: up/down function, operation via buttons, with integrated collision protection sensor in control unit, upper and lower limit of table height

Dimension: W: 64,3 mm, H: 23,8 mm Colour: black Functions: up/down function, intuitively operated element, with integrated collision protection sensor in control unit, upper and lower limit of table height

Intuitive operation The manual switches (BASIC 2 / PREMIUM 2) are operated via a tilt function instead of buttons so that direct visual contact with the hand control is not necessary when adjusting the height of the table.

HANDSET OVERVIEW EASY 2 control via button

BASIC 2

PREMIUM 2

•

control via paddle memoryposition

desk hight limit container-/shelfstop

•

increased collision protection sensor integrated in control box

•

graphic display

•

MANUAL SWITCH POSITIONS It is possible to choose the positioning of the switch, as either protruding or flush with the table top, and either on the left or right-hand side of the desk. The manual switch Easy 2 can only be selected in the protruding position.

Protruding

Flush

9 © Bene GmbH, 08/2026

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN OVERVIEW AND DIMENSIONS

OVERVIEW AND DIMENSIONS TABLETOP 19 mm / 25 mm chipboard, 19 mm chipboard with Fenix, 13 mm compact tabletop or 25 mm MDF with Fenix TABLETOP SHAPES - BASIC TABLES LEVEL LIFT 2 Rectangular RE

Rectangular RE with Soft Edge

1.000 - 2.000

1.000 - 2.000 Corner radius Soft Edge Melamine / Fenix: 60 mm Veneer: 70 mm

600 | 700 800 | 900 1.000

User side rounded NG

Combination desk K1

1.400 - 2.000 700 800 | 900 1.000

* not possible in combination with the „Classic Lift“ column type

Angle desk W3 1.732 | 2.078,4

1.600 - 2.000 1.200 1.600

1.192,8 1.292,8

Rectangular RE with Soft Edge

User side rounded NG

LEVEL LIFT 2 TWIN Rectangular RE 1.000 - 2.000

1.400 - 2.000

1.000 - 2.000 Corner radius Soft Edge Melamine / Fenix: 60 mm Veneer: 70 mm

1.705

TABLETOP SHAPES - ATTACHMENT TABLE LEVEL LIFT 2 700

800

800 - 2.000

600

Measurements in mm

10 © Bene GmbH, 08/2026

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN OPTIONS

OPTIONS Options for LEVEL, LEVEL LIFT, LEVEL TWIN and LEVEL LIFT TWIN. The following are available for these tabletop shapes. The properties of the options always apply for one tabletop.

RE, NG

Options Cable gap

•

Grommet hole / bFRIENDS Power Module

•

Wireless charger

•

Tiltable cable tray L

•

only visitor side

•

Cable chain

•

Plug board bracket for cable tray L

•

CPU holder

•

Cable flap

•

Cable Box

•

Plug Box

•

Preparation for connection to T-Panel

•

only visitor side

on request

Connection to T-Panel Extend

•

only visitor side

Covering caps

•

Modesty panel

•

only visitor side

Sliding top

•

Divided sliding top

•

Frame panels

•

Cable cover

•

Spacers

•

only lateral

•

only lateral

Cable management

•

Excess length of desk top

•

Bag hook

•

11 © Bene GmbH, 08/2026

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN OPTIONS

OPTIONS 1

Cable gap Fixed positions. 1 or 2 cable gaps are possible per tabletop: left/right/left and right. Dimension: Width 350 mm, depth 45 mm Not possible for cable flap or divided sliding top.

7 4

RE, NG

Grommet hole Fixed positions. 1 or 2 grommet holes are possible per tabletop: left/right/left and right. Cover colour: black, white, or aluminium Not possible with cable flap or sliding top. RE, NG

Cable chain & textile cable collector for further info  product data sheet „cable- & media management“

Plug board bracket for cable tray L To fix the connection plug board in the cable tray. Colour: Black

Bag hook attached to the head piece with screws, powder-coated steel in black, white or aluminium, Dimensions: height 100 mm, width 32 mm, depth 46,8 mm

Cable tray L tiltable mounted on the frame Colours: Black, white, or aluminium Space from bottom to cable tray: 600 mm (at the lowest position) 181 mm 210 mm

58 mm

CPU holder Maximum load: 30 kg Maximum height of computer: 450 mm

12 © Bene GmbH, 08/2026

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN OPTIONS

OPTIONS CENTRAL CABLE TRAY - LEVEL TWIN & LEVEL LIFT 2 TWIN Covering can be rotated and mounted on the combination leg. Colours: Black, white, or aluminium With rectangular column: the central cable tray can be deselected as an option. With round column: the central cable tray is always technically required and cannot be deselected (it serves as a safeguard against twisted installation)

RE, NG

290 mm 120 mm

closed

right side open, cable tray can be opened on both sides

CABLE FLAP Fixed positions. Possible positions: central/left/right. Central: table widths of up to 1.300 and 1.400 mm or greater, left/right: table widths of 1.600 mm or greater Not possible in combination with cable outlet, cable gap, or sliding top. RE, NG

CABLE BOX The cable box enables quick and easy access to the cable tray. The plastic frame and the metal flap are available in white, black or aluminum.

PLUG BOX The plug box is milled flush into the table top and can be equipped with a connection plug board. The metal flap are available in black or aluminum.

· max. 2 units per table top possible · position per desktop shape specified as fixed · position in the centre up to desk width of 1.399 mm · position left / right / left and right from desk width of 1.400 mm

· Flap can only be opened from one side via “Push to open”. · max. 2 units per table top possible · position per desktop shape specified as fixed · position in the centre up to desk width of 1.399 mm · position left / right / left and right from desk width of 1.400 mm

Cannot be combined with sliding top and cable flap. Cannot be combined with sliding top and cable flap. Cable Box 327 x 152 mm

RE, NG

Plug box 315 x 125 mm

RE, NG

13 © Bene GmbH, 08/2026

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN OPTIONS

OPTIONS WIRELESS CHARGER The wireless charger can be installed in the front area of the tabletop on the left or right and enables wireless charging of a compatible device. The recess for the wireless charger is milled into the tabletop from below. A sticker is attached to the tabletop to indicate where the charging module is located. The wireless charger is a separate item, must be ordered separately (simple configuration via the pCon.planner META planning) and cannot be retrofitted. Technical data · diameter 80 mm · enclosure black · charging power 5 W · compatibility works with all devices that support wireless charging with the Qi standard. · works with most lightweight mobile phone cases (< 3 mm) · water resistance class IP-43 · silent / active mode (for the quietest possible charging process) Scope of delivery · wireless charger · power cable 1,5 m (available plug types A, D, F, L) · sticker to stick on the tabletop (labelling: position of wireless charger) · assembly material (cable clips, screws) Possible positions of the wireless charger Fixed positions. One wireless charger per tabletop possible: concealed on the left or on the right Not possible in combination with the W3 tabletop. RE, NG

14 © Bene GmbH, 08/2026

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN OPTIONS

OPTIONS BFRIENDS POWER MODULE The bFRIENDS Power Module is available in three sizes - S, M and L. It can be fitted to all tables wherever a cable outlet is possible. An existing cable outlet hole (diameter 80 mm) can also be replaced by a Power Module. Installation in combination with a sliding table top or cable flap is not possible. More information on the possible colours and colour configurations  Product data sheet „bFRIENDS“

bFRIENDS Power Module parts/structure

bFRIENDS Power Module types Type S with power socket or USB charging socket (A+C) charging port USB-A 18W / USB-C 22W

Type M with power socket or USB charging socket (A+C) charging port USB-A 18W / USB-C 22W

Type L with power socket and/or USB charging socket (A+C) charging port USB-A 18W / USB-C 22W (possible are: 2 x power socket | 2 x USB | 1 x power socket + 1 x USB)

USB-Charger (A+C) or power socket

Sleeve

Insert

Base

Fastener

Possible positions of the bFRIENDS Power Module Fixed positions. 1 or 2 cable outlet holes per panel possible: left / right / left and right Not possible in combination with sliding top and cable flap.

RE, NG

15 © Bene GmbH, 08/2026

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN OPTIONS

OPTIONS PREPARATION FOR CONNECTION TO T-PANEL Mounting brackets are inserted into the consoles and fixed in place from below. The number of mounting brackets depends on the table width. Longitudinal holes in the console allow the gap to be adjusted from 2-25 mm. A rocker allows the T-Panel to be levelled. Possible with table depths of 800 mm or greater. Can also be connected to T-Panel Extend.

T-Panel

T-Panel Extend

More information  product data sheet for T-Panel Pure, Multi, Curve, Basic and Acoustic.

COVERING CAPS Covering caps can be added to upgrade the table without preparation for connection to the T-Panel.

MODESTY PANEL Flush with the top edge of the table; height varies depending on table-top thickness. Available in 16 mm chipboard. Longitudinal holes in the console allow the gap to be adjusted from 0 - 20 mm. Assembly same as for T-Panel Curve / Pure. Black mounting bracket. Black, white or aluminium cover available. Not available in combination with LEVEL LIFT 2 TWIN and with T-Panel.

SLIDING TOP/DIVIDED SLIDING TOP The sliding top has a sliding mechanism with a latching function for locking. It can be easily slid to the front by loosening the catch, allowing cable management access. Sliding top · Sliding length: 177 mm · at a table depth of 600 mm, the sliding distance is reduced by 50 mm · only makes sense in connection with a cable tray · not possible with cable flap or cable outlet · cable cover optional Divided sliding top · Sliding length: 107 mm · only with T-leg frame · only makes sense in connection with a cable tray · for table depths of 800 mm or greater · not possible with cable flap or cable outlet · frame panel and cable cover optional

16 © Bene GmbH, 08/2026

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN OPTIONS

OPTIONS

FRONT/SLIDING PANELS The following options allow upgrading the table to include a divided sliding top. 2b

FRAME PANELS 1 This panel improves the visitor's side view of the table. The metal is screwed to the headpiece.

A small gap between it and the tabletop allows cables to be fed through. No T-Panel can be connected in combination with the frame panel. Available for table widths of 1.400, 1.600, and 1.800.

CABLE COVER 2 There are two different steel plate inserts. Their function is to cover the basic cabling 2a and provide the user another level for temporary cabling 2b . The first version is connected with metal hooks to the cable tray, but the second requires two connection plug board holders. They can be used to fix the connection plug board in place and fasten the trays with inserted magnet. The inserts can be used with all types of sliding tops and configured as desired. One of each version is always included in delivery. Available for table widths of 1.400, 1.600, and 1.800. Cable covers must be ordered separately.

CABLE MANAGEMENT The type of cable management is based on the column design. · Two-part / three-part column with increased collision protection integrated in the control unit: The manual switch, just like every column, is connected to the control unit. The power supply unit is integrated in the control unit and is connected to the mains via the mains cable. Two lengths are available for the power lead with the plug types A, D, F, L: · 1.500 mm: to connect to a connection plug board in the cable tray · 3.000 mm: for a direct connection to a power socket in the building (e.g. floor tank) Plug types A, F, L: straight plug D: angle plug

OPTIONAL Tiltable cable tray L

Cable gap

Cable outlet

Cable box

bFRIENDS Power Module

Plug box

Cable chain

Plug board bracket for cable tray L

Extended cable management and technical description  product data sheet cable and media management.

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN OPTIONS

OPTIONS SPACERS Spacers can be used to connect several tables. This ensures that the distance between the tables is kept constant and that a minimum clearance of 25 mm between the tables is not undershot, in order to prevent crushing or trapping caused by moving parts. Attention: The lateral spacers are different for the rectangular and the round column. Please pay attention to this when configuring! Spacers LEVEL LIFT 2

Included in the package: Two units, spacers must be ordered separately. Spacer positions LEVEL LIFT 2

25 mm

Colour: black

Spacer position LEVEL LIFT 2 TWIN Spacer LEVEL LIFT 2 TWIN, with integrated cable lead 25 mm

Colour: black

NOTE - SPACER ON VISITOR SIDE The visitor-side spacers (generally adjustable by 100 mm) are primarily intended for the installation of tables with T-panels. They allow the adjustment of a defined distance between two tabletops. Depending on the table depth or the column type, different distances between the tables result. The dimensions specified in the table always refer to the distance between two tabletops without T-panels. Attention: A minimum clearance of 25 mm between moving parts (e.g. two T-panels) must always be maintained to prevent crushing or trapping. Depth (mm)

T-leg min. 143 43 103 103 3

600 700 800 900 1.000

C-leg max. 243 143 203 203 103

min. 147 147 47

max. 247 247 147

Example At 2 x 800 depth with T-Panel Multi + distances, the result is 133 mm - according to the table, it works (between 103 and 203 mm). If the tables had a depth of 1.000 mm, it would not work (3 - 103 mm).

133

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN OPTIONS

OPTIONS EXCESS LENGTH OF DESK TOP Depending on the shape of the table top, the table top can be enlarged in different directions by the specified dimensions. Not available in combination with equal-sided 120° angle desk W3 . LEVEL LIFT 2 RE visitor side

left

right

left

right

visitor side: left: right: user side:

visitor side

right

visitor side lateral

lateral

user side

0 - max. 100 mm 0 - max. 200 mm 0 - max. 200 mm 0 - max. 100 mm

K1 visitor side

visitor side

user side

visitor side: left: right: user side:

0 - max. 100 mm 0 - max. 200 mm 0 - max. 200 mm 0 - max. 100 mm

visitor side: left: right: user side:

0 - max. 100 mm 0 - max. 200 mm 0 - max. 200 mm 0 - max. 100 mm

visitor side: 0 - max. 100 mm visitor side lateral: 0 - max. 100 mm lateral: 0 - max. 200 mm

LEVEL LIFT 2 TWIN RE user side

user side

central

right

left

central: left: right: user side:

right

left

right

left

central

user side

0 - max. 39 mm 0 - max. 200 mm 0 - max. 200 mm 0 - max. 100 mm

central: left: right: user side:

0 - max. 39 mm 0 - max. 200 mm 0 - max. 200 mm 0 - max. 100 mm

central: left: right: user side:

0 - max. 39 mm 0 - max. 200 mm 0 - max. 200 mm 0 - max. 100 mm

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN COLOURS AND MATERIALS

COLOURS AND MATERIALS MATERIALS AND SURFACES The following materials and colours are available for this product. •. . . . . . . . . . available - . . . . . . . . . . not available Tabletop Melamine Veneer Fenix 1

Chipboard • • -

Compact • • -

MDF •

Columns (C-leg, T-leg, combination leg)1 Black White Aluminium

Inner pipe • • •

Outer pipe • • •

Cantilever leg • • •

Chipboard • •

MDF • •

Fastening construction 2 • • • -

always single-coloured

Columns (Classic Lift) Black White Aluminium Melamine Veneer 2

bracket always aluminium; exceptions: slab-end in white  bracket white, slab-end basalt  bracket black

Options Black White Aluminium Melamine Veneer Fenix 1

Cable outlet • • • -

Cable tray • • • -

Cable flap • • •

Cable Box • • • -

Plugbox • • -

Restrictions on colour and panel combinations  see following pages

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN COLOURS & MATERIALS

COLOURS & MATERIALS MELAMINE

MW white

MQ office white

MSW snow white 1

MC canvas

MP platinum

MA aluminium

MH stone grey 1

TM clay 1

MS slate

MD urban grey 1

MB basalt

MJG jade green 1

DISCONTINUATION: OCTOBER 2027

EZ oak vicenza 1

MEK oak kendal 1

MAK maple classic 1

MBK beech classic 1

NG walnut grey 1

MNP walnut pavia 1

not available for compact top

LEVEL LIFT 2 & LEVEL LIFT 2 TWIN COLOURS & MATERIALS

COLOURS & MATERIALS VENEER

EF oak natural

EY oak sylt

EG oak grey

ER oak amaretto

EV oak vulcano

NF american walnut

NR walnut siena

NB walnut umbra

NA walnut anthracite

KD chestnut natural

KP chestnut brown

KQ chestnut grey

AK canadian maple

BJ bamboo

BG beech grey

BU beech natural

Veneers also available in matt finish.

FENIX™

white

black

METAL, POWDER-COATED

white

aluminium

black
