product-data-sheet-bene-level by Bene Office

LEVEL FAMILY LEVEL (LIFT) (TWIN)

DELTA (HIGH) BY BENE

CLASSIC (LIFT)

ONE PLATFORM, MANY POSSIBILITIES. The LEVEL platform forms the structural basis for a series of versatile, ergonomic desks from Bene. Various frame options – whether classic, homely, or minimalist – offer a wide range of design possibilities, while the functional platform in the background ensures stability, technology, and comfort. LEVEL desks are available in both fixed height and electric height-adjustable versions. They enable flexible workstations that meet the demands of

modern office environments – whether for focused seated work or dynamic standing tasks. Available as single workstations or as the double workstation version LEVEL (LIFT) TWIN, they offer solutions for different spatial concepts and team structures – from private offices to open team zones. This results in individual solutions built on a shared foundation – flexible in form, consistent in quality.

INSPIRING OFFICES. SINCE 1790.

LEVEL LEVEL FAMILY

LEVEL FAMILY LEVEL (LIFT)

LEVEL LIFT 2

LEVEL PURE (LIFT)

LEVEL PURE LIFT 2

CONSU

FIXED HEIGHT

FIXED HE

LEVEL

LEVEL PURE

CONSUL

LEVEL TWIN

LEVEL PURE TWIN

HEIGHT ADUSTABLE

HEIGHT A

LEVEL LIFT

LEVEL LIFT 2

LEVEL PURE LIFT

LEVEL PURE LIFT 2

CONSUL

LEVEL LIFT TWIN

LEVEL LIFT 2 TWIN

LEVEL PURE LIFT TWIN

LEVEL PURE LIFT 2 TWIN

LEVEL LIFT PRO

LEVEL LIFT 2 PRO

DELTA (LEVEL)

DELTA PURE (LEVEL PURE)

FIXED HEIGHT

DELTA BY BENE

DELTA PURE BY BENE

DELTA HIGH BY BENE

DELTA PURE HIGH BY BENE

CLASSIC (LEVEL)

CLASSIC PURE (LEVEL PURE)

CLASSIC PURE LIFT 2 (LEVEL PURE LIFT 2)

FIXED HEIGHT

CLASSIC

CLASSIC PURE

CLASSIC PURE LIFT 2

CLASSIC LIFT (LEVEL LIFT)

CLASSIC LIFT 2 (LEVEL LIFT 2)

CLASSIC PURE LIFT (LEVEL PURE LIFT)

HEIGHT ADUSTABLE

CLASSIC LIFT

CLASSIC LIFT 2

CLASSIC PURE LIFT

ELECTRIC HEIGHT ADJUSTMENT RASTOMAT ALSO AVAILABLE WITH ROUND COLUMN DESIGN ALSO AVAILABLE WITH DELTA WOOD DESIGN

2 © Bene GmbH, 08/2026

LEVEL LEVEL FAMILY

LEVEL FAMILY CONSULT PURE

CONSULT PURE LIFT 2

LEVEL PURE (LIFT) MEETING

FIXED HEIGHT

CONSULT PURE

LEVEL PURE MEETING QUATTRO SINGLE- / MULTI-PART TABLETOP

LEVEL PURE LIFT 2 MEETING

LEVEL PURE MEETING SINGLE- / MULTI-PART TABLETOP

LEVEL PURE MEETING HIGH SINGLE- / MULTI-PART TABLETOP HEIGHT ADUSTABLE

HEIGHT ADUSTABLE

CONSULT PURE LIFT

CONSULT PURE LIFT 2

LEVEL PURE LIFT MEETING SINGLE- / MULTI-PART TABLETOP

LEVEL PURE LIFT 2 MEETING SINGLE- / MULTI-PART TABLETOP

LEVEL PURE LIFT MEETING QUATTRO SINGLE- / MULTI-PART TABLETOP

LEVEL PURE LIFT 2 MEETING QUATTRO SINGLE- / MULTI-PART TABLETOP

DELTA PURE MEETING (LEVEL PURE MEETING) FIXED HEIGHT

DELTA PURE MEETING BY BENE SINGLE- / MULTI-PART TABLETOP

DELTA PURE MEETING HIGH BY BENE SINGLE- / MULTI-PART TABLETOP

ELECTRIC HEIGHT ADJUSTMENT RASTOMAT ALSO AVAILABLE WITH ROUND COLUMN DESIGN ALSO AVAILABLE WITH DELTA WOOD DESIGN

3 © Bene GmbH, 08/2026

LEVEL PRODUCT DESCRIPTION

PRODUCT DESCRIPTION The LEVEL family is divided into four table types.

LEVEL

LEVEL TWIN

LEVEL variants · without height adjustment · height adjustment by rastomat for the sitting height

LEVEL TWIN variants · without height adjustment · height adjustment by rastomat for the sitting height

LEVEL LIFT

LEVEL LIFT TWIN

LEVEL LIFT variants · height adjustment by manual switch for the sitting and standing height

LEVEL LIFT TWIN variants · height adjustment by manual switch for the sitting and standing height

LEVEL LIFT PRO A LEVEL LIFT with high quality materials and design values. · MDF table top with waterfall edge · Fenix black · nanotech matte surface · round column · manual switch Premium with sensor · divided sliding top · frame panel

4 © Bene GmbH, 08/2026

LEVEL PRODUCT DESCRIPTION - LEVEL

PRODUCT DESCRIPTION - LEVEL

4 2

T-leg, C-leg, Classic, Delta, Delta wood, Delta High or Delta High wood frame with 10 mm floor compensation. Various tabletop shapes: chipboard 19 mm or 25 mm with 2 mm mono edge, compact board 13 mm or MDF 25 mm with 1 mm mono bevel edge. 1

Tabletop

Support bracket

Multi-function head

Central frame

Column

Cantilever leg

Rastomat

4 2

6 5

5 © Bene GmbH, 08/2026

LEVEL PRODUCT DESCRIPTION - LEVEL TWIN

PRODUCT DESCRIPTION - LEVEL TWIN T-leg frame with 10 mm floor compensation. Various tabletop shapes: chipboard 19 mm or 25 mm with 2 mm mono edge, compact board 13 mm or MDF 25 mm with 1 mm mono bevel edge. 1

Tabletop

Support bracket

Multi-function head

Central frame

Column

Combination leg

Column protection

Cover

Rastomat

5 7 5 6 6 7

6 © Bene GmbH, 08/2026

LEVEL PRODUCT DESCRIPTION - LEVEL / LEVEL TWIN

PRODUCT DESCRIPTION - LEVEL / LEVEL TWIN Tables without height adjustment have a fixed height of 740 mm.

HEIGHT ADJUSTMENT BY RASTOMAT · height adjustment range for seat height: 620 – 860 mm · height adjustment in 10 mm increments · without tools, using mechanical Rastomat function

7 © Bene GmbH, 08/2026

LEVEL PRODUCT DESCRIPTION - LEVEL LIFT

PRODUCT DESCRIPTION - LEVEL LIFT

4 2

A solid desk for alternating at work between sitting and standing. T-leg or C-leg frame with 10 mm floor compensation. Various tabletop shapes: chipboard 19 mm or 25 mm with 2 mm mono edge, compact board 13 mm or MDF 25 mm with 1 mm mono bevel edge. 1

Tabletop

Support bracket

Multi-function head

Central frame

Control unit or power supply unit

Manual switch

Lift column

Cantilever leg

Corner column

Support column

7 5

4 2 1

3 9

7 6

5 2

10 6 8

The warranty period for electrical and electromechanical parts used in this table is 5 years. Covered by Bene’s warranty conditions (Bene product warranty DB-ZFP-400). © Bene GmbH, 08/2026

LEVEL PRODUCT DESCRIPTION - LEVEL LIFT TWIN

PRODUCT DESCRIPTION - LEVEL LIFT TWIN T-leg frame with 10 mm floor compensation. Various tabletop shapes: chipboard 19 mm or 25 mm with 2 mm mono edge, compact board 13 mm or MDF 25 mm with 1 mm mono bevel edge. 5 1

Tabletop

Support bracket

Multi-function head

Central frame

Control unit or power supply unit

Manual switch

Lift column

Combination leg

Column protection

Cover

8 7

The warranty period for electrical and electromechanical parts used in this table is 5 years. Covered by Bene’s warranty conditions (Bene product warranty DB-ZFP-400). © Bene GmbH, 08/2026

LEVEL COLUMN TYPES

COLUMN TYPES Available in black, white, or aluminium. Levelling: +10 mm with adjustment screws LEVEL LIFT C-leg, rectangular powdered 80 x 50 mm steel profile pipe, cantilever legs: die-cast aluminium frame

ADDITIONAL INFO FOR CANTILEVER LEG

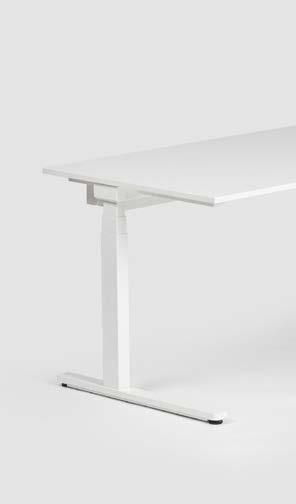

T-leg, rectangular powdered 80 x 50 mm steel profile pipe, T-leg column can be configured with two different cantilever legs. LIGHT: cantilever leg - more affordable entry-level cantilever leg - welded canted steel plate - powder-coated

Table depth (mm)

DESIGN: die cast cantilever leg - die-cast aluminium - high stability - high form and design quality, tailored to the platform - powder-coated

800

900

750 mm

850 mm

Design (for rectangular or round columns)

Light (for rectangular columns) 703 mm

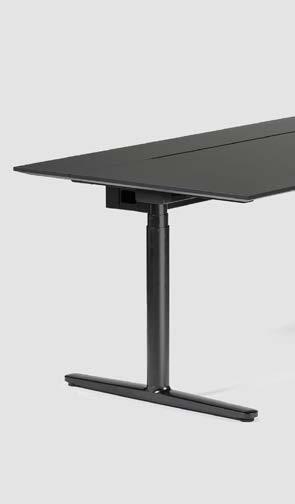

T-leg, round powdered Ø70 mm steel profile pipe, cantilever legs: die-cast aluminium frame

LEVEL

LEVEL LIFT TWIN rectangular column powdered 99,5 x 60 mm steel profile pipe

LEVEL TWIN

LEVEL LIFT

HEIGHT ADJUSTMENT

for 2-part column 25 mm - 1.204 19 mm - 1.198 13 mm - 1.192

25 mm - 866 19 mm - 860 13 mm - 854 25 mm - 746 19 mm - 740 13 mm - 734

LEVEL LIFT TWIN

HEIGHT ADJUSTMENT for 2-part column rastomat

1-part column fixed height

round column powdered 99,5 x 80 mm steel profile pipe

25 mm - 709 19 mm - 703 13 mm - 697

25 mm - 626 19 mm - 620 13 mm - 614

for 3-part column 25 mm - 1.304 19 mm - 1.298 13 mm - 1.292

25 mm - 644 19 mm - 638 13 mm - 632

NOTE Frame type 1 Table depth 600 700 800 900 1.000

x x x x x

Tabletop shapes x K1 x W3

Cantilever leg Light

Cantilever leg length changes depending on depth. The corner column with a extension dimension of 600 mm, is designed as a T-leg. 3 Only possible with 3-part column with increased collision protection. 1 2

x x x

x2 x

x Measurements in mm

LEVEL COLUMN TYPES

COLUMN TYPES Every electrically height-adjustable table in the LEVEL family has at least two lifting columns (angled and combination tables: three lifting columns, TWIN tables: four lifting columns). Each lifting column has an electric motor. The following types of columns are used for LEVEL LIFT / LEVEL LIFT TWIN.

TWO-PART/THREE-PART TELESCOPIC RECTANGULAR COLUMN FOR 2-COLUMN TABLES

THREE-PART TELESCOPIC RECTANGULAR COLUMN / ROUND COLUMN FOR MULTI-COLUMN TABLES

· radius column R5 · without visible glides · two-part rectangular column (DL5 IC); stroke length: 495 mm or · three-part rectangular column (DL6 IC); stroke length: 660 mm · lifting force 500 N / column · basic software collision protection with EASY hand control · increased collision protection with BASIC manual switch with sensor and PREMIUM with sensor · control integrated in column Master / follower system (two different columns per table) · manual switch is connected directly to master column · external power supply included

· radius column R5 · without visible glides · 3-part rectangular column (DL6 PLUS) - stroke length: 660 mm or · 3-part round column (DL11 PLUS*) - stroke length: 660 mm · lifting force 800 N / column · basic software collision protection with EASY hand control · increased collision protection with BASIC manual switch with sensor and PREMIUM with sensor · two identical columns per table · hand switch is connected to control unit · separate control unit with integrated power supply included

Maximum load 75 kg (PC, PC holder, T-Panel, etc. must be included in the calculation!)

Maximum load 100 kg (PC, PC holder, T-Panel, etc. must be included in the calculation!)

Type · Power supply input 100 V AC to 240 V AC, 50 Hz/60 Hz · Maximum on-time 2 min. on, 18 min. off · Protection category II · Noise ~46 dB · Upward lift speed 38 mm/s

Type · Power supply input 230 V AC, 50 Hz · Maximum on-time 2 min. on, 18 min. off · Protection category II · Noise ~43 dB · Upward lift speed 38 mm/s

Reference values for power consumption Load Power consumption · Stand-by 0,1 watts · Upward lift 75 kg 175 watts

Reference values for power consumption Load Power consumption · Stand-by 0,1 watts · Upward lift 100 kg max. 300 watts / 450 watts

The following columns (with separate control) are ALWAYS used for SELECTION/ PREPARATION with attachment table and for W3 or K1 · 3-part rectangular column (DL6 PLUS) - stroke length: 660 mm or · 3-part round column (DL11 PLUS*) - stroke length: 660 mm · lifting force 800 N / column

* round column type is also used for 2-column tables

11 © Bene GmbH, 08/2026

LEVEL FRAME TYPES

FRAME TYPES The heights shown all refer to the upper edge of the desk when 25 mm chipboard is being used. In the case of 19 mm chipboard and 13 mm compact top, the desk height is reduced accordingly.

740

700 150

740

850 DELTA HIGH 740 150 740 · Rectangular pipe 60700 x 30 mm, steel · Levelling: +10 mm by means of adjustment leg · Range of height adjustment: 1.070 mm fixed

740

650

200

650

200

1304 1304 660660 644644

119 49549 703703

546

200

740 740

200 200 650 650

740 740

1.070

740

1.070

850

1.070

700 150

740

1.070

850

650

740740

850 850

850

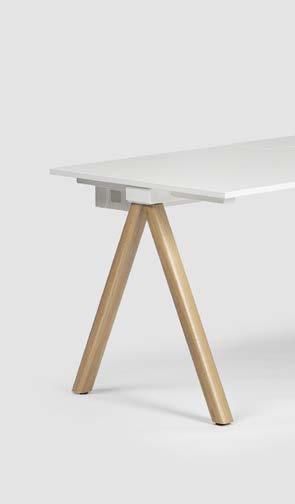

DELTA WOOD · Wooden tube 57 x 53.5 mm, to steel pipe · Levelling: +10 mm by means of adjustment leg · Range of height adjustment: 740 mm fixed

700 150 DELTA HIGH WOOD

850 850 150 150 700 700

740 740

150150 700700

622

715

1204 1204 495495 709709

850850 150150 CLASSIC LIFT 1, 2 700700 · Thickness of slab-end 38 mm, chipboard for melamine, 39 mm, chipboard for veneer, fastening construction and cover plate made of steel · Levelling: +10 mm by means of adjustment leg · Range of height adjustment: 2-part column 709 - 1.204 mm 3-part column 644 - 1.304 mm

DELTA · Rectangular pipe 60 x 30 mm, steel · Levelling: +10 mm by means of adjustment leg · Range of height adjustment: 740 mm fixed or height adjustable between 650 - 850 mm

850850

740740

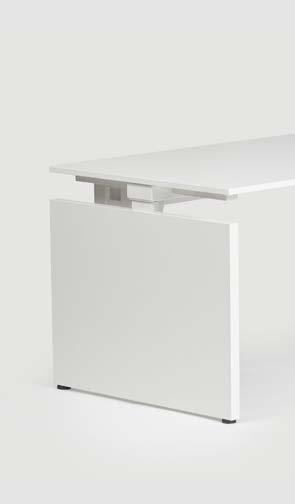

CLASSIC 1, 2 · Thickness of slab-end 38 mm, chipboard for melamine, 39 mm, chipboard for veneer, fastening construction and cover plate made of steel · Levelling: +10 mm by means of adjustment leg · Range of height adjustment: 740 mm fix or in 20 mm grid with tool

1.070 850

740

700 150

· Wooden tube 57 x 53.5 mm, to steel pipe · Levelling: +10 mm by means of adjustment leg · Range of height adjustment: 1.070 mm fixed

1 2

not possible in combination with desktop shape rectangle RE with Soft Edge not possible in combination with communication segment and extension fitting (only valid for Classic frame with fixed height)

LEVEL MANUAL SWITCH (ELECTRIC HEIGHT ADJUSTMENT)

MANUAL SWITCH (ELECTRIC HEIGHT ADJUSTMENT) HEIGHT ADJUSTMENT WITH MANUAL SWITCH There are three different types of manual switch. MANUAL SWITCH EASY

MANUAL SWITCH BASIC WITH SENSOR

MANUAL SWITCH PREMIUM BT WITH SENSOR

Dimension: W: 60 mm, H: 15,8 mm Colour: Anthracite grey Functions: up/down function, operation via buttons

Dimension: W: 82 mm, H: 28,8 mm Colour: Black Functions: up/down function, intuitively operated element, with integrated collision protection sensor

Dimension: W: 82 mm, H: 28,8 mm Colour: Black Functions on manual switch: up/down function, intuitively operated element, with integrated collision protection sensor, graphic display. 4 memory positions, key lock, upper and lower limit of table height, functionality via Desk ConnectTM, app: setting the 4 memory positions, saving the upper and lower limit of the table height and reminder function on the mobile phone. Menu navigation german and english. Remote control or automatic movement of the table by mobile phone is not permitted due to the Machinery Directive and is therefore not possible!

Intuitive operation The manual switches (BASIC WITH SENSOR and PREMIUM BT WITH SENSOR) are operated via a tilt function instead of buttons so that direct visual contact with the hand control is not necessary when adjusting the height of the table.

HANDSET OVERVIEW

EASY control via button

BASIC WITH SENSOR

PREMIUM BT WITH SENSOR

•

control via paddle memoryposition

app via bluetooth

•

reminder function via Desk Connect app

•

desk hight limit container-/shelfstop

•

basic collision protection increased collision protection sensor integrated in manual switch graphic display

•

13 © Bene GmbH, 08/2026

LEVEL MANUAL SWITCH (ELECTRIC HEIGHT ADJUSTMENT)

MANUAL SWITCH (ELECTRIC HEIGHT ADJUSTMENT) MANUAL SWITCH POSITIONS It is possible to choose the positioning of the switch, as either protruding or flush with the table top, and either on the left or right-hand side of the desk. The manual switch Easy can only be selected in the protruding position.

Protruding

Flush

14 © Bene GmbH, 08/2026

LEVEL OVERVIEW AND DIMENSIONS

OVERVIEW AND DIMENSIONS TABLETOP 19 mm / 25 mm chipboard, 19 mm chipboard with Fenix, 13 mm compact tabletop or 25 mm MDF with Fenix TABLETOP SHAPES - BASIC TABLES LEVEL & LEVEL LIFT Rectangular RE

User side rounded NG

Rectangular RE with Soft Edge

1.000 - 2.000

1.400 - 2.000

1.000 - 2.000 Corner radius Soft Edge Melamine / Fenix: 60 mm Veneer: 70 mm

600 | 700 800 | 900 1.000

Combination desk K1

Angle desk W3

700 800 | 900 1.000

1.732 | 2.078,4

1.600 - 2.000 1.200 1.600

1.192,8 1.292,8

LEVEL TWIN & LEVEL LIFT TWIN Rectangular RE

Rectangular RE with Soft Edge

1.000 - 2.000

User side rounded NG

1.000 - 2.000

1.400 - 2.000 Corner radius Soft Edge Melamine / Fenix: 60 mm Veneer: 70 mm

1.705

TABLETOP SHAPES - COMMUNICATION SEGMENTS 1

Attachment table 4 600

LEVEL / LEVEL LIFT

700

800 - 2.000

400 1.000

400 800

700

600

400

900

400

400 900

800

400

1.000

400 700

600

400

800

900

Lateral over 1 table rounded MU 400

800 - 2.000

800 600

Lateral over 1 table rectangular MV 400

Further installation desk 3

1.000

not possible in combination with Classic frame with fixed height

only avaible for LEVEL

3 only avaible for LEVEL (fixed and rastomat) with the table top shapes RE, NG, K1, W3, not in combination with RE with Soft Edge

400 900

800

700

1.000

400 800

700

600 600

400

900

400

1.000

Lateral over 2 tables rectangular ME 2

Lateral over 2 tables rounded MR 2

1.000

900

400

4 LEVEL LIFT with attachment table, main table must be equipped with increased collision protection! When refitting an attachment table, the 2-channel control must be replaced by a 3-channel control.

Delta frame: seat height from depth of 700 mm, standing height from depth of 800 mm Measurements in mm

1.000

900

800

700

400 800

400 700

400 600 600

400

15 © Bene GmbH, 08/2026

LEVEL OPTIONS

OPTIONS Options for LEVEL, LEVEL LIFT, LEVEL TWIN and LEVEL LIFT TWIN. The following are available for these tabletop shapes. The properties of the options always apply for one tabletop.

RE, NG

Options Cable gap

•

Grommet hole / bFRIENDS Power Module

•

Wireless charger

•

Tiltable cable tray L

•

only visitor side

•

Cable chain

•

Plug board bracket for cable tray L

•

CPU holder

•

Cable flap

•

Cable Box

•

Plug Box

•

Preparation for connection to T-Panel

•

only visitor side

on request

Connection to T-Panel Extend

•

only visitor side

Covering caps

•

Modesty panel

•

only visitor side

Sliding top

•

Divided sliding top

•

Frame panels

•

Cable cover

•

Spacers

•

only lateral

•

only lateral

Cable management

•

Excess length of desk top

•

Bag hook

•

16 © Bene GmbH, 08/2026

LEVEL OPTIONS

OPTIONS 1

Cable gap Fixed positions. 1 or 2 cable gaps are possible per tabletop: left/right/left and right. Dimension: Width 350 mm, depth 45 mm Not possible for cable flap or divided sliding top.

7 4

RE, NG

Grommet hole Fixed positions. 1 or 2 grommet holes are possible per tabletop: left/right/left and right. Cover colour: black, white, or aluminium Not possible with cable flap or sliding top. RE, NG

Cable chain & textile cable collector for further info  product data sheet „cable- & media management“

Plug board bracket for cable tray L To fix the connection plug board in the cable tray. Colour: Black

CPU holder Maximum load: 30 kg Maximum height of computer: 450 mm

Bag hook attached to the head piece with screws, powder-coated steel in black, white or aluminium, Dimensions: height 100 mm, width 32 mm, depth 46,8 mm

Cable tray L tiltable mounted on the frame Colours: Black, white, or aluminium Space from bottom to cable tray: 600 mm (at the lowest position) 181 mm 210 mm

58 mm

17 © Bene GmbH, 08/2026

LEVEL OPTIONS

OPTIONS CENTRAL CABLE TRAY - LEVEL TWIN & LEVEL LIFT TWIN Covering can be rotated and mounted on the combination leg. Colours: Black, white, or aluminium LEVEL (LIFT) TWIN with rectangular column: the central cable tray can be deselected as an option. LEVEL TWIN with round column: the central cable tray can be deselected as an option. LEVEL LIFT TWIN with round column: the central cable tray is always technically required and cannot be deselected (it serves as a safeguard against twisted installation) RE, NG

290 mm 120 mm

closed

right side open, cable tray can be opened on both sides

CABLE FLAP Fixed positions. Possible positions: central/left/right. Central: table widths of up to 1.300 and 1.400 mm or greater, left/right: table widths of 1.600 mm or greater Not possible in combination with cable outlet, cable gap, or sliding top. RE, NG

CABLE BOX The cable box enables quick and easy access to the cable tray. The plastic frame and the metal flap are available in white, black or aluminum.

PLUG BOX The plug box is milled flush into the table top and can be equipped with a connection plug board. The metal flap are available in black or aluminum.

· max. 2 units per table top possible · position per desktop shape specified as fixed · position in the centre up to desk width of 1.399 mm · position left / right / left and right from desk width of 1.400 mm

· Flap can only be opened from one side via “Push to open”. · max. 2 units per table top possible · position per desktop shape specified as fixed · position in the centre up to desk width of 1.399 mm · position left / right / left and right from desk width of 1.400 mm

Cannot be combined with sliding top and cable flap. Cannot be combined with sliding top and cable flap. Cable Box 327 x 152 mm

RE, NG

Plug box 315 x 125 mm

RE, NG

18 © Bene GmbH, 08/2026

LEVEL OPTIONS

OPTIONS WIRELESS CHARGER The wireless charger can be installed in the front area of the tabletop on the left or right and enables wireless charging of a compatible device. The recess for the wireless charger is milled into the tabletop from below. A sticker is attached to the tabletop to indicate where the charging module is located. The wireless charger is a separate item, must be ordered separately (simple configuration via the pCon.planner META planning) and cannot be retrofitted. Technical data · diameter 80 mm · black housing · charging power 5 W · compatibility works with all devices that support wireless charging with the Qi standard. · works with most lightweight mobile phone cases (< 3 mm) · water resistance class IP-43 · silent / active mode (for the quietest possible charging process) Scope of delivery · wireless charger · power cable 1,5 m (available plug types A, D, F, L) · sticker to stick on the tabletop (labelling: position of wireless charger) · assembly material (cable clips, screws) Possible positions of the wireless charger Fixed positions. One wireless charger per tabletop possible: concealed on the left or on the right Not possible in combination with the W3 tabletop. RE, NG

LEVEL OPTIONS

OPTIONS BFRIENDS POWER MODULE The bFRIENDS Power Module is available in three sizes - S, M and L. It can be fitted to all tables wherever a cable outlet is possible. An existing cable outlet hole (diameter 80 mm) can also be replaced by a Power Module. Installation in combination with a sliding table top or cable flap is not possible. More information on the possible colours and colour configurations  Product data sheet „bFRIENDS“

bFRIENDS Power Module parts/structure

bFRIENDS Power Module types Type S with power socket or USB charging socket (A+C) charging port USB-A 18W / USB-C 22W

Type M with power socket or USB charging socket (A+C) charging port USB-A 18W / USB-C 22W

Type L with power socket and/or USB charging socket (A+C) charging port USB-A 18W / USB-C 22W (possible are: 2 x power socket | 2 x USB | 1 x power socket + 1 x USB)

USB-Charger (A+C) or power socket

Sleeve

Insert

Base

Fastener

Possible positions of the bFRIENDS Power Module Fixed positions. 1 or 2 cable outlet holes per panel possible: left / right / left and right Not possible in combination with sliding top and cable flap.

RE, NG

LEVEL OPTIONS

OPTIONS PREPARATION FOR CONNECTION TO T-PANEL Mounting brackets are inserted into the consoles and fixed in place from below. The number of mounting brackets depends on the table width. Longitudinal holes in the console allow the gap to be adjusted from 2-25 mm. A rocker allows the T-Panel to be levelled. Possible with table depths of 800 mm or greater. Can also be connected to T-Panel Extend, not possible in combination with Delta High frame.

T-Panel

T-Panel Extend

T-Panel Extend Delta

More information  Price list for T-Panel Pure, Multi, and Curve

COVERING CAPS Covering caps can be added to upgrade the table without preparation for connection to the T-Panel.

MODESTY PANEL Flush with the top edge of the table; height varies depending on table-top thickness. Available in 16 mm chipboard. Longitudinal holes in the console allow the gap to be adjusted from 0 - 20 mm. Assembly same as for T-Panel Curve / Pure. Black mounting bracket. Black, white or aluminium cover available. Not available in combination with LEVEL TWIN, LEVEL LIFT TWIN and with T-Panel.

SLIDING TOP/DIVIDED SLIDING TOP The sliding top has a sliding mechanism with a latching function for locking. It can be easily slid to the front by loosening the catch, allowing cable management access. Sliding top · Sliding length: 177 mm · at a table depth of 600 mm, the sliding distance is reduced by 50 mm · only makes sense in connection with a cable tray · not possible with cable flap or cable outlet · cable cover optional Divided sliding top · Sliding length: 107 mm · only with T-leg frame · only makes sense in connection with a cable tray · only for table depths 800 mm · not possible with cable flap or cable outlet · frame panel and cable cover optional

LEVEL OPTIONS

OPTIONS

FRONT/SLIDING PANELS The following options allow upgrading the table to include a divided sliding top. 2b

FRAME PANELS 1 This panel improves the visitor's side view of the table. The metal is screwed to the headpiece.

A small gap between it and the tabletop allows cables to be fed through. No T-Panel can be connected in combination with the frame panel. Available for table widths of 1.400, 1.600, and 1.800.

CABLE COVER 2 There are two different steel plate inserts. Their function is to cover the basic cabling 2a and provide the user another level for temporary cabling 2b . The first version is connected with metal hooks to the cable tray, but the second requires two connection plug board holders. They can be used to fix the connection plug board in place and fasten the trays with inserted magnet. The inserts can be used with all types of sliding tops and configured as desired. One of each version is always included in delivery. Available for table widths of 1.400, 1.600, and 1.800. Cable covers must be ordered separately.

CABLE MANAGEMENT The type of cable management is based on the column design. There are two basic systems. · Two-part/three-part column with basic collision protection Here the control system is integrated into the column. The column designated as “master” handles the connection to the second, the manual switch and the motor cable for the connection to the power supply unit. The power supply unit, in turn, is connected to the electrical grid through the power lead. · 3-part column with increased collision protection These columns always require a control system. All columns, the manual switch and the power lead are connected to this central component. Two lengths are available for the power lead with the plug types A, D, F, L: · 1.500 mm: to connect to a connection plug board in the cable tray (plug type L, only wwith increased collision protection: 2.000 mm) · 3.000 mm (columns without increased collision protection) or 3.200 mm (columns with increased collision protection): for a direct connection to a power socket in the building (e.g. floor tank)

Plug types A, F, L: straight plug D: angle plug OPTIONAL Tiltable cable tray L

Cable gap

Cable outlet

Cable box

bFRIENDS Power Module

Plug box

Cable chain

Plug board bracket for cable tray L

Extended cable management and technical description  Price list cable and media management.

LEVEL OPTIONS

OPTIONS SPACERS Spacers can be used to connect several tables. This ensures that the distance between the tables is kept constant and that a minimum clearance of 25 mm between the tables is not undershot, in order to prevent crushing or trapping caused by moving parts. Attention: The lateral spacers are different for the rectangular and the round column or the foot bracket. Please pay attention to this when configuring!

Spacers LEVEL & LEVEL LIFT

Included in the package: Two units, spacers must be ordered separately. Spacer positions LEVEL & LEVEL LIFT

25 mm

Colour: black

Spacer position LEVEL TWIN & LEVEL LIFT TWIN Spacer LEVEL TWIN & LEVEL LIFT TWIN, with integrated cable lead

25 mm

Colour: black

NOTE - SPACER ON VISITOR SIDE The visitor-side spacers (generally adjustable by 100 mm) are primarily intended for the installation of tables with T-panels. They allow the adjustment of a defined distance between two tabletops. Depending on the table depth or the column type, different distances between the tables result. The dimensions specified in the table always refer to the distance between two tabletops without T-panels. Attention: A minimum clearance of 25 mm between moving parts (e.g. two T-panels) must always be maintained to prevent crushing or trapping. Depth (mm)

T-leg min. 143 43 103 103 3

600 700 800 900 1.000

C-leg max. 243 143 203 203 103

min. 147 147 47

max. 247 247 147

Example At 2 x 800 depth with T-Panel Multi + distances, the result is 133 mm - according to the table, it works (between 103 and 203 mm). If the tables had a depth of 1.000 mm, it would not work (3 - 103 mm).

133

LEVEL OPTIONS

OPTIONS EXCESS LENGTH OF DESK TOP Depending on the shape of the table top, the table top can be enlarged in different directions by the specified dimensions. Not available in combination with equal-sided 120° angle desk W3 . SINGLE WORKPLACE RE visitor side

left

right

left

right

visitor side: left: right: user side:

visitor side

right

visitor side lateral

lateral

user side

0 - max. 100 mm 0 - max. 200 mm 0 - max. 200 mm 0 - max. 100 mm

K1 visitor side

visitor side

user side

visitor side: left: right: user side:

0 - max. 100 mm 0 - max. 200 mm 0 - max. 200 mm 0 - max. 100 mm

visitor side: left: right: user side:

0 - max. 100 mm 0 - max. 200 mm 0 - max. 200 mm 0 - max. 100 mm

visitor side: 0 - max. 100 mm visitor side lateral: 0 - max. 100 mm lateral: 0 - max. 200 mm

LEVEL TWIN / LEVEL LIFT TWIN RE user side

user side

central

right

left

central: left: right: user side:

right

left

right

left

central

user side

0 - max. 39 mm 0 - max. 200 mm 0 - max. 200 mm 0 - max. 100 mm

central: left: right: user side:

0 - max. 39 mm 0 - max. 200 mm 0 - max. 200 mm 0 - max. 100 mm

central: left: right: user side:

0 - max. 39 mm 0 - max. 200 mm 0 - max. 200 mm 0 - max. 100 mm

LEVEL COLOURS AND MATERIALS

COLOURS AND MATERIALS MATERIALS AND SURFACES The following materials and colours are available for this product. •. . . . . . . . . . available - . . . . . . . . . . not available

Tabletop Melamine Veneer Fenix

Chipboard • • -

Compact • • -

MDF •

Frame (T-leg, C-leg) 1 black white aluminium

Inner pipe • • •

Outer pipe • • •

Cantilever leg • • •

Classic

HC oak, natural

HD oak, graphite

Melamine

Veneer

Delta wood

SZ Black

Delta

AL aluminium

Frame is always single-coloured

WI white

Steel pipe

•

Metal parts

•

Wooden feet

•

Chipboard

•

MDF

•

Fastening construction 1

•

bracket always AL aluminium; exceptions: Slab-end in MW white  bracket WI white, slab-end MB Basalt  bracket SZ black.

Options black white aluminium Melamine Veneer Fenix

Cable outlet • • • -

Cable tray • • • -

Cable flap • • •

Cable Box • • • -

Plugbox • • -

Restrictions on colour and panel combinations  see following pages

LEVEL COLOURS & MATERIALS

COLOURS & MATERIALS MELAMINE

MW white

MQ office white

MSW snow white 1

MC canvas

MP platinum

MA aluminium

MH stone grey 1

TM clay 1

MS slate

MD urban grey 1

MB basalt

MJG jade green 1

DISCONTINUATION: OCTOBER 2027

EZ oak vicenza 1

MEK oak kendal 1

MAK maple classic 1

MBK beech classic 1

NG walnut grey 1

MNP walnut pavia 1

not available for compact top

LEVEL COLOURS & MATERIALS

COLOURS & MATERIALS VENEER

EF oak natural

EY oak sylt

EG oak grey

ER oak amaretto

EV oak vulcano

NF american walnut

NR walnut siena

NB walnut umbra

NA walnut anthracite

KD chestnut natural

KP chestnut brown

KQ chestnut grey

AK canadian maple

BJ bamboo

BG beech grey

BU beech natural

Veneers also available in matt finish.

FENIX™

white

black

METAL, POWDER-COATED

white

aluminium

black
