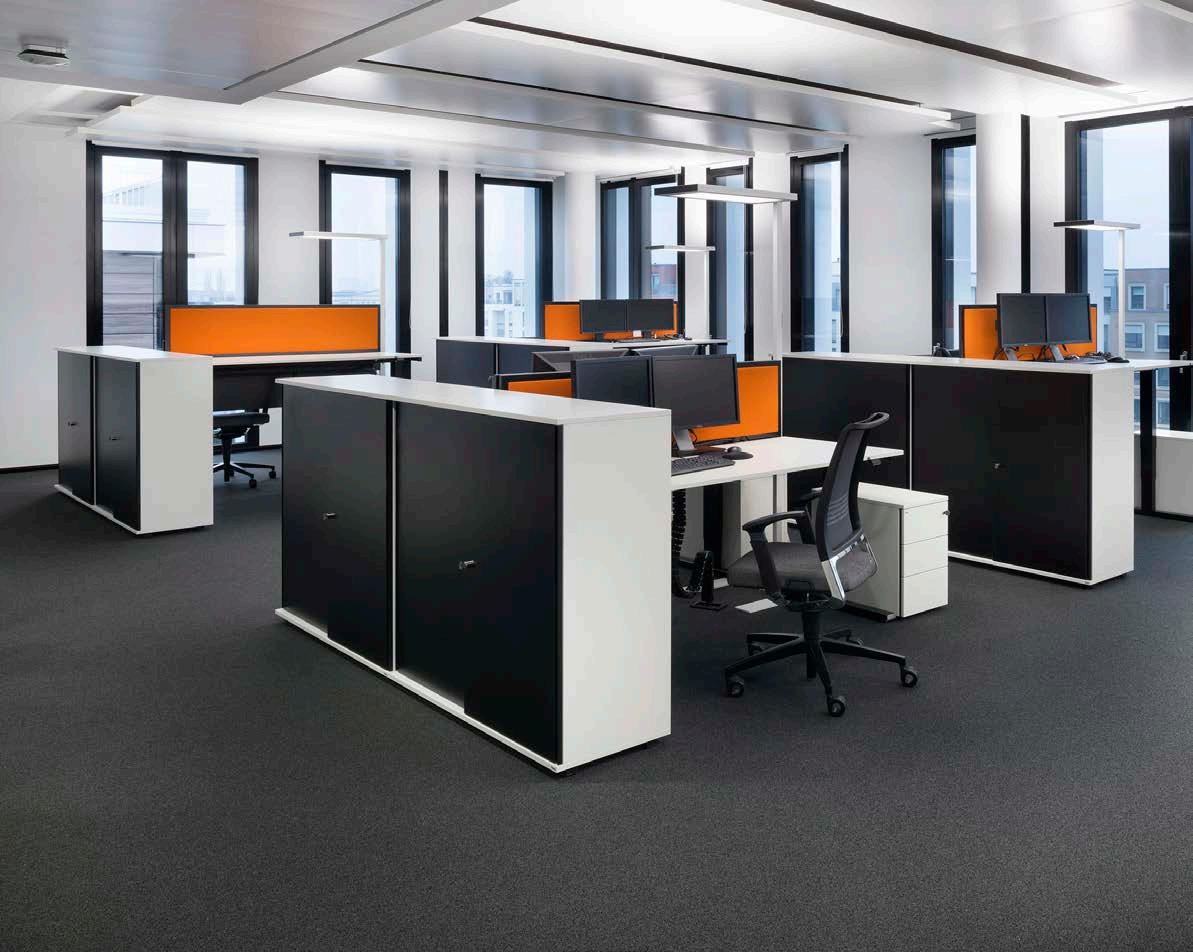

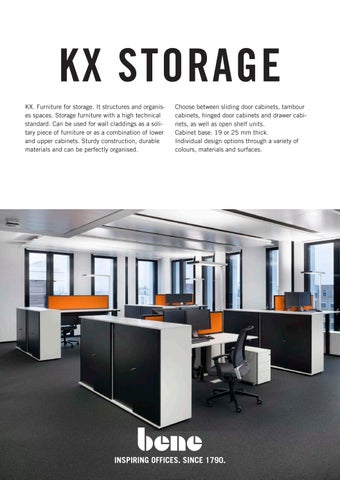

KX STORAGE KX. Furniture for storage. It structures and organises spaces. Storage furniture with a high technical standard. Can be used for wall claddings as a solitary piece of furniture or as a combination of lower and upper cabinets. Sturdy construction, durable materials and can be perfectly organised.

Choose between sliding door cabinets, tambour cabinets, hinged door cabinets and drawer cabinets, as well as open shelf units. Cabinet base: 19 or 25 mm thick. Individual design options through a variety of colours, materials and surfaces.

INSPIRING OFFICES. SINCE 1790.

KX STORAGE PRODUCT DESCRIPTION

PRODUCT DESCRIPTION

Top: 19 mm or 25 mm chipboard.

Visible sides: 19 mm chipboard. 50 mm hole spacing for installing shelves.

Middle panel: 19 mm chipboard. 50 mm hole spacing for installing shelves.

Bottom: 19 mm or 25 mm chipboard.

Shelves: 19 mm chipboard.

Shelves: Metal shelves in SR slate available.

Rear wall 1: 12 mm chipboard.

2 5

Adjustment leg: Plastic in AS asphalt. Height is 25 mm when bottom and top are 25 mm thick; height is 37 mm when bottom and top are 19 and 25 mm thick; 4-6 adjustment legs depending on the cabinet, +20 mm height adjustment.

Optional base panel: Plastic in AS asphalt or AL aluminium coloured. 4-sided canted plastic profile with corner connectors.

8 9 10

Optional steel base K2: Steel profile in AS asphalt. 4 canted steel profiles, height: 45 mm. Integrated level adjustment of 45-65 mm via adjustment feet.

Rear wall in acoustic version on request.

CABINET TYPES Upper cabinet The upper cabinet can only be installed on top of the lower cabinet. It is connected to it with four chipboard screws. From deliveries starting in 05/2026, top cabinets are supplied without holes for leveling feet.

Lower cabinet Standard delivery of the lower cabinet includes a top plate.

MAXIMUM LOAD Shelves The maximum load specified in the table applies to all shelves. 150 kg / m2 Shelf length [cm]

36,2

Maximum load [kg]

56,2

76,2

(57,1)

(77,1)

96,2

116,2

Drawers & hanging file frame The maximum load specified in the table applies to drawers and hanging file frame. Drawer cabinet Width

usable width

usable depth

usable height / drawer

drawer (0,5 kg / dm3)

hanging file frame (4 kg / dm3)

800

690

330

320

36,4

27,6

1.000

890

330

320

47,0

35,6

1.200

1.090

330

320

57,6

43,6

2 © Bene GmbH, 10/2026

KX STORAGE PRODUCT DESCRIPTION

PRODUCT DESCRIPTION CHANGEABLE CYLINDER - CONVERSION FROM Z70 TO Z60 Z70 locking system - up to and including calendar week 36 Sep. 2025 The Z70 changeable cylinder covers key numbers from B51004 - B52994.

Z60 locking system - from delivery calendar week 37 Sep. 2025 The Z60 changeable cylinder covers key numbers from 26001 - 26200.

The Z60 changeable cylinder fits into all existing locks. lock

lock

Z60 changeable cylinder

Z70 changeable cylinder

Z70 folding key cap: colour slate

from delivery calendar week 37 2025 - Z60 folding key cap: colour black

Z60 flat key

Z70 flat key

CONFIGURATION OPTIONS - in furniture - as a set (one changeable cylinder, one flat key and one folding key) - service key

locking system Z70

up to and including calendar week 36 September 2025

random (no definition)

locking system Z60

from delivery calendar week 37 September 2025

random (no definition) A: B51104 according to key code

26001 - 26200

B: B51204 C: B51304 D: B51404

Repeat orders are only possible as a set (always consists of a changeable cylinder, a flat key and a folding key) no individual keys are available!

locking group E: B51504 F: B51604

The service key for the Z70 system is not compatible with the Z60 system. Each system requires its own service key!

G: B51704 H: B51804 according to key code

B51004 - B52994

3 © Bene GmbH, 10/2026

KX STORAGE PRODUCT DESCRIPTION

PRODUCT DESCRIPTION FRONT TYPES Sliding door cabinet The sliding door cabinet is equipped with two sliding doors on one side. Various versions of the front are available. Melamine front · 16 mm chipboard · with plastic handle strip, available in the colors: MW white, MP platinum, MA aluminium, MS slate, MB basalt or HB light brown.

Lock · with lock (optionally with changeable cylinder) · without lock or lock hole

Veneer front · 17 mm MDF panel · with milled grip groove The bottom shelf is the front colour with a milled running profile.

Acoustic front for sliding door cabinet An optional acoustic front is available for the melamine (veneer available upon technical request) sliding door cabinet. There are five perforation pattern variants that differ in both design and acoustic performance. Acoustic front available only in combination with lock.

Grid 8 mm, diameter 2 mm

Grid 8 mm, diameter 1,2 mm

Grid 6,4 mm, diameter 2 mm

Grid 4 mm, diameter 1,2 mm

Grid 3 mm, diameter 1,2 mm

1,2

Rear wall

Folders

1,0 0,8 0,6 0,4 0,2

0,0 Hz

50 63 80 100 125 160 200 250 315 400 500 630 800 1000 1250 1600 2000 2500 3150 4000 5000

Sound absorption αs

Sound absorption values Measurement: according to DIN EN ISO 354, data source: LGA/TÜV certificate // TU Graz, valid for: cabinet front, fleece: SP50 or equivalent, insulation: cabinet filled to approx. 80 % with books and folders

T 6,4 mm / Dia. 2 mm

T 8 mm / Dia. 2 mm

Front

T 4 mm / Dia. 1,2 mm

T 8 mm / Dia. 1,2 mm

T 3 mm / Dia. 1,2 mm

0,40

0,70

0,85

0,90

0,80

1,00

0,75

0,55

0,85

0,30

0,15

0,50

0,35

0,70

5000

4000

αp

0,75

0,25

3150

h 400 mm

0,65

0,50

2500

αs 0,36 0,46 0,35 0,43 0,73 0,96 0,91 0,83 0,76 0,79 0,90 0,99 1,00 1,01 0,98 0,90 0,89 0,83 0,78 0,72 0,67 αw: 0,85

0,85

0,90

2000

G 3 mm / Dia.1,2 mm

0,60

0,90

0,45

1600

αp

0,80

1250

αs 0,34 0,76 0,71 0,93 0,88 0,77 0,73 0,65 0,64 0,73 0,80 0,77 0,81 0,80 0,74 0,65 0,53 0,46 0,41 0,37 0,34 αw: 0,55 (LM)

h 400 mm

0,75

1000

G 4 mm / Dia.1,2 mm

0,40

0,60

800

αp

0,75

630

h 400 mm

0,55

500

αs 0,34 0,43 0,36 0,48 0,76 1,01 0,91 0,81 0,75 0,79 0,89 0,99 0,95 0,95 0,87 0,83 0,79 0,66 0,59 0,51 0,45 αw: 0,30 (LM)

0,85

400

G 6,4 mm / Dia.2 mm

0,65

315

αp

250

αs 0,43 0,78 0,76 0,98 0,90 0,73 0,65 0,50 0,52 0,62 0,62 0,56 0,55 0,46 0,39 0,31 0,24 0,20 0,17 0,14 0,12 αw: 0,70 (L)

h 400 mm

0,85

200

G 8 mm / Dia.1,2 mm

0,60

160

αp

125

h 400 mm

100

αs 0,30 0,77 0,66 0,93 0,90 0,77 0,72 0,65 0,65 0,72 0,82 0,78 0,81 0,81 0,72 0,62 0,47 0,39 0,34 0,30 0,25 αw: 0,50 (LM)

G 8 mm / Dia. 2 mm

Configuration (Grid / Diameter)

SAA: 0,68

SAA: 0,85

SAA: 0,47

SAA: 0,69

SAA: 0,90

4 © Bene GmbH, 10/2026

KX STORAGE PRODUCT DESCRIPTION

PRODUCT DESCRIPTION Hinged door cabinet The hinged door cabinet is available in various fronts. In the heights of 5 OH and 6 OH and in the widths of 800, 1,000, and 1,200 mm, only unassembled delivery is available for the hinged door cabinet! Melamine front · 19 mm chipboard Veneer front · 19 mm chipboard

Handle and lock: · with lock (optionally with changeable cylinder) · turning knob, lockable (optionally with changeable cylinder) · fixed knob, not lockable

Glass · 4 mm TSG glass in an anodised aluminium frame

Glass hinged door cabinet The open shelf cabinet can be equipped with hinged doors (optional). These doors are installed with interior hinges and an opening angle of 95°. Available with or without lock. Without a lock, the doors open with magnetic push snaps; the lockable version involves installation of a changeable cylinder for each door. Strap hinges for hinged door Internal hinge · opening angle 120° · dampened, opening angle 110°

External hinge, visible · opening angle 180°

Shelf cabinet Open shelf cabinet Above a width of 801 mm, open shelf cabinets have a middle panel. Front types

Panels and shelves are inset.

Panels and shelves are flush.

Drawer cabinet Pull-out compartments always include complete compartments with parallel guides, mounted on ball bearings, slide perfectly with spring-supported retraction. Melamine front · 19 mm chipboard with an aluminium grip ledge in anodised AL aluminium, SZ black or WI white, powder coated.

Lock · with lock (optionally with changeable cylinder) · without lock

Veneer front · 19 mm chipboard with an aluminium grip ledge in anodised AL aluminium, SZ black or WI white, powder coated.

Assembly Either hanging file frames or pull-out file drawers can be installed. But no hanging file frames can be installed with 2 OH with drawers! Drawer cabinets are always secured against tipping, which is why the counterweight is built into the cabinet as standard.

5 © Bene GmbH, 10/2026

KX STORAGE PRODUCT DESCRIPTION

PRODUCT DESCRIPTION Horizontal tambour cabinet The usable storage width is shortened by about 200 cm in each cabinet half because of the roller shutter spiral. For widths between 1,000 and 1,200 mm, a middle panel can be selected (optional); cabinets with widths of 1,201 mm always have middle panels.

Lock · with lock (optionally with changeable cylinder) · without lock

Tambour front · 8 mm polypropylene in WI white, PL platinum or AM aluminium. CV Canvas expiry date: Feb 2026. · plastic grip ledge in the same colour as the front

Optional retracting front: The cabinet comes without roller shutter spiral and the tambour front runs through a doubled rear wall. The carcass width expands 100 mm, so the usability of the inside space increases. Direction of opening

Opening from the right

Opening from the left

Acoustic front for horizontal tambour cabinet

Sound absorption values The measurement data are based on reverberation room tests according to DIN EN ISO 354 and refer to unfilled, empty cabinets. 1,2 1,0 0,8 0,6 0,4 0,2

Cabinet closed

Cabinet open

5000

4000

3150

2500

2000

1600

1250

0,60 0,61 0,67

αp

0,75

0,95

0,65

0,70

0,65

αs

0,38 0,34 0,53

0,48 0,46 0,30

0,29 0,32 0,39

0,34 0,35 0,36

0,35 0,37 0,33

0,30 0,29 0,25

αp

0,40

0,35

0,30

800

0,66 0,68 0,61

630

0,76 0,68 0,68

500

0,64 0,56 0,74

400

1,03 0,95 0,84

315

0,69 0,40 1,10

250

αs

125

100

Variant

1000

Cabinet open

Cabinet closed

200

160

0,0

100 125 160 200 250 315 400 500 630 800 1000 1250 1600 2000 2500 3150 4000 5000

DI SCONT I NU AT I O N : N O V E M B E R 2 0 2 6

· Perforation: front side Ø 2 mm / rear side Ø 3.5 mm · Open area ratio: front side 10 %, rear side 12 % · Average sound absorption coefficient α (according to VDI 2569): 7 mm / 8.73 mm · Rated sound absorption coefficient αw (according to DIN EN ISO 11654): αd = 0.70 (L) · Sound absorber class (according to DIN EN ISO 11654): C · NRC value (Noise Reduction Coefficient according to ASTM C423): 0.70 · SAA value (Sound Absorption Average according to ASTM C423): 0.74 · Testing institute: Akustikbüro Oldenburg, Dr Christian Nocke – Test report No. 2020/0097_M103

6 © Bene GmbH, 10/2026

KX STORAGE SHELF DEFINITIONS AND SHELF CHANGES

SHELF DEFINITIONS AND SHELF CHANGES SHELF DEFINITIONS Methodology for determining the positions of built-in components in the cabinet. The following shelf definitions also apply to shelf changes and for the installation of all organisation elements.

Cabinet types

6.1

6.2

5.1

5.2

4.1

4.2

4.1

4.2

3.1

3.2

3.1

3.2

2.1

2.2

2.1

2.2

1.1

1.2

1.1

1.2

XR Opening from the left Opening from the right

4.1

4.2

4.1

4.2

3.1

3.2

3.1

3.2

3.1

2.1

2.2

2.1

2.2

2.1

1.1

1.2

1.1

1.2

1.1

CHANGING SHELVES Shelves can be ordered separately, or can be changed to powder-coated metal shelves in SR slate. The following shelf widths are needed for the given cabinet widths (in mm):

Cabinet width

400

445

800

1,000

1,200

1,600

571

771

XF Hinged door cabinet

362

407

762

962 1

1,162 1

XO Open shelf cabinet

362

407

762

471

XS Sliding door cabinet

571

771

XR Horizontal tambour cabinet, left side

362

571

XR Horizontal tambour cabinet, right side

571

771

XR Horizontal tambour cabinet, no middle panel

571

962 1

1 with shelf rail for reinforcement The shelf rail is available in different colours depending on whether it is made of melamine or veneer. The corresponding color assignment for the respective melamine and veneer surfaces can be viewed in pCon.Planner or pCon.Basket.

7 © Bene GmbH, 10/2026

KX STORAGE ORGANISATION ELEMENTS

ORGANISATION ELEMENTS BINDER SHELF The binder shelf divides up one cabinet shelf. On the top level, it is equipped with partition walls that can be adapted to various paper formats. Material & colour: 12 mm chipboard with melamine surfaces (Melamine Groups 1 and 2) or veneer. The partition walls are of steel plate in SZ black. Binder shelves cannot be installed on the lowest shelf.

1 middle panel, 2 partition walls

Cabinet width, from

800

1,000

XS Sliding door cabinet

1,200

1,600

3 middle panels, 4 partition walls

800

1,000

1,200

962

1162

571

1,600 771

XF Hinged door cabinet

762

X0 Open shelf cabinet

471

571

XR Horizontal tambour cab., left side

762

771

571

XR Horizontal tambour cab., right side XR Horizontal tambour cab., no middle panel

2 middle panels, 3 partition walls

571 571

771 962

Depth 335 mm, height 285 mm

8 © Bene GmbH, 10/2026

KX STORAGE ORGANISATION ELEMENTS

ORGANISATION ELEMENTS HANGING FILE FRAMES, HANGING FRAMES, PULL-OUT FILE DRAWERS Fully extendable metal frame. Mounted on ball bearings, sturdy, slides perfectly with integrated push-in mechanism. With full extension, without parallel guide: Sliding door cabinet and horizontal tambour cabinet. With full extension and parallel guide: Hinged door cabinet. Hanging file frame including transverse divider and file deflector. Hanging file drawer including bottom. Usable frame and drawer depth of 330 cm. Installation on a shelf or in a drawer. Length and crosswise divider for hanging file drawer available (optional). Material & colour: Steel plate, SZ black.

Hanging file frame 1.2

Cabinet width, from

800

1,000

1,200

1,600

571

771

762

962

1,162

XS Sliding and gliding door cabinet XF Hinged door cabinet 2R Horizontal tambour c., left side

571

2R Horizontal tambour c., right side

571

2R Horizontal tambour c., without middle panel

571

771

962

Pull-out file frame 1 Width of insert

571

762

771

962

1,162

Inside frame/drawer

480

680

880

1,080

File drawer 1 Lengthwise divider for pull-out file drawer Width: 221 mm Depth: 47 mm Height: 72 mm

1 2

Crosswise divider for pull-out file drawer Width: 326 mm Depth: 10 mm Height: 76 mm

Installation not possible in hinged door cabinet on 5 / 6 file shelves. Some hinged door cabinets with 4 OH (file heights) cannot be equipped with labels because the distance between the HKRs is very small.

LATERAL FILING FRAME Lateral filing frame are installed permanently on a shelf. Material & colour: Steel plate, SZ black.

Vetro Lateral

Multirex

Cabinet width, from

Zippel

800

1000

XS Sliding and gliding door cabinet XF Hinged door cabinet

762

1200

1600

571

771

962

2R Horizontal tambour c., left side

571

2R Horizontal tambour c., right side 2R Horizontal tambour c., without middle panel

571 571

771

962

9 © Bene GmbH, 10/2026

KX STORAGE ORGANISATION ELEMENTS

ORGANISATION ELEMENTS DRAWER BOX 1 set, with 5 drawers, installable in all open compartments with appropriate dimensions. Material & colour: recycled plastic, SZ black.

PULL-OUT COAT RAIL Install under the cabinet top or shelf bottom. Extension length about 230 mm. Material & colour: Steel, CR chrome.

Width: 284 mm Depth: 348 mm Height: 290 mm

Width: 354 mm Depth: 42 mm Height: 60 mm

10 © Bene GmbH, 10/2026

KX STORAGE DIMENSIONS

DIMENSIONS GENERAL INFORMATION As a rule, the dimensions are variable, but certain recommended values for widths, depths, and heights are pre-defined. Intermediate measurements are available for an additional surcharge. Detailed information is available in the pCon products. U = lower cabinet A = upper cabinet

Recommended values Widths: 1,200 | 1,600 mm Depth: 445 mm Height: 2 | 3 | 4 OH

Recommended values Widths: 400 | 800 | 1,000 | 1,200 Depth: 445 mm Height: 2 | 3 | 4 | 5 | 6 | 2 + 3 OH | 3 + 3 OH | 2 + 4 OH A

Limits:

300 - 600

800 - 1.600

358 - 1.483

395 - 2.325

Limits:

365 - 1.470

HINGED DOOR CABINET

395 - 1.520

SLIDING DOOR CABINET

300 - 600

300 - 1.200

Limits:

200 - 1.600

300 - 600

600 - 1,600 (500 - 1,700) 1

358 - 1,483

Recommended values Widths: 800 (900) | 1,200 (1,300) | 1,600 (1,700) mm 1 Depth: 445 mm Height: 2 | 3 | 4 OH

395 - 1,520

Recommended values Widths: 400 | 800 | 1,000 | 1,200 | 1,600 mm Depth: 445 mm Height: 2 | 3 | 4 | 5 | 6 | 2 + 3 OH | 3 + 3 OH | 2 + 4 OH

358 - 1.483

HORIZONTAL TAMBOUR CABINET

395 - 2.325

OPEN SHELF CABINET

445 - 600

1 Values in brackets are valid for horizontal tambour cabinet with retracting front

11 © Bene GmbH, 10/2026

KX STORAGE DIMENSIONS

GLASS HINGED DOOR CABINET

Recommended values Widths: 800 | 1,000 | 1,200 mm Depth: 445 mm Height: 2 | 3 OH

Recommended values Widths: 400 | 800 mm Depth: 445 mm Height: 2 | 3 | 4 OH

Limits:

not variable

445 - 600

300 - 800

358 - 1,483

DRAWER CABINET

395 - 1,520

DIMENSIONS

300 - 600

12 © Bene GmbH, 10/2026

KX STORAGE DIMENSIONS – INTERNAL DIMENSIONS

DIMENSIONS – INTERNAL DIMENSIONS

U – lower cabinet. Height of upper edge always the same. A – upper cabinet. Carcass height incl. 25 mm top.

1,093 A19

3 OH 1,130 U

2 OH HEIGHT 830 MM

1,105 A25

2 OH HEIGHT 740 MM

343 331 343

343

343 331

331

343

793 A19 368 368

805 A25

830 U 368

6 OH

A cabinet with a file height of 5 OH or 6 OH must be shortened when installed next to a combination of base and upper cabinet:

415

2,325 U

5 OH

1,935 U

368

323 323

368

323

4 OH

368

703 A19

740 U

715 A25

A – upper cabinet. Carcass height incl. 19 mm top.

331 331

395 331

1,483 A19 363

1,520 U 363

363

2+3 OH 25 mm 0 mm * 19 mm 12 mm *

1,495 A25

5 OH

331 331 415

331 331

363

* cabinet must be shortened by this dimension

395

331 331 363

331 331

331 363

2+4 OH 3+3 OH 25 mm 0 mm * 90 mm * 19 mm 12 mm * 102 mm *

331

6 OH

13 © Bene GmbH, 10/2026

KX STORAGE DIMENSIONS – INTERNAL DIMENSIONS

DIMENSIONS – INTERNAL DIMENSIONS

830 U-HL

317

238

830 U-HR

830 U-HL 338

322

279

187

312 304

284

287

237

318

250

278

740 U-HR

740 U-HL

U-HR – lower cabinet with hanging file frame. Height of upper edge always the same.

1.130 U-HR

U-HL – lower cabinet with pull-out file drawers. Height of upper edge always the same.

1.130 U-HL

3 OH

313

2 OH WITH 3 DRAWERS

273

2 OH WITH 2 DRAWERS

268

2 OH WITH 2 DRAWERS

KX STORAGE COMBINATIONS AND ANTI-TIPPING PROTECTION

COMBINATIONS AND ANTI-TIPPING PROTECTION ANTI-TIPPING PROTECTION The following cabinets need to be secured against tipping:

XF Hinged door cabinet

XO Open shelf cabinet

XR Horizontal tambour cabinet without mid. panel

XR Horizontal tambour cabinet + middle panel

XS Sliding door cabinet

Upper cabinet

XS Sliding door cabinet XR Horizontal tambour cabinet with middle panel Lower cabinet

<= 800

XR Horizontal tambour cabinet without middle panel > 800

XO Open shelf cabinet <= 800

XF Hinged door cabinet = 800

XL Drawer cabinet

Combinations are allowed to a maximum overall height of 8 OH. > 800 mm ..... Combination is only possible for cabinet widths of more than 800 mm = 800 mm ..... Combination is only possible for cabinet widths of 800 mm <= 800 mm ..... Combination is only possible for cabinet widths of less than 800 mm

KX STORAGE ARRANGEMENT OPTIONS

ARRANGEMENT OPTIONS CASTOR BASE Available for all cabinet types - with the exception of the drawer cabinet - can be fitted with a castor base. The base consists of two castors with brakes and two castors without brakes at the back, each with a diameter of 75 mm. The castors are available in white, black or aluminium. A special width, depth and height ratio must be observed to ensure stability. Conditions · width: 445 - 1.200 mm, depth: must not be less than 445 mm, height: max. 2 OH · width: 600 - 1.200 mm, depth: must not be less than 600 mm, height: max. 3 OH

INFILL PANELS Ceiling and lateral infill panels Infill panels for connecting to the ceiling and walls of the building. The infill panels are of 19 mm chipboard. Maximum dimensions: 1,600 x 250 mm for ceiling infill panels and 2,400 x 250 mm for lateral infill panels. Final cutting to size is done on site.

Cabinet corner infill panel Infill panels to close gaps on 90° corners. The blind consists of a panel and base of 19 mm or 25 mm, front panel and two sides.

CABINET CONNECTION In pCon.planner, it is possible to create a connection with additional cabinets using the "cabinet connection" option. The connection can be selected on the left, right, or both sides, allowing multiple KX cabinets to be linked together. The type of connection depends on the panel thickness. for 19 mm chipboard To connect the cabinets, a drillhole is provided in the top and bottom panels on the respective side. During assembly, these are connected using the supplied coupling pins.

for 25 mm chipboard To connect the cabinets, a drillhole is provided in the top and bottom panels on the respective side. During assembly, these are connected using the supplied coupling pins, as well as four sleeves with connecting fittings for enhanced stability.

PLANNING INSTRUCTIONS 1.000

1.000

2.277

When combining a wide hinged door wardrobe without a middle panel (standard in pCon.planner) and smaller upper cabinets (see system symbol sketch), the deflection of the top plate of the lower cabinet can become critical.

400

MIDDLE PANEL FOR LOWER / UPPER CABINAT COMBINATION

For this reason, it is essential that the middle panel for the lower cabinet is created via the customising.

KX STORAGE FUNCTION & ORGANISATION

FUNCTION & ORGANISATION WARDROBE UNIT In hinged door cabinets, either a pull-out coat rail or a fixed coat rail can be selected as an option. Pull-out coat rail: Width 600–1,200 mm, depth 445–500 mm, from a height of 1,131 mm. Hanging section with rail on the right, shorter shelves on the left. The width of the hanging section is fixed; the shelving section adjusts accordingly. Fixed coat rail (only across the full cabinet width): Width 300–1,200 mm, depth 550–600 mm, from a height of 1,131 mm. All cabinets are equipped with a ventilation grille in the rear panel and a removable shoe tray in the hanging section.

Standard heights

Standard widths 600 mm

800 mm

900 mm

Info – Equipment 1.000 mm

1.200 mm pull-out coat rai

3 shelves; from width 801 mm with middle panel, hat shelf not available 4 OH 1.520 mm

fixed coat rail

hat shelf not available

pull-out coat rai

4 shelves; from width 801 mm with middle panel, hat shelf optional (3 shelves) 2 + 3 OH 1.923 mm 5 OH 1.935 mm

fixed coat rail

hat shelf optional

pull-out coat rai

3 + 3 OH 2.223 mm

4 shelves; from width 801 mm with middle panel, hat shelf always incl. (continuous shelf)

2 + 4 OH 2.313 mm fixed coat rail

6 OH 2.325 mm

WALL-MOUNTED WARDROBE UNIT The wall-mounted wardrobe unit consists of a 25 mm chipboard panel equipped with clothes hooks. The number of clothes hooks (1-5) varies according to width. Width: 200-1,000 mm, depth: 25 mm, height: 1,455-1,855 mm

hat shelf always included (continuous shelf)

WALL MIRROR The wall mirror consists of 19 mm chipboard bonded to a mirror. Width: 400 mm, depth: 25 mm, height: 1,855 mm

KX STORAGE FUNCTION & ORGANISATION

FUNCTION & ORGANISATION FABRIC REAR WALL All cabinet types can be optionally equipped with a pinnable fabric rear wall. The existing rear wall that matches the carcass design is replaced by a fabric rear wall. This overlaps in the back by 4 mm.

KX BOX A KX Box can optionally be placed on all cabinet types. Panel thickness: 19 mm or 25 mm chipboard in melamine or veneer. Widths: 300 mm - 1600 mm, heights: 300 | 390 | 415 mm, depths: 300 mm 600 mm. Front type selectable open, recessed or open, flush front. A cabinet can also be fitted on the left, right or both sides. Excess length of top up to max. 200 mm possible. A cable outlet can also be configured. As the KX Box does not have a back panel, it must be taken into account during planning that vertical extension is not permitted.

PP PLANTER BOX Optionally, a Planter Box can be placed on all cabinet types. This can be fitted with or without Planter Trays for planting. The Planter Box must be screwed to the base unit during assembly.

Planter Tray: Material made of 100 % PCR polystyrene (post consumer recycling material), always in black, recyclable and reusable after its life cycle. Planter Box: Chipboard, 19 mm, in the same design as the cabinet or different, if desired.

The Planter Box with matching Planter Trays is available in the following dimensions: · Width 325 - 2,000 mm · Depth 400 - 600 mm · Height 220 - 300 mm The following should be considered when configuring the Planter Box and Planter Tray: Up to a width of 483 mm no middle panel is provided, from width 484 mm a middle panel can be selected on request, from width 1,200 mm the Planter Box is always equipped with a middle panel.

up to width 483 mm

width 484 – 1,199 mm

from width 1,200 mm

KX STORAGE SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS ANTI-TIPPING PROTECTION The following cabinets need to be secured against tipping:

Wall mounting bracket

Counterweight 1

Lower cabinets with a height of 5 OH or more

Upper cabinets

Drawer cabinets

Cabinets with built-in components 2

Steel panel counterweight. For cabinet width of 800 mm: 2 pcs.; for cabinet width of 1,200 mm: 3 pcs. Weight about 17 kg. Drawer cabinets are always secured against tipping, which is why the counterweight is built into the cabinet as standard. 2 Applies to the following built-in components: Hanging file frames, hanging frames, pull-out file drawers, and lateral filing frame. 1

KX STORAGE COLOURS AND MATERIALS

COLOURS AND MATERIALS MATERIALS AND SURFACES The following materials and colours are available for this product:

Melamine

Veneer

Fabric P0-P5

Glass, KS clear glass

Glass, ST white, satin finish

Polypropylene

•. . . . . . . . . . available - . . . . . . . . . . not available

– table board

•

– carcass

•

– front

•

– interior

•

– table board

•

– carcass

•

– front

•

– interior

•

– table board

•

– carcass

•

– front (optional)

•

– interior

•

– carcass

•

– front

•

– interior

•

– table board

•

– carcass

•

– front

•

Infill panels

•

Wall-mounted wardrobe unit, wall mirror (supporting plate)

•

Product Sliding door cabinet

Hinged door cabinet

Open shelf cabinet

Horizontal tambour cabinet – table board

Drawer cabinet

Fabric rear wall

•

Planter Box

•

Colours and colour illustration included  “Colours & materials”

KX STORAGE COLOURS AND MATERIALS

COLOURS & MATERIALS MELAMINE

MW white

MQ office white

MSW snow white

MC canvas

MP platinum

MA aluminium

MH stone grey

TM clay

MS slate

MD urban grey

MB basalt

MJG jade green

DISCONTINUATION: OCTOBER 2027

EZ oak vicenza

MEK oak kendal

MAK maple classic

MBK beech classic

NG walnut grey

MNP walnut pavia

KX STORAGE COLOURS AND MATERIALS

COLOURS & MATERIALS VENEER

EF oak natural

EY oak sylt

EG oak grey

ER oak amaretto

EV oak vulcano

NF american walnut

NR walnut siena

NB walnut umbra

NA walnut anthracite

KD chestnut natural

KP chestnut brown

KQ chestnut grey

AK canadian maple

BJ bamboo

BG beech grey

BU beech natural

MP platinum

MA aluminium

MS slate

Veneers also available in matt finish.

Solid-coloured plastic

MW white

GLASS

KS clear glass

MB basalt

HB light brown

BASE

ST white satined

AS asphalt

AL aluminium coloured

FABRIC Various fabric collections are available for the cover: Xtreme Plus, Urban Plus, Inn, Era, Step, Step Melange, Soft Next, Remix, Mainline Flax, Focus, Bonsai Reboot, Panama, Fiord, Steelcut, Assam, Focus Melange, Artisan, The Cool, Steelcut Trio, Hallingdal, Elle, Coda. More information about the specific fabric and leather collections is available at www.bene.com. Our outdoor fabrics can also be used on products for indoor use. However, this does not mean that the indoor products are suitable for outdoor use.

KX STORAGE COLOURS AND MATERIALS

THE BENE RESPONSIBILITY Bene plays a pioneering role in the field of sustainability. This spans all company divisions – from product development, procurement, production, and logistics to product recycling. From the first sketch through to series production, ecological requirements are always an important factor in the product development process. It includes selecting environmentally compatible materials, such as certified timbers from sustainably managed forests, using recycled materials and increasing the use of renewable raw materials. Other important requirements for a sustainable product design are labelling the materials, their ability to be repaired, and a long service life for the components used, with the aim to integrate them into a second product life cycle. To guarantee a high recyclability standard for our products at the end of their service life, we avoid composites as much as possible and develop furniture that allows for disassembly by material type. Bene products are sourced and made in Europe. 99.9% of all deliveries reach us from a European country. Around 94% of all raw material supplies come from Austria and Germany. Around 93% of the raw materials comes from suppliers within 500 kilometres of our production site. SUSTAINABLE RAW-MATERIALS At Bene, the following materials are used as a matter of course: · chipboards low in formaldehyde · glues low in formaldehyde · water-based varnish systems · recyclable materials · materials with a high recycling share · PVC-free synthetics

Bene guarantees products free from: · CMR substances · halogenated solvents in synthetics · chlorinated hydrocarbons · heavy metal pigments · materials with azo pigments · Coatings with biocidal effects (such as wood preservatives, pesticides).

CONTRIBUTION TO BUILDING CERTIFICATIONS In the context of ecological building certification, design systems such as furniture and dividing walls help to achieve a good result and a higher score. Bene's products make a contribution towards the LEED, WELL Building Standard, DGNB, BREEAM, etc. certifications. Criteria include, for example, environmental product declarations, indoor air quality, acoustics and convertibility.

KX STORAGE Example configuration · Sliding door cabinet · Melamine · Width 120 cm, height 3 OH · Total weight 80.7 kg

Environmental key figures · 99.7 % sortable by type · 98.6% recyclable · 89.7 % of contents are renewable raw materials · 39.7 % recycled production materials

Materials steel 1.1 kg / 1.2 %

plastics 3.42 kg / 4.2 %

chipboard 76.2 kg / 94.4 %

For each standard product configuration, Environmental Product Declarations (Lifecycle Data Sheets / LCDS) can be provided. These are prepared in accordance with EN ISO 14040, EN ISO 14044 and the applicable Product Category Rules (PCR) of the International EPD® System for UN CPC 3811, 3812 and 3814. The LCDS include the Product Carbon Footprint (PCF) covering the entire life cycle (cradle-to-cradle). Environmental information from Bene: https://bene.com/en/bene/sustainability
