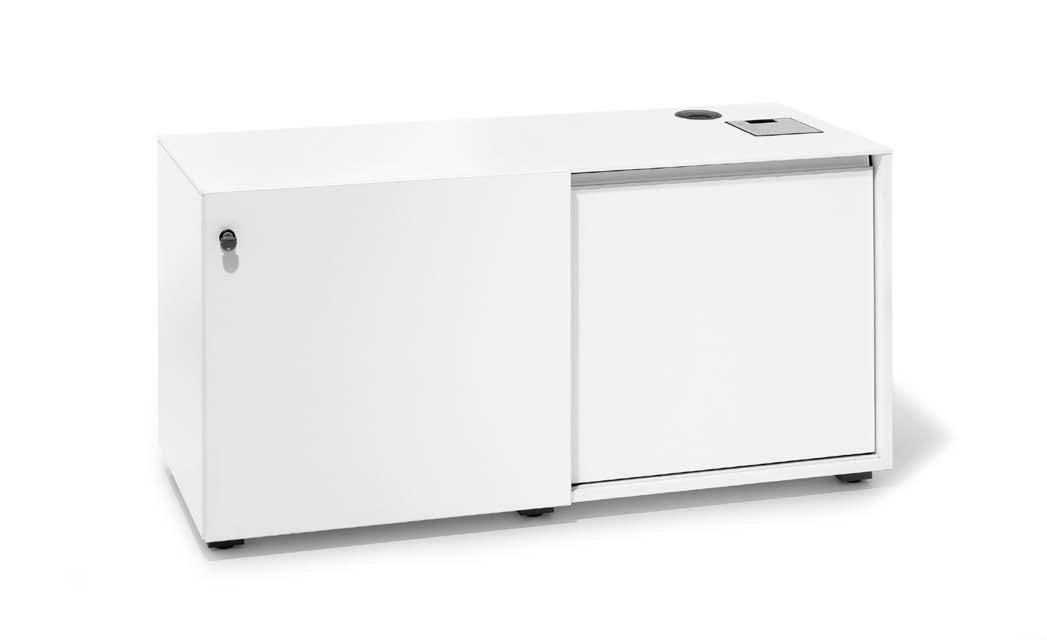

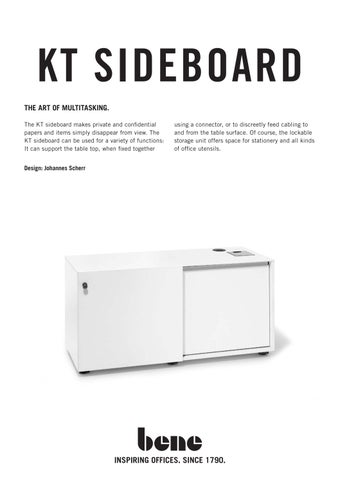

KT SIDEBOARD THE ART OF MULTITASKING. The KT sideboard makes private and confidential papers and items simply disappear from view. The KT sideboard can be used for a variety of functions: It can support the table top, when fixed together
using a connector, or to discreetly feed cabling to and from the table surface. Of course, the lockable storage unit offers space for stationery and all kinds of office utensils.
Design: Johannes Scherr
INSPIRING OFFICES. SINCE 1790.
KT SIDEBOARD PRODUCT DESCRIPTION
PRODUCT DESCRIPTION 6
1
Top: 8 mm chipboard.
2
Carcass: 19 mm chipboard.
3
Sliding door: 8 mm chipboard.
4
Hinged door: 19 mm chipboard.
5
CPU swivel board*
6
Preparation for desk connection module*
7
Ventilation grille*
8
Cable outlet *
9
Handle bar for hinged door: Material and colour: AL aluminium, anodised , SZ black or WI white powder-coated.
10
Lock: The standard features a lock including changeable cylinder, 2 keys (one of which is folding). Options include with locking group, without changeable cylinder or without the lock. For details see “Options”.
7
1 9
8 7
5
3
4
2 10
Version shown connects to the left side of a table: Sliding door left – hinged door right.
* Available as an option, for details see “Options”.
OVERVIEW AND DIMENSIONS GENERAL INFORMATION As a rule, the dimensions are variable, but certain recommended values for widths, depths, and heights are pre-defined. Intermediate measurements are available for an additional surcharge. Detailed information is available in pCon.planner under Products. KT SIDEBOARD
FRONT DIVISIONS
1.200 - 1.600
Sliding door left – right open
Hinged door left – sliding door right
Left open – sliding door right
538 - 588
Sliding door left – hinged door right
Depth: 445 – 600
The following dimensional restrictions apply for desk connection modules when combined with · the Workstation: no restrictions · the LEVEL (PURE) (LIFT) (2): width 1,400 – 1,600, fixed height 538 · the CONSULT PURE (LIFT) (2): width 1,600, fixed height 538
The sideboard is fitted with two shelves as standard. When combined with a CPU swivel board or a desk connection module, a shelf is only possible on the sliding door side. In general, no built-in components are permitted on the hinged door side.
NAME/DESCRIPTION OF POSITION Sliding door left – hinged door right
1.1.
1.2.
Sliding door right – hinged door left
1.1.
1.2.
Dimensions in mm
2 © Bene GmbH, 08/2026
KT SIDEBOARD OPTIONS
OPTIONS PREPARATION FOR DESK CONNECTION MODULE For the CONSULT PURE (LIFT) (2), the KT Sideboard is always used as a frame replacement on one end. For the Workstation and LEVEL (PURE) (LIFT) (2) tables, it can be selected as a frame replacement. Alternatively, the table can be configured with a standard leg and the KT Sideboard simply placed under the table.
with / without hinged door (with the CONSULT PURE (LIFT) (2) and LEVEL (PURE) (LIFT) (2)) Where a set up with the desk connection module is selected, it is not possible to opt for a shelf on the open side.
without hinged door (with the Workstation) Where a set up with the desk connection module is selected, it is not possible to opt for a shelf on the open side. For the KT Sideboard without hinged doors, a cover is installed over the console for aesthetic reasons.
with hinged door (with the Workstation) Where a set up with the desk connection module is selected, it is not possible to opt for a shelf On the hinged door side. If hinged doors are selected, the console cover is not required.
OVERVIEW – KT SIDEBOARD WITH DESK CONNECTION Image shown: Table always with KT Sideboard, sliding door left – hinged door right WORKSTATION
Basic rectangular
CONSULT PURE (LIFT) (2)
Basic round
Square
Circle column, as a Lift version or with fixed height: Tabletop shapes W8, W9 and W10
T-leg, Lift, round
T-leg, Rastomat, rectangular
T-leg, fixed height, rectangular
LEVEL (LIFT) (2)
T-leg, Lift, rectangular
T-leg, fixed height, round
Classic, Lift version or fixed height
T-leg, fixed height, round
Classic, Lift version or fixed height
Additional tabletop shapes available: Rectangular RE with Soft Edge, rounded user side NG.
LEVEL PURE (LIFT) (2)
T-leg, Lift, T-leg, Rastomat, T-leg, Lift, rectangular round rectangular Additional tabletop shapes available: Rectangular RE with Soft Edge.
T-leg, fixed height, rectangular
ANGULAR ROTATION The KT Sideboard can be freely adjusted between 90° – 120° (adjustment range: 30°). Angular rotation is only possible with the LEVEL (PURE) (LIFT) (2) tables featuring a round column guide. All column variants can be selected for the Workstation, as the frame replacement (the column in the KT Sideboard) is designed with a round column for the Basic rectangular and Square column types. Only the round column (Circle) is available for the CONSULT PURE (LIFT) (2). 30° © Bene GmbH, 08/2026
3
KT SIDEBOARD OPTIONS
OPTIONS CHANGEABLE CYLINDER Z70 locking system – up to and including week 36 September 2025 The Z70 exchangeable cylinder covers key codes from B51004 – B52994.
Z60 locking system – from delivery week 37 September 2025 The Z60 changeable cylinder covers key codes from 26001 – 26200.
The Z60 changeable cylinder fits into all existing locks. Lock
Lock
Z60 changeable cylinder
Z70 changeable cylinder
Z70 folding key Cap: Colour slate
from delivery week 37 2025 - Z60 folding key Cap: Colour black
Z60 flat key
Z70 flat key
CONFIGURATION OPTIONS - in furniture - as a set (one changeable cylinder, one flat key and one folding key) - service key
Z70 locking system
up to and incl. calendar week 36 2025
Z60 locking system
from week 37 2025
random (no definition) random (no definition) by key code
26001 – 26200
A: B51104 B: B51204 C: B51304
Re-orders are only possible as a set (always consisting of a changeable cylinder, a flat key and a folding key) – individual keys are not available!
D: B51404 Locking group E: B51504
The service key from the Z70 system is not compatible with the Z60 system. You need a separate service key for each system!
F: B51604 G: B51704 H: B51804 - by key code
B51004 – B52994
4 © Bene GmbH, 08/2026
KT SIDEBOARD OPTIONS
OPTIONS ACCESSORY EXTENSION ON SHELF Only available on sliding door side. Accessory extension is screwed onto existing shelf. Material and colour: The base plate matches the colour configuration of the interior (chipboard in melamine or veneer, inserts in black plastic). Accessory extension dimensions: Dimensions are variable.
ACCESSORY EXTENSION Only available on sliding door side. The accessory extension is always mounted on the underside of the top panel. Material and colour: Synthetic material, black. Accessory extension dimensions: W: 379.5 mm, D: 310 mm, H: 30 mm
VENTILATION GRILLE When you select the CPU swivelling board, the ventilation grille 2 1 colour: is already included. Material and Anodised aluminium, black plastic.
CPU SWIVEL BOARD Only available on sideboards with hinged door. This eliminates the shelf on this side. Material and colour: Steel plate, SZ black, powder-coated. Swivel board dimensions: W: 482 mm, D: 219 mm, H: 515 mm. Max. weight load: 10 kg. Maximum PC dimensions: W: 200 mm, D: 465 mm, H: 475 mm.
1
2
GROMMET HOLE Sideboard available with or without cable outlet. If a CPU swivel board has been selected, a cable outlet is permanently fixed in the bottom. Version with plastic cable outlet available in AL aluminium, SZ black, and WI white. Cable outlet
Cable outlet and ventilation
Cable outlet and desk connection module
Cable outlet, ventilation and desk con. module
1
1
Cable outlet positions Bottom
1
1
Shelf
1
1
Top
1
Total number
3
1 2
2
1
5 © Bene GmbH, 08/2026
KT SIDEBOARD BUILT-IN COMPONENTS
BUILT-IN COMPONENTS ATTENTION: Built-in components only available in the standard sideboard widths of 1200 mm and 1600 mm. Only available on the sliding door side and open side when the depth is over 400 mm.
HANGING FILE FRAMES, HANGING FRAMES, FILE DRAWERS Fully extendable metal frame. Ball-bearing mounted, sturdy, slides perfectly with integrated push-in mechanism. With full extension, without parallel guides. Hanging file drawer including bottom. Usable frame and drawer depth of 330 cm. Installed in the compartment. The file drawer comes with optional dividers – lengthwise or crosswise. Material and colour: Steel plate, SZ black.
Hanging file frame
Pull-out file frame
File drawer
The following overview shows which element widths are required for each sideboard width: Sideboard width, from
1,200
Lengthwise divider for file drawer Material and colour: Plastic, SZ black. Width: 326 mm Depth: 10 mm Height: 77 mm
1,600
Width of insert
571
771
Inside frame/drawer
480
680
Crosswise divider for file drawer Material and colour: Steel, SZ black Width: 221 mm Depth: 5 mm Height: 73 mm
LATERAL FILING FRAME Lateral filing frames are installed permanently in a compartment. Dimensions: Width 571.5 mm or 771.5 mm, depth 318 mm, height 75 mm. Material and colour: Steel plate, SZ black.
Vetro lateral
Multirex
Zippel
Sideboard width, from
1,200
1,600
Integrated shelf width
571.5
771.5
DESK DRAWER UNIT Five removable plastic boxes. Drawer height. Drawers can be pulled out and removed. For filing A4 formats. Material and colour: recycled plastic, SZ black.
Width: 284 mm Depth: 348 mm Height: 290 mm
6 © Bene GmbH, 08/2026
KT SIDEBOARD COLOURS AND MATERIALS
COLOURS AND MATERIALS MATERIALS AND SURFACES The following colours and materials and are available for this product.
Product
Melamine
Veneer
Metal, powder-coated
Solid-coloured plastic
•. . . . . . . . . . available, price according to price list –. . . . . . . . . . not available
Top
•
•
–
–
Carcass
•
•
–
–
Front
•
•
–
–
Interior
•
•
–
–
Handle bar
–
–
•
–
–
–
–
•
–
–
–
•
–
–
•
–
1
–
–
•
–
- Pull-out file frame 1
–
–
•
–
- File drawer
Options
- Accessory extension 1 - Accessory extension on the shelf
1
-CPU swivel board 1 - Hanging file frame
1
–
–
•
–
- Lengthwise divider for file drawer 1
–
–
–
•
- Crosswise divider for file drawer
1
–
–
•
–
- Desk drawer unit 1
–
–
–
•
- Cable outlet
–
–
–
•
1
only available in black
Colours and colour illustration included “Colours and materials”
7 © Bene GmbH, 08/2026
KT SIDEBOARD COLOURS AND MATERIALS
COLOURS & MATERIALS MELAMINE
MW white
MQ office white
MSW snow white
MC canvas
MP platinum
MA aluminium
MH stone grey
TM clay
MS slate
MD urban grey
MB basalt
MJG jade green
DISCONTINUATION: OCTOBER 2027
EZ oak vicenza
MEK oak kendal
MAK maple classic
MBK beech classic
NG walnut grey
MNP walnut pavia
8 © Bene GmbH, 08/2026
KT SIDEBOARD COLOURS AND MATERIALS
COLOURS & MATERIALS VENEER
EF oak natural
EY oak sylt
EG oak grey
ER oak amaretto
EV oak vulcano
NF american walnut
NR walnut siena
NB walnut umbra
NA walnut anthracite
KD chestnut natural
KP chestnut brown
KQ chestnut grey
AK canadian maple
BJ bamboo
BG beech grey
BU beech natural
Veneers also available in matt finish.
METAL, POWDER-COATED
white
aluminium
black
SOLID-COLOURED PLASTIC
WI white
AL aluminium colored
SZ black
9 © Bene GmbH, 08/2026
KT SIDEBOARD COLOURS AND MATERIALS
BENE’S RESPONSIBILITY Bene plays a pioneering role in the field of sustainability. This spans all company divisions – from product development, procurement, production and logistics to product recycling. From the first sketch through to series production, ecological requirements are always an important factor in our product development process. They include selecting environmentally compatible materials, such as certified timbers from sustainably managed forests, using recycled components and increasing the use of renewable raw materials. Material labelling, repairability, and a long service life of the components used are also key requirements for product design, ensuring that these can be given a second product life cycle. In order to guarantee a high recyclability standard for our products at the end of their service life, we avoid composites as much as possible and develop furniture that allows for separation by type when it is disassembled. 99.9% of all deliveries reach us from a European country. Around 94% of all our raw material supplies come from Austria and Germany. Around 93% of the raw materials comes from suppliers within 500 kilometres of our production site.
SUSTAINABLE RAW MATERIALS At Bene, the following materials are used as a matter of course: · chipboards low in formaldehyde, · glues low in formaldehyde, · water-based varnish systems, · recyclable materials, · materials with a high recycling share, · PVC-free synthetics.
Bene’s products are guaranteed free from: · CMR substances, · halogenated solvents in synthetics, · chlorinated hydrocarbons, · heavy metal pigments, · materials with azo dyes, · Coatings with biocidal effects (such as wood preservatives, pesticides).
CONTRIBUTION TO BUILDING CERTIFICATIONS In the context of ecological building certification, design systems such as furniture and dividing walls help to achieve a good result and a higher score. Bene’s products help achieve the LEED, WELL Building Standard, DGNB, BREEAM, etc. certifications. Criteria include, for example, environmental product declarations, indoor air quality, acoustics and convertibility.
KT SIDEBOARD Example configuration · W | D | H (mm): 1600 x 445 x 588 · Melamine white · Sliding door left – hinged door right · Total weight 64.47 kg
Key environmental figures · 99.8% can be separated by type · 98.6% recyclable · 90.1% renewable raw materials · 73.6% of production materials are recycled
Materials
Steel 1.03 kg / 1.58% Zinc 0.61 kg / 0.95%
Synthetic material 1.41 kg / 2.21%
Aluminium 0.30 kg / 0.47% Wood 61.12 kg / 94.80%
For each standard product configuration, Environmental Product Declarations (Lifecycle Data Sheets / LCDS) can be provided. These are prepared in accordance with EN ISO 14040, EN ISO 14044 and the applicable Product Category Rules (PCR) of the International EPD® System for UN CPC 3811, 3812 and 3814. The LCDS include the Product Carbon Footprint (PCF) covering the entire life cycle (cradle-to-cradle). Environmental information from Bene: https://bene.com/en/bene/sustainability
10 © Bene GmbH, 08/2026
