product-data-sheet-bene-frame_s by Bene Office

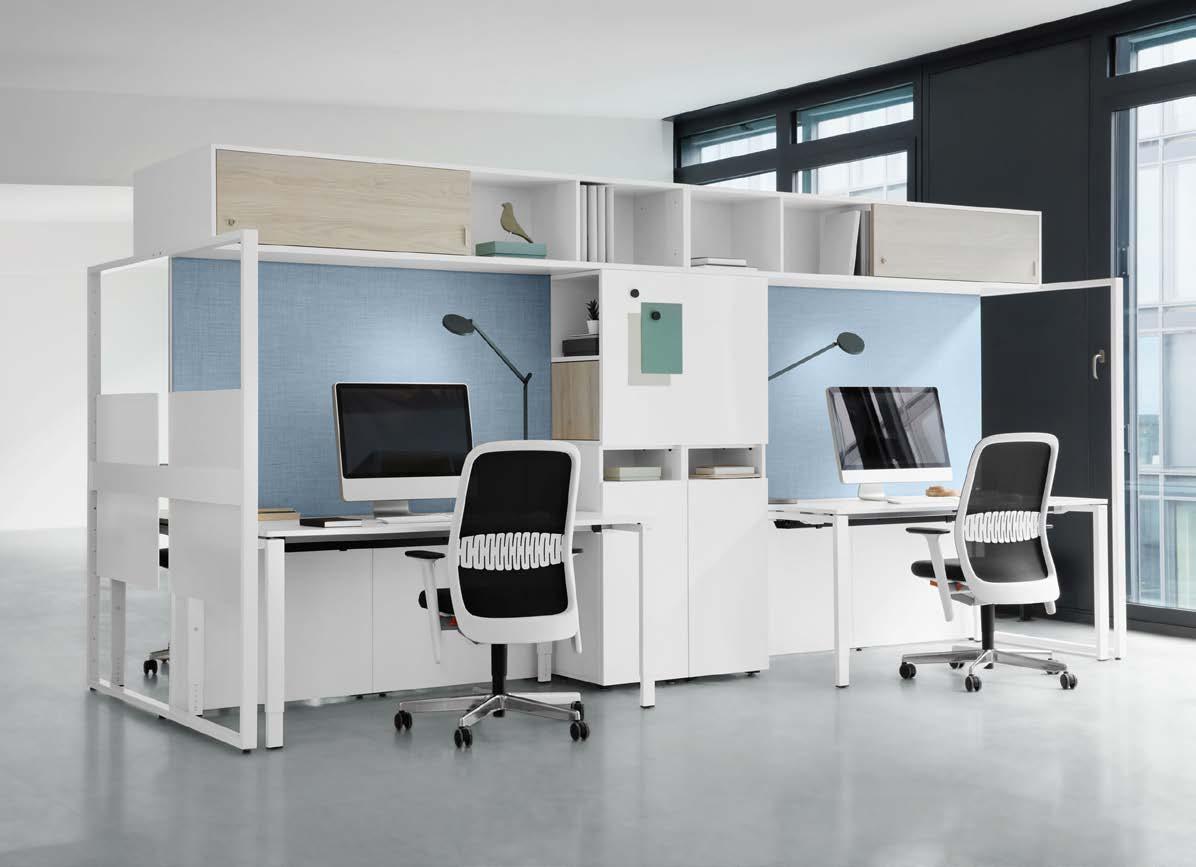

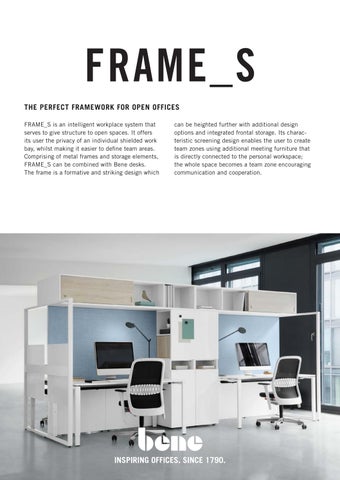

FRAME_S THE PERFECT FRAMEWORK FOR OPEN OFFICES FRAME_S is an intelligent workplace system that serves to give structure to open spaces. It offers its user the privacy of an individual shielded work bay, whilst making it easier to define team areas. Comprising of metal frames and storage elements, FRAME_S can be combined with Bene desks. The frame is a formative and striking design which

can be heighted further with additional design options and integrated frontal storage. Its characteristic screening design enables the user to create team zones using additional meeting furniture that is directly connected to the personal workspace; the whole space becomes a team zone encouraging communication and cooperation.

INSPIRING OFFICES. SINCE 1790.

FRAME_S PRODUCT DESCRIPTION

PRODUCT DESCRIPTION 1

Dividing wall

Tall cabinet lower cabinet

Tall cabinet upper cabinet

Frame

Box

Covered side

5 3

2 4

1 8

Cover profile (below organisation profile)

Table: Workstation and LEVEL family can be used here. Widths from 1.200 - 1.800 mm.

FRAME The metal frame is made up of two half sections. There are three different frame section widths available, but all in one height. Surface: white, powder-coated Frame variants

H= 1.735 mm W= 1.735 mm

H= 1.735 mm W= 1.297,5 mm

H= 1.735 mm W= 860 mm

CONFIGURATION OPTIONS/ MODULARITY with box

without box

2 workplaces

4 workplaces, mirrored

4 workplaces arranged in a row

2 © Bene GmbH, 08/2026

FRAME_S OVERVIEW & DIMENSIONS

OVERVIEW & DIMENSIONS ADJUSTED FOR TABLE WIDTH 1.200 MM 1.762 375

1.762

1.720

2.095

1.260

ADJUSTED FOR TABLE WIDTH 1.400 MM 1.962 375

1.962

1.720

2.095 1.460

1.460

ADJUSTED FOR TABLE WIDTH 1.600 MM 2.162 375

2.162

1.720

2.095 1.660

1.660

ADJUSTED FOR TABLE WIDTH 1.800 MM 2.362 375

1.720

2.095

1.860

2.362

1.860

Dimensions in mm

3 © Bene GmbH, 08/2026

FRAME_S OPTIONS

OPTIONS TOP COVER PROFILE (DIVIDING WALL) The cover neatly hides the profile of settings configured without a top storage box. Material and colour: Aluminium WI white, powder-coated

FABRIC PANEL The fabric panel is attached to the organisation profile and can therefore be upgraded easily. Covers are available in the fabric groups P0-P5, as per Bene seating furniture collection.

WHITEBOARD A magnetic whiteboard is available in two different sizes, depending on where it is attached to on the system. High whiteboard: 1.096 x 856 mm (on covered side) Low whiteboard: 721 x 856 mm (in front on two tall cabinets)

TALL CABINET LOWER CABINET Accessory tray An accessory tray can be optionally selected in the lower cabinet of the tall cabinet. Material and colour: Plastic, SZ black

Cabling intermediate bottom - connection plug board A connection plug board can be optionally integrated into the lower half of the tall cabinet. Cabling is neatly channeled out of sight within the structure of the tall cabinet

Lock Cylinder lock

4 © Bene GmbH, 08/2026

FRAME_S OPTIONS

OPTIONS CHANGEABLE CYLINDER Z70 locking system - up to and including calendar week 36 Sep. 2025 The Z70 changeable cylinder covers key numbers from B51004 - B52994.

Z60 locking system - from delivery calendar week 37 Sep. 2025 The Z60 changeable cylinder covers key numbers from 26001 - 26200.

The Z60 changeable cylinder fits into all existing locks. lock

lock

Z60 changeable cylinder

Z70 changeable cylinder

Z70 folding key cap: colour slate

from delivery calendar week 37 2025 - Z60 folding key cap: colour black

Z60 flat key

Z70 flat key

CONFIGURATION OPTIONS - in furniture - as a set (one changeable cylinder, one flat key and one folding key) - service key

locking system Z70

up to and including calendar week 36 September 2025

random (no definition)

locking system Z60

from delivery calendar week 37 September 2025

random (no definition) A: B51104 according to key code

26001 - 26200

B: B51204 C: B51304 D: B51404

Repeat orders are only possible as a set (always consists of a changeable cylinder, a flat key and a folding key) no individual keys are available!

locking group E: B51504 F: B51604

The service key for the Z70 system is not compatible with the Z60 system. Each system requires its own service key!

G: B51704 H: B51804 according to key code

B51004 - B52994

5 © Bene GmbH, 08/2026

FRAME_S OPTIONS

OPTIONS TALL CABINET UPPER CABINET Private compartment A private compartment can be optionally integrated into the upper half of the tall cabinet. By configuring hinged doors, the cabinet’s existing open recesses can be designed to be lockable.

FLIP CHART - PAD HOLDER A flip chart - pad holder is available as an additional option; it can be installed either directly on the covered side or can stick magnetically to the FRAME_S whiteboard.

LIGHTING STRIP A continuously dimmable light strip, which can be retrofitted under the box, provides uninterrupted lighting at the workplace. There are two models available: (1) with and (2) without a light / motion sensor.

CABLING OPTIONS The standard version has already been prepared for FRAME_S to allow for cabling inside and through the cabinet. FRAME_S mirrored

The sensor detects table height and the presence of the user, so the lamp turns on automatically when the user is there and off when he/she leaves. In addition, when installed on electric height-adjustable desks, the sensor automatically dims the light according to the individual distance between the table top and light strip. The cable is threaded from the light strip through the organisation profile and between the two boxes down through the tall cabinet. There is also space between the two boxes for excess cable lengths, connection plug boards and other elements of cabling. When FRAME_S has a table width of 1.200 mm it is not possible to install a light strip under the box. Description: LED 2 x 2.200 lm, light colour 4.000 °K, system power 25 W, incl. accessories and dimmer, aluminium profile 1.390 x 40 x 20 mm, white, powder-coated, power supply unit with GST18 plug, optional starter cable 3.000 mm (country-specific)

Light / Motion sensor detects movement and table height

6 © Bene GmbH, 08/2026

FRAME_S OPTIONS

OPTIONS Decorative elastic cord A decorative elastic cord can be clamped into holes integrated in the frame, otherwise used for shelving, with small hooks. Three patterns are available for large and mid-sized frames; however, the cord can also be clamped individually. Integration is also possible in small frames. Version 1

Version 2

Version 3

Wire hooks for rope attachment

FRAME_S COLOURS & MATERIALS

COLOURS & MATERIALS MATERIALS AND SURFACES The following materials and colours are available for this product. •. . . . . . . . . . available - . . . . . . . . . . not available

Surface Melamine Fabric (P0-P5) Perpex, white Perpex, coloured

Carcass • -

Front • -

Fabric panel • -

FRAME_S COLOURS & MATERIALS

COLOURS & MATERIALS MELAMINE

MW white

MQ office white

MSW snow white

MC canvas

MP platinum

MA aluminium

MH stone grey

TM clay

MS slate

MD urban grey

MB basalt

MJG jade green

DISCONTINUATION: OCTOBER 2027

EZ oak vicenza

MEK oak kendal

MAK maple classic

MBK beech classic

NG walnut grey

MNP walnut pavia

FRAME_S COLOURS & MATERIALS

COLOURS & MATERIALS

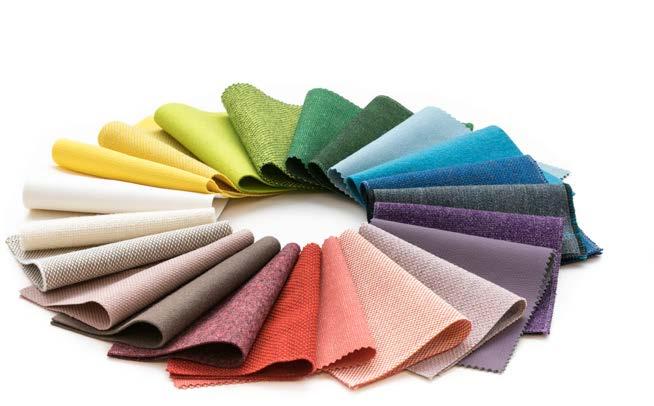

Various fabric collections are available for the cover: Xtreme Plus, Urban Plus, Era, Step, Step Melange, Soft Next, Remix, Mainline Flax, Focus, Bonsai Reboot, Panama, Fiord, Steelcut, Assam, Focus Melange, Artisan, The Cool, Steelcut Trio, Hallingdal, Elle, Coda. More information about the specific fabric and leather collections is available at www.bene.com. Our outdoor fabrics can also be used on products for indoor use. However, this does not mean that the indoor products are suitable for outdoor use.

FRAME_S THE BENE RESPONSIBILITY

THE BENE RESPONSIBILITY Bene plays a pioneering role in the field of sustainability. This spans all company divisions – from product development, procurement, production, and logistics to product recycling. From the first sketch through to series production, ecological requirements are always an important factor in the product development process. It includes selecting environmentally compatible materials, such as certified timbers from sustainably managed forests, using recycled materials and increasing the use of renewable raw materials. Other important requirements for a sustainable product design are labelling the materials, their ability to be repaired, and a long service life for the components used, with the aim to integrate them into a second product life cycle. To guarantee a high recyclability standard for our products at the end of their service life, we avoid composites as much as possible and develop furniture that allows for disassembly by material type. Bene products are sourced and made in Europe. 99.9% of all deliveries reach us from a European country. Around 94% of all raw material supplies come from Austria and Germany. Around 93% of the raw materials comes from suppliers within 500 kilometres of our production site. SUSTAINABLE RAW-MATERIALS At Bene, the following materials are used as a matter of course: · chipboards low in formaldehyde · glues low in formaldehyde · water-based varnish systems · recyclable materials · materials with a high recycling share · PVC-free synthetics

Bene guarantees products free from: · CMR substances · halogenated solvents in synthetics · chlorinated hydrocarbons · heavy metal pigments · materials with azo pigments · Coatings with biocidal effects (such as wood preservatives, pesticides).

CONTRIBUTION TO BUILDING CERTIFICATIONS In the context of ecological building certification, design systems such as furniture and dividing walls help to achieve a good result and a higher score. Bene's products make a contribution towards the LEED, WELL Building Standard, DGNB, BREEAM, etc. certifications. Criteria include, for example, environmental product declarations, indoor air quality, acoustics and convertibility.

FRAME_S Example configuration · Frame_S tall cabinet lower cabinet · 430 x 860 x 1.000 mm · Total weight 403,91 kg

Environmental key figures · 99,4 % sortable by type · 98,3 % recyclable · 89,3 % of contents are renewable raw materials · 42,5 % recycled production materials

Materials Electric components 0,39 kg / 0,05 % Fabrics 3,85 kg / 0,51 % Aluminium 9,89 kg / 1,30 % Steel 120,47 kg / 15,85 %

Compact 0,30 kg / 0,04 % Zinc 2,44 kg / 0,32 % Plastic 13,63 kg / 1,79 % Wood 609,07 kg / 80,14 %

For each standard product configuration, Environmental Product Declarations (Lifecycle Data Sheets / LCDS) can be provided. These are prepared in accordance with EN ISO 14040, EN ISO 14044 and the applicable Product Category Rules (PCR) of the International EPD® System for UN CPC 3811, 3812 and 3814. The LCDS include the Product Carbon Footprint (PCF) covering the entire life cycle (cradle-to-cradle). Environmental information from Bene: https://bene.com/en/bene/sustainability
