Jasmin Franklin
Watkins College of Art, Design, and Film
BFA in Interior Design
IND 410 Senior Thesis 1 12/5/2016
• Modern residential design must combine sustainable design and the use of hypoallergenic materials to support the needs of families with medical needs.
• Allergies are on the rise
- Increase of antibiotics and acetaminophen
- Obesity and Asthma
- Vitamin D Deficiency
• The James family home is unique by how it combines the power of sustainable and hypoallergenic into one home.
• This home will accommodate multiple allergies and have several alternative power sources.
• A family of 6: mom, dad, 2 girls, 2 boys
• Mom: is a doctor; Seasonal allergies, dust, fur, asthma, untreated wood
• Dad: is an artist: Diabetic; Allergic to dairy, Night blindness
• Daughter 1: Gymnastics, Cheerleading; No accommodations
• Daughter 2: Soccer, Cheerleading; Food allergies, Seasonal allergies, fur, asthma, untreated wood
• Son 1: Football, Track; No accommodations
• Son 2: Music, basketball; Allergic to untreated wood, dust, fur, seasonal allergies, color blindness

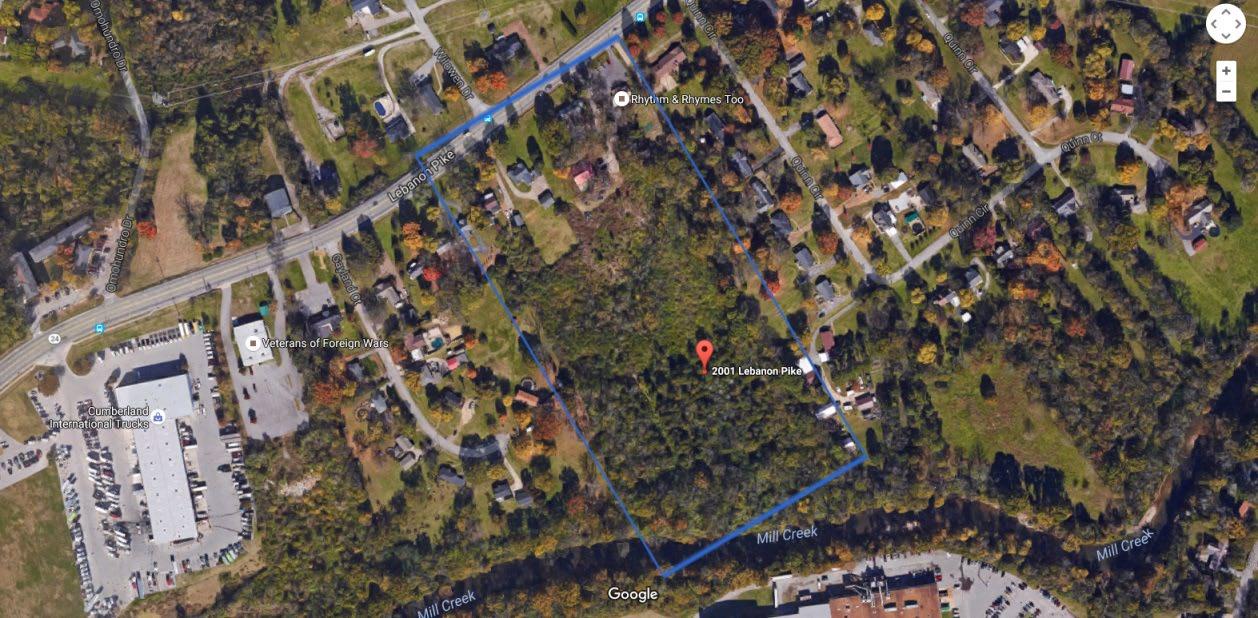

• 8.66 Acres of Land
• Vacant Land
• Davidson County
• 2001 Lebanon Pike Nashville, TN 37201
• $866,000

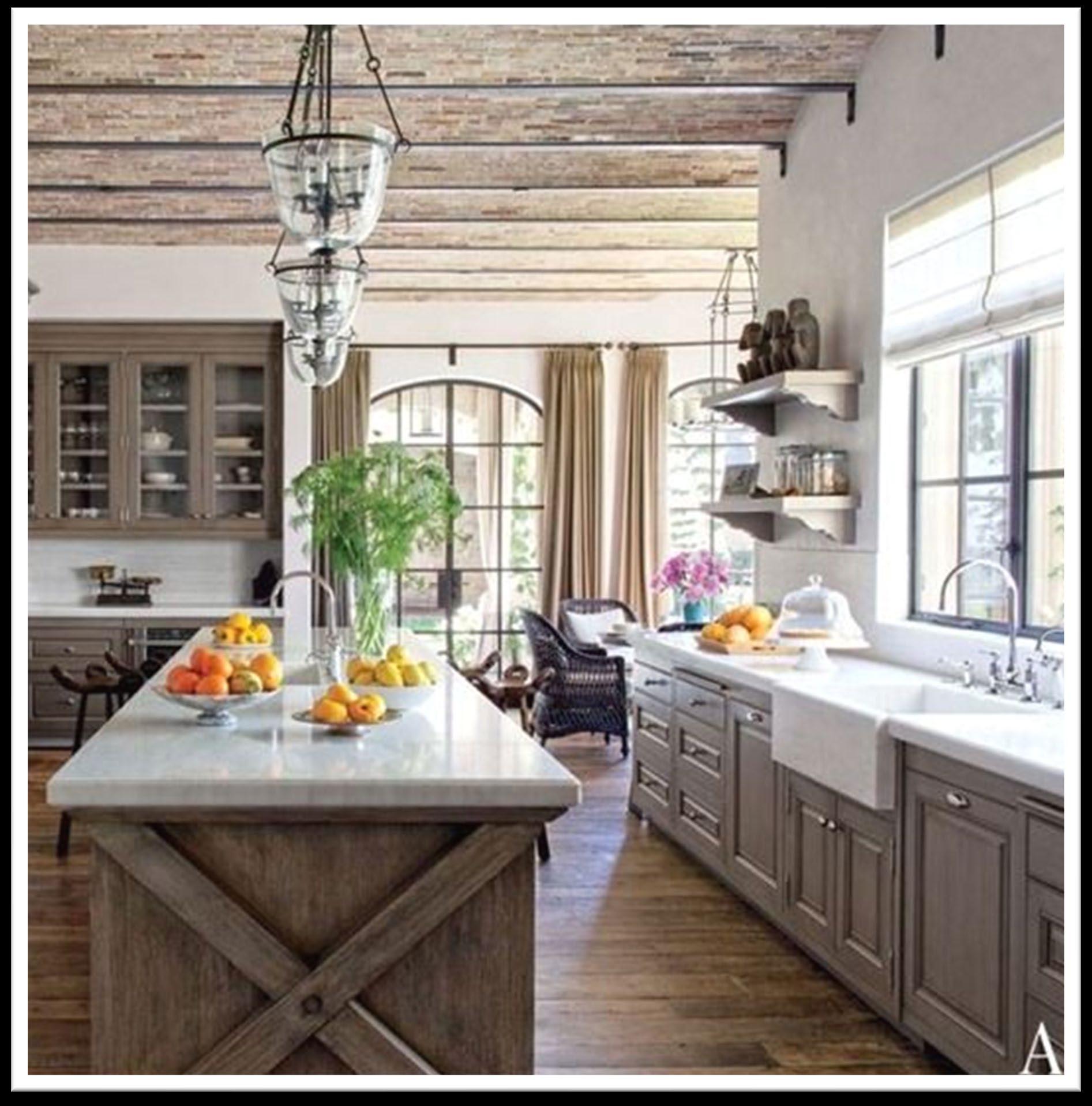

• Kitchen
- EnergyStar
- Appliances
- Countertops
• Livingroom

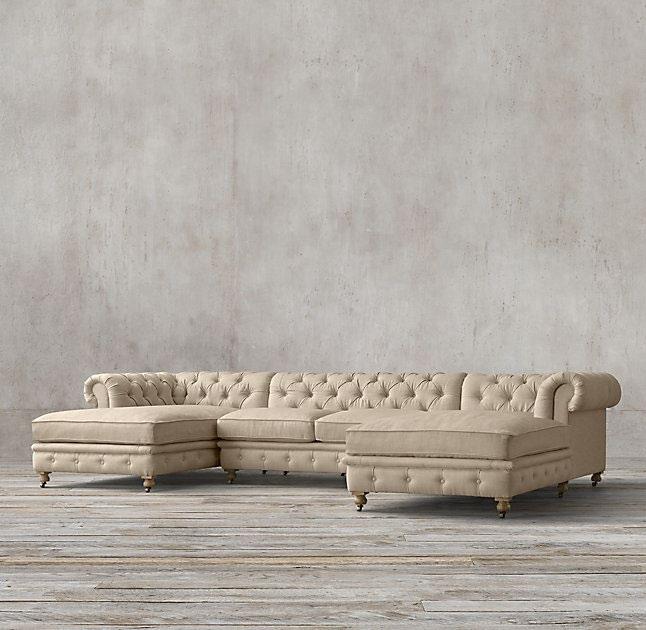

- Fabric on furniture
• Sanitary Entry
- Storage (cubby’s)
- Mud room
• 6 Bedrooms
- Guest Bedroom

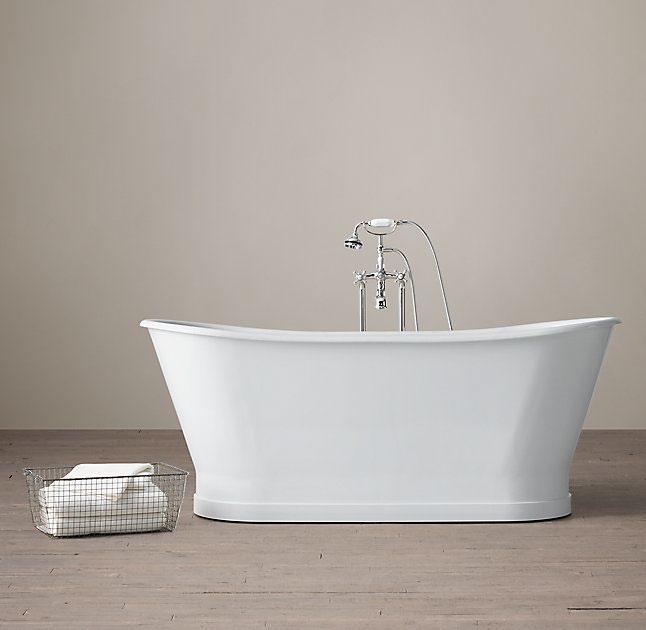

• 4 ½ Baths

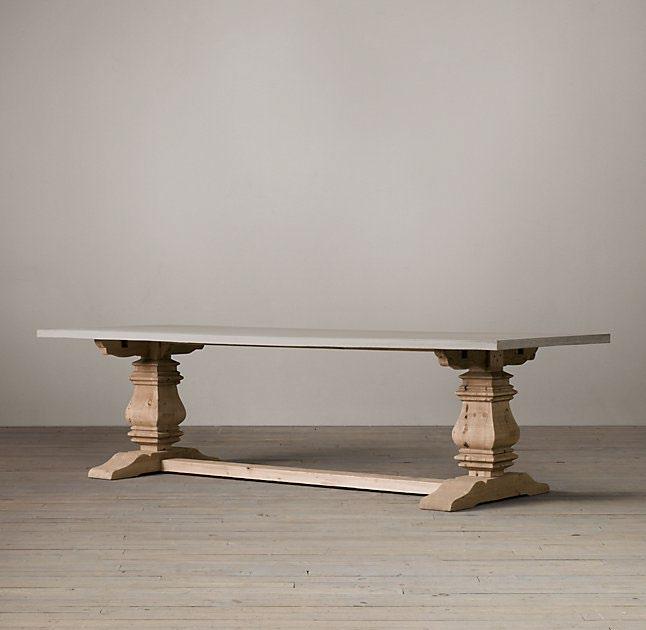

• Dinning room
• Game room
• Office
• Recycled Water System - Grey water system
• Alternative Power Sources
- Geothermal - Micro Hydroelectric
• Lighting
• Insulation - Wool - Cotton - Cork
• Floors - Bamboo - Cork - Natural Linoleum
Features
• Fully automated system
• Size: L 24”, W 15”, H 20”
• Can be installed:
- Above ground
- Half in the ground
- Under ground
• Built in overflow system
• Easy to clean

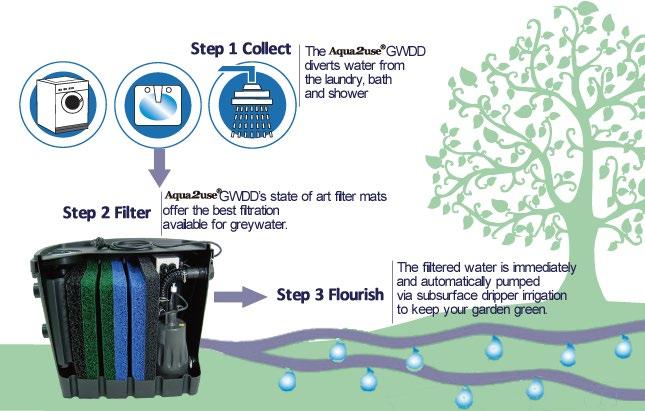

Filtration Steps
• Step 1: Grey water flows through the 1st progressive filtration.
- Large to medium partials
• Step 2: then the 2nd progressive filtration.
- Medium to small partials
• Step 3: the 3rd progressive filtration.
- Small to minor partials
• Step 3: greywater pumped to the irrigation
What is it?
• Runs off of natural flowing water
- River
- Creek
• A good source will run power 24/7
How it works
• Some water from the river goes into the pipeline.
• The pipeline goes to a turbine.
• The turbine powers a generator
• The generator is controlled by the regulator.
• Then the energy goes to the electrical wires, that power the house.
What is it?
• Geothermal energy uses the heat that is buried a few feet under ground.
• The heat that is underground is always there and the temperature never changes.
How it works
• 1. The loop: This is the part that is put underground.
• It has water that is moving through the pipes that collects the heat.
• 2. Geothermal Heat Pump:
• This is in the building and controls the energy to be hot or cold.
• 3. Distribution System: This is the ducks that run through out the home.
• Air quality
• Paint - Asthma allergy Friendly - Odorless - No harsh fumes
- Zero VOC - Zero Emissions
• Window Treatment - UV Protection
• Radiant Floor Heating
Climate Change
• First was noticed by farmers
- Crops had to be planted earlier
- Had to change crops
• Heavier downpours
• More droughts
Indoor Air
• About 90% of our time is spent indoors
• Spending so much time inside can develop respiratory and neurologic system, allergies, asthma and lung cancer.
• Indoor mold and dampness are usually the reasons behind the increased respiratory issues.
• There are two main types of radiant floor heating.
- Electric wires
- Hydronic tubing
• The electric wiring is used more for smaller spaces
• The Hydronic heating is used for more wide spread spaces.
• Electric is wires running underneath the floors.
• Hydronic tubing is tubes of hot water underneath the floors.
• Radiant floor heating eliminates vents, which will eliminates allergens.
• Benjamin Moore
• Natura: Certified asthma and allergy friendly
- Proven to reduce exposure to allergens.
- More suitable for those living with allergens.
• Features
- Zero VOC
- Zero emissions
- 100% Acrylic
- Provides a durable washable film
- Splatter resistant
• Sanitary entry

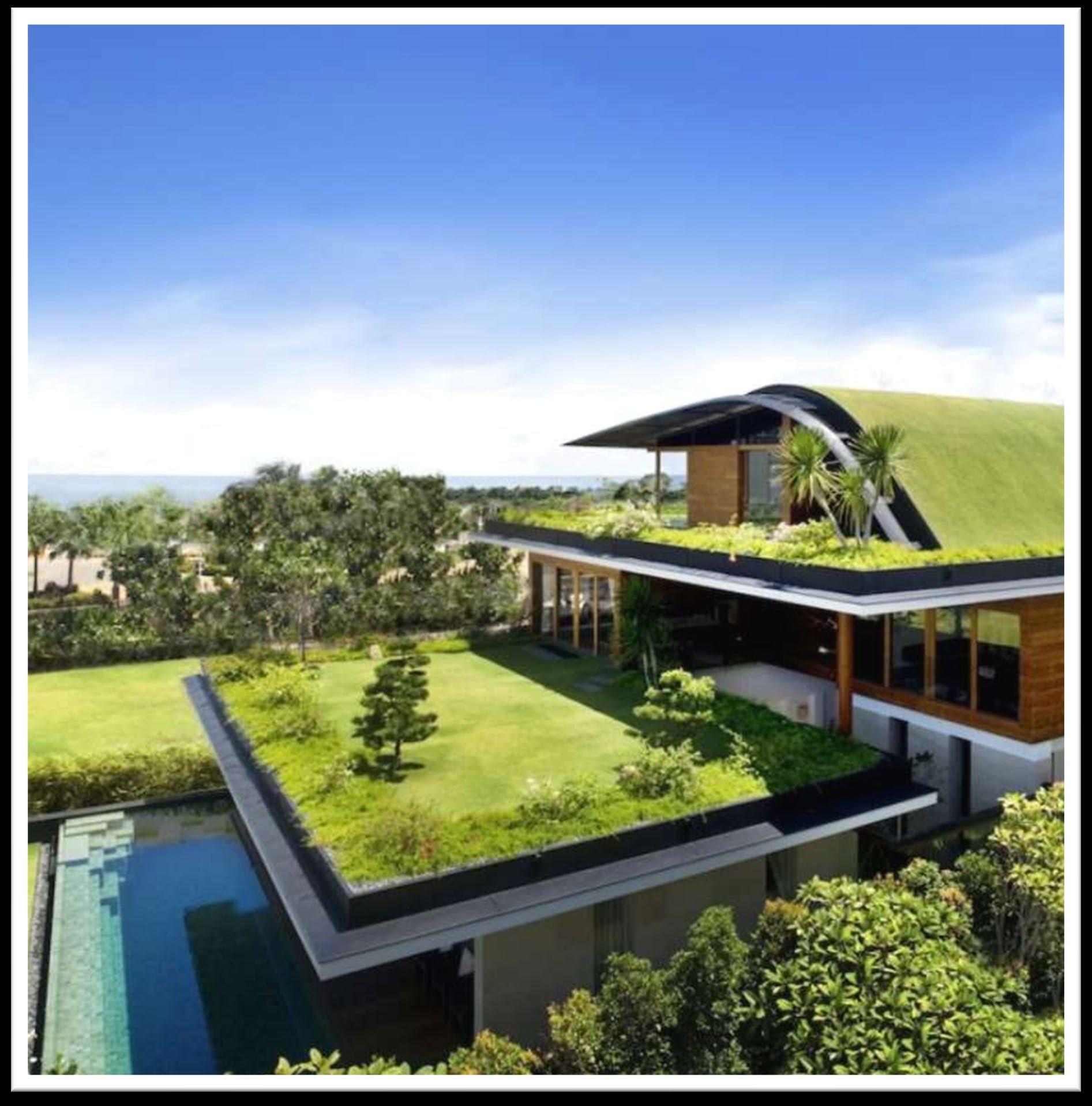

• Living roofs
• Products that go into the home
• Paint
• Fabrics
• Floors
• Technology
• Lighting
• Window treatments
• Air quality
• Case studies
• Building Materials
• Accommodations for the James family
• Plants; that provide air quality
• Figure out what else needs to be researched
• Floor plans
• Figure out codes
• Style
Grey water recycling system

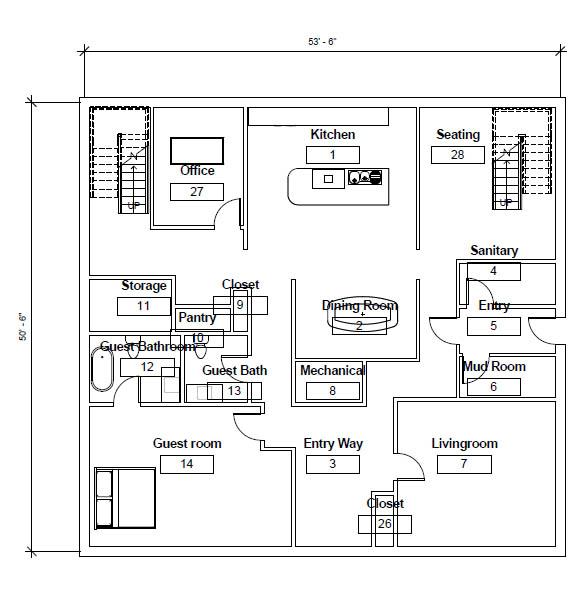

First Floor

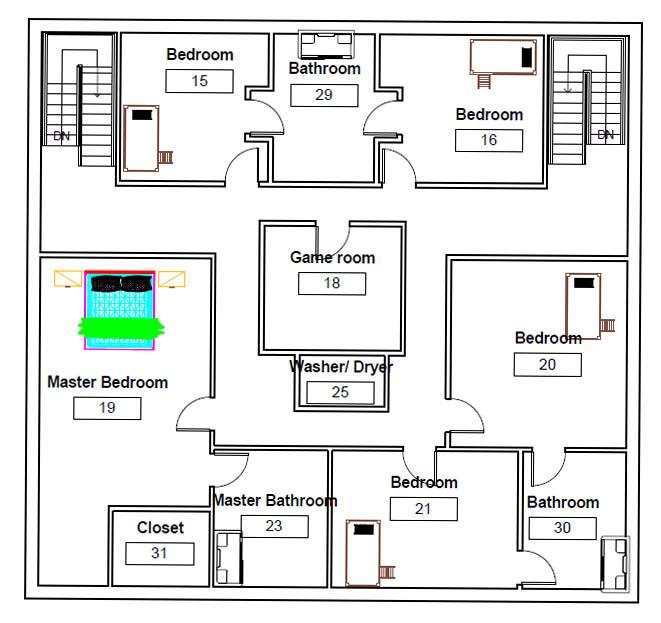

Second Floor
• (2012, June 21). 10 Things That Make a Home a Good HomeZillow Porchlight. Retrieved October 18, 2016, from http://www.zillow.com/blog/10things-that-make-a-home-a-good-home-88384/
• About EPA. (n.d.). Retrieved October 26, 2016, from https://www.epa.gov/aboutepa
• Bathroom, M. (2015). Eco. Retrieved September 7, 2016, from Modern Bathroom, http://www.modernbathroom.com/ecofriendly/default.aspx
• Corporation, W. (2016). Making the most of moments that matter. Retrieved September 7, 2016, from Whirlpool, http://www.whirlpoolcorp.com/
• Date, 2004 var new. Green building supply, non toxic supplies, environmentally friendly materials. Retrieved September 7, 2016, from Green Building Supply, http://www.greenbuildingsupply.com/
• Disly Juarez, MPH | Published on November 8, 2013. (2013, November 08). Asthma and Allergies on the Rise in the U.S. Retrieved October 19, 2016, from http://www.healthline.com/health-news/children-allergiesand- asthma-on-the-rise110813#1
• Elton, S. (2016). Allergy-friendly, Eco-Friendly flooring. Retrieved August 30, 2016, from Allergenic, http://allergicliving.com/2011/11/30/the- greenerfloor/
• Gagné, C. 15 ways to clean up your home’s air. Retrieved August 30, 2016, from http://allergicliving.com/2010/07/02/asthma-allergiesdetox-your-indoor-air/
• Increasing rates of allergies and asthma | AAAAI. (n.d.). Retrieved October 19, 2016, from https://www.aaaai.org/conditions-andtreatments/Library/Allergy-Library/Prevalence-ofAllergies-and-Asthma
• Janowiak, M. (2015, March 3). 9 air-cleaning Houseplants that are almost impossible to kill. Retrieved August 30, 2016, from Connect, http://greatist.com/connect/houseplantsthat-clean-air
• http://www.treehugger.com/sustainable-productdesign/generating-off-grid-power-the-four-best-ways.html
• http://energy.gov/energysaver/microhydropower-systems
