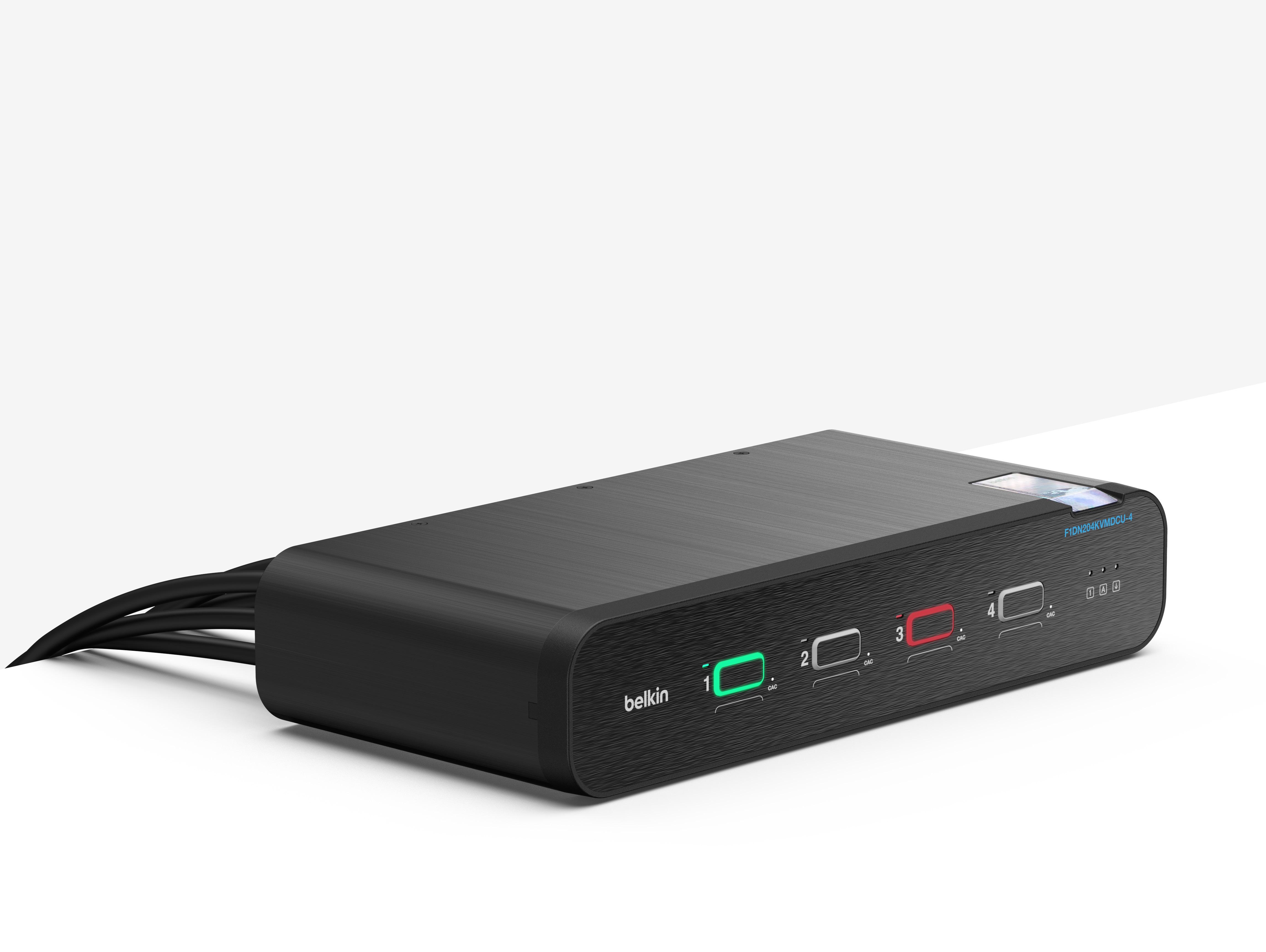

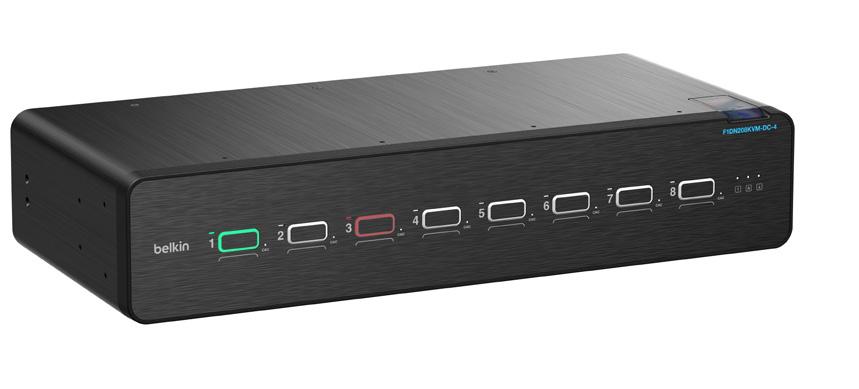

The Belkin Universal DisplayPort Secure KVM line is the ideal solution for systems using high-performance DisplayPort graphics outputs as well as monitor inputs. The platform is fully compatible with DisplayPort connections supporting resolutions of UHD 4K@60Hz. To further enhance security, our SKVM limits input/output ports to prevent unauthorized use. Customizable port coloring and naming on the front panel facilitates channel identification, situational awareness and reduces operator errors.
Belkin’s Universal DisplayPort SKVM Series is available in three configurations: with CAC, without CAC and with CAC and USB-C. For CAC, optical data diodes on all USB connections ensure unidirectional data flow of HID filtered information. Dedicated Common Access Card input ports consolidate the number of CAC readers and allow a single reader to be shared across all connected systems for user authentication. CAC models feature CAC freeze to allow a user to lock CAC on a given channel while using another channel for keyboard, mouse and video.

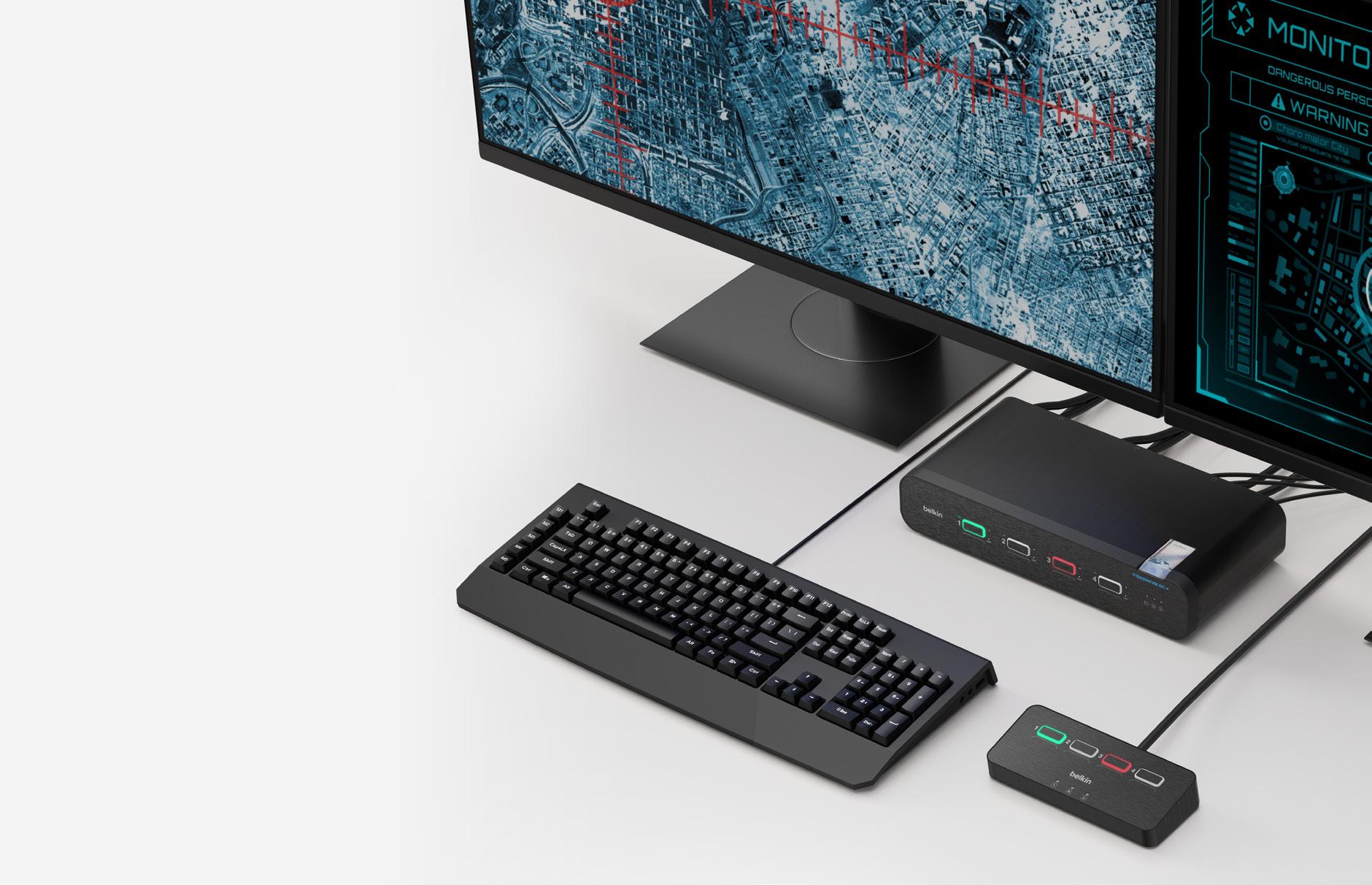

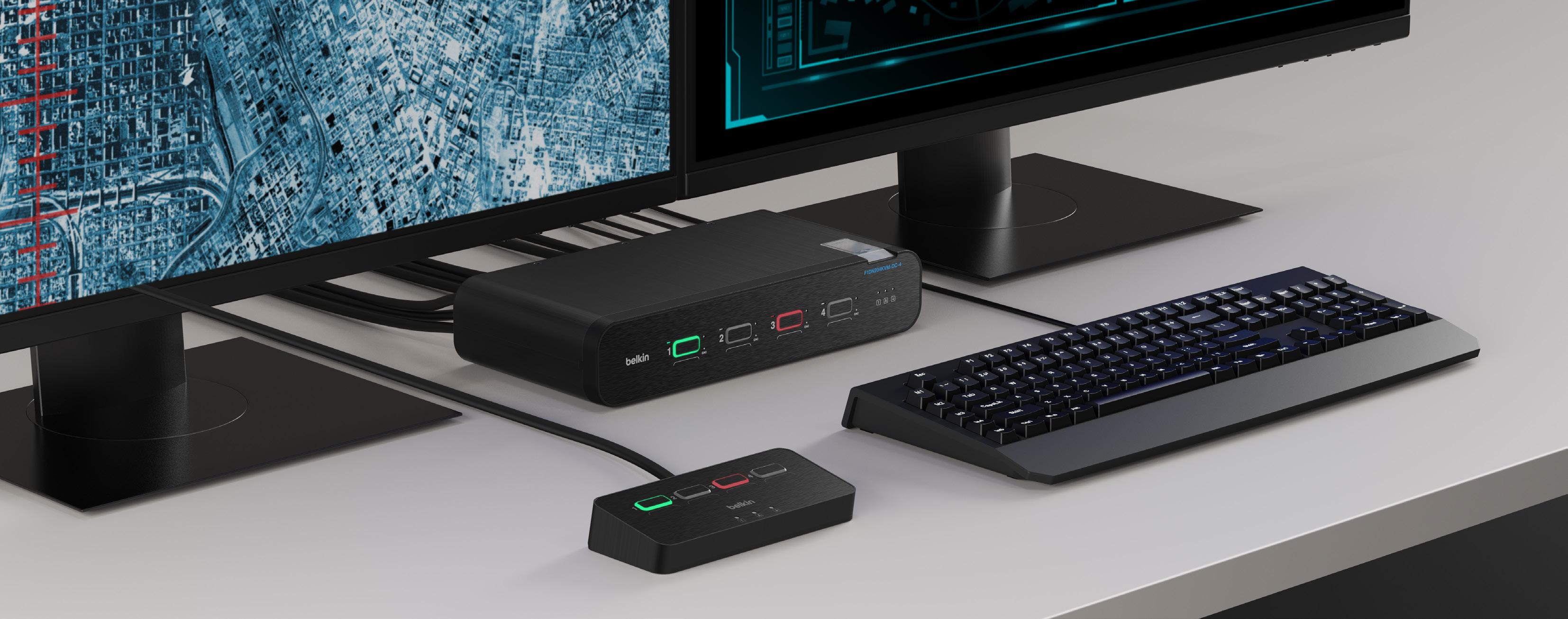

Designed for the ultimate in user experience, Belkin SKVMs are compatible with the optional Belkin SKVM Remote Control with Integrated Keyboard. Using configurable channel designator lighting, the front panel and remote control provide visual indication as to the security enclave the operator is working on, eliminating potential user errors. Unique mechanical design accommodates desktop or under-desk mounting with an optional bracket to further declutter the desk and enhance ergonomics and efficiency.
Universal DisplayPort SKVM Series with CAC
Choose from 6 different models.
Universal DisplayPort Secure KVM Switch, 2-Port Single Head w/ CAC
F1DN102KVM-DC-4

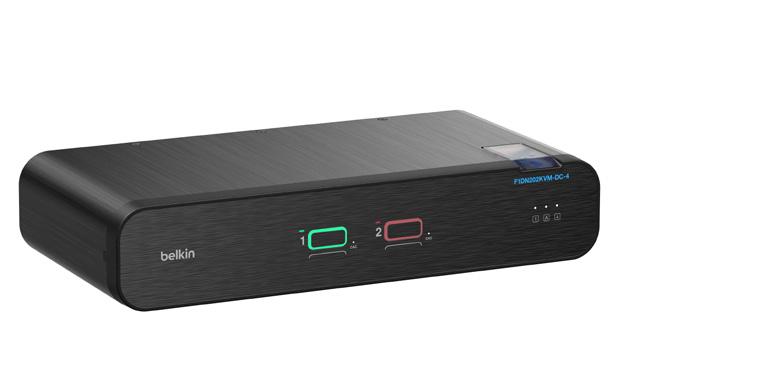

Universal DisplayPort Secure KVM Switch, 2-Port Dual Head w/ CAC
F1DN202KVM-DC-4

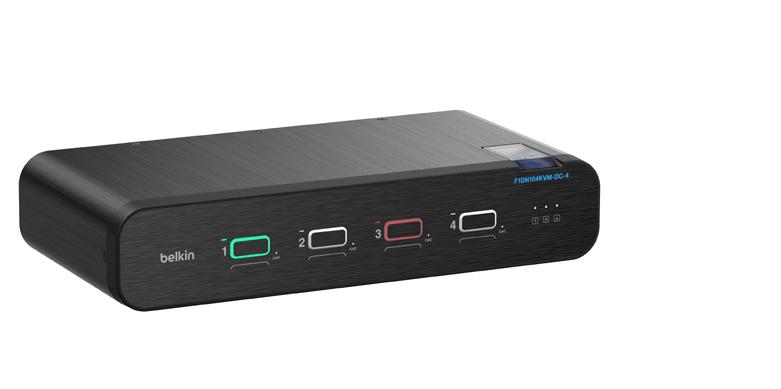

Universal DisplayPort Secure KVM Switch, 4-Port Single Head w/ CAC
F1DN104KVM-DC-4
Universal DisplayPort Secure KVM Switch, 4-Port Dual Head w/ CAC
F1DN204KVM-DC-4
Universal DisplayPort SKVM Series with CAC and USB-C
Choose from 2 different models.
Universal DisplayPort Secure KVM Switch, 4-Port Single Head, w/CAC and USB-C
• Peace of mind: Enjoy an industry-leading 5-year standard warranty, reflecting our commitment to quality and durability.
• Innovations for optimal user experience: Compatible with the Belkin SKVM Remote Control with Integrated Keyboard (F1DN008KBD), delivering the ultimate solution for decluttering the desk while enhancing the operator’s awareness of the security domain they’re working in.
• True data path isolation: Optical data diodes prevent peripherals from being used to breach systems.
• Tamper-proof system: Always-on, batterybacked, active anti-tamper circuit protects the unit from a breach while in transit and after deployment.
• TAA-compliant: Assembled in the USA, U.S.based technical support, secure packaging ensures integrity from factory to user site.
Universal DisplayPort SKVMs
Universal DisplayPort SKVM
Belkin Remote Control with Integrated Keyboard Compatible Yes
Console Ports (Devices)
Console Mouse and Keyboard Ports USB Type-A female connector (1 designated port for mouse and 1 designated port for keyboard) with status indicator lights
Console Audio Digital audio supported via DisplayPort connection on compatible monitor(s). Refer to monitor manufacturer’s manual to confirm compatibility.
Console Remote Control Port RJ14 female
Console CAC/DPP Port USB Type-A female connector
Console Video Port DisplayPort connector
Max Resolution Supported 3840 x 2160 pixels (UHD 4K)@ 60Hz
Computer Ports
Computer Audio Digital audio supported via DisplayPort connection on compatible monitor(s). Refer to computer manufacturer’s manual to confirm compatibility.
Computer Keyboard/Mouse Port USB Type-B
Computer Video Port DisplayPort connector; USB-C for USB-C models
Physical
Power Requirements 12VDC, 2.5A AC Input 100-240VAC
Power Type Extemal with WW mains connectors
Certification
General Information
Made in Designed in California. Assembled in USA with USA-based technical support (TAA
Product
Warranty
Enclosure Formed
SKVM Remote Control w/Integrated Keyboard SKVM/SKM Remote Control, 2-Port
KVM Console Side Fiber ExtenderUniversal Video Extender Copper CAT6 USB Transmitter and Receiver Work Surface Mount for SKVM/SKM Rackmount Ears for Single/Dual Head 8-Port & Single Head 16Port SKVM Rackmount Ears for Single Head 8-Port SKVM Universal DisplayPort SKVM Replacement Parts 0401-00853 Power Adapter Kit, 12V/2.5A with WW Mains Connector for Universal Series 2- & 4-Port SKVM 6000-01356 Power Cord Kit, WW Mains Connector for Universal Series 8- & 16-Port SKVM
Universal DisplayPort SKVM Accessories
The Belkin Difference:
USA-based product support.
3-year se with optional extension of 1-2 years.
Who we are.
Hassle-free replacement.
Exclusively produced in the USA with TAA-compliant accessories.
At Belkin International, we create products that help people realize the power of technology and make people’s lives better, easier, and more fulfilling. This has been Belkin’s mission since our inception in 1983. As a leading provider of SKVM switches for mission-critical applications, we positively impact and improve worker efficiency by delivering innovation and peace of mind to users working across multiple security enclaves. Our offer is certified to the latest Common Criteria NIAP Protection Profile for Peripheral Sharing Devices version 4.0 along with all applicable modules.
