BelAire Designer Fencing and Balustrades is built on the foundations of a family owned New Zealand business dating back to 1974. Generations of experience guide a quiet focus on quality, detail, and lasting design.
Core Values
Internal
Passion - Attention To Detail Trust - Team Players
To make sure New Zealanders can be confident that their outdoor equipment and personal environment is secure and protected by offering New Zealand’s widest range of simple, modular fencing solutions while adhering to our core values.
Ben Carney - Owner/Director
Peter Carney - Owner/Director
SCAN TO SEE ALL FRAMELESS GLASS FENCING & BALUSTRADE DETAILS

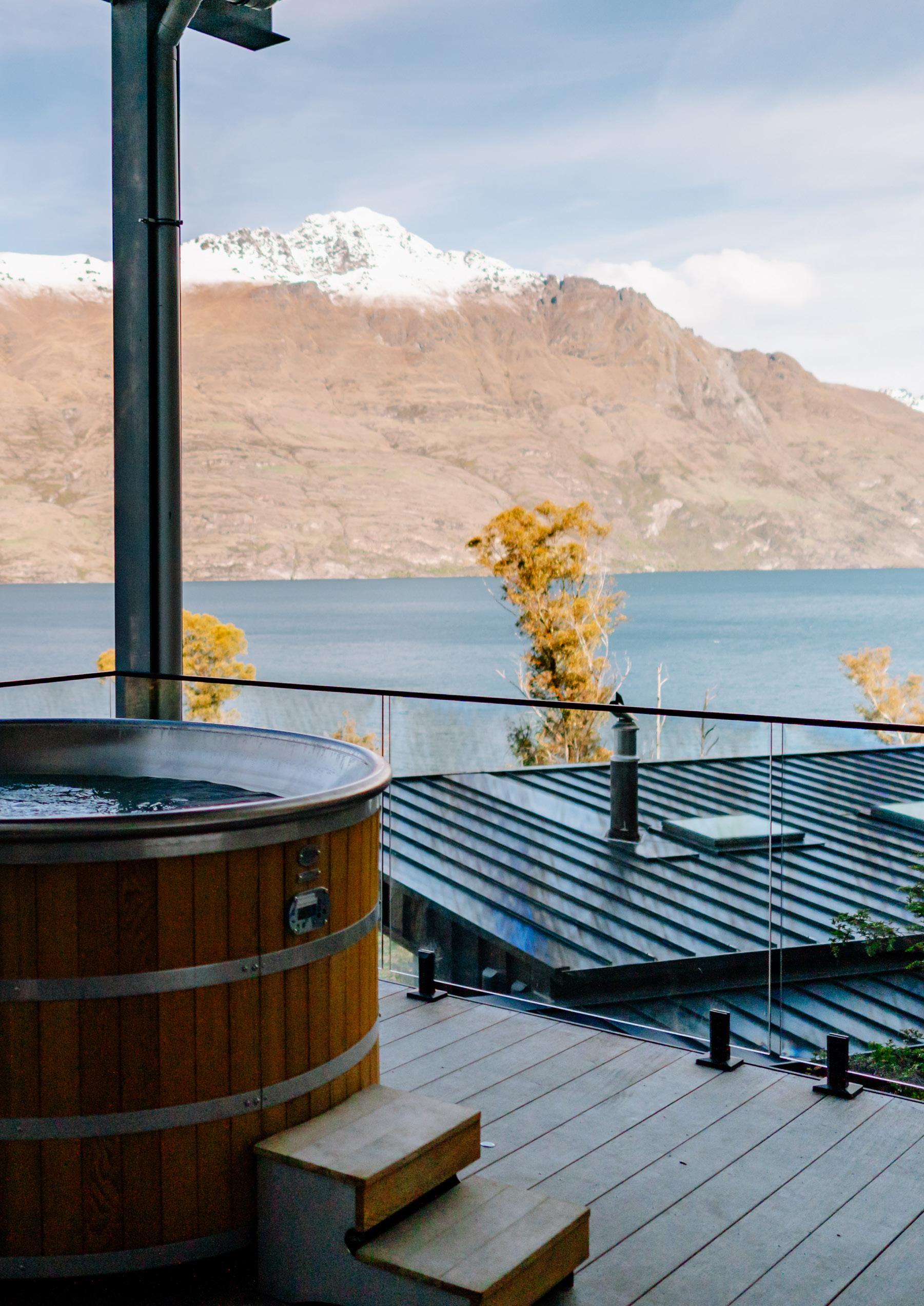

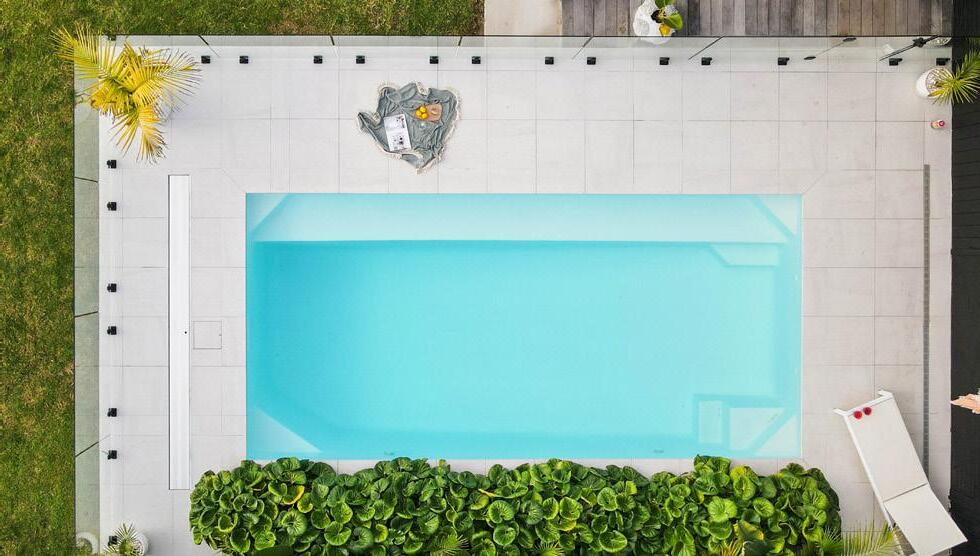

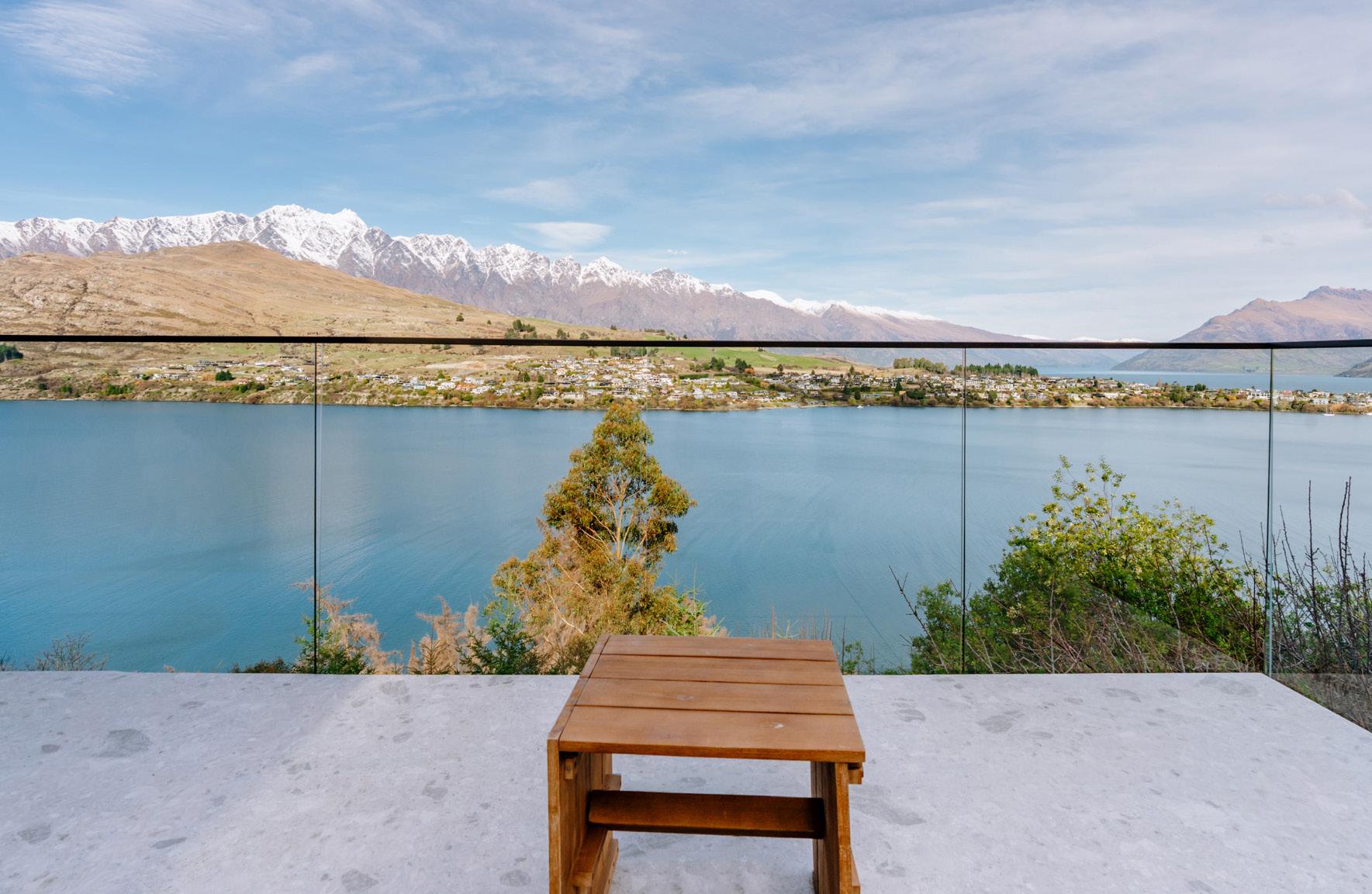

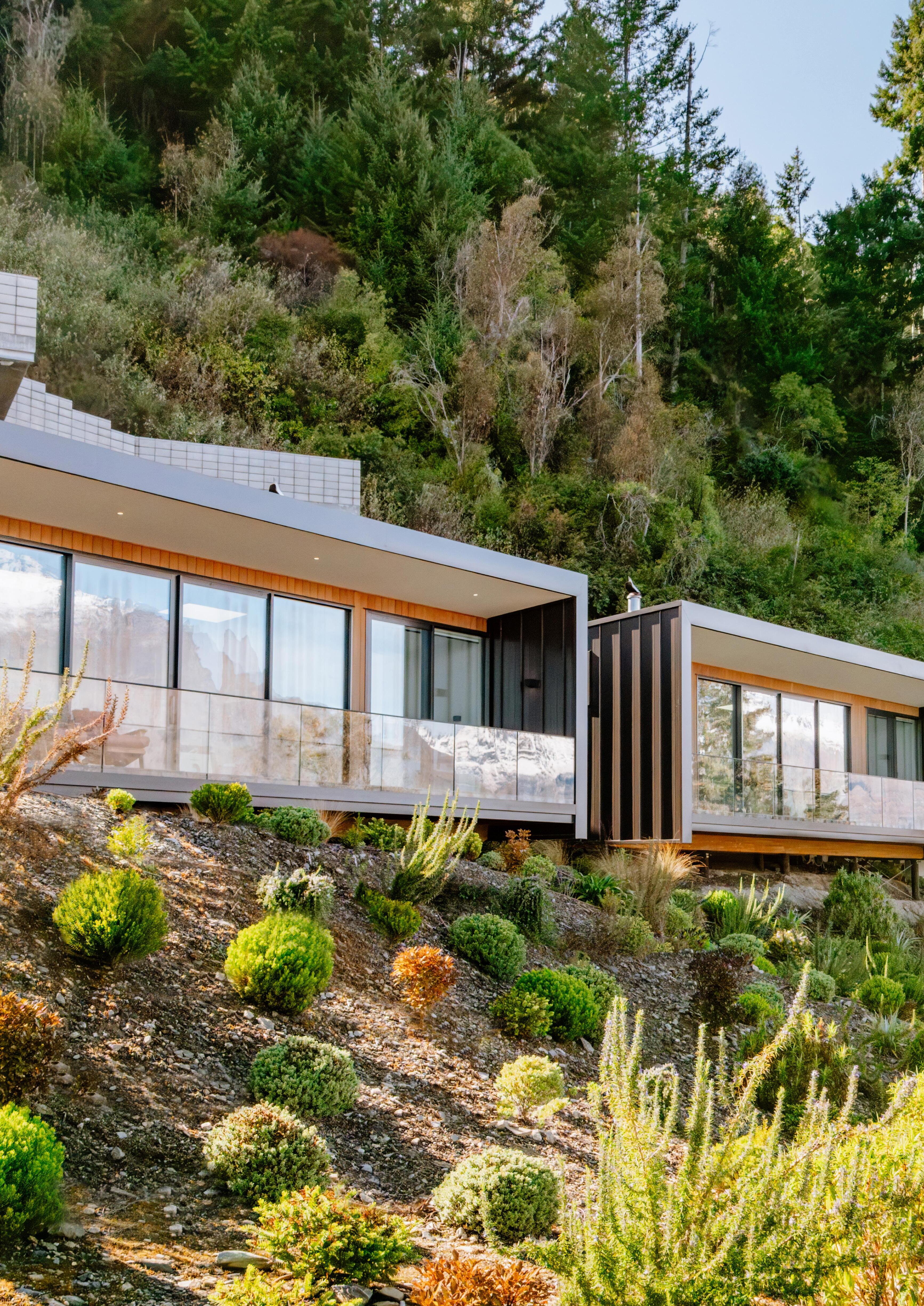

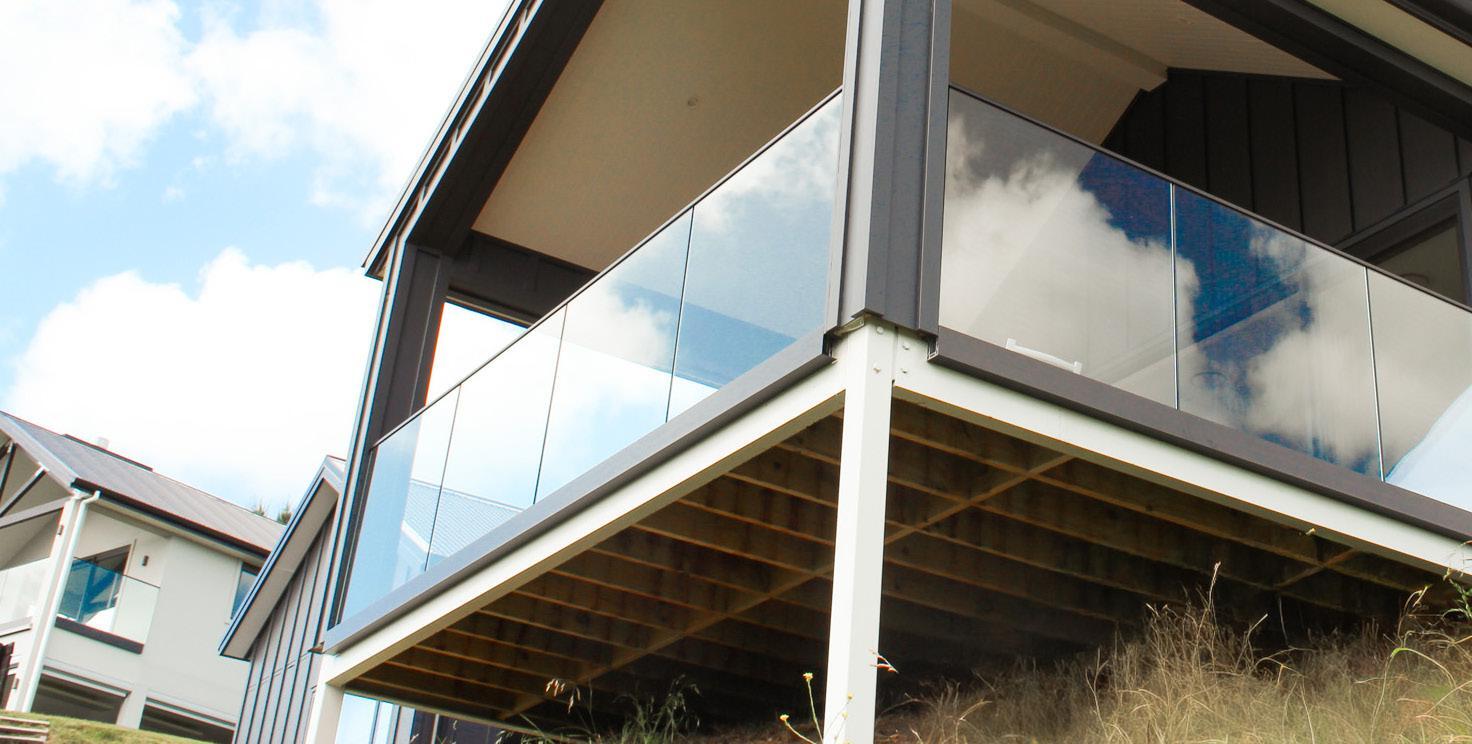

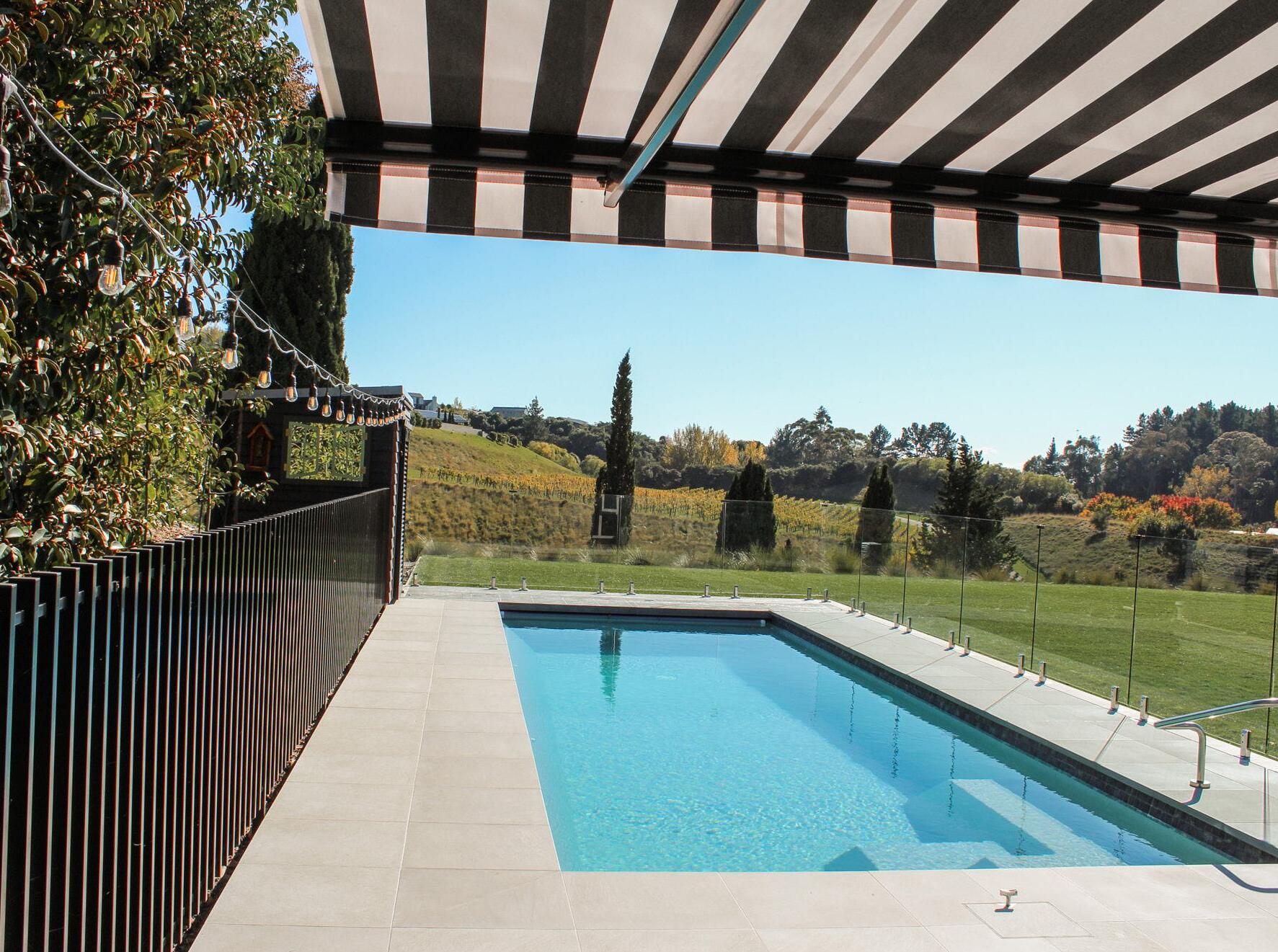

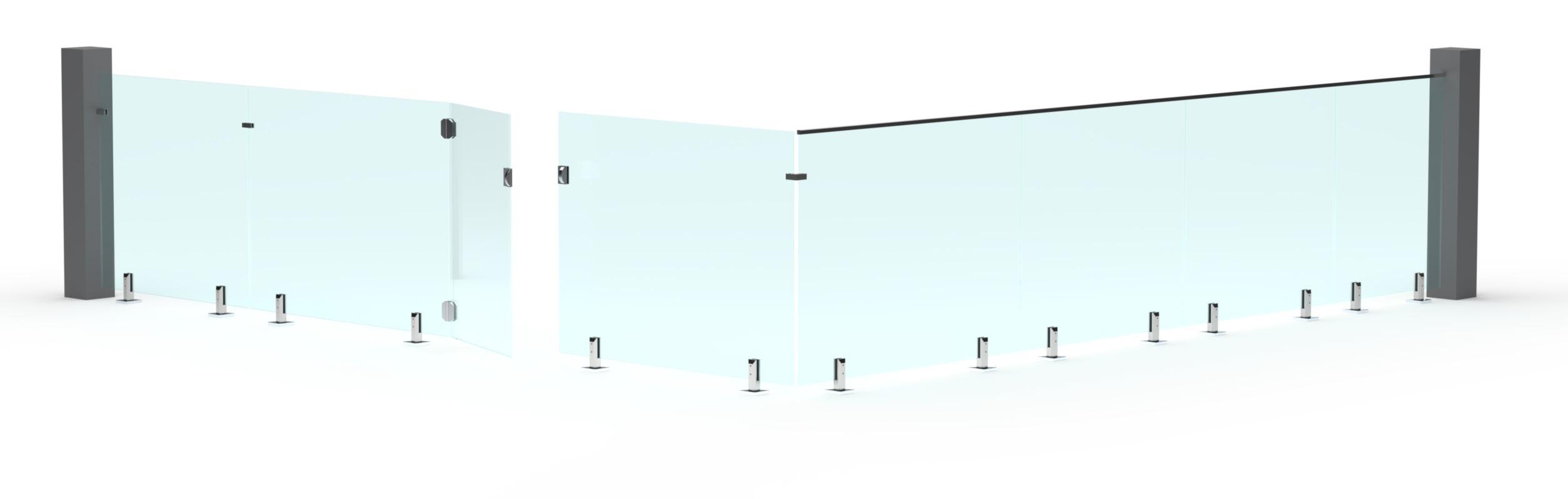

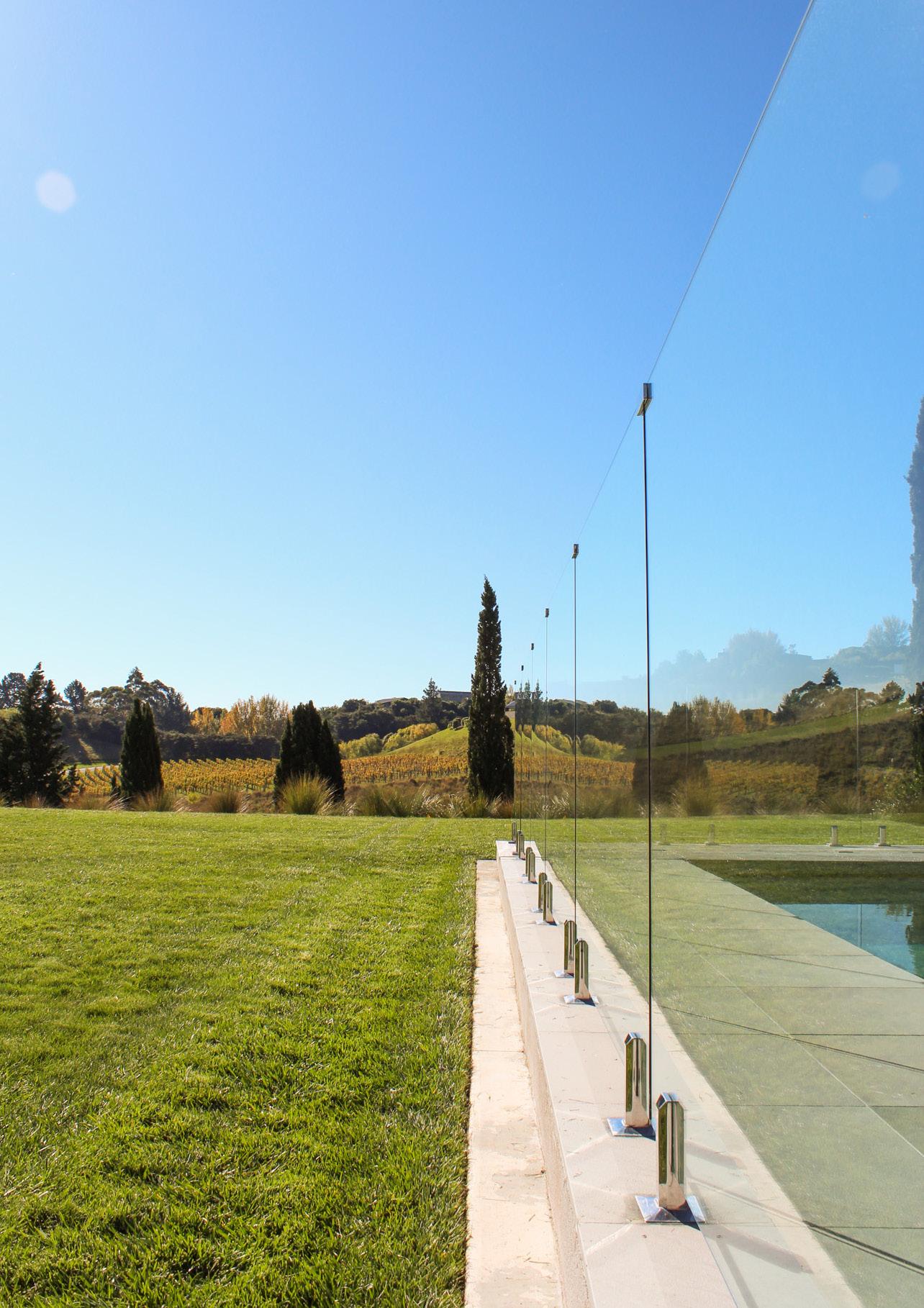

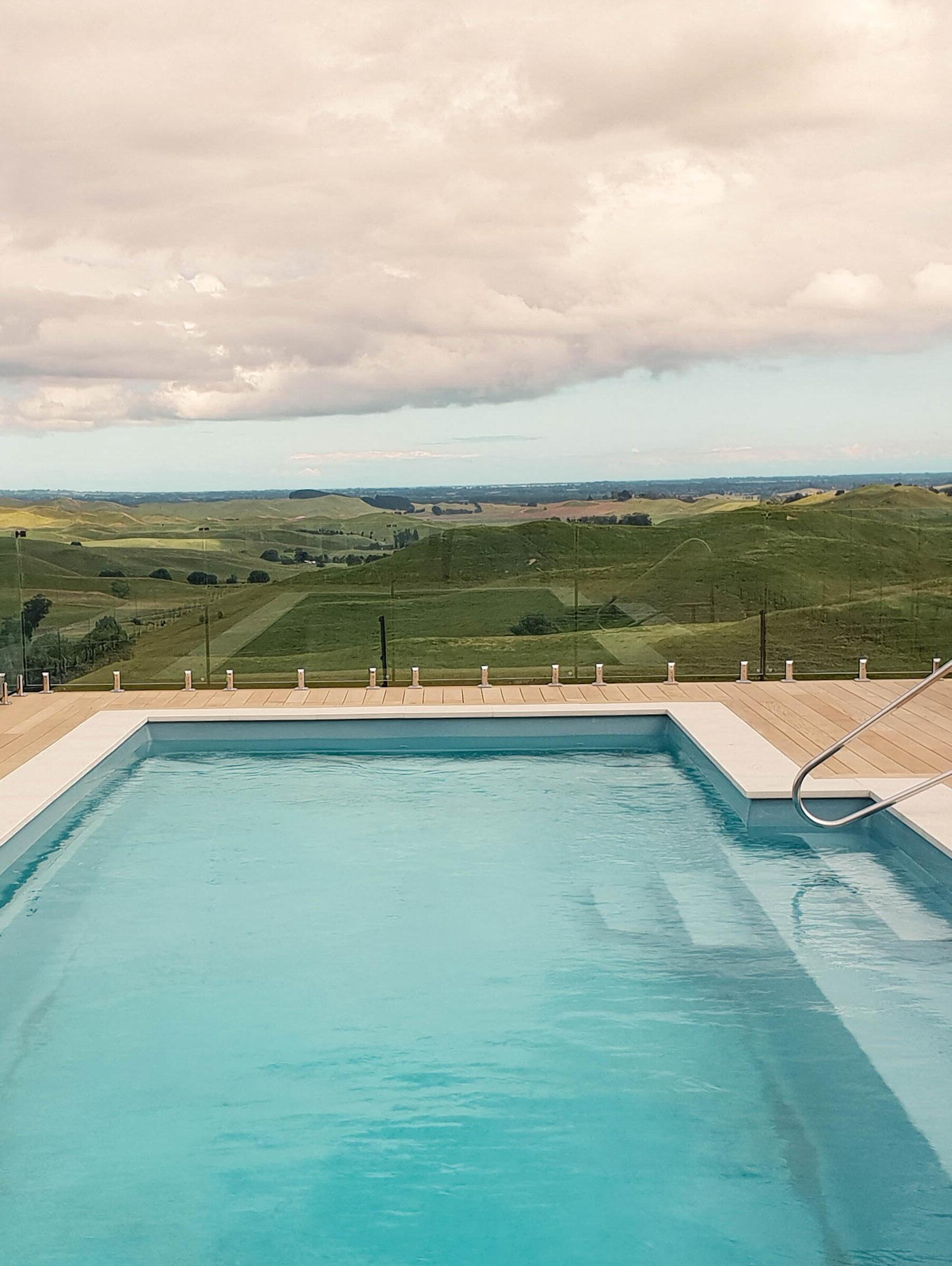

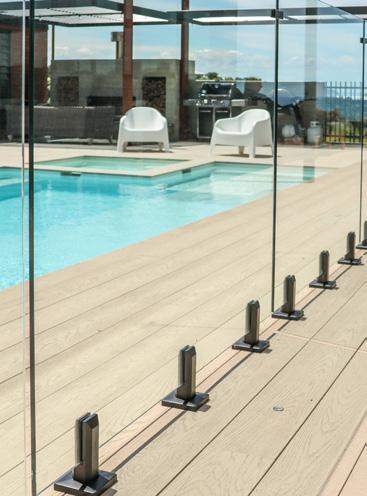

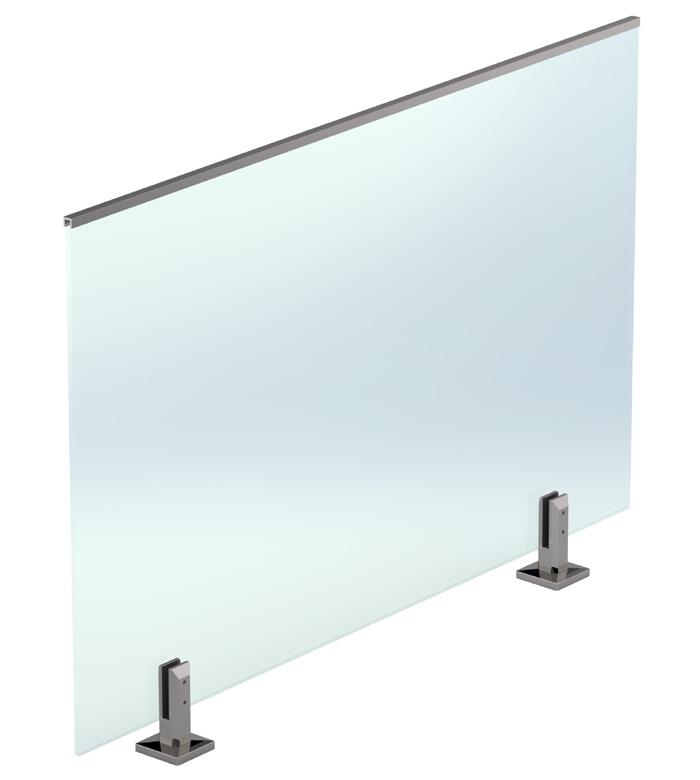

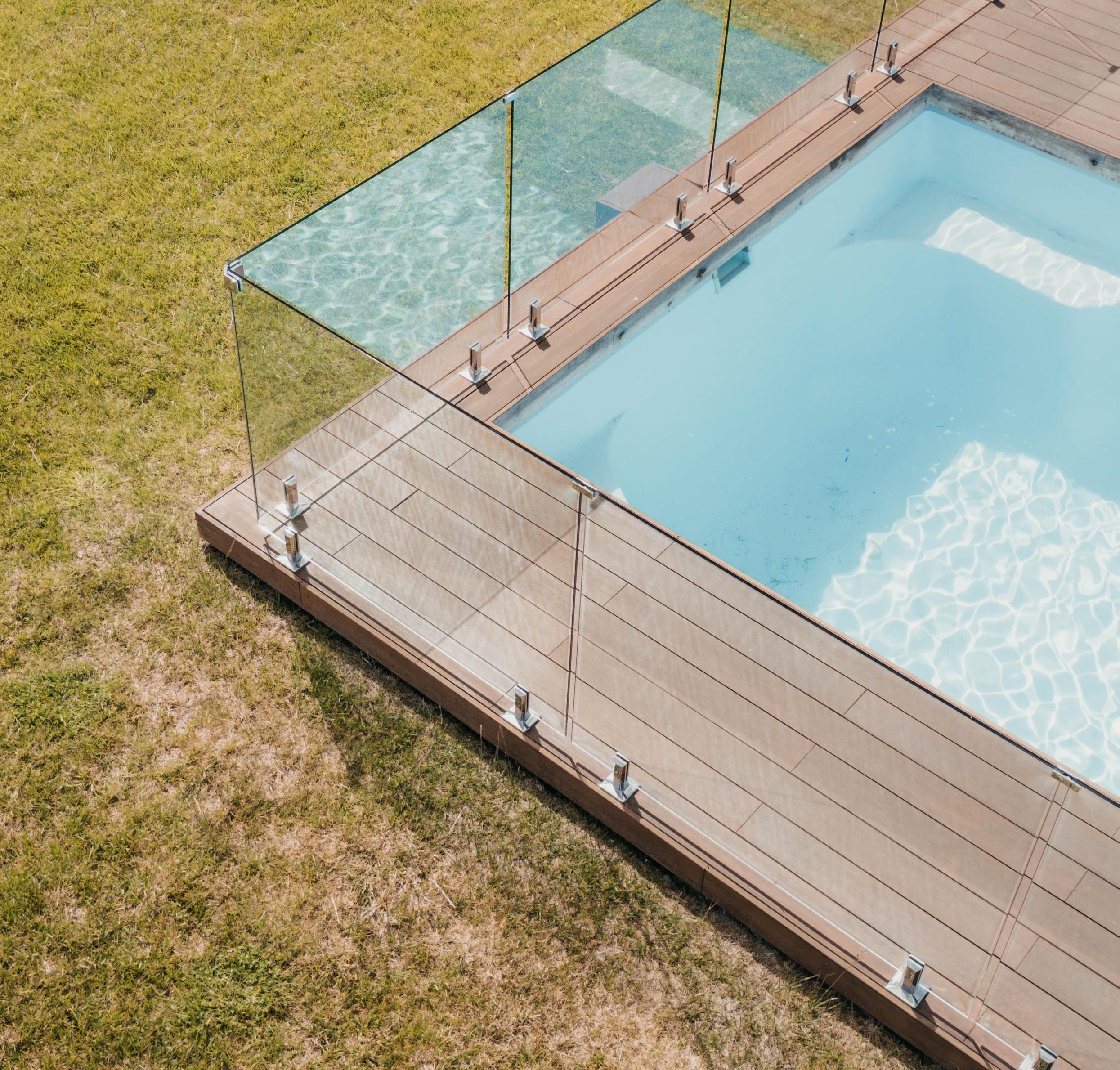

FRAMELESS GLASS FENCING & BALUSTRADES
INDEPENDENTLY LOAD TESTED
BelAire: 345kg
Compliance requirement: 240kg
Average adult man: 81kg
Loads distributed through a 960mm x 960mm timber load board
GENERAL FEATURES
• 12mm toughened safety glass
• New Zealand standards compliant
• 10-year warranty
• DIY instructions included
Compliant with:
F4 and F9 Building Code compliant
AS/NZS2208: 1996
New Zealand standards for safety glass manufacturing
NZS 8500
Safety barriers and fences around swimming pools, spas and hot tubs
NZS 4223.3:2016
Approved Balustrade Handrail
SOFT, NOT SLAMMED

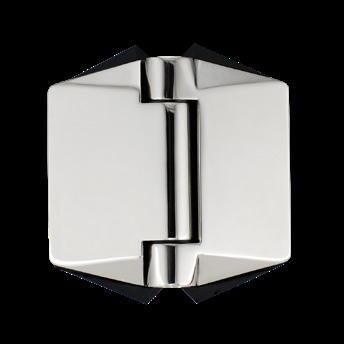

Even though BelAire gates are made from toughened safety glass, a slammed glass gate will always put you on edge. Relax. Upgrade to glass-to-glass or glass-to-wall Polaris soft-closing hinges, and you’ll never hear the bang of a slammed gate again!
Choose to upgrade to Polaris soft-closing hinges when you order online, or just talk with one of our friendly sales representatives.
1100mm infill panel
Glass-to-glass hinge pack
Glass-to-glass latch pack Clamps Handrail
GLASS PANEL INFORMATION
POOL FENCING PANELS
• 12mm thick clear toughened glass
• Corner radius: 2mm
• 22 widths available from 300mm to 1600mm
• 1200mm high
12mm THICK CLEAR TOUGHENED GLASS
*Also comes in size 1200mm wide x 1750mm high for when a pool fence meets a boundary fence
GATE PANELS
• 10mm thick clear toughened glass
• Corner radius: 2mm
• 2 x bunny ear cut outs for hinges
• 2 widths available 800mm & 900mm (1000mm high panels only come in 900mm width)
• 1200mm high and 1000mm high options

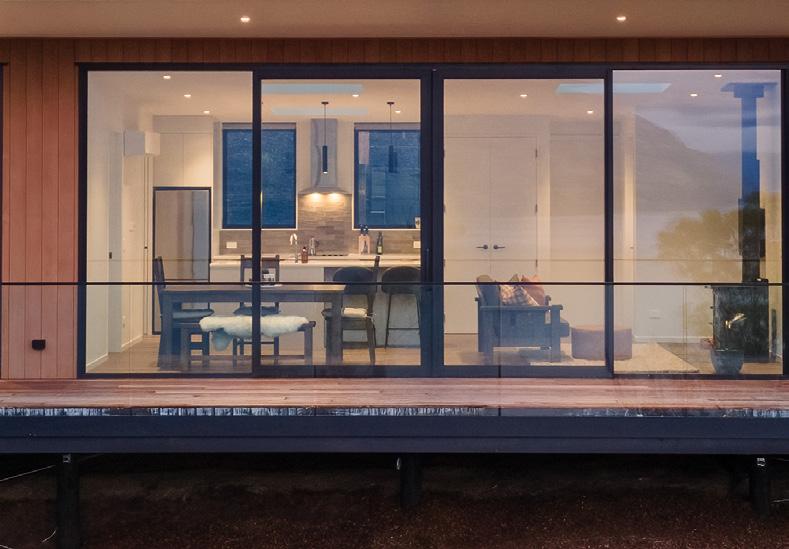

BALUSTRADE PANELS
• 12mm thick clear toughened glass
• Corner radius: 2mm
• 19 widths available from 600mm to 1600mm
• 1000mm high
12mm THICK CLEAR TOUGHENED GLASS
HINGE PANELS
• 12mm thick clear toughened glass
• Corner radius: 2mm
• 2 x bunny ear cut outs for hinges
• 5 widths available from 900mm to 1600mm
• 1200mm high

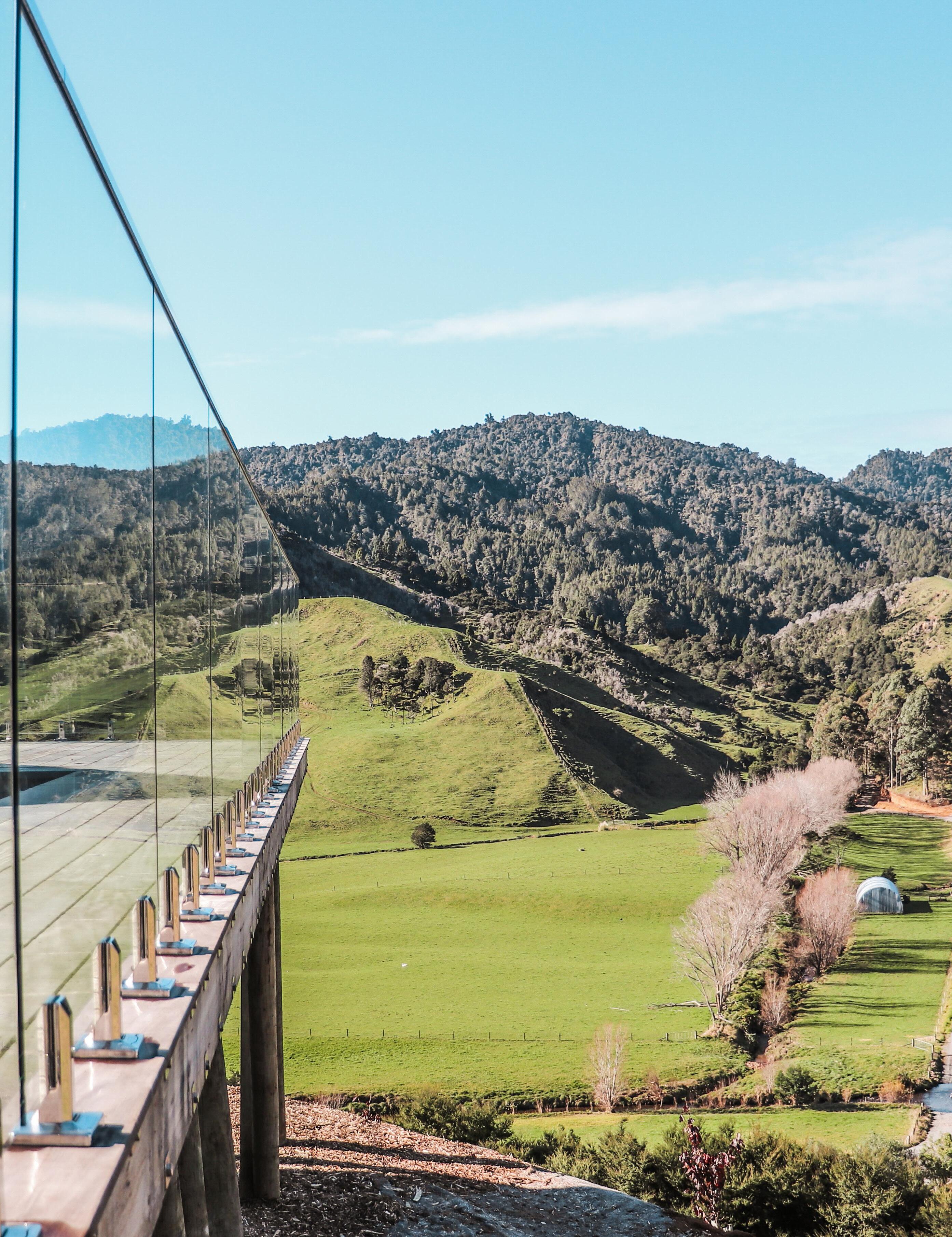

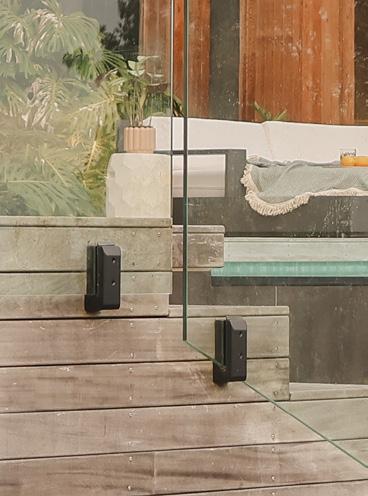

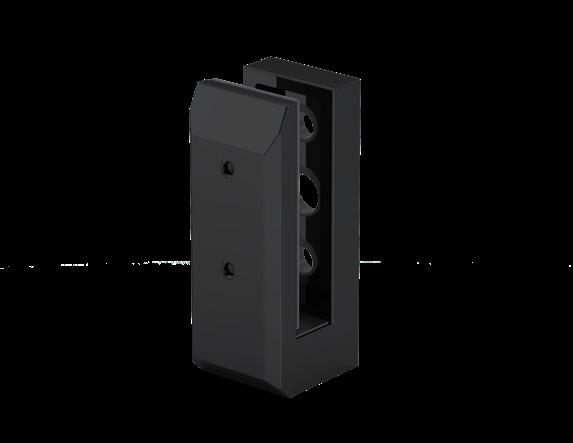

SPIGOTS & CHANNELS

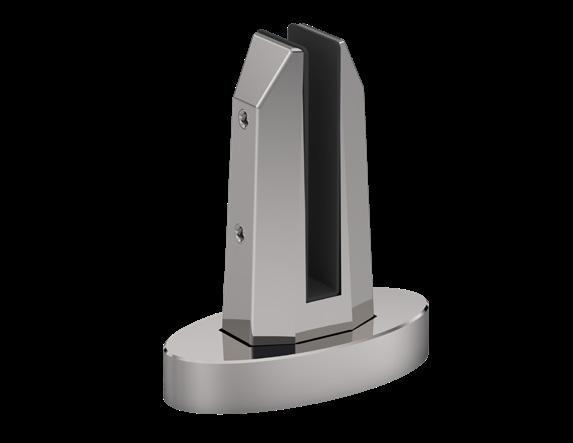

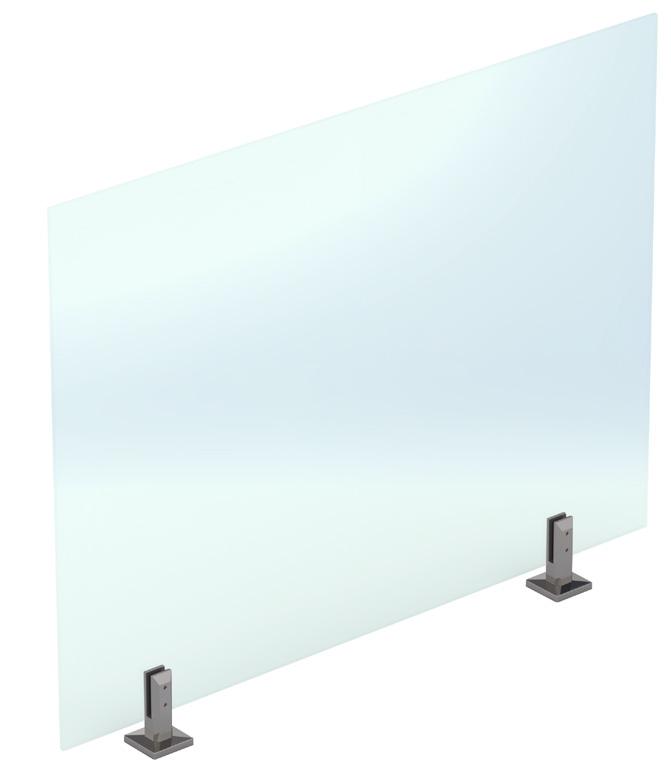

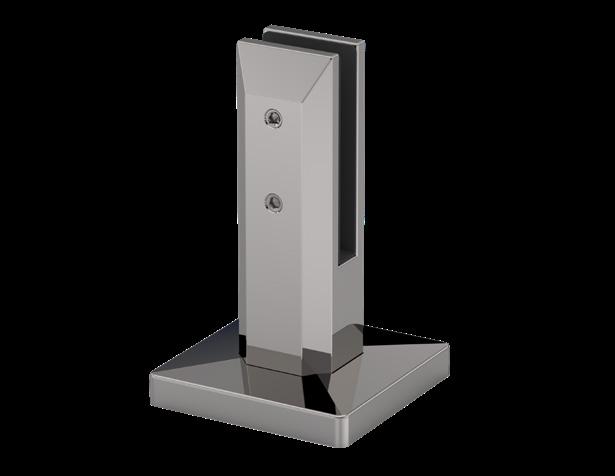

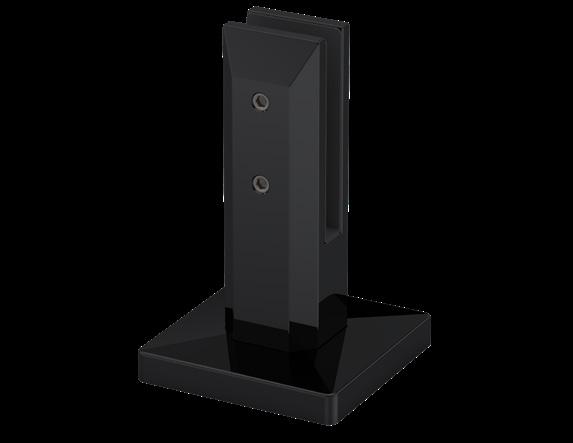

TEKAPO BASE PLATE SPIGOT
Duplex 2205 Stainless Steel

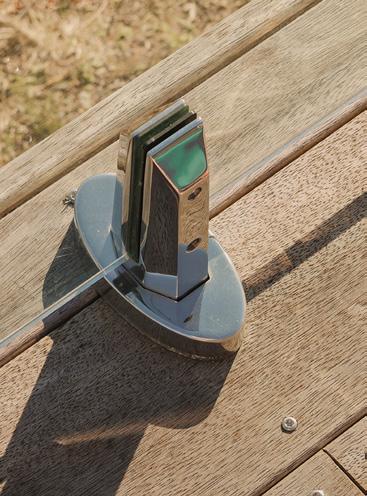

MILFORD BASE PLATE SPIGOT
Duplex 2205 Stainless Steel

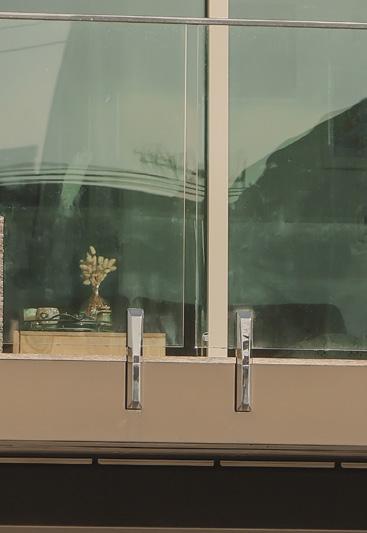

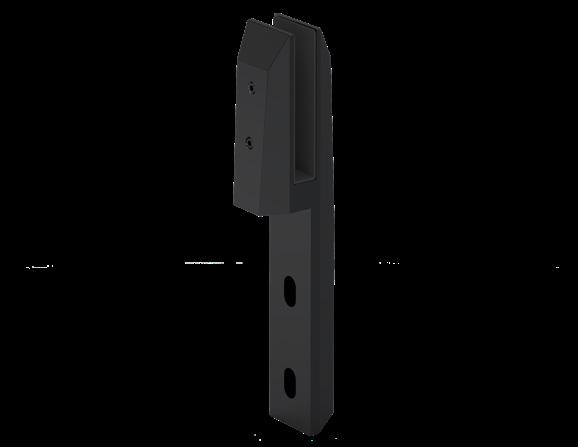

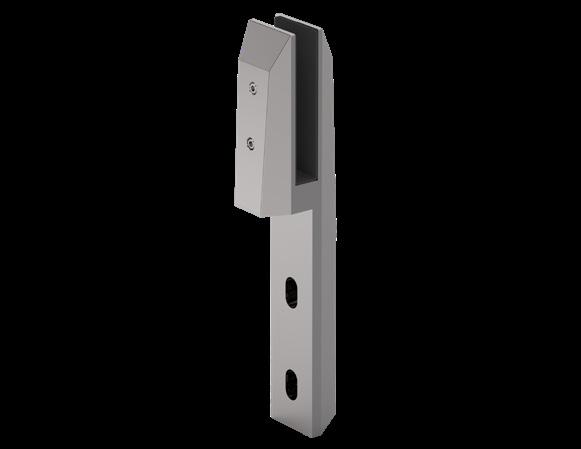

KAWEKA SIDE MOUNT SPIGOT
Duplex 2205 Stainless Steel
AORAKI FACE MOUNT SPIGOT
Duplex 2205 Stainless Steel
TEKAPO CORE DRILL SPIGOT
Duplex 2205 Stainless Steel

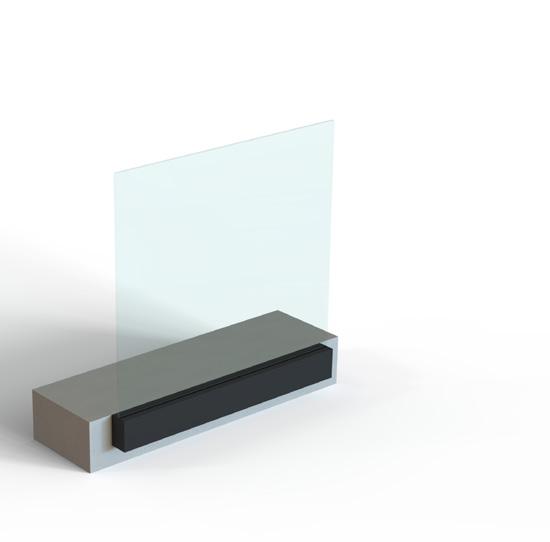

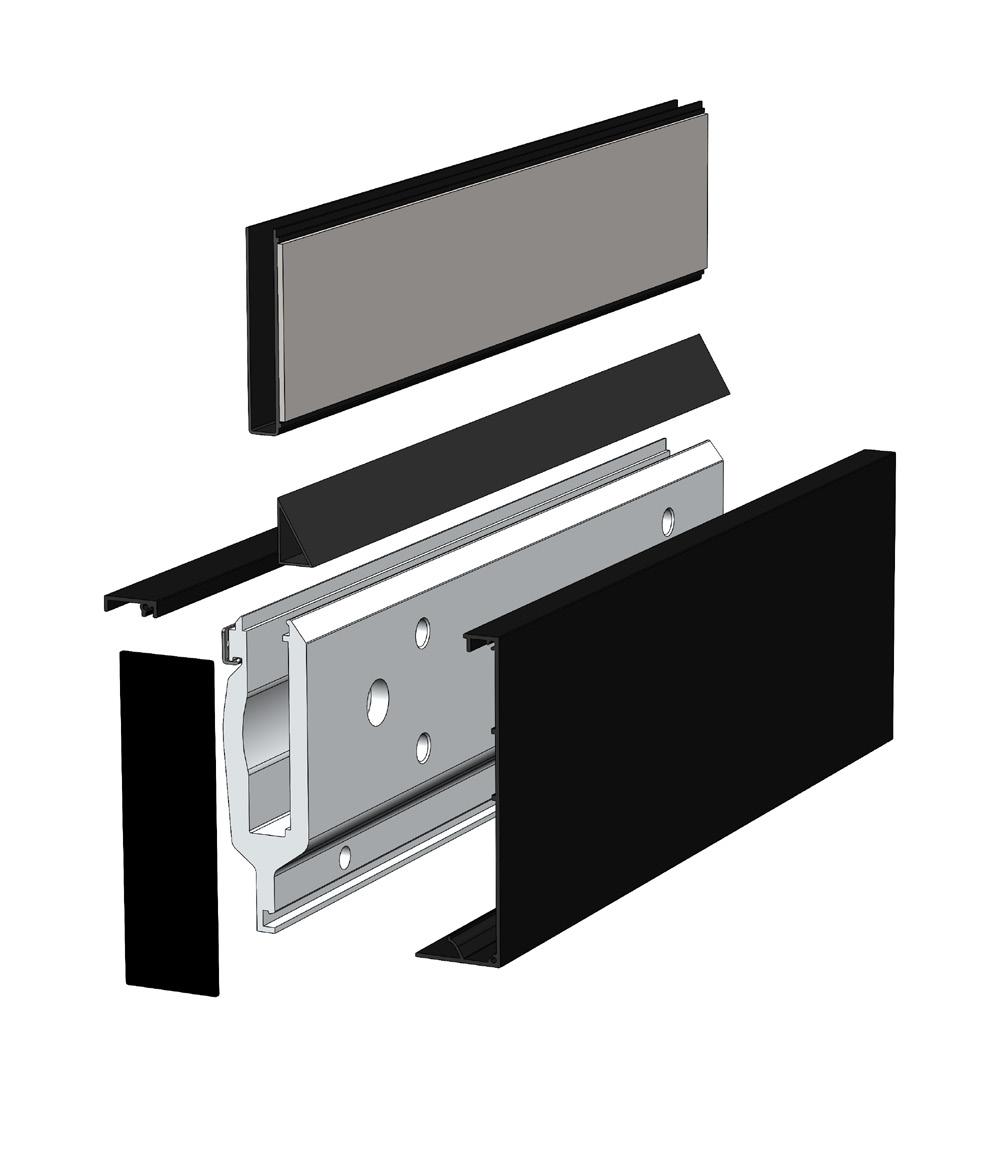

The Rakaia side mounted friction fitting glass channel system has been designed for the most simple installation method in mind, it also meets and surpasses all compliance that is required for New Zealand regulations.
Rakaia Channel - FRICTION FIT
Timber Order Code: SCECHT
Concrete Order Code: SCECHC
*Includes channel, powder coated inner and outer *covers, plastic insert, pressure plate, grub screws, *hanger brackets and mounting screws.
Additional Components
SCECHGS
Grub Screws (per unit)
SCECHHB Hanger Bracket (per unit)
SCECHCC Corner Cap (per unit)
SCECHJC Channel Join Cover (per unit)
Face Flashing (powder coated)
SCECHCO (3m)
Pressure Plate
SCECHPP (3m)
Anti Climb Cap
SCECHSA (3m)
Plastic Glazing Channel
SCECHPI (3m)
Channel End Cap (powder coated)
SCECHEC
Main Channel SCECHAN (3m)
Decking Cap (powder coated)
SCECHCT (3m)

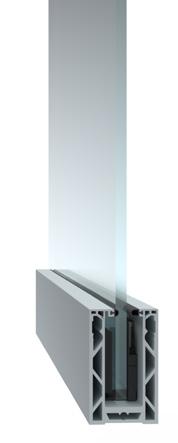

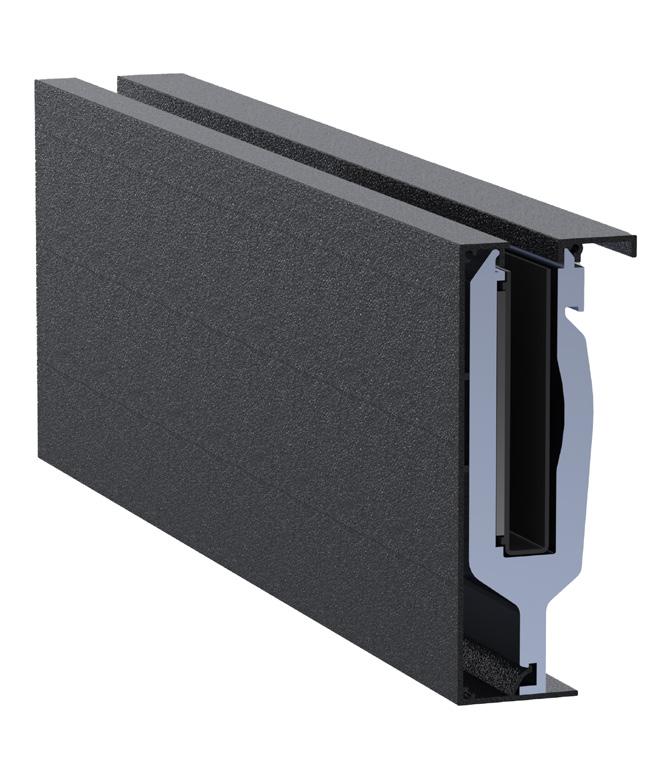

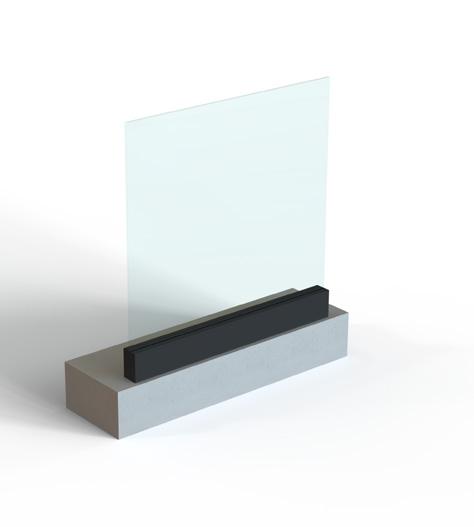

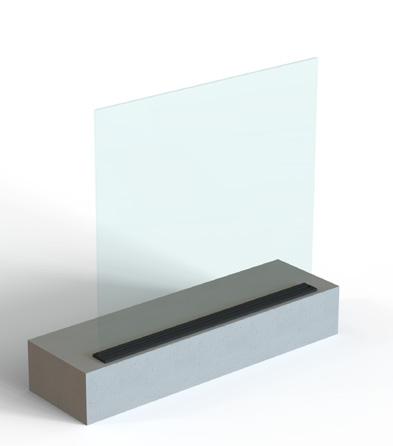

The Aspiring channel provides a clean, seamless infinity-edge glass finish with a strong aluminium design and easy clip-on cap. It suits residential and commercial use and installs easily.
This Channel works with Top Mount, Side Mount, and Cast-In setups, and adjustable wedges make glass alignment simple.
Available in satin anodised or custom powder coated finishes in 5000mm lengths for long, tidy runs.
Strong, simple, modern, ideal for achieving an infinity-glass look.

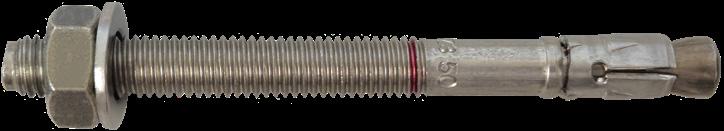

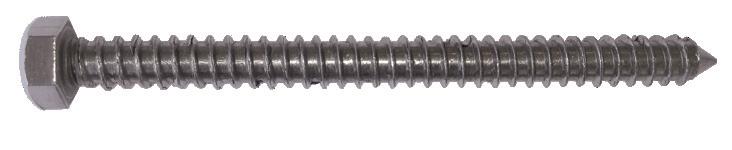

M10 Concrete Wedge anchor x 110mm Stainless Steel Code: SCECHSA-K
• Used For: Kaweka, Milford

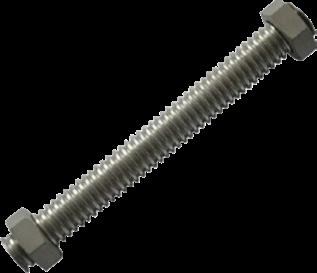

Threaded rod
Stainless Steel 316 (Hex head drive)
M10 Order Code: SCETHR10 (for Rakaia and Aspiring Channel)
M12 Order Code: SCETHR12 (for Milford, Kaweka and Aoraki spigots)
• Chemset also supplied for concrete applications - ask our sales team for more info
• Drill a 14mm hole for a 12mm rod when using Chemset
• Drill a 12mm hole for a 10mm rod when using Chemset

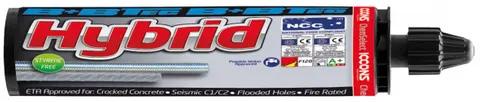

Chemset: SCECHEM Chemset
Used with SCETHR12 stainless threaded rod into concrete

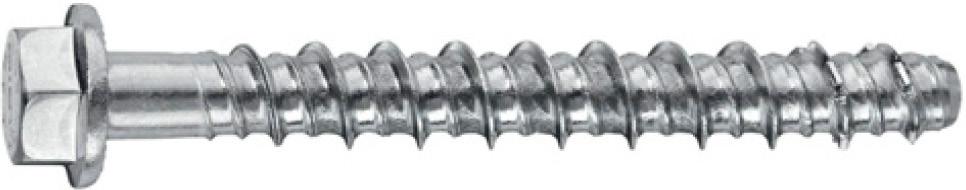

Concrete Anchor
Order Code: SCECHAS100
• Used For: Aspiring Channel
SCAN TO SEE ALL ALUMINIUM FENCING & SCREEN SYSTEMS
DETAILS
ALUMINIUM FENCING & SCREEN SYSTEMS

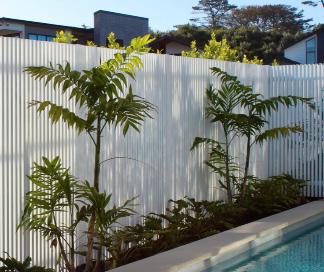

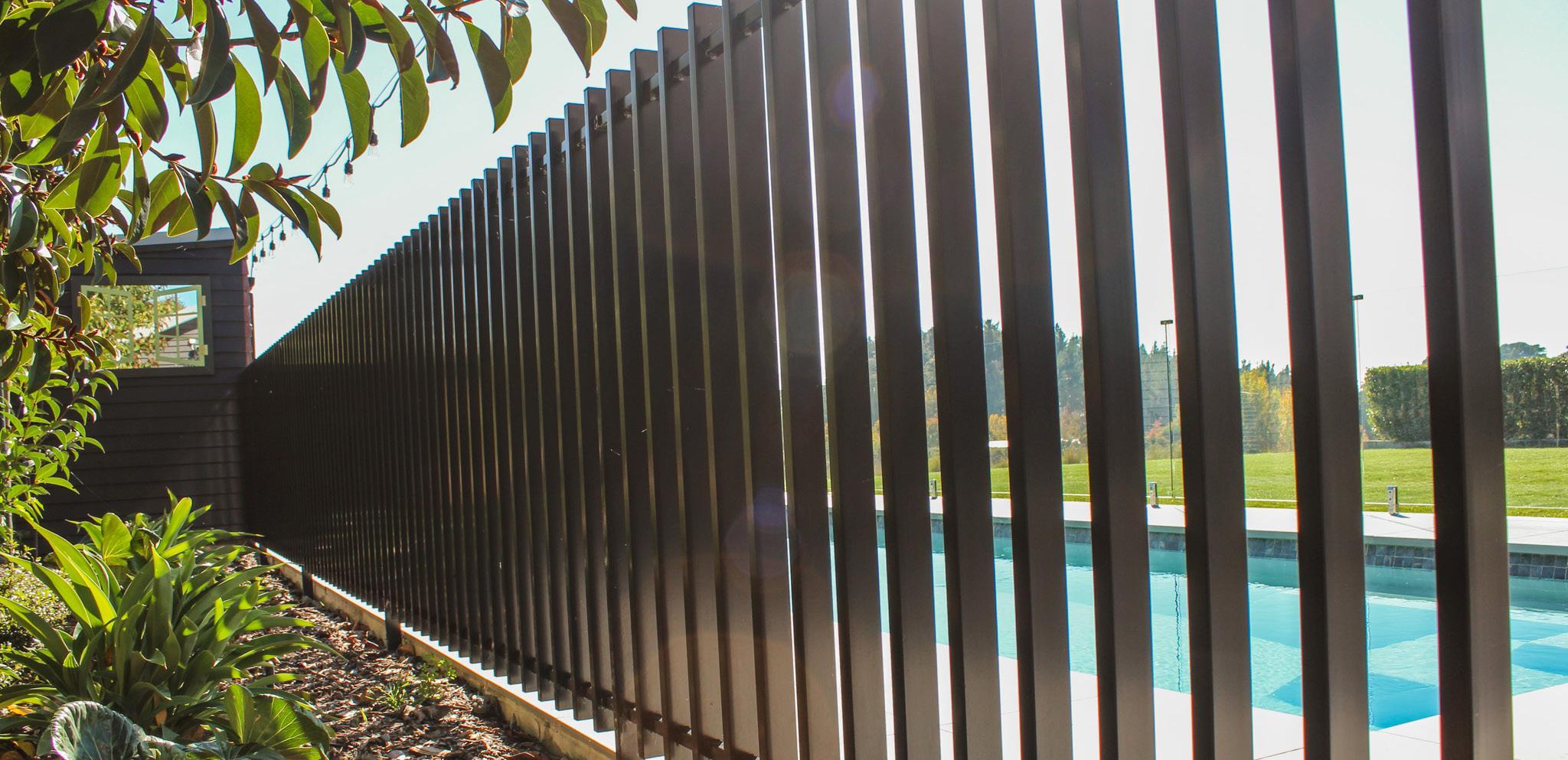

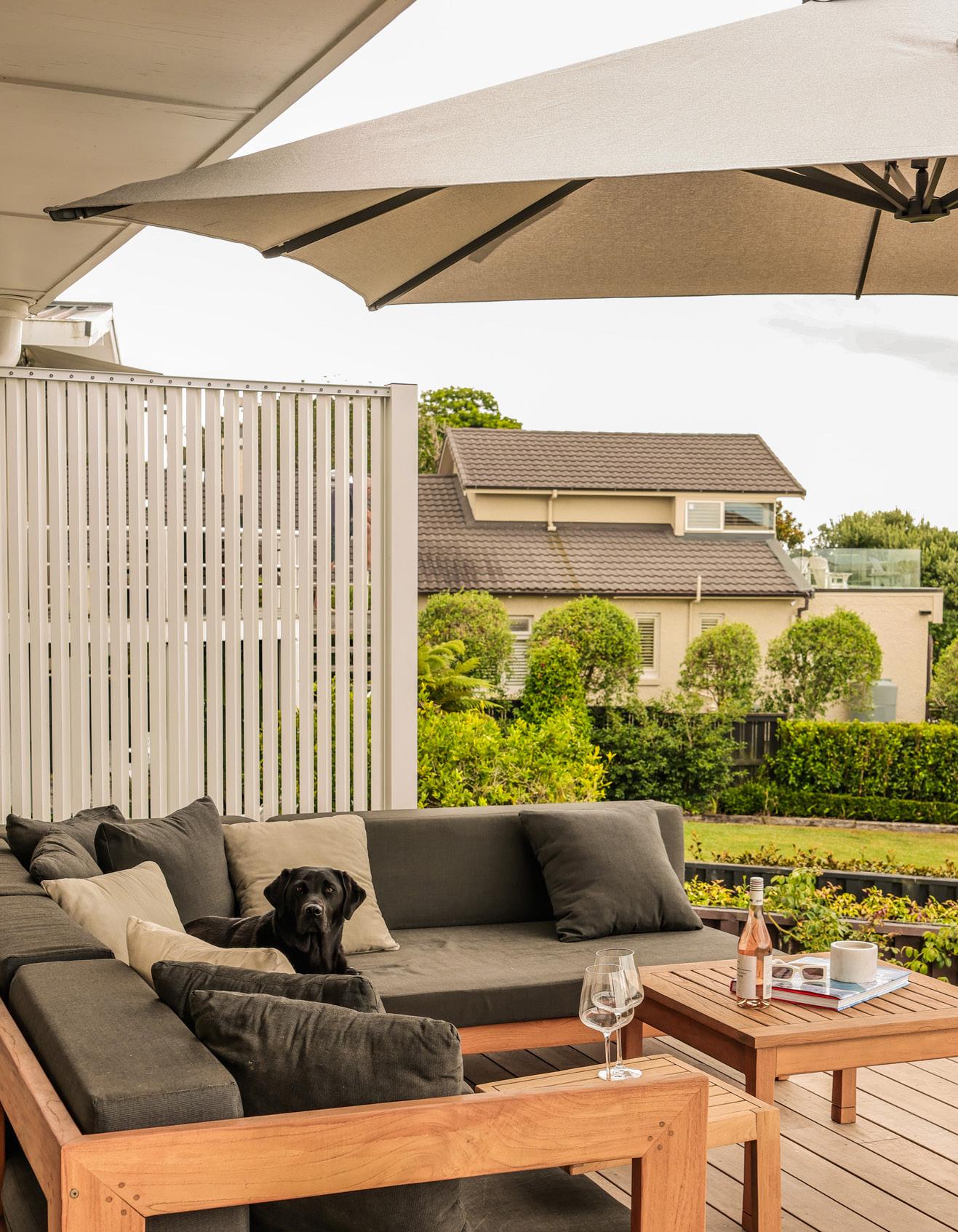

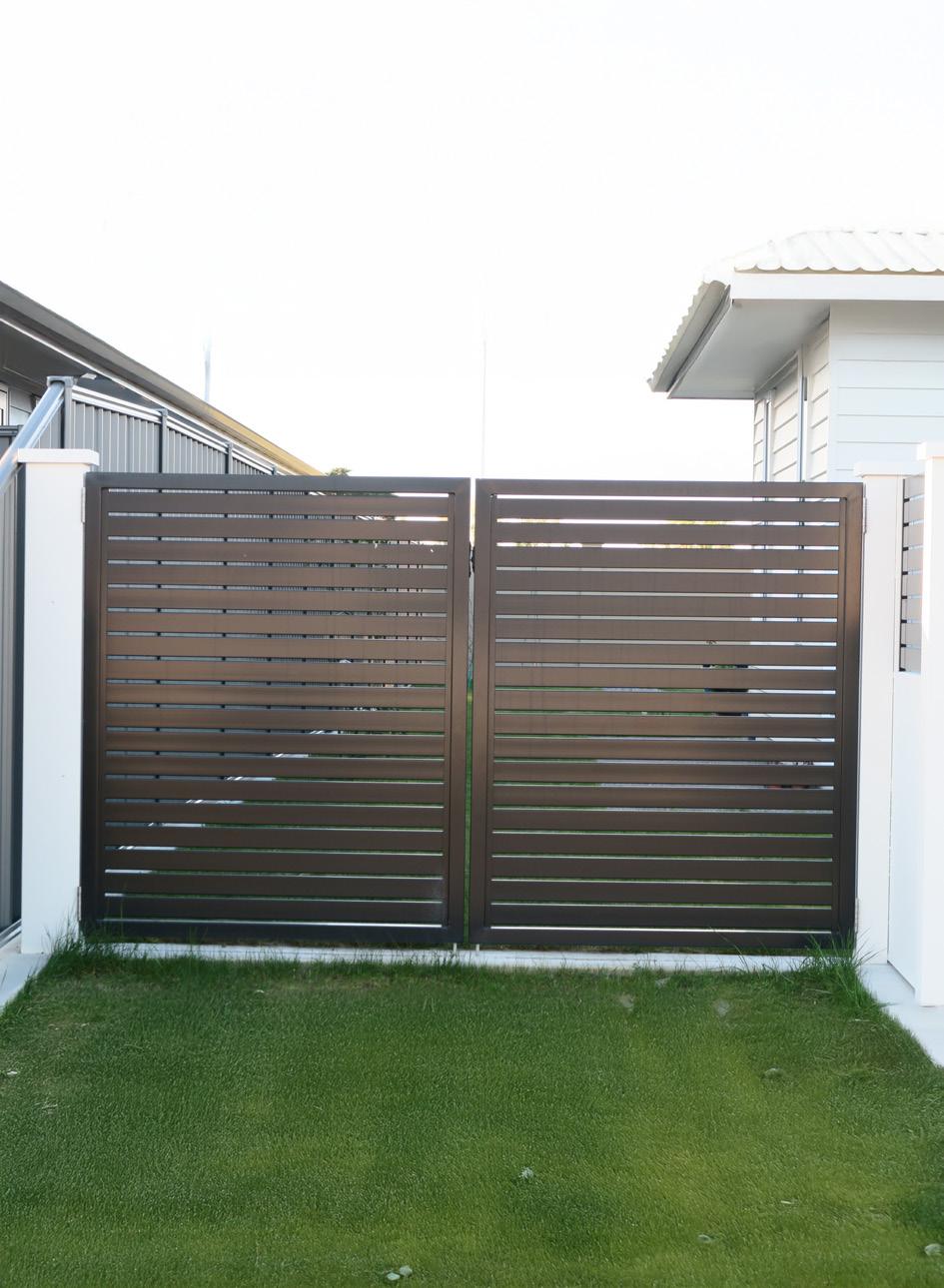

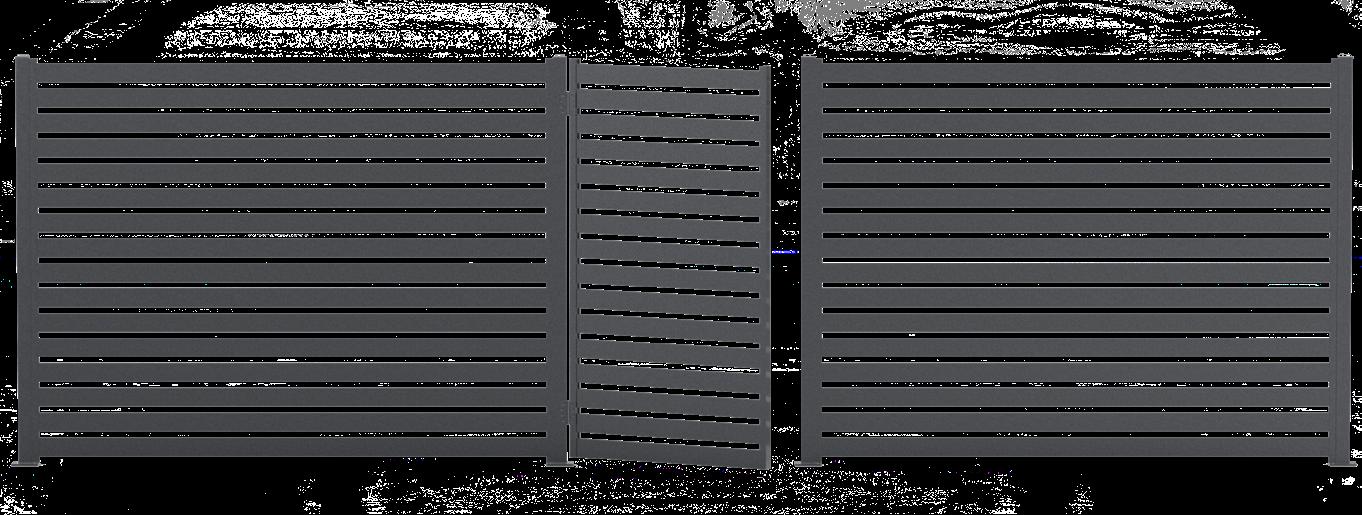

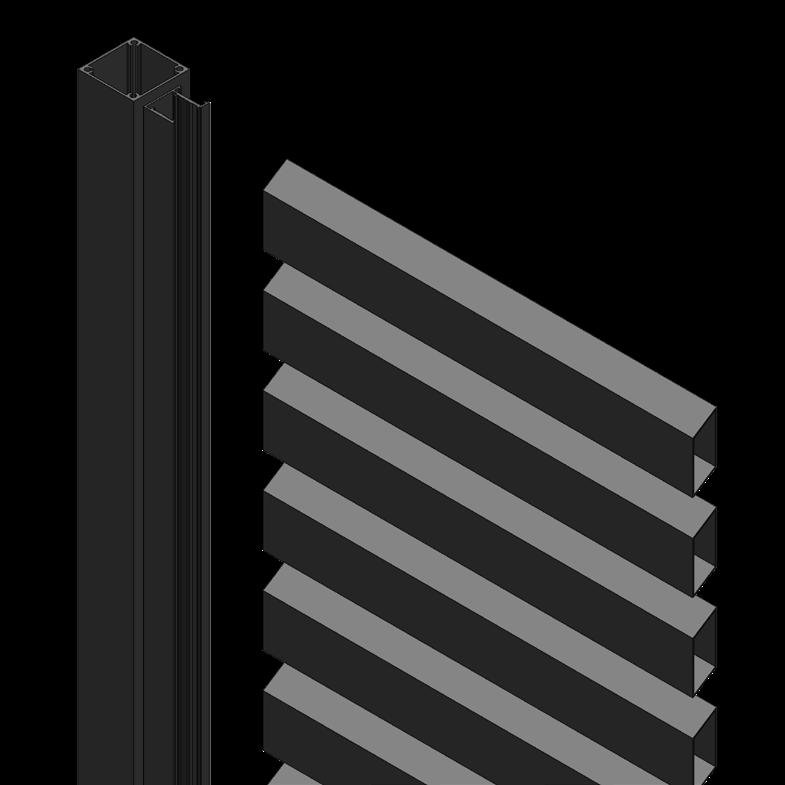

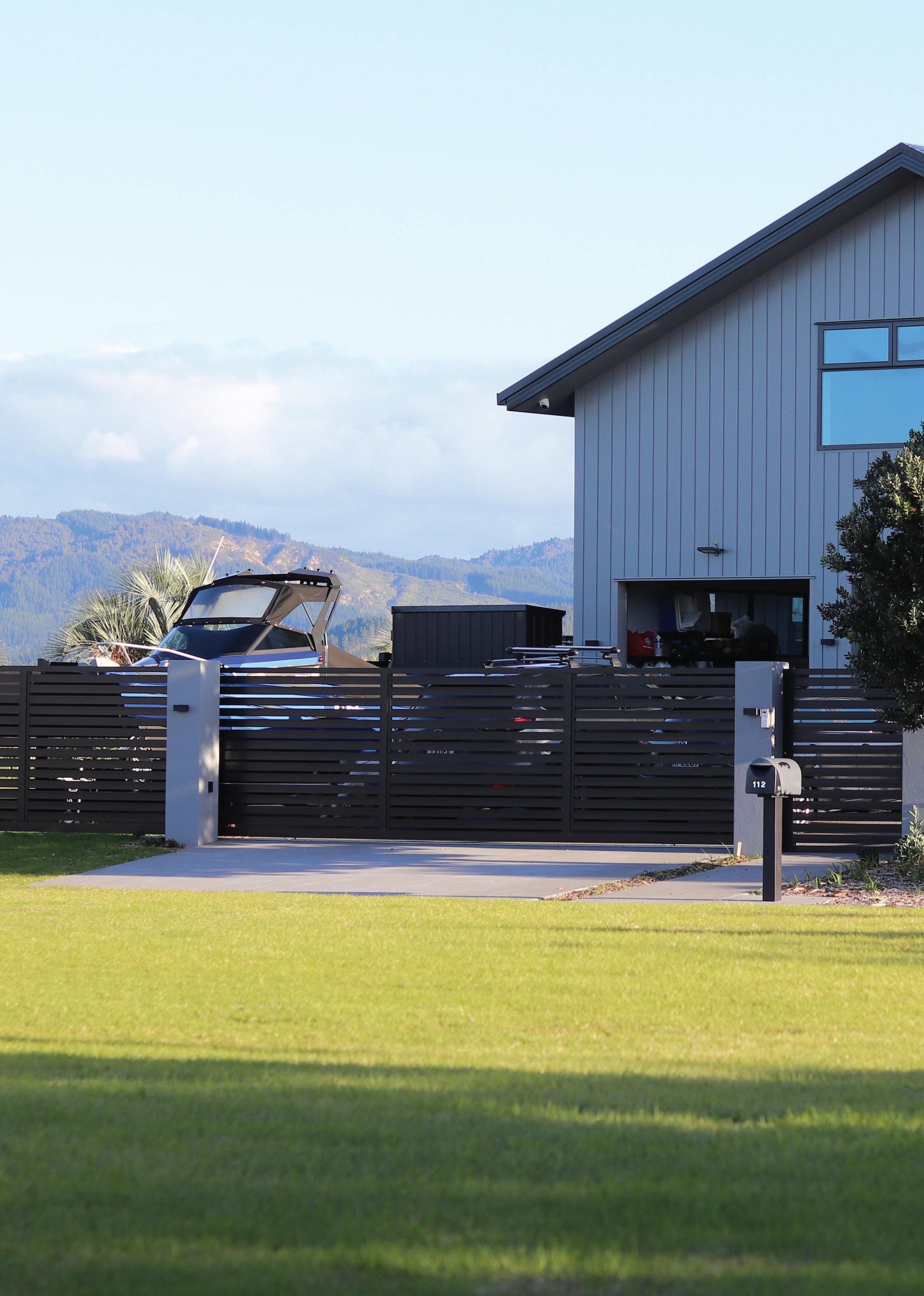

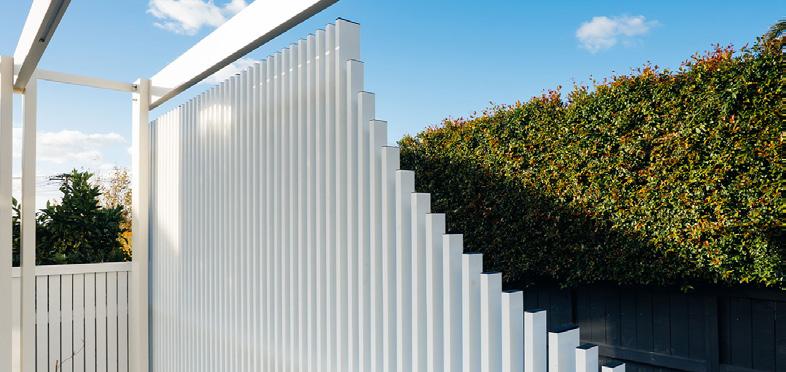

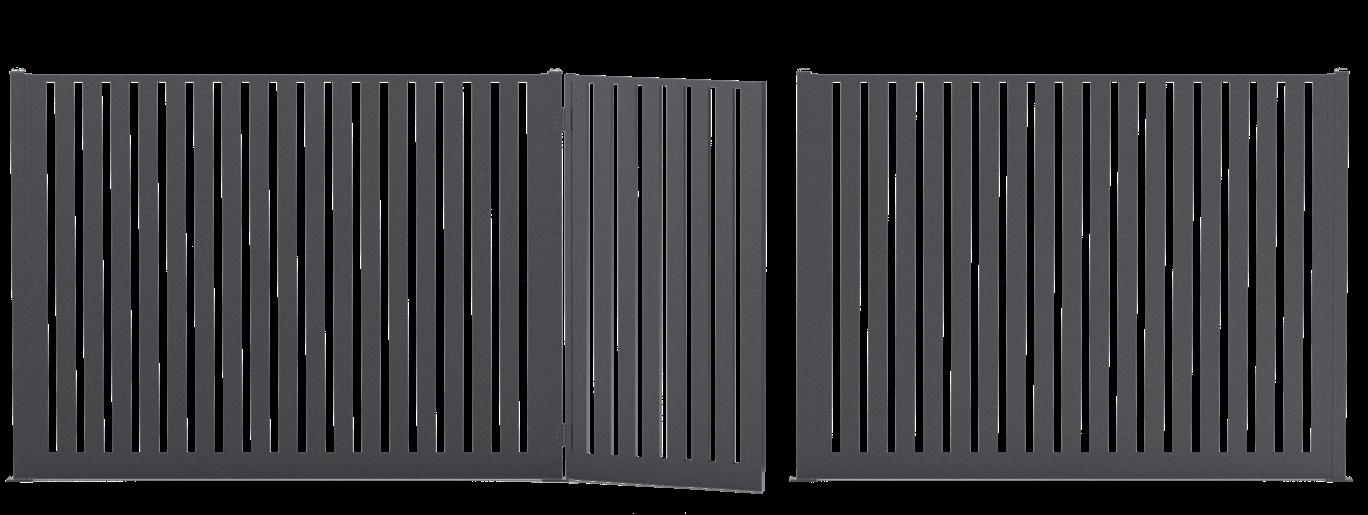

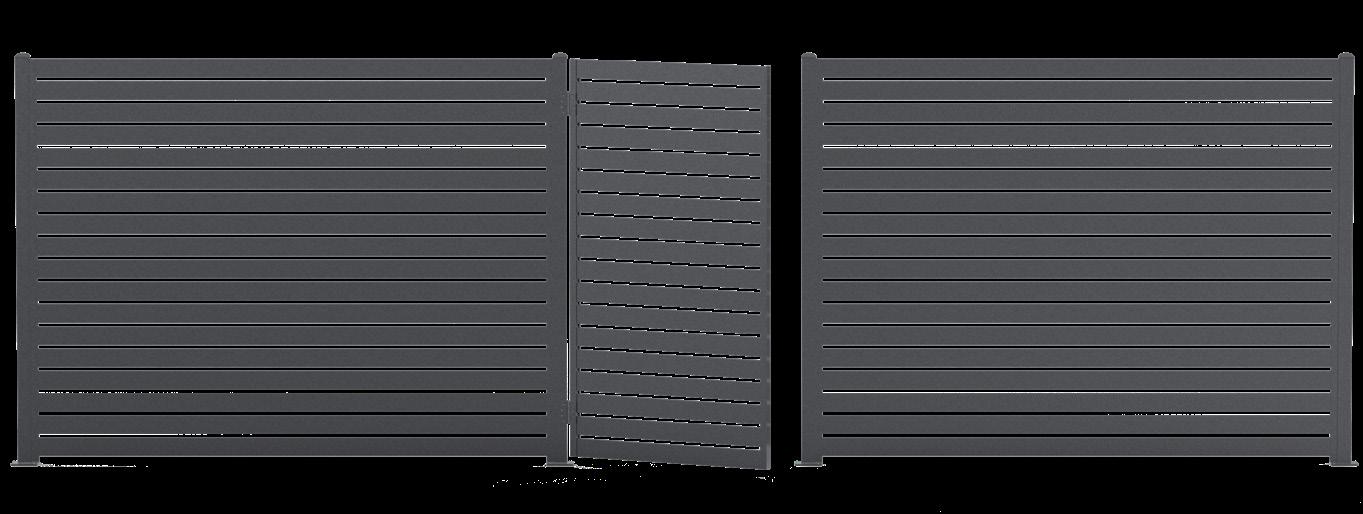

SLAT FENCING
Slat Orientation: Vertical or Horizontal
Post Dimensions: 60 x 60 x 2mm or 90 x 90 x 3mm BMT
Slat Profiles: 85mm x 25mm or 60mm x 25mm
Suitable for Fence Heights: 900mm – 2400mm
Post Centres: 1775mm, 2410mm, 2710mm, 3010mm
*Based on 60mm x 60mm posts
Slat Construction:
85 x 25mm (standard stocked size in 8 colours below)
60 x 25mm (standard stocked in Appliance
White and Ebony only)
Powder coated aluminium
It is important to note that our fencing, with 25mm wide slats, is superior in strength to some inferior fencing with 16mm wide slats.
Available in two heights – 85mm is our standard stocked size, and 60mm slats are available on request . The two types of slats can be used exclusively, or combined in any way you choose. Both can also be used either horizontally or vertically.
POWDER COAT COLOURS
Flax Ebony
Ironsand Grey Friars
Slate Grey
Titania Appliance White Gull Grey
Custom colours available

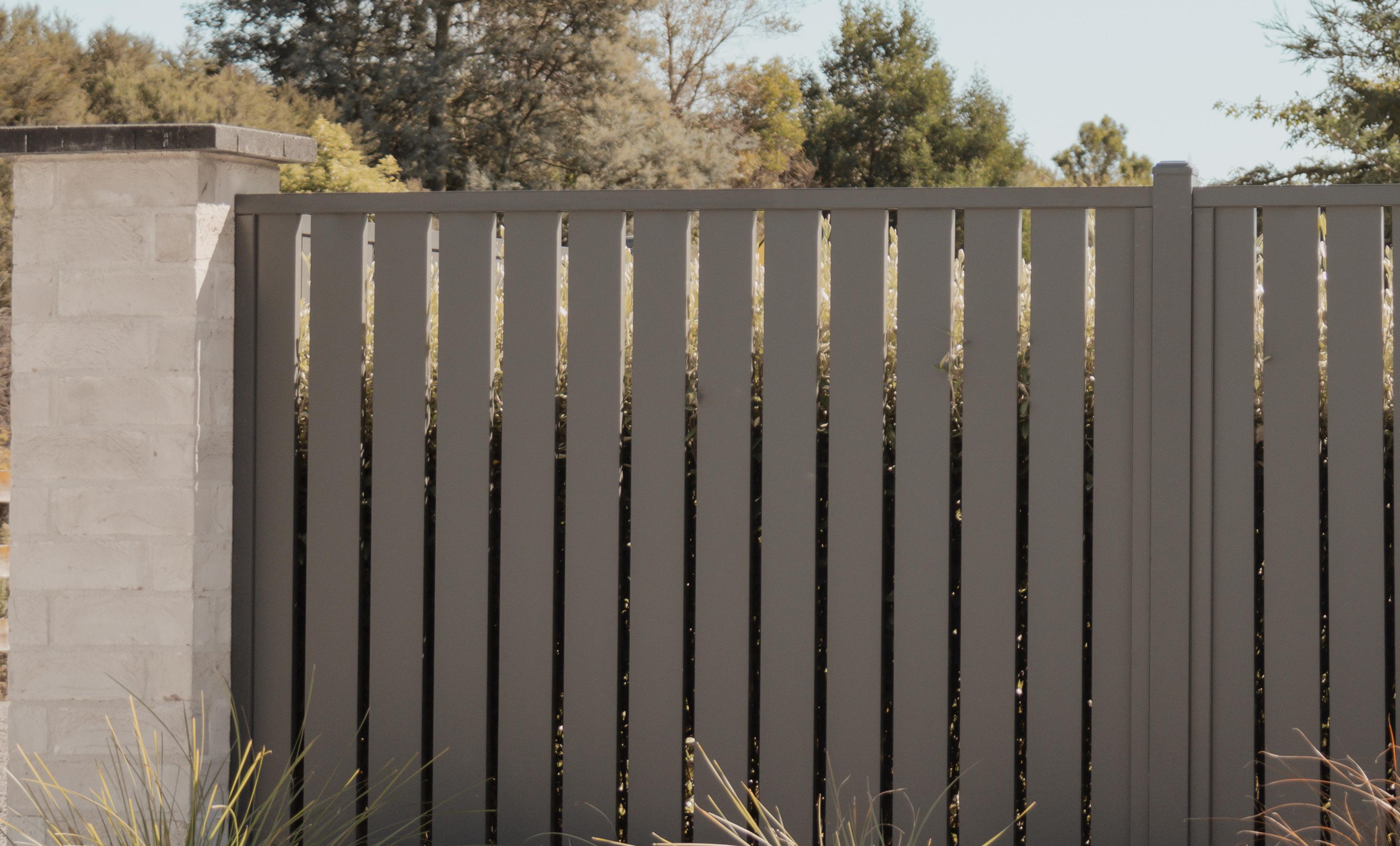

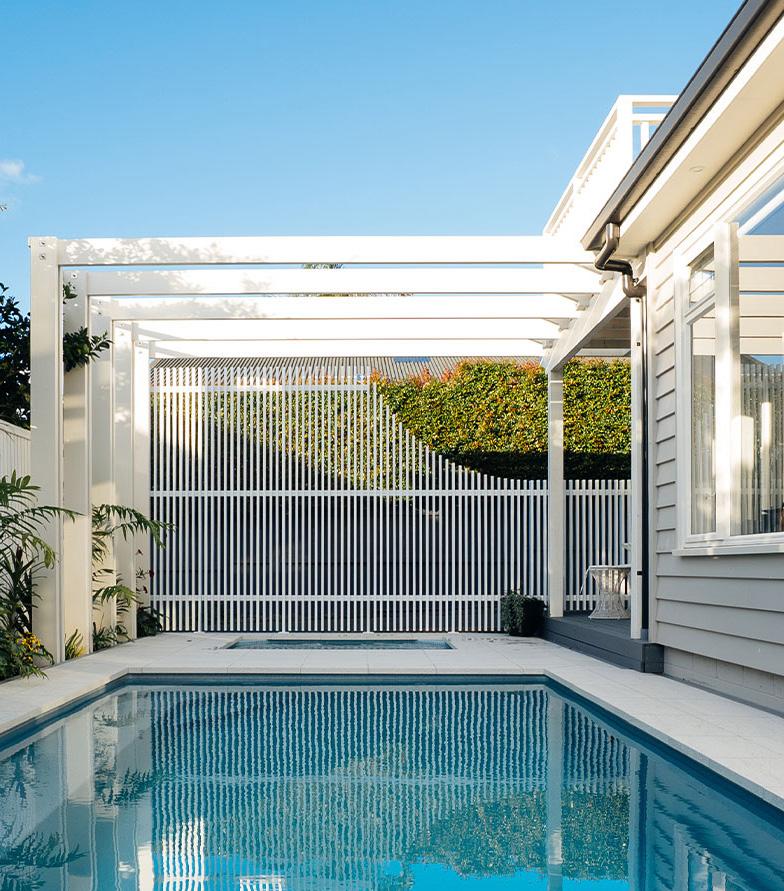

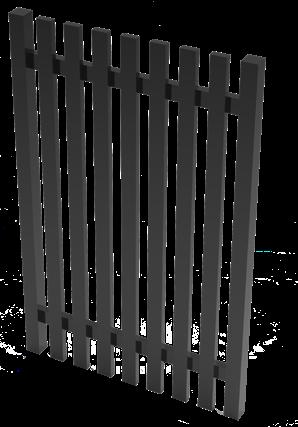

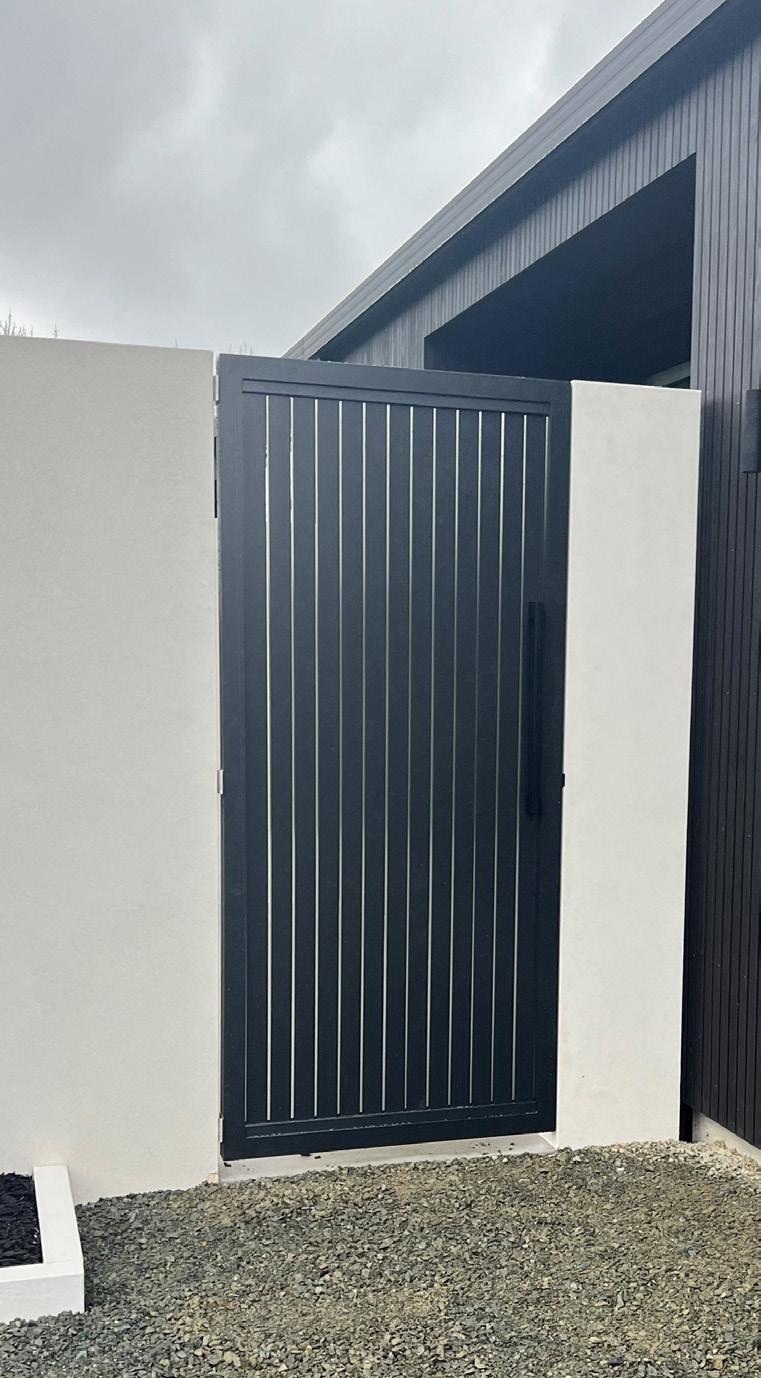

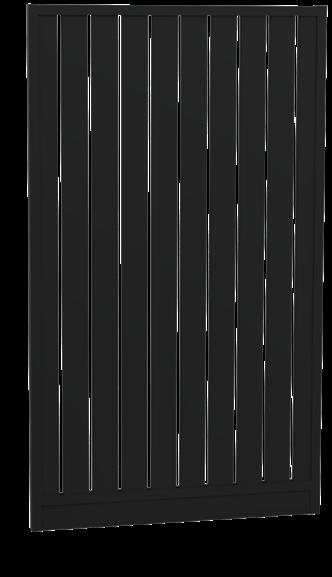

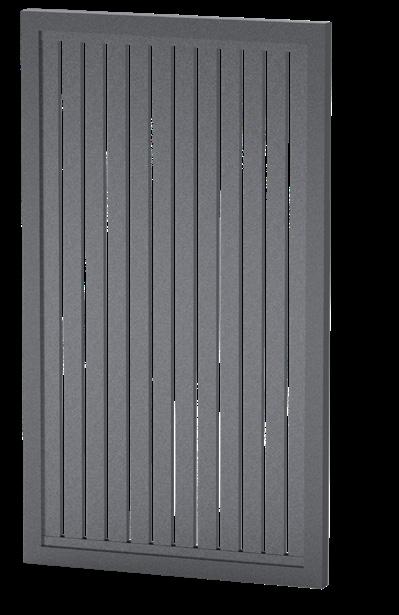

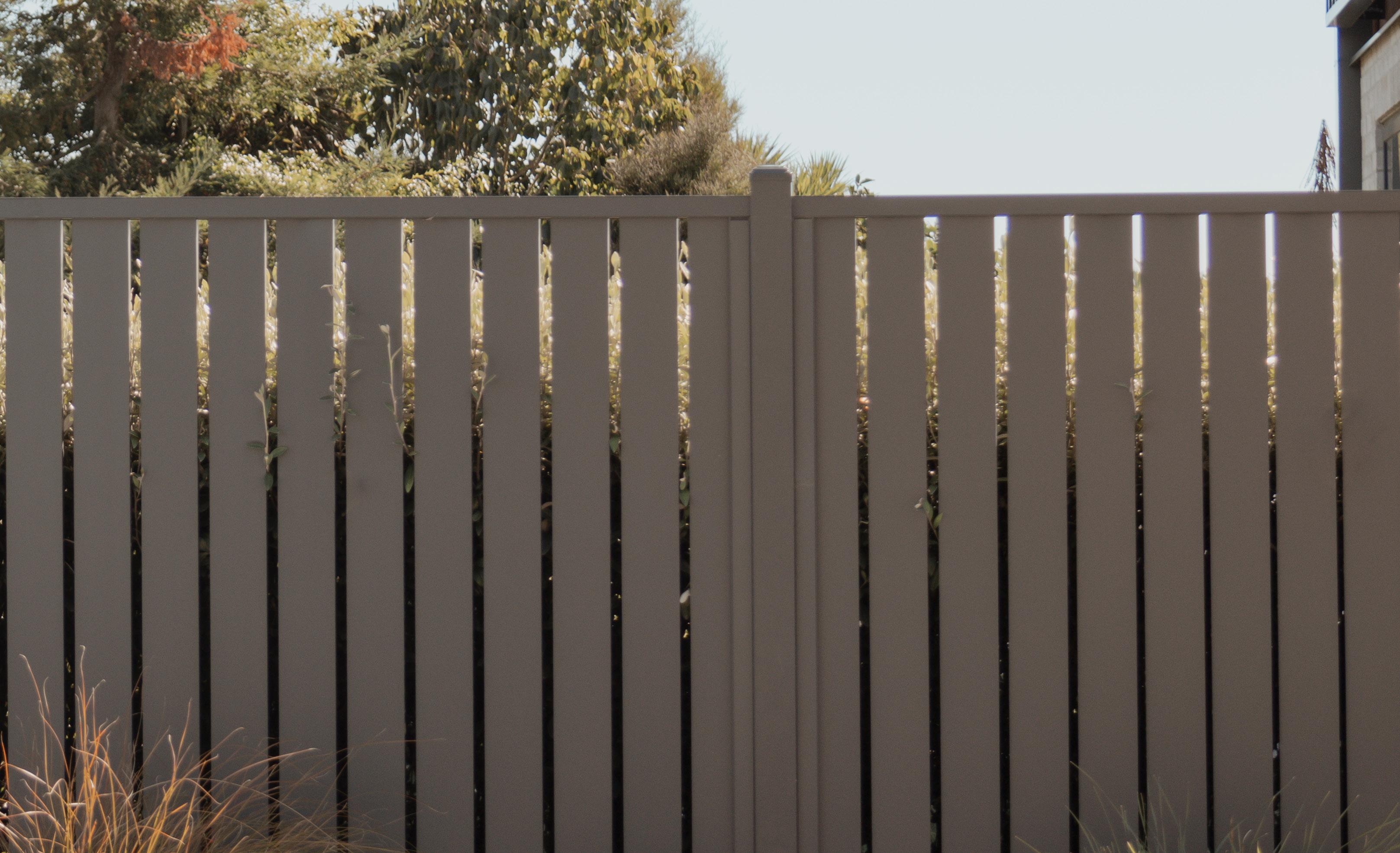

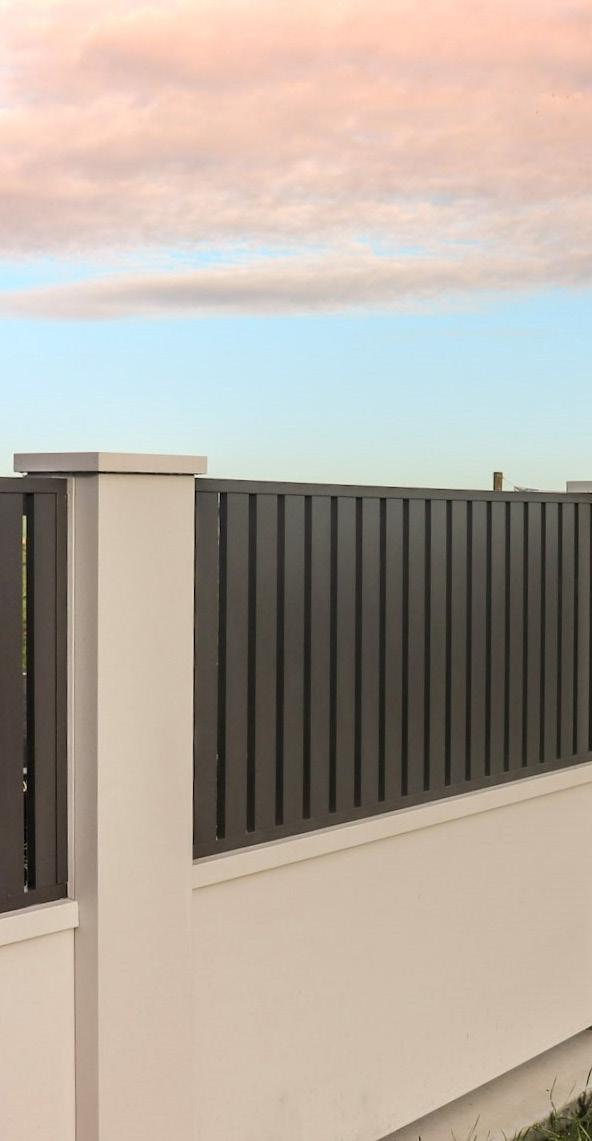

Vertical Slat Panel 15
Code: BSVXXXX
Vertical Slat Panel 39
Post Centres: * 1860, 2160, 2410, 2710, 3010mm
Fence Panel Heights: 1200, 1500, 1800, 2100mm
Slats: 85 x 25mm
Slat Gap 15mm
Code: BSVOXXXX

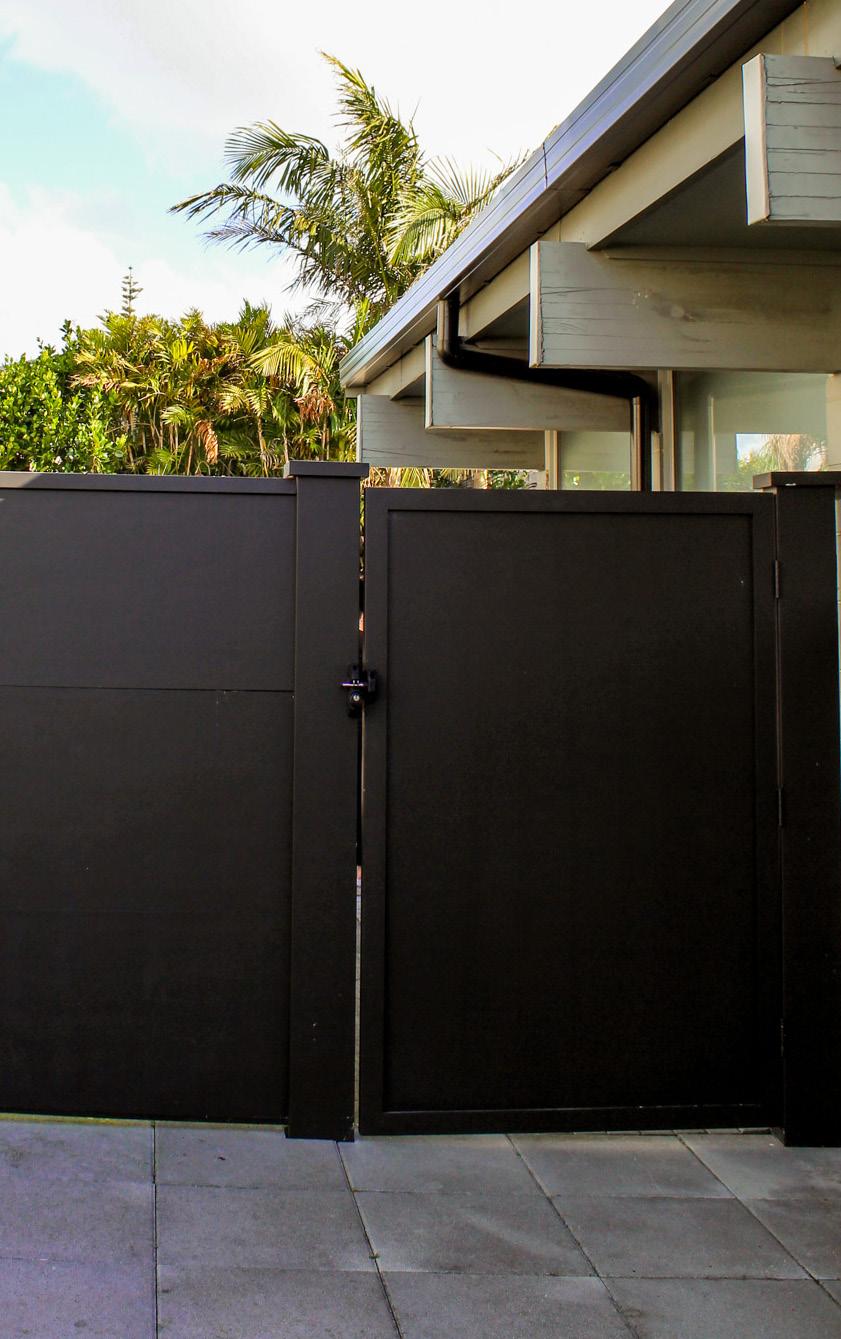

Vertical Slat Panel Solid
Post Centres: * 2410, 2710, 3010mm
Fence Panel Heights: 1200, 1500, 1800, 2100mm
Slats: 85 x 25mm
Slat Gap: 39mm
Code: BSVSXXXX
*Measurements based on 60 x 60mm posts
Post Centres: * 1885, 2140, 2395mm
Fence Panel Heights: 1200, 1500, 1800, 2100mm
Slats: 85 x 25mm
Slat Gap: 0mm

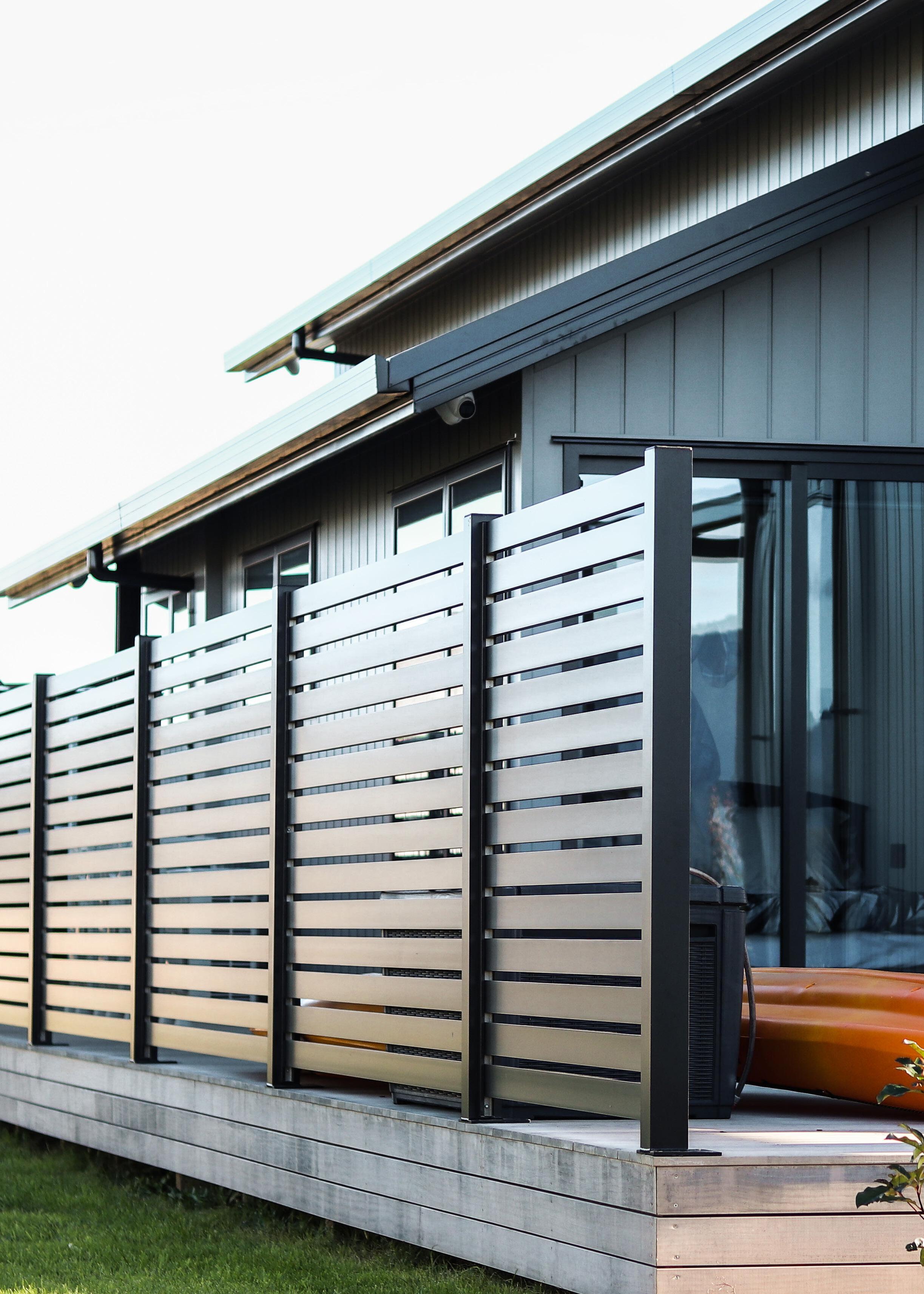

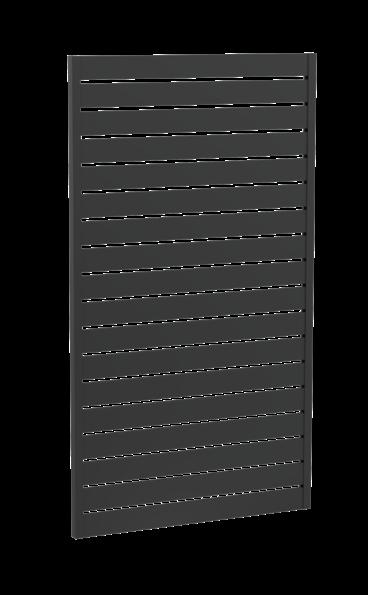

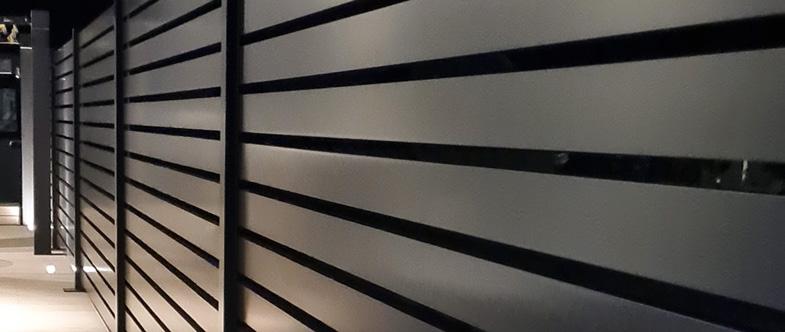

Horizontal Slat Panel 15
Code: BSHXXXX
Horizontal Slat Panel 25
Post Centres: * 1775, 2410, 2710, 3010mm
Fence Panel Heights: 1200, 1500, 1800, 2100mm
Slats: 85 x 25mm
Slat Gap: 15mm
Code: BSHOXXXX
Horizontal Slat Panel Solid
Post Centres: * 1775, 2410, 2710, 3010mm
Fence Panel Heights: 1210, 1430, 1760, 2090mm
Slats: 85 x 25mm
Slat Gap: 25mm
Code: BSHSXXXX
*Measurements based on 60mm x 60mm posts
Post Centres: * 1775, 2410mm
Fence Panel Heights: 1190, 1530, 1785, 2125mm
Slats: 85 x 25mm
Slat Gap: 0mm

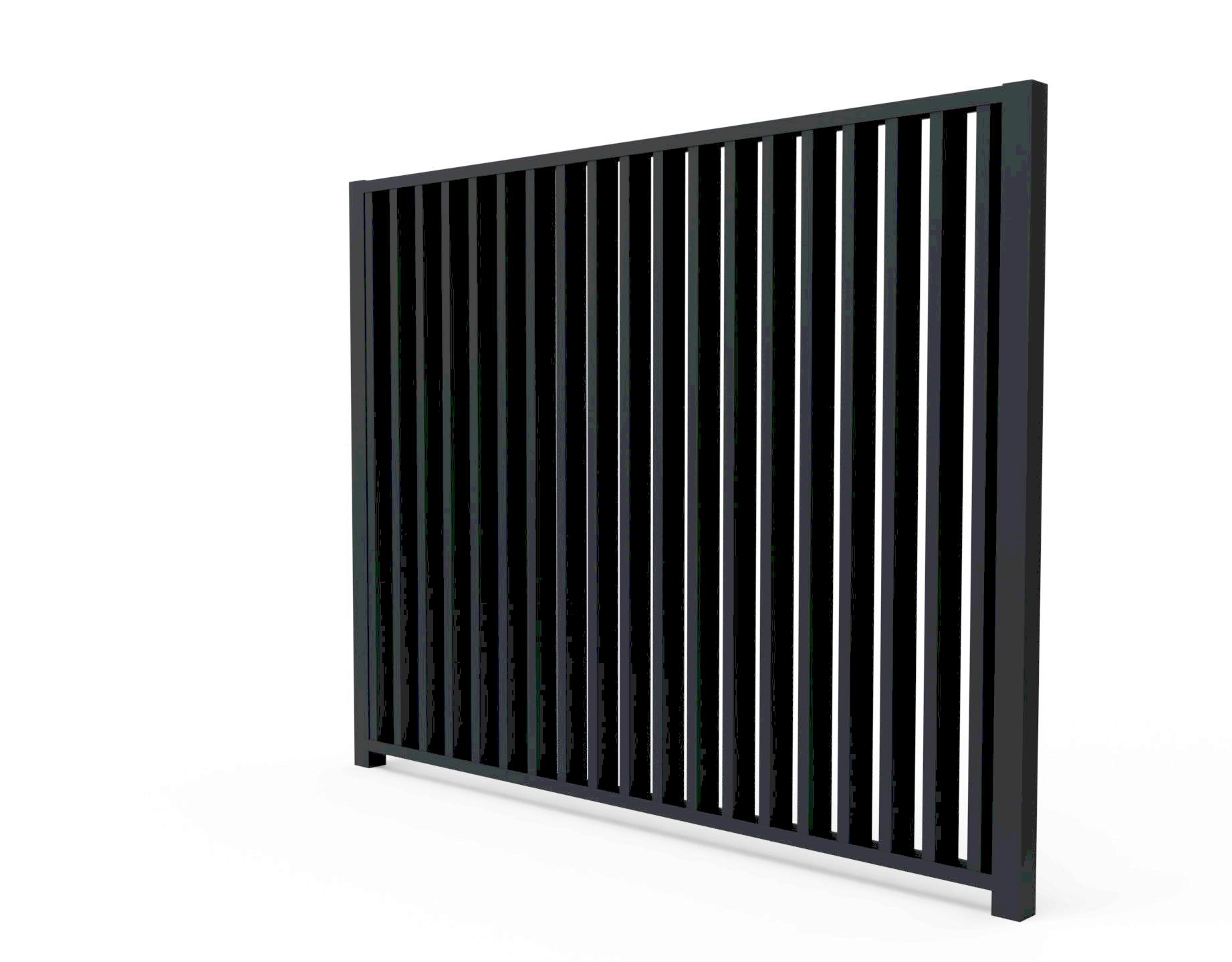

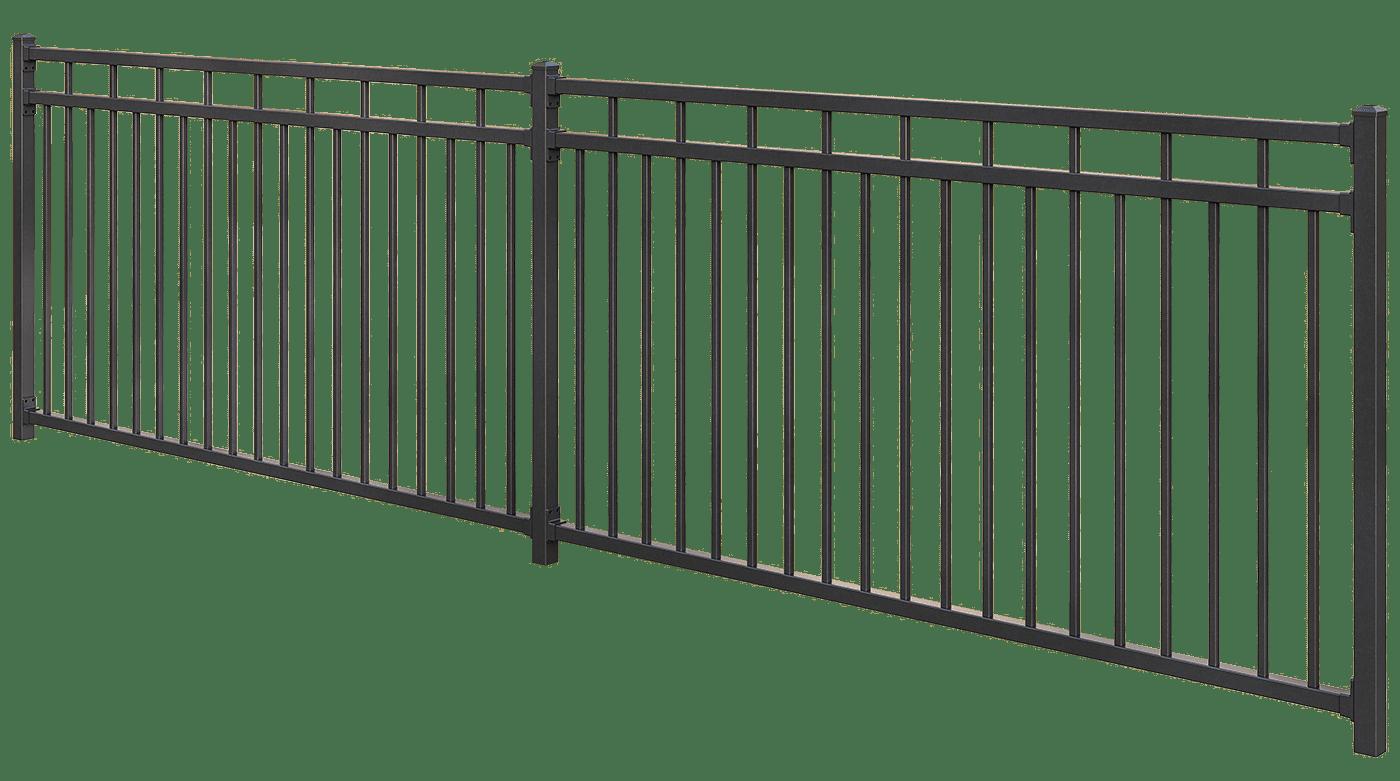

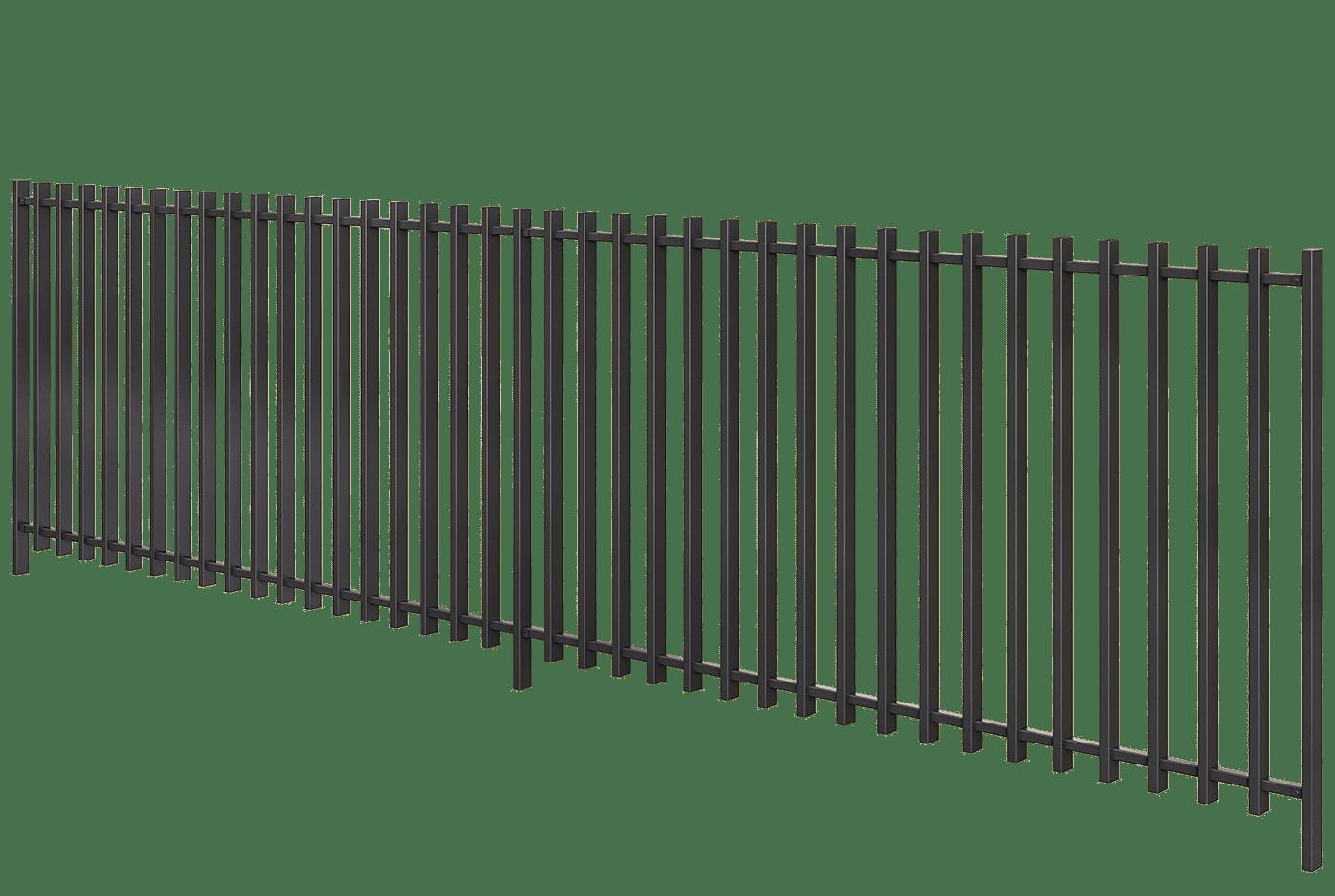

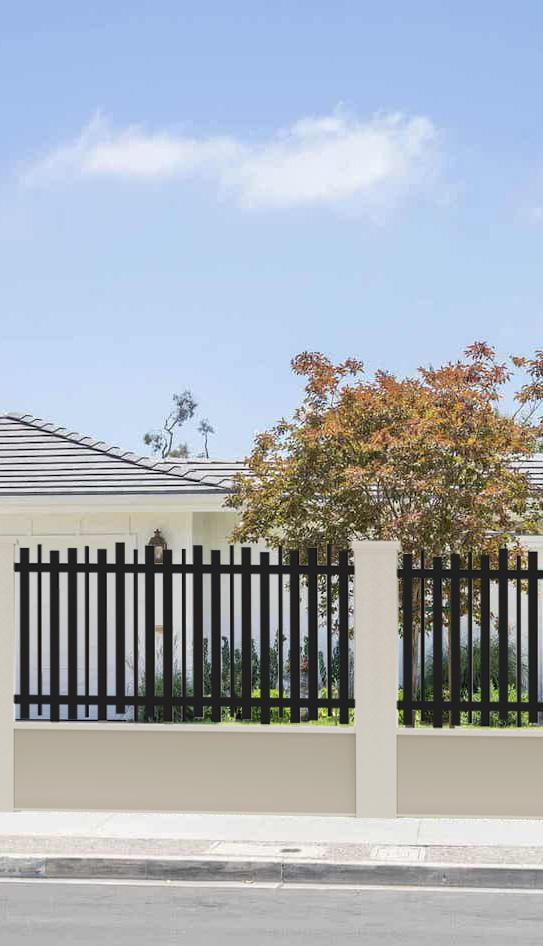

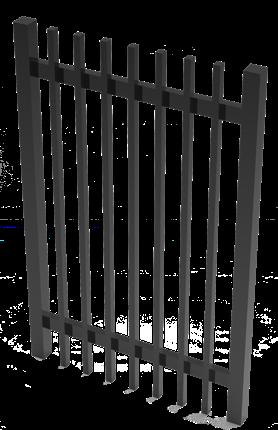

TUBULAR FENCING
For a durable and cost-effective solution for landscape fencing, swimming pool fencing, and school safety, we bring you our Tubular Panel aluminium fence range. Designed to comply with all fence safety regulations, Tubular Panels will enhance your property. These panels are constructed from aluminium for long-term durability, even in areas near the sea. The fence panels are supplied with all brackets and fittings for simple installation and matching Tubular gates are also available.
RAGLAN PANEL
Panel Height: 950, 1200mm
Panel Length: 2250mm
Horizontal Rails: 40x40mm
Vertical Bars: 19x19mm
Bar Spacing: 95mm

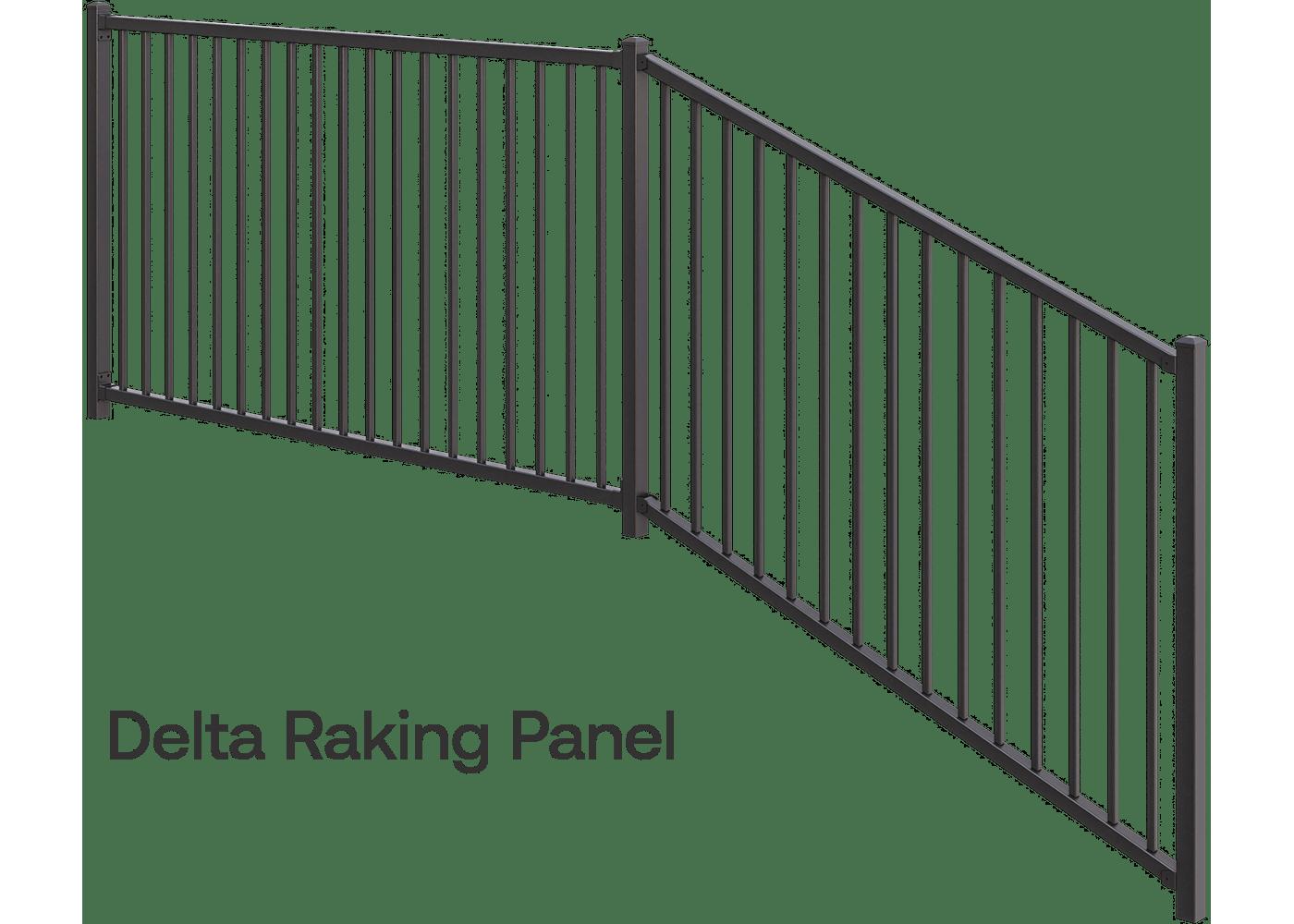

Rakable panel also available for sloping ground up to 35°
Colour: Standard in Ebony - Custom colours available on request.
950mm High RP9522
1200mm High RP1222
1200mm High Rakable Panel RR1222

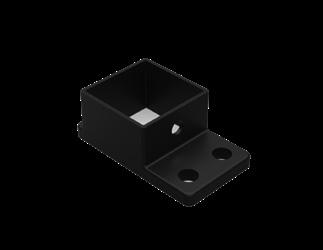

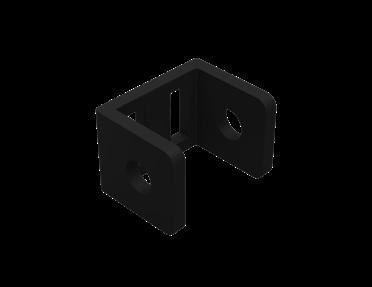

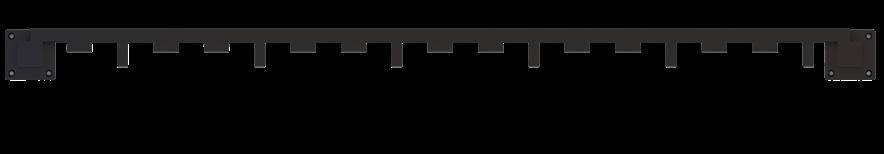

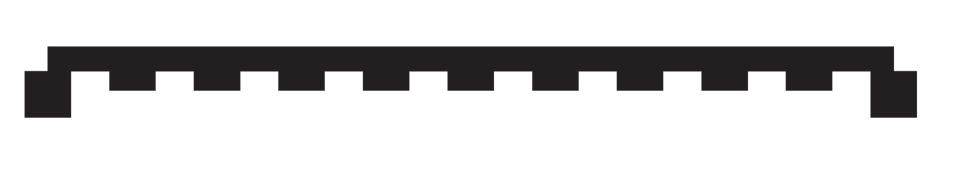

Rail Bracket (includes fixings) RB40
Adjustable Rail Brackets (includes fixings) ARB40
WAINUI PANEL
Panel Height: 1200, 1500, 1800mm
Panel Length: 2250mm
Horizontal Rails: 40x40mm
Vertical Bars: 19x19mm
Bar Spacing: 95mm
Colour: Standard in Ebony - Custom colours available on request.
1200mm High WP1222
1500mm High WP1522
1800mm High WP1822
40x40mm Rail Brackets (includes fixings) RB40

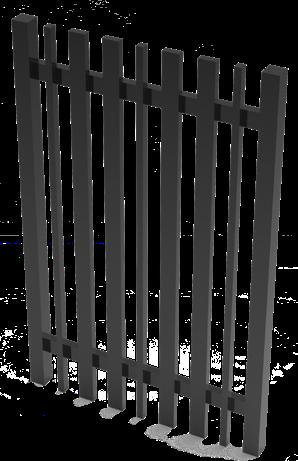

Panel Height: 1200mm
Panel Length: 2250mm
Horizontal Rails: 25x25mm
Bar Spacing: 95mm
Vertical Bars: 50x25mm
Colour: Standard in EbonyCustom colours available on request. 1200mm High PP1222 Rail Bracket 25x25mm (includes fixings) RB25

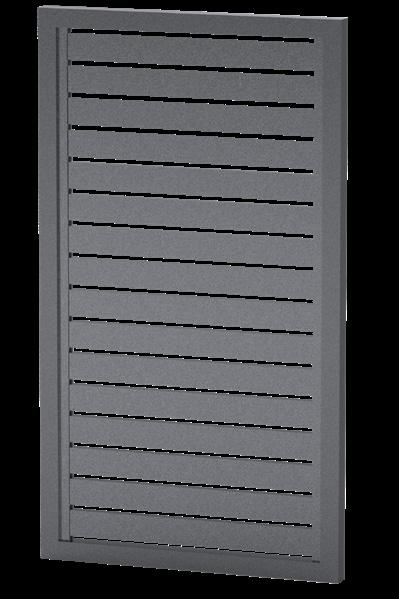

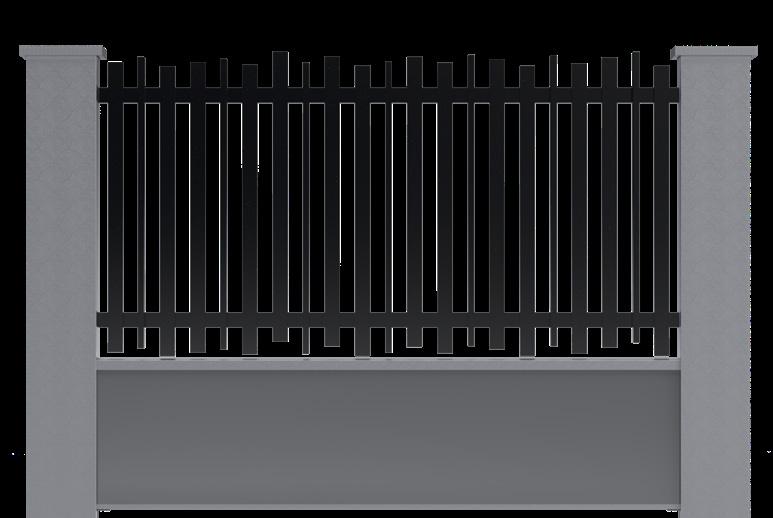

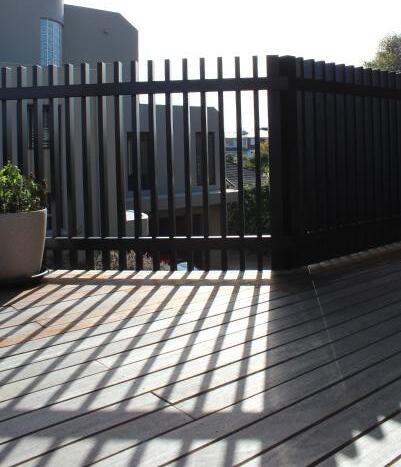

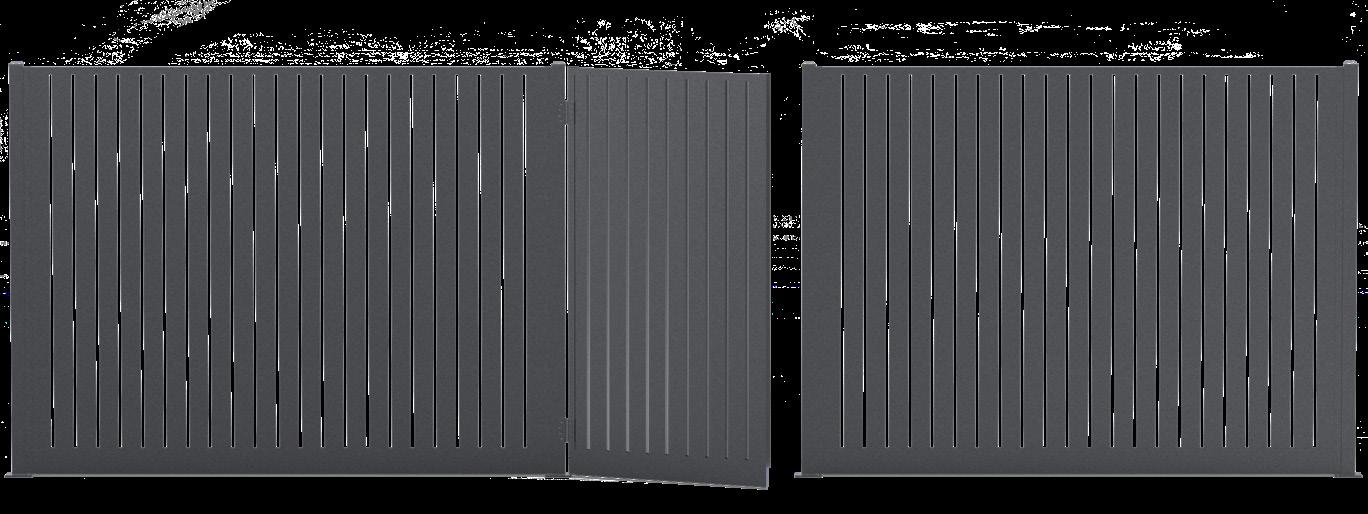

OBLIQUE FENCING
Post Dimensions: 60mm (deep) x 60mm (face) 2mm SHS
Fence Heights: 1200mm , 1500mm, 1800mm
Post Centres: 1860mm, 2410mm
POWDER COAT COLOUR
BelAire oblique fencing posts, channels and slats are supplied in powder coated Dulux Flaxpod.
They can also be supplied in any Dulux powder coat colour of your choice at additional cost. The Dulux powder coating chart can be found at: www.duluxpowdercoatings.co.nz
Flax
You can choose the same colour for your posts, channels and oblique slats, or any combination you wish!
OBLIQUE SLATS
Oblique Slat Construction:
1.2mm powder coated aluminium
Sliding

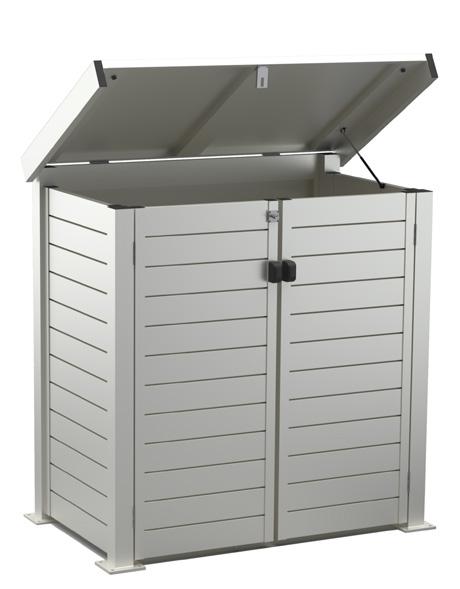

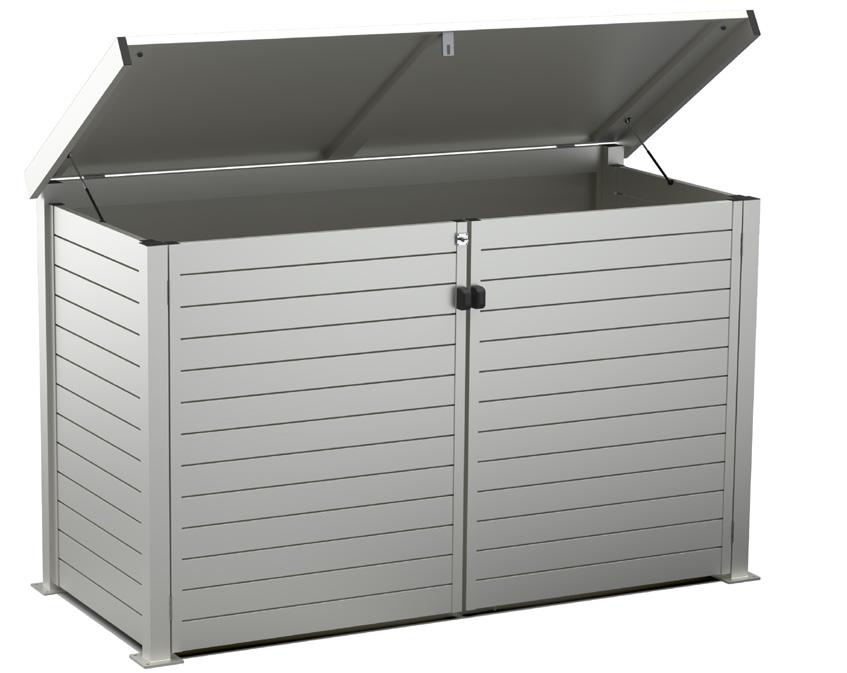

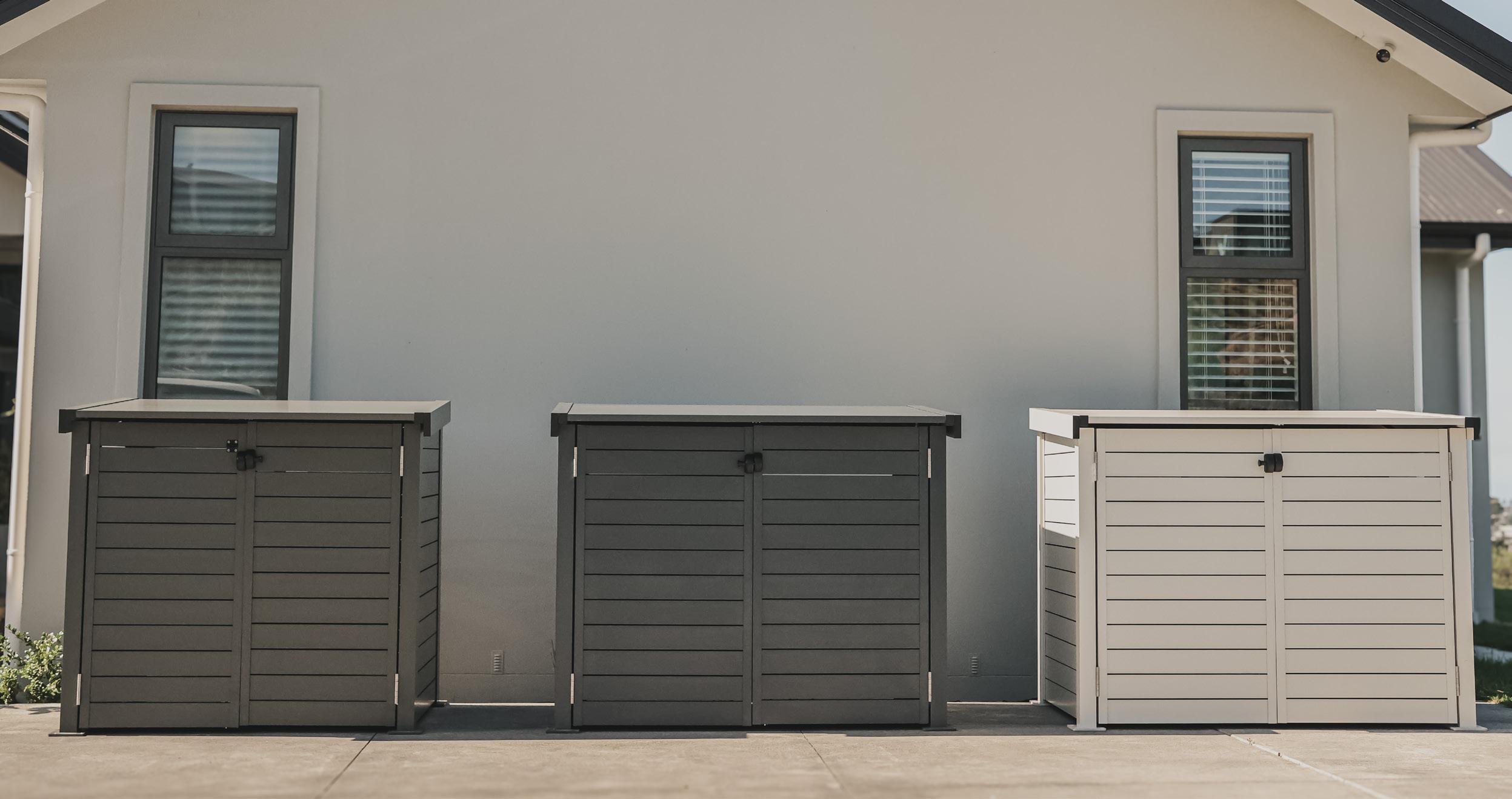

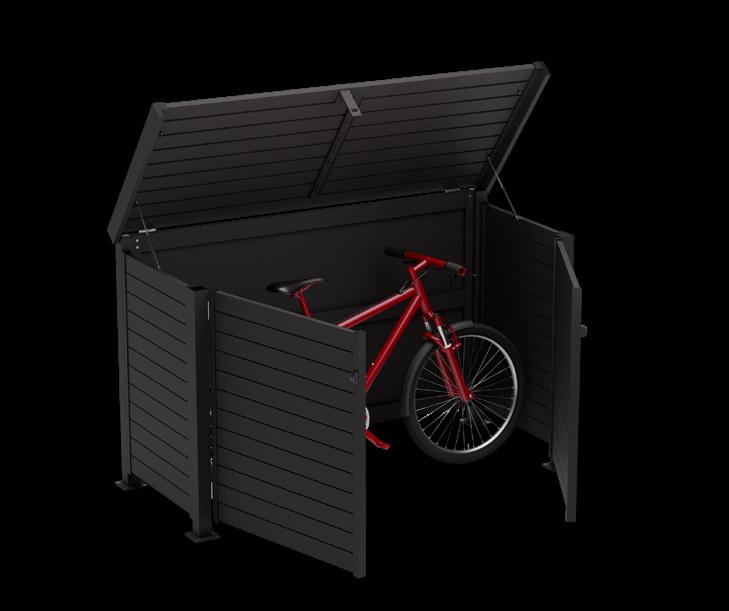

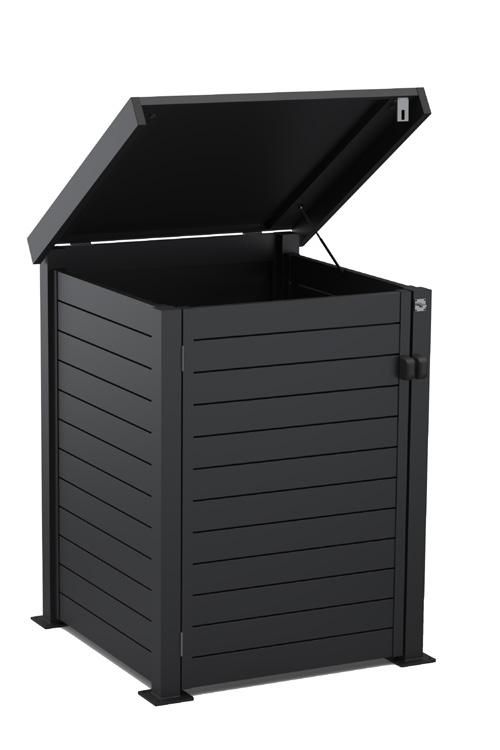

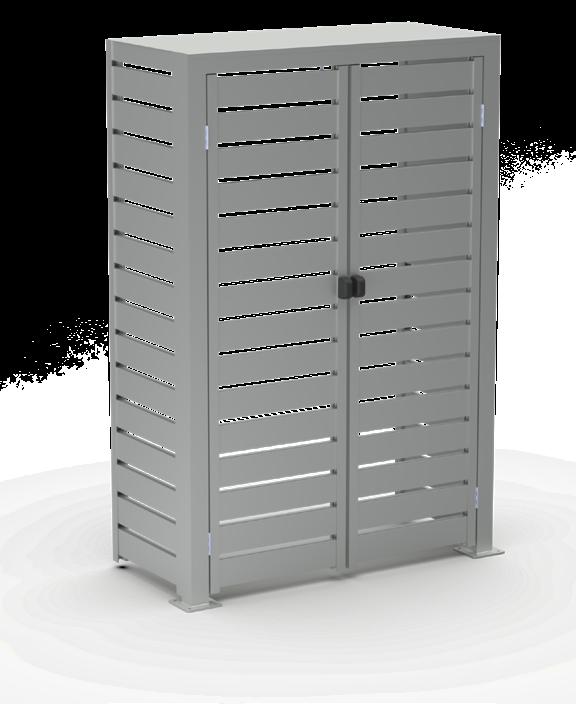

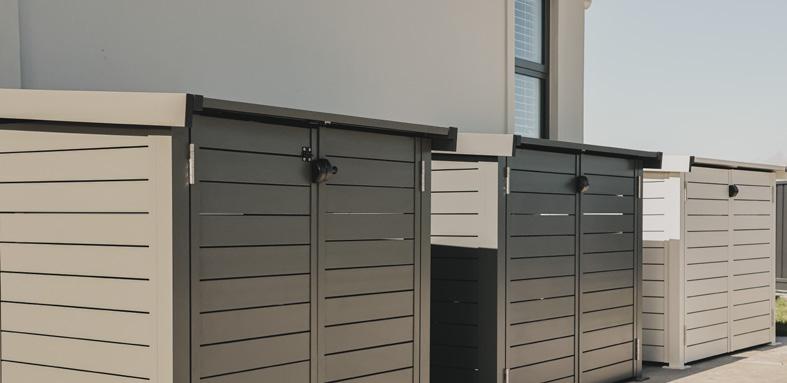

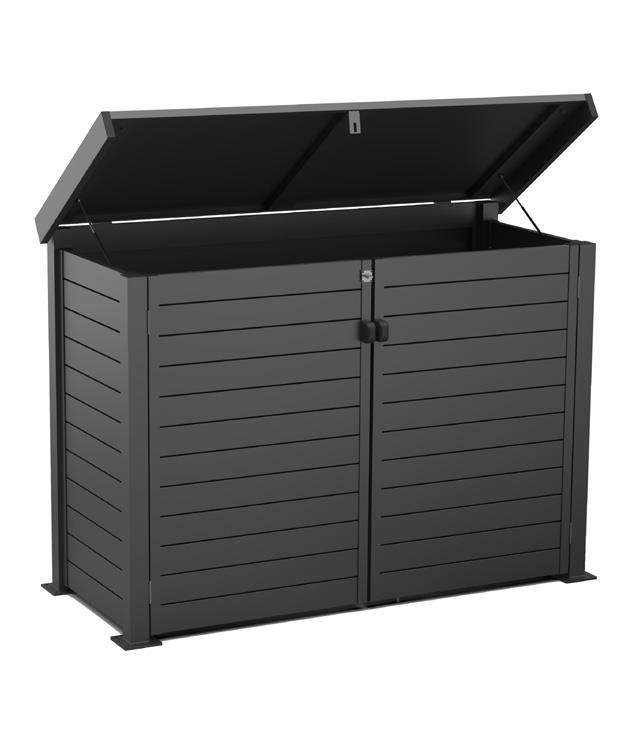

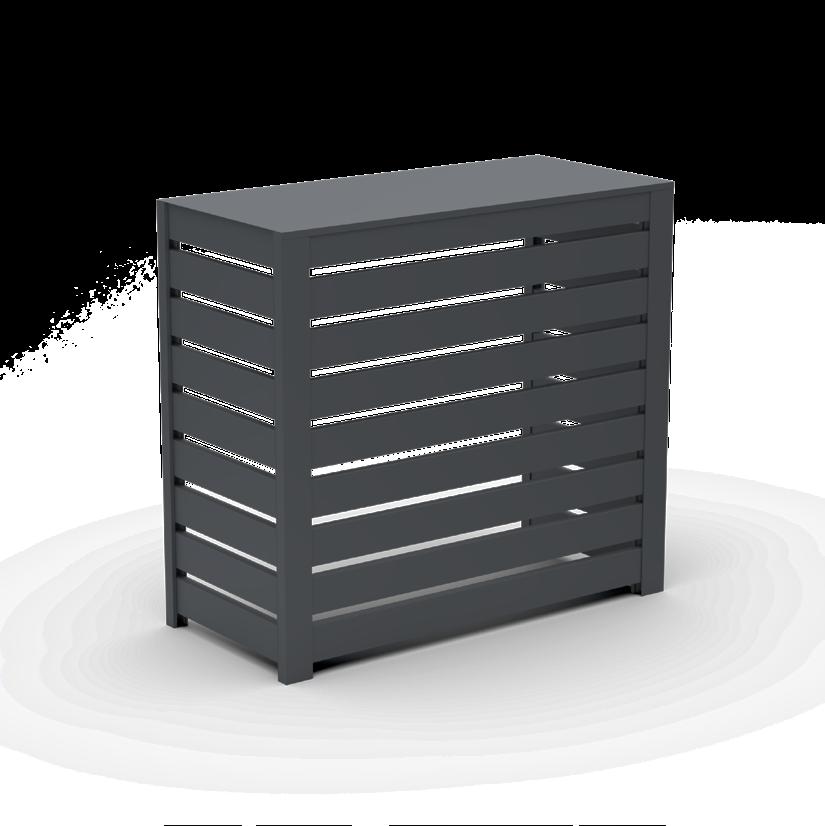

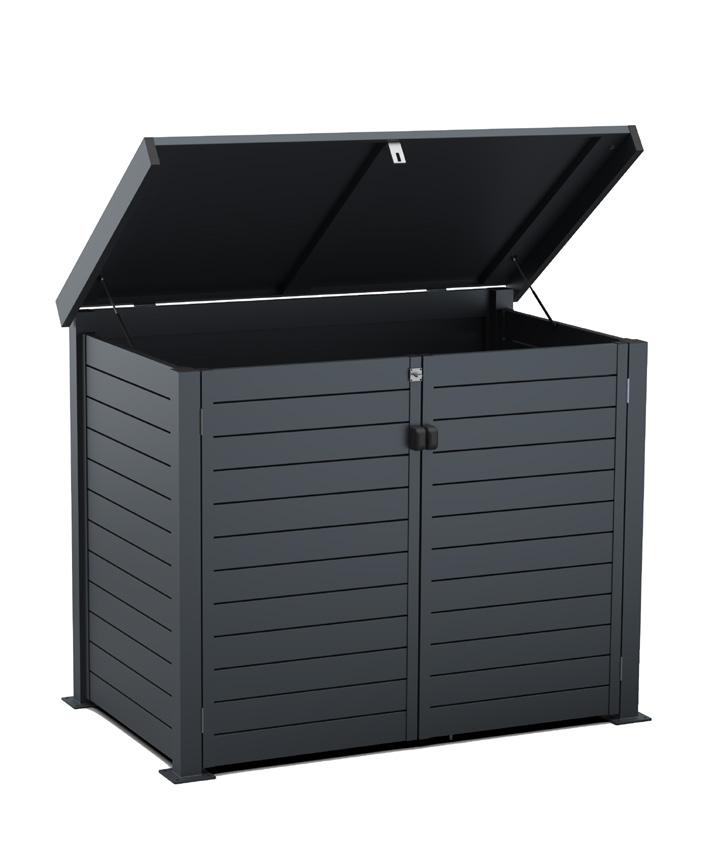

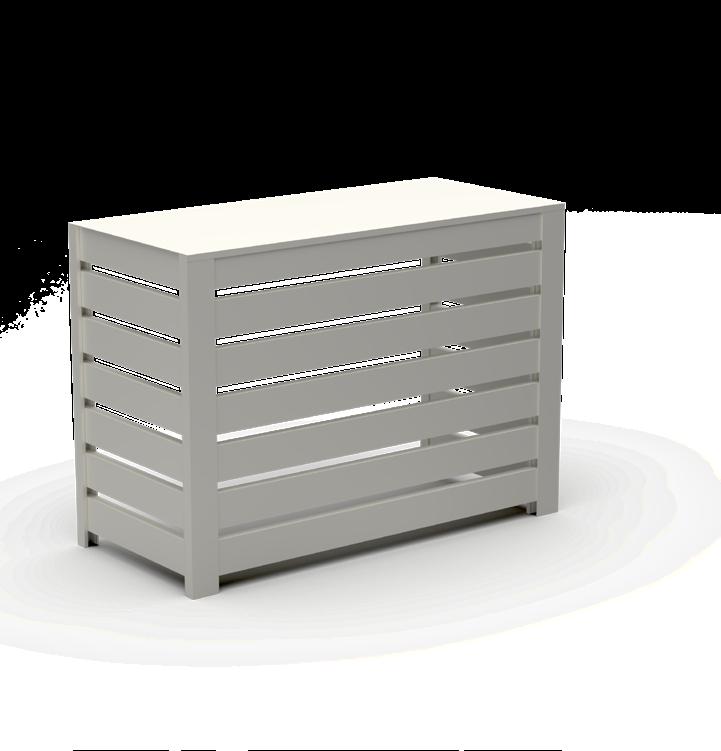

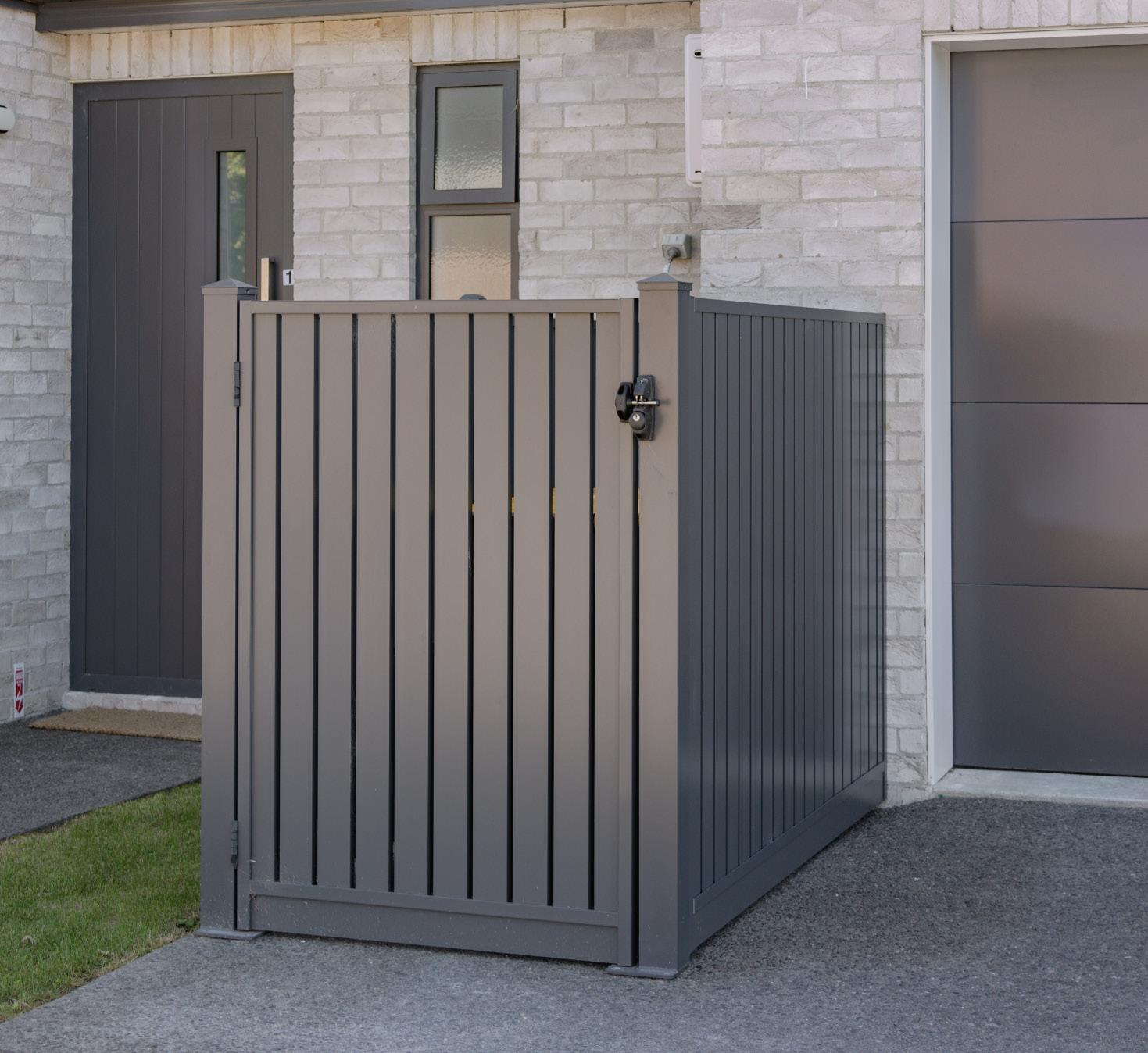

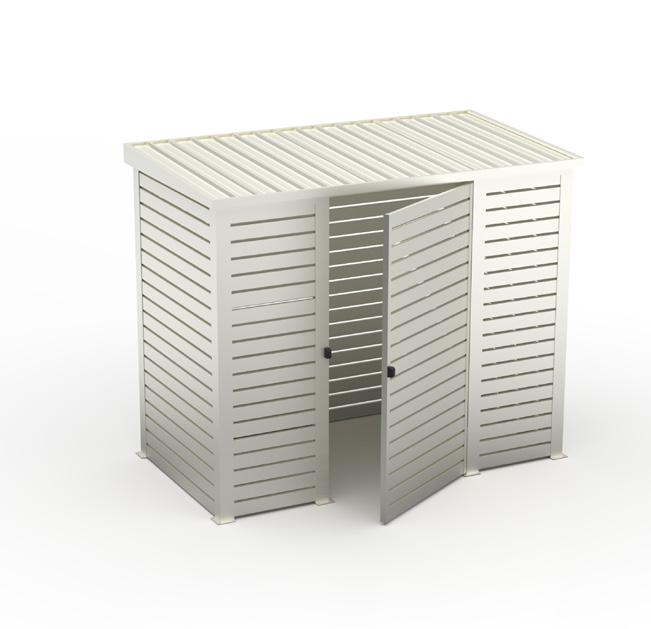

UGLEE ENCLOSURES
Where Functionality Meets Eleglance
Designed with both functionality and aesthetics in mind, our enclosures provide a sleek and stylish solution to keeping your outdoor space neat and tidy.
Can’t find the size to suit?
We also do custom size Uglees. Send us an email with your ideal dimensions and we’ll make it!
BUILT WITH

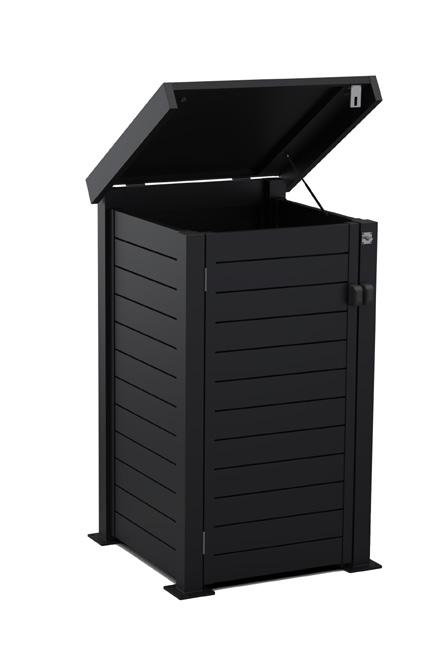

650 Single
Size: 650x650x1160 | 0.46m3 | 0.42m2 | 465 Litres
Can Fit: Single 80L - 120L Bin, Recycle Bins, Seat Cushions
The Uglee Gas is designed to fit up to 2 standard exterior house gas bottles. The Uglee AC is designed to fit either a small or large standard AC unit.
Can Fit: Fire Wood, Bikes, Lawn Mowers, Garden Tools, BBQs
Code: UGWS

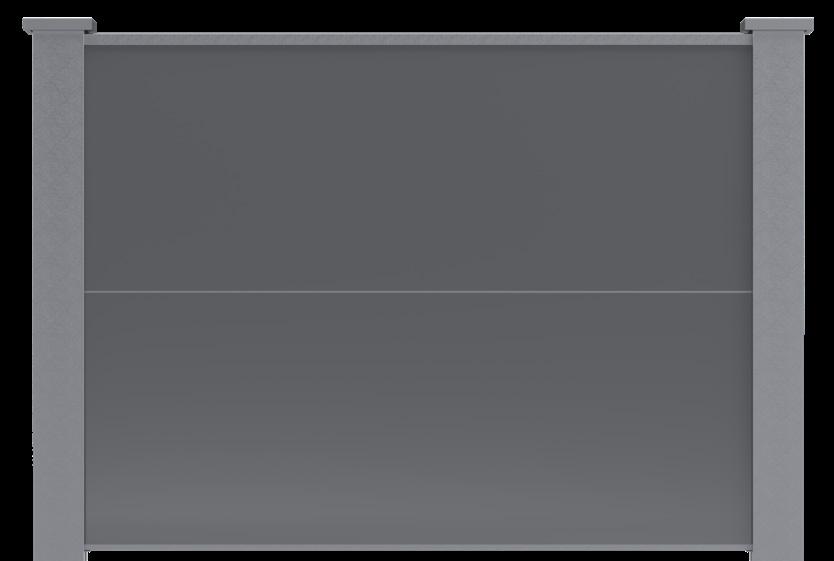

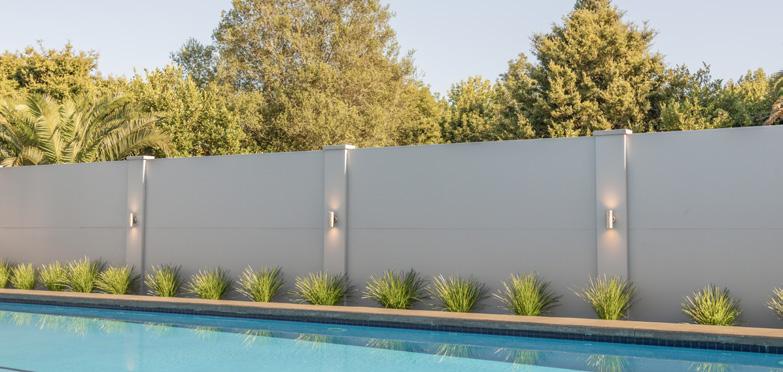

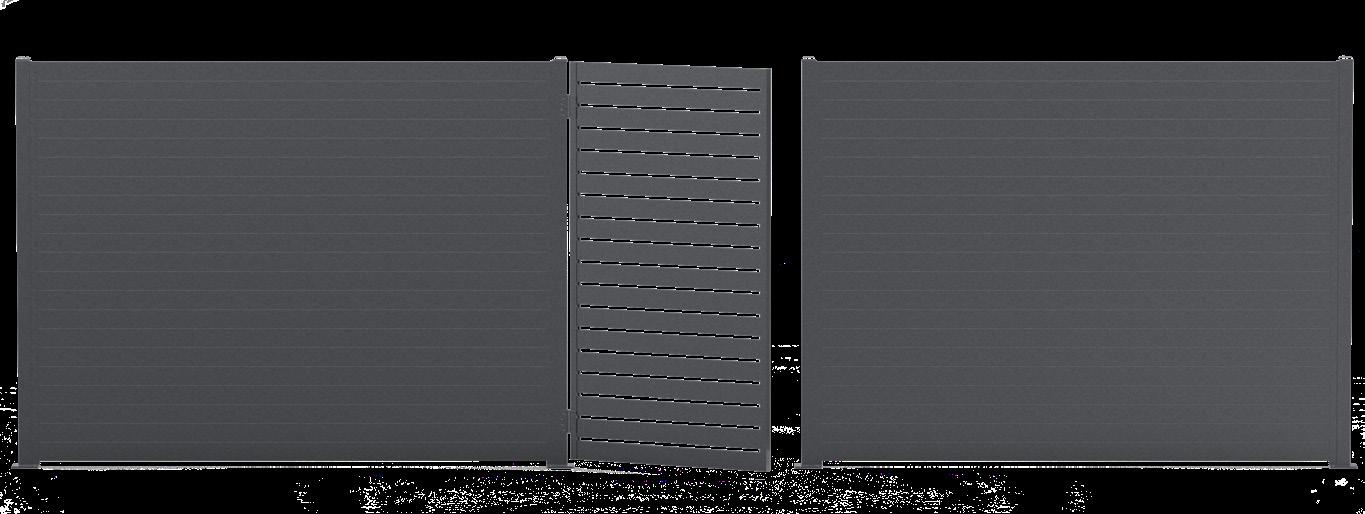

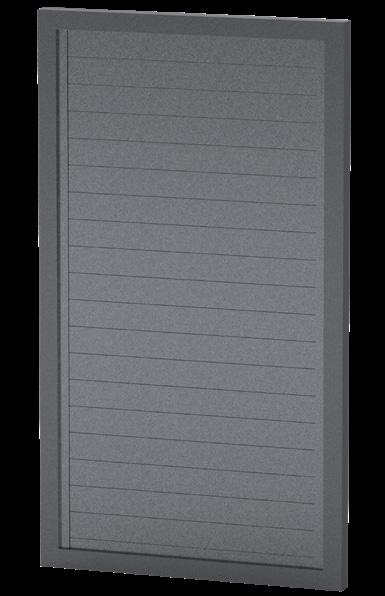

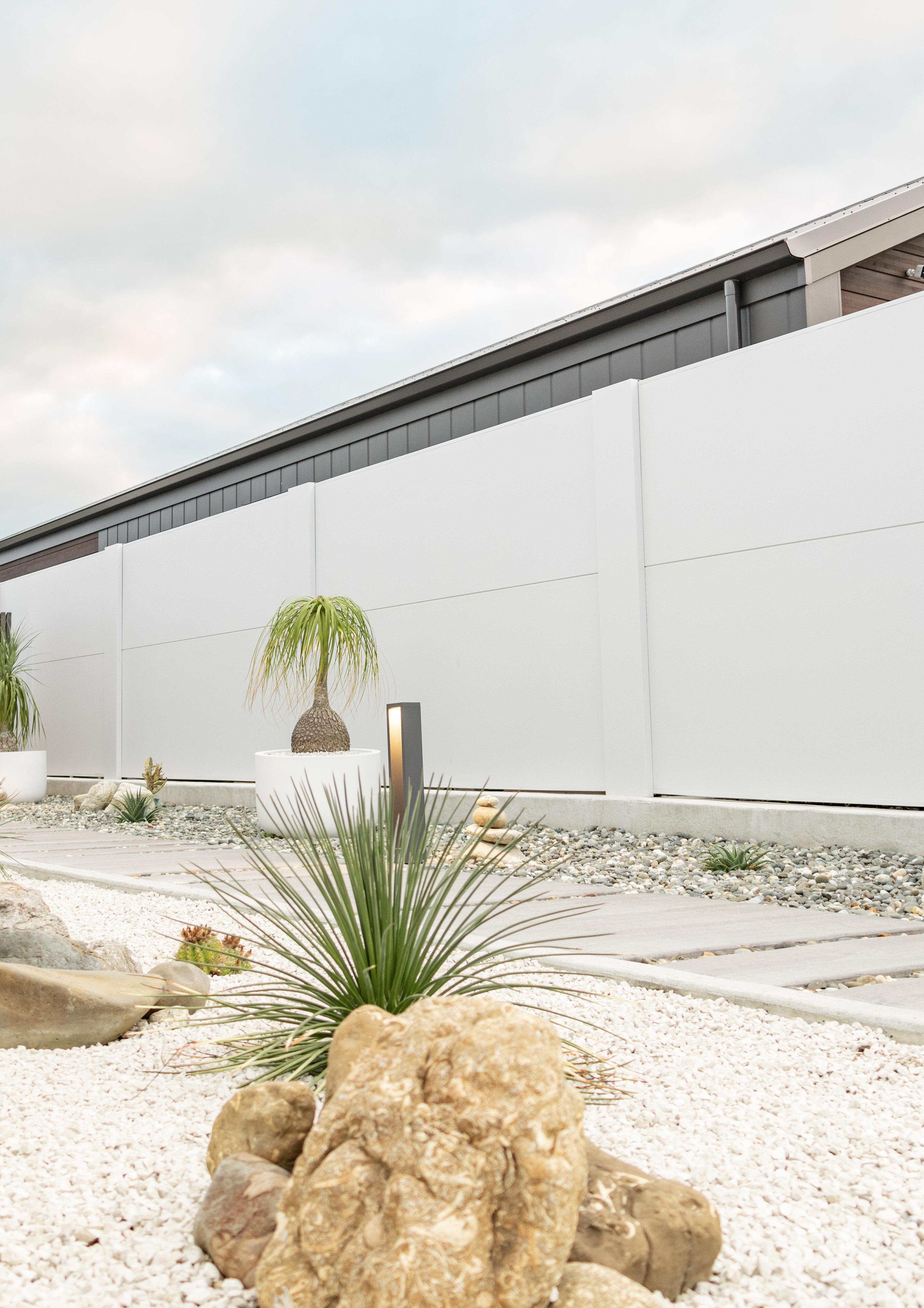

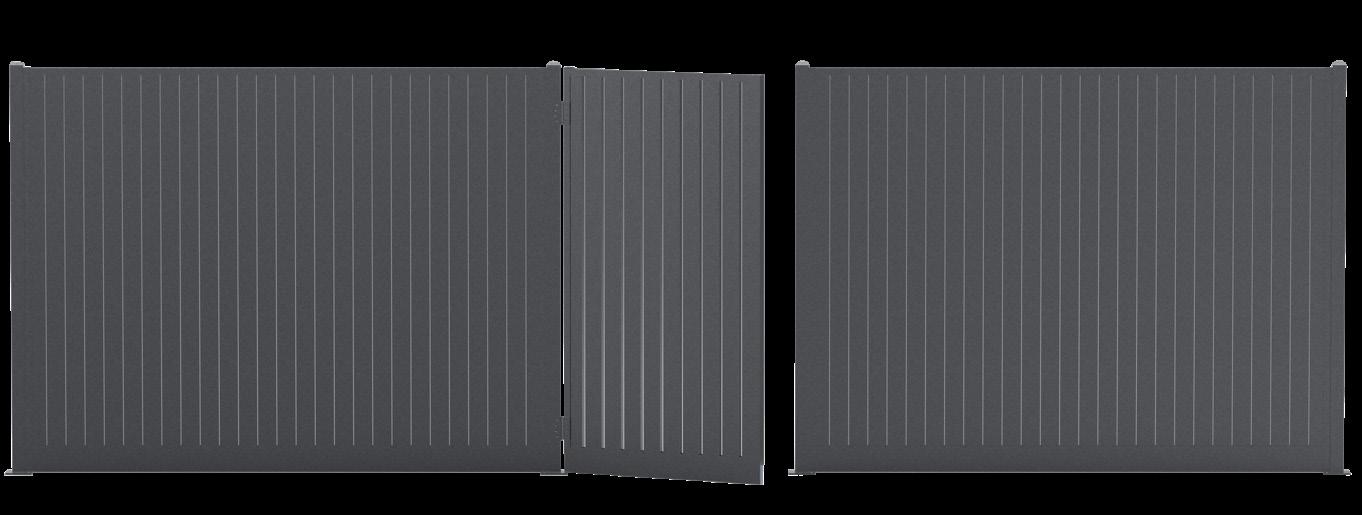

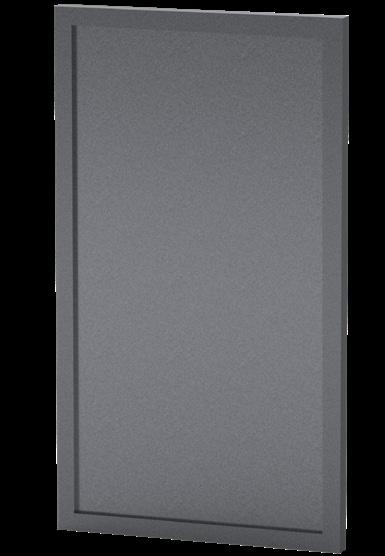

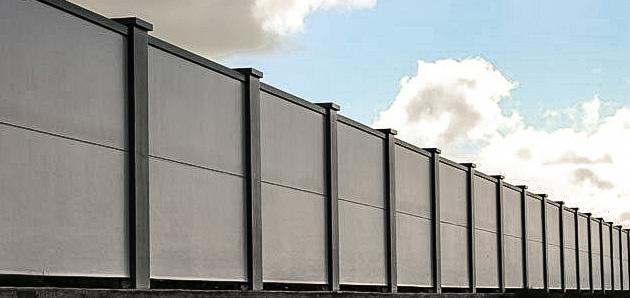

AURORA PANEL FENCING
Aurora aluminium fence panels combine durability, modern design, and versatility in a lowmaintenance fencing solution. Made from high-quality, corrosion-resistant aluminium, they are built to last without warping, rusting, or fading. Available in a range of styles, heights, and colours, Aurora panels are easy to install, environmentally friendly, and suitable for residential, commercial, and pool applications, while also meeting F9 and F4 compliance requirements for safety and security.
NOTE: All barriers over 3m high need to be engineered to suit the wind regions and the ground conditions. Please contact us on 0800 235 2473 for more details.
SFR 1.2 – 1200 H x 2300mm W

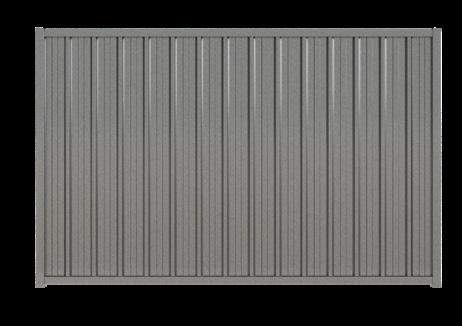

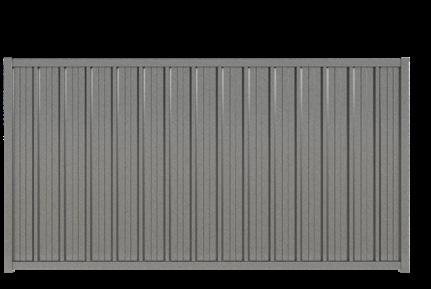

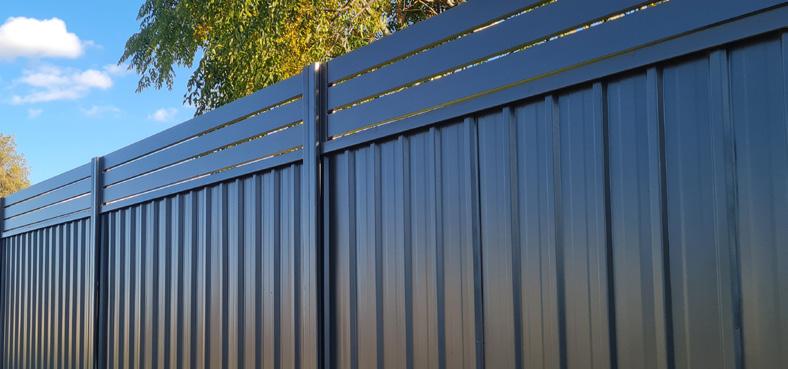

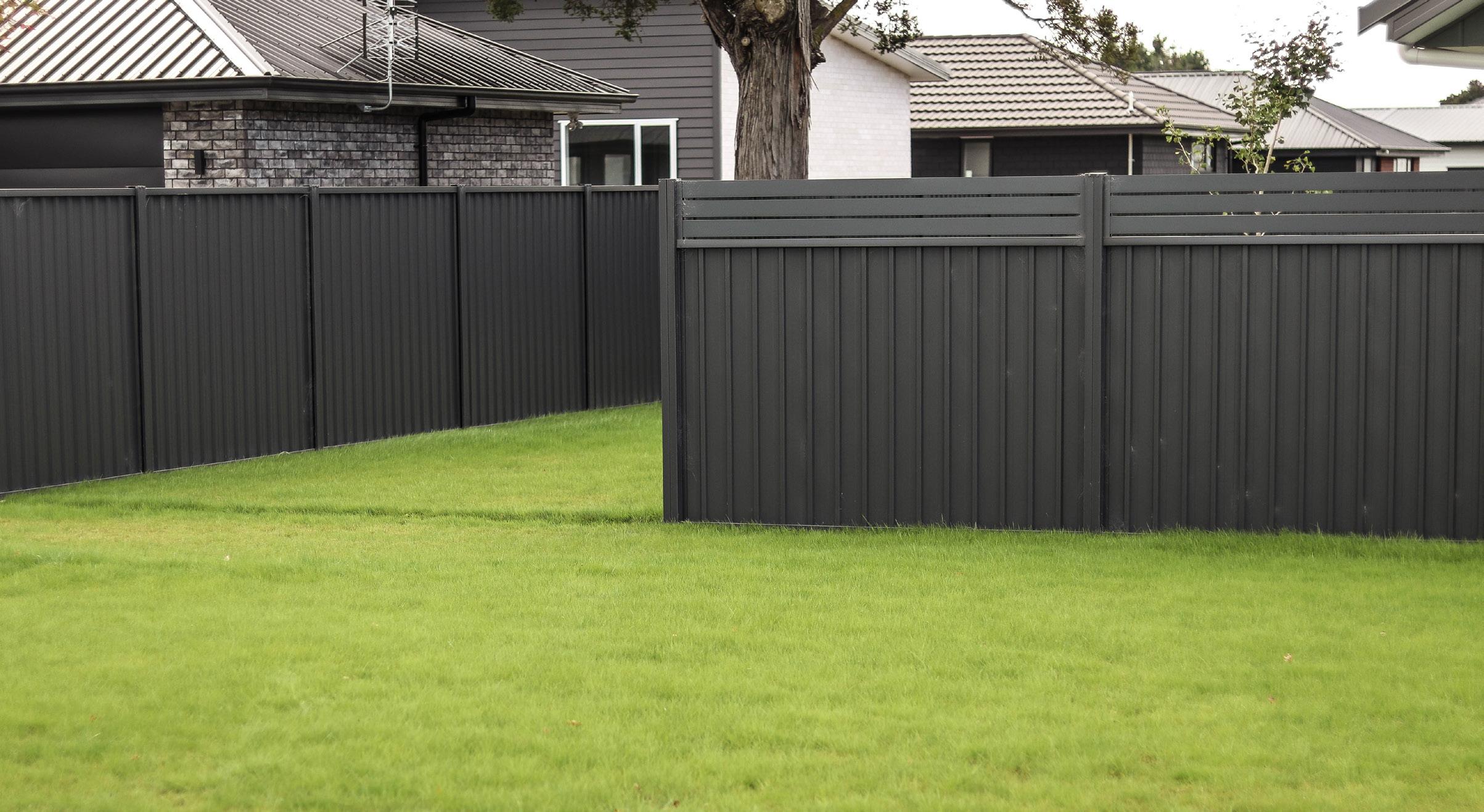

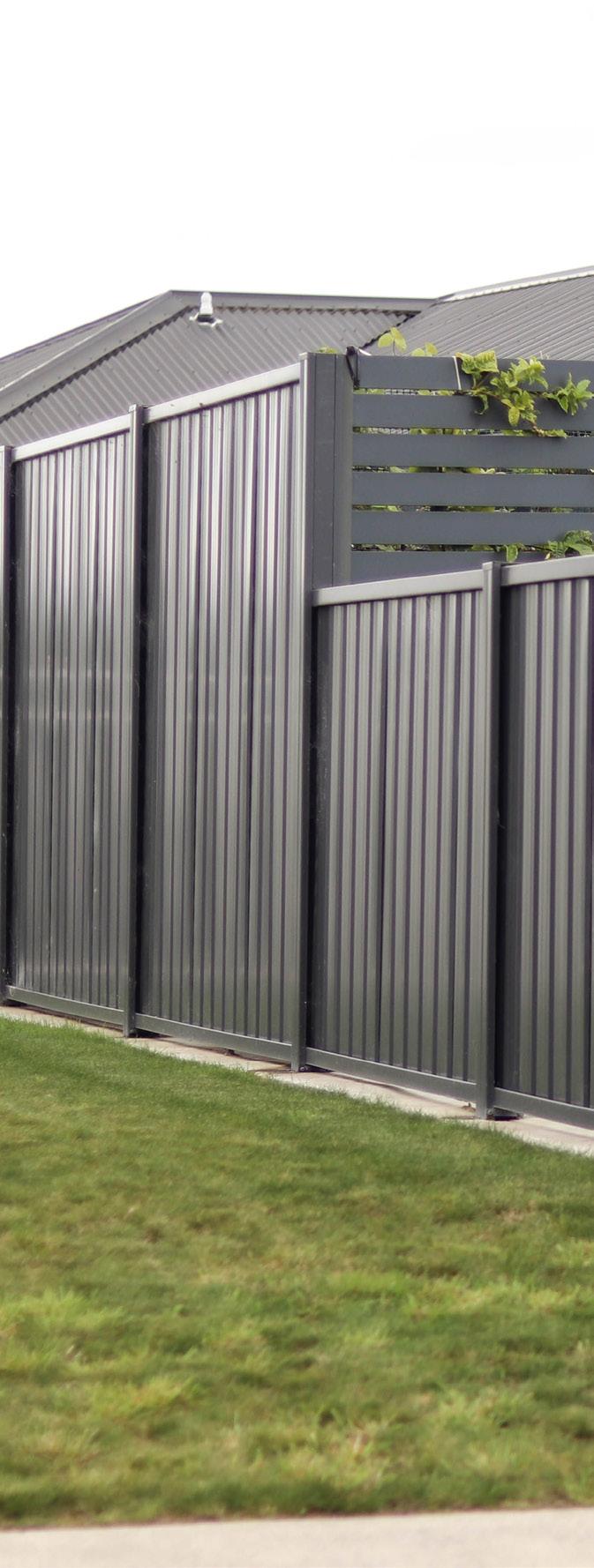

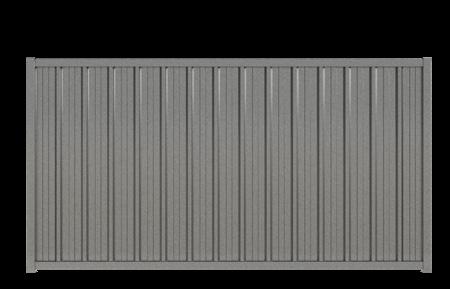

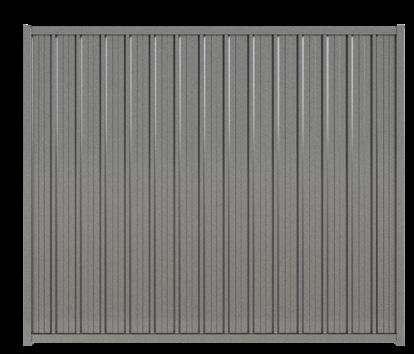

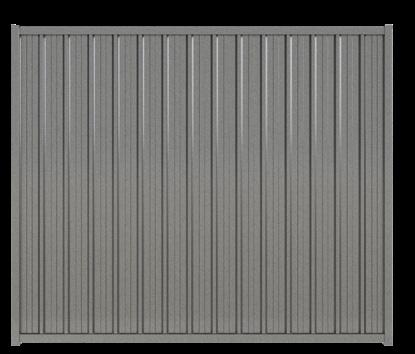

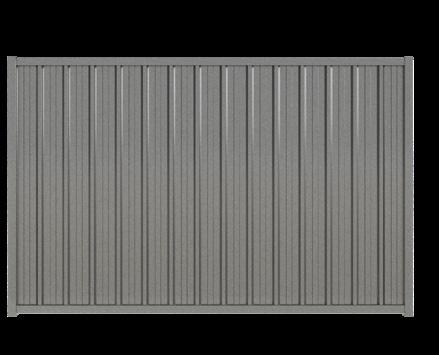

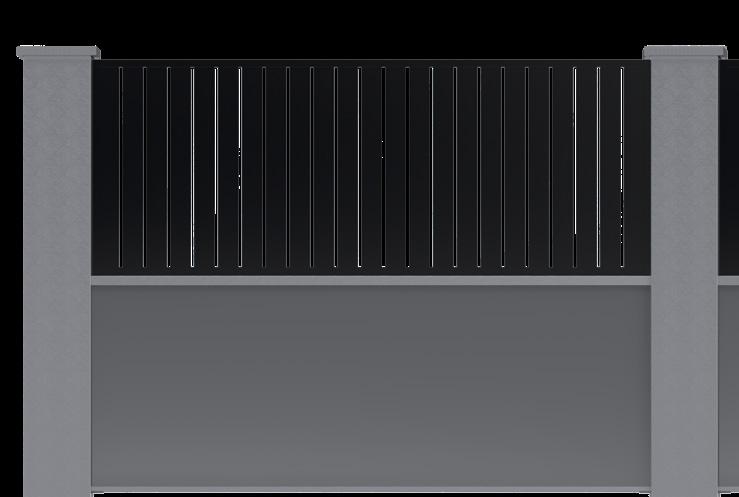

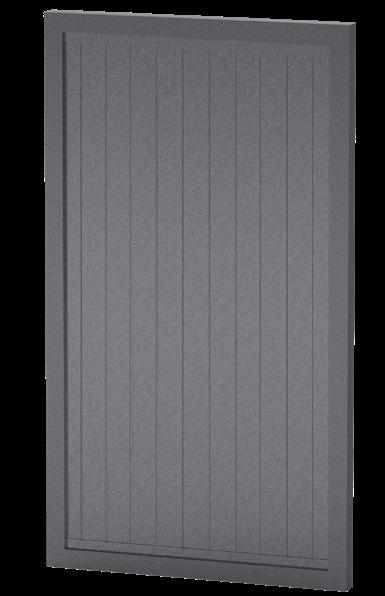

COLOURED STEEL FENCING

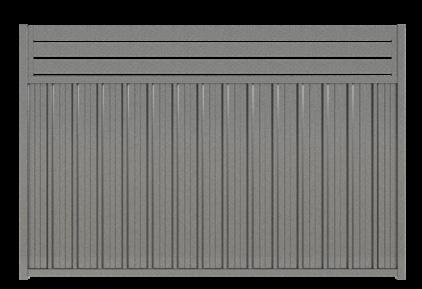

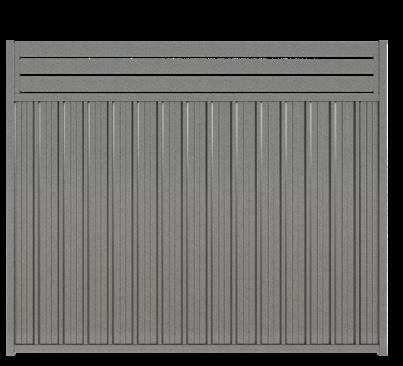

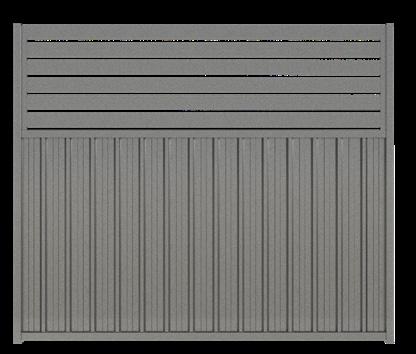

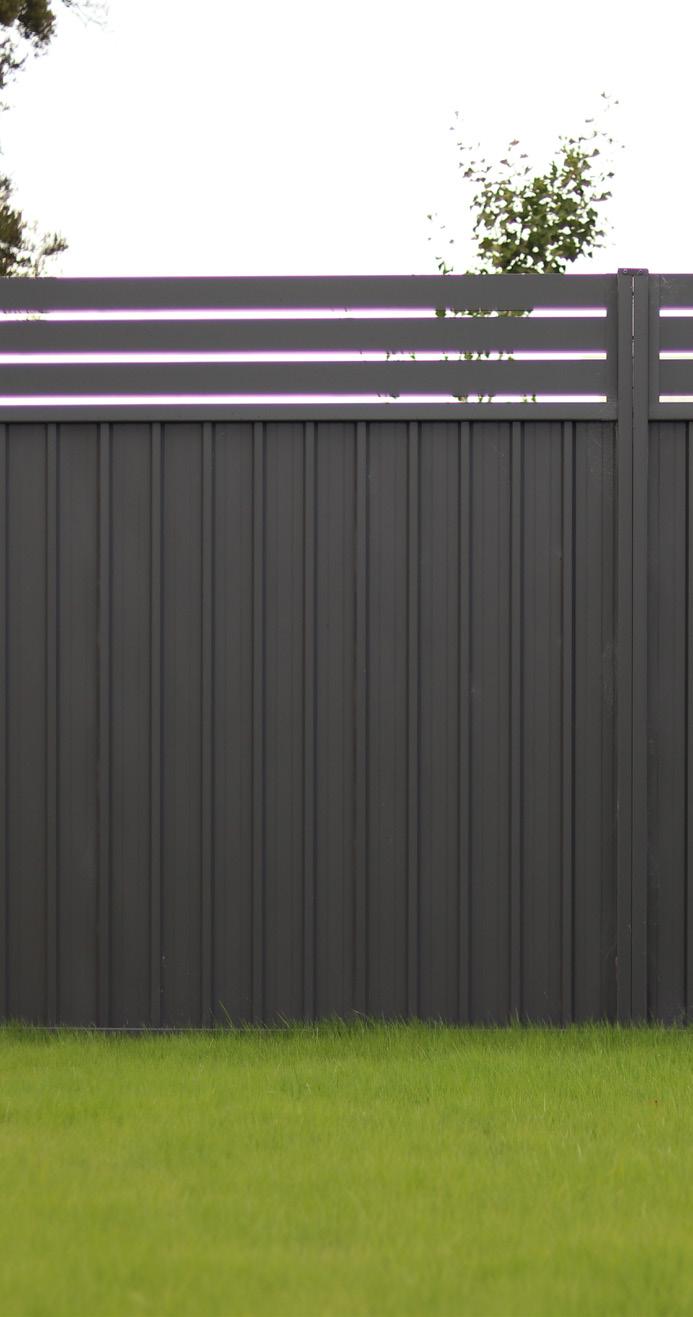

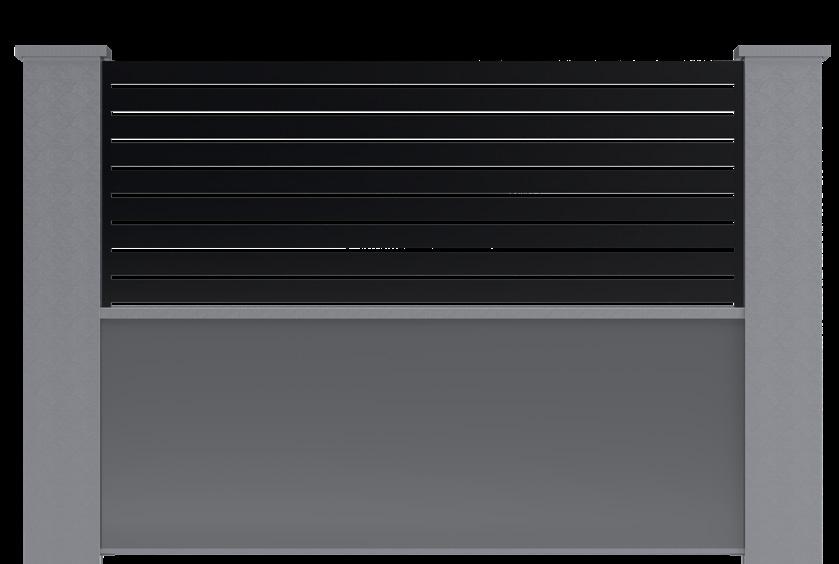

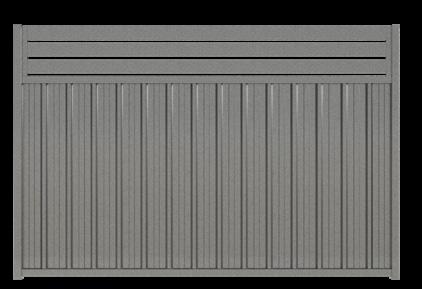

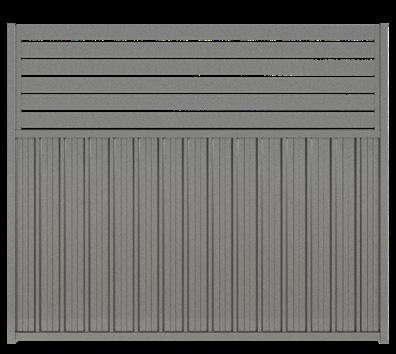

BORDERLINE
Durable coloured steel panels with slat trim
SBO 1.5/300 – 1800 H x 2300mm W including 300mm high slat infill
SBO 1.2/600 – 1800H x 2300mm W including 600mm high slat infill
SBO 1.2/300 – 1500 H x 2300mm W including 300mm high slat infill
