Exterior Inlay Covers ®
AUSTRALIAN MADE
Concrete Infill Covers

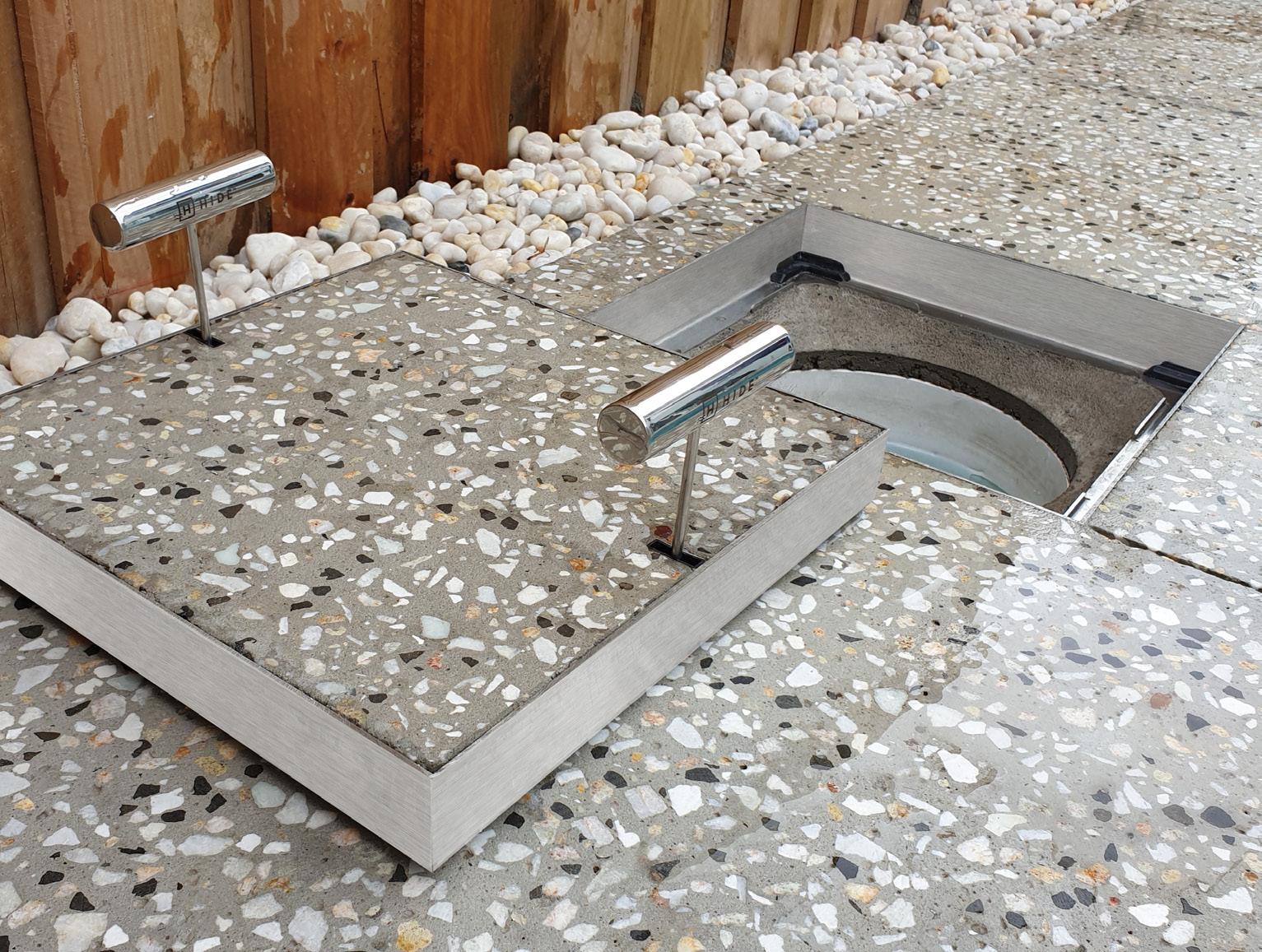

Beautifully integrated concrete filled covers that blend seamlessly into your landscape. The HIDE® system seamlessly integrates your chosen exposed aggregate or polished concrete into the lid, allowing it to harmonize with the surrounding landscape for a sleek, uninterrupted appearance. USA DESIGN PATENT US D917,022 S
INSTALLING THE HIDE CONCRETE SKIMMER LID 1 ®
3
ESTABLISH THE FINISHED HEIGHT
2
Calculate the boxing/form work required so the top rim of the installed Edge Protector (C) will achieve a flush finish with the surrounding surface.
ALLOW FOR SLAB MOVEMENT

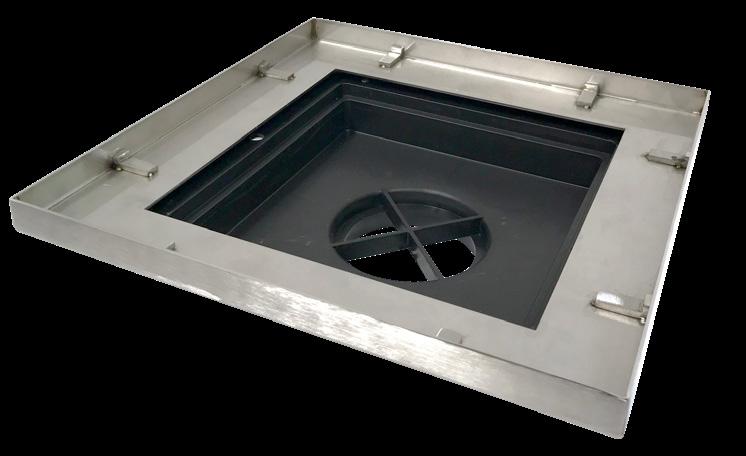

The Edge Protector (C) will remain in position during the slab pour, being part of the form work around the skimmer lid. A clearance/expansion joint may be necessary to allow for slab movement.
EARTHING (BONDING) RULES AND REGULATIONS
FOR THE
HIDE products are constructed from 316 marine grade stainless steel, and are considered a conductive material. Safety regulations vary and you should consult your local authority to determine what rules may apply in your area.
HOMEOWNER 4
Bonding is the responsibility of the installer, attachment points have been provided to allow for use of bonding devices if required. Check your local regulations to ensure the installation meets electrical safety requirements.
REQUIRED
CARE & MAINTENANCE
5

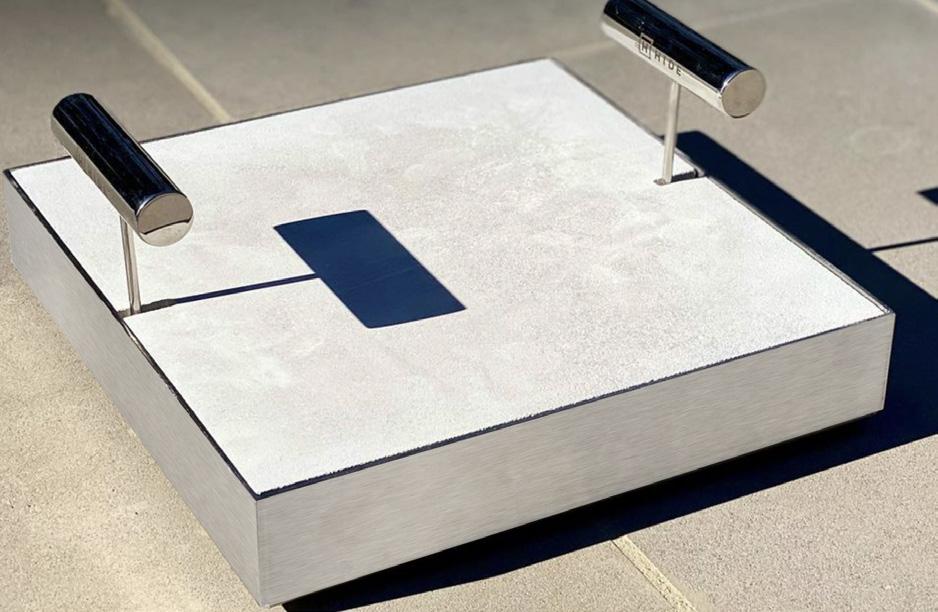

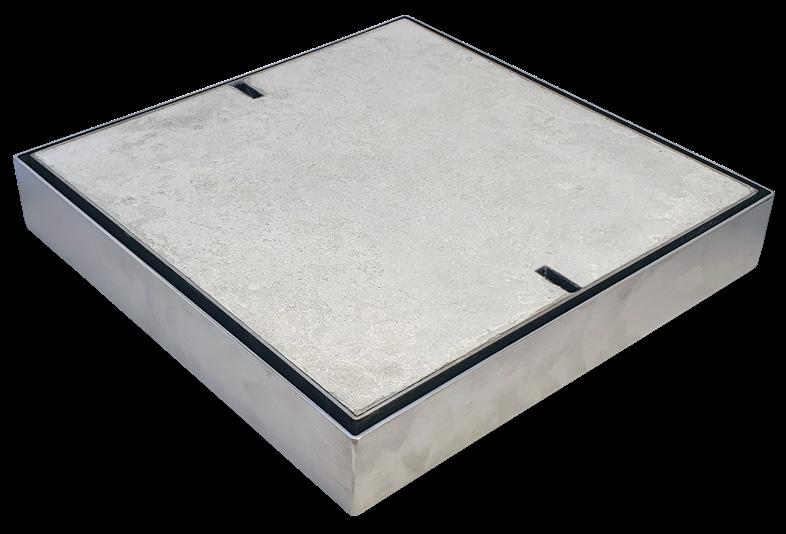

PREP THE INLAY LID
Set the Inlay Lid (B) face-up on a flat work surface away from the main slab pour area. To achieve a seamless finish, the Inlay Lid should be filled with the same concrete mix poured directly around the skimmer box. When filling the Inlay Lid (B), be sure to allow for any finishing procedure that may change the surface height of the set concrete. Applying a petroleum-based or non-stick coating to the outside of the Inlay Lid will assist during the final clean-up.
HIDE’s advanced lids for skimmer boxes, access points, and drain covers deliver a refined, high-end finish. They are offered in an extensive selection of sizes and depths to accommodate a variety of concrete installations.
B
PLEASE PASS THIS BOOKLET TO THE HOMEOWNER 6
CLEAN SURFACES As soon as possible, clean any concrete residue from the exposed parts of the Edge Protector (C) and Inlay Lid (B).
Service Point Covers
SS
Skimmer Box Covers
Concrete Covers

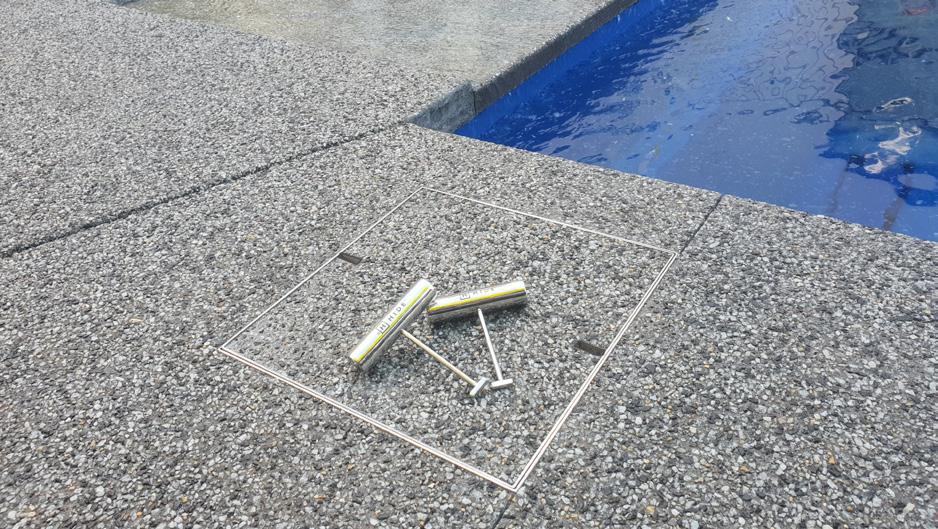

COMPLETED INSTALL
WARNING!
(CROSS SEC TION VIEW)
LEVEL FINISH
DO NOT ALLOW ACID OR CHEMICAL WASH SOLUTIONS TO CONTACT THE HIDE PRODUCT.
If washing with acid/chemicals, take protective measures to ensure minimal contact with the stainless steel HIDE components. Before use of acid/chemical wash, apply a water -resistant lubricant to the HIDE parts. When finished, External Covers immediately cleanDrain the HIDE components thoroughly to remove residual acid/ chemicals.
B C A CONCRETE INLAY
CONCRETE SURROUNDS EXPANSION CONTROL JOINT (IF REQUIRED)
EDGE PROTECTOR BOXING/FORM WORK
SKIMMER BOX OPENING
POOL BOND BEAM
HIDE® Skimmer Lids conform Warning! Do not allow acid Operation requires a two handed vertical lift by AN ADULT ONLY. Support your back and do not lift a weight beyond your limits. chemical solutions to Swimming Pool Safety Ensure Safety Keys or remain in the locked wash position at all times. Keep to feet away from the lid and recess frame at all times. contact the hide product. Standards OPENING THE DOUBLE KEYWAY HIDE LID
90º
CLOSING THE DOUBLE KEYWAY HIDE LID
90º
Insert both Safety Keys and Lift vertically, just turn to 90º so they lock enough to clear the recess. into the back of the lid.
Set safely aside. Do not carry the lid at a height.
Using both hands, grip Position the lid above Remove both Safety each Safety Key, keeping the recess and lower Keys and store away them at a 90º position. down vertically. from children.

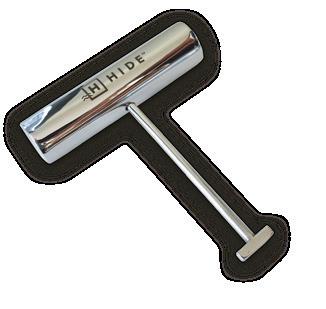

REMOVE SAFET Y KEY FROM LID
NOTE - INSTALLATION IS ONLY COMPLETE WHEN:
PASS TO HOMEOWNER
NEVER leave the QUAD Safety Key in the lid for any reason, especially after install. Leaving the Safety Key in an installed lid exposes a contractor to possible legal ramifications if a resulting accident or injury occurs.
PASS the Safety Key to the homeowner for secure storage. The “Home Owners Manual” packet should also be given to the homeowner.

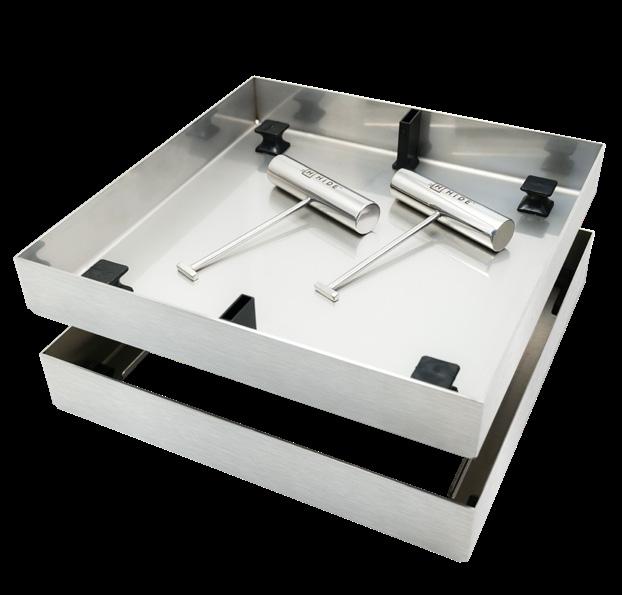

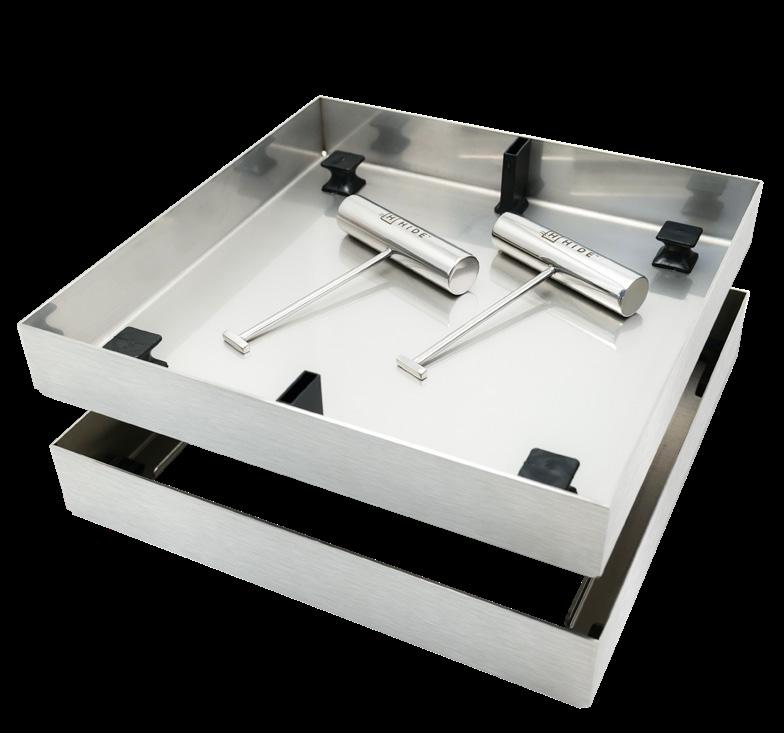

The kit includes: 2 x stainless steel lifting keys, 1 x Infill Lid with 4 x concrete lugs and 2 x key slot formers and also the 1 x Edge Protector. Documentation is also included.
