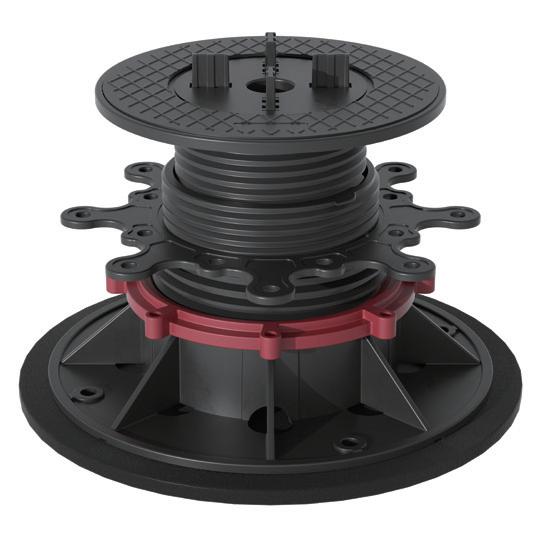

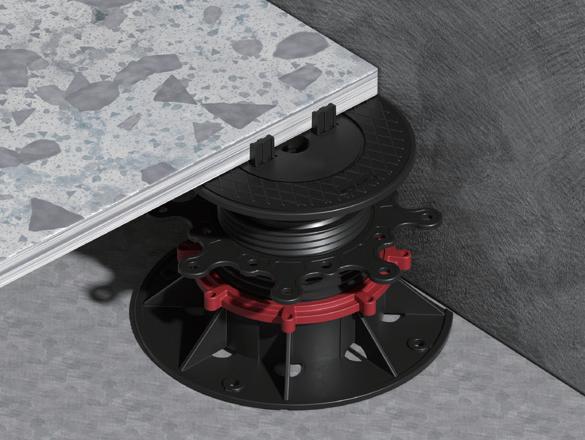

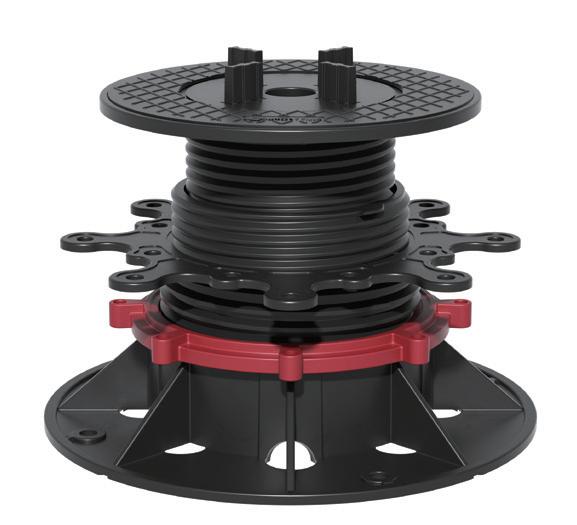

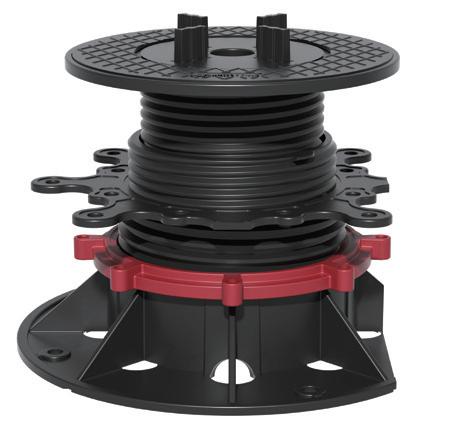

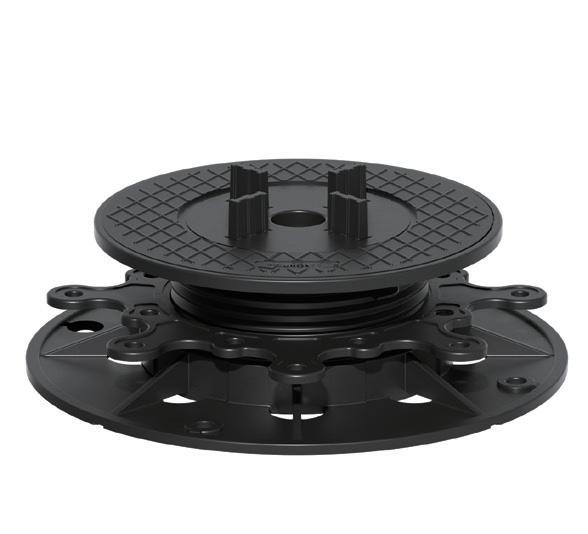

Adjustable Pedestal System Technical data sheet

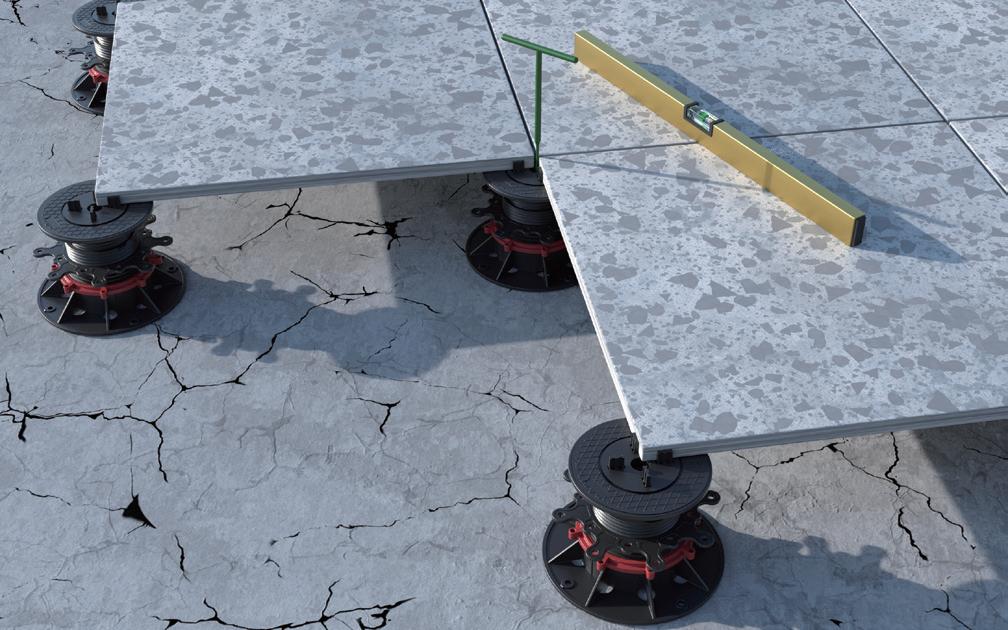

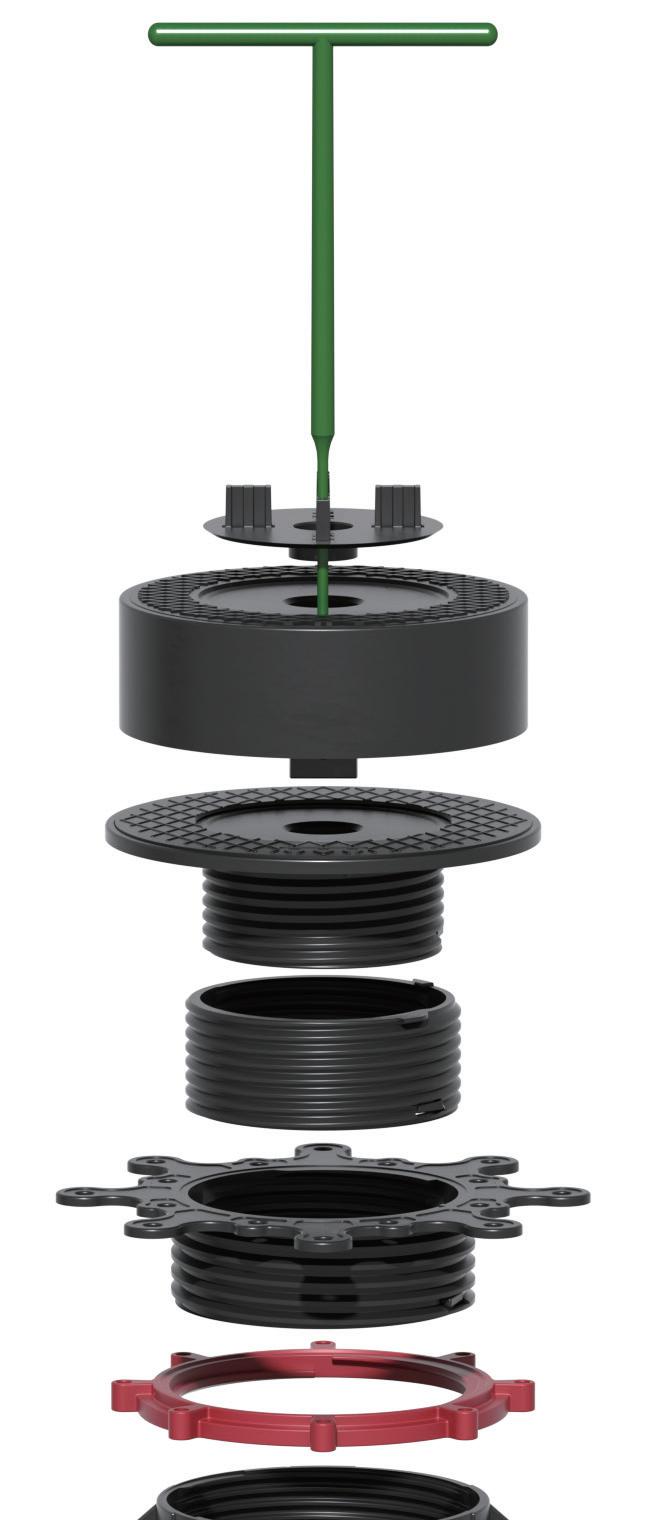

Components Adjustment Key Adjust the height from the top, no more lifting and relaying the pavers

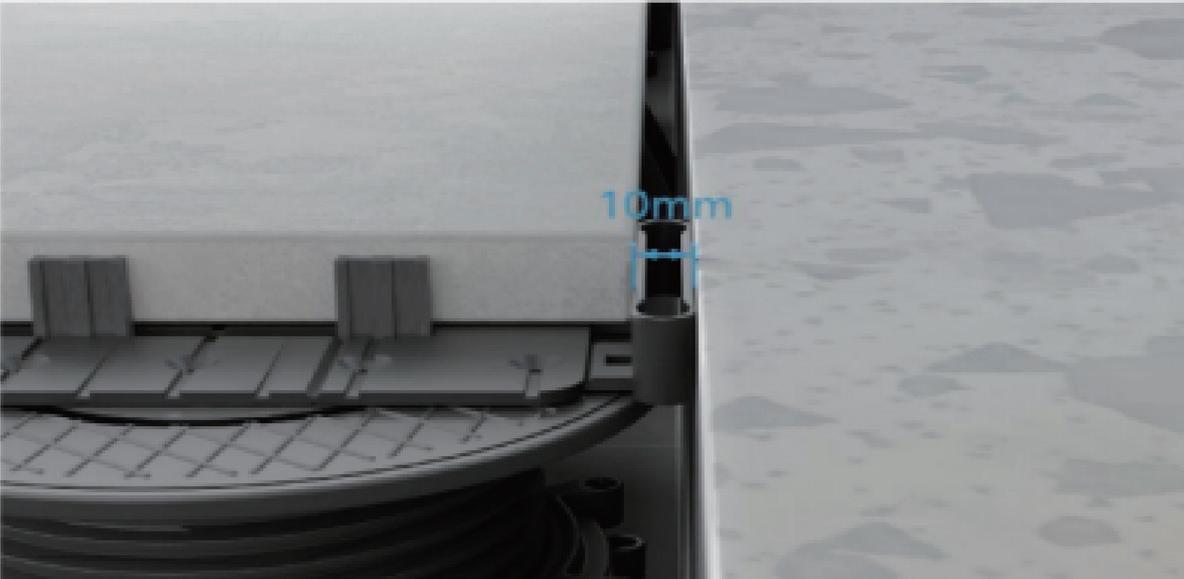

Spacer Tabs Allows adjustment key through, and keeps pavers evenly spaced

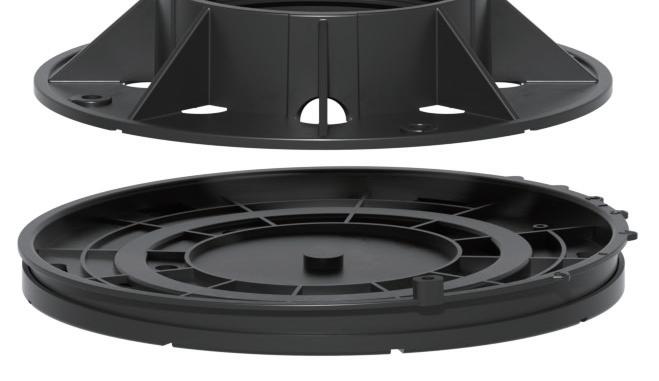

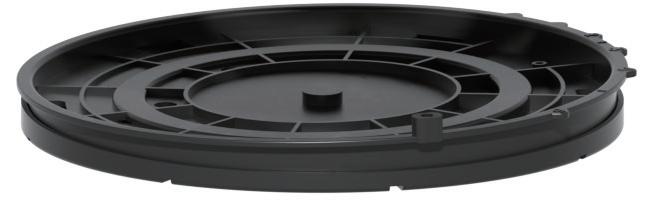

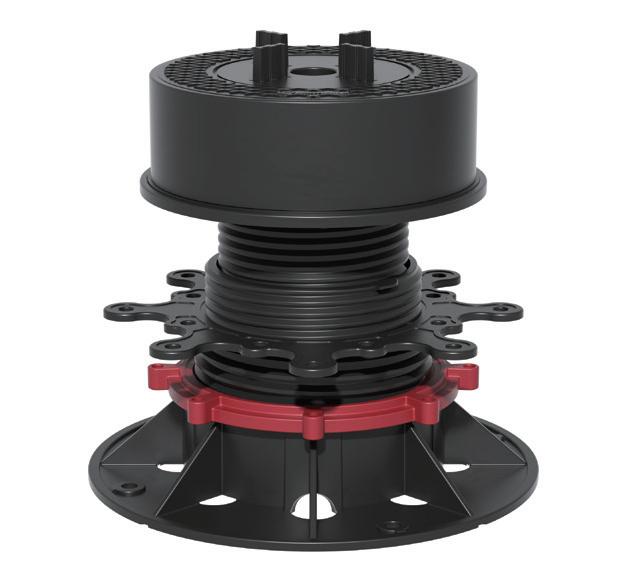

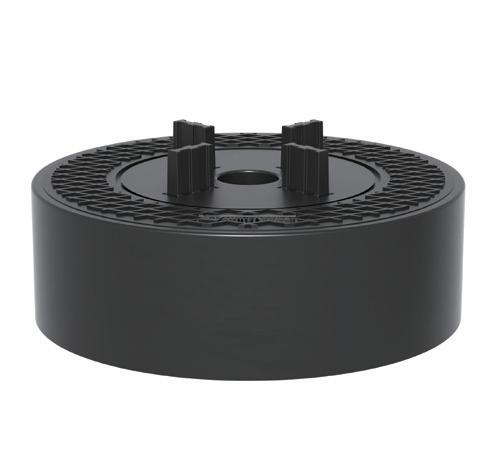

Extension Pad (45mm) Can be stacked on top of the pedestal, each pad gives 45mm extra height
Head Soft rubber injected on head, no more additional rubber parts All parts fully assembled with lock system, saving time and won’t unscrew Reverse thread makes it easy to adjust the height after heavy pavers are laid on the pedestal

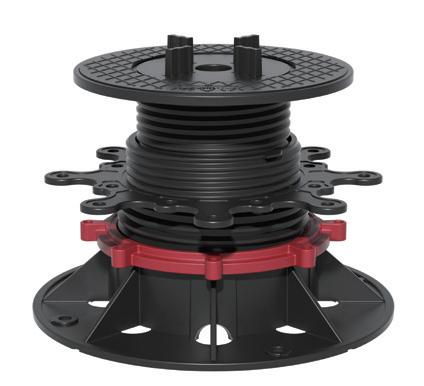

Middle Extension Fix Collar Fix the height and make the pedestal more stable
Base

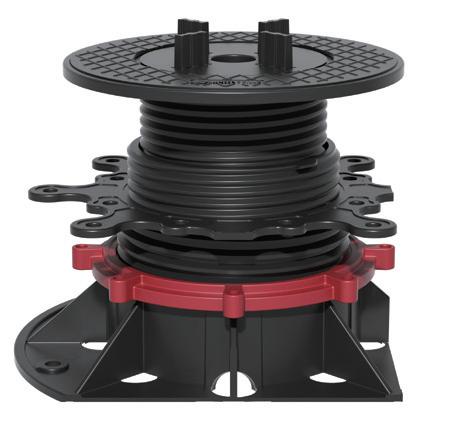

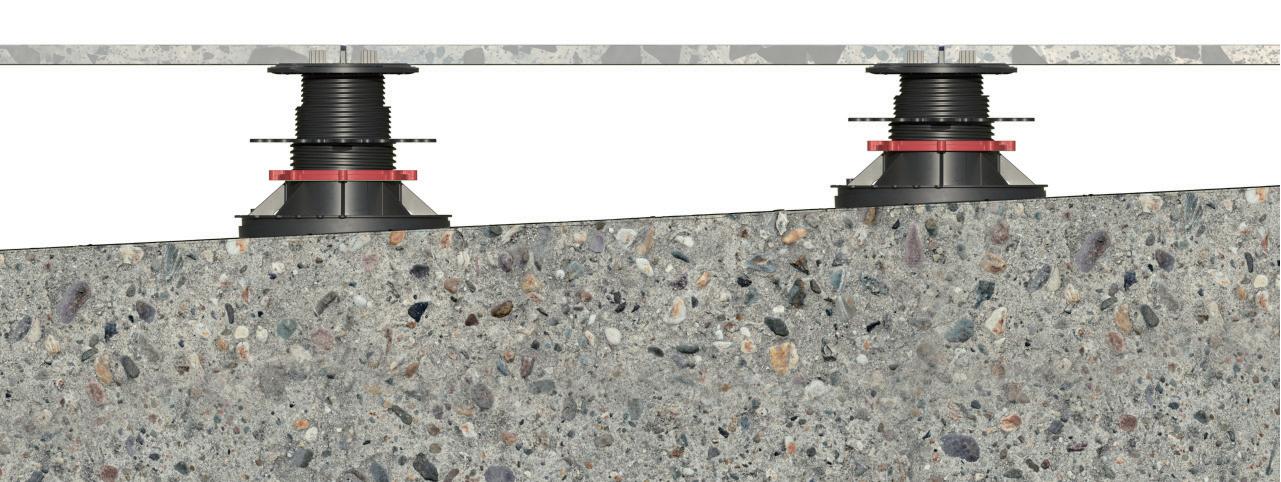

Slope Corrector Compensate for an uneven ground fall up to 5%
Disclaimer: The manufacturer reserves the right to vary specifications or delete models without notification. All dimensions shown in mm are nominal measurements only and should be checked prior to installation.
