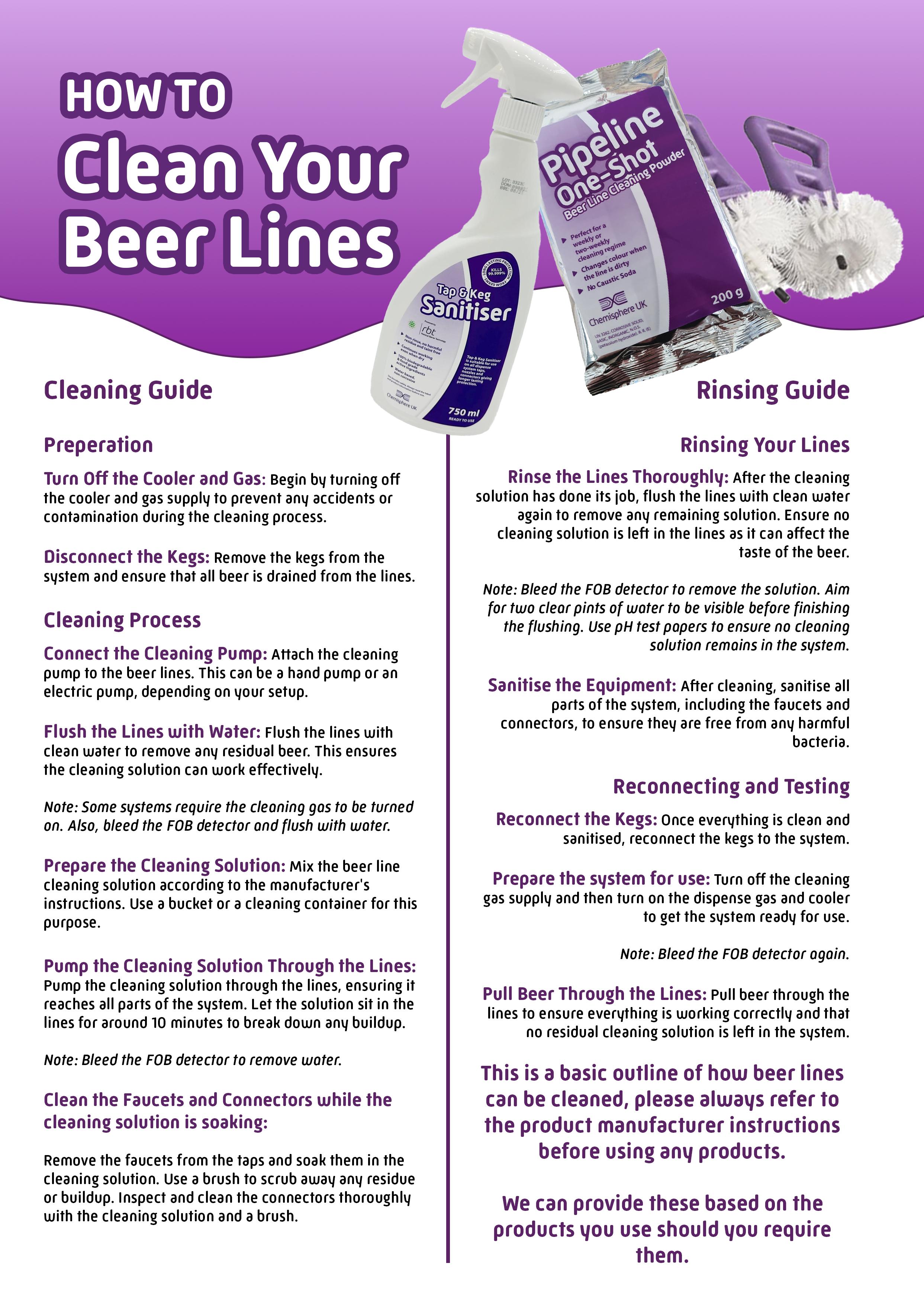

HOW TO
CLEAN YOUR LINES Cleaning Guide
Rinsing Guide
Preperation
Rinsing Your Lines
Turn Off the Cooler and Gas: Begin by turning off the cooler and gas supply to prevent any accidents or contamination during the cleaning process.
Rinse the Lines Thoroughly: After the cleaning solution has done its job, flush the lines with clean water again to remove any remaining solution. Ensure no cleaning solution is left in the lines as it can affect the taste of the beer.
Disconnect the Kegs: Remove the kegs from the system and ensure that all beer is drained from the lines.
Cleaning Process Connect the Cleaning Pump: Attach the cleaning pump to the beer lines. This can be a hand pump or an electric pump, depending on your setup. Flush the Lines with Water: Flush the lines with clean water to remove any residual beer. This ensures the cleaning solution can work effectively. Note: Some systems require the cleaning gas to be turned on. Also, bleed the FOB detector and flush with water. Prepare the Cleaning Solution: Mix the beer line cleaning solution according to the manufacturer’s instructions. Use a bucket or a cleaning container for this purpose. Pump the Cleaning Solution Through the Lines: Pump the cleaning solution through the lines, ensuring it reaches all parts of the system. Let the solution sit in the lines for around 10 minutes to break down any buildup.
Note: Bleed the FOB detector to remove the solution. Aim for two clear pints of water to be visible before finishing the flushing. Use pH test papers to ensure no cleaning solution remains in the system. Sanitise the Equipment: After cleaning, sanitise all parts of the system, including the faucets and connectors, to ensure they are free from any harmful bacteria.
Reconnecting and Testing Reconnect the Kegs: Once everything is clean and sanitised, reconnect the kegs to the system. Prepare the system for use: Turn off the cleaning gas supply and then turn on the dispense gas and cooler to get the system ready for use. Note: Bleed the FOB detector again. Pull Beer Through the Lines: Pull beer through the lines to ensure everything is working correctly and that no residual cleaning solution is left in the system.
This is a basic outline of how beer lines can be cleaned, please always refer to the product manufacturer instructions before using any products. We can provide these based on the products you use should you require them.
Note: Bleed the FOB detector to remove water. Clean the Faucets and Connectors while the cleaning solution is soaking: Remove the faucets from the taps and soak them in the cleaning solution. Use a brush to scrub away any residue or buildup. Inspect and clean the connectors thoroughly with the cleaning solution and a brush.
To place your order, please phone: 02476 361518
1
Visit our website: www.babybottlesltd.co.uk

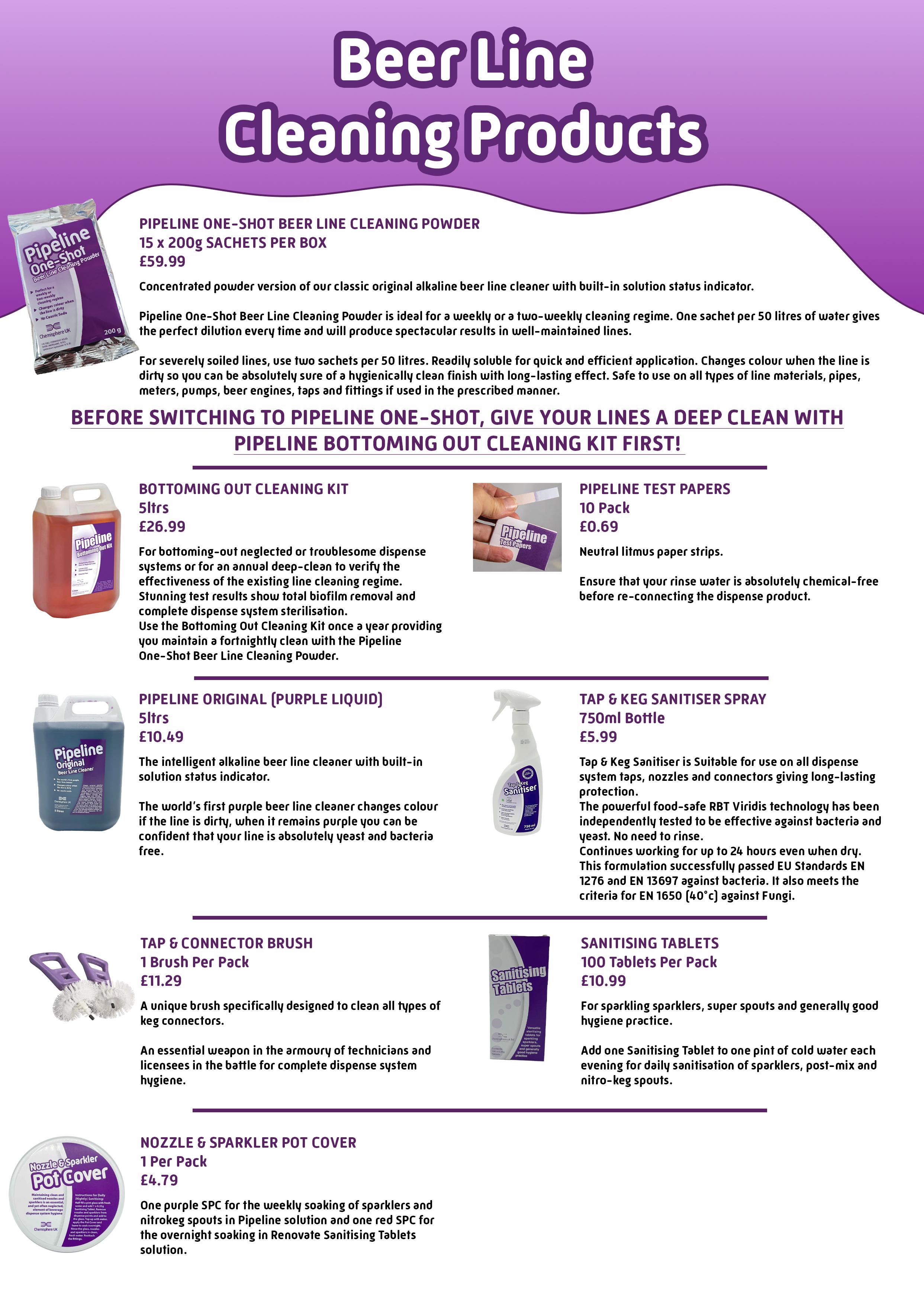

BEER LINE
CLEANING PRODUCTS
PIPELINE ONE-SHOT BEER LINE CLEANING POWDER 15 x 200g SACHETS PER BOX £59.99
Concentrated powder version of our classic original alkaline beer line cleaner with built-in solution status indicator. Pipeline One-Shot Beer Line Cleaning Powder is ideal for a weekly or a two-weekly cleaning regime. One sachet per 50 litres of water gives the perfect dilution every time and will produce spectacular results in well-maintained lines. For severely soiled lines, use two sachets per 50 litres. Readily soluble for quick and efficient application. Changes colour when the line is dirty so you can be absolutely sure of a hygienically clean finish with long-lasting effect. Safe to use on all types of line materials, pipes, meters, pumps, beer engines, taps and fittings if used in the prescribed manner.
BEFORE SWITCHING TO PIPELINE ONE-SHOT, GIVE YOUR LINES A DEEP CLEAN WITH PIPELINE BOTTOMING OUT CLEANING KIT FIRST! BOTTOMING OUT CLEANING KIT 5ltrs £26.99
PIPELINE TEST PAPERS 10 Pack £0.69
For bottoming-out neglected or troublesome dispense systems or for an annual deep-clean to verify the effectiveness of the existing line cleaning regime. Stunning test results show total biofilm removal and complete dispense system sterilisation. Use the Bottoming Out Cleaning Kit once every 6 to 12 months, providing you maintain a fortnightly clean with the Pipeline One-Shot Beer Line Cleaning Powder.
Neutral litmus paper strips.

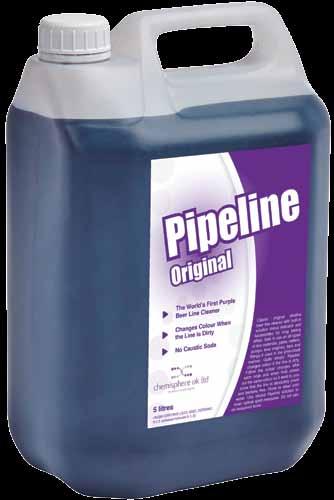

PIPELINE ORIGINAL (PURPLE LIQUID) 5ltrs £10.49

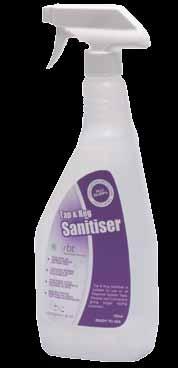

TAP & KEG SANITISER SPRAY 750ml Bottle £5.99
The intelligent alkaline beer line cleaner with built-in solution status indicator.
Tap & Keg Sanitiser is Suitable for use on all dispense system taps, nozzles and connectors giving longlasting protection. The powerful food-safe RBT Viridis technology has been independently tested to be effective against bacteria and yeast. No need to rinse. Continues working for up to 24 hours even when dry. This formulation successfully passed EU Standards EN 1276 and EN 13697 against bacteria. It also meets the criteria for EN 1650 (40°c) against Fungi.
Ensure that your rinse water is absolutely chemicalfree before re-connecting the dispense product.
The world’s first purple beer line cleaner changes colour if the line is dirty, when it remains purple you can be confident that your line is absolutely yeast and bacteria free.
TAP & CONNECTOR BRUSH 1 Brush Per Pack £11.29
SANITISING TABLETS 100 Tablets Per Pack £10.99
A unique brush specifically designed to clean all types of keg connectors.
For sparkling sparklers, super spouts and generally good hygiene practice.
An essential weapon in the armoury of technicians and licensees in the battle for complete dispense system hygiene.
Add one Sanitising Tablet to one pint of cold water each evening for daily sanitisation of sparklers, postmix and nitro-keg spouts.
NOZZLE & SPARKLER POT COVER 1 Per Pack £4.79 One purple SPC for the weekly soaking of sparklers and nitrokeg spouts in Pipeline solution and one red SPC for the overnight soaking in Renovate Sanitising Tablets solution.
To place your order, please phone: 02476 361518
2
Visit our website: www.babybottlesltd.co.uk

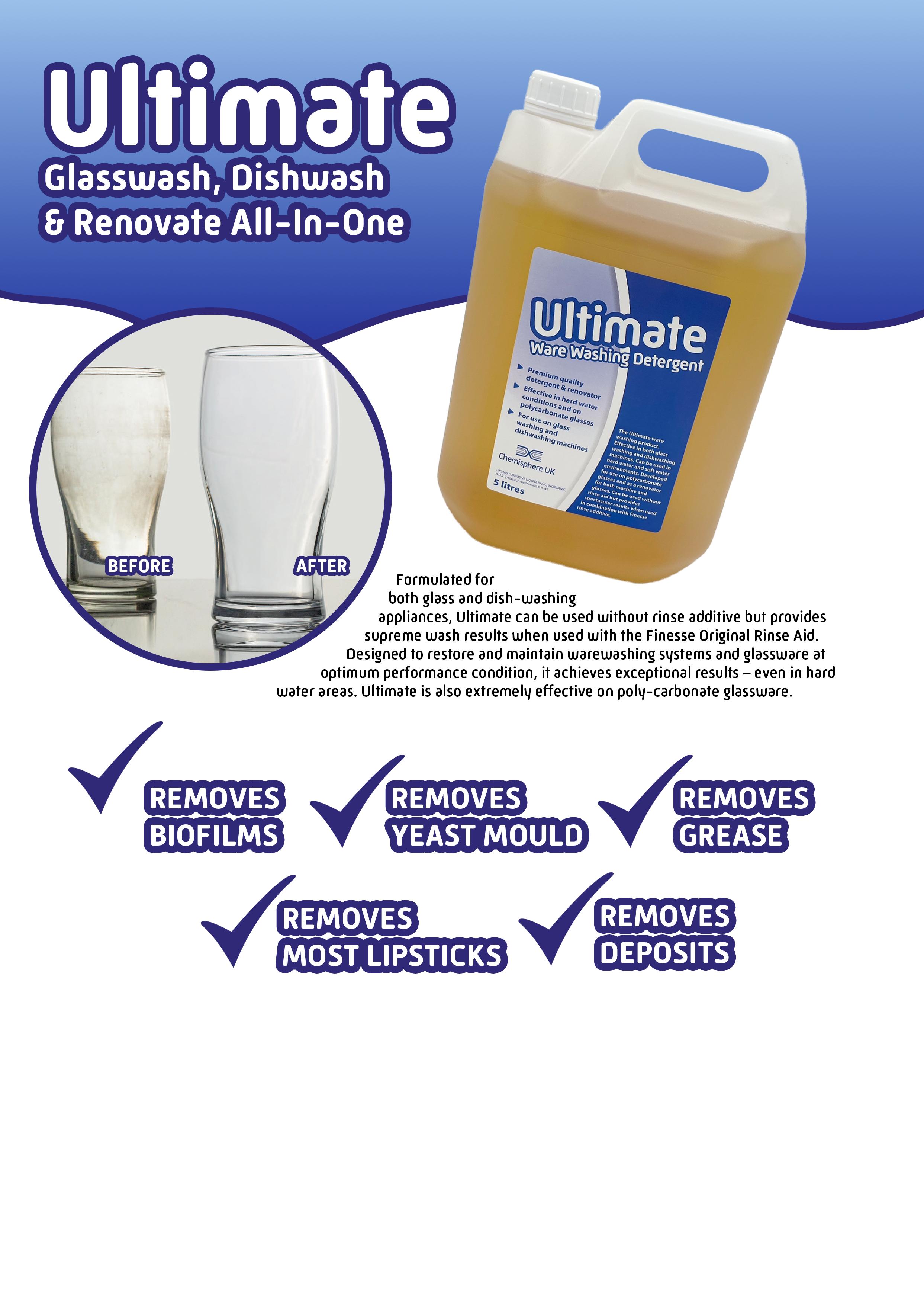

Ultimate
Glasswash, Dishwash & Renovate All-In-One Formulated for both glass and dish-washing appliances, Ultimate can be used without rinse additive but provides supreme wash results when used with the Finesse Original Rinse Aid. Designed to restore and maintain warewashing systems and glassware at optimum performance condition, it achieves exceptional results – even in hard water areas. Ultimate is also extremely effective on poly-carbonate glassware.
Removes Biofilms Removes Yeast Mould
Removes Grease
Removes Most Lipsticks
Removes Deposits
To place your order, please phone: 02476 361518
3
Visit our website: www.babybottlesltd.co.uk

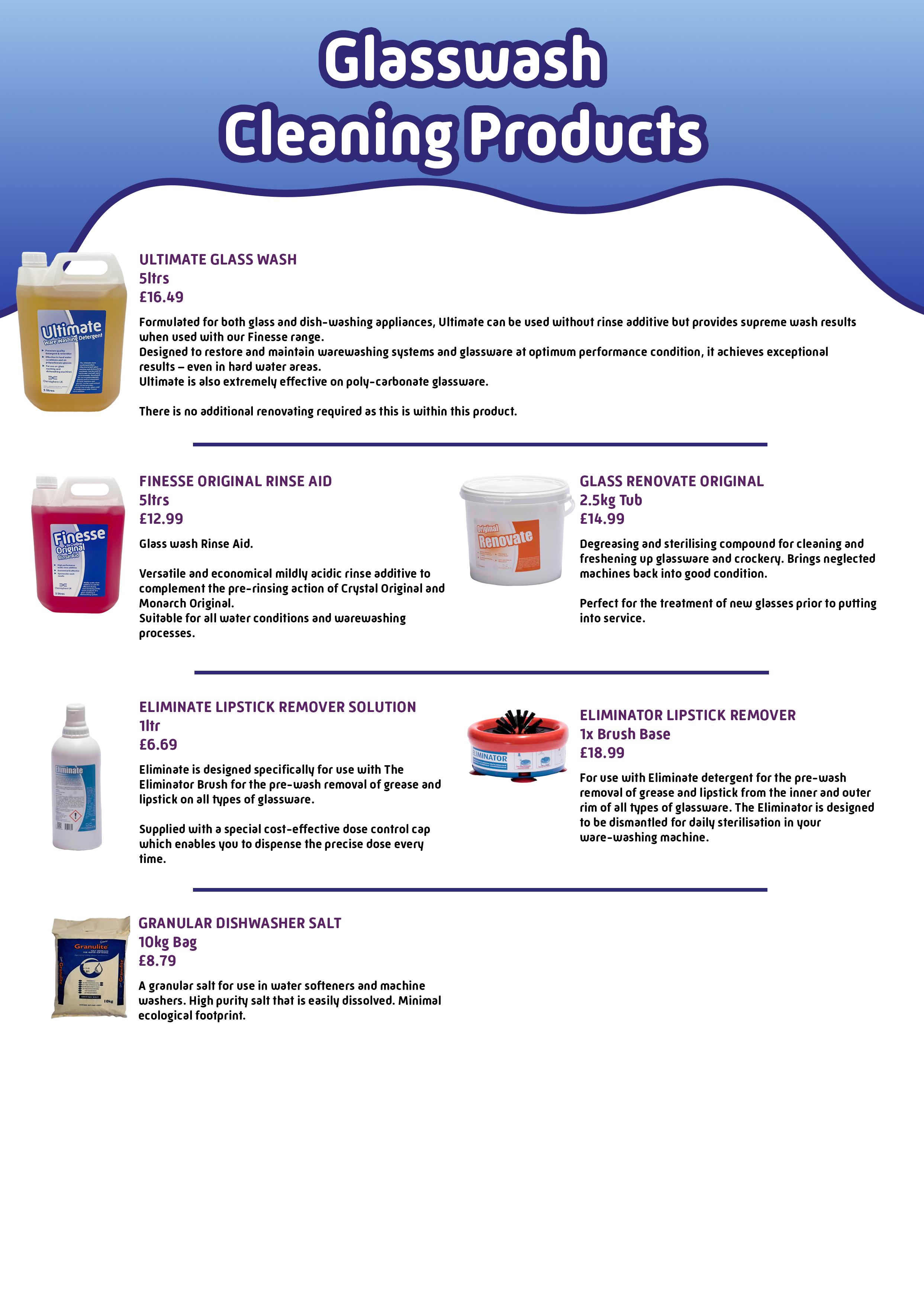

Glasswash Cleaning Products
ULTIMATE GLASS WASH 5ltrs £16.49
Formulated for both glass and dish-washing appliances, Ultimate can be used without rinse additive but provides supreme wash results when used with our Finesse range. Designed to restore and maintain warewashing systems and glassware at optimum performance condition, it achieves exceptional results – even in hard water areas. Ultimate is also extremely effective on poly-carbonate glassware. There is no additional renovating required as this is within this product.
FINESSE ORIGINAL RINSE AID 5ltrs £12.99
GLASS RENOVATE ORIGINAL 1.5kg Tub £14.99
Glass wash Rinse Aid.
Degreasing and sterilising compound for cleaning and freshening up glassware and crockery. Brings neglected machines back into good condition.
Versatile and economical mildly acidic rinse additive to complement the pre-rinsing action of Crystal Original and Monarch Original. Suitable for all water conditions and warewashing processes.
Perfect for the treatment of new glasses prior to putting into service.
RENOVATE DESKALE 5ltrs £11.49
ELIMINATOR LIPSTICK REMOVER 1x Brush Base £18.99
Commercial strength hydrochloric acid based descalent with corrosion inhibitor and acidity indicator.
For use with Eliminate detergent for the pre-wash removal of grease and lipstick from the inner and outer rim of all types of glassware. The Eliminator is designed to be dismantled for daily sterilisation in your warewashing machine.
Suitable for descaling boilers, dishwashing and glass washing machines, ice making machines, coffee & tea making equipment, Bains Marie and some plumbing systems.
GRANULAR DISHWASHER SALT 10kg Bag £8.79
ELIMINATE LIPSTICK REMOVER SOLUTION 1ltr £6.69
A granular salt for use in water softeners and machine washers. High purity salt that is easily dissolved. Minimal ecological footprint.
Eliminate is designed specifically for use with The Eliminator Brush for the pre-wash removal of grease and lipstick on all types of glassware. Supplied with a special cost-effective dose control cap which enables you to dispense the precise dose every time.
NOZZLE & SPARKLER POT COVER 1 Per Pack £4.79 One purple SPC for the weekly soaking of sparklers and nitrokeg spouts in Pipeline solution and one red SPC for the overnight soaking in Renovate Sanitising Tablets solution.
To place your order, please phone: 02476 361518
4
Visit our website: www.babybottlesltd.co.uk

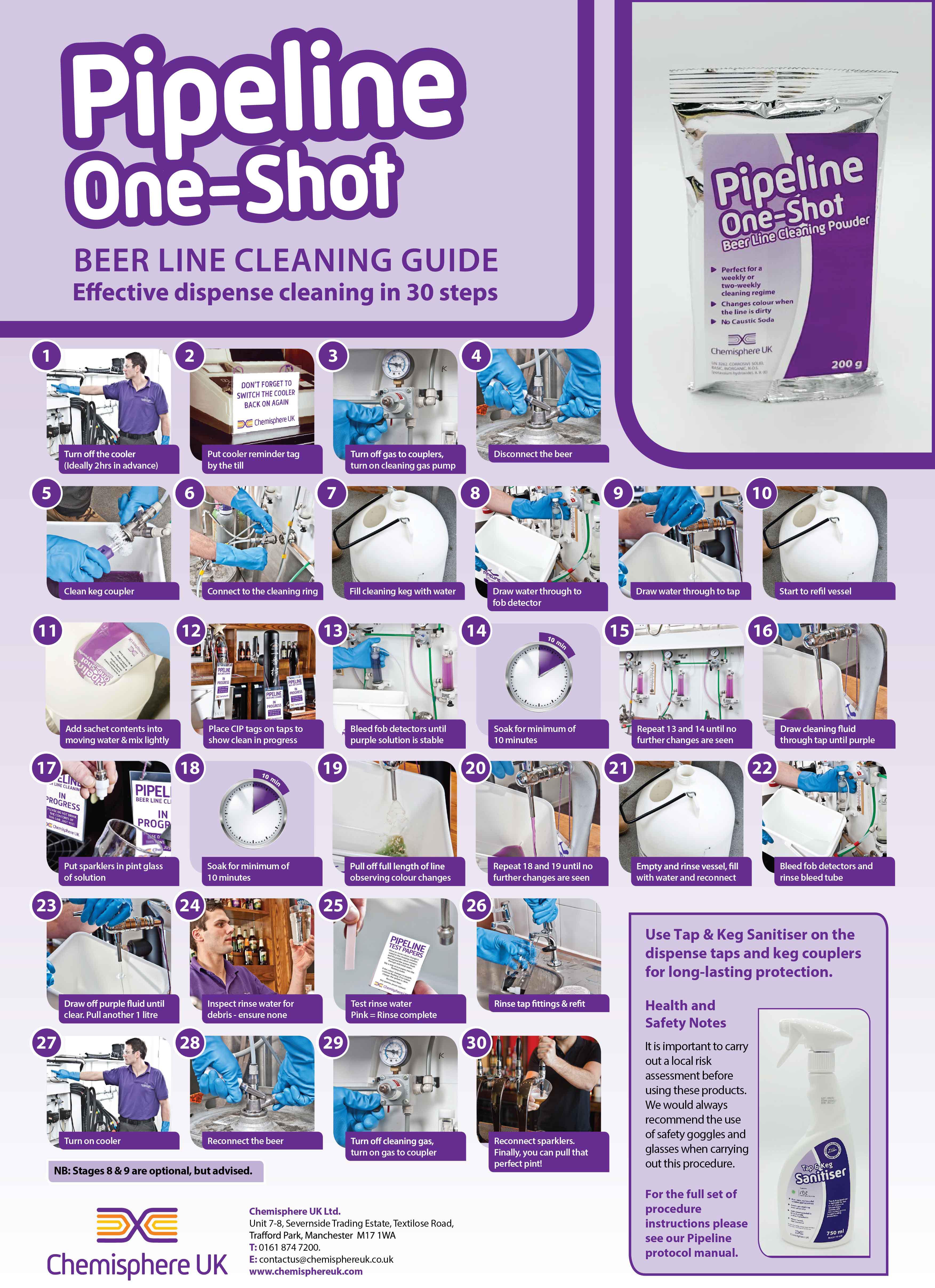

1
1 2
Turn off the cooler (Ideally 2hrs in advance)
1 5
1 3
Put cooler reminder tag by the till
1 6
Clean keg coupler
11 1
1 7
12 1
17 1
Draw off purple fluid until clear. Pull another 1 litre
Inspect rinse water for debris - ensure none
Turn on cooler
Reconnect the beer
Repeat 18 and 19 until no further changes are seen
Test rinse water Pink = Rinse complete
30 1
Reconnect sparklers. Finally, you can pull that perfect pint!
NB: Stages 8 & 9 are optional, but advised.
Chemisphere UK
Repeat 13 and 14 until no further changes are seen
Draw cleaning fluid through tap until purple
22 1
Empty and rinse vessel, fill with water and reconnect
Bleed fob detectors and rinse bleed tube
Use Tap & Keg Sanitiser on the dispense taps and keg couplers for long-lasting protection. Rinse tap fittings & refit
Turn off cleaning gas, turn on gas to coupler
Measure solution 250 ml per 10 litres
16 1
21 1
26 1
29 1
Draw water through to tap
Soak for minimum of 10 minutes
Pull off full length of line observing colour changes
10 1
15 1
20 1
25 1
28 1
Draw water through to fob detector
Bleed fob detectors until purple solution is stable
Soak for minimum of 5 minutes
1 9
14 1
19 1
24 1
27 1
Fill cleaning keg with water
Place CIP tags on taps to show clean in progress
Put sparklers in pint glass of solution
Disconnect the beer
1 8
13 1
18 1
23 1
Turn off gas to couplers, turn on cleaning gas pump
Connect to the cleaning ring
Add cleaning solution to water container
1 4
Health and Safety Notes It is important to carry out a local risk assessment before using these products. We would always recommend the use of safety goggles and glasses when carrying out this procedure.
For the full set of procedure instructions please see our Pipeline protocol manual.
Chemisphere UK Ltd. Unit 7-8, Severnside Trading Estate, Textilose Road, Trafford Park, Manchester M17 1WA T: 0161 874 7200. E: contactus@chemisphereuk.co.uk www.chemisphereuk.com
