Conveying into the future

About us

CVBtech was founded in 2019 in Volos, Greece with a focus on the local energy sector and in continuation of our previous manufacturing and service facility which started production in 2002. Since then, the capacity was increased through continuous investment, with the last steel cord belt press being added during 2026.

From its beginnings in the local market, CVBtech quickly developed its export focus. Today, our CVBtech belts are appreciated across the globe. Millions of meters of belt providing top performance have proven us to be one of the leading suppliers in our industry.

CVBtech offers fast decisions, ﬂexible production and highest and consistent quality and HSE levels

Location

The CVBtech plant is located on the east coast of Greece, approximately halfway between Athens and Thessaloniki. With its own port in Volos and the international port of Piraeus within a driving distance of approximately four hours, CVBtech is ideally positioned to execute daily customer orders by truck all over Europe or by sea to the entire world.

Organisation

At CVBtech, you will find everything under one roof: Sales, Production, R&D, Logistics, Quality Control, Purchasing, Human Resources, IT, Finance, Technical Service – everything shaped into a slim, effective and fast organization. This combined with our manufacturing setup makes us one of the fastest and most efficient manufacturers in the market

CVBtech Conveyor Belts

State-of-the art equipment

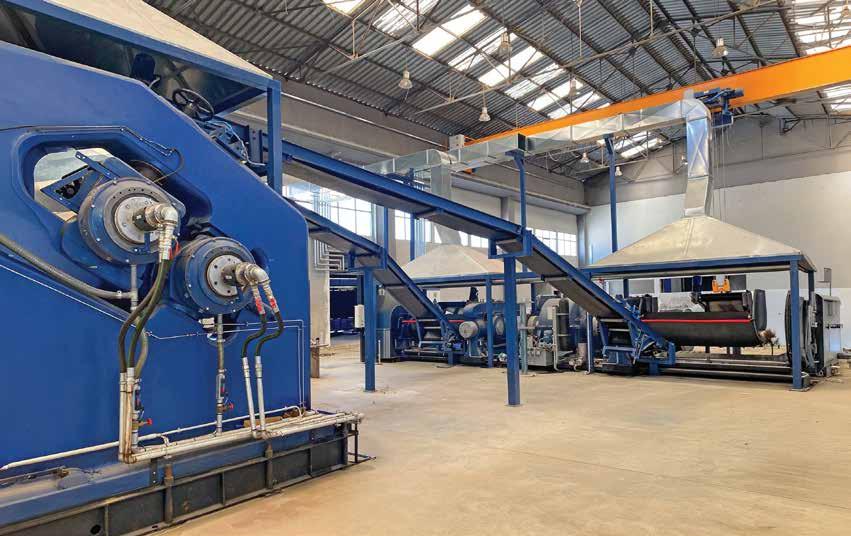

CVBtech uses state-of-the-art and the most reliable equipment in the market from manufacturers specialising in the field of conveyor belt manufacturing like Berstorff and Dieffenbacher. The multi-cylinder Dieffenbacher press ensures even distribution of pressure during vulcanisation the moment the tension control systems maintain the right tension on each cord inside the belt. These parameters result in a very uniform and straight running belt.

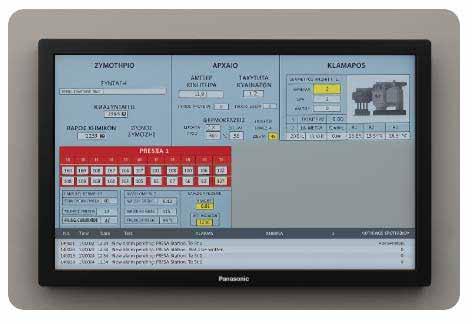

Automation equipment in every step of production guarantees traceability, higher reliability, constant product quality and highest HSE levels.

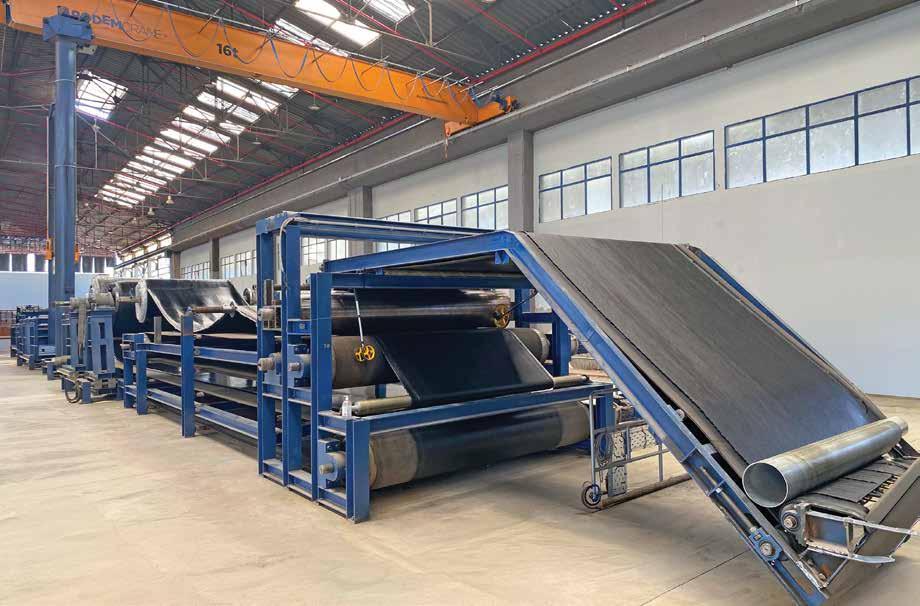

Our lamination line ensures the production of bubble free sheets of rubber that guarantee the highest quality of rubber for each roll produced.

Conveying into the future

Our range of products reaches widths of up to 2500mm and breaking strengths of up to 10.000 N/mm. We produce our steel cord conveyor belts in accordance with respective standards as per customer requirements such as DIN 22131, ISO 15236, AS1333. However, individual tailor-made belt constructions with a specific number of cords, cord pitch and cord diameter can be supplied where necessary. For instance, where only a part of length needs to be spliced into an existing belt.

For more than 20 years CVBtech has been supplying highest-quality steelcord conveyor belts for the most demanding applications to its customers around the world

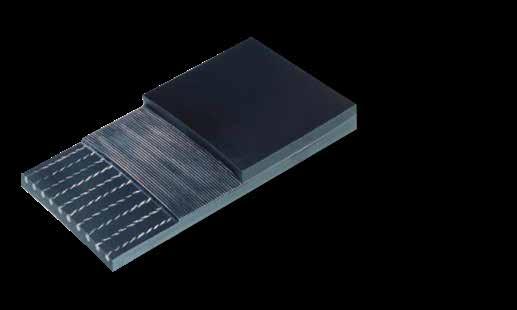

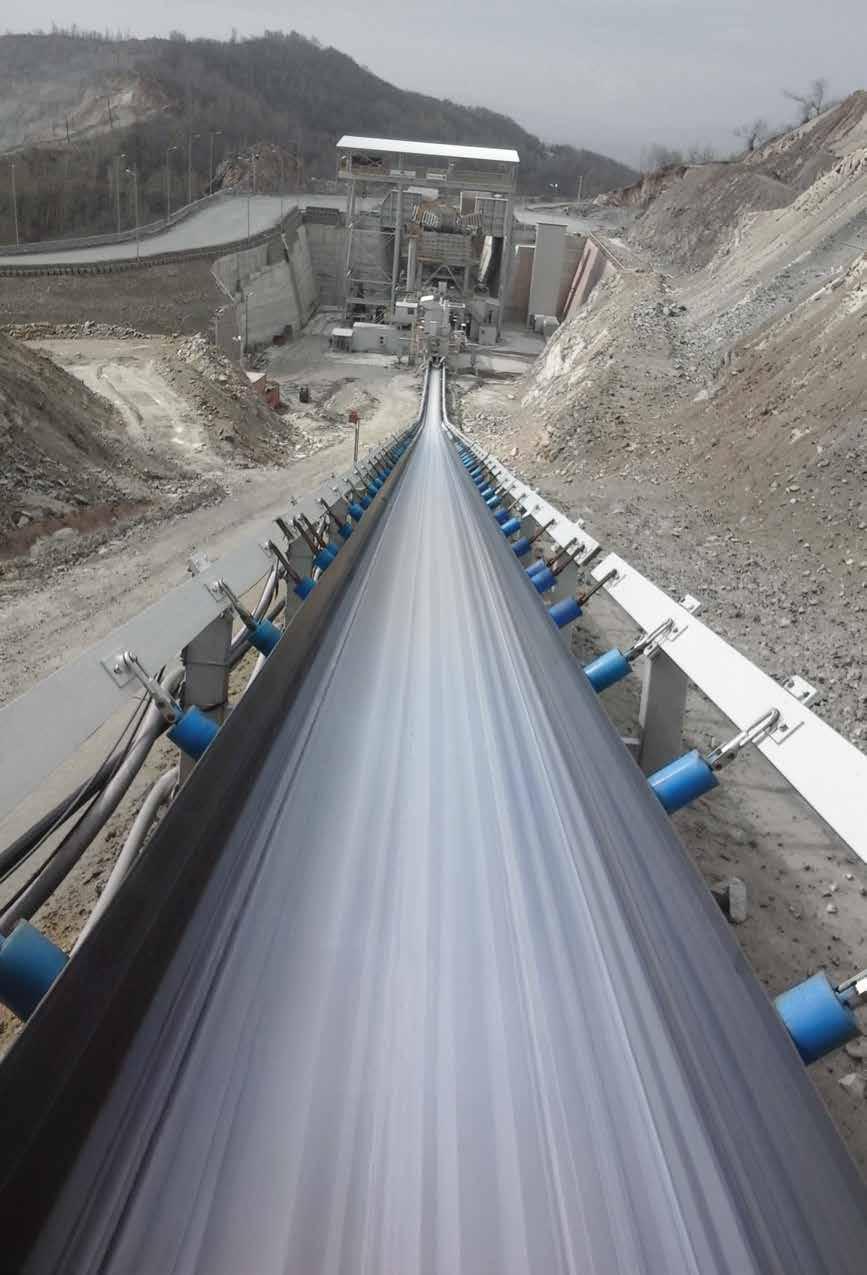

Our steel cord conveyor belts are distinguished by their extremely high transmission of forces, long lengths (up to 20 km center-to-center distance), and very high load-carrying capacities (up to 30,000 t/h). Our high-performance products ensure high trough-ability combined with low elongation and good straight-running characteristics. CVBtech steel cord conveyor belts are successfully employed for a wide range of uses through a wide variety of available cover grades.

Due to the flexibility of our production facilities, we are able to offer our customers the capacity to design and produce conveyor belts in accordance with their particular requirements. This may be necessary for instance in cases where our customers wish to add other components to the belt produced.

Examples of this include belts with special layouts to enable our customers to attach buckets for elevator belts. Very specific cord placements are required on such base belts, which we produce and deliver on a regular basis. If you require a base belt with a particular belt layout, please feel free to contact us.

CVBtech Conveyor Belts

Steel Cord belts from CVBtech are available with belt gauges up to 60 mm

Rip detection sensors can be installed during the production process.

Steel cord conveyor belts range

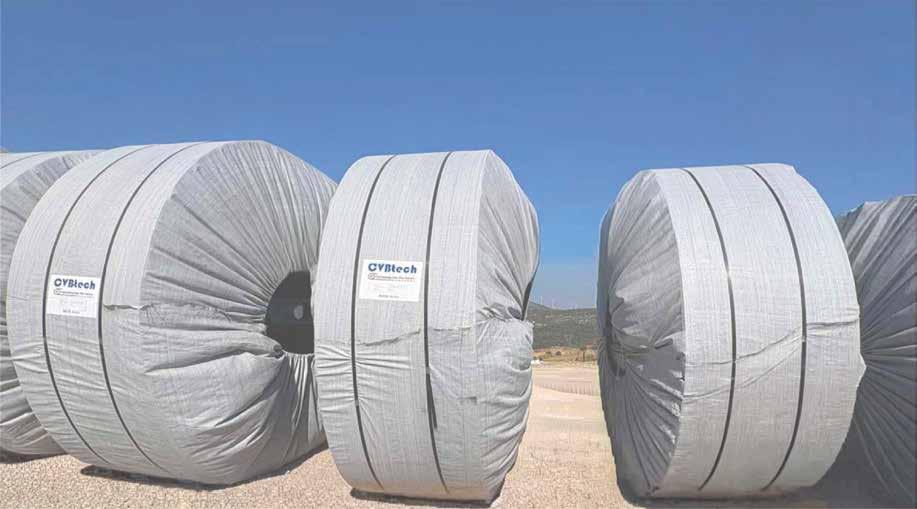

Belts can be supplied in standard or oval reels in order to minimize the number of required splices.

Different strengths, cover thicknesses and constructions are available upon request. Belts are also available with optional rip protection in one or both covers.

Conveying into the future

Compounding

One of the major differences between conveyor belts that are excellent and those that are not, derives from the compounding expertise of the manufacturer. At CVBtech, we only use quality material from certified suppliers. With a recipe base of more than 200 conveyor belt compounds in our company, we have a solution for almost every application. If you have a special problem or request, we will develop the right compound for you.

An extract of our compounds can be found below.

Laboratory

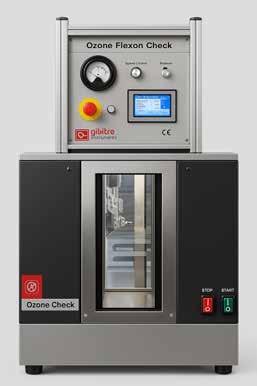

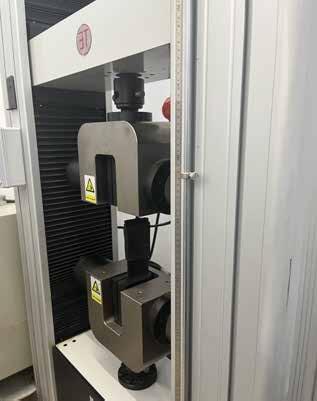

CVBTech has a fully equipped laboratory in order to control and ensure the quality of all our products for every production step. As far as we are concerned, there is no compromise when it comes to quality. This starts with the receipt and testing of our raw materials and tensile members and continues via a full inspection of every compound batch produced through to the complete testing of our semi-finished and finished products. Consequently, our customers can rest assured that they will always receive a competitive product with guaranteed quality.

General Conveying High Performance

General Conveying

General Conveying Low Abrasion

Cut and Gouge

Cut and Gouge Low Abrasion

Ultra Abrasion Resistance

Heat Resistant

Low rolling resistance

Best LRR properties

CVBtech Conveyor Belts

Packing

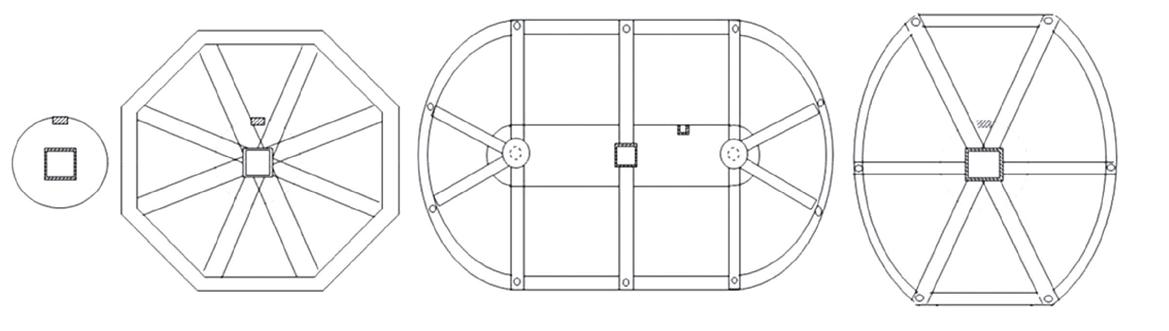

Our belts can be offered with various packaging options. These can be standard hubs, reels with wooden sidewalls, fully enclosed steel reels or oval reels with our without sidewalls.

If the packaging of your belt requires special details (e.g. special lifting points), we are ready to make it happen.
