Turn Around family

Carlotta de Bevilacqua

turn around family

Turn Around

Carlotta

de Bevilacqua 2019

Turn Around inverts the approach to the light system, starting from the principles of sustainability, reduction, lightness, integration, optoelectronic intelligence, application freedom and interaction.

It is a combination of different structural and lighting solutions that adapt to last-minute space thanks to its minimal section. It is a composition based on a very small track, with a patented section dictated by the standard thickness of plasterboard, meaning it can be inserted into the available space in any situation.

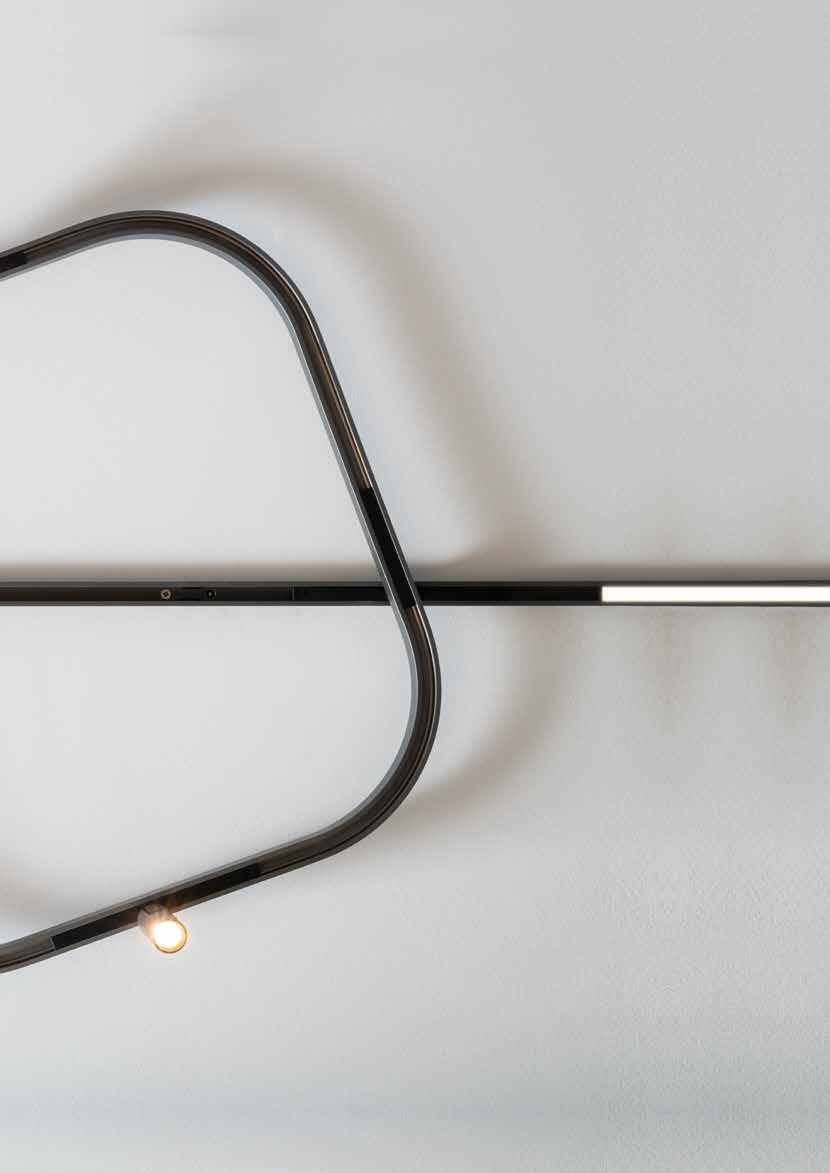

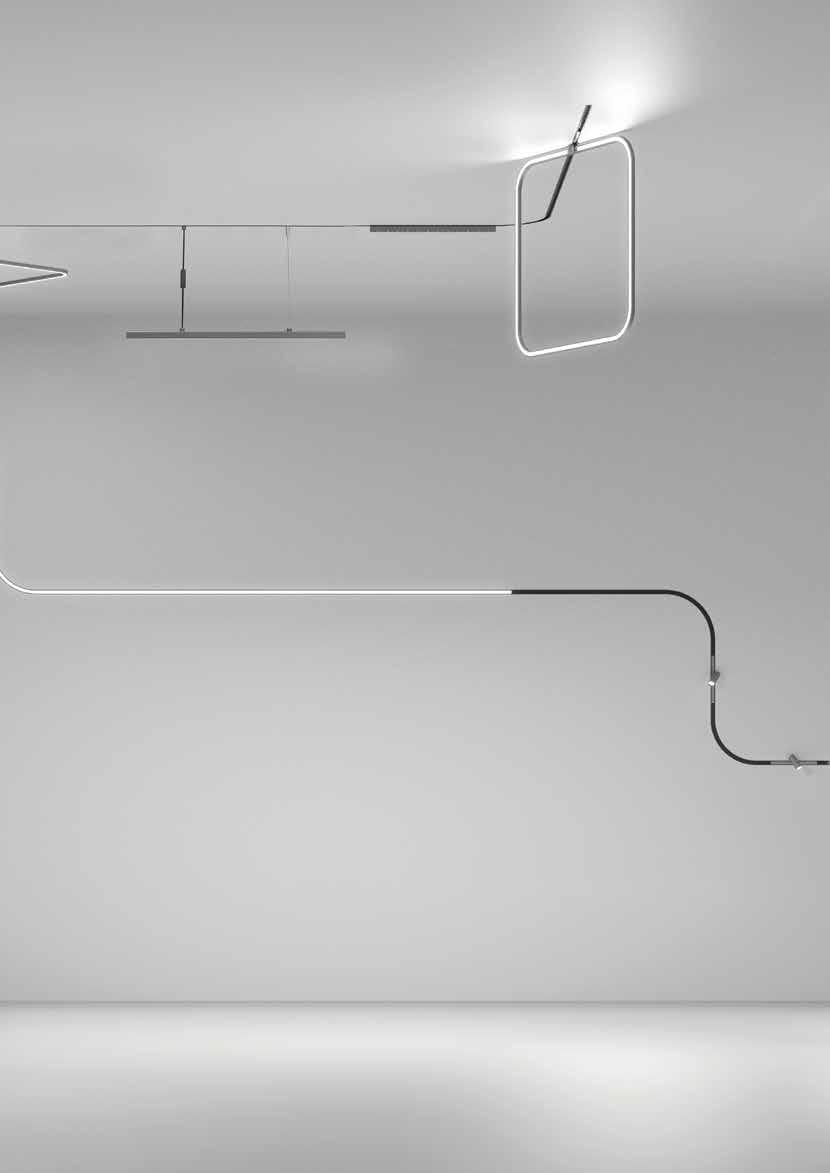

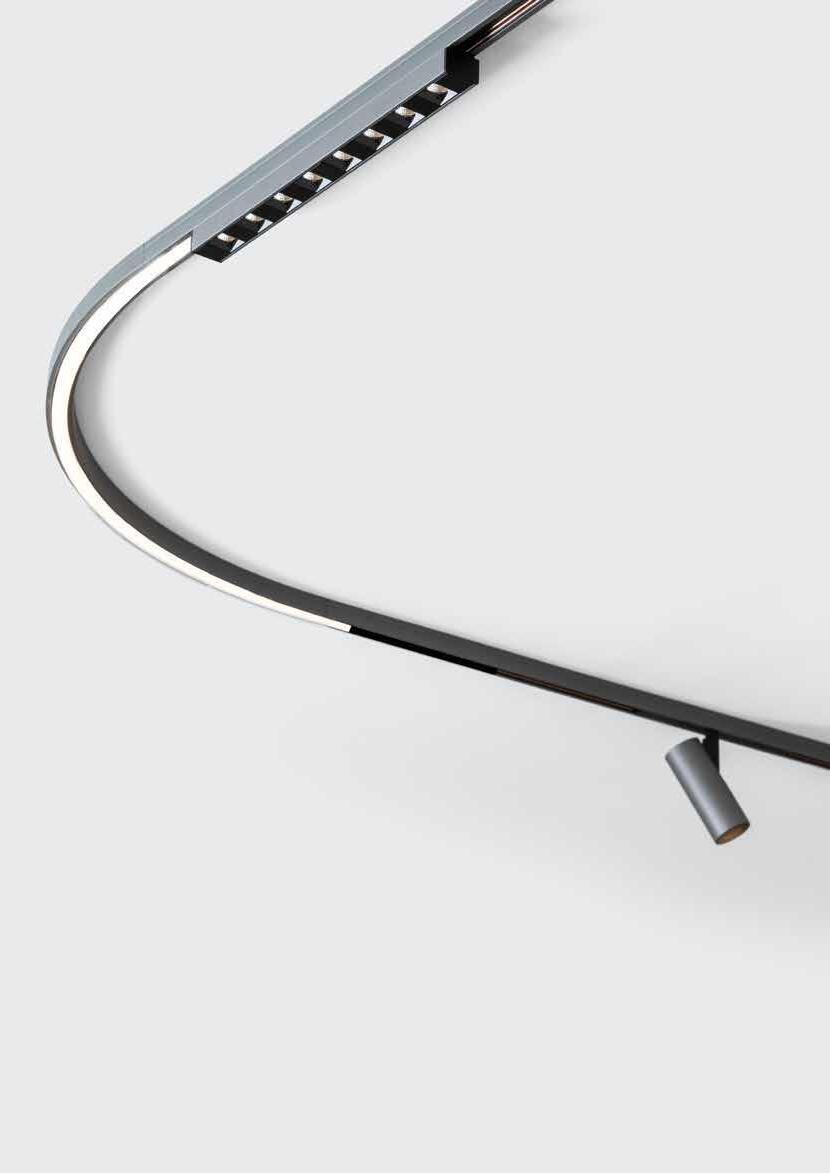

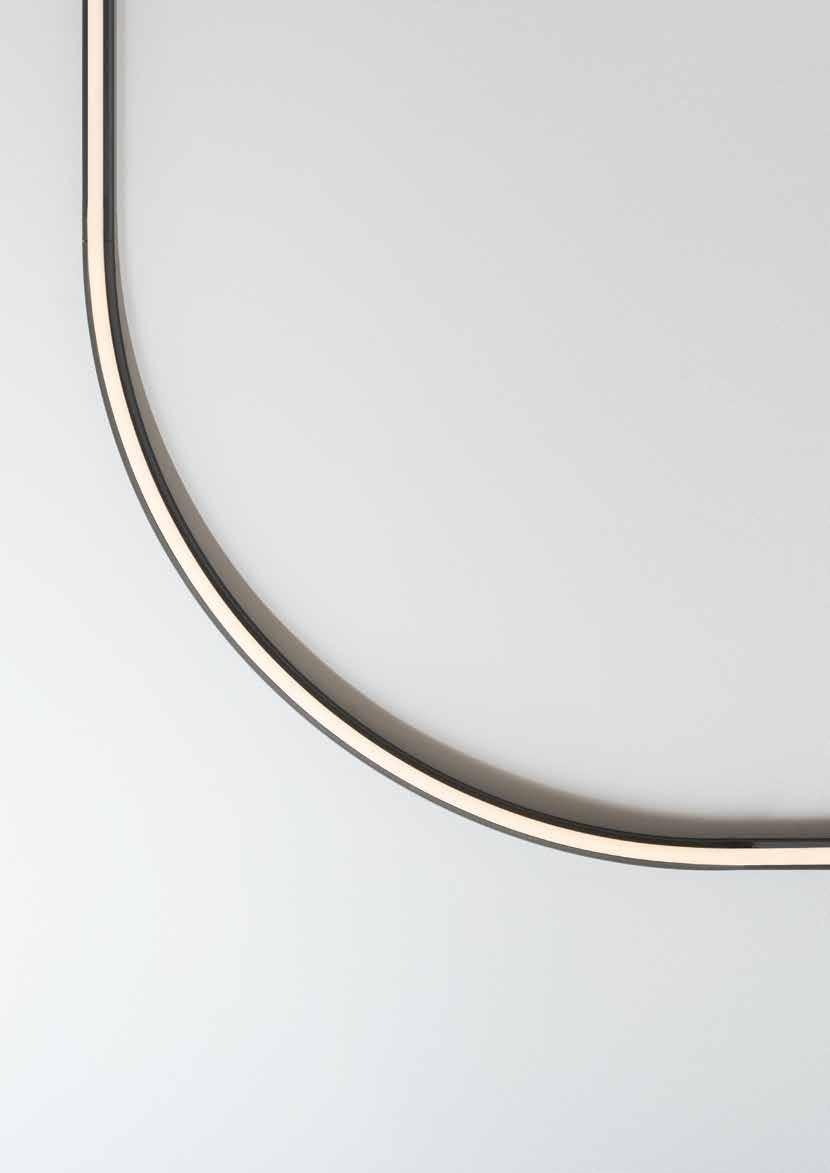

Various linear, 90° angle and curved modules can be combined with electrical and mechanical continuity, availing of the utmost freedom to create every different shapes.

PATENT OF INVENTION: ELECTRO-MECHANICAL SECTION

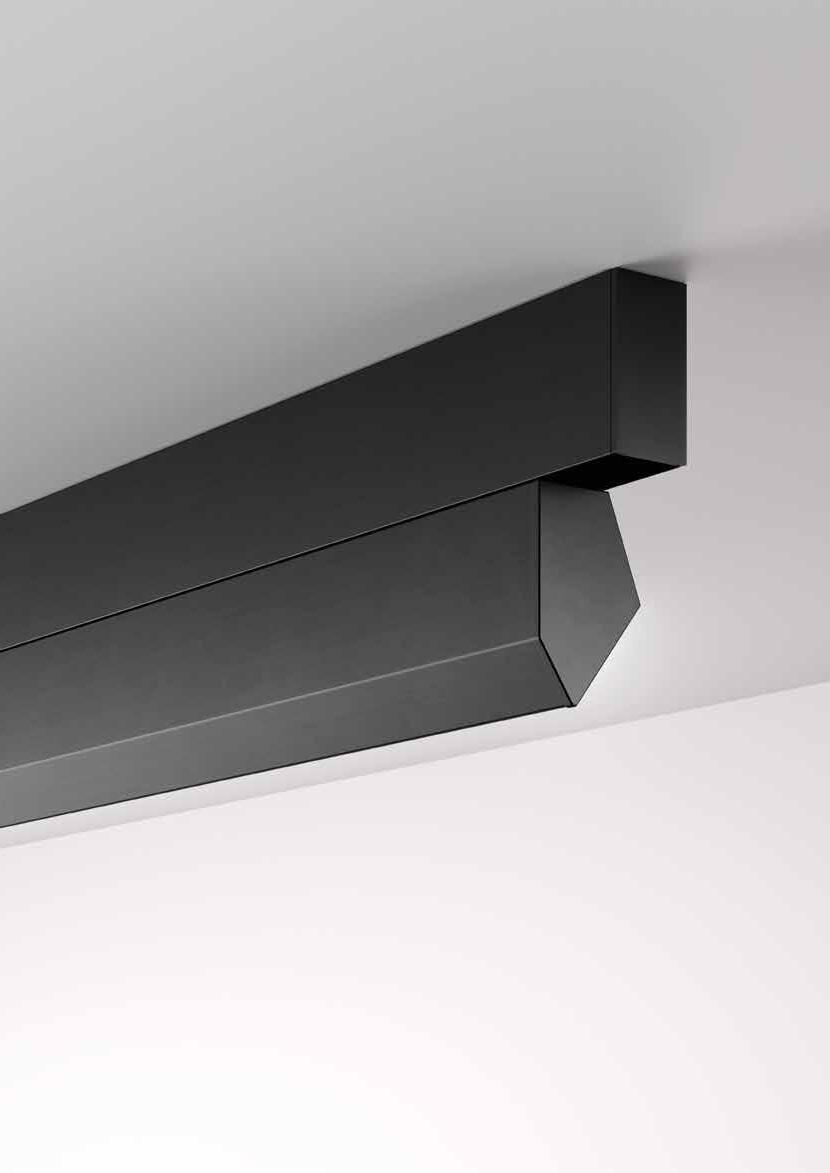

PATENT OF INVENTION: SHARP

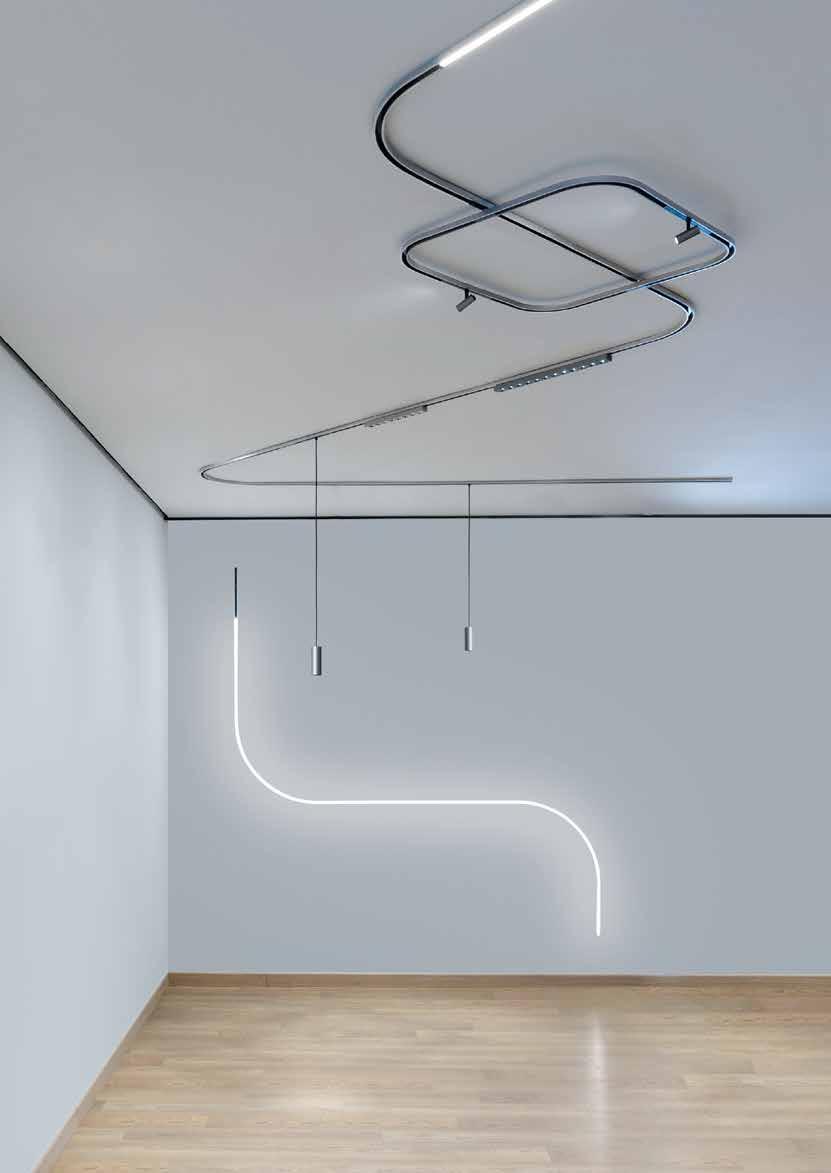

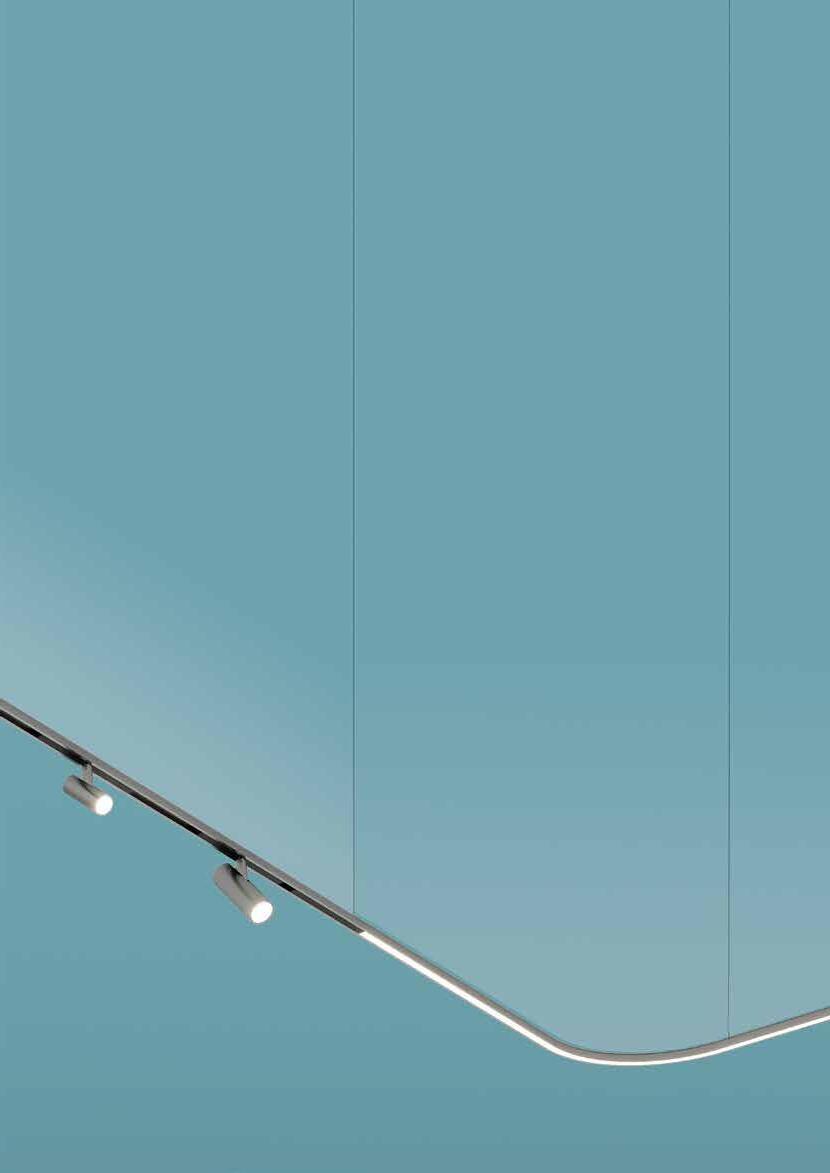

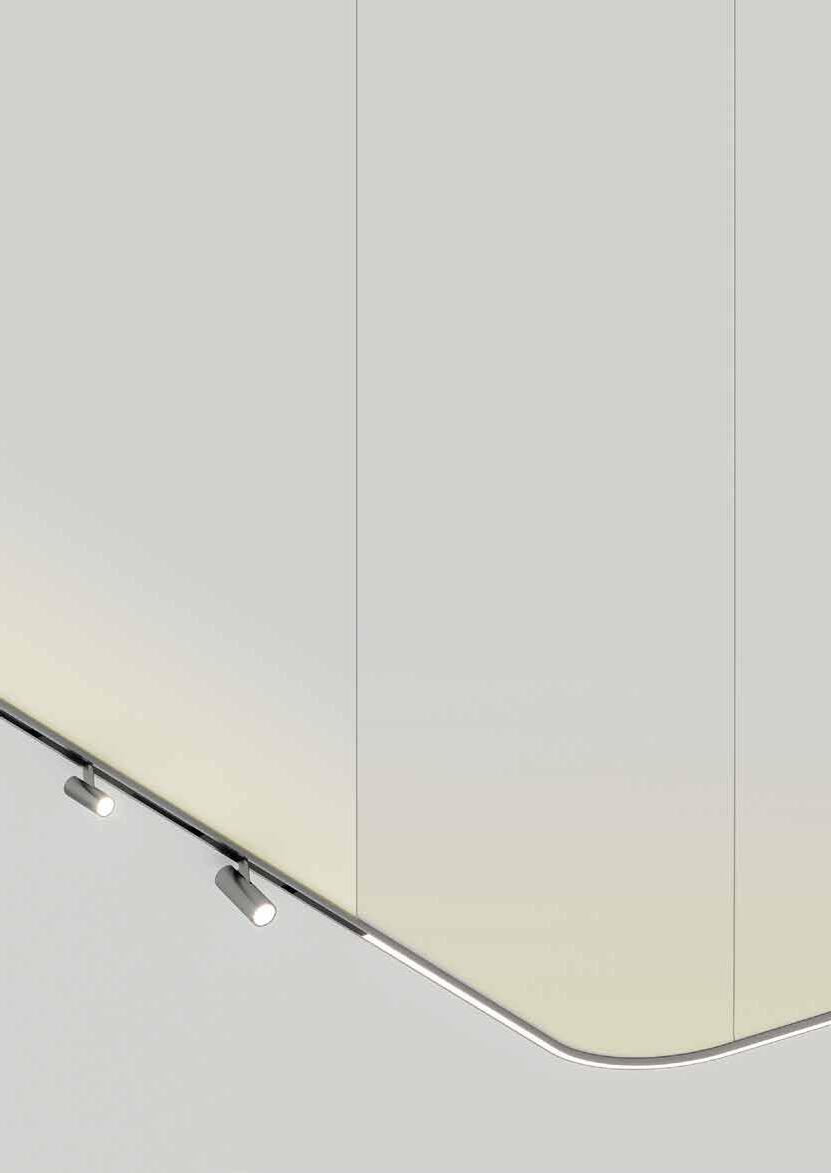

Turn Around is an innovative system

The freedom to design light in space is ensured by the flexibility to combine different geometries within the structure and also by the possibility to integrate different performances.

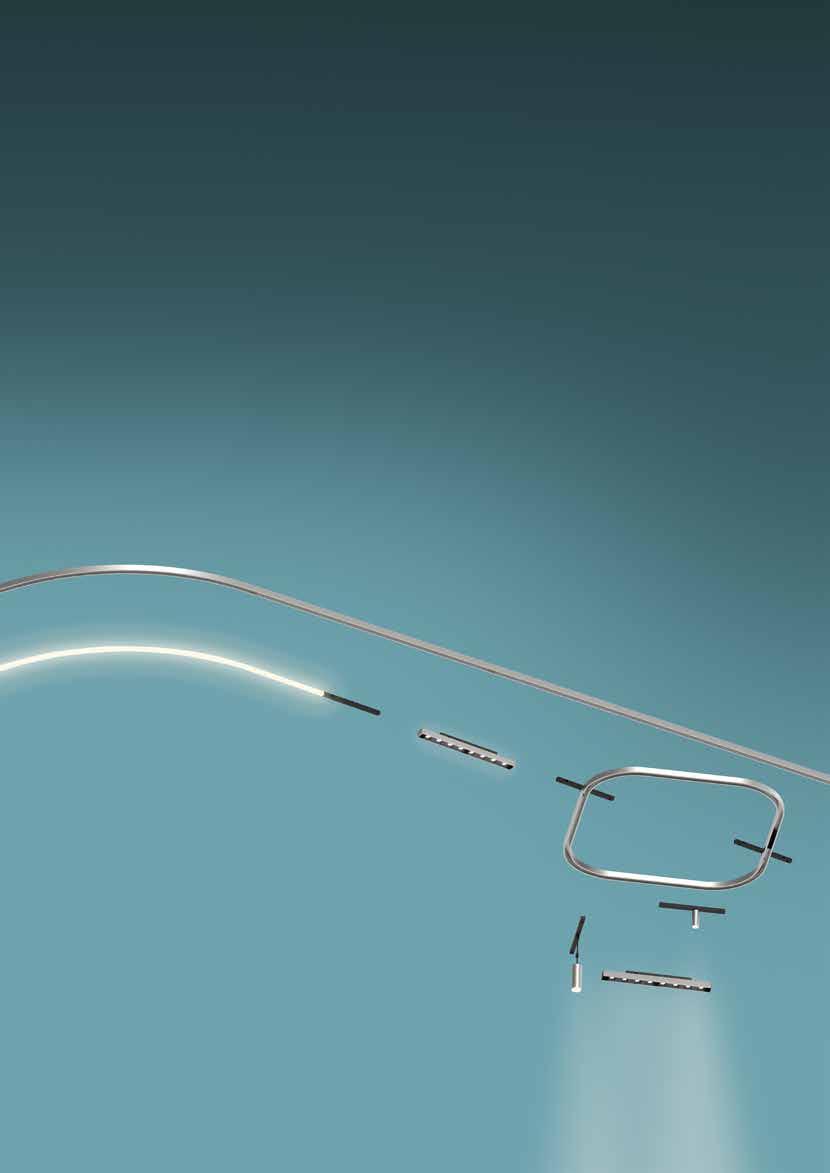

Indeed, the same track can accommodate a linear module for diffused light, plus sharping, spot and suspension modules.

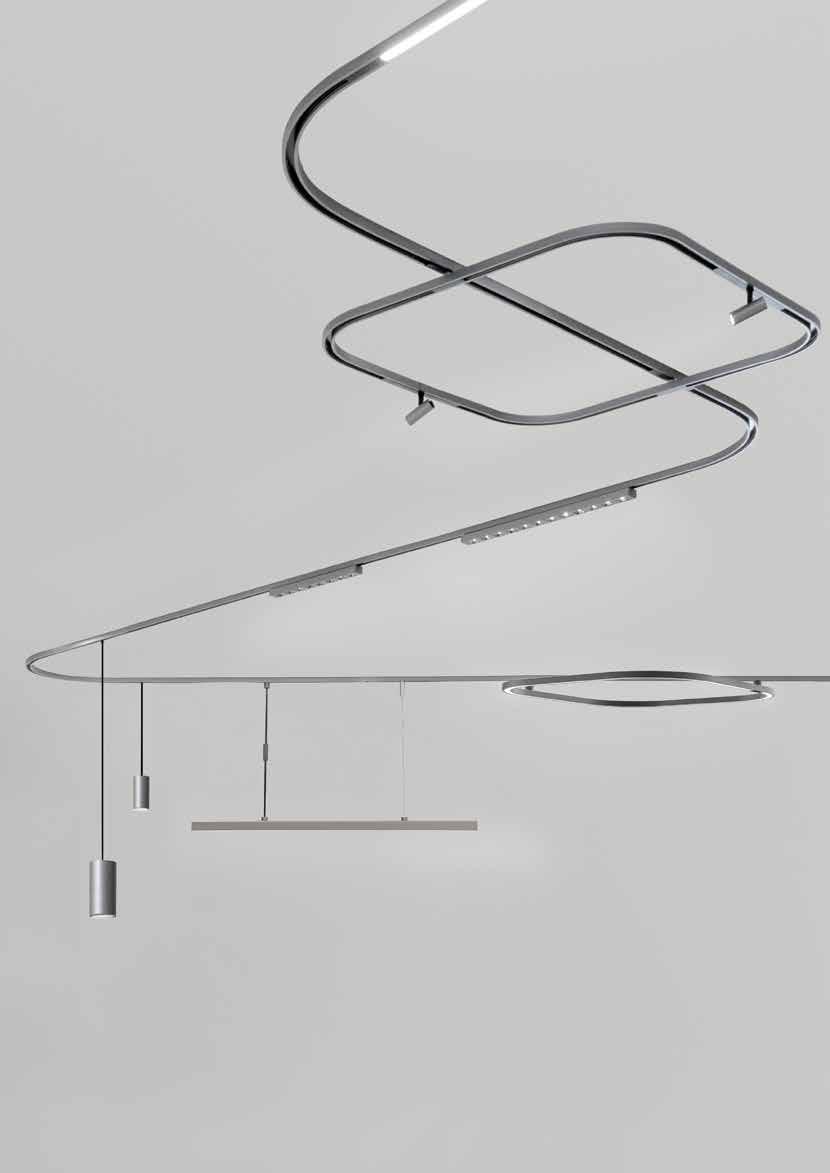

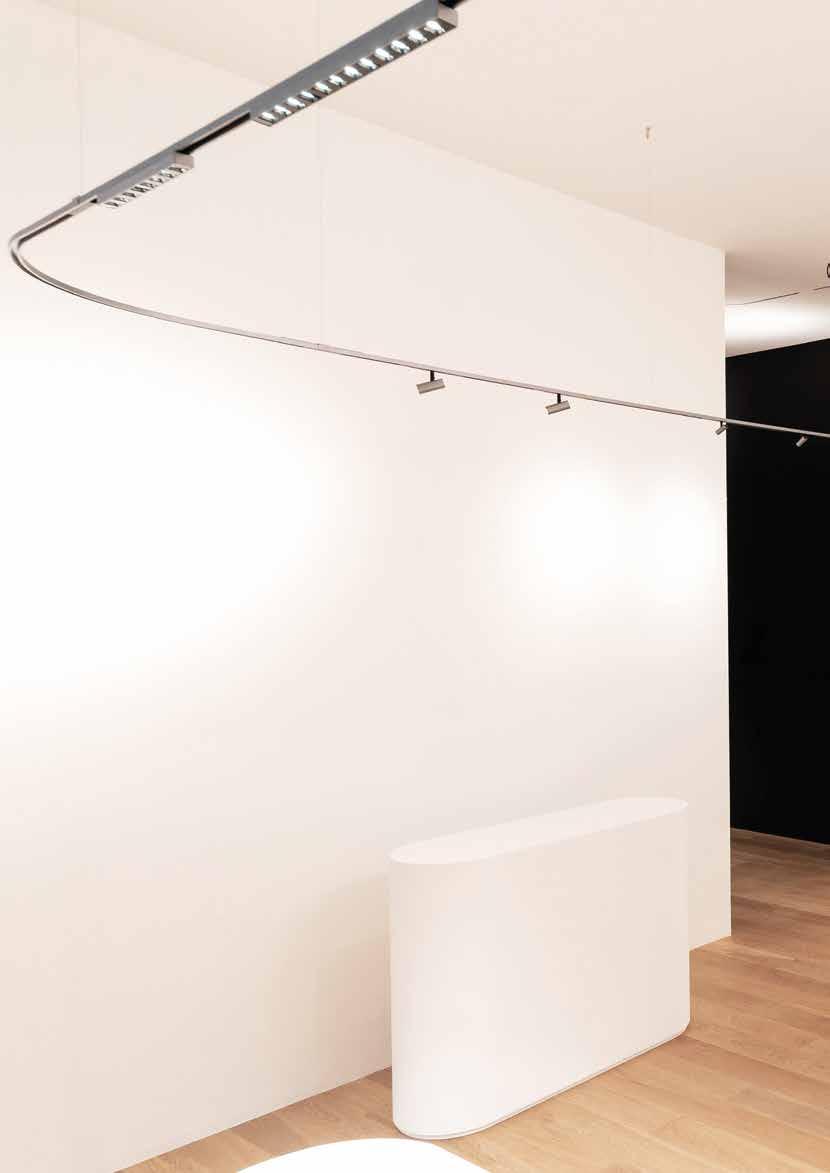

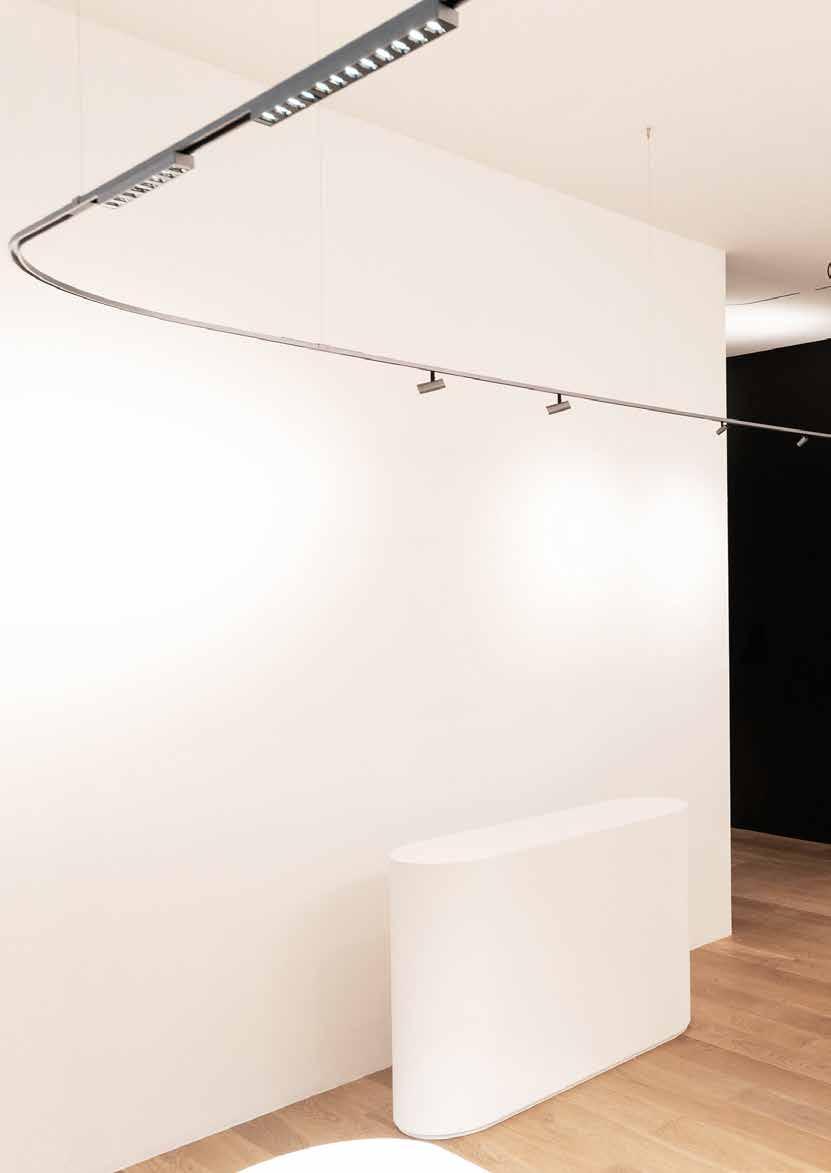

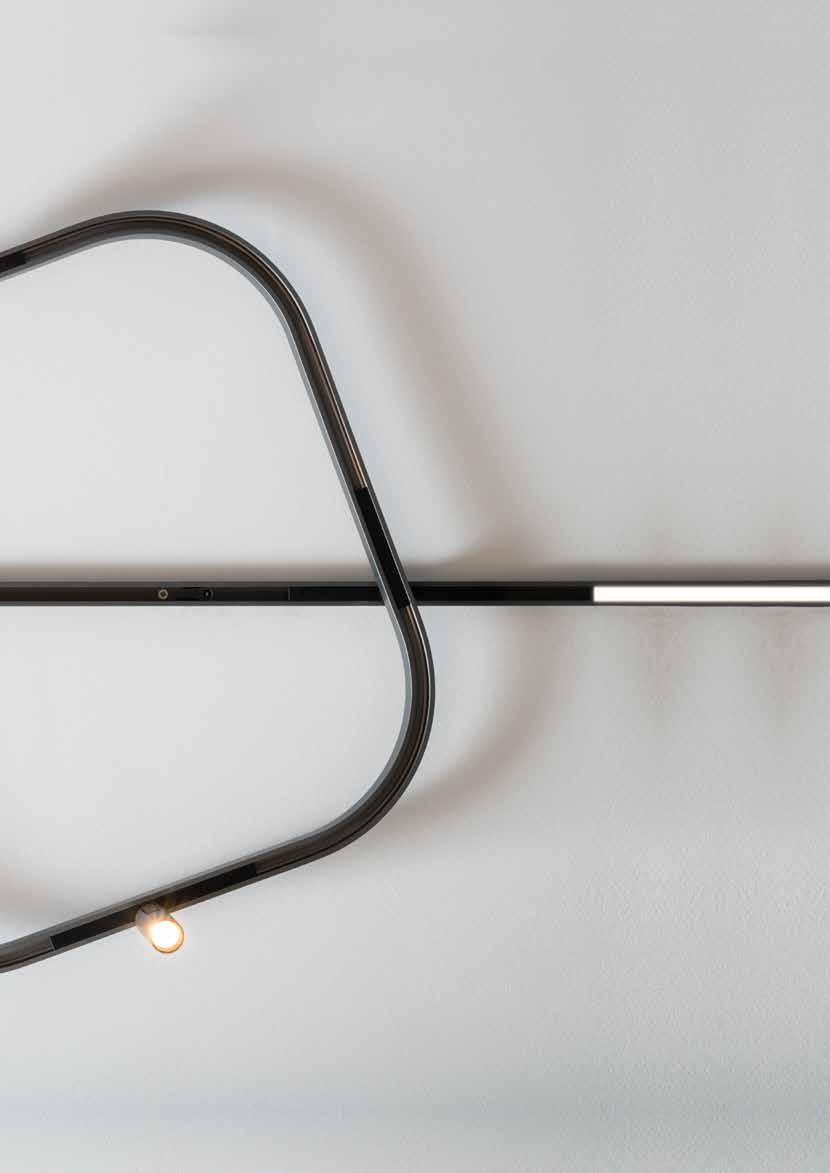

Turn Around is extremely flexible

Geometrical flexibility

Performance flexibility

Management flexibility

Reduce to innovate

Energetic Infrastructure

A single continuous energetic infrastructure that accommodates various light performances.

48V

Powered at 48V, there are no practical length limits of the system but only of installed power.

Electronic Bridge

An “invisible” joint permits to transfer power and D.Art from one section to the following, allowing the possibility to insert endless diffused flexible modules.

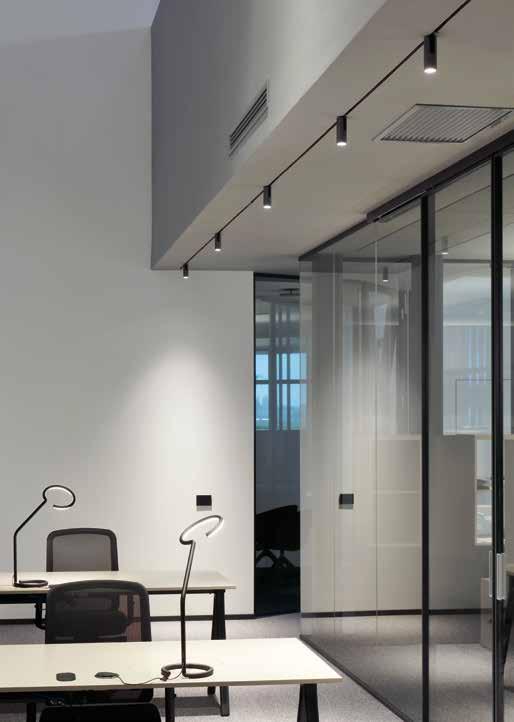

Asserting one’s spatial freedom

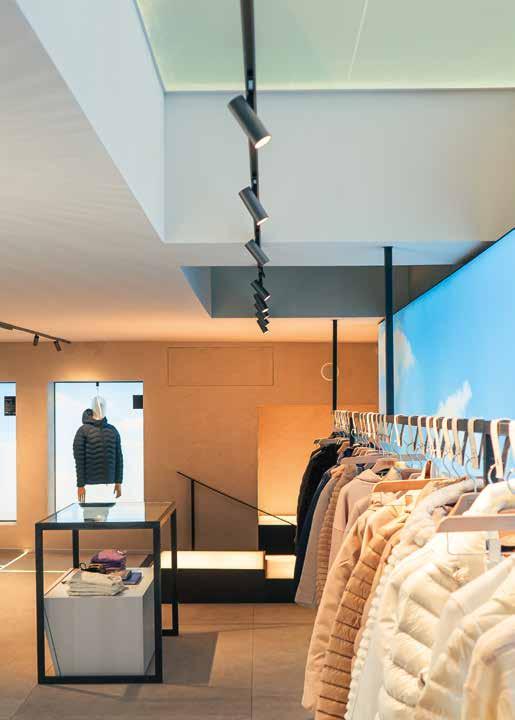

Challenging the fundamental sustainability

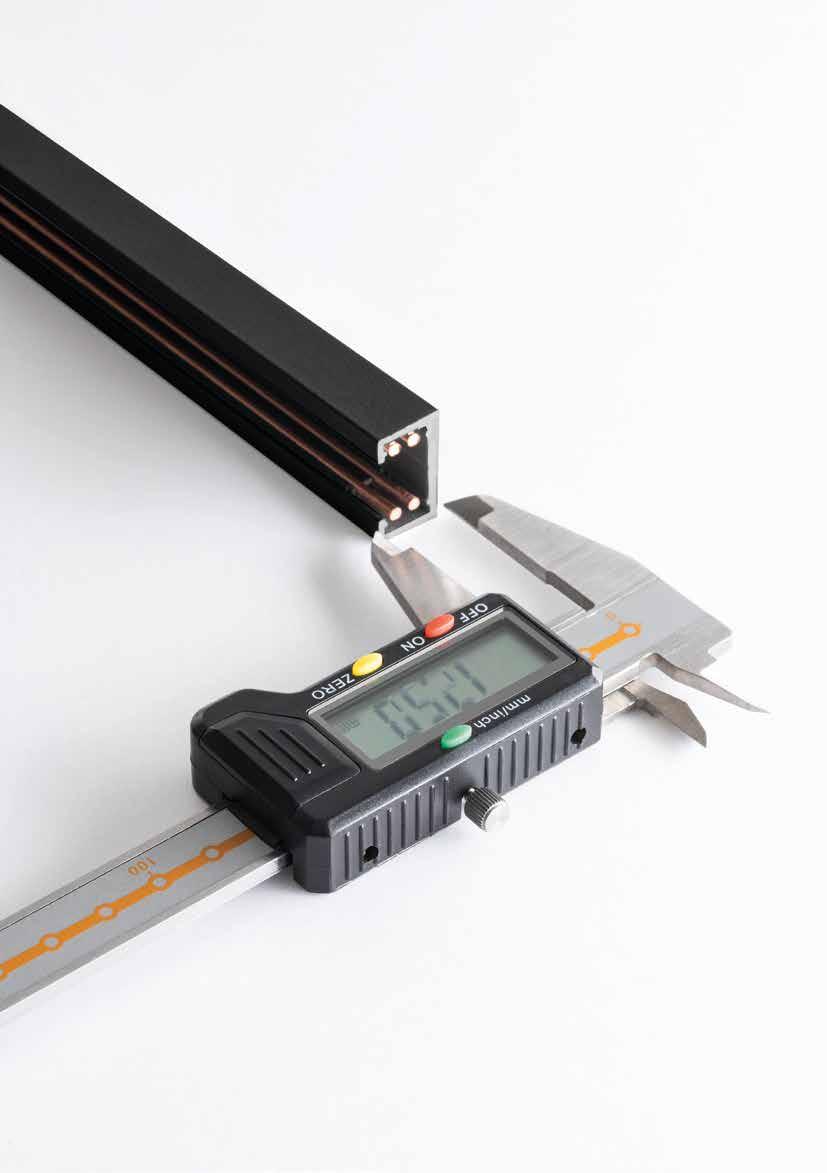

h 12.5 X 23 mm for recessed version

Profile dimensions can be integrated into the standard plasterboard thickness without interfering with the structural warping.

Recessed / SMD / suspension

The profile is integrated into the space in the built-in, ceiling and suspension versions.

→ False ceiling scheme

Structural Warping

Plasterboard - 12.5 mm thickness

Structural Warping

Turn Around infrastructure

Integrating different performances

Track 48V

23 x h 12,5 mm (Recessed)

22 x h 18 mm (SMD, suspension direct)

22 x h 31 mm (Suspension direct+indirect)

1000/2000/3000 mm

Black (Recessed)

Titanium (SMD, Suspension)

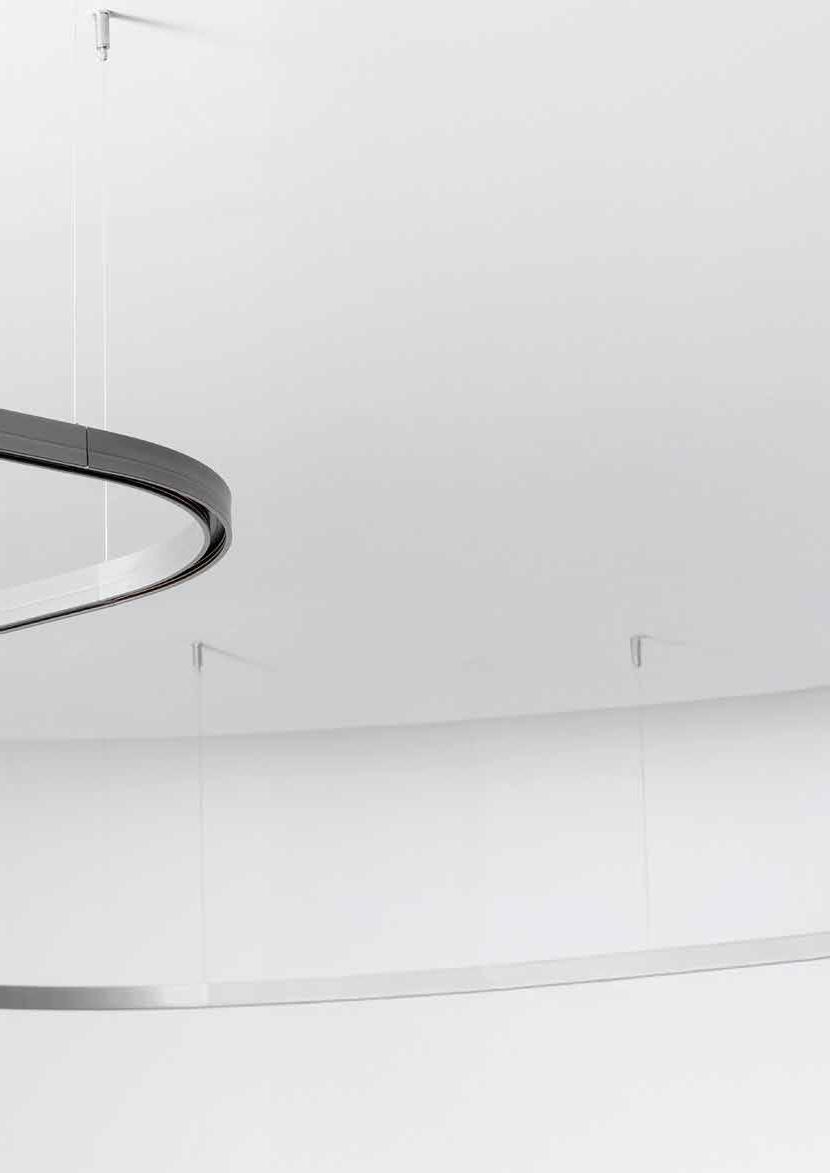

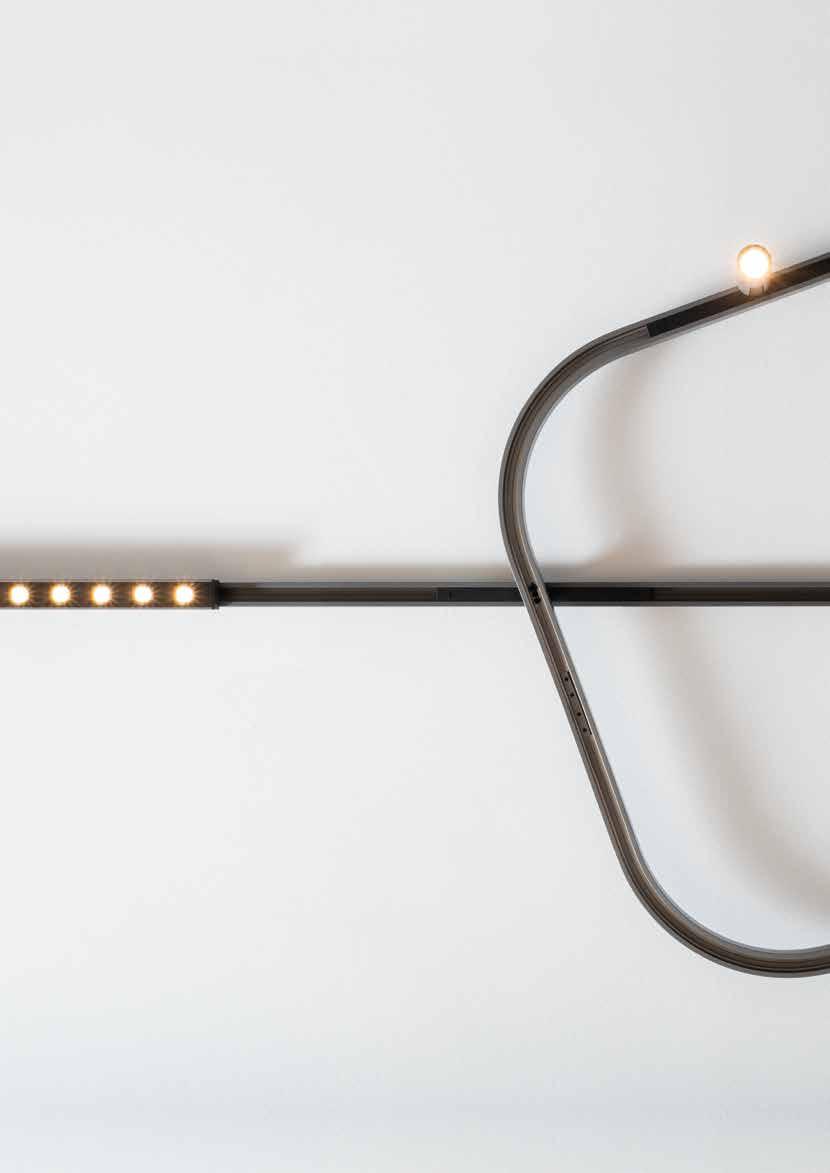

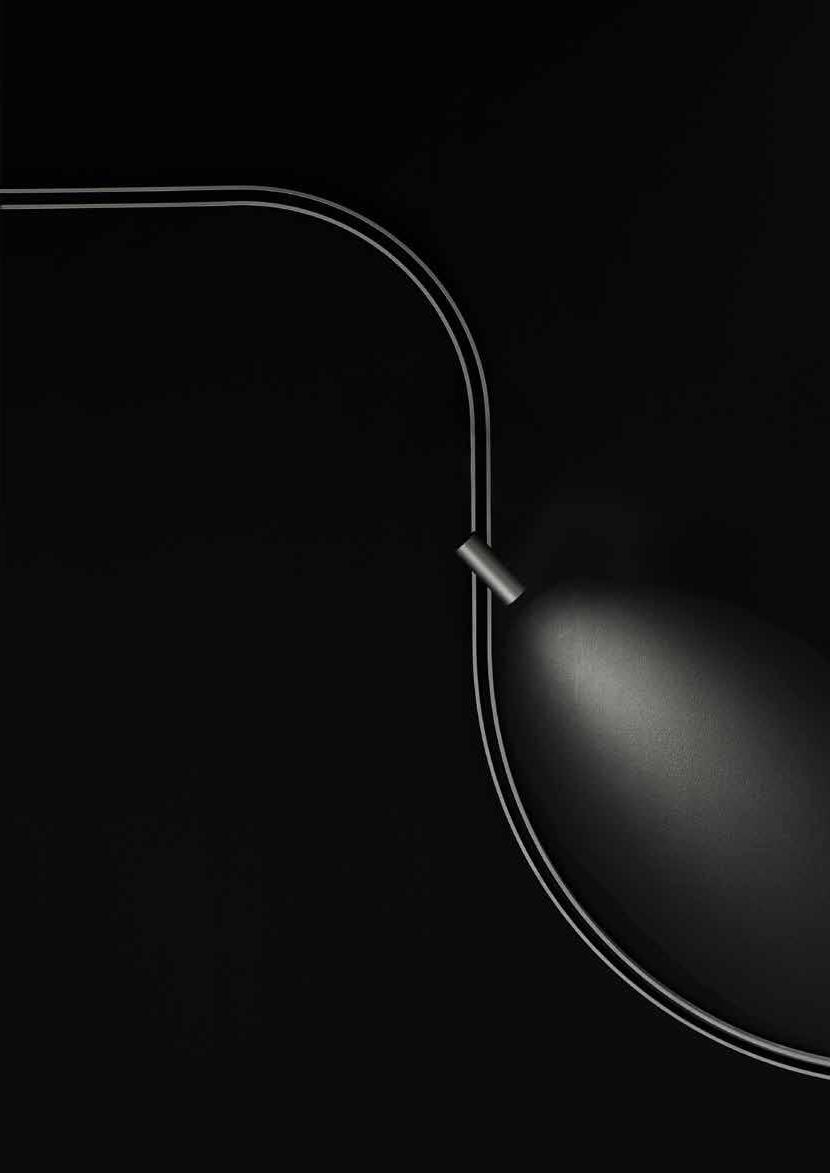

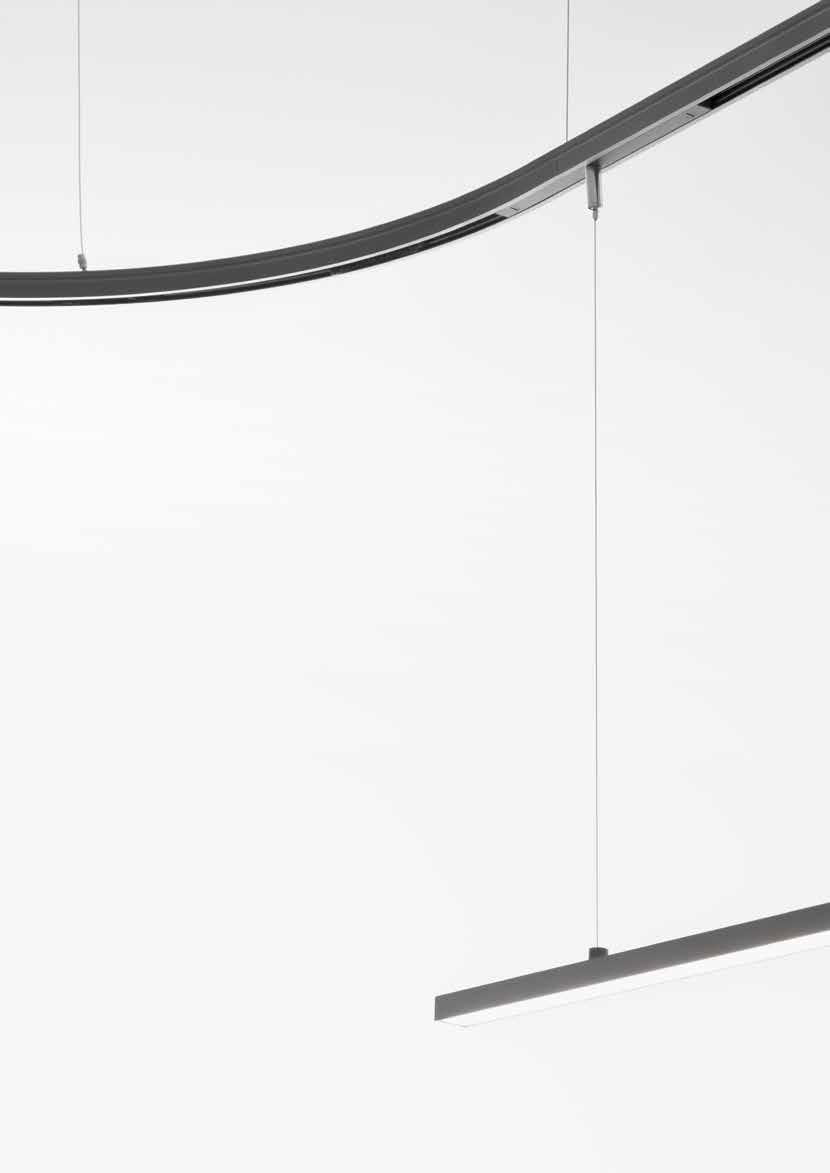

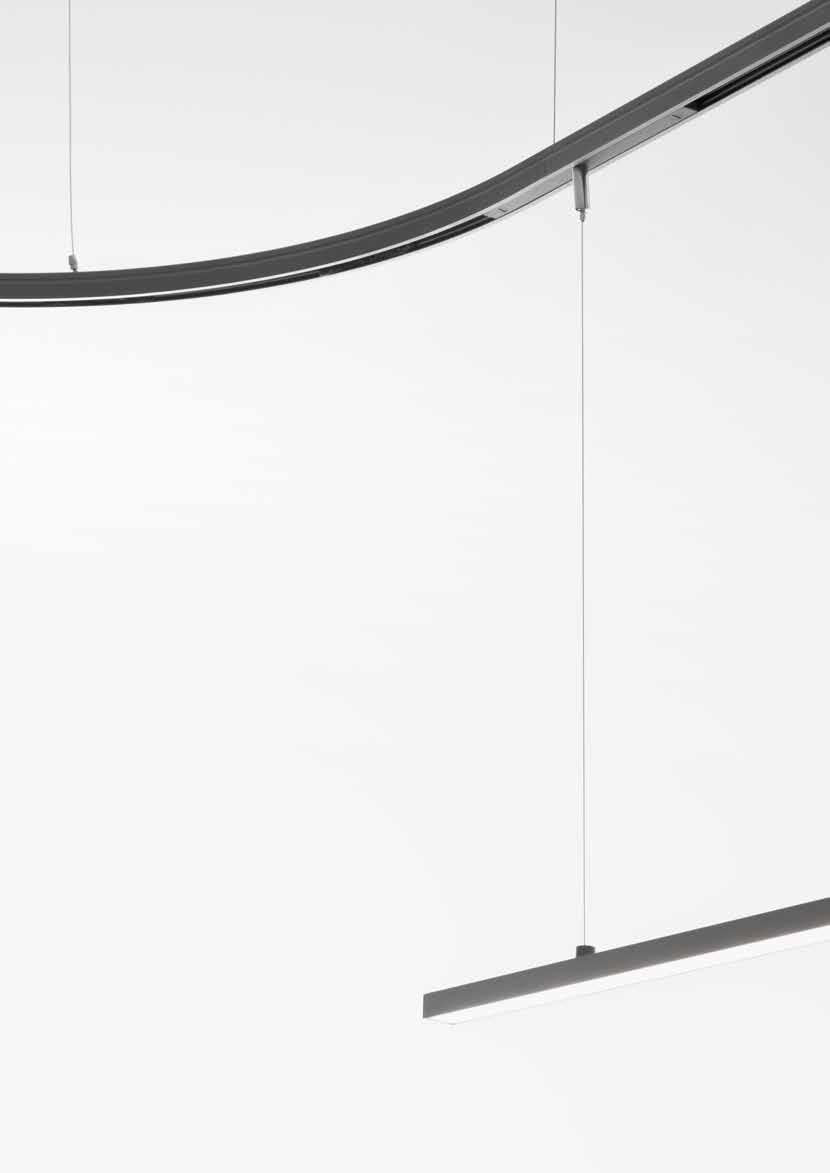

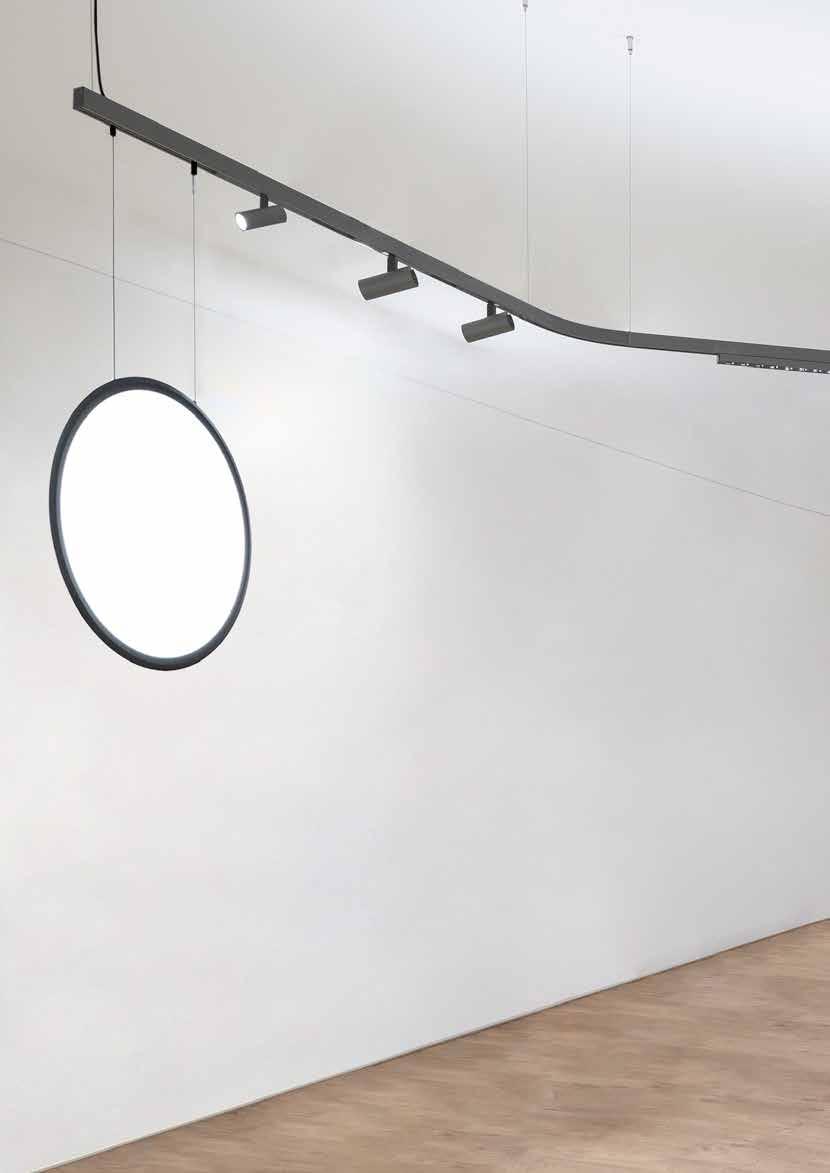

Angular and curved elements

Curves: 90°

Rays: 700 mm, 470 mm, 270 mm

Curves: 60°

Rays: 700 mm, 470 mm, 270 mm

Linear elements Recessed

1000 mm

2000 mm

3000 mm

Linear elements SMD - Suspension direct emission

1000 mm

2000 mm

3000

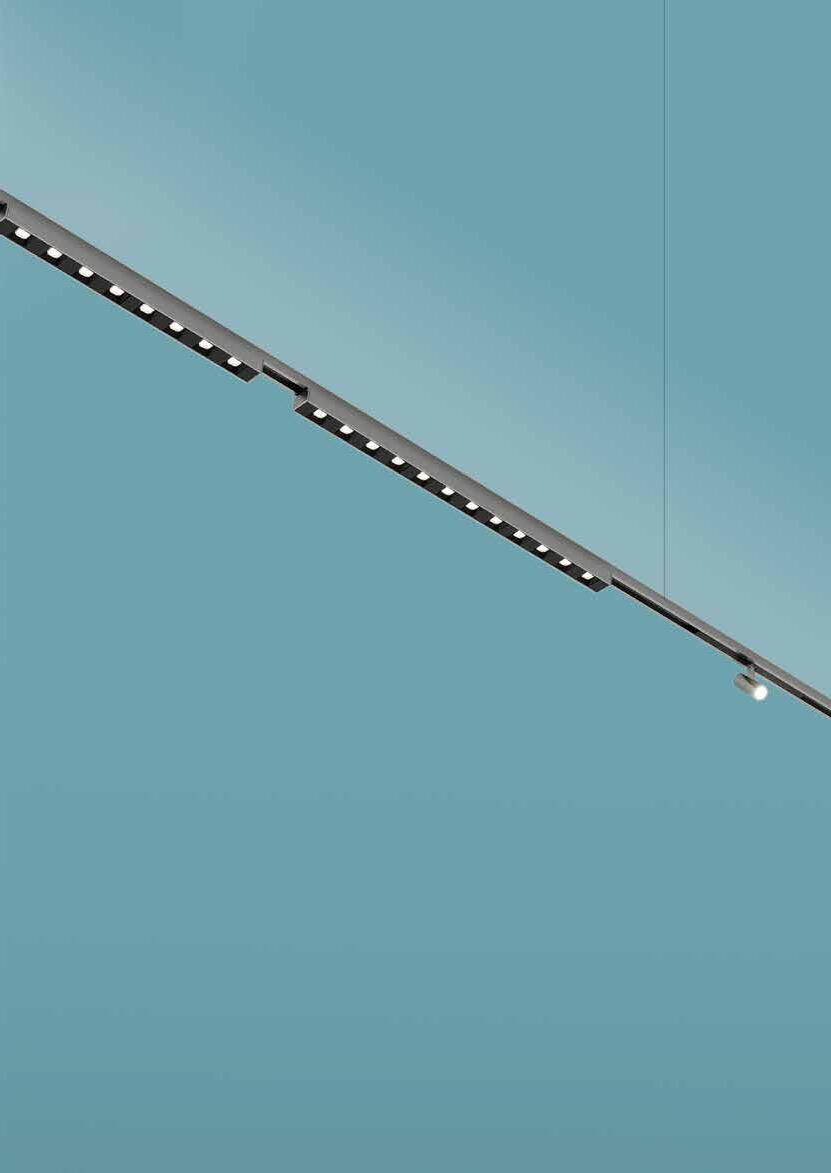

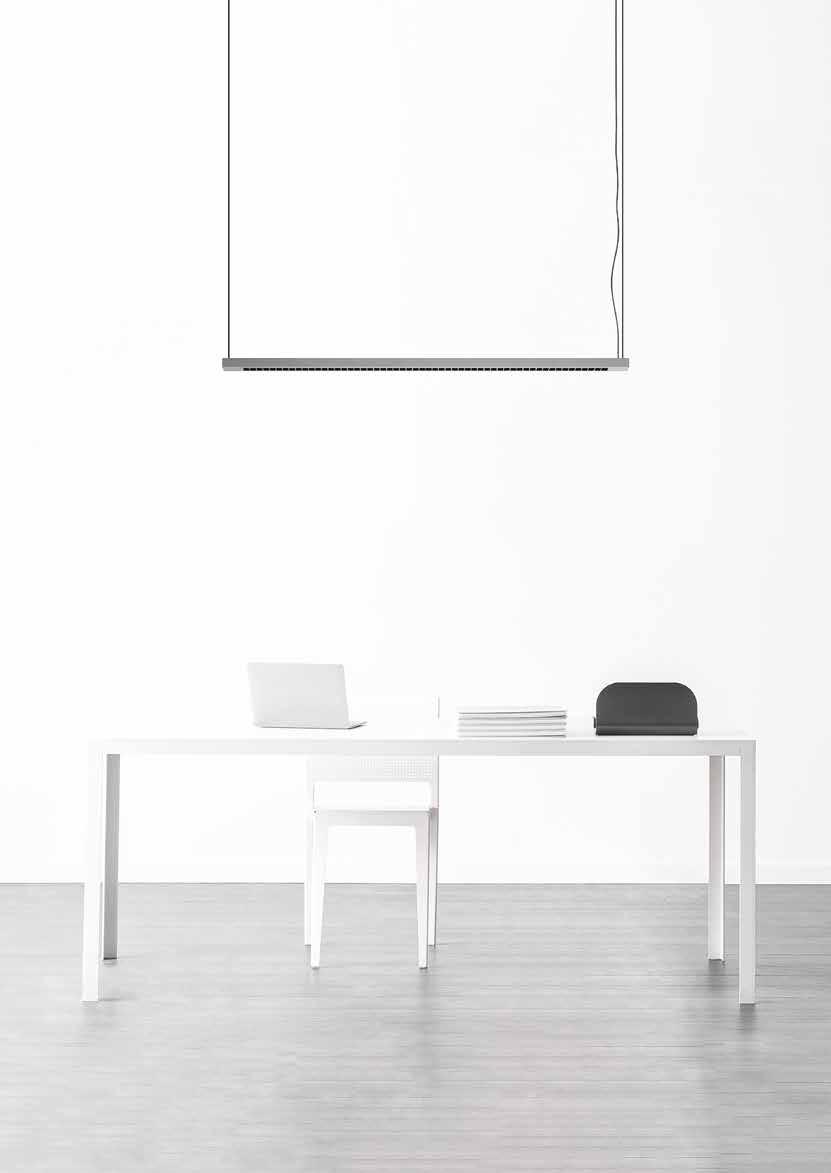

Linear elements Suspension direct + indirect emission

1000 mm

2000 mm

3000

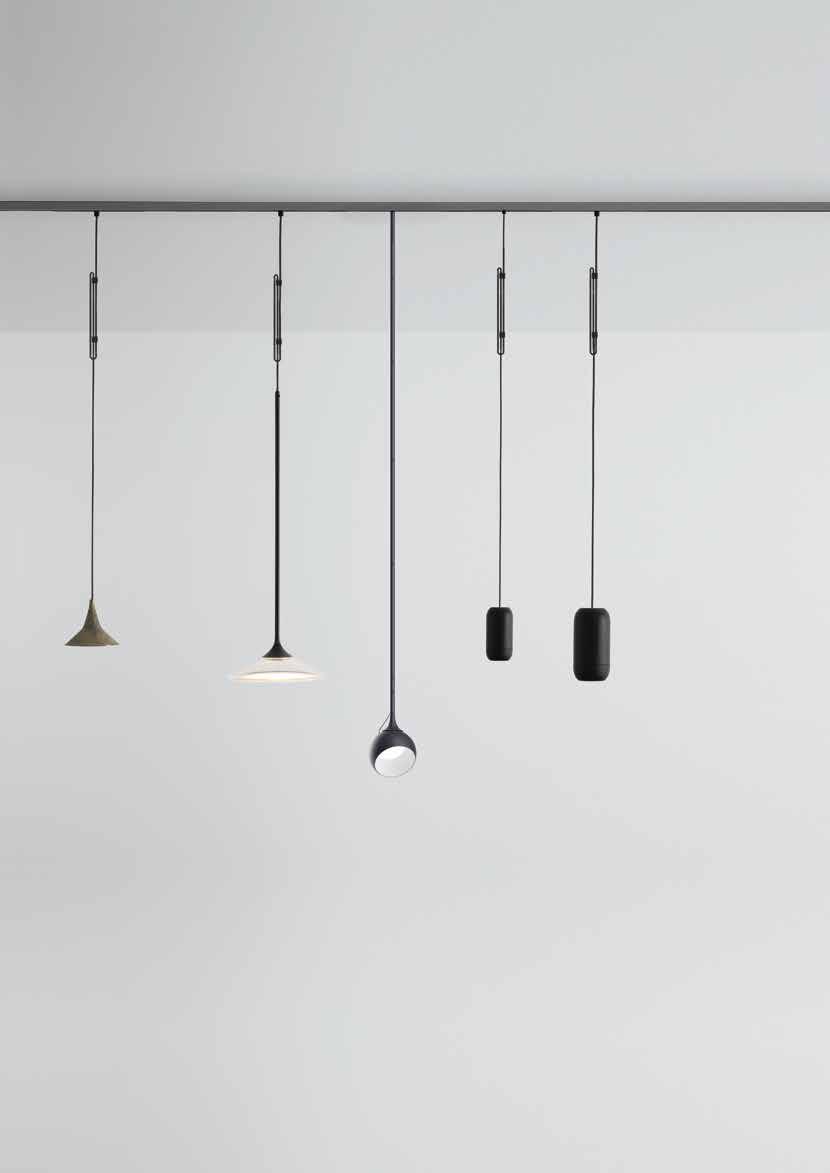

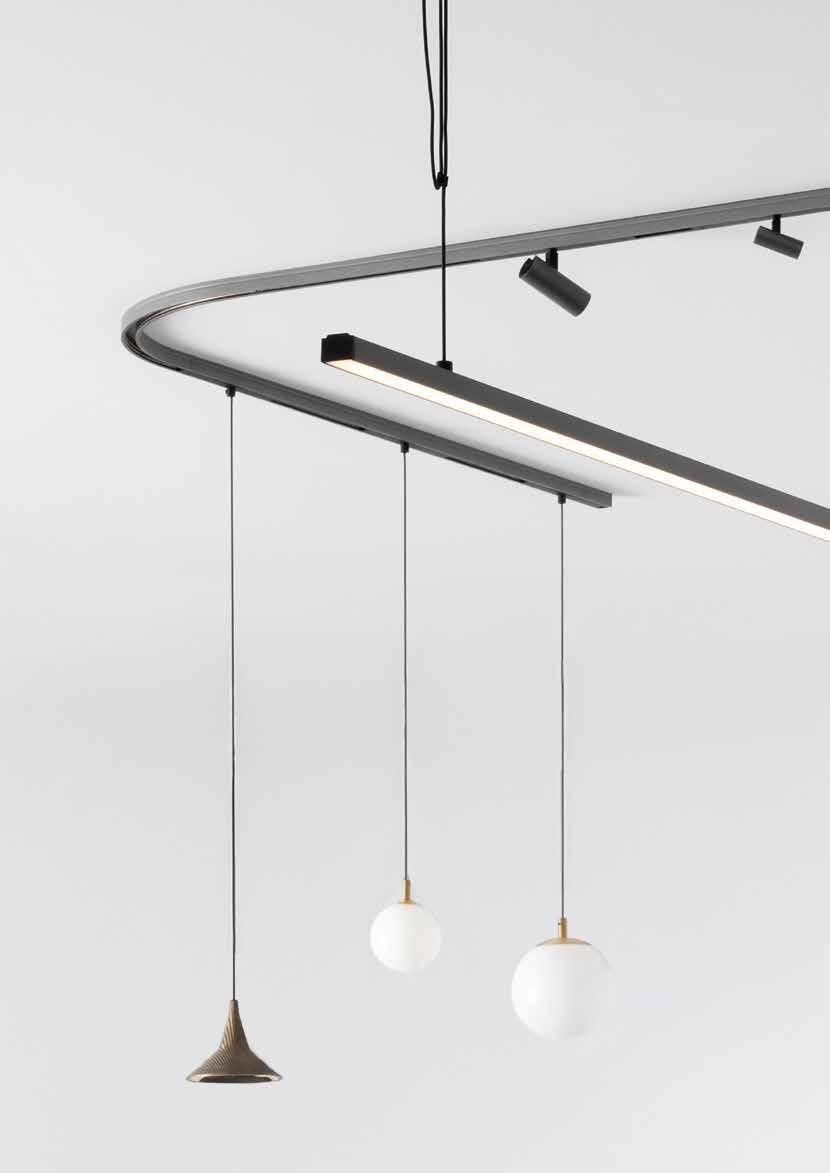

One body for all the light appliances

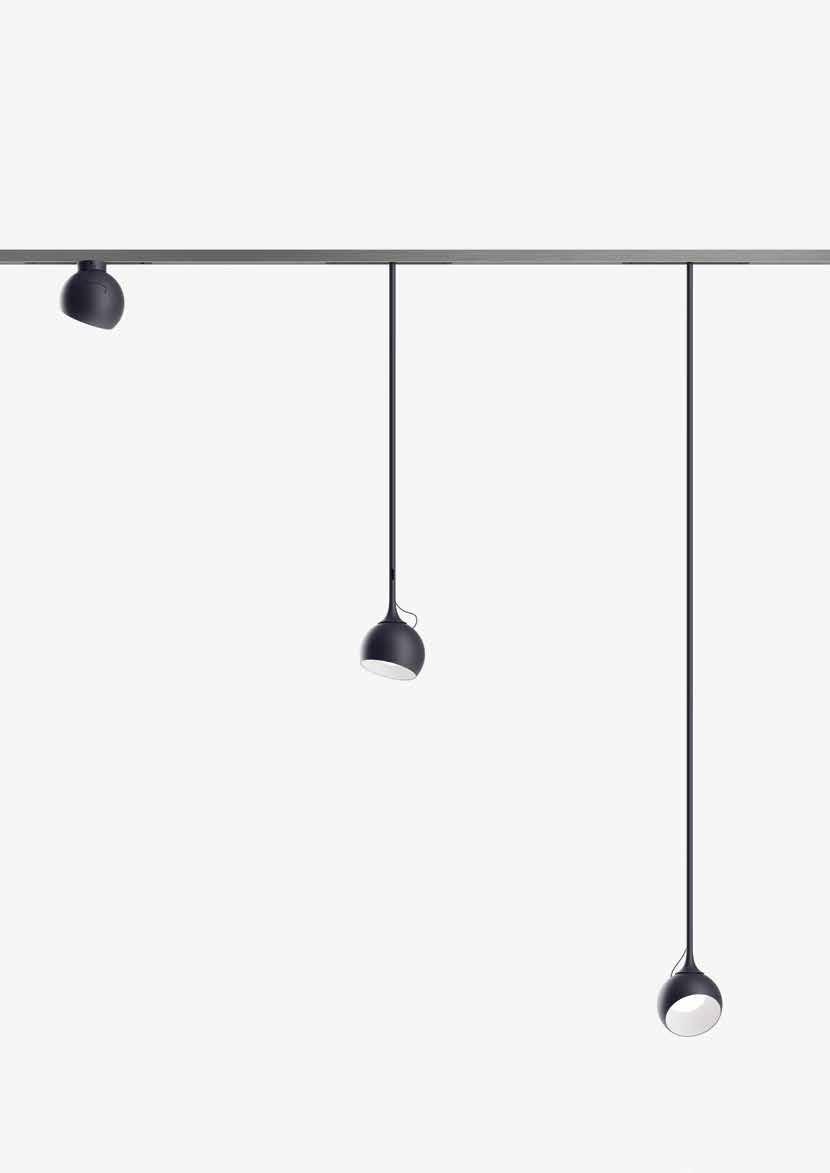

Vector Vector pendant Square

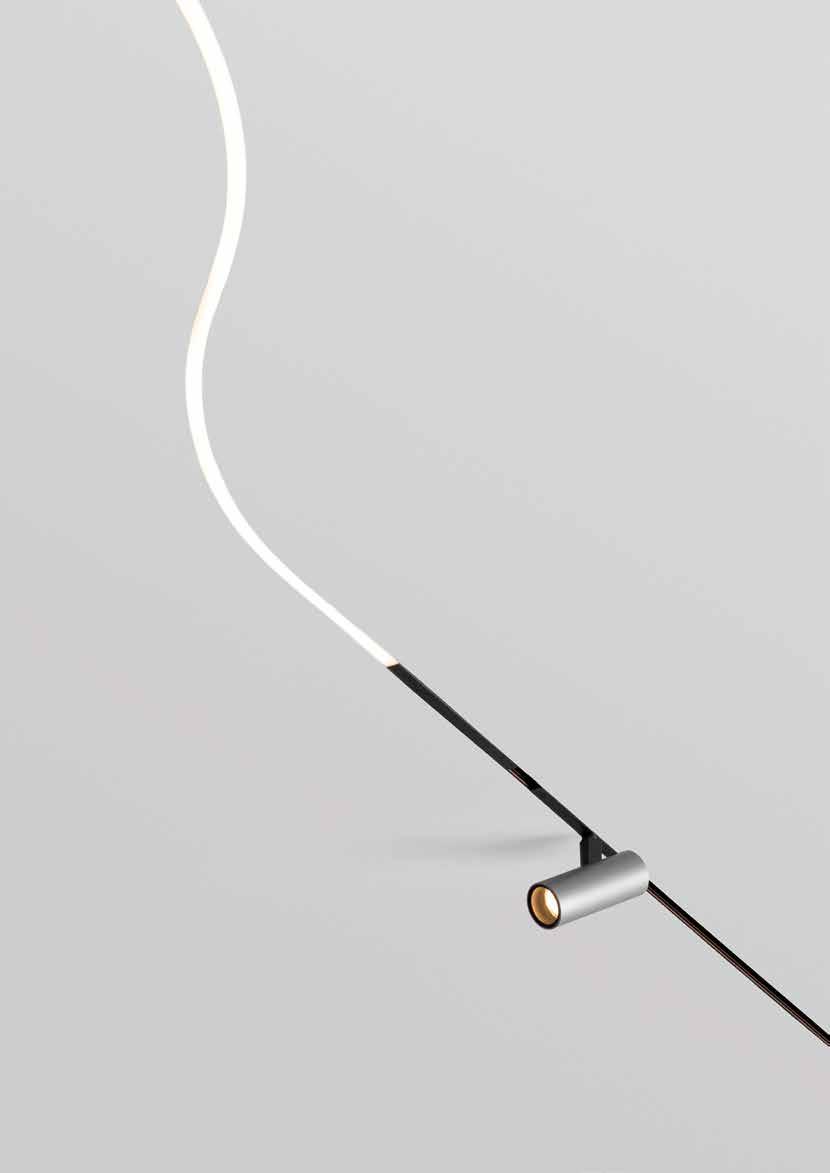

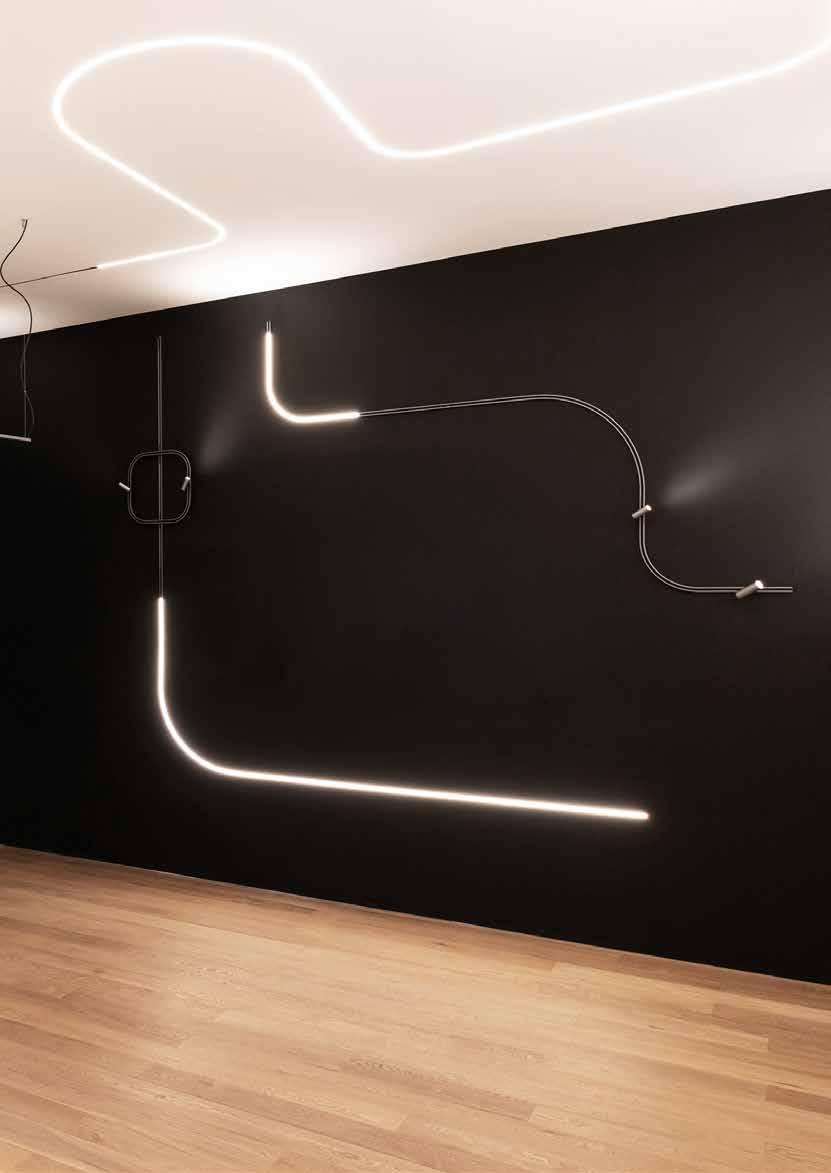

Diffused flexible module

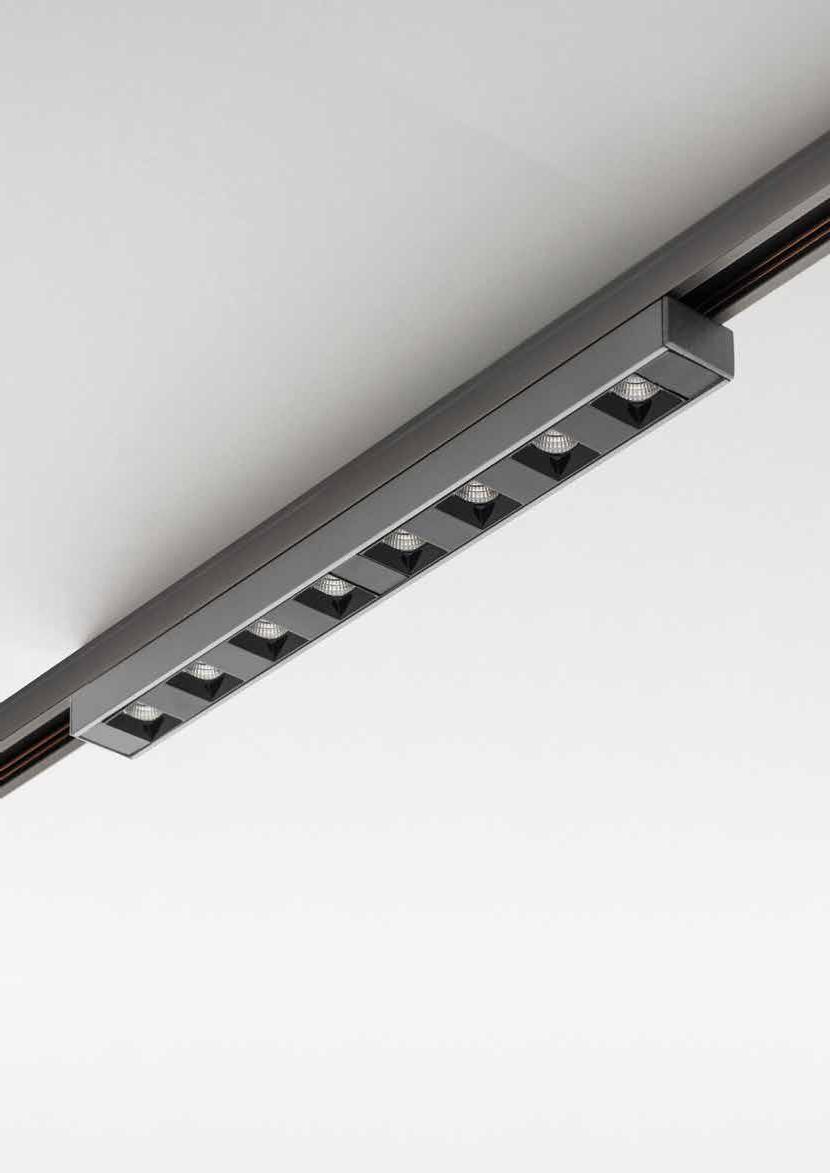

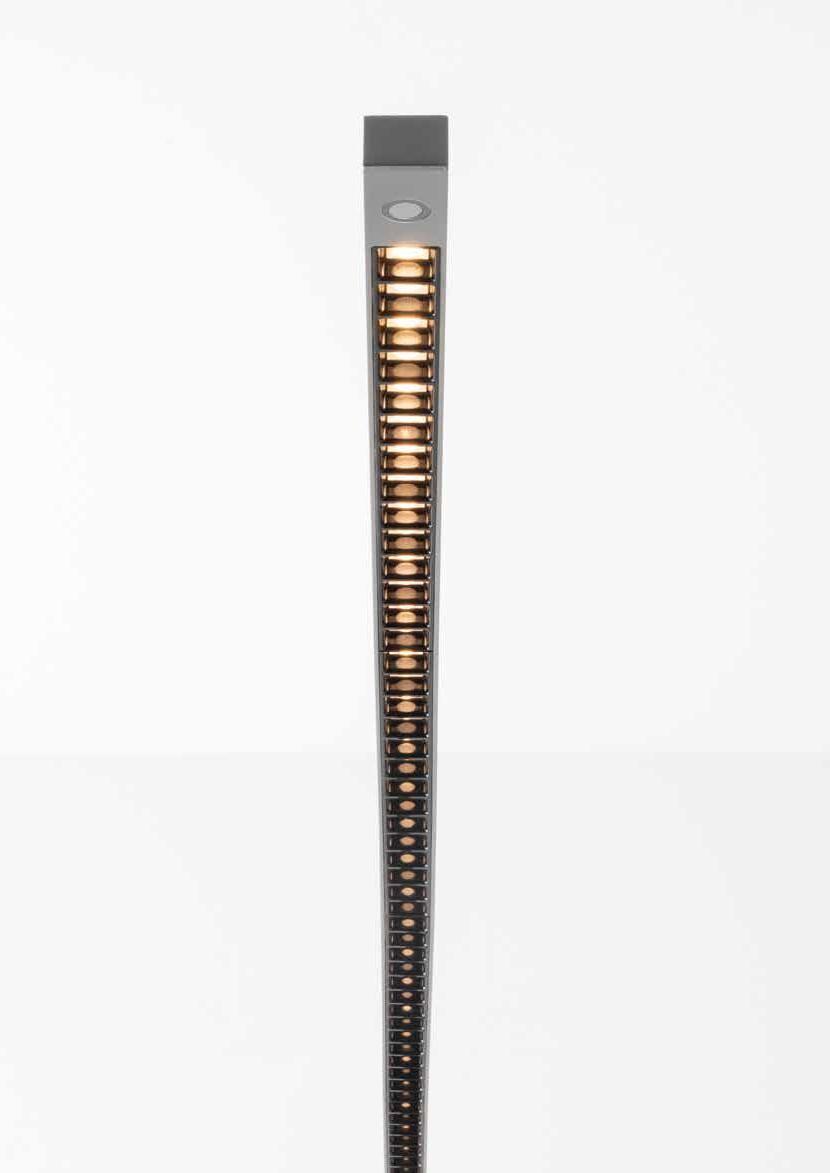

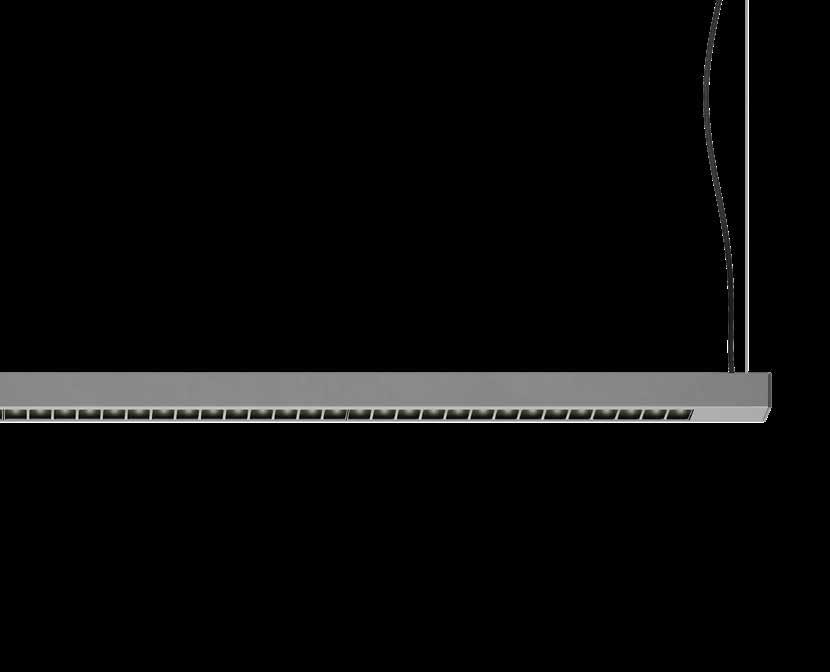

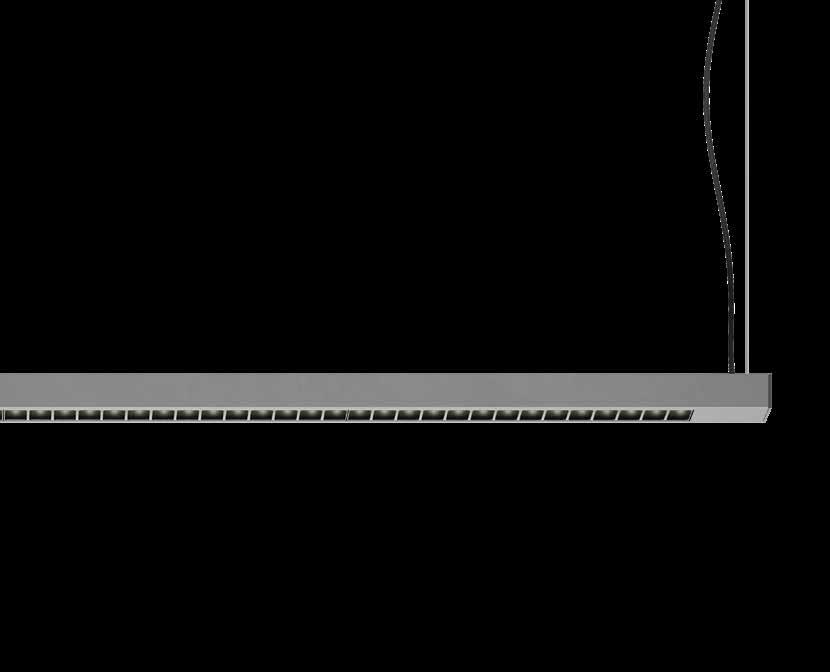

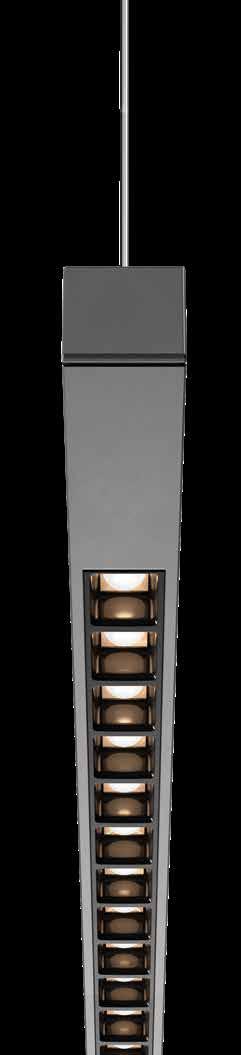

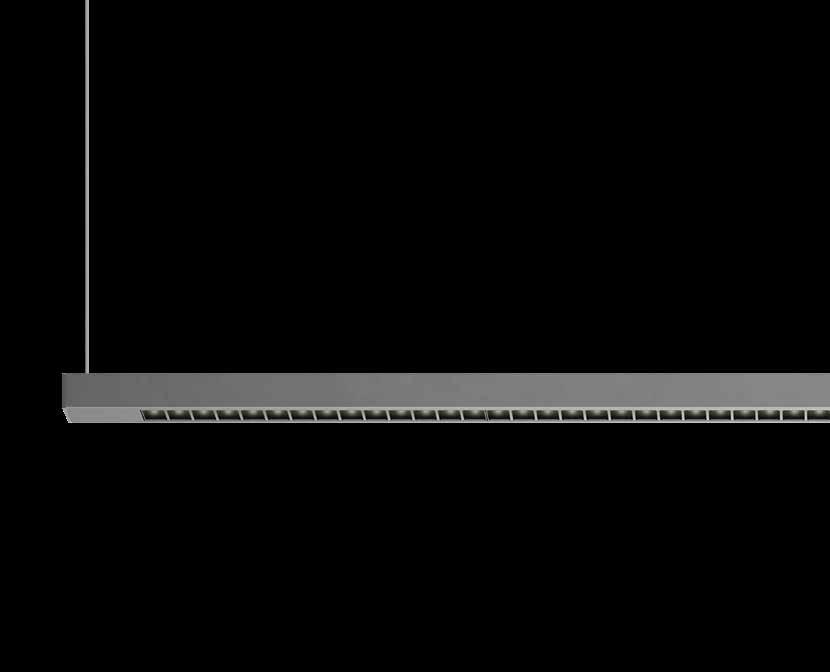

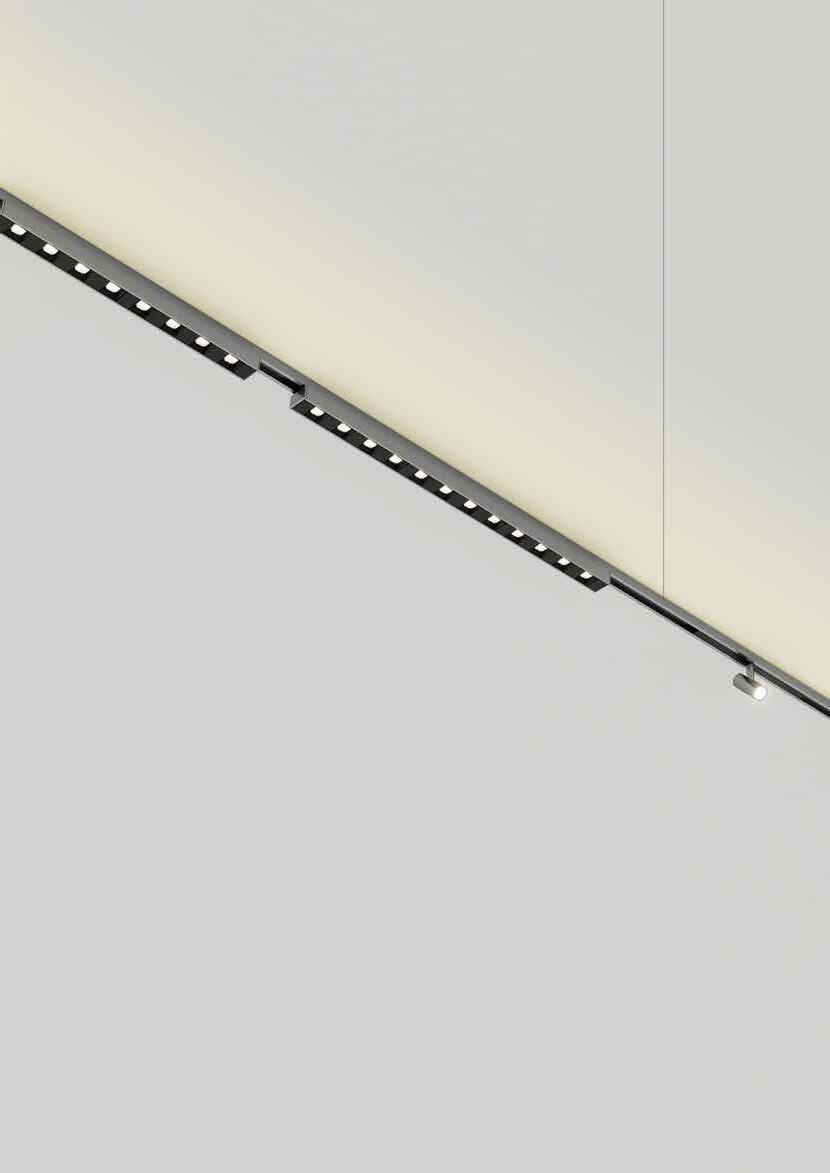

Sharp or Diffused linear module

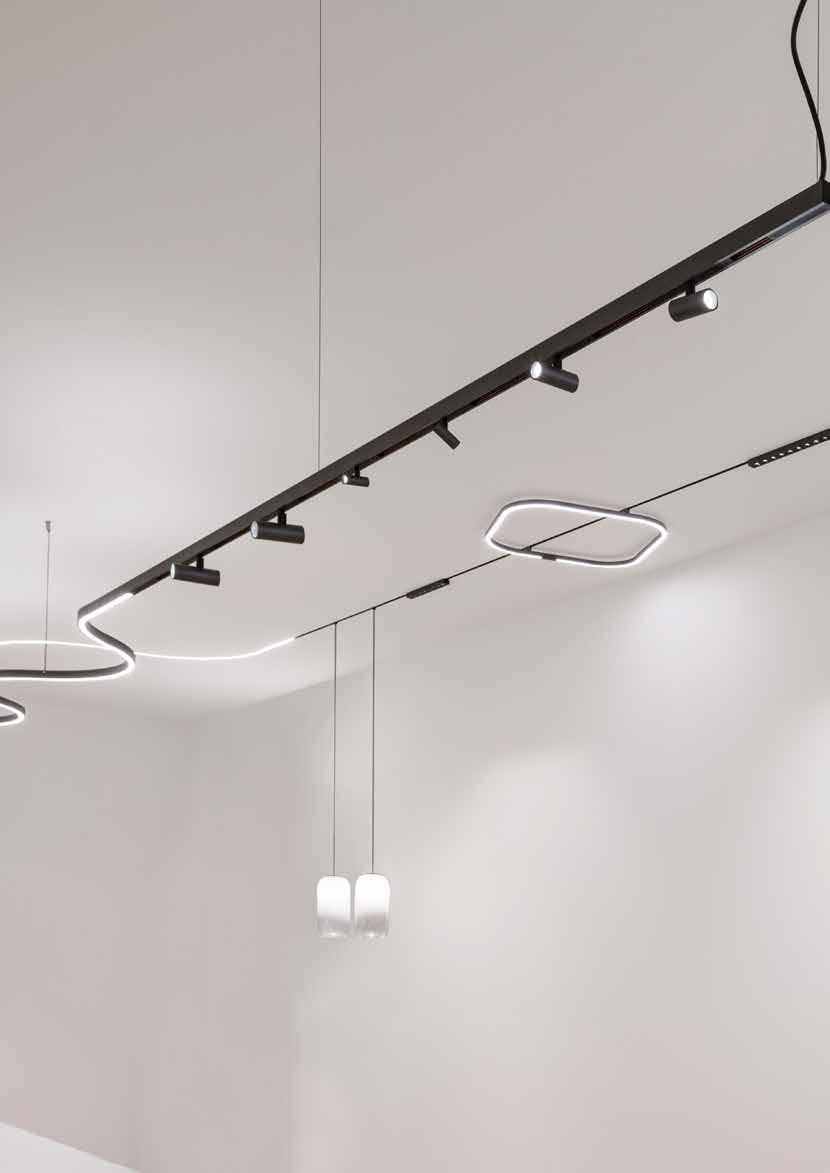

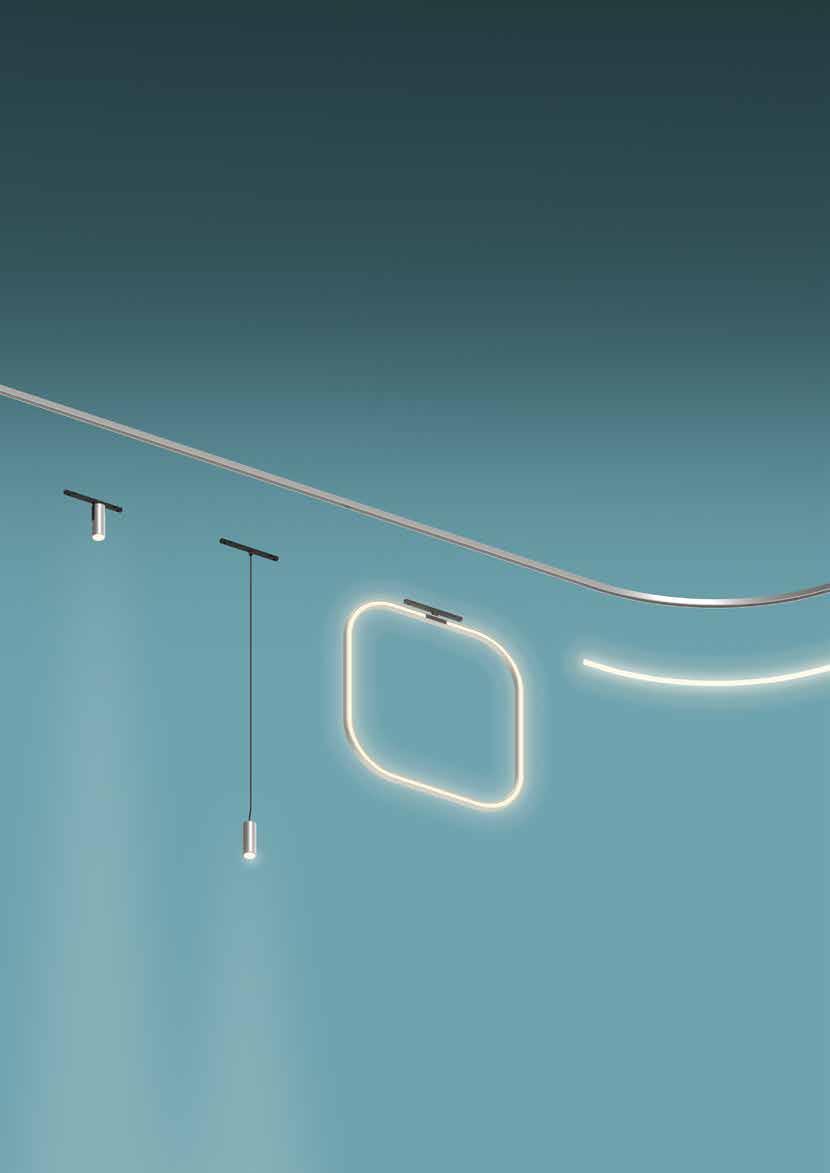

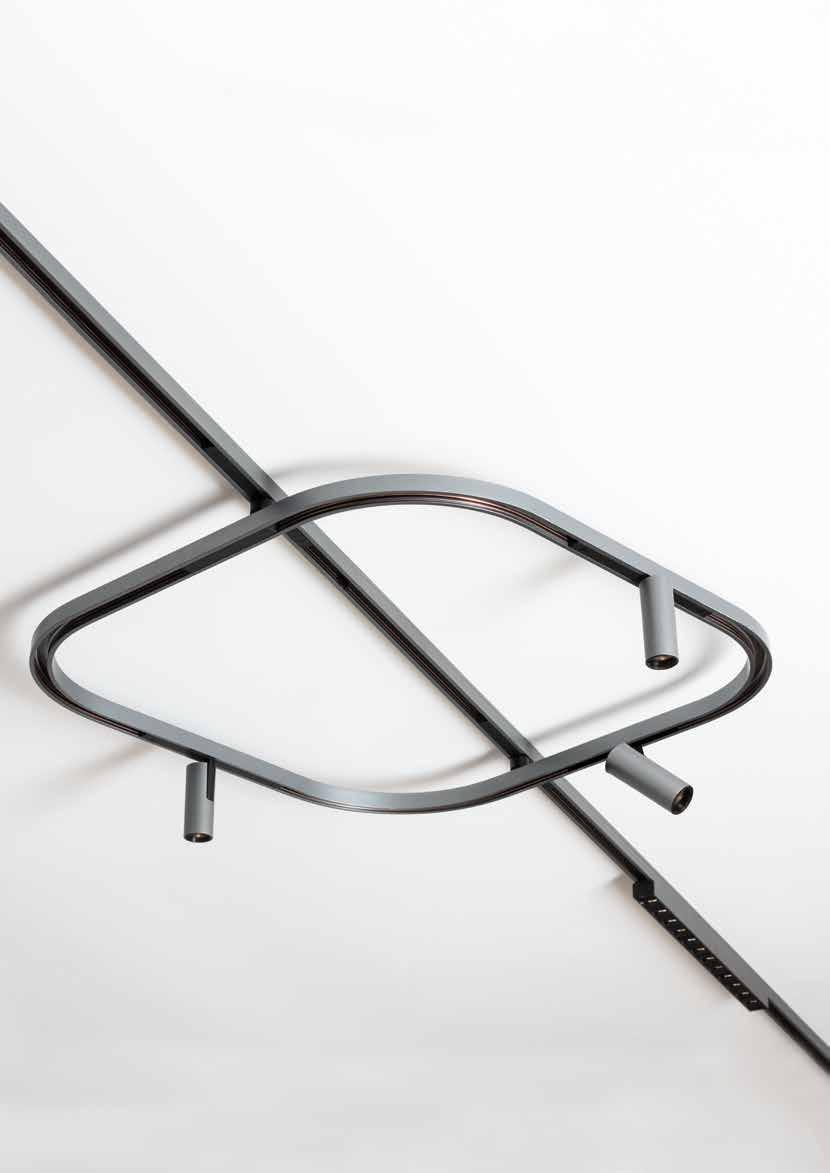

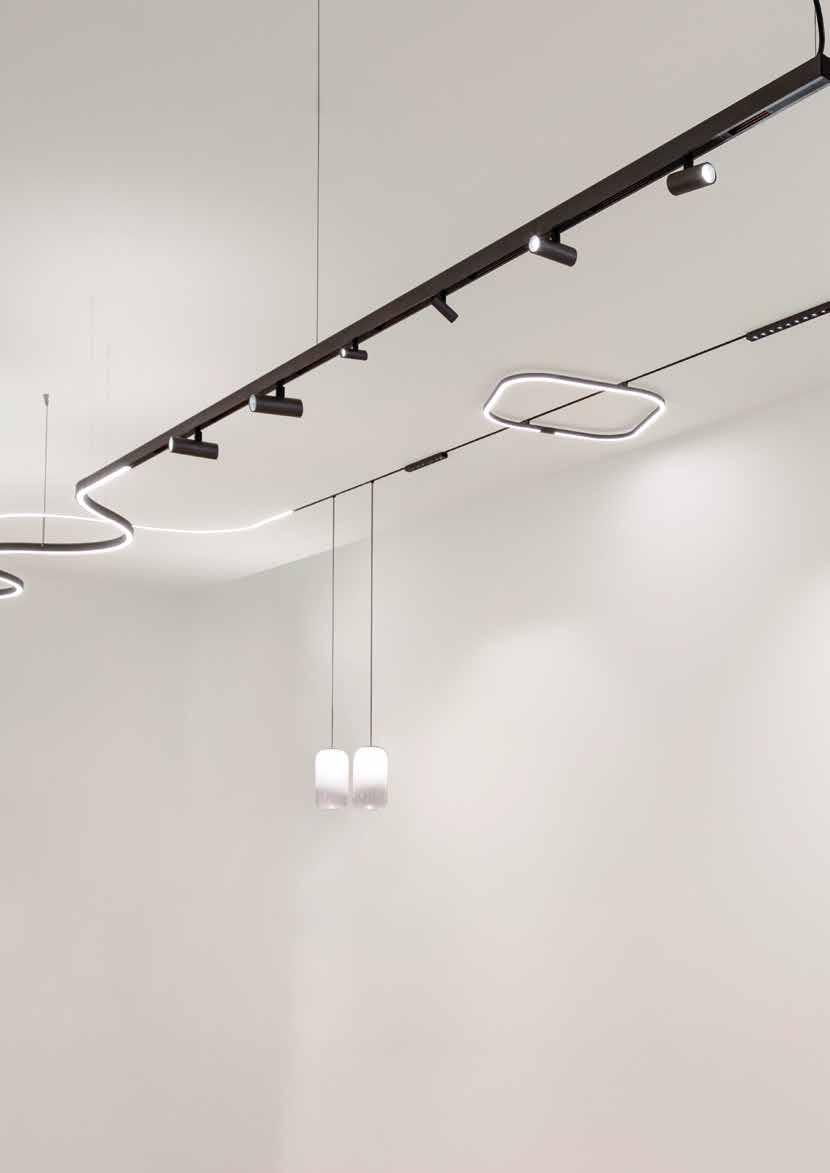

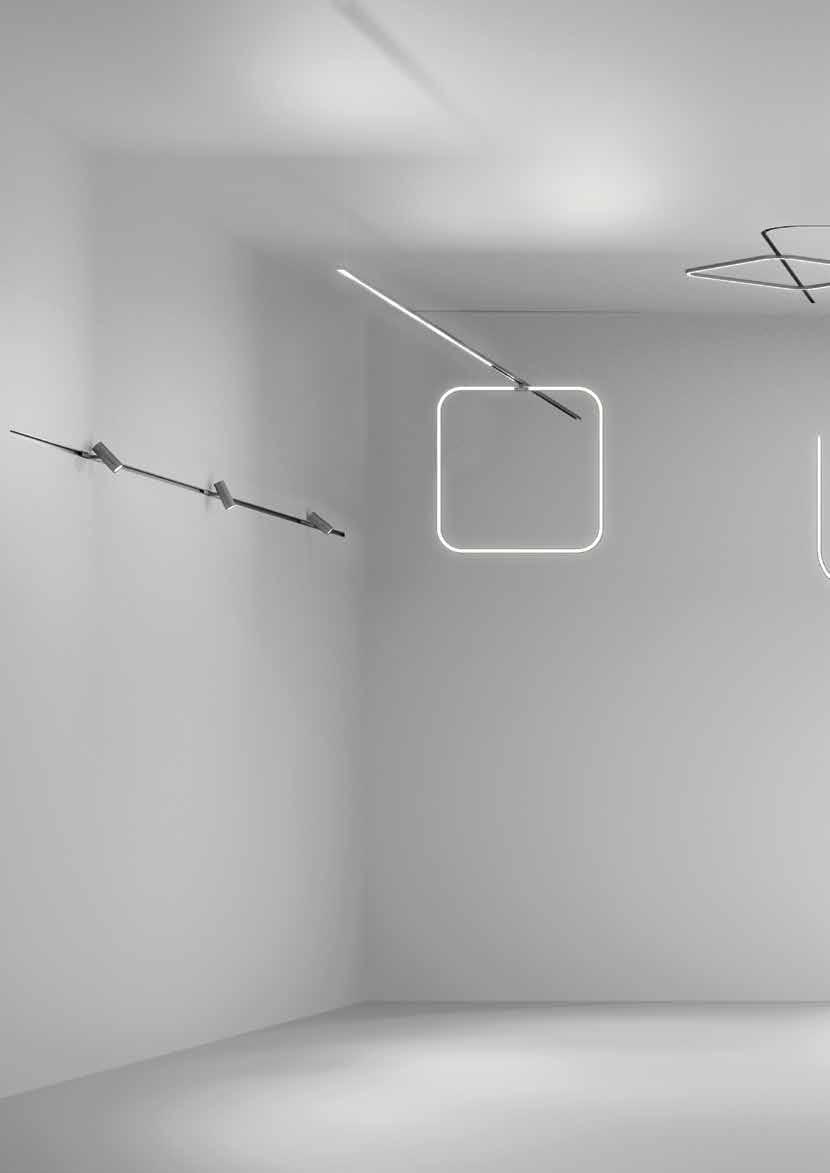

Square track + Vector + Vector pendant + Sharp

Turn Around light appliances Integrating different performances

Diffused flexible module

15 x h 10 mm

540 lm/m installed

9 W/m

3000 K

Max length 4,5 m

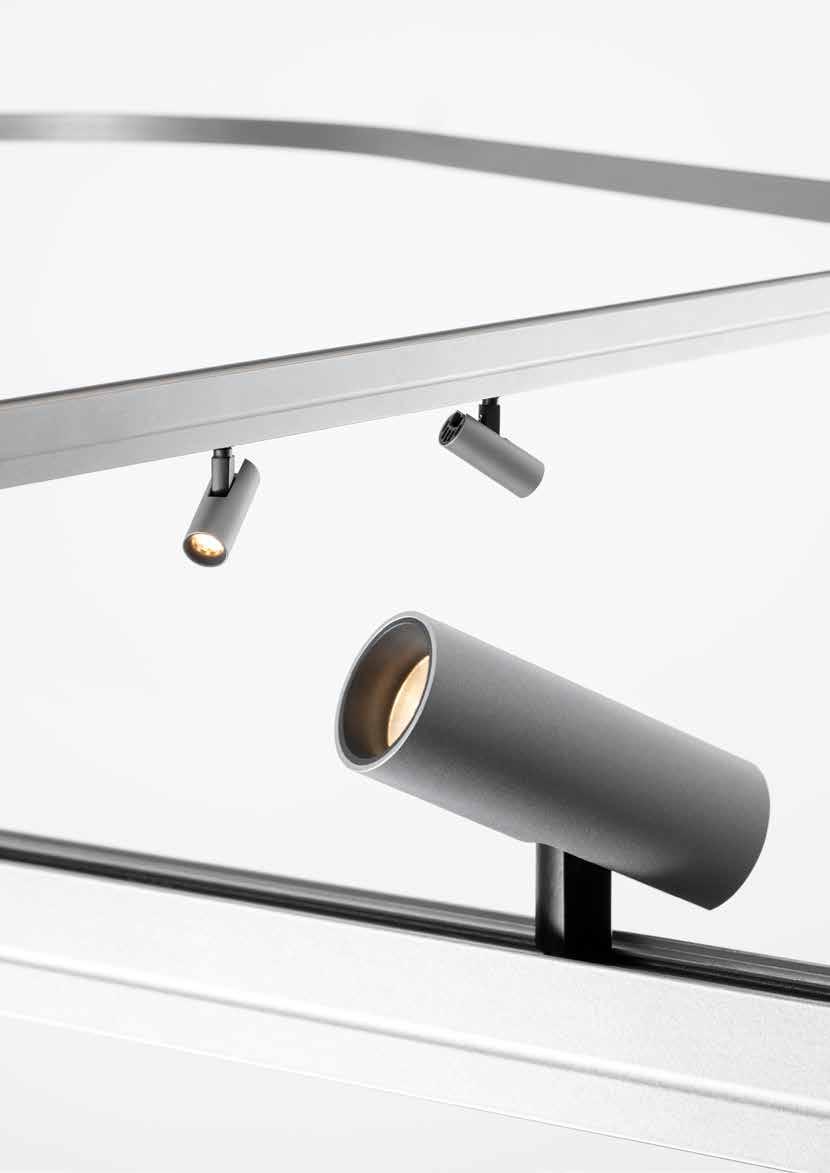

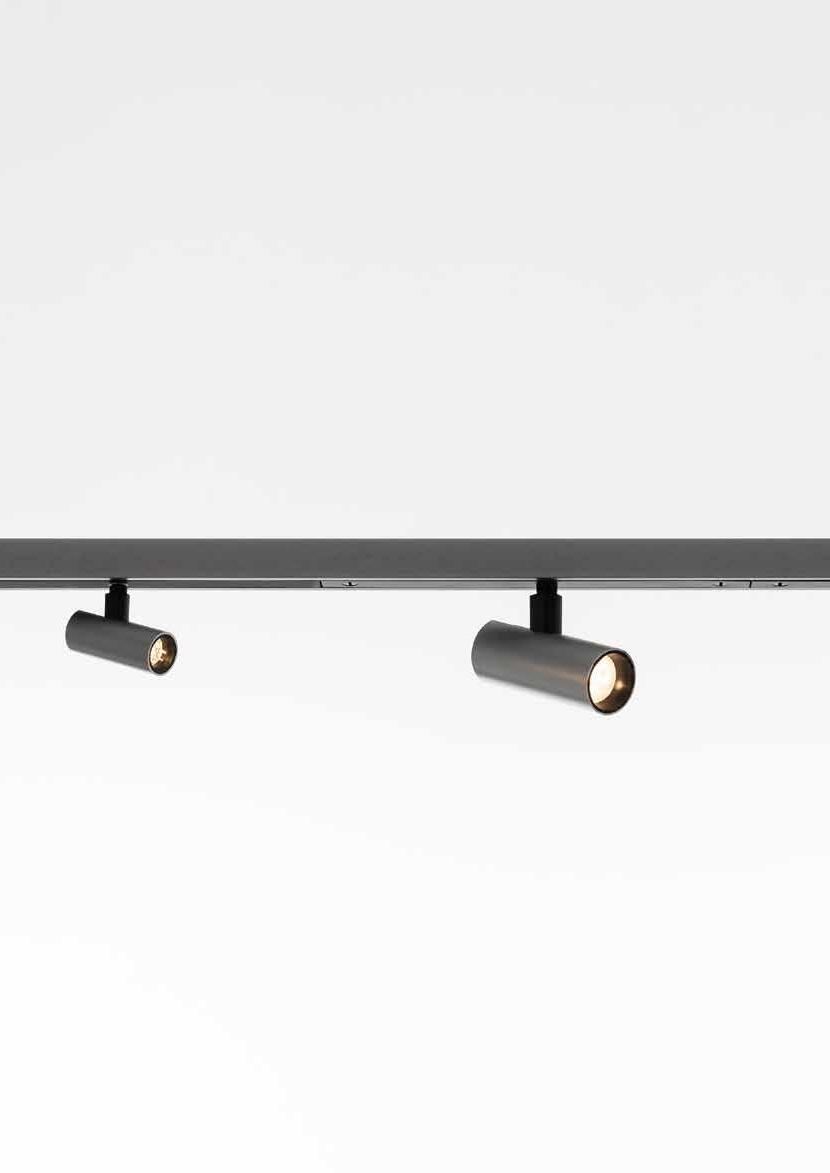

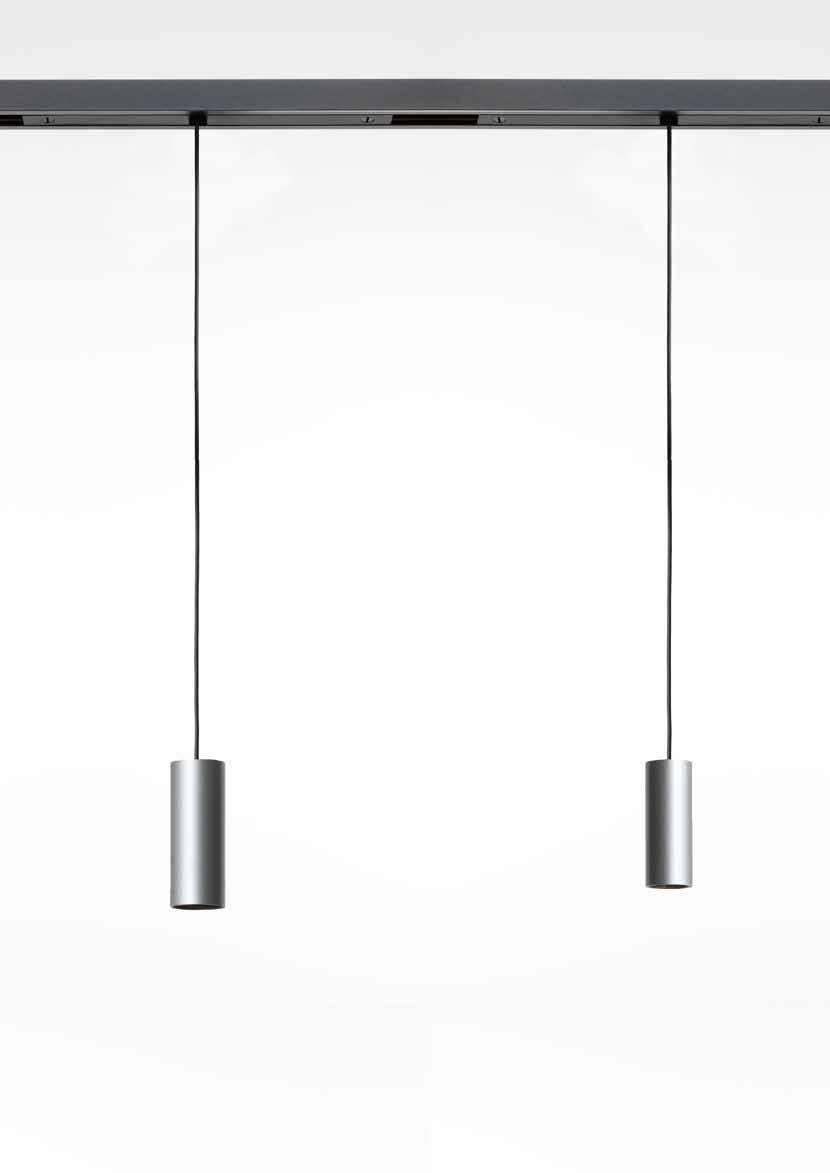

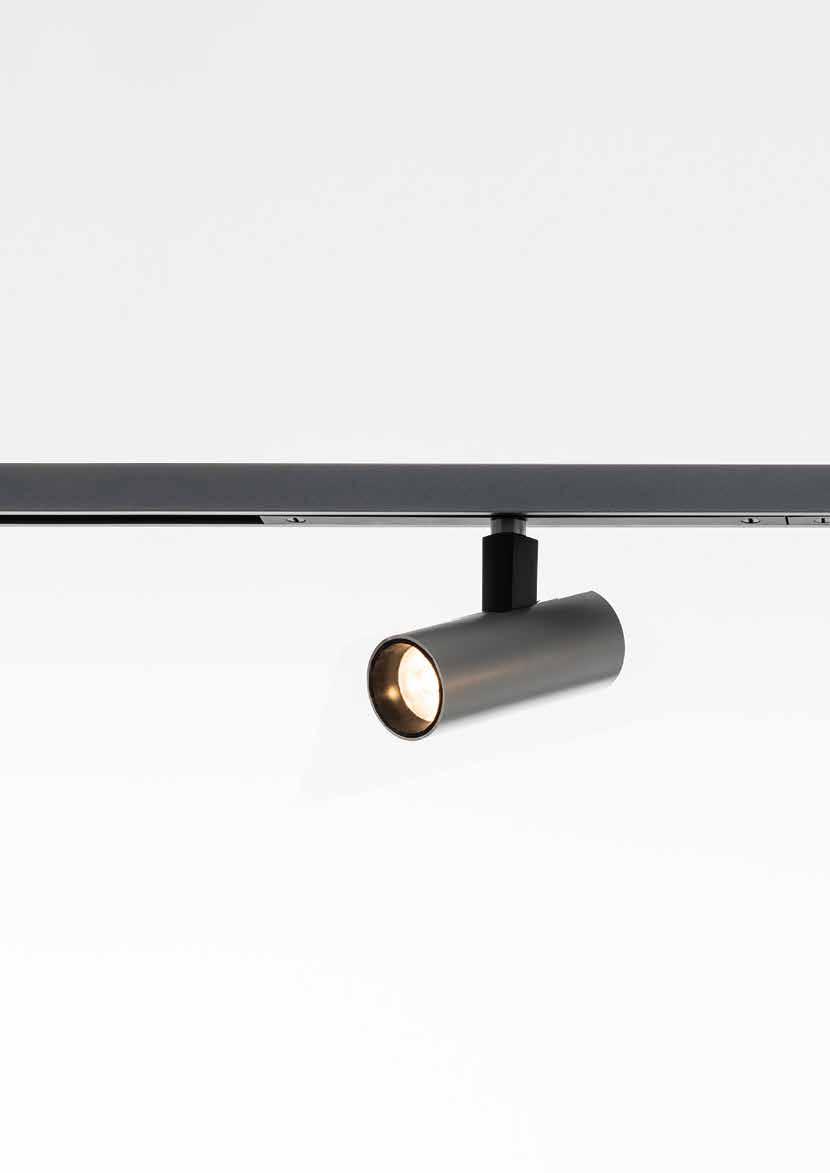

Vector 20

Ø 20 x h 50 mm

180 lm* - 3,5 W

Vector 30

Ø 30 x h 77 mm

335 lm* - 7 W

Vector 40

Ø 40 x h 103 mm

584 lm* - 10 W

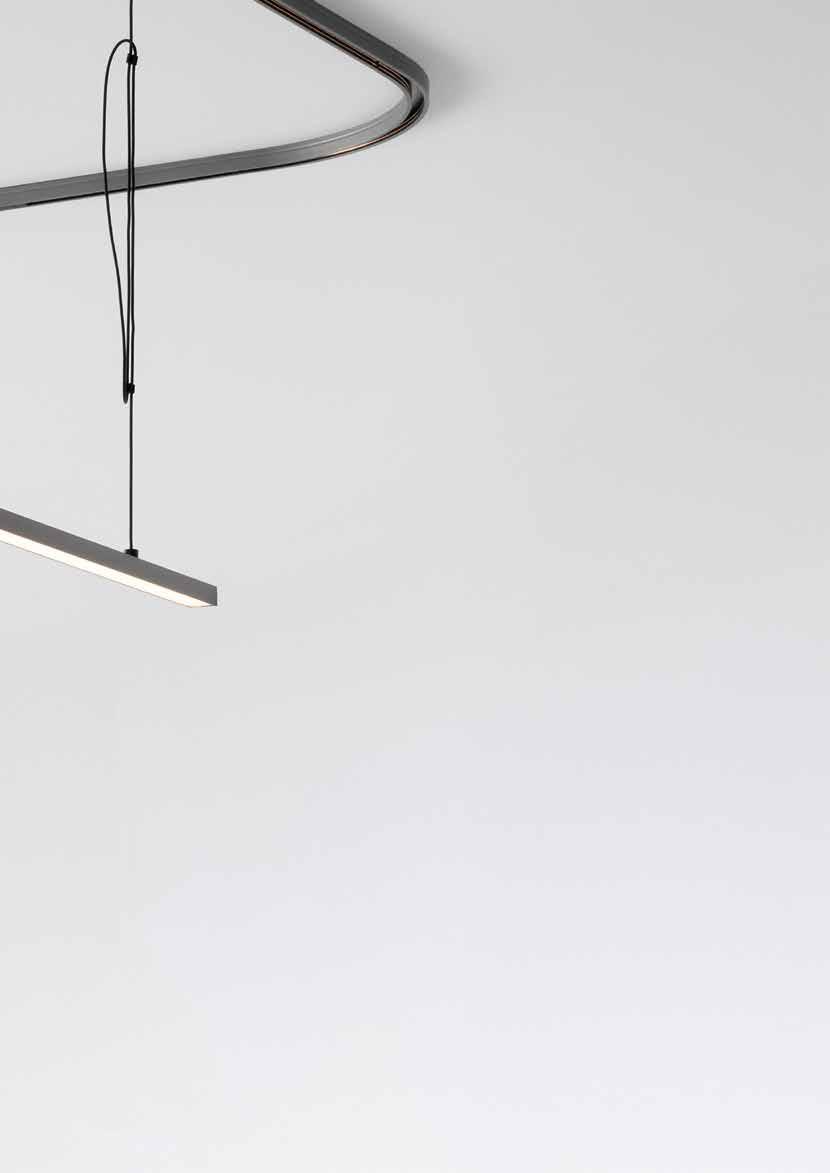

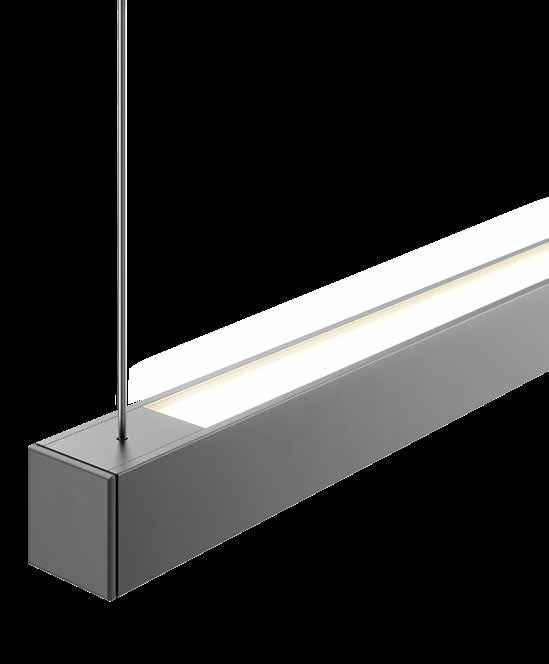

Diffused linear module 600 599 x 27 x h 20 mm 1421 lm* - 15 W

Diffused linear module 1200 1187 x 27 x h 20 mm 2843 lm* - 30 W

x12

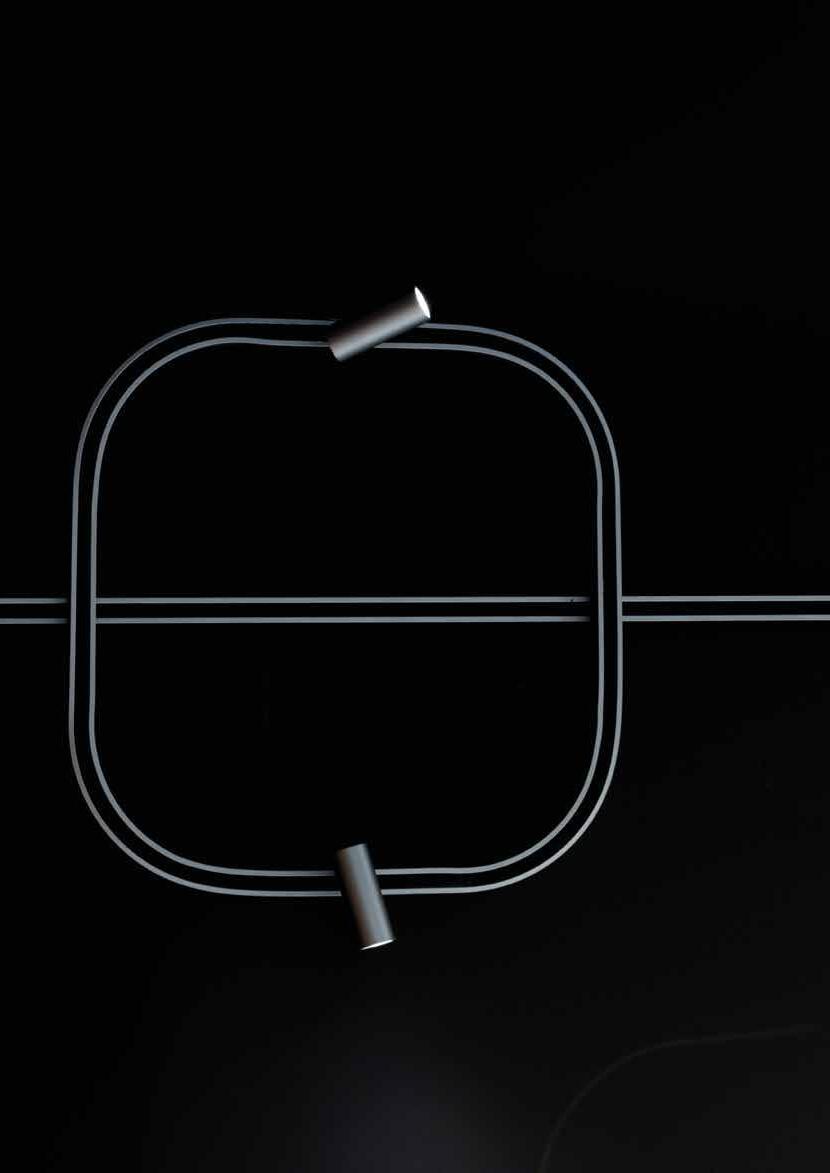

Horizontal square track

590 x 590 x h 17,5 mm

Horizontal square diffused Strip LED

Diffused emission

590 x 590 x h 17,5 mm 1001 lm - 18 W

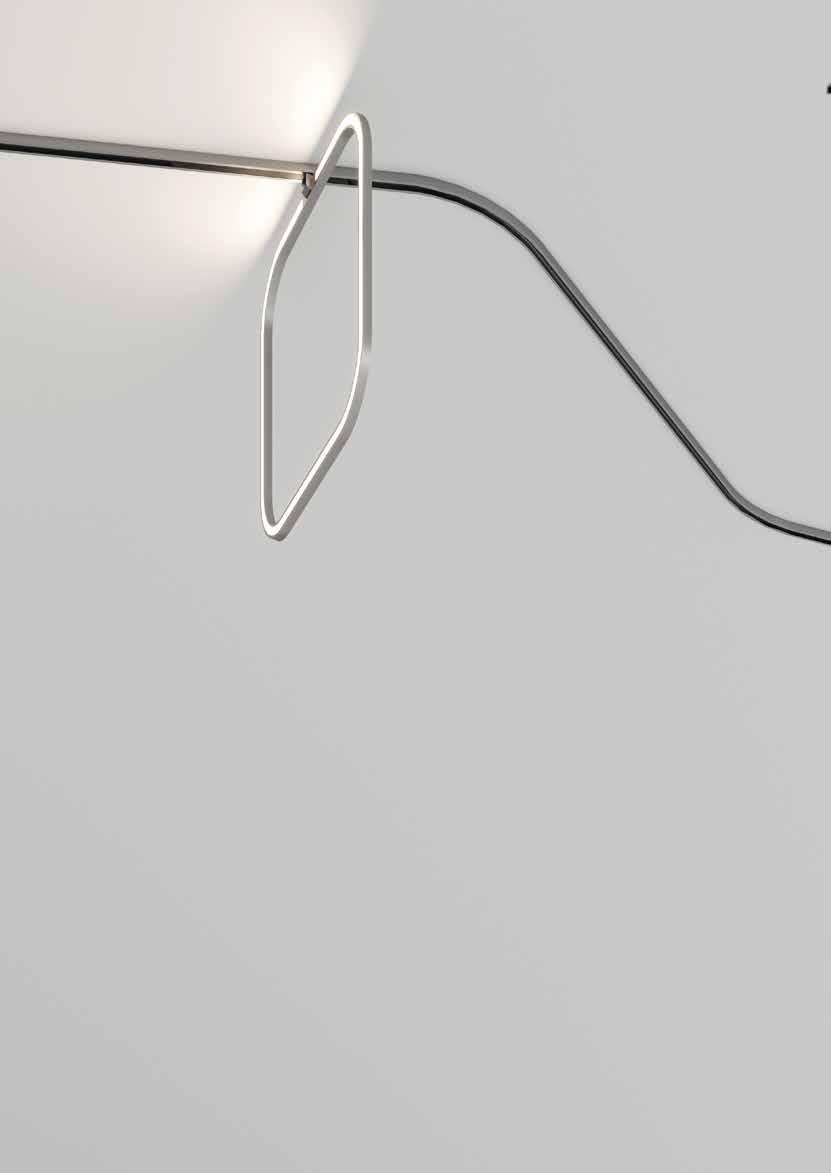

Vertical Square diffused Strip LED

Diffused emission

590 x 590 x h 17,5 mm 976 lm* - 18 W

Turn Around is powered at 48 Vdc

ELEVATION

VECTOR 20

max 35 with 1 Power Supply 150W

max 60 with 1 Power Supply 240W

max 77 with 1 Power Supply 320W

VECTOR 30/VECTOR 30 PENDANT

max 17 with 1 Power Supply 150W

max 30 with 1 Power Supply 240W

max 38 with 1 Power Supply 320W

VECTOR 40/VECTOR 40 PENDANT

max 12 with 1 Power Supply 150W

max 21 with 1 Power Supply 240W

max 27 with 1 Power Supply 320W

DIFFUSED LINEAR MODULE 600

max 8 with 1 Power Supply 150W

max 14 with 1 Power Supply 240W

max 18 with 1 Power Supply 320W

DIFFUSED LINEAR MODULE 1200

max 4 with 1 Power Supply 150W

max 7 with 1 Power Supply 240W

max 9 with 1 Power Supply 320W

SQUARE INSETS

VECTOR 20, 30, 40

max 3

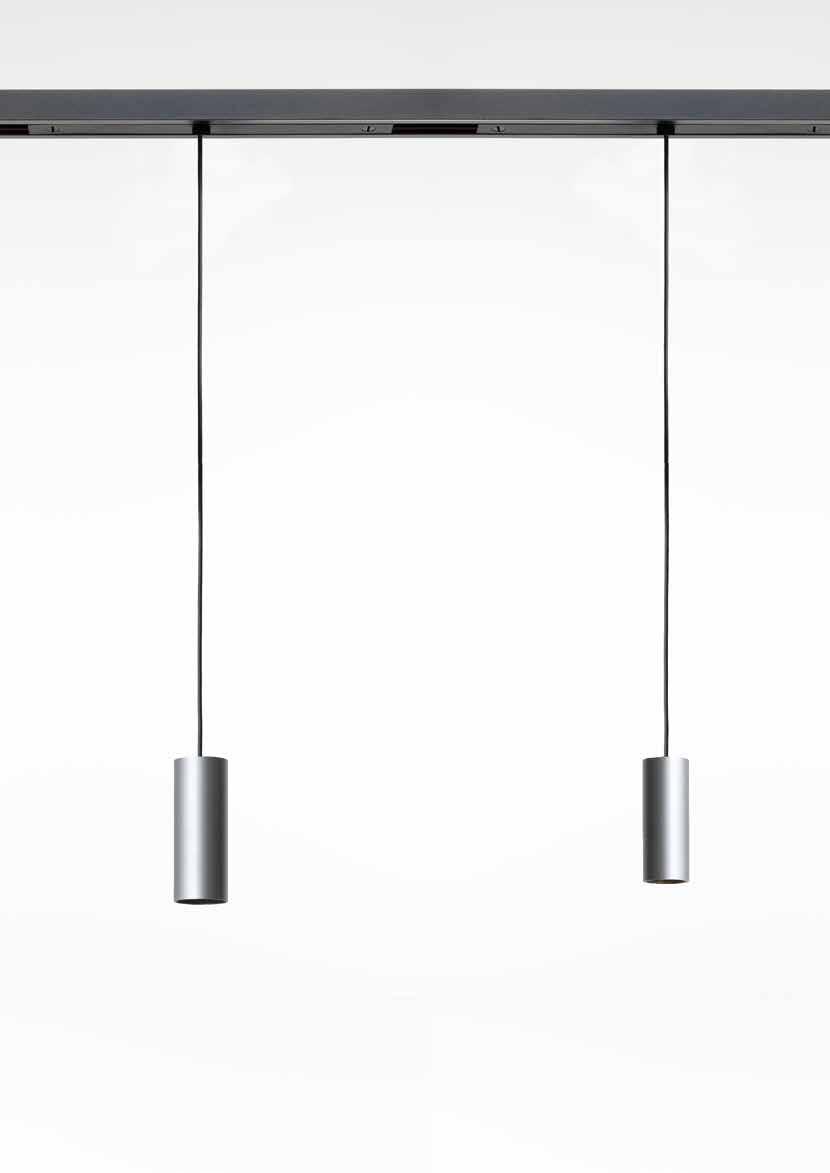

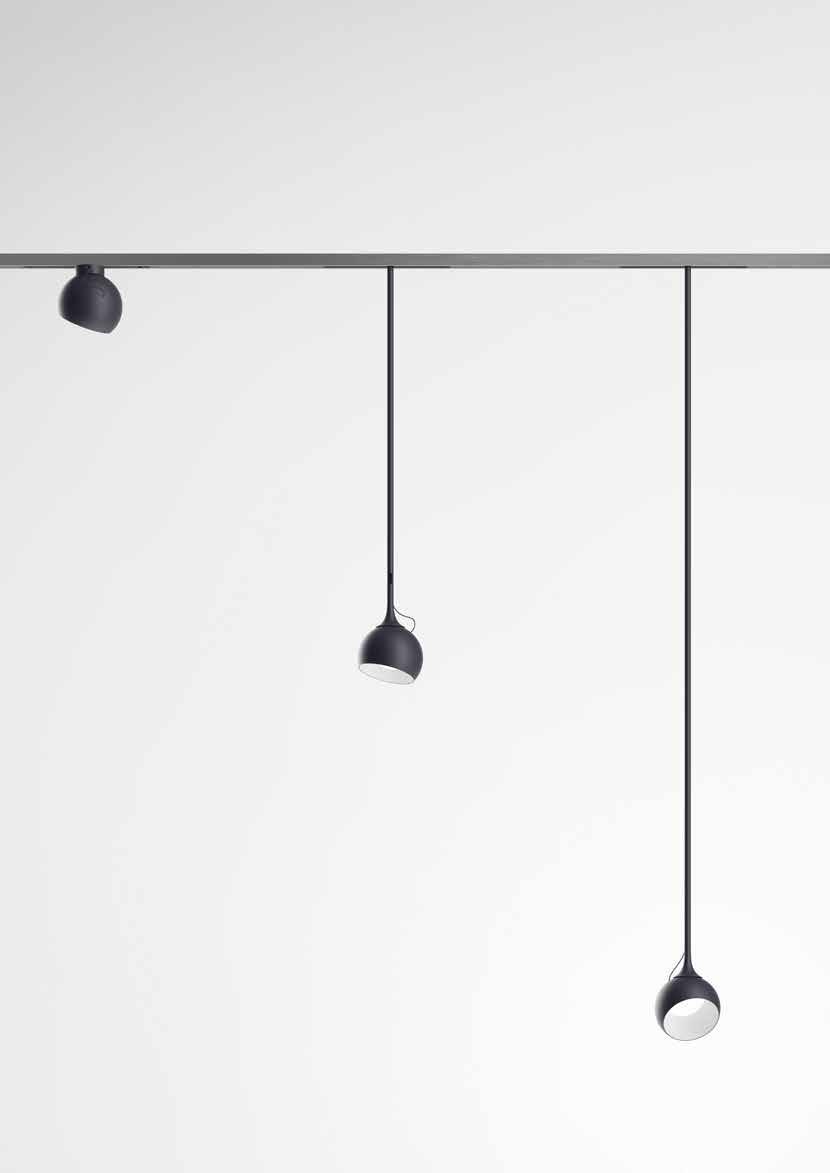

VECTOR PENDANT

30, 40

max 3

SHARP 8

max 3

SHARP 8

max 8 with 1 Power Supply 150W

max 15 with 1 Power Supply 240W

max 19 with 1 Power Supply 320W

SHARP 12

max 6 with 1 Power Supply 150W

max 11 with 1 Power Supply 240W

max 14 with 1 Power Supply 320W

DIFFUSED

FLEXIBLE MODULE 2m

max 7 with 1 Power Supply 150W

max 12 with 1 Power Supply 240W

max 15 with 1 Power Supply 320W

FLEXIBLE MODULE 4,5m

max 3 with 1 Power Supply 150W

max 5 with 1 Power Supply 240W

max 7 with 1 Power Supply 320W

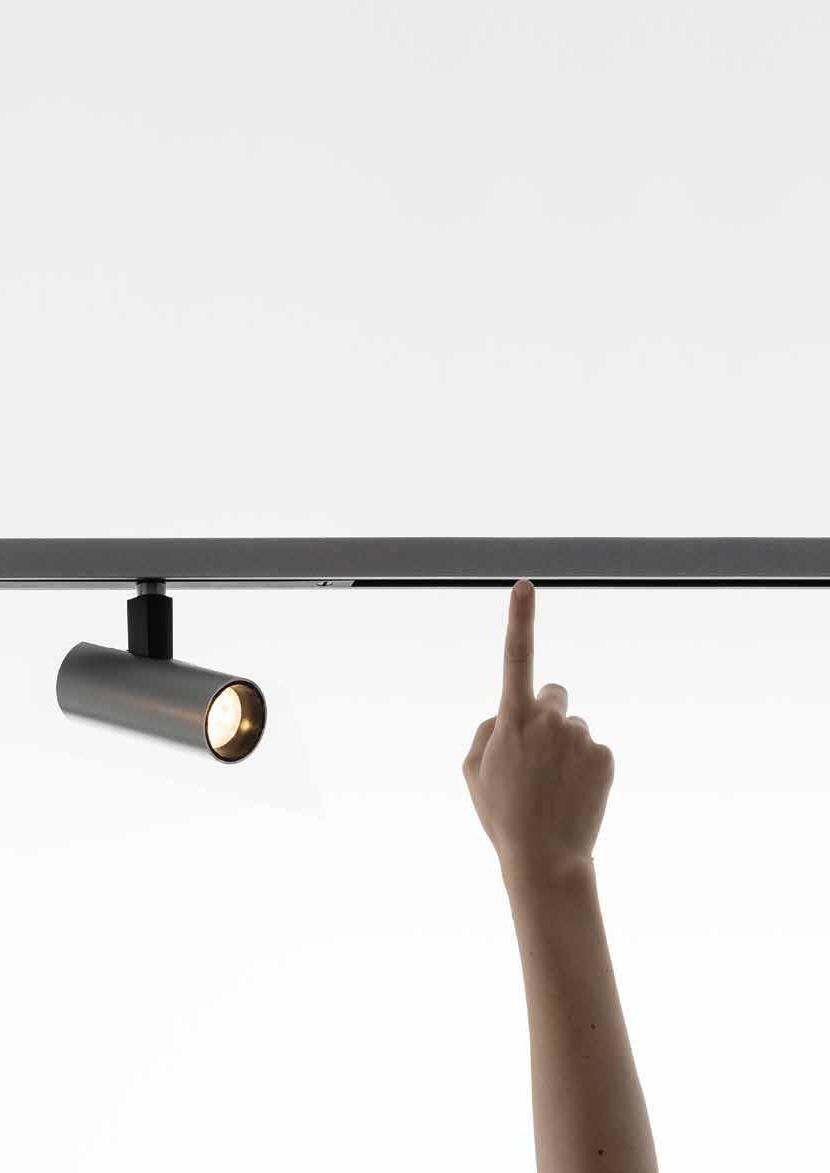

Turn Around is safe

a unique feature developed for a real safe DALI interface.

D.Art is a technology designed by Artemide that overcomes the safety limits of the DALI signal in devices where the same signal is accessible to the touch.

The DALI signal is transformed to a “SELV” safety extra low voltage ensuring the total safety of the appliance.

Turn Around has been designed in compliance with international certifications.

Asserting electronic intelligence

Reduce to innovate

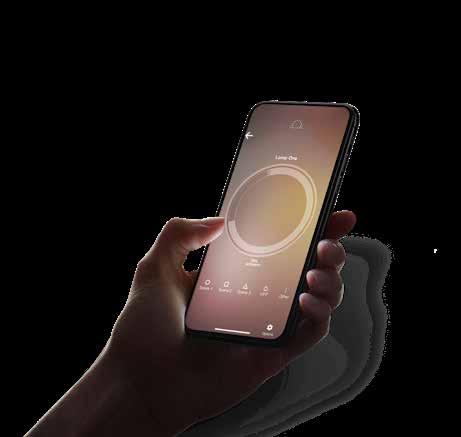

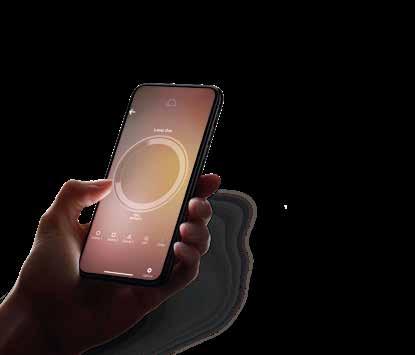

ARTEMIDE APP

Artemide APP

Real time freedom not only during installation but also in the interaction through Artemide App that manages the DALI addresses present in the system.

Turn Around power supply

Turn Around structural track

90° on same plane track angle elements

x 50 mm

TA30604

TA30104

TA30404

TA30704

TA30204

TA30504

TA30804

Fixing Kit (7pcs) Linear element L= 3000 mm uses 7pcs

Linear element L= 2000 mm uses 5pcs

Linear element L= 1000 mm uses 3pcs Electro-Mechanical Joint Kit Accessories for cutting components of linear elements

Shaping tool: to shape insulating conductor support

Locking tool: to lock insulating conductor spacer into aluminum profile

Power supply

320 W Recessed power supply kit for recessed modules

230VAC-48VDC IP20

395x165x107h

240 W Recessed power supply kit for recessed modules

230VAC-48VDC IP20

395x165x107h

150 W Recessed power supply kit for recessed modules

230VAC-48VDC IP20

395x165x107h

240 W Ceiling power supply kit for recessed and ceiling modules

230VAC-48VDC IP20

400x110x50h

150 W Ceiling power supply kit for recessed and ceiling modules

230VAC-48VDC IP20

400x110x50h

320 W Remote box power supply kit

TA61701

TA60501 TA60722

TA60101 TA60322

230VAC-48VDC IP20

313x243x57,5h

240 W Remote box power supply kit

230VAC-48VDC IP20

313x243x57,5h

240 W Bare power supply ON-OFF 230VAC-48VDC IP20

(for dimmable version to be combined with “DV1061”) 244x68x38h

150 W Bare power supply ON-OFF 230VAC-48VDC IP20

(for dimmable version to be combined with “DV1061”) 244x68x38h

DALI/0-10/1-10/PUSH SELV Interface 103x67x21h

Optional control devices - BLL wireless switch

TA98000

TA62001

Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1 m distance. Mains power supply required. To be installed inside flush mounting boxes or junction boxes.

TA61801

TA60601 TA60822

TA60201 TA60422 TA68000

TA98100 Code TA66101

TA60601APP TA60822APP

TA60201APP TA60422APP

TA68000APP TA62500APP

TURN AROUND SMD TRACK

Power supply

240 W Ceiling power supply kit for suspenion and ceiling modules

230VAC-48VDC IP20

400x110x50h

150 W Ceiling power supply kit for suspenion and ceiling modules

230VAC-48VDC IP20

400x110x50h

240 W Ceiling power supply kit for recessed and ceiling modules

230VAC-48VDC IP20

400x110x50h

150 W Ceiling power supply kit for recessed and ceiling modules

230VAC-48VDC IP20

400x110x50h

320 W Remote box power supply kit

230VAC-48VDC IP20

313x243x57,5h

240 W Remote box power supply kit

230VAC-48VDC IP20

313x243x57,5h

240 W Bare power supply ON-OFF 230VAC-48VDC IP20

(for dimmable version to be combined with “DV1061”) 244x68x38h

150 W Bare power supply ON-OFF 230VAC-48VDC IP20

(for dimmable version to be combined with “DV1061”) 244x68x38h

DALI/0-10/1-10/PUSH SELV Interface 103x67x21h

TA61301 TA61522

TA60901 TA61122

TA60501 TA60722

TA60101 TA60322

Optional control devices - BLL wireless switch

Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1 m distance.

Mains power supply required. To be installed inside flush mounting boxes or junction boxes.

TA61001 TA61222

TA60601 TA60822

TA60422

TA98000 TA98100 Code TA61401 TA61622

Code TA61401APP TA61622APP

TA61001APP TA61222APP

TA60601APP TA60822APP

TA60201APP TA60422APP TA68000APP

Curved joining elements

Linear

Electro-Mechanical Joint Kit

Power supply

320 W Recessed power supply kit for suspension modules

230VAC-48VDC IP20

395x165x107h

240 W Recessed power supply kit for suspension modules

230VAC-48VDC IP20

395x165x107h

150 W Recessed power supply kit for suspension modules

230VAC-48VDC IP20

395x165x107h

240 W Ceiling power supply kit for suspension and ceiling modules

230VAC-48VDC IP20

400x110x50h

150 W Ceiling power supply kit for suspension and ceiling modules

230VAC-48VDC IP20

400x110x50h

320 W Remote box power supply kit

230VAC-48VDC IP20

313x243x57,5h

240 W Remote box power supply kit

230VAC-48VDC IP20

313x243x57,5h

240 W Bare power supply ON-OFF 230VAC-48VDC IP20

(for dimmable version to be combined with “DV1061”) 244x68x38h

150 W Bare power supply ON-OFF 230VAC-48VDC IP20

(for dimmable version to be combined with “DV1061”) 244x68x38h

DALI/0-10/1-10/PUSH

SELV Interface 103x67x21h

Optional control devices - BLL wireless switch

TA62101

TA61301 TA61522

TA60901 TA61122

TA98000

TA62401

Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1 m distance.

Mains power supply required. To be installed inside flush mounting boxes or junction boxes.

TA62201

TA62201APP

TA61401 TA61622

TA61001 TA61222 TA68000

TA61401APP TA61622APP

TA61001APP TA61222APP

TA68000APP

TA62500APP

Power supply

320 W Recessed power supply kit for suspension modules

230VAC-48VDC IP20

395x165x107h

240 W Recessed power supply kit for suspension modules

230VAC-48VDC IP20

395x165x107h

150 W Recessed power supply kit for suspension modules

230VAC-48VDC IP20

395x165x107h

240 W Ceiling power supply kit for suspension and ceiling modules

230VAC-48VDC IP20

400x110x50h

150 W Ceiling power supply kit for suspension and ceiling modules

230VAC-48VDC IP20

400x110x50h

320 W Remote box power supply kit

230VAC-48VDC IP20

313x243x57,5h

240 W Remote box power supply kit

230VAC-48VDC IP20

313x243x57,5h

240W Bare power supply ON-OFF 230VAC-48VDC IP20

(for dimmable version to be combined with “DV1061”) 244x68x38h

150 W Bare power supply ON-OFF 230VAC-48VDC IP20

(for dimmable version to be combined with “DV1061”) 244x68x38h

DALI/0-10/1-10/PUSH

SELV Interface

103x67x21h

Optional control devices - BLL wireless switch

TA62101

TA61301 TA61522

TA60901 TA61122

TA98000

TA62401

Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1 m distance.

Mains power supply required. To be installed inside flush mounting boxes or junction boxes.

TA62201

TA62201APP

TA61401 TA61622

TA61222

TA61401APP TA61622APP

TA61001APP TA61222APP

TA68000APP

TA62500APP

Turn Around lighting appliances

Vector Turn Around

VECTOR TURN AROUND

TB00222

TB01222

TB03222

TB13122

TB10222 TB11222

TB13222

TB10322

TB43222

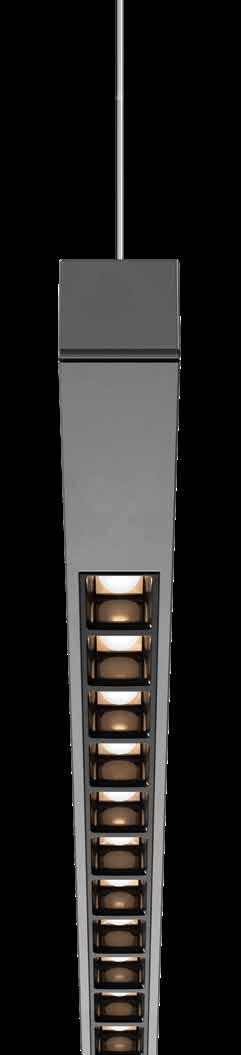

Sharp Turn Around

SHARP TURN AROUND

Code

TB50222

TB51222

TB53222

TB50422

TB51422

TB53422

Code

TB60222

TB61222

TB63222

TB60422

TB61422

TB63422

Diffused linear modules

Turn Around

No cuttable wire. Clips included to adjust the length.

Diffused flexible modules Turn Around

DIFFUSED LINEAR MODULES TURN AROUND

Diffused flexible modules*

Dimmable

* The adapter of the diffused flexible module can be fixed only in linear module.

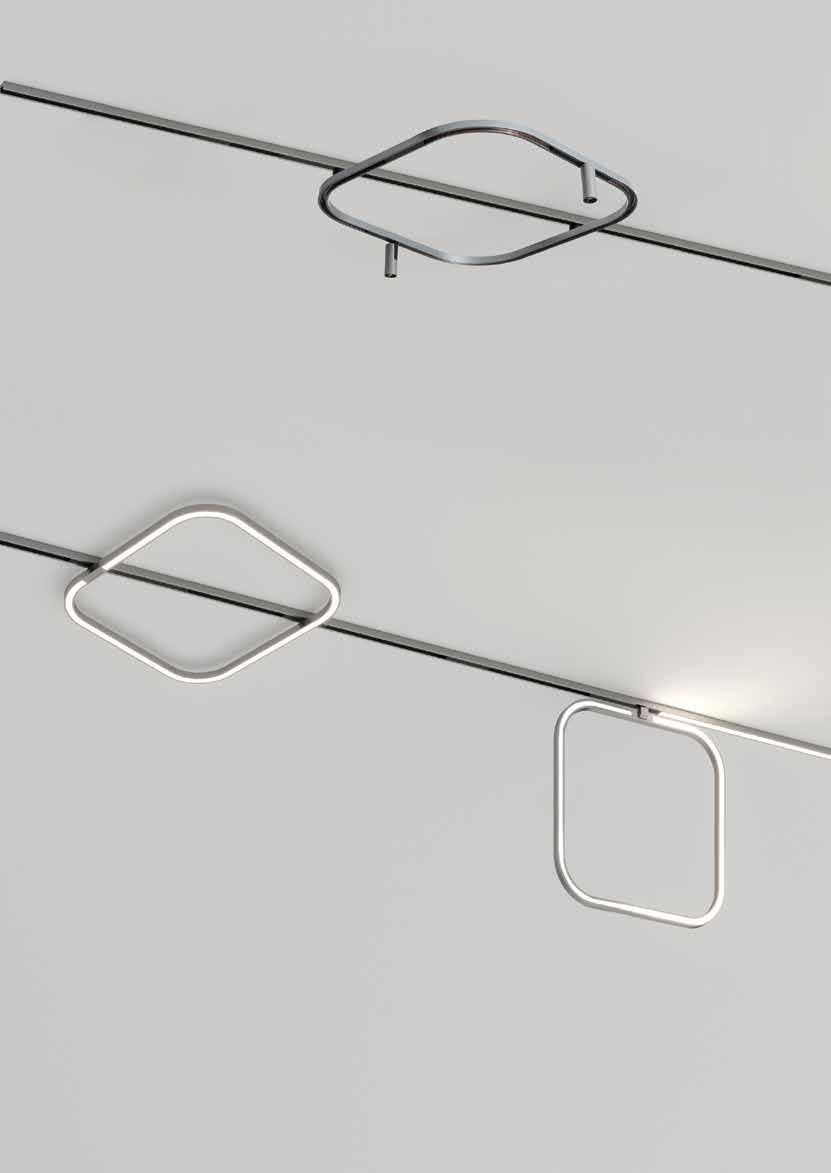

Square modules Turn Around

Horizontal square diffused

Dimmable

Vertical square diffused

Horizontal square track*

Dimmable

*Insets horizontal square track

Wall Washer Turn Around

Code

WW101. 01/04

15/18/20

WW111. 01/04 15/18/20

WW121. 01/04 15/18/20

WW142. 01/04 15/18/20

WW152. 01/04 15/18/20

WW162. 01/04 15/18/20

Turn Around is inclusive

LIGHTING APPLIANCES TURN AROUND

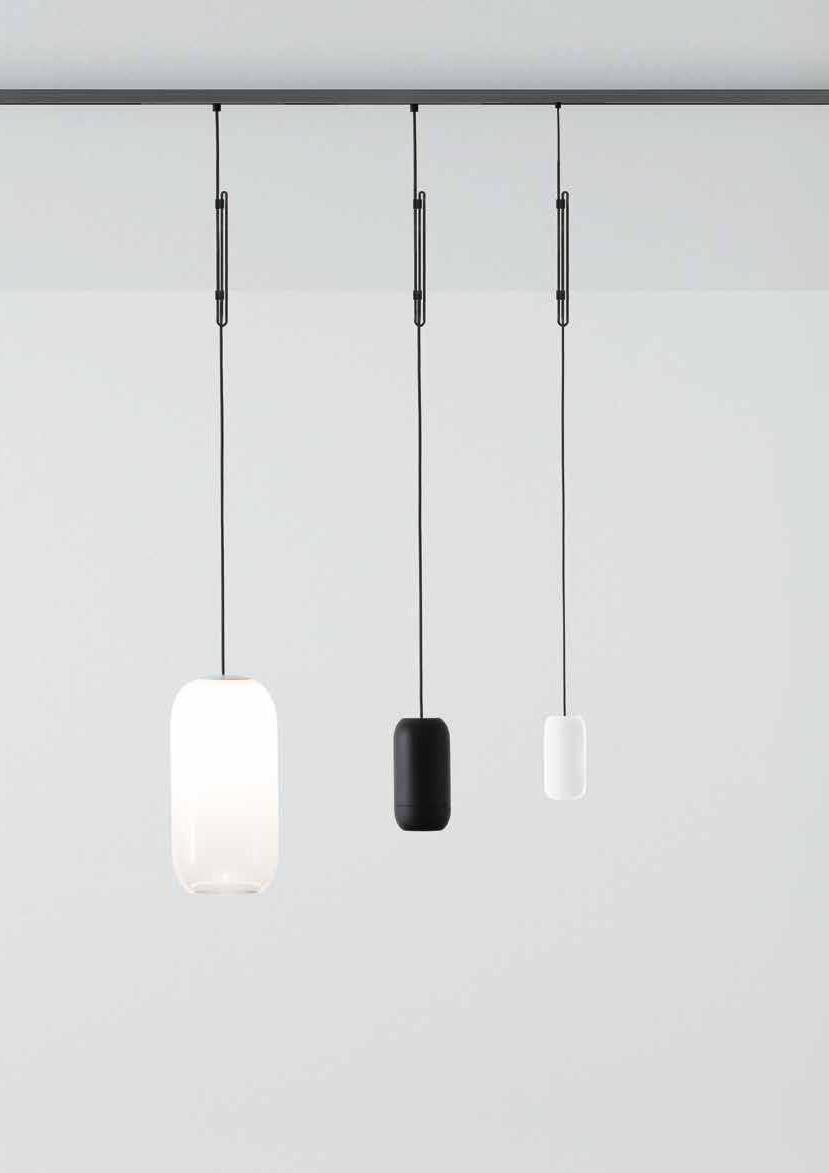

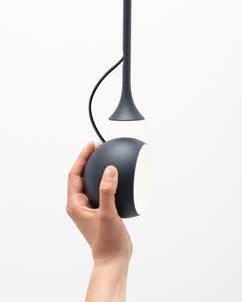

GOPLE MINI PENDANT TURN AROUND, BIG - BJARKE INGELS GROUP

Dimmable

CRI = 90

Delivery time on demand

2700K - 4000K

GOPLE 60 PENDANT TURN AROUND, BIG - BJARKE INGELS GROUP

Code

TC50104

TC50204

TC51204

TC53204

TC50304

TC51304

TC53304

GOPLE 80 PENDANT TURN AROUND, BIG - BJARKE INGELS GROUP

Dimmable Dimmable

Code

TC40104

TC41104 TC43104

TC40204

TC41204

TC43204

TC40304

TC41304

LIGHTING APPLIANCES TURN AROUND

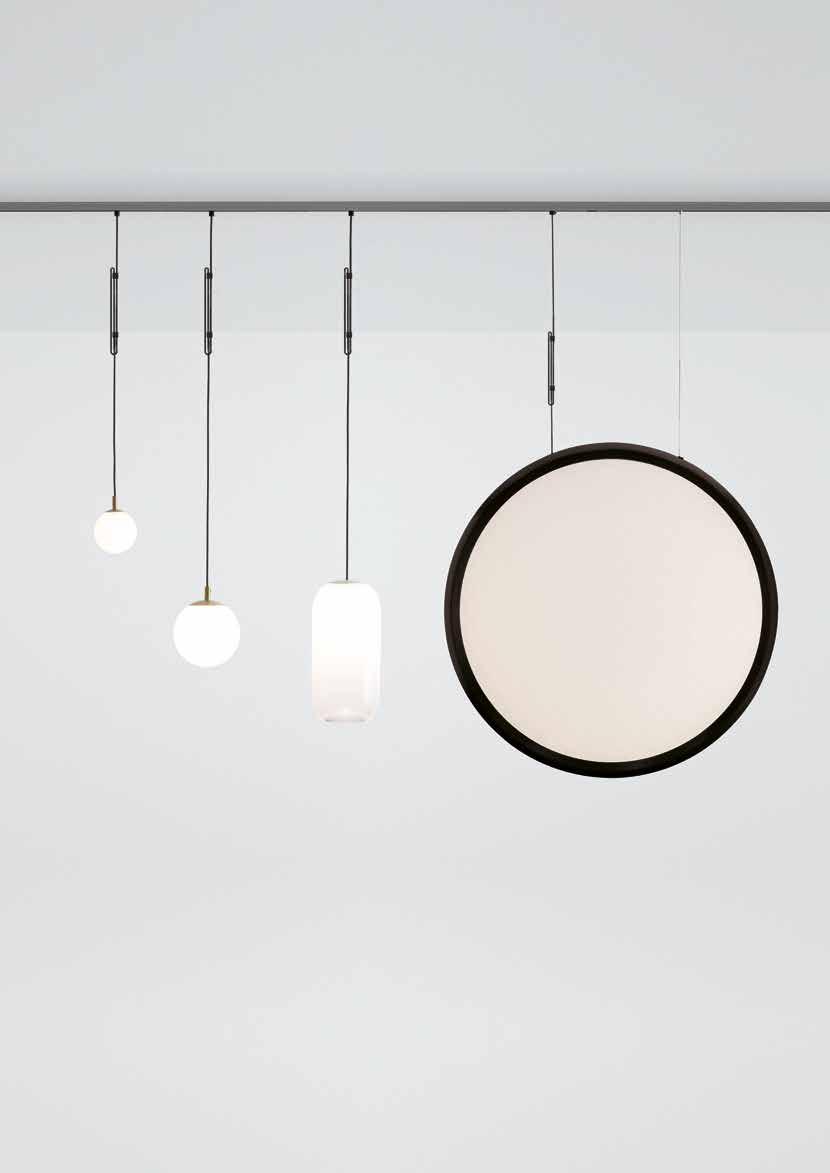

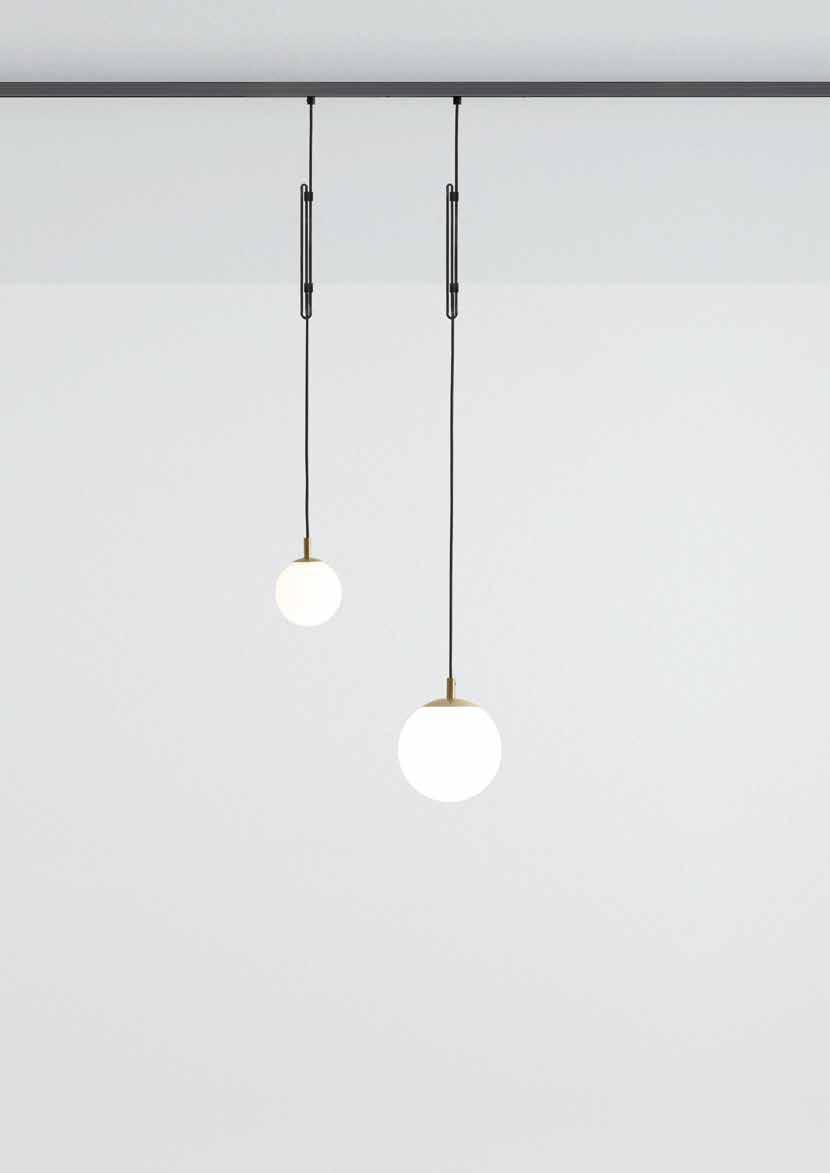

SPHERE 9 PENDANT TURN AROUND

SPHERE 14 PENDANT TURN AROUND

No cuttable wire. Clips included to adjust the length.

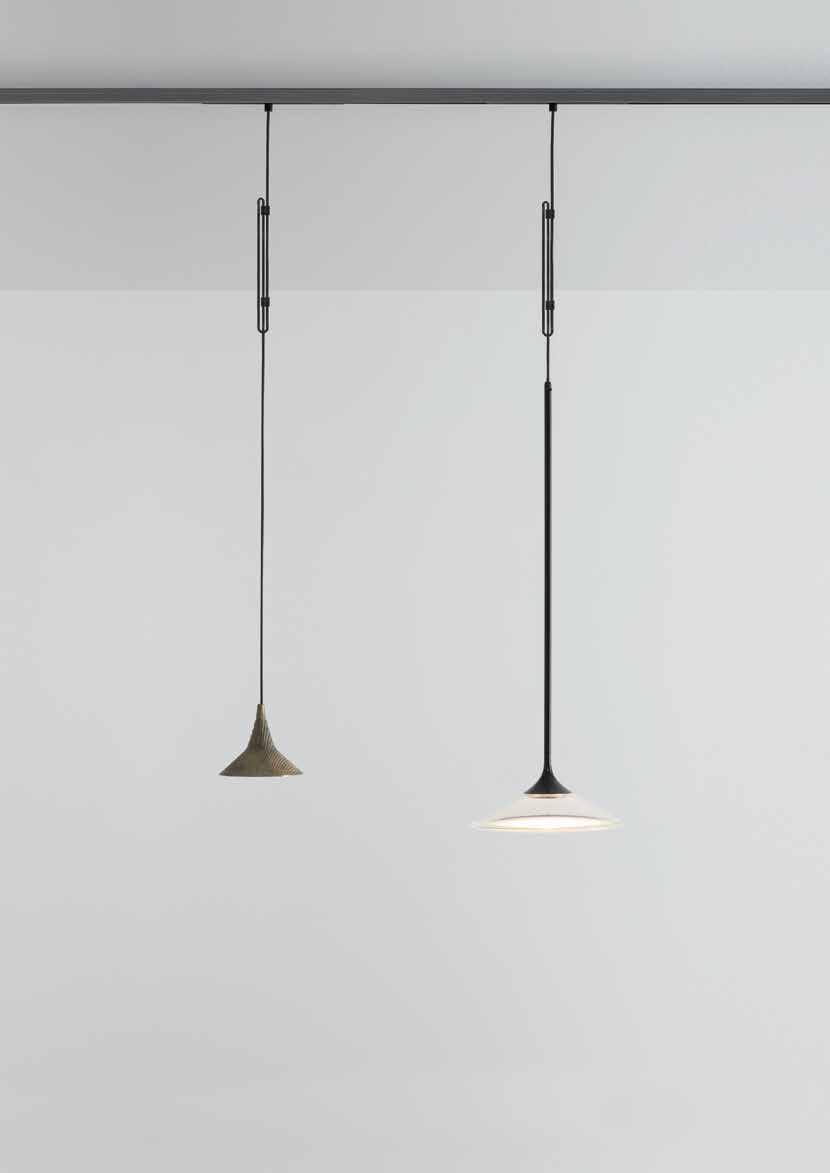

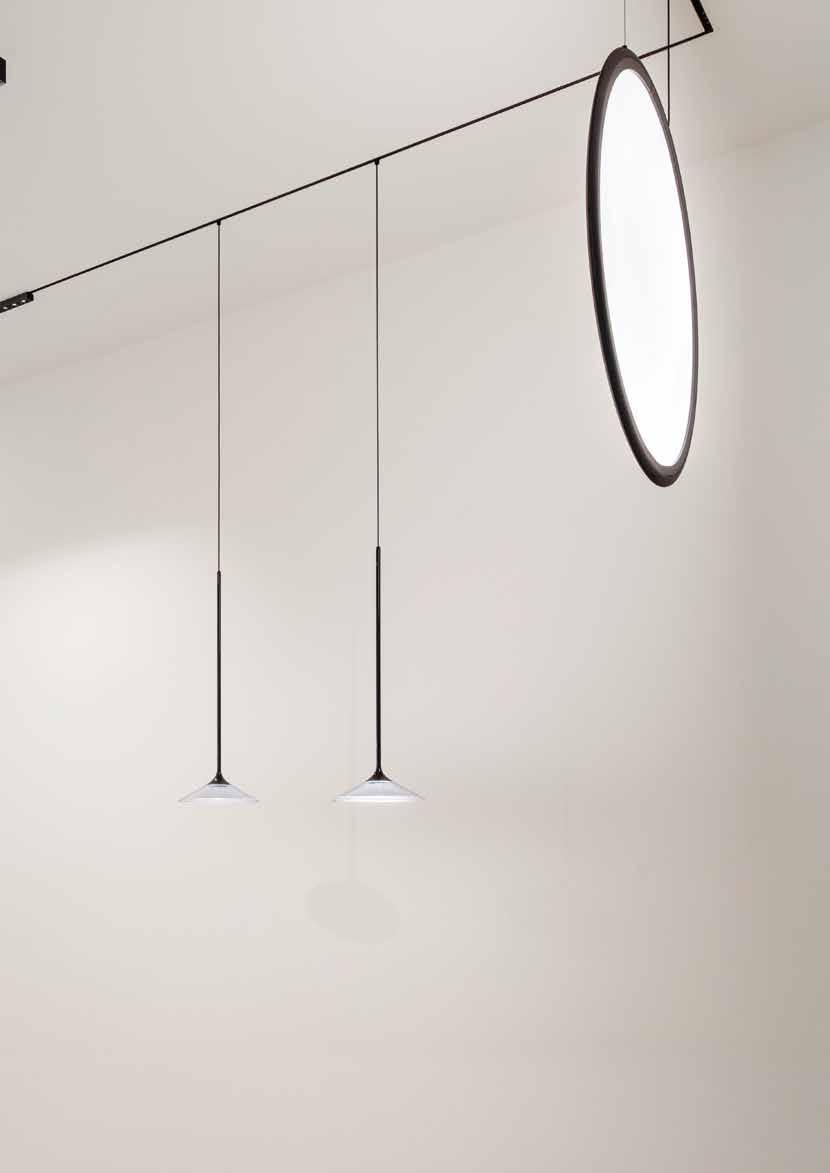

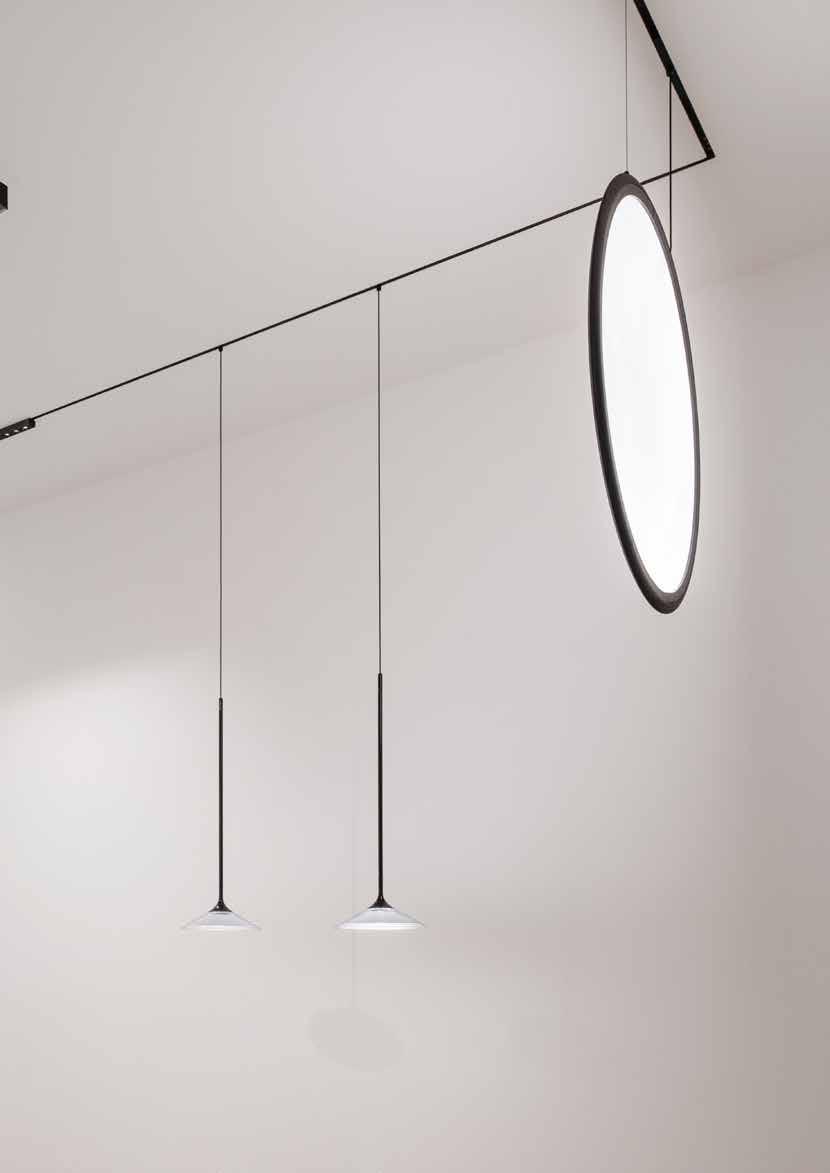

ORSA 21 PENDANT TURN AROUND, FOSTER + PARTNERS

UNTERLINDEN PENDANT TURN AROUND, HERZOG & DE MEURON

LIGHTING APPLIANCES TURN

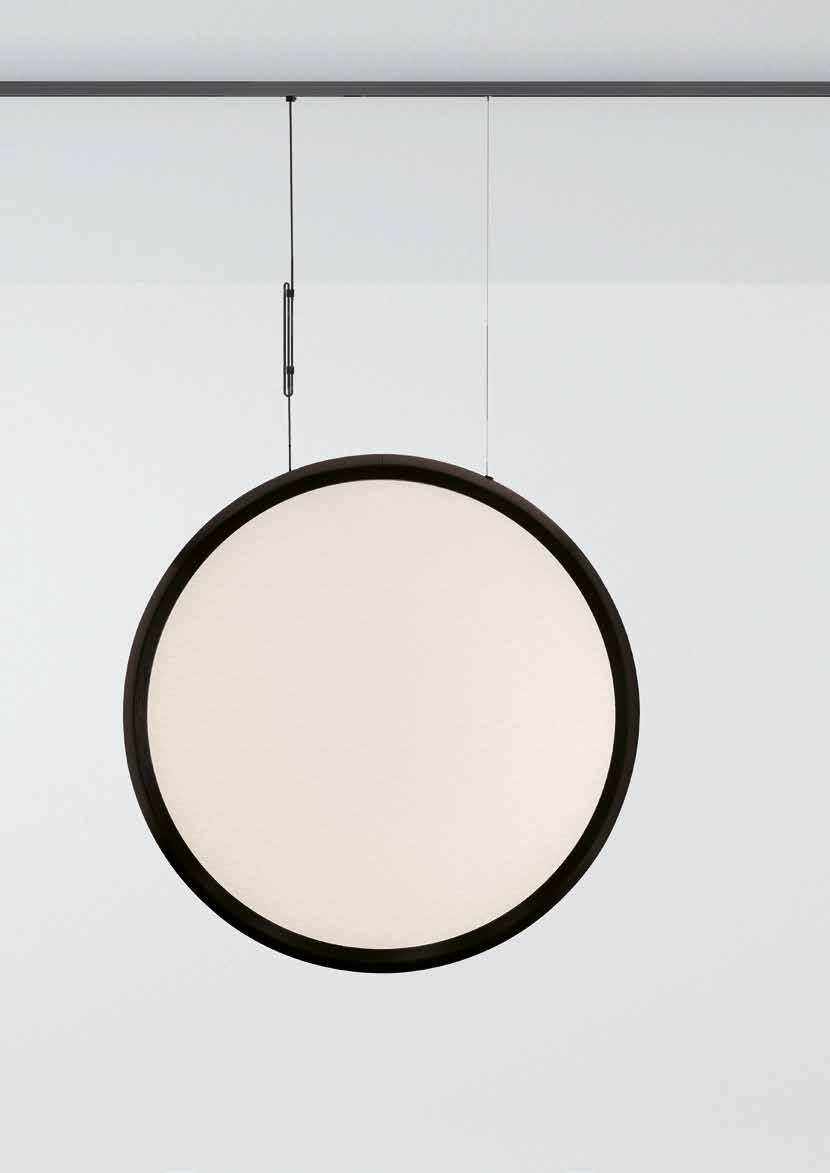

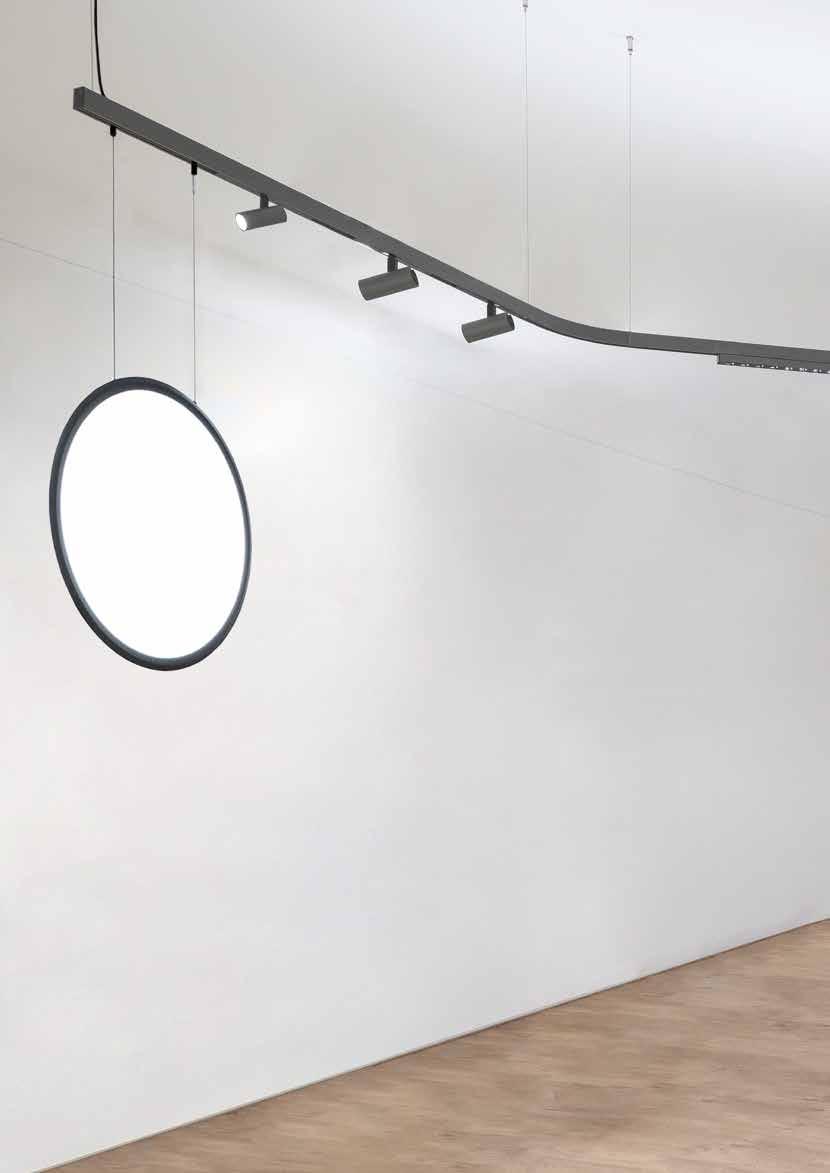

DISCOVERY 70 VERTICAL PENDANT TURN AROUND, ERNESTO GISMONDI

LIGHTING APPLIANCES TURN AROUND

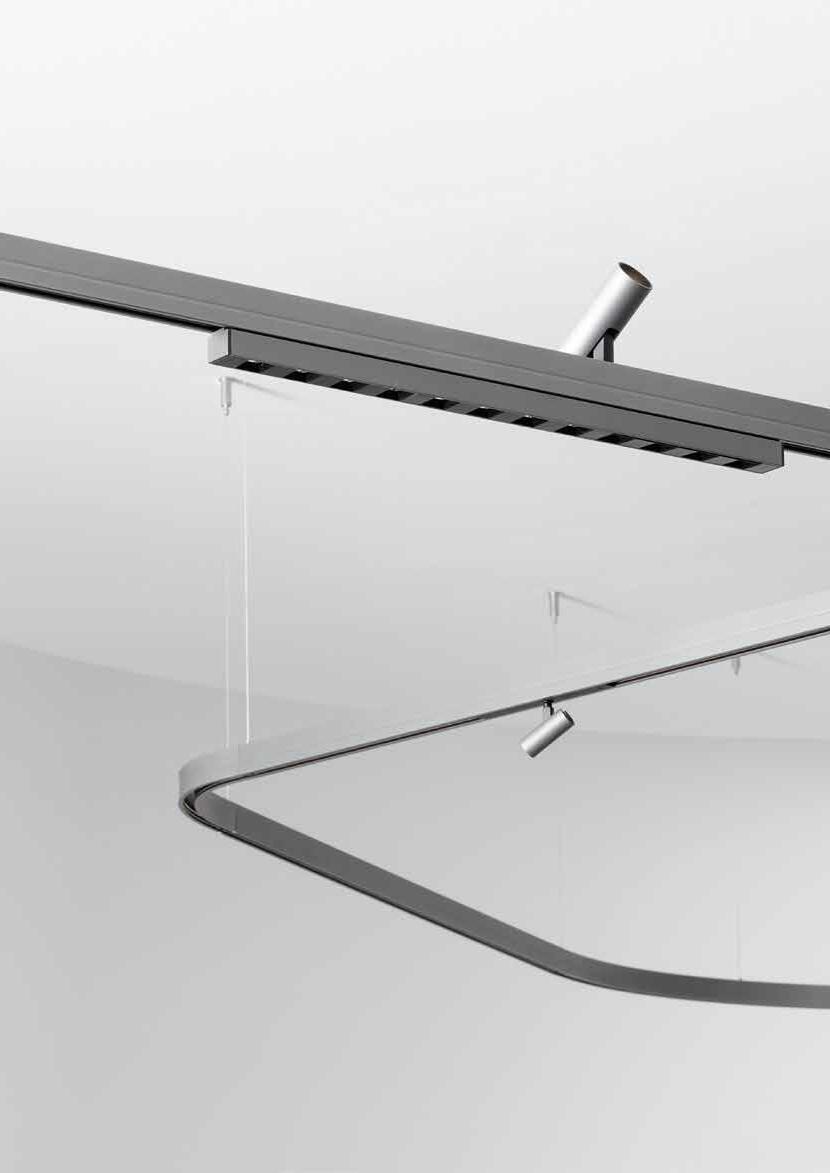

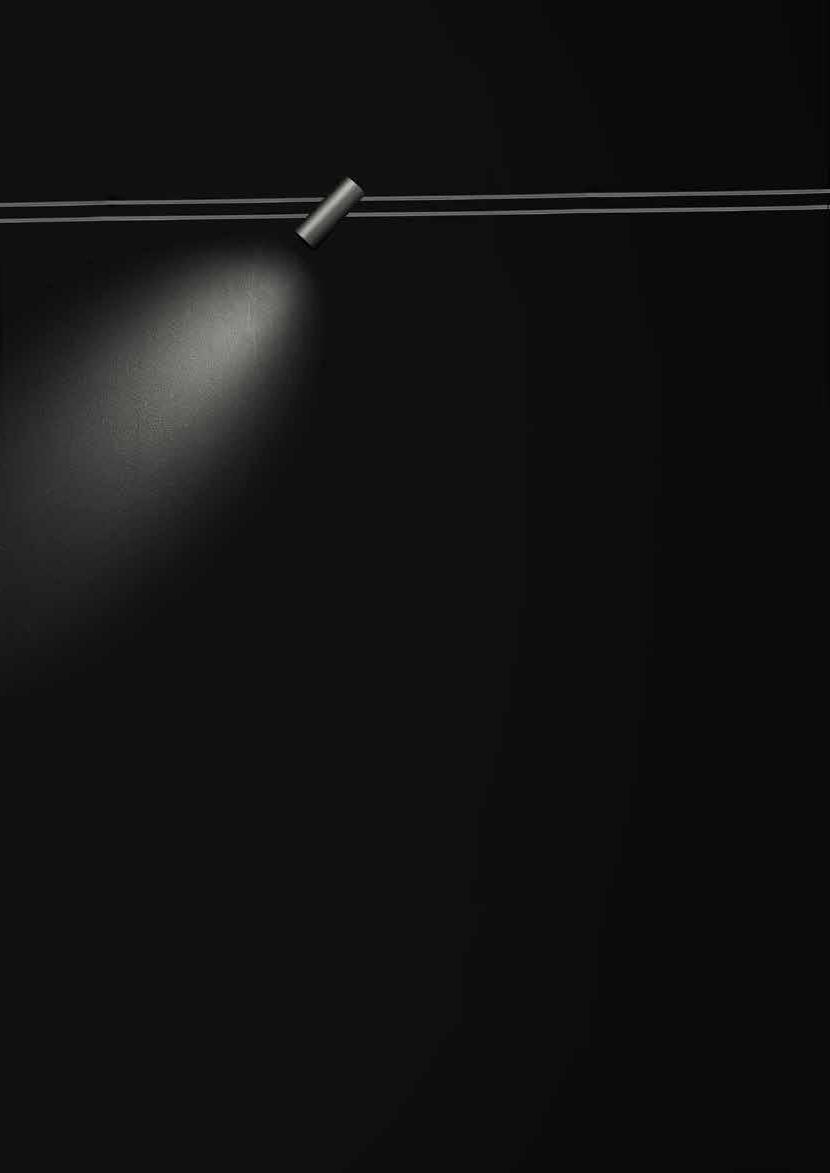

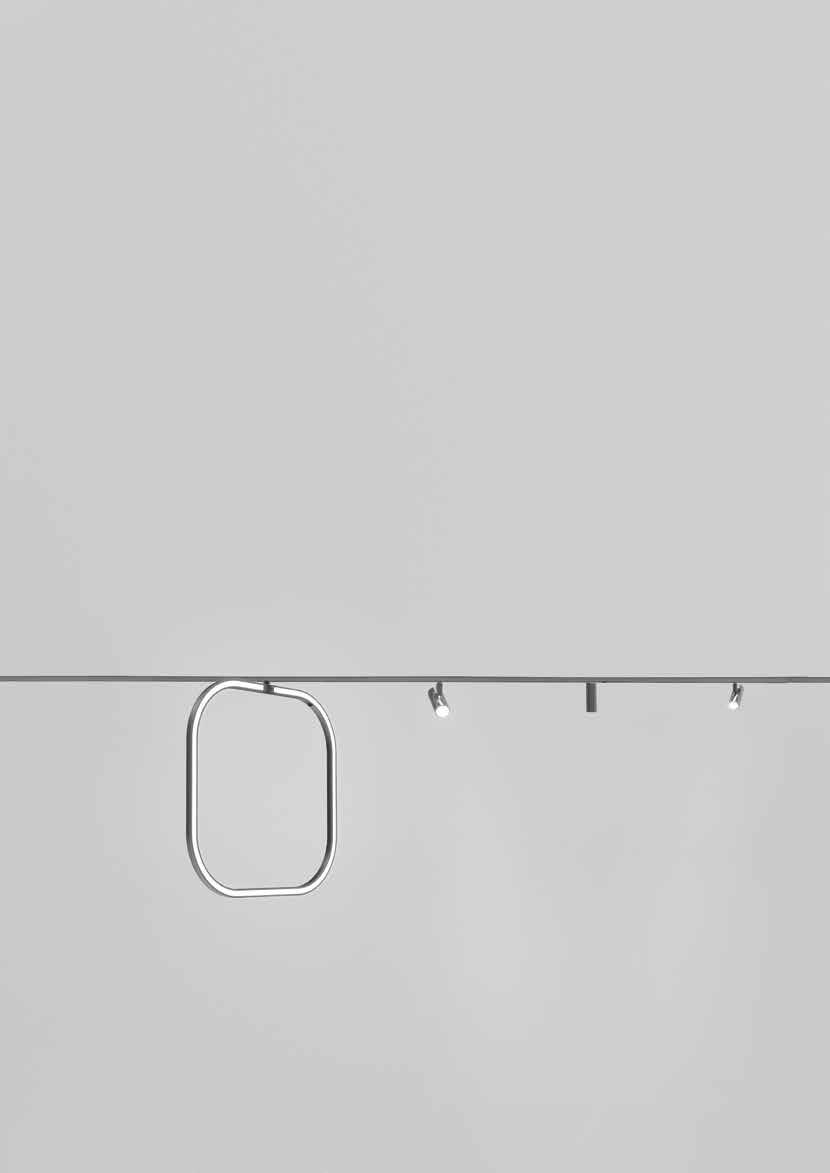

IXA SPOT TURN AROUND, FOSTER + PARTNERS INDUSTRIAL DESIGN

W 9 W

TC81004

TC81007

TC81008

TC81001

TC81006

IXA 50 TURN AROUND, FOSTER + PARTNERS INDUSTRIAL DESIGN W 9 W

TC81104

TC81107

TC81108

TC81101

IXA 100 TURN AROUND, FOSTER + PARTNERS INDUSTRIAL DESIGN

W 9 W

TC81106 Dimmable

TC81204

TC81207

TC81208

TC81201

TC81206

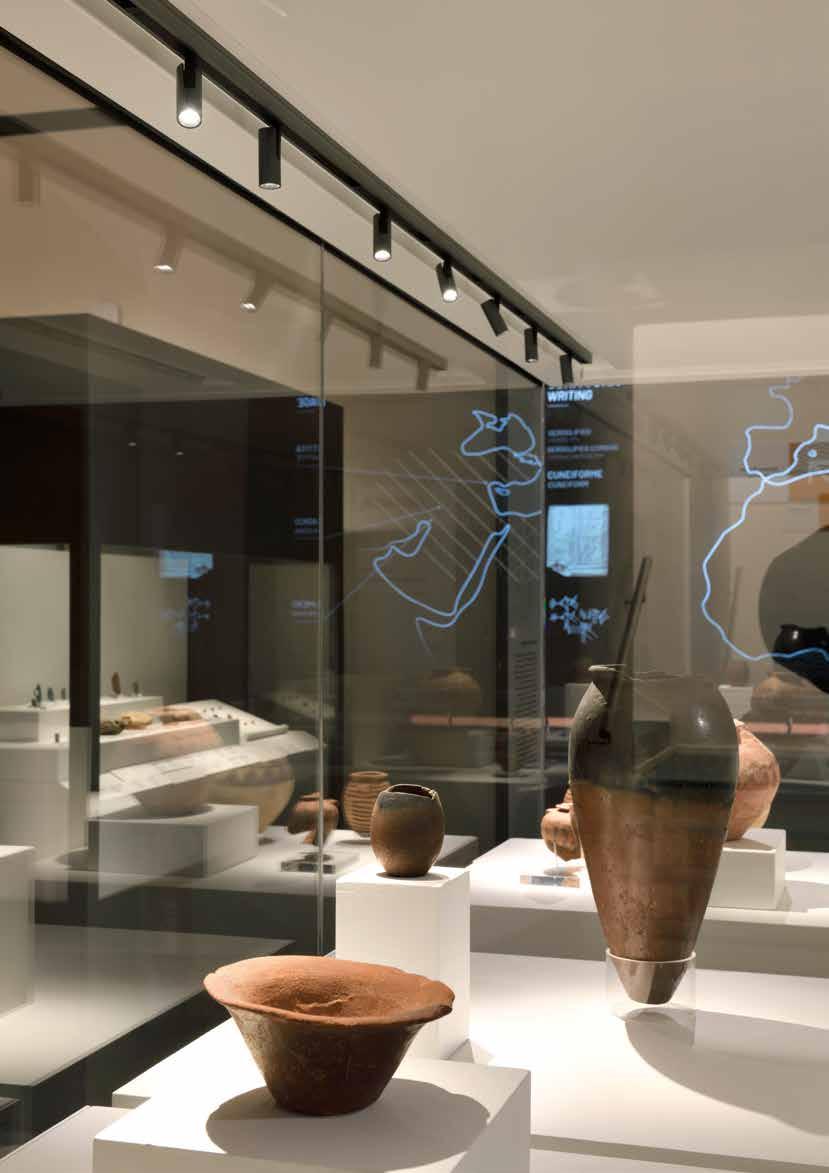

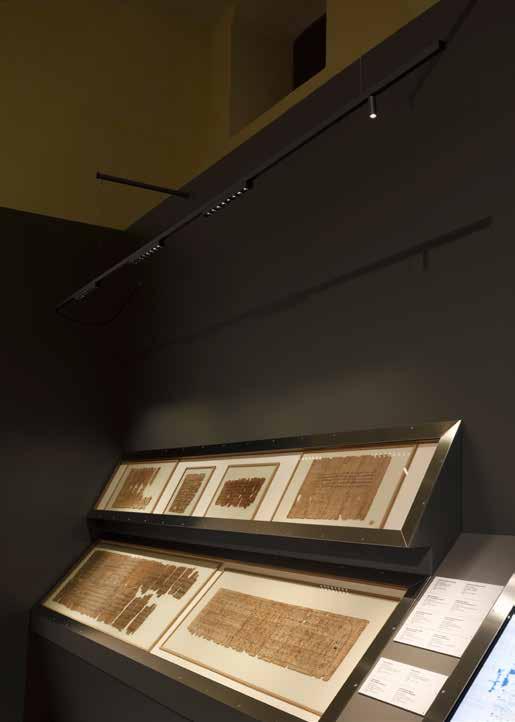

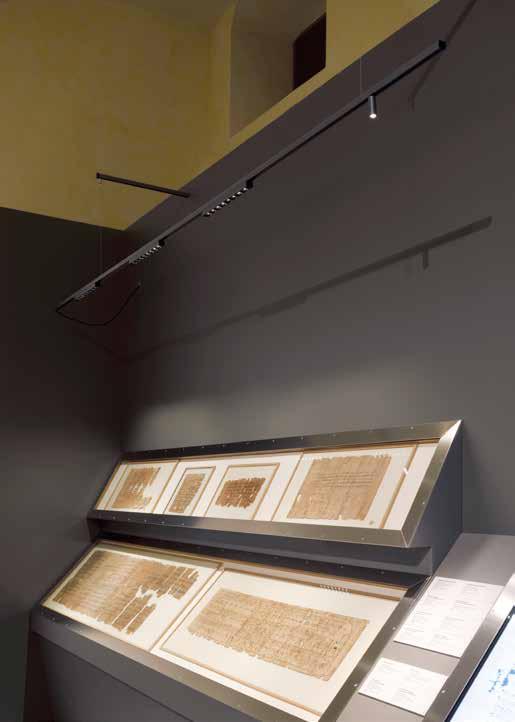

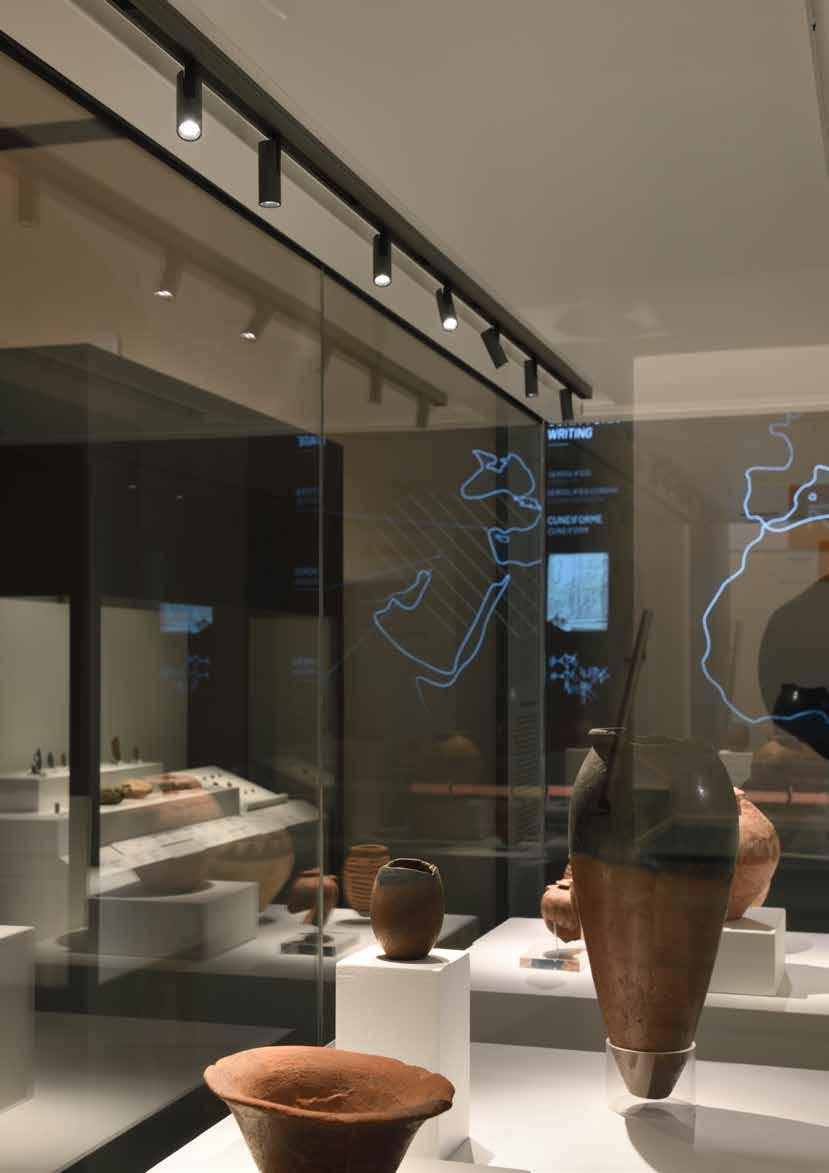

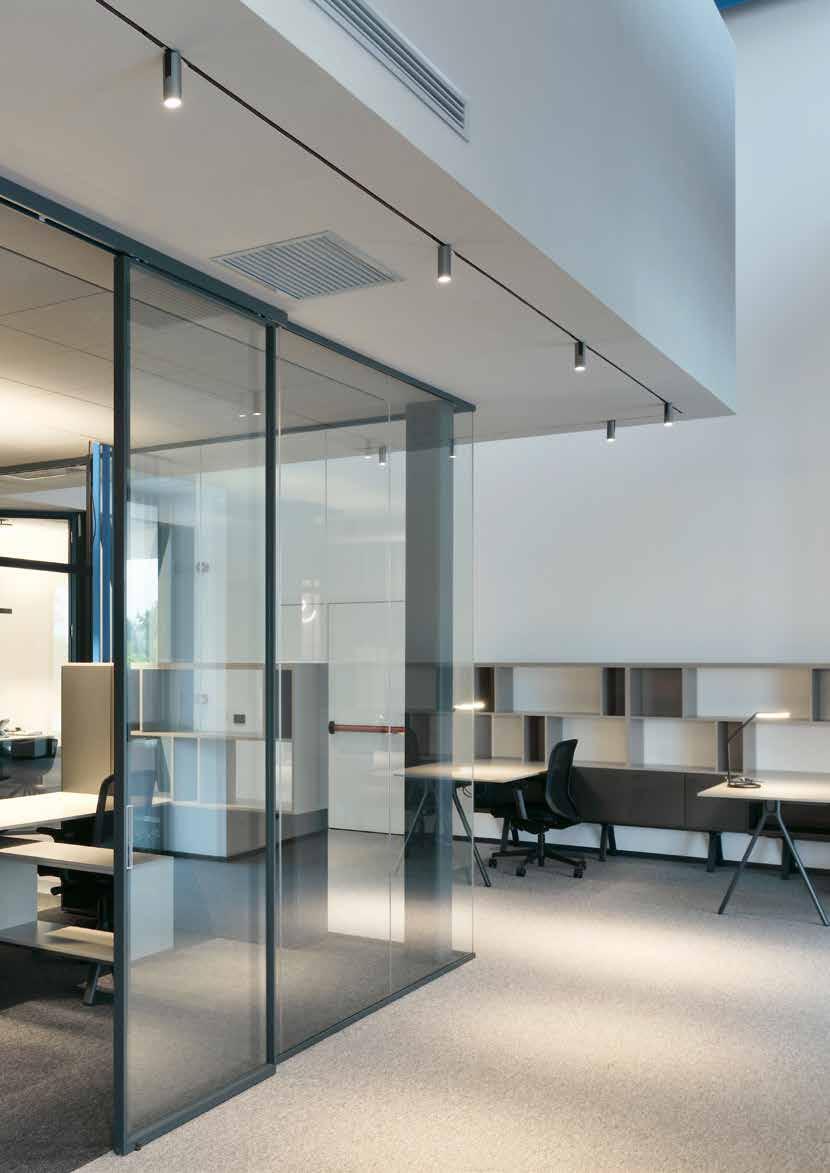

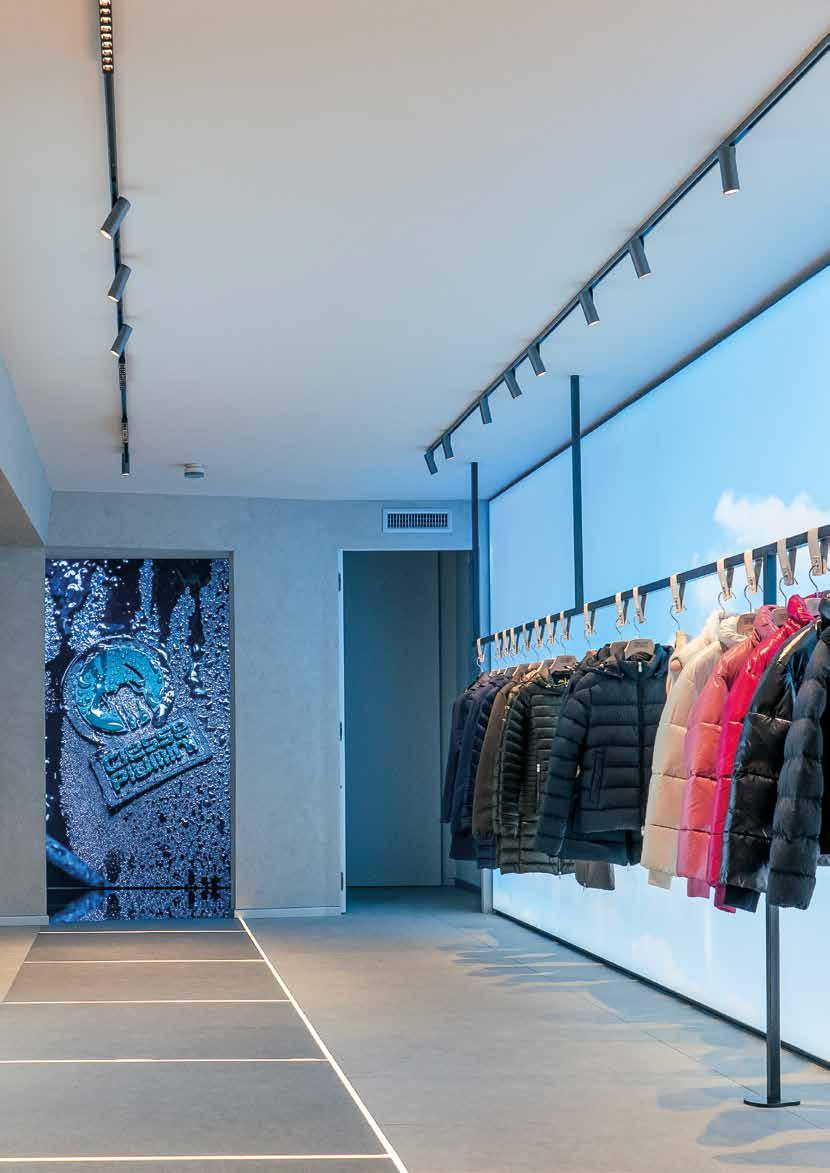

Museo Egizio, Torino, Italy, ph. Michele Nastasi 2023
Museo Egizio, Torino, Italy, ph. Michele
Nastasi
| 2023

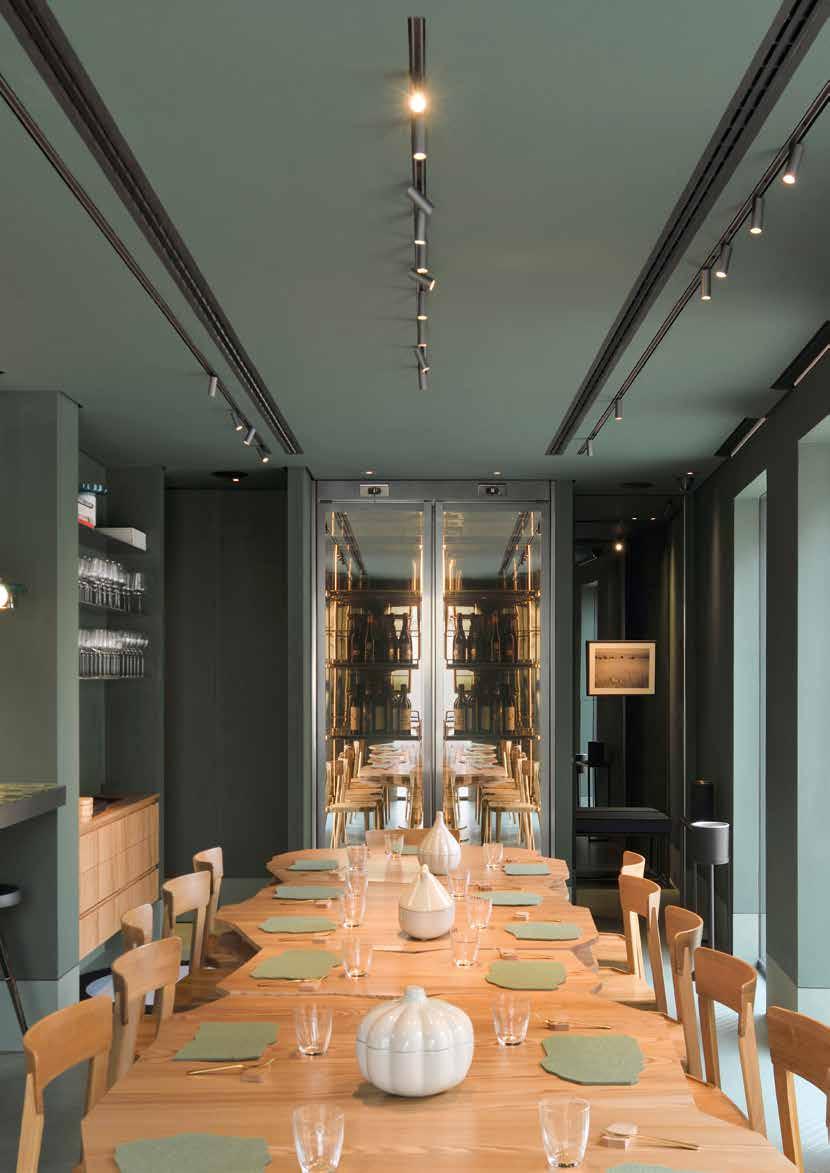

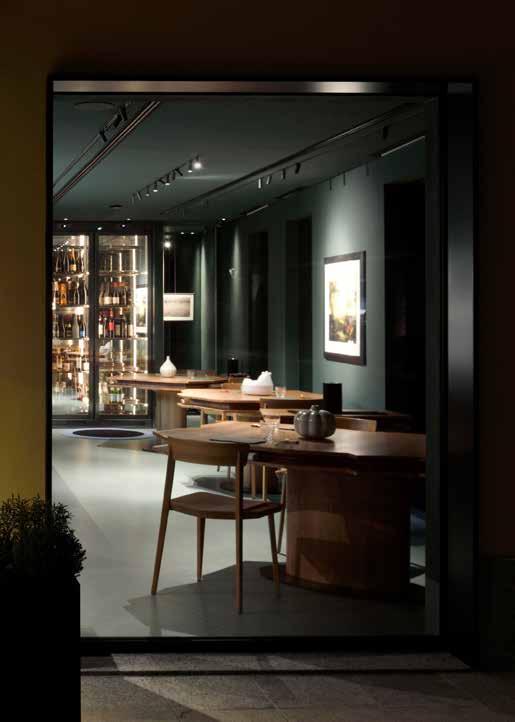

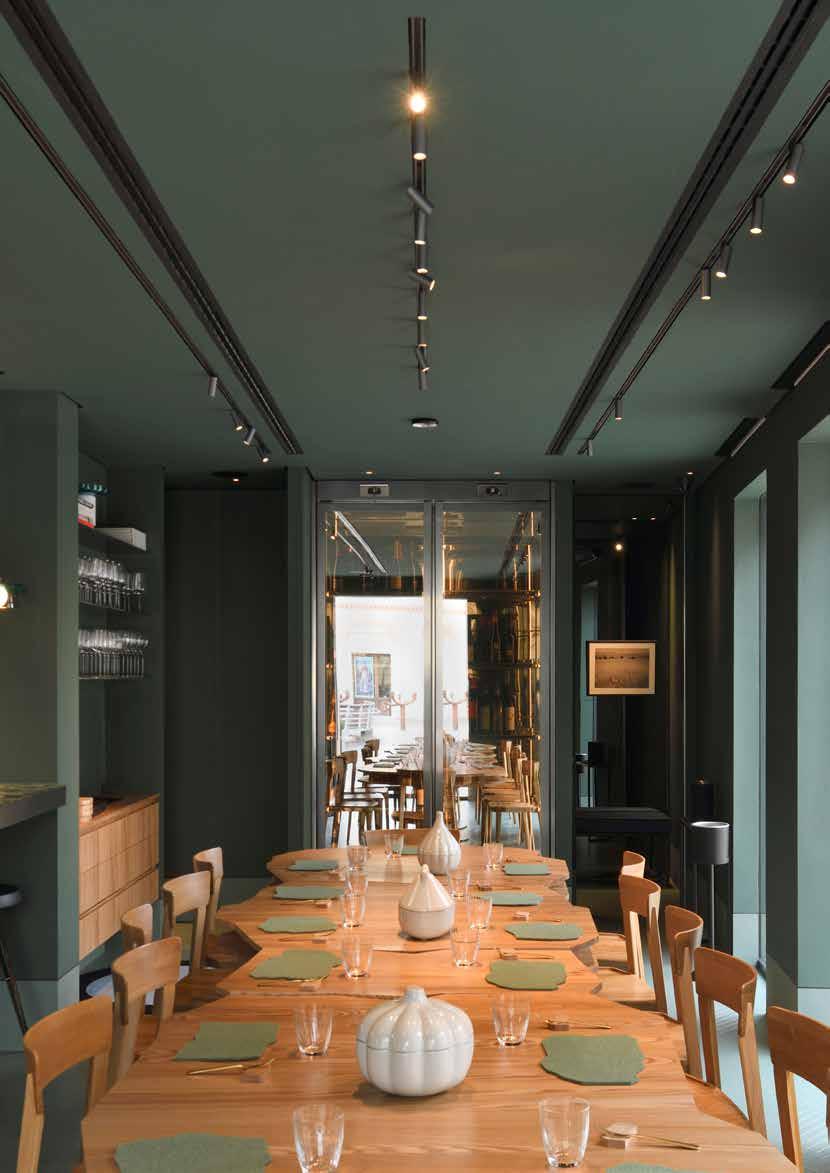

Olmo Restaurant, Cornaredo, Italy, ph. Michele Nastasi
2024

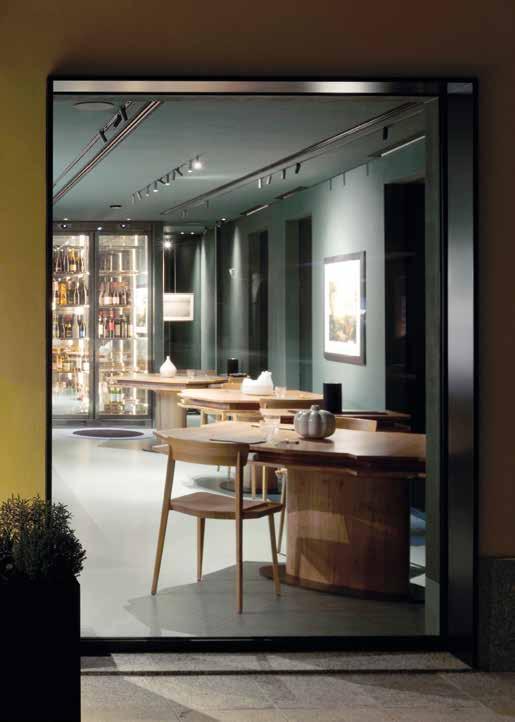

Olmo Restaurant, Cornaredo, Italy, ph. Michele Nastasi 2024

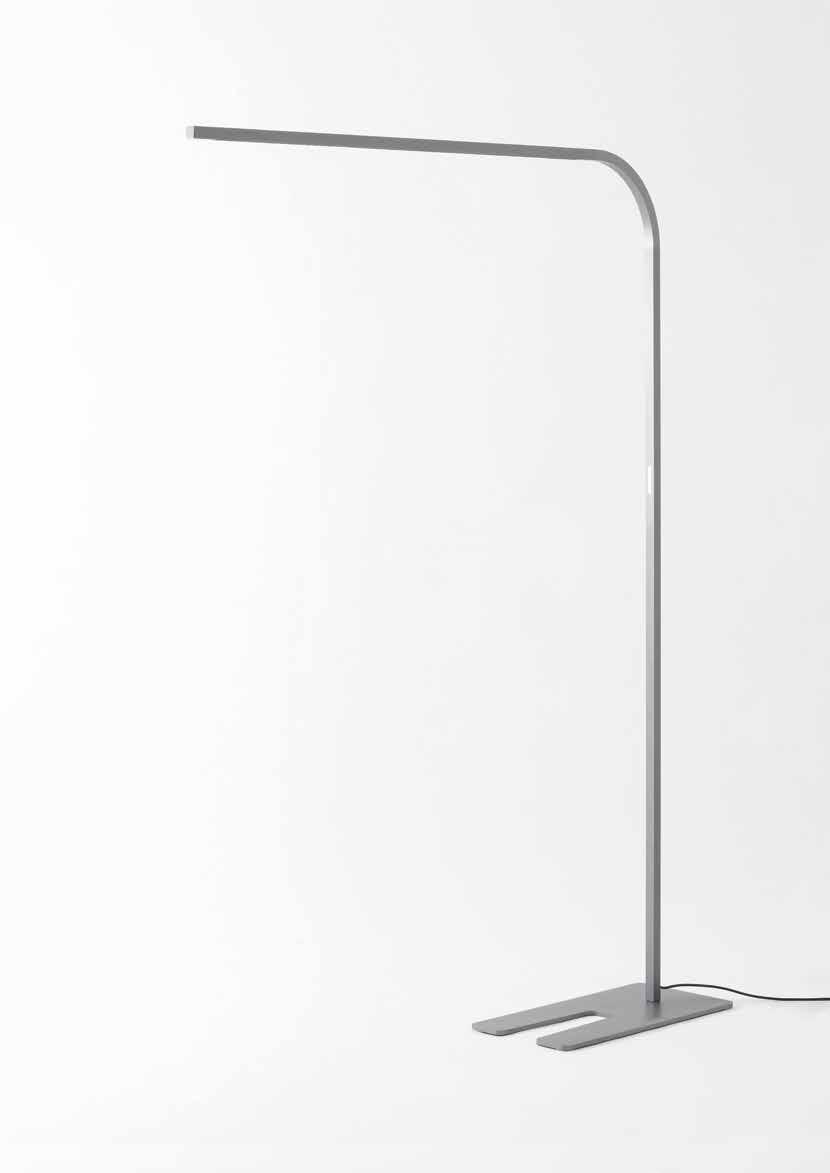

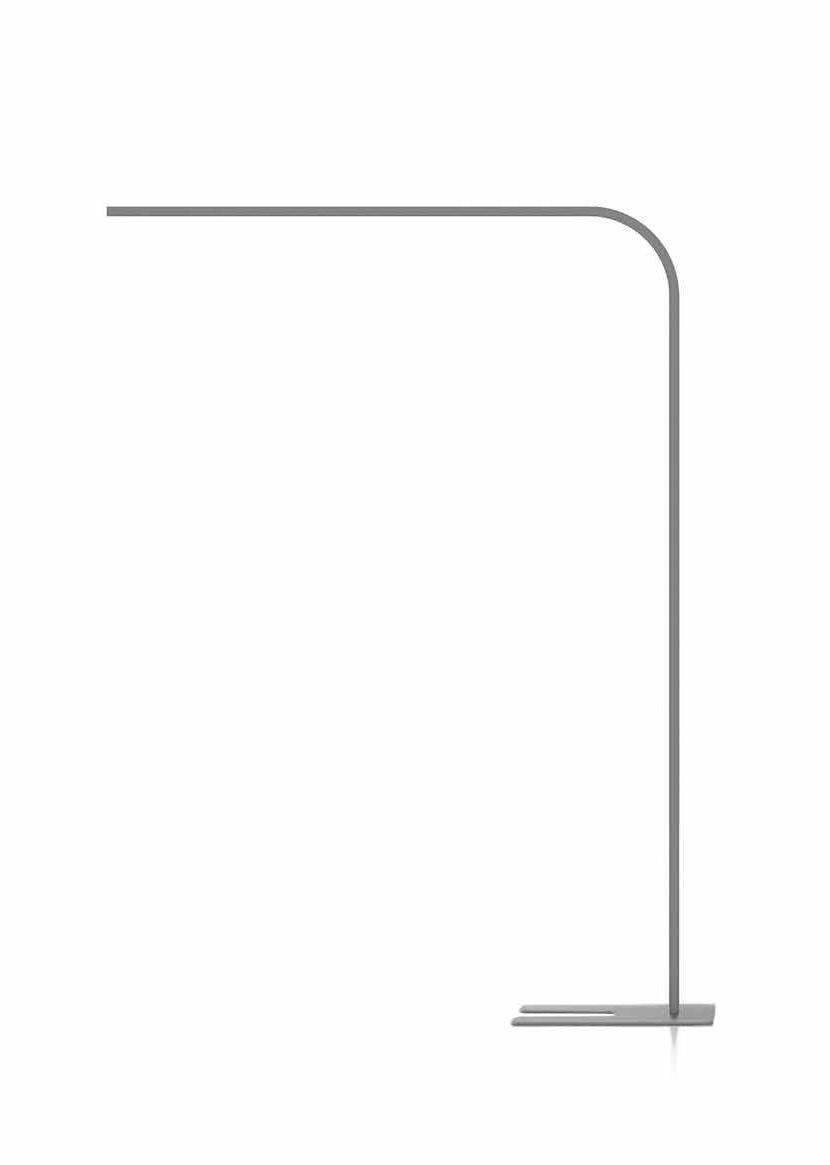

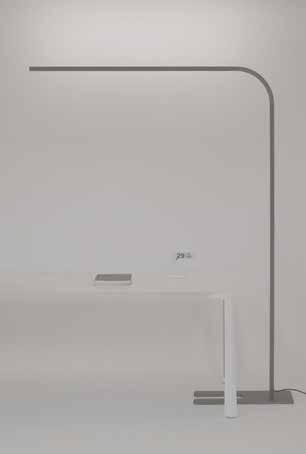

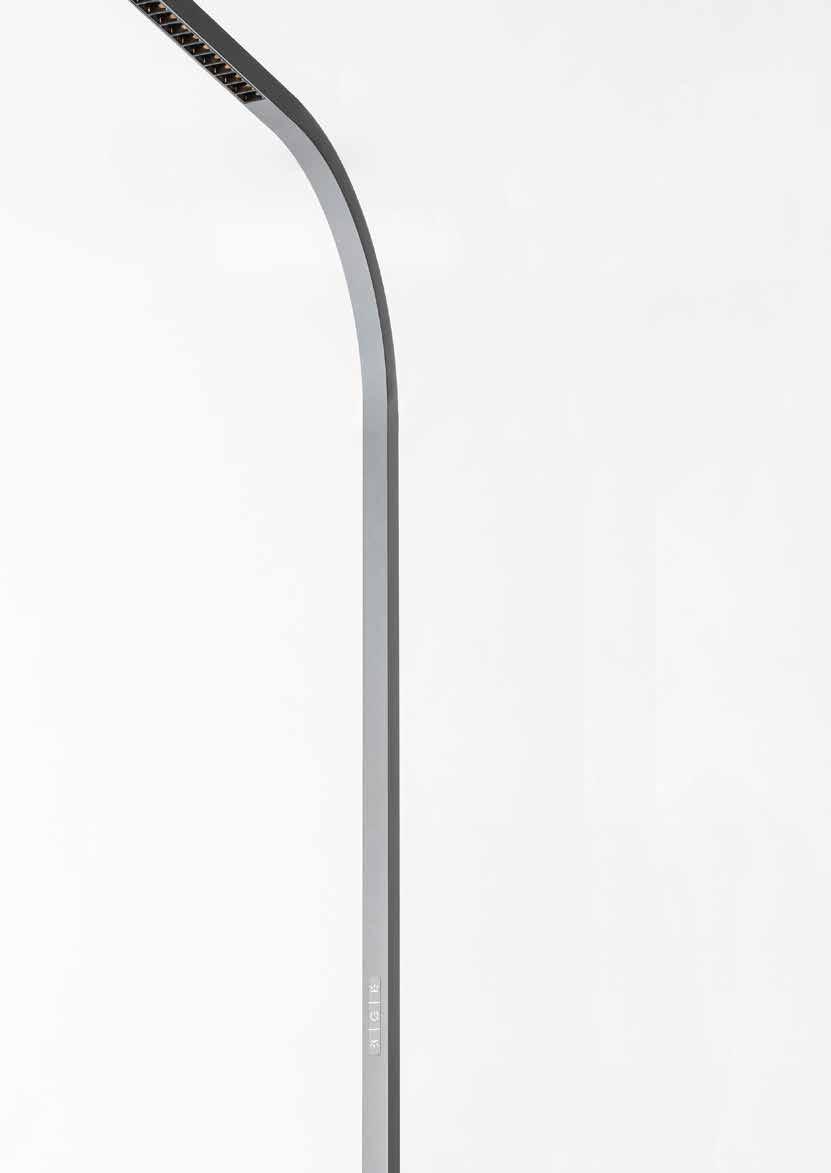

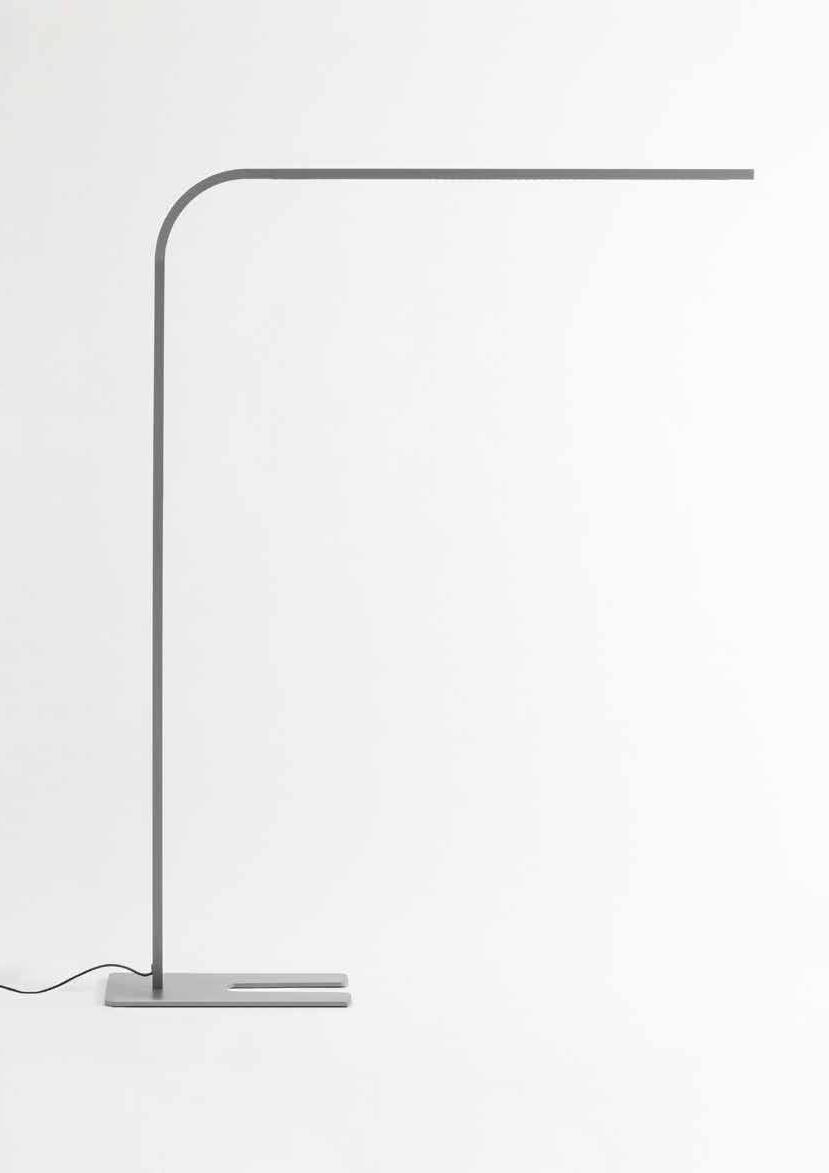

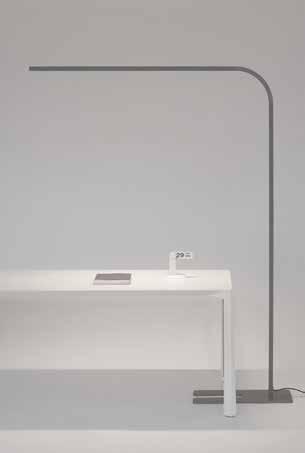

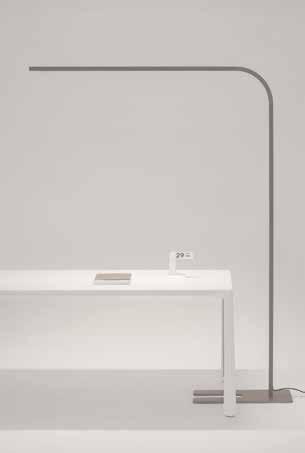

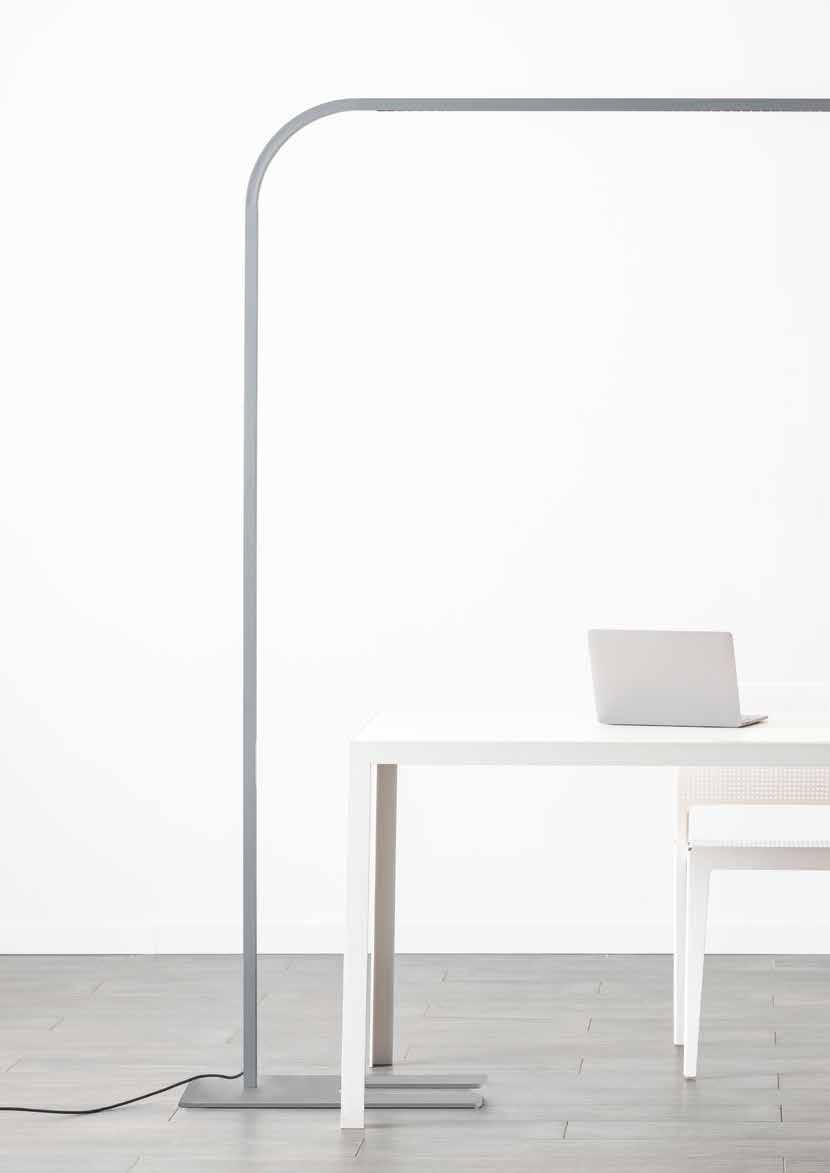

Turn Around floor

Carlotta de Bevilacqua 2023

Turn Around floor shares the same design principles of Turn Around system starting from parameters of sustainability, reduction, lightness, optoelectronic intelligence and interaction. Like the system it is perfect for a last-minute choice able to add dynamic light quality to the space. The slender and minimal structure integrates two different lighting performances to meet the needs of any space, from office workstations to meeting rooms, hospitality or residential spaces.

Turn Around floor combines to the direct controlled emission also an indirect diffuse emission which can be managed separately both from the luminaire body.

The high efficiency and the flexibility of emissions management make Turn Around floor an optimal solution for intelligent energy saving that enhances the experience and the awareness of the user.

Refractive emission

CRI 90

Refractive

Head

Lighting calculation parameters used for Isolux diagrams: office with a single workstation.

Length x width x height: 5.00 x 5.00 x 2.70 m

Reflection factor ceiling/wall/floor: 70/50/20%

Desk: 1.60 x 0.80 x 0.75 m

Maintenance factor: 0.90 WF

Capacitive board for light management

Indirect emission

On/Off

Sensor

Direct + Indirect emission

On/Off

On/Off Dimming

Intensity setting Dimming

Direct emission

Intensity setting and daylight

PIR (proximity)

Workplace

Direct and indirect emission

Direct emission

Indirect emission

*Sensor functionalities:

- Intensity setting and daylight (touching for 3 seconds the central part of the controller) - PIR (proximity)

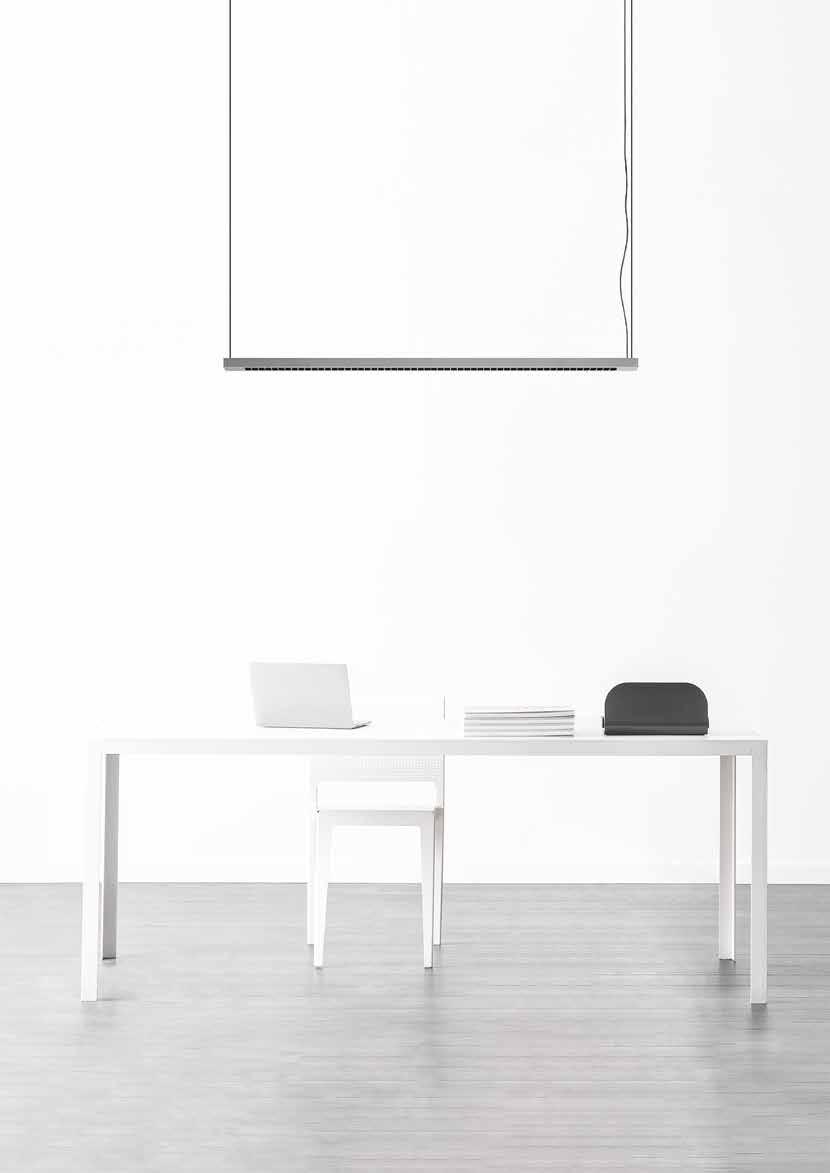

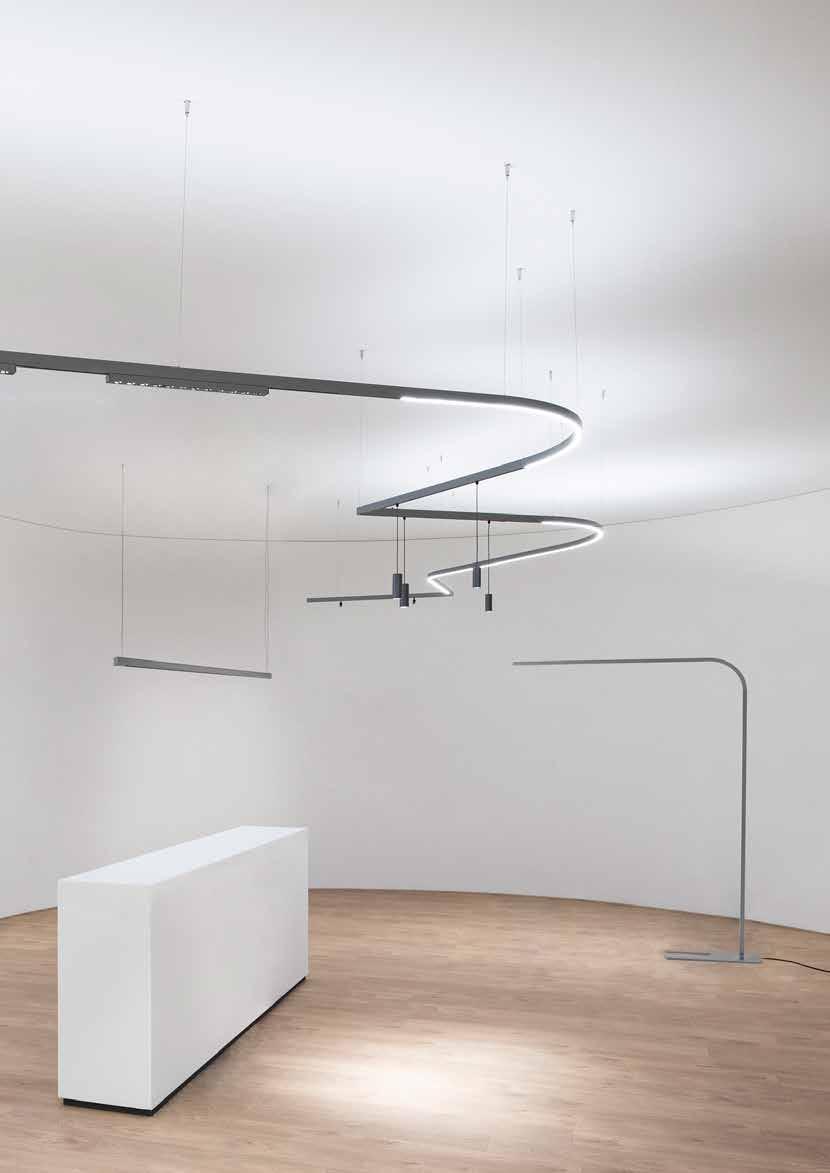

Turn Around suspension

Carlotta de Bevilacqua

Turn Around suspension shares the same design principles of Turn Around system starting from parameters of sustainability, reduction, lightness, integration, optoelectronic intelligence, application freedom and interaction. It also shares the same components of Turn Around floor, integrating in the minimal structure two different lighting performances. Turn Around suspension combines a direct controlled emission to an indirect diffused emission manageable together.The high efficiency and the perfect control of the lighting emission make Turn Around suspension an optimal solution for workplaces.

Controlled direct emission

Refractive emission

High Efficiency more than 70%

High Efficacy up to 115 lm/W

High Glare Control UGR<16 CRI 90

Diffused

Refractive Direct + Diffused Indirect

Head h 2100 mm - Desk h 750 mm

E av = 732 lx u0= 0,526

Power: 17W Direct + 17W Indirect

Flux: 1940 lm + 7500 lm (3000K)

Lighting calculation parameters used for Isolux diagrams: Office with a single workstation.

Length x width x height: 5.00 x 5.00 x 2.70m

Reflection factor ceiling/wall/floor: 70/50/20%

Desk: 1.60 x 0.80 x 0.75m

Maintenance factor: 0.90 WF

Turn Around suspension

Refractive Direct + Diffused Indirect

Head h 2015 mm - Desk h 750 mm

E av = 989 lx u0= 0,584

Power: 17W Direct + 52W Indirect

Flux: 1940 lm + 2700 lm (3000K)

Lighting calculation parameters used for Isolux diagrams: Office with a single workstation.

Length x width x height: 5.00 x 5.00 x 2.70m

Reflection factor ceiling/wall/floor: 70/50/20%

Desk: 1.60 x 0.80 x 0.75m

Maintenance factor: 0.90 WF

Turn Around floor

TF22022

Headquarters

Artemide S.p.A.

Via Bergamo, 18

20010 Pregnana Milanese (MI), Italy

Tel. +39 02 93518.1

Tel. +39 02 93526.1

Numero verde 800 834 093 (from Italy only) info@artemide.com artemide.com

Artemide S.p.A.

si riserva la facoltà di modificare, in qualunque momento e senza preavviso, le caratteristiche tecniche degli elementi illustrati nel presente catalogo.

Artemide S.p.A. reserves the right to change, at any time and without prior warning, the technical specifications of any product illustrated in this catalogue.

Artemide S.p.A. se réserve le droit de modifier, à n’importe quel moment et sans préavis, les caractéristiques techniques des éléments illustrés dans ce catalogue.

Artemide S.p.A.

behält sich das Recht vor jederzeit und ohne Ankündigung die technischen Daten der im Katalog abgebildetem Produkte zu ändern.

Artemide S.p.A. se reserva la facultad de modificar, en cualquier y sin aviso previo, las características técnicas de los elementos ilustrados en el presente catálgo.

July 2024

For information regarding distributors and points of sale, please visit our website artemide.com or email: info@artemide.com

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
