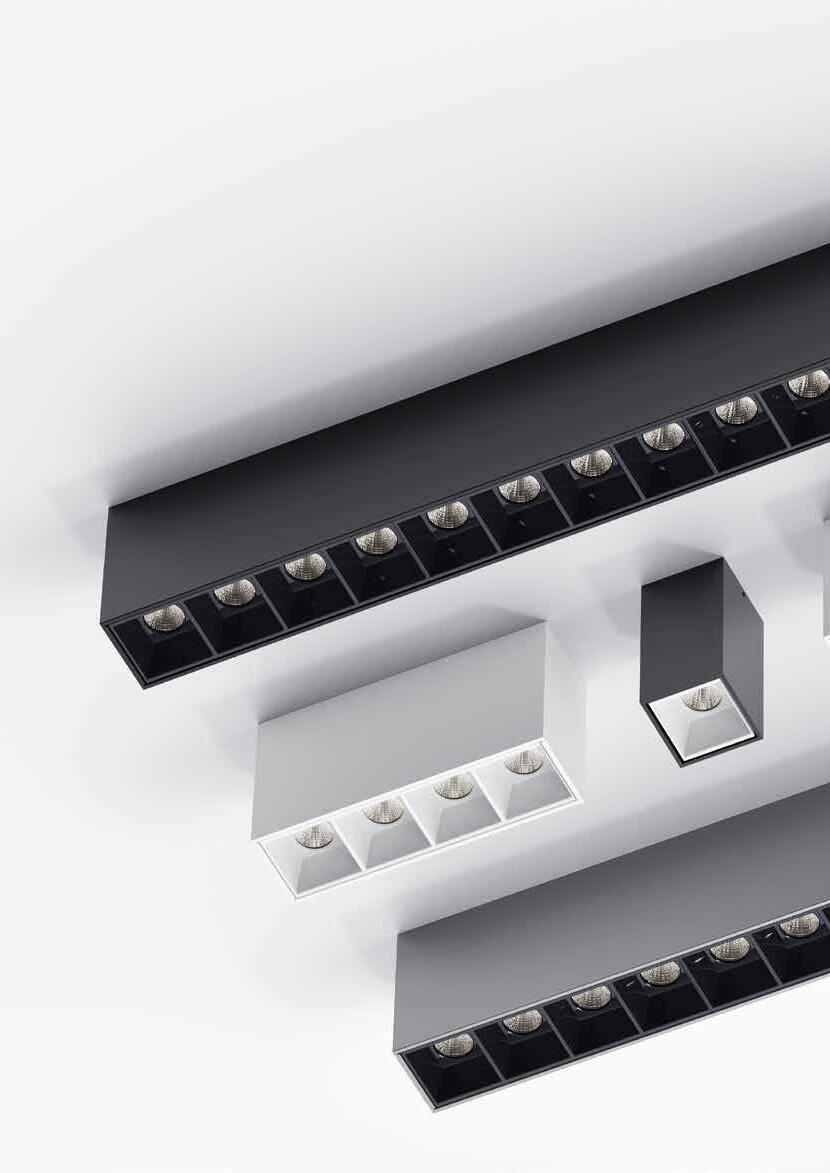

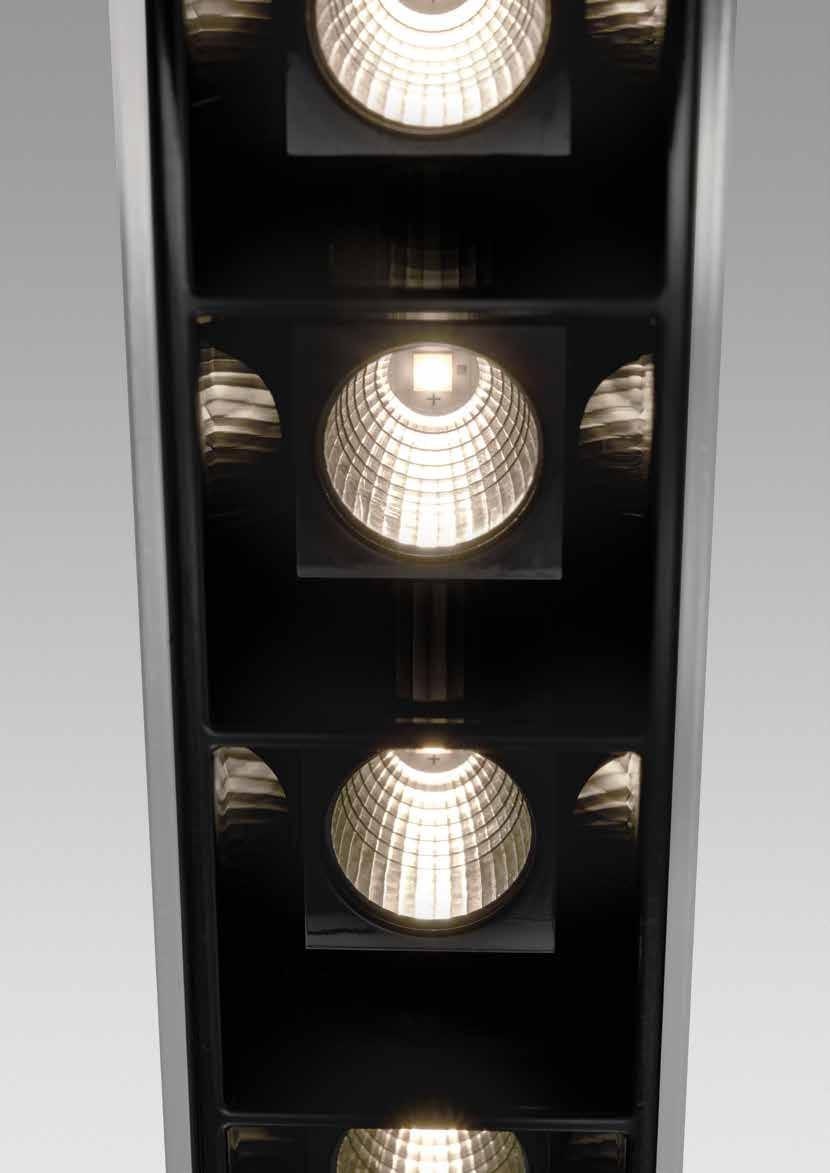

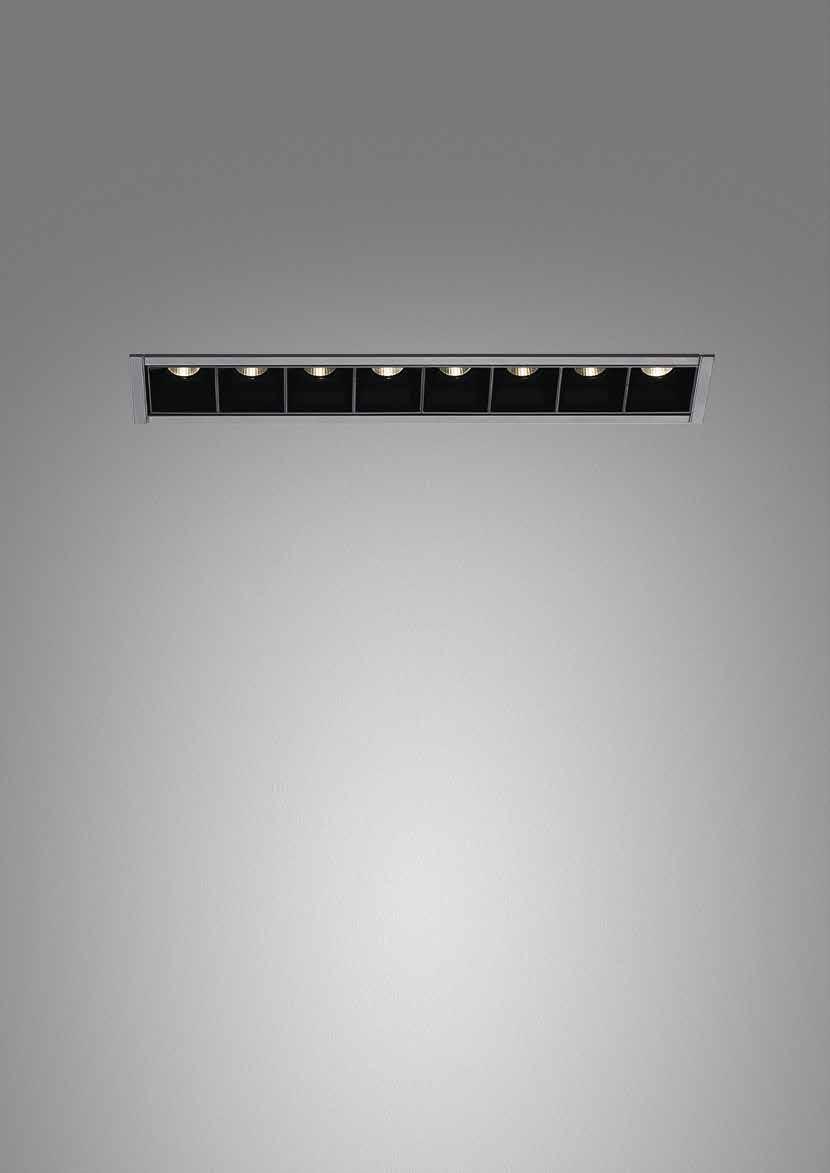

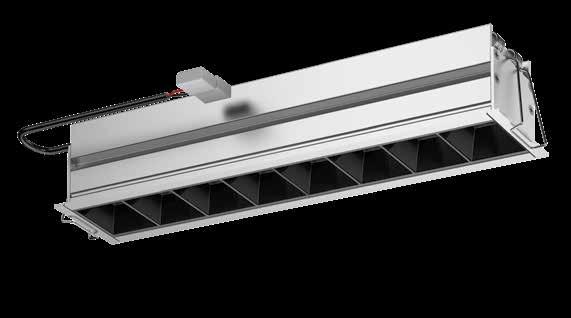

A patented high-efficiency optical system combining a polynomial optical unit with geometric screening of the beam’s viewing angle.

Highly uniform lighting and full emission control.

Total absence of any lighting defects, such as spots or multiple shadows.

Recess depth 60 mm.

Suited for 1 to 25 mm ceilings.

Available in the trim, trimless and SMD versions.

PATENT PENDING

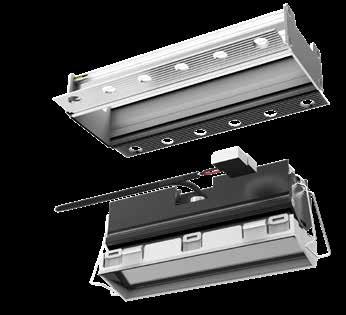

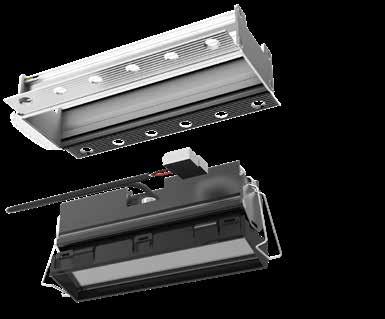

Sharp trim - trimless

Sharp trim - trimless typologies

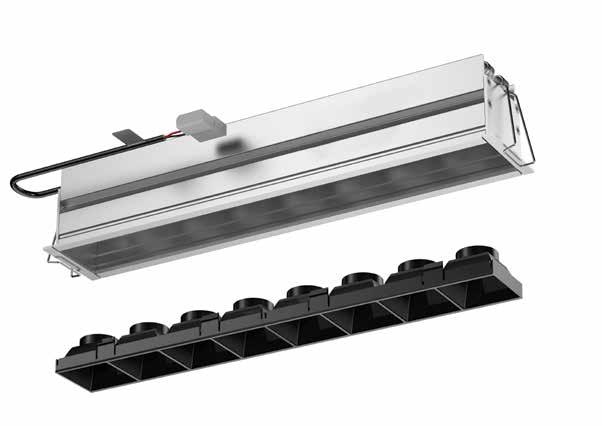

Sharp trim

Watt

3 W

Beam Flux CCT Code

SP 20° 189 lm 2700 K AF000. 01/05/04

201 lm 3000 K AF003. 01/05/04

215 lm 4000 K AF006. 01/05/04

XF 36° 177 lm 2700 K AF001. 01/05/04

188 lm 3000 K AF004. 01/05/04

201 lm 4000 K AF007. 01/05/04

WF 52° 183 lm 2700 K AF002. 01/05/04

195 lm 3000 K AF005. 01/05/04

208 lm 4000 K AF008. 01/05/04

5,5 W SP 20° 377 lm 2700 K AF050. 01/05/04

402 lm 3000 K AF053. 01/05/04

430 lm 4000 K AF056. 01/05/04

XF 36° 353 lm 2700 K AF051. 01/05/04

376 lm 3000 K AF054. 01/05/04

403 lm 4000 K AF057. 01/05/04

WF 52° 366 lm 2700 K AF052. 01/05/04

389 lm 3000 K AF055. 01/05/04

417 lm 4000 K AF058. 01/05/04

11 W SP 20° 755 lm 2700 K AF100. 01/05/04 804 lm 3000 K AF103. 01/05/04

860 lm 4000 K AF106. 01/05/04

XF 36° 706 lm 2700 K AF101. 01/05/04

752 lm 3000 K AF104. 01/05/04

805 lm 4000 K AF107. 01/05/04

WF 52° 731 lm 2700 K AF102. 01/05/04

779 lm 3000 K AF105. 01/05/04

834 lm 4000 K AF108. 01/05/04

22 W SP 20° 1509 lm 2700 K AF147. 01/05/04

1608 lm 3000 K AF150. 01/05/04

1721 lm 4000 K AF153. 01/05/04

XF 36° 1412 lm 2700 K AF148. 01/05/04

1504 lm 3000 K AF151. 01/05/04

1610 lm 4000 K AF154. 01/05/04

WF 52° 1462 lm 2700 K AF149. 01/05/04

1558 lm 3000 K AF152. 01/05/04

1667 lm 4000 K AF155. 01/05/04

33 W SP 20° 2263 lm 2700 K AF197. 01/05/04

2412 lm 3000 K AF200. 01/05/04

2581 lm 4000 K AF203. 01/05/04

XF 36° 2118 lm 2700 K AF198. 01/05/04

2256 lm 3000 K AF201. 01/05/04

2415 lm 4000 K AF204. 01/05/04

WF 52° 2193 lm 2700 K AF199. 01/05/04

2337 lm 3000 K AF202. 01/05/04

2501 lm 4000 K AF205. 01/05/04

44 W SP 20° 3019 lm 2700 K AF247. 01/05/04

3215 lm 3000 K AF250. 01/05/04

3442 lm 4000 K AF253. 01/05/04

XF 36° 2824 lm 2700 K AF248. 01/05/04

3009 lm 3000 K AF251. 01/05/04

3220 lm 4000 K AF254. 01/05/04

WF 52° 2924 lm 2700 K AF249. 01/05/04

3316 lm 3000 K AF252. 01/05/04

3335 lm 4000 K AF255. 01/05/04

Sharping wall grazer lens Kit (4pcs) 26°x70° elliptical lenses kit. It has to be used on top of SP 20° reflectors to get an elliptical beam (greater axis along the module length). It contains 4 lenses.

01/04

01/04

01/04

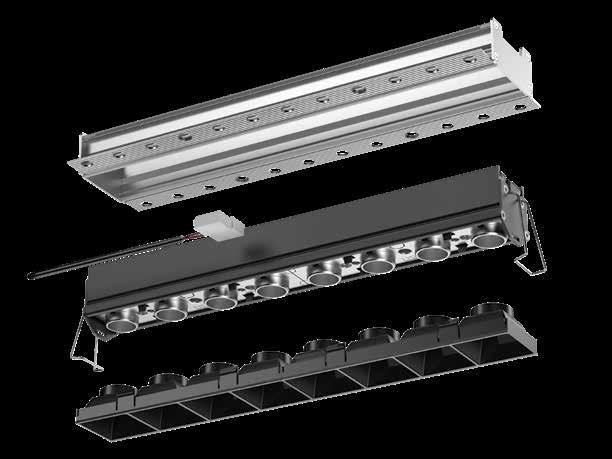

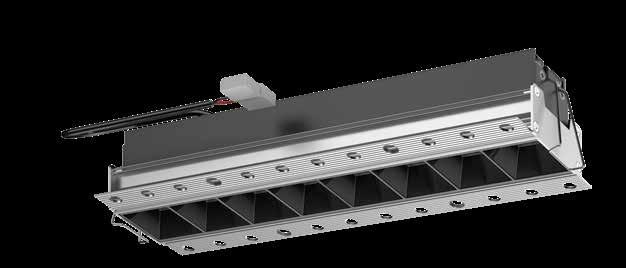

Sharp trimless

3 W

Beam Flux CCT Code

SP 20° 189 lm 2700 K AF50000

201 lm 3000 K AF50300

215 lm 4000 K AF50600

XF 36° 177 lm 2700 K AF50100

188 lm 3000 K AF50400

201 lm 4000 K AF50700

WF 52° 183 lm 2700 K AF50200

195 lm 3000 K AF50500

208 lm 4000 K AF50800

5,5 W SP 20° 371 lm 2700 K AF55000

402 lm 3000 K AF55300

430 lm 4000 K AF55600

XF 36° 353 lm 2700 K AF55100

376 lm 3000 K AF55400

403 lm 4000 K AF55700

WF 52° 366 lm 2700 K AF55200

389 lm 3000 K AF55500

417 lm 4000 K AF55800

11 W SP 20° 755 lm 2700 K AF60000 804 lm 3000 K AF60300

860 lm 4000 K AF60600

XF 36° 706 lm 2700 K AF60100 752 lm 3000 K AF60400

805 lm 4000 K AF60700

WF 52° 731 lm 2700 K AF60200 779 lm 3000 K AF60500 834 lm 4000 K AF60800

22 W SP 20° 1509 lm 2700 K AF64700 1608 lm 3000 K AF65000 1721 lm 4000 K AF65300

XF 36° 11412 lm 2700 K AF64800

1504 lm 3000 K AF65100

1610 lm 4000 K AF65400

WF 52° 1462 lm 2700 K AF64900 1558 lm 3000 K AF65200 1667 lm 4000 K AF65500

33 W SP 20° 2263 lm 2700 K AF69700 2412 lm 3000 K AF70000

2581 lm 4000 K AF70300

XF 36° 2118 lm 2700 K AF69800

2256 lm 3000 K AF70100

2415 lm 4000 K AF70400

WF 52° 2193 lm 2700 K AF69900

2337 lm 3000 K AF70200

2501 lm 4000 K AF70500

44 W

3019 lm 2700 K AF74700

lm 3000 K AF75000

lm 4000 K AF75300 XF 36° 2824 lm 2700 K AF74800 3009 lm 3000 K AF75100

3220 lm 4000 K AF75400

WF 52° 2924 lm 2700 K AF74900

3116 lm 3000 K AF75200 3335 lm 4000 K AF75500

Driver 900mA SELV and louvres supplied separately.

Code

AF90000

AF90100

AF90200

AF90300

AF90400

AF90500

Frame for recessed installation Accessories

Sharping wall grazer lens Kit (4pcs) 26°x70° elliptical lenses kit. It has to be used on top of SP 20° reflectors to get an elliptical beam (greater axis along the module length). It contains 4 lenses.

Code

AF950. 01/04

AF951. 01/04

AF952. 01/04

AF06000

Sharp wall washer

1 optic unit

2 optic units

3 optic units

4 optic units

1 optic unit

2 optic units

3 optic units

4 optic units

Driver 900mA SELV a supplied separately.

Frame for recessed installation Louvres included.

AF109. 01/04/05/54

AF110. 01/04/05/54

AF111. 01/04/05/54

AF156. 01/04/05/54

AF157. 01/04/05/54

AF158. 01/04/05/54

AF206. 01/04/05/54

AF207. 01/04/05/54

AF208. 01/04/05/54

AF256. 01/04/05/54

AF257. 01/04/05/54

AF258. 01/04/05/54

AF609. 01/04

AF610. 01/04

AF611. 01/04

AF656. 01/04

AF657. 01/04

AF658. 01/04

AF706. 01/04

AF707. 01/04

AF708. 01/04

AF756. 01/04

AF757. 01/04 AF758. 01/04

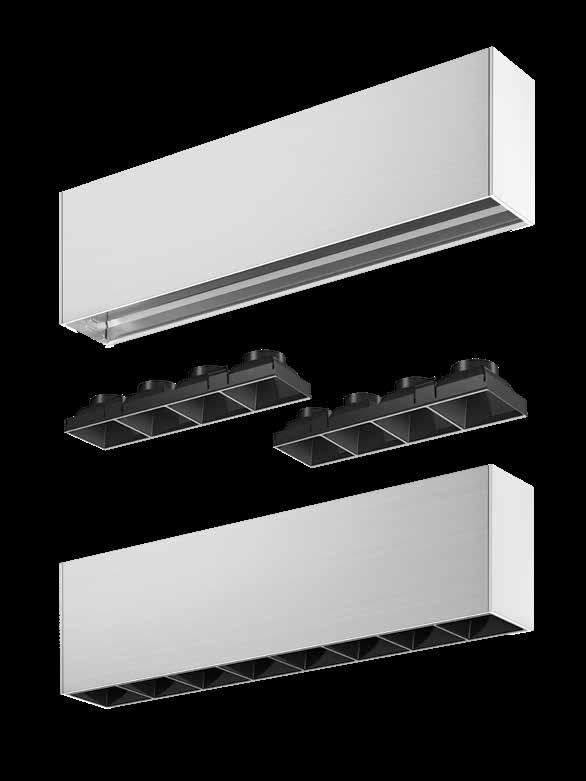

Sharp SMD

Sharp SMD

1x - 2x - 4x

Watt Beam Flux CCT Code

3,5 W SP 20° 189 lm 2700 K AF310. 01/04/05

201 lm 3000 K AF313. 01/04/05

215 lm 4000 K AF316. 01/04/05

XF 36° 177 lm 2700 K AF311. 01/04/05

188 lm 3000 K AF314. 01/04/05

201 lm 4000 K AF317. 01/04/05

WF 52° 183 lm 2700 K AF312. 01/04/05

195 lm 3000 K AF315. 01/04/05

208 lm 4000 K AF318. 01/04/05

6,5 W SP 20° 377 lm 2700 K AF360. 01/04/05

402 lm 3000 K AF363. 01/04/05

430 lm 4000 K AF366. 01/04/05

XF 36° 353 lm 2700 K AF361. 01/04/05

376 lm 3000 K AF364. 01/04/05

403 lm 4000 K AF367. 01/04/05

WF 52° 366 lm 2700 K AF362. 01/04/05

389 lm 3000 K AF365. 01/04/05

417 lm 4000 K AF368. 01/04/05

12 W SP 20° 755 lm 2700 K AF410. 01/04/05 804 lm 3000 K AF413. 01/04/05

860 lm 4000 K AF416. 01/04/05

XF 36° 706 lm 2700 K AF411. 01/04/05

752 lm 3000 K AF414. 01/04/05

805 lm 4000 K AF417. 01/04/05

WF 52° 731 lm 2700 K AF412. 01/04/05

779 lm 3000 K AF415. 01/04/05 834 lm 4000 K AF418. 01/04/05

Sharping wall grazer lens Kit (4pcs)

26°x70° elliptical lenses kit. It has to be used on top of SP 20° reflectors to get an elliptical beam (greater axis along the module length). It contains 4 lenses.

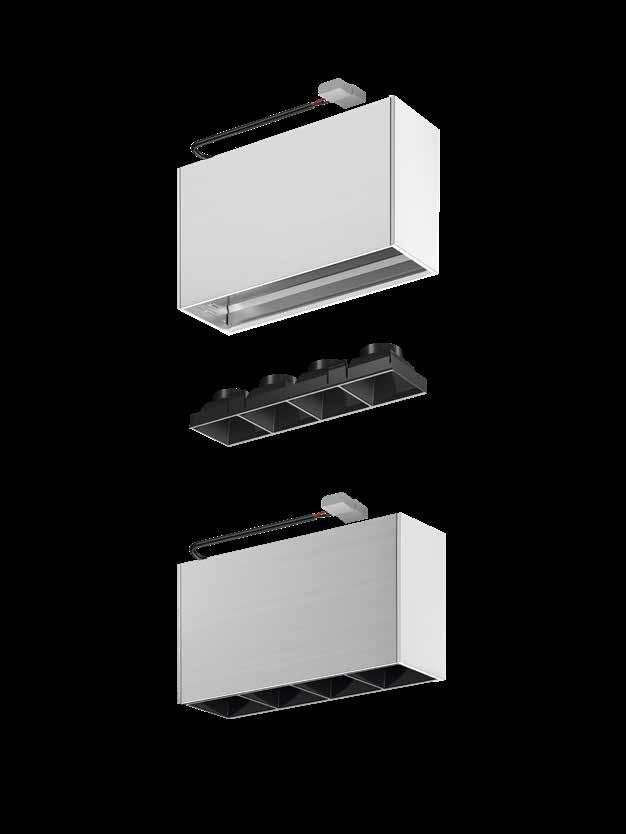

Sharp SMD

8x - 12x - 16x

20° 1509 lm 2700 K AF457. 01/04/05

1608 lm 3000 K AF460. 01/04/05

1721 lm 4000 K AF463. 01/04/05

XF 36° 1412 lm 2700 K AF458. 01/04/05

1504 lm 3000 K AF461. 01/04/05

AF476. 01/04/05

AF470. 01/04/05

AF473. 01/04/05

AF477. 01/04/05

AF471. 01/04/05 1610 lm 4000 K AF464. 01/04/05

WF 52° 1462 lm 2700 K AF459 01/04/05

AF474. 01/04/05

AF478. 01/04/05 1558 lm 3000 K AF462. 01/04/05

AF475. 01/04/05

AF472. 01/04/05 1667 lm 4000 K AF465. 01/04/05

37 W SP 20° 2263 lm 2700 K AF807. 01/04/05

2412 lm 3000 K AF810. 01/04/05

2581 lm 4000 K AF813. 01/04/05

XF 36° 2118 lm 2700 K AF808. 01/04/05

AF826. 01/04/05

AF820. 01/04/05

AF823. 01/04/05

AF827. 01/04/05 2256 lm 3000 K AF811. 01/04/05

2415 lm 4000 K AF814. 01/04/05

WF 52° 2193 lm 2700 K AF809. 01/04/05

2337 lm 3000 K AF812. 01/04/05

2501 lm 4000 K AF815. 01/04/05

47 W SP 20° 3018 lm 2700 K AF857. 01/04/05

AF821. 01/04/05

AF824. 01/04/05

AF828. 01/04/05

AF822. 01/04/05

AF825. 01/04/05

AF876. 01/04/05 3215 lm 3000 K AF860. 01/04/05

AF870. 01/04/05 3442 lm 4000 K AF863. 01/04/05

XF 36° 2824 lm 2700 K AF858. 01/04/05

3009 lm 3000 K AF861. 01/04/05

3220 lm 4000 K AF864. 01/04/05

WF 52° 2924 lm 2700 K AF859. 01/04/05

3316 lm 3000 K AF862. 01/04/05

AF873. 01/04/05

AF877. 01/04/05

AF871. 01/04/05

AF874. 01/04/05

AF878. 01/04/05

AF872. 01/04/05 3335 lm 4000 K AF865. 01/04/05

Sharping wall grazer lens Kit (4pcs) 26°x70° elliptical lenses kit. It has to be used on top of SP 20° reflectors to get an elliptical beam (greater axis along the module length). It contains 4 lenses.

AF875. 01/04/05

Sharp SMD wall washer

SHARP SMD WALL WASHER

Driver 24Vdc Selv a supplied separately.

1

Code

AF419. 01/04/05/54

AF420. 01/04/05/54

AF421. 01/04/05/54

Code

AF466. 01/04/05/54

AF467. 01/04/05/54

AF468. 01/04/05/54

AF816. 01/04/05/54

AF817. 01/04/05/54

AF818. 01/04/05/54

AF866. 01/04/05/54

AF867. 01/04/05/54

AF868. 01/04/05/54

Code

AF479. 01/04/05/54

AF480. 01/04/05/54

AF481. 01/04/05/54

AF829. 01/04/05/54

AF830. 01/04/05/54

AF831. 01/04/05/54

AF880. 01/04/05/54

AF881. 01/04/05/54

AF882. 01/04/05/54

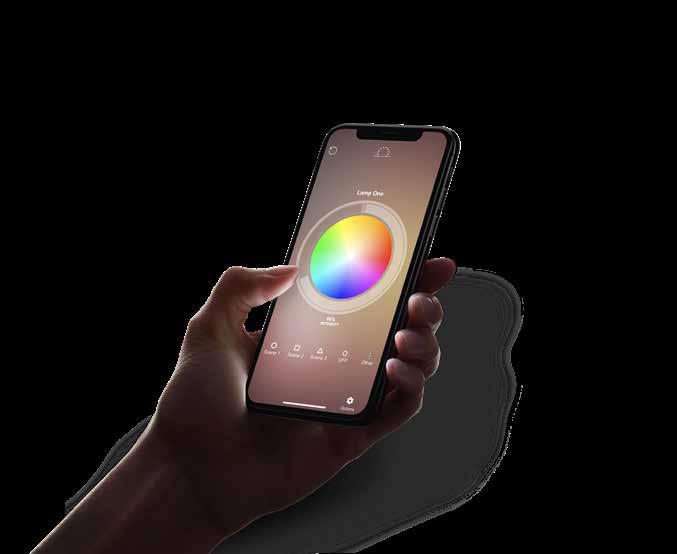

Sharp Family is compatible with Artemide App
