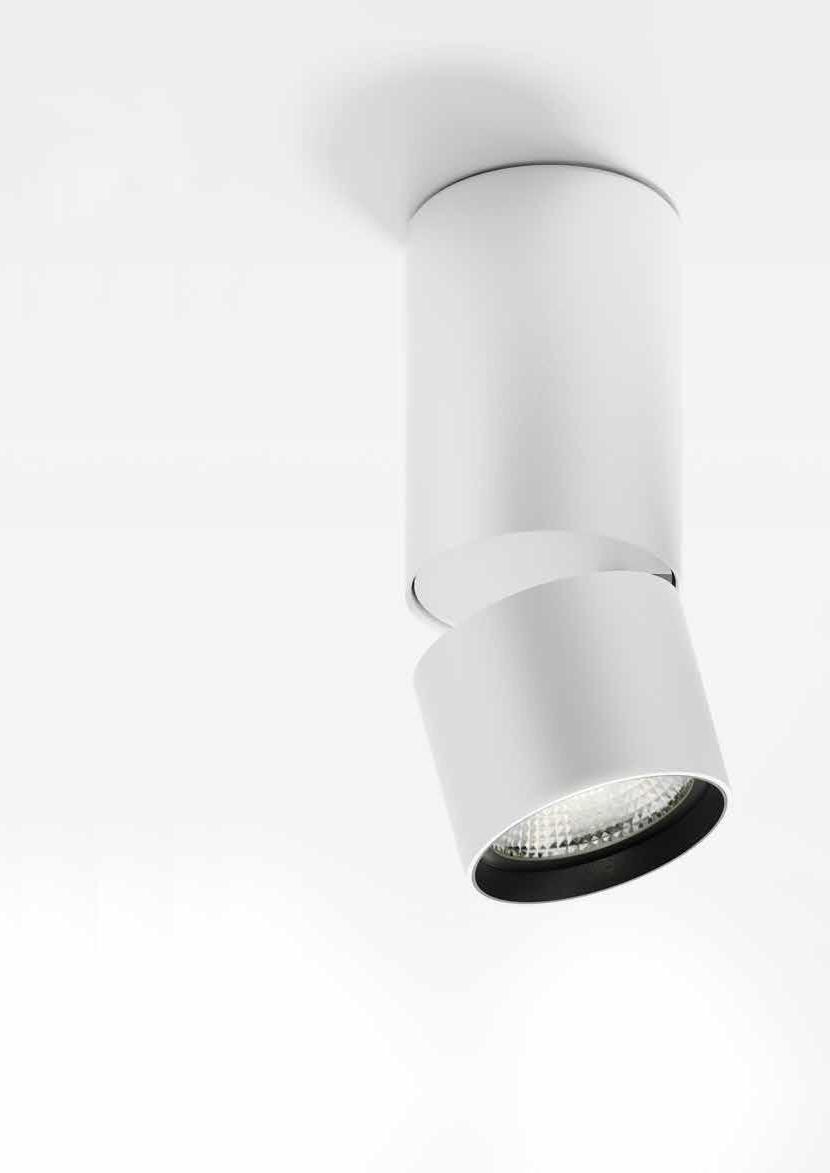

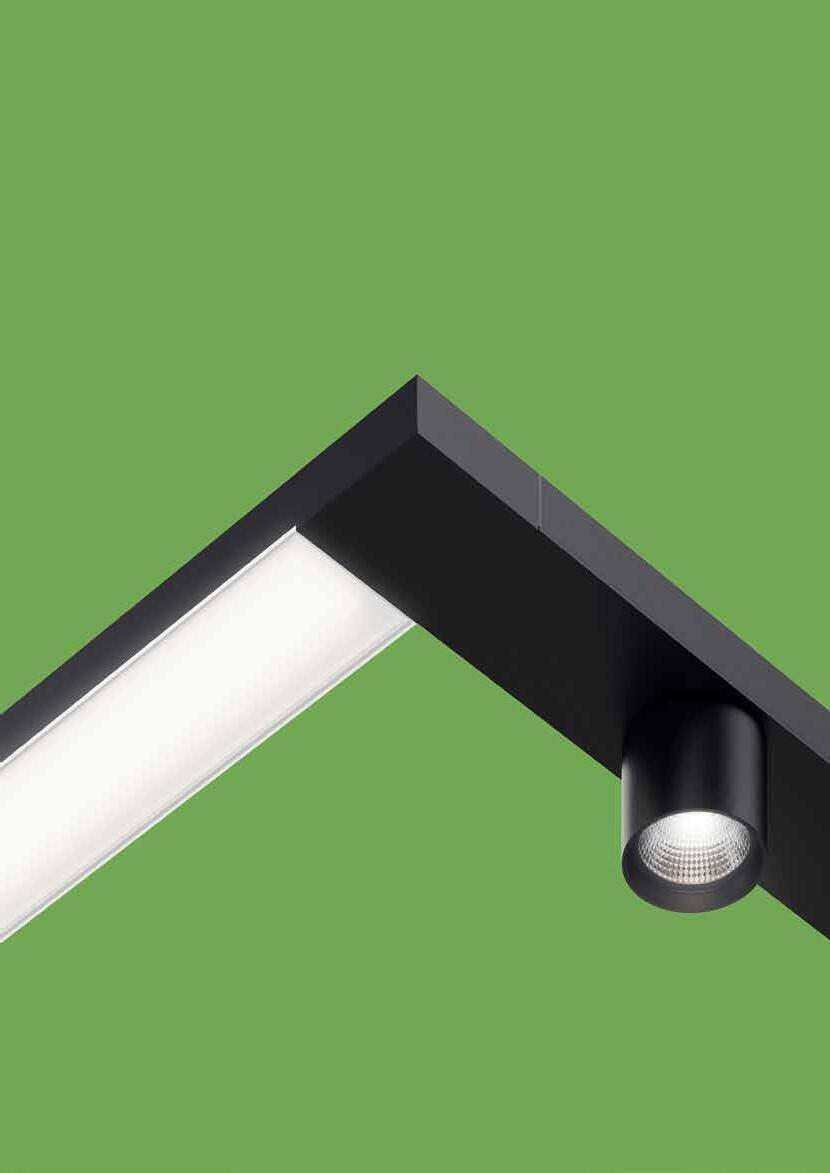

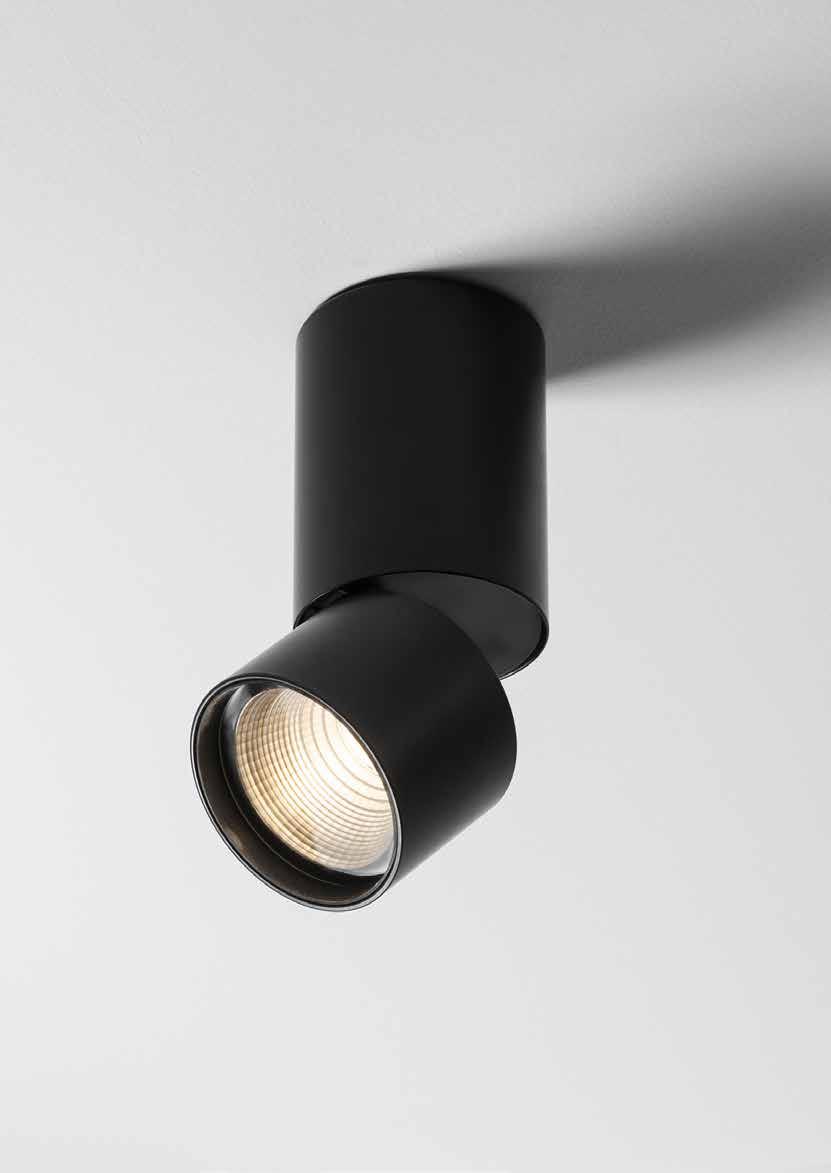

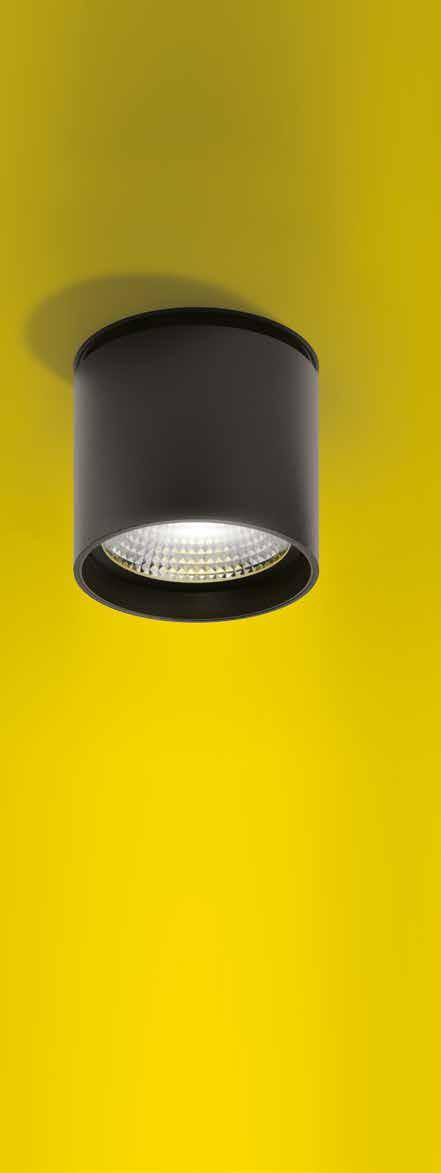

Hoy is a system of adjustable spotlights with a basic shape, yet a rich performance. A simple cylinder protrudes from the surface with varying heights for the different versions (recessed, semi-recessed, SMD, track).

Its volume is divided to direct emission in space, the mobile part hosts to the source and the optical devices required to produce four different beam angles.

Hoy typologies

LINEAR STAND ALONE

SUSPENSION

REFRACTIVE TRACK

CEILING

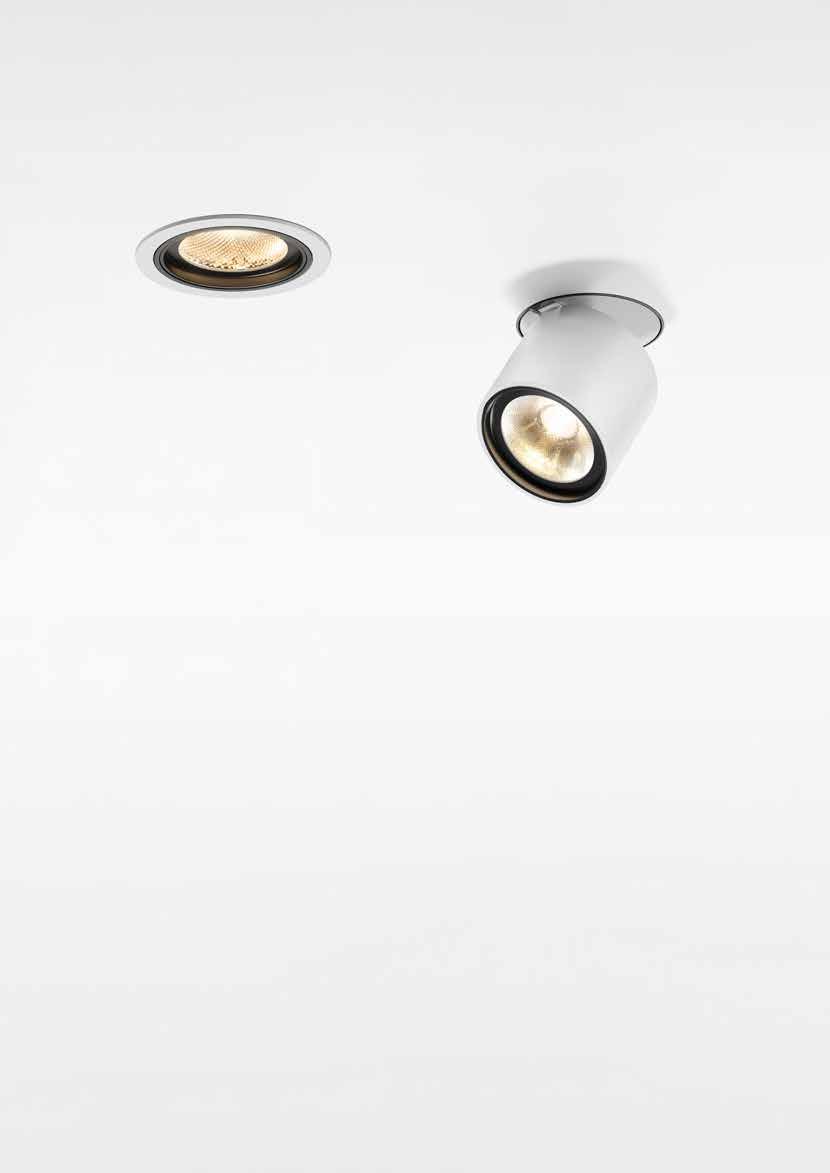

SPOT RECESSED

SPOT SEMI-RECESSED

Hoy colors

Hoy color temperatures

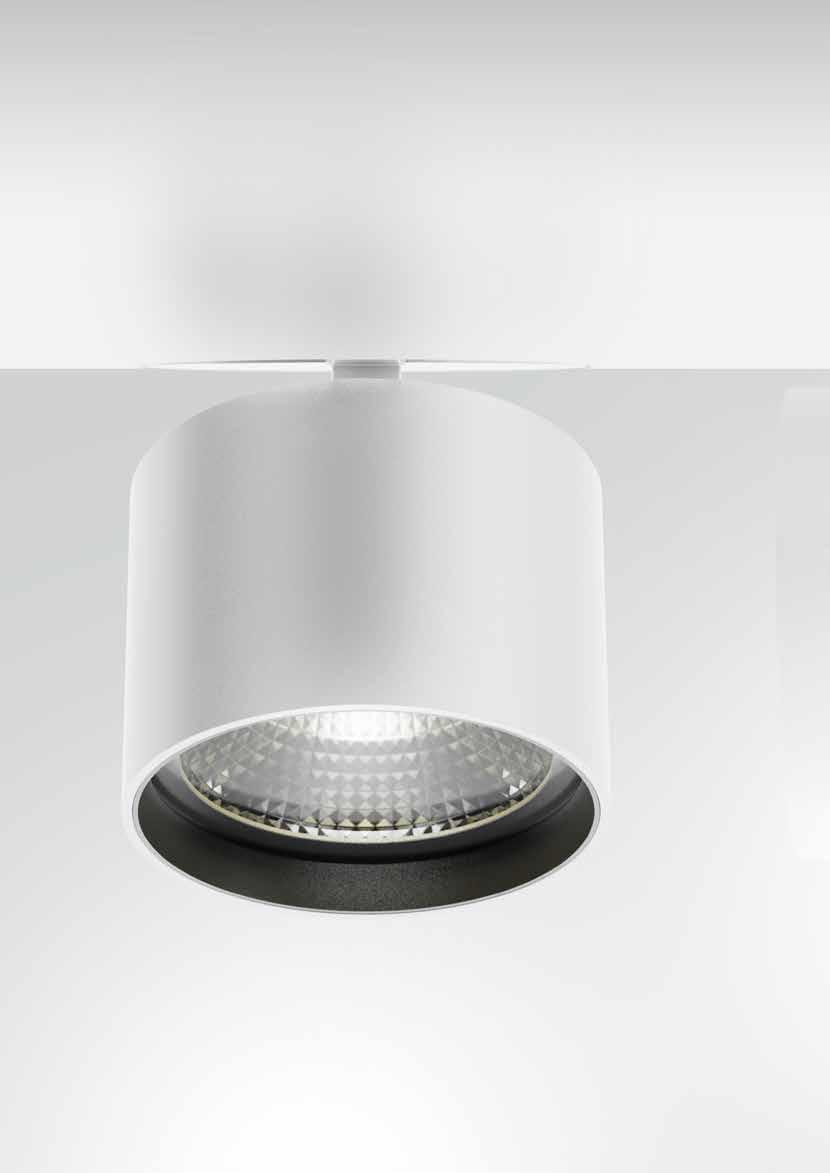

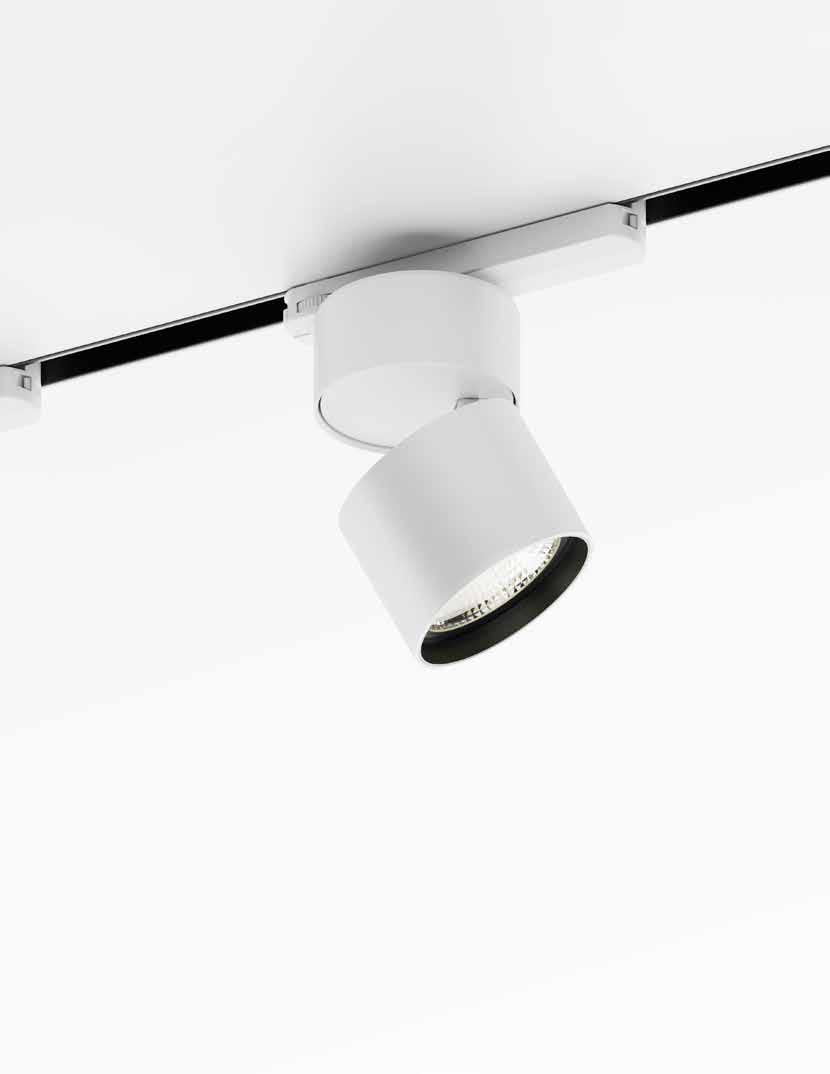

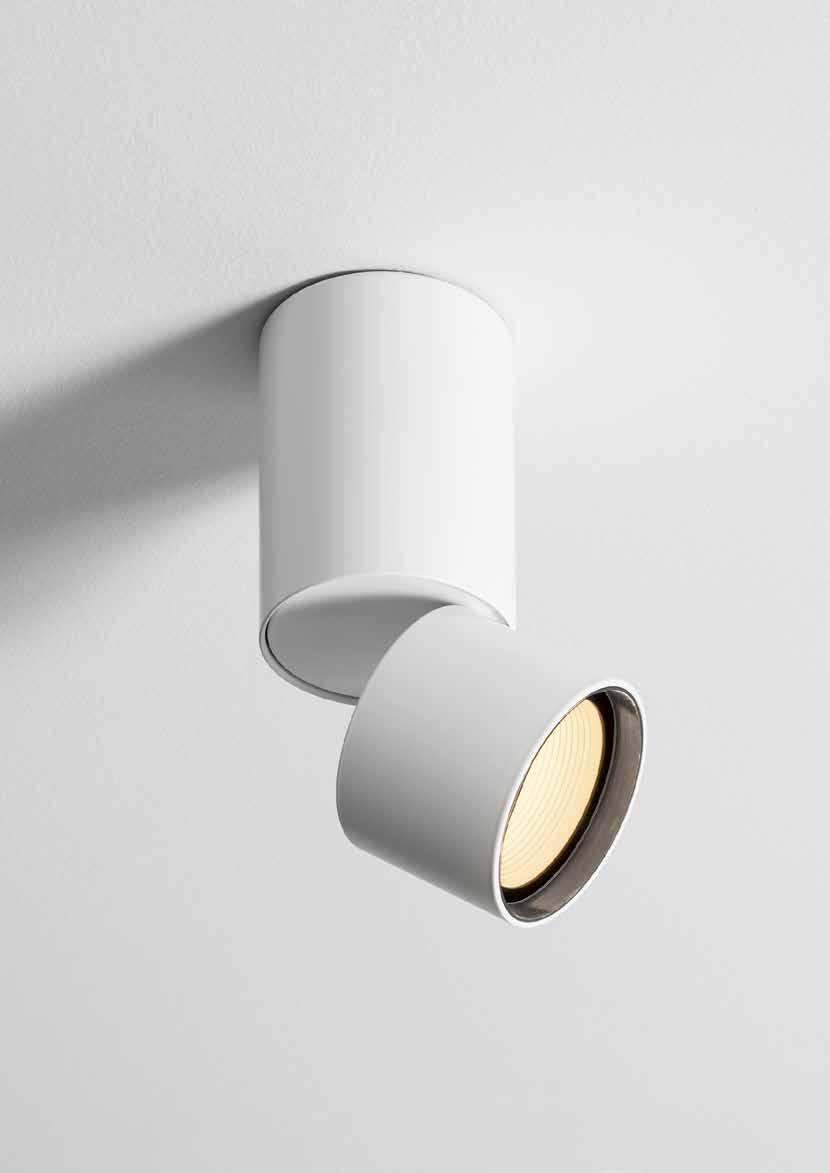

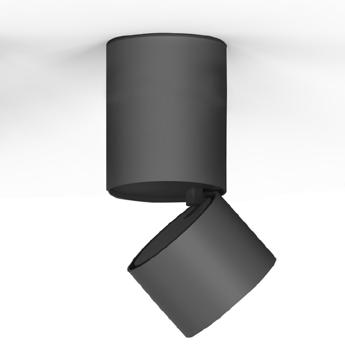

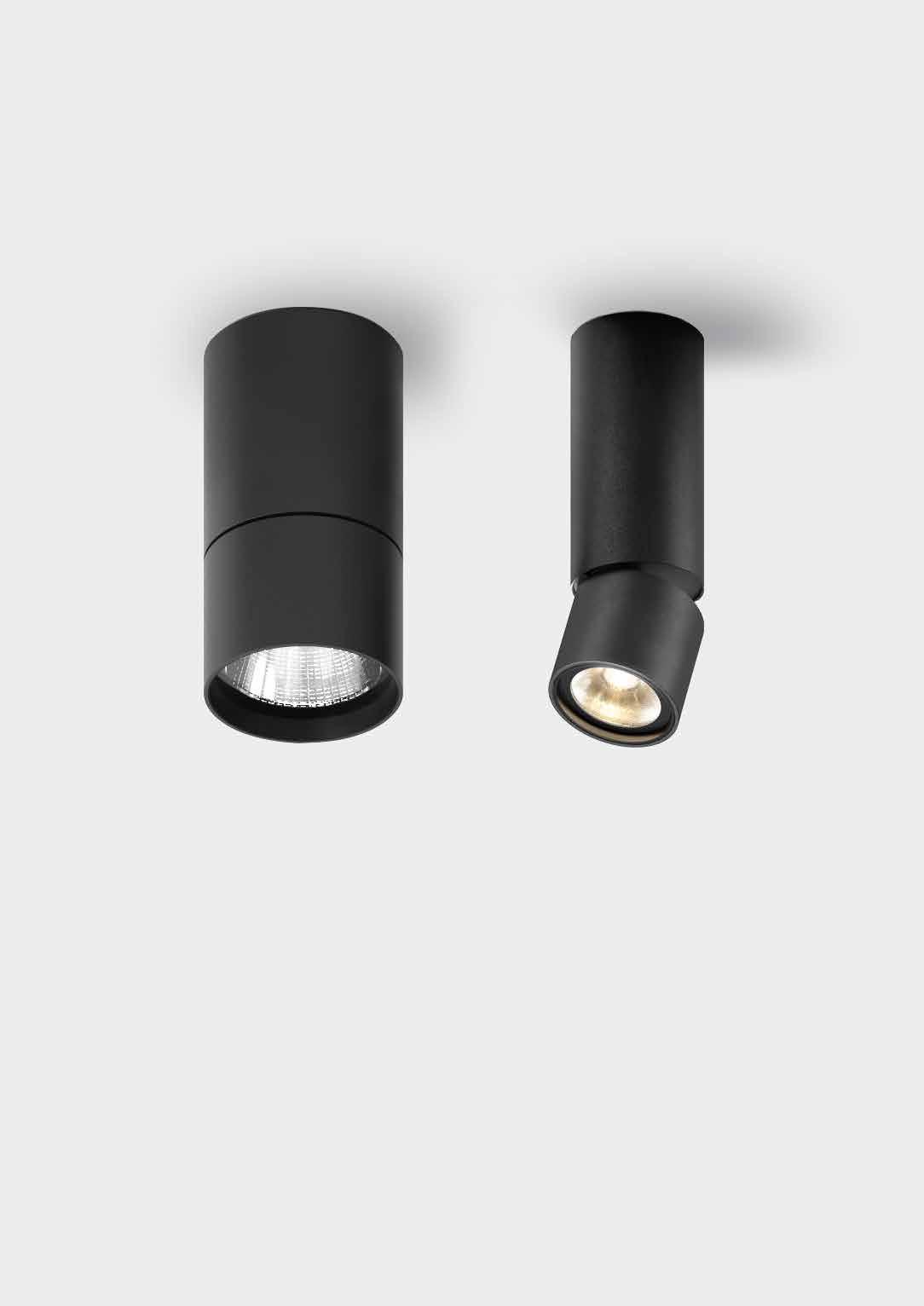

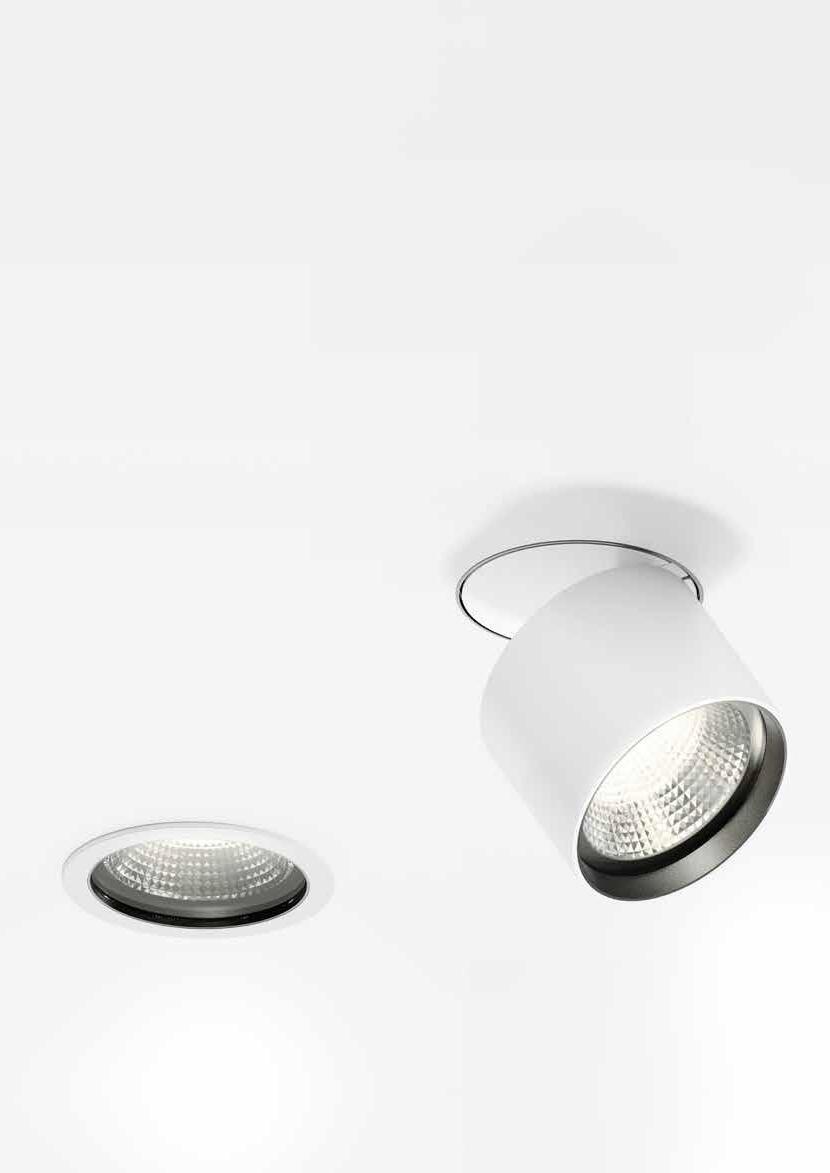

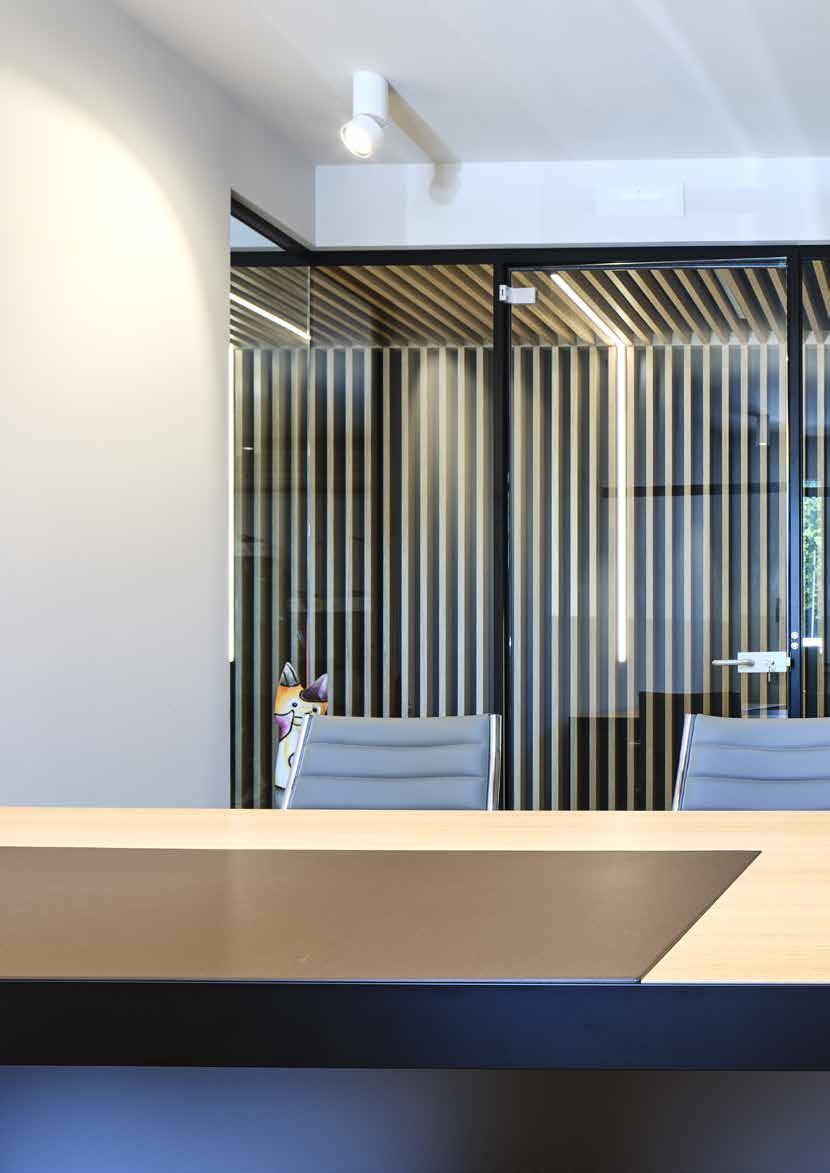

Adjustable Hoy Spot

Hoy Spot Lens

SPOT LENS RECESSED

W Beam Flux CCT

12 W SP 17° 1205 lm 2700K

1275 lm 3000K

1375 lm 4000K

FL 23° 1235 lm 2700K

1305 lm 3000K

1400 lm 4000K

WF 31° 1275 lm 2700K

1350 lm 3000K

1455 lm 4000K

XF 50° 1260 lm 2700K

1335 lm 3000K 1440 lm 4000K

Driver supplied separately. Fitting to be completed with installation frame.

Code CK00000

CK00100

CK00200

CK00300

CK00400

CK00500

CK00600

CK00700

CK00800

CK00900

CK01000

CK01100

SPOT LENS SEMI-RECESSED

W Beam Flux CCT

12 W SP 17° 1205 lm 2700K

1275 lm 3000K

1375 lm 4000K

FL 23° 1235 lm 2700K

1305 lm 3000K

1400 lm 4000K

WF 31° 1275 lm 2700K

1350 lm 3000K

1455 lm 4000K

XF 50° 1260 lm 2700K

1335 lm 3000K 1440 lm 4000K

Code

CK030. 01/04

CK031. 01/04

CK032. 01/04

CK033. 01/04

CK034. 01/04

CK035. 01/04

CK036. 01/04

CK037. 01/04

CK038. 01/04

CK039. 01/04

CK040. 01/04

CK041. 01/04

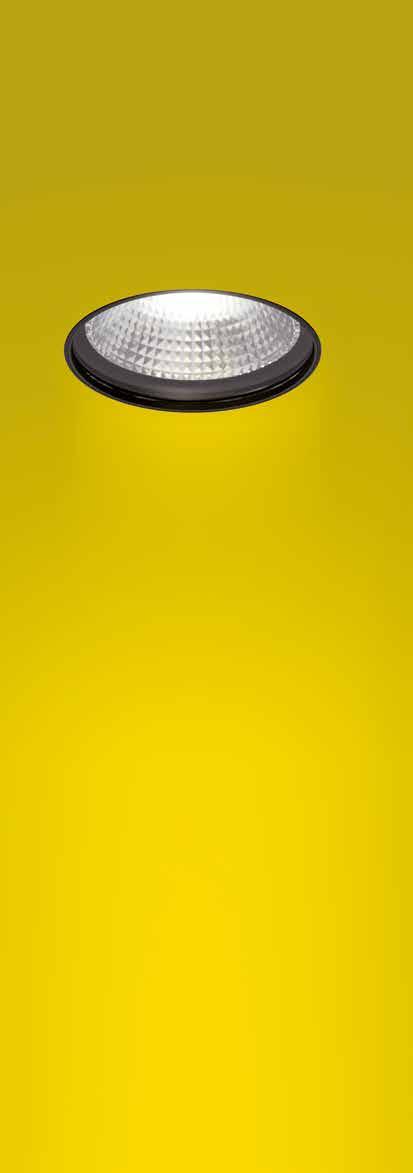

Hoy Spot Recessed Semi-Recessed

SPOT REFLECTOR RECESSED

W Beam Flux CCT

19 W SP 13° 2053 lm 2700K

2053 lm 3000K

2361 lm 4000K

FL 28° 1924 lm 2700K

1924 lm 3000K

2213 lm 4000K

WF 50° 1915 lm 2700K

1915 lm 3000K

2203 lm 4000K

XF 67° 1784 lm 2700K 1784 lm 3000K 2066 lm 4000K

SPOT REFLECTOR SEMI-RECESSED

W Beam Flux CCT

19 W SP 13° 2053 lm 2700K

2053 lm 3000K

2361 lm 4000K

FL 24° 1924 lm 2700K

1924 lm 3000K

2213 lm 4000K

WF 50° 1915 lm 2700K

1915 lm 3000K

2203 lm 4000K

XF 67° 1784 lm 2700K 1784 lm 3000K 2066 lm 4000K

Code

Driver supplied separately.

Fitting to be completed with installation frame.

BM03000

BM03100

BM03200

BM03300

BM03400

BM03500

BM03600

BM03700

BM03800

BM00900

BM01000

BM01100

Code

BM000. 01/04

BM001. 01/04

BM002. 01/04

BM003. 01/04

BM004. 01/04

BM005. 01/04

BM006. 01/04

BM007. 01/04

BM008. 01/04

BM020. 01/04

BM021. 01/04

BM022. 01/04

Frame

Spot

frame Ø 105 (ceiling thickness 1/15mm)

holder

Hoy Spot SMD

SPOT LENS SMD Ø 65*

W Beam Flux CCT

14 W SP 17° 1205 lm 2700K

1275 lm 3000K

1375 lm 4000K

FL 23° 1235 lm 2700K

1305 lm 3000K

1400 lm 4000K

WF 31° 1275 lm 2700K

1350 lm 3000K

1455 lm 4000K

XF 50° 1260 lm 2700K 1335 lm 3000K 1440 lm 4000K

SPOT REFLECTOR SMD Ø 90

W

22 W

Accessories Spot

Beam Flux CCT

SP 13° 2053 lm 2700K

2053 lm 3000K

2361 lm 4000K

FL 24° 1924 lm 2700K

1924 lm 3000K

2213 lm 4000K

WF 50° 1915 lm 2700K

1915 lm 3000K

2203 lm 4000K

XF 67° 1784 lm 2700K

1784 lm 3000K

2066 lm 4000K

220/240Vac 50/60Hz electronic ballast included

2SDCM

3SDCM

L70 (9K) 50000h

L70 (10k) 55400h

Dimmable DALI

Code

CK100. 01/04

CK101. 01/04

CK102. 01/04

CK103. 01/04

CK104. 01/04

CK105. 01/04

CK106. 01/04

CK107. 01/04

CK108. 01/04

CK109. 01/04

CK110. 01/04

CK111. 01/04

Code

BM100. 01/04

BM101. 01/04

BM102. 01/04

BM106. 01/04

BM107. 01/04

BM108. 01/04

BM112. 01/04

BM113. 01/04

BM114. 01/04

BM118. 01/04

BM119. 01/04

BM120. 01/04

Code

BM103. 01/04

BM104. 01/04

BM105. 01/04

BM109. 01/04

BM110. 01/04

BM111. 01/04

BM115. 01/04

BM116. 01/04

BM117. 01/04

BM121. 01/04

BM122. 01/04

BM123. 01/04

90 reflector

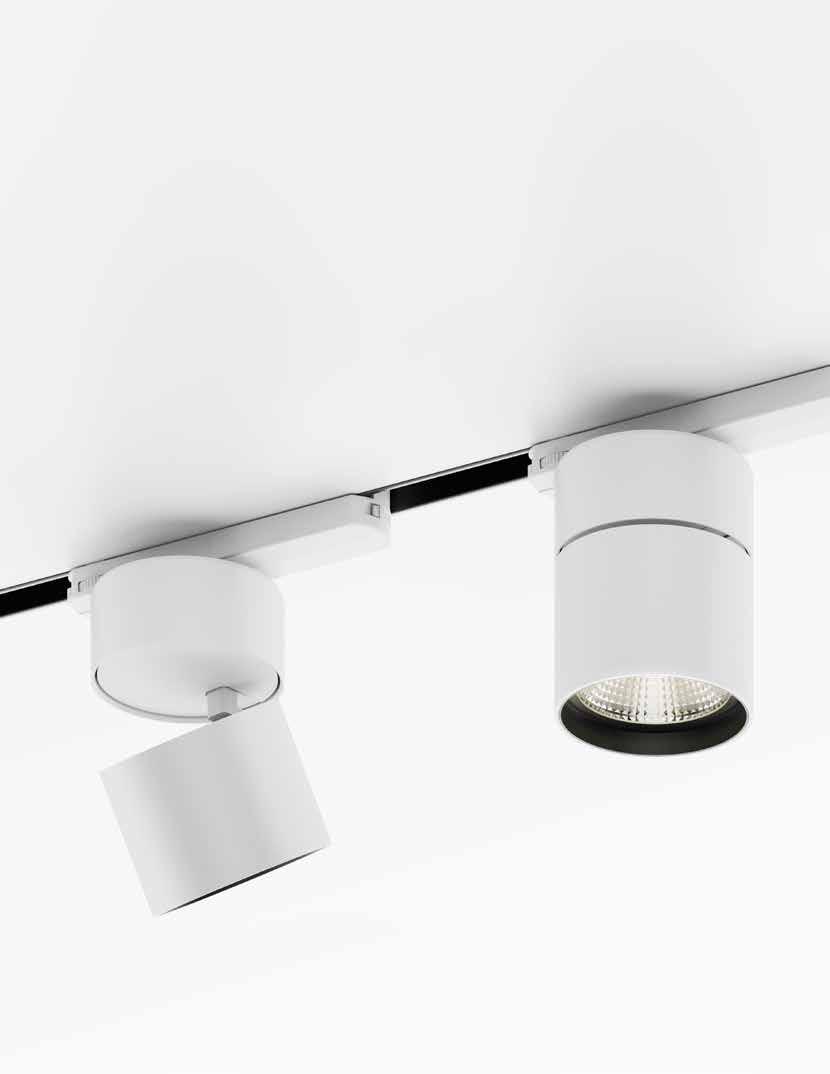

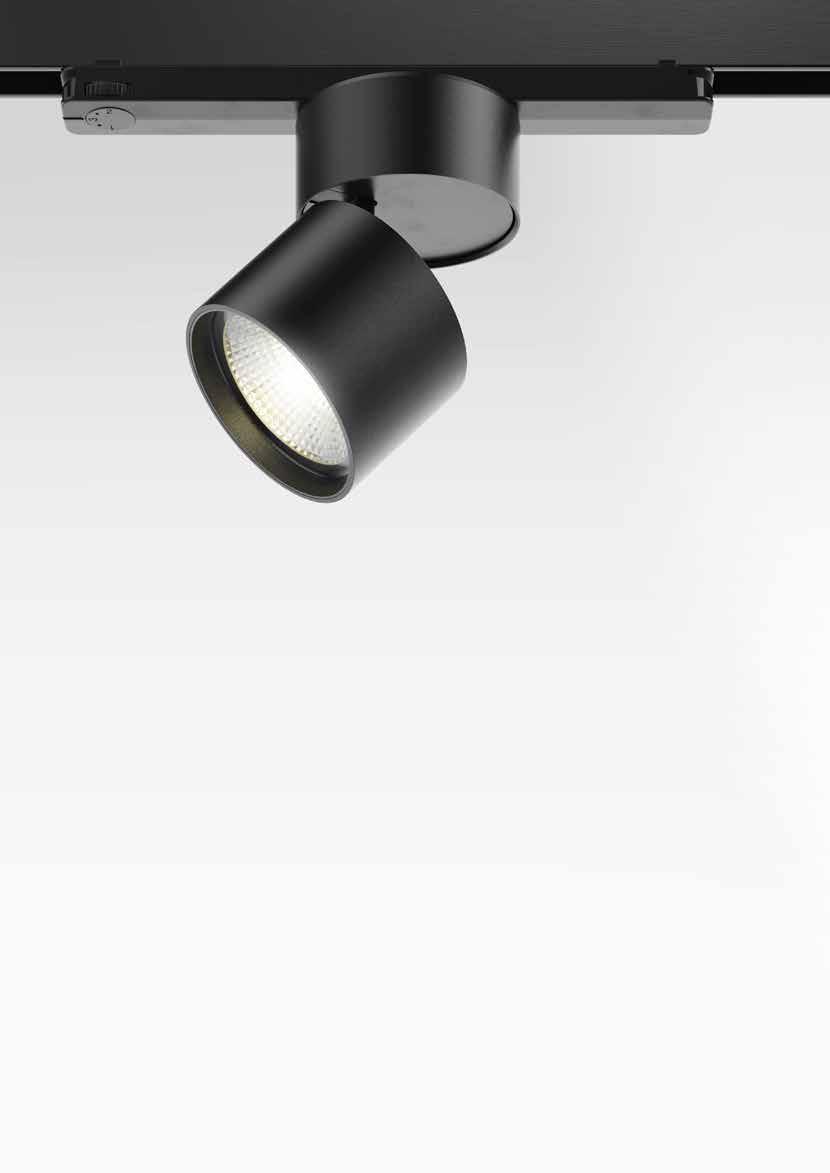

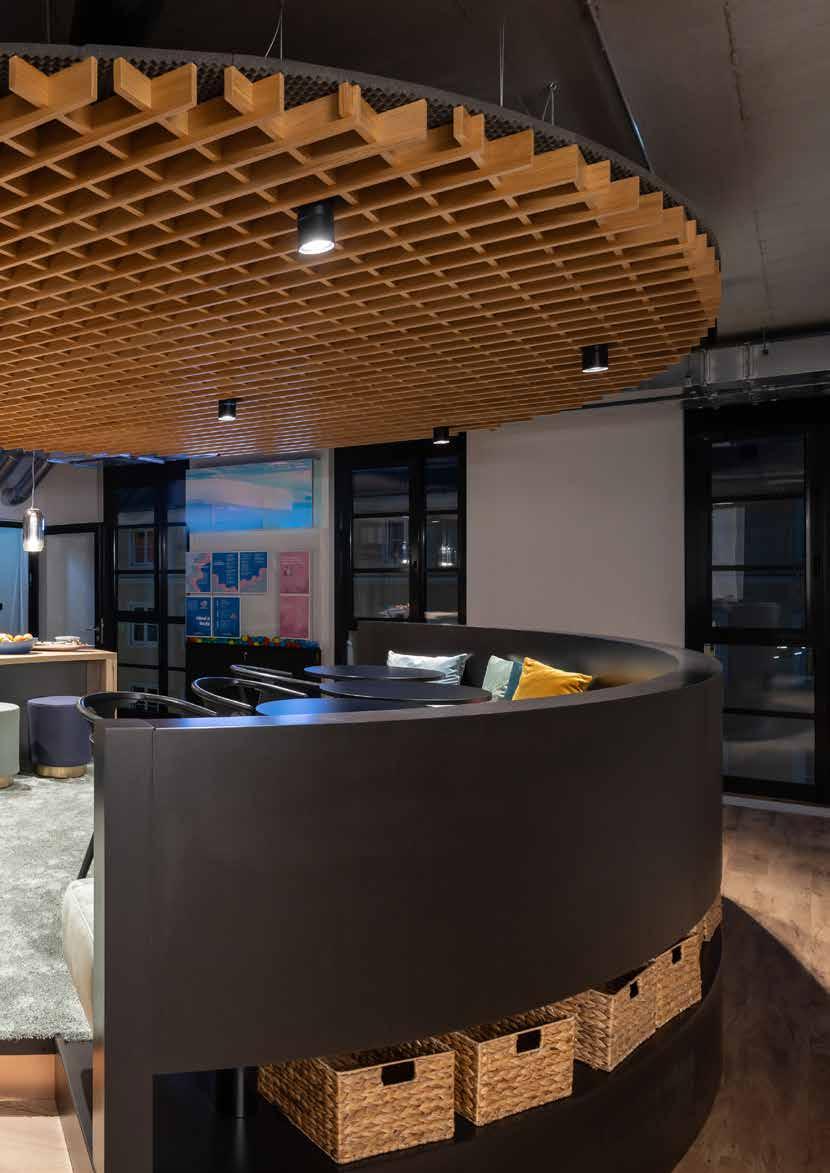

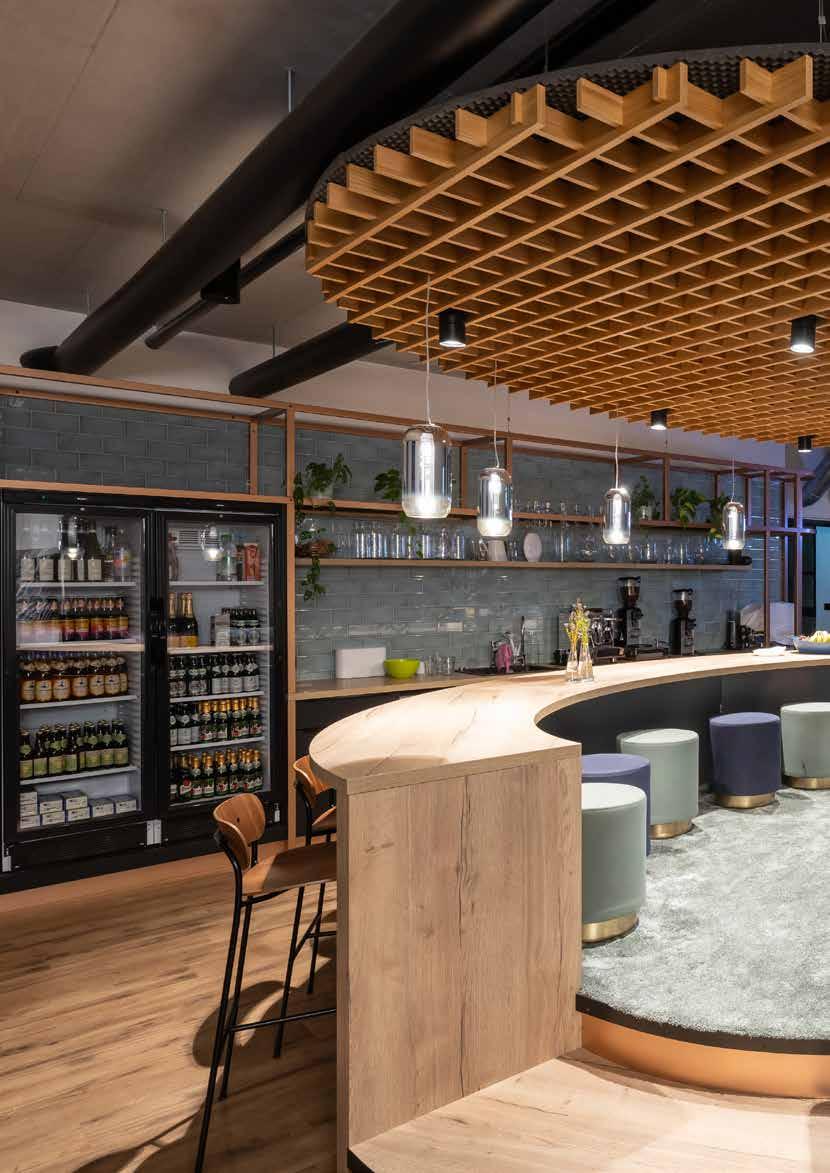

Hoy Spot 3-phase Track

W Beam Flux CCT 14 W SP 17° 1205 lm 2700K

1275 lm 3000K

1375 lm 4000K

FL 23° 1235 lm 2700K 1305 lm 3000K

1400 lm 4000K

WF 31° 1275 lm 2700K

1350 lm 3000K

1455 lm 4000K

XF 50° 1260 lm 2700K 1335 lm 3000K 1440 lm 4000K

Code

CK200. 01/04

CK201. 01/04

CK202. 01/04

CK203. 01/04

CK204. 01/04

CK205. 01/04

CK206. 01/04

CK207. 01/04

CK208. 01/04

CK209. 01/04

CK210. 01/04

CK211. 01/04

L70 (9K) 50000h

L70 (10k) 55400h

W

Beam Flux CCT

22 W SP 13° 2053 lm 2700K

2053 lm 3000K

2361 lm 4000K

FL 24° 1924 lm 2700K 1924 lm 3000K

2213 lm 4000K

WF 50° 1915 lm 2700K 1915 lm 3000K

2203 lm 4000K

XF 67° 1784 lm 2700K 1784 lm 3000K 2066 lm 4000K

Code

BM200. 01/04

BM201. 01/04

BM202. 01/04

BM209. 01/04

BM210. 01/04

BM211. 01/04

BM218. 01/04

BM219. 01/04

BM220. 01/04

BM227. 01/04

BM228. 01/04

BM229. 01/04

Code

BM203. 01/04

BM204. 01/04

BM205. 01/04

BM212. 01/04

BM213. 01/04

BM214. 01/04

BM221. 01/04

BM222. 01/04

BM223. 01/04

BM230. 01/04

BM231. 01/04

BM232. 01/04

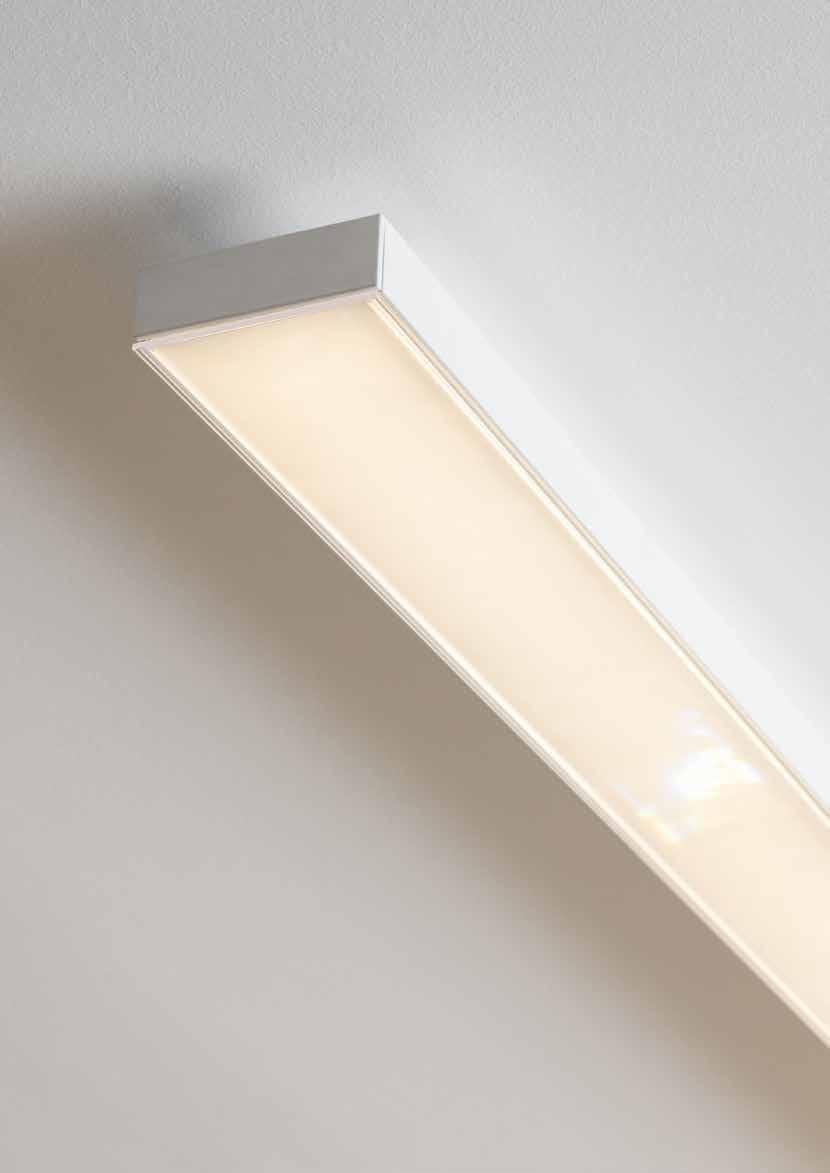

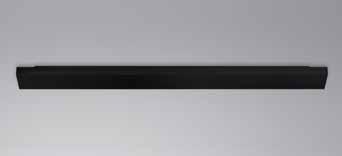

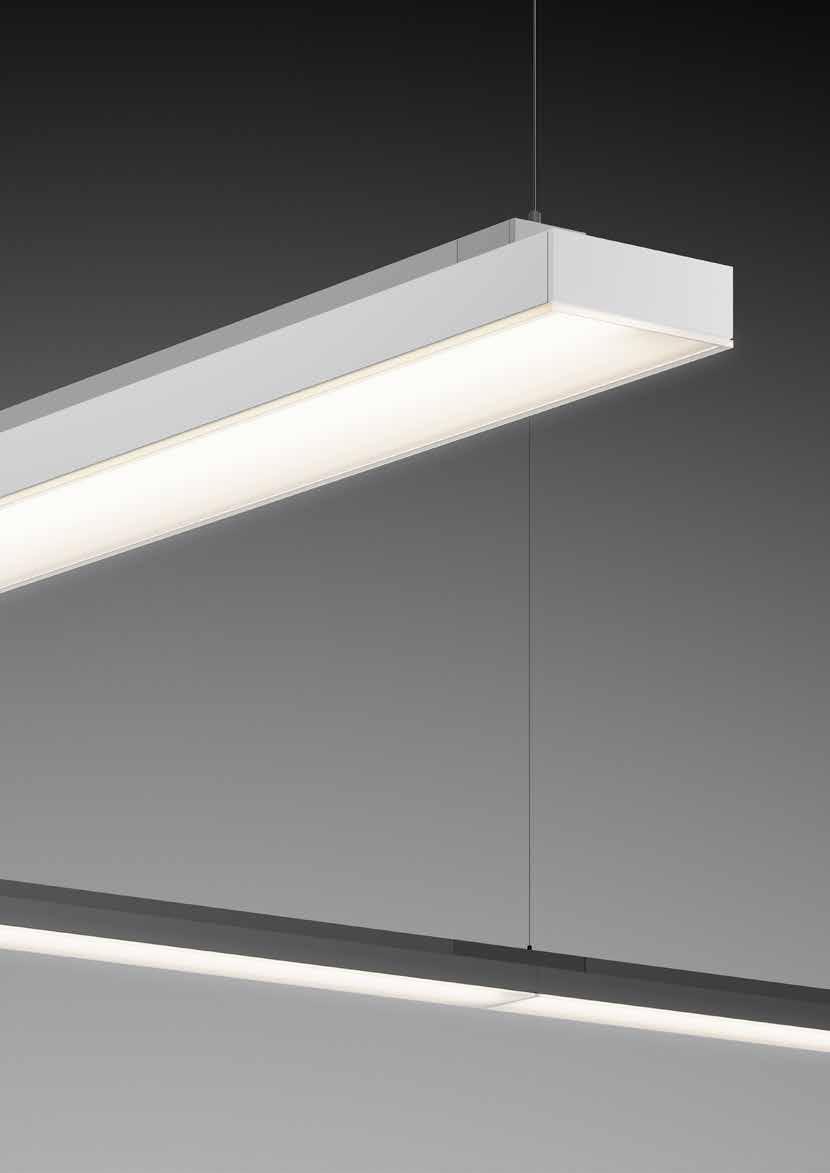

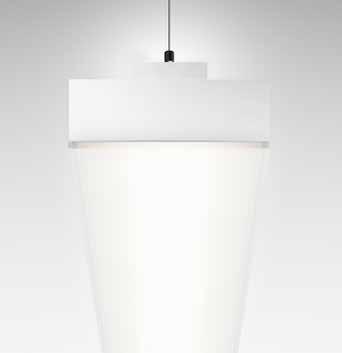

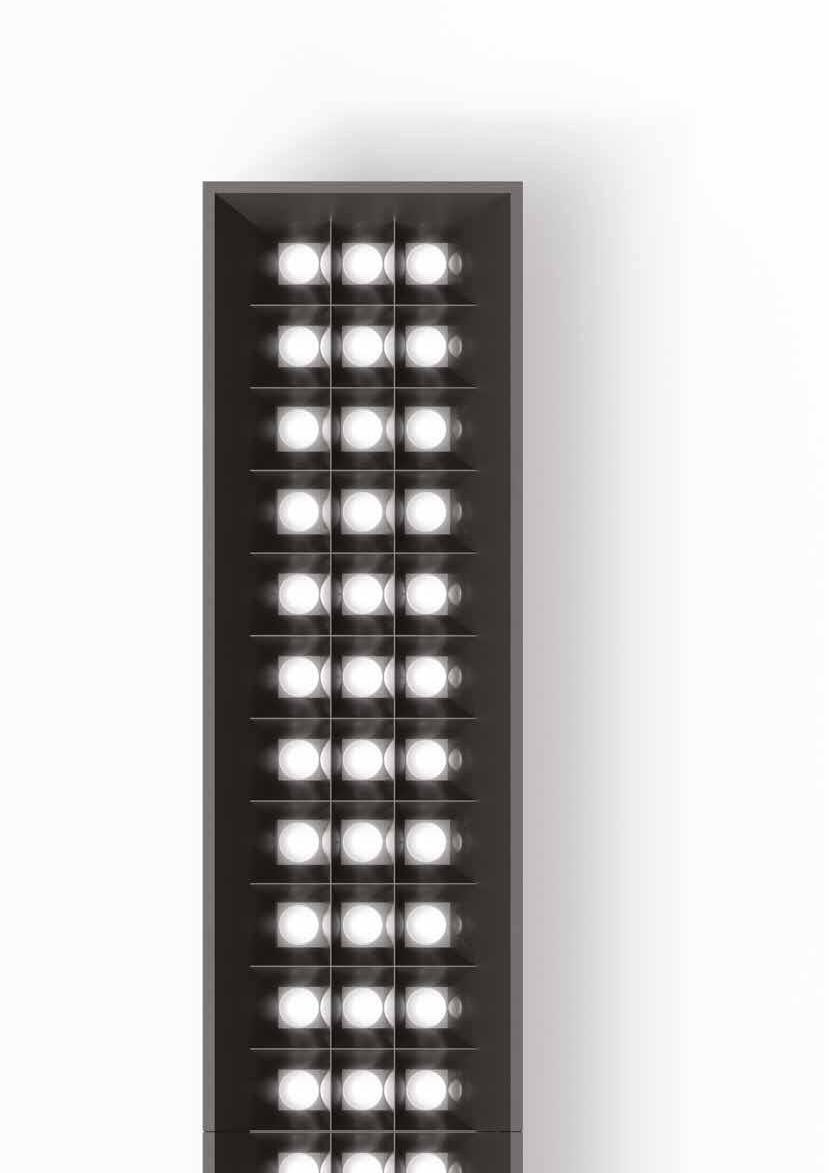

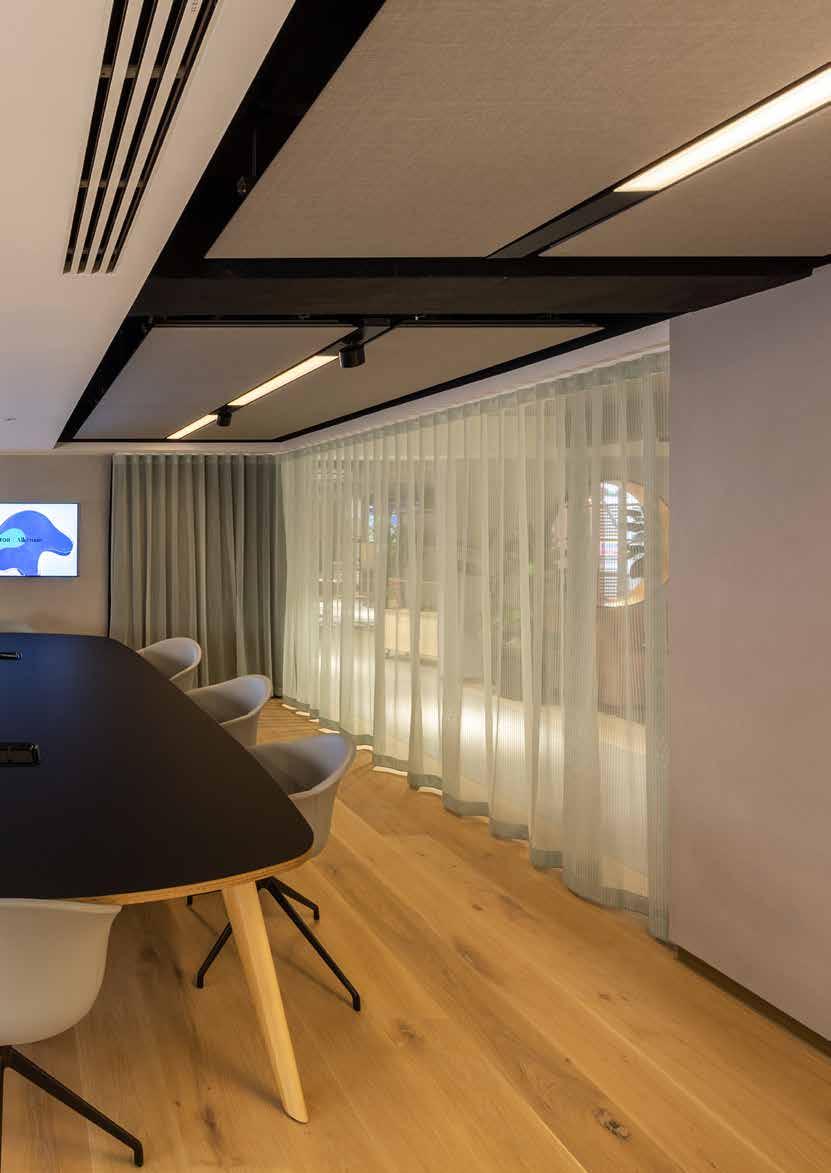

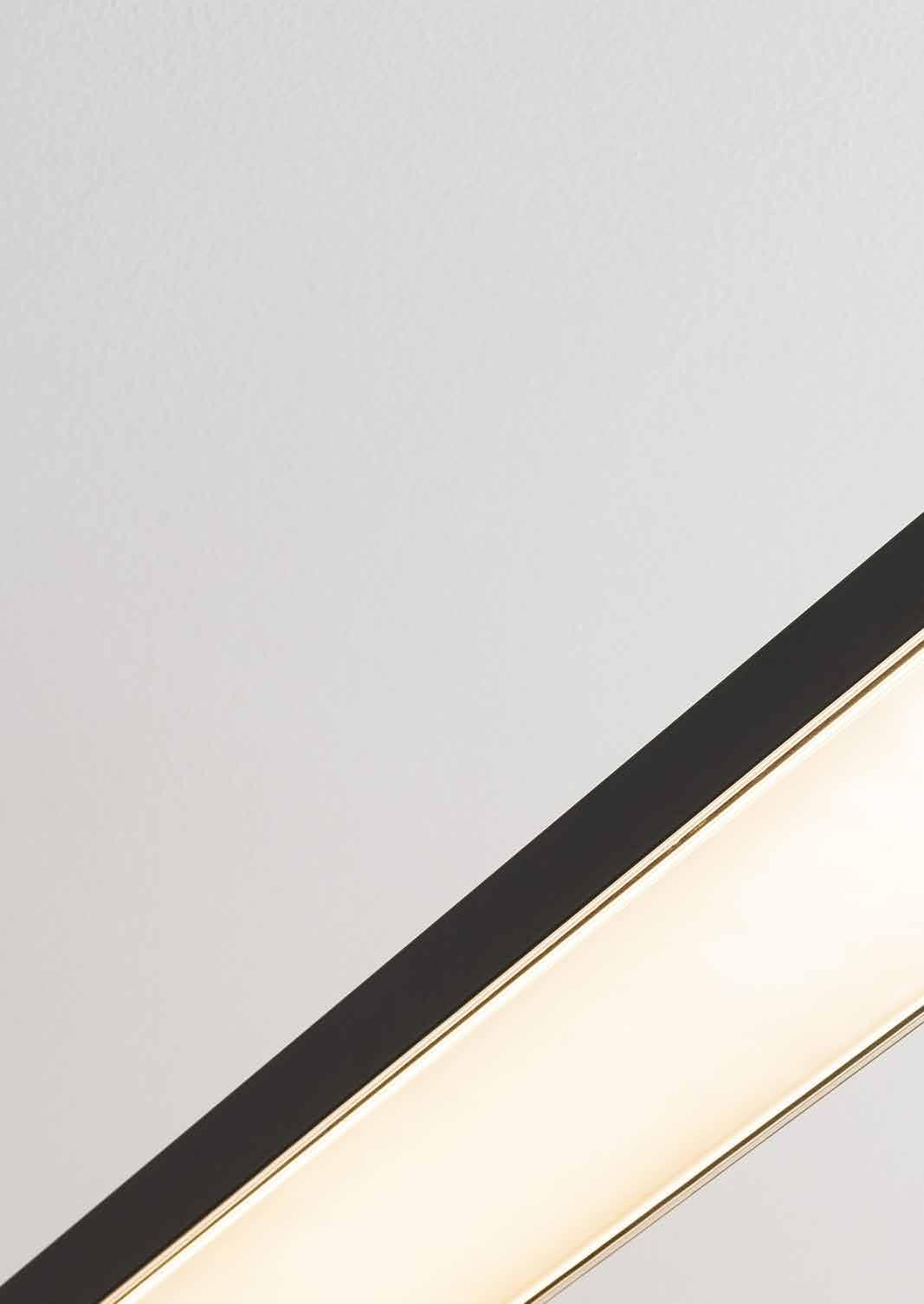

Hoy linear

High Efficiency up to 134 lm/W UGR < 19

Hoy Linear Stand alone

Black 04 White 01

DIFFUSED LINEAR STAND ALONE CEILING

Direct emission

Length W Beam Flux CCT

1154 mm 24 W XF 2915 lm 3000K

3067 lm 4000K

2309 mm 46 W XF 5830 lm 3000K 6134 lm 4000K

220/240Vac 50/60Hz electronic ballast included

* Driver uses 1 DALI address

** Drivers use 2 DALI addresses

Undimmable

Code

BL401. 01/04

BL402. 01/04

BL501. 01/04

BL502. 01/04

Dimmable DALI*

Code

BL404. 01/04

BL405. 01/04

BL504. 01/04

BL505. 01/04

(6K) 50000h

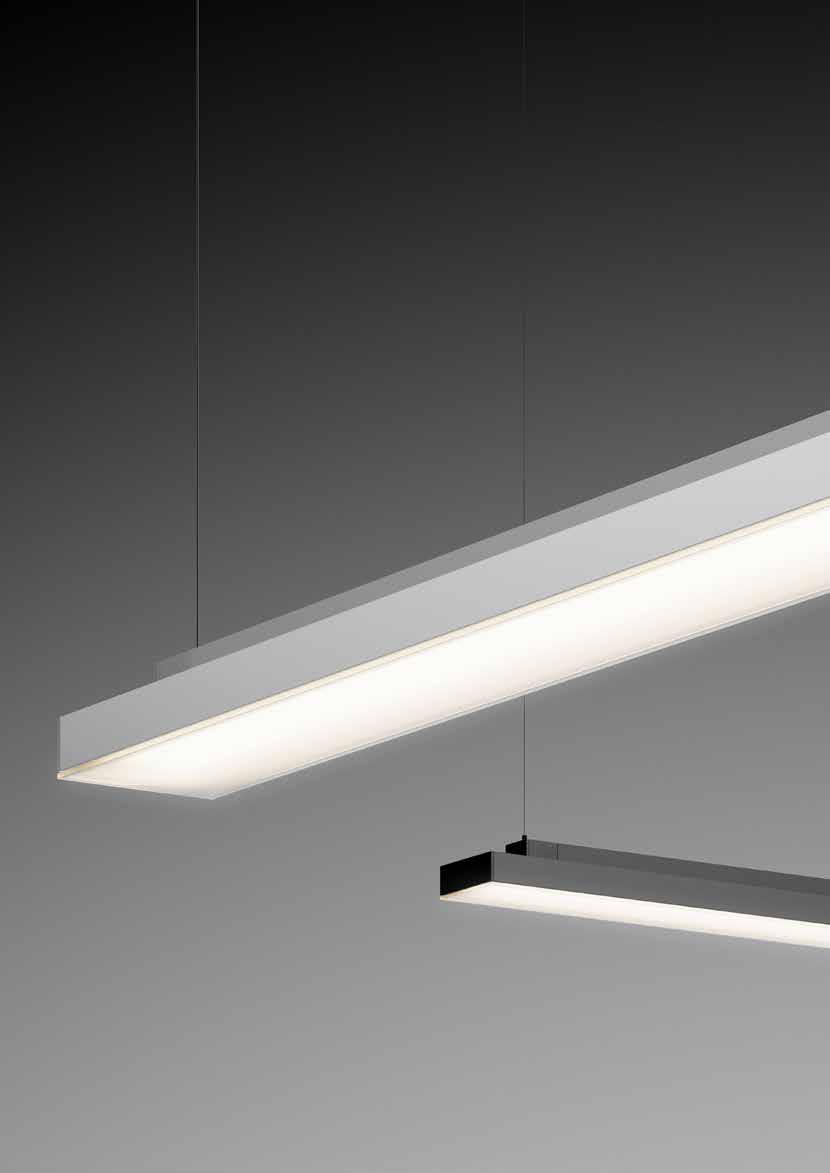

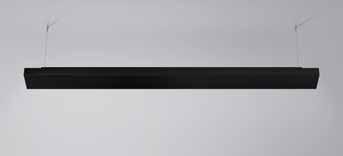

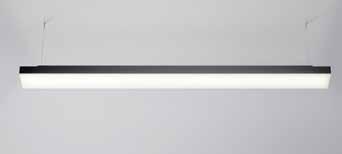

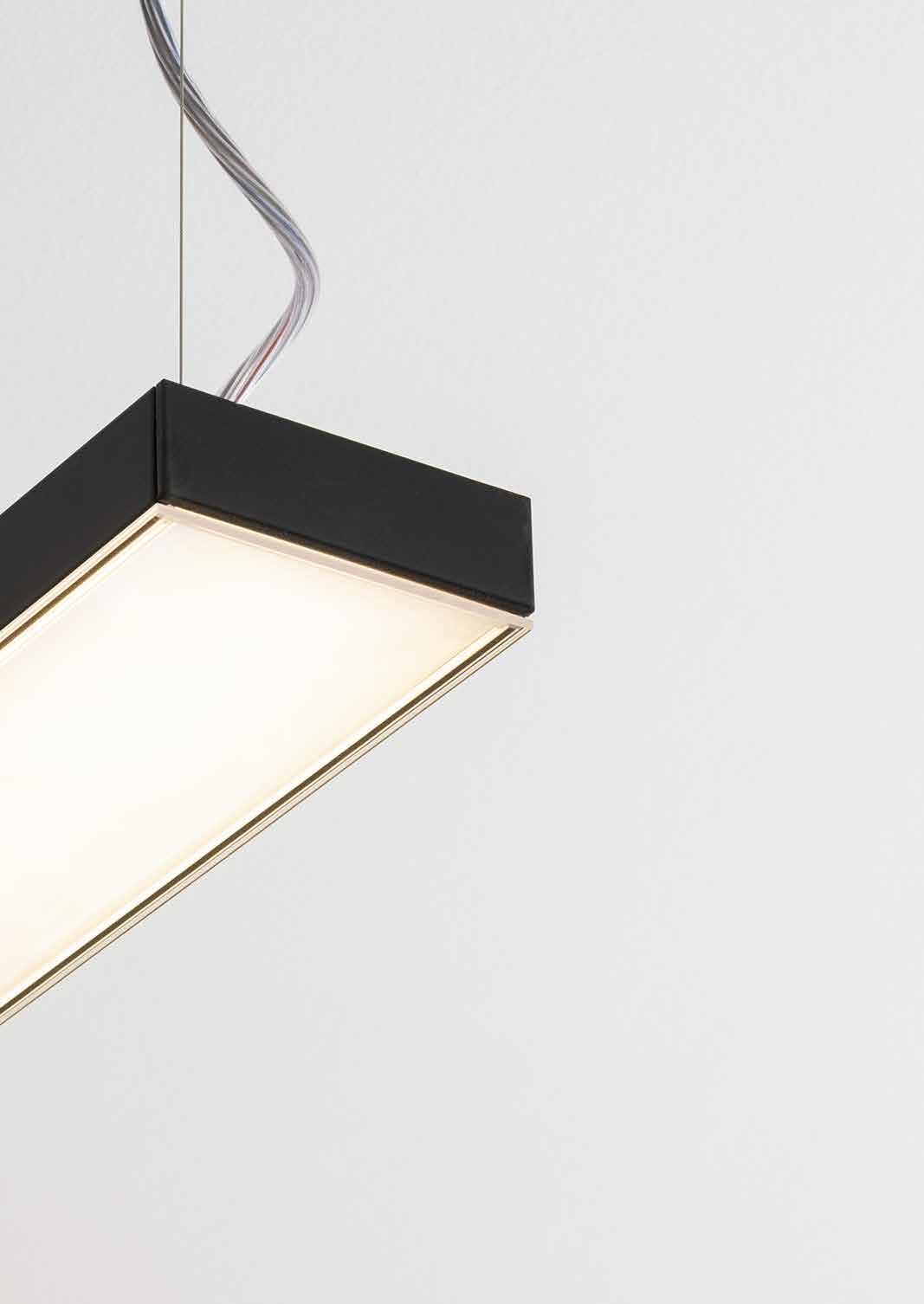

DIFFUSED LINEAR STAND ALONE SUSPENSION

Direct emission

Length W Beam Flux CCT

1154 mm 24 W XF 2915 lm 3000K

3067 lm 4000K

2309 mm 46 W XF 5830 lm 3000K 6134 lm 4000K

Direct emission + indirect

Length W Beam Flux CCT

1154 mm 24 W direct XF 2915 lm + 1785 lm 3000K

14 W indirect 3067 lm + 1881 lm 4000K

2309 mm 46 W direct XF 5830 lm + 3570 lm 3000K

27 W indirect 6134 lm + 3762 lm 4000K

Undimmable

Code

BL451. 01/04

BL452. 01/04

BL551. 01/04

BL552. 01/04

Dimmable DALI*

Code

BL454. 01/04

BL455. 01/04

BL554. 01/04

BL555. 01/04

Undimmable

Code

BL407. 01/04

BL408. 01/04

BL507. 01/04

BL508. 01/04

Dimmable DALI**

Code

BL410. 01/04

BL411. 01/04

BL510. 01/04

BL511. 01/04

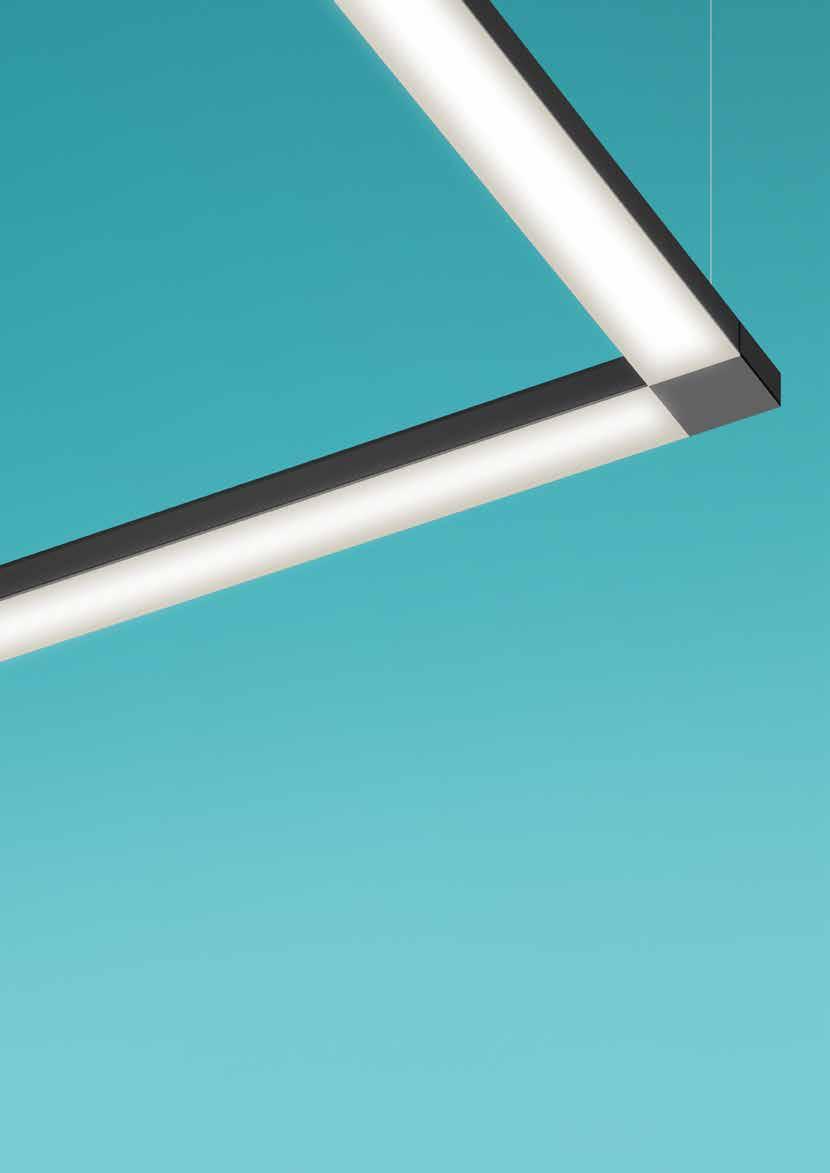

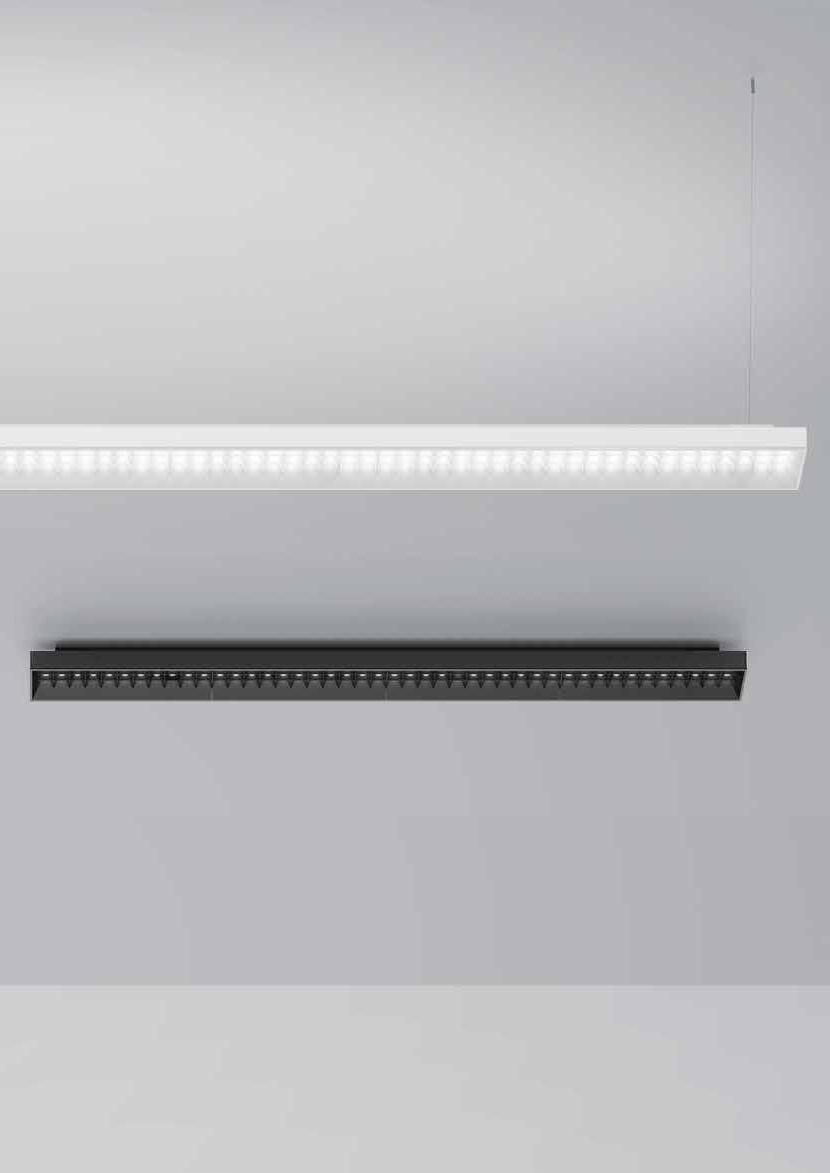

Hoy refractive

Collects 100% of the LED luminous flux

Low energy consumption

High quality

Good perception

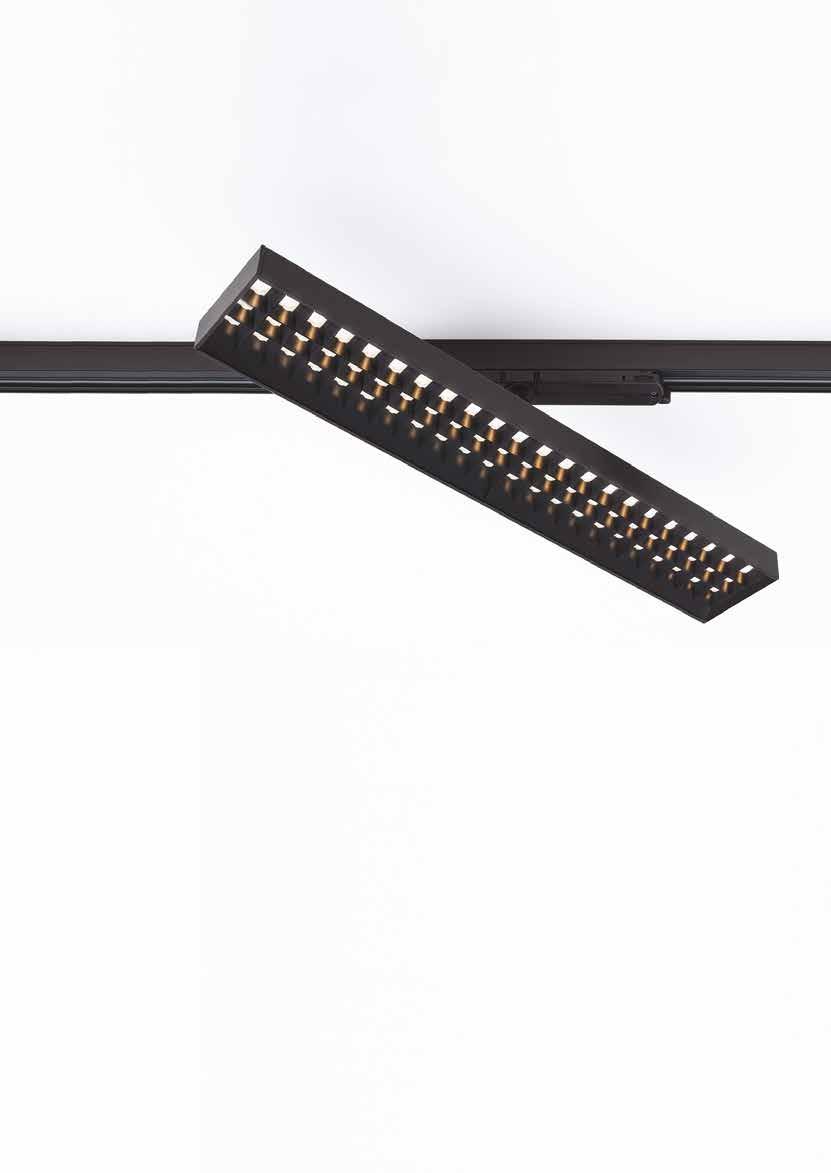

Hoy refractive three-phase track

220/240Vac 50/60Hz electronic ballast included

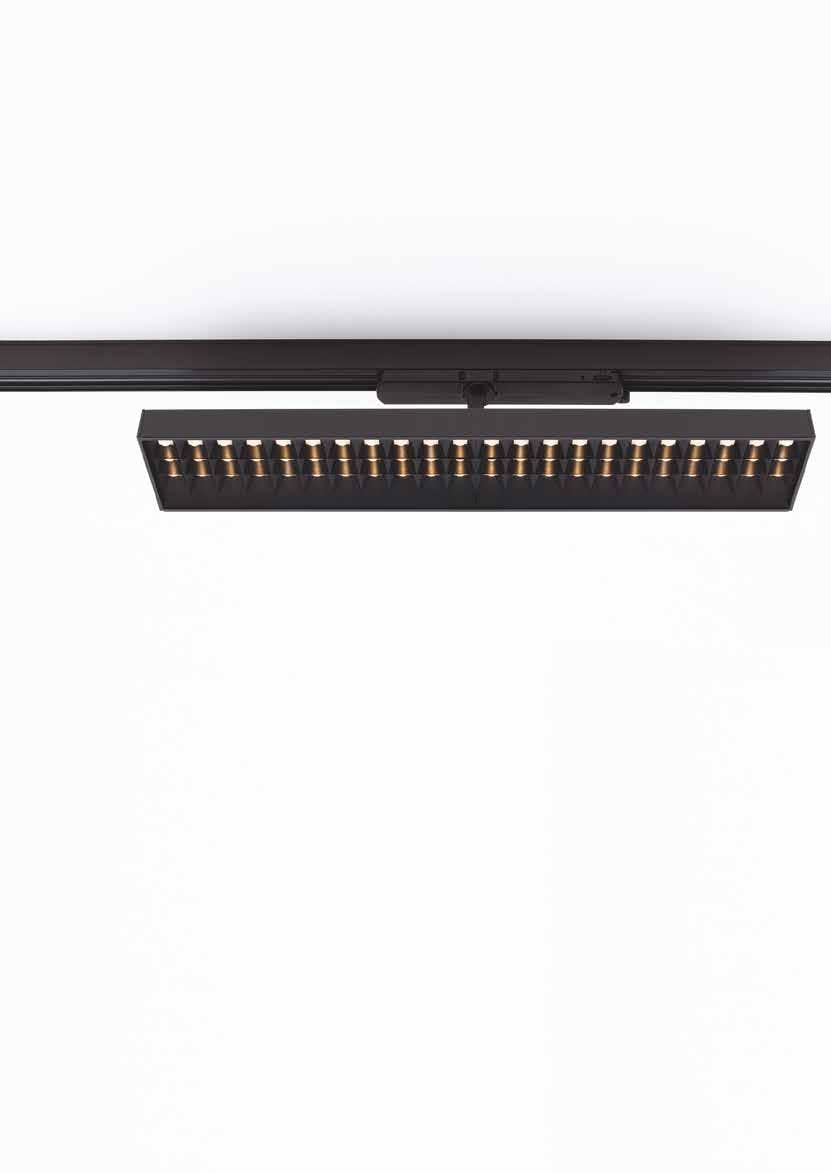

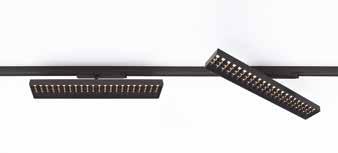

REFRACTIVE TRACK

Length W Flux1 CCT 582 mm 16 W 2080 Im 3000K 4000K

Length 576 mm

Dimmable DALI

Code CF300. 01/04 CF301 01/04

Code CF500. 01/04

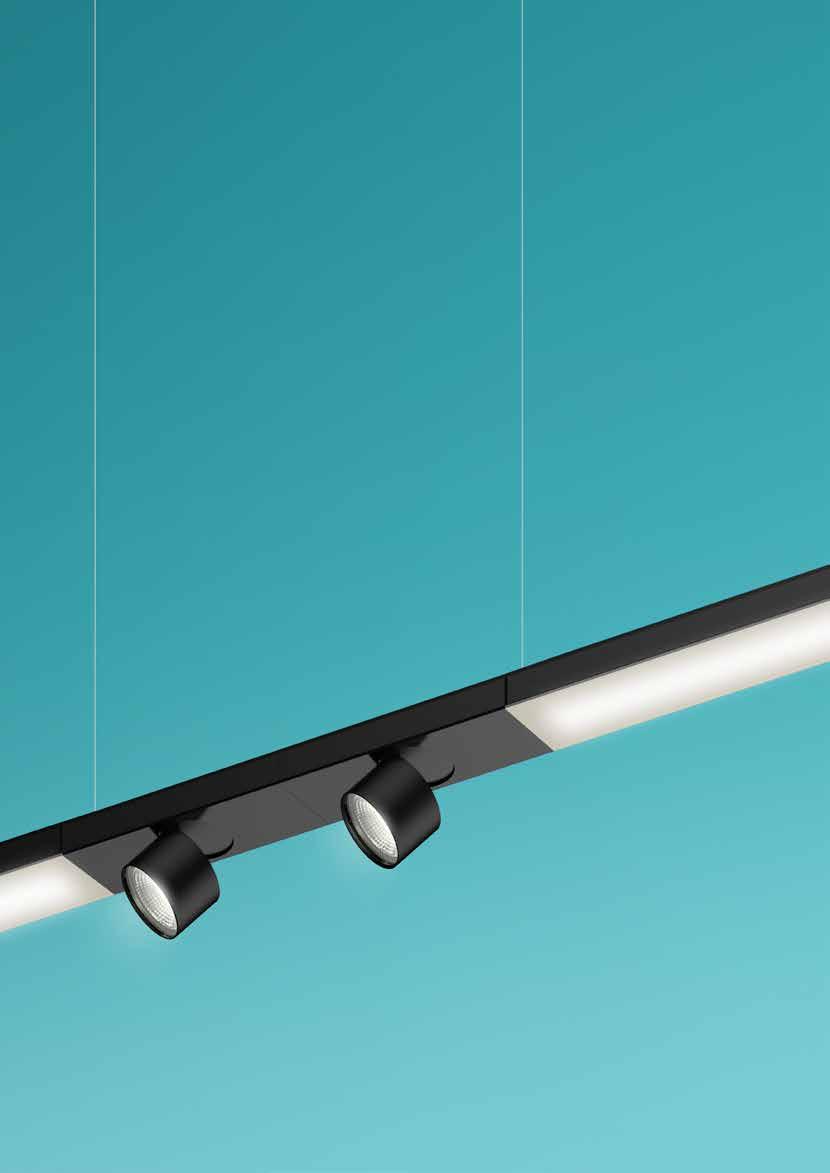

Hoy System

Hoy System elements

LINEAR MODULE

SUSPENSION

LINEAR MODULE REFRACTIVE

SUSPENSION

NO LIGHT MODULES SYSTEM

SUSPENSION

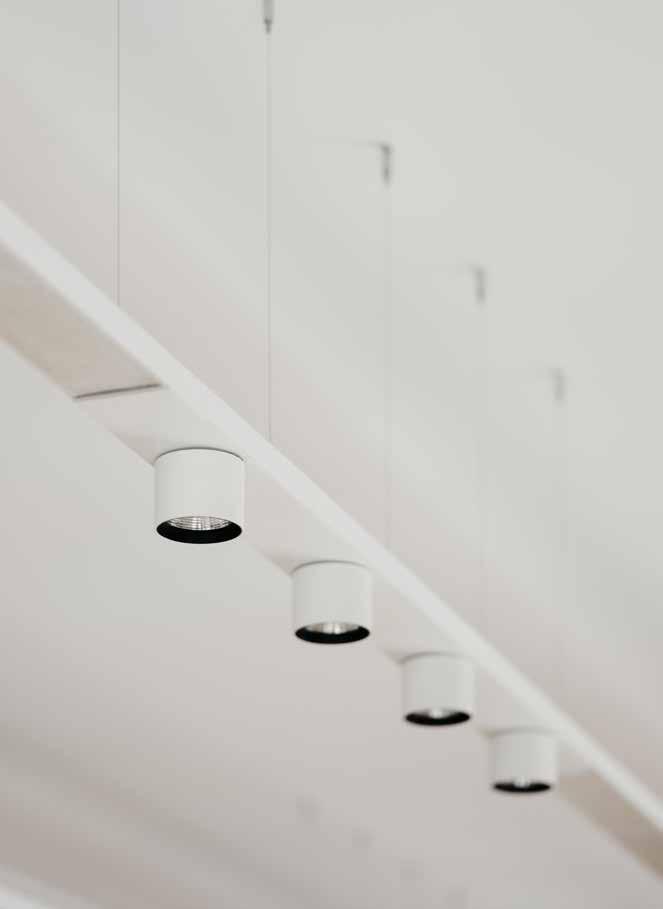

SPOT MODULE

SUSPENSION

DAY LIGHT CONTROL MODULE AND PRESENCE SENSOR

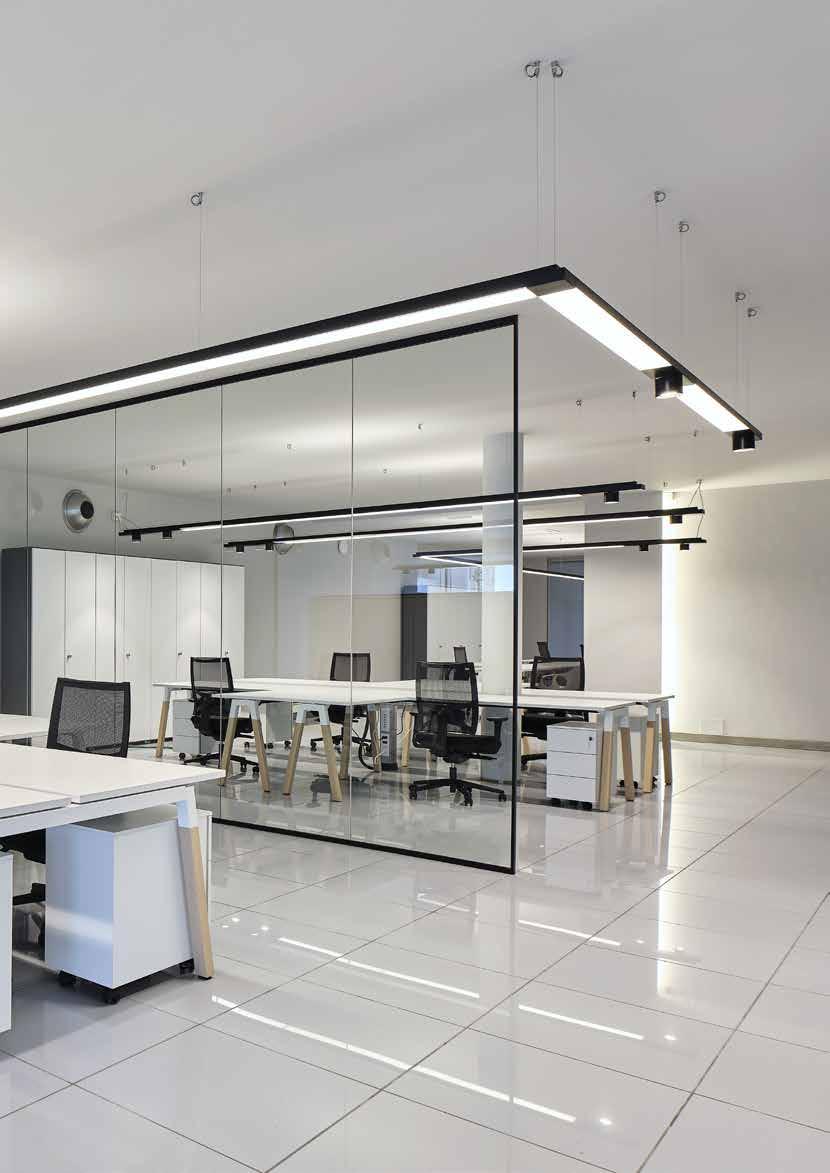

Hoy System linear configuration

SUSPENSION BOTTOM VIEW

SUSPENSION

CEILING BOTTOM VIEW

CEILING TOP VIEW

Hoy System configuration

SUSPENSION BOTTOM VIEW

SUSPENSION TOP VIEW

CEILING BOTTOM VIEW

CEILING TOP VIEW

Hoy System configuration

SUSPENSION BOTTOM VIEW

SUSPENSION TOP VIEW

Linear

CEILING

BOTTOM VIEW

B

CEILING TOP VIEW

HOY SYSTEM SUSPENSION / CEILING

Length W Beam Flux CCT

1154 mm 24 W XF 2915 lm 3000K 3067 lm 4000K

2309 mm 47 W XF 5830 lm 3000K 6135 lm 4000K

* Driver uses 1 DALI address ** Drivers use 2 DALI addresses

Code

BL001. 01/04

BL002. 01/04

BL101. 01/04 BL102. 01/04

MacAdam 3SDCM Life L70 (9K) 50000h CRI =80

***Life L70 (17K) 102000h CRI =90

Code BL004. 01/04

BL005. 01/04

BL104. 01/04 BL105. 01/04

Length W Flux CCT

1154 mm 24 W direct 2915 lm 3000K

14 W indirect 1881 lm 3067 lm 4000K 1881 lm

2309 mm 47 W direct 5830 lm 3000K

27 W indirect 3570 lm 6134 lm 4000K 3762 lm

Code BL007. 01/04

BL008. 01/04

BL107. 01/04

BL108. 01/04

Length

Length 384 mm 1154 mm 2309 mm

Code BL309. 01/04

BL012. 01/04 BL112. 01/04

Code BL010. 01/04

BL011. 01/04

BL110. 01/04 BL111. 01/04

Power Supply Accessories

Suspension powered end caps kit (pair) including 2 suspension cable L=1.90m.

Ceiling powered end caps kit (pair).

Suspension powered transition linear joint including 1 suspension cable L=1.90m

Suspension not powered transition linear joint including 1 suspension cable L=1.90m

Ceiling powered transition linear joint

Ceiling non powered transition linear joint

Suspension powered 90° joint including 2 suspension cables L=1.90m

Ceiling powered 90° joint

Dali Daylight control and presence detector module*

Dali2 Daylight control and presence detector module*

Undimmable

Code

BL200. 01/04

BL206 01/04

BL207 01/04

BL209 01/04

BL208. 01/04

BL210 01/04

BL212. 01/04

BL213 01/04

BL312. 01/04

BL311. 01/04

Dimmable DALI

Canopy for undimmable suspension modules.

(3 poles cable L=2.20m)

Canopy for dimmable suspension modules.* (5 poles cable L. 2.20m)

Canopy and BLL driver for Artemide App suspension modules.

Remote BLL driver for Artemide App

Code BL20401

BL20501

BL20501APP + DV1054APP

DV1054APP

SPOT REFLECTOR MODULES

W Beam Flux CCT

22 W

S 13° 2053 lm 2700K

2053 lm 3000K

2361 lm 4000K

FL 24° 1924 lm 2700K

1924 lm 3000K

2213 lm 4000K

WF 50° 1915 lm 2700K

1915 lm 3000K

2203 lm 4000K

XF 67° 1784 lm 2700K 1784 lm 3000K 2066 lm 4000K

Dimmable DALI

Code

BL300. 01/04

BL301. 01/04

BL302. 01/04

BL303. 01/04

BL304. 01/04

BL305. 01/04

BL306. 01/04

BL307. 01/04

BL308. 01/04

BL320. 01/04

BL321. 01/04

BL322. 01/04

Power Supply Accessories

Suspension powered end caps kit (pair) including 2 suspension cable L=1.90m.

Ceiling powered end caps kit (pair).

Suspension powered transition linear joint including 1 suspension cable L=1.90m

Suspension not powered transition linear joint including 1 suspension cable L=1.90m

Ceiling powered transition linear joint

Ceiling non powered transition linear joint

Suspension powered 90° joint including 2 suspension cables L=1.90m

Ceiling powered 90° joint

Dali Daylight control and presence detector module*

Dali2 Daylight control and presence detector module*

Undimmable

Code

BL200. 01/04

BL206 01/04

BL207 01/04

BL209 01/04

BL208. 01/04

BL210 01/04

BL212. 01/04

BL213 01/04

BL312. 01/04

BL311. 01/04

Dimmable DALI

Canopy for undimmable suspension modules.

(3 poles cable L=2.20m)

Canopy for dimmable suspension modules.*

(5 poles cable L. 2.20m)

Canopy and BLL driver for Artemide App suspension modules.

Remote BLL driver for Artemide App

Code BL20401

BL20501

BL20501APP + DV1054APP

DV1054APP

DIFFUSED LINEAR ELEMENTS

Direct emission

Length W Flux CCT

1154 mm 24 W 2915 lm 3000K 3067 lm 4000K

2309 mm 47 W 5830 lm 3000K 6135 lm 4000K

REFRACTIVE LINEAR ELEMENTS ***

Direct emission ceiling/suspension version

Length W Flux1 CCT

1154 mm 14,7 W 2143 lm 3000K 4000K

2309 mm 29,4 W 4286 lm 3000K 4000K

Louvres

Length

1154 mm

2309 mm

NO LIGHT MODULES***

Length

384 mm

1154 mm

2309 mm

Trimless Formwork (aluminum)

Length

Linear 384 mm

Linear 768 mm

Linear 1154 mm

Linear 2309 mm

90° angle on the same plane End caps (2pcs)

***Through-wiring for Undimamble and Dali Versions

1 Direct luminous flux: measured using white louvres. With black louvres -10% output flux.

220/240Vac 50/60Hz electronic ballast included

* Driver uses 1 DALI address

** Drivers use 2 DALI addresses

Dimmable DALI*

Code

CI05001

CI05101

CI10001

CI10101

MacAdam 3SDCM

Life L70 (9K) 50000h Life L70 (17K) 102000h

CRI =90

Dimmable DALI

Code

CI06001

CI06101

CI11001

CI11101

Code

CF501. 01/04

CF502. 01/04

Code

CI200. 01/04

CI201. 01/04

CI202. 01/04

Code

CI00001

CI00301

CI00101

CI00201

CI015. 01/04

CI01001

Accessories

Dali Daylight control and presence detector module*

Dali2 Daylight control and presence detector module*

Code

CI601. 01/04

CI600. 01/04

DV1054APP

(9K)

SPOT LENS FIXED MODULES X 1

Length W Beam Flux CCT

384 mm 14 W SP 17° 1205 lm 2700K

1275 lm 3000K

1375 lm 4000K

FL 23° 1235 lm 2700K

1305 lm 3000K

1400 lm 4000K

WF 31° 1275 lm 2700K

1350 lm 3000K

1455 lm 4000K

XF 50° 1260 lm 2700K 1335 lm 3000K 1440 lm 4000K

Length W Beam Flux CCT

384 mm 22 W SP 16° 1990 lm 2700K

2105 lm 3000K

2405 lm 4000K

FL 25° 2150 lm 2700K

2285 lm 3000K

2440 lm 4000K

WF 32° 2175 lm 2700K

2315 lm 3000K

2475 lm 4000K

XF 52° 1980 lm 2700K

2105 lm 3000K 2250 lm 4000K

SPOT LENS ADJUSTABLE MODULES X 1

Length W Beam Flux CCT

384 mm 14 W SP 17° 1205 lm 2700K

1275 lm 3000K

1375 lm 4000K

FL 23° 1235 lm 2700K

1305 lm 3000K

1400 lm 4000K

WF 31° 1275 lm 2700K

1350 lm 3000K

1455 lm 4000K

XF 50° 1260 lm 2700K 1335 lm 3000K 1440 lm 4000K

Length W Beam Flux CCT

384 mm 22 W SP 16° 1990 lm 2700K

2105 lm 3000K

2405 lm 4000K

FL 25° 2150 lm 2700K

2285 lm 3000K

2440 lm 4000K

WF 32° 2175 lm 2700K

2315 lm 3000K

2475 lm 4000K

XF 52° 1980 lm 2700K

2105 lm 3000K

2250 lm 4000K

Dimmable DALI

Code

CI300. 01/04

CI304. 01/04

CI308. 01/04

CI301. 01/04

CI305. 01/04

CI309. 01/04

CI302. 01/04

CI306. 01/04

CI310. 01/04

CI303. 01/04

CI307. 01/04

CI311. 01/04

Dimmable DALI

Code

CI400. 01/04

CI404. 01/04

CI408. 01/04

CI401. 01/04

CI405. 01/04

CI409. 01/04

CI402. 01/04

CI406. 01/04

CI410. 01/04

CI403. 01/04

CI407. 01/04

CI411. 01/04

Dimmable DALI

Code

CI340. 01/04

CI344. 01/04

CI348. 01/04

CI341. 01/04

CI345. 01/04

CI349. 01/04

CI342. 01/04

CI346. 01/04

CI350. 01/04

CI343. 01/04

CI347. 01/04

CI351. 01/04

Dimmable DALI

Code

CI440. 01/04

CI444. 01/04

CI448. 01/04

CI441. 01/04

CI445. 01/04

CI449. 01/04

CI442. 01/04

CI446. 01/04

CI450. 01/04

CI443. 01/04

CI447. 01/04

CI451. 01/04

Accessories Spot

DV1054APP Accessories

CI601. 01/04

CI600. 01/04

Hoy is compatible with Artemide App

Artemide App is a user-friendly and intuitive interface used to control individual products, groups of appliances and lighting scenarios. It is a tool that can be associated with several products from both the Design and the Architectural Catalogues.

Headquarters

Artemide S.p.A.

Via Bergamo, 18 20006 Pregnana Milanese (MI), Italy

Tel. +39 02 93518.1

Tel. +39 02 93526.1 Numero verde 800 834 093 (from Italy only) info@artemide.com artemide.com

Communication and Marketing Department

Via Canova, 34 20145 Milan (MI), Italy

Tel. +39 02.349611 marketing@artemide.com artemide.com

Artemide S.p.A. si riserva la facoltà di modificare, in qualunque momento e senza preavviso, le caratteristiche tecniche degli elementi illustrati nel presente catalogo.

Artemide S.p.A. reserves the right to change, at any time and without prior warning, the technical specifications of any product illustrated in this catalogue.

Artemide S.p.A. se réserve le droit de modifier, à n’importe quel moment et sans préavis, les caractéristiques techniques des éléments illustrés dans ce catalogue.

Artemide S.p.A.

behält sich das Recht vor jederzeit und ohne Ankündigung die technischen Daten der im Katalog abgebildetem Produkte zu ändern.

Artemide S.p.A. se reserva la facultad de modificar, en cualquier y sin aviso previo, las características técnicas de los elementos ilustrados en el presente catálgo.

For information regarding distributors and points of sale, please visit our website artemide.com or email: info@artemide.com

9001:2015
