Sylt Carlotta de Bevilacqua 2023 PATENT OF INVENTION: STRUCTURE

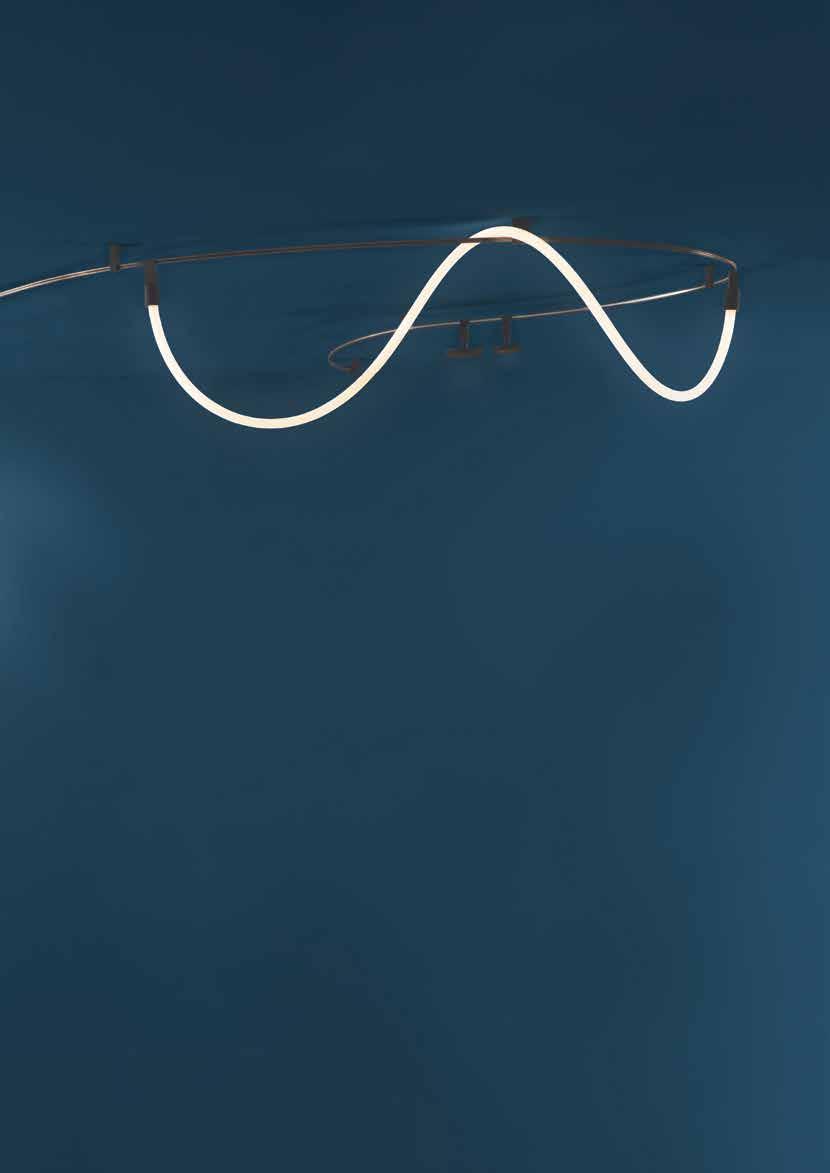

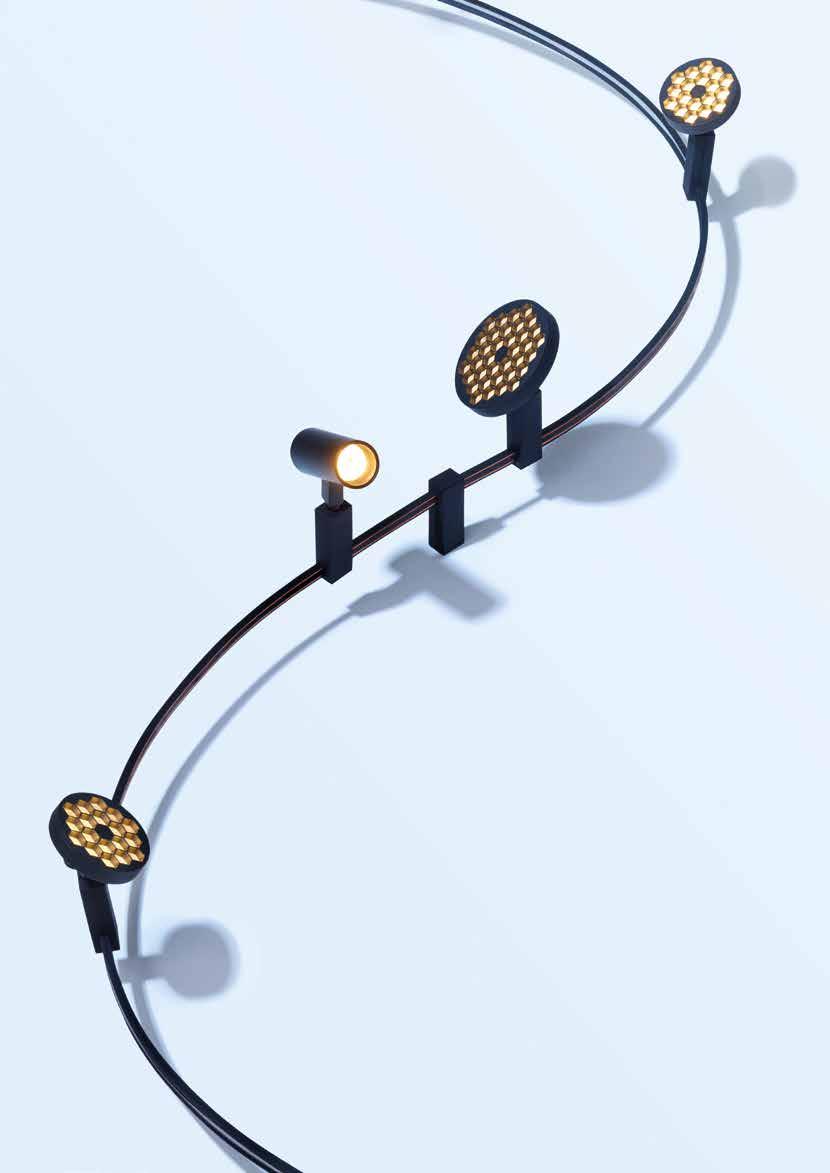

Sylt takes the concept of a track capable of powering and supporting multiple lighting elements to the extreme, providing both high-tech and expressive beauty. The section of Sylt is just 20 x 5 mm, which can be bent at the construction site, simply, to accommodate any geometric shapes dictated by the lighting requirements and by the architecture. It is possible to outline curves that are accentuated to different extents, free and sinuous shapes that come together with a wealth of light performance. The project overcomes architectural and installation constraints in terms of layout and time. The profile dialogues with the architectural space following light needs through its ceiling version.

For further information on Sylt visit artemide.com

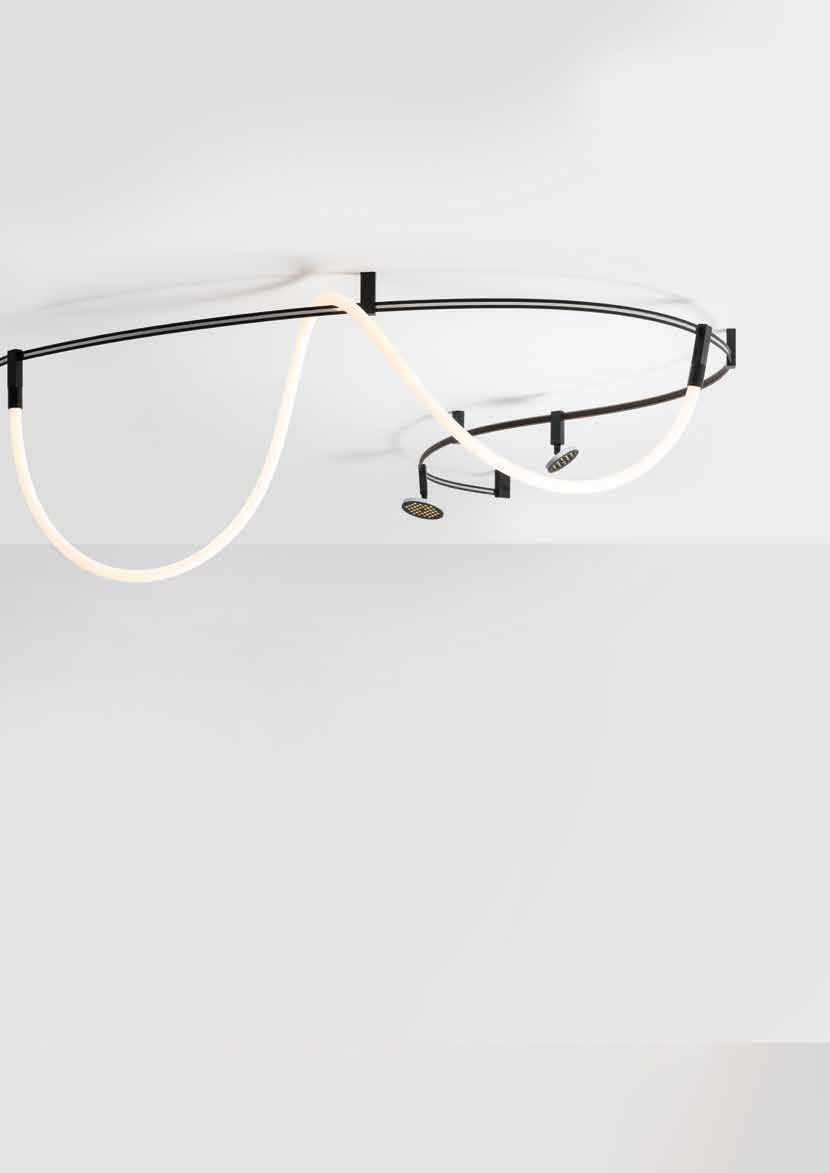

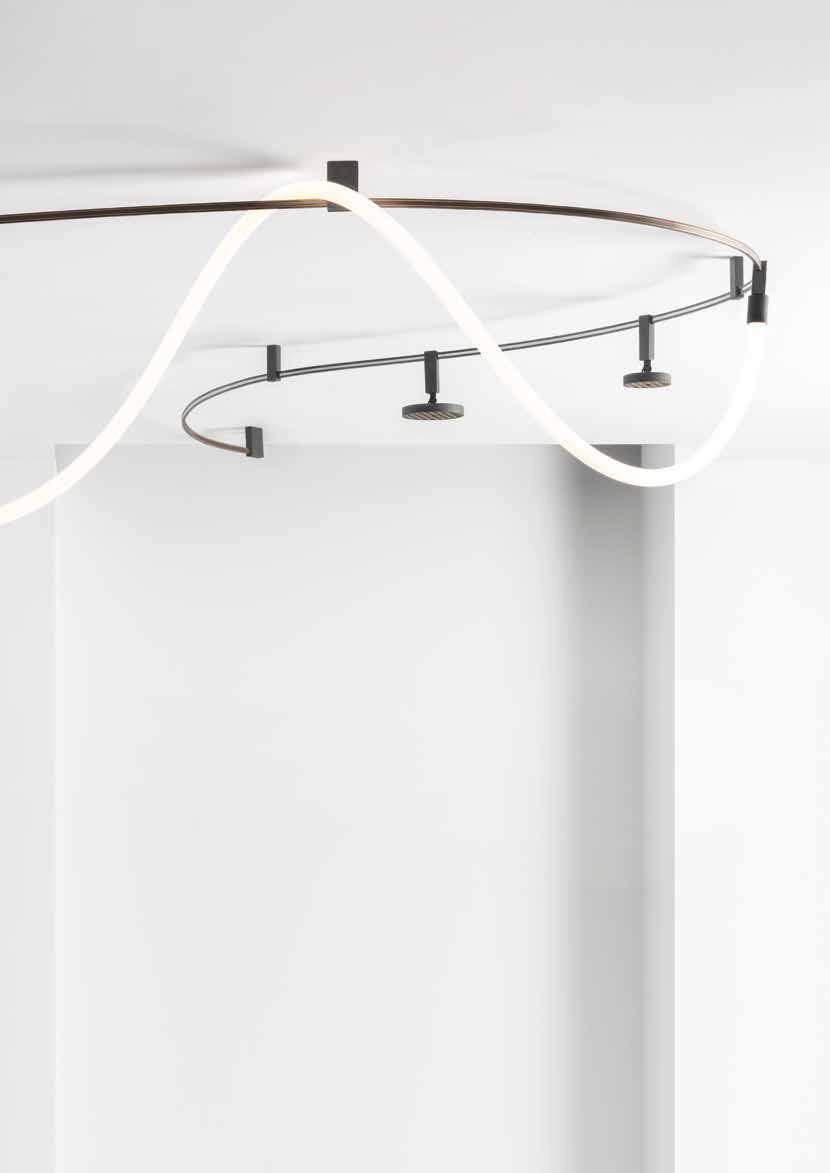

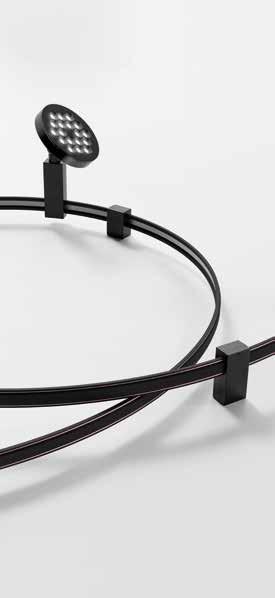

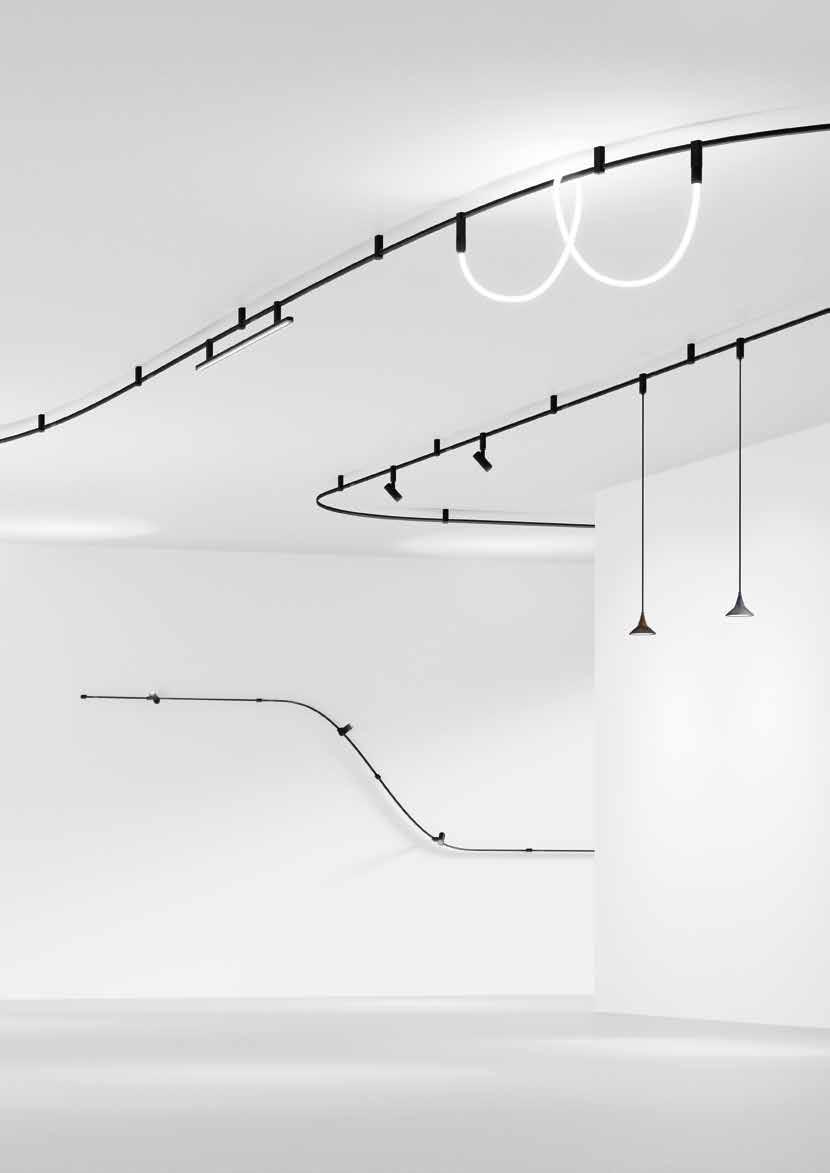

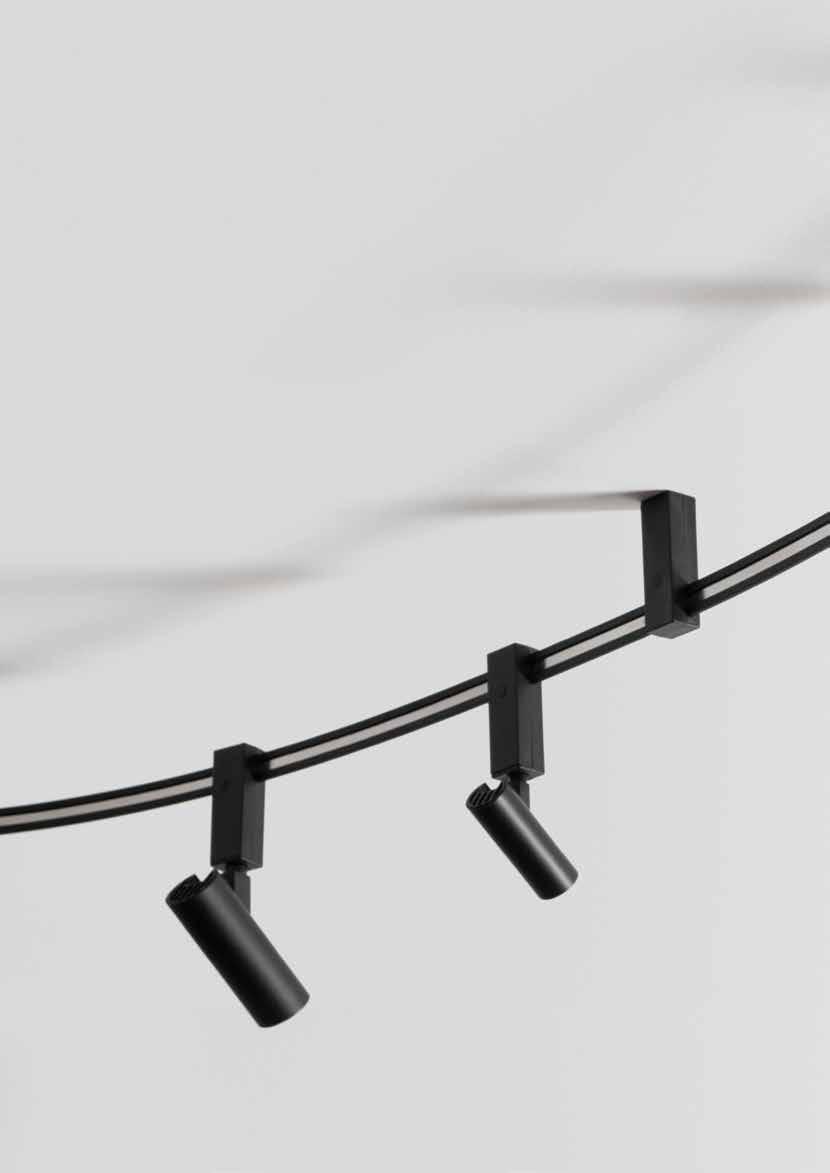

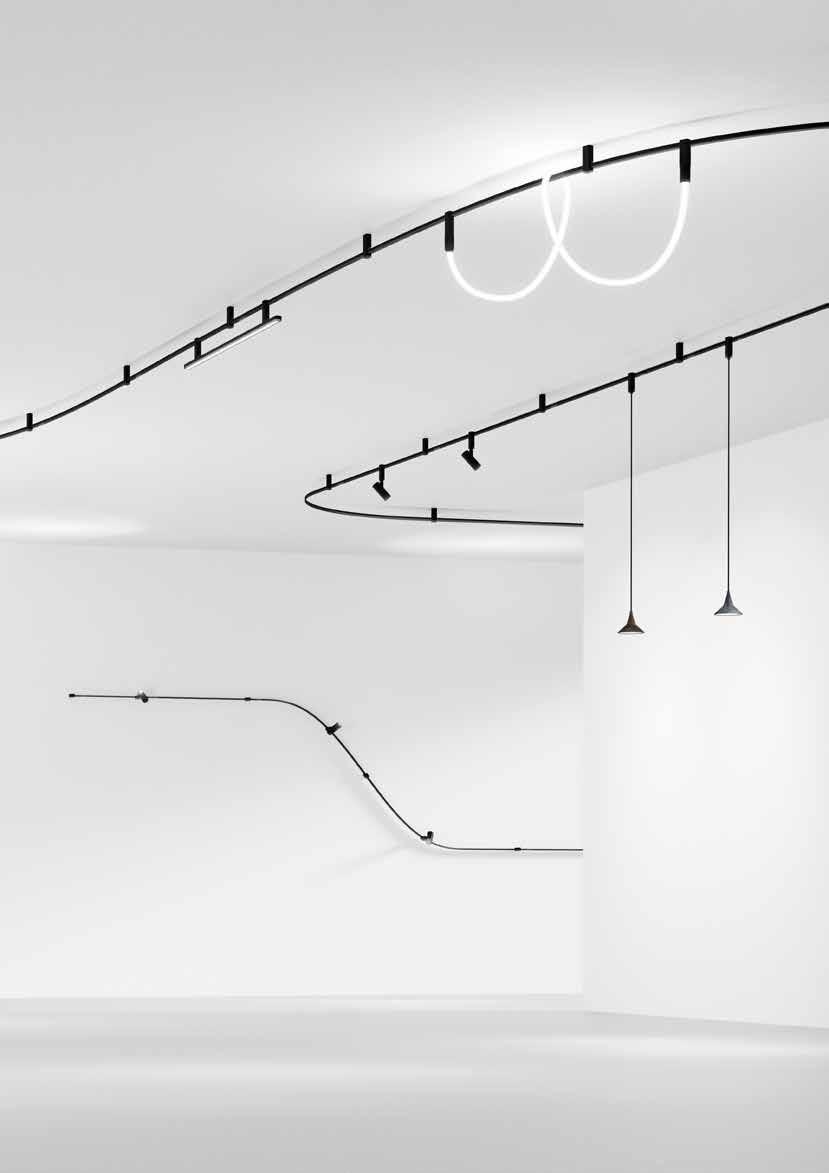

Sylt is versatile Free composition on site Combination of lighting languages Integration of different performances

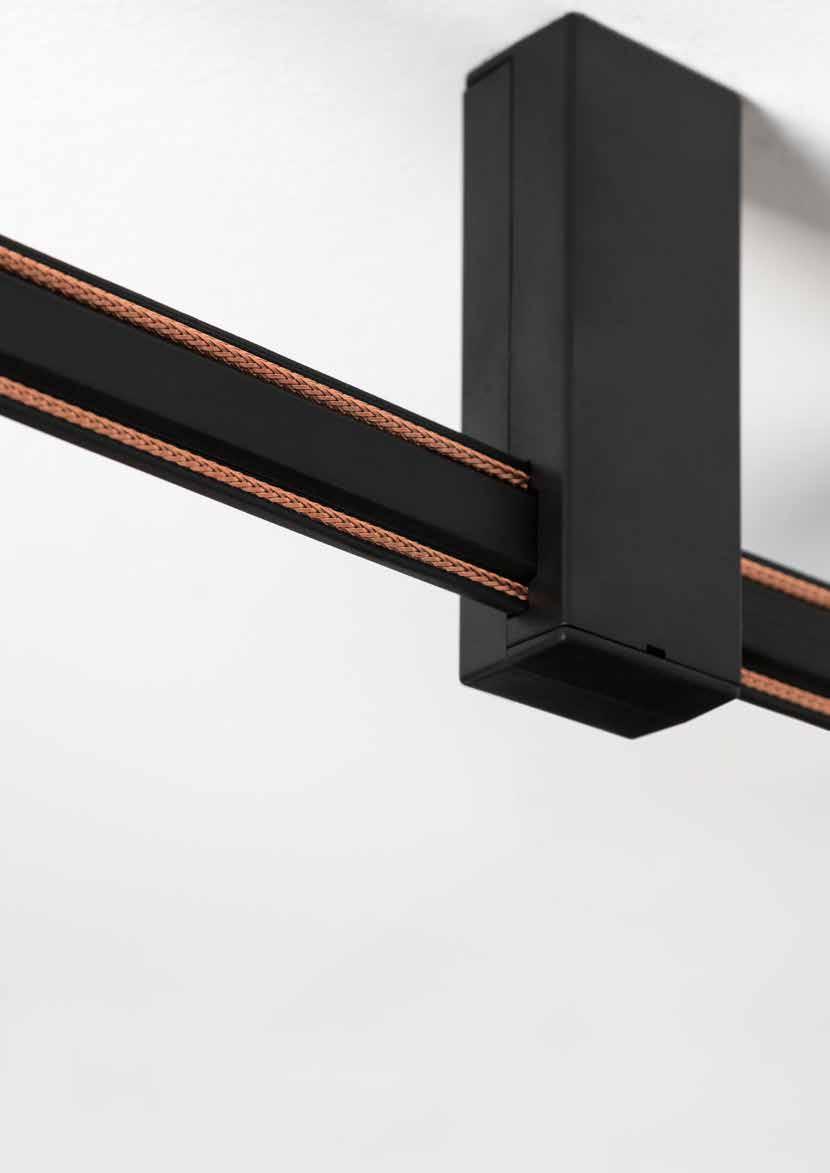

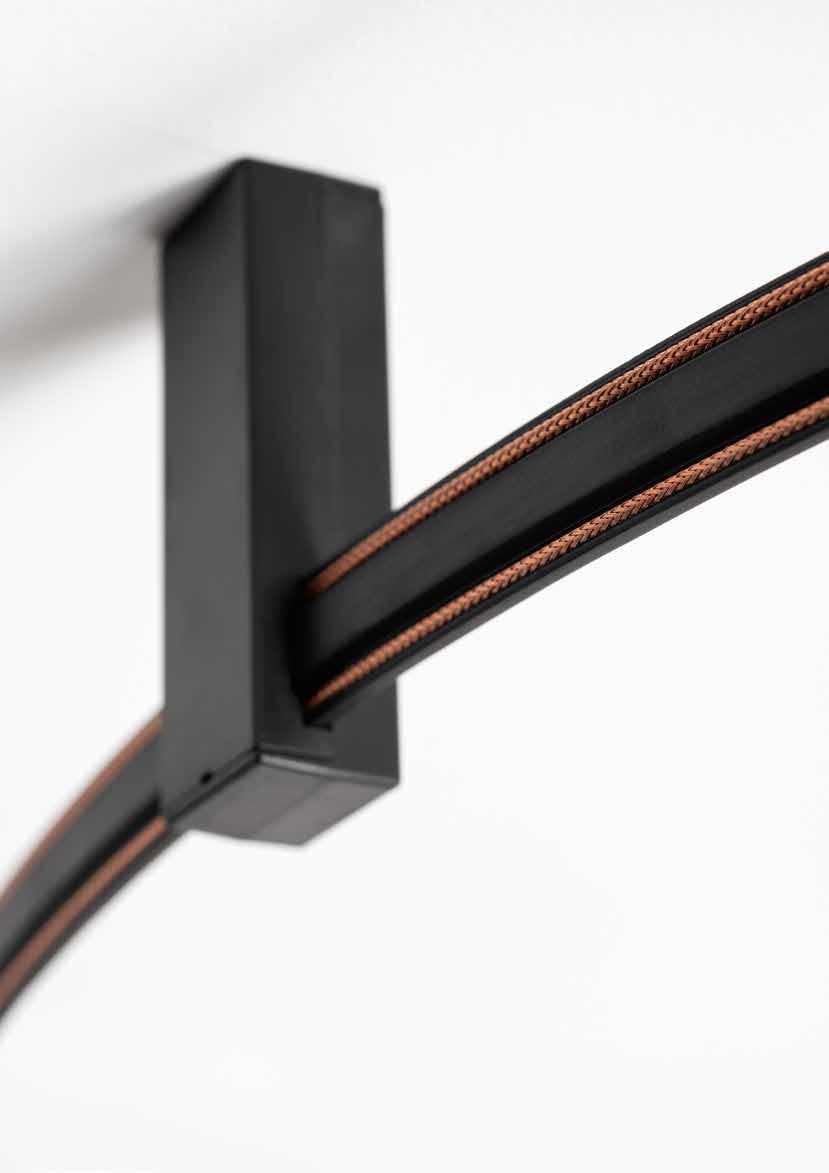

Thermoplastic elastomer co-extruded with copper conductors positive & negative poles

20 mm

5 mm

Minimum dimensions In a minimum section the two copper conductors, co-extruded with a section of thermoplastic elastomer, are left exposed to view yet fully safe. A slim band of harmonic steel runs along the back, forming the profile and allowing the different geometric shapes to be plied and retained. The track turns into a belt which can be bent at the construction site, simply, to accommodate any geometric shape dictated by the lighting requirements and by the architecture.

Harmonic steel

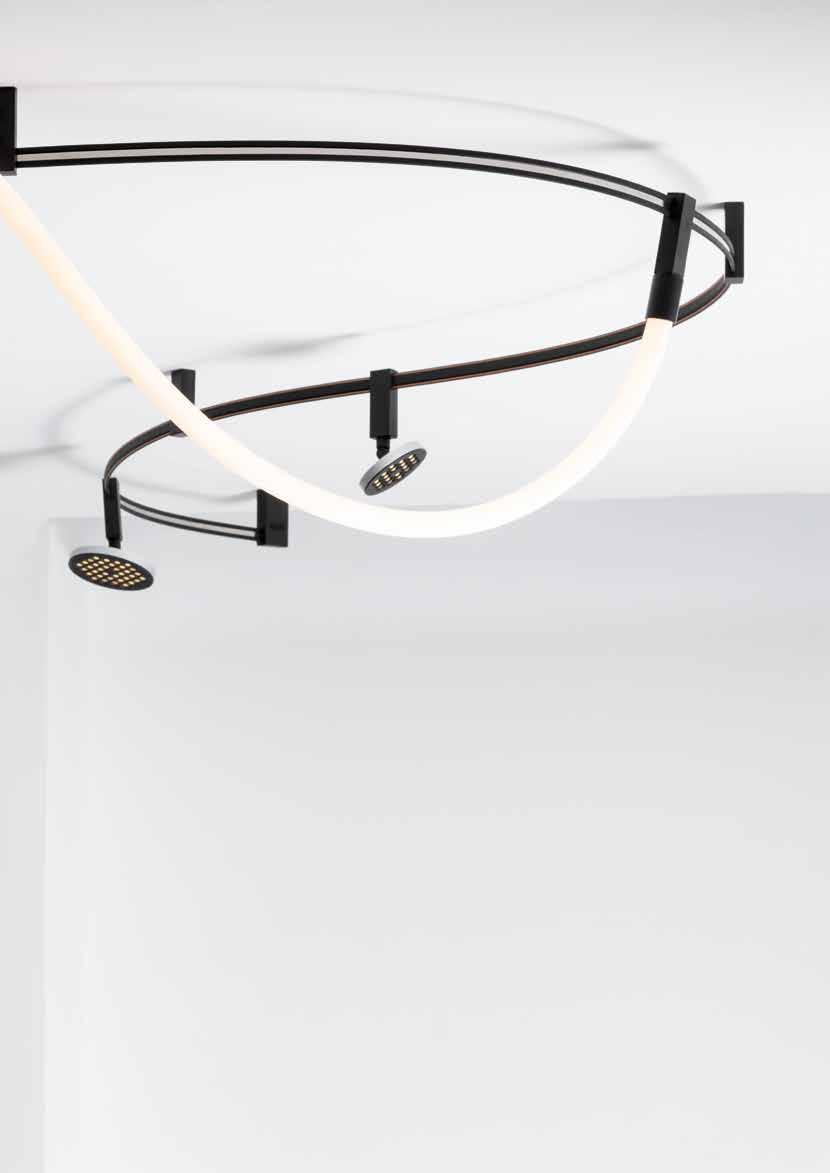

Sustainability in space Thanks to its materic features, the track can be cut and folded in place with a minimum radius of 300 mm.

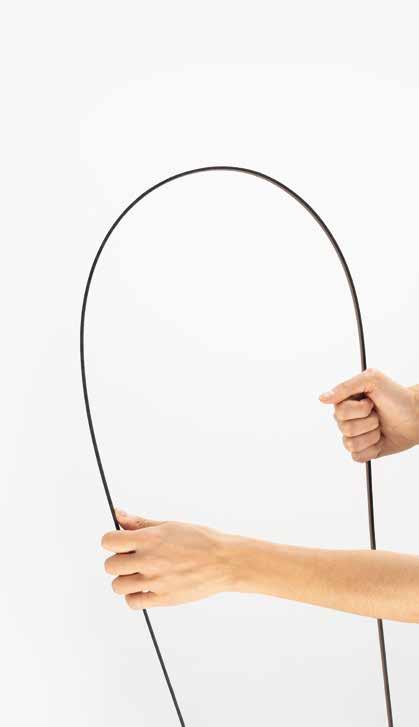

Minimum curvature radius

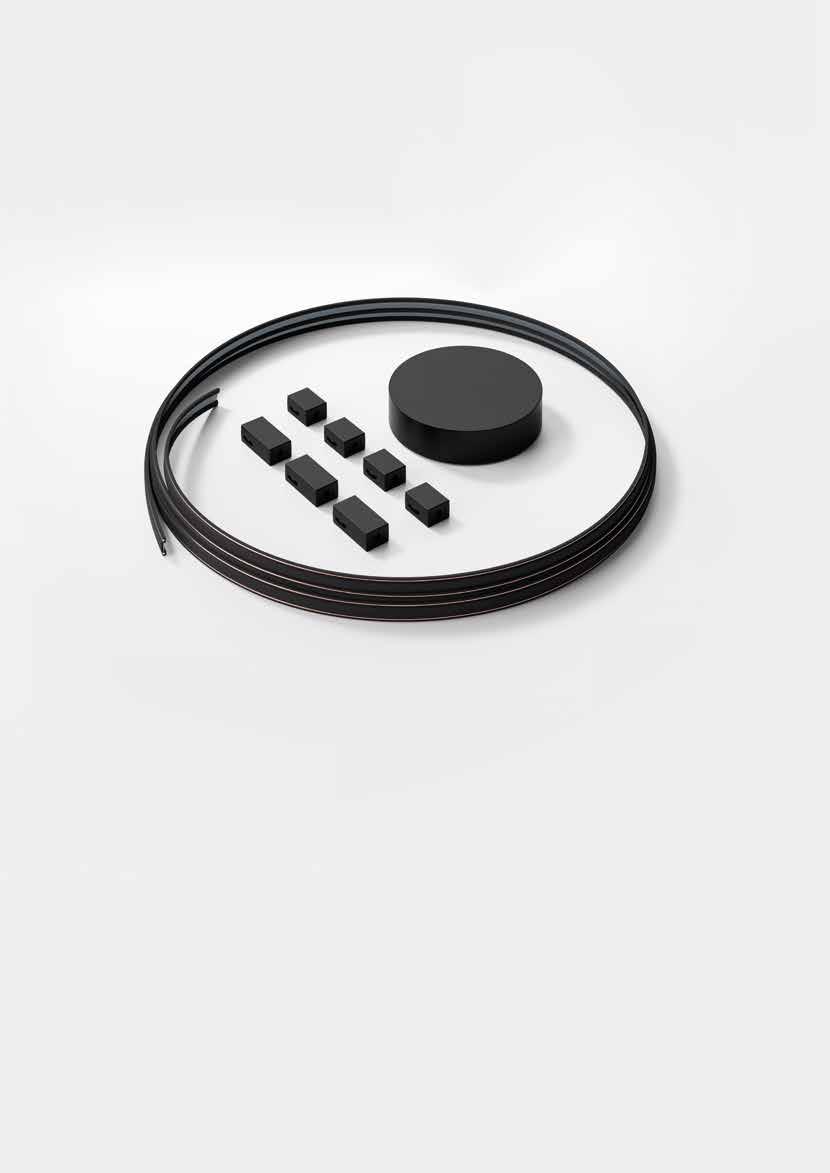

Track delivery

5 - 10 - 20 m roll

≈ R300 mm

Sustainability in time Efficient installation timing Sylt is a system designed to maximise intelligence and performance through the reduction of mechanical components. The elements required for the functioning of the system are: - the energetic infrastructure consisting of the cable, designed to be a synthesis of mechanics and electronics; - the mechanical fixing elements reduced to only two types and three sizes (Track support 84 and Mechanical and insulator track support 84) that can be installed approximately every meter; - the powering element of the system that also acts as a mechanical fastener (Powered track support 84); - power supplying elements that allow different available powers, various dimming modes and multiple installation possibilities.

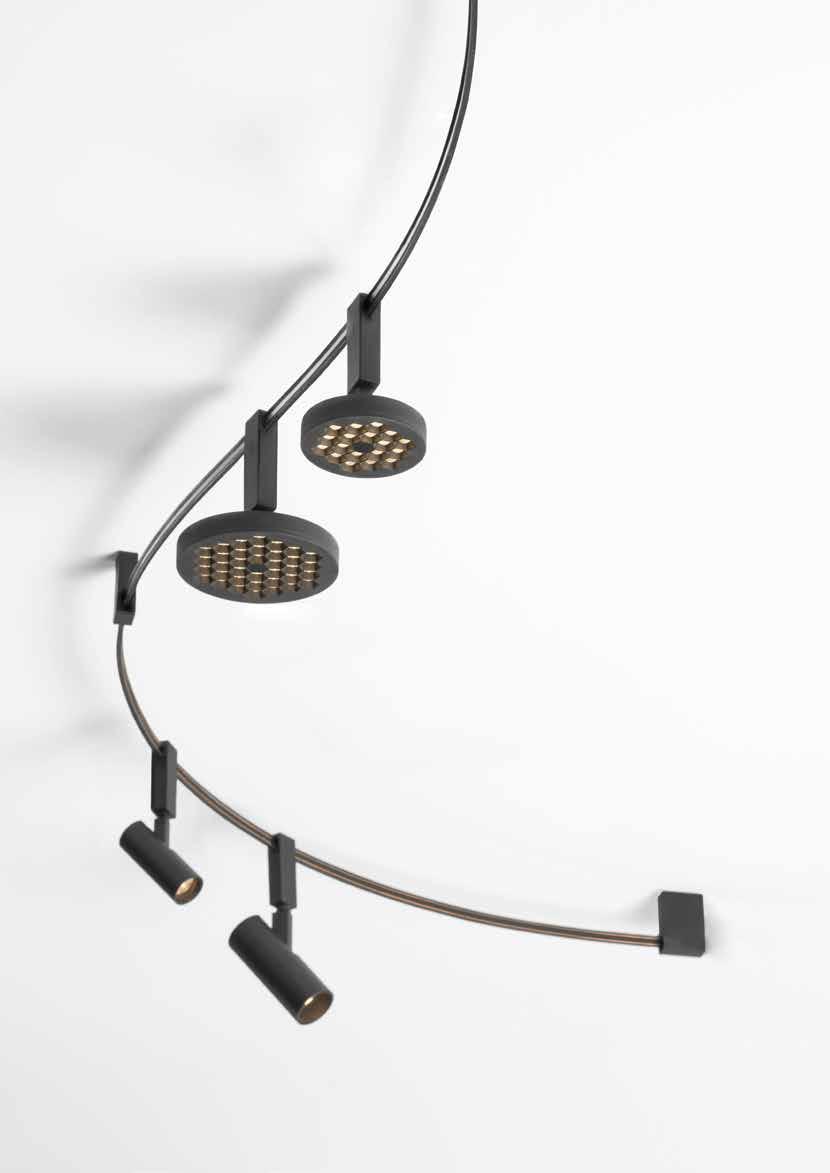

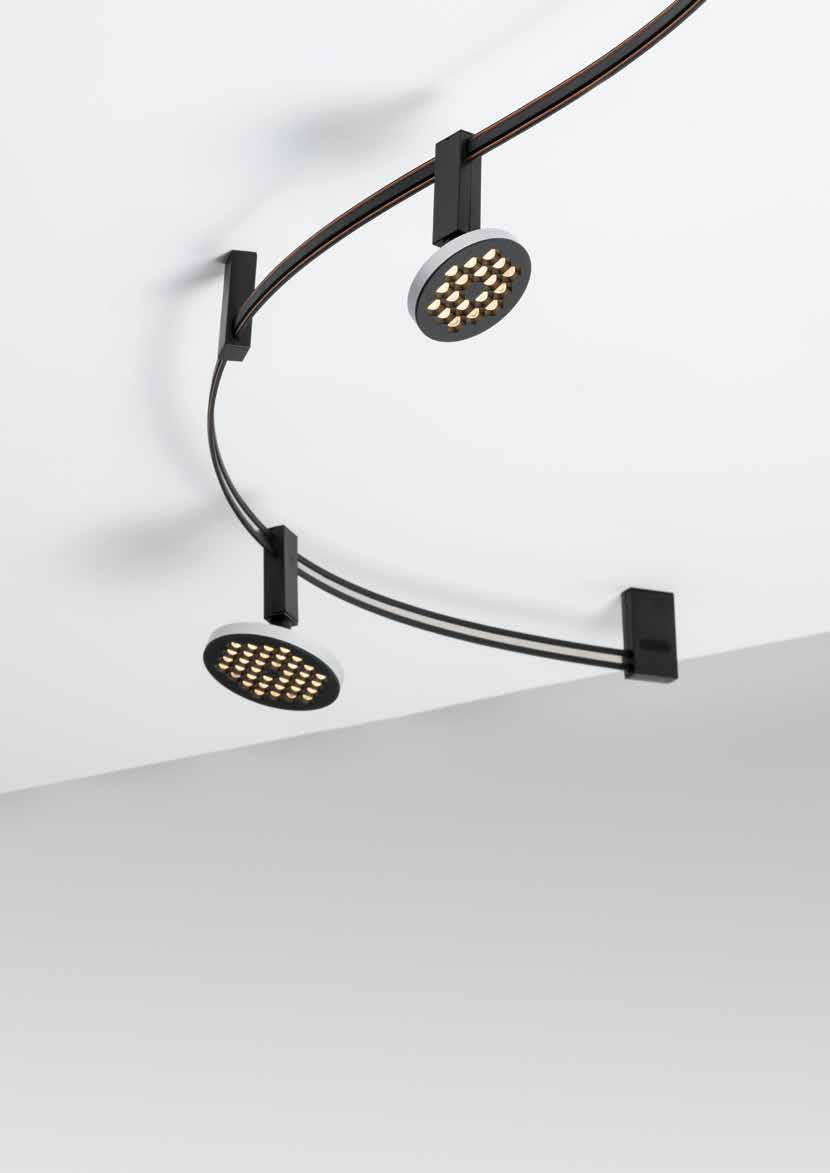

Riconfigurability over time Lighting appliances, that share with the system the form factor of the electro-mechanical fixing element, complete the setup. The simplicity is reflected in a rapid installation that can be completed in just a few steps. The system is sustainable over time allowing both minimal installation time as well as the possibility to reconfigure the layout, being able to dynamically and sustainably address project needs over time.

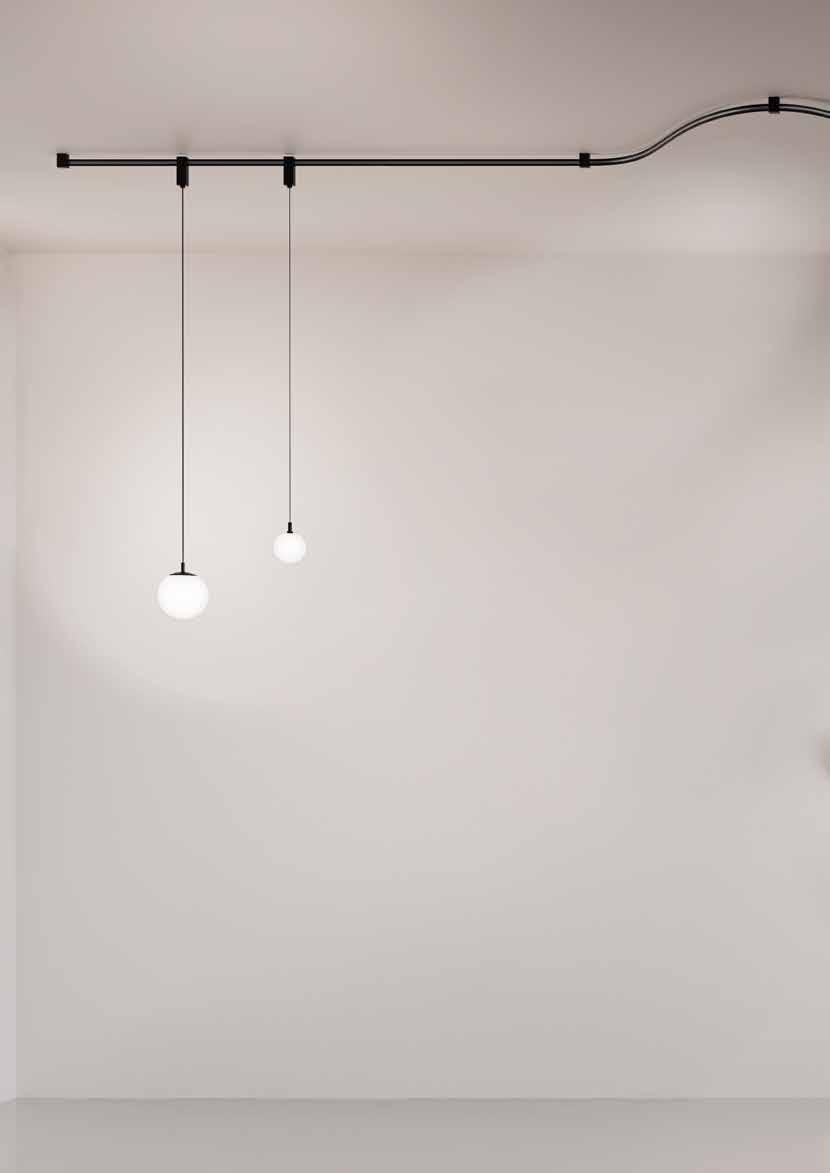

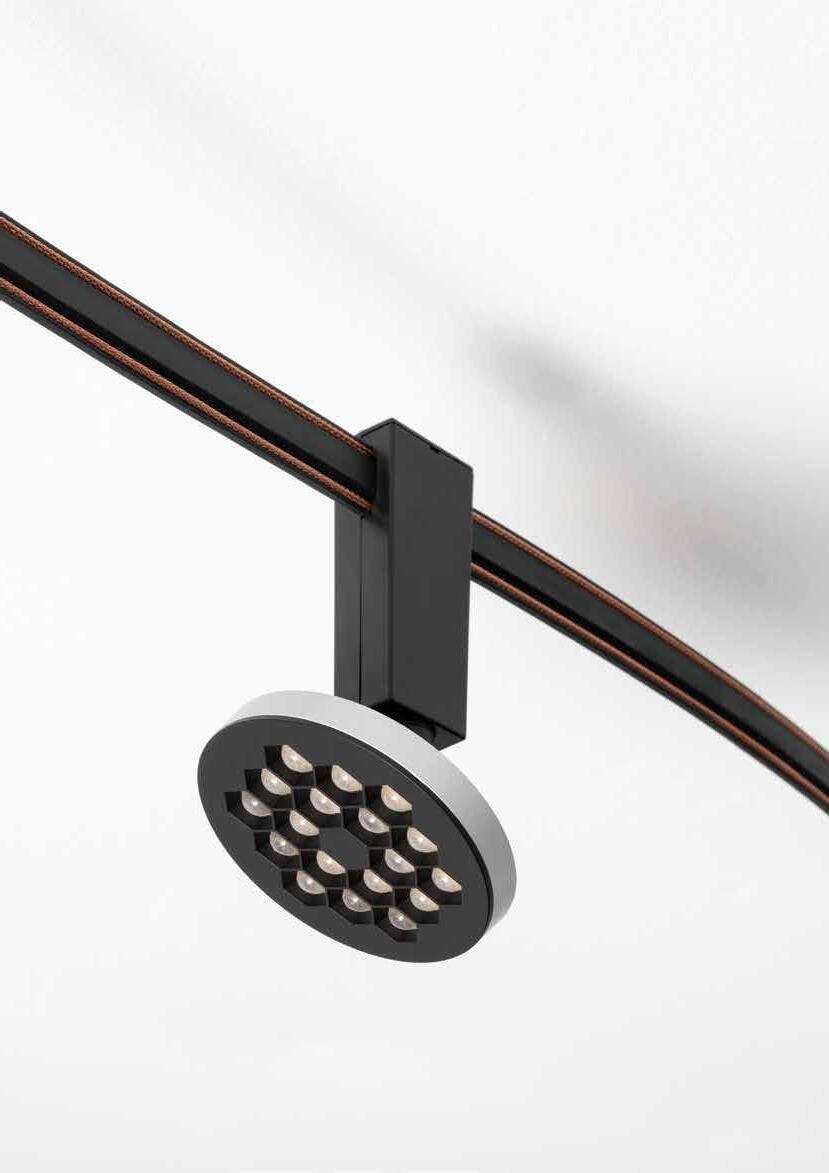

Easiness of installation To install Sylt, it is necessary to secure only the fixing elements (Track supports), discrete and at an indicative distance of approximately maximum 1 m from each other. Each support is fixed with only two screws: one for fixing to the ceiling and the other for closing the cover. The flexible track must be inserted in the correct direction to ensure its power supply.

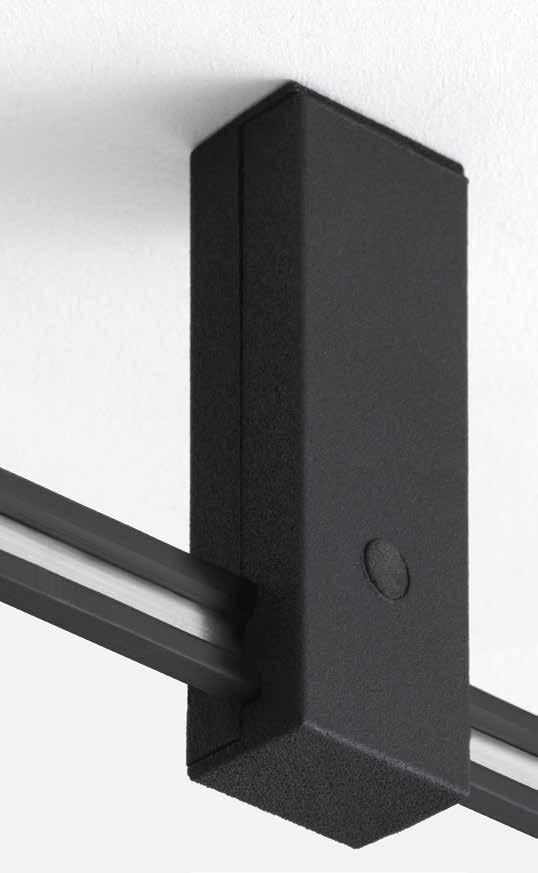

COMPONENTS ABACUS 1. Track thermoplastic elastomer co-extruded with copper conductors 20 x 5 mm Harmonic steel 10 x 1 mm 6.

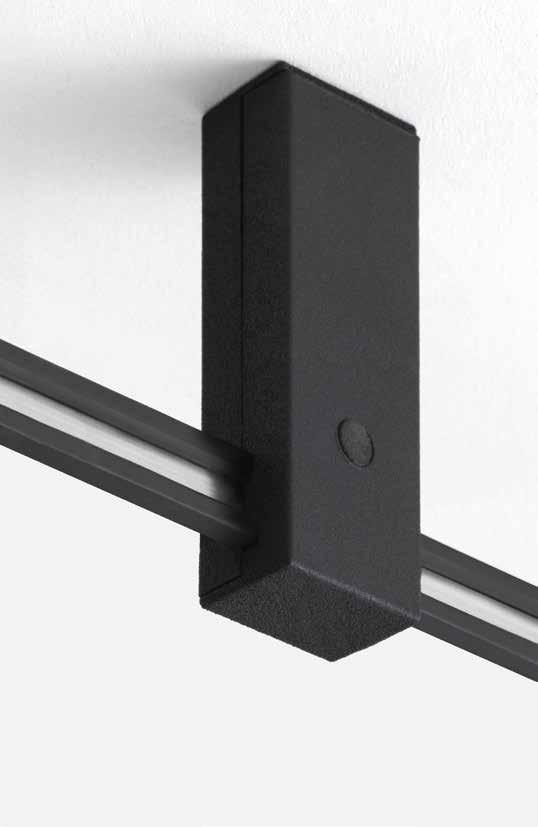

Track support 84 29 x 84 x 20 mm 3. Track support 60 29 x 60 x 20 mm

4. Track support 40 29 x 40 x 20 mm 5. Mechanical and insulator track support 84 48 x 84 x 20 mm 6. Powered track support 84 48 x 84 x 20 mm 7. Lighting appliance example with Helgoland 90

Front

Back

Spatial Freedom and Intelligence 48V Intelligence

Sylt completes Artemide latest generation of systems powered by 48V Intelligence. This feeding mode in Sylt optimises the distance covered by a single feeding point up to 20m. The system can be fed at any point, allowing maximum flexibility in adapting to existing installations. A variety of power supply kits, in terms of power sizes, dimming modes and installation typologies ensure a wide range of possibilities to cope with different project contexts.

58,5 mm

Long run with one driver for 20 m

Electrical feeding alternatives Power/Distance *Track length + feeding wire length ≤ 22m. Power supply 150W (125W max) 240W (210W max)

max 20 m*

Powered track support 84 (insulator needed)

Power supply 150W (125W max) 240W (210W max)

max 20 m*

Powered track support 84 (insulator needed)

Powered track support 84

Mechanical and insulator track support 84

Power supply 150W (125W max) 240W (210W max)

max 20 m*

Power supply 150W (125W max) 240W (210W max)

max 20 m*

Power supply 150W (125W max) 240W (210W max)

max 20 m*

Spatial Freedom and Intelligence 48V Intelligence

Powering & data synthesis for dimming The 48V Intelligence communication system is based on using the 48V power supply line to transmit information to receiving devices. The distinguishing feature of this technology is the synthesis of power supply and data transmission. Through a proprietary high-frequency coding protocol, developed to ensure high transmission reliability, the consistency of the valid lighting level being transmitted is preserved, ensuring alignment between the transmitter and receivers. In terms of compatibility, Sylt's 48V Intelligence supports various control standards, including DALI2, normally open button inputs, and active 0-10V analogue signals. This versatility makes it suitable for a wide range of application scenarios, ensuring optimised, interference-free operation on receiving devices. The use of the 48V Intelligence solution, through the elimination of separate wiring for data transmission, greatly simplifies the installation or implementation of lighting systems, reducing cost and complexity while ensuring reliable communication and high performance. 14

Power supply kit alternatives

SMD

Recessed Trimless

Remoted

Power (W)

150W (125W max) 240W (210W max)

Max feeding wire length*

2m (with wire 2 x 0,75 mm2)1 5m (with wire 2 x 1,5 mm2)2 10m (with wire 2 x 2,5 mm2)2

2m (with wire 2 x 0,75 mm2)1 5m (with wire 2 x 1,5 mm2)2 10m (with wire 2 x 2,5 mm2) 2

110-240V

Broadcast

0-10V/PUSH/DALI2 PUSH & APP

Installation type

Appliances dimming

Input dimming

Mounting possibilities

1 2

Included in the Powered support track 84 component. To be provided by the installer.

* Track length + feeding wire length ≤ 22m.

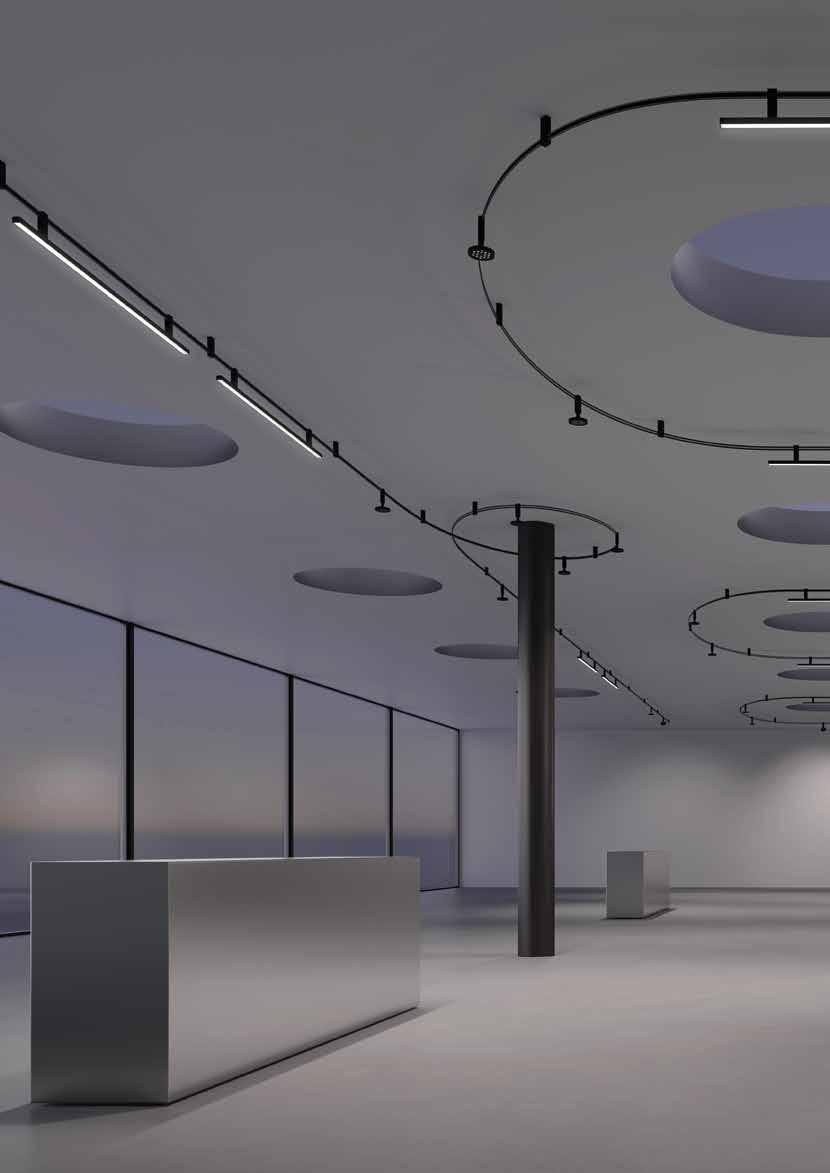

Sustainability in performance Insets can be changed over time, moved, substituted or added in very few operative steps: dismounted, moved or changed and fixed again.

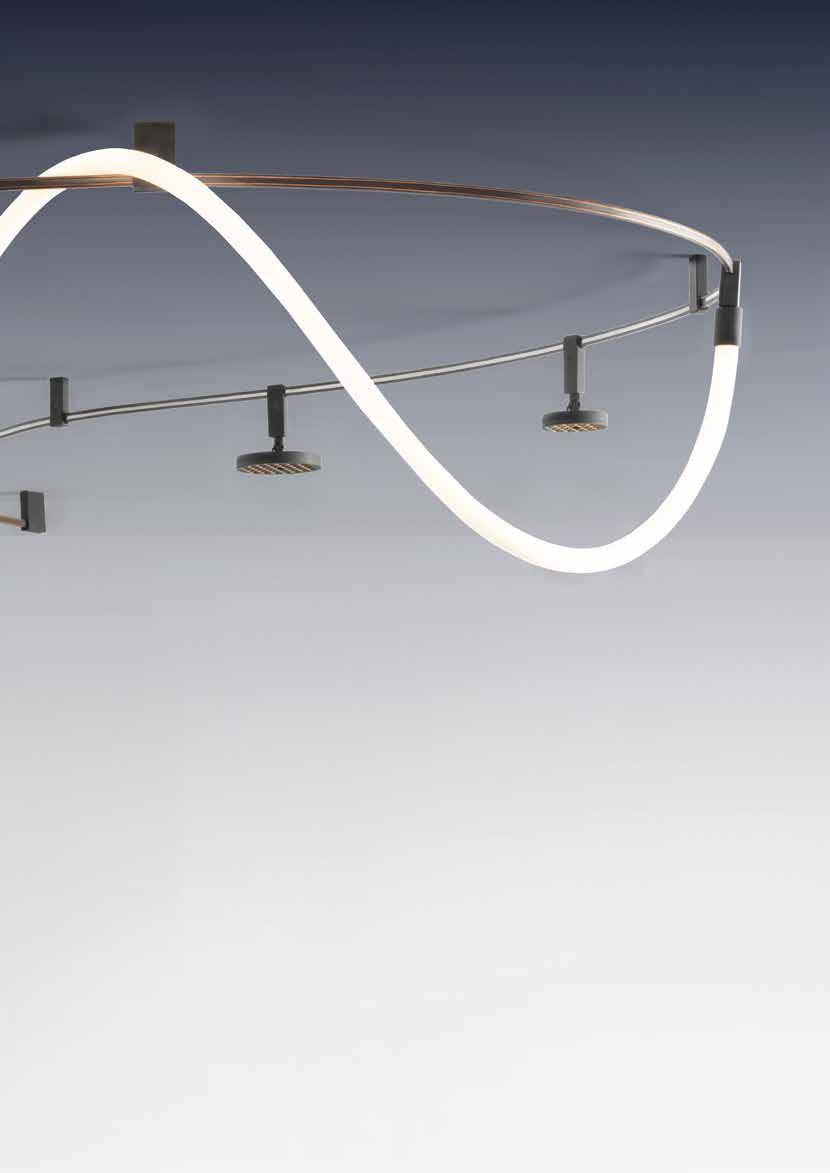

Closed configurations

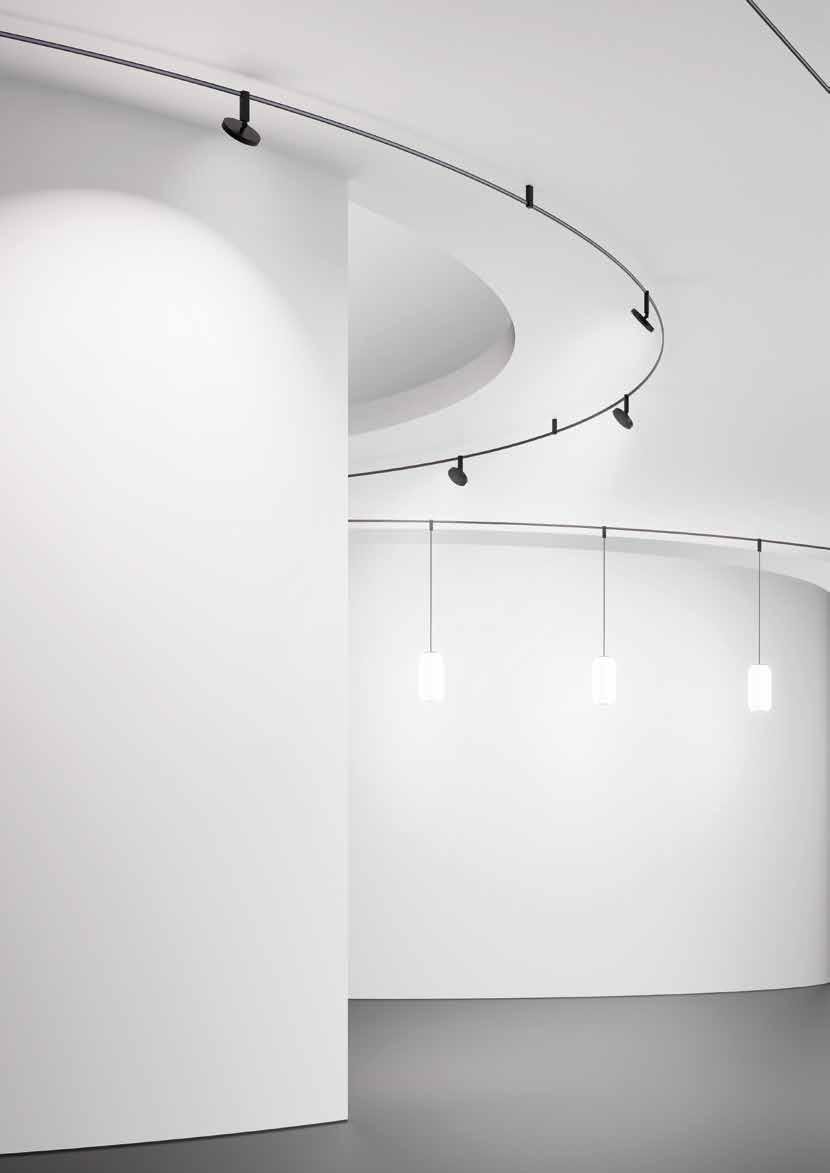

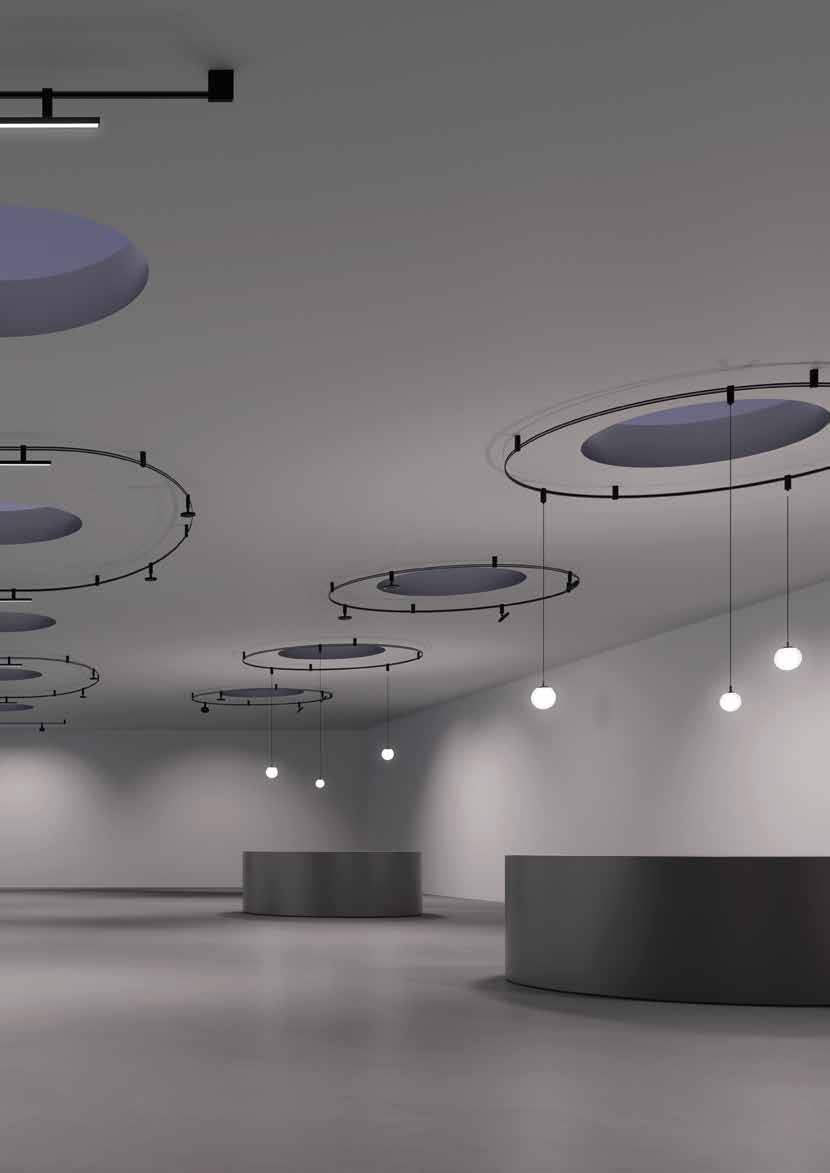

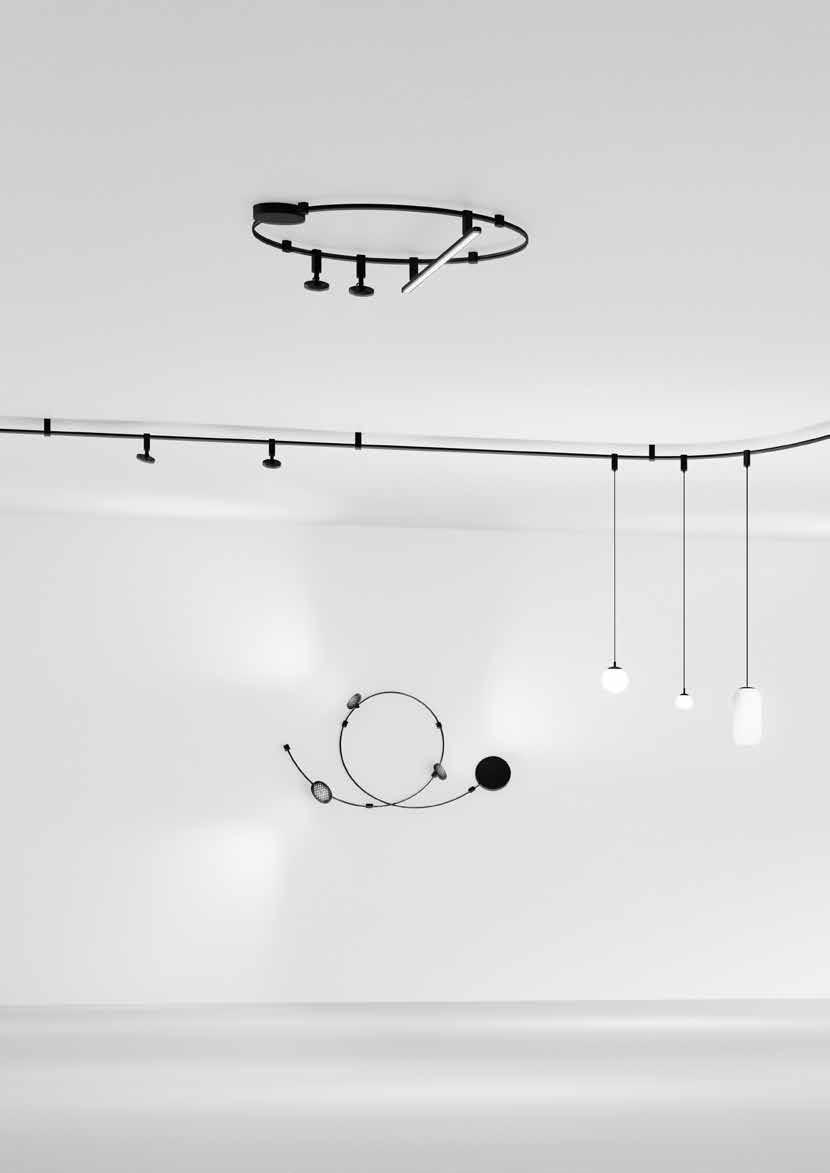

Sylt system can create both open and pure closed lighting configurations, able to adapt to different indoor environments and emphasise architectural details.

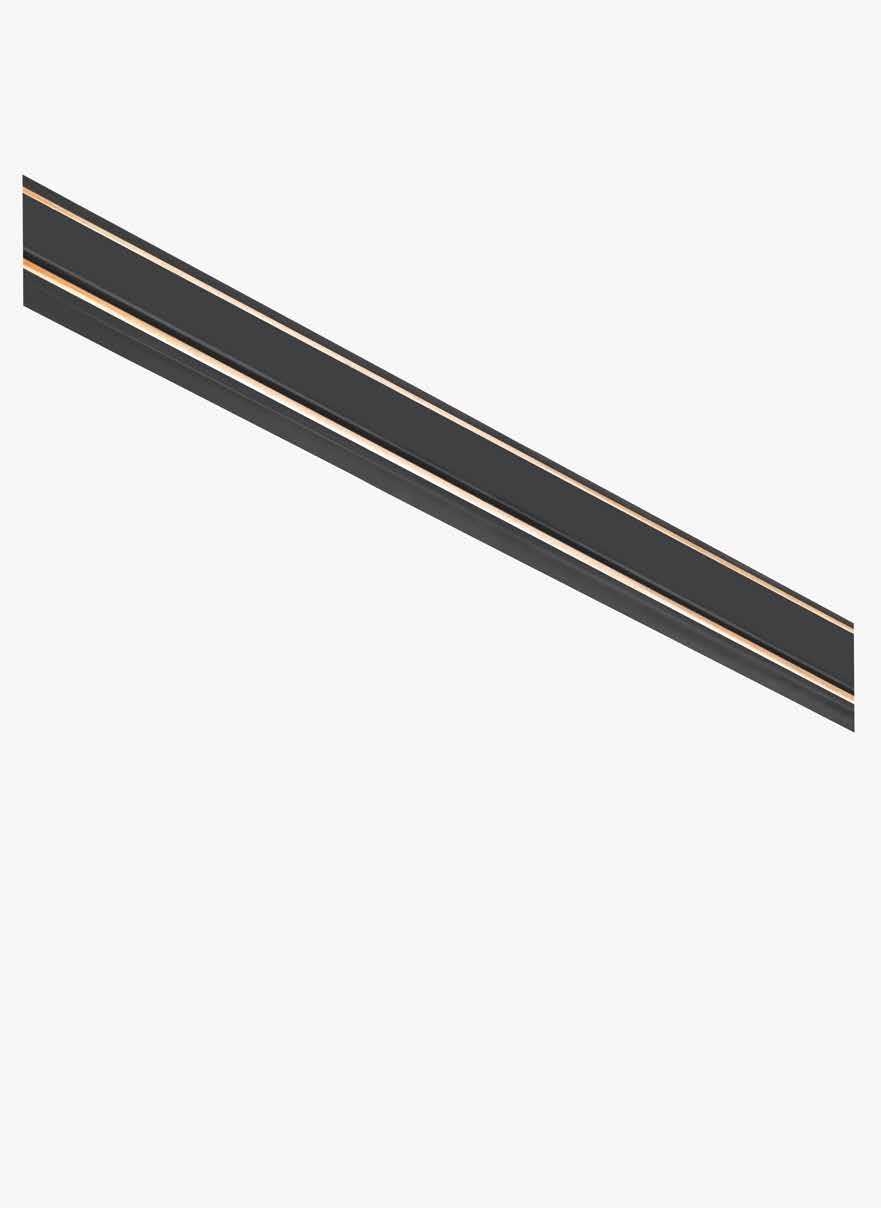

S Y LT T R A C K Cuttable on-site. Power supply kits and lighting appliances to be ordered separately. To properly operate, n.2 lighting appliances are needed for dimmable configurations.

Weight 1,15 kg 2,3 kg 4,6 kg

Code CH01000 CH01100 CH01200

5 20

Track Length 5000 mm 10000 mm 20000 mm

Accessories Color Powered track support 84 48x20x84h Included: 2000 mm cable (2 x 0,75 mm2)

IP20

Code CH00000

Mechanical and insulator track support 84 48x20x84h

CH00200

Kit 3 track support 84 29x20x84h

CH00100

Kit 3 track support 60 29x20x84h

CH00400

Kit 3 track support 40 29x20x40h

CH00300

S Y L T P O W E R S U P P LY K I T IP20 Lighting appliances are not individually adressable (broadcast dimming). Track length + feeding wire length ≤ 22m.

CEILING Power supply 150W SMD power supply kit Output max: 125W 110-240VAC-48VDC IP20 306x140x43,5h 240W SMD power supply kit Output max: 210W 110-240VAC-48VDC IP20 306x140x43,5h

0-10/PUSH/DALI2 Undimmable Code DV1130

PUSH & APP Dimmable DALI Code DV1130APP

DV1131

DV1131APP

0-10/PUSH/DALI2 Undimmable Code DV1132

PUSH & APP Dimmable DALI Code DV1132APP

DV1133

DV1133APP

0-10/PUSH/DALI2 Undimmable Code DV1134

PUSH & APP Dimmable DALI Code DV1134APP

DV1135

DV1135APP

RECESSED Power supply 150W Recessed Trimless power supply kit Output max: 125W 110-240VAC-48VDC IP20 395x165x107h 240W Recessed Trimless power supply kit Output max: 210W 110-240VAC-48VDC IP20 395x165x107h

REMOTE Power supply 150W Remote power supply kit Output max: 125W 110-240VAC-48VDC IP20 313x243x57,5h 240W Remote power supply kit Output max: 210W 110-240VAC-48VDC IP20 313x243x57,5h

Output max

Driver type

N. of power supply kits under same MCB 16A

Supply voltage

Output voltage

150W

125W

0-10/PUSH/DALI2

B: 4 C: 7 D: 14

110-240V

PUSH & APP

B: 4 C: 7 D: 14

0-10/PUSH/DALI2

PUSH & APP

240W

210W

Class

Code

Lmm

Wmm Hmm

48V Intelligence

DV1130 DV1132 DV1134

306 395 313

140 43,5 165 107 243 57,5

110-240V

48V Intelligence

DV1130APP DV1132APP DV1134APP

306 395 313

140 43,5 165 112 243 57,5

B: 3 C: 6 D: 12

110-240V

48V Intelligence

DV1131 DV1133 DV1135

306 395 313

140 43,5 165 112 243 57,5

B: 3 C: 6 D: 12

110-240V

48V Intelligence

DV1131APP DV1133APP DV1135APP

306 395 313

140 43,5 165 112 243 57,5

Universal inclusivity

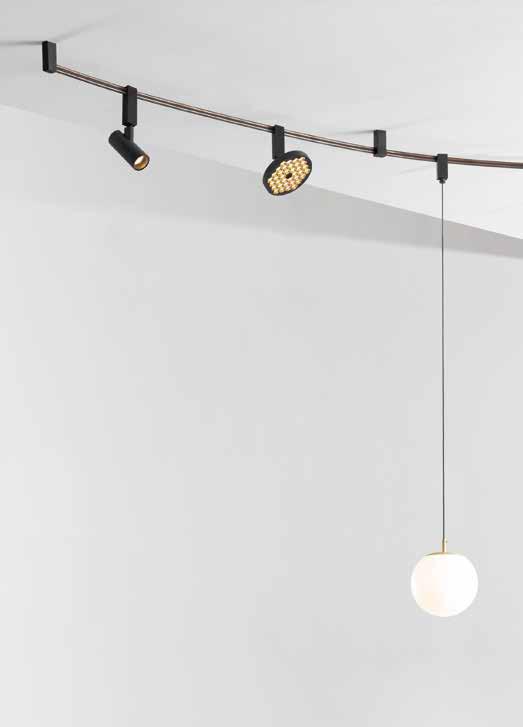

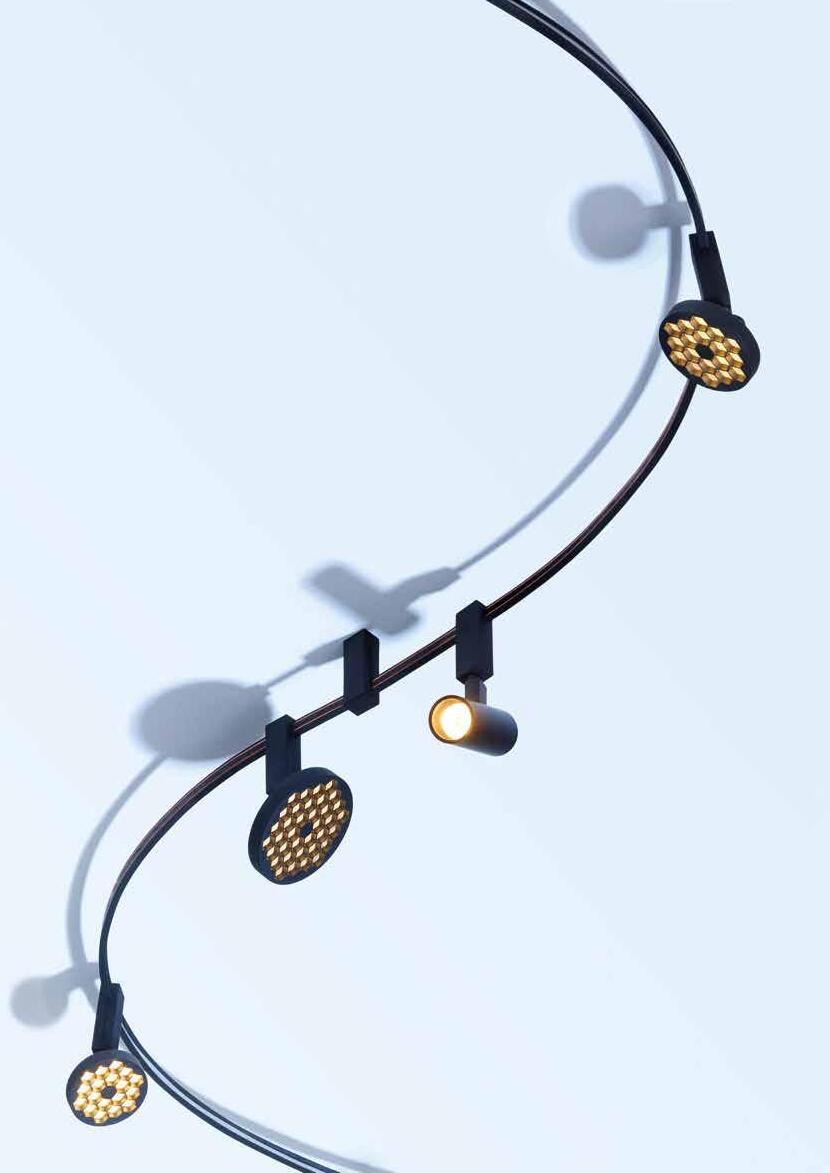

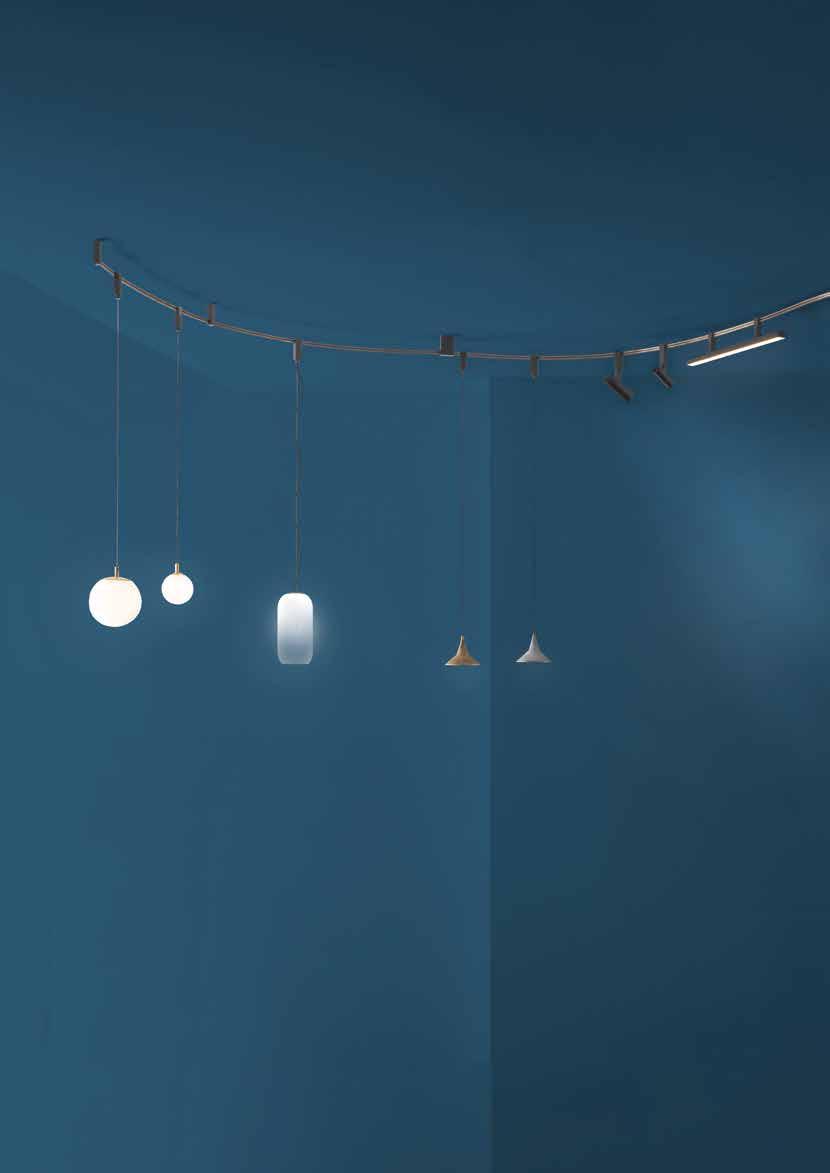

Sylt lighting appliances Integrating different performances

Vector 30 Carlotta de Bevilacqua Ø30 x h 77 mm Total Power: 7W

103

164,5

ø30

ø40

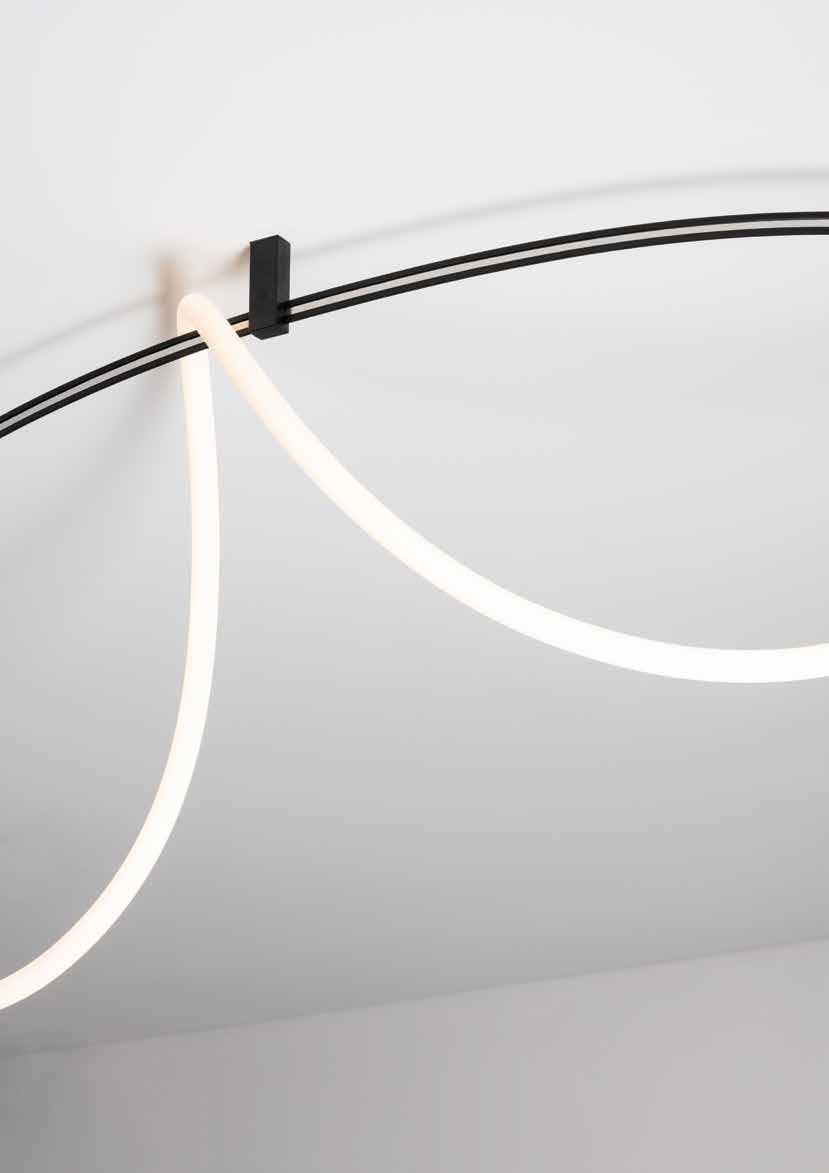

Linea 25 BIG - Bjarke Ingels Group Ø25 x 2500 mm Total Power: 29W

Ø25

134 29

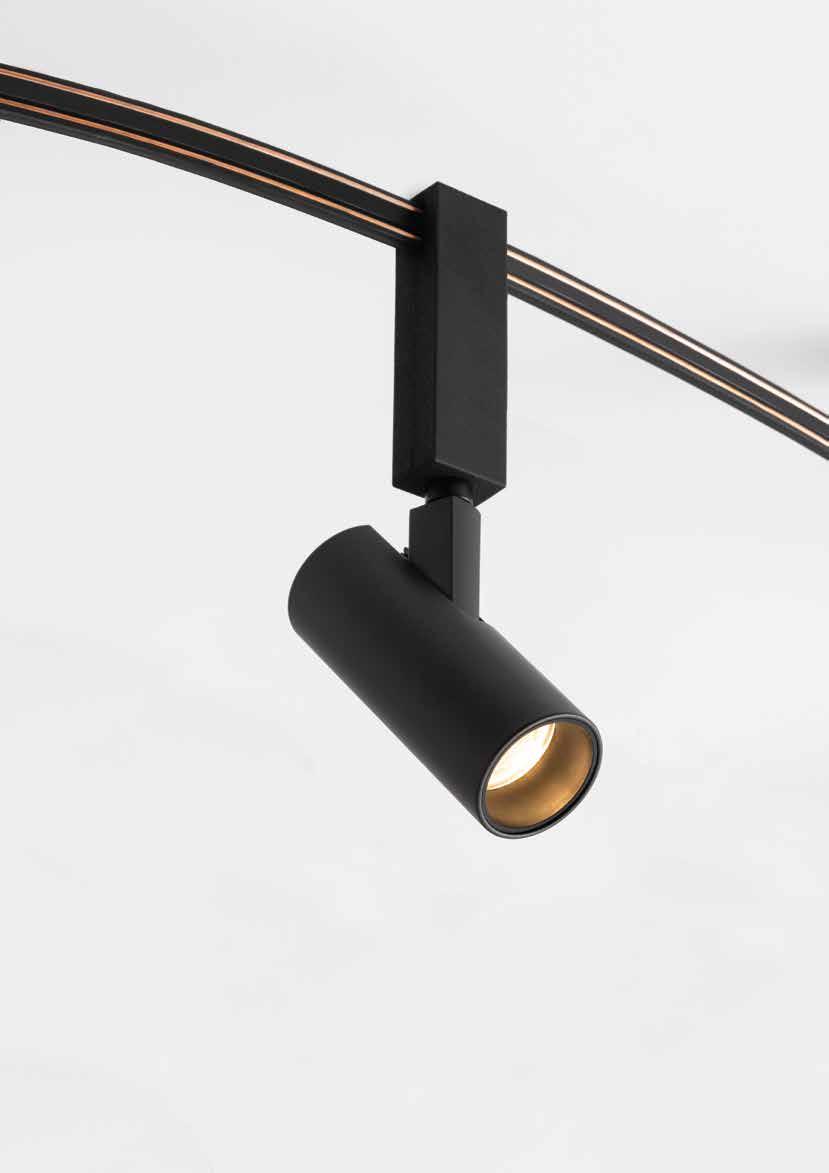

Vector 40 Carlotta de Bevilacqua Ø40 x h 103 mm Total Power: 10W

134

Helgoland 120 Carlotta de Bevilacqua Ø120 x 13 mm Total Power: 9W

ø120

ø90

192,2

Helgoland 90 Carlotta de Bevilacqua Ø90 x 13 mm Total Power: 6,5W

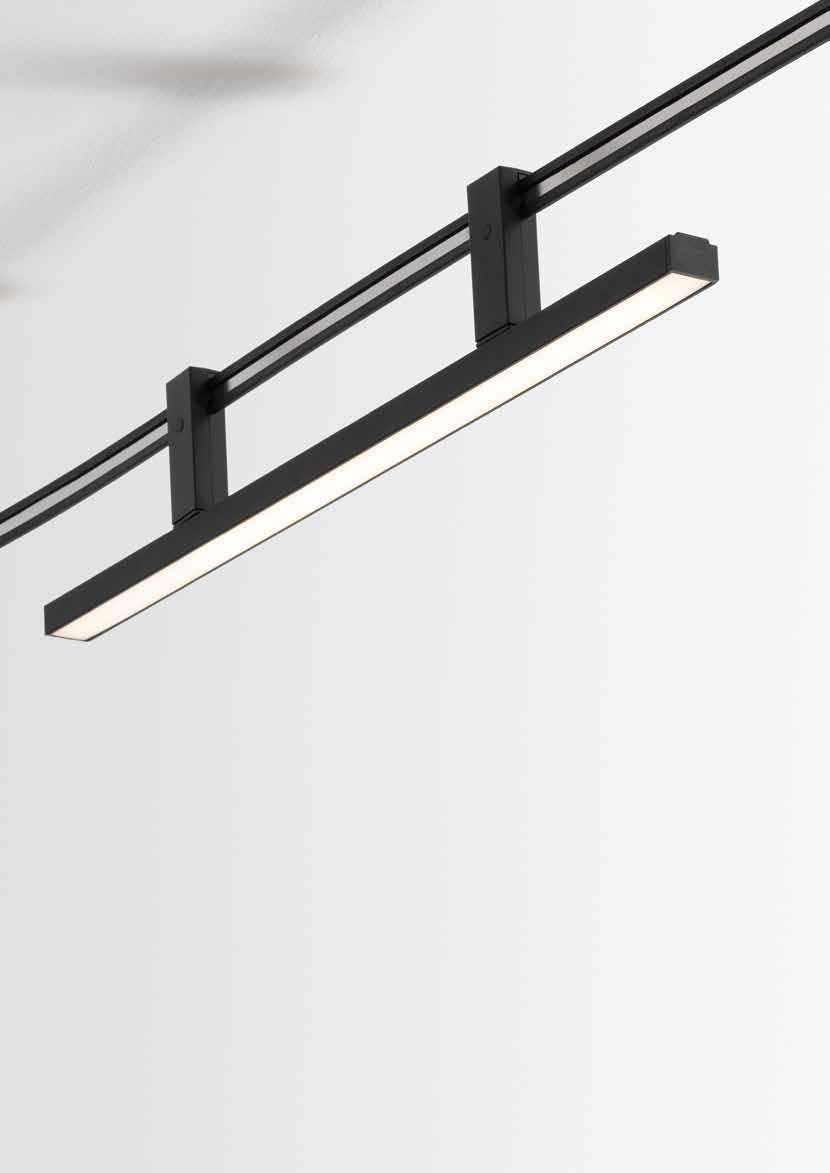

Diffused linear 600 Carlotta de Bevilacqua 599 x 29 x 20 mm Total Power: 15W Diffused linear 1200 Carlotta de Bevilacqua 1187 x 29 x 20 mm Total Power: 30W

599/1187

294 min 500/max 1200

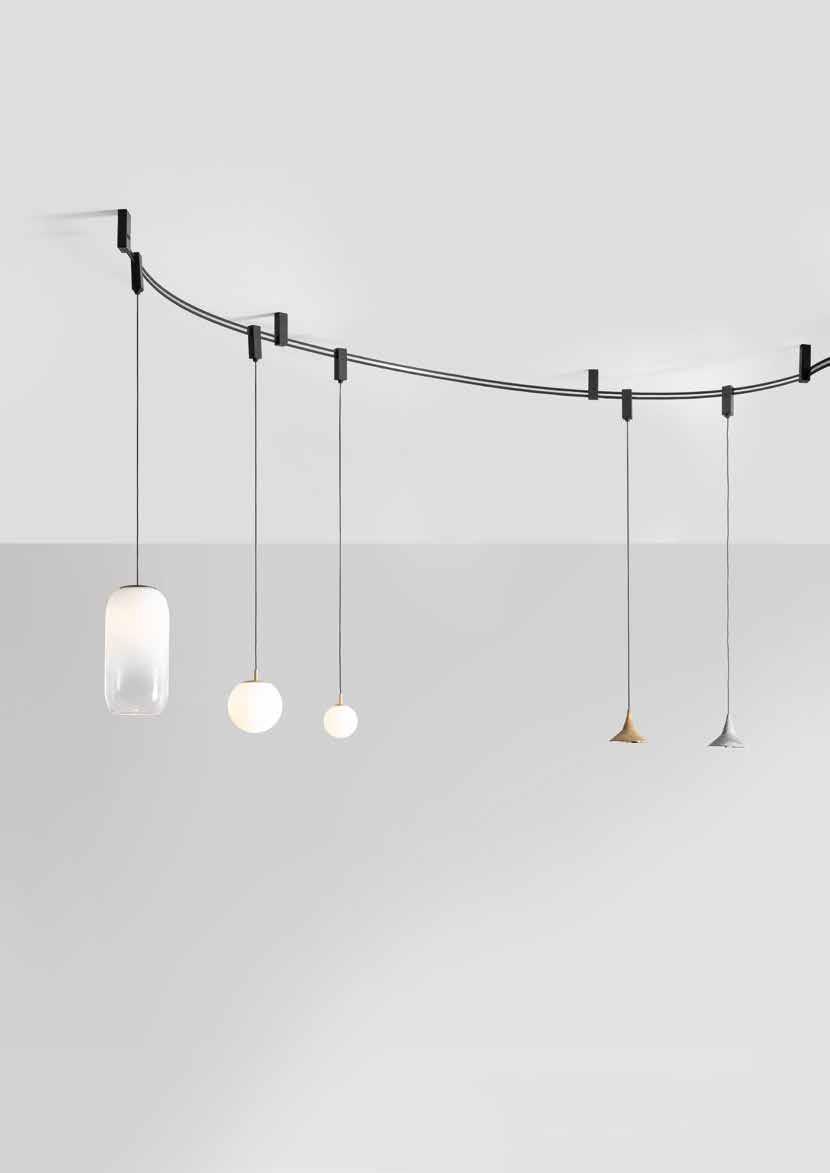

Gople Mini BIG - Bjarke Ingels Group Ø145 x h 294 mm Suspension cable length: max 1200 mm Total Power: 9W

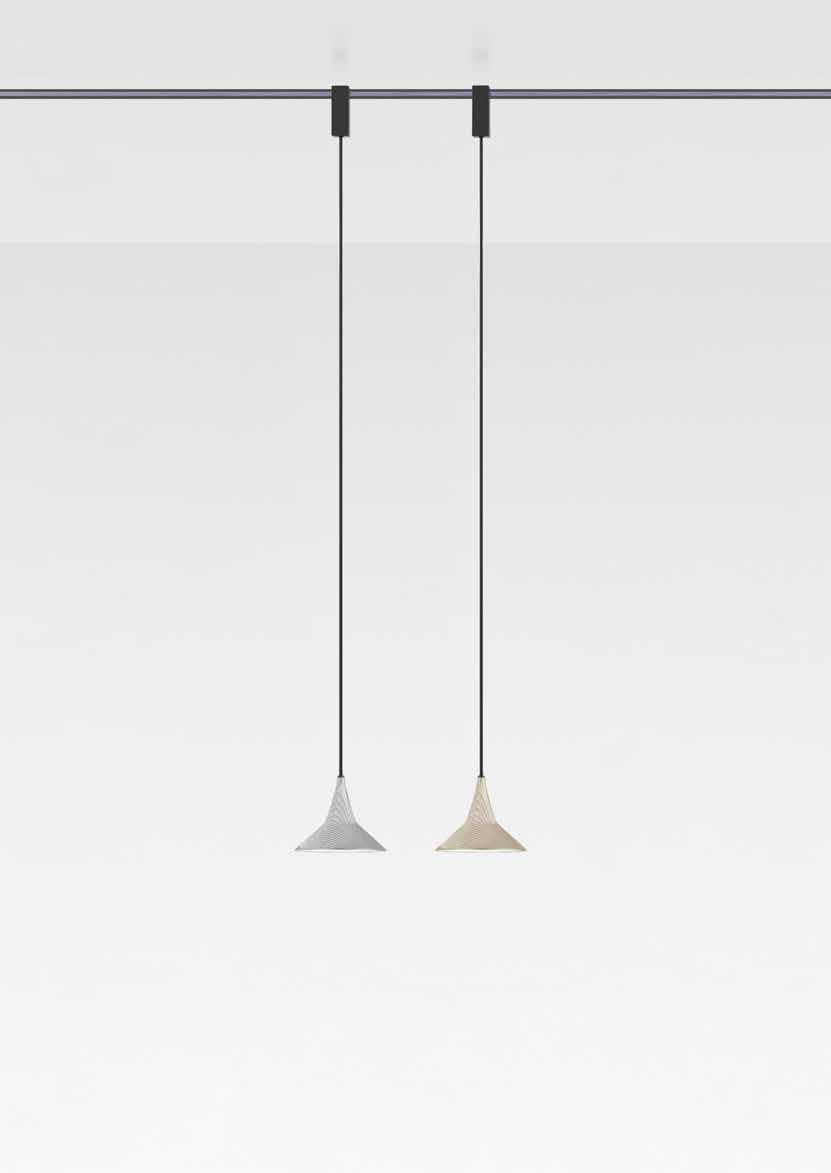

Unterlinden Herzog & de Meuron Ø117 x h 97 mm Suspension cable length: max 1200 mm Total Power: 7W

119 min 500/max 1200

ø140

ø90

min 500/max 1200

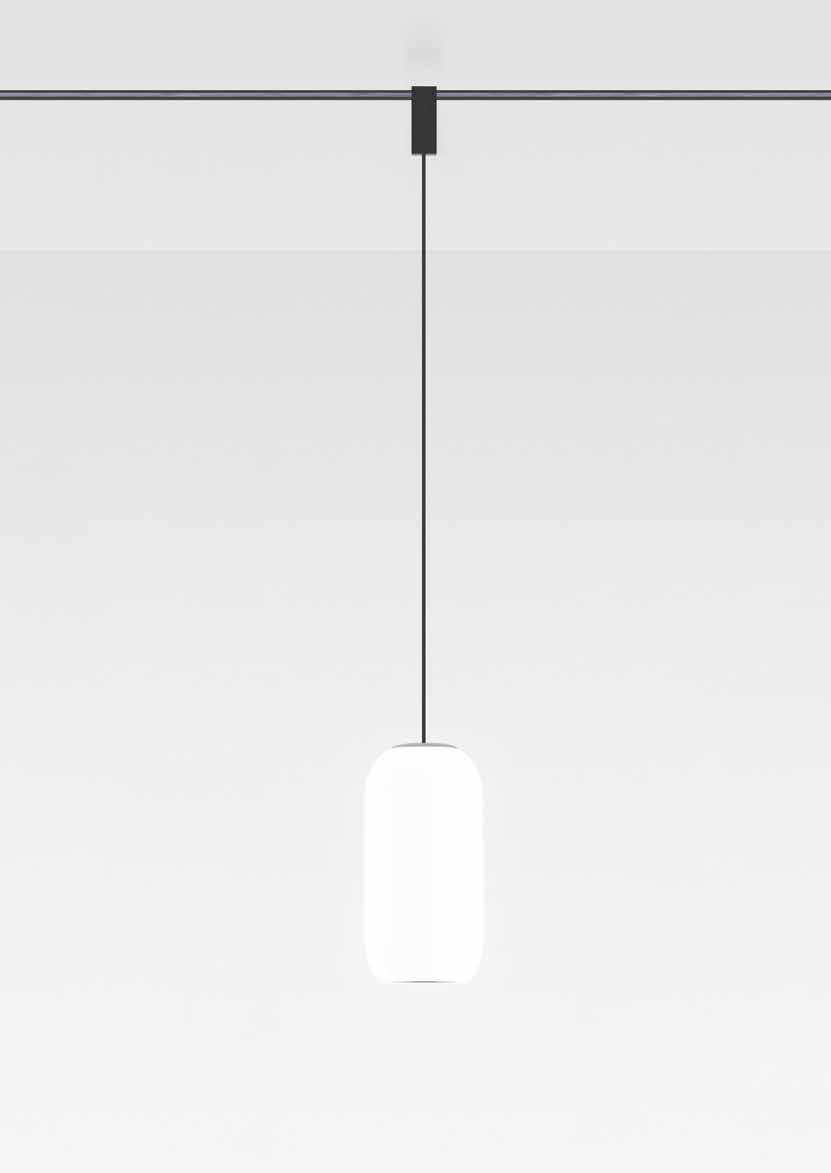

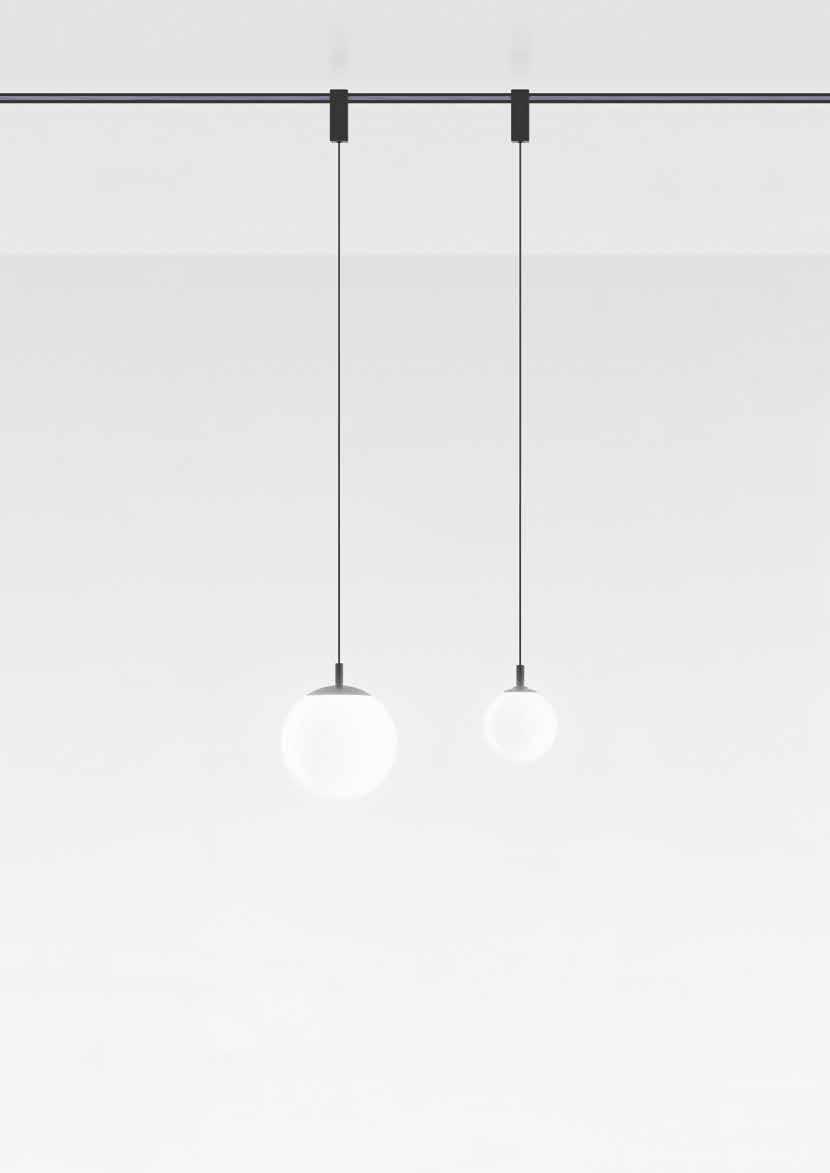

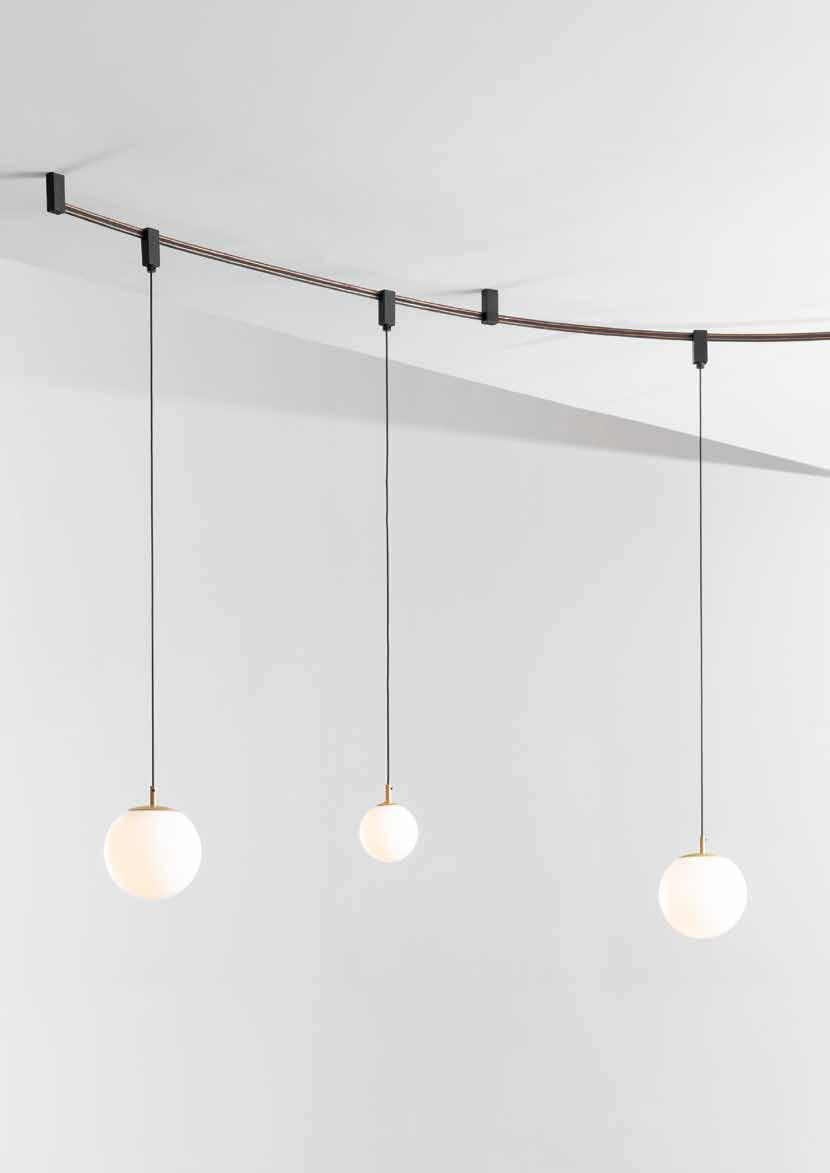

Sphere 14 Carlotta de Bevilacqua Ø140 x h 166 mm Suspension cable length: max 1200 mm Total Power: 9W

Sphere 9 Carlotta de Bevilacqua Ø90 x h 119 mm Suspension cable length: max 1200 mm Total Power: 4W

166 min 500/max 1200

ø145

ø117

L I G H T A P P L I A N C E S S Y LT White

Black

Cobalt blue

Copper

Silver

MacAdam 3SDCM Life L70(17k) 102000h CRI = 90

FL 28° WF 38° XF 60°

IP20 ±90°

360°

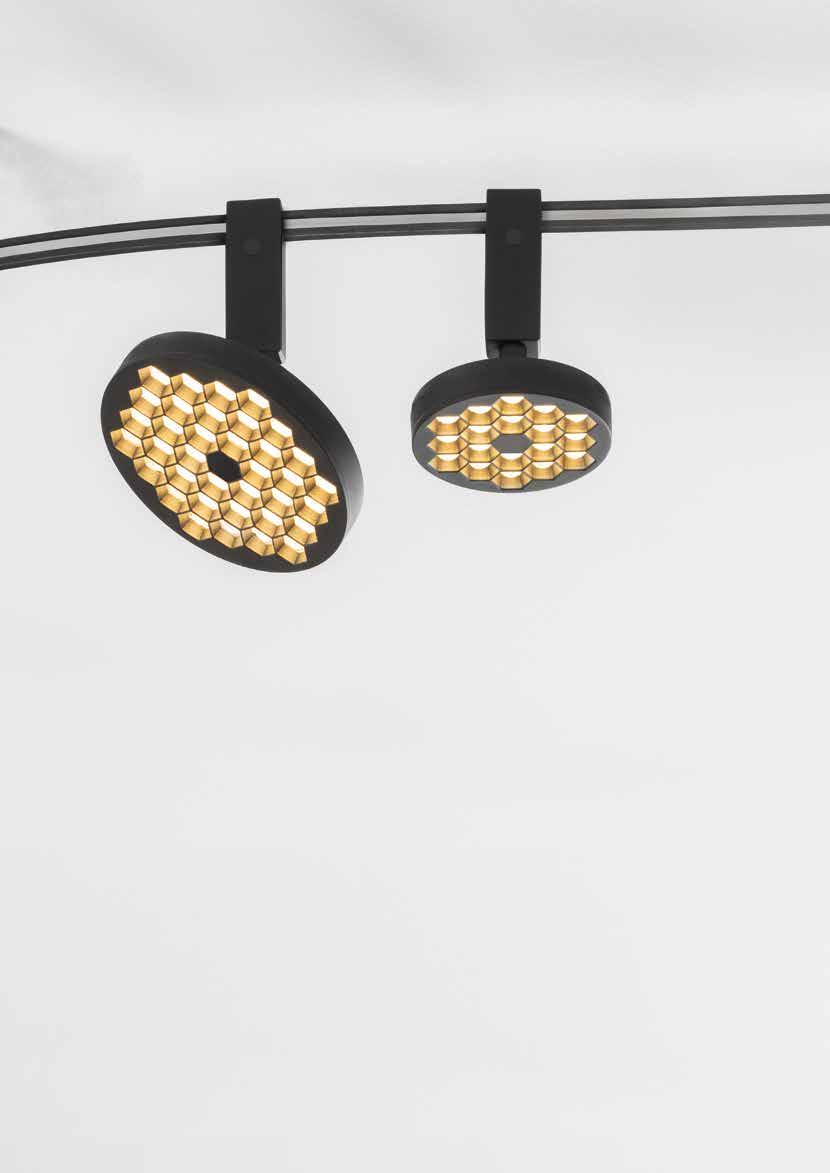

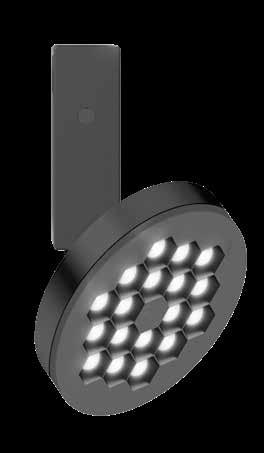

HELGOLAND Size 90 mm

Weight 0,21 kg

Beam FL 28°

Current 350 mA

WF 38°

XF 60°

120 mm

0,30 kg

FL 28°

500 mA

WF 38°

XF 60°

Flux 712 lm 756 lm 756 lm 842 lm 893 lm 893 lm 819 lm 869 lm 869 lm 1018 lm 1080 lm 1080 lm 1204 lm 1277 lm 1277 lm 1172 lm 1243 lm 1243 lm

CCT 2700K 3000K 4000K 2700K 3000K 4000K 2700K 3000K 4000K 2700K 3000K 4000K 2700K 3000K 4000K 2700K 3000K 4000K

360°

ø120

134

ø90

Code CH540. 01/04/02/03/05 CH530. 01/04/02/03/05 CH535. 01/04/02/03/05 CH541. 01/04/02/03/05 CH531. 01/04/02/03/05 CH536. 01/04/02/03/05 CH542. 01/04/02/03/05 CH532. 01/04/02/03/05 CH537. 01/04/02/03/05 CH570. 01/04/02/03/05 CH560. 01/04/02/03/05 CH565. 01/04/02/03/05 CG571. 01/04/02/03/05 CH561. 01/04/02/03/05 CH566. 01/04/02/03/05 CH572. 01/04/02/03/05 CH562. 01/04/02/03/05 CH567. 01/04/02/03/05

134

W 6,5W

360°

±90° ±90°

L I G H T A P P L I A N C E S S Y LT White

Black

SP 12° FL 16°

IP20

MacAdam 3SDCM Vector 40 FL/WF: MacAdam 2SDCM Life L70 (9K) 50000h CRI = 90

WF 30°

90°

360°

VECTOR

FL 16°

WF 30°

Vector 40 W 9W

Weight 0,22 kg

Current 700 mA

Beam SP 14°

FL 21°

WF 28°

Flux 329 lm

CCT 2700K

CH400. 01/04

329 lm

3000K

CH405. 01/04

329 lm

4000K

CH410. 01/04

335 lm

2700K

CH401. 01/04

335 lm

3000K

CH406. 01/04

335 lm

4000K

CH411. 01/04

292 lm

2700K

CH402. 01/04

292 lm

3000K

CH407. 01/04

292 lm

4000K

CH412. 01/04

Flux 544 lm

CCT 2700K

Dimmable1 Code CH430. 01/04

541 lm

3000K

CH435. 01/04

541 lm

4000K

CH440. 01/04

543 lm

2700K

CH431. 01/04

584 lm

3000K

CH436. 01/04

626 lm

4000K

CH441. 01/04

491 lm

2700K

CH432. 01/04

529 lm

3000K

CH437. 01/04

566 lm

4000K

CH442. 01/04

29 360°

ø30

Use of Artemide power units is mandatory.

90°

360°

ø40

164,5

500 mA

Beam SP 12°

192,2

0,12 kg

Current 450 mA

Dimmable1 Weight 0,12 kg

103

Vector 30 W 6,5W

90°

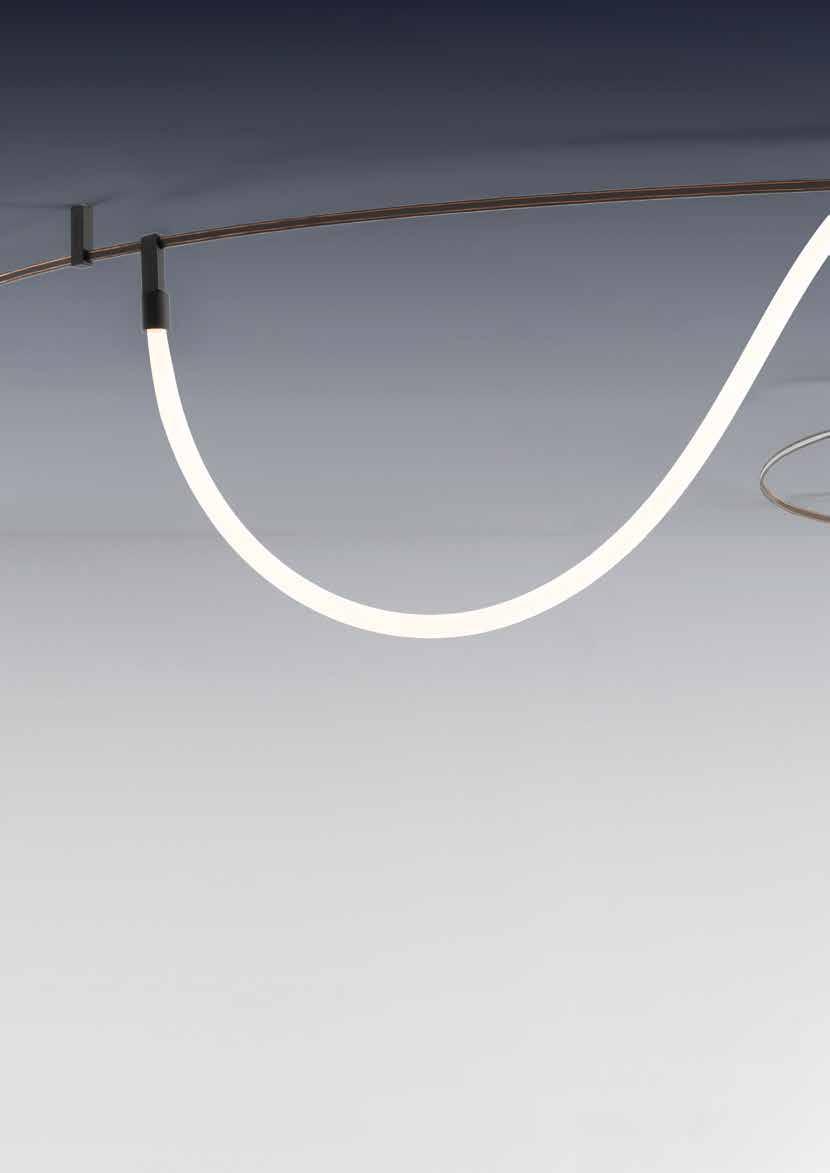

L I G H T A P P L I A N C E S S Y LT For layout with Linea 25 surmounting the track, track support 84 and 60 are needed.

MacAdam 3SDCM Life L70(6k) 36000h CRI = 90

LA LINEA 25 W 29W

Weight 1,7 kg

Current 800 mA

Flux 3000 lm

CCT 3000K

Dimmable Code CH20000

Lenght 2500 mm

Ø25

IP20

L I G H T A P P L I A N C E S S Y LT Black

MacAdam 3SDCM Life L70(17k) 102000h CRI = 90

IP20

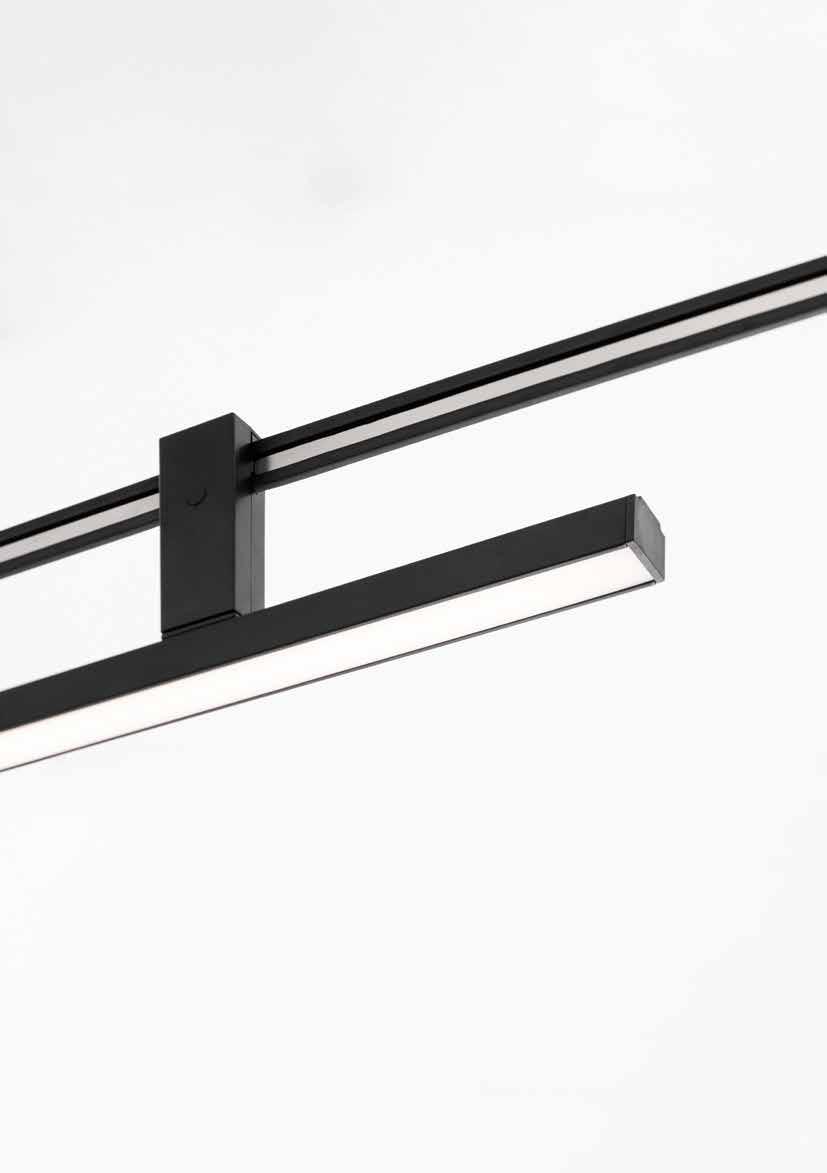

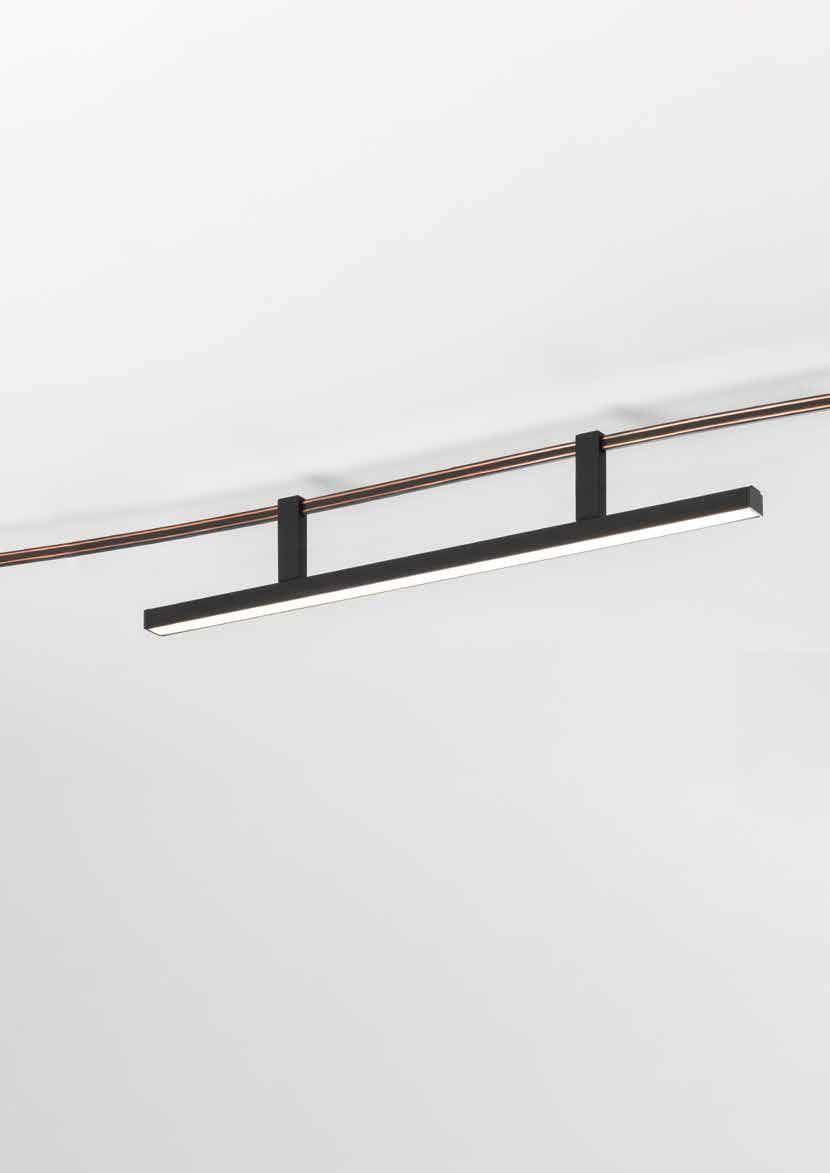

SYLT DIFFUSED ELEMENTS Lenght 600 mm

1200 mm

W 15W

30W

Weight 0,5 kg

Current 400 mA

0,8 kg

800 mA

Flux 1340 lm

CCT 2700K

Dimmable Code CH10004

1421 lm

3000K

CH10304

1421 lm

4000K

CH10604

2680 lm

2700K

CH12004

2843 lm

3000K

CH12304

2843 lm

4000K

CH12604

±90°

599

±90°

1187

L I G H T A P P L I A N C E S S Y LT White

MacAdam 3SDCM Life L70(9k) 50000h CRI = 90

IP20

GOPLE MINI W 9W

Current 250 mA

Flux 755 lm 850 lm

CCT 2700K 3000K

Dimmable Code CH30001 CH30301

294

min 500/max 1200*

Weight 1,3 kg

ø145

*No cuttable wire. Clips included to adjust the length.

L I G H T A P P L I A N C E S S Y LT MacAdam 2SDCM Life L70(9k) 50000h CRI = 90

IP20

SPHERE Weight 0,3 kg

Current 300 mA

Flux 346 lm 373 lm

CCT 2700K 3000K

Dimmable Code CH70000 CH70300

119

min 500/max 1200*

Sphere 9 W 4W

ø90

Weight 0,6 kg

Current 700 mA

Flux 628 lm 760 lm

CCT 2700K 3000K

Dimmable Code CH80000 CH80300

166

min 500/max 1200*

Sphere 14 W 9W

*No cuttable wire. Clips included to adjust the length.

ø140

L I G H T A P P L I A N C E S S Y LT Brass

Aluminum

IP20

2700K: MacAdam 2SDCM Life L70(19k) 105000h 3000K: MacAdam 3SDCM Life L70(9k) 50000h CRI = 90

UNTERLINDEN W 7W

Current 350 mA

Flux 398 lm 349 lm

CCT 2700K 3000K

Dimmable Code CH600. 01/02 CH603. 01/02

min 500/max 1200*

Weight 0,3 kg

ø117

*No cuttable wire. Clips included to adjust the length.

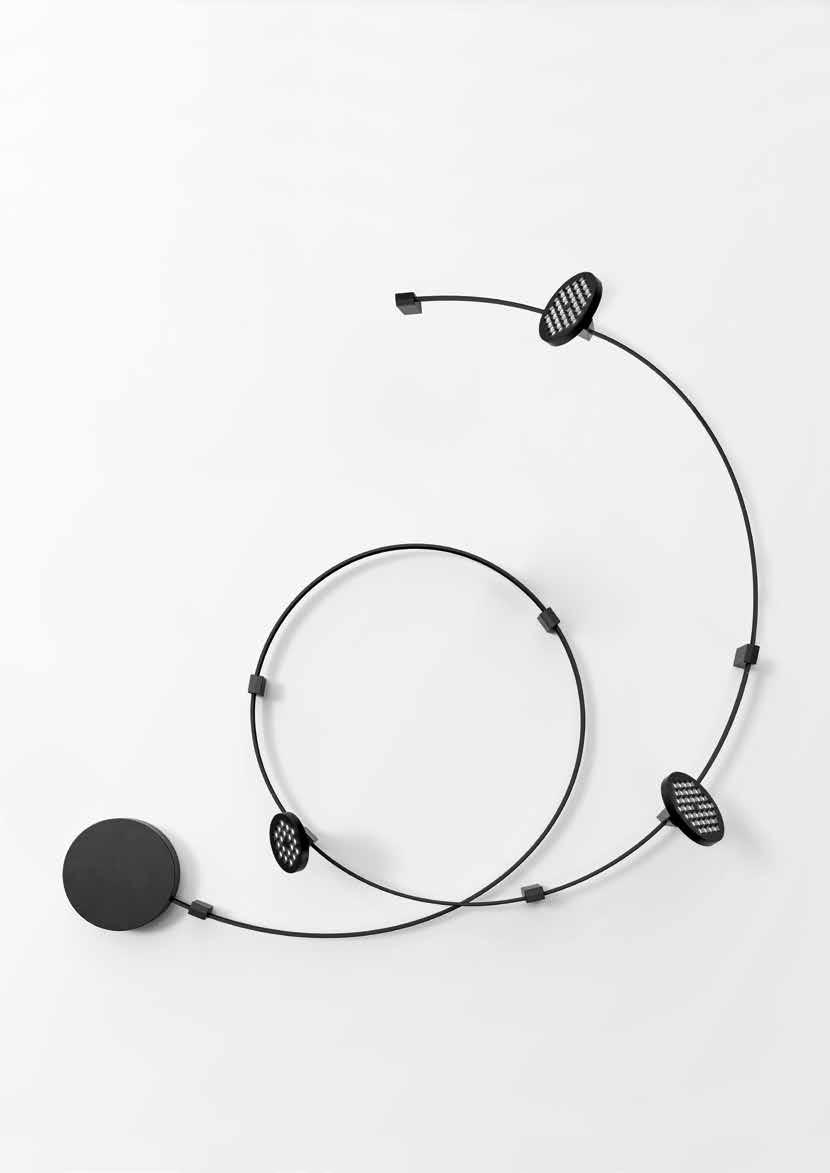

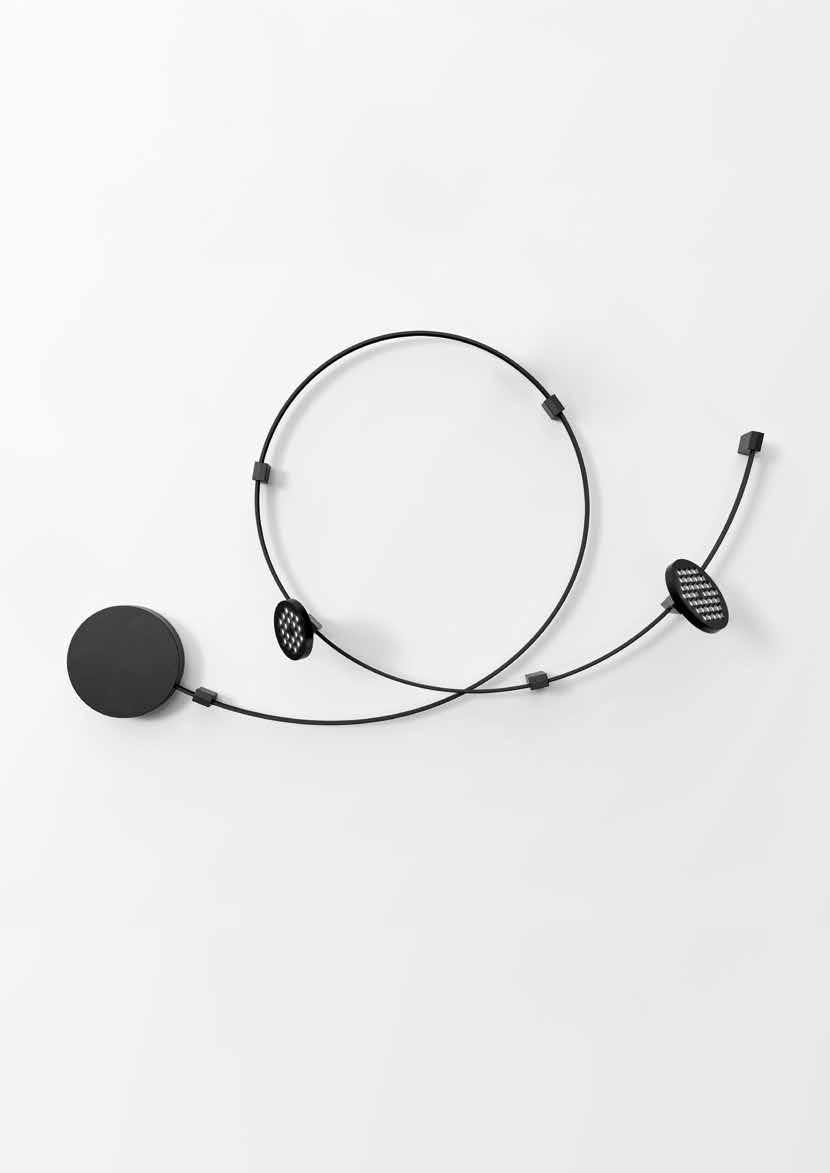

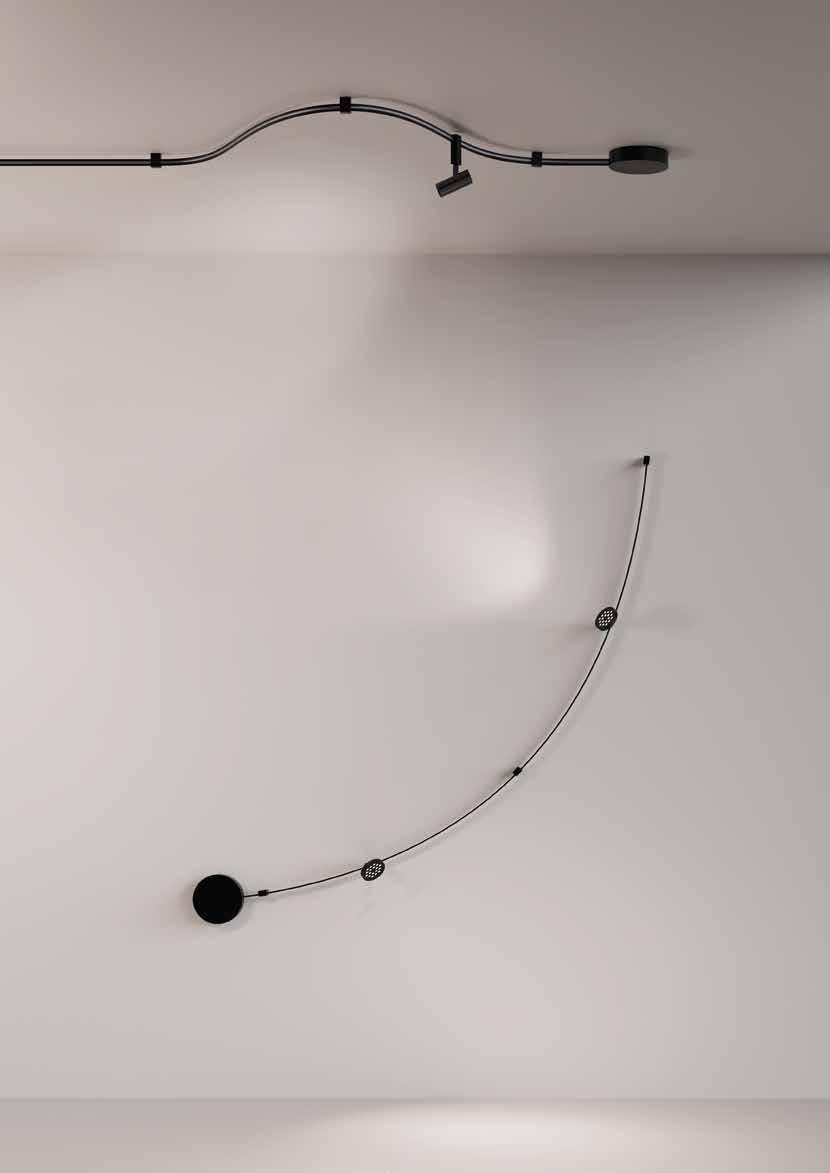

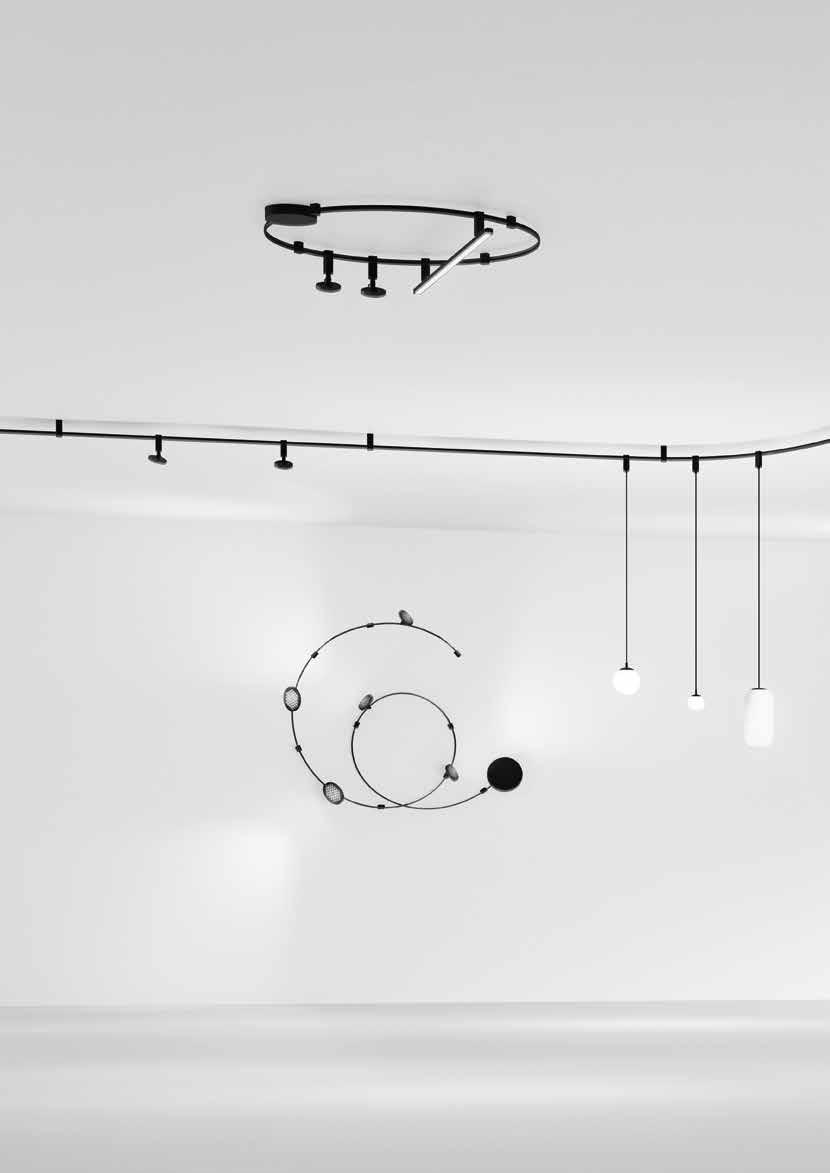

Sylt Stand alone Ready-made energetic infrastructure

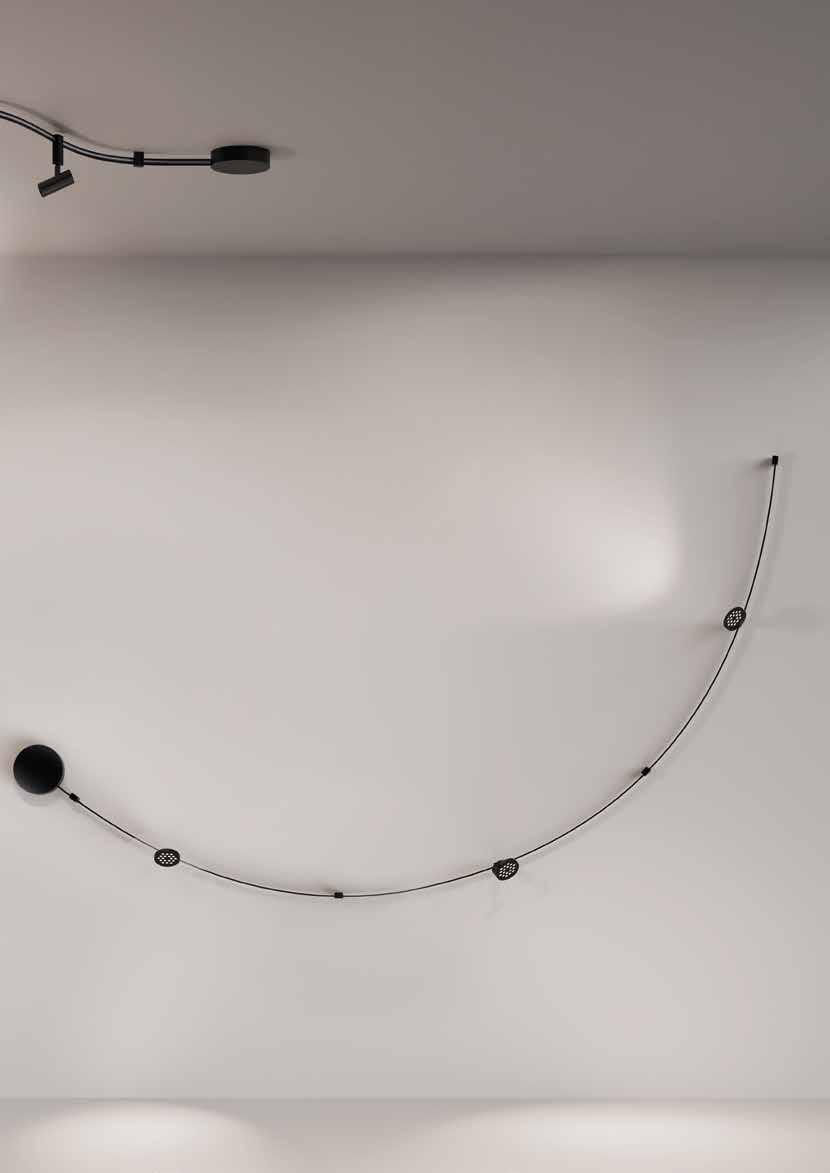

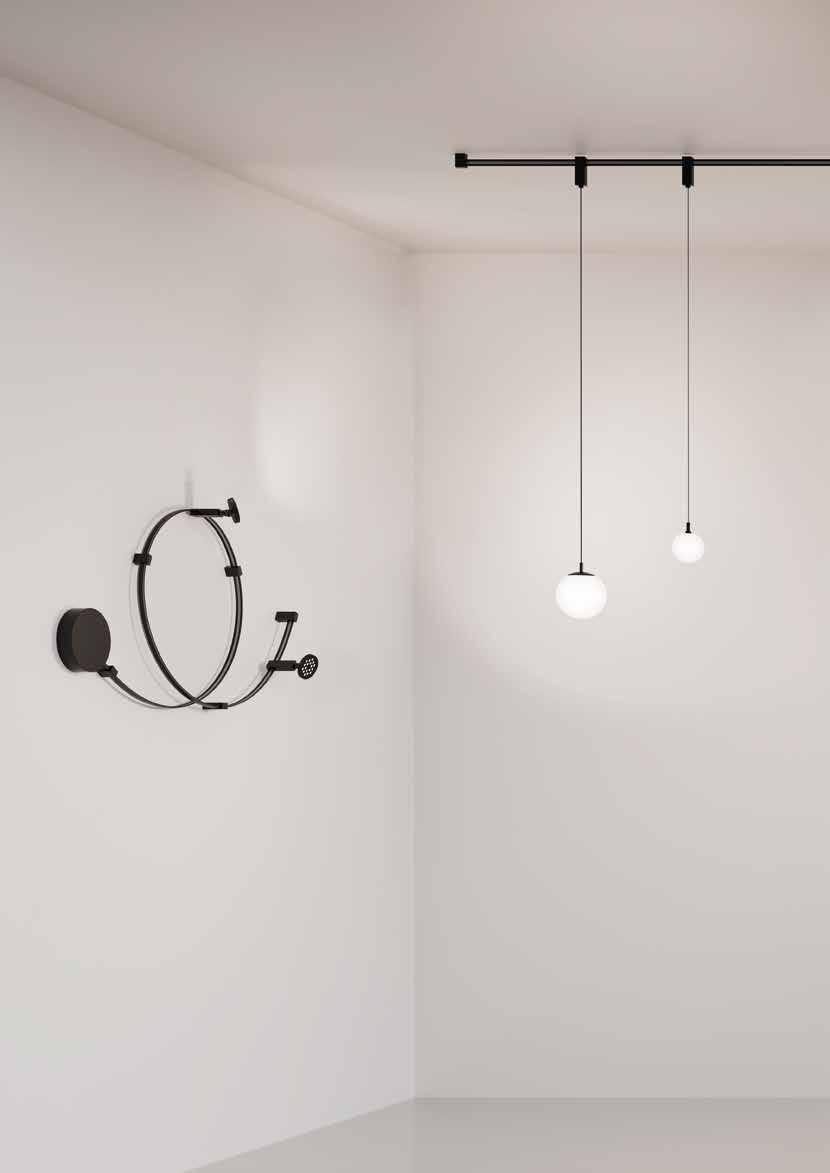

Sylt is also developed as a stand-alone element, a ready-made set to simplify application in standard installations such as residential settings. It allows you to design your own light by composing it with a kit complete with track, mounting accessories and power supply kit to which you can freely add light insets. This version designed to draw graphic signs with which to illuminate and define a space introduces a mounting element that allows the track to be overlapped. The track supports come in two sizes to open up new compositional geometries. Sylt stand alone can be installed on either wall or ceiling, with total compositional freedom within two constraints: a maximum track length of 5 meters and a minimum radius of 300 mm. The choice of luminous lighting appliances depends on their placement in the space. On the wall, accent lighting is achieved through Helgoland and Vector spotlights, while the ceiling version allows to more expressive light languages, as seen in the systemic version. Sylt's electronic innovation is also present in the stand alone version, thanks to the application of the 48V Intelligence system and the possibility of managing light intensity in broadcast mode via various dimming protocols, including wireless with Artemide APP.

Sylt stand alone Complete kit

ABACO STAND ALONE KIT 1. 5 m track

thermoplastic elastomer co-extruded with copper conductors 20 x 5 mm

3. 4 x Track support 60 29 x 60 x 20 mm

4. 5 x Track support 40 29 x 40 x 20 mm

Harmonic steel 9 x 1 mm

2. Power supply kit alternatives* Undimmable Dimmable 0-10/PUSH/DALI2 (broadcast dimming) Power: 60W Ø175 mm

*For APP dimming (broadcast), use the remote BLL interface in combinations with 0-10/PUSH/DALI2 version.

Lighting appliances must be ordered separately. 46

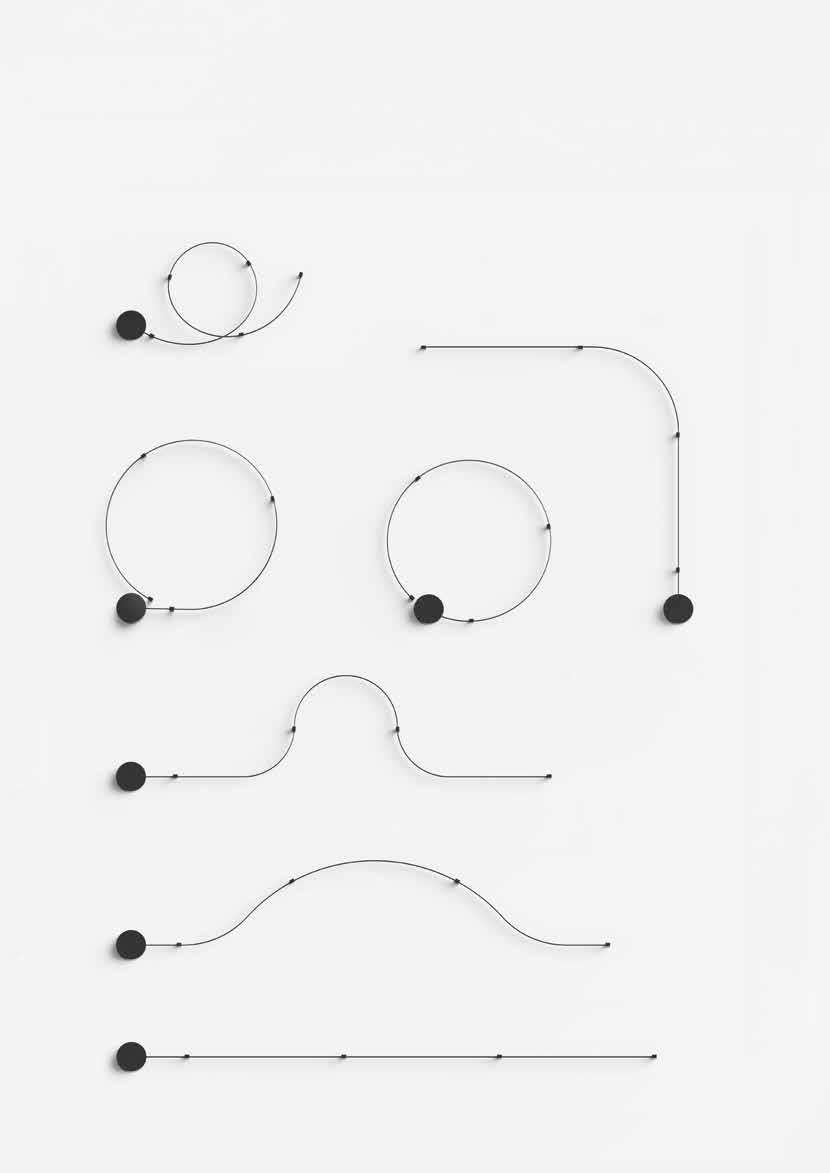

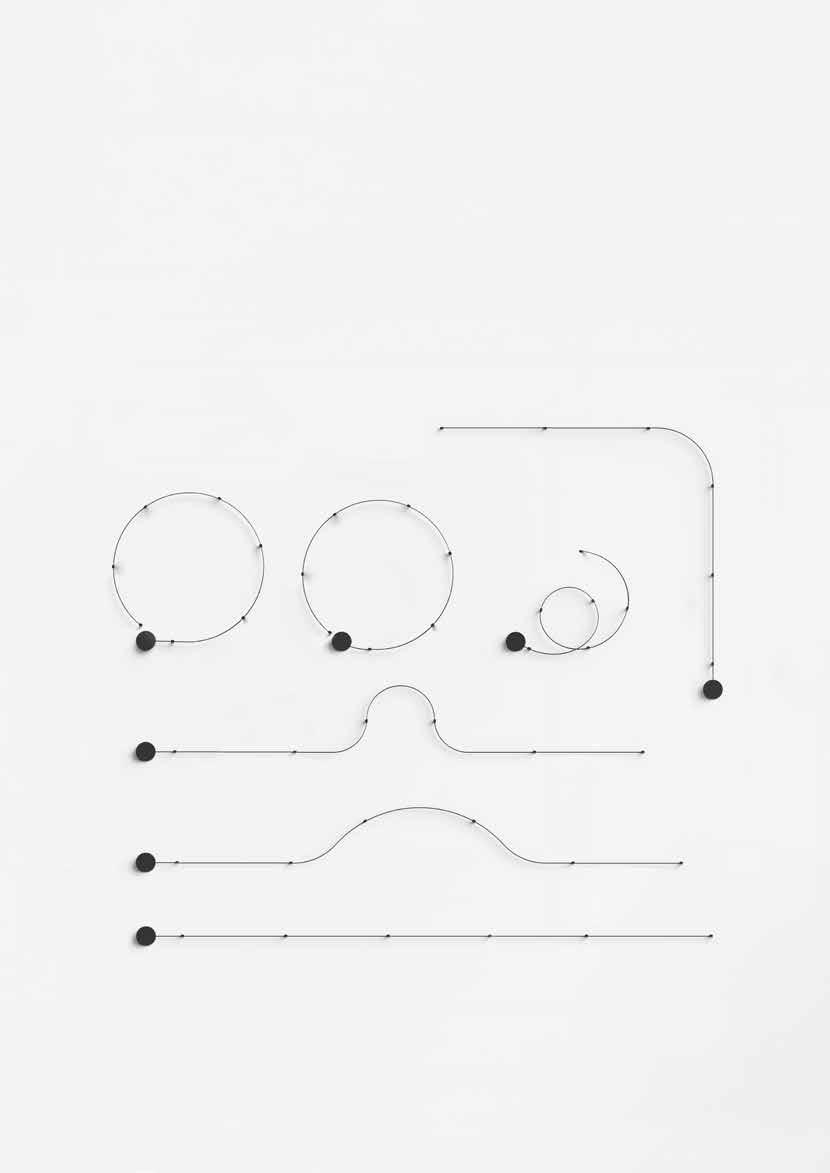

Endless configurations, ranging from the minimum to the maximum extension. SOME EXAMPLES OF POSSIBLE WALL AND CEILING LAYOUTS

2300 mm

0 R5

2770 mm

m m

907 mm 600 mm

R7 80

4370 mm

500 mm

925 mm

4700 mm

maximum length: 5000 mm

S Y LT S TA N D A L O N E Black

Cuttable on-site. Lighting appliances to be ordered separately. To properly operate, n.2 lighting appliances are needed for dimmable configurations. 1 Lighting appliances are not individually adressable (broadcast dimming).

Kit stand alone Dimming Undimmable 0-10/PUSH/DALI21

Code CH04000 CH04100

Ø175

900

Power 60W 60W

IP20

Output max

Driver type

60W

50W

60W

50W

1070

N. of power supply kits under Supply same MCB 16A voltage

Output voltage

N/D

B: 25 C: 40 D: 75

110 - 277V

0-10/PUSH/DALI2*

B: 25 C: 40 D: 75

110 - 277V

Accessories Colour Remote BLL interface for Artemide App to manage dimmable modules (up to 40 addresses) IP20 318x176x66h mm

Code DV1054APP

Class

Ømm

Hmm

48Vdc

175

48V Intelligence

175

Sylt stand alone lighting appliances FOR CEILING AND WALL INSTALLATION Helgoland 90 Carlotta de Bevilacqua Ø90 x 13 mm Total Power: 6,5W

Vector 30 Carlotta de Bevilacqua Ø30 x h 77 mm Total Power: 7W

Helgoland 120 Carlotta de Bevilacqua Ø120 x 13 mm Total Power: 9W

Vector 40 Carlotta de Bevilacqua Ø40 x h 103 mm Total Power: 10W (see pg. 28-29)

(see pg. 26-27)

FOR CEILING INSTALLATION ONLY Linea 25 BIG - Bjarke Ingels Group Ø25 x 2500 mm Total Power: 29W

Gople Mini BIG - Bjarke Ingels Group Ø145 x h 294 mm Suspension cable length: max 1200 mm Total Power: 9W

(see pg. 34-35)

(see pg. 30-31) Diffused linear 600 Carlotta de Bevilacqua 599 x 29 x 20 mm Total Power: 15W

Sphere 9 Carlotta de Bevilacqua Ø90 x h 119 mm Suspension cable length: max 1200 mm Total Power: 4W

Diffused linear 1200 Carlotta de Bevilacqua 1187 x 29 x 20 mm Total Power: 30W (see pg. 32-33)

(see pg. 36-37)

Sphere 14 Carlotta de Bevilacqua Ø140 x h 166 mm Suspension cable length: max 1200 mm Total Power: 9W Unterlinden Herzog & de Meuron Ø117 x h 97 mm Suspension cable length: max 1200 mm Total Power: 7W

(see pg. 38-39)

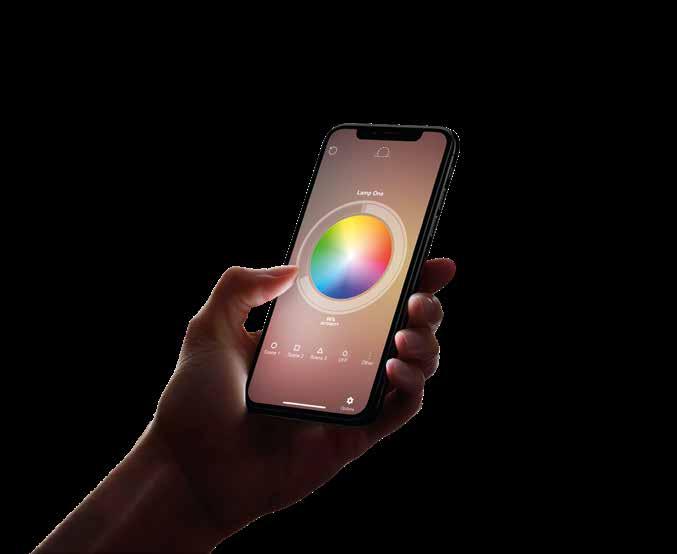

Sylt is compatible with Artemide App Artemide App is a user-friendly and intuitive interface used to control individual products, groups of appliances and lighting scenarios. It is a tool that can be associated with several products from both the Design and the Architectural Catalogues. Find the APP final code in our products.

Download Artemide App and find more information on artemide.com

Headquarters Artemide S.p.A. Via Bergamo, 18 20006 Pregnana Milanese (MI), Italy Tel. +39 02 93518.1 Tel. +39 02 93526.1 Numero verde 800 834 093 (from Italy only) info@artemide.com artemide.com

Artemide S.p.A. si riserva la facoltà di modificare, in qualunque momento e senza preavviso, le caratteristiche tecniche degli elementi illustrati nel presente catalogo. Artemide S.p.A. reserves the right to change, at any time and without prior warning, the technical specifications of any product illustrated in this catalogue. Artemide S.p.A. se réserve le droit de modifier, à n’importe quel moment et sans préavis, les caractéristiques techniques des éléments illustrés dans ce catalogue. Artemide S.p.A. behält sich das Recht vor jederzeit und ohne Ankündigung die technischen Daten der im Katalog abgebildetem Produkte zu ändern. Artemide S.p.A. se reserva la facultad de modificar, en cualquier y sin aviso previo, las características técnicas de los elementos ilustrados en el presente catálgo.

V.1 2026

For information regarding distributors and points of sale, please visit our website artemide.com or email: info@artemide.com
