Brochure Somnium

Carlotta de Bevilacqua Somnĭum

Somnium

Carlotta de Bevilacqua 2024

Somnium is a system born from the fusion of optical, structural and production elements, brought to life through transparency. At its core there is an optical cell, engineered for maximum efficiency and optimal perception. Much like a cell, it reproduces and collaborates within the system, creating a seamless flow.

The optical element, crafted from a singular material, embodies sustainable industrial intelligence in its design. It reduces material diversity, minimises weight, and simplifies production steps.

The patented optical synthesis is the principle through which to design the reality of lighting within space thanks to a system of linear or curved modules and 90° jont.

Transparency challenge

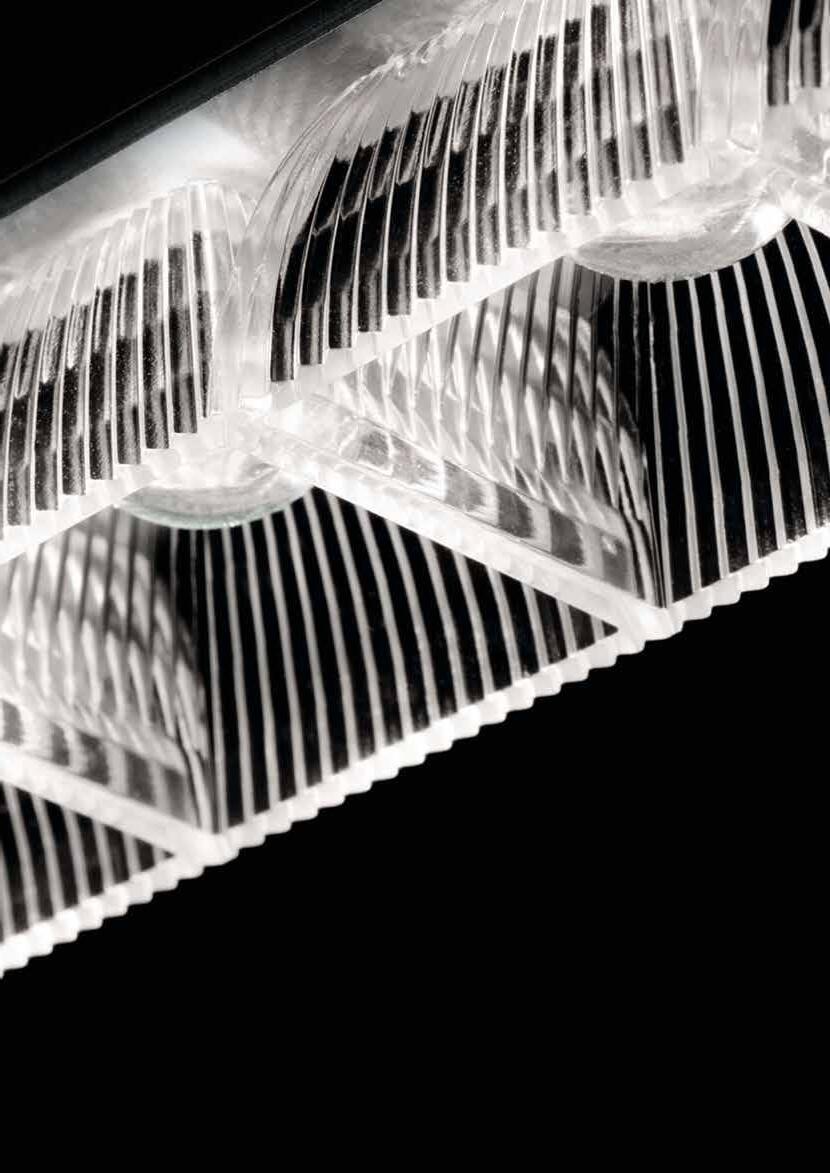

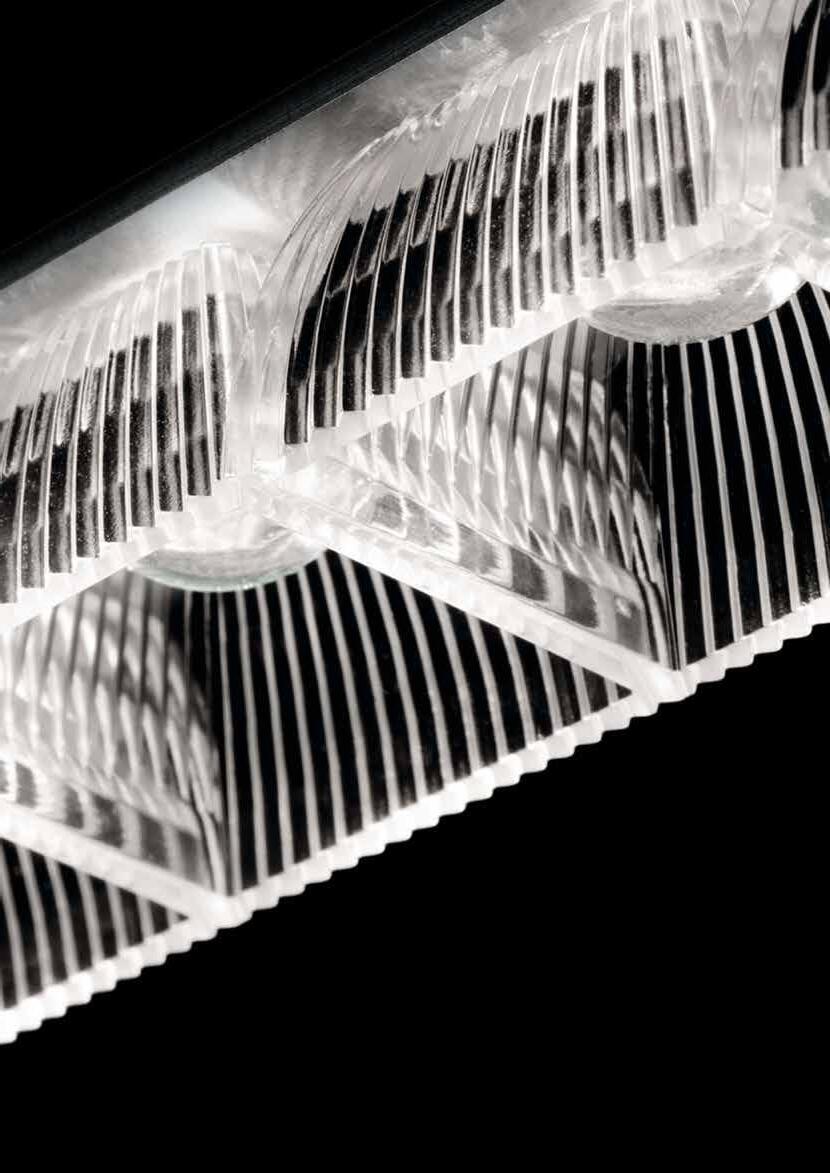

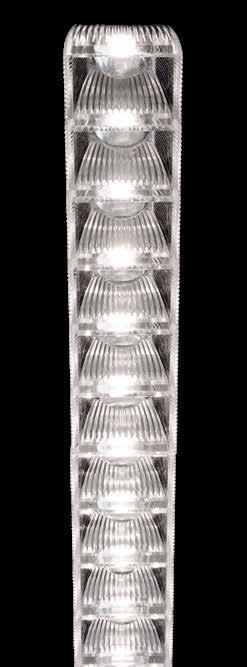

Optical control elements

Refractive lens and TIR (total internal reflection) antiglare Collects around 100% of the LED luminous flux and reflects secondary rays maximizing the flux output.

Materic convergence between lens and antiglare Optical PMMA

Responsible energetic project

Extreme efficacy

Controlled distribution Beam 2X35° DIRECT EMISSION

UGR<16

HIGH EFFICIENCY up to 93%

HIGH EFFICACY up to 165 lm/W stand alone up to 160 lm/W system

Diffused distribution Beam 2X60° INDIRECT EMISSION

Perceptive light principle

Balanced luminance and contrast

Somnium represents also the perceptive balance in terms of contrast between the optical structure and background. The luminance contrast, defined by the relation between the object and background luminances, is an important parameter in light design. Somnium respects values of luminous contrast up to 100, normally considered comfortable applications, in accordance with standards and other recognized parameters*.

C = (Lobj - Lbg) / Lbg where:

Lobj = object luminance

Lbg = background luminance

Object luminance around us is generally between 10-20 cd/m2 (not directly illuminated object) and 1500 cd/m2 (directly illuminated ceiling from indirect light source).

*EN 12464 requires < 3000 cd/m2

WELL requires < 6000 cd/m2

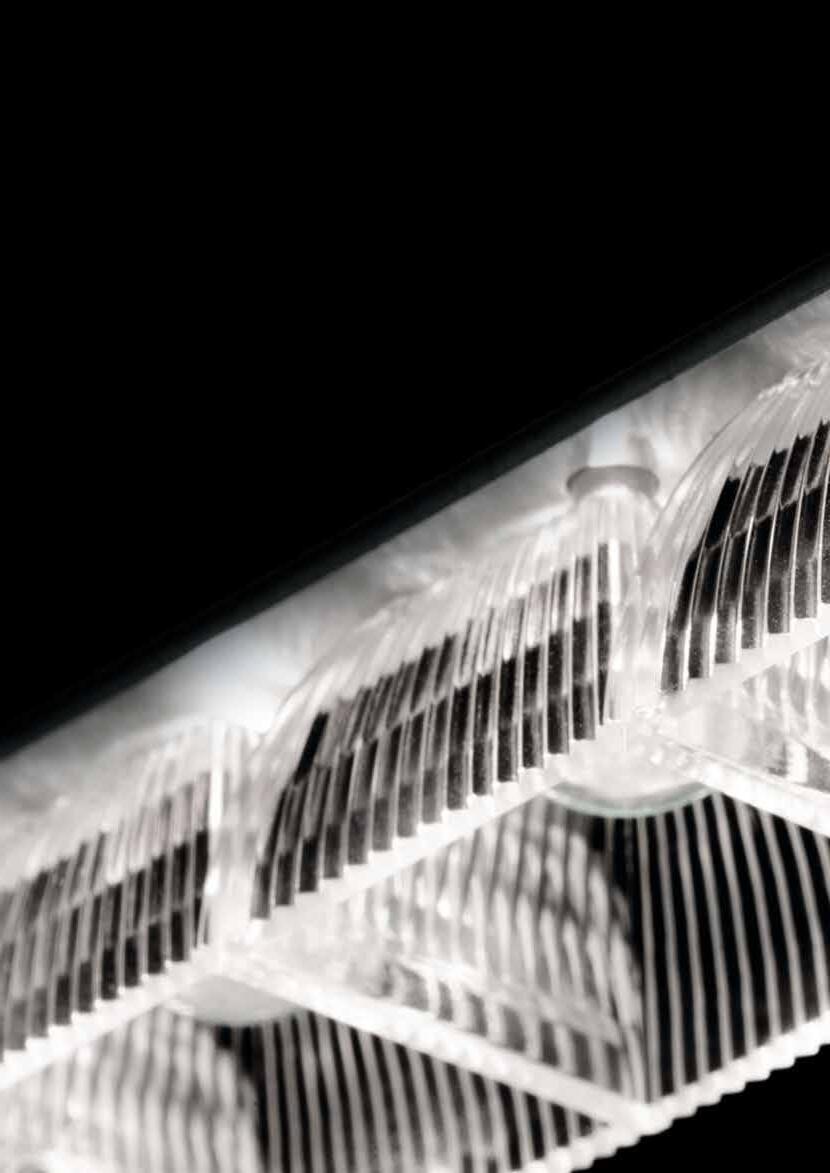

TIR (total internal reflection) optical structure ensures a comfortable perception of the product in the surrounding.

The very minimum percentage (<1%) of light that, due both to the physical phenomenon of refraction and to the natural impurity of PMMA of the lens, is diffused by the external optical structure.

Its illumination allows to perceive itself as a vivid presence contributing to the direct light emission.

The total enlighted surface captured by sight, being wider maintains the luminance <3000 cd/m2 at 65° and over the optical axis, making the perception smoother and not offensive for the human eye.

Spatial dialogue

Replicable coincidence among optics, mechanics and electronics

Miniaturized dimensions

Reduced materials diversity

A perfect synthesis

Antiglare and lens, usually made by contrasted materials, come together in a single miniaturized transparent component.

0,6 Kg

1,6 Kg

Cellular collaboration

Modular growth and balance

Max length 15 m

one power supply kit 200W

DALI2/PUSH

APP & PUSH

0-10

Linear growth

Square cells

Radial growth

Trapezoidal cells

Sustainable synthesis

Industrial intelligence

Essential energetic consumption

Universal manufacturing act

Junction between modules

Brushed aluminum infrastructure

Light is not dressed up with something added but summarizes the essential according to measured parameters.

Optical PMMA Injection mold

Structural aluminum Extrusion

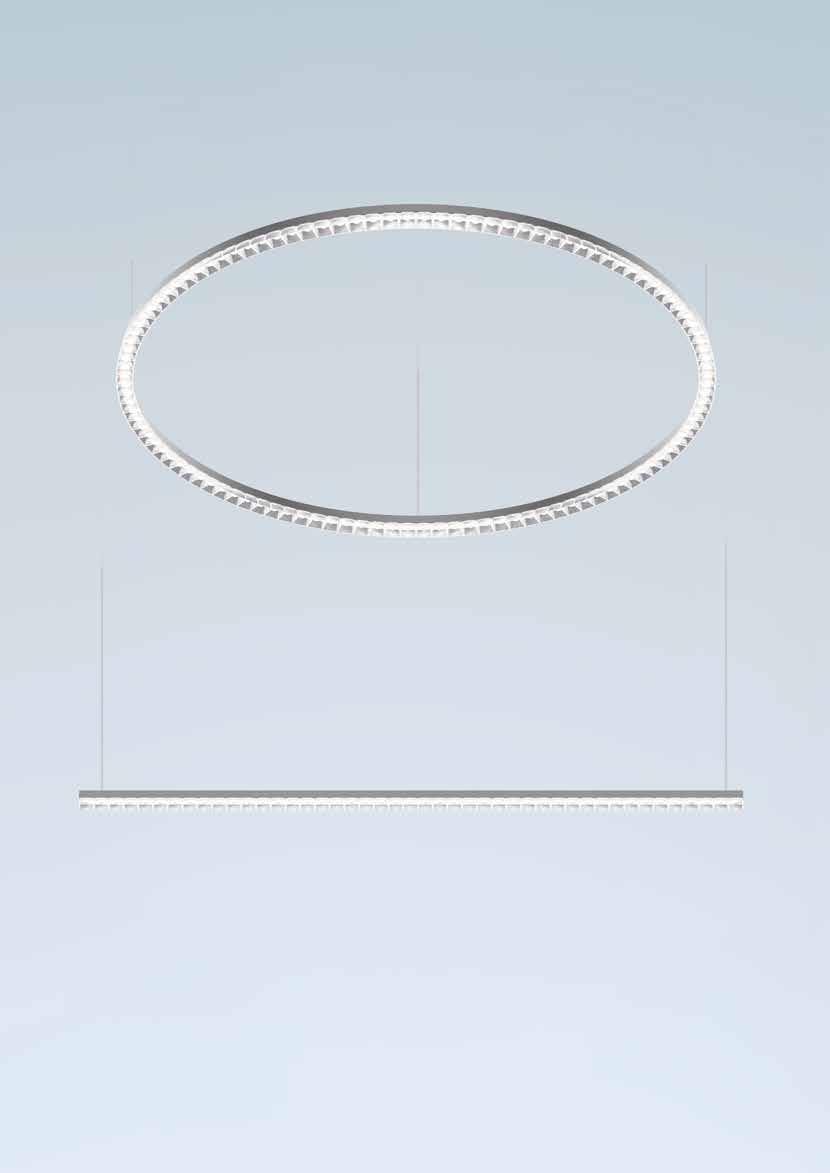

Somnium Stand alone

Integrating different performances

CONFIGURATIONS SCENARIOS

CONSTANT CURRENT FED WORKPLACES

Linear 1260

1260 x h 32 mm

Total Power: 20W

Flux: 3287 lm

Linear 1680

1680 x h 32 mm

Total Power: 27W

Flux: 4383 lm

Linear 2100

2100 x h 32 mm

Total Power: 34W

Flux: 5479 lm

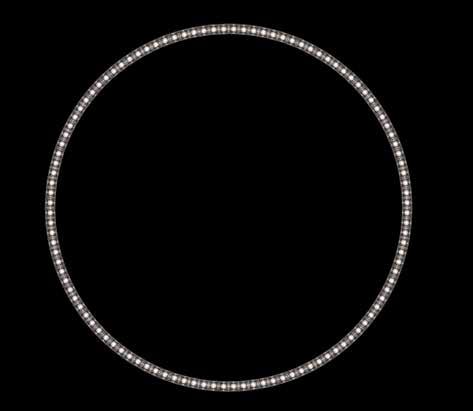

Circular 832

Ø832 x h 32 mm

Total Power: 27W

Flux: 4452 lm

Circular 1100

Ø1100 x h 32 mm

Total Power: 36W

Flux: 5936 lm

Stand alone

1 linear 1260

Total Power: 20W

Direct + indirect 3000K

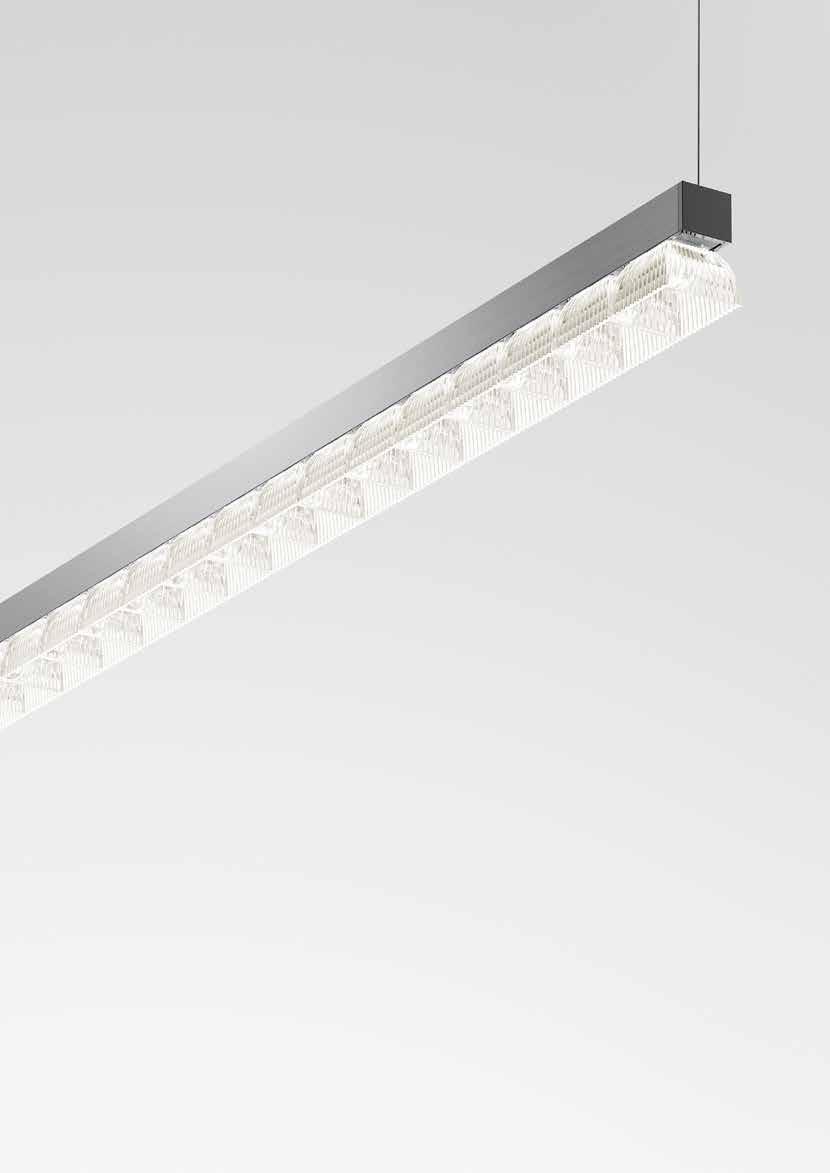

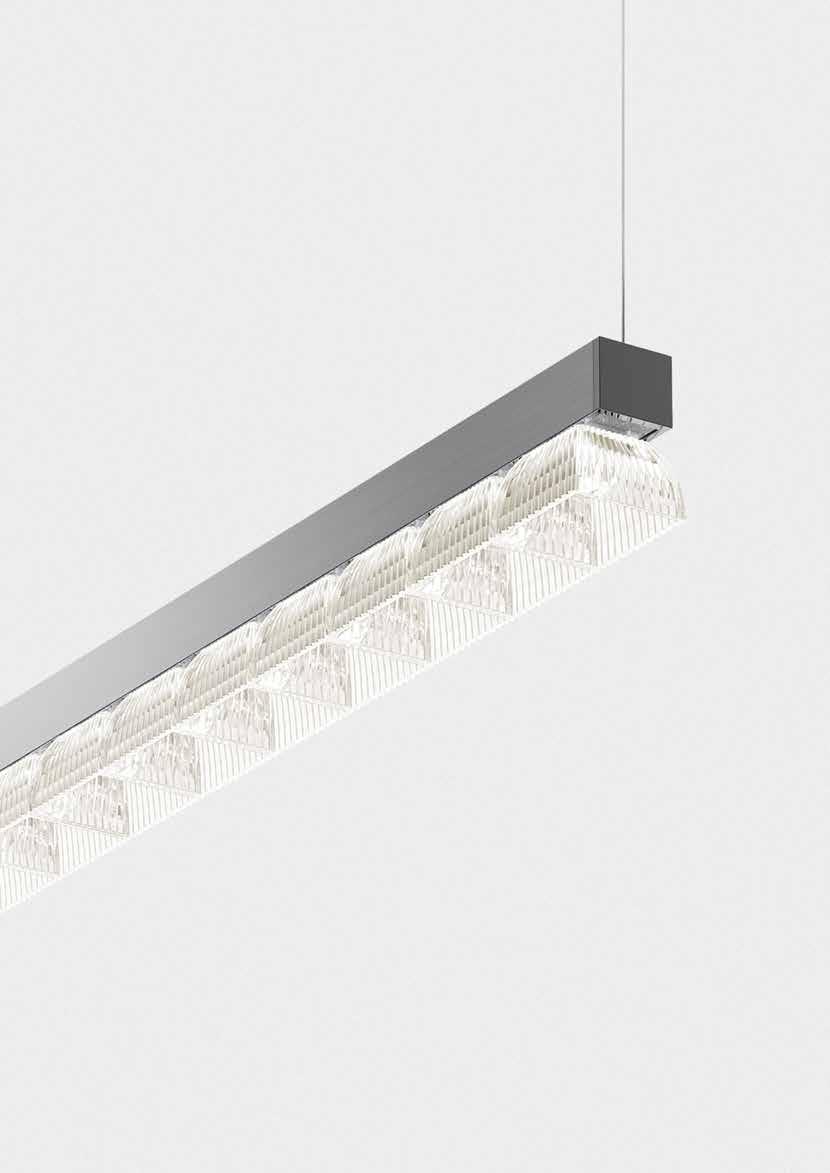

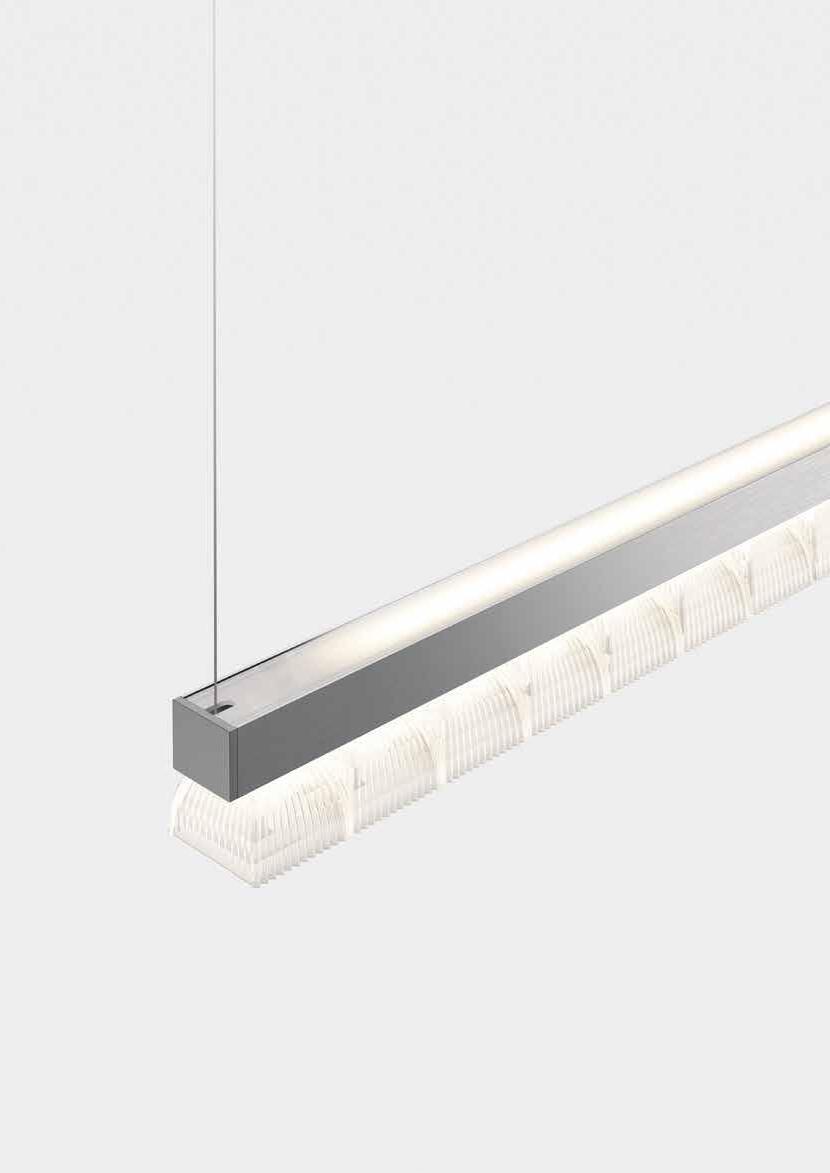

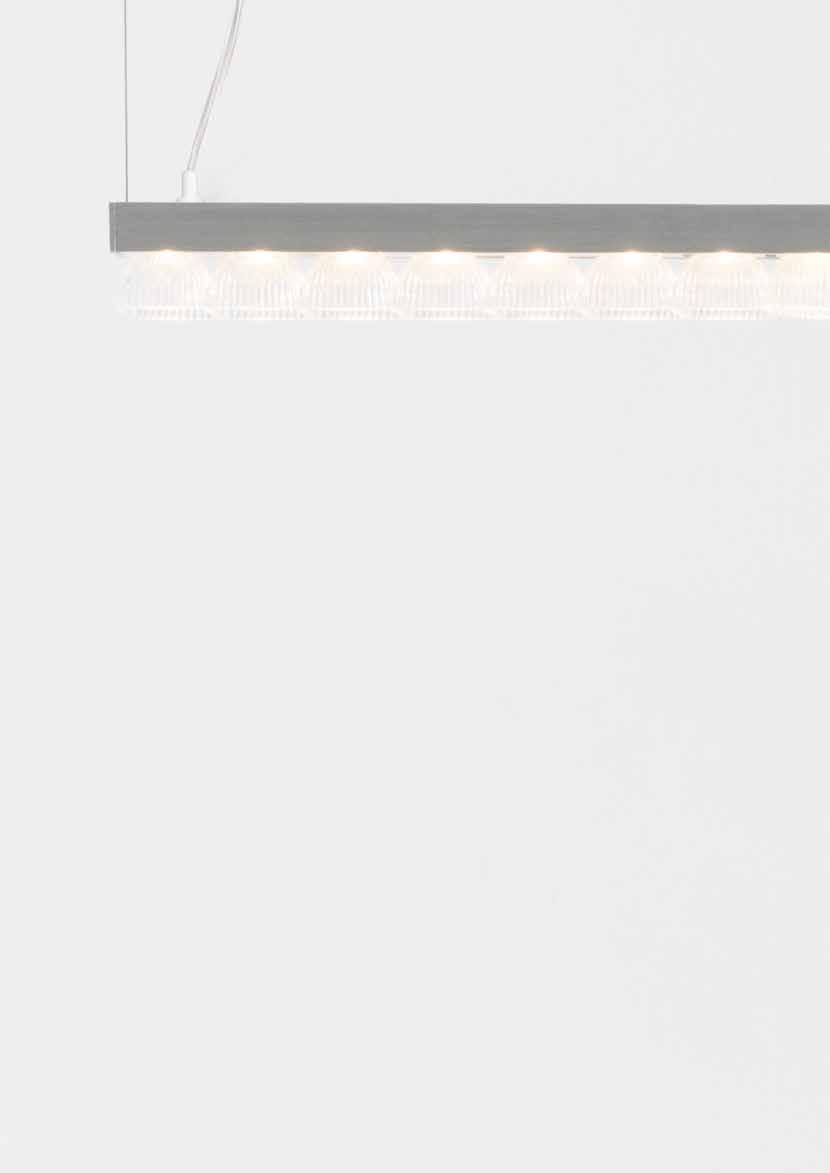

STAND ALONE LINEAR

h32 x 1260 mm

h32 x 1680 mm

h32 x 2100 mm Size

h32 x 1260 mm

h32 x 1680 mm h32 x

Direct and indirect emissions are simultaneously controlled. 0-10 dimming: 120-240 supply voltage.

Code

Code

TT61000APP

TT62000APP

TT71000APP

TT72000APP

TT81000APP

TT82000APP

TT61000CO

TT62000CO

TT71000CO

TT72000CO

TT81000CO

TT82000ACO

Code

TT61100APP

TT62100APP

TT71100APP

TT72100APP

TT81100APP

TT82100APP

TT61100CO

TT62100CO

TT71100CO

TT72100CO

TT81100CO

TT82100CO

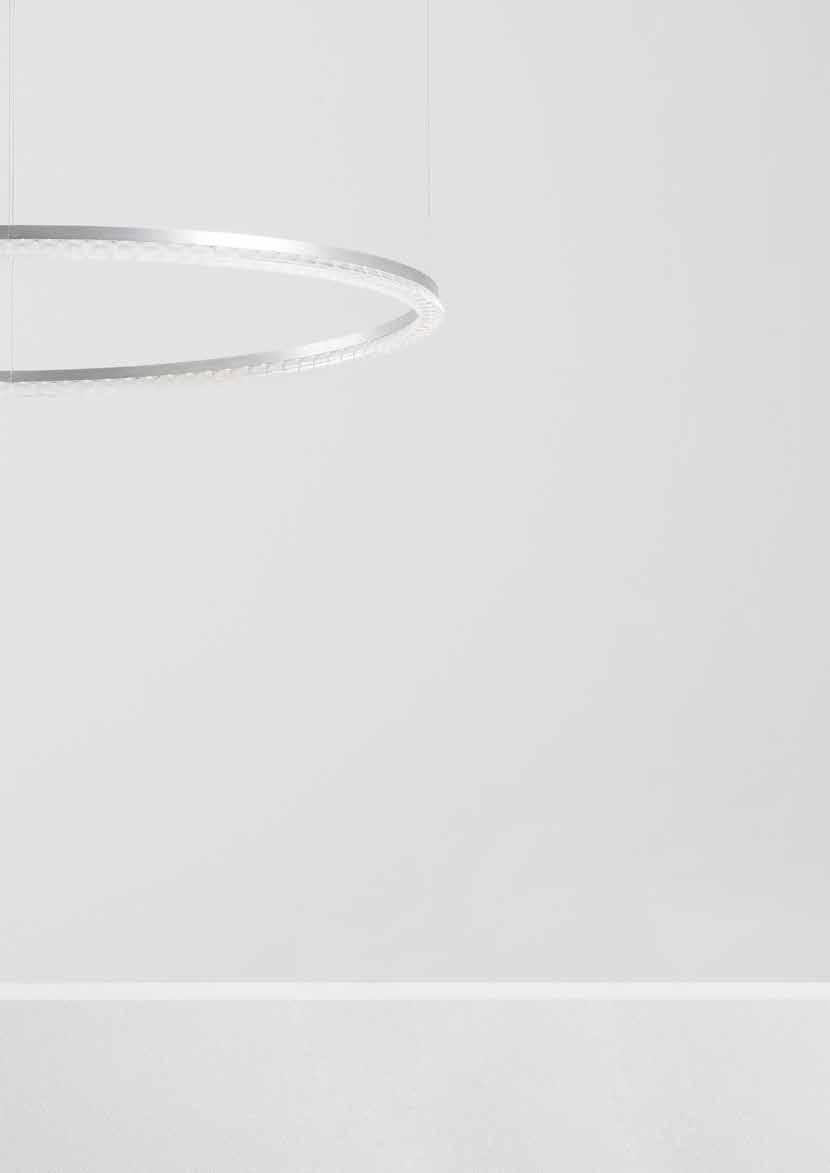

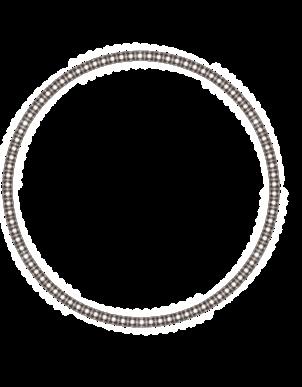

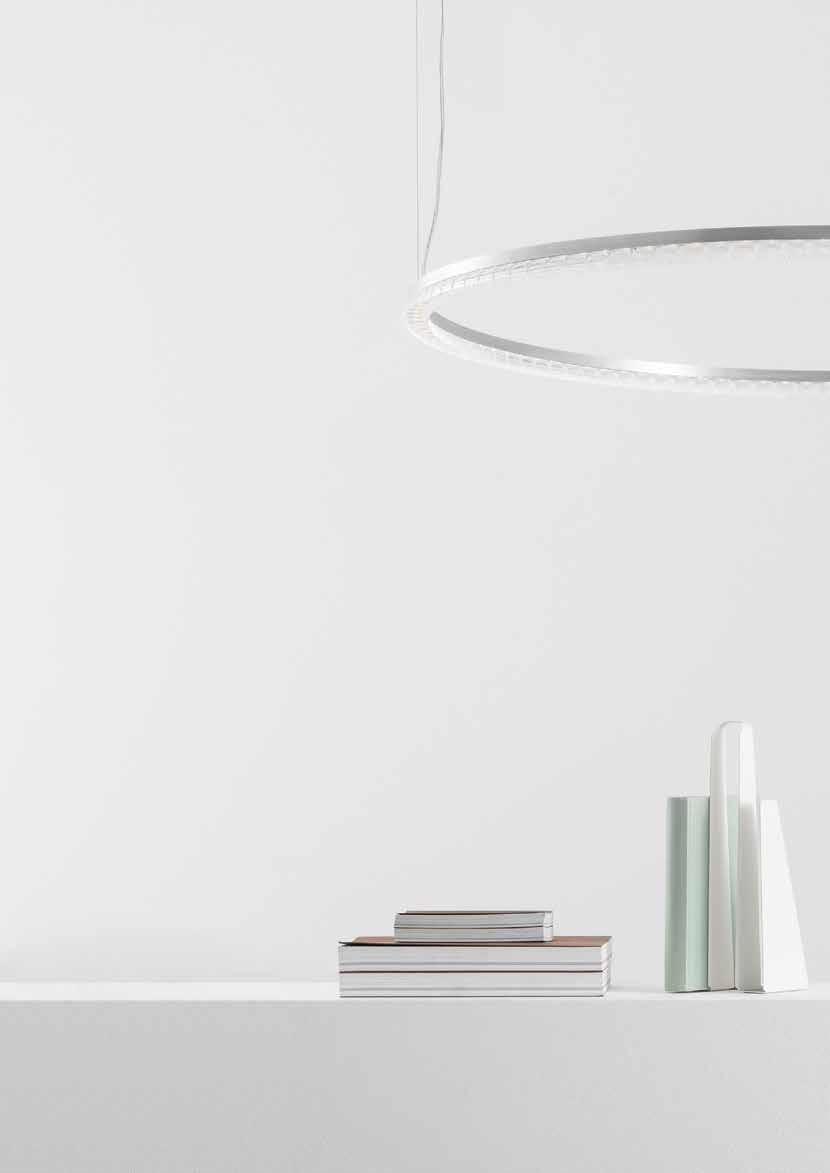

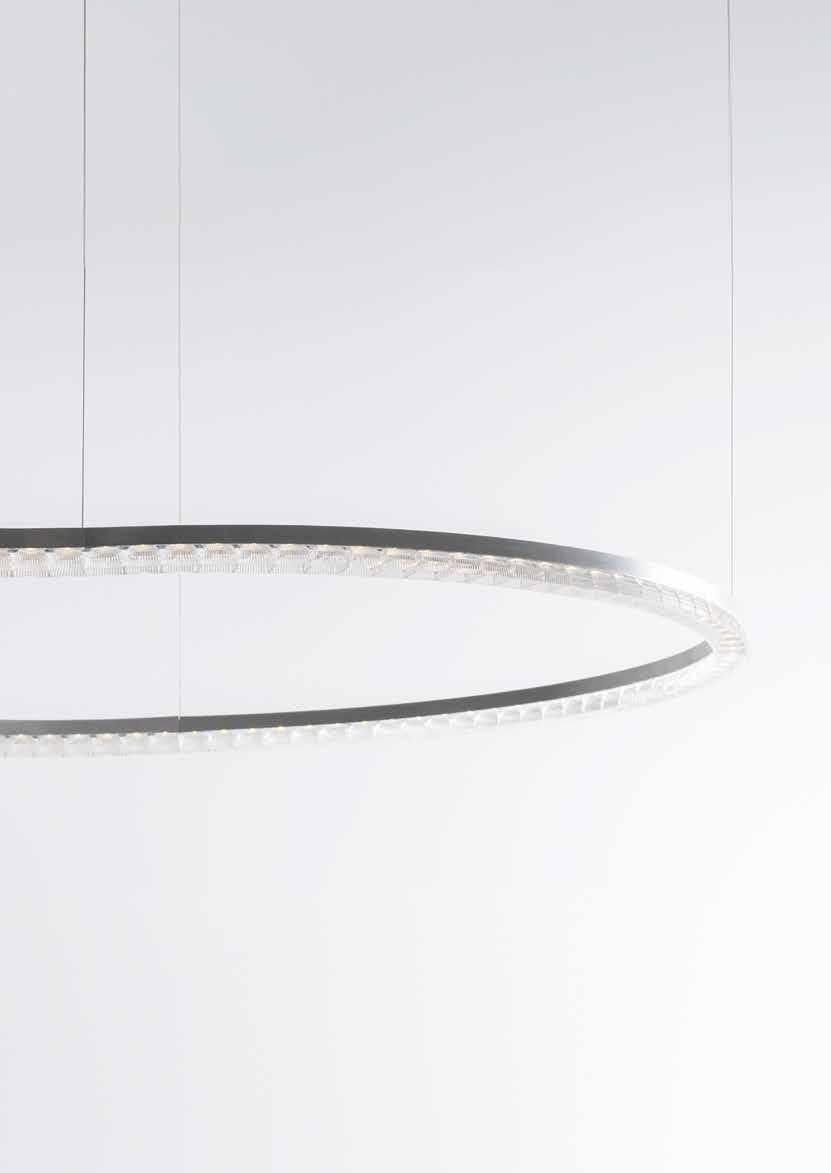

STAND ALONE CIRCULAR

Direct and indirect emission with ceiling power supply

h32 x ø832 mm

h32 x ø1100 mm

Direct and indirect emission with trimless recessed power supply

h32 x ø832 mm

Direct and indirect emissions are simultaneously controlled.

Trimless recessed power supply Detail with circular Ø832

Somnium System

Linear modules and 90° angle

48Vdc CONSTANT VOLTAGE FED

Max 15m with one power supply kit 200W CONFIGURATIONS

Linear module 420

420 x h 32 mm

Total Power: 5,4W

Flux: 829 lm

Linear module 840

840 x h 32 mm

Total Power: 10,5W Flux: 1659 lm

Linear module 1260

1260 x h 32 mm

Total Power: 16W Flux: 2488 lm

Linear module 2100

2100 x h 32 mm

Total Power: 24W

Flux: 3710 lm

Linear module 2100

2100 x h 32 mm

Total Power: 24W Flux: 3710 lm

Angle module 90°

225 x 225 x h 32 mm

Total Power: 5,4W

Flux: 892 lm

SCENARIOS WORKPLACES

System

Linear modules: 2x1260 + 2x420 - tot. 3360 mm

Total Power: 42,8W

Direct + indirect 3000K

n.4 desks

Somnium System

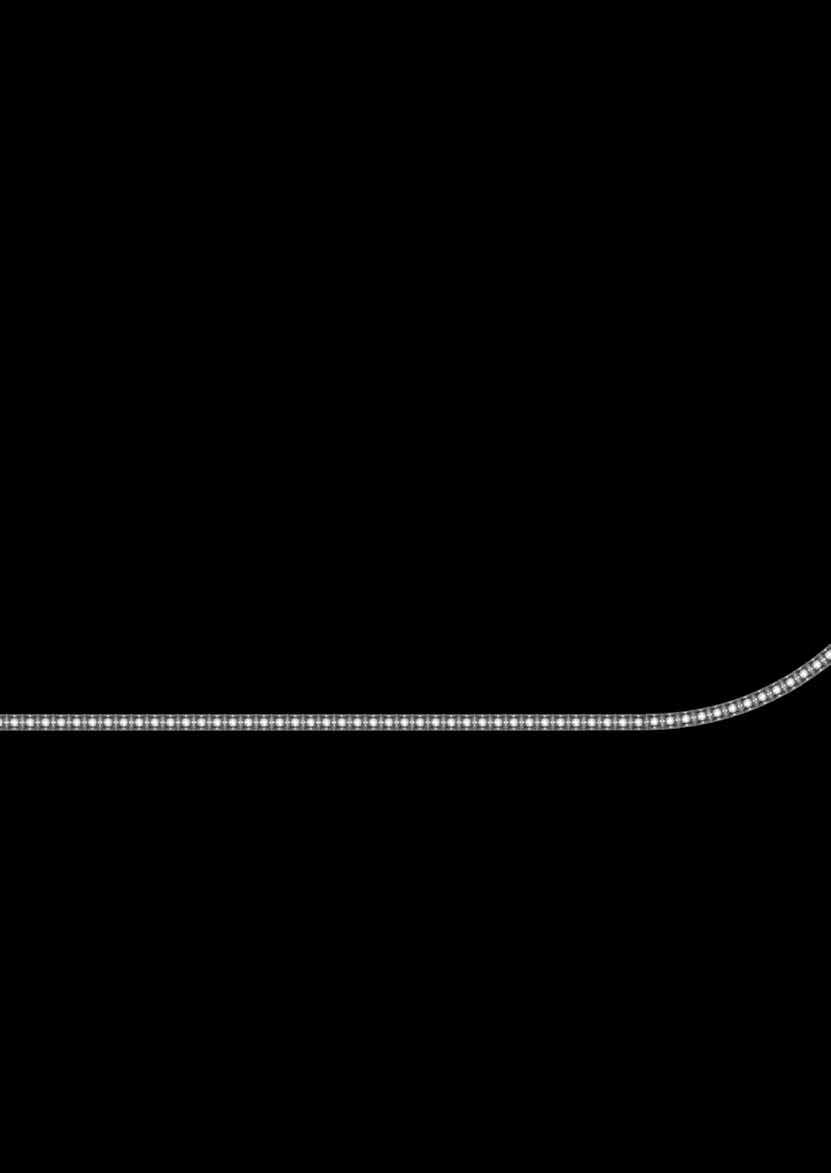

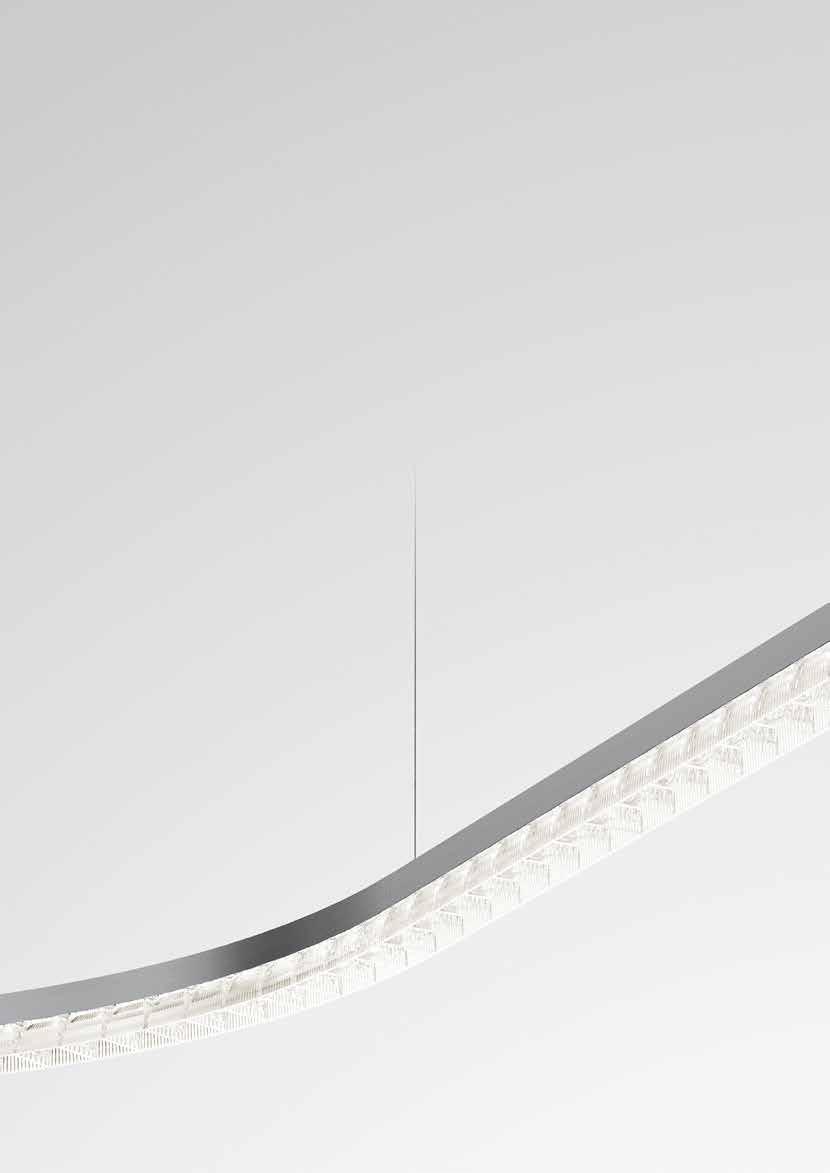

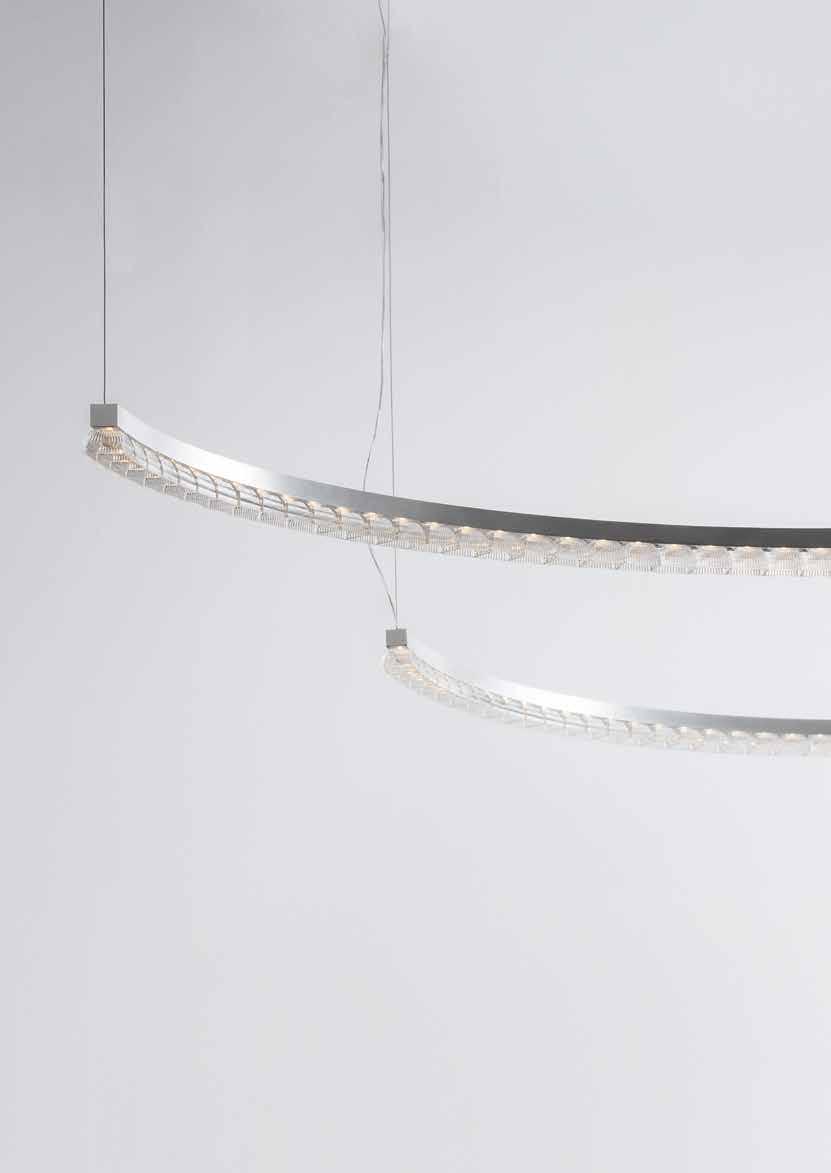

Curved modules

CONFIGURATIONS

48Vdc CONSTANT VOLTAGE FED

Max 15m with one power supply kit 200W

Round module R282,5 90°

282,5 x 282,5 x h 32 mm

Total Power: 5,4W

Flux: 829 lm

Round module R416 60°

223 x 360 x h 32 mm

Total Power: 5,4W

Flux: 829 lm

Round module R550 45°

158 x 378 x h 32 mm

Total Power: 5,4W

Flux: 829 lm

Round module R416 120°

182 x 388 x h 32 mm

Total Power: 10,5W

Flux: 1659 lm

Round module R550 90°

550 x 550 x h 32 mm

Total Power: 10,5W

Flux: 1659 lm

Round module 90°

Round module 60°

Round module 120°

Round module 45°

Round module 90°

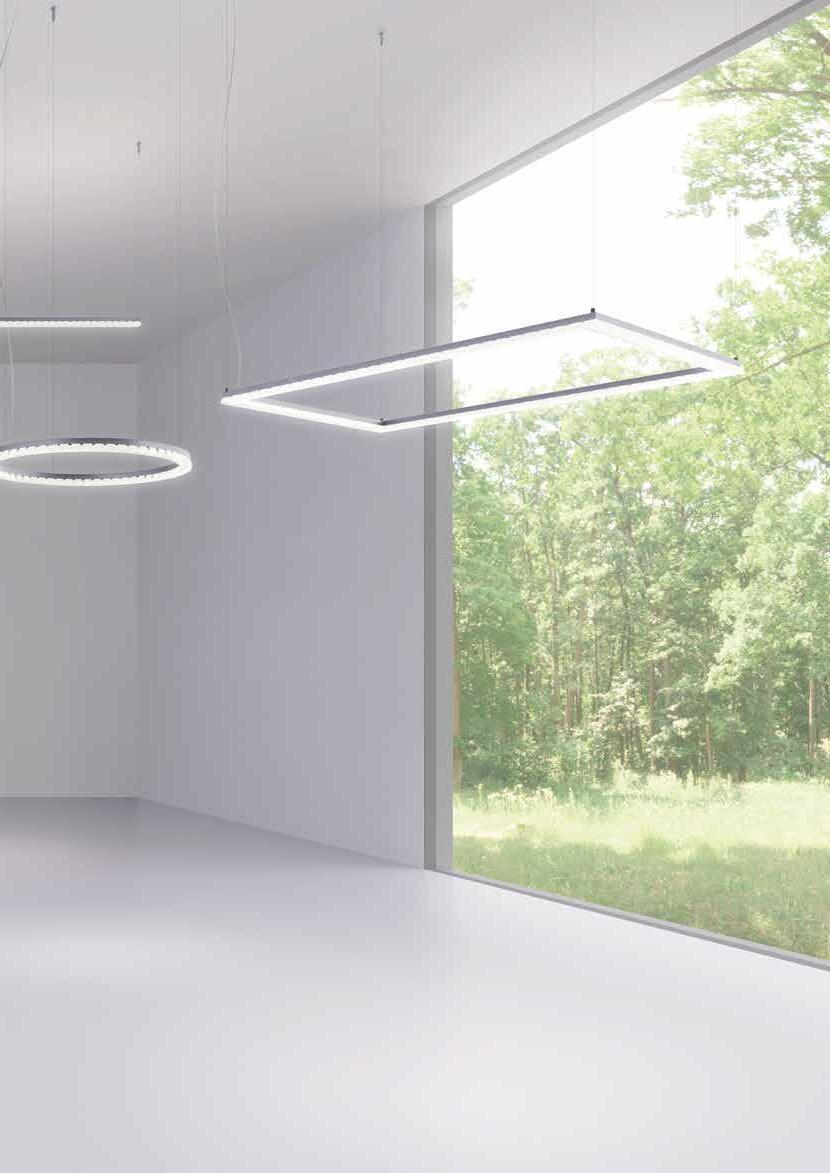

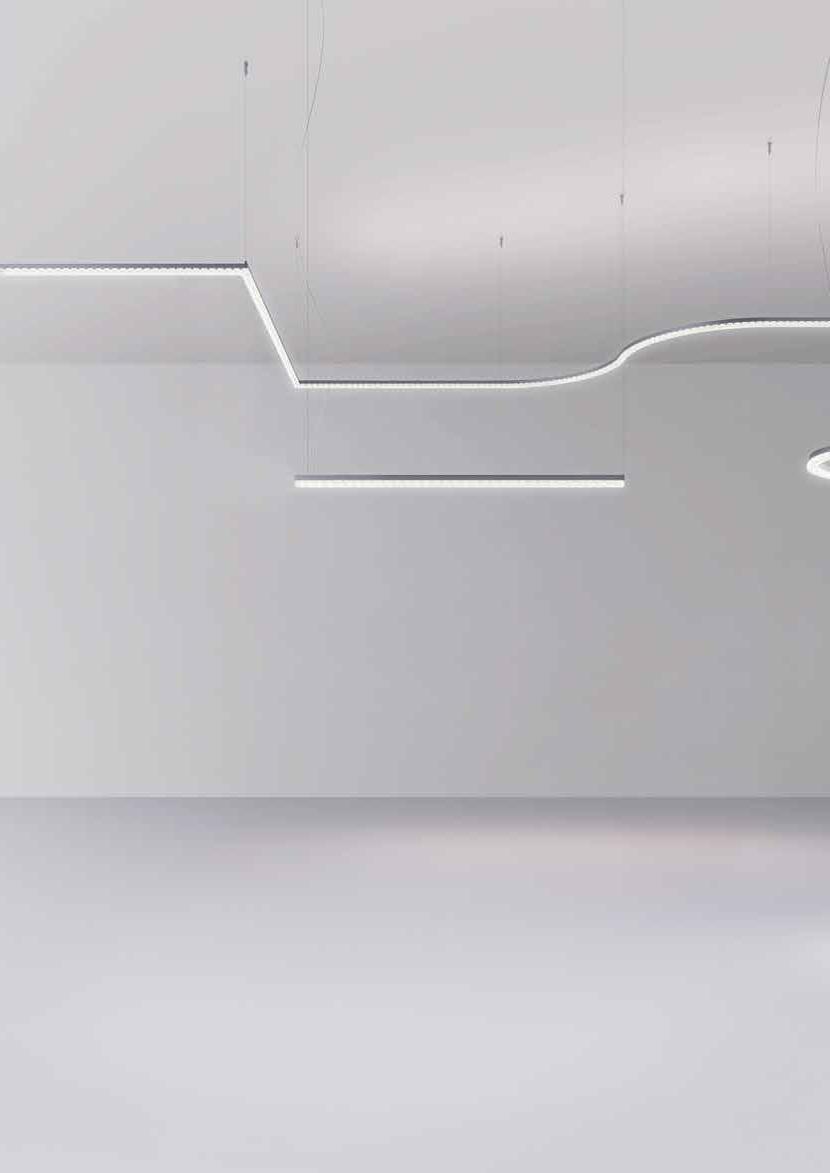

Systemic configurations

Wide range of layouts

CLOSED CONFIGURATIONS

48Vdc CONSTANT VOLTAGE FED

n. 8 Round modules R550 45° + Linear modules available

The concentric versions are composed by:

1. Linear module 420

2. Linear module 840

3. Linear module 1260

4. Linear module 2100

n. 6 Round modules R416 60° + Linear modules available

n. 4 Round modules R550 90° + Linear modules available

n. 4 Round modules R282,5 90° + Linear modules available

n. 3 Round modules R416 120° + Linear modules available

n. 2 Round modules R282,5 90° + n. 2 Round modules R550 90°

h32 x

h32 x

h32 x 1260 mm

h32 x

Direct and indirect emissions are simultaneously controlled.

*2 suspension cables included.

The red arrows on the modules indicate the power supply connection points.

Linear module 420 features a single connection point; it can be rotated to allow flexible positioning.

The red arrows on the modules indicate the power supply connection points.

90° angle module features two connection points.

Accessories

End caps kit

Includes: 2 end caps with suspension/ceiling mounting cables

Mechanical joint kit

Includes: 1 mechanical joint with suspension/ceiling mounting cable

For module connection

Power supply

200W Ceiling power supply kit

Output max 175W (cable length: 2 m)

220-240VAC-48VDC IP20

400x110x52h

200W Trimless recessed power supply kit

Output max 175W (cable length: 2 m)

220-240VAC-48VDC IP20

396x195x112h

Recessed canopy for remote driver fed output constant voltage max 175W SELV 48 VDC 111x111x53h

B16A: 3

C16A: 5

C20A: 6

B16A: 3

C16A: 5

C20A: 6

B16A: 3

C16A: 5

C20A: 6

1 For DALI2 protocol, implementation of part 251 (Luminaire data), 252 (Energy data) and 253 (Diagnostics data).

Size

h32 x 282,5 x 282,5 mm

R282,5 90°

h32 x 223 x 360 mm

R416 60°

h32 x 182 x 388 mm*

R416 120°

h32 x 158 x 378 mm

R550 45°

h32 x 550 x 550 mm*

R550 90°

Accessories

End caps kit Includes: 2 end caps with suspension/ceiling mounting cables

Mechanical joint kit Includes: 1 mechanical joint with suspension/ceiling mounting cable

For module connection

Power supply

200W Ceiling power supply kit

Output max 175W (cable length: 2 m)

220-240VAC-48VDC IP20

400x110x52h

200W Trimless recessed power supply kit

Output max 175W (cable length: 2 m)

220-240VAC-48VDC IP20

396x195x112h

Direct and indirect emissions are simultaneously controlled. 1 suspension cable included.

Recessed canopy for remote driver fed output constant voltage max 175W SELV 48 VDC 111x111x53h

The red arrows on the modules indicate the power supply connection points. The connection points are located in the upper part of each module.
