Antarktikós Carlotta de Bevilacqua
Antarktikós Carlotta de Bevilacqua 2017 An innovative patented optic realizes a light blade that, from a single LED source, draws a 360° light profile. A perfect tool for architectural lighting that emphasizes with high efficiency the different opening profiles.
For further information on Antarktikós visit artemide.com
2
3

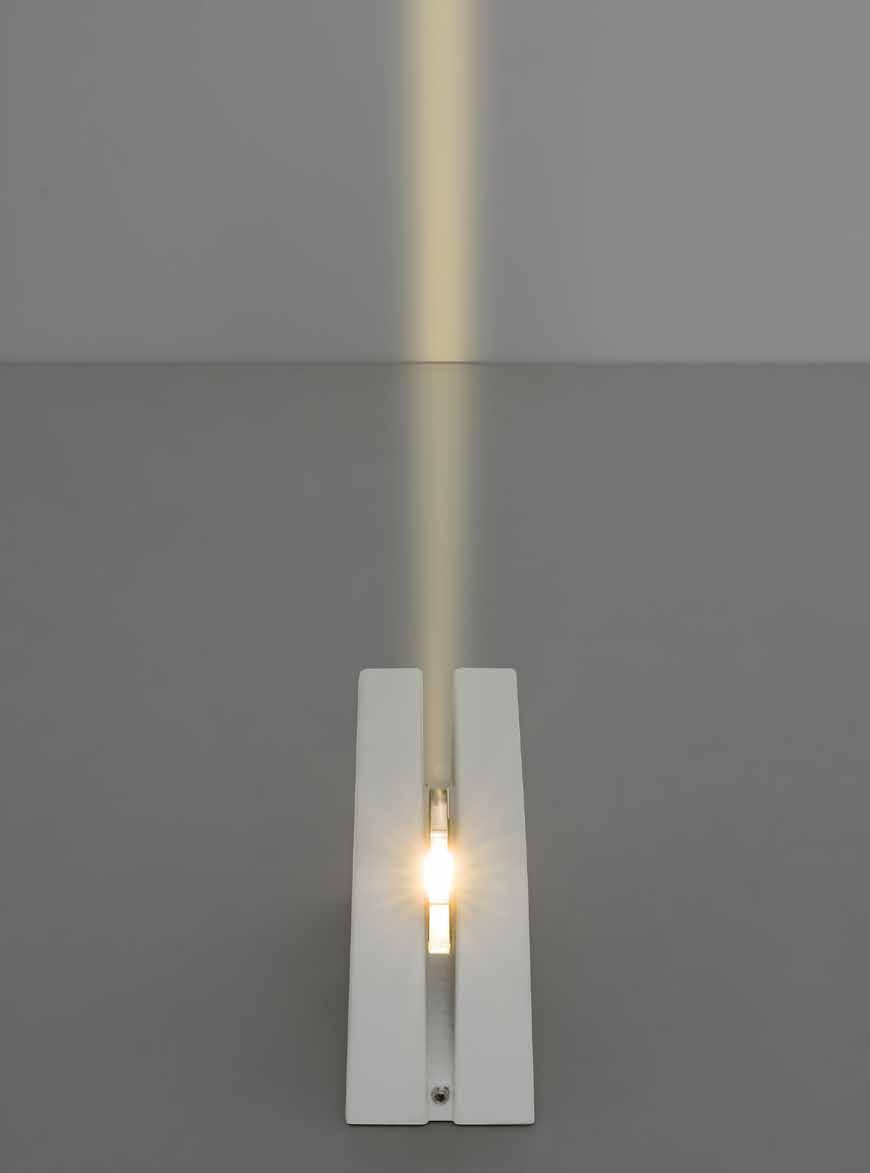

Antarktikós patented optic system PAT E N T O F INVENTION
4
5

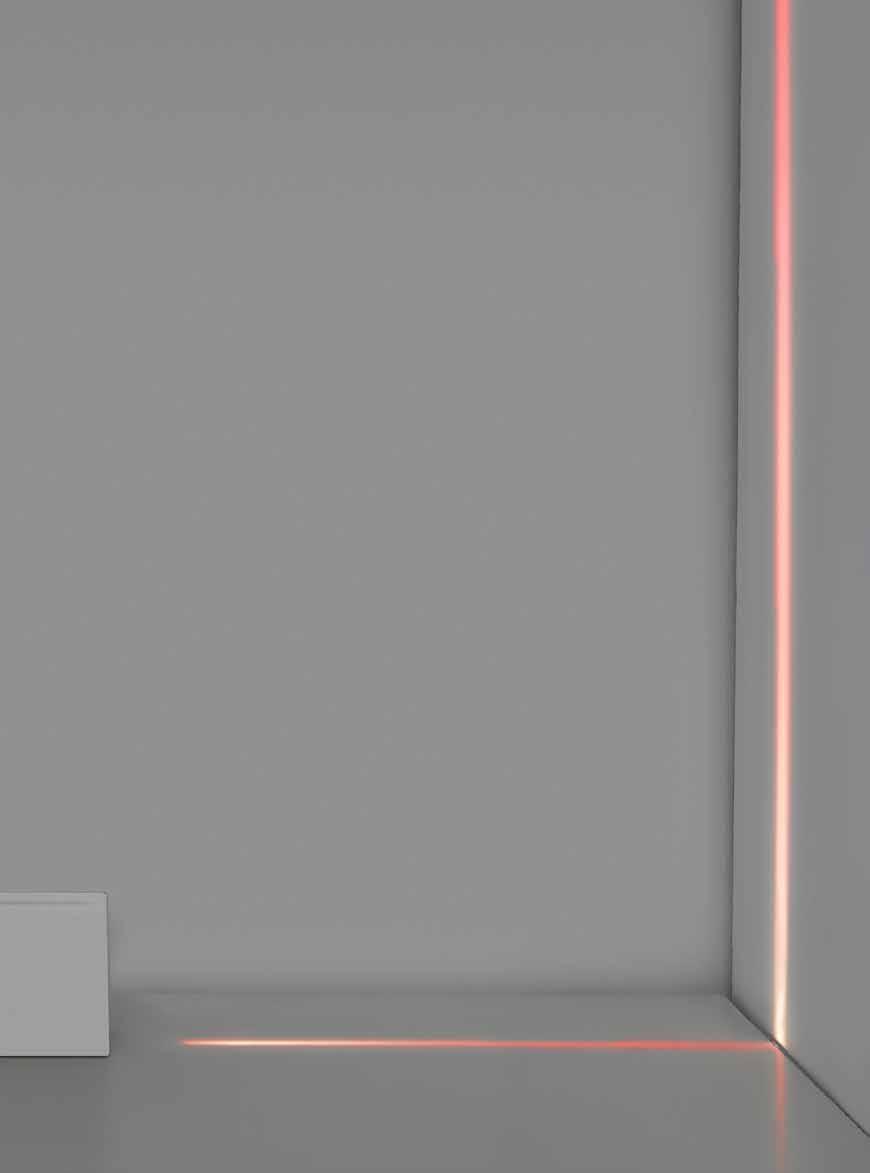

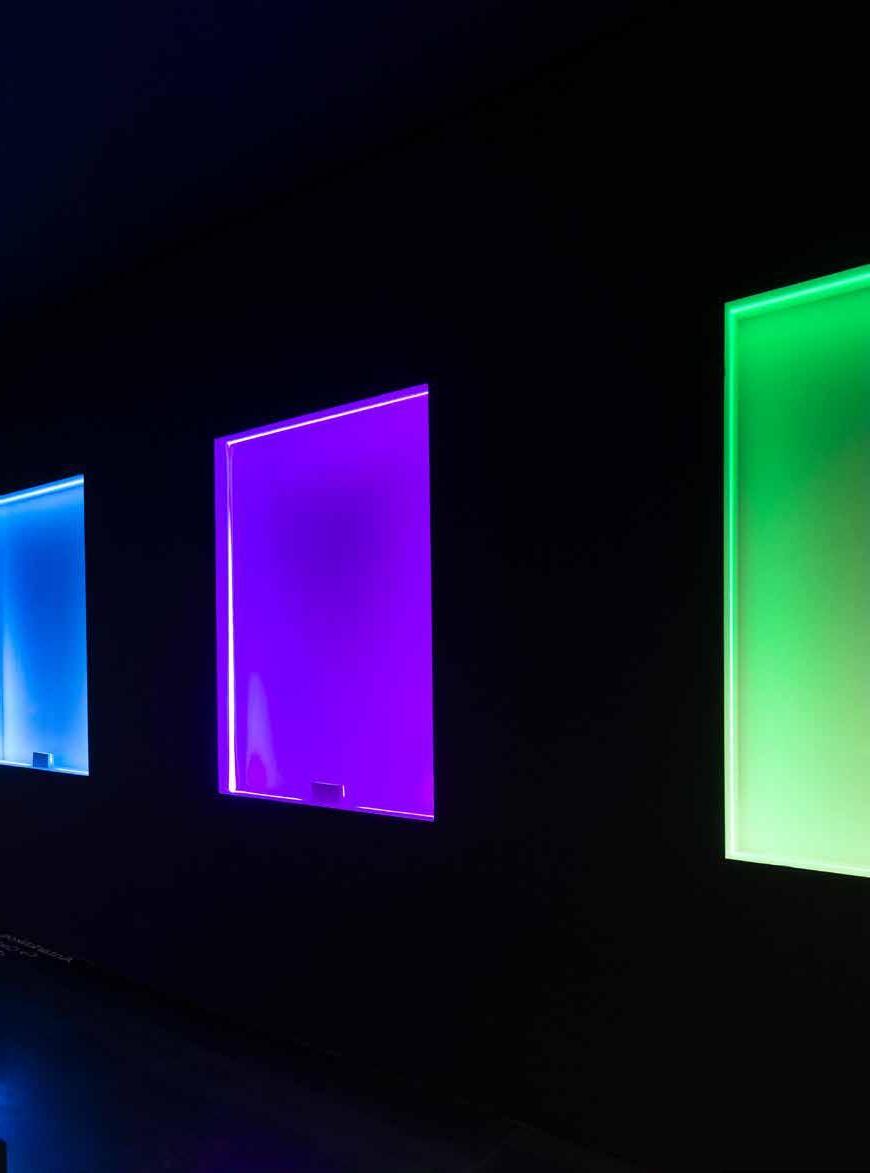

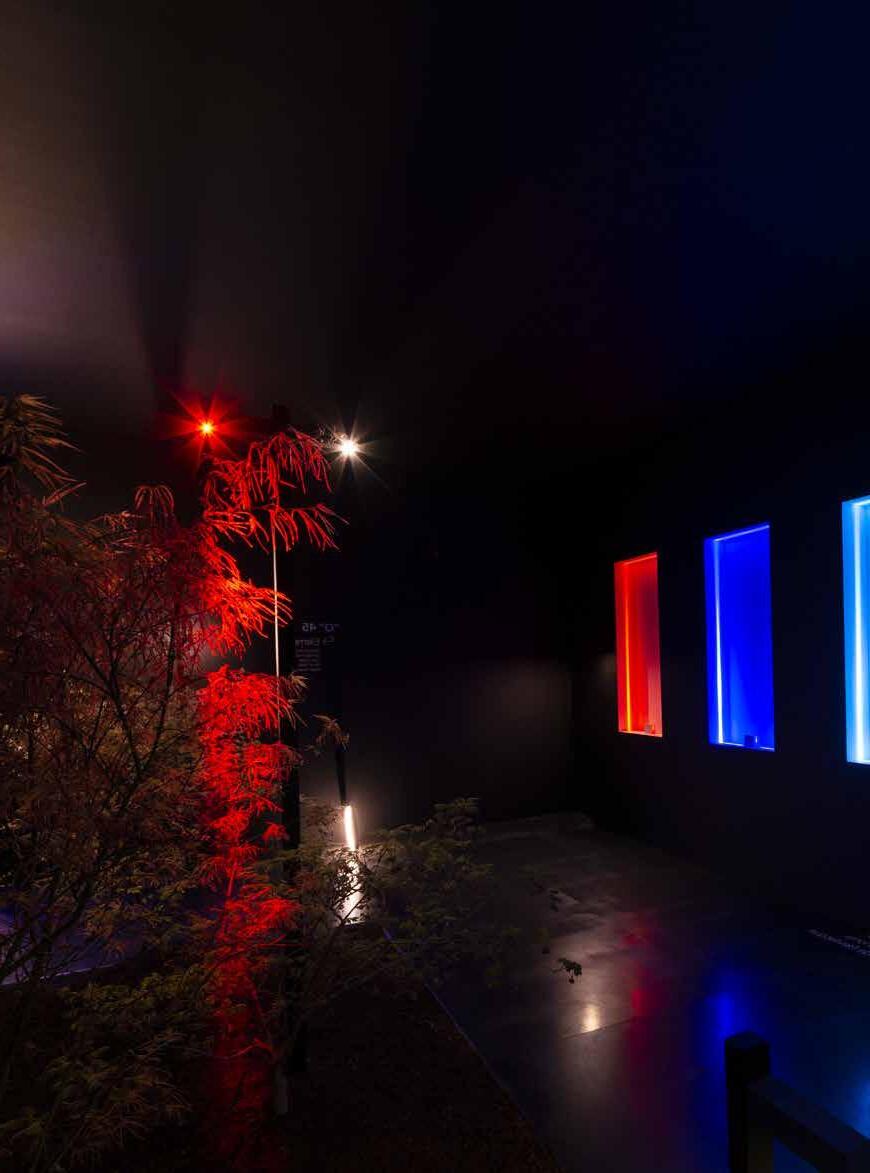

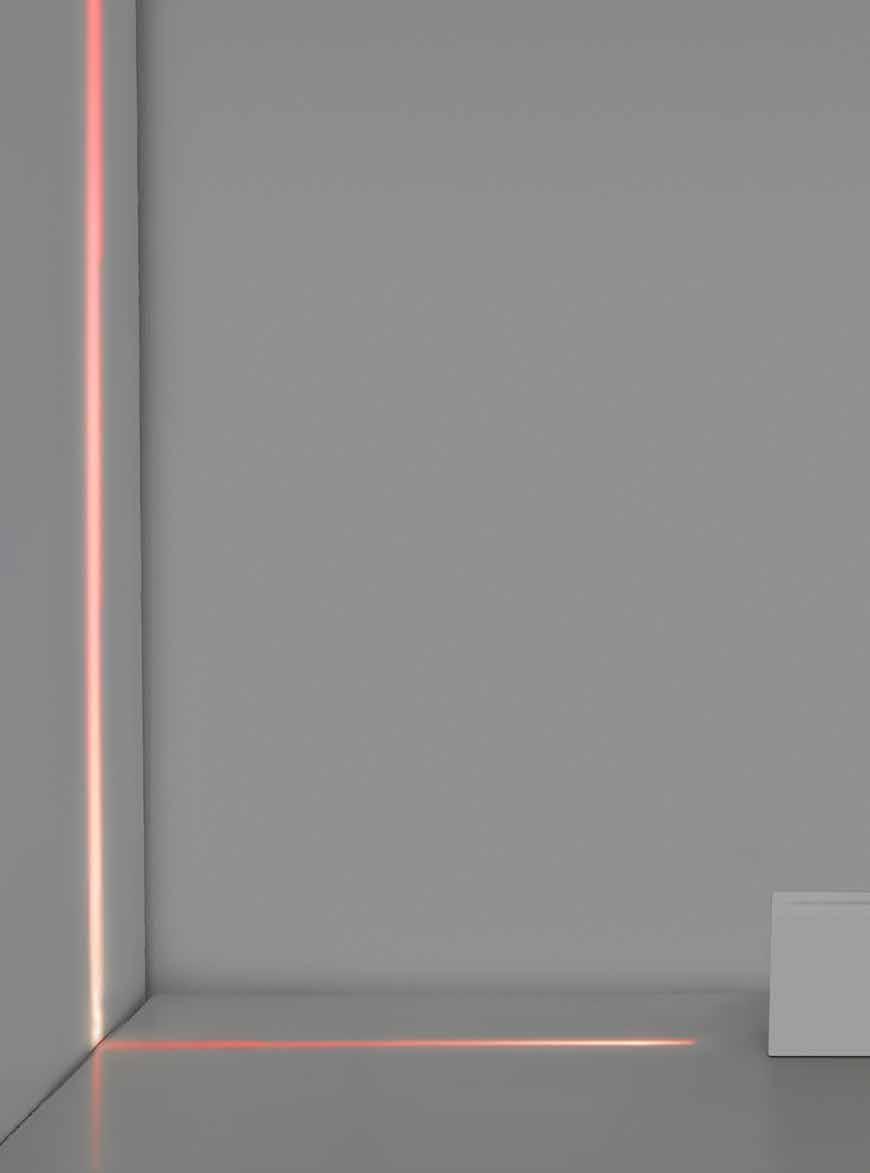

Antarktikós RGB RGB
6
7

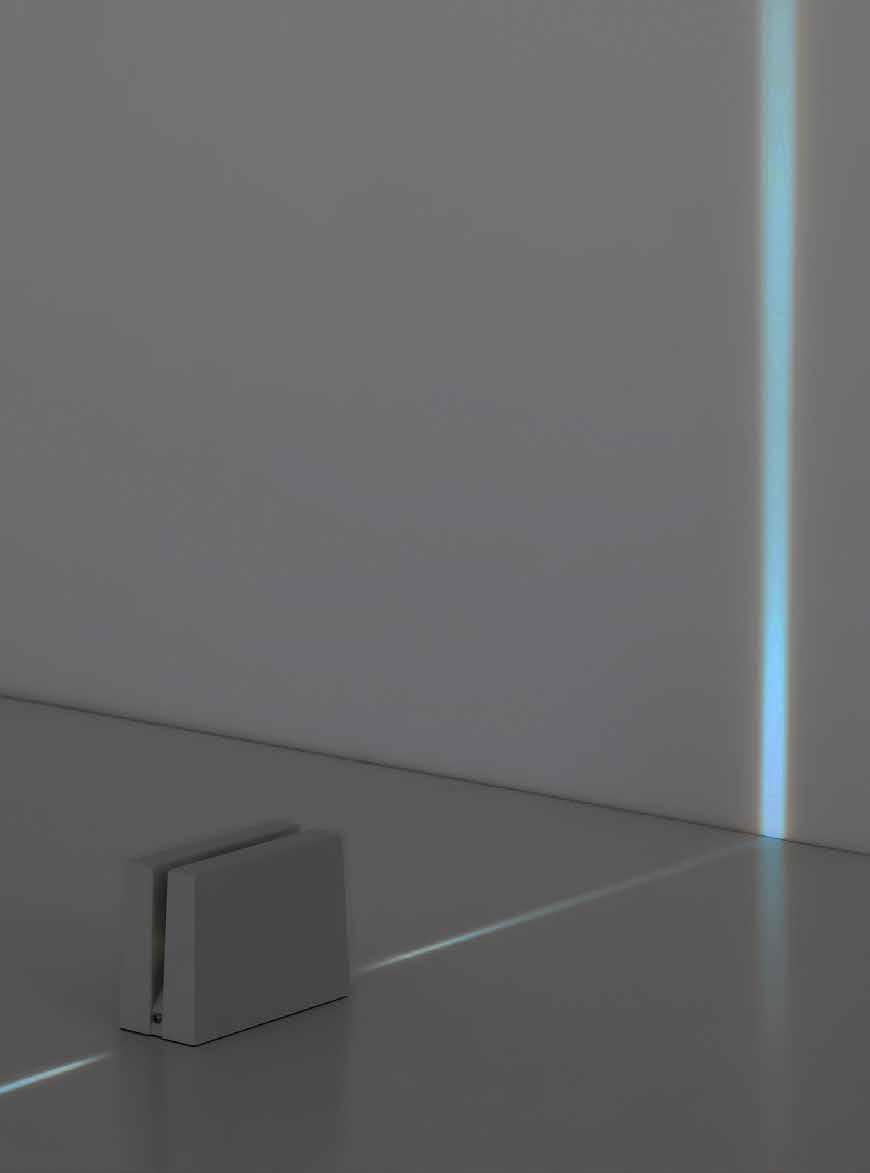

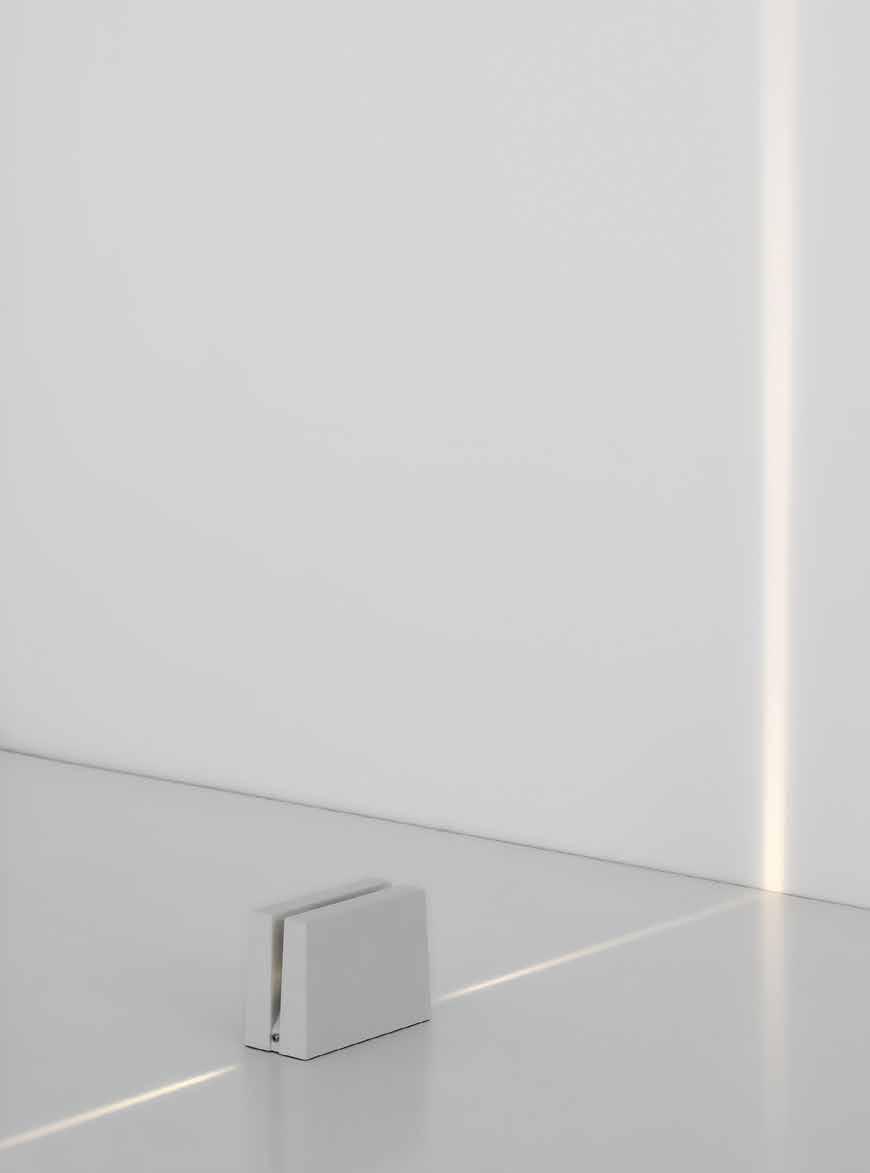

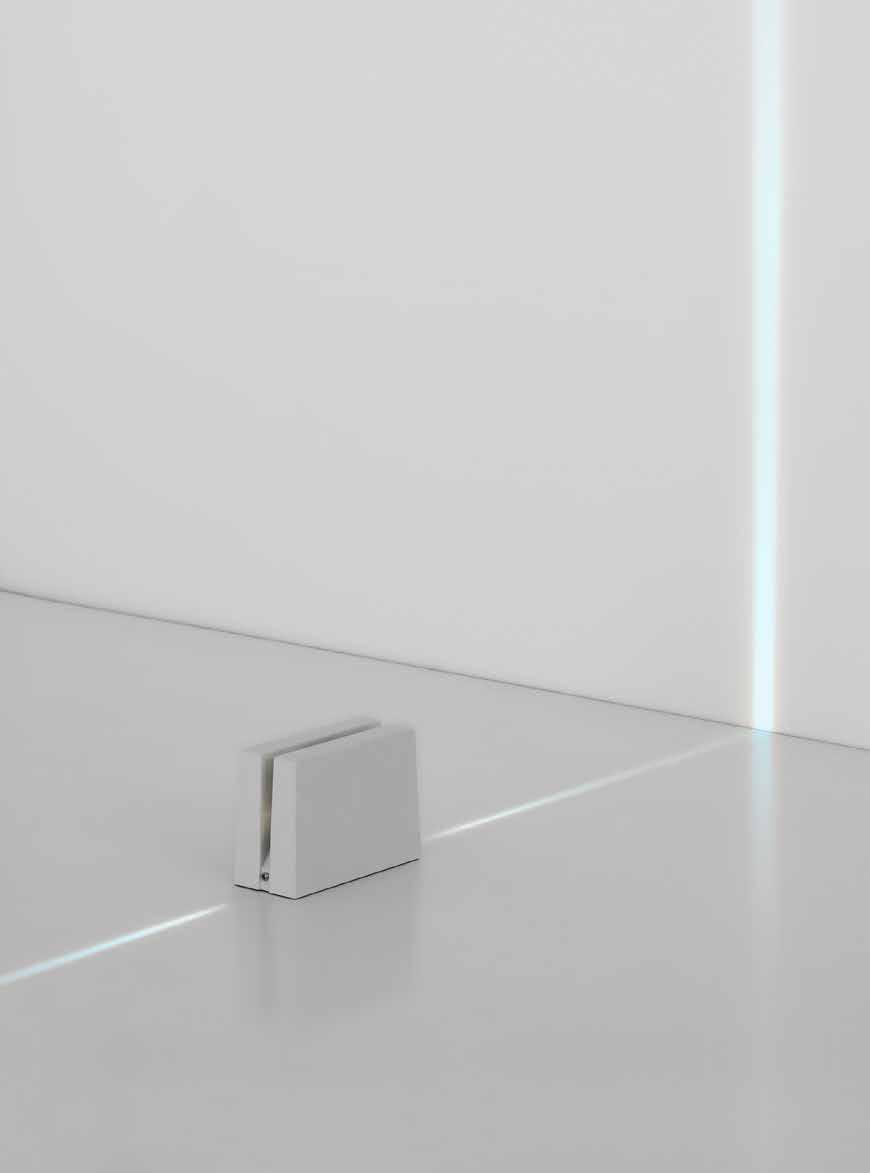

Antarktikós White 3000 K
Extreme Light control Extremely limited and protected light emission that reduces to an absolute minimum the light pollution and glare.
8
9
10
11
AI generated image
AI generated image
12
13
A N TA R K T I KÓ S Driver 700/900mA supplied separately.
AS
Grey-white Ral 9002
IP65
MacAdam 3SDCM Life L70 (10K)>35500h CRI =80
IK06
ANTARKTIKÓS WHITE Flux 60 lm
CCT 3000K
Code T4522030
Photometric data generated using DV1126 driver. Photometric data with other drivers: 5,7 W / 49 lm.
Driver Vac cc 32W 700mA 220-240 cc 30W 700mA 110-240 cc 30W 250-700mA 110-240 cc 25W 150-900mA 110-240
Lmm Wmm Hmm 146,5 43 22 115 53,5 26 115 53,5 26 111 52 22
IP 20 68 68 20
45
110
52
117
45
110
52
117
81
W 7,5 W
n°device in series 1-4max 1-4max 1-4max 1-2max
Code DV1103 DV1073* DV1077* DV1126
Undimmable Undimmable DALI2 DALI2/PUSH/0-10
Driver 700/900 mA SELV supplied separately. Vf=9V reported values are subject to a tolerance +/-10%. * IP connectors included.
ANTARKTIKÓS RGB Code T4521030
Flux 20 lm
Driver 25 W 40 W 96 W 150 W DIMMER DMX DIMMER DALI
Vin 100-277 Vac 100-277 Vac 100-277 Vac 100-277 Vac 12-24 Vdc 12-24 Vdc
Vac 12Vdc 12Vdc 12Vdc 12Vdc 12-24 pwm 12-24 pwm
Lmm 148 163 140 228 88 88
Wmm 40 43 63 68 54 54
Hmm 32 32 32 39 25 25
81
W 3W
IP 67 67 67 67 20 20
n°device in series max 5 max 8 max 20 max 30 max 1 max 1
* IP connectors included.
Code DV1055* DV1056* DV1057* DV1043* DV1059 DV1052Antarktikós 1
Antarktikós 2
Antarktikós 3
Antarktikós n°
DMX DIMMER
DMX DIMMER
DMX DIMMER
DMX DIMMER
Antarktikós 1
Antarktikós 2
Antarktikós 3
Antarktikós n°
DALI DIMMER
DALI DIMMER
DALI DIMMER
DALI DIMMER
DMX CV DRIVER
Antarktikós 1
Antarktikós 2
Antarktikós 3
Antarktikós n°
DMX DIMMER
DMX DIMMER
DMX DIMMER
DMX DIMMER
DMX CV DRIVER
32 max
DALI
1200hm
12 Vdc
CV DRIVER
Antarktikós 1
Antarktikós 2
Antarktikós 3
12 Vdc
12 Vdc
Antarktikós n°
DALI DALI DALI DALI Notes: DIMMER DIMMER DIMMER DIMMER It is necessary to use 1 Dimmer for each Antarktikos RGB as indicated in the scheme. DALI twisted pair cables with an impedance of 120Ω and a low capacitance. Use DMX suitable Max. of 32 standard CV DRIVER 12 Vdc devices connected over a max. cable length of 300m wired in a multi-drop bus topology commonly called “daisy chain”. Terminate the last driver with an impedance of 120Ω (120Ω resistor joining pins + and -). After 32 unit loads a repeater/booster should be used. Use DMX Splitters for larger installations or to simplify wiring. The output of a DMX splitter is considered a new DMX line, with the same rules applying.
