A.24 Carlotta de Bevilacqua

A.24

Carlotta de Bevilacqua 2017

PAT E N T O F INVENTION

ARTEMIDE APP

For further information on A.24 visit artemide.com

A.24 Carlotta de Bevilacqua 2017 A.24 is innovative and flexible system to design light in space. A single profile, only 24 mm thick, can be installed in the recessed, ceiling or suspension mode to continuously follow the angles on a flat or three-dimensional surface. This profile hosts to a variety of performance options: diffused light, sharp optical units with two beam angles, or a smart magnetic track. This makes A.24 a flexible system, as well as an open platform to accommodate other products from the Architectural collection. The suspension version also features indirect emission. The three solutions can be alternated to match the architecture and the room functions with utmost flexibility. The competence of Artemide is revealed by the quality of light, as well as by the ability of A.24 to freely move in space, with direct power connection points up to 14 metres apart.

→ PAT E N T P E N D I N G

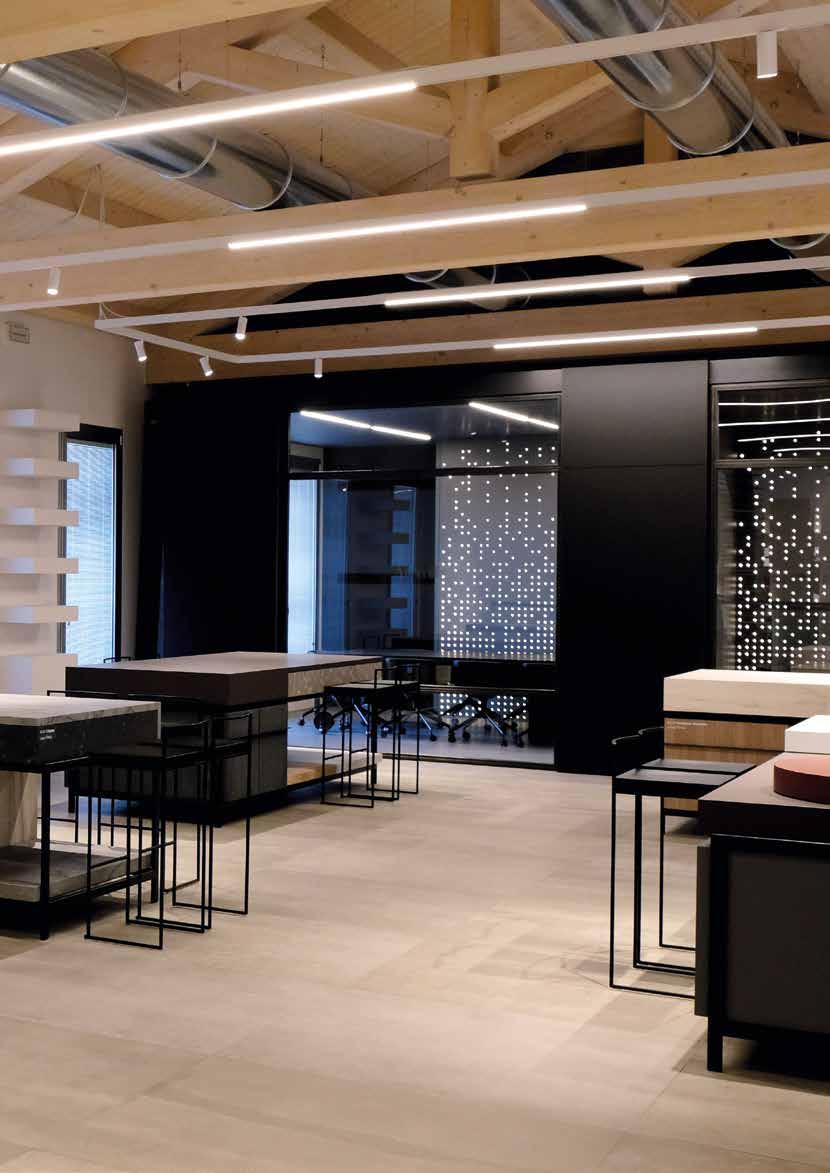

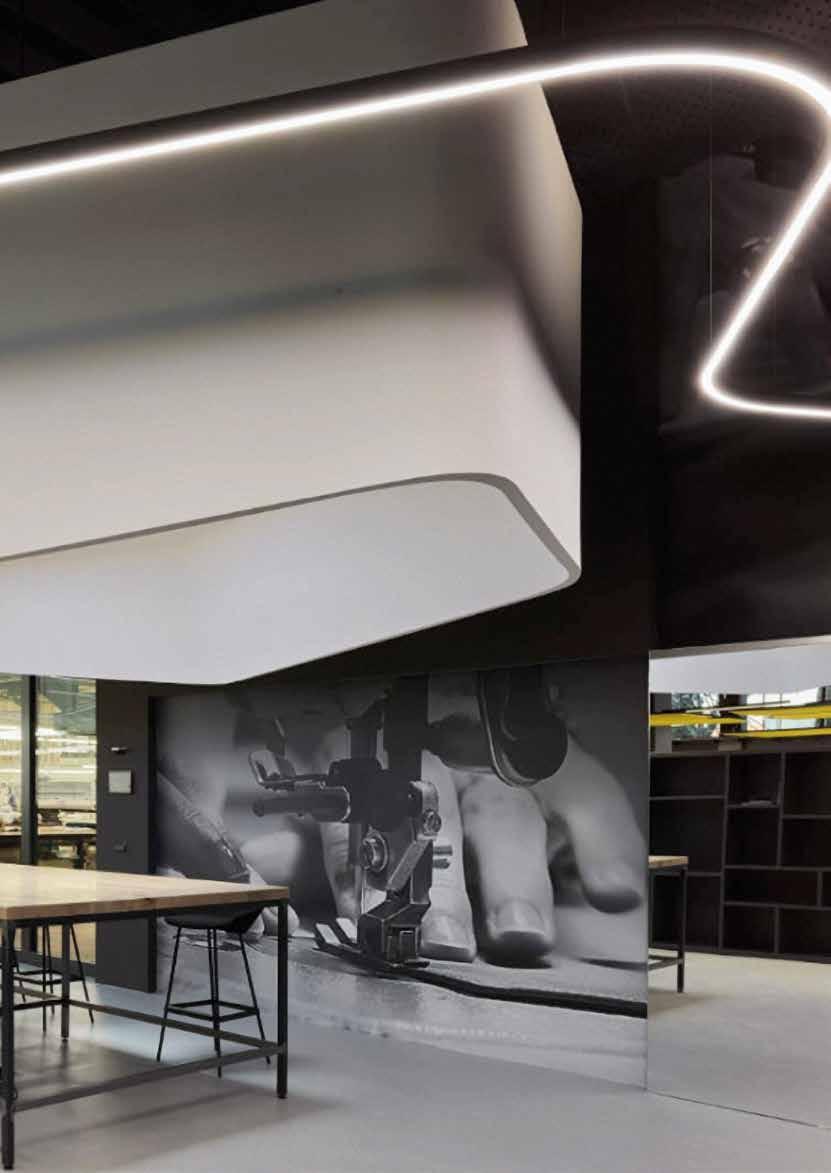

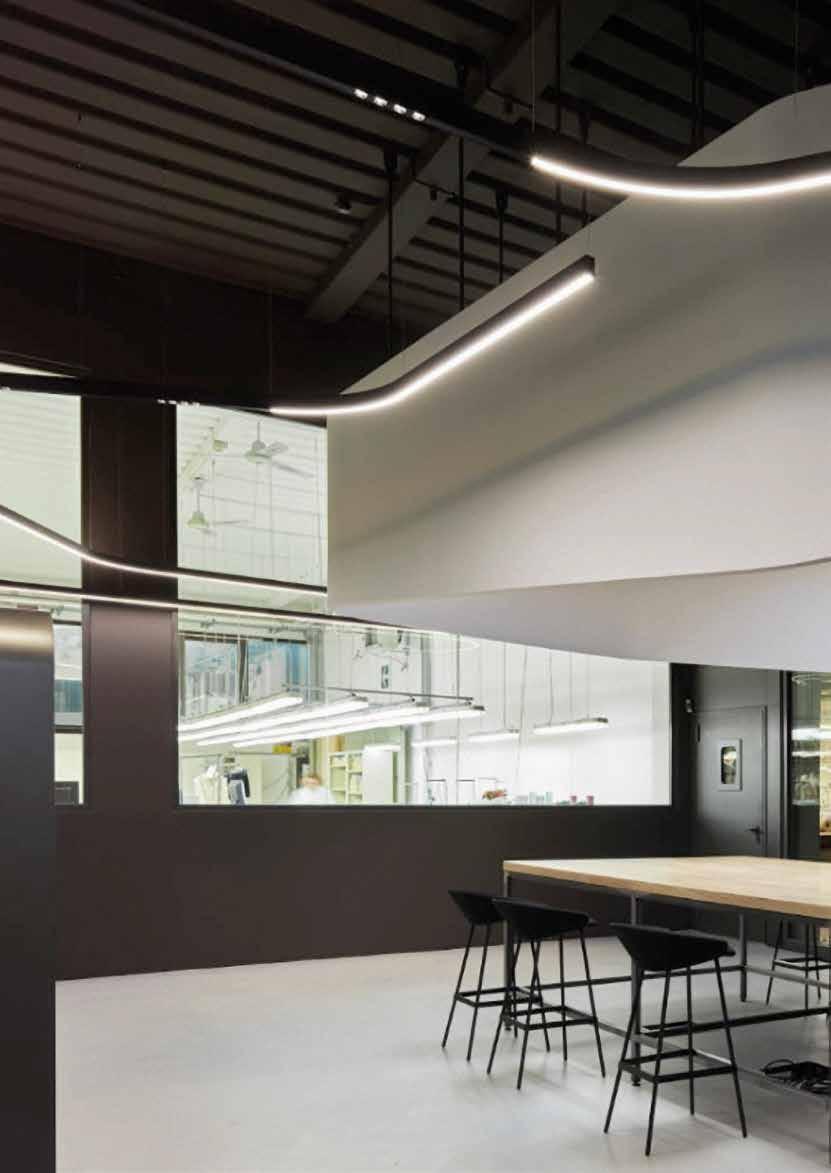

Giuntini Headquarters, project by and studio architects, Peccioli (PI), | 2020

A.24 system

90° ANGLE MAGNETIC

90° ANGLE DIFFUSED

90° ANGLE SHARPING

301 x 301 mm

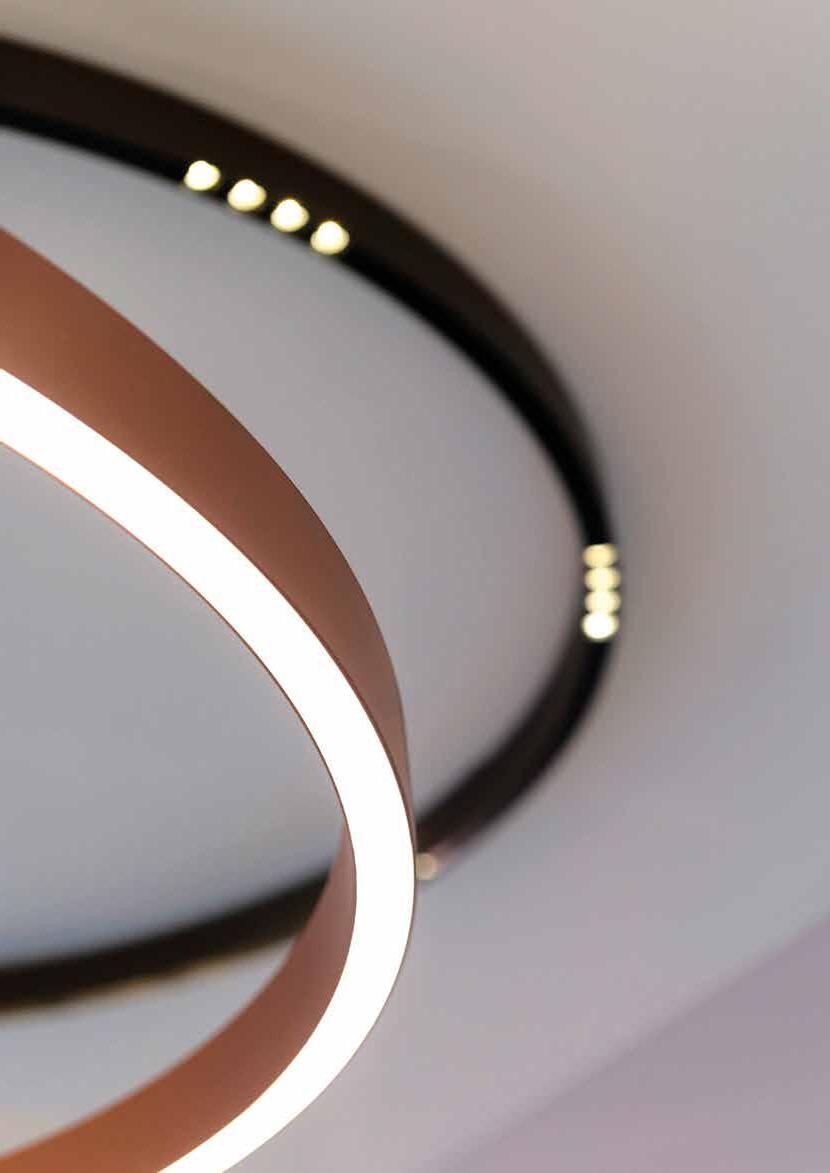

CIRCULAR DIFFUSED RADIUS 561 mm (60° - 90°) RADIUS 750 mm (45° - 90°) CIRCULAR SHARPING RADIUS 561 mm (60° - 90°) RADIUS 750 mm (45° - 90°) CIRCULAR MAGNETIC RADIUS 561 mm (60° - 90°) RADIUS 750 mm (45° - 90°)

LINEAR MAGNETIC TRACK 1176 - 2352 mm

LINEAR DIFFUSED 1176 - 2352 mm

LINEAR SHARPING 1176 - 2352 mm

A.24 system

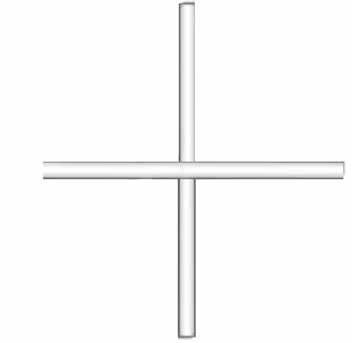

X JOINT MAGNETIC 603 x 603 mm

T JOINT MAGNETIC 603 X 315 mm

X JOINT DIFFUSED

X JOINT SHARPING

603 x 603 mm

T JOINT DIFFUSED

T JOINT SHARPING

603 X 315 mm

A.24 stand-alone typologies

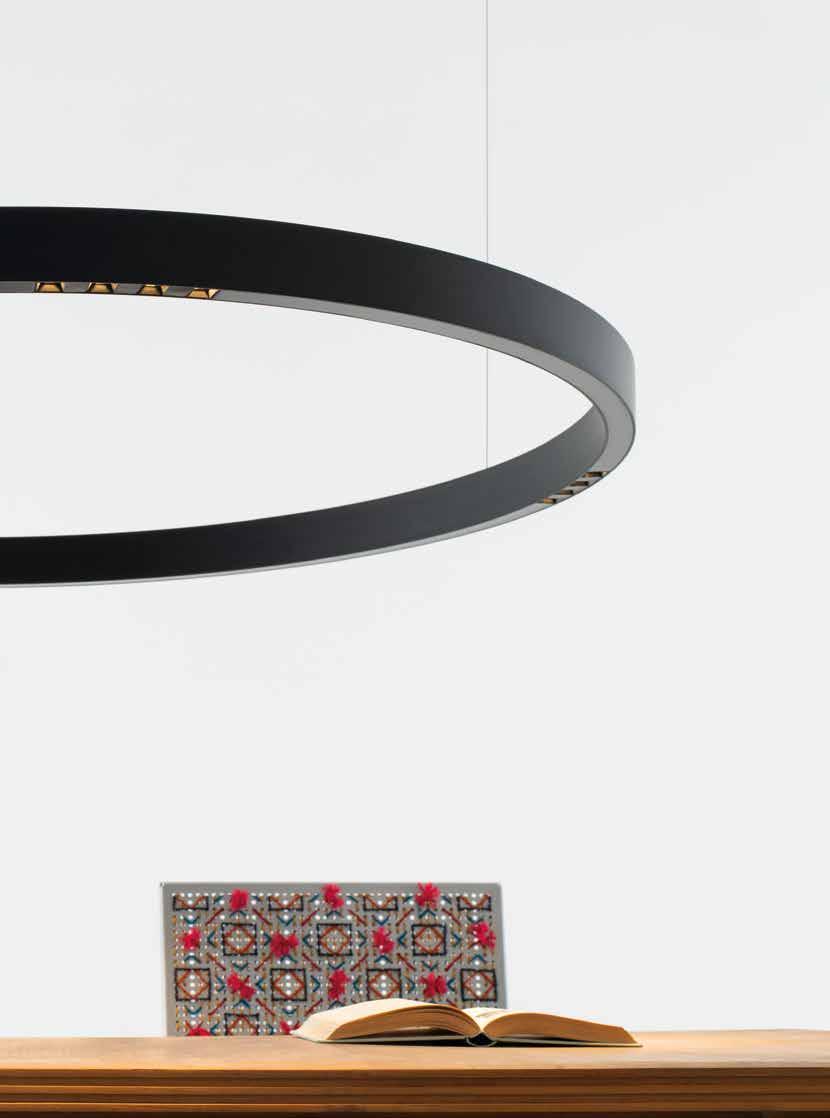

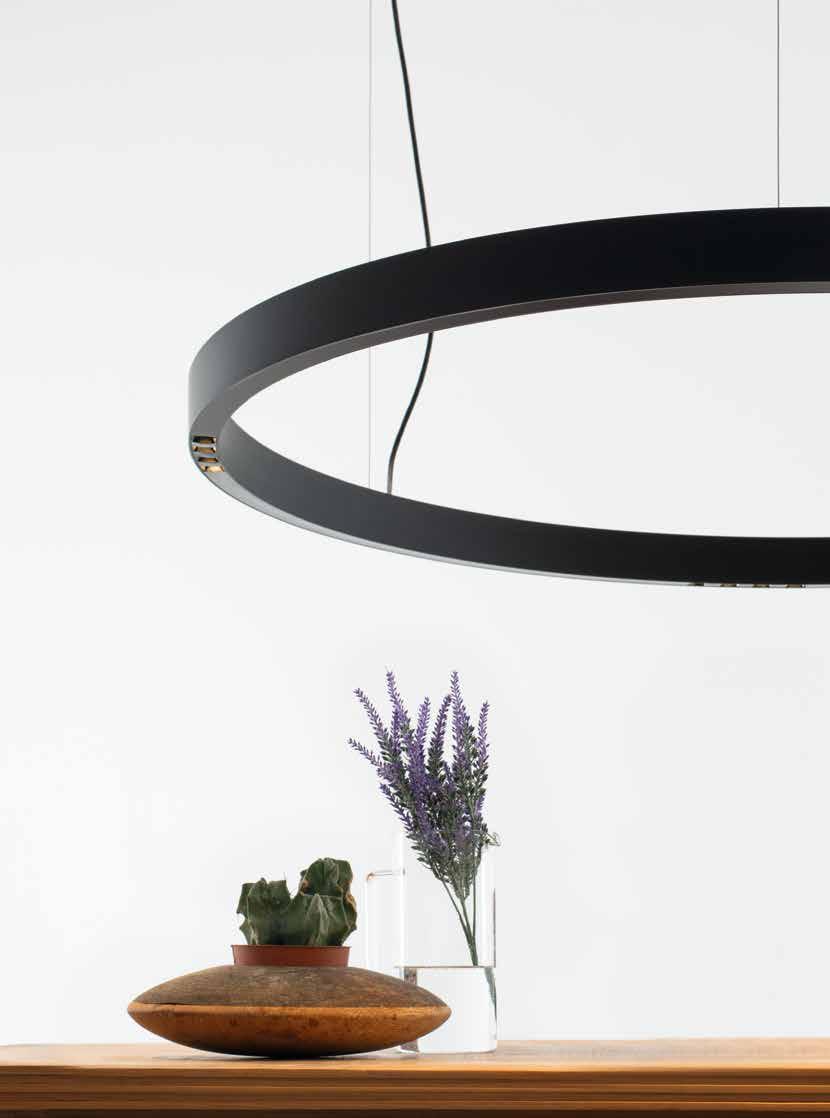

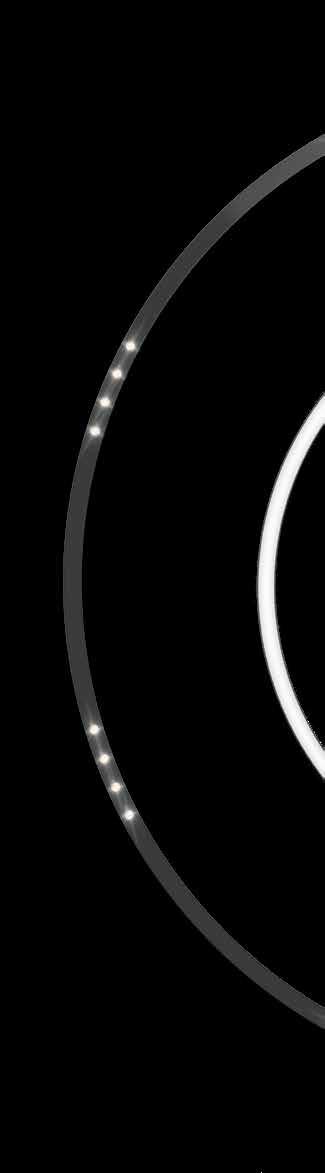

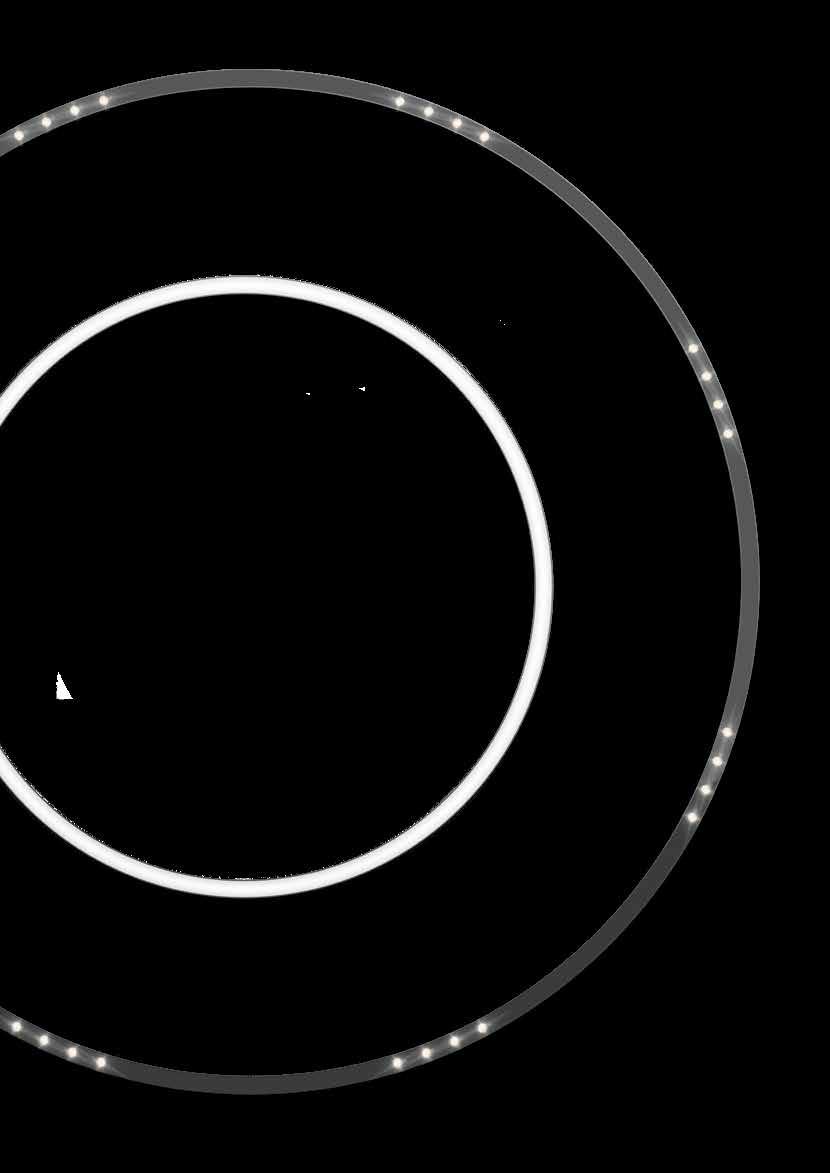

CIRCULAR SHARPING Ø 1122 mm Ø 1500 mm

CIRCULAR DIFFUSED Ø 1122 mm Ø 1500 mm

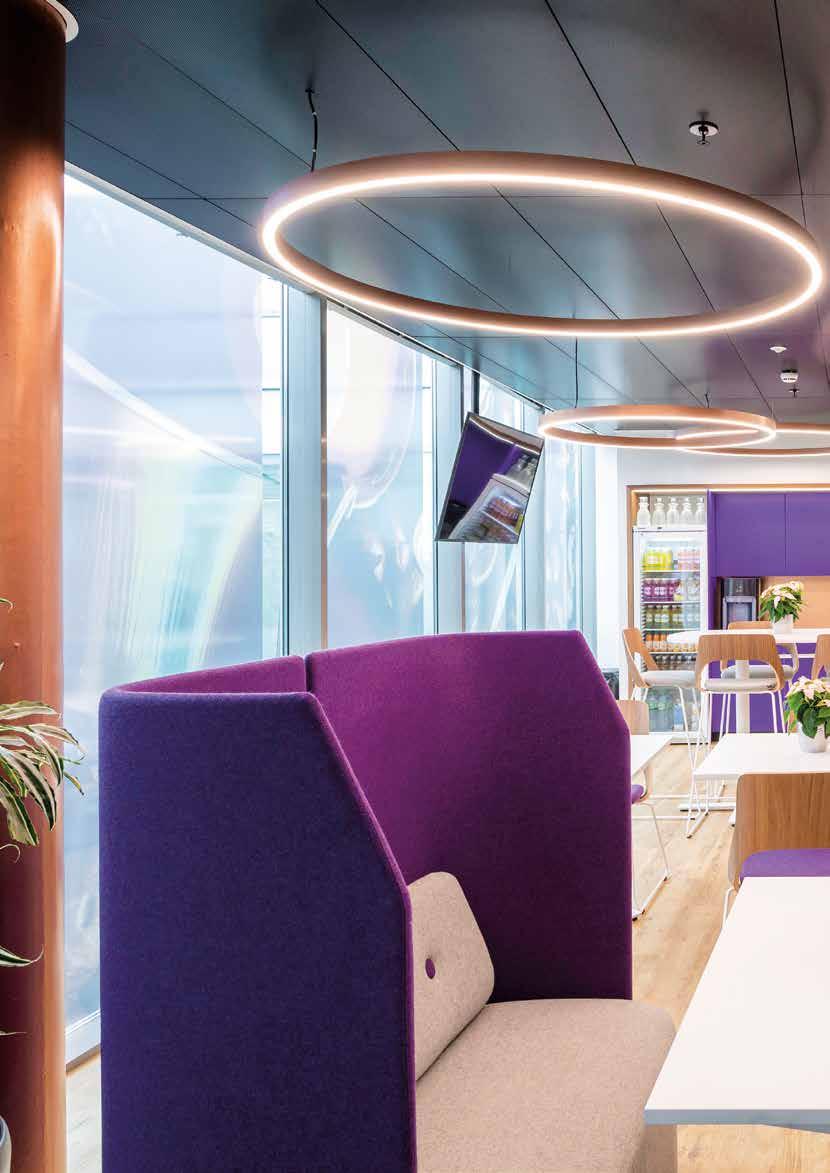

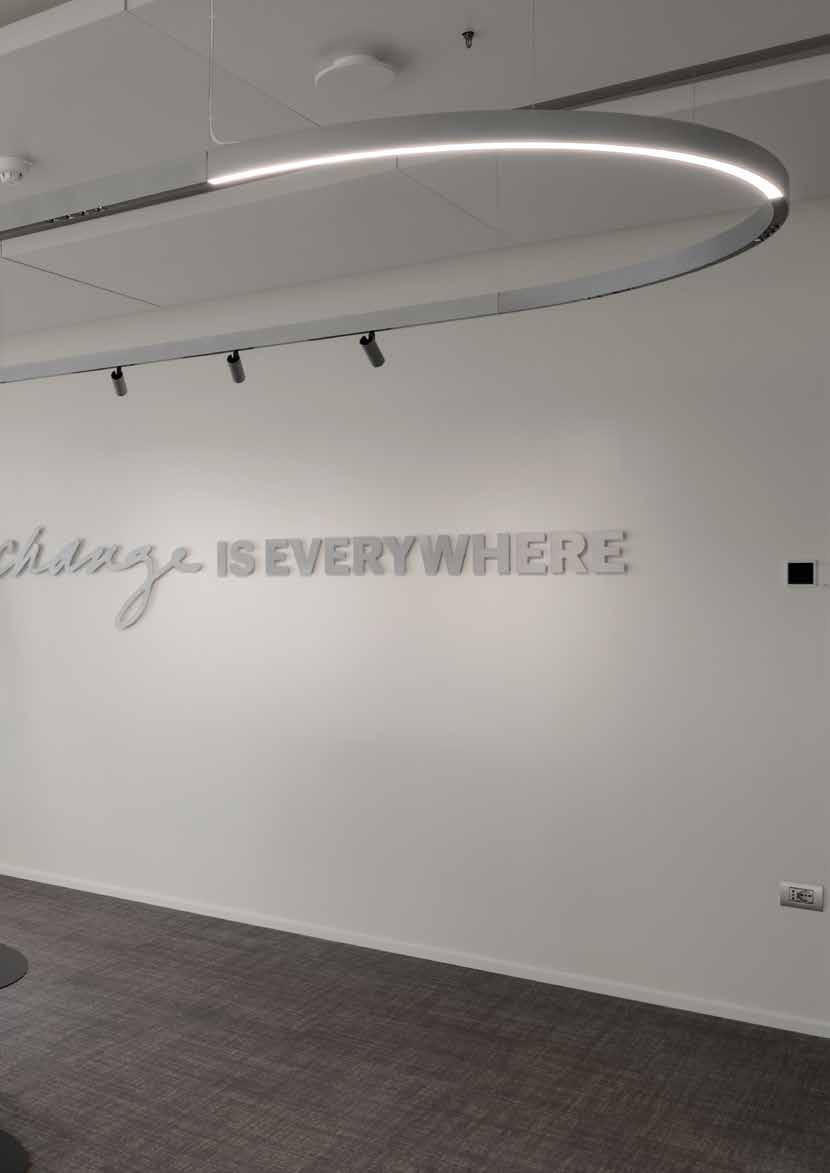

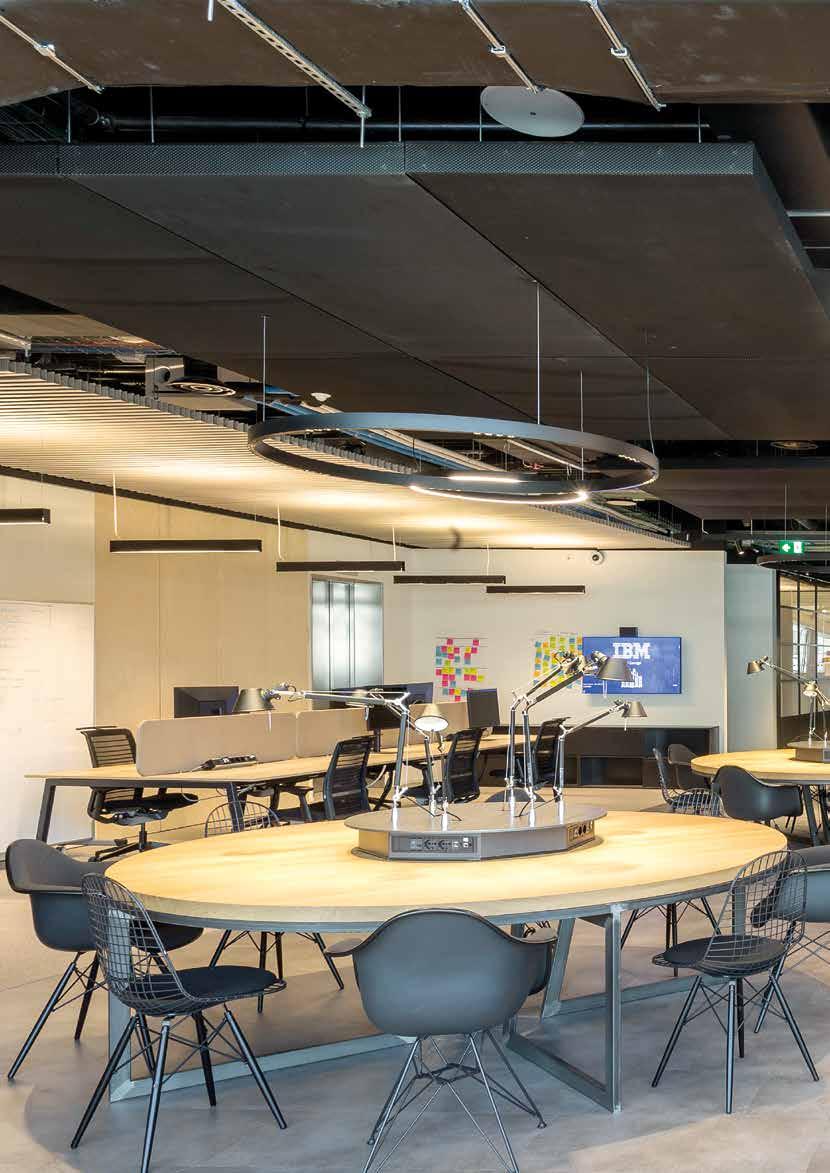

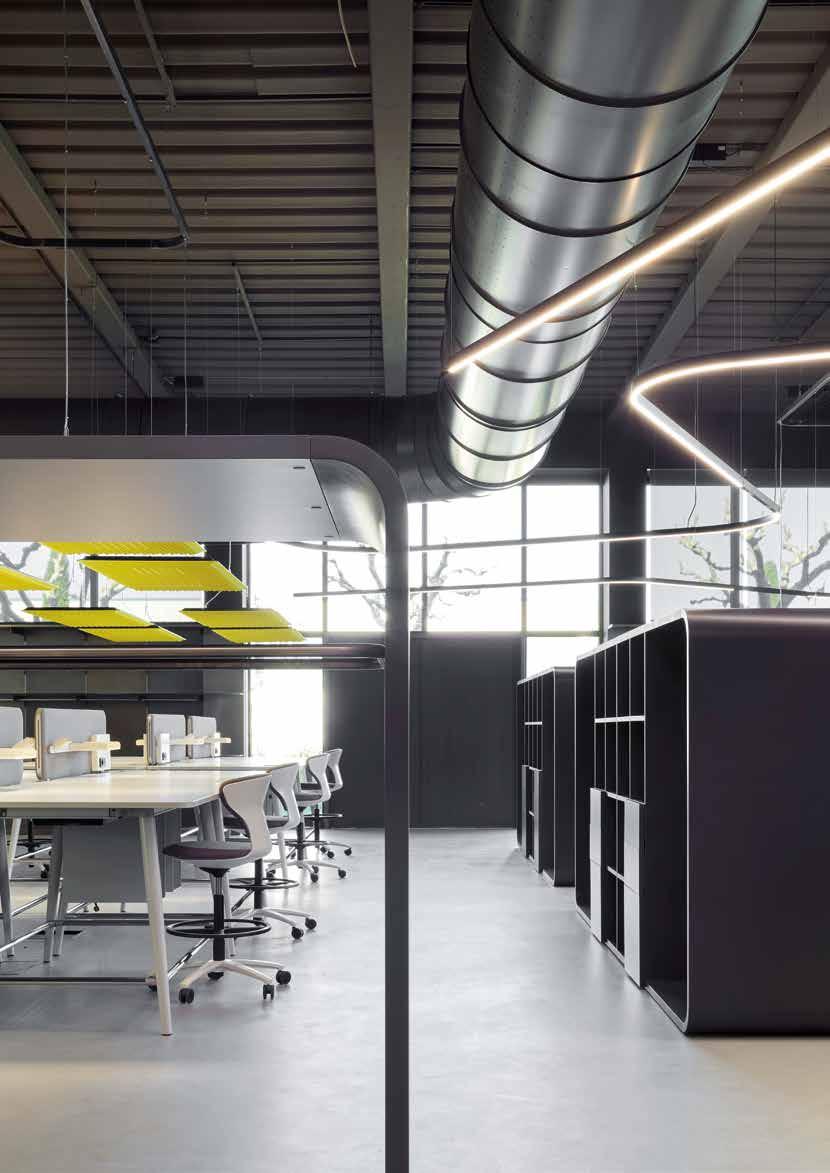

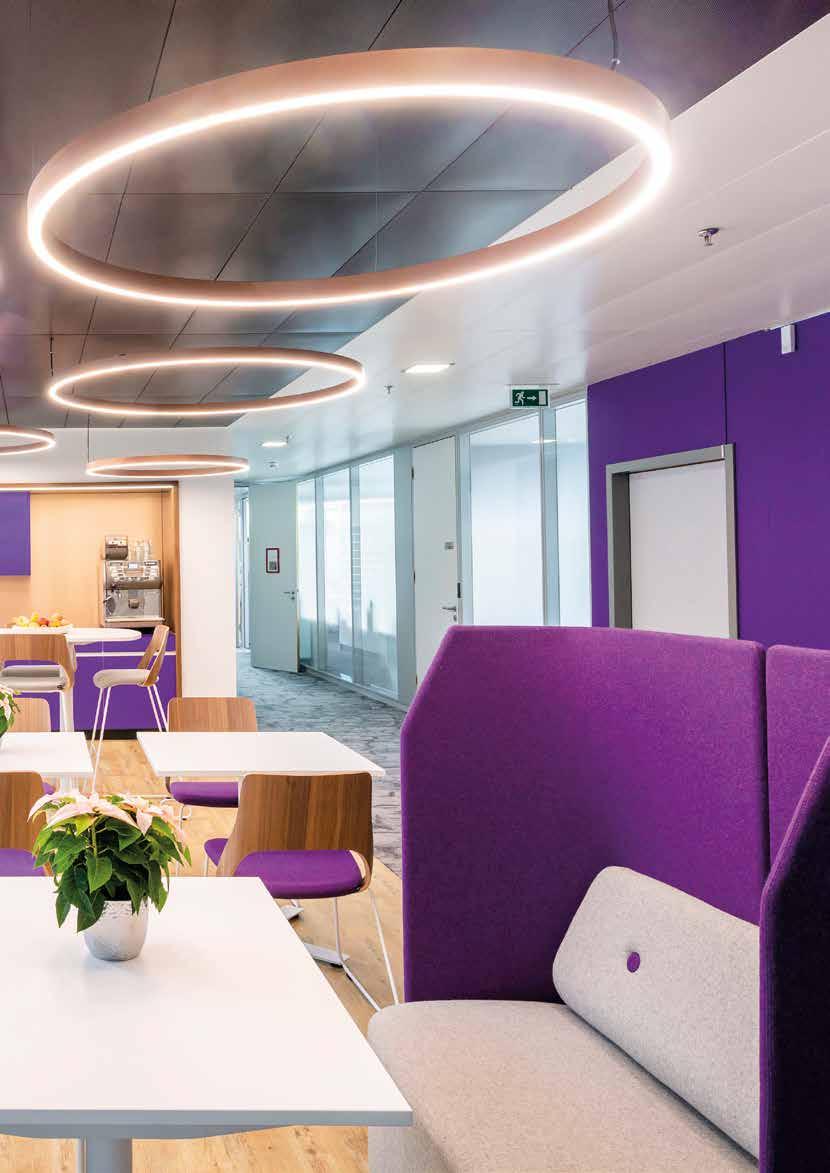

Office Milan, Italy, project by Coima & 967 Architetti Associati ph. Federico Villa | 2021

A.24 / Vector colors White 01

Black 04

Fast delivery 18

Bronze 20

Brushed Copper 18

Brushed Silver 15

Delivery time on demand

A.24 color temperatures 3000K

Fast delivery

2700K

Delivery time on demand

4000K

ADDRESS 1

A.24 is fully addressable Each module and spot can be managed separately by Artemide App or by DALI control ADDRESS ADDRESS 10

ADDRESS 2

ADDRESS 3

ADDRESS 4

ADDRESS 5

ADDRESS 6

ARTEMIDE APP

ADDRESS

16W / 33W

6,5W

MacAdam 2SDCM

*7W

MacAdam 3SDCM

CRI=90

MacAdam 3SDCM

*MacAdam 2SDCM

CCT: 2700K / 3000K / 4000K

CRI=90

CCT: 2700K / 3000K / 4000K

S 14° 329 lm

S 14° 541 lm

*F 21° 335 lm

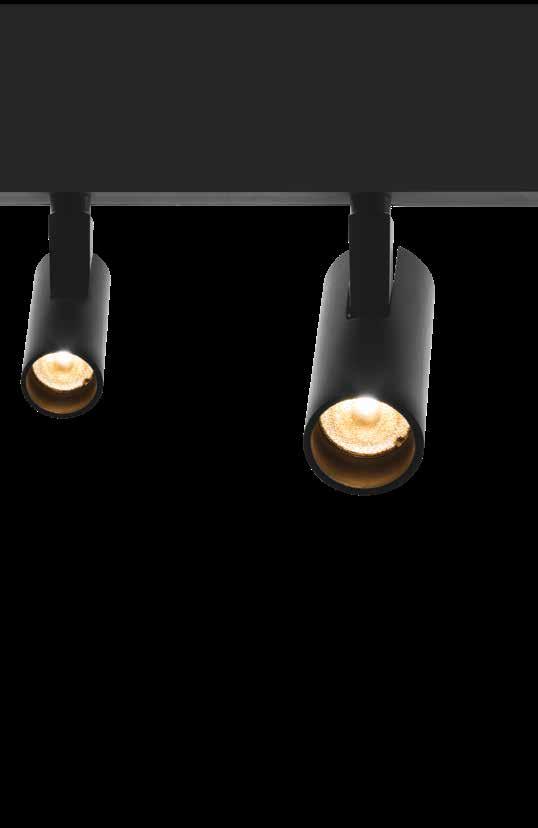

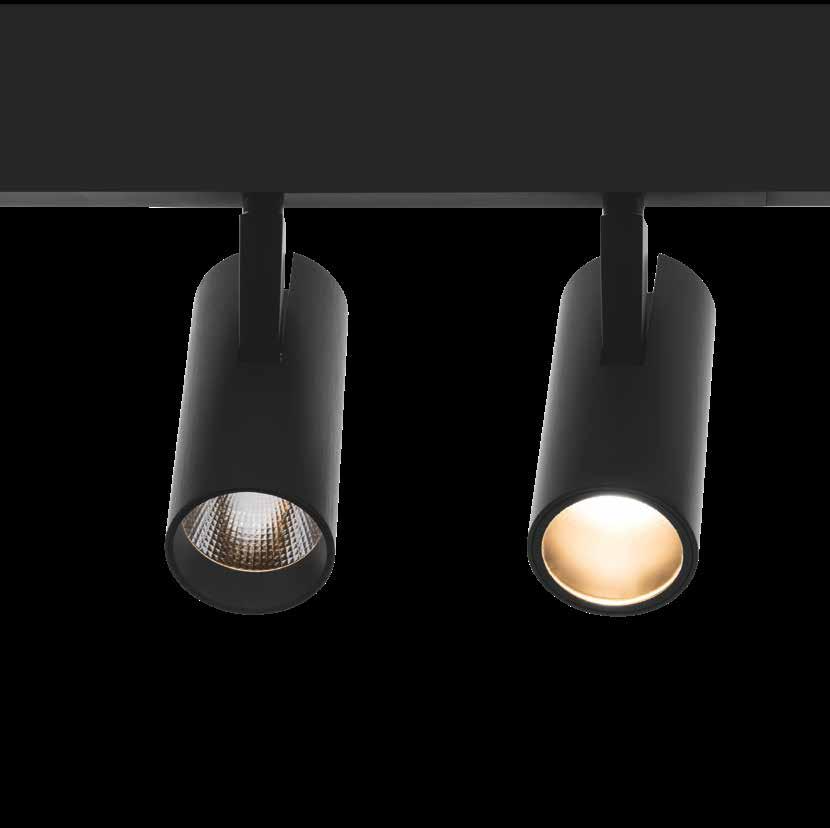

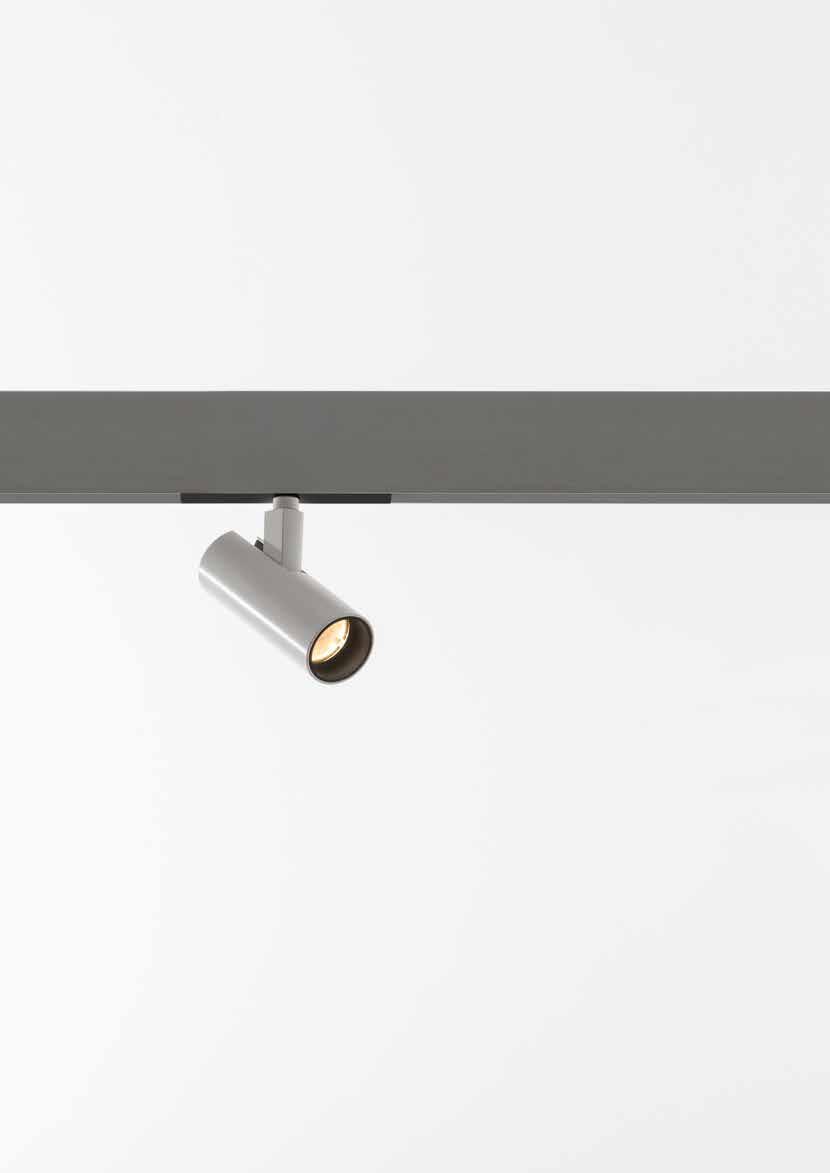

Vector 30

A.24 magnetic 24

*WF 28° 292 lm

*F 21° 584 lm

WF 28° 529 lm

Vector 40

19W

16W

MacAdam 3SDCM

CRI=90

CCT: 2700K / 3000K / 4000K

S 15° 1771 lm

S 22° 637 lm

F 22° 1811 lm

Vector 55

WF 31° 1878 lm

WF 31° 1098 lm

Vector 55 zoom

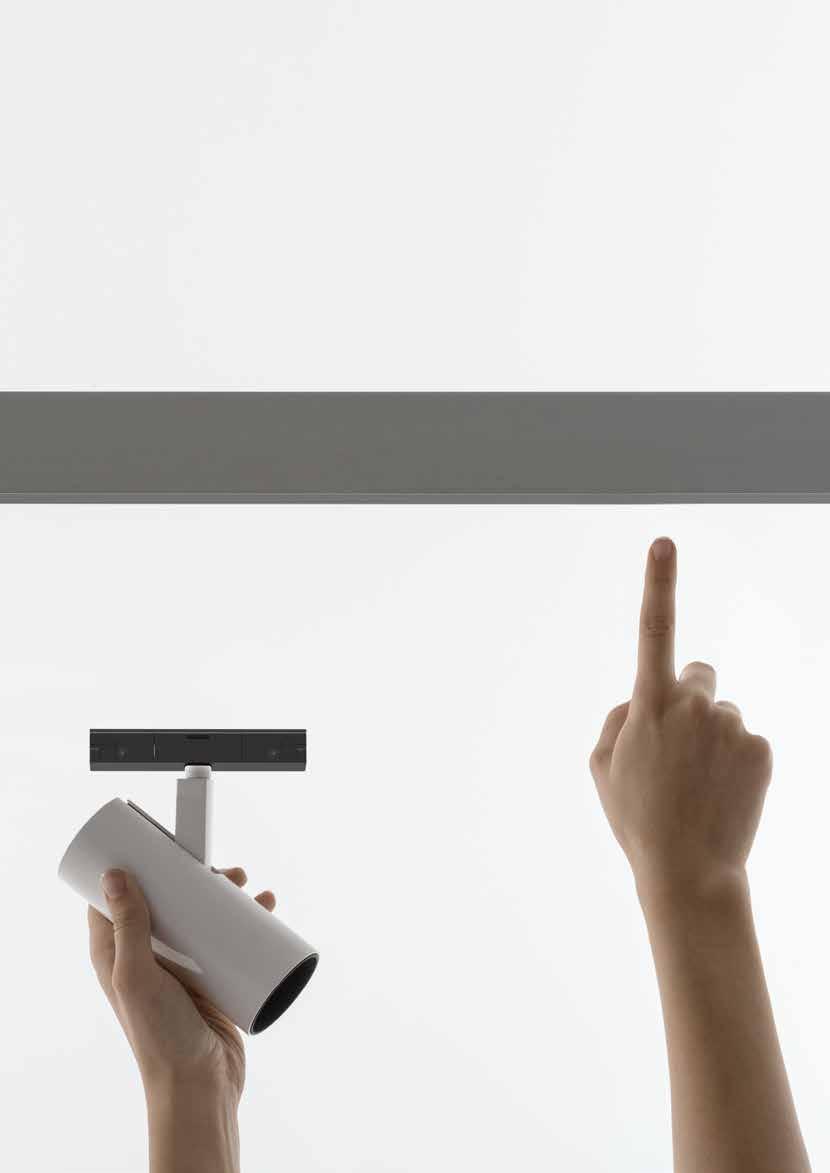

A.24 magnetic is Artemide SELV A unique feature developed for a real safe DALI interface.

D.art® is a technology developed by Artemide that overcomes the safety limits of the DALI signal in devices where the same signal is accessible to the touch. The DALI signal is transformed to a “SELV” voltage ensuring the total safety of the appliance. A.24 has been designed in compliance with international certifications.

16W / 33W MacAdam 2SDCM CRI=90 CCT: 2700K / 3000K / 4000K

33W / 66W MacAdam 2SDCM CRI=90 CCT: 2700K / 3000K / 4000K

A.24 diffused 28

16W / 33W MacAdam 2SDCM CRI=90 CCT: 2700K / 3000K / 4000K

MacAdam 2SDCM / 3SDCM CRI=90 CCT: 2700K / 3000K / 4000K

22W S 24°

22W XF 62°

45W S 24°

45W XF 62°

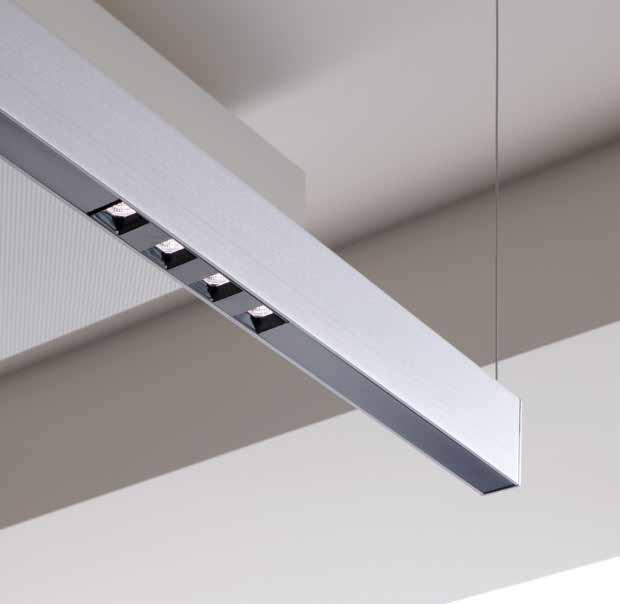

A.24 sharping

RECESSED TRIMLESS

CEILING

A.24 space fittings 30

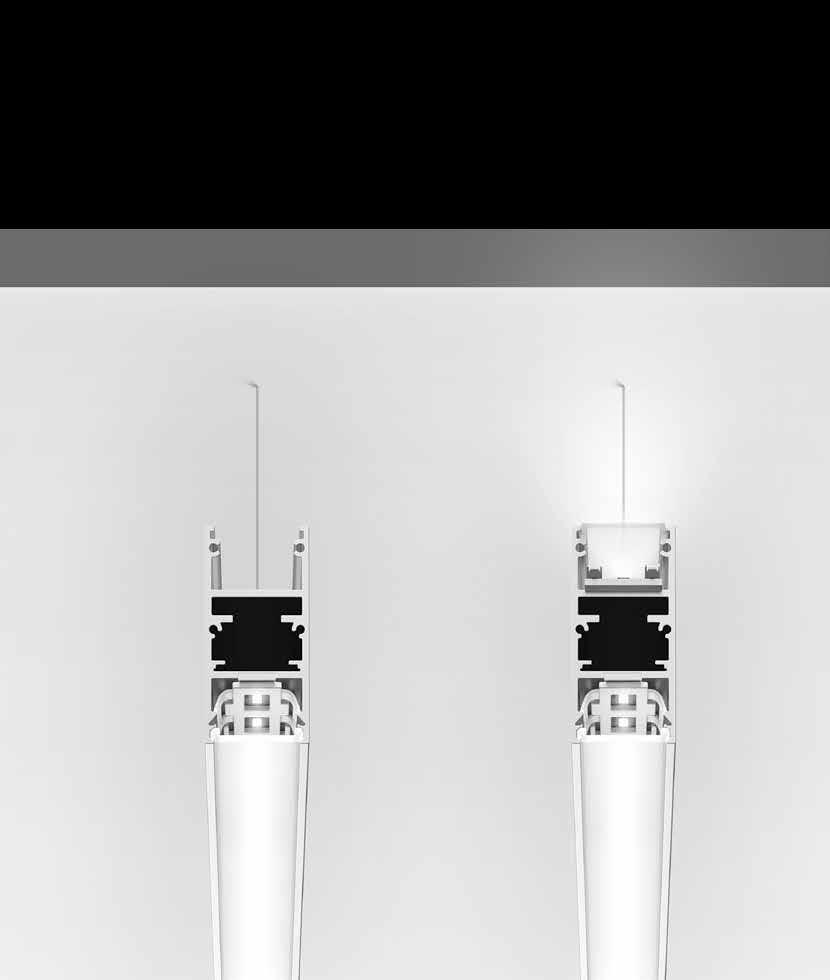

SUSPENSION

SUSPENSION WITH INDIRECT EMISSION

A.24 is balanced

NO TRACK’S ROTATION WHEN THE SPOTLIGHTS ARE TILTED IN THE SAME DIRECTION. SUSPENSION CABLE WITHOUT STIFF STEMS.

The junction arm is integrated with the spotlight body. The center of balance is perfectly aligned with the track.

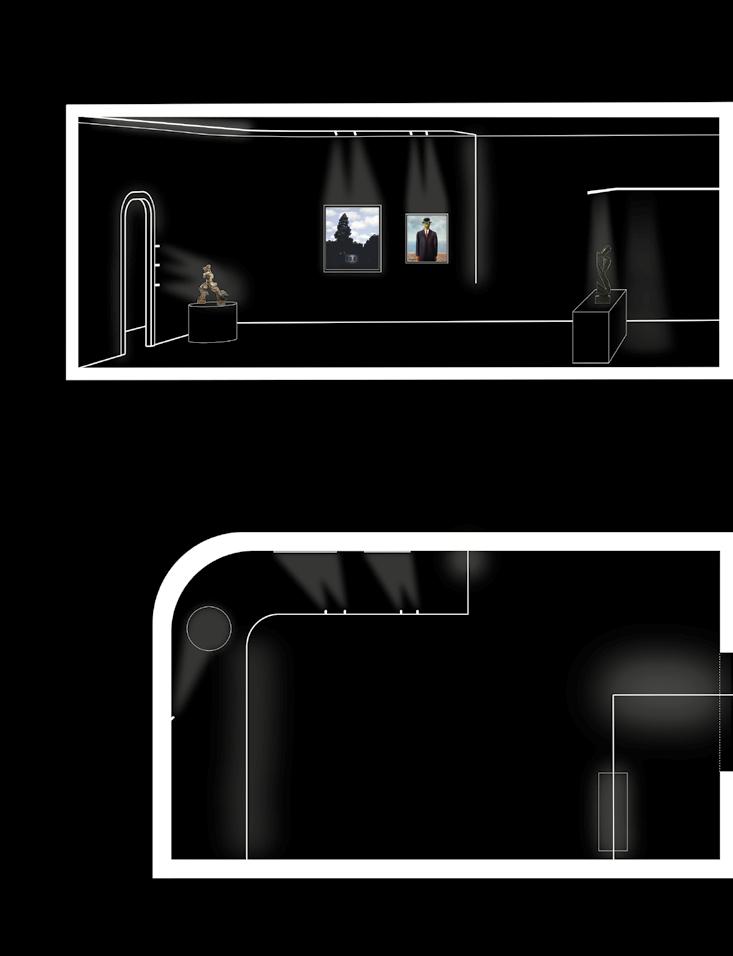

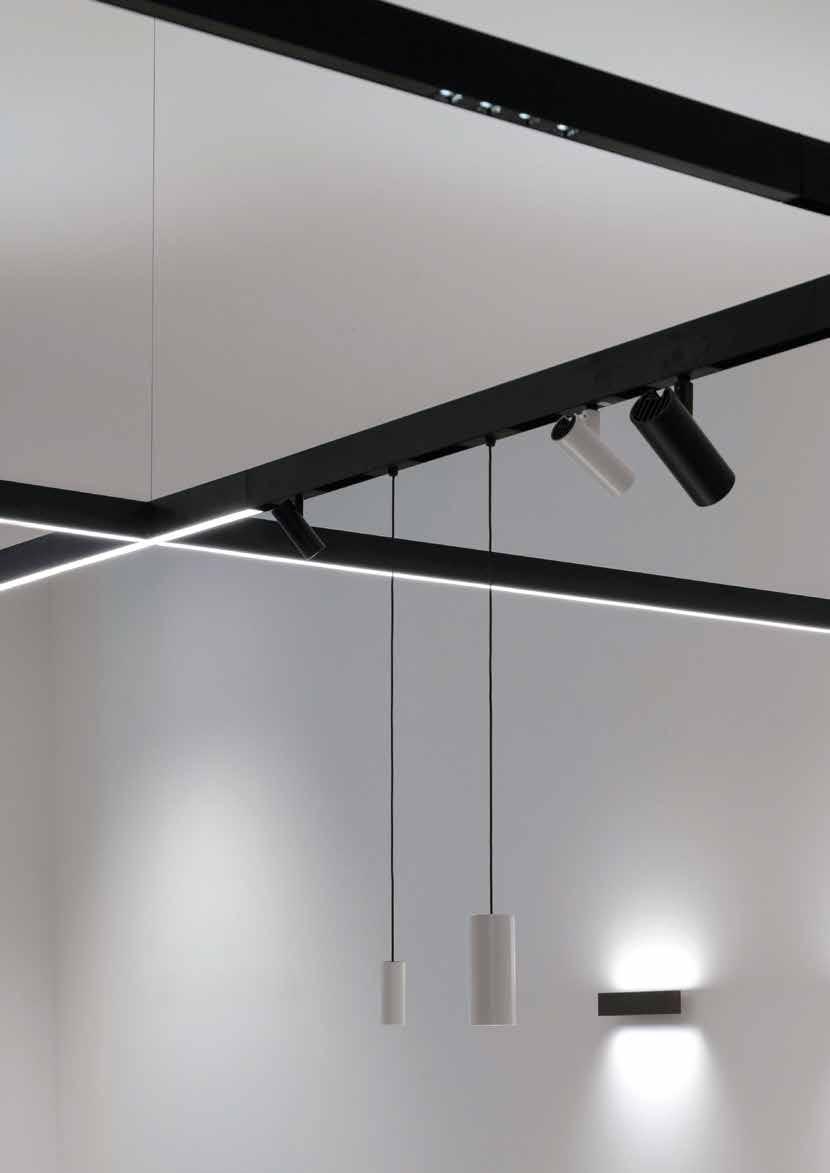

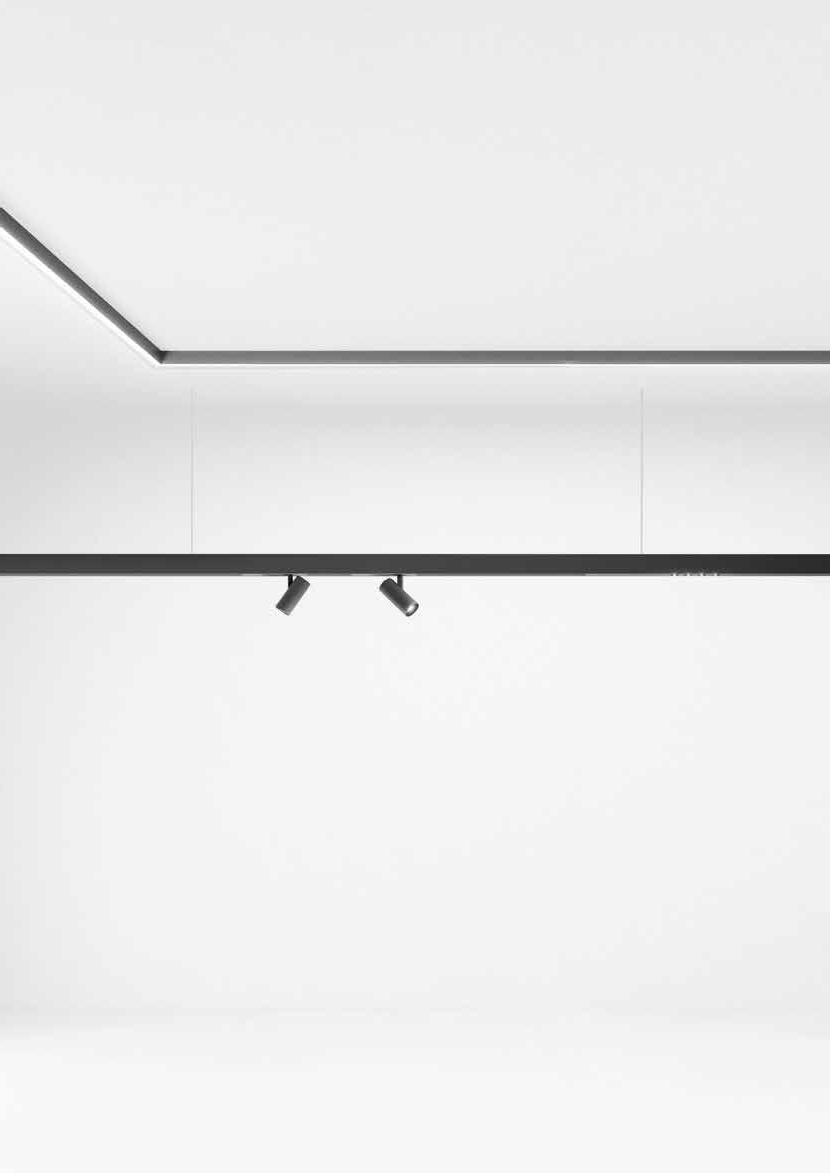

A.24 / Vector infinite possibilities 1.

3. 4.

1. A.24 recessed diffused emission

6. A.24 suspension diffused emission

2. Vector 40 magnetic

7. A.24 suspension sharping emission 64°

3. Vector 55 magnetic

8. Vector 55 zoom magnetic

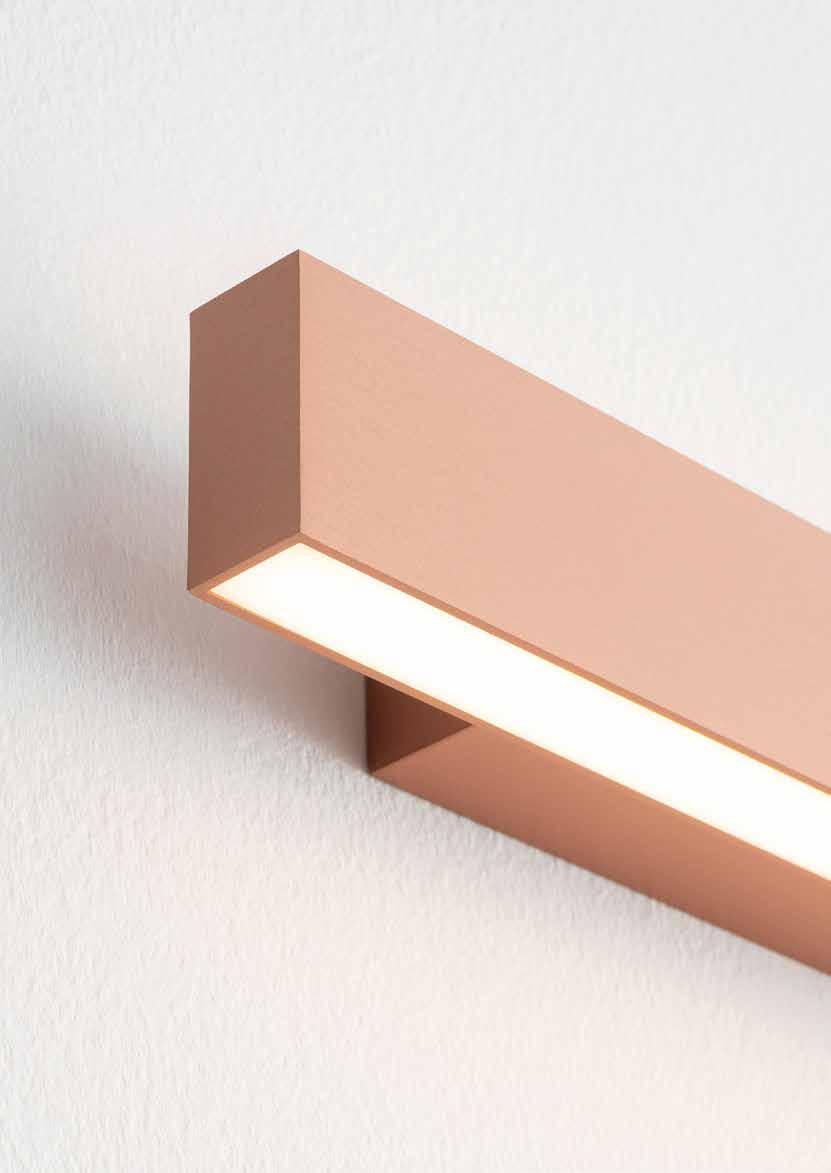

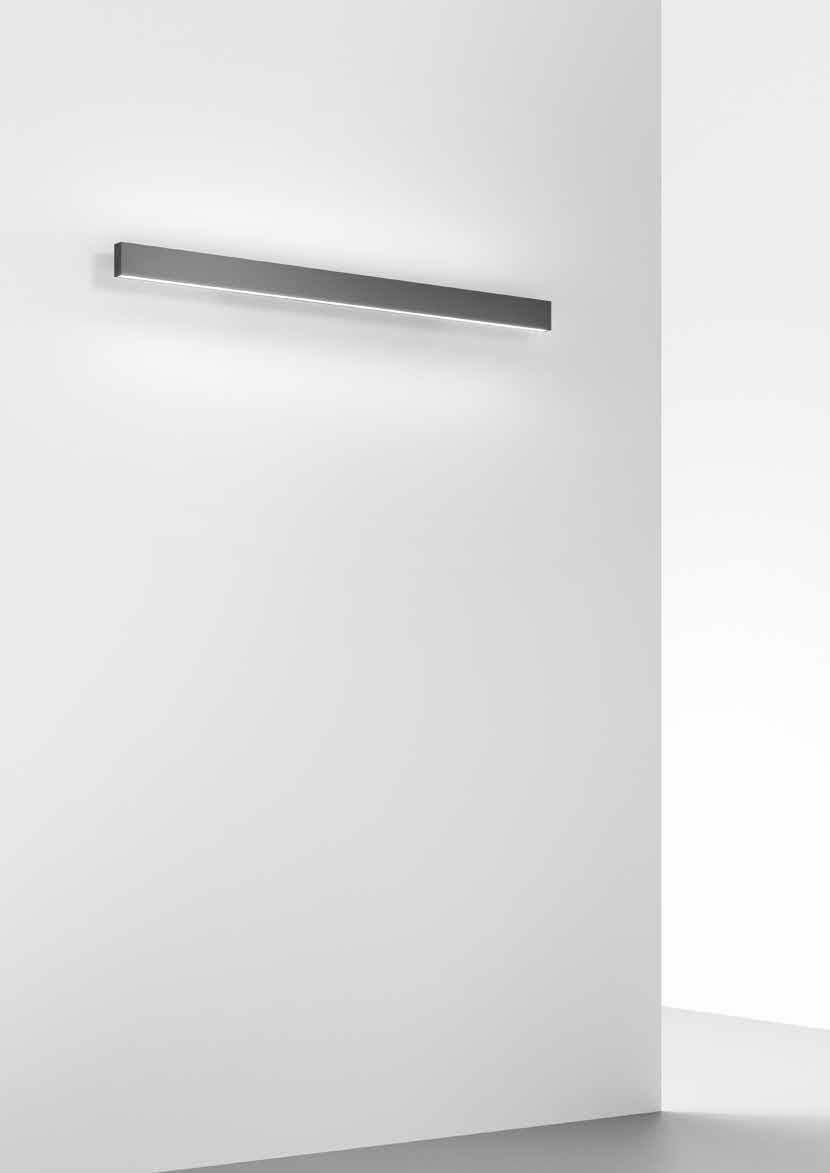

4. A.24 ceiling - wall diffused emission

9. Vector pendant securlock 40/55

5. A.24 suspension sharping emission 24°

10. A.24 suspension indirect diffused emission

10.

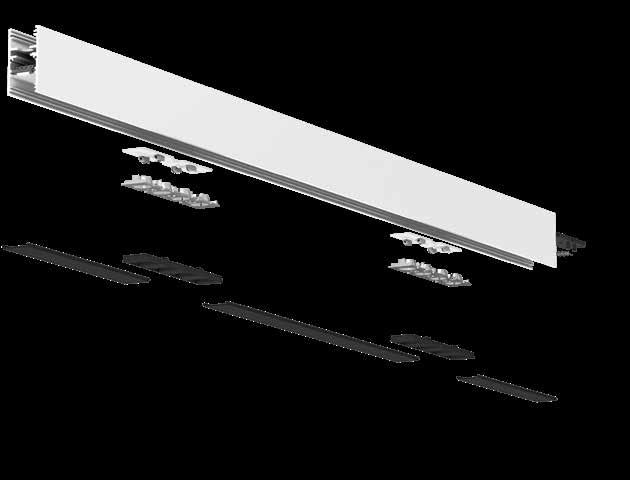

A.24 pre-configurated modules

Electrical connection

Mechanical connection

Each module (magnetic track, diffused, sharping) is pre-configurated and it is provided with: 01. the specific optical engine (magnetic, diffused , sharping). 02. the mechanical and electrical connections to combine for a continuous run. 03. each suspension module is equipped with a suspension cable. 04. each ceiling module is equipped with 1 ceiling bracket for 1176 mm lenght or with 2 ceiling brackets for 2352 mm lenght.

Suspension cable

Ceiling bracket

Electrical connection

MAGNETIC TRACK

90° TRACK ELEMENT.

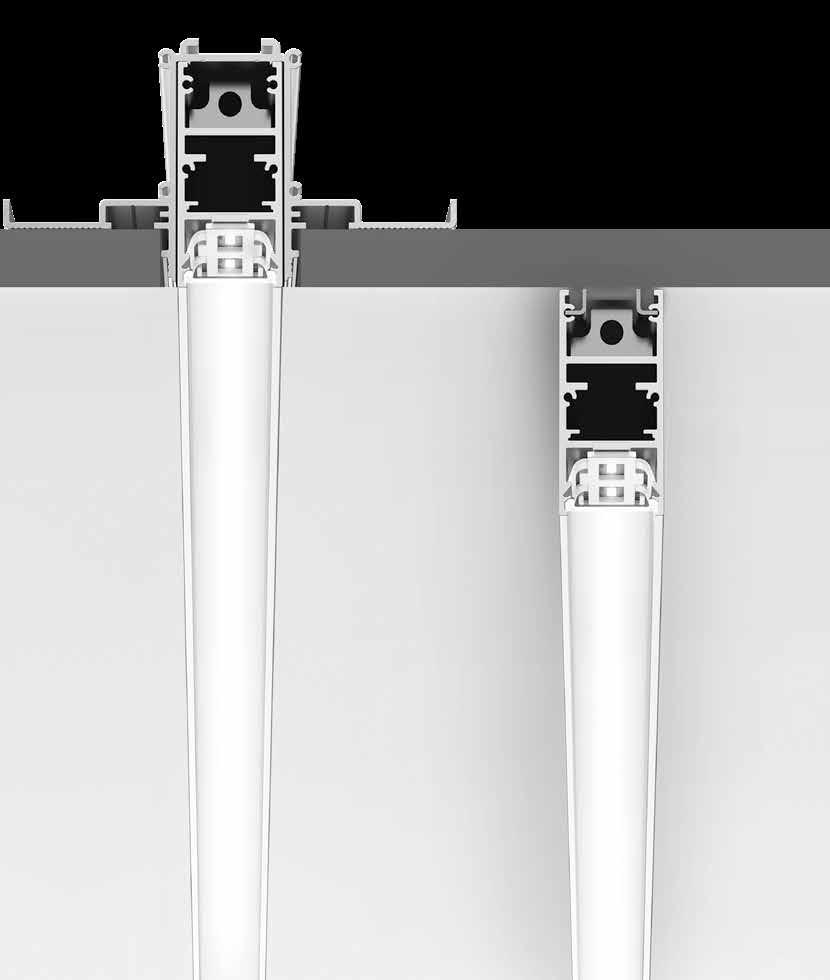

A.24 is powered by 48 Vdc It permits long runs in a small size 27x54 mm

DIFFUSED

USE INSULATING SPACERS WHEN FEEDED BY SEVERAL.

DIFFUSING 90° ANGLE ELEMENT FEEDS BOTH ARMS TOGETHER.

SHARPING

TRANSITION COMPONENT TO BE USED PASSING FROM ONE TECHNOLOGY TO A DIFFERENT ONE.

A.24 power supply kit POWER SUPPLY KIT 240W - 150W

RECESSED POWER SUPPLY 240W - 150W

REMOTE BARE POWER SUPPLY REMOTE BOX POWER SUPPLY 240W - 150W

A SUSPENSION

SMD

RECESSED

A concrete ceiling

C concrete ceiling

plaster ceiling

D concrete ceiling

plaster ceiling

B concrete ceiling

D concrete ceiling

plaster ceiling

D concrete ceiling

plaster ceiling

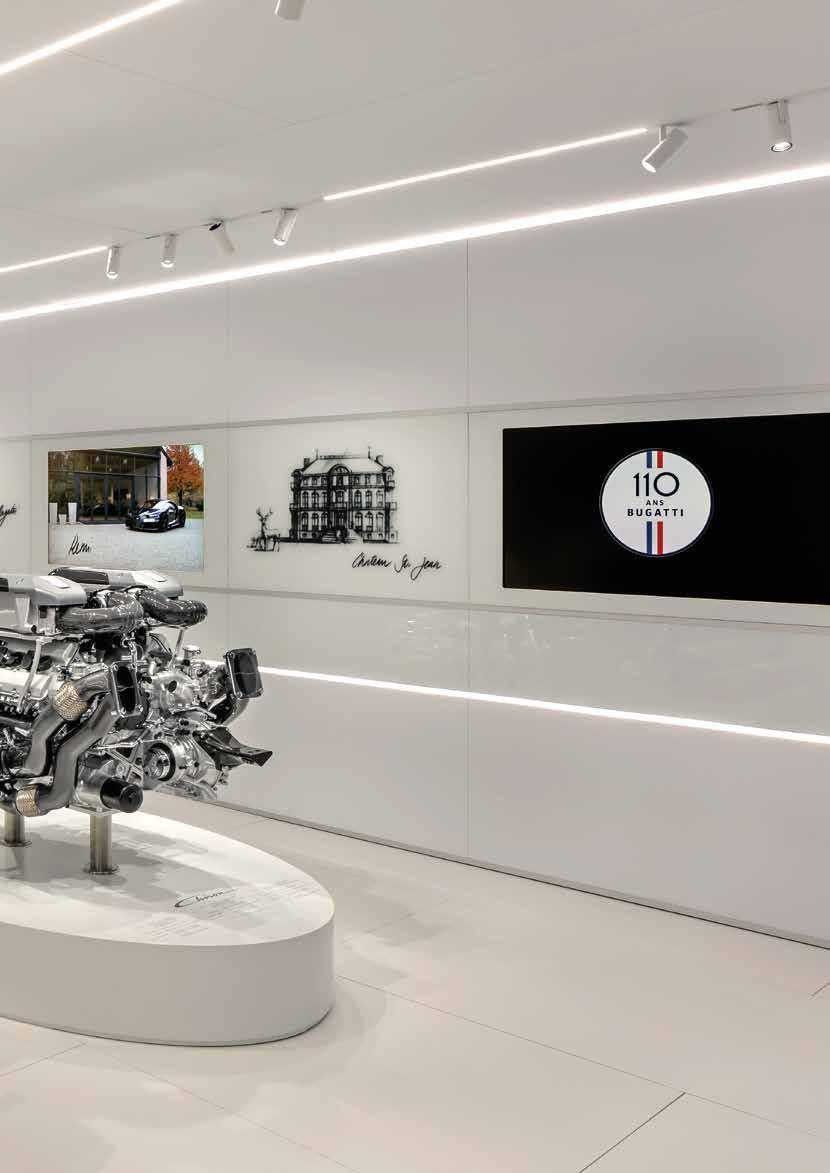

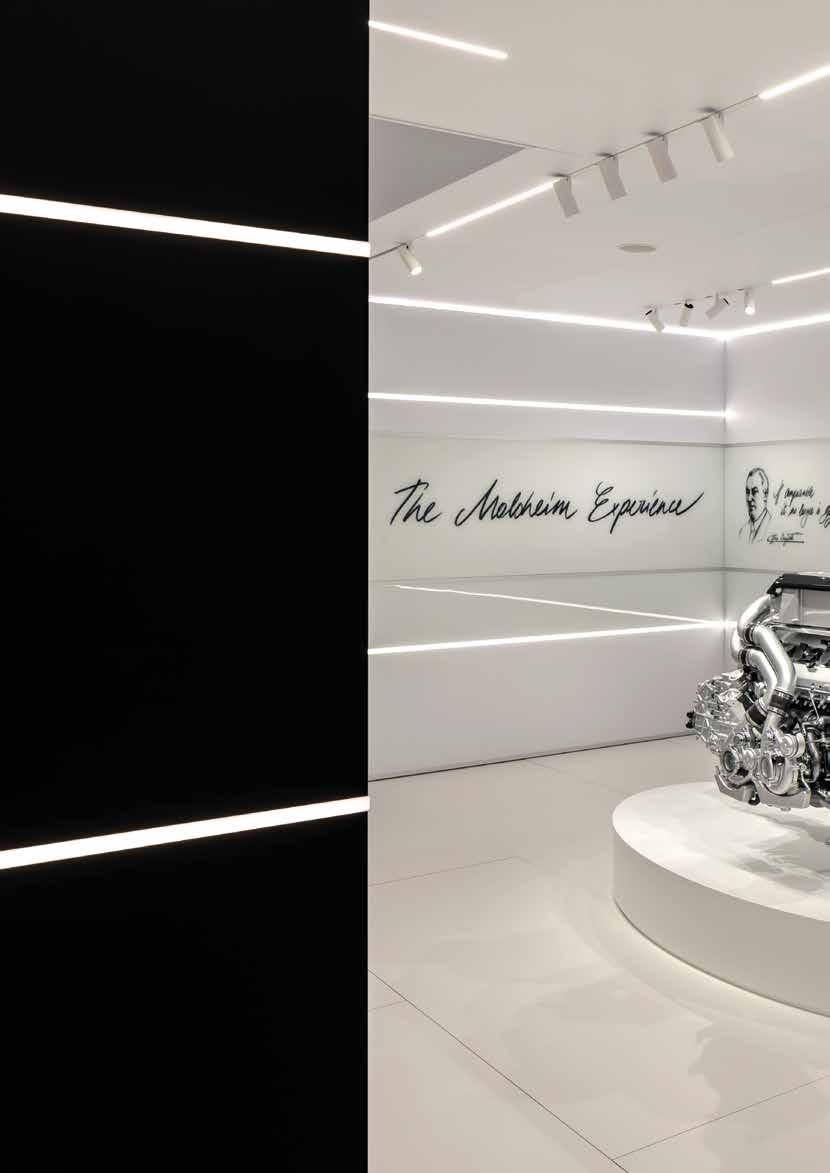

Geneva International Motorshow - Bugatti, project by Braunwagner GmbH, RGB GmbH, Geneva, Switzerland, ph. Andreas Keller | 2020

A.24 system

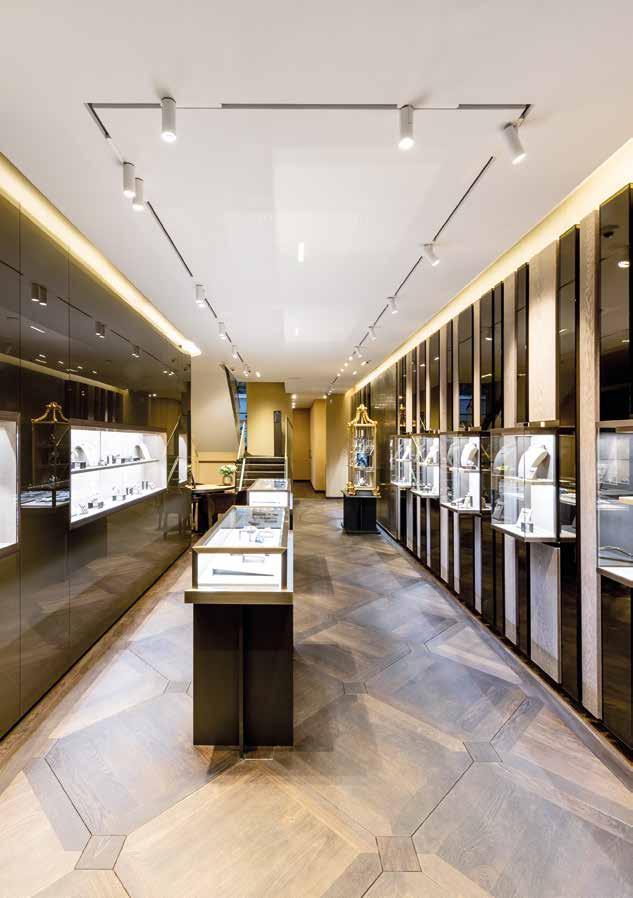

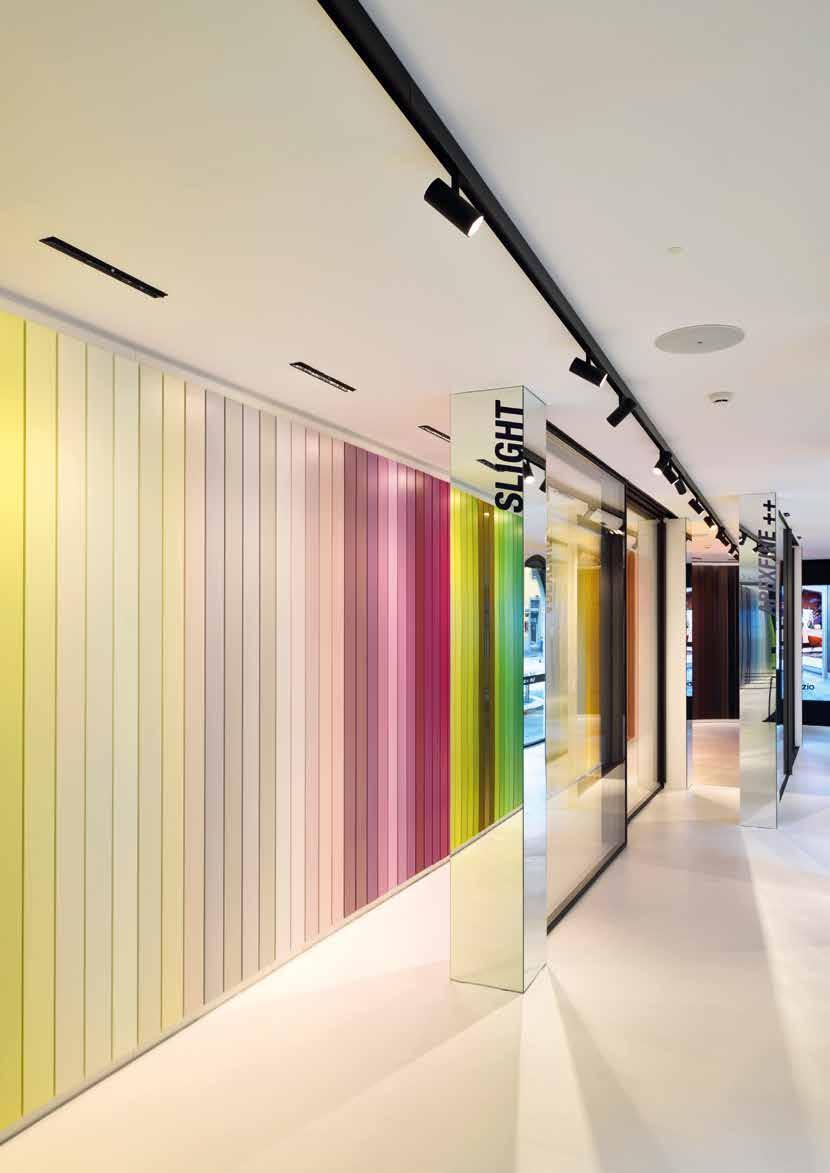

Buccellati London, project by Studio Quadrilatero + INK Associates, London, Uk, ph. Amphytype | 2020

Ponzio Showroom, project by Enzo Eusebi, Milan, Italy, ph. Michele Nastasi | 2021

Showroom Arpa Industriale, project by Lem Agenzia Architettura (Arch. Mosconi), Bra (Cuneo), ph. Lem Agenzia Architettura | 2020

A . 24 RECESSED M AGNE TIC TR ACK White

Black

IP20

LINEAR MODULES

Length x 56 mm

Code AQ150. 01/04 AQ151. 01/04

Length 1176 mm 2352 mm

24 117

90° ANGLES

301

Code AQ155. 01/04

90° on same plane track angle modules 301 x 301 mm 90° on perpendicular planes track angle modules 276x276 mm

AQ156. 01/04

301 306

276

X&T JOINTS

X Joint T Joint

Code AQ138. 01/04 AQ100. 01/04

Dimensions 603 x 603 mm 603 x 315 mm

45° r = 750

r = 750

CURVED MODULES (not magnetic) Radius 561 mm

90°

Alpha 60°

Code AQ500. 01/04

90°

AQ510. 01/04

45°

AQ520. 01/04

90°

AQ530. 01/04

45° r = 750

r = 750 60°

750 mm

r = 561

60° r = 561

Formwork (aluminum) Length Curved

Radius 561 mm 750 mm

End caps (2pcs)

Alpha 60° 90° 45° 90°

Code AQ59000 AQ59100 AQ59200 AQ59300 AQ29400

90° r = 561

9 45°

r = 750

90° 60°

45°

90°

r = 561 r = 750

90° r = 561

Each linear, angle and curved element is provided with mechanical and electrical joints and installation accessories. End caps have to be ordered separately. The APP driver can not be controlled by DALI dimming system and viceversa.

The white power kit is supplied with a white cable, while the black power kit is supplied with a black cable.

Power supply Accessory

Accessories Insulating spacer (1 pcs) use between modules powered by different power supplies

End caps (2 pcs) used for linear modules, 90° angles and X&T joints

Code AQ152. 01/04

AQ153. 01/04

End caps (2 pcs) used for curved modules

AQ250. 01/04

Transition joint use between different typology modules (track-diffusingsharping)

AQ290. 01/04

4pcs feed connectors (for powering multiple sections with a single power kit) Power cable, 2x0.75 + 2x0.35, mm2, white, 10 m (to realize customized power cables) Power cable, 2x0.75 + 2x0.35, mm2, white, 50 m (to realize customized power cables) Power cable, 2x0.75 + 2x0.35, mm2, black, 10 m (to realize customized power cables) Power cable, 2x0.75 + 2x0.35, mm2, black, 50 m (to realize customized power cables)

Undimmable Code AQ158. 01/04

Dimmable DALI Code AQ157. 01/04

APP Dimmable DALI Code AQ157. 01/04 APP

320W Recessed power supply kit (cable length 2,2 m) for recessed/ceiling modules 230VAC-48VDC IP20 396x195x112h

AQ15901

AQ16901

AQ16901APP

240W Recessed power supply kit (cable length 2,2 m) for recessed modules 230VAC-48VDC IP20 396x195x112h

AQ17801

AQ16801

AQ16801APP

240W Power supply kit (cable length 2,2 m) for recessed modules 230VAC-48VDC IP20 400x110x49h

AQ173. 01/04

AQ172. 01/04

AQ172. 01/04 APP

150W Power supply kit (cable length 2,2 m) for recessed modules 400x110x49h 230VAC-48VDC IP20

AQ179. 01/04

AQ177. 01/04

AQ177. 01/04 APP

240W Bare power supply + plug (1 feed connector) 244x68x38h ON-OFF 230VAC-48VDC IP20 (for dimmable version to be combined with “DALISelv interface”) 150W Bare power supply + plug (1 feed connector) ON-OFF 230VAC-48VDC IP20 244x68x38h (for dimmable version to be combined with “DALISelv interface”) DALI to DALI-Selv Interface 103x67x21h

AQ18000

Power supply 320W Recessed power supply kit (cable length 2,2 m) for suspension modules 230VAC-48VDC IP20 396x195x112h

AQ18100

DV1061

320W Remote box power supply kit (2 feed connectors) 230VAC-48VDC IP20 313x243x57,5h

AQ16800

AQ16800APP

240W Remote box power supply kit (2 feed connectors) 230VAC-48VDC IP20 313x243x57,5h

AQ16000

AQ16000APP

Undimmable Code AQ90500

AQ90600 AQ90700 AQ90800 AQ90900

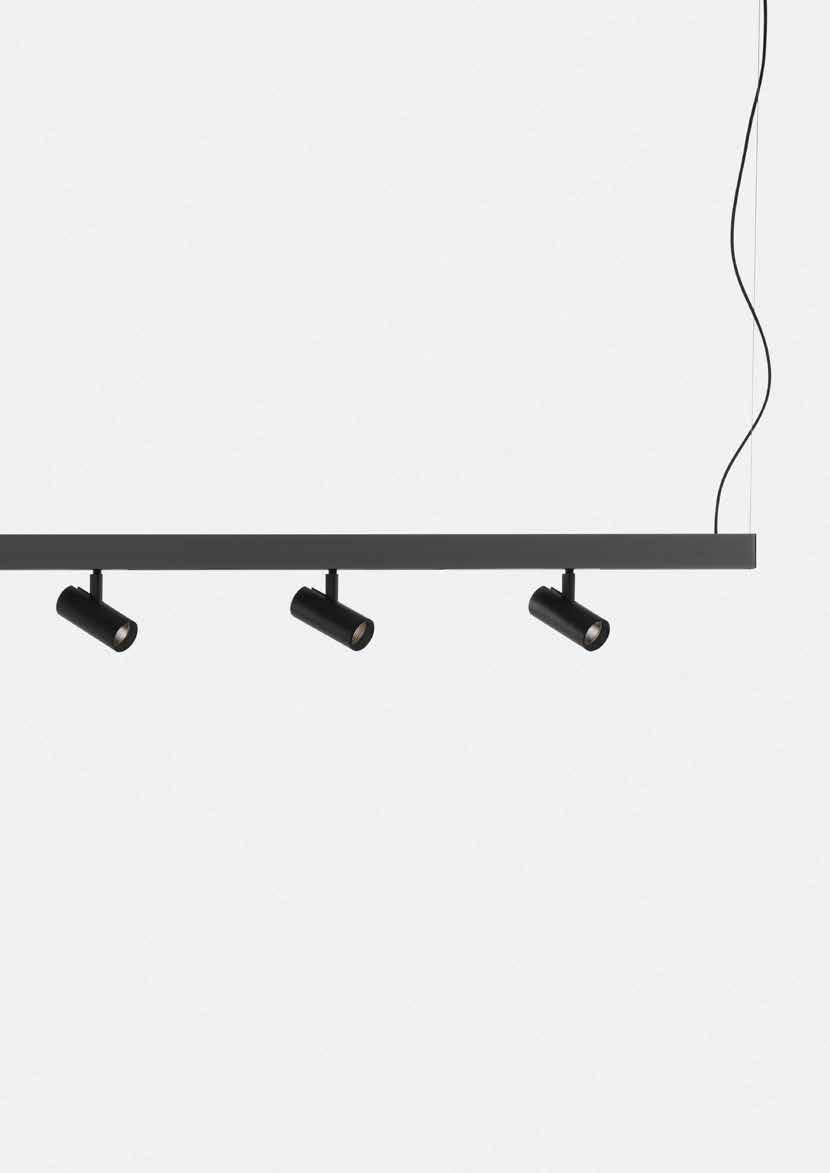

A . 24 SUSPENSION M AGNE TIC TR ACK White

Brushed Brushed Brushed Copper Bronze Silver

Black

01 04 Fast delivery

IP20

*Uses 1 DALI address

15 18 20 Delivery time on demand

LINEAR MODULES Code AQ400. 01/04 15/18/20 AQ401. 01/04 15/18/20

2352 mm

CCT 2700K

1796 lm

3000K

Code AQ406. 01/04 15/18/20 AQ402. 01/04 15/18/20 AQ403. 01/04 15/18/20 AQ407. 01/04 15/18/20 AQ404. 01/04 15/18/20 AQ405. 01/04 15/18/20

4000K 2352 mm*

29W

3386 lm

2700K

3591 lm

3000K

4000K

Direct + indirect emission modules Length W CRI Flux 1176 mm* 14W 90 1693 lm

Length 1176 mm

90° ANGLES Code AQ492. 01/04 15/18/20 301

90° suspended track corner (on same plane) 301x301 mm

301

X&T JOINTS Dimensions 603 x 603 mm

T Joint

603 x 315 mm

Code AQ139. 01/04 15/18/20 AQ101. 01/04 15/18/20 301

301

X Joint

301

CURVED MODULES (not magnetic) Radius 561 mm

Alpha 60° 90°

750 mm

45° 90°

Code AQ700. 01/04 15/18/20 AQ710. 01/04 15/18/20 45° 45° AQ720. 01/04 r = 750 r = 750 15/18/20 AQ730. 01/04 15/18/20

60° r = 561

301

90°

r = 750

90°

60° r = 561

90°

r = 561

90°

90° r = 561

45° r = 750

r = 750

45° r = 750

r = 750

90°

301

301 301

Each linear, angle and curved modules are provided with mechanical and electrical joints, and installation accessories. 1 suspension cable is also included. End caps have to be ordered separately. The APP driver can not be controlled by DALI dimming system and viceversa.

The white power kit is supplied with a white cable, while the black power kit is supplied with a black cable.

Power supply Accessory

Accessories Insulating spacer (1 pcs) between modules powered by different power supplies

End cap (2 pcs) including 2 suspension cables 200H

Code AQ491. 01/04 15/18/20

AQ490. 01/04 15/18/20

Transition joint between different typology modules (track-diffusingsharping)

AQ494. 01/04 15/18/20

Auxiliary suspension cable (1 pcs) to be used for S-configuration

AQ49500

Undimmable Code AQ158. 01/04

Dimmable DALI Code AQ157. 01/04

APP Dimmable DALI Code AQ157. 01/04 APP

320W Recessed power supply kit (cable length 2,2 m) for recessed/ceiling modules 230VAC-48VDC IP20 396x195x112h

AQ15901

AQ16901

AQ16901APP

240W Recessed power supply kit (cable length 2,2 m) for recessed modules 230VAC-48VDC IP20 396x195x112h

AQ17801

AQ16801

AQ16801APP

240W Power supply kit (cable length 2,2 m) for recessed modules 230VAC-48VDC IP20 400x110x49h

AQ173. 01/04

AQ172. 01/04

AQ172. 01/04 APP

150W Power supply kit (cable length 2,2 m) for recessed modules 400x110x49h 230VAC-48VDC IP20

AQ179. 01/04

AQ177. 01/04

AQ177. 01/04 APP

AQ18000

Power supply 320W Recessed power supply kit (cable length 2,2 m) for suspension modules 230VAC-48VDC IP20 396x195x112h

AQ18100

DV1061

320W Remote box power supply kit (2 feed connectors) 230VAC-48VDC IP20 313x243x57,5h

AQ16800

AQ16800APP

240W Remote box power supply kit (2 feed connectors) 230VAC-48VDC IP20 313x243x57,5h

AQ16000

AQ16000APP

Undimmable Code AQ90500

AQ90600 AQ90700 AQ90800 AQ90900

53 The Modernist Hotel, project by Arch. Ana Jokic, Trieste, ph. Roberto Pastrovicchio | 2019

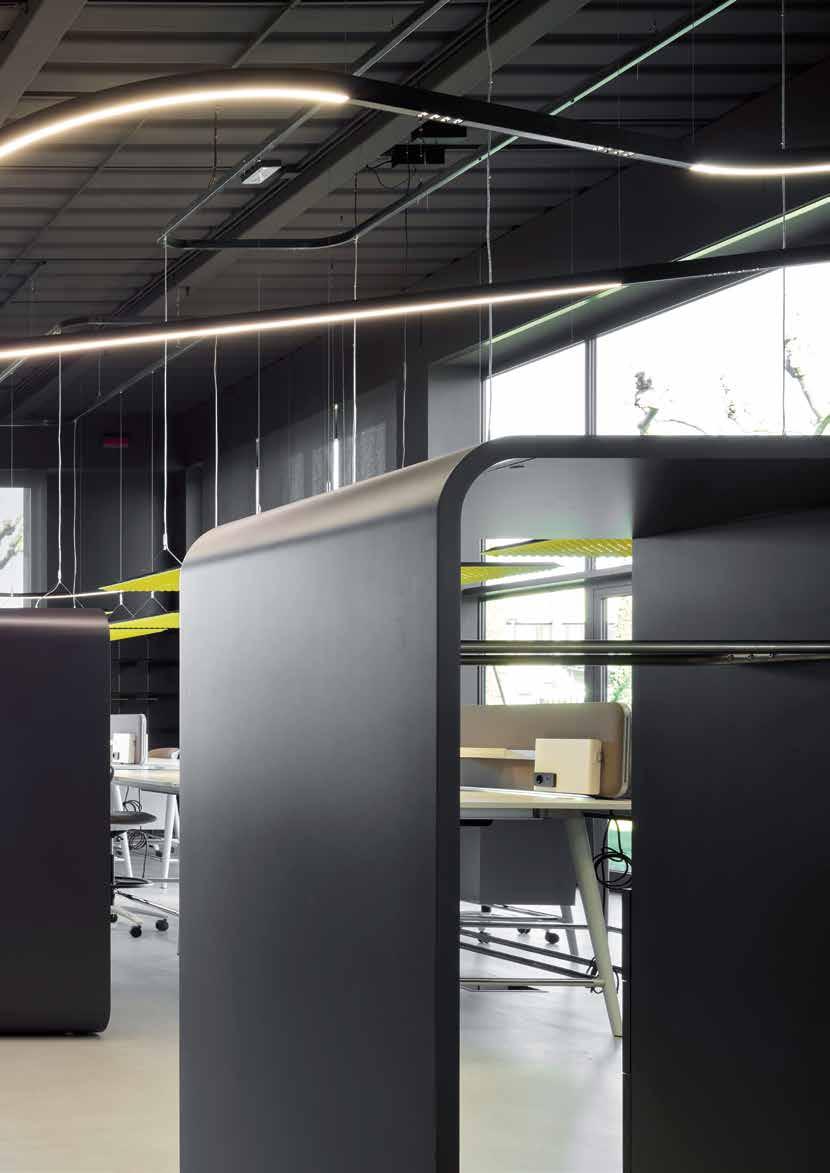

Progetto CMR Offices, Milan, ph. Andrea Martiradonna | 2019

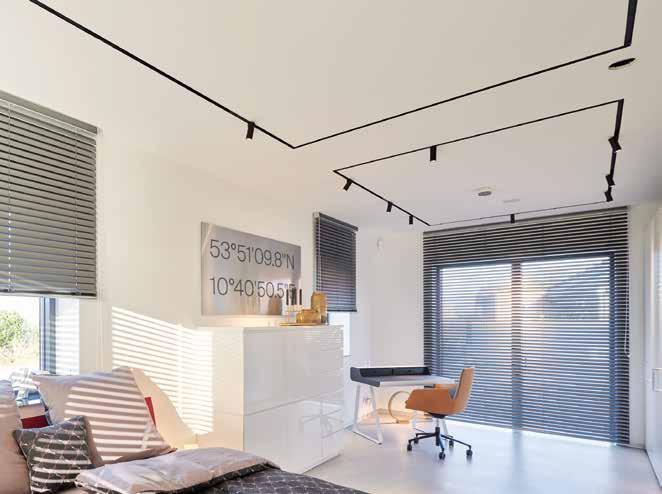

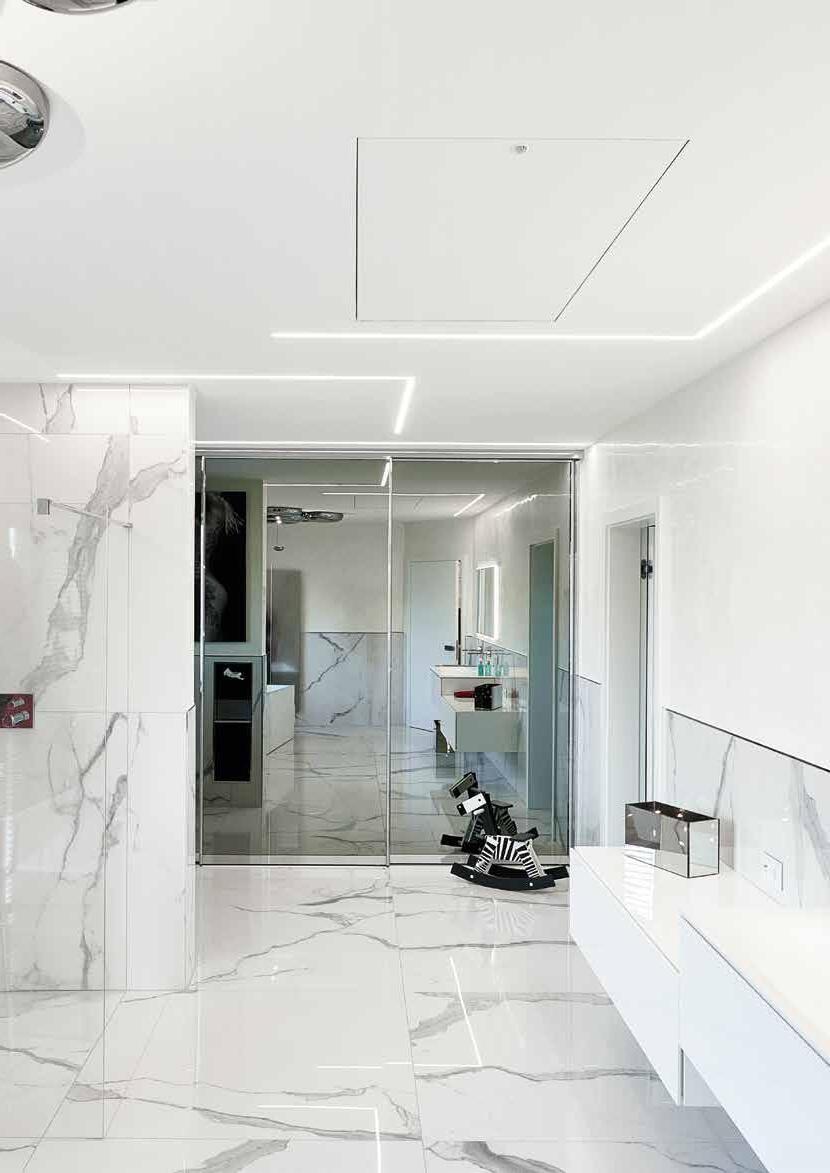

Private Residence, project by Raumideen, Iserlohn, Lübeck, Germany, ph. Juliander Enßle | 2019

Private Residence, project by Claudia Bettini, Padova, Italy, ph. Mattia Carraro | 2020

A . 24 CEILING M AGNE TIC TR ACK White

Brushed Brushed Brushed Copper Bronze Silver

Black

01 04 Fast delivery

IP20

15 18 20 Delivery time on demand

LINEAR MODULES Length 1176 mm 2352 mm

Code AQ300. 01/04 15/18/20 AQ301. 01/04 15/18/20

90° ANGLES Code AQ392. 01/04 15/18/20 AQ393. 01/04 15/18/20

301

90° on same plane track angle modules 301 x 301 mm 90° on perpendicular planes track angle modules 330 x 330 mm

330

301

330

X&T JOINTS Dimensions 603 x 603 mm

T Joint

603 x 315 mm

Code AQ140. 01/04 15/18/20 AQ102. 01/04 15/18/20

301

X Joint

301 301

CURVED MODULES not magnetic) Radius 561 mm

Alpha 60° 90°

750 mm

45° 90°

Code AQ600. 01/04 15/18/20 AQ610. 01/04 15/18/20 AQ620. 01/04 r = 750 15/18/20 AQ630. 01/04 15/18/20

90° 45°

45°

r = 750

90°

60° r = 561

90°

45° r = 750

r = 750

60° r = 561

301

90°

60° r = 561

r = 561

r = 750

90° r = 750 r = 561

45°

r=7

Each linear, angle and curved modules are provided with mechanical and electrical joints, and installation accessories. Bracket for fixing to ceiling is included: 1 for 1176 mm lenght or 2 for 2352 mm lenght. End caps have to be ordered separately.

The APP driver can not be controlled by DALI dimming system and viceversa. The white power kit is supplied with a white cable, while the black power kit is supplied with a black cable.

Power supply Accessory

Accessories Insulating spacer (1 pcs) use between modules powered by different power supplies

End caps (2 pcs)

Code AQ391. 01/04 15/18/20

AQ390. 01/04 15/18/20

Cap for cable passage (1 pcs)

AQ395. 01/04 15/18/20

Transition joint use between different typology modules (track-diffusingsharping)

AQ394. 01/04 15/18/20

Undimmable Code AQ158. 01/04

Dimmable DALI Code AQ157. 01/04

APP Dimmable DALI Code AQ157. 01/04 APP

320W Recessed power supply kit (cable length 2,2 m) for recessed/ceiling modules 230VAC-48VDC IP20 396x195x112h

AQ15901

AQ16901

AQ16901APP

240W Recessed power supply kit (cable length 2,2 m) for recessed modules 230VAC-48VDC IP20 396x195x112h

AQ17801

AQ16801

AQ16801APP

240W Power supply kit (cable length 2,2 m) for recessed modules 230VAC-48VDC IP20 400x110x49h

AQ173. 01/04

AQ172. 01/04

AQ172. 01/04 APP

150W Power supply kit (cable length 2,2 m) for recessed modules 400x110x49h 230VAC-48VDC IP20

AQ179. 01/04

AQ177. 01/04

AQ177. 01/04 APP

AQ18000

Power supply 320W Recessed power supply kit (cable length 2,2 m) for suspension modules 230VAC-48VDC IP20 396x195x112h

AQ18100

DV1061

320W Remote box power supply kit (2 feed connectors) 230VAC-48VDC IP20 313x243x57,5h

AQ16800

AQ16800APP

240W Remote box power supply kit (2 feed connectors) 230VAC-48VDC IP20 313x243x57,5h

AQ16000

AQ16000APP

Undimmable Code AQ90500

AQ90600 AQ90700 AQ90800 AQ90900

VECTOR MAGNETIC TRACK White

Black

01 04 Fast delivery

Brushed Brushed Brushed Copper Bronze Silver

Delivery time on demand 2700K - 4000K

MacAdam 3SDCM *MacAdam 2SDCM CRI = 90

15 18 20 Delivery time on demand

IP20 90° 360°

VECTOR 30 MAGNETIC Beam SP 12°

Flux 329 lm

CCT 2700K 3000K 4000K

FL 16°

335 lm

2700K 3000K 4000K

WF 30°

292 lm

2700K 3000K 4000K

Dimmable DALI Code AP811. 01/04 15/18/20 AP801. 01/04 15/18/20 AP851. 01/04 15/18/20 AP812. 01/04 15/18/20 AP802. 01/04 15/18/20 AP852. 01/04 15/18/20 AP813. 01/04 15/18/20 AP803. 01/04 15/18/20 AP853. 01/04 15/18/20

108 100 77

W 6,5 W

Ø30

Life L70 (6K) 36000h

VECTOR 40 MAGNETIC

3000K

541 lm

4000K

543 lm

2700K

584 lm

3000K

626 lm

4000K

*WF 28° 491 lm

2700K

529 lm

3000K

566 lm

4000K

*FL 21°

ADAPTER COLOR ARM COLOR HEAT-SINK COLOR BODY COLOR ANTIGLARE COLOR ACCESSORIES COLOR (visible ones)

108108

127

541 lm

Dimmable DALI Code AP011. 01/04 15/18/20 AP001. 01/04 15/18/20 AP051. 01/04 15/18/20 AP012. 01/04 15/18/20 AP002. 01/04 15/18/20 AP052. 01/04 15/18/20 AP013. 01/04 15/18/20 AP003. 01/04 15/18/20 AP053. 01/04 15/18/20

127

CCT 2700K

103

Flux 544 lm

Beam SP 14°

103

W 9W

Ø40Ø40

Life L70 (9K) 50000h

VECTOR MAGNETIC TRACK White

Black

Brushed Brushed Brushed Silver Copper Bronze

Delivery time on demand 2700K - 4000K

IP20

MacAdam 3SDCM CRI = 90

90°

01 04 Fast delivery

15 18 20 Delivery time on demand

360°

VECTOR 55 MAGNETIC

FL 22°

WF 31°

1771 lm

3000K

1915 lm

4000K

1715 lm

2700K

1811 lm

3000K

1959 lm

4000K

1779 lm

2700K

1878 lm

3000K

2032 lm

4000K

Dimmable DALI Code AP111. 01/04 15/18/20 AP101. 01/04 15/18/20 AP151. 01/04 15/18/20 AP112. 01/04 15/18/20 AP102. 01/04 15/18/20 AP152. 01/04 15/18/20 AP113. 01/04 15/18/20 AP103. 01/04 15/18/20 AP153. 01/04 15/18/20

108

130

CCT 2700K

154

Flux 1677 lm

130

Beam SP 15°

154

W 19 W

Ø55

Life L70 (9K) 50000h

VECTOR 55 ZOOM MAGNETIC

3000K

688 - 1187 lm

4000K

108

Ø55

Life L70 (9K) 50000h

Accessoires Accessories holder

Vector 40 Code AP90100

Vector 55 Code AP91100

Lens for elliptical emission

AP90200

AP91200

Soft filter

AP90300

AP91300*

Anti-dazzle louver

AP90400

AP91400

Color

Adjustable dowsers

* Cannot be used with brused silver finishing (n.15 finishing)

108

AP91500

130

637 - 1098 lm

Dimmable DALI Code AP114. 01/04 15/18/20 AP104. 01/04 15/18/20 AP154. 01/04 15/18/20

154

CCT 2700K

130

Flux Beam FL 22°-WF 31° 603 - 1039 lm

154

W 16 W

Ø55

VECTOR PENDANT SECURLOCK White

Black

01 04 Fast delivery

Brushed Brushed Brushed Copper Bronze Silver

Delivery time on demand 2700K - 4000K

IP20

MacAdam 3SDCM *MacAdam 2SDCM CRI = 90

15 18 20 Delivery time on demand

VECTOR 30 PENDANT SECURLOCK Flux 329 lm

CCT 2700K 3000K 4000K

FL 16°

335 lm

2700K 3000K 4000K

WF 30°

292 lm

2700K 3000K 4000K

Dimmable DALI Code AP411. 01/04 15/18/20 AP401. 01/04 15/18/20 AP451. 01/04 15/18/20 AP412. 01/04 15/18/20 AP402. 01/04 15/18/20 AP452. 01/04 15/18/20 AP413. 01/04 15/18/20 AP403. 01/04 15/18/20 AP453. 01/04 15/18/20

108

max 1200**

Beam SP 12°

W 6,5 W

Ø30

Life L70 (6K) 36000h

VECTOR 40 PENDANT SECURLOCK Flux 544 lm

CCT 2700K

541 lm

3000K

541 lm

4000K

543 lm

2700K

584 lm

3000K

626 lm

4000K

*WF 28° 491 lm

2700K

529 lm

3000K

566 lm

4000K

*FL 21°

Dimmable DALI Code AP211. 01/04 15/18/20 AP201. 01/04 15/18/20 AP251. 01/04 15/18/20 AP212. 01/04 15/18/20 AP202. 01/04 15/18/20 AP252. 01/04 15/18/20 AP213. 01/04 15/18/20 AP203. 01/04 15/18/20 AP253. 01/04 15/18/20

108

max 1200**

Beam SP 14°

W 9W

Ø40

Life L70 (9K) 50000h

VECTOR PENDANT SECURLOCK White

Black

01 04 Fast delivery

Brushed Brushed Brushed Copper Bronze Silver

Delivery time on demand 2700K - 4000K

IP20

MacAdam 3SDCM CRI = 90

15 18 20 Delivery time on demand

VECTOR 55 PENDANT SECURLOCK

FL 22°

WF 31°

Flux 1677 lm

CCT 2700K

1771 lm

3000K

1915 lm

4000K

1715 lm

2700K

1811 lm

3000K

1959 lm

4000K

1779 lm

2700K

1878 lm

3000K

2032 lm

4000K

** No cuttable wire. Clips included to adjust the length.

Dimmable DALI Code AP311. 01/04 15/18/20 AP301. 01/04 15/18/20 AP351. 01/04 15/18/20 AP312. 01/04 15/18/20 AP302. 01/04 15/18/20 AP352. 01/04 15/18/20 AP313. 01/04 15/18/20 AP303. 01/04 15/18/20 AP353. 01/04 15/18/20

108

max 1200**

Beam SP 15°

131,5

W 19 W

Ø55

Life L70 (9K) 50000h

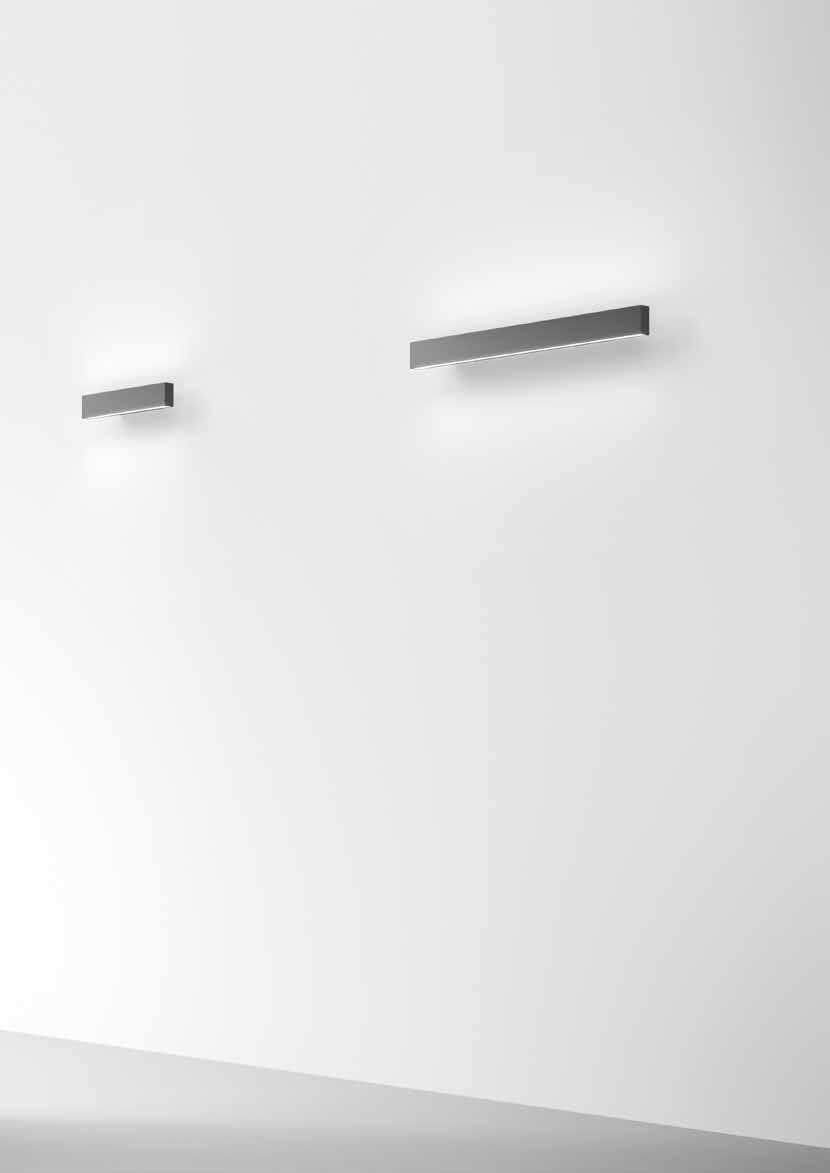

A . 24 WA LL WASHER White

Brushed Brushed Brushed Copper Bronze Silver

Black

01 04 Fast delivery

Length 600 mm

IP20

15 18 20 Delivery time on demand

W 11W

21W

Flux 1038 lm

CCT 2700K

1070 lm

3000K

1145 lm

4000K

2076 lm

2700K

2140 lm

3000K

2290 lm

4000K

Code WW101. 01/04 15/18/20 WW111. 01/04 15/18/20 WW121. 01/04 15/18/20 WW142. 01/04 15/18/20 WW152. 01/04 15/18/20 WW162. 01/04 15/18/20

192

1200 mm

MacAdam 3SDCM Life L70 (6K) 50000h CRI = 90

615

650

192

1215

1260

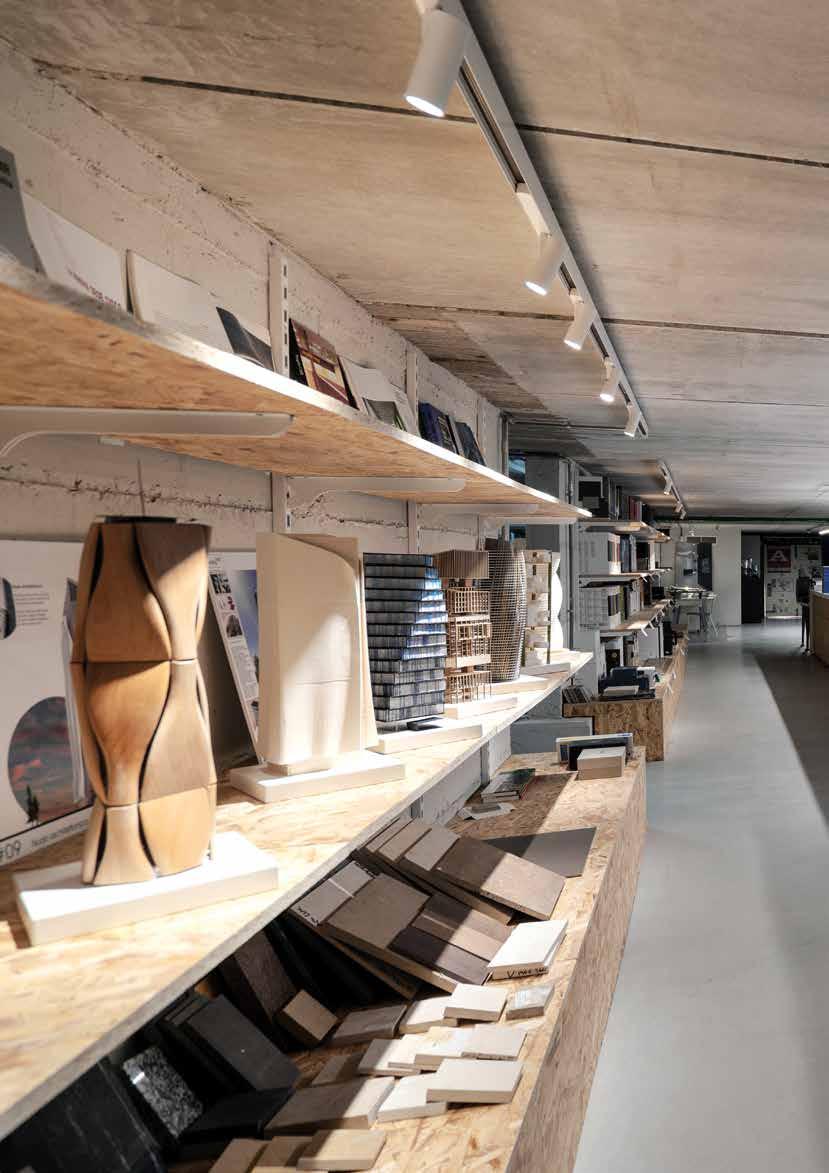

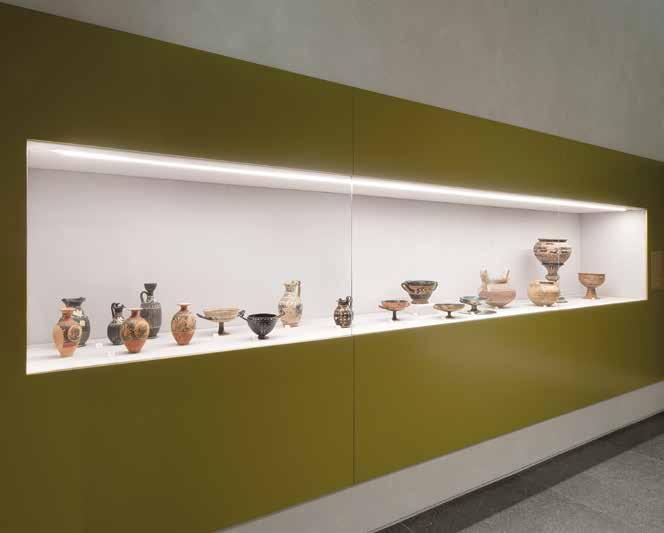

Museo Ludovico Gallarati Scotti, project by Studio RAM, Bellagio, Italy, ph. Carola Merello | 2021

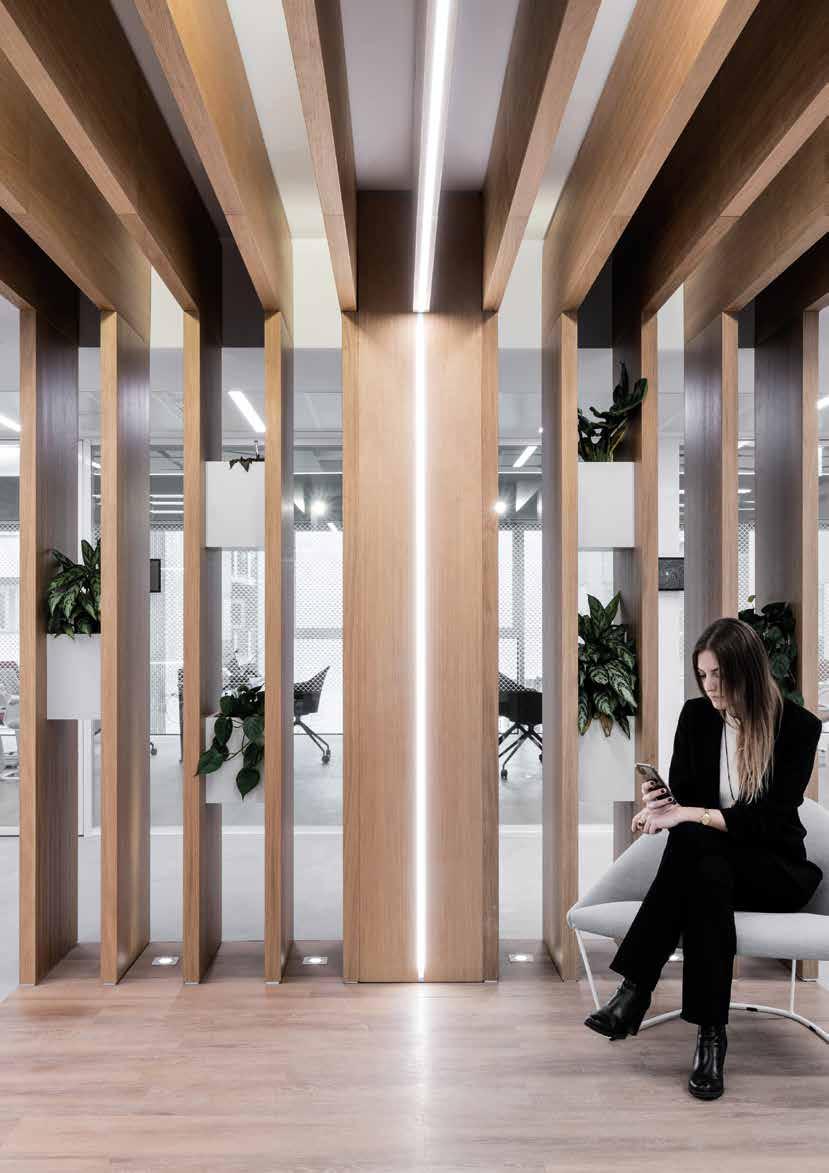

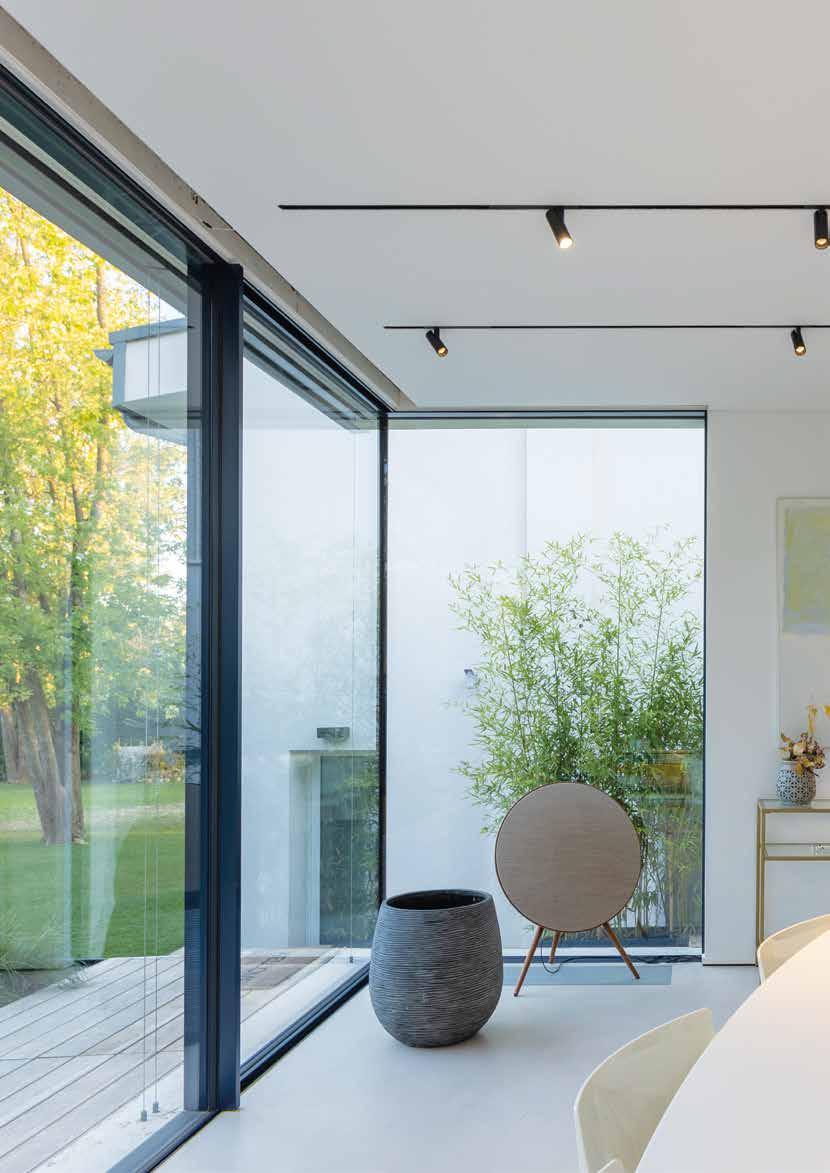

Private Residence, project by Raumideen, Iserlohn, Lübeck, Germany, ph. Juliander Enßle | 2019

A . 24 RECESSED DIFFUSED EMISSION *Uses 1 DALI address ** Uses 2 DALI addresses

White

MacAdam 3SDCM Life L70 (17k)>102000h CRI = 90

IP20

Radius

Alpha

561 mm

60° 90° 45° 90°

750 mm End caps (2pcs)

Code AQ29100 AQ29200 AQ29300 AQ29500 AQ00020 AQ00010 AQ59000 AQ59100 AQ59200 AQ59300 AQ29400

Formwork (aluminum) Length Linear 1176 mm Linear 2352 mm 90° angle on the same plane 90° angle on perpendicular X joint T joint Curved

27 117

Length x 56 mm

Linear direct emission modules W Length 29W 1176 mm*

Flux1 3222 lm 3418 lm 3418 lm 6445 lm 6836 lm 6836 lm

CCT 2700K 3000K 4000K 2700K 3000K 4000K

Code AQ27001 AQ20001 AQ20101 AQ27101 AQ20201 AQ20301

W 14W

Flux1 1611 lm 1709 lm 1709 lm

CCT 2700K 3000K 4000K

Code AQ27201 AQ20401 AQ20501

14W

1611 lm 1709 lm 1709 lm

2700K 3000K 4000K

AQ27301 AQ20701 AQ20801

Flux1 3002 lm 3184 lm 3184 lm 2286 lm 2424 lm 2424 lm

CCT 2700K 3000K 4000K 2700K 3000K 4000K

Code AQ14701 AQ14801 AQ14901 AQ11601 AQ11701 AQ11801

58W

2352 mm**

LINEAR MODULES

90° on perpendicular plane angle direct emission modules 330 x 330 mm*

301

330

90° on same plane angle direct emission modules 301 x 301 mm*

301

90° ANGLES

X&T JOINTS

X Joint

W 29 W

T Joint

22 W

330

45° r = 750

r = 750

CURVED MODULES Curved direct emission modules W Radius Alpha 14W 561 mm* 60°

750 mm*

90°

22W

45°

14W

90°

29W

90° 45°

Flux1 1421 lm 1507 lm 1507 lm 2132 lm 2261 lm 2261 lm 1421 lm 1507 lm 1507 lm 2842 lm 3015 lm 3015 lm

CCT 2700K 3000K 4000K 2700K 3000K 4000K 2700K 3000K 4000K 2700K 3000K 4000K

Code AQ50701 AQ50101 AQ50201 AQ51701 AQ51101 AQ51201 AQ52701 AQ52101 AQ52201 AQ53701 AQ53101 AQ53201

r = 750

60° r = 561

90° r = 561

60°

90°

r = 561

90° 1

With black body -17% output flux.

45°

Direct luminous flux: measured using white body.

r = 750

45° r = 750

r = 750

Each formwork module is provided with a mechanical joint to connect two recessed coplanar formwork modules. Each module, angle and curved modules are provided with mechanical and electrical joints and installation accessories. End caps have to be ordered separately.

Accessories

Opal diffusing screen has to be ordered separately. The APP driver can not be controlled by DALI dimming system and viceversa. The white power kit is supplied with a white cable, while the black power kit is supplied with a black cable.

Power supply Accessory Insulating spacer (1 pcs) between modules powered by different power supplies End caps (2 pcs)

Transition joint use between different typology modules (track-diffusingsharping) Opal diffusing screen 10 m 25 m 50 m 1176 mm 2352 mm 3528 mm Flexible opal diffusing screen 5m 10 m 25 m 50 m

Code AQ20601

AQ25001

AQ29001

AQ16200 AQ16300 AQ16400 AQ16500 AQ16600 AQ16700 AQ90300 AQ90000 AQ90100 AQ90200

Undimmable Code AQ158. 01/04

Dimmable DALI Code AQ157. 01/04

APP Dimmable DALI Code AQ157. 01/04 APP

320W Recessed power supply kit (cable length 2,2 m) for recessed/ceiling modules 230VAC-48VDC IP20 396x195x112h

AQ15901

AQ16901

AQ16901APP

240W Recessed power supply kit (cable length 2,2 m) for recessed modules 230VAC-48VDC IP20 396x195x112h

AQ17801

AQ16801

AQ16801APP

240W Power supply kit (cable length 2,2 m) for recessed modules 230VAC-48VDC IP20 400x110x49h

AQ173. 01/04

AQ172. 01/04

AQ172. 01/04 APP

150W Power supply kit (cable length 2,2 m) for recessed modules 400x110x49h 230VAC-48VDC IP20

AQ179. 01/04

AQ177. 01/04

AQ177. 01/04 APP

AQ18000

Power supply 320W Recessed power supply kit (cable length 2,2 m) for suspension modules 230VAC-48VDC IP20 396x195x112h

AQ18100

DV1061

320W Remote box power supply kit (2 feed connectors) 230VAC-48VDC IP20 313x243x57,5h

AQ16800

AQ16800APP

240W Remote box power supply kit (2 feed connectors) 230VAC-48VDC IP20 313x243x57,5h

AQ16000

AQ16000APP

Undimmable Code AQ90500

AQ90600 AQ90700 AQ90800 AQ90900

A . 24 SUSPENSION DIFFUSED EMISSION White

Black

01 04 Fast delivery

Brushed Brushed Brushed Copper Bronze Silver

*Uses 1 DALI address ** Uses 2 DALI addresses *** Uses 3 DALI addresses

MacAdam 3SDCM Life L70 (17k)>102000h CRI = 90

IP20

15 18 20 Delivery time on demand

2352 mm**

W 29W

58W

Direct + indirect emission modules Length W 1176 mm** 29W direct 14W indirect

2352 mm***

58W direct 29W indirect

Flux1 3222 lm

CCT 2700K

3418 lm

3000K

3418 lm

4000K

6445 lm

2700K

6836 lm

3000K

6836 lm

4000K

Flux1 3222 lm direct 1694 lm indirect 3418 lm direct 1796 lm indirect 3418 lm direct 1796 lm indirect 6445 lm direct 3386 lm indirect 6836 lm direct 3591 lm indirect 6836 lm direct 3591 lm indirect

CCT 2700K

Flux1 1611 lm

CCT 2700K

1709 lm

3000K

1709 lm

4000K

3000K 4000K 2700K 3000K 4000K

Code AQ416. 01/04 15/18/20 AQ410. 01/04 15/18/20 AQ411. 01/04 15/18/20 AQ417. 01/04 15/18/20 AQ412. 01/04 15/18/20 AQ413. 01/04 15/18/20

Code AQ464. 01/04 15/18/20 AQ460. 01/04 15/18/20 AQ461. 01/04 15/18/20 AQ465. 01/04 15/18/20 AQ462. 01/04 15/18/20 AQ463. 01/04 15/18/20

Length 1176 mm*

LINEAR MODULES

90° angle direct emission modules W 14W 90° on same plane angle modules 301 x 301 mm*

Code AQ418. 01/04 15/18/20 AQ414. 01/04 15/18/20 AQ415. 01/04 15/18/20

315

90° ANGLES

315 356

X&T JOINTS

X Joint

22 W

Flux1 3002 lm

CCT 2700K

3184 lm

3000K

3184 lm

4000K

2286 lm

2700K

2424 lm

3000K

2424 lm

4000K

Code AQ144. 01/04 15/18/20 AQ145. 01/04 15/18/20 AQ146. 01/04 15/18/20 AQ113. 01/04 15/18/20 AQ114. 01/04 15/18/20 AQ115. 01/04 15/18/20

301 301

330 301

T Joint

W 29 W

301

X & T Joints

301 330

Direct luminous flux: measured using white body. With black body -17% output flux.

The APP driver can not be controlled by DALI dimming system and viceversa.

Each module, angle and curved modules are provided with mechanical and electrical joints and installation accessories. 1 suspension cable is also included. End caps have to be ordered separately. Opal diffusing screen has to be ordered separately.

45° r = 750

CURVED MODULES Radius 561 mm*

Alpha 60°

90°

750 mm*

45°

90°

W 14W

22W

14W

29W

Flux1 1421 lm

CCT 2700K

1507 lm

3000K

1507 lm

4000K

2132 lm

2700K

2261 lm

3000K

2261 lm

4000K

1421 lm

2700K

1507 lm

3000K

1507 lm

4000K

2842 lm

2700K

3015 lm

3000K

3015 lm

4000K

Code AQ707. 01/04 15/18/20 AQ701. 01/04 15/18/20 AQ702. 01/04 15/18/20 AQ717. 01/04 15/18/20 AQ711. 01/04 15/18/20 AQ712. 01/04 15/18/20 AQ727. 01/04 15/18/20 AQ721. 01/04 15/18/20 AQ722. 01/04 15/18/20 AQ737. 01/04 15/18/20 AQ731. 01/04 15/18/20 AQ732. 01/04 15/18/20

90° 45° r = 750

r = 750 60° r = 561

60°

90°

r = 561

90° 45° r = 750

r = 750

45° r = 750 60° r = 561

90° r = 561

60° r = 561

Direct luminous flux: measured using white body. With black body -17% output flux.

A . 24 SUSPENSION DIFFUSED EMISSION O PA L A N D F L E X I B L E O PA L D I F F U S E R S C R E E N C O M PA R I S O N

LINEAR MODULES

White body + diffuser cod. AQ16...

White body + flexible diffuser cod. AQ90...

Black body + diffuser cod. AQ16...

Black body + flexible diffuser cod. AQ90...

Direct Direct + Indirect Direct Direct + Indirect Direct Direct + Indirect

3222 Im 4916 Im 3418 Im 5214 Im 3418 Im 5214 Im

2842 Im 4535 Im 3015 Im 4810 Im 3015 Im 4811 Im

2680 Im 4066 Im 2843 Im 4312 Im 2843 Im 4313 Im

2232 Im 3617 Im 2367 Im 3837 Im 2367 Im 3837 Im

Direct Direct + Indirect Direct Direct + Indirect Direct Direct + Indirect

6445 Im 9831 Im 6836 Im 10427 Im 6836 Im 10427 Im

5685 Im 9071 Im 6029 Im 9621 Im 6029 Im 9621 Im

5361 Im 8132 Im 5685 Im 8624 Im 5685 Im 8624 Im

4464 Im 7235 Im 4734 Im 7673 Im 4734 Im 7673 Im

White body + diffuser cod. AQ16...

White body + flexible diffuser cod. AQ90...

Black body + diffuser cod. AQ16...

Black body + flexible diffuser cod. AQ90...

Emission 1176 mm 2700K 3000K 4000K

2352 mm 2700K 3000K 4000K

ANGULAR MODULES

Emission 90° Angle

2700K

Direct

1611 Im

1421 Im

1340 Im

1116 Im

3000K

Direct

1709 Im

1507 Im

1421 Im

1184 Im

4000K

Direct

1709 Im

1507 Im

1421 Im

1184 Im

F L E X I B L E O PA L D I F F U S E R S C R E E N

CURVED MODULES 561 mm

Emission

White body + flexible diffuser cod. AQ90...

Black body + flexible diffuser cod. AQ90...

60° 2700K

Direct

1421 Im

1116 Im

3000K

Direct

1507 Im

1184 Im

4000K

Direct

1507 Im

1184 Im

2700K

Direct

2132 Im

1674 Im

3000K

Direct

2261 Im

1775 Im

4000K

Direct

2261 Im

1775 Im

Emission

White body + flexible diffuser cod. AQ90...

Black body + flexible diffuser cod. AQ90...

2700K

Direct

1421 Im

1116 Im

3000K

Direct

1507 Im

1184 Im

4000K

Direct

1507 Im

1184 Im

2700K

Direct

2842 Im

2232 Im

3000K

Direct

3015 Im

2367 Im

4000K

Direct

3015 Im

2367 Im

90°

CURVED MODULES 750 mm

45°

90°

Flux for Silver body is the same of White body. Flux for Copper and Bronze body is the same of Black body.

A . 24 SUSPENSION DIFFUSED EMISSION White

Black

01 04 Fast delivery

*Uses 1 DALI address ** Uses 2 DALI addresses *** Uses 3 DALI addresses

Brushed Brushed Brushed Copper Bronze Silver

15 18 20 Delivery time on demand

Accessories

Power supply Accessory Insulating spacer (1 pcs) between modules powered by different power supplies

End caps (2 pcs) including 2 suspension cables 200H

Transition joint use between different typology modules (track-diffusing-sharping)

Opal diffusing screen 10 m 25 m 50 m 1176 mm 2352 mm 3528 mm Flexible opal diffusing screen 5m 10 m 25 m 50 m Auxiliary suspension cable (1 pcs) to be used for S-configuration

IP20

Code AQ452. 01/04 15/18/20

AQ451. 01/04 15/18/20

AQ494. 01/04 15/18/20

AQ16200 AQ16300 AQ16400 AQ16500 AQ16600 AQ16700 AQ90300 AQ90000 AQ90100 AQ90200 AQ49500

Undimmable Code AQ90500

AQ90600 AQ90700 AQ90800 AQ90900

The APP driver can not be controlled by DALI dimming system and viceversa. The white power kit is supplied with a white cable, while the black power kit is supplied with a black cable.

Undimmable Code AQ158. 01/04

Dimmable DALI Code AQ157. 01/04

APP Dimmable DALI Code AQ157. 01/04 APP

320W Recessed power supply kit (cable length 2,2 m) for recessed/ceiling modules 230VAC-48VDC IP20 396x195x112h

AQ15901

AQ16901

AQ16901APP

240W Recessed power supply kit (cable length 2,2 m) for recessed modules 230VAC-48VDC IP20 396x195x112h

AQ17801

AQ16801

AQ16801APP

240W Power supply kit (cable length 2,2 m) for recessed modules 230VAC-48VDC IP20 400x110x49h

AQ173. 01/04

AQ172. 01/04

AQ172. 01/04 APP

150W Power supply kit (cable length 2,2 m) for recessed modules 400x110x49h 230VAC-48VDC IP20

AQ179. 01/04

AQ177. 01/04

AQ177. 01/04 APP

AQ18000

Power supply 320W Recessed power supply kit (cable length 2,2 m) for suspension modules 230VAC-48VDC IP20 396x195x112h

AQ18100

DV1061

320W Remote box power supply kit (2 feed connectors) 230VAC-48VDC IP20 313x243x57,5h

AQ16800

AQ16800APP

240W Remote box power supply kit (2 feed connectors) 230VAC-48VDC IP20 313x243x57,5h

AQ16000

AQ16000APP

A . 24 CEILING - WA LL DIFFUSED EMISSION White

Brushed Brushed Brushed Copper Bronze Silver

Black

01 04 Fast delivery

*Uses 1 DALI address ** Uses 2 DALI addresses

MacAdam 3SDCM Life L70 (17k)>102000h CRI = 90

IP20

15 18 20 Delivery time on demand

Length 1176 mm*

2352 mm**

W 29W

58W

Flux1 3222 lm

CCT 2700K

3418 lm

3000K

3418 lm

4000K

6445 lm

2700K

6836 lm

3000K

6836 lm

4000K

Flux1 1611 lm

CCT 2700K

1709 lm

3000K

1709 lm

4000K

Code AQ370. 01/04 15/18/20 AQ310. 01/04 15/18/20 AQ311. 01/04 15/18/20 AQ371. 01/04 15/18/20 AQ312. 01/04 15/18/20 AQ313. 01/04 15/18/20

LINEAR MODULES

90° on perpendicular planes angle modules 330 x 330 mm*

W 14W

Flux1 1611 lm

CCT 2700K

1709 lm

3000K

1709 lm

4000K

Code AQ372. 01/04 15/18/20 AQ314. 01/04 15/18/20 AQ315. 01/04 15/18/20

301 301

Code AQ373. 01/04 15/18/20 AQ316. 01/04 15/18/20 AQ317. 01/04 15/18/20

330 330

90° on same plane angle modules 301 x 301 mm*

301 301

27 27

90° ANGLES

330 330

X Joint

22 W

Flux1 3002 lm

CCT 2700K

3184 lm

3000K

3184 lm

4000K

2286 lm

2700K

2424 lm

3000K

2424 lm

4000K

Code AQ147. 01/04 15/18/20 AQ148. 01/04 15/18/20 AQ149. 01/04 15/18/20 AQ116. 01/04 15/18/20 AQ117. 01/04 15/18/20 AQ118. 01/04 15/18/20

301

301 301

T Joint

W 29 W

301 301

X&T JOINTS

301 301

Direct luminous flux: measured using white body. With black body -17% output flux.

Each linear, angle and curved modules are provided with mechanical and electrical joints, and installation accessories. Bracket for fixing to ceiling is included: 1 for 1176 mm lenght. 2 for 2352 mm lenght. End caps have to be ordered separately.

Opal diffusing screen has to be ordered separately. The APP driver can not be controlled by DALI dimming system and viceversa. 45° r = 750

CURVED MODULES Alpha W Radius 561 mm* 60° 14W

90°

750 mm* 45°

90°

22W

14W

29W

Flux1 1421 lm

CCT 2700K

1507 lm

3000K

1507 lm

4000K

2132 lm

2700K

2261 lm

3000K

2261 lm

4000K

1421 lm

2700K

1507 lm

3000K

1507 lm

4000K

2842 lm

2700K

3015 lm

3000K

3015 lm

4000K

Code AQ607. 01/04 15/18/20 AQ601. 01/04 15/18/20 AQ602. 01/04 15/18/20 AQ617. 01/04 15/18/20 AQ611. 01/04 15/18/20 AQ612. 01/04 15/18/20 AQ627. 01/04 15/18/20 AQ621. 01/04 15/18/20 AQ622. 01/04 15/18/20 AQ637. 01/04 15/18/20 AQ631. 01/04 15/18/20 AQ632. 01/04 15/18/20

90° 45° r = 750

r = 750 60° r = 561

60° r = 561

90° r = 561

90° 45° r = 750

r = 750

45°

60° r = 561

r = 750

90°

r = 561

60° r = 561

Direct luminous flux: measured using white body. With black body -17% output flux.

A . 24 CEILING - WA LL DIFFUSED EMISSION White

Black

01 04 Fast delivery

Brushed Brushed Brushed Copper Bronze Silver

15 18 20 Delivery time on demand

Accessories

Power supply Accessory Insulating spacer (1 pc) between modules powered by different power supplies

End cap (2 pcs)

AQ350. 01/04 15/18/20

Cap for cable passage (1 pcs)

AQ353. 01/04 15/18/20

Transition cap track - diffusing track - sharping diffusing - sharping

AQ394. 01/04 15/18/20

Opal diffusing screen 10 m 25 m 50 m 1176 mm 2352 mm 3528 mm Flexible opal diffusing screen 5m 10 m 25 m 50 m

Code AQ351. 01/04 15/18/20

AQ16200 AQ16300 AQ16400 AQ16500 AQ16600 AQ16700 AQ90300 AQ90000 AQ90100 AQ90200

Undimmable Code AQ90500

AQ90600 AQ90700 AQ90800 AQ90900

Each linear, angle and curved modules are provided with mechanical and electrical joints, and installation accessories. Bracket for fixing to ceiling is included: 1 for 1176 mm lenght. 2 for 2352 mm lenght. End caps have to be ordered separately.

Undimmable Code AQ158. 01/04

Dimmable DALI Code AQ157. 01/04

APP Dimmable DALI Code AQ157. 01/04 APP

320W Recessed power supply kit (cable length 2,2 m) for recessed/ceiling modules 230VAC-48VDC IP20 396x195x112h

AQ15901

AQ16901

AQ16901APP

240W Recessed power supply kit (cable length 2,2 m) for recessed modules 230VAC-48VDC IP20 396x195x112h

AQ17801

AQ16801

AQ16801APP

240W Power supply kit (cable length 2,2 m) for recessed modules 230VAC-48VDC IP20 400x110x49h

AQ173. 01/04

AQ172. 01/04

AQ172. 01/04 APP

150W Power supply kit (cable length 2,2 m) for recessed modules 400x110x49h 230VAC-48VDC IP20

AQ179. 01/04

AQ177. 01/04

AQ177. 01/04 APP

AQ18000

Power supply 320W Recessed power supply kit (cable length 2,2 m) for suspension modules 230VAC-48VDC IP20 396x195x112h

AQ18100

DV1061

320W Remote box power supply kit (2 feed connectors) 230VAC-48VDC IP20 313x243x57,5h

AQ16800

AQ16800APP

240W Remote box power supply kit (2 feed connectors) 230VAC-48VDC IP20 313x243x57,5h

AQ16000

AQ16000APP

A.24 sharping structure Mechanical and electrical connections

A.24 MODULE

Structural module

SHARPING KIT

Optics

End Cover

Louver

Intermediate Cover

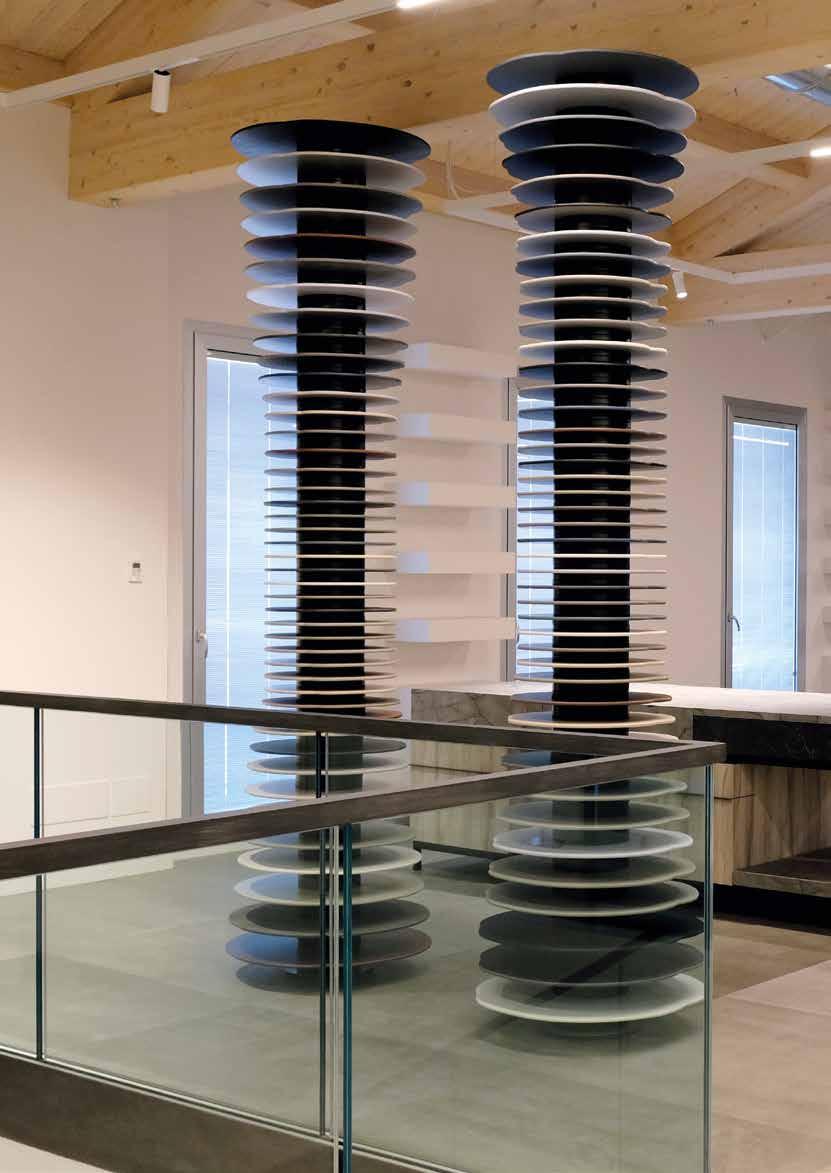

Friultex Office, Azzano Decimo, Italy, Ph. Massimo Crivellari | 2020

A . 24 RECESSED SH A RPING EMISSION Black

*Uses 1 DALI address ** Uses 2 DALI addresses

Radius

Alpha

561 mm

60° 90° 45° 90°

Code AQ29100 AQ29200 AQ29300 AQ00020 AQ00010 AQ59000 AQ59100 AQ59200 AQ59300 AQ29400

Formwork (aluminum) Length Linear 1176 mm Linear 2352 mm 90° angle on the same plane X joint T joint Curved

750 mm End caps (2pcs)

IP20 MacAdam 2SDCM Life L90 (20K) 118000h CRI = 90

Length x 56 mm

White

27 117

Length 1176 mm*

W 22W

Beam FL 24°

XF 62°

2352 mm**

45W

FL 24°

XF 62°

Flux 1617 lm 1628 lm 1742 lm 1718 lm 1731 lm 1852 lm 3233 lm 3256 lm 3485 lm 3437 lm 3461 lm 3704 lm

CCT 2700K 3000K 4000K 2700K 3000K 4000K 2700K 3000K 4000K 2700K 3000K 4000K

Code AQ214. 01/04 AQ210. 01/04 AQ211. 01/04 AQ234. 01/04 AQ230. 01/04 AQ231. 01/04 AQ215. 01/04 AQ212. 01/04 AQ213. 01/04 AQ235. 01/04 AQ232. 01/04 AQ233. 01/04

LINEAR MODULES

90° ANGLES joining (not lit) Code AQ240. 01/04 301 301

90° recessed corner (on same plane) 301x301 mm

301

X Joint

W 11 W

Beam FL 26°

XF 64°

T Joint

11 W

FL 26°

CCT 2700K 3000K 4000K 2700K 3000K 4000K 2700K 3000K 4000K 2700K 3000K 4000K

Code AQ008. 01/04 AQ009. 01/04 AQ010. 01/04 AQ011. 01/04 AQ012. 01/04 AQ013. 01/04 AQ132. 01/04 AQ133. 01/04 AQ134. 01/04 AQ135. 01/04 AQ136. 01/04 AQ137. 01/04

301 301

301

XF64°

Flux 808 lm 808 lm 866 lm 859 lm 859 lm 921 lm 808 lm 808 lm 866 lm 859 lm 859 lm 921 lm

301 301

X&T JOINTS

301

Sharping kit (louvers and covers) has to be ordered separately. The APP driver can not be controlled by DALI dimming system and viceversa.

45° r = 750

CURVED MODULES 90°

Radius 561 mm*

Alpha 60°

W 11W

Beam FL 24°

XF 62°

90°

11W

FL 24°

XF 62°

750 mm*

45°

11W

FL 24°

XF 62°

90°

22W

FL 24°

XF 62°

Flux 808 lm 814 lm 873 lm 859 lm 865 lm 928 lm 808 lm 814 lm 873 lm 859 lm 865 lm 928 lm 859 lm 814 lm 873 lm 859 lm 865 lm 928 lm 1616 lm 1628 lm 1742 lm 1718 lm 1731 lm 1855 lm

CCT 2700K 3000K 4000K 2700K 3000K 4000K 2700K 3000K 4000K 2700K 3000K 4000K 2700K 3000K 4000K 2700K 3000K 4000K 2700K 3000K 4000K 2700K 3000K 4000K

Code AQ508. 01/04 AQ503. 01/04 AQ505. 01/04 AQ509. 01/04 AQ504. 01/04 AQ506. 01/04 AQ518. 01/04 AQ513. 01/04 AQ515. 01/04 AQ519. 01/04 AQ514. 01/04 AQ516. 01/04 AQ528. 01/04 AQ523. 01/04 AQ525. 01/04 AQ529. 01/04 AQ524. 01/04 AQ526. 01/04 AQ538. 01/04 AQ533. 01/04 AQ535. 01/04 AQ539. 01/04 AQ534. 01/04 AQ536. 01/04

45° r = 750

r = 750 60° r = 561

60°

90°

r = 561

90° 45° r = 750

r = 750

45° r

r = 750 60° r = 561

90° r = 561

60° r = 561

r=5

A . 24 RECESSED SH A RPING EMISSION White

Black

Power supply accessory

Accessories Insulating spacer (1 pc) between modules powered by different power supplies

End caps (2 pcs)

AQ250. 01/04

Transition joint use between different typology modules (track-diffusing-sharping)

AQ290. 01/04

Louver for linear modules Sharping kit L=1176 mm (2 louvers - 1 intermediate cover - 2 end covers) Sharping kit L=2352 mm (4 louvers - 3 intermediate cover - 2 end covers) 90° angle cover (2 pcs) X joint (1 louver + 4 cover) T joint (1 louver + 3 cover)

AQ260. 01/04

Louver for curved modules R=561 mm / R=750 mm

AQ911. 01/04

R=561 mm 60° order 1 pc 90° order 1 pc R=750 mm 45° order 1 pc 90° order 2 pcs Flexible cover 2 m Flexible cover 10 m

Code AQ206. 01/04

AQ261. 01/04

AQ262. 01/04 AQ015. 01/04 AQ014. 01/04

AQ921. 01/04 AQ920. 01/04

Undimmable Code AQ90500

AQ90600 AQ90700 AQ90800 AQ90900

Sharping kit (louvers and covers) has to be ordered separately. The APP driver can not be controlled by DALI dimming system and viceversa. The white power kit is supplied with a white cable, while the black power kit is supplied with a black cable.

Undimmable Code AQ158. 01/04

Dimmable DALI Code AQ157. 01/04

APP Dimmable DALI Code AQ157. 01/04 APP

320W Recessed power supply kit (cable length 2,2 m) for recessed/ceiling modules 230VAC-48VDC IP20 396x195x112h

AQ15901

AQ16901

AQ16901APP

240W Recessed power supply kit (cable length 2,2 m) for recessed modules 230VAC-48VDC IP20 396x195x112h

AQ17801

AQ16801

AQ16801APP

240W Power supply kit (cable length 2,2 m) for recessed modules 230VAC-48VDC IP20 400x110x49h

AQ173. 01/04

AQ172. 01/04

AQ172. 01/04 APP

150W Power supply kit (cable length 2,2 m) for recessed modules 400x110x49h 230VAC-48VDC IP20

AQ179. 01/04

AQ177. 01/04

AQ177. 01/04 APP

AQ18000

Power supply 320W Recessed power supply kit (cable length 2,2 m) for suspension modules 230VAC-48VDC IP20 396x195x112h

AQ18100

DV1061

320W Remote box power supply kit (2 feed connectors) 230VAC-48VDC IP20 313x243x57,5h

AQ16800

AQ16800APP

240W Remote box power supply kit (2 feed connectors) 230VAC-48VDC IP20 313x243x57,5h

AQ16000

AQ16000APP

A . 24 SUSPENSION SH A RPING EMISSION White

Brushed Brushed Brushed Copper Bronze Silver

Black

01 04 Fast delivery

*Uses 1 DALI address ** Uses 2 DALI addresses *** Uses 3 DALI addresses

IP20 MacAdam 2SDCM Life L90 (20K) 118000h CRI = 90

15 18 20 Delivery time on demand

2352 mm**

W 22W

45W

Direct + indirect emission modules W Length 22W direct 1176 mm** 14W indirect

2352 mm***

45W indirect 29W indirect

Flux 1617 lm

CCT 2700K

1628 lm

3000K

1742 lm

4000K

XF 62° 1694 lm

2700K

1731 lm

3000K

1852 lm

4000K

3233 lm

2700K

3256 lm

3000K

3485 lm

4000K

XF 62° 3437 lm

2700K

3461 lm

3000K

3704 lm

4000K

Flux 1617 lm direct 1693 lm indirect 1628 lm direct 1796 lm indirect 1742 lm direct 1796 lm indirect XF 62° 1718 lm direct 1693 lm indirect 1731 lm direct 1796 lm indirect 1852 lm direct 1796 lm indirect FL 24° 3056 lm direct 3233 lm indirect 3233 lm direct 3586 lm indirect 3485 lm direct 3591 lm indirect XF 62° 3437 lm direct 3386 lm indirect 3461 lm direct 3591 lm indirect 3704 lm direct 3591 lm indirect

CCT 2700K

Beam FL 24°

FL 24°

Beam FL 24°

3000K 4000K 2700K 3000K 4000K 2700K 3000K 4000K 2700K 3000K 4000K

Code AQ424. 01/04 15/18/20 AQ420. 01/04 15/18/20 AQ421. 01/04 15/18/20 AQ444. 01/04 15/18/20 AQ440. 01/04 15/18/20 AQ441. 01/04 15/18/20 AQ425. 01/04 15/18/20 AQ422. 01/04 15/18/20 AQ423. 01/04 15/18/20 AQ445. 01/04 15/18/20 AQ442. 01/04 15/18/20 AQ443. 01/04 15/18/20

Code AQ482. 01/04 15/18/20 AQ470. 01/04 15/18/20 AQ471. 01/04 15/18/20 AQ486. 01/04 15/18/20 AQ478. 01/04 15/18/20 AQ479. 01/04 15/18/20 AQ483. 01/04 15/18/20 AQ472. 01/04 15/18/20 AQ473. 01/04 15/18/20 AQ487. 01/04 15/18/20 AQ480. 01/04 15/18/20 AQ481. 01/04 15/18/20

Length 1176 mm*

LINEAR MODULES

90° ANGLES joining (not lit)

301

Code AQ450. 01/04 15/18/20

301

90° suspension corner (on same plane) 301x301 mm

301

Each linear, angle and curved modules are provided with mechanical and electrical joints, and installation accessories. 1 suspension cable is also included. End caps have to be ordered separately. Sharping kit (louvers and covers) has to be ordered separately.

X&T JOINTS W 11 W

Beam FL 26°

XF 64°

T Joint

11 W

FL 26°

XF64°

Flux 808 lm

CCT 2700K

808 lm

3000K

866 lm

4000K

859 lm

2700K

859 lm

3000K

921 lm

4000K

808 lm

2700K

808 lm

3000K

866 lm

4000K

859 lm

2700K

859 lm

3000K

921 lm

4000K

Code AQ002. 01/04 15/18/20 AQ003. 01/04 15/18/20 AQ004. 01/04 15/18/20 AQ005. 01/04 15/18/20 AQ006. 01/04 15/18/20 AQ007. 01/04 15/18/20 AQ126. 01/04 15/18/20 AQ127. 01/04 15/18/20 AQ128. 01/04 15/18/20 AQ129. 01/04 15/18/20 AQ130. 01/04 15/18/20 AQ131. 01/04 15/18/20

301

X Joint

301

X & T Joints

301

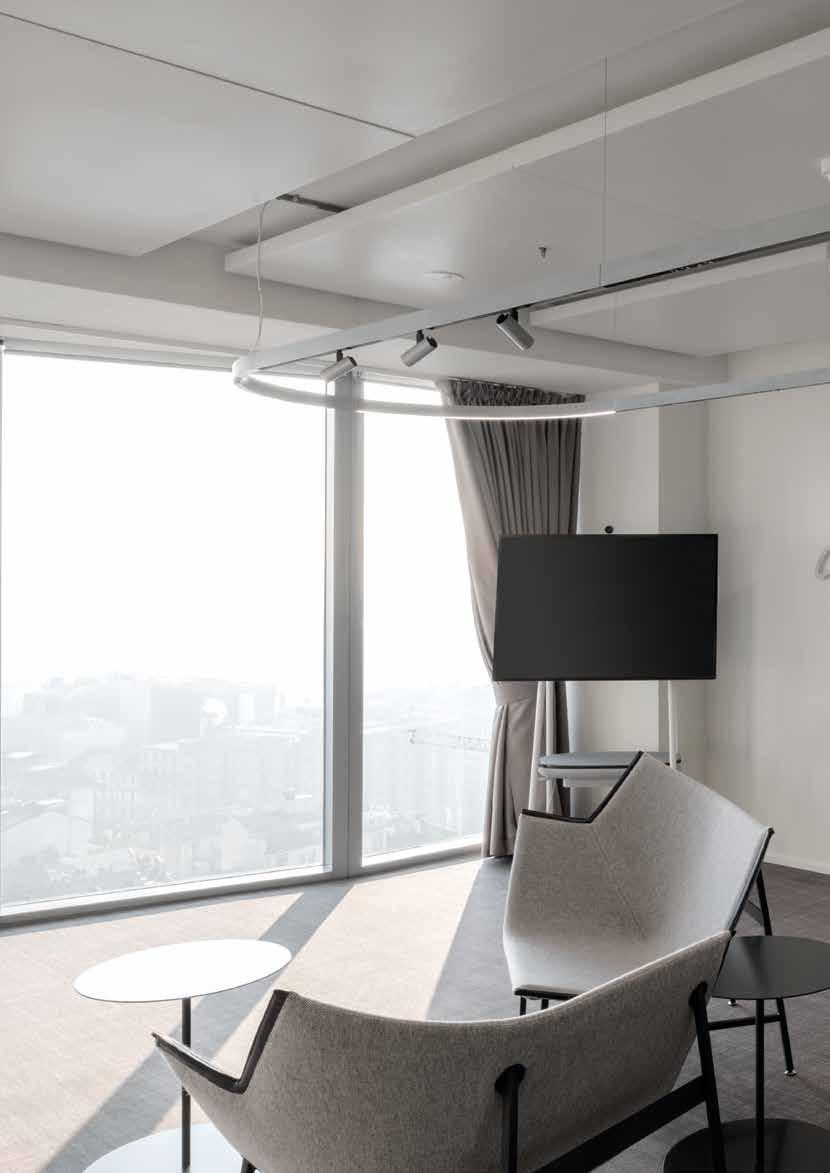

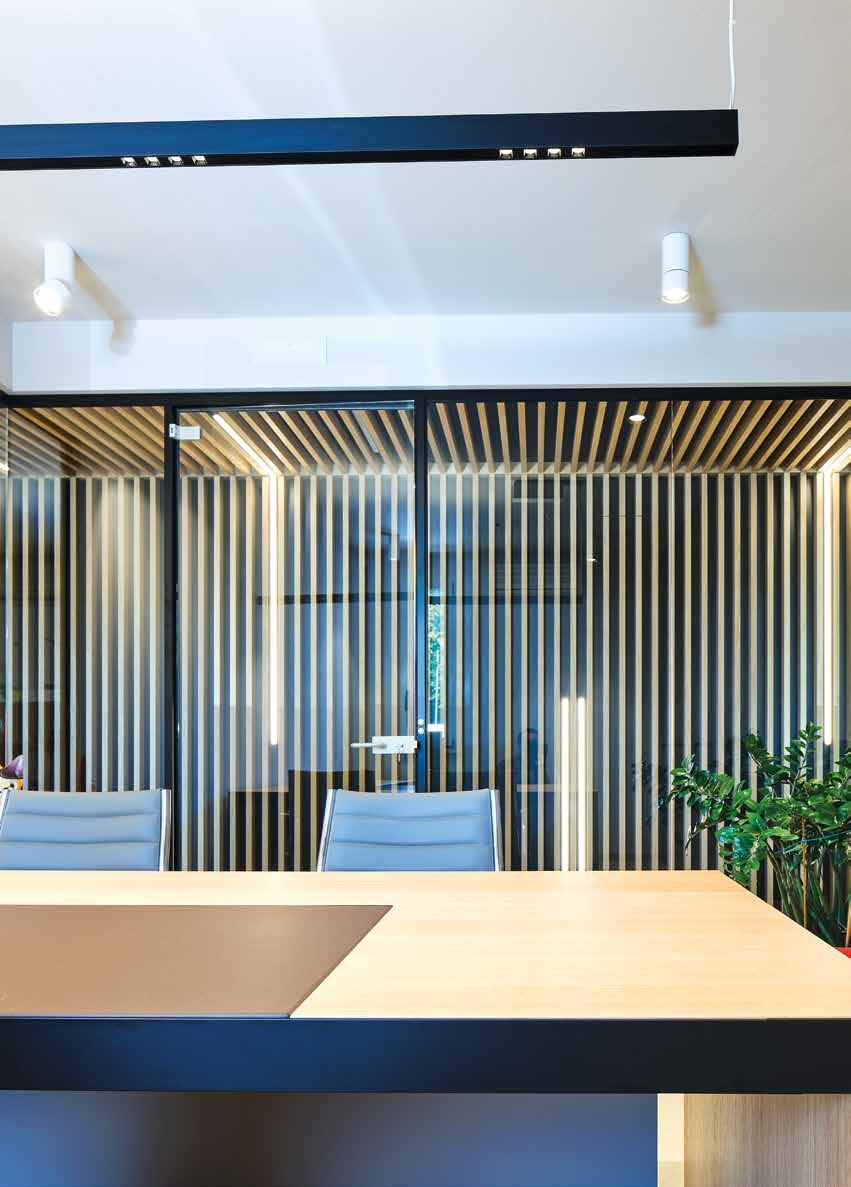

Office, project by COIMA image and 967 Architetti Associati, Milan, Italy, Ph. Federico Villa | 2021

A . 24 SUSPENSION SH A RPING EMISSION White

Brushed Brushed Brushed Copper Bronze Silver

Black

01 04 Fast delivery

*Uses 1 DALI address ** Uses 2 DALI addresses *** Uses 3 DALI addresses

IP20 MacAdam 2SDCM Life L90 (20K) 118000h CRI = 90

15 18 20 Delivery time on demand

45° r = 750

CURVED MODULES 90°

Curved direct emission modules Radius Alpha W 561 mm* 60° 11W

90°

750 mm*

45°

90°

11W

22W

45°

Beam FL 24°

Flux 808 lm

CCT 2700K

814 lm

3000K

873 lm

4000K

XF 62° 859 lm

2700K

865 lm

3000K

928 lm

4000K

808 lm

2700K

814 lm

3000K

873 lm

4000K

XF 62° 859 lm

2700K

865 lm

3000K

928 lm

4000K

FL 24°

808 lm

2700K

814 lm

3000K

873 lm

4000K

XF 62° 859 lm

2700K

865 lm

3000K

928 lm

4000K

1617 lm

2700K

1628 lm

3000K

1745 lm

4000K

XF 62° 1718 lm

2700K

1731 lm

3000K

1855 lm

4000K

FL 24°

Power supply Accessory 4pcs feed connectors (for powering multiple sections with a single power kit) Power cable, 2x0.75 + 2x0.35, mm2, white, 10 m (to realize customized power cables) Power cable, 2x0.75 + 2x0.35, mm2, white, 50 m (to realize customized power cables) Power cable, 2x0.75 + 2x0.35, mm2, black, 10 m (to realize customized power cables) Power cable, 2x0.75 + 2x0.35, mm2, black, 50 m (to realize customized power cables)

Code AQ708. 01/04 15/18/20 AQ703. 01/04 15/18/20 AQ705. 01/04 15/18/20 AQ709. 01/04 15/18/20 AQ704. 01/04 15/18/20 AQ706. 01/04 15/18/20 AQ718. 01/04 15/18/20 AQ713. 01/04 15/18/20 AQ715. 01/04 15/18/20 AQ719. 01/04 15/18/20 AQ714. 01/04 15/18/20 AQ716. 01/04 15/18/20 AQ728. 01/04 15/18/20 AQ723. 01/04 15/18/20 AQ725. 01/04 15/18/20 AQ729. 01/04 15/18/20 AQ724. 01/04 15/18/20 AQ726. 01/04 15/18/20 AQ738. 01/04 15/18/20 AQ733. 01/04 15/18/20 AQ735. 01/04 15/18/20 AQ739. 01/04 15/18/20 AQ734. 01/04 15/18/20 AQ736. 01/04 15/18/20

Undimmable Code AQ90500

AQ90600 AQ90700 AQ90800 AQ90900

r = 750

60° r = 561

60°

90°

r = 561

90° 45° r = 750

r = 750

45°

r = 750 60° r = 561

90° r = 561

60° r = 561

r=5

Each linear, angle and curved modules are provided with mechanical and electrical joints, and installation accessories. 1 suspension cable is also included. End caps have to be ordered separately. Sharping kit (louvers and covers) has to be ordered separately.

The APP driver can not be controlled by DALI dimming system and viceversa. The white power kit is supplied with a white cable, while the black power kit is supplied with a black cable.

Accessories Insulating spacer (1 pcs) between modules powered by different power supplies

End caps (2 pcs) including 2 suspension cables 200H

Code

Code AQ453. 01/04 15/18/20

Louver for linear modules Sharping kit L=1176 mm (2 louvers - 1 intermediate cover 2 end covers) Sharping kit L=2352 mm (4 louvers - 3 intermediate cover 2 end covers) X joint (1 louver + 4 cover) T joint (1 louver + 3 cover) 90° angle cover (2 pcs)

AQ451. 01/04 15/18/20

Transition cap track - diffusing track - sharping diffusing - sharping

AQ494. 01/04 15/18/20

Auxiliary suspension cable (1 pcs) to be used for S-configuration

AQ49500

Louver for curved modules R=561 mm / R=750 mm R=561 mm 60° order 1 pc 90° order 1 pc R=750 mm 45° order 1 pc 90° order 2 pcs Flexible cover 2 m Flexible cover 10 m

Undimmable Code AQ158. 01/04

Dimmable DALI Code AQ157. 01/04

APP Dimmable DALI Code AQ157. 01/04 APP

320W Recessed power supply kit (cable length 2,2 m) for recessed/ceiling modules 230VAC-48VDC IP20 396x195x112h

AQ15901

AQ16901

AQ16901APP

240W Recessed power supply kit (cable length 2,2 m) for recessed modules 230VAC-48VDC IP20 396x195x112h

AQ17801

AQ16801

AQ16801APP

240W Power supply kit (cable length 2,2 m) for recessed modules 230VAC-48VDC IP20 400x110x49h

AQ173. 01/04

AQ172. 01/04

AQ172. 01/04 APP

150W Power supply kit (cable length 2,2 m) for recessed modules 400x110x49h 230VAC-48VDC IP20

AQ179. 01/04

AQ177. 01/04

AQ177. 01/04 APP

AQ18000

Power supply 320W Recessed power supply kit (cable length 2,2 m) for suspension modules 230VAC-48VDC IP20 396x195x112h

AQ18100

DV1061

320W Remote box power supply kit (2 feed connectors) 230VAC-48VDC IP20 313x243x57,5h

AQ16800

AQ16800APP

240W Remote box power supply kit (2 feed connectors) 230VAC-48VDC IP20 313x243x57,5h

AQ16000

AQ16000APP

AQ260. 01/04

AQ261. 01/04

AQ015. 01/04 AQ014. 01/04 AQ262. 01/04

AQ911. 01/04

AQ921. 01/04 AQ920. 01/04

A . 24 CEILING SH A RPING EMISSION White

Brushed Brushed Brushed Copper Bronze Silver

Black

01 04 Fast delivery

*Uses 1 DALI address ** Uses 2 DALI addresses

Flux 1617 lm

CCT 2700K

1628 lm

3000K

1742 lm

4000K

XF 62° 1718 lm

2700K

1731 lm

3000K

1852 lm

4000K

3233 lm

2700K

3256 lm

3000K

3485 lm

4000K

XF 62° 3437 lm

2700K

3461 lm

3000K

3704 lm

4000K

Code AQ324. 01/04 15/18/20 AQ320. 01/04 15/18/20 AQ321. 01/04 15/18/20 AQ344. 01/04 15/18/20 AQ340. 01/04 15/18/20 AQ341. 01/04 15/18/20 AQ325. 01/04 15/18/20 AQ322. 01/04 15/18/20 AQ323. 01/04 15/18/20 AQ345. 01/04 15/18/20 AQ342. 01/04 15/18/20 AQ343. 01/04 15/18/20

IP20 MacAdam 2SDCM Life L90 (20K) 118000h CRI = 90

15 18 20 Delivery time on demand

Length 1176 mm*

2352 mm**

W 22W

45W

CRI 90

Beam FL 24°

FL 24°

LINEAR MODULES

90° ANGLES Joining (not lit)

301 301

Code AQ360. 01/04 15/18/20

90° ceiling corner (on same plane) 301x301mm

301

XF 64°

T Joint

11 W

FL 26°

XF64°

Flux 808 lm

CCT 2700K

808 lm

3000K

866 lm

4000K

859 lm

2700K

859 lm

3000K

921 lm

4000K

808 lm

2700K

808 lm

3000K

866 lm

4000K

859 lm

2700K

859 lm

3000K

921 lm

4000K

Code AQ008. 01/04 15/18/20 AQ009. 01/04 15/18/20 AQ010. 01/04 15/18/20 AQ011. 01/04 15/18/20 AQ012. 01/04 15/18/20 AQ013. 01/04 15/18/20 AQ132. 01/04 15/18/20 AQ133. 01/04 15/18/20 AQ134. 01/04 15/18/20 AQ135. 01/04 15/18/20 AQ136. 01/04 15/18/20 AQ137. 01/04 15/18/20

301

Beam FL 26°

301 301

301

W 11 W

301

X Joint

301

X&T JOINTS

301 301

A . 24 CEILING SH A RPING EMISSION Each linear, angle and curved modules are provided with mechanical and electrical joints, and installation accessories. Bracket for fixing to ceiling is included: 1 for 1176 mm lenght - 2 for 2352 mm lenght. End caps have to be ordered separately.

Sharping kit (louvers and covers) has to be ordered separately.

45° r = 750

CURVED MODULES 90° 45°

Radius 561 mm*

Alpha 60°

90°

750 mm*

45°

90°

W 11W

11W

22W

CRI 90

Flux 808 lm

CCT 2700K

814 lm

3000K

873 lm

4000K

XF 62° 859 lm

2700K

865 lm

3000K

928 lm

4000K

808 lm

2700K

814 lm

3000K

Beam FL 24°

FL 24°

873 lm

4000K

XF 62° 859 lm

2700K

865 lm

3000K

928 lm

4000K

FL 24°

808 lm

2700K

814 lm

3000K

873 lm

4000K

XF 62° 859 lm

2700K

865 lm

3000K

928 lm

4000K

1617 lm

2700K

1628 lm

3000K

1745 lm

4000K

XF 62° 1718 lm

2700K

1731 lm

3000K

1855 lm

4000K

FL 24°

Code AQ608. 01/04 15/18/20 AQ603. 01/04 15/18/20 AQ605. 01/04 15/18/20 AQ609. 01/04 15/18/20 AQ604. 01/04 15/18/20 AQ606. 01/04 15/18/20 AQ618. 01/04 15/18/20 AQ613. 01/04 15/18/20 AQ615. 01/04 15/18/20 AQ619. 01/04 15/18/20 AQ614. 01/04 15/18/20 AQ616. 01/04 15/18/20 AQ628. 01/04 15/18/20 AQ623. 01/04 15/18/20 AQ625. 01/04 15/18/20 AQ629. 01/04 15/18/20 AQ624. 01/04 15/18/20 AQ626. 01/04 15/18/20 AQ638. 01/04 15/18/20 AQ633. 01/04 15/18/20 AQ635. 01/04 15/18/20 AQ639. 01/04 15/18/20 AQ634. 01/04 15/18/20 AQ636. 01/04 15/18/20

r = 750

60° r = 561

90° r = 561

90° 45° r = 750

r = 750

45°

r = 750 60° r = 561

90° r = 561

60° r = 561

r = 56

A . 24 CEILING SH A RPING EMISSION White

Black

01 04 Fast delivery

Brushed Brushed Brushed Copper Bronze Silver

15 18 20 Delivery time on demand

Accessories Insulating spacer (1 pcs) between modules powered by differents power supply

End caps (2 pcs)

Cap for cable passage (1 pcs)

Transition cap track - diffusing track- sharping diffusing - sharping

Code AQ352. 01/04 15/18/20

AQ350. 01/04 15/18/20

AQ353. 01/04 15/18/20

AQ394. 01/04 15/18/20

Power supply accessory 4pcs feed connectors (for powering multiple sections with a single power kit) Power cable, 2x0.75 + 2x0.35, mm2, white, 10 m (to realize customized power cables) Power cable, 2x0.75 + 2x0.35, mm2, white, 50 m (to realize customized power cables) Power cable, 2x0.75 + 2x0.35, mm2, black, 10 m (to realize customized power cables) Power cable, 2x0.75 + 2x0.35, mm2, black, 50 m (to realize customized power cables)

Code AQ90500

AQ90600 AQ90700 AQ90800 AQ90900

Code Louver for linear modules Sharping kit L=1176 mm (2 louvers - 1 intermediate cover 2 end covers) Sharping kit L=2352 mm (4 louvers - 3 intermediate cover 2 end covers) X joint (1 louver + 4 cover) T joint (1 louver + 3 cover) 90° angle cover (2 pcs)

AQ260. 01/04

AQ261. 01/04

AQ015. 01/04 AQ014. 01/04 AQ262. 01/04

Louver for curved modules R=561 mm / R=750 mm R=561 mm 60° order 1 pc 90° order 1 pc R=750 mm 45° order 1 pc 90° order 2 pcs

AQ911. 01/04

Flexible cover 2 m Flexible cover 10 m

AQ921. 01/04 AQ920. 01/04

Each linear, angle and curved modules are provided with mechanical and electrical joints, and installation accessories. Bracket for fixing to ceiling is included: 1 for 1176 mm lenght - 2 for 2352 mm lenght. End caps have to be ordered separately.

Undimmable Code AQ158. 01/04

Dimmable DALI Code AQ157. 01/04

APP Dimmable DALI Code AQ157. 01/04 APP

320W Recessed power supply kit (cable length 2,2 m) for recessed/ceiling modules 230VAC-48VDC IP20 396x195x112h

AQ15901

AQ16901

AQ16901APP

240W Recessed power supply kit (cable length 2,2 m) for recessed modules 230VAC-48VDC IP20 396x195x112h

AQ17801

AQ16801

AQ16801APP

240W Power supply kit (cable length 2,2 m) for recessed modules 230VAC-48VDC IP20 400x110x49h

AQ173. 01/04

AQ172. 01/04

AQ172. 01/04 APP

150W Power supply kit (cable length 2,2 m) for recessed modules 400x110x49h 230VAC-48VDC IP20

AQ179. 01/04

AQ177. 01/04

AQ177. 01/04 APP

AQ18000

Power supply 320W Recessed power supply kit (cable length 2,2 m) for suspension modules 230VAC-48VDC IP20 396x195x112h

AQ18100

DV1061

320W Remote box power supply kit (2 feed connectors) 230VAC-48VDC IP20 313x243x57,5h

AQ16800

AQ16800APP

240W Remote box power supply kit (2 feed connectors) 230VAC-48VDC IP20 313x243x57,5h

AQ16000

AQ16000APP

Giuntini Headquarters, project by Andstudio architects, Peccioli, Italy, Ph. Piero Savorelli | 2020

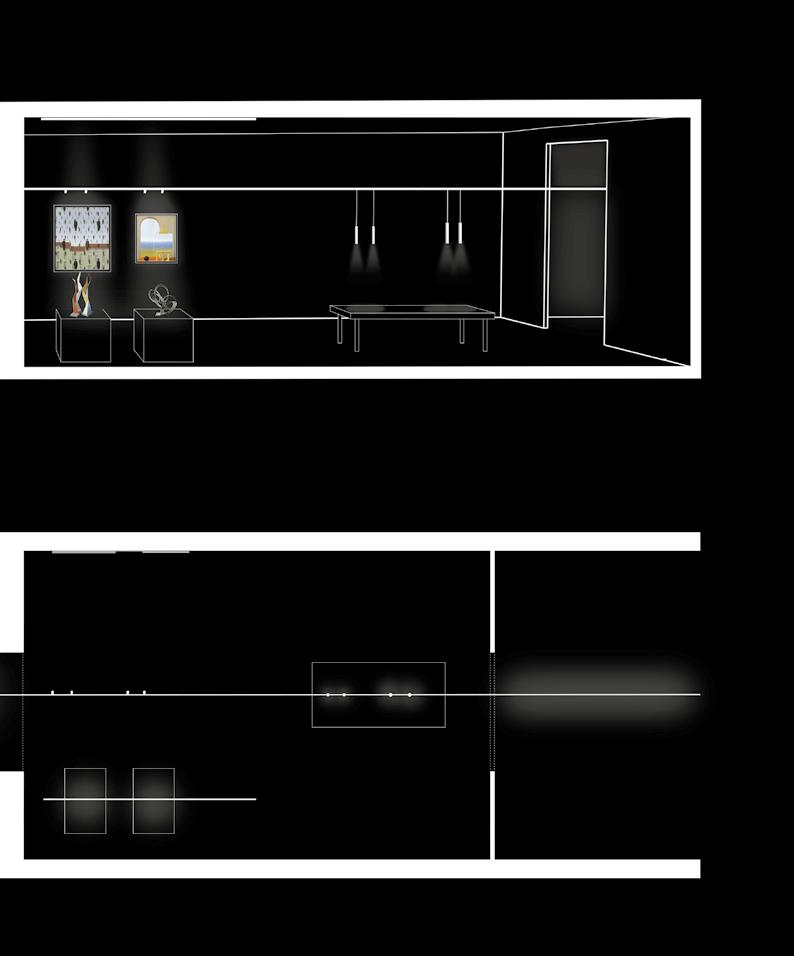

A.24 configurator Artemide provides tools to support the end customer and especially the lighting professionals in choosing the best lighting solution. For an intuitive composition of the most complex systems, Artemide offers innovative and complete configurators on its website. A.24 system Configurator is a useful tool to simplify the design of your composition. After defining the layout of the space, the desired system can be created by a simple drag and drop of the various available modules. Once the project is completed, the system returns drawings and a complete datasheet with all the details to proceed with the order.

1. Build your space

Before you start deﬁne the space where you are going to compose your system.

BACK

inches

+ 800 cm +

300 cm

+ + 500 cm

+ How high is your room?

How wide is your room?

How deep is your room?

NEXT STEP

2. Drag and drop

A.24 CONFIGURATOR V.02 (BETA)

A.24 CONFIGURATOR V.02

ARTICLE LIST IMAGE

DESCRIPTION

QUANTITY

A Sharp Suspension 1176mm CODE ………….

B 90° angle direct emission CODE ………….

… End Caps CODE ………….

D Curved direct emission 60° CODE ………….

E Direct Suspension 1176mm CODE ………….

F Curved direct emission 45° CODE ………….

G Magnetic Suspension 2352mm CODE ………….

H Direct Suspension 2352mm CODE ………….

START HERE BY SELECTING THE FOLLOWING STEPS

CHOOSE INSTALLATION

CHOOSE YOUR COMPOSITION DRAG & DROP THE DESIRED ITEM FROM THE LIST BELOW TO THE WORK-INTERFACE

LINEAR MODULE 2352 mm

LINEAR MODULE 1176 mm

B E 90° ANGLE SAME PLANE 301 x 301 mm

90° ANGLE PERPENDICULAR PLANE 301 x 301 mm

G 90° R=561 mm

90° R=750 mm

60° R=561 mm

3. Save it and send it!

y z x

Your conﬁguration is ready.

Below a complete list of the products you have used:

BACK

ARTICLE LIST IMAGE

PLAN VIEW

LABEL

QUANTITY

LUMEN

POWER

WEIGHT

Sharp Suspension 1176mm AQ440.01

DESCRIPTION

90° angle direct emission AQ414.01

…

End Caps AQ451.01

Curved direct emission 60° AQ50701

Direct Suspension 1176mm AQ410.01

Curved direct emission 45° AQ52701

Magnetic Suspension 2352mm AQ401.01

Direct Suspension 2352mm AQ412.01

TOTAL CONFIGURATION

23 pcs.

6800 lm

72 W

7.85 kg

E G

F G

SAVE

DOWNLOAD PDF

REQUEST A QUOTE

FIND A STORE

Save your configuration in order to be able to modify it later according to your needs. You can also download the pdf file with the complete list of components used in your final configuration and get in touch with one of our sales representatives to receive a preliminary quotation.

45° R=750 mm

CHOOSE VECTOR SPOT

CHOOSE OPTICAL CHARACTERISTIC

CHOOSE FINISHES

CHOOSE LIGHTING CONTROL

COMPLETE YOUR CONFIGURATION

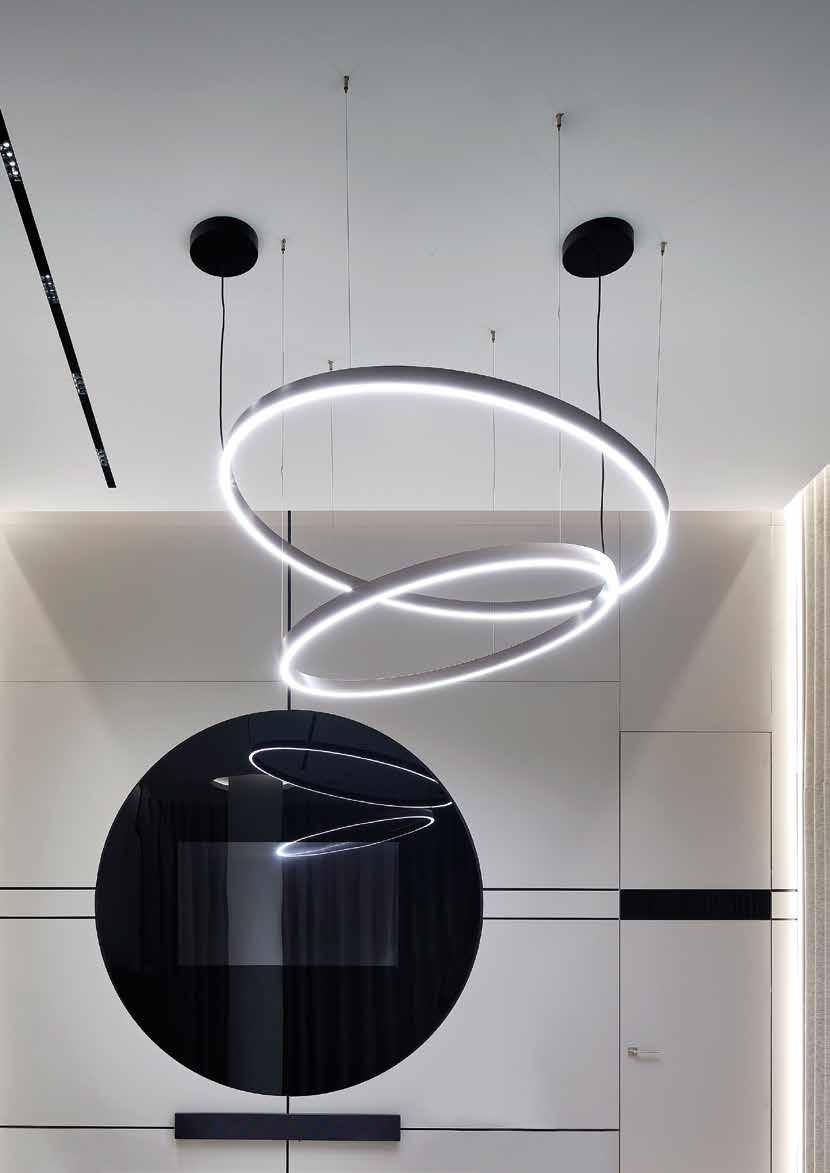

Centro di formazione, Milan, Italy, Ph. Andrea Martiradonna | 2022

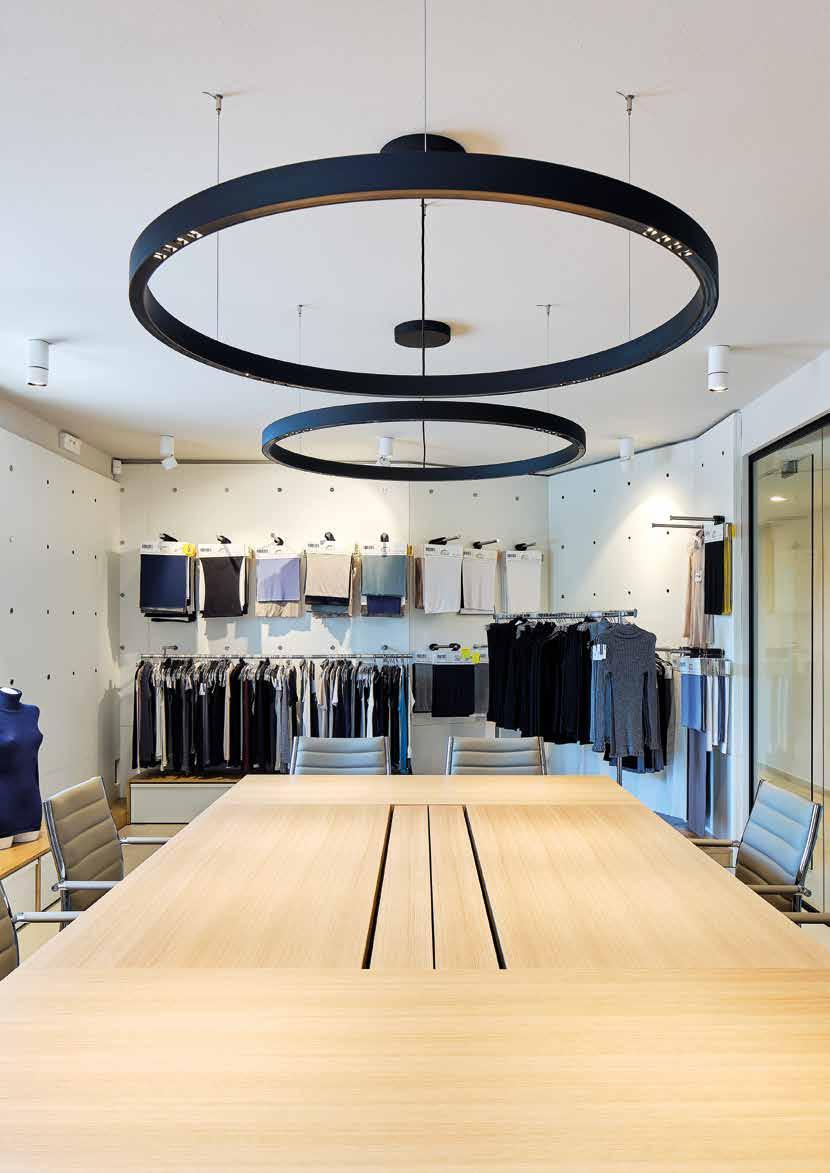

A.24 circular stand-alone

100

101

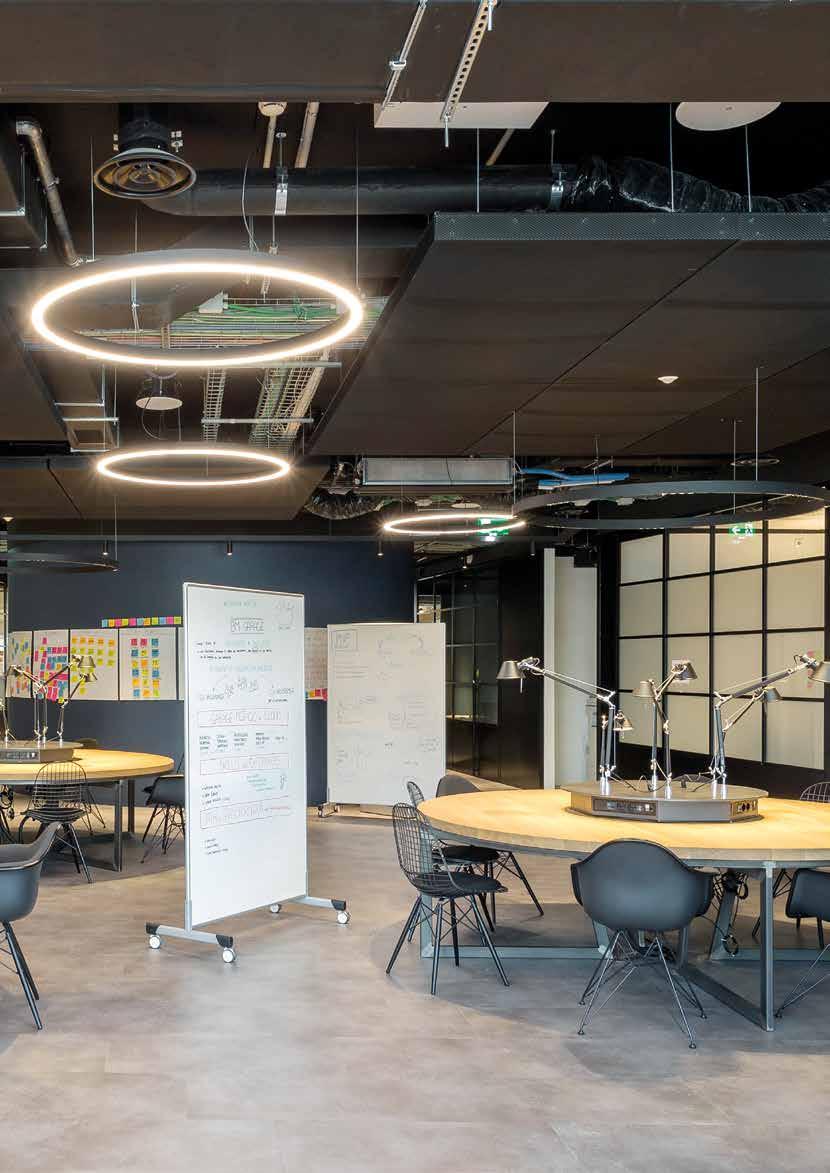

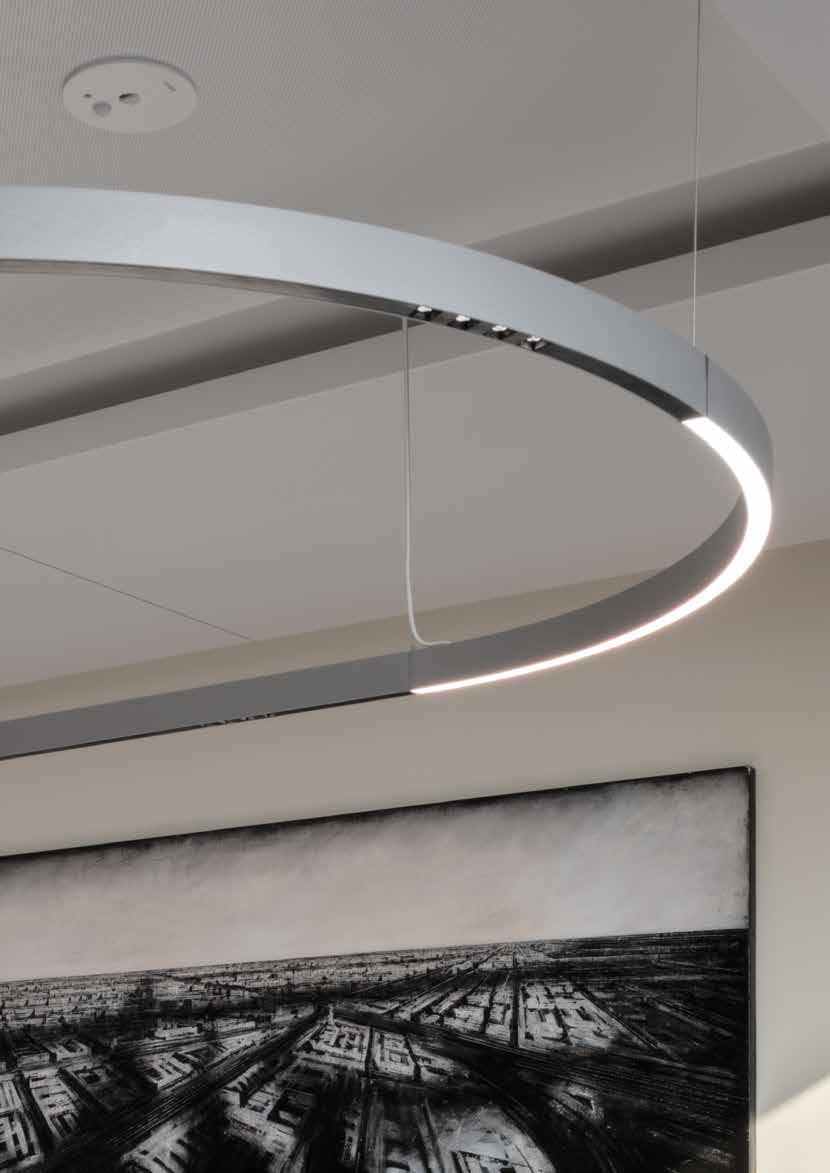

IBM Studios, project by COIMA IMAGE, Milan, Ph. Francesca Iovene | 2019

102

103

A . 24 C I R C U L A R S TA N D - A L O N E - D I F F U S E D E M I S S I O N White

Black

01 04 Fast delivery

Brushed Brushed Brushed Copper Bronze Silver

220/240Vac 50/60Hz electronic ballast included.

15 18 20 Delivery time on demand

MacAdam 2SDCM Lifetime L70 (9K) 50000 *MacAdam 3SDCM Lifetime L70 (17K) 102000 3000K - 4000K CRI = 90 2700K CRI = 80

IP20

Uses 1 DALI addresses.

RECESSED Ø 1122 mm

1500 mm

W 95W 88W 88W 132W 118W 118W

Flux1 8082 lm 9044 lm 9044 lm 10776 lm 12058 lm 12058 lm

CCT 2700K 3000K* 4000K 2700K 3000K* 4000K

Code AQ54401 AQ54001 AQ54101 AQ55401 AQ55001 AQ55101

APP Code AQ54401APP AQ54001APP AQ54101APP AQ55401APP AQ55001APP AQ55101APP

Code AQ744. 01/04 15/18/20 AQ740. 01/04 15/18/20 AQ741. 01/04 15/18/20 AQ754. 01/04 15/18/20 AQ750. 01/04 15/18/20 AQ751. 01/04 15/18/20

APP Code AQ744. 01/04 APP 15/18/20 APP AQ740. 01/04 APP 15/18/20 APP AQ741. 01/04 APP 15/18/20 APP AQ754. 01/04 APP 15/18/20 APP AQ750. 01/04 APP 15/18/20 APP AQ751. 01/04 APP 15/18/20 APP

Formwork (aluminum) included

SUSPENSION

1500 mm

W 95W

Flux1 8082 lm

CCT 2700K

88W

9044 lm

3000K*

88W

9044 lm

4000K

132W

10776 lm

2700K

118W

12058 lm

3000K*

118W

12058 lm

4000K

Cable length for suspension version For Dali L 2100 mm For APP L 1750 mm Power supply kit color specifications DALI version: White body + white ceiling rose + white cable. Silver/copper/bronze/black body + black ceiling rose + black cable. APP version: White body + white ceiling rose + transparent cable. Silver/copper/bronze/black body + black ceiling rose + transparent cable.

CEILING

Ø 1122 mm

1550 mm

W 95W

Flux1 8082 lm

CCT 2700K

88W

9044 lm

3000K*

88W

9044 lm

4000K

132W

10776 lm

2700K

118W

12058 lm

3000K*

118W

12058 lm

4000K

Dimmable DALI Code AQ644. 01/04 15/18/20 AQ640. 01/04 15/18/20 AQ641. 01/04 15/18/20 AQ654. 01/04 15/18/20 AQ650. 01/04 15/18/20 AQ651. 01/04 15/18/20

APP Code AQ644. 01/04 APP 15/18/20 APP AQ640. 01/04 APP 15/18/20 APP AQ641. 01/04 APP 15/18/20 APP AQ654. 01/04 APP 15/18/20 APP AQ650. 01/04 APP 15/18/20 APP AQ651. 01/04 APP 15/18/20 APP

Accessories Trimless frame to be used for recessing the power kit For suspension Stand-alone Ø 1122 and Ø 1500 For ceiling Stand-alone Ø 1122 and Ø 1500

Direct luminous flux: measured using white body. With black body -17% output flux.

Code AQ94000 AQ94200

Ø1122 / 1500 54

Ø 1122 mm

A . 24 C I R C U L A R S TA N D - A L O N E - D I F F U S E D E M I S S I O N F L E X I B L E O PA L D I F F U S E R S C R E E N

Emission

White body + flexible diffuser cod. AQ90...

Black body + flexible diffuser cod. AQ90...

Ø 1122 mm 2700K

Direct

8082 Im

6375 Im

3000K

Direct

9044 Im

7101 Im

4000K

Direct

9044 Im

7101 Im

2700K

Direct

10776 Im

8499 Im

3000K

Direct

12058 Im

9468 Im

4000K

Direct

12058 Im

9468 Im

Ø 1500 mm

Flux for Silver body is the same of White body. Flux for Copper and Bronze body is the same of Black body.

104

105

Molteni Showroom, Aversa, Italy | 2021

106

107

Telecommunications Company, Zurich, Swiss, Ph. Trispace AG | 2019

A . 24 C I R C U L A R S TA N D - A L O N E - S H A R P I N G E M I S S I O N White

Brushed Brushed Brushed Copper Bronze Silver

Black

220/240Vac 50/60Hz electronic ballast included. Sharping kit has to be ordered separately.

01 04 Fast delivery

15 18 20 Delivery time on demand

*Uses 1 DALI address ** Uses 2 DALI addresses

MacAdam 2SDCM Lifetime L90 (20K) 118000 3000K - 4000K CRI = 90 2700K CRI = 80

IP20

RECESSED Direct emission Ø W 1122 mm* 42W

Beam FL 24°

1500 mm**

FL 24°

83W

Flux 3056 lm 3256 lm 3485 lm 6112 lm 6512 lm 6969 lm

CCT 2700K 3000K 4000K 2700K 3000K 4000K

Dimmable DALI Code AQ545. 01/04 AQ542. 01/04 AQ543. 01/04 AQ555. 01/04 AQ552. 01/04 AQ553. 01/04

APP Code AQ545. 01/04 APP AQ542. 01/04 APP AQ543. 01/04 APP AQ555. 01/04 APP AQ552. 01/04 APP AQ553. 01/04 APP

Dimmable DALI Code AQ745. 01/04 15/18/20 AQ742. 01/04 15/18/20 AQ743. 01/04 15/18/20 AQ755. 01/04 15/18/20 AQ752. 01/04 15/18/20 AQ753. 01/04 15/18/20

APP Code AQ745. 01/04 APP 15/18/20 APP AQ742. 01/04 APP 15/18/20 APP AQ743. 01/04 APP 15/18/20 APP AQ755. 01/04 APP 15/18/20 APP AQ752. 01/04 APP 15/18/20 APP AQ753. 01/04 APP 15/18/20 APP

Formwork (aluminum) included

SUSPENSION Beam FL 24°

Flux CCT 3056 lm 2700K 3256 lm 3000K 3485 lm 4000K

1500 mm**

83W

FL 24°

6112 lm 2700K 6512 lm 3000K 6969 lm 4000K

Ø 1122

Direct emission Ø W 1122 mm* 42W

Cable length for suspension version for Dali L 2100 mm for APP L 1750 mm Power supply kit color specifications DALI version: White body + white ceiling rose + white cable. Silver/copper/bronze/black body + black ceiling rose + black cable. APP version: White body + white ceiling rose + transparent cable. Silver/copper/bronze/black body + black ceiling rose + transparent cable.

CEILING

Beam FL 24°

Flux CCT 3056 lm 2700K 3256 lm 3000K 3485 lm 4000K

1500 mm**

83W

FL 24°

6112 lm 2700K 6512 lm 3000K 6969 lm 4000K

Dimmable DALI Code AQ645. 01/04 15/18/20 AQ642. 01/04 15/18/20 AQ643. 01/04 15/18/20 AQ655. 01/04 15/18/20 AQ652. 01/04 15/18/20 AQ653. 01/04 15/18/20

APP Code AQ645. 01/04 APP 15/18/20 APP AQ642. 01/04 APP 15/18/20 APP AQ643. 01/04 APP 15/18/20 APP AQ655. 01/04 APP 15/18/20 APP AQ652. 01/04 APP 15/18/20 APP AQ653. 01/04 APP 15/18/20 APP

Sharping accessories Sharping kit R=561 mm (4 louvers - 4 covers) Sharping kit R=750 mm (8 louvers - 8 covers)

Code AQ930. 01/04 AQ931. 01/04

Accessories Trimless frame to be used for recessing the power kit For suspension Stand-alone Ø 1122 and Ø 1500 For ceiling Stand-alone Ø 1122 and Ø 1500

108

109

Code AQ94000 AQ94200

Ø 1500 54

Direct emission W Ø 42W 1122 mm*

White

Black

01 04 Fast delivery

110

111

Brushed Brushed Brushed Copper Bronze Silver

15 18 20 Delivery time on demand

White

Black

01 04 Fast delivery

Brushed Brushed Brushed Copper Bronze Silver

15 18 20 Delivery time on demand

A.24 wall

A . 24 WA LL - DIFFUSED EMISSION Black

01 04 Fast delivery

MacAdam 3SDCM

220/240Vac 50/60Hz electronic ballast included

Brushed Brushed Brushed Copper Bronze Silver

IP20

Life L70 (17K) 102000h

15 18 20 Delivery time on demand

CRI 90

Flux 1919 lm

CCT 2700K

2036 lm

3000K

Code BK010. 01/04 15/18/20 BK020. 01/04 15/18/20

Direct and indirect emission W Length 23 W 300 mm

White

48 60

300

594 54

3000K

2759 lm

Code BK110. 01/04 15/18/20 BK120. 01/04 15/18/20 48

CCT 2700K

Flux 2601 lm

CRI 90

Direct and indirect emission W Length 600 mm 30 W

300

888 38

4139lm

888

3000K

Code BK210. 01/04 15/18/20 BK220. 01/04 15/18/20 27

CCT 2700K

Flux 3901 lm

594

CRI 90

Direct and indirect emission W Length 45 W 900 mm

113

888

112

594

114

115

Gagarin airport VIP lounge, Saratov, Russia, Ph. Sergey Ananiev | 2019

A.24 is compatible with Artemide App Artemide App is a user-friendly and intuitive interface used to control individual products, groups of appliances and lighting scenarios. It is a tool that can be associated with several products from both the Design and the Architectural Catalogues.

Download Artemide App and find more information on artemide.com

Headquarters Artemide S.p.A. Via Bergamo, 18 20006 Pregnana Milanese (MI), Italy Tel. +39 02 93518.1 Tel. +39 02 93526.1 Numero verde 800 834 093 (from Italy only) info@artemide.com artemide.com

Artemide S.p.A. si riserva la facoltà di modificare, in qualunque momento e senza preavviso, le caratteristiche tecniche degli elementi illustrati nel presente catalogo. Artemide S.p.A. reserves the right to change, at any time and without prior warning, the technical specifications of any product illustrated in this catalogue. Artemide S.p.A. se réserve le droit de modifier, à n’importe quel moment et sans préavis, les caractéristiques techniques des éléments illustrés dans ce catalogue. Artemide S.p.A. behält sich das Recht vor jederzeit und ohne Ankündigung die technischen Daten der im Katalog abgebildetem Produkte zu ändern. Artemide S.p.A. se reserva la facultad de modificar, en cualquier y sin aviso previo, las características técnicas de los elementos ilustrados en el presente catálgo.

2025

For information regarding distributors and points of sale, please visit our website artemide.com or email: info@artemide.com

116
