Herzog & de Meuron
Herzog & de Meuron
Established in Basel in 1978, Herzog & de Meuron is a partnership led by Jacques Herzog and Pierre de Meuron together with Senior Partners Christine Binswanger, Ascan Mergenthaler, Stefan Marbach, Esther Zumsteg, and Jason Frantzen. An international team of nearly 500 collaborators including the two Founders, five Senior Partners, nine Partners, and 42 Associates work on projects across Europe, the Americas and Asia. The main office is in Basel with additional offices in London, New York, Hong Kong, Berlin and Copenhagen. The practice has designed a wide range of projects from the small scale of a private home to the large scale of urban design. Many projects are highly recognized public facilities, such as museums, stadiums, and hospitals, and they have completed distinguished private projects including offices, laboratories and apartment buildings. Awards received include the Pritzker Architecture Prize (USA) in 2001, the RIBA Royal Gold Medal (UK), the Praemium Imperiale (Japan), both in 2007, and the Mies Crown Hall Americas Prize (USA) in 2014.
Unterlinden Outdoor
Herzog & de Meuron 2022

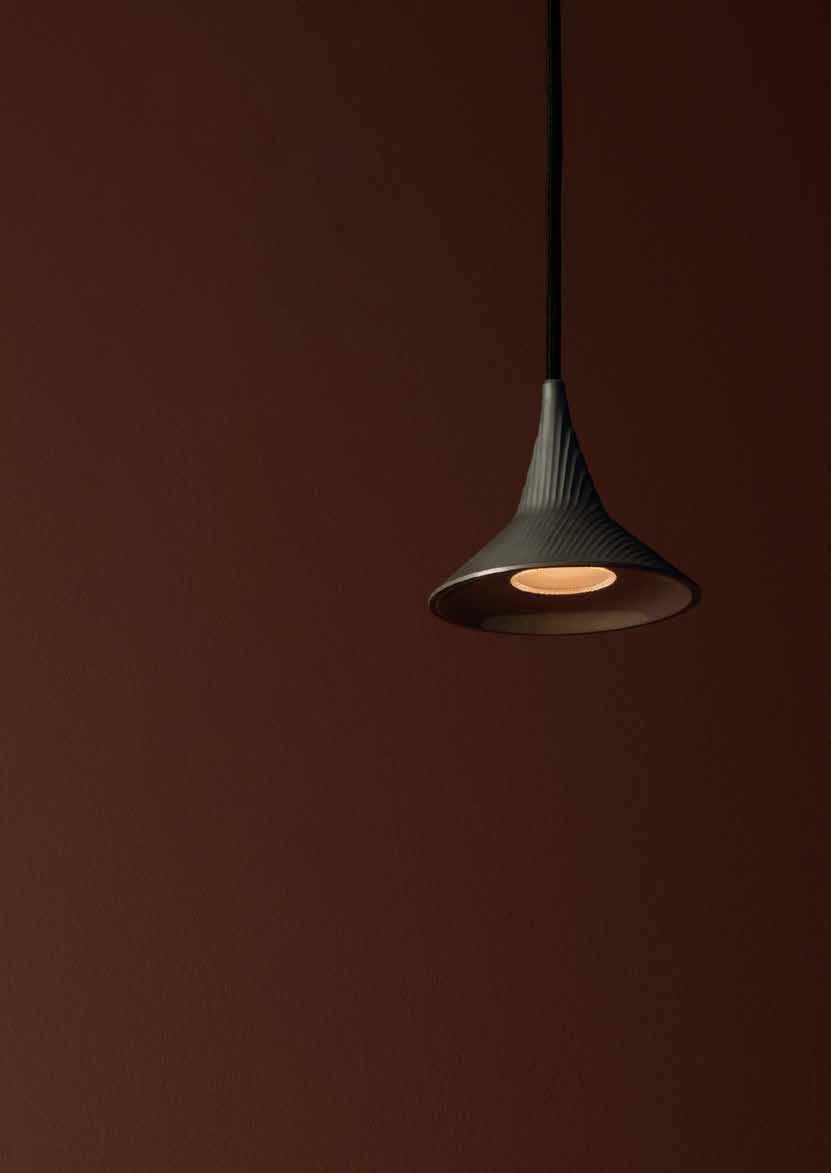

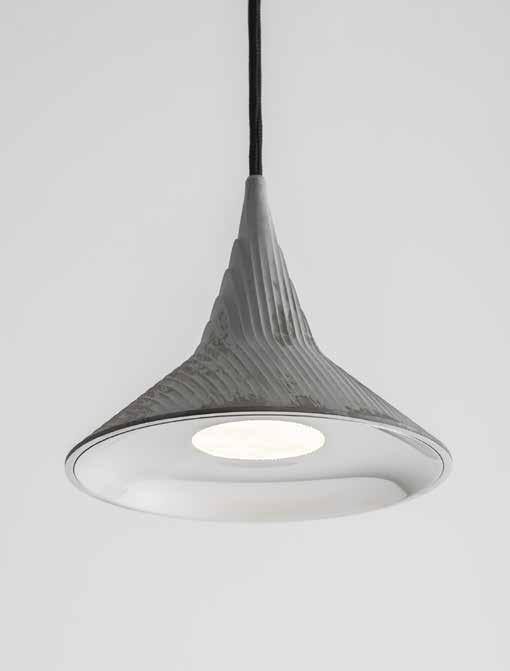

The characteristic aluminum head of the Unterlinden indoor family grows in a version with a 17 cm diameter instead of 11 cm, to obtain superior light performance and give rise to a perfect version for outdoor settings too.

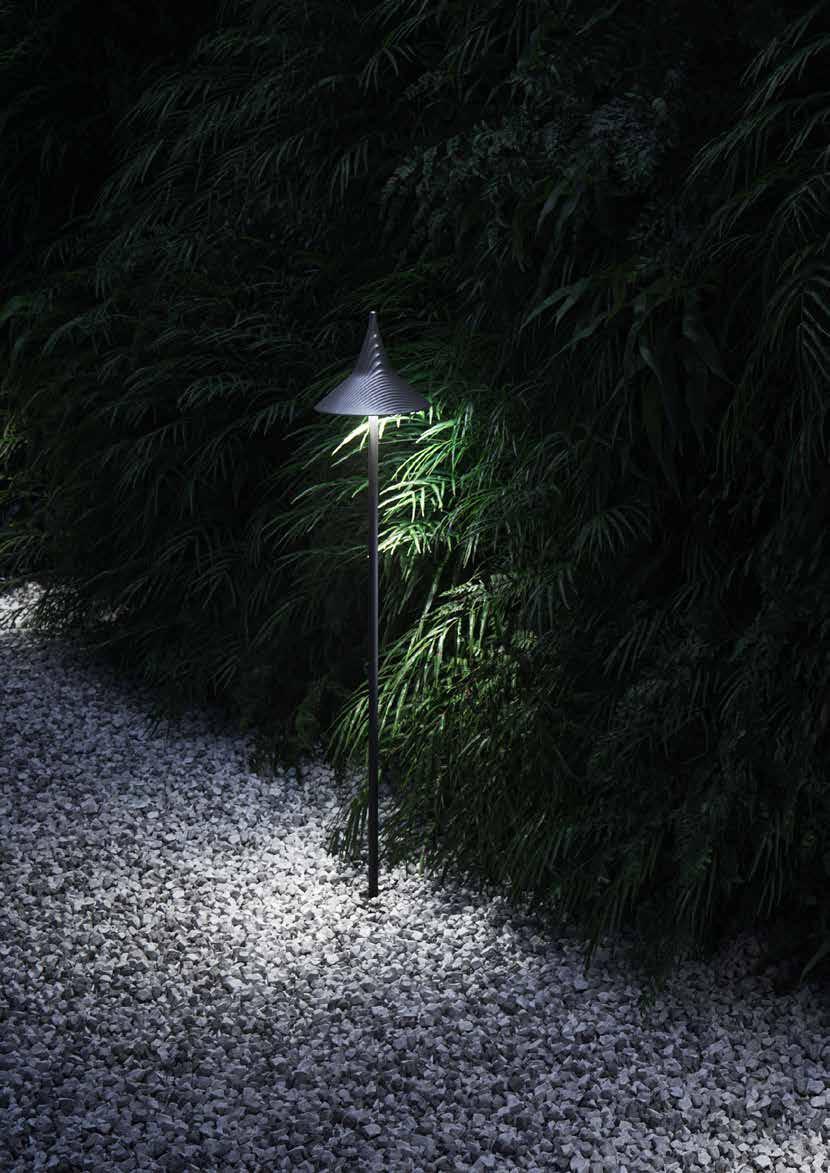

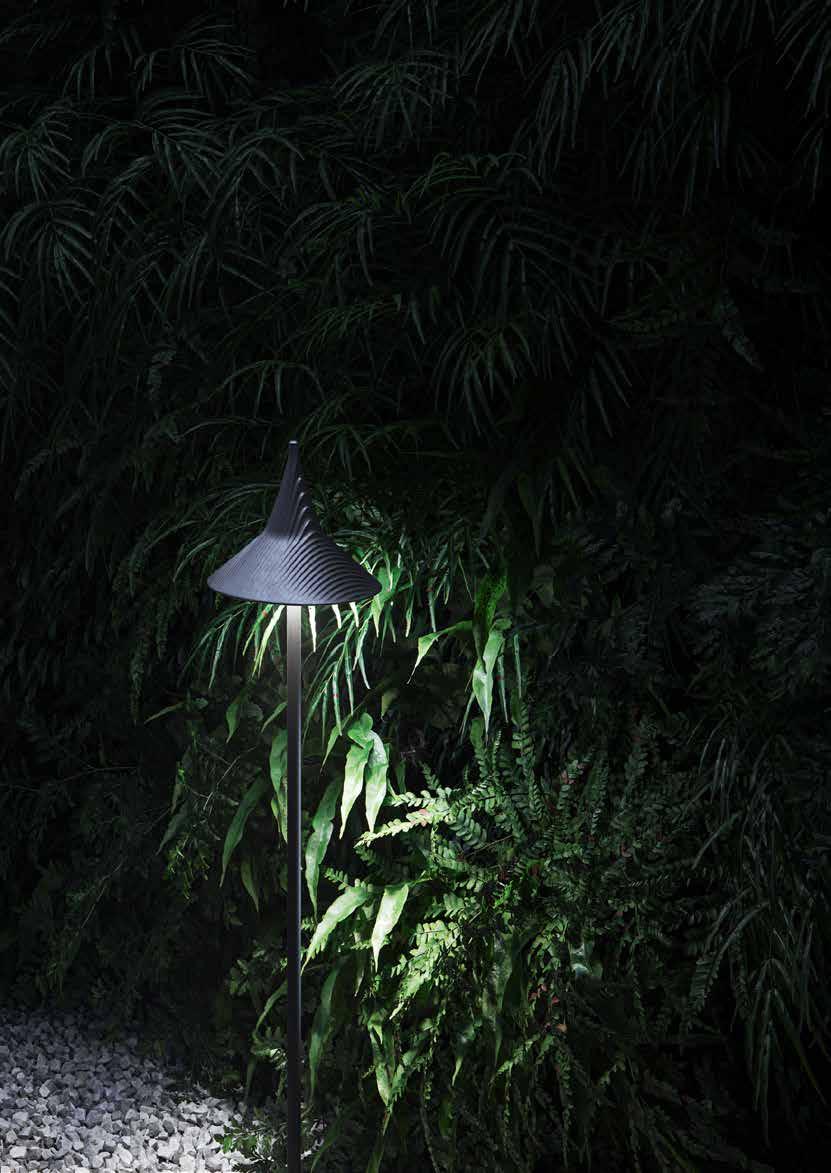

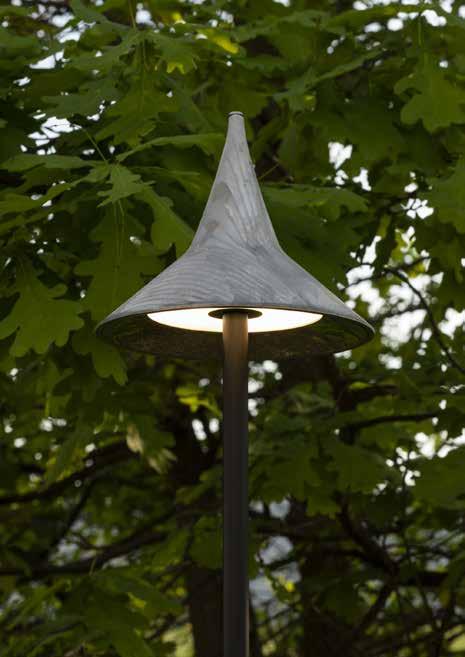

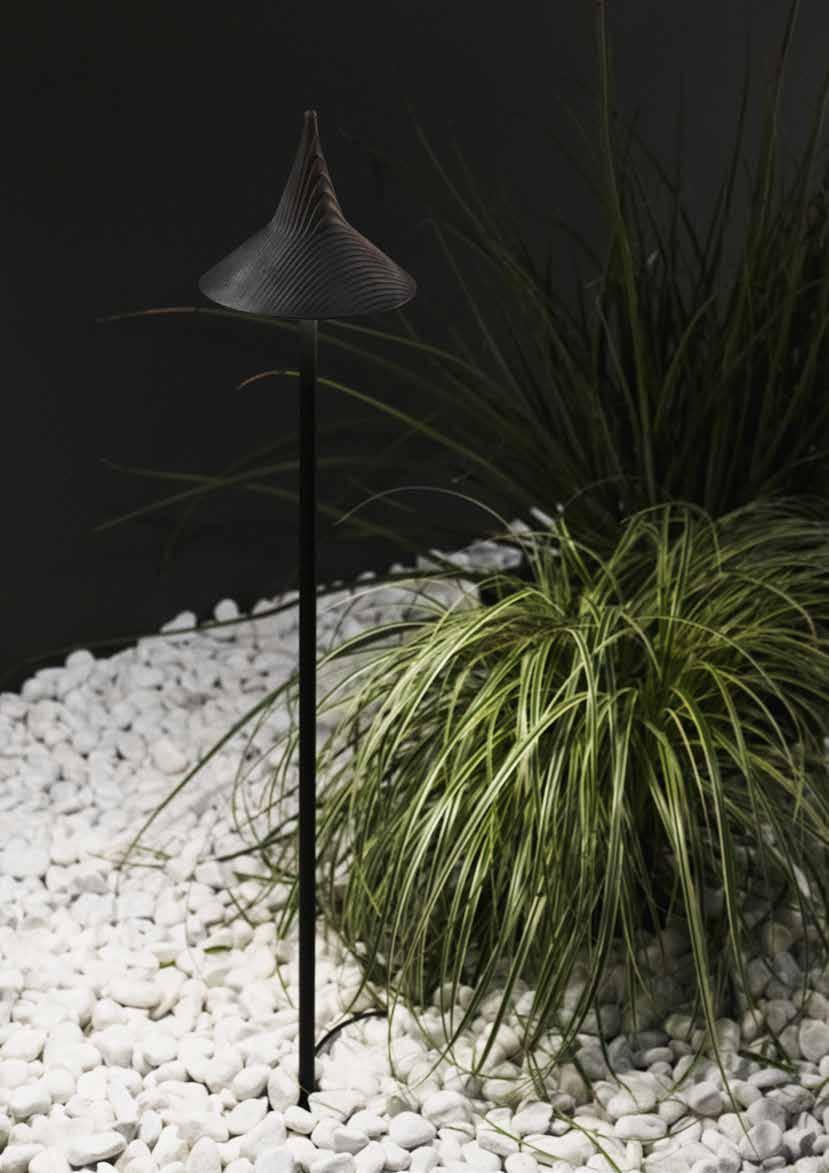

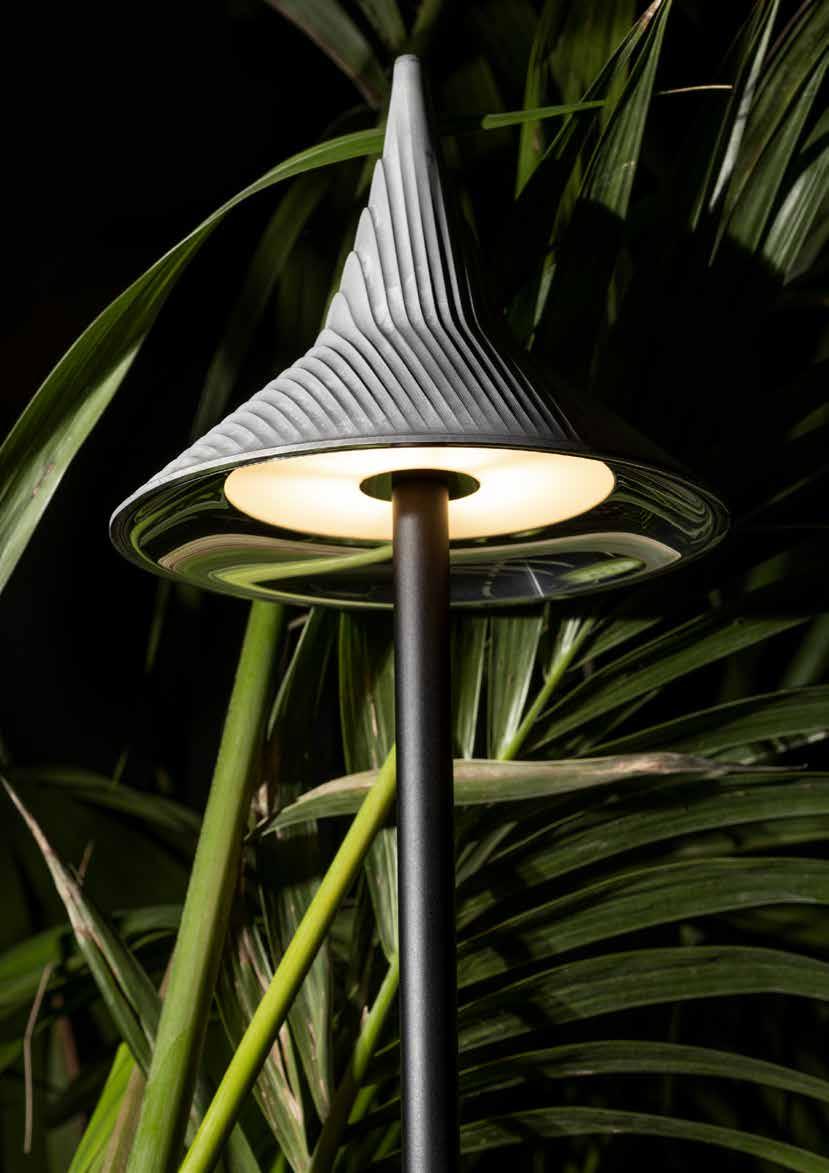

In the bollard version, the rod exits the centre of the head without compromising its luminous efficiency achieved thanks to a special optics that opens the light along the path.
In the entire Unterlinden family, simplicity is combined with sophistication, expressed in wellbalanced and understated shapes, devised with accurate care for details: functional, elegant and unique both in textures and finishes.
Unterlinden Outdoor
Materials:
Aluminium structure, aluminuim lamp body, technopolymer diffuser.
Colours:
Aluminium
Black
Dimensions:
Unterlinden Bollard: Ø175 x 146 x h 902 mm
Unterlinden Suspended: Ø175 x 141 x h 1180 mm
Unterlinden Wall: Ø175 x 141 x h 632 mm

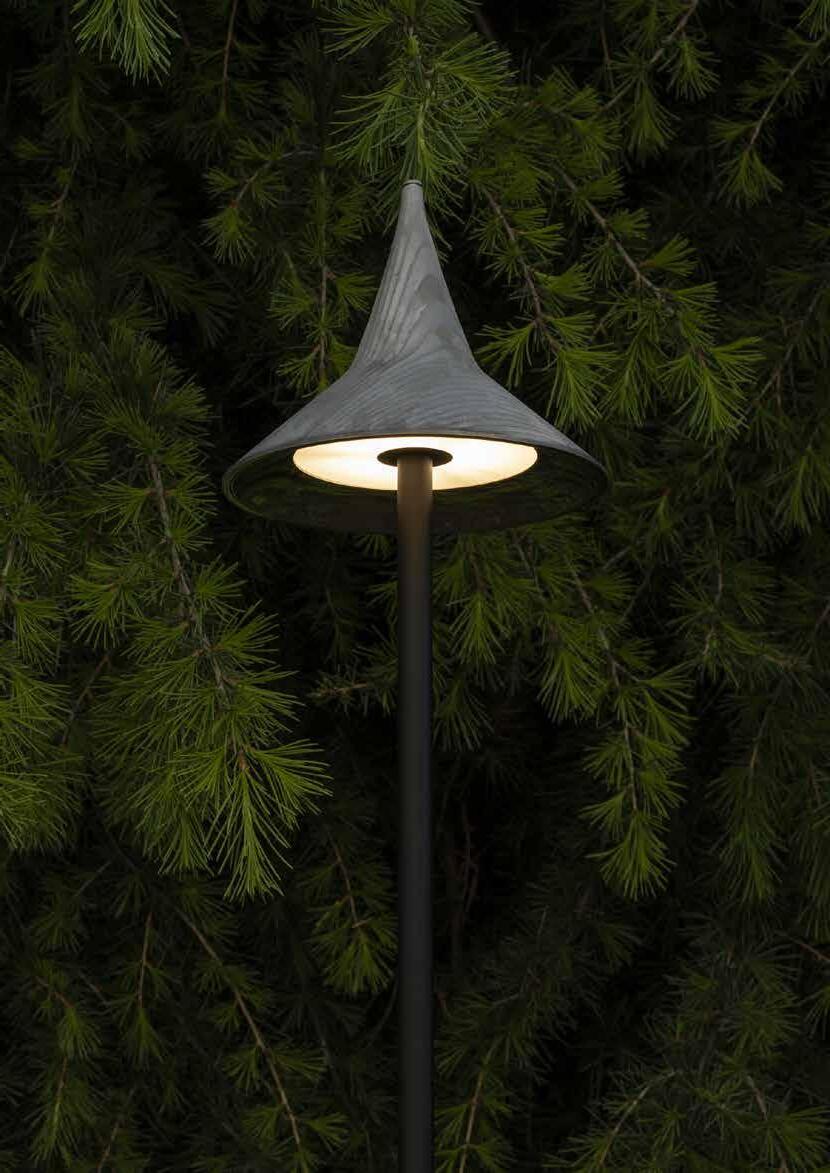

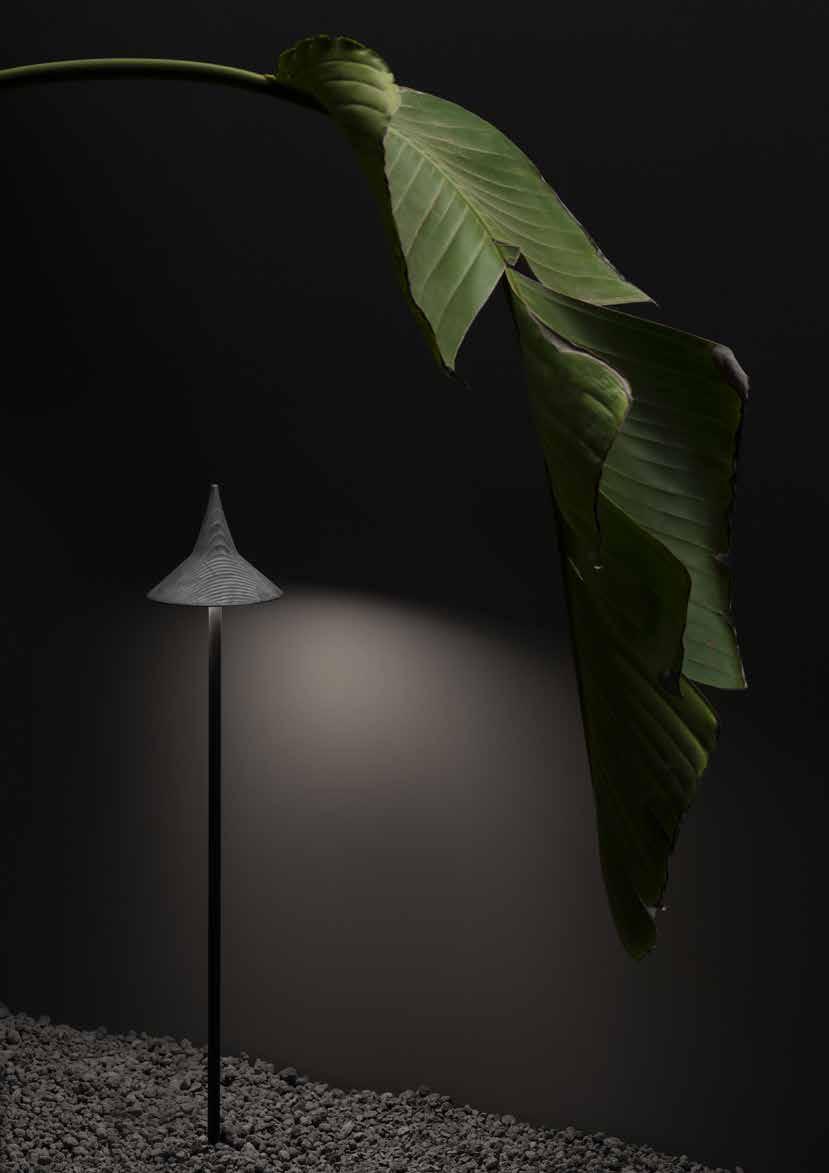

Bollard Version
Suspension Version

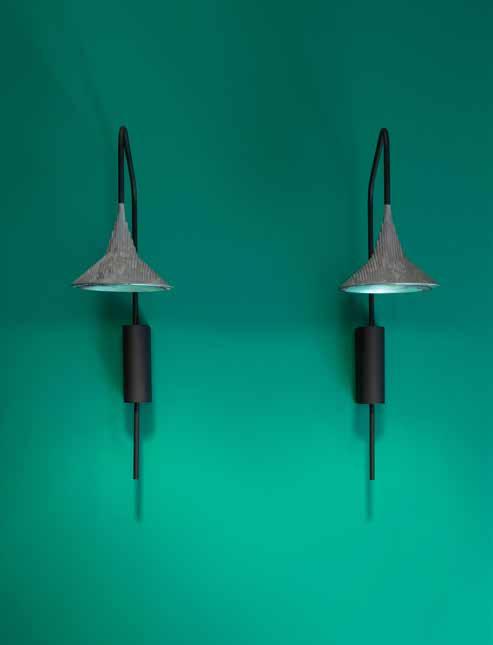

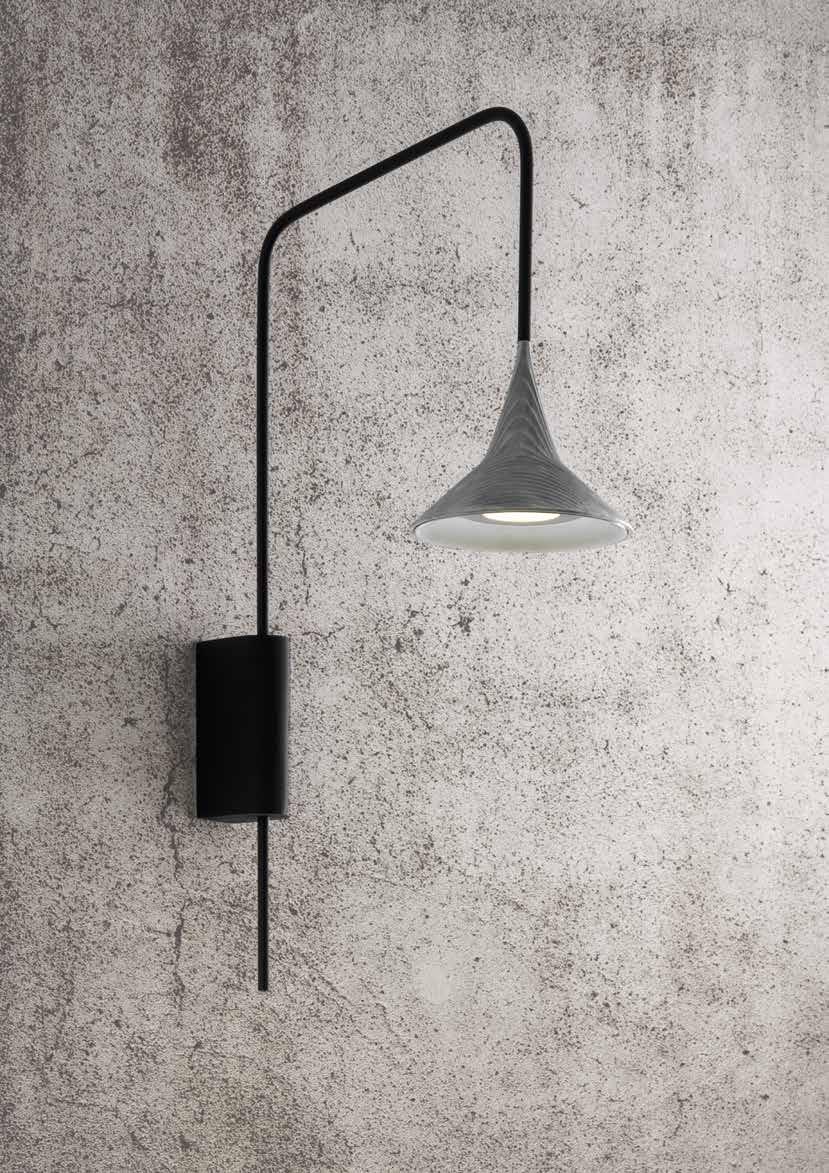

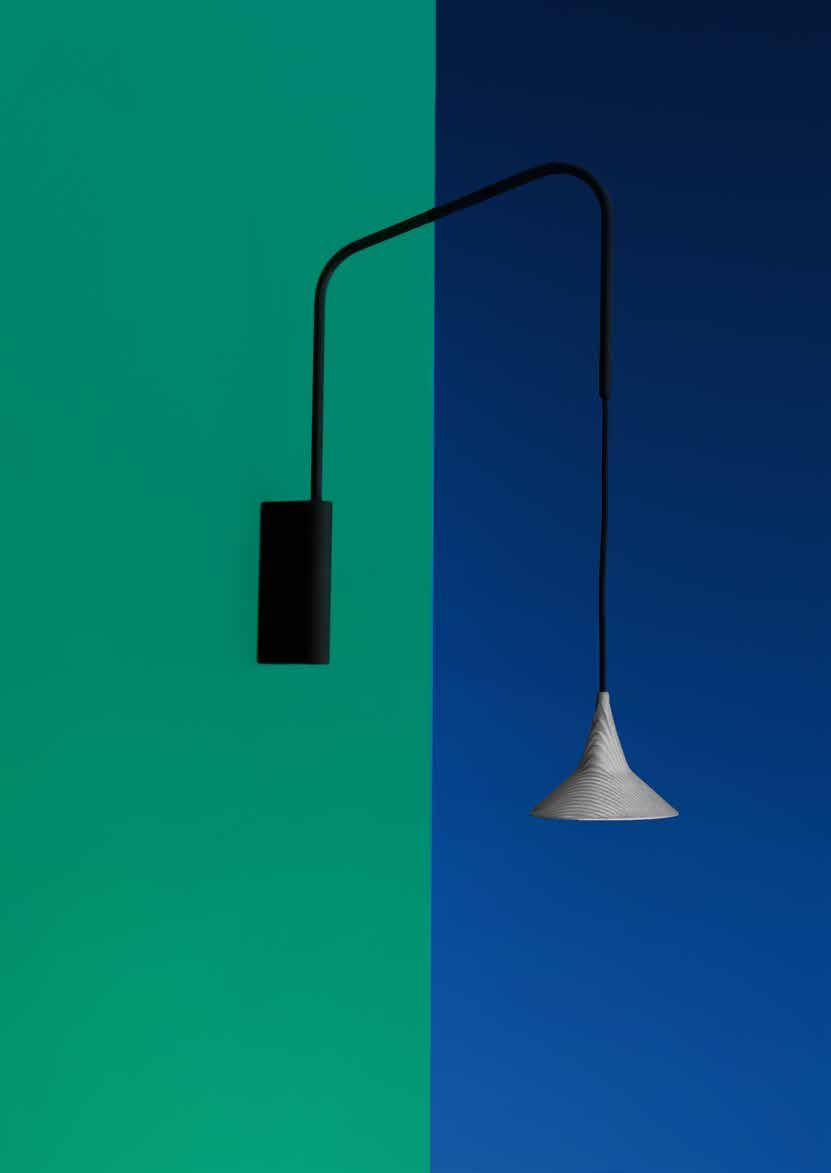

Wall Version
Unterlinden Outdoor Family
Materials: Alluminum
Diffuser: Alluminium Body: Black
IP67
CCT: 3000K
CRI=90
Unterlinden Bollard:
Total Power: 8W
Delivered Luminous Flux: 850 lm
Unterlinden Suspension:
Total Power: 15W
Delivered Luminous Flux: 1325 lm
Unterlinden outdoor Bollard
Unterlinden outdoor Suspension
Unterlinden Wall: Total Power: 15W
Delivered Luminous Flux: 1325 lm
Unterlinden outdoor Wall
BOLLARD
Driver
Heigth 902 mm Vac Lmm Wmm Hmm
24W CV 24VDC 110-240 185 35 35 DALI
90W CV 24VDC 110-240 250 63 30 0-10
90W CV 24VDC 110-240 250 63 30 DALI
25W CV 24VDC 110-240 148 40 32 Undimmable
60W CV 24VDC 110-240 163 43 32 Undimmable
90W CV 24VDC 110-240 161 61 36 Undimmable
* IP connectors to be supplied by installator
Code T0792010
Code
DV1041
DV1075
DV1076
T409996*
T409998* T409999*
SUSPENSION
Heigth 1180 mm
Code T0790010
WALL
Heigth 632 mm
Code
T0791010
