JOICE Walk In +
The fifirst barrier-free walk-in shower, in which you can also take a bath!
WORLD’S FIRST!Patentpending.
2 in 1 concept
for frequent shower-takers and occasional bathers!
NEW: JOICE Walk In + : Trendy walk-in solution with the bath-plus!

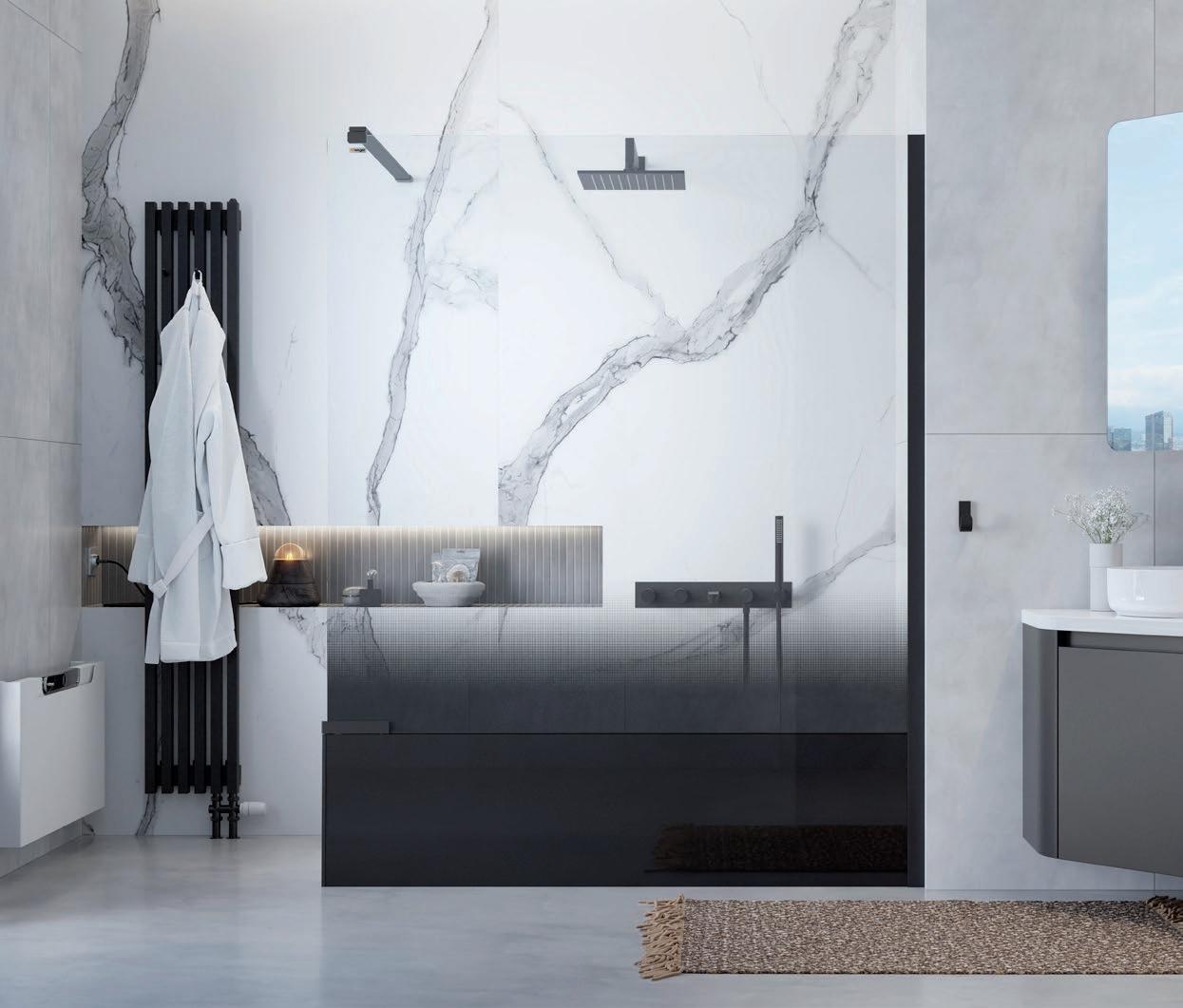

A large glass front in-front of a spacious, door-free shower areathis is what characterises this trendy, walk-in shower. With the JOICE Walk-In + , this wide glass front creates a modern eye-catching appearance, stylishly set in place using contemporary colours that fade upwards into a transparent optic at the top.
Behind this elegant front is a completely new 2 in 1 concept: The floor level, barrier-free, generously sized shower compartment, can be transformed into a full- sized bathtub in just a few easy steps. For the style-conscious, who like to shower without limits, but don’t want to give up bathing completely.
You have the JOICE!
2
JOICE - The ingenious Walk In + solution for modern bathrooms
++ Walk In + shower with door-free access
++ Trendy look
++ 100% barrier-free
++ Wide splash guard
++ Converts into a bathtub in a few easy steps
++ Full-sized bath tub
++ Available in two sizes: 150cm and 160cm, suitable for niche widths of 200cm or more
JOICE Walk In + 3
The new JOICE Walk In + is a full-sized bathtub.
Bathing in the JOICE
Despite the short tub length, the JOICE offers enough space for a full bath as the straight door panel allows the space to be used to a maximum. And with a tub width of 85 cm, the JOICE offers plenty of room to move.
To bathe, the door panel is added and simply locked into place. A continuous seal around the panel ensures it’s reliably watertight. The safety mechanism prevents the drain from closing if the panel is not inserted or is incorrectly inserted.
After bathing, the panel can be put into the storage box and the Walk-In + is ready for showering again.
Lever to the left = panel open
Lever to the right = panel closed
Storage box for panel. (optional)
4
The new JOICE Walk In + is the
SHOWERING IN THE JOICE
The new JOICE Walk In + is a cool walk-in solution for modern bathrooms. The wide glass front and the completely floor-level, door-free access make daily showering a unique experience.
After shower care is also a joy with the JOICE. The high tub without any edges and corners and the treated ARTCLEAR glass, make cleaning child’s play.
You have the JOICE!
Completely floor-level entry to the shower Plenty of room for an enjoyable shower experience
JOICE Walk In + 5
cool solution for modern bathrooms.
The JOICE tub is sunk 8cm into the floor and glued to the substrate. The installation is as easy as with the mineral-cast tub, ARTSTONE. This type of installation is the most stable in use. The installation in the floor means that access to the shower is completely level and barrier-free.
For installation where the tub cannot be sunk into the floor, it is possible to put the tub onto the floor. Only the drainage is set below floor level. This means there is a small 8cm step into the shower area which can be easily managed.
Installation Variations You have the JOICE!
Sometimes it’s not possible to dig into the existing floor. With this type of installation, there is a walk-in step of 16.5 cm high. We recommend adding a platform in the entry area, so that floor-level access can be guaranteed.
Easy-cleaning with ARTCLEAR GLASS
Thanks to the high tub, the hard wearing lower part of the shower area is particularly easy to clean without any corners or edges. The pore-free, smooth acrylic surface is simple and easy to clean. In addition, the JOICE shower panel can be supplied optionally with the unique ARTCLEAR treated glass to give even easier cleaning for the life-time of the shower!
1. Installation in flooras simple as with a shower tray:
3. Tub and drainage on floor level:
2. Installation on the floorthe quick solution for renovation:
6
Models and Colours
JOICE 160: 160cm long, 85cm wide. Left or right entry possible.
Floor dimensions: 60 x 125cm.
Tub capacity: 190L
1500/1600
JOICE 150: 150cm long, 85cm wide. Left or right entry possible.
Floor dimensions: 60 x 115cm.
Tub capacity: 170L
Possible colour design:
BLACK: Glass black decor
Wall profile and stabiliser matt black, all other parts glossy black.
PROFILE:
WHITE: Glass white decor
Wall profile and stabiliser matt white, all other parts glossy white.
Colours (Wall connection and stabiliser) high gloss metal white matt white matt black grey matt
Further colours on request.
GREY: Glass grey decor
Wall profile and stabiliser matt grey, all other parts glossy grey.
Series standard wall mounting Optional storage box
REAL GLASS LIGHT: Tub front glossy white with a 3cm white stripe on the glass, wall profile and stabiliser glossy metal.
COLOURED GLASS
GREY:
Tub front glossy black with a 3cm black stripe on the glass, wall profile and stabiliser matt black.
GLAZING: Genuine glassclear Colored glass grey Genuine glassclear with decor white black grey
850
430 2000
JOICE Walk In + 7
Details installation options
Option A1 – flush with floor
Completely recessed in the floor
Totally barrier-free
Option A2 – Mounted on floor
Only drainage fittings recessed in the floor step 80 mm
Depth of recess for drainage fittings: 85 mm
Option A3 – Mounted completely on floor
Drainage fittings above the floor,step 165 mm (no floor recess)
8
Price list 2023/24
(Price guarantee until 30 June 2024)
ACCESSORIES
ARTWEGER price list 06/2023. For specialised trade outlets only. Suggested retail prices in EUR not including VAT. DIMENSIONS IN MILLIMETRES. Base price
Storage box for door panel Height 440 mm, width 755 mm, depth 92 mm.
Flexible connection hose, ½“
Length 1500 mm. For inlet/drain/overflow set.
Sealing tape - set
Sealing tape 3600 mm, sound insulation tape 3600 mm, tile separation tape
3600 mm, 2 x corner extensions and adhesive tapes. For sealing and sound installation between the tub, the structure and the tiles.
JOICE DESIGN RECOMMENDATION
Corner installation left
Tub 1600 × 850 mm
Art. no. Prices in EUR
A JCW1 02 WS 3 058
• Walk‑in tub in white including door panel and drain fittings with mechanical closure.
• Tub and door panel in matt white, operating elements in chrome finish.
• Including wall mounts in white for the door panel.
Shower screen
• Colour: high‑gloss metal
• Glazing: glass clear
Skirt (optional), installation version A
B JCA1 K3 MH EK 785
C JCB0 11 WG 614
• For floor level fitting or up to an 80 mm high step in entry area.
• Front skirt and cover panel for entrance area in the selected ARTWALL surface.
• Including mounting plate for front skirt.
Total price in EUR: 4 457
C
B A
C
Art. no. J
Art. no.
Colour
JC00 01 213
matt white,
JC00 02 50
JC00 03 97
JOICE Walk In +
ARTWEGER price list 06/2023. For specialised trade outlets only. Suggested retail prices in EUR not including VAT. DIMENSIONS IN MILLIMETRES.
left right Product description / features
Shower screen
• Shower attachment including wall profile and stabiliser.
• The stabiliser and the lower cover of the wall profile must be adapted on site.
• The total height depends on the actual height of the tub in place.
• Please order tub extra.
Tub
• Walk‑in tub in white including door panel and drain fittings with mechanical closure.
• Tub and door panel in matt white, operating elements in chrome finish.
• Including wall mounts in white for the door panel.
• Height of 430mm by floor level entry.
• Shower attachment, tub skirt or tile support to be ordered separately.
A ‑ For floor level fitting or up to an 80 mm high step in entry area.
B ‑ For fitting up to a 165mm high step in entry area.
A/B
cover panel for entrance area
• Colour glossy white
• Only required if skirt or tile support is not ordered.
Skirt
• Suitable for tubs on left and right.
• Front skirt and cover panel for entrance area in the selected ARTWALL surface.
• Corner connection profile ‑ Colour matching the chosen surface.
• Including mounting plate for front skirt.
• The exact height should be determined on site.
Tile substrate
• Suitable for tubs on left and right.
• Mounting plate for individual tiling and cover panel for entrance area in white.
• Corner connection profile in white.
• The exact height should be determined on site.
• Suitable for tiles with a thickness of at most 10 mm.
• Height of glass + 30 mm = total height incl. stabiliser. Required installation height is total height + 100 mm.
JOICE WALK IN +
Height/height
of glass × width
2000/1570 × 1500 2000/1570 ×
1600 IMPORTANT
Länge ×
width
1500 × 850 1600 ×
850
Length
× height
A/B 850 × 570 B A
A 1500 × 485 1600 × 485 B 1500 × 570 1600 × 570 A B
A 1500 × 485 1600 × 485 B 1500 × 570 1600 × 570
Art. no. Colour J C Base price Art. no. WG Glossy white SW GA Gloss black Grey black Colour not specified JCBE 01 138 – –JCB0 10 614 614 –JCB0 11 JCB0 20 706 706 –JCB0 21 JCF0 10 – – 384 JCF0 11 JCF0 20 – – 479 JCF0 21 Art. no. Frame colour Glazing Glass finishing (optional) J C Base price Surcharge left right MH High‑gloss metal WS WM SM GM White Matt white Matt black Matt grey Additional colours EK TG DW DS DG Glass clear Coloured glass grey White Decor Black Decor Grey Decor C ARTCLEAR GLAZING EK TG DW DS DG 0 134 207 207 207 211 JCA1 H3 JCA2 H3 785 981 JCA1 K3 JCA2 K3 Art. no. Colour Additional features J C Base price Surcharge left right WS White E Inlet/drain/overflow¹ (optional) JCW1 01 JCW2 01 3 058 E 161 JCW1 02 JCW2 02 IMPORTANT ¹ In case of the integrated tub inlet a pipe interrupter type A2 according to EN 1717 is to be installed.
++ Walk In with real benefits - unique selling points für Artweger Partner
++ No internet price dumping, due to the unique 2 in 1 concept
++ Bathroom up-grade with additional bathing possibilities
++ Enthusiastic customers
++ Extremely attractive pricing in accordance with the Artweger middle-price collection
++ High income due to the best direct conditions
++ Own brand upgrade, eg. by advertising the new 2 in 1 concept
Success in the future: You have the JOICE
LEGAL: Responsible for contents: Artweger GmbH. & Co. KG, Technical changes and typographical errors reserved. Compliments of your bathroom specialist: Artweger GmbH.
Co. KG Sulzbacherstr.
Bad Ischl Tel. +43
info@artweger.com www.artweger.com Artweger UK The Sidings Thomas Street, Blackpool | FY6 7QQ Lancashire Tel: +44 333 666 1260 | Fax: +44 333 666 1261 infouk@artweger.co.uk Order more brochures or download it as a PDF at: www.artweger.com DP 62ENE0 6/2023
&
60 | 4820
6132 205-0
JOICE WALK IN + : The brand new success story for modern bathrooms
