SizeFlatnessMeasuring MachineProposal

EquipmentParameters:

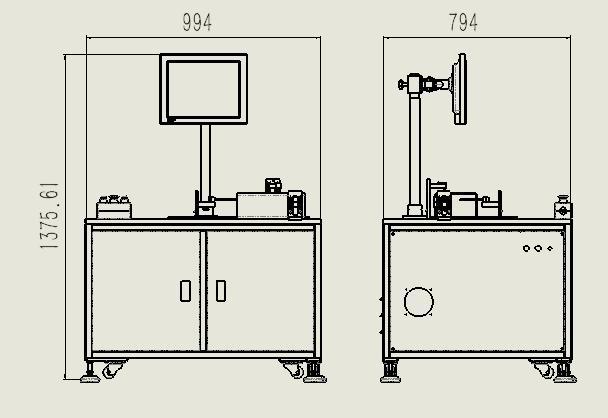

•Footprint:RefertoLayout

Thisequipmentisauniversaldevice.Intheory,adjustingor replacingcertaincomponentsorfixturesallowscompatibility withmultipleproductmeasurements.

•Mechanism:Liftingandextendingpositioningusing cylinders.

•Dimensionsmeasuredwithdisplacementsensors,

•Flatnessmeasuredwithaflatnessdetector.

•MeasurementAccuracy:0.05mm

BasicOperatingConditions:

PowerSupply:AC220V,50/60Hz

◇EquipmentProcessFlowDescription:

ActionFlow:

1.Operatorplacestheproductontothemeasuringtablefromtherightside.

2.Pressthestartbuttonontheleftsideofthetable.TwosetsofcylindersintheXYdirectionrise andextendforpositioning.Flatnessandlengthmeasurementsbegin.Aftermeasurement, positioningautomaticallyretractsandlowers.Dataisdisplayedonthemonitor.

3.Operatorremovestheproduct.

OperatorPlaces Productonto

MeasuringTablefrom RightSide

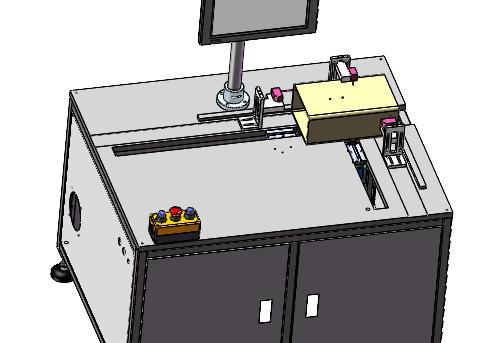

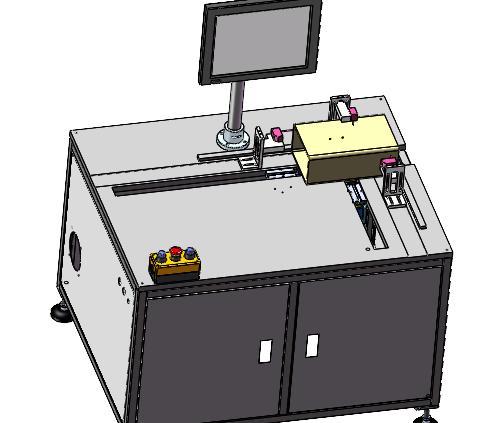

1.ProductUnderTest

2.InnerPositioningEdge

3.LeftSideRiseandExtendPositioning

4.FrontSideRiseandExtendPositioning

5.UpperMeasuringSensor

6.LeftMeasuringSensor

7.FrontMeasuringSensor

8.Monitor

9.ProductinSmallAdjustmentSlot

10.ElectricalBox

11.Button

2

1

1

ProductinSmallAdjustmentSlot

2

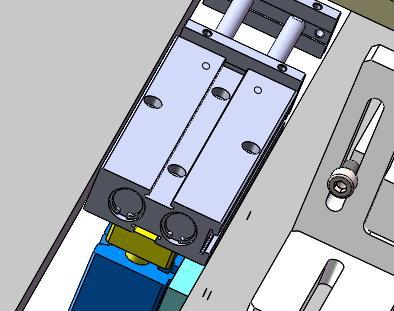

FrontPositioningCylinder

3LoweringCylinder

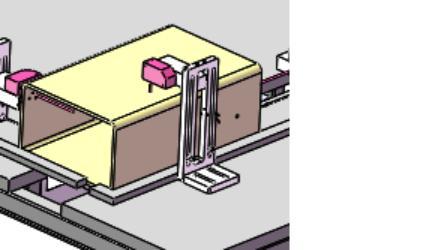

1.ProductUnderTest

2.ProductHeightAdjustmentAdaptation

3.FlatnessandHeightMeasuringInstrument

4.RearandRightFixedPositioningEdge

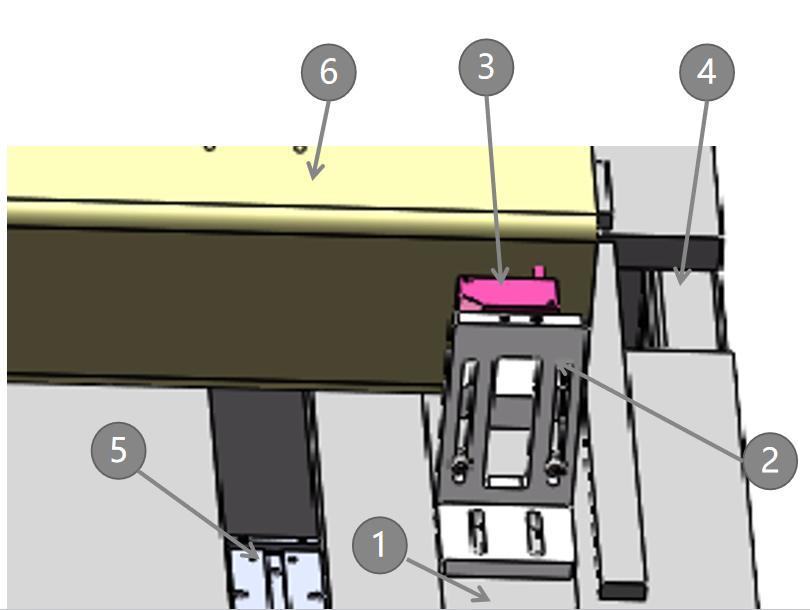

1.ProductSizeAdjustmentSlot

2.MeasurementHeight AdjustmentPlate

3.FlatnessMeasuringInstrument

4.HandAccessPositionfor Placing/RemovingProduct

5.FrontPositioningCylinder

6.ProductUnderTest
