Motorcycle Helmet Part List 147 / 26

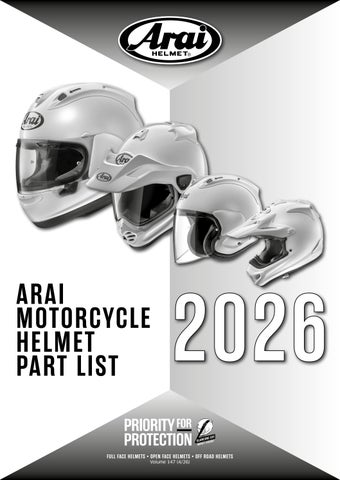

ARAI MOTORCYCLE HELMET PART LIST

2026

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS Volume 147 (4/26)

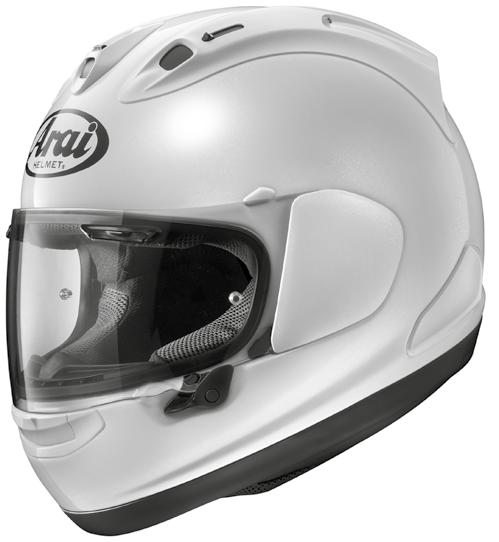

I NDE X FULL FACE HELMETS

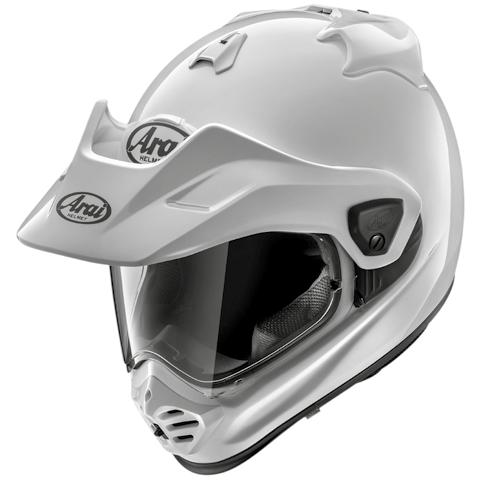

DUAL PURPOSE HELMETS

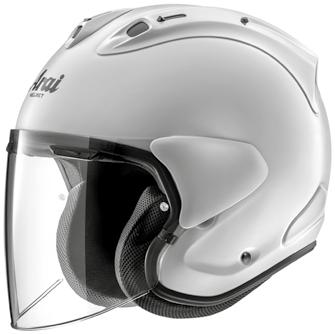

OPEN FACE HELMETS

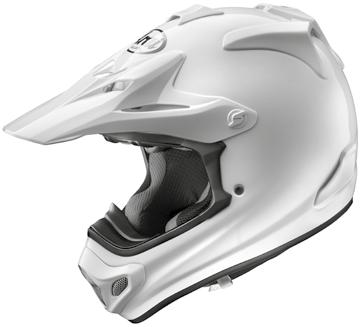

OFF ROAD HELMETS

Chapter 1: Exploded view Full Face helmets ..........................................................................................

p. 3

FULL FACE HELMETS RX7 V / RX7 V EVO / RX-7V EVO+DFX2 (VAS-V).................................................................................. RX-7V FIM Racing #2 (FRHPhe-02) ......................................................................................................................... RX7 V Racing ........................................................................................................................................................................................................ Quantic (VAS-V) ................................................................................................................................................................................................ Astro-Light (LRS) ............................................................................................................................................................................................ QV, QV-PRO (VAS-V) ................................................................................................................................................................................. Concept-X (VAS-VC) ................................................................................................................................................................................... Concept-XE (VAS-VC) .............................................................................................................................................................................. Renegade-V (VAS-V) ................................................................................................................................................................................ Chaser-X (VAS-V) ........................................................................................................................................................................................... Profile-V (VAS-V) ............................................................................................................................................................................................ Axces-3 (LRS) .......................................................................................................................................................................................................

p. 5 p. 7 p. 8 p. 9 p. 10 p. 11 p. 12 p. 13 p. 14 p. 15 p. 16 p. 17

Chapter 2: Exploded view Dual Purpose helmets ...........................................................................

p. 19

DUAL PURPOSE HELMETS Tour-X5 (TX-5) .................................................................................................................................................................................................... Tour-X4 (TX-4) ....................................................................................................................................................................................................

p. 21 p. 22

Chapter 3: Exploded view Open Face helmets ....................................................................................

p. 23

OPEN FACE HELMETS CT-F ......................................................................................................................................................................................................................................... X-tend ................................................................................................................................................................................................................................... SZ/F (LRS) .................................................................................................................................................................................................................... SZ-R EVO ....................................................................................................................................................................................................................... SZ-R VAS (VAS-Z) ........................................................................................................................................................................................... SZ Ram X (LRS) .................................................................................................................................................................................................. Freeway-2, Freeway Classic & Urban-V ..............................................................................................................

p. 25 p. 26 p. 27 p. 28 p. 29 p. 30 p. 31

Chapter 4: Exploded view Off Road helmets ..........................................................................................

p. 32

OFF ROAD HELMETS MX-V EVO......................................................................................................................................................................................................................... MX-V FIM Racing #2.................................................................................................................................................................................... MX-V ...................................................................................................................................................................................................................................... VX-Pro Jr ......................................................................................................................................................................................................................

p. 34 p. 35 p. 36 p. 38

TRIAL HELMETS

OPTIONAL PARTS

Exploded view Trial helmets ................................................................................................................................................... Penta .................................................................................................................................................................................................................................... Penta Pro .....................................................................................................................................................................................................................

p. 40 p. 41 p. 42

Optional Interior Liners ................................................................................................................................................................... Optional Cheekpads ................................................................................................................................................................................

p. 43 p. 48

NOTE: Check availability of parts for older or discontinued models with your importer.

2

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

E X PL O D E D VIEW FULL FACE H ELME TS

CHAPTER 1 13

10

9 4

3

2

1

9

11

7

12 15 7 1 Visor 2 Holderset 3 Baseplate 4 Screwset 5 Cheekpad/Earcup 6 Interior 7 Nose/Breath deflector 9 Ventilation ducts 10 Tear-offs 11 Neck pad 12 Chinvents 13 Browvents 15 Chin Strap Cover

Volume 147 (4/26)

5 6

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

3

FULL FACE H ELME T S

FULL FACE HELMETS

RX-7 MODELS ASTRO MODELS QUANTIC QV, QV-PRO CONCEPT-X CONCEPT-XE RENEGADE-V CHASER MODELS PROFILE-V AXCES MODELS

4

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

R X- 7 V • R X-7 V E VO • R X- 7V EVO+DFX2 • VAS-V 1

2

SHIELD (VISOR) VAS-V VAS-V Shield 2D, Semi Tint VAS-V Shield 2D, Clear VAS-V Shield 2D, Dark Tint VAS-V Shield Max Vision, Clear (w/Browvents) VAS-V Shield Max Vision, Semi Tint (w/Browvents) VAS-V Shield Max Vision, Dark Tint (w/Browvents) VAS-V Pro Shade System VAS-V Pro Shade Ready Shield, Clear VAS-V Pro Shade Sunvisor, Tinted VAS-V Pro Shade Pivot Cover VAS-V PSS Mirror Silver VAS-V PSS Mirror Red VAS-V PSS Mirror Blue VAS-V Dual-Pane Shield, Clear VAS-V Dual-Pane Shield, Semi Tint VAS-V MAX-V Mirror Silver VAS-V MAX-V Mirror Red VAS-V MAX-V Mirror Blue VAS-V MAX-V Mirror Green

RSW Fluor Yellow NSR 250R 92 Kiyonari Trico Nakagami GP2 Tatsuki Takumi Haga KR American Eagle Hayden Reset Hayden Laguna Light Tint Rush Red Rush Blue IoM 2022 Step Rea SB2 IoM 2023 Misano Samurai Ogura Tsubasa Pedrosa Shogun Blade Red Blade Yellow IoM 2024 MVK Oakley Schwantz 30th IoM 2025 Haga WSBK Nakasuga 4 Nakagami GP3 99 Nakano Red Rea SB3 CadaloraRstyl Doohan Jub Restyle Nagashima IOM 2026 HRC-SP Spectre Cyan Spectre Violet Ogura Trackhouse Hayden Respect

55011059 55011054 55011055 55011057 55011056 55011058 55011070 55011071 55011073 55111138 55011074 55011075 55011076 55011063 55011064 55011105 55011106 55011107 55011108

SIDEPOD (HOLDERSETS) VAS-V White Black Diamond White Diamond Black Frost Black Frost White Roberts Yellow Doohan Jubilee Rea Statement White Pedrosa Samurai HRC Crutchlow Yellow Ghost Red & Blue Guigliano Maverick Nakano Mamola Edge White Mamola Edge Red Planet Red Doohan TT Dunlop Yellow RC 30 CB Black CB Grey Frost CB Red Scope White Scope Grey Nakagami Dyno White Dyno Yellow Van der Mark Sword Red Sword Blue IoM 2018 Spencer 40th Red Spencer 40th Silver Hayden WSBK Metallic Black Frost RC Tint Pedrosa Spirit Blue Maze Black Maze Red Rea Green / Gold Vinales 12 CBR Blue CBR Red CBR Silver Sign Isle of Man 2020 Isle of Man 2019 RSW Trico

Volume 147 (4/26)

55025428 55025433 55025429 55025430 55025432 55025434 55025450 55025451 55025455 55025449 55025458 55025466 55025459 55025871 55025869 55025893 55025473 55025858 55025857 55025500 55025859 55025400 55025481 55025489 55025490 55025491 55025515 55025516 55025461 55025536 55025538 55025565 55025590 55025591 55025520 55025495 55025496 55025856 55025436 55025403 55025526 55025545 55025546 55025562 55025561 55025642 55025641 55025643 55025713 55025598 55025521 55025720

3 4 5

5

55025721 55025586 55025707 55025708 55025709 55025710 55025711 55025712 55025738 55025566 55025407 55025739 55025740 55025742 55025744 55025741 55025757 55025759 55025760 55025750 55025754 55025774 55025776 55025777 55025778 55025779 55025765 55025785 55025782 55025770 55025771 55025692 55025772 55025791 55025787 55025775 55025807 55025646 55025821 55025822 55025753 55025819

BASEPLATE SET VAS-V White

55021066

SCREW SET Clear

55112511

RX-7V CHEEKPAD ANTIMICROBIAL 15 mm 20 mm xl - xxxl 25 mm l - xxl 30 mm xs - s - m 35 mm

55055698 55055699 55055700 55055701 55055702

RX-7V EVO CHEEKPAD ANTIMICROBIAL 15 mm 20 mm xxxl 25 mm l - xl - xxl 30 mm xs - s - m 35 mm 40 mm

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

55055763 55055764 55055765 55055766 55055767 55055768

5

R X-7 V • RX- 7 V EVO • RX- 7V EVO+DFX2 • VAS-V 6

INTERIOR ANTIMICROBIAL XS (I) S (II) 12 mm 55075681 10 mm 55075708 55075682 7 mm 55075709 55075683 5 mm 55075684

7

M/L (III)

XL (IV)

XXL/XXXL (V)

55075685 55075686 55075690 55075694 55075687 55075691 55075695 55075688 55075692 55075696

BREATH GUARD Egg-shaped Chincover-V Pro Breath Mask RX-7 GP Breath Guard 2

9

55075711 55082370 55082392

SIDE COWL VENT-5 White Black Diamond White Diamond Black Frost Black Frost White Tint IQ Pearl White Light Tint Metallic White Light Frost Tint Frost Tint Dunlop Yellow Metallic Black CB Silver CB Silver Frost Fast Red

9

55105971 55105972 55105973 55105974 55105975 55105976 55105977 55105979 55105980 55105981 55105983 55105984 55105985 55105986 55105987 55105988 55105993

IC-5 DUCT White Black Diamond White Diamond Black Frost Black Frost White Clear Pearl White 04-Navy Metallic White Light Tint Tint Fast Red Frost Tint Light Frost Tint CB Grey Frost CB Red Metallic Clear Frost Vinales 25 Metallic Black Frost Maze Red Metallic Black Metallic Fast Red Fluor Yellow HRC-SP

10 TEAR OFFS VAS-V OPTIONAL

55104115 55104122 55104116 55104117 55104119 55104123 55104114 55104124 55104125 55104126 55104127 55104120 55104130 55104121 55104129 55104103 55104104 55104106 55104110 55104112 55104186 55104100 55104188 55104113 55104198

Clear - only for 2D shields (5 pcs in pack)

11 NECK ROLL ANTIMICROBIAL Sizes Sizes Sizes Sizes

6

XS - S M -L XL XXL - XXXL

55011065

12 CHINVENT - X

White Black Diamond White Diamond Black Frost Black Frost White Aluminum Silver Pearl White Vinales Red Nakasuga Metallic Black Fast Red Metallic White Metallic Black 04-Navy Metallic Fluor Yellow Frost Pedrosa Samurai Metallic Black Frost Nakagami Red Fluor Red Metallic Fast Red CB Grey Frost CB Red Samurai-2 Blue Maze Red Van der Mark Orange CBR Black Rea SB Gold Gun Metallic Black Fluor Yellow Modern-Gray Metallic White Frost MVK Oakley Nakagami GP2

13 BROWVENTS

Brow Vent Set Brow Vent Kit VAS-V PSS Brow Vent Kit VAS-V MAX-V

55105941 55105942 55105943 55105944 55105945 55105946 55105947 55105948 55105949 55105950 55105951 55105952 55105953 55105954 55105955 55105956 55105957 55105959 55105960 55105961 55105962 55105963 55105969 55105970 55105804 55105805 55105808 55105812 55105801 55105814 55105802 55105817 55105809

55104301 55104289 55104311

15 CHIN STRAP COVER ANTIMICROBIAL

Chin Strap Cover Antimicrobial Navy (short version for XS) 55073616 Chin Strap Cover Antimicrobial Navy (long version for S-XXL)55073617

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

16 DF-X2

Tinted White Black Diamond White Diamond Black Frost Black Modern Gray Clear

55121586

55105120 55105121 55105122 55105123 55105124 55105125 55105126 55105127

Diffuser type-12 only available as service part RX-7V Airwing only available as service part

55075704 55075705 55075706 55075707

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

R X- 7 V F IM R ACIN G # 2 ( F R HP H E- 02) • VAS-V 1

2 3 4 5

6

7 9 9

SHIELD (VISOR) VAS-V VAS-V Shield 2D, Semi Tint VAS-V Shield 2D, Clear VAS-V Shield 2D, Dark Tint VAS-V Shield Max Vision, Clear (w/Browvents) VAS-V Shield Max Vision, Semi Tint (w/Browvents) VAS-V Shield Max Vision, Dark Tint (w/Browvents)

55011059 55011054 55011055 55011057 55011056 55011058

SIDEPOD (HOLDERSETS) VAS-V White

55025428

BASEPLATE SET VAS-V White

55021066

SCREW SET Clear

55112511

RX-7V FIM RACING CHEEKPAD 15 mm 20 mm xxxl 25 mm l - xl - xxl 30 mm xs - s - m 35 mm 40 mm

55055763 55055764 55055765 55055766 55055767 55055768

INTERIOR ANTIMICROBIAL XS (I) S (II) 12 mm 55075681 10 mm 55075708 55075682 7 mm 55075709 55075683 5 mm 55075684

M/L (III) XL (IV) XXL/XXXL (V) 55075685 55075686 55075690 55075694 55075687 55075691 55075695 55075688 55075692 55075696

BREATH GUARD Egg-shaped Chincover-V RX-7 GP Breath Guard

55075711 55082392

SIDE COWL VENT-5 White

55105971

IC-3 DUCT White

55104922

10 TEAR OFFS VAS-V OPTIONAL

Clear - only for 2D shields (5 pcs in pack)

11 NECK ROLL Sizes Sizes Sizes Sizes

XS - S M -L XL XXL - XXXL

55011065

55075720 55075721 55075722 55075723

12 CHINVENT - X White

55105941

13 BROWVENTS

Brow Vent Set Brow Vent Kit VAS-V MAX-V

55104301 55104311

15 CHIN STRAP COVER

Chin Strap Cover Antimicrobial Navy (short version for XS) 55073616 Chin Strap Cover Antimicrobial Navy (long version for S-XXL)55073617

16 DF-X2 Clear

55105127

Diffuser type-12 only available as service part RX-7V Airwing only available as service part

Volume 147 (4/26)

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

7

RX- 7 V • RACI N G 1

SHIELD (VISOR) VAS-V VAS-V Shield 2D, Semi Tint VAS-V Shield 2D, Clear VAS-V Shield 2D, Dark-Tint VAS-V Shield Max Vision, Clear (w/Browvents) VAS-V Shield Max Vision, Semi Tint (w/Browvents) VAS-V Shield Max Vision, Dark Tint (w/Browvents) VAS-V Pro Shade System VAS-V Pro Shade Ready Shield, Clear VAS-V Pro Shade Sunvisor, Tinted VAS-V Pro Shade Pivot Cover VAS-V PSS Mirror Silver VAS-V PSS Mirror Red VAS-V PSS Mirror Blue VAS-V Dual-Pane Shield, Clear VAS-V Dual-Pane Shield, Semi Tint VAS-V MAX-V Mirror Silver VAS-V MAX-V Mirror Red VAS-V MAX-V Mirror Blue VAS-V MAX-V Mirror Green

2

55011059 55011054 55011055 55011057 55011056 55011058 55011070 55011071 55011073 55111138 55011074 55011075 55011076 55011063 55011064 55011105 55011106 55011107 55011108

SIDEPOD (HOLDERSETS) VAS-V White Black Sign Sword Red Sword Blue Nakagami GP2 Tatsuki Kiyonari Trico Takumi Hayden Reset

3

55025428 55025433 55025713 55025590 55025591 55025708 55025709 55025707 55025710 55025738

BASEPLATE SET VAS-V White

4

11 NECK ROLL ANTIMICROBIAL Sizes Sizes

XS - S M -L

12 CHINVENT - X

White (Sword) Black Metallic Black Metallic Black Frost Metallic Fluor Yellow Frost (Tatsuki)

13 BROWVENTS

Brow Vent Set Brow Vent Kit VAS-V PSS Brow Vent Kit VAS-V MAX-V

55075704 55075705

55105941 55105942 55105953 55105957 55105955

55104301 55104289 55104311

15 CHIN STRAP COVER ANTIMICROBIAL

Chin Strap Cover Antimicrobial Navy (short version for XS) 55073616 Chin Strap Cover Antimicrobial Navy (long version for S-L) 55073617

16 DF-X2

Tinted White Black Diamond White Diamond Black Frost Black Modern Gray Clear

55105120 55105121 55105122 55105123 55105124 55105125 55105126 55105127

Diffuser type-12 only available as service part Airwing only available as service part

55021066

SCREW SET Clear

5

55112511

CHEEKPAD ANTIMICROBIAL 15 mm 20 mm 25 mm l 30 mm xs - s - m 35 mm

6

55055698 55055699 55055700 55055701 55055702

INTERIOR ANTIMICROBIAL XS (I) S (II) M/L (III) 12 mm 55075681 55075685 10 mm 55075708 55075682 55075686 7 mm 55075709 55075683 55075687 5 mm 55075684 55075688

7

BREATH GUARD Breath guard Black Egg-shaped Chincover-V Pro Breath Mask

9

55082391 55075711 55082370

SIDE COWL VENT-5 White Black Tint Metallic Black Frost Tint

9

55105971 55105972 55105977 55105986 55105984

IC-3 DUCT White Black Tint Clear

10 TEAR OFFS VAS-V OPTIONAL

55104922 55104955 55104921 55104920

Clear - only for 2D shields (5 pcs in pack)

8

55011065

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

Q U A NT IC • VAS-V 1

2

3 4 5

SHIELD (VISOR) VAS-V VAS-V Shield 2D, Semi Tint VAS-V Shield 2D, Clear VAS-V Shield 2D, Dark-Tint VAS-V Shield Max Vision, Clear (w/Browvents) VAS-V Shield Max Vision, Semi Tint (w/Browvents) VAS-V Shield Max Vision, Dark Tint (w/Browvents) VAS-V Pro Shade System VAS-V Pro Shade Ready Shield, Clear VAS-V Pro Shade Sunvisor, Tinted VAS-V Pro Shade Pivot Cover VAS-V PSS Mirror Silver VAS-V PSS Mirror Red VAS-V PSS Mirror Blue VAS-V Dual-Pane Shield, Clear VAS-V Dual-Pane Shield, Semi Tint VAS-V MAX-V Mirror Silver VAS-V MAX-V Mirror Red VAS-V MAX-V Mirror Blue VAS-V MAX-V Mirror Green

55011059 55011054 55011055 55011057 55011056 55011058 55011070 55011071 55011073 55111138 55011074 55011075 55011076 55011063 55011064 55011105 55011106 55011107 55011108

SIDEPOD (HOLDERSETS) VAS-V Diamond White Diamond Black Frost Black Modern Grey Face Red Face Blue Face Yellow Face Grey Frost Snake White Snake Red Dark Citizen Flag-Series Ray White Ray Black Space Red Space Blue Robotik Black Robotik Red Robotik Blue Stars & Stripes Abstract Red Abstract Blue Mark Red Mark Yellow Mosaic Star   Nation UK Nation US Nation IT Nation DE Giu Red Giu Yellow Swirl White Swirl Red Flight-Red Flight-Grey Peak-Red Peak-Yellow

55025429 55025430 55025432 55025404 55025724 55025725 55025726 55025727 55025728 55025729 55025503 55025745 55025746 55025747 55025755 55025756 55025761 55025762 55025763 55025766 55025768 55025769 55025780 55025781 55025786 55025788 55025796     55025797     55025798     55025799 55025800 55025801 55025802 55025803 55025789 55025790 55025805 55025806

BASEPLATE SET VAS-V White

55021066

SCREW SET Clear

55112511

CHEEKPAD 12 mm 15 mm 20 mm 25 mm l - xl 30 mm s-m 35 mm xs

Volume 147 (4/26)

55055732 55055733 55055734 55055735 55055736 55055737

6

INTERIOR 12 mm 10 mm 7 mm 5 mm

7

9

9

9

9

XS/S (II) 55074004 55074005 55074006 55074007

M/L (III) 55074008 55074009 55074010 55074011

XL/XXL (IV) 55074012 55074013 55074014 55074015

BREATH GUARD Breath Guard Black Egg-shaped Chincover-V Pro Breath Mask

55082391 55075711 55082370

XGF DUCT Diamond Black Frost Black Diamond White Modern Grey Tint Tint Frost White Platinum-Grey Frost

55102003 55102004 55102005 55102006 55102007 55102008 55102000 55102009

XGR SPOILER Diamond Black Frost Black Diamond White Modern Grey Tint Tint Frost White Space Red

55102033 55102034 55102035 55102036 55102037 55102038 55102030 55102042

XGR SPOILER XL Diamond Black Frost Black Diamond White Modern Grey Tint Tint Frost Space Red White Black White Black

55102162 55102163 55102164 55102165 55102166 55102167 55102168 55102160     55102161 55102030 55102031

3D ARAI LOGO DUCT Diamond Black Frost Black Diamond White Modern Grey Black/White

10 TEAR OFFS VAS-V

Clear - only for 2D shields (5 pcs in pack)

12 CHINVENT - XG

Diamond Black Frost Black Diamond White Modern Grey White Black Metallic Black Frost AG Yellow Metallic-Black

13 BROWVENTS

Brow Vent Set Brow Vent Kit VAS-V PSS Brow Vent Kit VAS-V MAX-V

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

55102103 55102104 55102105 55102106 55102109

55101065

55102073 55102074 55102075 55102076 55102070 55102071 55102079 55102084 55102085

55104301 55104289 55104311

55121586

9

ASTRO- LI GH T • SUPER ADSI S LRS 1

SHIELD (VISOR) SUPER ADSIS L (3D STANDARD) 2D Clear 2D Semi Tint 2D Dark Tint SAL-Shield, Pinlock Clear SAL-Shield, Pinlock Dark Tint SAL-Shield, Pinlock Semi Tint Mirrorized Shield Gold Mirrorized Shield Silver Mirrorized Shield Blue Mirrorized Shield Purple

2

55011515 55011517 55011516 55011241 55011242 55011243 55011370 55011371 55011372 55011373

HOLDERSETS SUPER ADSIS J (LRS) Black White Frost Black

3

55023501 55023500 55023731

BASEPLATE SET SUPER ADSIS L2 (LRS) White

4

55023017

SCREW SET Clear

5

55112511

CHEEKPAD ASTRO LIGHT

Standard in helmet size

30 mm 35 mm

6

55053780 55053792

INTERIOR ASTRO LIGHT 10 mm 12 mm

7

55073785 55073786

BREATH DEFLECTOR

Breath Deflector Q-type (optional)

9

55082357

TDF DUCT-2 FRONT SET White Black Frost Black

55104581 55104582 55104585

10 TEAR OFFS

Optional (only for 2D shields, 5 pcs in pack)

13 BROWVENTS

Brow Vent Set Brow w/Locktab Kit SAQ/SAI

55011390

55104301 55114311

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

55121586

Astro-Light UI-Chinvent only available as service part

10

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

QV • QV-PR O • VAS-V 1

2

3 4 5

6

7 9

SHIELD (VISOR) VAS-V VAS-V Shield 2D, Semi Tint VAS-V Shield 2D, Clear VAS-V Shield 2D, Dark Tint VAS-V Shield Max Vision, Clear (w/Browvents) VAS-V Shield Max Vision, Semi Tint (w/Browvents) VAS-V Shield Max Vision, Dark Tint (w/Browvents) VAS-V Pro Shade System VAS-V Pro Shade Ready Shield, Clear VAS-V Pro Shade Sunvisor, Tinted VAS-V Pro Shade Pivot Cover VAS-V PSS Mirror Silver VAS-V PSS Mirror Red VAS-V PSS Mirror Blue VAS-V Dual-Pane Shield, Clear VAS-V Dual-Pane Shield, Semi Tint VAS-V MAX-V Mirror Silver VAS-V MAX-V Mirror Red VAS-V MAX-V Mirror Blue VAS-V MAX-V Mirror Green

55011059 55011054 55011055 55011057 55011056 55011058 55011070 55011071 55011073 55111138 55011074 55011075 55011076 55011063 55011064 55011105 55011106 55011107 55011108

Aluminum Silver Frost Black Tint Frost White Black Shade-Sand Frost Tint Oriental Blue Frost Semi-Gloss Black

9

SIDEPOD (HOLDERSETS) VAS-V Diamond White Diamond Black Frost White Frost Black Stint Place White Place Red Place Black Box Red Box Blue Box Yellow Box Black Frost Oriental Dark Citizen Triple White Triple Black Charged White Charged Blue Charged Yellow Semi-Gloss Black Drone Red Drone Yellow Drone Black Carve Black Carve Red

55025429 55025430 55025434 55025432 55025456 55025861 55025862 55025864 55025865 55025866 55025867 55025868 55025474 55025503 55025511 55025512 55025517 55025518 55025519 55025401 55025549 55025550 55025551 55025554 55025555

BASEPLATE SET VAS-V White

55021066

SCREW SET Clear

55112511

CHEEKPAD ANTIMICROBIAL 15 mm xxxl 20 mm xl - xxl 25 mm l 30 mm xs - s - m 35 mm

55055698 55055699 55055700 55055701 55055702

INTERIOR ANTIMICROBIAL XS (I) S (II)

M/L (III)

12 mm 55075681 10 mm 55075708 55075682 7 mm 55075709 55075683 5 mm 55075684

55075685 55075686 55075690 55075694 55075687 55075691 55075695 55075688 55075692 55075696

XL (IV) XXL/XXXL (V)

BREATH GUARD Egg-shaped Chincover-V Pro Breath Mask

55075711 55082370

9

55105726 55105727 55105728 55105730 55105732 55105733 55105729 55105711 55105712

QV REAR DUCT Diamond White Diamond Black Aluminum Silver Frost Black Tint Frost White Metallic White Black Shade-Sand Frost Tint Oriental Blue Frost Semi-Gloss Black

55105738 55105739 55105740 55105741 55105742 55105744 55105745 55105747 55105748 55105743 55105752 55105753

SIDE COWL VENT-6 Diamond White Diamond Black Frost Black Frost White Tint Aluminum Silver Black Shade Sand Tint Frost Metallic Black Frost Oriental Blue Frost Semi-Gloss Black

10 TEAR OFFS VAS-V OPTIONAL

Clear - only for 2D shields (5 pcs in pack) Tint - only for 2D shields (3 pcs in pack)

11 NECK ROLL ANTIMICROBIAL Sizes Sizes Sizes

XS - S M - XL XXL - XXXL

12 CHINVENT - XA

Diamond White Diamond Black Frost Black Frost White Aluminum Silver Metallic Black Metallic Black Frost Black White Oriental Blue Frost Semi-Gloss Black

13 BROWVENTS

Brow Vent Set Brow Vent Kit VAS-V PSS Brow Vent Kit VAS-V MAX-V

55105904 55105905 55105906 55105907 55105908 55105909 55105910 55105911 55105912 55105915 55105917 55105918

55101065 55101067

55075704 55075705 55075707

55105921 55105922 55105923 55105924 55105926 55105927 55105928 55105929 55105925 55105932 55105933

55104301 55104289 55104311

15 CHIN STRAP COVER ANTIMICROBIAL

Chin Strap Cover Antimicrobial Navy (short version for XS) 55073616 Chin Strap Cover Antimicrobial Navy (long version for S-XXL)55073617

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

55121586

QV FRONT DUCT SET Diamond White Diamond Black

Volume 147 (4/26)

55105724 55105725

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

11

CONCEPT-X • VAS-VC 1

SHIELD (VISOR) VAS-V VAS-V Shield 2D, Semi Tint VAS-V Shield 2D, Clear VAS-V Shield 2D, Dark Tint VAS-V Shield Max Vision, Clear (w/Browvents) VAS-V Shield Max Vision, Semi Tint (w/Browvents) VAS-V Shield Max Vision, Dark Tint (w/Browvents) VAS-V Pro Shade System VAS-V Pro Shade Ready Shield, Clear VAS-V Pro Shade Sunvisor, Tinted VAS-V Pro Shade Pivot Cover VAS-V PSS Mirror Silver VAS-V PSS Mirror Red VAS-V PSS Mirror Blue VAS-V Dual-Pane Shield, Clear VAS-V Dual-Pane Shield, Semi Tint VAS-V MAX-V Mirror Silver VAS-V MAX-V Mirror Red VAS-V MAX-V Mirror Blue VAS-V MAX-V Mirror Green

3

55011059 55011054 55011055 55011057 55011056 55011058 55011070 55011071 55011073 55111138 55011074 55011075 55011076 55011063 55011064 55011105 55011106 55011107 55011108

BASEPLATE SET VAS-VC Clear

4

55021069

SCREW SET Clear

5

55111002

CHEEKPAD ANTIMICROBIAL (BLACK)

6

15 mm xxl 20 mm l - xl 25 mm s-m 30 mm xs 35 mm

55055616 55055617 55055618 55055619 55055620

INTERIOR ANTIMICROBIAL XS/S (II)

XL/XXL (IV)

12 mm 10 mm 7 mm 5 mm

7

55074382 55074383 55074384 55074385

M/L (III)

55074386 55074387 55074390 55074388 55074391 55074392 55074392

BREATH GUARD Breath Guard Black Pro Breath Mask

10 TEAR OFFS VAS-V optional

55082391 55082370

Clear - only for 2D shields (5 pcs in pack)

13 BROWVENTS

Brow Vent Set Brow Vent Kit VAS-V MAX-V Brow Vent Kit VAS-V PSS

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

12

55011065

55104301 55104311 55104289

55121586

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

C ONC E P T-X E • VAS-VC 1

3 4 5

6

SHIELD (VISOR) VAS-V VAS-V Shield 2D, Semi Tint VAS-V Shield 2D, Clear VAS-V Shield 2D, Dark Tint VAS-V Shield Max Vision, Clear (w/Browvents) VAS-V Shield Max Vision, Semi Tint (w/Browvents) VAS-V Shield Max Vision, Dark Tint (w/Browvents) VAS-V Pro Shade System VAS-V Pro Shade Ready Shield, Clear VAS-V Pro Shade Sunvisor, Tinted VAS-V Pro Shade Pivot Cover VAS-V PSS Mirror Silver VAS-V PSS Mirror Red VAS-V PSS Mirror Blue VAS-V Dual-Pane Shield, Clear VAS-V Dual-Pane Shield, Semi Tint VAS-V MAX-V Mirror Silver VAS-V MAX-V Mirror Red Vas-V MAX-V Mirror Blue VAS-V MAX-V Mirror Green

BASEPLATE SET VAS-VC Clear

55021069

SCREW SET Clear

55111002

CHEEKPAD ANTIMICROBIAL (BLACK) 15 mm 20 mm 25 mm l - xl 30 mm s-m 35 mm xs 40 mm

55055616 55055617 55055618 55055619 55055620 55055621

INTERIOR ANTIMICROBIAL (BLACK) XS/S (II)

XL/XXL (IV)

12 mm 10 mm 7 mm

7

55011059 55011054 55011055 55011057 55011056 55011058 55011070 55011071 55011073 55111138 55011074 55011075 55011076 55011063 55011064 55011105 55011106 55011107 55011108

55074044 55074045 55074046

M/L (III)

55074048 55074049 55074053 55074050 55074054

BREATH GUARD Breath Guard Black Pro Breath Mask

10 TEAR OFFS VAS-V optional

55082391 55082370

Clear - only for 2D shields (5 pcs in pack)

13 BROWVENTS

Brow Vent Set Brow Vent Kit VAS-V MAX-V Brow Vent Kit VAS-V PSS

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

Volume 147 (4/26)

55011065

55104301 55104311 55104289

55121586

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

13

RENEGADE-V • VAS-V 1

SHIELD (VISOR) VAS-V VAS-V Shield 2D, Semi Tint VAS-V Shield 2D, Clear VAS-V Shield 2D, Dark Tint VAS-V Shield Max Vision, Clear (w/Browvents) VAS-V Shield Max Vision, Semi Tint (w/Browvents) VAS-V Shield Max Vision, Dark Tint (w/Browvents) VAS-V Pro Shade System VAS-V Pro Shade Ready Shield, Clear VAS-V Pro Shade Sunvisor, Tinted VAS-V Pro Shade Pivot Cover VAS-V PSS Mirror Silver VAS-V PSS Mirror Red VAS-V PSS Mirror Blue VAS-V Dual-Pane Shield, Clear VAS-V Dual-Pane Shield, Semi Tint VAS-V MAX-V Mirror Silver VAS-V MAX-V Mirror Red VAS-V MAX-V Mirror Blue VAS-V MAX-V Mirror Green

2

55011059 55011054 55011055 55011057 55011056 55011058 55011070 55011071 55011073 55111138 55011074 55011075 55011076 55011063 55011064 55011105 55011106 55011107 55011108

SIDEPOD (HOLDERSETS) VAS-V

PVF-R DUCT White Black Frost Black Diamond White Diamond Black Calm Red Modern Grey Gun Metallic Grey Tint Frost Tint

10 TEAR OFFS VAS-V OPTIONAL

Clear - only for 2D shields (5 pcs in pack)

13 BROWVENTS

Brow Vent Set Brow Vent Kit VAS-V PSS Brow Vent Kit VAS-V MAX-V

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

White Black Frost Black Diablo Red Diablo Yellow Outline Red Outline Blue Outline Black Outline Cherry Red Outline Dark Purple Modern Grey Gun Metallic Frost Dragon Shelby Black Shelby Fluor Yellow

3

9

55105657 55105658 55105659 55105660 55105661 55105662 55105663 55105664 55105665 55105666

55011065

55104301 55104289 55104311

55121586

55025429 55025433 55025432 55025487 55025488 55025484 55025485 55025486 55025492 55025493 55025404 55025402 55025525 55025580 55025582

BASEPLATE SET VAS-V White

4

55021066

SCREW SET Clear

5

55112511

CHEEKPAD ANTIMICROBIAL

6

12 mm 15 mm xxl 20 mm l - xl 25 mm s-m 30 mm xs 35 mm

55055661 55055662 55055663 55055664 55055665 55055666

INTERIOR ANTIMICROBIAL XS/S (II)

XL/XXL (IV)

12 mm 10 mm 7 mm 5 mm

7

55075681 55075682 55075683 55075684

M/L (III)

55075685 55075686 55075690 55075687 55075691 55075688 55075692

BREATH GUARD Pro Breath Mask Egg-Shaped Chin Cover-V

9

55082370 55105711

DUCT SET FRONT (QV-2) Black White Black Frost Tint Tint Frost Alu Grey Fury Orange Modern Grey Gun Metallic Frost

14

55105601 55105600 55105604 55105605 55105606 55105614 55105615 55105613 55105608

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

C H AS E R -X • VAS-V 1

2

3 4 5

SHIELD (VISOR) VAS-V VAS-V Shield 2D, Semi Tint VAS-V Shield 2D, Clear VAS-V Shield 2D, Dark Tint VAS-V Shield Max Vision, Clear (w/Browvents) VAS-V Shield Max Vision, Semi Tint (w/Browvents) VAS-V Shield Max Vision, Dark Tint (w/Browvents) VAS-V Pro Shade System VAS-V Pro Shade Ready Shield, Clear VAS-V Pro Shade Sunvisor, Tinted VAS-V Pro Shade Pivot Cover VAS-V PSS Mirror Silver VAS-V PSS Mirror Red VAS-V PSS Mirror Blue VAS-V Dual-Pane Shield, Clear VAS-V Dual-Pane Shield, Semi Tint VAS-V MAX-V Mirror Silver VAS-V MAX-V Mirror Red VAS-V MAX-V Mirror Blue VAS-V MAX-V Mirror Green

55011059 55011054 55011055 55011057 55011056 55011058 55011070 55011071 55011073 55111138 55011074 55011075 55011076 55011063 55011064 55011105 55011106 55011107 55011108

20 mm l - xl 25 mm s-m 30 mm xs 35 mm

6

12 mm 10 mm 7 mm 5 mm

7

9

SIDEPOD (HOLDERSETS) VAS-V Diamond White Diamond Black Frost Black Tough White Tough Red Tough Blue Tough Yellow Style Black Style Pink Competition Black Competition Red Competition Blue Edwards Legend Yellow Edwards Legend White Schwantz 95 League UK League Italy Navy White Navy Black Maverick GP Classic-TT Hutchy Cliff White Cliff Blade Take-Off Red Take-Off Yellow Fence Green Fence Red Fence Silver Pace Grey Pace Red Xenon Red Xenon Fluor Yellow Spine White Spine Fluor Red Spine Fluor Yellow Striker White Striker Black Frost Gene Red Gene Blue Escape Red Frost Escape Yellow Frost Gene Fluor Yellow

55025429 55025430 55025432 55025877 55025879 55025880 55025881 55025888 55025889 55025898 55025899 55025900 55025477 55025478 55025479 55025509 55025510 55025513 55025514 55025480 55025534 55025429 55025542 55025543 55025527 55025528 55025470 55025471 55025472 55025540 55025541 55025583 55025584 55025587 55025588 55025589 55025523 55025530 55025703 55025704 55025717 55025718 55025705

BASEPLATE SET VAS-V White

55021066

9

55075830 55075831 55075832 55075833

Clear

55112511

12 mm 15 mm xxl

XL/XXL

BREATH GUARD 55082391 55082370 55105711

DUAL FLOW DUCT FRONT White Pearl Black Diamond Black Aluminum Silver Frost Black Diamond White Tint Frost Tint Frost White Metallic Fluor Orange Frost Fluor Yellow

55103501 55103503 55103504 55103505 55103506 55103507 55103508 55103509 55103511 55103512 55103513

DUAL FLOW SPOILER White Pearl Black Diamond Black Aluminum Silver Frost Black Diamond White Tint Frost Tint Frost White Metallic Fluor Orange Frost Fluor Yellow

10 TEAR OFFS VAS-V OPTIONAL

Clear - only for 2D shields (5 pcs in pack)

12 CHINVENT - XC

White Black Frost Black Diamond White Diamond Black Frost White Metallic Black Frost Pearl Black Aluminum Silver Metallic White Metallic Black Fast Red Africa-White 04 Navy

13 BROWVENTS

Brow Vent Set Brow Vent Kit VAS-V PSS Brow Vent Kit VAS-V MAX-V

15 CHIN STRAP COVER ANTIMICROBIAL 16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

CHEEKPAD ANTIMICROBIAL

M/L

55075834 55075835 55075839 55075836 55075840 55075837 55075841

Breath Guard Black Pro Breath Mask Egg-Shaped Chin Cover-V

Chin Strap Cover Antimicrobial Navy

SCREW SET

Volume 147 (4/26)

INTERIOR ANTIMICROBIAL XS/S

55055844 55055845 55055846 55055847

55103551 55103553 55103554 55103555 55103556 55103557 55103558 55103559 55103561 55103562 55103563

55011065

55106011 55106012 55106015 55106013 55106014 55106016 55106017 55106018 55106019 55106020 55106021 55106022 55106023 55106024

55104301 55104289 55104311

55073617

55121586

55055842 55055843

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

15

PROFI LE-V • VAS-V 1

SHIELD (VISOR) VAS-V VAS-V Shield 2D, Semi Tint VAS-V Shield 2D, Clear VAS-V Shield 2D, Dark Tint VAS-V Shield Max Vision, Clear (w/Browvents) VAS-V Shield Max Vision, Semi Tint (w/Browvents) VAS-V Shield Max Vision, Dark Tint (w/Browvents) VAS-V Pro Shade System VAS-V Pro Shade Ready Shield, Clear VAS-V Pro Shade Sunvisor, Tinted VAS-V Pro Shade Pivot Cover VAS-V PSS Mirror Silver VAS-V PSS Mirror Red VAS-V PSS Mirror Blue VAS-V Dual-Pane Shield, Clear VAS-V Dual-Pane Shield, Semi Tint VAS-V MAX-V Mirror Silver VAS-V MAX-V Mirror Red VAS-V MAX-V Mirror Blue VAS-V MAX-V Mirror Green

2

55011059 55011054 55011055 55011057 55011056 55011058 55011070 55011071 55011073 55111138 55011074 55011075 55011076 55011063 55011064 55011105 55011106 55011107 55011108

SIDEPOD (HOLDERSETS) VAS-V White Black Diamond White Diamond Black Frost Black Modern Grey Gun Metallic Frost Calm Red Tube Red Tube Fluor Yellow Bend White Bend Red Bend Yellow Sensation Patch White Patch Red Patch Fluor Yellow Rock Red Rock Blue Rock Multi Impulse White Impulse Red Impulse Yellow Kerb Trico Kerb Yellow Frost Flag UK Flag Italy Flag Japan Jungle-2

5

55025428 55025433 55025429 55025430 55025432 55025404 55025402 550254xx 55025578 55025579 55025575 55025576 55025577 55025406 55025592 55025593 55025594 55025700 55025701 55025702 55025714 55025715 55025716 55025722 55025723 55025734 55025735 55025736 55025737

CHEEK PAD

INTERIOR 12 mm 10 mm 7 mm 5 mm

16

9

TDF DUCT 3 Frost Tint White Black Diamond White Diamond Black Frost Black Tint Calm Red Modern Grey Gun Metallic Frost

55104992 55104971 55104969 55104973 55104974 55104978 55104970 55104964 55104965 55104966

PVF-R DUCT White Black Frost Black Diamond White Diamond Black Calm Red Modern Grey Gun Metallic Grey Tint Frost Tint

55105657 55105658 55105659 55105660 55105661 55105662 55105663 55105664 55105665 55105666

12 XF CHINVENT

White 55106030 Black 55106031 Frost Black 55106032 Diamond White 55106033 Diamond Black 55106034 Calm Red 55106035 Modern Grey 55106036 Gun Metallic Grey 55106037 Metallic Black Frost 55106038 Metallic White Frost 55106039 Metallic-Black 55106042

13 BROWVENTS

Brow Vent Set Brow Vent Kit VAS-V PSS Brow Vent Kit VAS-V MAX-V

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

55104301 55104289 55104311

55121586

Standard in helmet size

12 mm 15 mm xxl 20 mm l - xl 25 mm s-m 30 mm xs 35 mm

6

9

XS-S 55075846 55075845 xs 55075847 s 55075848

M-L

55055710 55055711 55055712 55055713 55055714 55055715

XL-XXL

55075851 55075850 m 55075855 55075849 l 55075853 xl 55075852 55075854 xxl

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

A XC E S - 3 • SUPE R A D SIS L RS 1

2

3 4 5

7

9

9

SHIELD (VISOR) SUPER ADSIS I SAI-Shield, Pinlock Clear SAI-Shield, Pinlock Dark Tint SAI-Shield, Pinlock Semi Tint SAI-2D Shield, Clear SAI-2D Shield, Dark Tint SAI-2D Shield, Semi Tint SAI-Shield, Max Vision BV Clear PRO Shade System PRO Shade Sunvisor PRO Shade Pivot Cover PRO Shade Sunvisor Mirror Silver PRO Shade Sunvisor Mirror Blue PRO Shade Ready Shield, Clear SAI Dual Pane, Clear SAI Dual Pane, Semi Tint

55011247 55011248 55011249 55011111 55011112 55011113 55011132 55011153 55011134 55111137 55011115 55011117 55011126 55011121 55011122

13 BROWVENTS

Brow Vent Set Brow w/Locktab Kit SAQ/SAI

15 CHIN STRAP COVER

Chin strap cover Grey DC

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

55104301 55114311

55073607

55121586

Chinvent (IJ) only available as service part

HOLDERSETS SUPER ADSIS J (LRS) White Black Diamond Black Diamond White Aluminum Silver Frost Black Line Red Sense Red Sense Blue Sense Fluor Matrix Black Matrix Red

55023500 55023501 55023698 55023526 55023510 55023731 55025994 55023599 55023600 55023601 55023602 55023603

BASEPLATE SET SUPER ADSIS I (LRS) White

55022258

SCREW SET Clear

55112511

CHEEK PAD

Standard in helmet size:

12 mm 15 mm xxl 20 mm l - xl 25 mm s-m 30 mm xs 35 mm

55055682 55055683 55055684 55055685 55055686 55055687

BREATH DEFLECTOR Breath deflector Q-type Pro Breath Mask Breathguard Corsair

55082357 55082370 55082391

AIR CONDUCTOR-2 FRONT White Black Diamond White Diamond Black Frost Black Aluminum Silver Tint Frost Tint

55105030 55105031 55105033 55105034 55105039 55105032 55105038 55105040

AIR CONDUCTOR-2 REAR White Black Diamond White Diamond Black Frost Black Aluminum Silver Tint Frost Tint

10 TEAR OFFS SAI

55105050 55105051 55105053 55105054 55105059 55105052 55105058 55105060

Optional (only for 2D shields, 5 pcs in pack) Smoke (only for 2D shields, 3 pcs in pack)

Volume 147 (4/26)

55011387 55011382

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

17

18

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

E X PL O D E D VIE W DUAL PURPOSE H ELME TS

CHAPTER 2 3 9

1a

4

2

9 2 9

3

1

4

14

11

9 15

1 Shield 1a Peak 2 Holder 3 Peak plate / base plate 4 Screwset 5 Cheekpad 6 Interior 9 Ventilation ducts 11 Neckroll 14 Breath Deflector 15 Chin strap cover

6

5

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

DUAL PURPOSE H ELME TS

DUAL PURPOSE HELMETS

TOUR-X 5 (TX-5) TOUR-X 4 (TX-4)

20

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

T O U R -X 5 ( TX-5 ) 1

SHIELD (VISOR) TX-5 VAS-A MAX-V Clear Semi Tint Dark Tint Semi Tint/Silver Semi Tint/Red Semi Tint/Blue Semi Tint/Green

1a PEAK TX-5

White Black Diamond White Diamond Black Black Frost Aluminum Silver Adventure-Grey Discovery Blue Discovery Red Discovery White Discovery Black Discovery Orange Cosmic Red Cosmic Blue Cosmic Fluor Yellow Honda Africa Twin Blue Honda Africa Twin Red Trail Blue Trail Yellow Match Red         Match Blue         Match Orange      Match Multi       Nation UK Nation US Nation IT Nation DE Print Red/Multi Print Black Anodize Red Anodize Yellow Anodize Trico

2

2 3 3 4 5

55031100 55031101 55031102 55031120 55031121 55031122 55031123

55091342 55091343 55091344 55091345 55091346 55091347 55091350 55091370 55091371 55091372 55091373 55091374 55091375 55091376 55091377 55091378 55091379 55091380 55091381 55091383 55091384 55091385 55091386 55091387 55091388 55091389 55091390 55091391 55091392 55091396 55091397 55091398

VAS-A HOLDER-2 White              Black              Diamond Black      Aluminum-Silver         Black Frost         Diamond White     Adventure Grey     Tint               Tint-Frost

55021086 55021087 55021088 55021089 55021090 55021091 55021092 55021093 55021094

HOLDERSET TX-5 Black

55021085

PEAK PLATE TX-5 Tint

55021080

55021075

SCREW KIT TX-5 Peak Screw kit Black Adsis Screwset Clear

55111010 55112511

CHEEK PADS TX-5 12 mm 15 mm 20 mm 25 mm 30 mm 35 mm 40 mm

Volume 147 (4/26)

INTERIOR TX-5 12 mm 10 mm 7 mm 5 mm

9

9

9

9

XS-S 55075470 55075471 55075472 55075473

M-L

XL

55075474 55075475 55075478 55075476 55075479 55075477 55075480

SPOILER TX-5 White Black Diamond White Diamond Black Black Frost Aluminum-Silver Tint Adventure-Grey Tint Frost

55102128 55102129 55102130 55102131 55102132 55102133 55102136 55102137 55102138

3D ARAI LOGO DUCT Diamond Black Black Frost Diamond White Modern Grey White/Black Silver/Gray Metal

55102103 55102104 55102105 55102106 55102109 55102111

DELTA DUCT 6 White Black Diamond White Diamond Black Black Frost Aluminum-Silver Tint Adventure-Grey Tint Frost

55104828 55104829 55104830 55104831 55104832 55104833 55104836 55104837 55104838

CHINVENT TX-5 White Black Diamond White Diamond Black Black Frost Aluminum-Silver Adventure-Grey Cosmic Red Cosmic Blue Fluor Yellow Metallic Black

11 NECKROLL TX-5 Neckroll XS-S Neckroll M-XL

12 GOGGLE BAND SNAP (OPTIONAL) White Black

14 BREATH DEFLECTOR TX-5 Breath deflector ES Chincover-V

BASE PLATE TX-5 Black

6

15 CHIN STRAP COVER XS-S M-XL

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

55105318 55105319 55105320 55105321 55105322 55105323 55105328 55105329 55105330 55105331 55105326

55075462 55075463

55092175 55092176

55082365 55075711

55075465 55075466

55121586

55055382 55055383 55055384 55055385 55055386 55055387 55055388

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

21

TOUR-X 4 ( TX-4 ) 1

SHIELD (VISOR) TX-4 BROW VENTS W/PIN Clear w/pin Dark Tint w/pin Semi Tint w/pin

1a PEAK TX-4

Aluminum Silver Diamond White Diamond Black White Black Frost Black Platinum Grey Frost White Vision White Vision Red Vision Orange Vision Grey Catch Red Catch Blue Catch Yellow Africa Twin 2018 Break Red Break Blue Break Orange Depart Blue Depart Grey Depart Red Metallic Depart Blue Metallic Depart Gun Metallic Cover White Cover Blue Cover Fluor Yellow Suzuki V-Strom Red Cover UK Modern-Grey

2

3

4

55031430 55031431 55031432

55092051 55092052 55092053 55092054 55092055 55092057 55092081 55092144 55093966 55093967 55093968 55093969 55093991 55093992 55093993 55093994 55093995 55093996 55093997 55094001 55094002 55093998 55093999 55094000 55094003 55094004 55094005 55094006 55094007 55092142

5

6

55043090 55043091 55043093 55043094 55043992 55043995 55043998 55043999 55044000 55044001 55044002 55044003

PEAK PLATE TX Aluminum Silver Diamond White Diamond Black White Black Frost Black Platinum Grey Tinted Frost White Frost Tint Metallic White Metallic Black Frost Clear Modern-Grey

55112471 55112472 55112473 55112474 55112475 55112477 55112486 55112488 55112492 55112499 55112502 55112501 55112470 55112503

SCREWSET TX-4 White Clear

22

INTERIOR TX-4 12 mm 10 mm 7 mm 5 mm

9

9

HOLDERSET TX White Aluminum Silver Tinted Black Platinum Grey Frost Black Diamond White Diamond Black Frost White Frost Smoke Metallic Black Frost Metallic White

CHEEK PADS TX-4 12 mm 15 mm xxl 20 mm l - xl 25 mm s-m 30 mm xs 35 mm

9

XS-S 55075561 55075562 55075563 55075564

55054473 55054474 55054475 55054476 55054477 55054478

M-L

XL-XXL

55075565 55075566 55075569 55075567 55075570 55075568 55075571

DIFFUSER TX-4 White Black Aluminum Silver Tinted Frost Black Diamond White Diamond Black Platinum Grey Metallic/Frost White Frost White Frost Tint Metallic White Modern-Grey

55104131 55104132 55104133 55104134 55104135 55104136 55104137 55104138 55104139 55104143 55104144 55104145 55104147

TDF DUCT-3 White Black Diamond White Diamond Black Aluminum Silver Platinum Grey Frost Black Tinted Metallic/Frost White Frost White Frost Tint Metallic White Modern-Grey

55104971 55104972 55104973 55104974 55104975 55104977 55104978 55104970 55104988 55104985 55104992 55104967 55104965

SIDE DUCT 4 (SIDE COWL VENT-3) Aluminum Silver Frost Black Diamond Black Diamond White Frost Tint Tint White Metallic White Meta-Black Modern Grey

13 TX-4 BROWVENT (SAL) TX-4 Browvent

15 CHIN STRAP COVER DRY-COOL Chin strap cover DC Grey

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

55105086 55105087 55105088 55105091 55105092 55105096 55105097 55105111 55105099 55105113

55114311

55073606

55121586

Chinvent TX-4 only available as service part 55112450 55112451

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

E X PL O D E D V I EW OPEN FACE H ELME TS

CHAPTER 3 6

7

9

13

3

4

2 1 7 15

1 Visor 2 Holderset 3 Baseplate 4 Screwset 5 Earcup 6 Interior 7 Ventilation ducts 9 Peak 13 Brow vents 15 Chin Strap Cove

5

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

OPEN FACE H ELME TS

OPEN FACE HELMETS

CT-F X-TEND SZ/F SZ-R EVO SZ-R VAS SZ RAM X FREEWAY-2, FREEWAY CLASSIC & URBAN-V

24

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

C T- F • SUPE R A D SIS M 1

2

3 3 4 5

7

7

9

VISOR (SHIELD) CT M-TYPE Clear Dark Tint Semi Tint

55031445 55031446 55031447

HOLDERSET SAM Z Diamond Black Frost Black Pearl Black

55045202 55045211 55045214

BASEPLATE CT White

55042217

PEAKPLATE CT Black Semi-Gloss Black

55112460 55112466

SCREW SET Clear

55112511

CHEEKPAD CT-F (FCS) 15 mm xxl 20 mm s-l-xxxl 25 mm xs-m 30 mm

55054447 55054448 55054449 55054450

TDF DUCT 3 Smoke Pearl Black Semi Gloss Black

55104970 55104972 55104968

SIDE COWL VENT-4 Black Tint Semi Gloss Black

55104035 55104045 55103980

CT-PEAK Black Semi Gloss Black

13 BROWVENTS

Brow Vent Set

15 CHIN STRAP COVER DRY-COOL Chin strap cover DC Grey

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

Volume 147 (4/26)

55092115 55092126

55104301

55073606

55121586

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

25

X-TEND • SUPER ADSI S ZM 1

2

3 4 5

7

7

VISOR (SHIELD) SUPER ADSIS MZ Clear Dark Tint Semi Tint Mirrorized Silver Mirrorized Blue

55031480 55031481 55031482 55031215 55031217

HOLDERSET SUPER ADSIS MZ-LRS White Diamond Black Aluminum Silver Leon Grey Black Frost Black Frost Silver Frost Grey Pearl Black Platinum Grey Diamond White Red Metallic Black (Lane)

55045200 55045202 55045203 55045204 55045205 55045211 55045212 55045213 55045214 55045215 55045201 55045206 55045207

BASEPLATE SET SUPER ADSIS ZF-LRS White

55043016

SCREW SET Clear

55112511

CHEEKPAD X-TEND (FCS) 15 mm xxl 20 mm s-l-xl-xxxl 25 mm xs-m 30 mm

55054447 55054448 55054449 55054450

TDF DUCT 3 Smoke White Pearl Black Frost Black Frost Silver Frost Grey Platinum Grey Leon Grey Aluminum Silver Diamond Black Diamond White Frost White

55104970 55104971 55104972 55104978 55104979 55104980 55104977 55104981 55104975 55104974 55104973 55104985

SIDE COWL VENT-4 Black Frost black Diamond Black Diamond White Fluor Orange Pearl Black Tint White Frost White

55104035 55104036 55104037 55104039 55104040 55104042 55104045 55104046 55104047­

13 BROWVENTS

Brow Vent Set

55104301

15 CHIN STRAP COVER DRY-COOL Chin strap cover DC Grey

55073606

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

55121586

DDL Duct 4 (X-tend) only available as service part

26

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

S Z /F • LR S 1

2

3 4 5

7

7

VISOR (SHIELD) SUPER ADSIS ZR - SZ/F Clear Dark Tint Semi Tint Mirrorized Silver Mirrorized Blue

55031565 55031566 55031567 55031205 55031207

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

55121586

HOLDERSET SUPER ADSIS ZF (LRS) White Black Alu. Grey Alu. Silver Frost White Frost Silver Frost Grey Frost Black Diamond White Diamond Black Platinum Grey Modern Grey Gun Metallic Frost

55043400 55043401 55043402 55043403 55043365 55043414 55043417 55043418 55043386 55043387 55043388 55043432 55043431

BASEPLATE SET SUPER ADSIS ZF (LRS) White

55043016

SCREW SET Clear

55112511

EARCUP - SZ/F 15 mm xxl 20 mm xl-l 25 mm m-s 30 mm xs 35 mm

55063442 55063443 55063444 55063445 55063446

TDF - DUCT FRONT SET - SZ/F Tinted White Black Aluminum Grey Aluminum Silver Frost Silver Frost Grey Frost Black Diamond Black Platinum Grey Clear Frost White Diamond White Modern Grey Gun Metallic Frost

55103449 55103450 55103451 55103452 55103453 55103465 55103448 55103447 55103372 55103374 55103440 55104459 55103371 55103445 55103446

TDR - DUCT REAR SET - SZ/F Tinted White Black Aluminum Grey Aluminum Silver Frost Silver Frost Grey Frost Black Racing Red Clear Diamond White Diamond Black Platinum Grey Frost White Modern Grey Gun Metallic Frost

13 BROWVENTS

Brow Vent Set

Volume 147 (4/26)

55103469 55103470 55103471 55103472 55103473 55103485 55102914 55102913 55103477 55103441 55103375 55103376 55103378 55104467 55103486 55103487

55104301

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

27

SZ- R EVO 1

2

3 4 5

6

VISOR (SHIELD) VAS-Z I Clear Semi Tint Dark Tint Mirror Silver Mirror Red Mirror Blue Mirror Green

55031015 55031017 55031018 55031094 55031095 55031096 55031097

HOLDERSET VAS-Z Diamond White Diamond Black Frost Black Smoke White Gun Metallic Frost Modern Grey Frost White Matt Blue Matt Green Black Temu White Mimesis White Mimesis Yellow Pedrosa Shogun Tsubasa Oriental Oriental Frost Blue Harada Tour Black Nakagami GP2

55042180 55042181 55042182 55042186 55042188 55042190 55042191 55042192 55042211 55042212 55042179 55042306 55042307 55042308 55042304 55042309 55042209 55042210 55042198 55042303

SIDE COWL VENT-6 Diamond White Diamond Black Frost Black Frost White Tint Matt Blue Matt Green Modern Grey Frost Tint

55105904 55105905 55105906 55105907 55105908 55105858 55105859 55105903 55105912

13 BROWVENTS

Brow Vent Set

55104301

15 CHIN STRAP COVER SZ-R EVO Chin strap cover XS-L Chin strap cover XL

55075800 55075801

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

55121586

SZ-R EVO Air Wing only available as service part Diffuser Type-12 only available as service part

BASEPLATE SET VAS-Z White

55042177

SCREW SET Clear

55112511

EARCUP 15 mm 20 mm 25 mm l-xl 30 mm s-m 35 mm xs 40 mm

INTERIOR

XS-S

12 mm 55075864 10 mm 55075865 7 mm 55075866 5 mm

7

7

M-L

55062243 55062244 55062245 55062246 55062247 55062248

XL

55075868 55075869 55075873 55075870 55075874 55075871 55075875

IC-5 DUCT Diamond White Diamond Black Frost Black Tint Frost White Modern Grey Gun Metallic Frost Matt Blue Matt Green Clear White Frost Tint

28

55104116 55104117 55104119 55104120 55104123 55104111 55104189 55104190 55104191 55104114 55104115 55104121

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

S Z- R VAS • VAS-Z 1

1

2

3

VISOR (SHIELD) VAS-Z I ProShade Pivot Cover ProShade Ready Shield, Clear ProShade Sunvisor L, Smoke ProShade Sunvisor L, Mirror Silver ProShade Sunvisor L, Mirror Red ProShade Sunvisor L, Mirror Blue Clear Semi Tint Dark Tint Mirror Silver Mirror Red Mirror Blue Mirror Green

55031024 55031025 55031028 55031029 55031030 55031031 55031015 55031017 55031018 55031094 55031095 55031096 55031097

PROSHADE KIT VAS-Z (Visor + Holder) Diamond White Diamond Black Frost Black Smoke Black White Gun Metallic Frost Modern Grey Frost White Calm Red Matt Blue Matt Green

55031050 55031051 55031052 55031055 55031054 55031053 55031061 55031056 55031057 55031058 55031059 55031060

HOLDERSET VAS-Z Black Diamond White Diamond Black Frost Black Smoke White Metallic Black Calm Red Gun Metallic Frost Modern Grey Frost White Harada Tour White Harada Tour Black Ghost Red Blue Ghost Green Oriental-2 Mimetic Pedrosa Spirit Matt Blue Matt Green Dragon Russell Metallic Blk Frost (Nakasuga) Metallic Black Frost RSW Black RSW Trico Nakagami GP2 ProShade Diamond White ProShade Diamond Black ProShade Frost Black ProShade Smoke ProShade White ProShade Calm Red ProShade Gun Metallic Frost ProShade Modern Grey ProShade Frost White ProShade Matt Blue ProShade Matt Green Nakasuga 4

55042179 55042180 55042181 55042182 55042186 55042188 55042183 55042185 55042190 55042191 55042192 55042197 55042198 55042195 55042196 55042199 55042202 55042203 55042211 55042212 55042204 55042208 55042194 55042194 55042215 55042214 55042303 55042226 55042227 55042228 55042232 55042233 55042231 55042235 55042236 55042237 55042240 55042241 55042310

4 5

6

SCREW SET Clear

55112511

EARCUP 15 mm 20 mm 25 mm 30 mm

INTERIOR

xxl l-xl s-m xs

XS-S

12 mm 55075782 10 mm 55075783 7 mm 55075784 5 mm

7

7

M-L

55062228 55062229 55062230 55062231

XL-XXL

55075786 55075787 55075791 55075788 55075792 55075789 55075793

IC-5 DUCT Diamond White Diamond Black Frost Black CB Red Modern Grey Gun Metallic Frost Clear Frost White Matt Blue Matt Green Tint Tint Frost

55104116 55104117 55104119 55104104 55104111 55104189 55104114 55104123 55104190 55104191 55104120 55104121

SIDE COWL VENT-6 Diamond White Diamond Black Frost Black Frost White Tint Black Tint Frost Metallic Black Frost Oriental Blue Frost Semi-Gloss Black Calm Red Matt Blue Matt Green Modern Grey

13 BROWVENTS

Brow Vent Set Brow Vent Kit_VAS-Z PSS

15 CHIN STRAP COVER SZ-RAM Chin strap cover

55105904 55105905 55105906 55105907 55105908 55105910 55105912 55105915 55105917 55105918 55105853 55105858 55105859 55105903

55104301 55104288

55075775

SZ-R VAS Air Wing only available as service part Diffuser Type-12 only available as service part

BASEPLATE SET VAS-Z White

Volume 147 (4/26)

55042177

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

29

SZ- RAM-X • SUPER ADSI S ZR 1

2

3 4 5

6

VISOR (SHIELD) SUPER ADSIS ZR Clear Dark Tint Semi Tint Mirrorized Silver Mirrorized Blue

55031565 55031566 55031567 55031205 55031207

HOLDERSET SUPER ADSIS MZ (LRS) White Diamond White Diamond Black Black Frost Black Metallic Black Frost IQ Pearl White Metallic Green Frost White Hayden WSBK

55045200 55045201 55045202 55045205 55045211 55043359 55045221 55045222 55043360 55045773

BASEPLATE SET SUPER ADSIS ZF (LRS) White

55043016

SCREW SET Clear

55112511

EARCUP 12 mm 15 mm xxl 20 mm xl-l 25 mm m-s 30 mm xs 35 mm

INTERIOR

XS-S

12 mm 55075782 10 mm 55075783 7 mm 55075784 5 mm

7

7

M-L

55065776 55065777 55065778 55065779 55065780 55065781

XL-XXL

55075786 55075787 55075791 55075788 55075792 55075789 55075793

IC-5 DUCT Aluminium Silver White Black Diamond White Diamond Black Frost Black Frost White

55104118 55104115 55104122 55104116 55104117 55104119 55104123

SIDE COWL VENT-5 Aluminium Silver White Black Diamond White Diamond Black Frost Black Frost White Metallic Black Frost

55105978 55105971 55105972 55105973 55105974 55105975 55105976 55105990

13 BROWVENTS

Brow Vent Set

55104301

15 CHIN STRAP COVER SZ-RAM Chin strap cover

55075775

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

55121586

Diffuser Type-12 only available as service part SZ-Ram4/RamX Airwing only available as service part

30

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

F R E E WAY-2 • F R E E WAY CL ASSI C • URBAN-V 1

5

5

5

5

6

PEAK Sunvisor peak White Sunvisor peak Black 3-Snap peak White (no sunvisor) 3-Snap peak Black (no sunvisor)

55092065 55092066 55092060 55092061

EAR CUP FREEWAY-2

Standard in helmet size

15 mm 20 mm 25 mm xxl 30 mm l - xl 35 mm xs - s - m

GRAPHICS EAR CUP FREEWAY-2 (W/LEATHER)

Standard in helmet size

15 mm 20 mm 25 mm xxl 30 mm l - xl 35 mm xs - s - m

CLASSIC EAR CUP

55062525 55062526 55062527 55062528 55062529

Standard in helmet size

20 mm 25 mm xxl 30 mm l - xl 35 mm xs - s - m 40 mm

EAR CUP URBAN-V

55062594 55062595 55062596 55062597 55062605

55065795 55065796 55065797 55065798 55065799

Standard in helmet size

15 mm 20 mm 25 mm xxl 30 mm l - xl 35 mm xs - s - m

55065783 55065784 55065785 55065787 55065786

PENTA TOP VENT (OPTIONAL) Black White

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

Volume 147 (4/26)

55102346 55102350

55121586

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

31

E X PL O D E D VI EW OFF ROAD H ELME TS

CHAPTER 4 6 7

8

7

4

4

14 7

11 9

15 4 Screw set 5 Cheekpad 6 Interior 7 Rear duct/ center side duct/ top duct/ side cowl vent 8 Peak 9 Chinvent 11 Neck roll 14 Nose/ breath deflector 15 Chin strap cover

5

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

OF F R OA D HE L ME TS

OFF ROAD HELMETS

MX-V EVO MX-V FIM RACING #2 MX-V VX-PRO JR

Volume 147 (4/26)

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

33

MX-V EVO 4

5

6

SCREW SET Clear White Black

CHEEK PADS BLUE

7

7

7

8

Standard in helmet size

15 mm 20 mm 25 mm s - l - xl 30 mm xs - m 35 mm

INTERIOR 12 mm 10 mm 7 mm 5 mm

7

55112483 55112480 55112481

XS-S 55075561 55075562 55075563 55075564

M-L

55055423 55055424 55055425 55055426 55055427

XL-XXL

55075565 55075566 55075569 55075567 55075570 55075568 55075571

FRONT TOP DUCT White Tint Frost Black Frost Tint Block Pink Meta White Met-Fl-Or    Stingray Pink

55105344 55105347 55105346 55105349 55105340 55105341 55105343 55105338

CENTER SIDE DUCT White Tint Frost Black Frost Tint Block Pink Stars & Stripes Yellow Stars & Stripes Dark Meta Black Fast Red Fluor Pink

55105353 55105356 55105355 55105358 55105351 55105352 55105360 55105359 55105421 55105422

CENTER TOP DUCT White Tint Frost Black Frost Tint Block Pink Meta Black Fast Red Fluor Pink Met-Fl-Or    Stingray Pink

55105362 55105365 55105364 55105367 55105504 55105400 55105505 55105506 55105508 55105510

34

9

55095381 55095383 55095436 55095437 55095440 55095441 55095442 55095443 55095444 55095445 55095446 55095447 55095448 55095449 55095450 55095451 55095452 55095454 55095457 55095458 55095459

CHINVENT EX. VENT GRILL White Frost Black Block Pink / Stars & Stripes Yellow Fast Red Gls Blue

55105371 55105373 55105390 55105393 55105394

CHINVENT Inner Vent Control Gate

55102349

11 NECK ROLL BLUE Sizes Sizes Sizes

XS - S M-L XL

55075416 55075417 55075418

12 GOGGLE BAND SNAP (optional) White Black

55092175 55092176

14 NOSE/BREATH DEFLECTOR Black

55082356

15 CHIN STRAP COVER DRY-COOL Chin strap cover DC Grey

55073606

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

55121586

Vent Shutter Front only available as service part

SIDE COWL VENT MX-V EVO White Tint Frost Black Frost Tint Metal Black Metallic White Frost Lt Green Met-Fl-Or

9

PEAK MX-V EVO White Frost Black Block Black Block Pink Stars & Stripes Yellow Stars & Stripes Dark Battle Yellow Battle Purple Stream Blue Stream Pink Track Flame White        Flame Yellow       Jump Peak Red Peak Yellow Peak Multi Van Beveren Stingray Red Stingray Yellow Stingray Pink

55101759 55101762 55101761 55101764 55101769 55101932 55101933 55101757

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

M X-V F IM R ACIN G # 2 4 5

6

SCREW SET White

55112480

CHEEK PADS BLUE

INTERIOR 12mm 10mm 7mm 5mm

7 7 7 7 8 9 9

Standard in helmet size

15 mm 20 mm 25 mm s - l - xl 30 mm xs - m 35 mm

XS-S 55075884 55075885 55075886 55075887

M-L

55055423 55055424 55055425 55055426 55055427

XL

55075888 55075889 55075893 55075890 55075894 55075891 55075895

FRONT TOP DUCT White

55105344

CENTER SIDE DUCT White

55105353

CENTER TOP DUCT White

55105362

SIDE COWL VENT MX-V EVO White

55101759

PEAK MX-V EVO White

55095381

CHINVENT EX. VENT GRILL White

55105371

CHINVENT Inner Control Gate

55102349

11 NECK ROLL BLUE Sizes Sizes Sizes

XS - S M-L XL

55075416 55075417 55075418

12 GOGGLE BAND SNAP (optional) White

55092175

14 NOSE/BREATH DEFLECTOR Black

55082356

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

55121586

Vent Shutter Front only available as service part

Volume 147 (4/26)

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

35

MX-V 4

5

5

6

SCREW SET Clear White Black

CHEEK PADS MX-V DRY-COOL GREY/RED

7

7

7

8

Standard in helmet size

12 mm 15 mm 20 mm xxl 25 mm s - l - xl 30 mm xs - m 35 mm

55055402 55055403 55055404 55055405 55055406 55055407

CHEEK PADS MX-V DRY-COOL GREY (only design) Standard in helmet size 15 mm 20 mm xxl 25 mm s - l - xl 30 mm xs - m 35 mm

INTERIOR MX-V DRY-COOL XS-S 12 mm 10 mm 7 mm 5 mm

7

Frost White Barcia Black Rumble Blue Rumble Yellow Dazzle Red Dazzle Blue Dazzle Neon Dazzle Orange Dazzle Dirt Bogle Yellow Bogle Red Bogle Blue Bogle Orange Hayden WSBK Day Red Day Blue Slash Black Slash Red Slash Blue Navy Blue Star Yellow Barcia-2 Combat Machine Sprint Block Black Block Pink Scoop Red Scoop Yellow Scoop Orange Resolute Red Resolute Fluor Yellow Stanton Stars & Stripes Yellow Stars & Stripes Dark Barcia-Frog

55112483 55112480 55112481

55075561 55075562 55075563 55075564

M-L

55055416 55055417 55055418 55055419 55055420

XL-XXL

55075565 55075566 55075569 55075567 55075570 55075568 55075571

FRONT TOP DUCT White Black Tint Frost Black Frost White Frost Tint Block Pink

55105344 55105345 55105347 55105346 55105348 55105349 55105340

CENTER SIDE DUCT White Black Tint Frost Black Frost White Frost Tint Block Pink Stars & Stripes Yellow Stars & Stripes Dark

55105353 55105354 55105356 55105355 55105357 55105358 55105351 55105352 55105360

9

CENTER TOP DUCT White Black Tint Frost Black Frost White Frost Tint Bogle Red Bogle Blue Bogle Orange Bogle Yellow Block Pink

55105362 55105363 55105365 55105364 55105366 55105367 55105501 55105502 55105503 55105361 55105504

SIDE COWL VENT MX-V White Black Tint Frost Black Frost White Frost Tint Metal Black Metallic White Frost

55101759 55101760 55101762 55101761 55101763 55101764 55101769 55101932

PEAK MX-V White Black Frost Black

36

55095381 55095382 55095383

9

55095384 55095388 55095478 55095479 55095473 55095474 55095475 55095476 55095477 55095480 55095483 55095484 55095485 55095402 55095403 55095404 55095405 55095406 55095407 55095408 55095481 55095409 55095410 55095428 55095430 55095436 55095437 55095432 55095433 55095434 55095438 55095439 55095435 55095440 55095441 55095431

CHINVENT EX. VENT GRILL White Black Frost Black Frost White MetallicWhite Metallic White Frost Scratch Orange Metallic Blue Metallic Black IG Blue Metallic Green Bogle Yellow Rumble Bogle Red Bogle Blue Bogle Orange Day Red Day Blue Fluor Orange Combat / Block Pink Metallic-Fluorescent-Orange Barcia Frog

55105371 55105372 55105373 55105375 55105376 55105377 55105378 55105379 55105369 55105381 55105382 55105368 55105384 55105385 55105386 55105387 55105388 55105389 55105383 55105390 55105392 55105391

CHINVENT Inner Vent Control Gate

11 NECK ROLL GREY/RED Sizes Sizes Sizes

XS - S M-L XL - XXL

11 NECK ROLL GREY (only design helmets) Sizes Sizes Sizes

XS - S M-L XL - XXL

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

55102349

55075410 55075411 55075412

55075413 55075414 55075415

Volume 147 (4/26)

M X-V 12 GOGGLE BAND SNAP (optional) White Black

55092175 55092176

14 NOSE/BREATH DEFLECTOR Black

55082356

15 CHIN STRAP COVER DRY-COOL Chin strap cover DC Grey

55073606

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

55121586

Vent Shutter Front only available as service part

Volume 147 (4/26)

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

37

VX- PRO J R 4 5 6

SCREW SET Clear White

CHEEK PADS VX-PRO JR DRY-COOL 30 mm 35 mm

7 7 9

55053629 55053630

VX-PRO JR DRY-COOL Interior XXS 10 mm 7 mm

7

55112483 55112480

55073836 55073837

DELTA DUCT 4 White Black

55101880 55101881

DELTA DUCT 3 (VX-PRO) White Black

55102940 55102941

DDL DUCT 2 White Black

55101820 55101821

PEAK VX-PRO JR White

12 GOGGLE BAND SNAP White Black

14 NOSE/BREATH DEFLECTOR OPTIONAL Black

15 CHIN STRAP COVER DRY-COOL

Chin strap cover DC VX-Pro Jr

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

38

55091690

55092175 55092176

55082356

55073609

55121586

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

E X PL O D E D VI EW TRI AL H ELME TS

4 9

7

10

6 4 5

15 4 Screw set 5 Ear cup 6 Interior 7 Top vent / IC-duct 3 9 Peak 10 Rockguard 15 Chin strap cover

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

OFF ROAD H ELME TS

TRIAL HELMETS

PENTA PENTA PRO

40

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

P E NTA 4

5

7 9

SCREW SET Clear White Black

55112483 55112480 55112481

EAR CUP 15 mm 20 mm 25 mm 30 mm

Standard in helmet size xxl l - xl s-m xs

55062565 55062566 55062567 55062568

PENTA TOP VENT White Black

55102350 55102346

PEAK Black White

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

Volume 147 (4/26)

55091713 55091710

55121586

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

41

PENTA PR O 4

4 5

6

SCREW SET Clear White Black

55112483 55112480 55112481

SCREW SET ROCKGUARD White Black

55115719 55115720

EAR CUP

Standard in helmet size

15 mm 20 mm 25 mm 30 mm

INTERIOR (A-M)

xxl l - xl s-m xs

XS-S

M-L

55065714 55065715 55065716 55065717

XL-XXL

10 mm 55075753 55075756 7 mm 55075754 55075757 55075760 5 mm 55075761

7 9

IC-DUCT 3 White Black

55104922 55104955

PEAK Black White

10 ROCKGUARD Clear

15 CHIN STRAP COVER (A-M) HYPER-PRO Chin strap cover (A-M) Hyper-Pro

16 ARAI HELMET SACK BLUE Arai Helmet Sack Blue

42

55091713 55091710

55095721

55075718

55121586

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

OP T IO NA L IN T E R IO R L IN E R S RX-7V (Antimicrobial) Interior Lining Pad HEAD SIZE

HELMET SIZE

LINING CODE

TIGHTEN

54

XS

I

-

10mm

STANDARD 7mm

-

LOOSER

56

S

II

12mm

10mm

7mm

5mm

-

57-58

M

III

-

12mm

10mm

7mm

5mm -

-

59

L

III

12mm

10mm

7mm

5mm

62

XL

IV

-

10mm

7mm

5mm

-

64

XXL

V

-

10mm

7mm

5mm

-

66

XXXL

V

10mm

7mm

5mm

-

-

HEAD SIZE

HELMET SIZE

LINING CODE

TIGHTEN

54

XS

I

-

10mm

7mm

-

55-56

S

II

12mm

10mm

7mm

5mm

-

57-58

M

III

-

12mm

10mm

7mm

5mm

RX-7V EVO (Antimicrobial) Interior Lining Pad STANDARD

LOOSER -

59

L

III

12mm

10mm

7mm

5mm

-

60-61

XL

IV

-

10mm

7mm

5mm

-

62-63

XXL

V

-

10mm

7mm

5mm

-

64-65

XXXL

V

10mm

7mm

5mm

-

-

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

-

-

II - 12mm

075681

III - 12mm

075685

-

-

-

BCD -

I - 10mm

075708

II - 10mm

075682

III - 10mm

075686

IV - 10mm

075690

V - 10mm

075694

I - 7mm

075709

II - 7mm

075683

III - 7mm

075687

IV - 7mm

075691

V - 7mm

075695

-

-

II - 5mm

075684

III - 5mm

075688

IV - 5mm

075692

V - 5mm

075696

QV-PRO (Antimicrobial) Interior Lining Pad HEAD SIZE

HELMET SIZE

LINING CODE

TIGHTEN

54

XS

I

-

10mm

STANDARD 7mm

-

LOOSER -

56

S

II

-

10mm

7mm

5mm

-

57-58

M

III

-

12mm

10mm

7mm

5mm

59

L

III

12mm

10mm

7mm

5mm

-

62

XL

IV

12mm

10mm

7mm

5mm

-

64

XXL

IV

10mm

7mm

5mm

-

-

66

XXXL

V

10mm

7mm

5mm

-

-

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

-

-

II - 12mm

075681

III - 12mm

075685

-

-

-

BCD -

I - 10mm

075708

II - 10mm

075682

III - 10mm

075686

IV - 10mm

075690

V - 10mm

075694

I - 7mm

075709

II - 7mm

075683

III - 7mm

075687

IV - 7mm

075691

V - 7mm

075695

-

-

II - 5mm

075684

III - 5mm

075688

IV - 5mm

075692

V - 5mm

075696

RX-7V FIM RACING #2 (FRHPHE-02) Interior Lining Pad HEAD SIZE

HELMET SIZE

LINING CODE

TIGHTEN

54

XS

I

-

10mm

STANDARD 7mm

-

LOOSER -

55-56

S

II

-

10mm

7mm

5mm

-

57-58

M

III

-

12mm

10mm

7mm

5mm

59

L

III

12mm

10mm

7mm

5mm

-

60-61

XL

IV

-

10mm

7mm

5mm

-

62-63

XXL

V

-

10mm

7mm

5mm

-

64-65

XXXL

V

10mm

7mm

5mm

-

-

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

-

-

II - 12mm

075681

III - 12mm

075685

-

-

-

BCD -

I - 10mm

075708

II - 10mm

075682

III - 10mm

075686

IV - 10mm

075690

V - 10mm

075694

I - 7mm

075709

II - 7mm

075683

III - 7mm

075687

IV - 7mm

075691

V - 7mm

075695

-

-

II - 5mm

075684

III - 5mm

075688

IV - 5mm

075692

V - 5mm

075696

RX-7V RACING (Antimicrobial) Interior Lining Pad HEAD SIZE

HELMET SIZE

LINING CODE

TIGHTEN

54

XS

I

-

10mm

STANDARD 7mm

-

-

56

S

II

-

10mm

7mm

5mm

-

57-58

M

III

-

12mm

10mm

7mm

5mm

59

L

III

12mm

10mm

7mm

5mm

-

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

BCD

-

-

II - 12mm

075681

III - 12mm

075685

I - 10mm

075708

II - 10mm

075682

III - 10mm

075686

I - 7mm

075709

II - 7mm

075683

III - 7mm

075687

-

-

II - 5mm

075684

III - 5mm

075688

Volume 147 (4/26)

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

LOOSER

43

OPTI ONAL I NTERI OR LI NERS QUANTIC Interior Lining Pad HEAD SIZE

HELMET SIZE

LINING CODE

TIGHTEN

54

XS

II

-

12mm

STANDARD 10mm

7mm

LOOSER

55-56

S

II

12mm

10mm

7mm

5mm

-

57-58

M

III

-

12mm

10mm

7mm

5mm

5mm

59

L

III

12mm

10mm

7mm

5mm

-

60-61

XL

IV

12mm

10mm

7mm

5mm

-

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

BCD

II - 12mm

074004

III - 12mm

074008

IV - 12mm

074012

II - 10mm

074005

III - 10mm

074009

IV - 10mm

074013

II - 7mm

074006

III - 7mm

074010

IV - 7mm

074014

II - 5mm

074007

III - 5mm

074011

IV - 5mm

074015

CONCEPT-X (Black Antimicrobial) Interior Lining Pad HEAD SIZE

HELMET SIZE

LINING CODE

TIGHTEN

54

XS

II

-

12mm

STANDARD 10mm

7mm

LOOSER

55-56

S

II

12mm

10mm

7mm

5mm

-

57-58

M

III

-

12mm

10mm

7mm

5mm

5mm

59

L

III

12mm

10mm

7mm

5mm

-

60-61

XL

IV

-

10mm

7mm

5mm

-

62-63

XXL

IV

10mm

7mm

5mm

-

-

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

II - 12mm

074382

III - 12mm

074386

-

BCD -

II - 10mm

074383

III - 10mm

074387

IV - 10mm

074390

II - 7mm

074384

III - 7mm

074388

IV - 7mm

074391

II - 5mm

074385

III - 5mm

074389

IV - 5mm

074392

CONCEPT-XE (Black Antimicrobial) Interior Lining Pad HEAD SIZE

HELMET SIZE

LINING CODE

TIGHTEN

54

XS

II

-

12mm

STANDARD 10mm

7mm

-

55-56

S

II

-

10mm

7mm

-

-

57-58

M

III

-

12mm

10mm

7mm

-

59

L

III

-

10mm

7mm

-

-

60-61

XL

IV

-

10mm

7mm

-

-

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

II - 12mm

074044

III - 12mm

074048

-

-

II - 10mm

074045

III - 10mm

074049

IV - 10mm

0740453

II - 7mm

074046

III - 7mm

074050

IV - 7mm

074054

LOOSER

BCD

RENEGADE-V (Antimicrobial) Interior Lining Pad HEAD SIZE

HELMET SIZE

LINING CODE

TIGHTEN

54

XS

II

-

12mm

STANDARD 10mm

7mm

56

S

II

-

10mm

7mm

5mm

-

57-58

M

III

-

12mm

10mm

7mm

5mm

5mm

59

L

III

12mm

10mm

7mm

5mm

-

62

XL

IV

-

10mm

7mm

5mm

-

64

XXL

IV

10mm

7mm

5mm

-

-

64

XXL

V

-

10mm

7mm

5mm

-

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

II - 12mm

075681

III - 12mm

075685

-

-

II - 10mm

075682

III - 10mm

075686

IV - 10mm

075690

II - 7mm

075683

III - 7mm

075687

IV - 7mm

075691

II - 5mm

075684

III - 5mm

075688

IV - 5mm

075692

44

LOOSER

BCD

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

OP T IO NA L IN T E R IO R L IN E R S CHASER-X (Antimicrobial) Interior Lining Pad HEAD SIZE

HELMET SIZE

LINING CODE

TIGHTEN

54

XS

II

-

12mm

STANDARD 10mm

7mm

LOOSER

56

S

II

12mm

10mm

7mm

5mm

-

57-58

M

III

-

12mm

10mm

7mm

5mm

5mm

59

L

III

12mm

10mm

7mm

5mm

-

62

XL

IV

-

10mm

7mm

5mm

-

64

XXL

IV

10mm

7mm

5mm

-

-

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

II - 12mm

075830

III - 12mm

075834

-

BCD -

II - 10mm

075831

III - 10mm

075835

IV - 10mm

075839

II - 7mm

075832

III - 7mm

075836

IV - 7mm

075840

II - 5mm

075833

III - 5mm

075837

IV - 5mm

075841

PROFILE-V (Antimicrobial) Interior Lining Pad HEAD SIZE

HELMET SIZE

LINING CODE

TIGHTEN

54

XS

II

-

12mm

STANDARD 10mm

7mm

LOOSER

56

S

II

-

10mm

7mm

5mm

-

57-58

M

III

-

12mm

10mm

7mm

5mm

5mm

59

L

III

12mm

10mm

7mm

5mm

-

62

XL

IV

-

10mm

7mm

5mm

-

64

XXL

IV

-

7mm

5mm

-

-

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

II - 12mm

075846

III - 12mm

075851

-

-

II - 10mm

075845

III - 10mm

075850

IV - 10mm

075852

II - 7mm

075847

III - 7mm

075849

IV - 7mm

075853

II - 5mm

075848

III - 5mm

075852

IV - 5mm

075854

Volume 147 (4/26)

BCD

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

45

OPTI ONAL I NTERI OR LI NERS TOUR-X5 Interior Lining Pad HEAD SIZE

HELMET SIZE

LINING CODE

TIGHTEN

54

XS

II

-

12mm

STANDARD 10mm

7mm

LOOSER

55-56

S

II

-

10mm

7mm

5mm

-

57-58

M

III

-

12mm

10mm

7mm

5mm

5mm

59

L

III

12mm

10mm

7mm

5mm

-

60-61

XL

IV

-

10mm

7mm

5mm

-

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

II - 12mm

075470

III - 12mm

075474

-

BCD -

II - 10mm

075471

III - 10mm

075475

IV - 10mm

075478

II - 7mm

075472

III - 7mm

075476

IV - 7mm

075479

II - 5mm

075473

III - 5mm

075477

IV - 5mm

075480

MX-V EVO Interior Lining Pad HEAD SIZE

HELMET SIZE

LINING CODE

TIGHTEN

54

XS

II

-

12mm

STANDARD 10mm

7mm

LOOSER

55-56

S

II

12mm

10mm

7mm

5mm

-

57-58

M

III

-

12mm

10mm

7mm

5mm

5mm

59

L

III

12mm

10mm

7mm

5mm

-

60-61

XL

IV

12mm

10mm

7mm

5mm

-

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

II - 12mm

075561

III - 12mm

075565

-

BCD -

II - 10mm

075562

III - 10mm

075566

IV - 10mm

075569

II - 7mm

075563

III - 7mm

075567

IV - 7mm

075570

II - 5mm

075564

III - 5mm

075568

IV - 5mm

075571

MX-V FIM Racing #2 interior Lining Pad HEAD SIZE

HELMET SIZE

LINING CODE

TIGHTEN

54

XS

II

-

12mm

STANDARD 10mm

7mm

LOOSER

55-56

S

II

12mm

10mm

7mm

5mm

-

57-58

M

III

-

12mm

10mm

7mm

5mm

5mm

59

L

III

12mm

10mm

7mm

5mm

-

60-61

XL

IV

12mm

10mm

7mm

5mm

-

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

II - 12mm

55075884

III - 12mm

55075888

-

BCD -

II - 10mm

55075885

III - 10mm

55075889

IV - 10mm

55075893

II - 7mm

55075886

III - 7mm

55075890

IV - 7mm

55075894

II - 5mm

55075887

III - 5mm

55075891

IV - 5mm

55075895

MX-V / TOUR-X4 Interior Lining Pad HEAD SIZE

HELMET SIZE

LINING CODE

TIGHTEN

54

XS

II

-

12mm

STANDARD 10mm

7mm

56

S

II

12mm

10mm

7mm

5mm

-

57-58

M

III

-

12mm

10mm

7mm

5mm -

5mm

59

L

III

12mm

10mm

7mm

5mm

62

XL

IV

12mm

10mm

7mm

5mm

-

64

XXL

IV

10mm

7mm

5mm

-

-

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

II - 12mm

075561

III - 12mm

075565

-

-

II - 10mm

075562

III - 10mm

075566

IV - 10mm

075569

II - 7mm

075563

III - 7mm

075567

IV - 7mm

075570

II - 5mm

075564

III - 5mm

075568

IV - 5mm

075571

46

LOOSER

BCD

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

OP T IO NA L IN T E R IO R L IN E R S SZ-R EVO (Antimicrobial) Interior Lining Pad HEAD SIZE

HELMET SIZE

LINING CODE

TIGHTEN

54

XS

II

-

12mm

STANDARD 10mm

7mm

-

55-56

S

II

12mm

10mm

7mm

-

-

57-58

M

III

-

12mm

10mm

7mm

5mm

59

L

III

12mm

10mm

7mm

5mm

-

60-61

XL

IV

-

10mm

7mm

5mm

-

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

II - 12mm

075864

III - 12mm

075868

-

-

II - 10mm

075865

III - 10mm

075869

IV - 10mm

075873

II - 7mm

075866

III - 7mm

075870

IV - 7mm

075874

III - 5mm

075871

IV - 5mm

075875

LOOSER

BCD

SZ-RAM X / SZ-R VAS (Antimicrobial) Interior Lining Pad HEAD SIZE

HELMET SIZE

LINING CODE

TIGHTEN

54

XS

II

-

12mm

STANDARD 10mm

7mm

-

56

S

II

12mm

10mm

7mm

-

-

57-58

M

III

-

12mm

10mm

7mm

5mm

59

L

III

12mm

10mm

7mm

5mm

-

62

XL

IV

-

10mm

7mm

5mm

-

64

XXL

IV

10mm

7mm

5mm

-

-

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

II - 12mm

075782

III - 12mm

075786

-

-

II - 10mm

075783

III - 10mm

075787

IV - 10mm

075791

II - 7mm

075784

III - 7mm

075788

IV - 7mm

075792

III - 5mm

075789

IV - 5mm

075793

LOOSER

BCD

PENTA PRO (Antimicrobial) Interior Lining Pad HEAD SIZE

HELMET SIZE

LINING CODE

TIGHTEN

54

XS

II

-

-

STANDARD 10mm

7mm

5mm

56

S

II

-

10mm

7mm

-

-

57-58

M

III

-

-

10mm

-

-

59

L

III

-

-

7mm

-

-

62

XL

IV

-

-

7mm

5mm

-

64

XXL

IV

-

-

5mm

-

-

LINING CODE

BCD

LINING CODE

BCD

LINING CODE

BCD

-

-

-

-

-

-

II - 10mm

075753

III - 10mm

075756

-

-

II - 7mm

075754

III - 7mm

075757

IV - 7mm

075760

-

-

-

-

IV - 5mm

075761

LOOSER

VX-PRO JR Interior Lining Pad HEAD SIZE

HELMET SIZE

LINING CODE

TIGHTEN

52

XXS

I

-

LINING CODE

BCD

I - 10mm

073836

I - 7mm

073837

Volume 147 (4/26)

STANDARD -

10mm

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

LOOSER 7mm

-

47

OPTI ONAL CH EEKPADS RX-7V (Antimicrobial) Cheekpad FCS HEAD SIZE

HELMET SIZE

TIGHTEN

54

XS

-

-

STANDARD 35mm

30mm

25mm

20mm

LOOSER

SIZE

BCD

15mm

15mm

055698

56

S

-

-

35mm

30mm

25mm

20mm

15mm

20mm

055699

57-58

M

-

-

35mm

30mm

25mm

20mm

15mm

25mm

055700

59

L

-

35mm

30mm

25mm

20mm

15mm

-

30mm

055701

62

XL

35mm

30mm

25mm

20mm

15mm

-

-

35mm

055702

64

XXL

-

35mm

30mm

25mm

20mm

15mm

-

66

XXXL

-

30mm

25mm

20mm

15mm

-

-

HEAD SIZE

HELMET SIZE

TIGHTEN

LOOSER

SIZE

BCD

54

XS

-

40mm

35mm

30mm

25mm

20mm

15mm

15mm

055763

55-56

S

-

40mm

35mm

30mm

25mm

20mm

15mm

20mm

055764

57-58

M

-

40mm

35mm

30mm

25mm

20mm

15mm

25mm

055765

59

L

40mm

35mm

30mm

25mm

15mm

15mm

-

30mm

055766

60-61

XL

40mm

35mm

30mm

25mm

20mm

15mm

-

35mm

055767

62-63

XXL

40mm

35mm

30mm

25mm

20mm

15mm

-

40 mm

055768

64-65

XXXL

35mm

30mm

25mm

20mm

15mm

-

-

HEAD SIZE

HELMET SIZE

TIGHTEN

54

XS

-

RX-7V EVO / RX-7V FIM Racing #2 (FRHPhe-02) Cheekpad FCS STANDARD

RX-7V Racing (Antimicrobial) Cheekpad FCS STANDARD -

LOOSER

SIZE

BCD

35mm

30mm

25mm

20mm

15mm

15mm

055698

56

S

-

-

35mm

30mm

25mm

20mm

15mm

20mm

055699

57-58

M

-

-

35mm

30mm

25mm

20mm

15mm

25mm

055700

59

L

-

35mm

30mm

25mm

20mm

15mm

-

30mm

055701

35mm

055702

QUANTIC Cheekpad FCS HEAD SIZE

HELMET SIZE

TIGHTEN

54

XS

-

STANDARD -

LOOSER

SIZE

BCD

35mm

35mm

25mm

20mm

15mm

12mm

055732

55-56

S

-

-

35mm

30mm

25mm

20mm

15mm

15mm

055733

57-58

M

-

-

35mm

30mm

25mm

20mm

15mm

20mm

055734

59

L

-

35mm

30mm

25mm

20mm

15mm

12mm

25mm

055735

60-61

XL

-

35mm

30mm

25mm

20mm

15mm

12mm

30mm

055736

35mm

055737

QV-PRO (Antimicrobial) Cheekpad FCS HEAD SIZE

HELMET SIZE

TIGHTEN

54

XS

-

STANDARD -

LOOSER

SIZE

BCD

35mm

30mm

25mm

20mm

15mm

15mm

055698

56

S

-

-

35mm

30mm

25mm

20mm

15mm

20mm

055699

57-58

M

-

-

35mm

30mm

25mm

20mm

15mm

25mm

055700

59

L

-

35mm

30mm

25mm

20mm

15mm

-

30mm

055701

62

XL

-

30mm

25mm

20mm

15mm

-

-

35mm

055702

64

XXL

35mm

30mm

25mm

20mm

15mm

-

-

66

XXXL

30mm

25mm

20mm

15mm

-

-

-

HEAD SIZE

HELMET SIZE

TIGHTEN

LOOSER

SIZE

BCD

54

XS

-

-

35mm

30mm

25mm

20mm

15mm

12mm

055615

CONCEPT-X (Antimicrobial) Cheekpad FCS STANDARD

56

S

-

35mm

30mm

25mm

20mm

15mm

12mm

15mm

055616

57-58

M

-

35mm

30mm

25mm

20mm

15mm

12mm

20mm

055617

59

L

35mm

30mm

25mm

20mm

15mm

12mm

-

25mm

055618

62

XL

35mm

30mm

25mm

20mm

15mm

12mm

-

30mm

055619

64

XXL

30mm

25mm

20mm

15mm

12mm

-

-

35mm

055620

48

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

OP T IO NA L CHE E K PA D S CONCEPT-XE (Antimicrobial) Cheekpad FCS LOOSER

SIZE

BCD

XS

-

-

40mm

35mm

30mm

25mm

20mm

15mm

12mm

12mm

055615

55-56

S

-

40mm

35mm

30mm

25mm

20mm

15mm

12mm

-

15mm

055616

57-58

M

-

40mm

35mm

30mm

25mm

20mm

15mm

12mm

-

20mm

055617

59

L

40mm

35mm

30mm

25mm

20mm

15mm

12mm

-

-

25mm

055618

60-61

XL

40mm

35mm

30mm

25mm

20mm

15mm

12mm

-

-

30mm

055619

35mm

055620

40mm

055621

HEAD SIZE HELMET SIZE TIGHTEN 54

STANDARD

RENEGADE-V (Antimicrobial) Cheekpad FCS HEAD SIZE

HELMET SIZE

TIGHTEN

LOOSER

SIZE

BCD

54

XS

-

-

35mm

STANDARD 30mm

25mm

20mm

15mm

12mm

055661

56

S

-

35mm

30mm

25mm

20mm

15mm

12mm

15mm

055662

57-58

M

-

35mm

30mm

25mm

20mm

15mm

12mm

20mm

055663

59

L

35mm

30mm

25mm

20mm

15mm

12mm

-

25mm

055664

62

XL

35mm

30mm

25mm

20mm

15mm

12mm

-

30mm

055665

64

XXL

30mm

25mm

20mm

15mm

12mm

-

-

35mm

055666

PROFILE-V Cheekpad FCS HEAD SIZE

HELMET SIZE

TIGHTEN

LOOSER

SIZE

BCD

54

XS

-

-

35mm

STANDARD 30mm

25mm

20mm

15mm

12mm

055710

56

S

-

35mm

30mm

25mm

20mm

15mm

12mm

15mm

055711

57-58

M

-

35mm

30mm

25mm

20mm

15mm

12mm

20mm

055712

59

L

35mm

30mm

25mm

20mm

15mm

12mm

-

25mm

055713

62

XL

35mm

30mm

25mm

20mm

15mm

12mm

-

30mm

055714

64

XXL

30mm

25mm

20mm

15mm

12mm

-

-

35mm

055715

CHASER-X (Antimicrobial) Cheekpad FCS HEAD SIZE

HELMET SIZE

TIGHTEN

LOOSER

SIZE

BCD

54

XS

-

-

35mm

STANDARD 30mm

25mm

20mm

15mm

12mm

055842

56

S

-

35mm

30mm

25mm

20mm

15mm

12mm

15mm

055843

57-58

M

-

35mm

30mm

25mm

20mm

15mm

12mm

20mm

055844

59

L

35mm

30mm

25mm

20mm

15mm

12mm

-

25mm

055845

62

XL

35mm

30mm

25mm

20mm

15mm

12mm

-

30mm

055846

64

XXL

30mm

25mm

20mm

15mm

12mm

-

-

35mm

055847

Volume 147 (4/26)

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

49

OPTI ONAL CH EEKPADS TOUR-X5 Cheekpad FCS HEAD SIZE

HELMET SIZE

TIGHTEN

54

XS

-

LOOSER

SIZE

BCD

-

40mm

STANDARD 35mm

30mm

25mm

20mm

20mm

055384

55-56

S

-

40mm

35mm

30mm

25mm

20mm

-

25mm

055385

57-58

M

-

40mm

35mm

30mm

25mm

20mm

-

30mm

055386

59

L

40mm

35mm

30mm

25mm

20mm

-

-

35mm

055387

60-61

XL

40mm

35mm

30mm

25mm

20mm

-

-

40mm

055388

HEAD SIZE

HELMET SIZE

TIGHTEN

LOOSER

SIZE

BCD

54

XS

-

-

35mm

30mm

25mm

20mm

15mm

12mm

054473

TOUR-X4 Cheekpad FCS STANDARD

56

S

-

35mm

30mm

25mm

20mm

15mm

12mm

15mm

054474

57-58

M

-

35mm

30mm

25mm

20mm

15mm

12mm

20mm

054475

59

L

35mm

30mm

25mm

20mm

15mm

12mm

-

25mm

054476

62

XL

35mm

30mm

25mm

20mm

15mm

12mm

-

30mm

054477

64

XXL

30mm

25mm

20mm

15mm

12mm

-

-

35mm

054478

MX-V EVO / MX-V FIM Racing #2 Cheekpad FCS HEAD SIZE

HELMET SIZE

TIGHTEN

54

XS

-

-

STANDARD 35mm

30mm

25mm

20mm

LOOSER

SIZE

BCD

15mm

15mm

055423

55-56

S

-

35mm

30mm

25mm

20mm

15mm

-

20mm

055424

57-58

M

-

-

35mm

30mm

25mm

20mm

15mm

25mm

055425

59

L

-

35mm

30mm

25mm

20mm

15mm

-

30mm

055426

60-61

XL

-

35mm

30mm

25mm

20mm

15mm

-

35mm

055427

HEAD SIZE

HELMET SIZE

TIGHTEN

54

XS

-

-

MX-V Cheekpad FCS - Grey / Red STANDARD 35mm

30mm

25mm

20mm

LOOSER

SIZE

BCD

15mm

12mm

055402

56

S

-

35mm

30mm

25mm

20mm

15mm

12mm

15mm

055403

57-58

M

-

-

35mm

30mm

25mm

20mm

15mm

20mm

055404

59

L

-

35mm

30mm

25mm

20mm

15mm

12mm

25mm

055405

62

XL

-

35mm

30mm

25mm

20mm

15mm

12mm

30mm

055406

64

XXL

35mm

30mm

25mm

20mm

15mm

12mm

-

35mm

055407

HEAD SIZE

HELMET SIZE

TIGHTEN

LOOSER

SIZE

BCD

54

XS

-

-

35mm

30mm

25mm

20mm

15mm

-

-

56

S

-

35mm

30mm

25mm

20mm

15mm

-

15mm

055416

57-58

M

-

-

35mm

30mm

25mm

20mm

-

20mm

055417

59

L

-

35mm

30mm

25mm

20mm

15mm

-

25mm

055418

62

XL

-

35mm

30mm

25mm

20mm

15mm

-

30mm

055419

64

XXL

35mm

30mm

25mm

20mm

15mm

-

-

35mm

055420

BCD

MX-V Cheekpad FCS - Grey (Only designs) STANDARD

X-TEND Cheekpad HEAD SIZE

HELMET SIZE

TIGHTEN

LOOSER

SIZE

54

XS

-

-

30mm

25mm

20mm

15mm

-

-

-

56

S

-

30mm

25mm

20mm

15mm

-

-

15mm

054447

57-58

M

-

-

30mm

25mm

20mm

15mm

-

20mm

054448

59

L

-

30mm

25mm

20mm

15mm

-

-

25mm

054449

62

XL

-

30mm

25mm

20mm

15mm

-

-

30mm

054450

64

XXL

-

25mm

20mm

15mm

-

-

-

-

-

66

XXXL

-

-

25mm

20mm

15mm

-

-

50

STANDARD

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

OP T IO NA L CHE E K PA D S SZ-R EVO Earcup HEAD SIZE HELMET SIZE 54

TIGHTEN -

XS

STANDARD -

40mm

35mm

30mm

25mm

20mm

LOOSER

SIZE

BCD

15mm

15mm

062243

55-56

S

-

40mm

35mm

30mm

25mm

20mm

15mm

-

20mm

062244

57-58

M

-

40mm

35mm

30mm

25mm

20mm

15mm

-

25mm

062245

59

L

40mm

35mm

30mm

25mm

20mm

15mm

-

-

30mm

062246

60-61

XL

40mm

35mm

30mm

25mm

20mm

15mm

-

-

35mm

062247

40mm

062248

SZ-RAM X Earcup HEAD SIZE

HELMET SIZE

TIGHTEN

LOOSER

SIZE

BCD

54

XS

-

-

35mm

STANDARD 30mm

25mm

-

-

12mm

065776

56

S

-

-

30mm

25mm

20mm

-

-

15mm

065777

57-58

M

-

-

30mm

25mm

20mm

-

-

20mm

065778

59

L

-

-

25mm

20mm

15mm

-

-

25mm

065779

62

XL

-

-

25mm

20mm

15mm

-

-

30mm

065780

64

XXL

-

-

20mm

15mm

12mm

-

-

35mm

065781

HEAD SIZE

HELMET SIZE

TIGHTEN

LOOSER

SIZE

BCD

54

XS

-

-

-

30mm

25mm

-

-

-

-

56

S

-

-

30mm

25mm

20mm

-

-

15mm

062228

57-58

M

-

-

30mm

25mm

20mm

-

-

20mm

062229

59

L

-

-

25mm

20mm

15mm

-

-

25mm

062230

62

XL

-

-

25mm

20mm

15mm

-

-

30mm

062231

64

XXL

-

-

20mm

15mm

-

-

-

-

-

HEAD SIZE

HELMET SIZE

TIGHTEN

LOOSER

SIZE

BCD

54

XS

-

-

30mm

25mm

20mm

15mm

-

-

-

56

S

-

30mm

25mm

20mm

15mm

-

-

15mm

054447

57-58

M

-

-

30mm

25mm

20mm

15mm

-

20mm

054448

59

L

-

30mm

25mm

20mm

15mm

-

-

25mm

054449

62

XL

-

30mm

25mm

20mm

15mm

-

-

30mm

64

XXL

30mm

25mm

20mm

15mm

-

-

-

-

054450 -

HEAD SIZE

HELMET SIZE

TIGHTEN

LOOSER

SIZE

BCD

54

XS

-

-

35mm

30mm

25mm

20mm

15mm

-

-

56

S

-

35mm

30mm

25mm

20mm

15mm

-

15mm

063442

57-58

M

-

35mm

30mm

25mm

20mm

15mm

-

20mm

063443

59

L

35mm

30mm

25mm

20mm

15mm

-

-

25mm

063444

62

XL

35mm

30mm

25mm

20mm

15mm

-

-

30mm

063445

64

XXL

30mm

25mm

20mm

15mm

-

-

-

35 mm

063446

HEAD SIZE

HELMET SIZE

TIGHTEN

LOOSER

SIZE

BCD

54

XS

-

-

-

35mm

30mm

25mm

20mm

-

-

56

S

-

-

-

35mm

30mm

25mm

20mm

15mm

065783

57-58

M

-

-

-

35mm

30mm

25mm

20mm

20mm

065784

59

L

-

-

35mm

30mm

25mm

20mm

15mm

25mm

065785

62

XL

-

-

35mm

30mm

25mm

20mm

15mm

30mm

065787

64

XXL

-

35mm

30mm

25mm

20mm

15mm

-

35mm

065786

HEAD SIZE

HELMET SIZE

TIGHTEN

LOOSER

SIZE

BCD

54

XS

-

-

-

30mm

25mm

20mm

15mm

-

-

56

S

-

-

30mm

25mm

20mm

15mm

-

15mm

062565

57-58

M

-

-

30mm

25mm

20mm

15mm

-

20mm

062566

59

L

-

30mm

25mm

20mm

15mm

-

-

25mm

062567

62

XL

-

30mm

25mm

20mm

15mm

-

-

30mm

062568

64

XXL

30mm

25mm

20mm

15mm

-

-

-

-

-

SZ-R VAS Earcup STANDARD

CT-F Cheekpad FCS STANDARD

SZ-F Earcup STANDARD

Urban-V Earcup - Graphics STANDARD

PENTA Earcup

Volume 147 (4/26)

STANDARD

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

51

OPTI ONAL CH EEKPADS PENTA PRO Earcup HEAD SIZE

HELMET SIZE

TIGHTEN

LOOSER

SIZE

54

XS

-

-

-

STANDARD 30mm

25mm

20mm

15mm

-

BCD -

56

S

-

-

30mm

25mm

20mm

15mm

-

15mm

065714

57-58

M

-

-

30mm

25mm

20mm

15mm

-

20mm

065715

59

L

-

30mm

25mm

20mm

15mm

-

-

25mm

065716

62

XL

-

30mm

25mm

20mm

15mm

-

-

30mm

065717

64

XXL

30mm

25mm

20mm

15mm

-

-

-

-

-

BCD

FREEWAY-2 Earcup - Plain Colours HEAD SIZE

HELMET SIZE

TIGHTEN

LOOSER

SIZE

54

XS

-

-

-

STANDARD 35mm

30mm

25mm

20mm

-

-

56

S

-

-

-

35mm

30mm

25mm

20mm

15mm

062594

57-58

M

-

-

-

35mm

30mm

25mm

20mm

20mm

062595

59

L

-

-

35mm

30mm

25mm

20mm

15mm

25mm

062596

62

XL

-

-

35mm

30mm

25mm

20mm

15mm

30mm

062597

64

XXL

-

35mm

30mm

25mm

20mm

15mm

-

35mm

062605

HEAD SIZE

HELMET SIZE

TIGHTEN

LOOSER

SIZE

BCD

54

XS

-

-

-

35mm

30mm

25mm

20mm

-

-

56

S

-

-

-

35mm

30mm

25mm

20mm

15mm

062525

57-58

M

-

-

-

35mm

30mm

25mm

20mm

20mm

062526

59

L

-

-

35mm

30mm

25mm

20mm

15mm

25mm

062527

62

XL

-

-

35mm

30mm

25mm

20mm

15mm

30mm

062528

64

XXL

-

35mm

30mm

25mm

20mm

15mm

-

35mm

062529

HEAD SIZE

HELMET SIZE

TIGHTEN

LOOSER

SIZE

BCD

54

XS

-

-

40 mm

35mm

30mm

25mm

20mm

-

-

56

S

-

-

40 mm

35mm

30mm

25mm

20mm

20mm

065795

57-58

M

-

-

40 mm

35mm

30mm

25mm

20mm

25mm

065796

59

L

-

40 mm

35mm

30mm

25mm

20mm

-

30mm

065797

62

XL

-

40 mm

35mm

30mm

25mm

20mm

-

35mm

065798

64

XXL

40 mm

35mm

30mm

25mm

20mm

-

-

40mm

065799

FREEWAY-2 Earcup - Graphics STANDARD

FREEWAY-2 Earcup - Classic

52

STANDARD

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

Volume 147 (4/26)

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

53

54

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

Volume 147 (4/26)

Volume 147 (4/26)

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS

55

FULL FACE HELMETS • OPEN FACE HELMETS • OFF ROAD HELMETS
