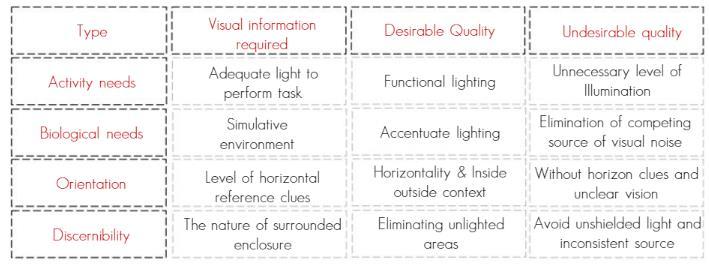

Found in Environment A Environment Provides

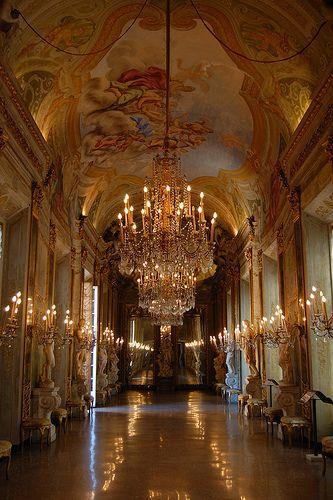

Experiencing the Environment

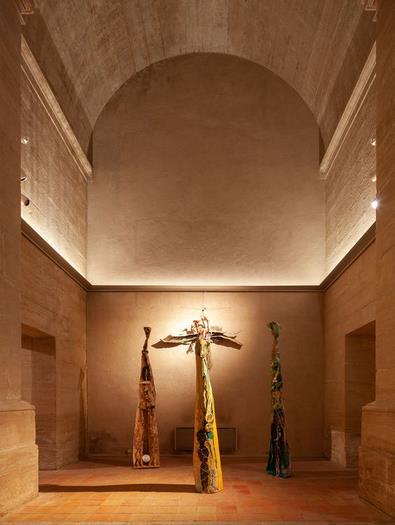

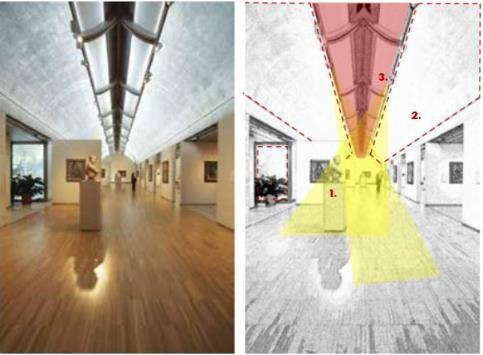

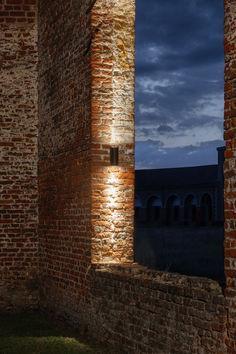

1.FacadeLight - Welcoming gleam of the open door
2.AmbientLight - The light in a white tent at noon.
3.BrilliantLight - The sensation of Cache of Diamonds in an opened cave.
All these tells us what to look at organizes, marks the important elements.
FLOOR FIRST FLOOR
CEILING

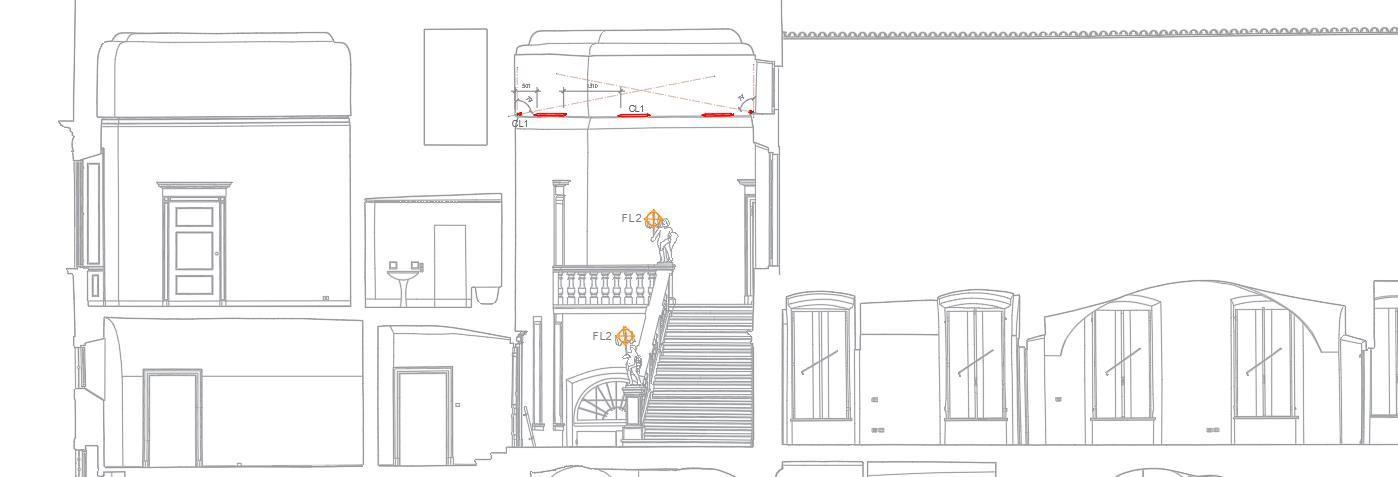

ELEVATION 1
ELEVATION 3
ELEVATION 4
CEILING LIGHTING
PLAN GROUND FLOOR
SCALE 1:100

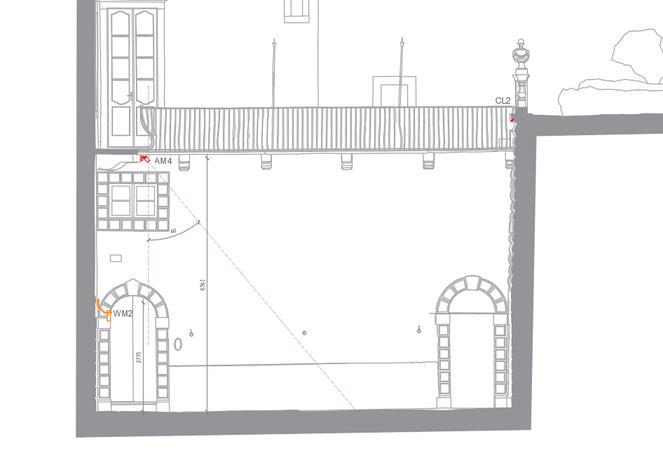

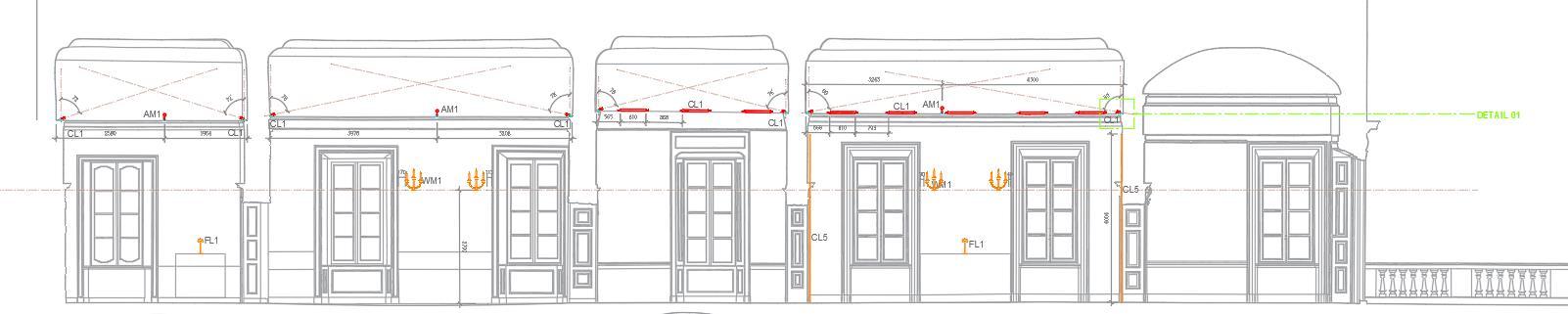

ELEVATION 1 SCALE 1:75
ELEVATION 2 SCALE 1:75
ELEVATION 3
SCALE 1:75

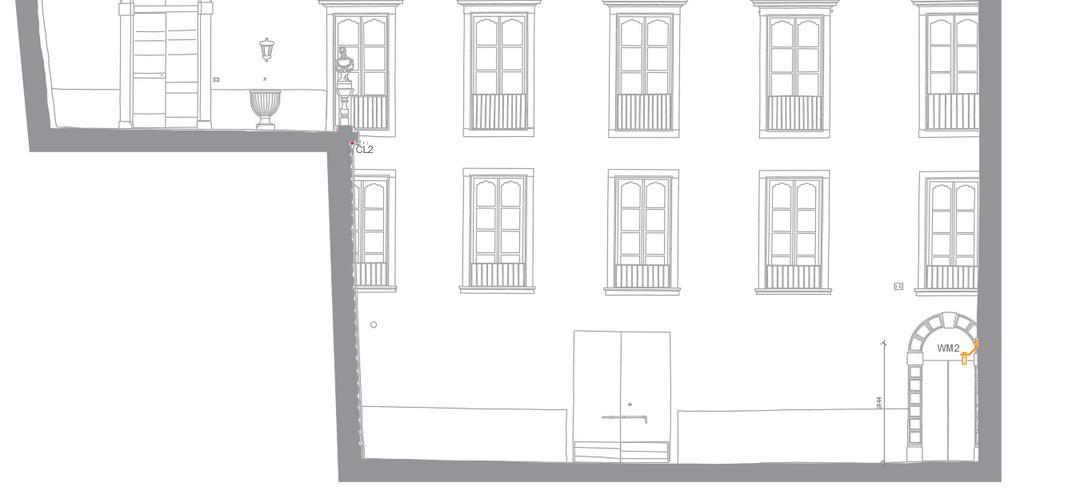

ELEVATION 4 SCALE 1:75
• Lm ouput : 26lm
• Power supply : 48 V
• Power : 4.8W
• CRI : --
• Beam angle : 360°
• CCT : RGB • IP : 66
Lm ouput : 799 lm
Power supply : 220-240 V • Power : 13 W
CRI : 80
Beam angle : 111°
• Lm ouput : 665lm
• Power supply : 48 V
• Power : 9.1W
• CRI : 80
• Beam angle : 50° • CCT : 2700 • IP : 66 iGuzzini
iGuzzini
• Lm ouput : 675 lm
• Power supply : 24 Vdc
• Power : 15.6 W
• CRI : 80
• Beam angle : 6° • CCT : 3000 K • IP : 66
iGuzzini
• Lm ouput : 506 lm • Power supply : 24 V • Power : 11.5 W
CRI : 80
Beam angle : 111°
CCT : 2700 K
IP : 68
Lm ouput : 175 lm
Power supply : 24 V
Power : 2.7 W • CRI : 80 • Beam angle : Diffused • CCT : 2900 K • IP : 68

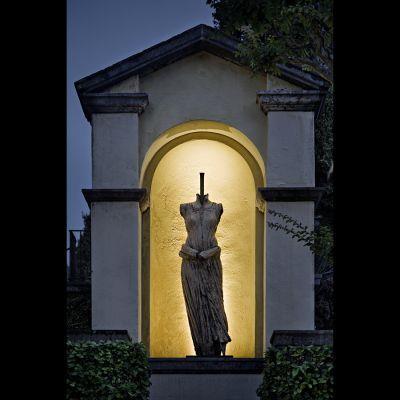

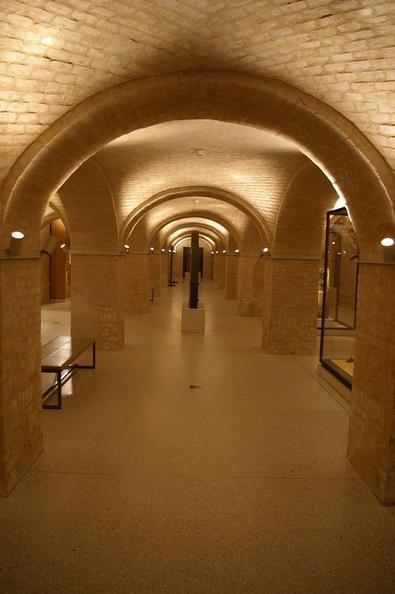

Location : COURTYARD VAULT
Location : COURTYARDSPOTLIGHT (NEPTUNE)
Location : COURTYARD WALL GRAZING FOR NEPTUNE Location : COURTYARD GRAZING LINEAR LIGHT
• Lm ouput : 70 lm
• Power supply : 24 V
• Power : 1 W
• CRI : 98
• Beam angle : 45°
• CCT : 2700 K
• IP : 20
• Lm ouput : 70 lm
• Power supply : 220-240 Vdc
• Power : 0.9 W
• CRI : 80
• Beam angle : 240° • CCT : 2700 K
• IP : --
• Lm ouput : 1508 lm
• Power supply : 48 V • Power : 21 W • CRI : 80 • Beam angle : 38°

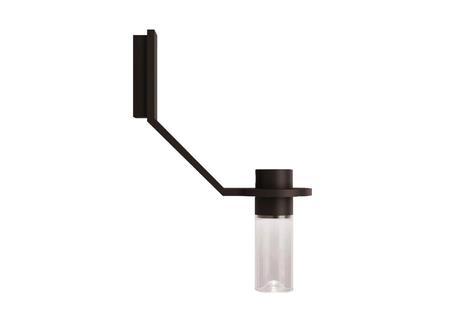

Location : STATUE CANDLE BULB , WALL LAMP CANDLE BULB
• Lm ouput : 250 lm • Power supply : 220-240 V • Power : 2.5 W • CRI : 80 • Beam angle : --
CCT : 2700 K

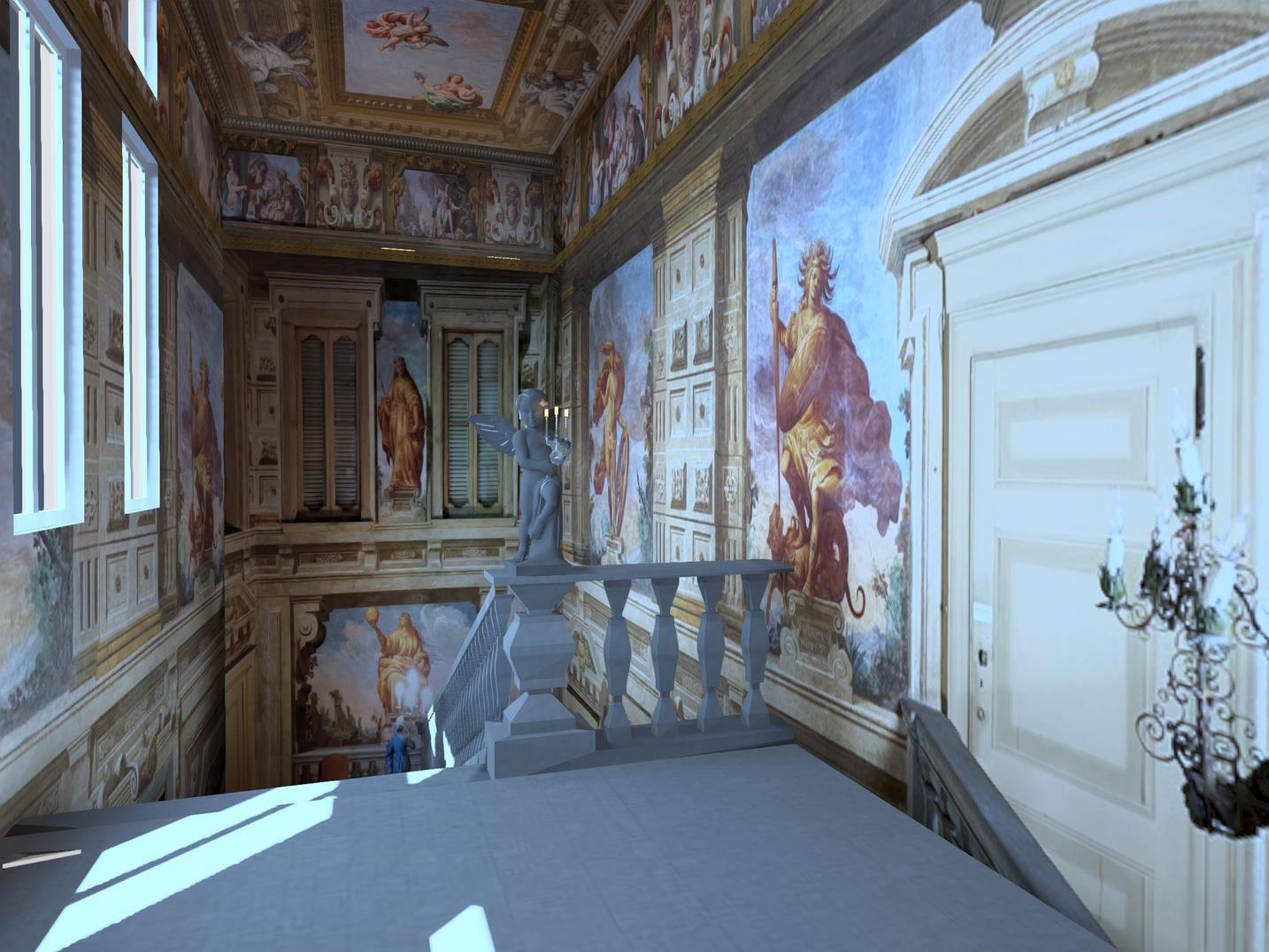

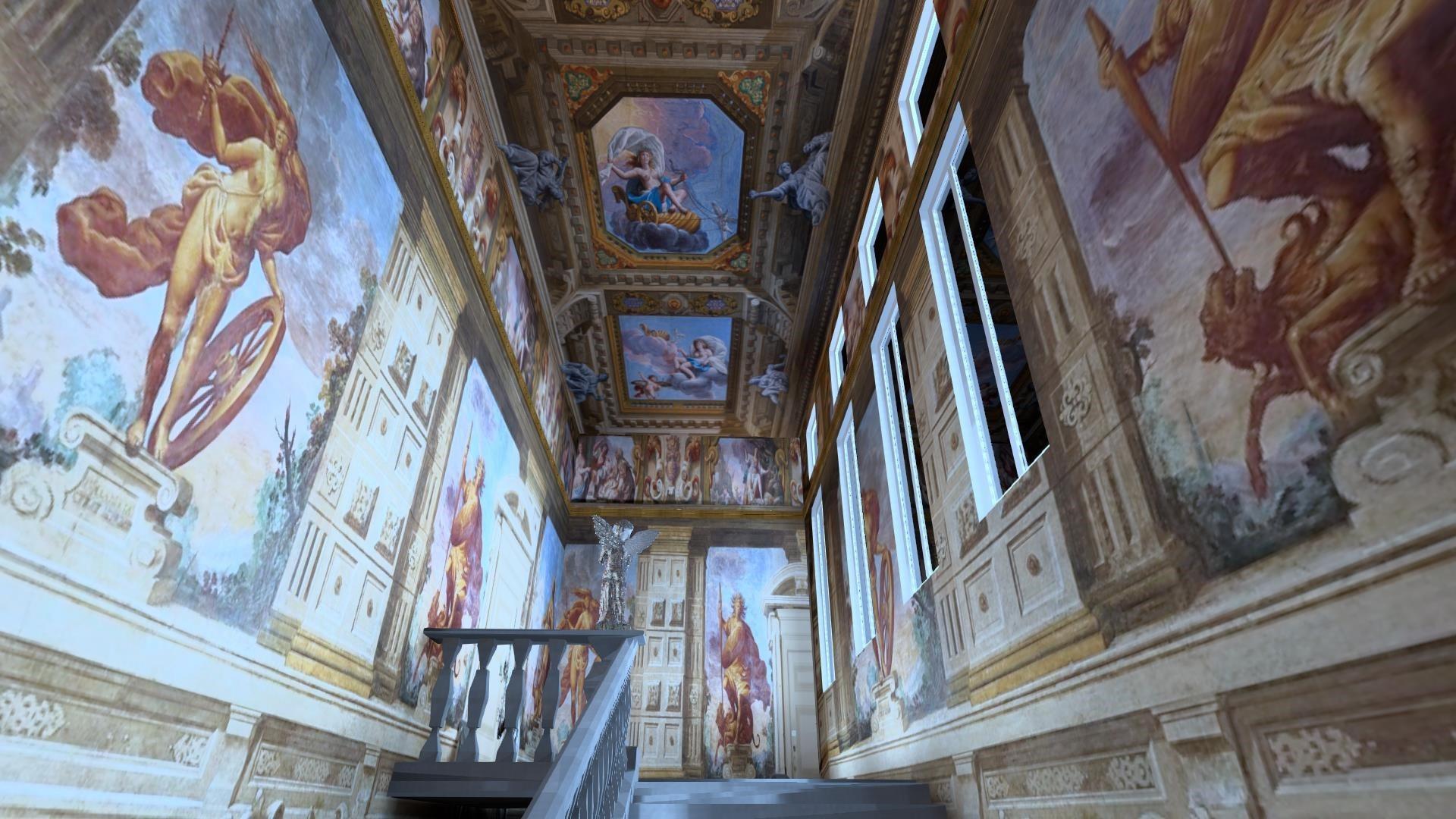

LUMINAIRES IN SCENE

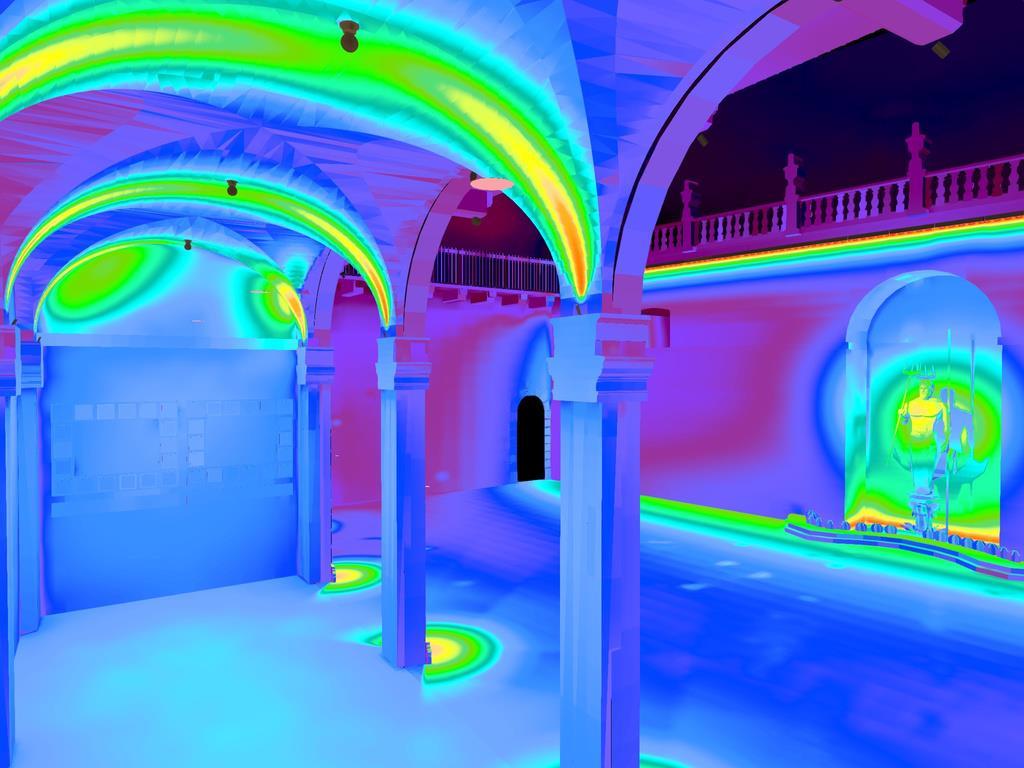

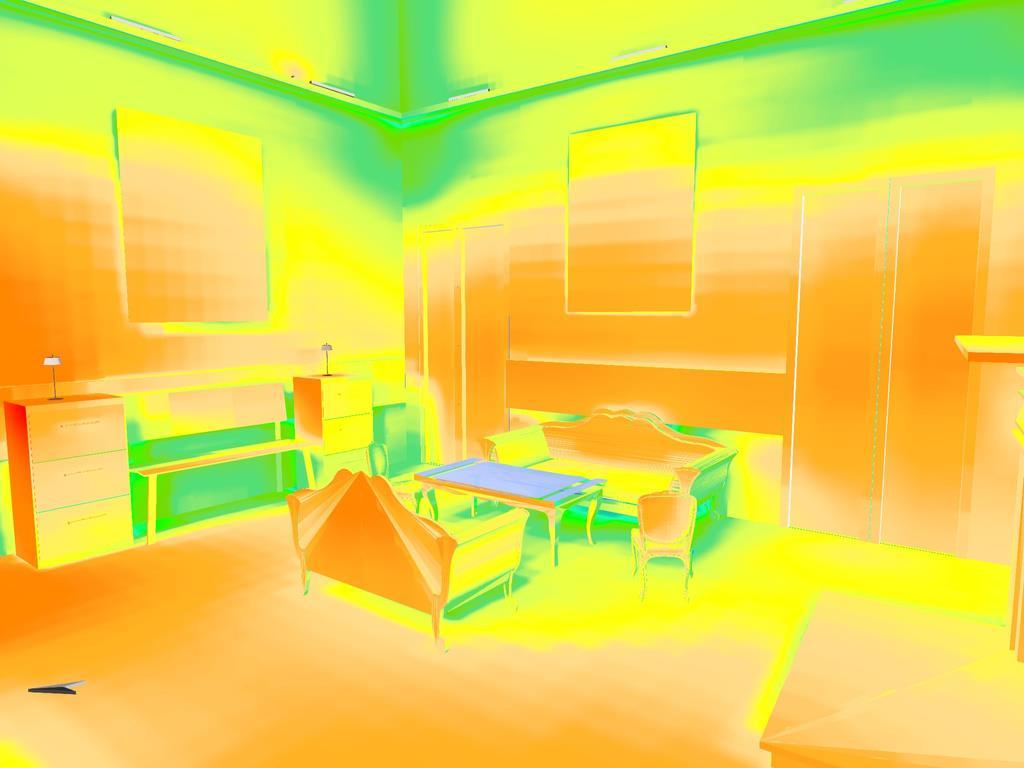

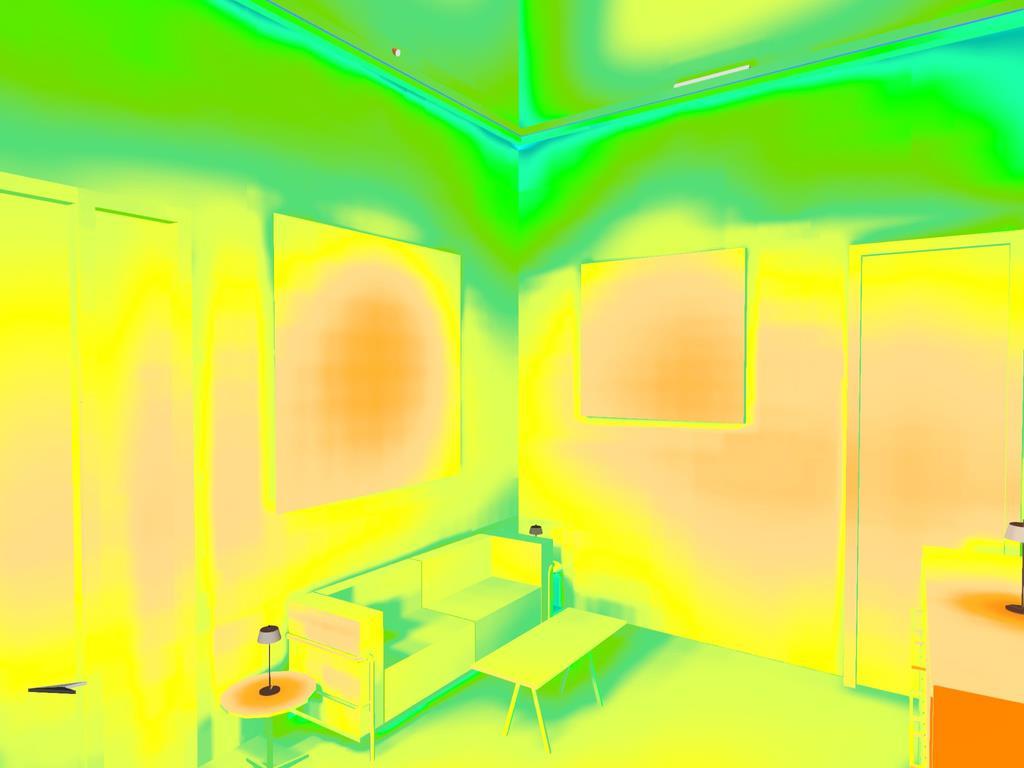

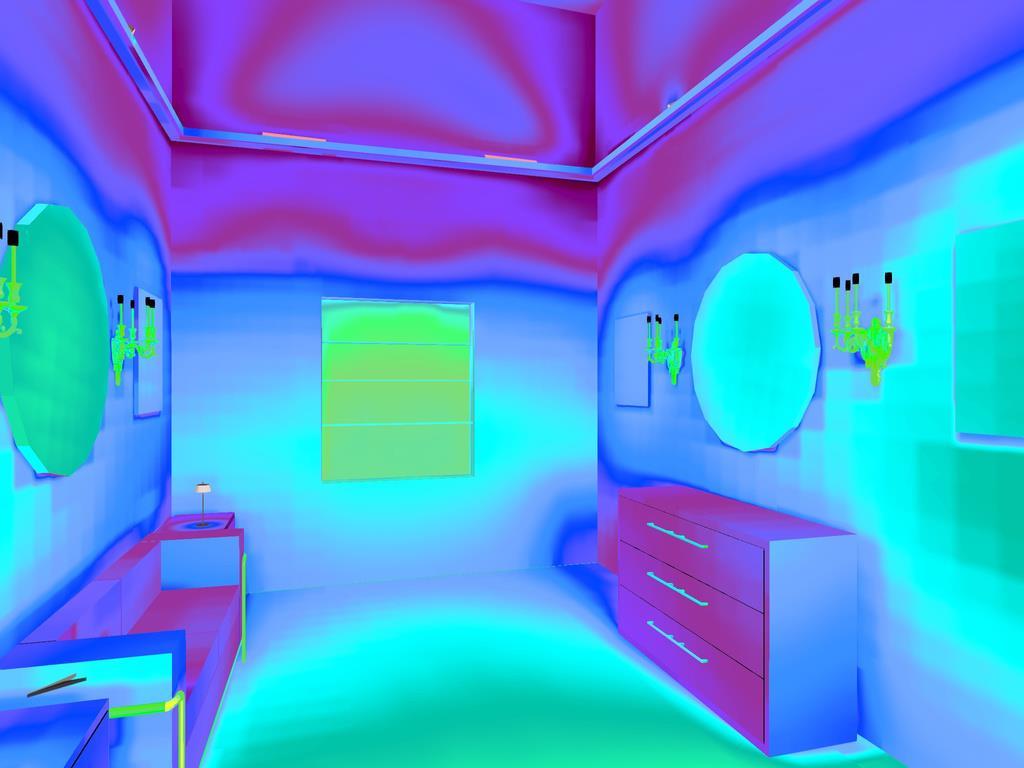

CALCULATIONS

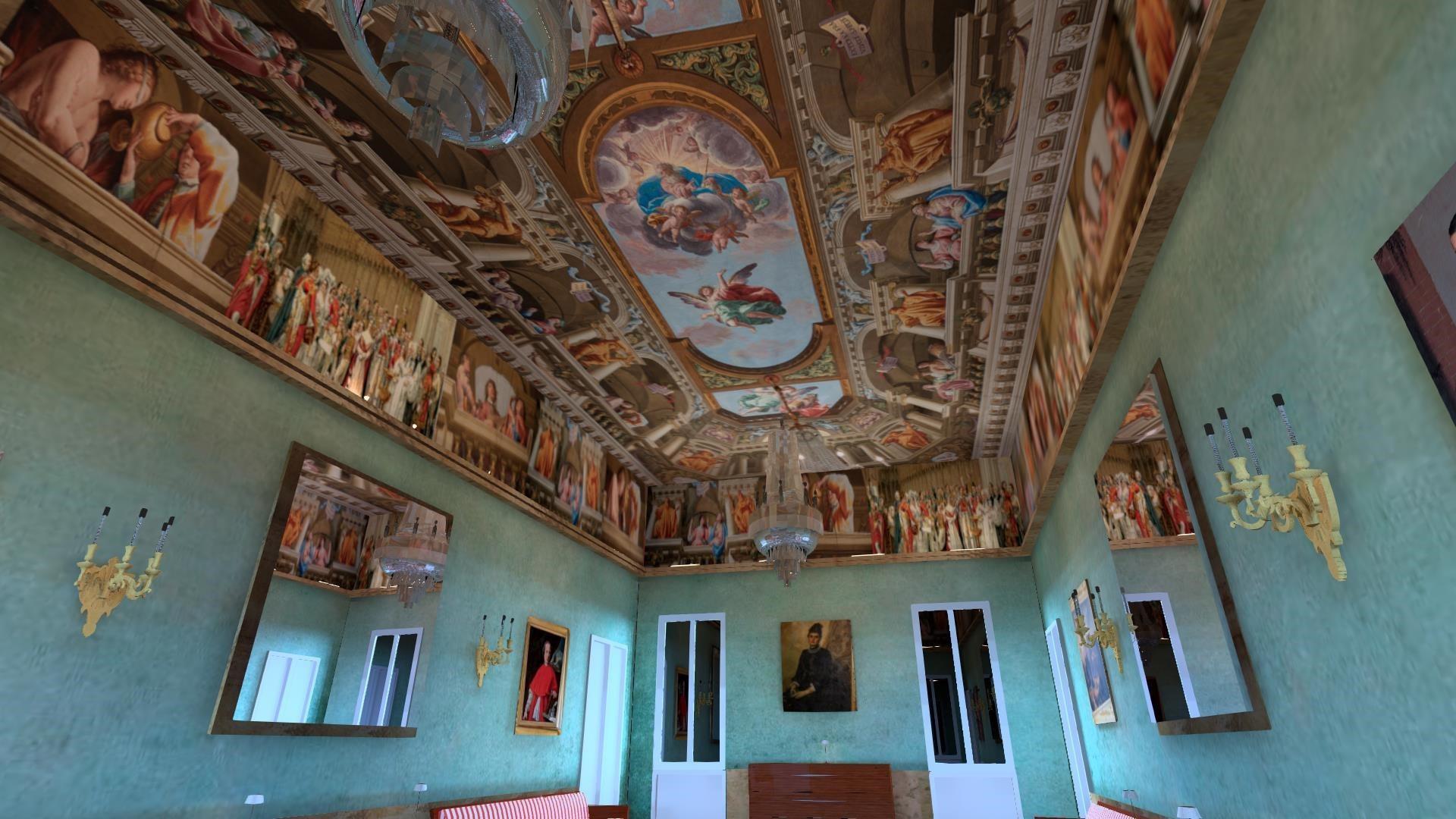

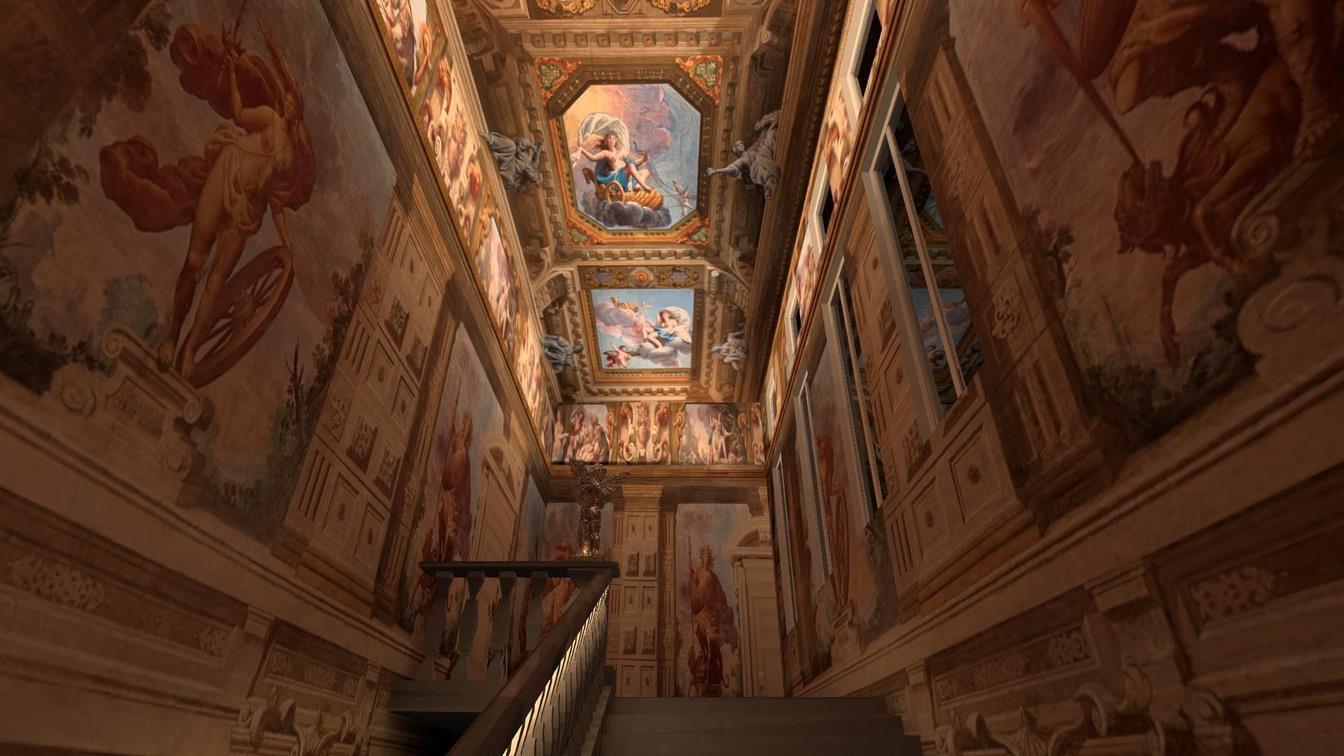

LUMINAIRES IN SCENE
LUMINAIRES IN SCENE

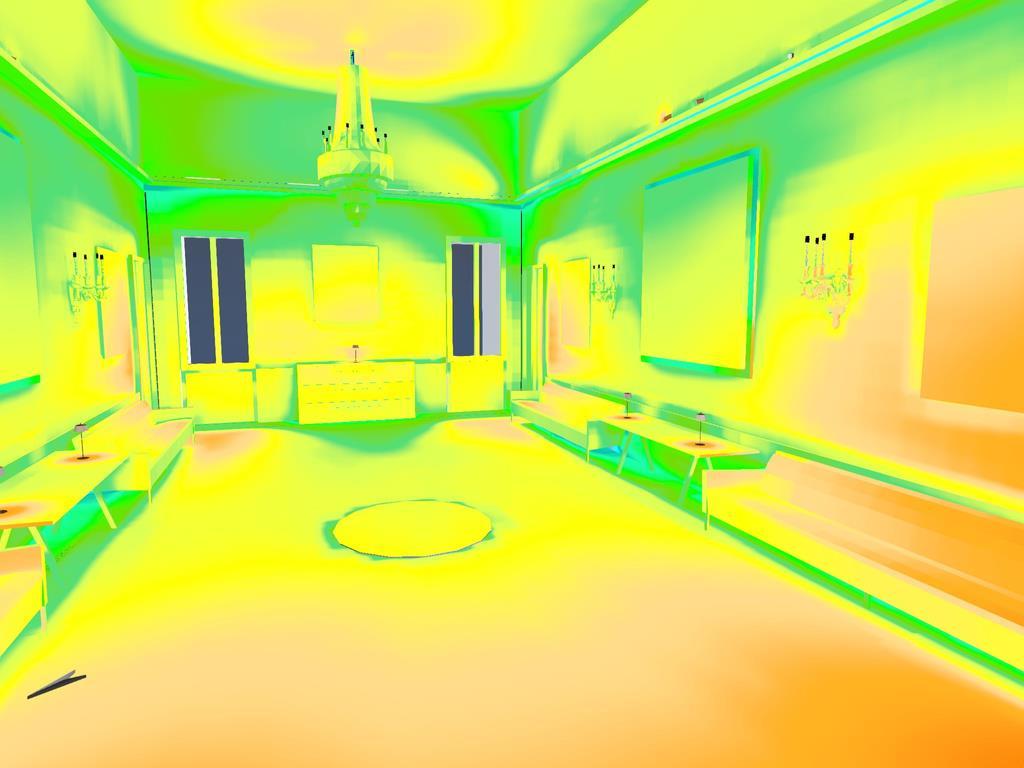

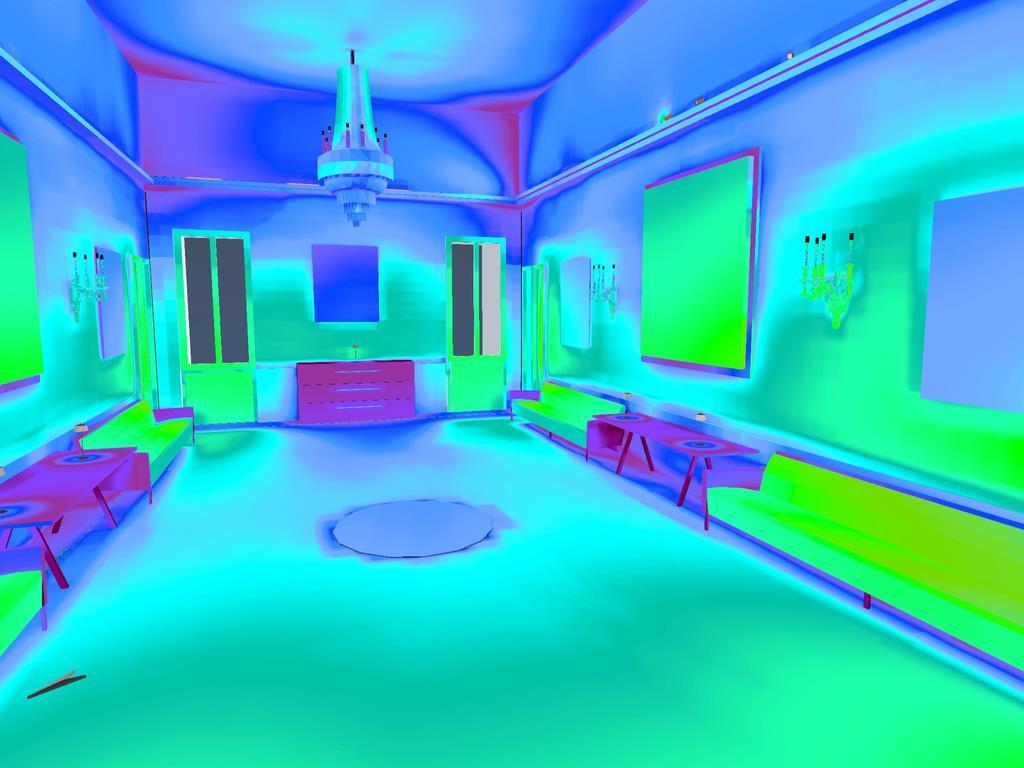

CALCULATIONS

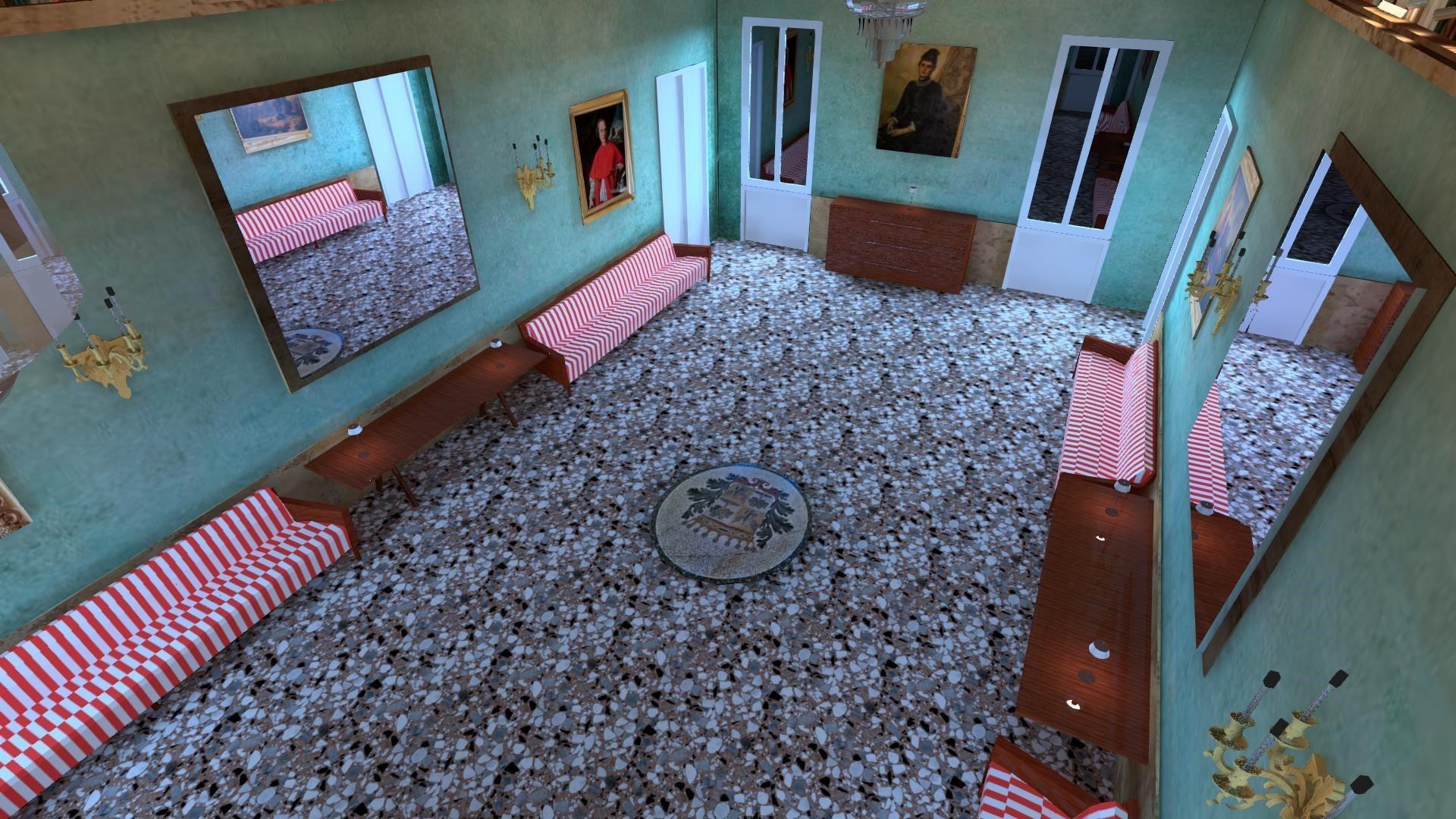

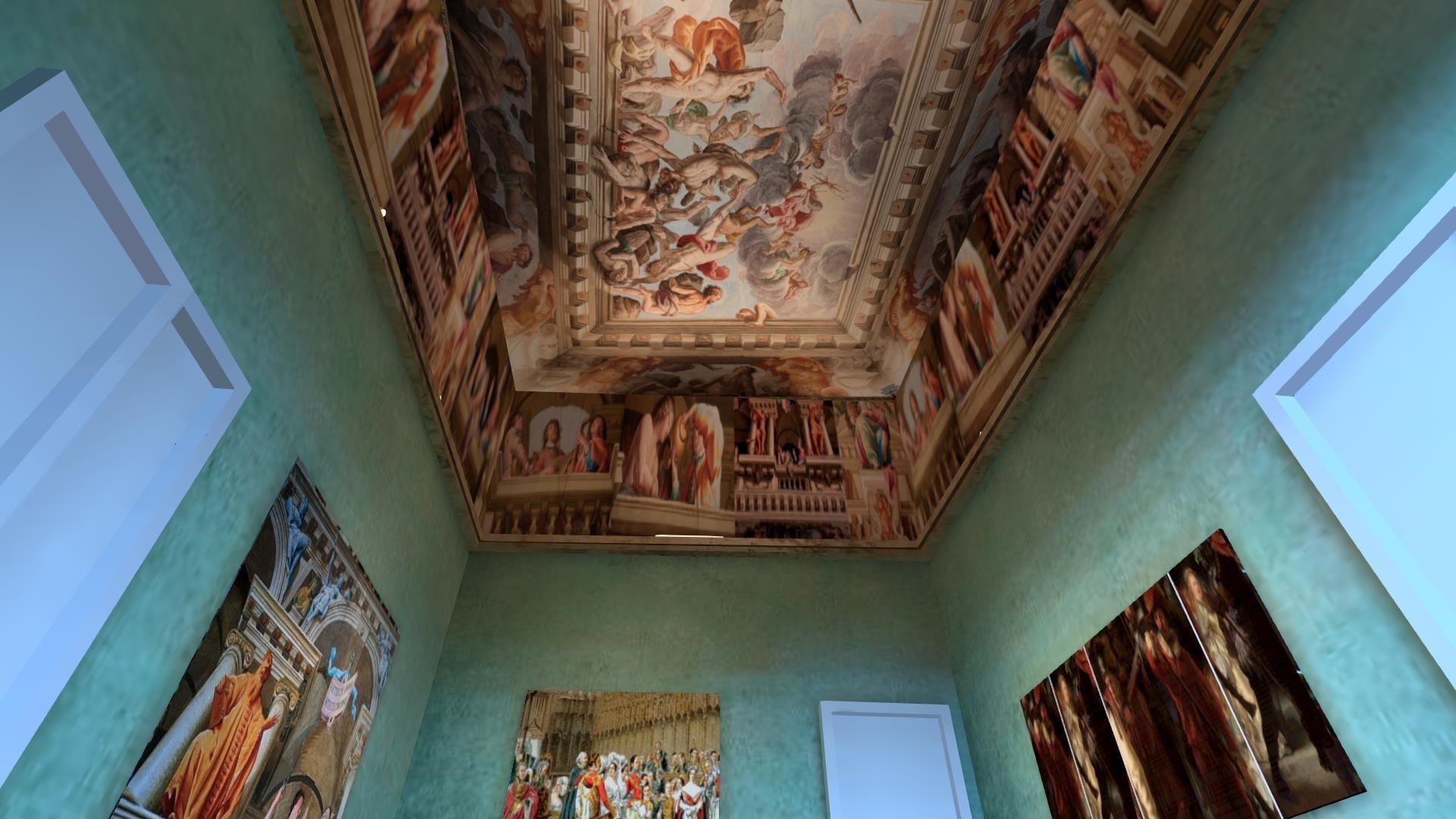

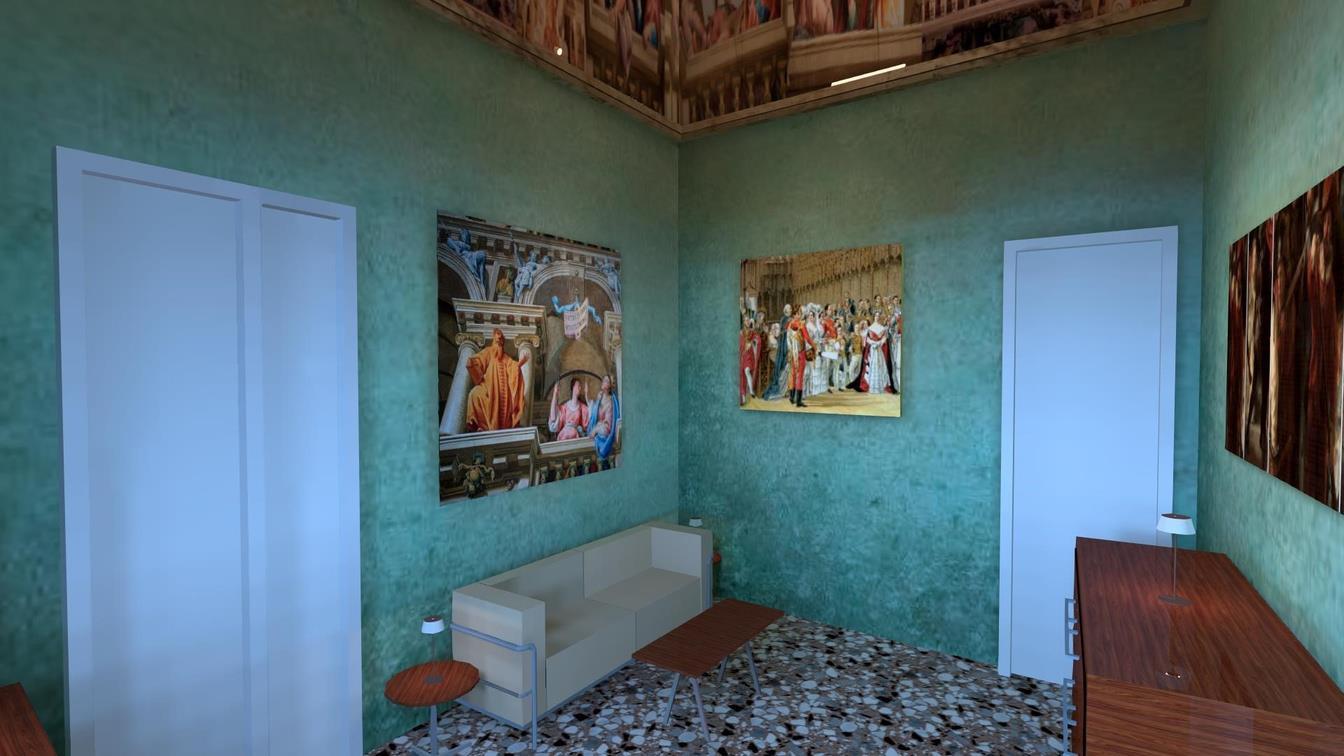

LUMINAIRES IN SCENE

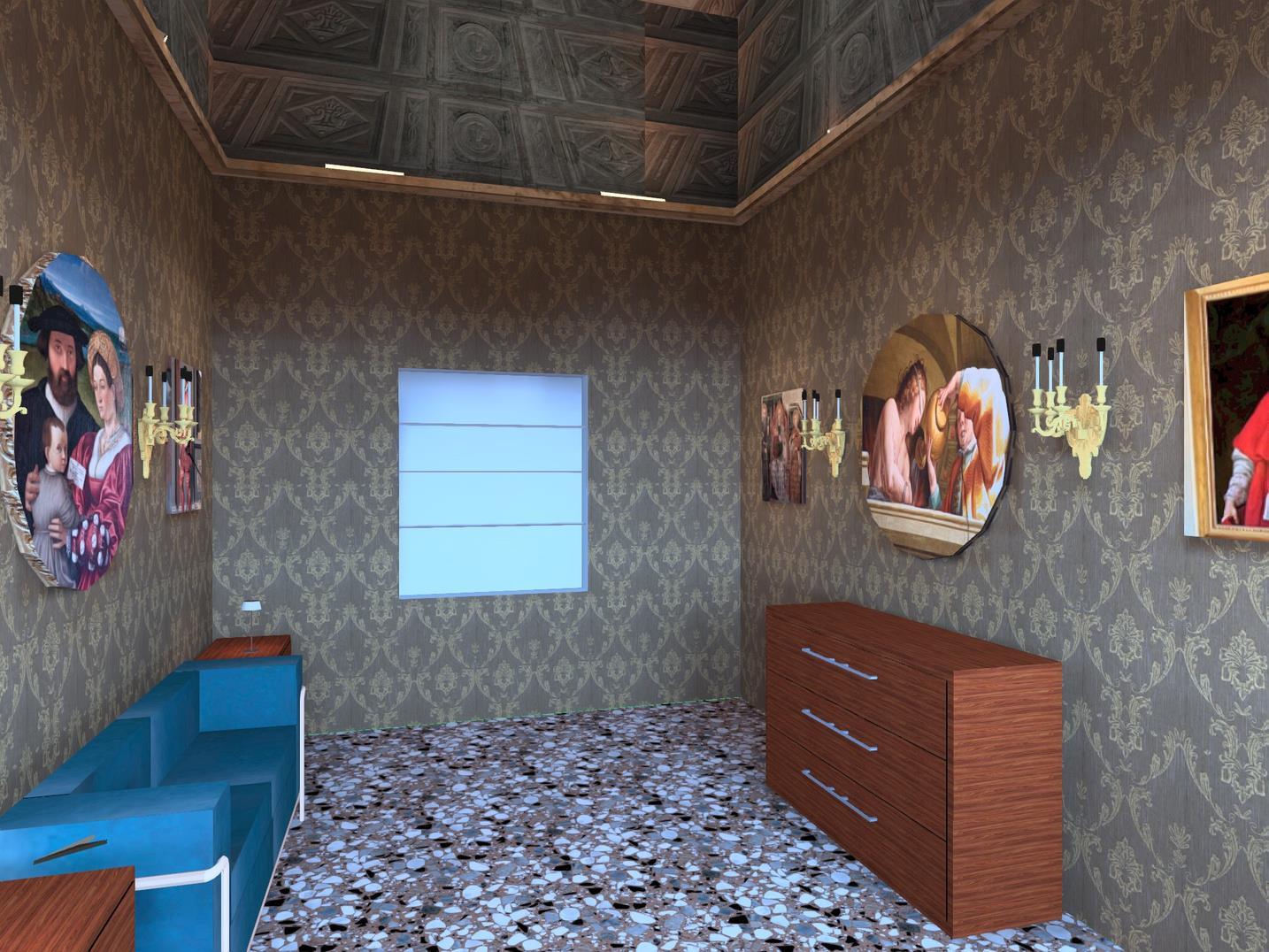

LUMINAIRES IN SCENE

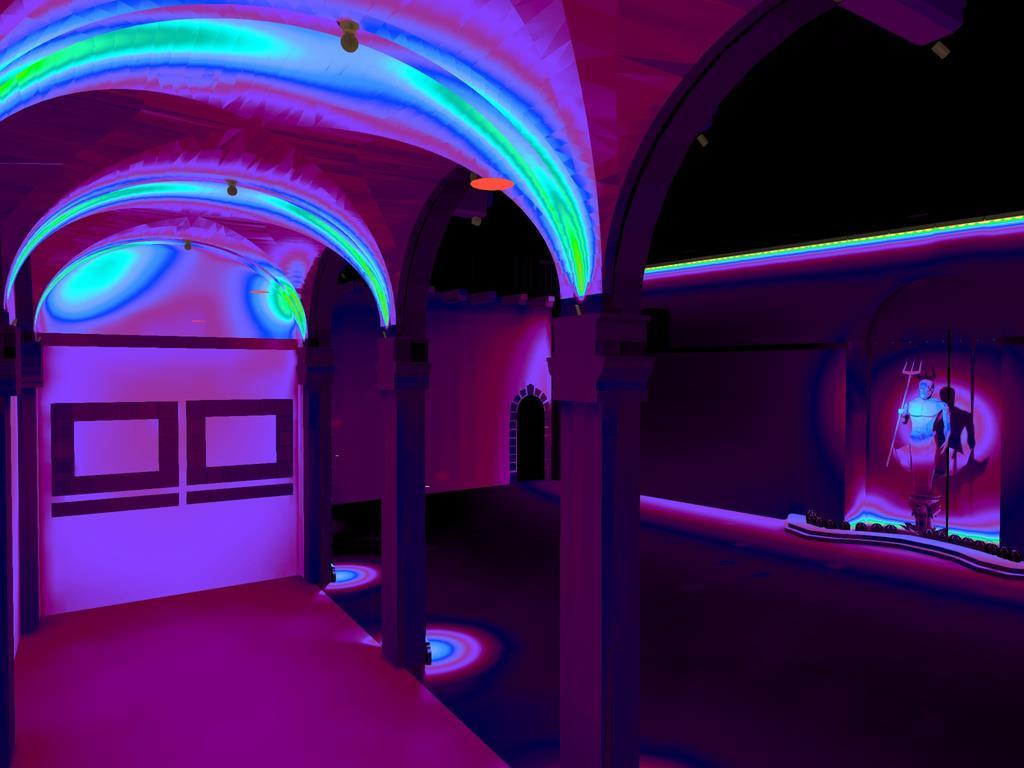

CALCULATIONS

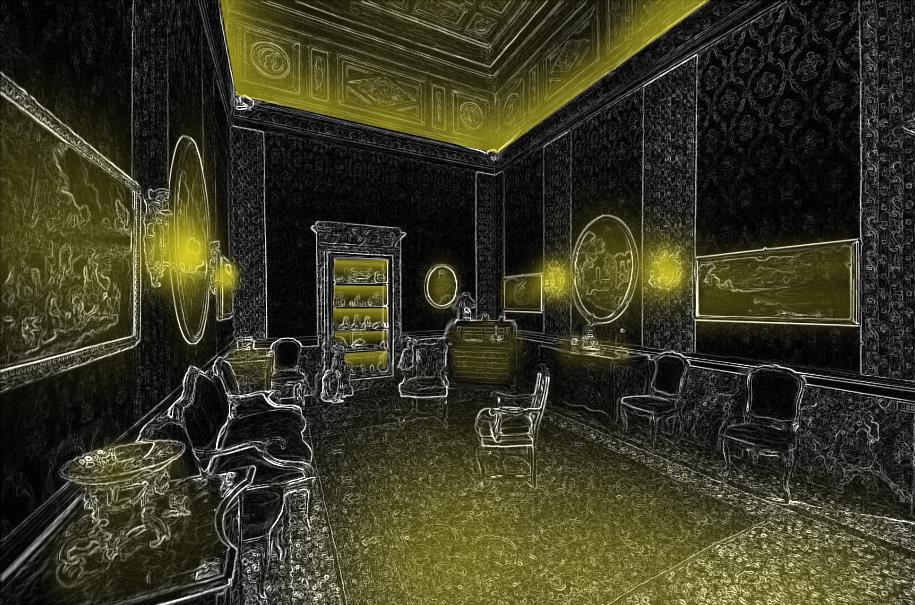

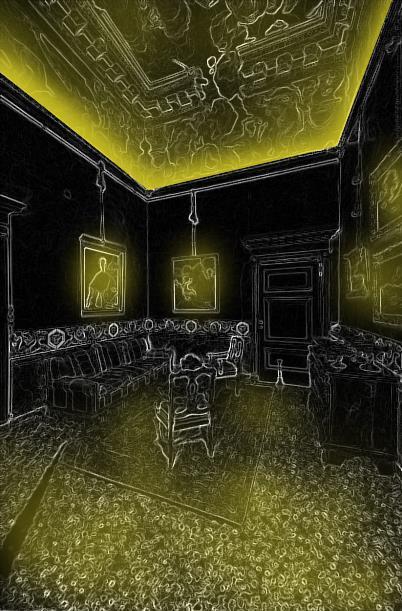

MOOD AFFECTED BY LIGHTING
• SPACIOUSNESS
• HAPPY
• ELEGANT
MOOD AFFECTED BY LIGHTING
• SPACIOUSNESS
• HAPPY
• ELEGANT
MOOD AFFECTED BY LIGHTING
• SPACIOUSNESS
• HAPPY
• ELEGANT
MOOD AFFECTED BY LIGHTING
• SPACIOUSNESS
• HAPPY
• ELEGANT
MOOD AFFECTED BY LIGHTING
• SPACIOUSNESS
• HAPPY
• ELEGANT

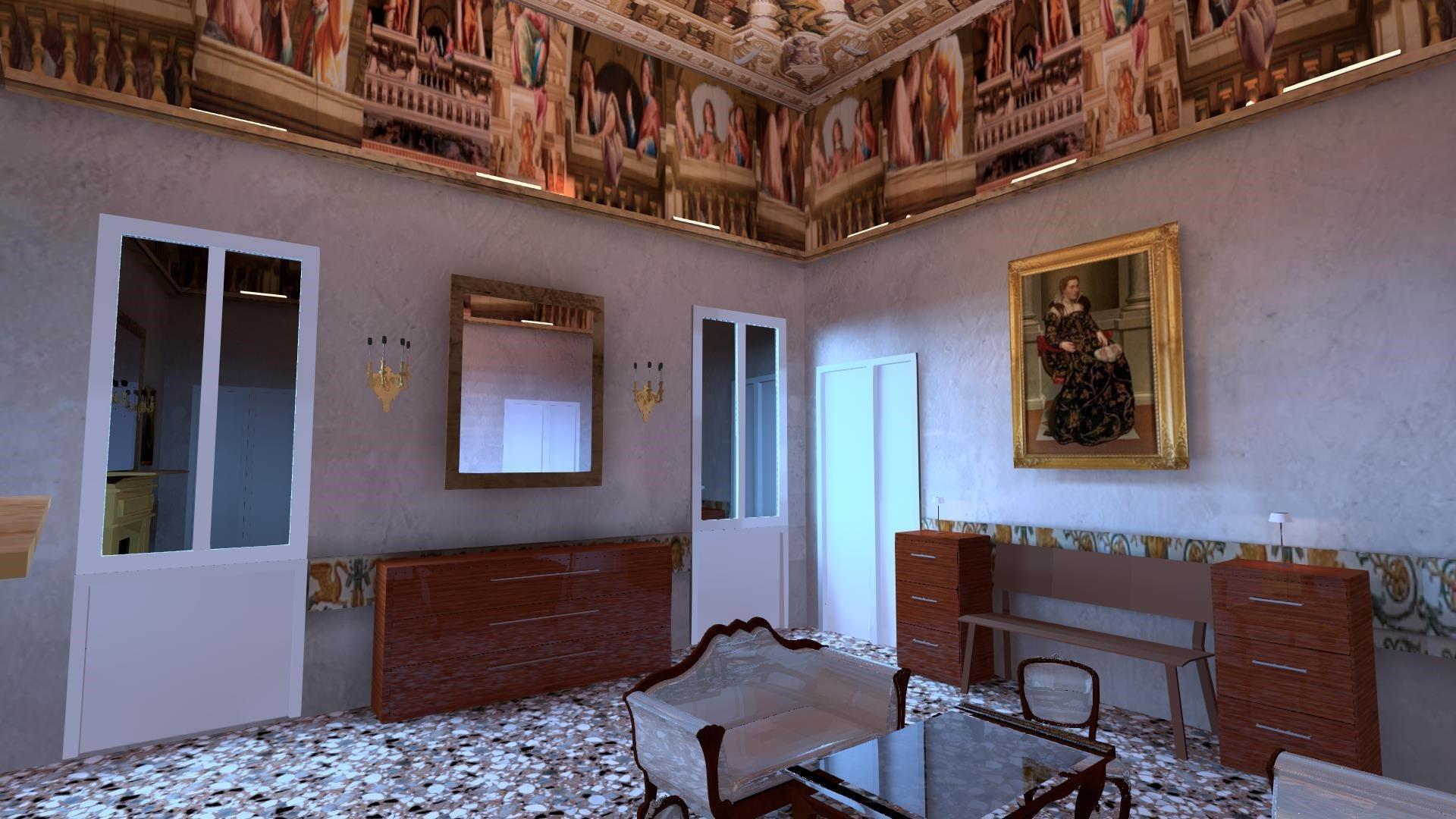

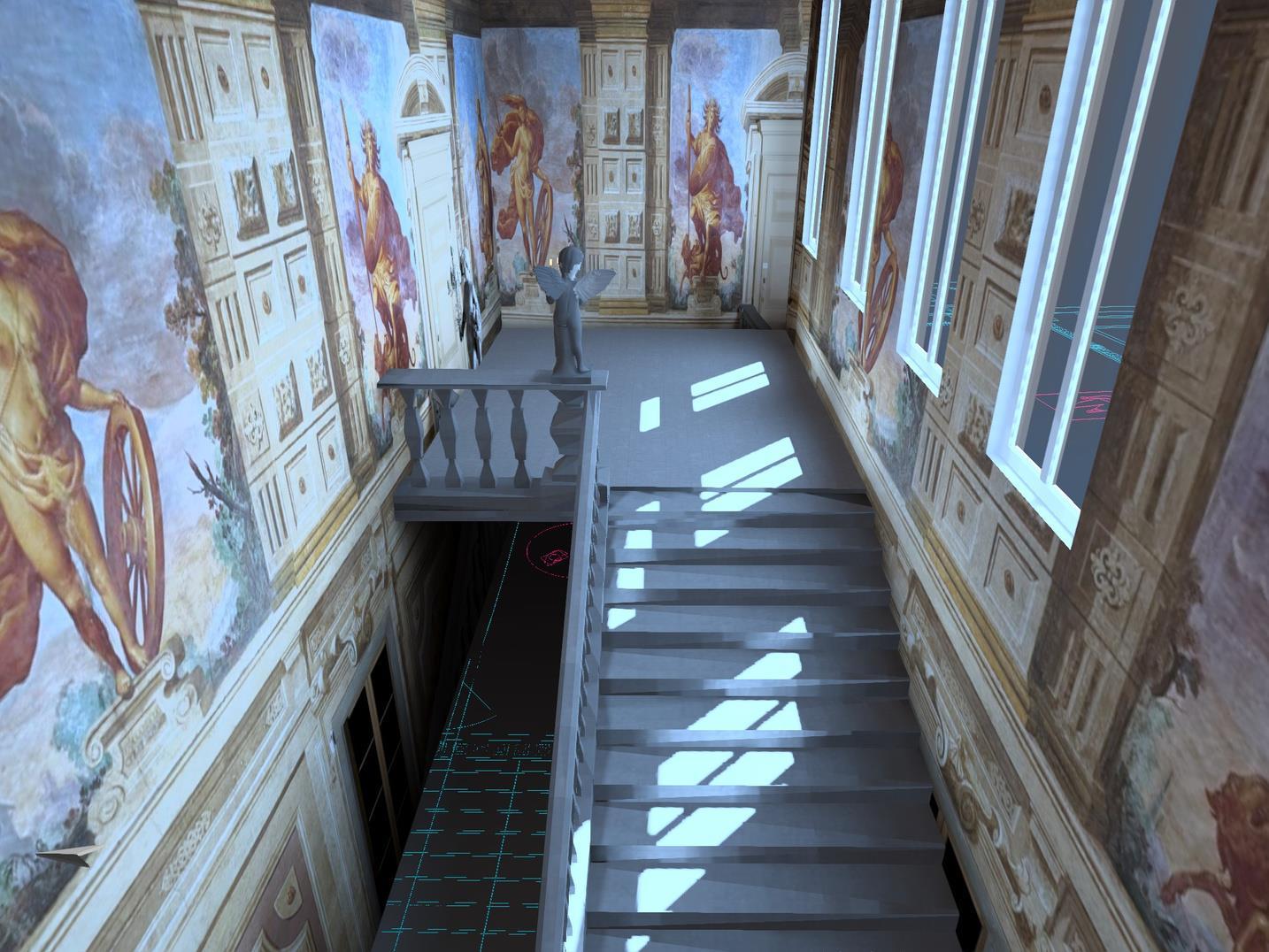

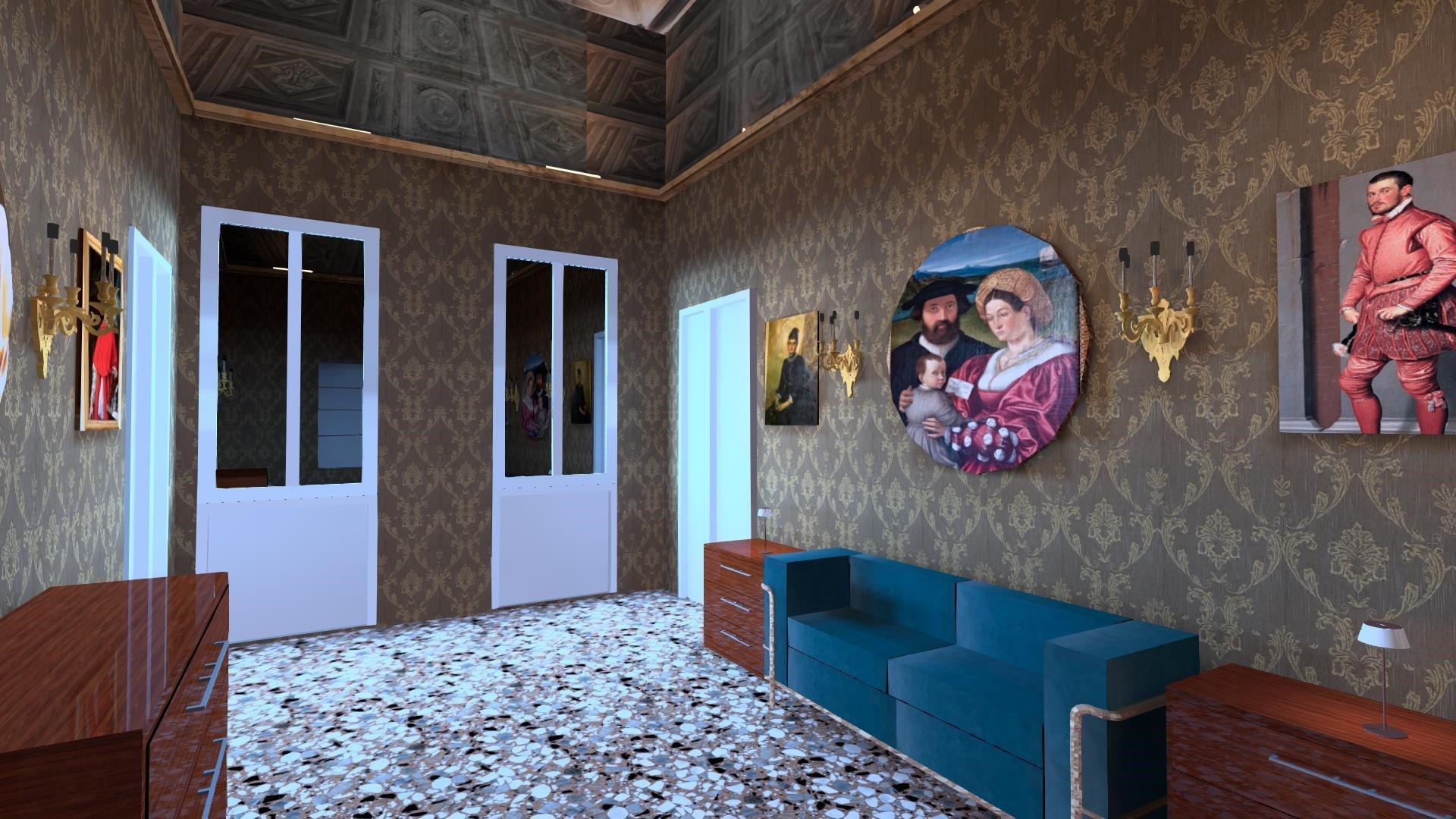

LUMINAIRES IN SCENE
CALCULATIONS
