APL Catalogue

TRADE CATALOGUE 2025

INSTALLATION COMPONENTS FOR THE WATER TREATMENT INDUSTRY

Welcome to

At Aquamatic, our unwavering commitment is to provide you with the most comprehensive selection of water treatment solutions, which you will find in this catalogue. Aquamatic offers an easy-to-use, one-stop-shop approach backed by technical support and many decades of experience in the water treatment industry.

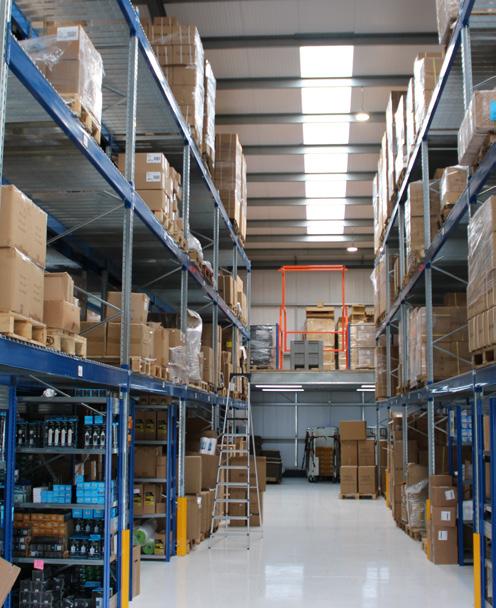

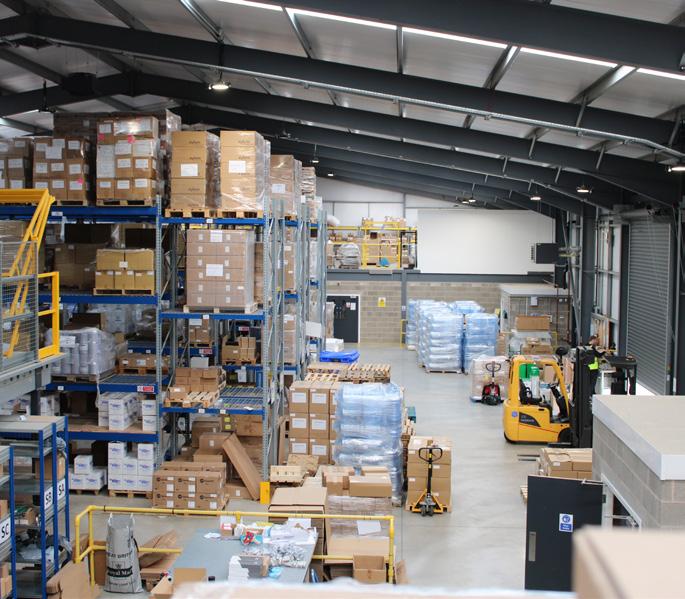

In the heart of Burscough Lancashire lies our state-of-the-art manufacturing facility, where our processes are designed to minimise water and energy consumption whilst maintaining high levels of product quality.

How to Order

Call a friendly member of staff from 8:30am - 5:30pm Monday to Thursday and 8:30am - 5:00pm on Fridays

For quick and efficient ordering, please note we will always respond to confirm receipt of your order.

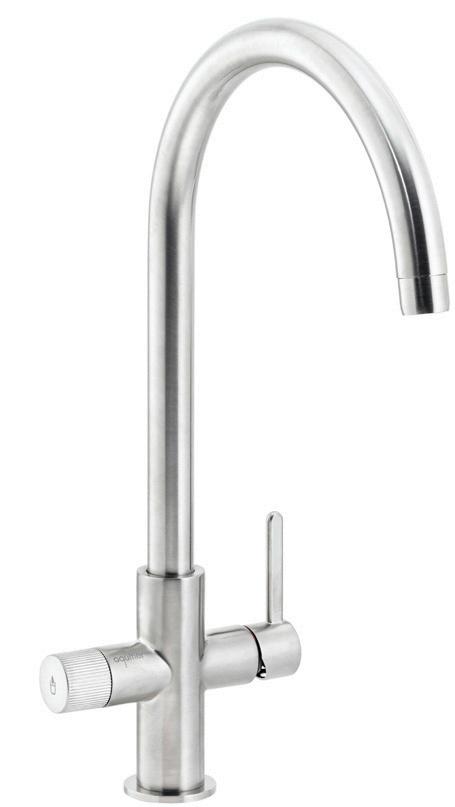

Taps

Features and Benefits

• Fully WRAS approved and complies with NHBC building regulations.

• Delivers hot and cold water with the additional function of supplying 98°c filtered, boiling water.

• Bespoke filter provides scale protection for boiler and tap, as well as carbon filtration for premium tasting water.

• Safety button located on the boiling handle that needs to be pressed to activate the boiling water function.

• Temperature settings can be adjusted between 75°C-98°C.

Features and Benefits

• 2.4 litre capacity, holding enough water for 8 cups of tea or coffee at a time.

• Heat insulation technology - keeps the spout cool to the touch.

• Neoperl aerator - creates a soft, splash-free flow of water.

• 5-6 minute re-boil time.

• Neatly sized tank (230w x 230d x 310h).

• 5 Year Warranty* on the tap and 2 years* on the boiler.

*Terms & Conditions apply

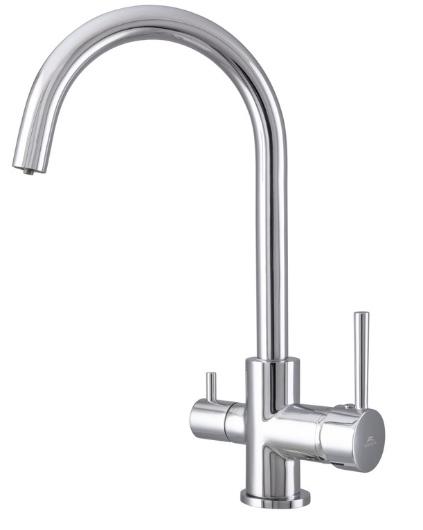

APL 3 Way Taps

Features and Benefits

• 2 Stunning styles suitable for all UK types of plumbing.

• Popular 3 lever designs with high flow capacity.

• Dedicated path for drinking water.

• Easy installation.

• Supplied tools for installation & servicing.

• Lead free brass - when in contact with water.

APL Cirrus

Contemporary high quality styling with chrome finish. Perfect in new or old style kitchens.

APL Stratus

A modern version of a stylish past era, but with a 3 way tap. Highly finished in chrome. Perfect for shaker or cottage style kitchens.

Features and Benefits

• Plain tailed connections for push fit fitting.

• Chrome finish.

• Value for money creating better ROI.

• Bespoke protective packaging.

• Great after sales customer care.

• 5 - year warranty (T&Cs apply)

• Order anytime, anywhere

• Works and syncs on all devices: PC, Mobile, Tablets

• Features a handy ‘downloads’ section

• News updates

• Order history so you can easily see ‘what I had before’

• Easy checkout process

• All your favourites in one place for faster ordering

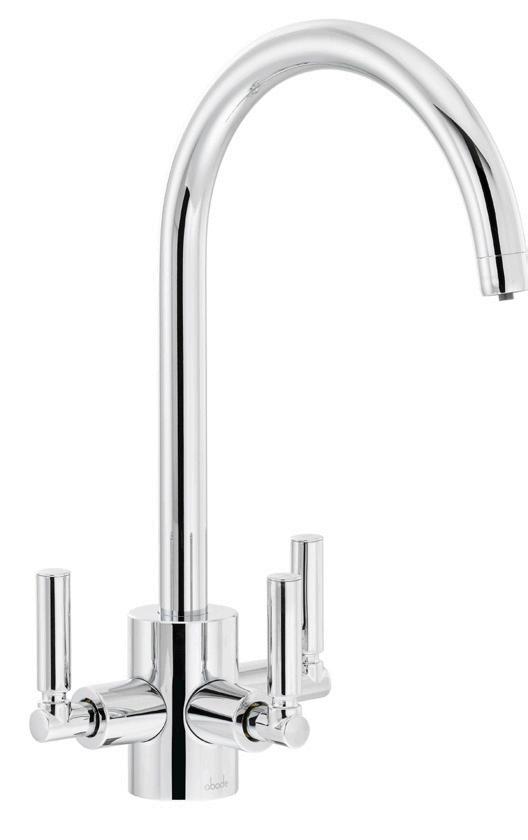

Abode 3 Way Taps

Multi award winning Abode Aquifier filtered water solutions for you and your family delivering fresh filtered water at the push of a handle, the Abode collection has a variety of contemporary and classic styles to choose from.  All are made for the UK market so are suitable for both vented and unvented water systems and are supplied with all the fittings suitable for connection to 15mm. Filter connection is 1/4” but supplied with fittings for both 1/4” and 3/8” tube.

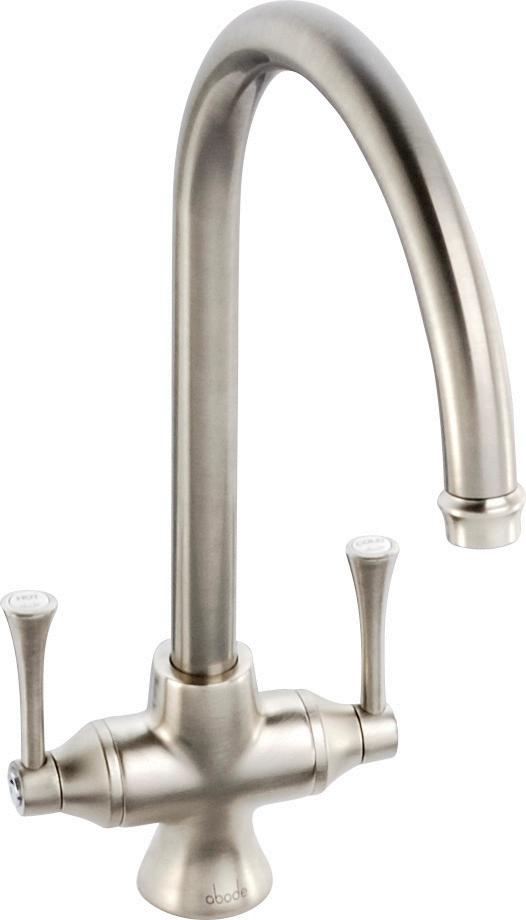

B335 Gosford 3 Way Tap (Chrome)

B336 Gosford 3 Way Tap (B rushed Nickel)

B337 Atlas 3 Way Tap (Chrome)

B338 Atlas 3 Way Tap (Brushed Nickel)

B347 Atlas 3 Way Tap (Matt Black)

B345 Puria 3 Way Tap (Chrome)

B346 Puria 3 Way Tap (Brushed Nickel)

B339 Orcus 3 Way Tap (Chrome)

Ultra-32 3 Way Tap

Benefits

• The faucet body is made of high quality brass with chrome finish.

• Classic faucet design, the high spout provides maximum comfort; it has a turning radius of 360°

• High quality Neoperl aerator. Unique aerator with differentiated faucet and drinking water flow. Drinking water flows through a seperate brass tube and runs through a seperate aerator opening.

• 35mm ceramic cartridge for mixing cold and hot water and a 90° ceramic valve for drinking water.

• High-quality components perform well in a variety of conditions, like contaminated water and unstable temperature pressure.

• Comes with a 1/4” tube adaptor so easily adapts to your current under sink filter or filter kit.

CODE DESCRIPTION

B434 Ultra-32 3 Way Tap (Chrome)

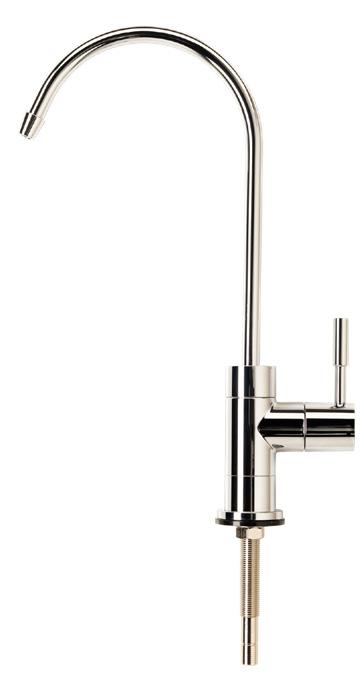

APL Intertap

The Intertap is a sleek, modern filter tap designed with apolished chrome finish. Featuring precision engineering, it provides a smooth, controlled pour and is compatible with various filtration systems. It’s durable design combines style and functionality, making it the perfect addition to any kitchen.

Optional Lower Body

Has a smaller diameter for tight corners and also allows longer stud for thick worktops.

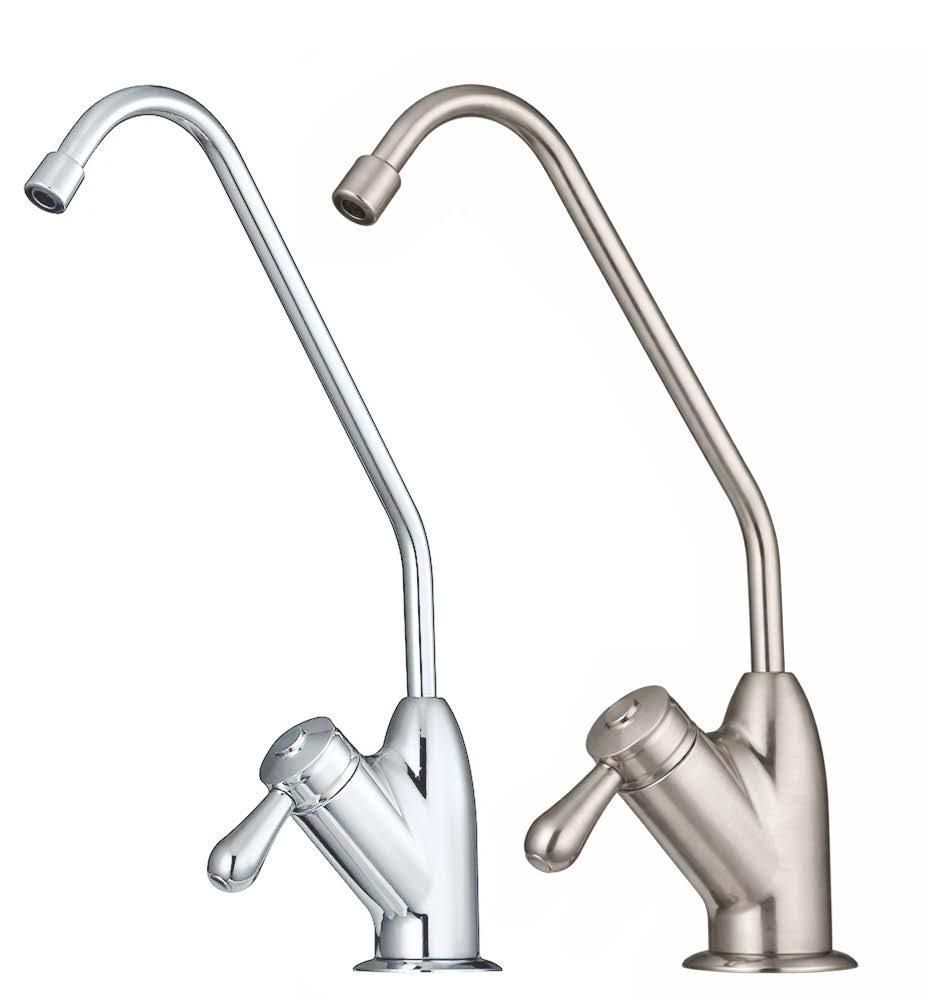

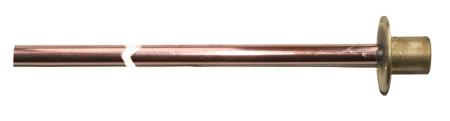

Long Reach Taps

Long reach point of use drinking water taps, which feature a ceramic valve and single lever for smooth, simple operation. Available in either sleek chrome finish or brushed nickel finish and is supplied with a fitting kit for easy install. CODE DESCRIPTION

6 in 1 Quarter Turn Push Fit Multi Tap

This unique tap brings 6 options in one box. 3 different handles and 2 different spots means that just one product will provide a choice of 6 styles from 1 box. This tap comes with quarter turn ceramic disc operation.

Tap Hoses & Accessories

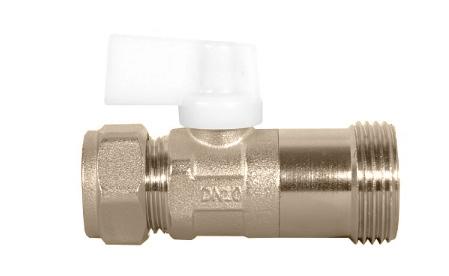

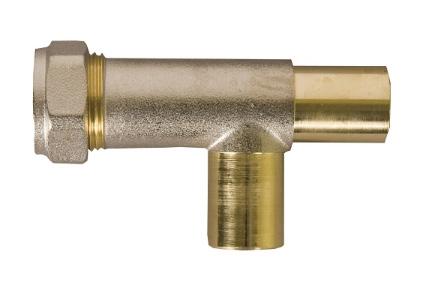

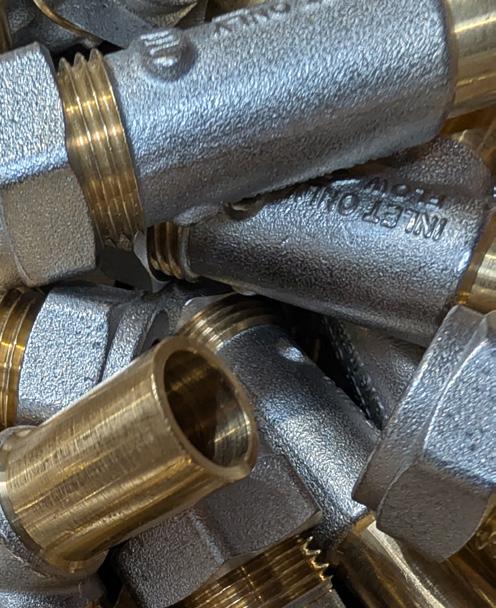

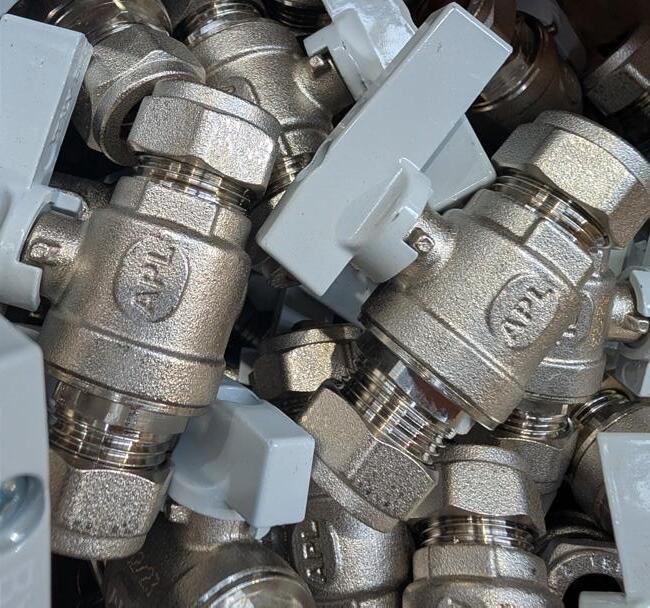

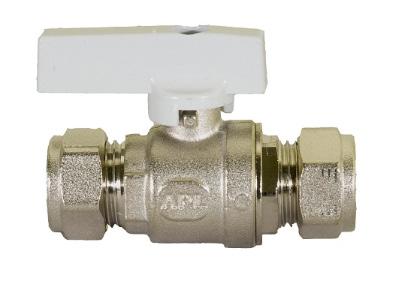

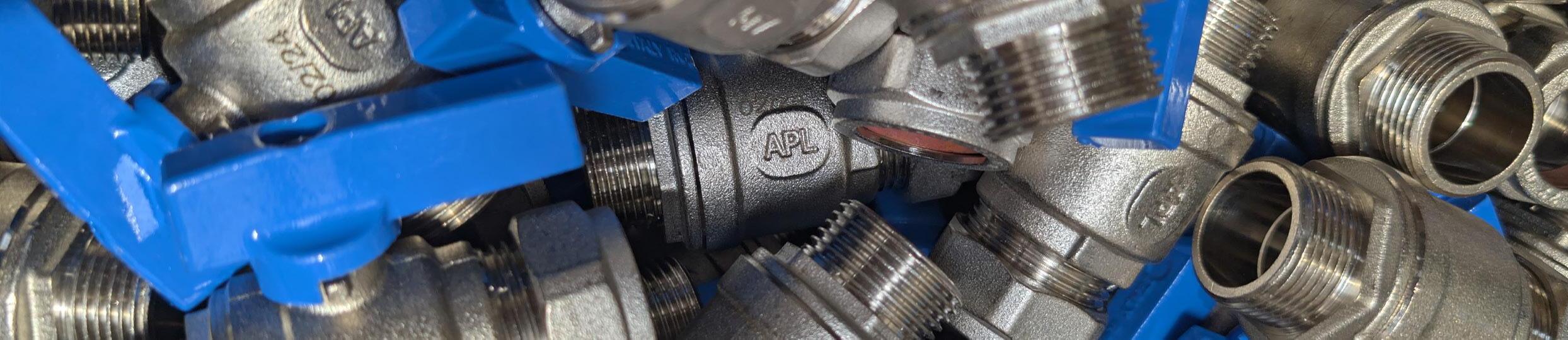

Iso Valves

* Suitable for use with APL & Abode taps

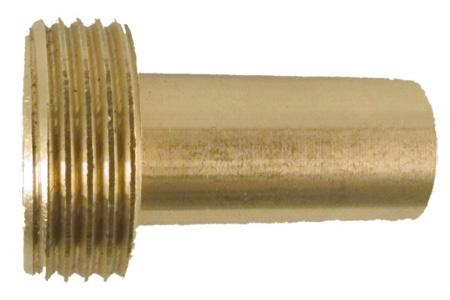

Tap Adaptors & Faucet Tools

Adaptors for 7/16” Threaded Faucets

DESCRIPTION

P113 1/4” x 7/6” Tap Adaptor

P114 3/8” x 7/6” Tap Adaptor

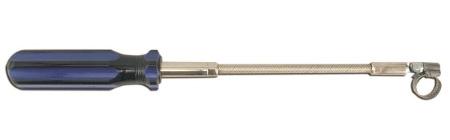

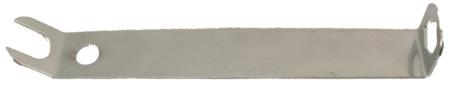

Faucet Installation Tool

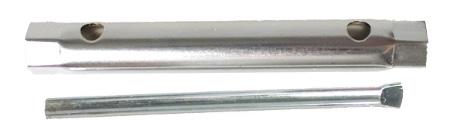

Adaptors for 3/8” Push-Fit Faucets Faucet Box Spanner

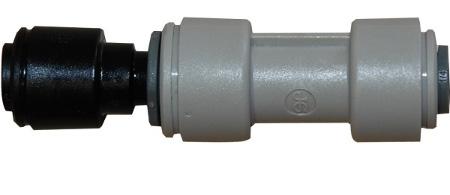

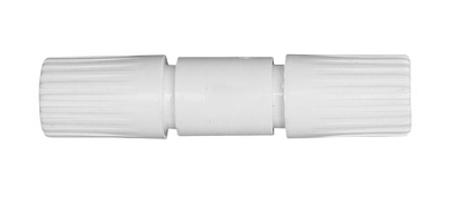

P110 3/8” Straight Coupling

P112 3/8” x 1/4” Reducer

Adaptors for 1/2” Smooth Tail Faucets

P115 1/4” x1/2” Tap Adaptor

P116 3/8” x 1/2” Tap adaptor

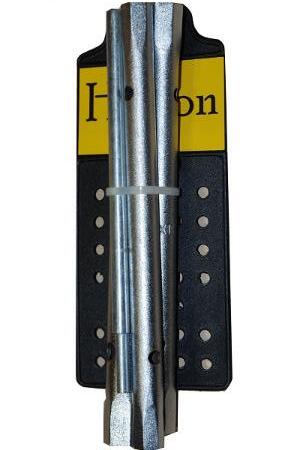

Monobloc Spanners

Filters

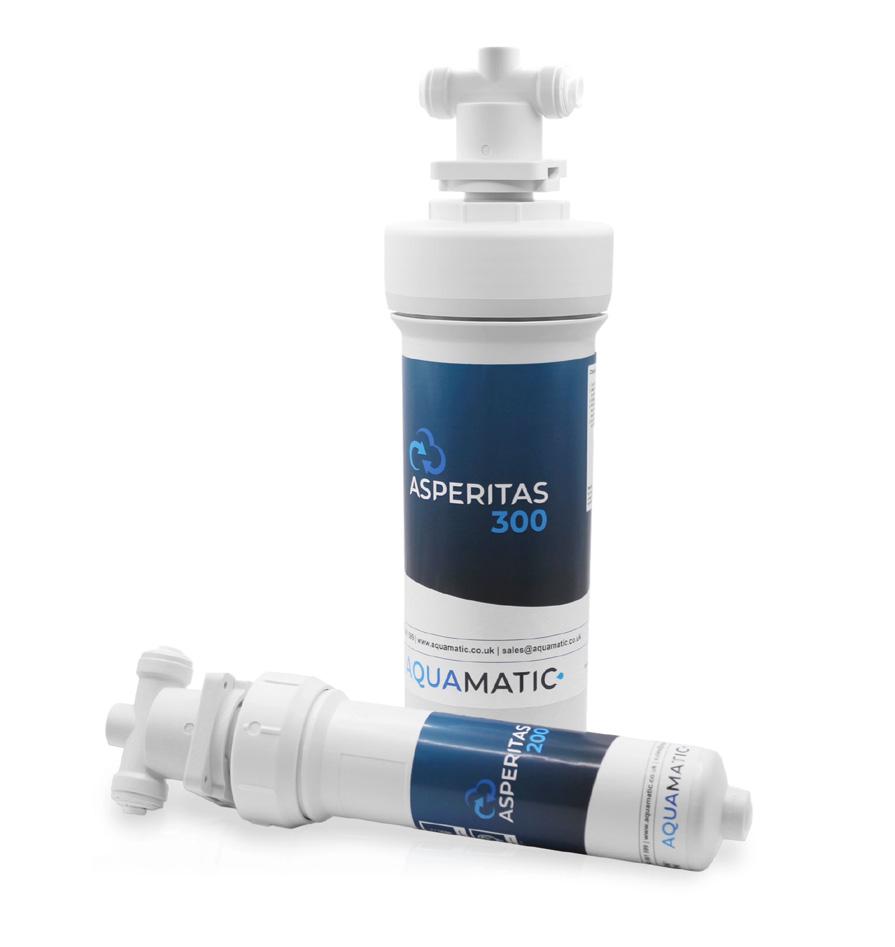

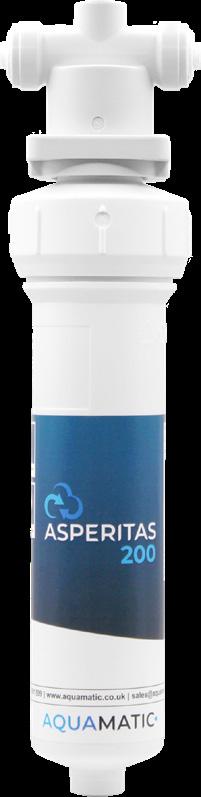

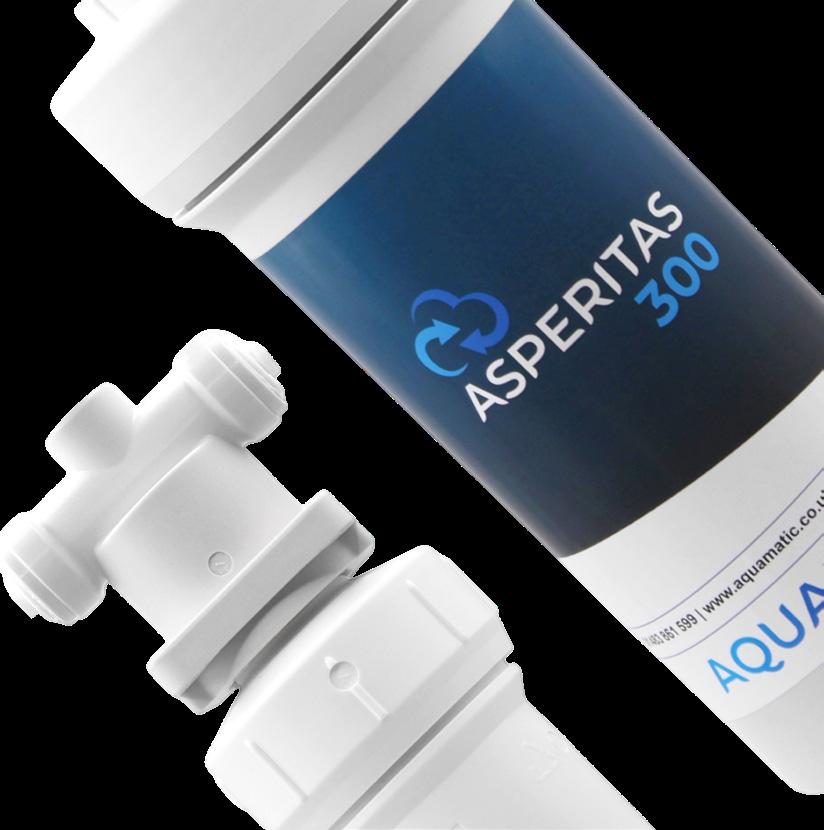

Asperitas Filter Systems

We understand the importance of crystal-clear water and a clearer conscience, so we proudly present the Asperitas from Aquamatic. This is Aquamatic’s first ever APL branded filter range manufactured on site here in Burscough, Lancashire.

Designed for residential use, our Asperitas filter housings offer versitile solutions

• Residential suitability.

• Effective removal of contaminants, chemicals and particulates.

• Industry-standard water quality.

• Low maintenance and sustainability focus.

• ¼ turn release mechanism in head shuts off water supply for easy maintenance.

• Sustainable filtration solution with cost effective refillable housing and replaceable filter refills.

• Refills designed to remove and reduce chlorine taste, odour and other offensive contaminants such as: chloramine, lead, herbicides, micropollutants, pharmaceutical and pesticides.

Perfect solution where undersink space is at a premium. Multiple insert options to tailor to customer’s needs. Slowphos® media works well to prevent scale build up. For hot or cold water application.

Available in 2 forms:

• Carbon Filter Refills: Designed to eliminate chlorine taste, odours, contaminants, delivering impeccable water quality.

• Ion Exchange Resin: Ideal for hot or boiling water applications. Eradicating scale build up, protecting equipment and lowering maintenance costs

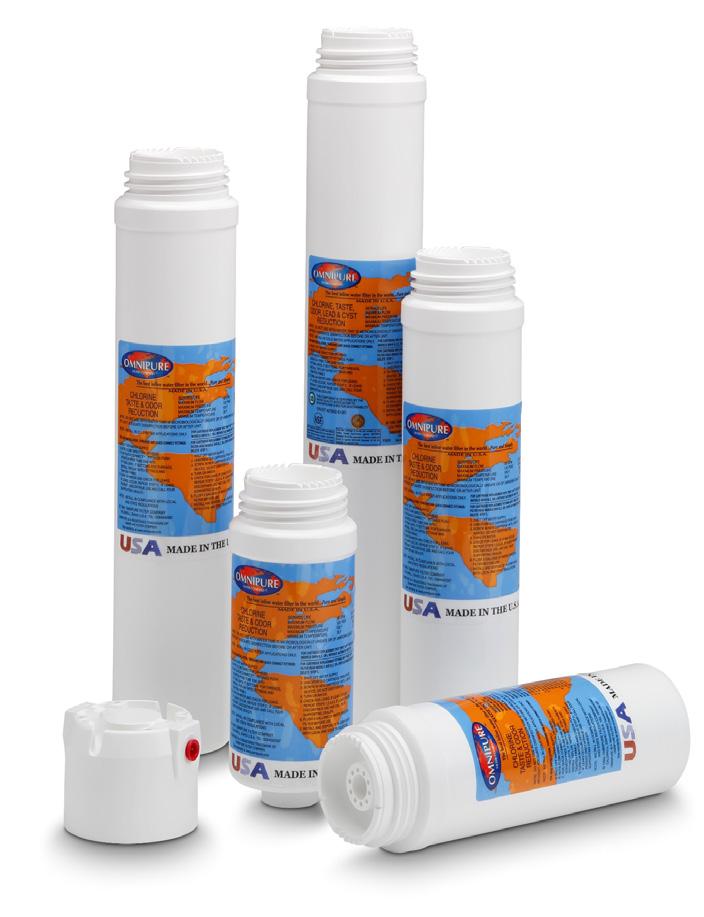

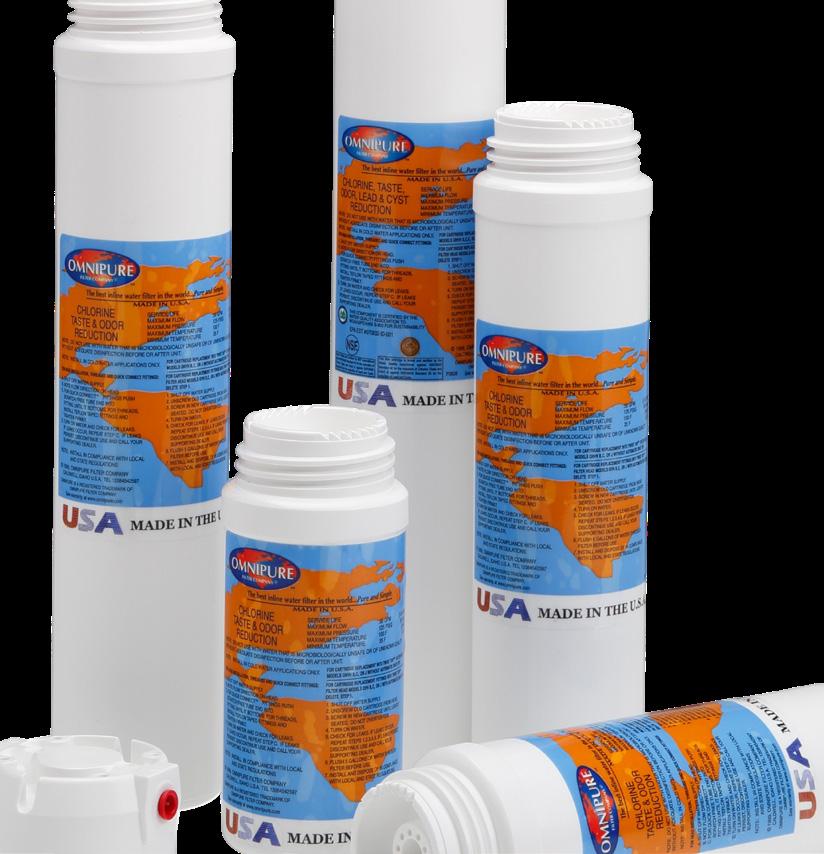

Q-Series

The ultimate “user friendly” inline filter on the market. Replacement is as easy as unscrewing the filter body from the permanent head and screwing in the replacement. Available with the Twist Tap in-head valve system, which automatically turns the supply water off when the body is disconnected from the head. No tools. No drips. No hassles. The Q-Series is available in 2.5” diameter, and in lengths of 6”, 8”, 10”, 12” and 14”.

More Information for all sizes is available by request.

Q5420 F3330

Q-Series 2.5 x 8” 1 micron

Q5415P F495 Q-Series 2.5 x 8” 1 micron carbon carbon block for lead reduction

Q5520 F630

Q5536 F631

Q5586 F446

Q5515 F632

Q5620 F633

Q5633 F634

Q5686 F635

Q5616 F636

FQV36

ACQV38PF

CL-Series

Q-Series 2.5 x 10” 1 micron carbon block

Q-Series 2.5 x 10” 20 by 50 granular activated carbon

Q-Series 2.5 x 10” granular activated carbon w/ polyphosphate

Q-Series 2.5 x 10” 1 micron carbon carbon block for lead reduction

Q-Series 2.5 x 12” 1 micron carbon block

Q-Series 2.5 x 12” granular activated carbon

Q-Series 2.5 x 12” granular activated carbon w/ polyphosphate

Q-Series 2.5 x 12” 1 micron carbon carbon block for lead reduction

Q-Series valved head 3/8” female (bracket included)

Q-Series valved head 3/8” pushfit (bracket included)

Tried and true, the CL-series hasn’t changed much since it was launched in 1970. The simple design delivers exceptional performance in a compact, affordable package. CL-series filters are available in 2” diameter and 6” and 10” lengths.

CL10ROT28/T36 F680

CL-Series 2 x 10” granular activated carbon

CL10ROT33/T40 F681 CL-Series 2 x 10” granular activated carbon

CL6R0T/36 F682 CL-Series 2 x 10” granular activated carbon

CL69F5 F683

CL109F5 F684

SL10 F685

SL6 F686

SCL10 F687

SCL6 F688

CL-Series 2 x 6” sediment

CL-Series 2 x 10” sediment

CL-Series 2 x 10” all phosphate

CL-Series 2 x 6” all phosphate

CL-Series 2 x 10” granular activated carbon w/ polyphosphate

CL-Series 2 x 6” granular activated carbon w/ polyphosphate

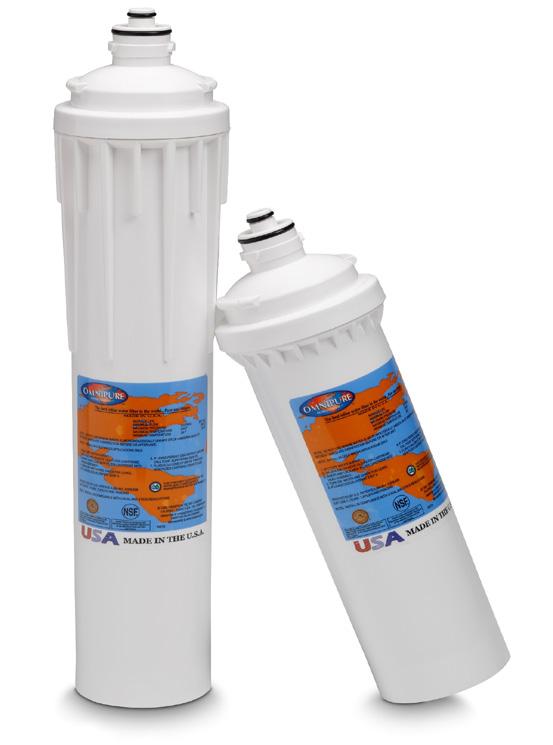

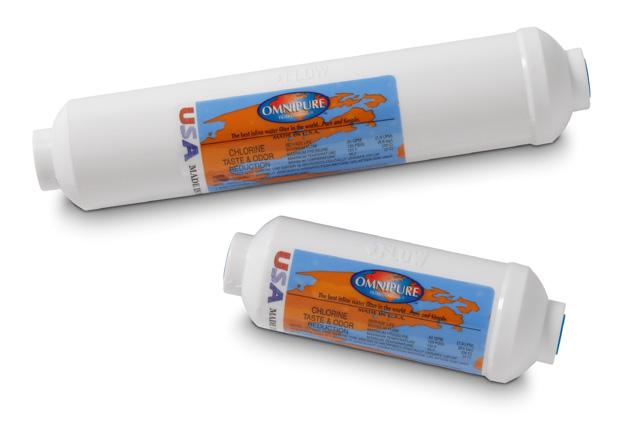

K-Series

One of the world’s highest rated inline filters. With various lengths, and diameters, these filters can be tailored to fit your specific needs. Available with quick connect (pf) fittings, as well as female pipe thread, the already simple and effective design can be installed in seconds. The K-Series 2” diameter filters are available in 6” and 10” lengths, and the 2.5” diameter filters are available in 6”, 8”, 10”, 12” or 14” lengths. More Information for all sizes is available by request.

OMNIPURE CODE APL CODE

K2520-P JJ F283

K5520-JJ F600

K5520-KK F601

K2520-P KK F602

K2533-BB F333

K2528 JJ F302

K2586-KK F603

K2586-JJ F321

K2533KK F381

K2548-JJ F604

K2548-KK F415

K2550-JJ F605

K5515-JJ F606

K5515-KK F607

DESCRIPTION

K-Series 2 x 10” 1 micron carbon block w/ polyphosphate - 1/4” PF

K-Series 2 x 10” 1 micron carbon block - 1/4” PF

K-Series 2 x 10” 1 micron carbon block - 3/8” PF

K-Series 2 x 10” 1 micron carbon block w/ polyphosphate - 3*8” PF

K-Series 2 x 10” granular activated carbon - 1/4” female

K-Series 2 x 10” granular activated carbon - 1/4” PF

K-Series 2 x 10” granular activated carbon with polyphosphate - 3/8” PF

K-Series 2 x 10” granular activated carbon with polyphosphate - 1/4” PF

K-Series 2 x 10” granular activated carbon - 3/8” PF

K-Series 2 x 10” all calcite - 1/4” PF (remin)

K-Series 2 x 10” all calcite - 3/8” PF (remin)

K-Series 2 x 10” calcite/corosex - 1/4” PF (remin)

K-Series 2.5 x 10” 1 micron carbon block for lead reduction - 1/4” PF

K-Series 2.5 x 10” 1 micron carbon block for lead reduction - 3/8” PF

K5567-JJ F608 K-Series 2.5 x 10” granular activated carbon w/ KDF - 1/4” PF

K5567-KK F609

K5515-P-JJ F610

K5515-P-KK F611

K5505-JJ F612

K-Series 2.5 x 10” granular activated carbon w/ KDF -3/8” PF

K-Series 2.5 x 10” 1 micron carbon block for lead reduction w/ polyphosphate - 1/4” PF

K-Series 2.5 x 10 ” 1 micron carbon block for lead reduction w/ polyphosphate - 3/8” PF

K-Series 2.5 x 10” sediment - 1/4” PF

K5505-KK F613 K-Series 2.5 x 10” sediment - 3/8” PF

K5555-JJ F614 K-Series 2.5 x 10” all DI resin - 1/4” PF

K5555-KK F615 K-Series 2.5 x 10” all DI resin - 3/8” PF

ELF-Series

The ELF (Extra-Large Format) filters have a capacity of up to 20,000 gallons and flow rates of up to 2.0 gal/minute. Engineered as a two piece system, ELF heads are available with or without an auto shut off valve. ELF-series comes in a 3.5” diameter, and 10” or 15” lengths.

Ceramic Replacement Inserts

The Coldstream CTO Plus ceramic water filter is made up of two key components. On the outside is our specially formulated and unique ceramic outer layer, which gives protection against bacteria and removes particles and microplastics. Inside the ceramic outer layer is a black carbon inner core, this protects against chemical contamination, including pharmaceuticals, heavy metals, pesticides and herbicides. Install a CTO Plus for safe, healthy drinking water with a great taste, straight from your tap.

Coldstream CTO Plus Ceramic Water Filter (Short Mount)*

Coldstream CTO Plus Drop-In Ceramic Water Filter (OBE)**

*Alternative to Doulton ultracarb Short Mount **Alternative to Doulton ultracarb OBE

PTL Replacement Inserts

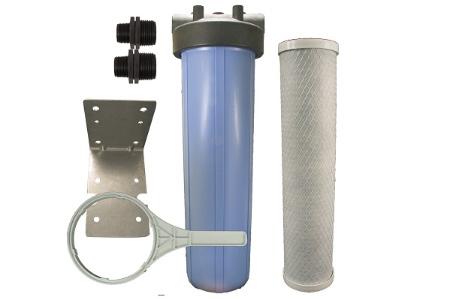

Whole House Filter Kits

The perfect solution for customers wishing to filter all the water in their house. We offer 4 kits, across 2 different sizes All kits include:

• Stainless steel bracket.

• Filter housing.

• Filter cartridge.

• 2 x Fittings for hose connection.

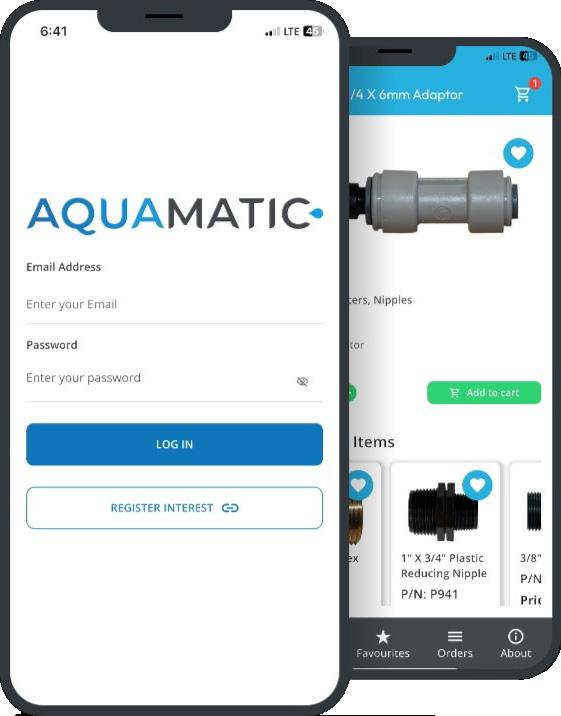

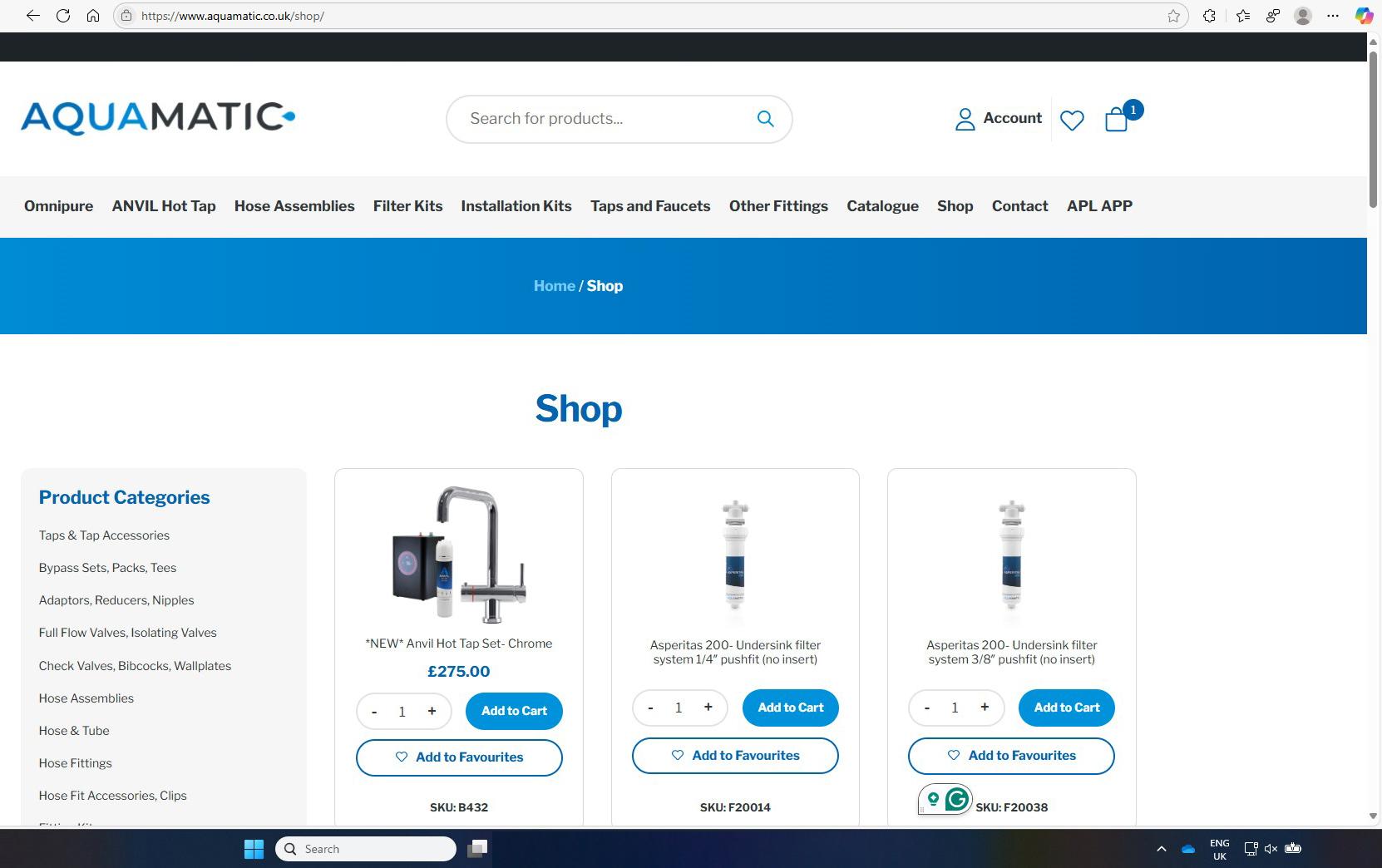

OUR SAME FRIENDLY, PROFESSIONAL SERVICE, JUST GOT BETTER

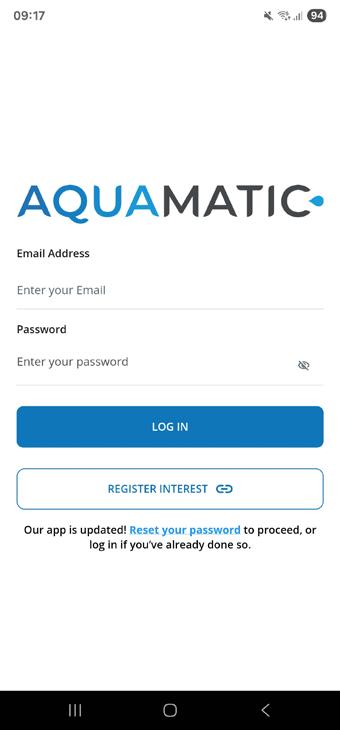

The right taps, filters and installation products are now available at your fingertips through the Aquamatic App. Contact us now to open up a new, easy and convenient way of ordering the products you need.

• Order anytime, anywhere

• Works and syncs on all devices: PC, Mobile, Tablets

• Features a handy ‘downloads’ section

• News updates

• Order history so you can easily see ‘what I had before’

• Easy checkout process

• All your favourites in one place for faster ordering As this App is for our trade customers only, you will need to contact us so that we can set this up for you. Send us an email with your business name address and phone number via sales@aquamatic.co.uk and we will send you your login details. We are more than happy to spend time talking you through it and customising it for your use. And of course, if you still want to chat with us, we are more than happy to hear from you on the same number as always. To access the desktop version please go to www.aquamatic.co.uk/shop

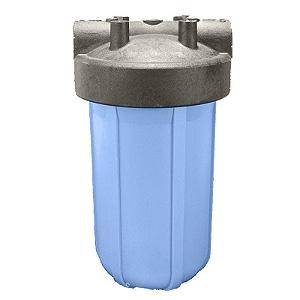

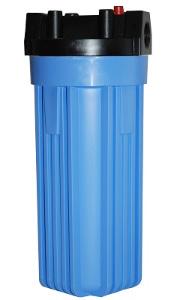

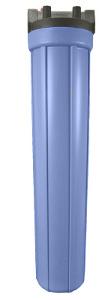

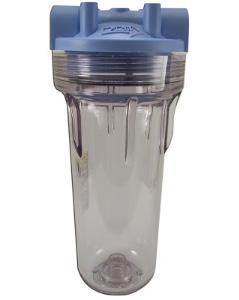

Filter Housings

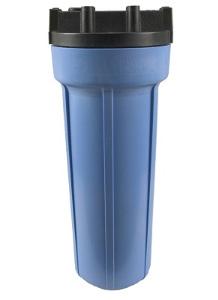

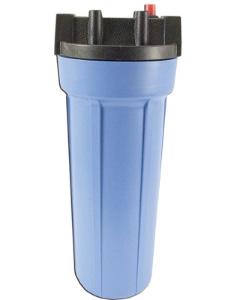

Slimline Housings

Pentek slimline housings. All take a standard 10” filter cartridge.

Standard Housings

Heavy duty housings for when higher flow rates are required.

Jumbo Housings

Also known as ‘Big Blue’ housings, for when higher flow rates and/or capacities are required. (e.g whole house supply on unvented systems)

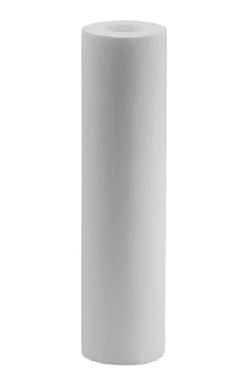

Drop In Cartridges

A wide range of drop in sediment, carbon and specialist filters are available in a variety of sizes, materials and micron ratings. Our drop in filters are compatible with most industry standard housings. Only our most popular filters our shown below, other options are available on request.

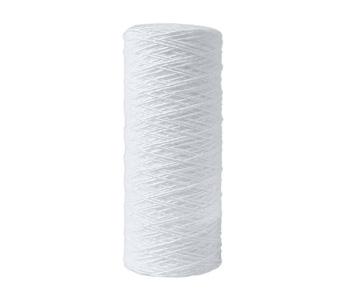

DROP IN SEDIMENT FILTERS

R.O Systems

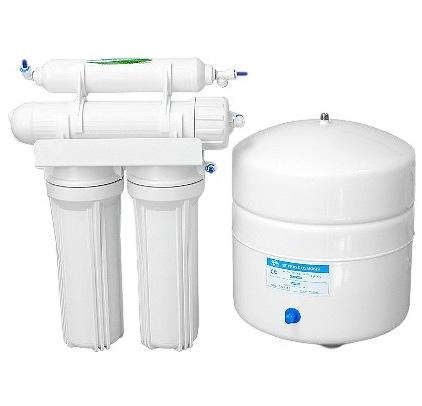

4 Stage R.O System with Eco Membrane

This is a well proven and high performing system that we have had built to our specification. It is pictured here and has the following features:

• 4 Stage filtration system.

• 50 GPD Pentair eco membrane.

• All JG fittings.

• 3/8” tubing from tank to tap for faster flow rate.

• Auto shut off valve.

• 4 Gallon storage tank.

• Colour coded tubes and fittings for easy installation

• Highly efficient 1:1 wastage ratio

Replacement Cartridges for R.O

The replacement filter and membrane for this sytem are listed here, replacement for other systems are shown on page 21

4 Stage Economy R.O System

Economy 4 stage domestic R.O system with a sediment pre-filter, carbon pre-filter, membrane and a post carbon filter.

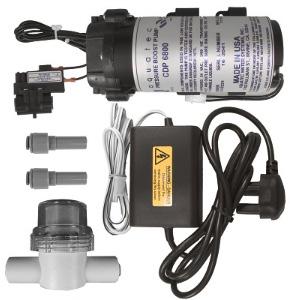

R.O Booster Pump

• Use with R.O systems capacity up to 50 gpd.

• 1/4” Pushfit connections.

• Minimum 10 psi.

• Boosts to 100psi

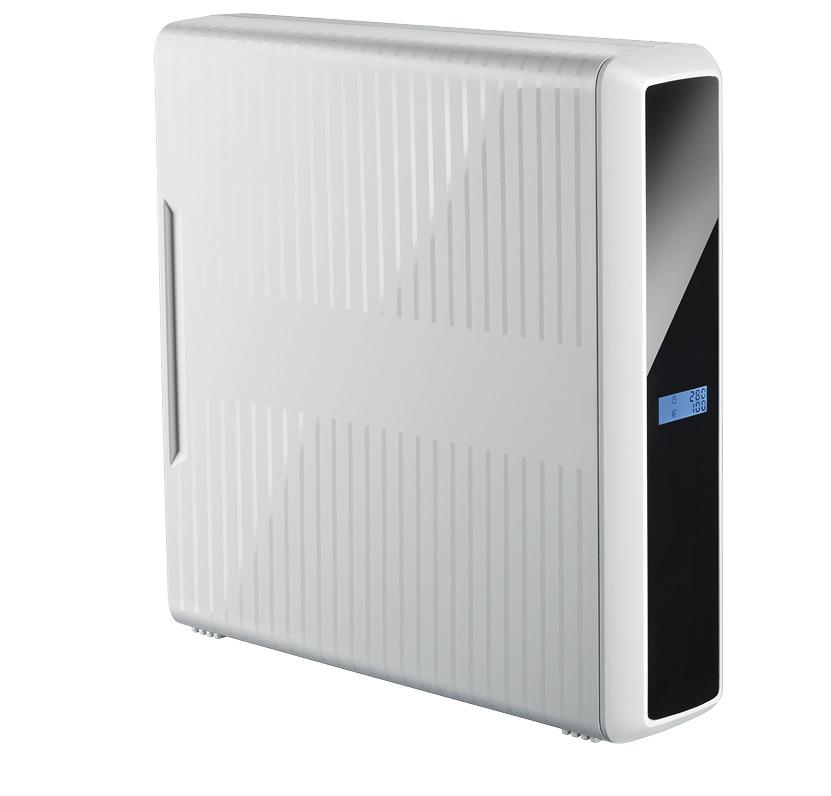

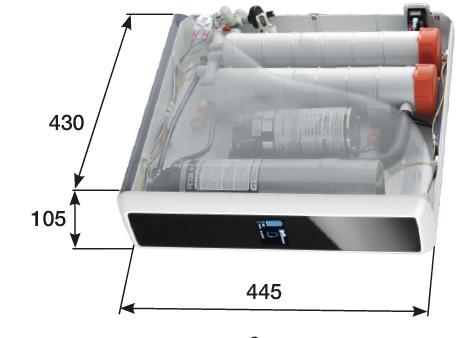

Flo LCD Direct Flow R.O System

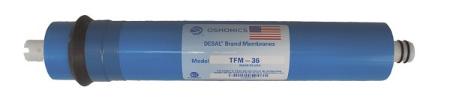

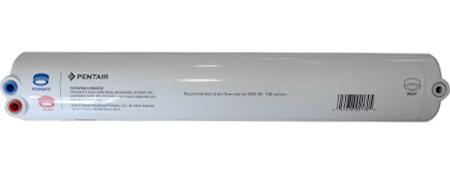

Eco Membrane Upgrade Kit

This is an encapsualted membrane and with speedfit connections for an easy, sanitary in-staallation. We can supply this as a kit with relevant check valve and flow restrictor to retro-fit to existing systems, or membrane only for future changes. Very easy to convert and only around 2” longer.

The LCD 100 is a premium, direct flow reverse osmosis system designed for modern homes. It’s compact, sleek design fits seamlessly into any kitchen, providing high-quality purified water on demand. This advanced R.O system removes up to 99% of contaminants, ensuring safe, clean drinking water without the need for bulky storage tanks. Perfect for households seeking convenience and performance, the LCD 100 delivers pure, fresh water in a stylish and space-saving package.

• Innovative and compact design.

• Dual membrane system.

• LCD screen.

• Filter alarm - Day and capacity (litres) countdown.

• Leak alarm - auto shut off.

• New R.O check, allows you to manage and control system remotely via WI-FI connectivity.

R.O Components

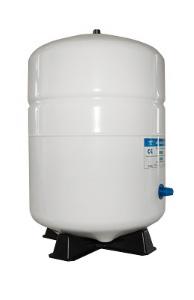

Steel R .O Tanks

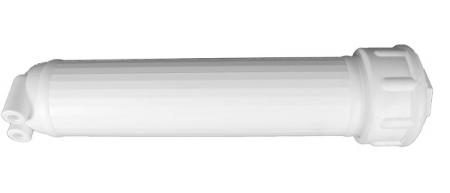

R.O Membrane Housing

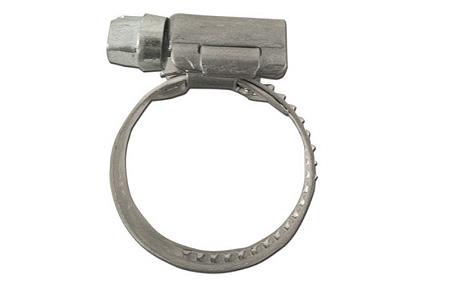

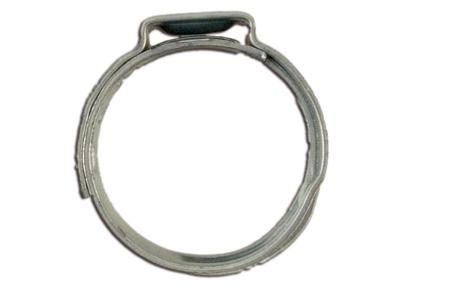

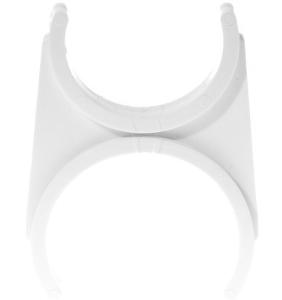

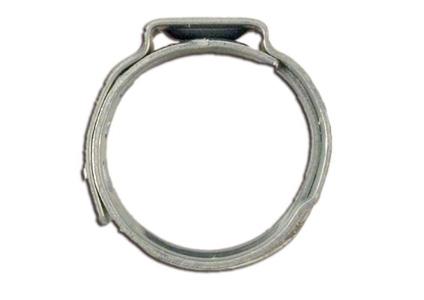

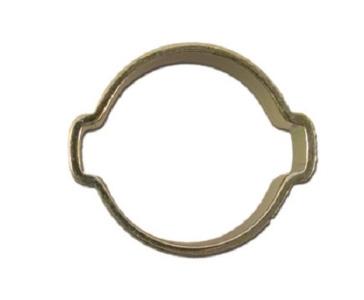

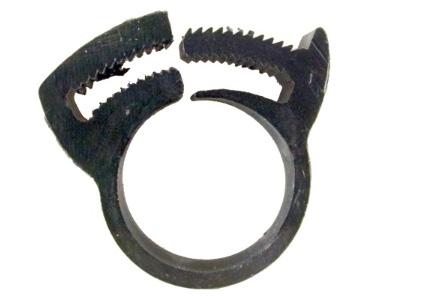

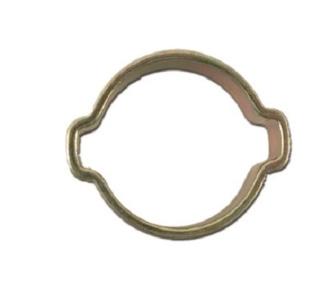

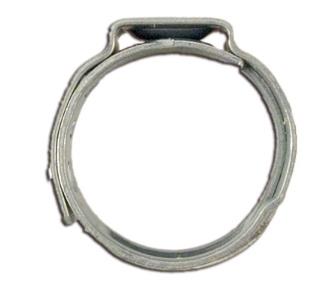

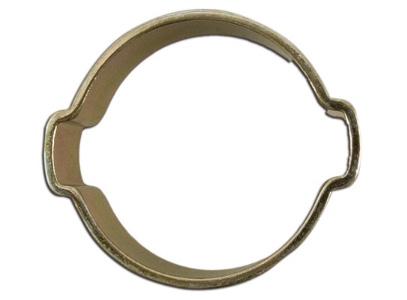

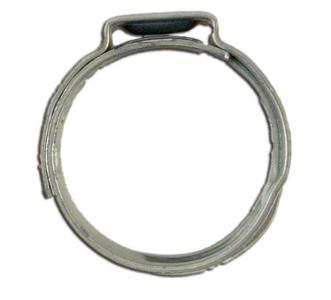

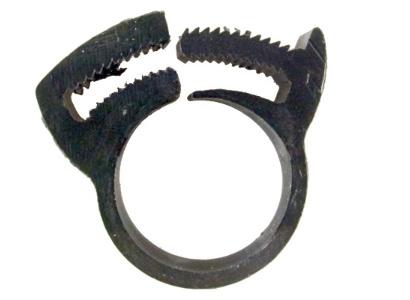

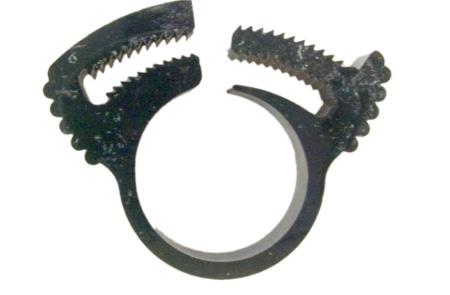

Housing Clips

Calcite Remineralisation Cartridge

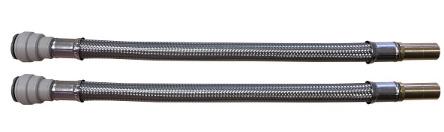

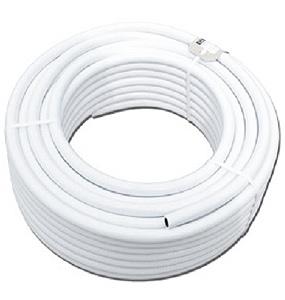

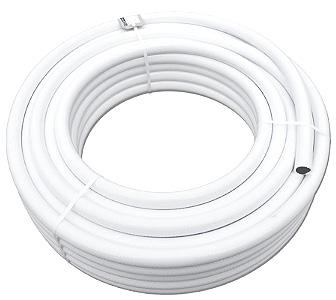

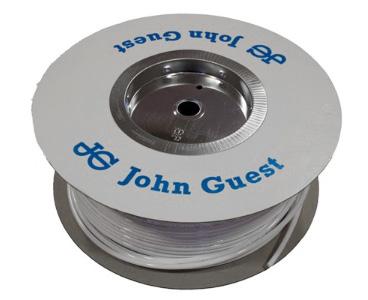

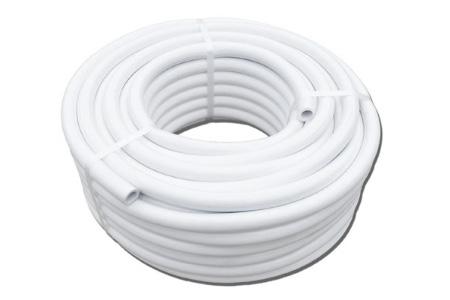

Hoses & Tubing

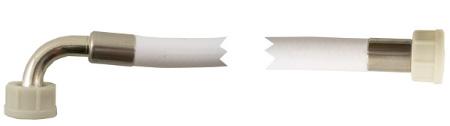

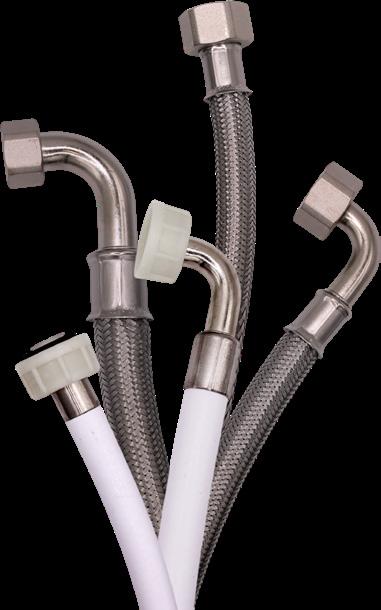

Pre-assembled Hoses

The standard hoses here are available in either 10mm or 12mm with one straight connector and one bent connector. 10mm has plastic fittings with captive washers whilst 12mm has brass fittings with plastic nuts. Supplied as a pair. Various lengths available. Not recommended for use with hot water, use stainless hoses for this.

10mm Straight x Bent

All Lengths

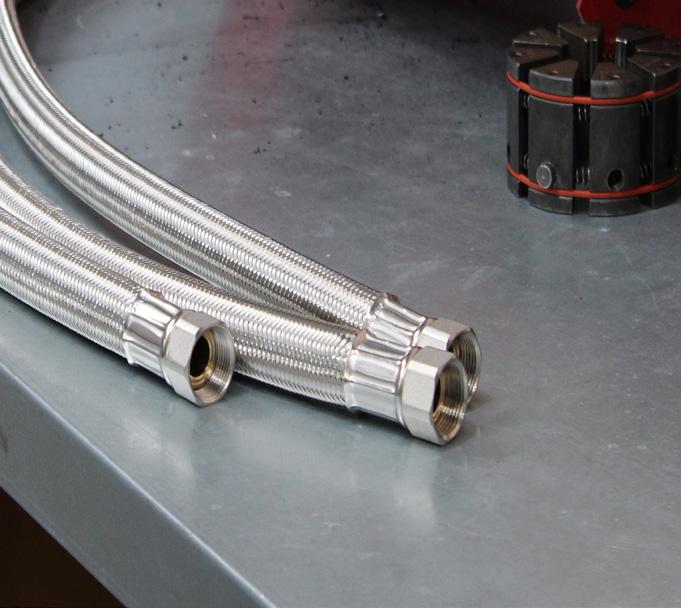

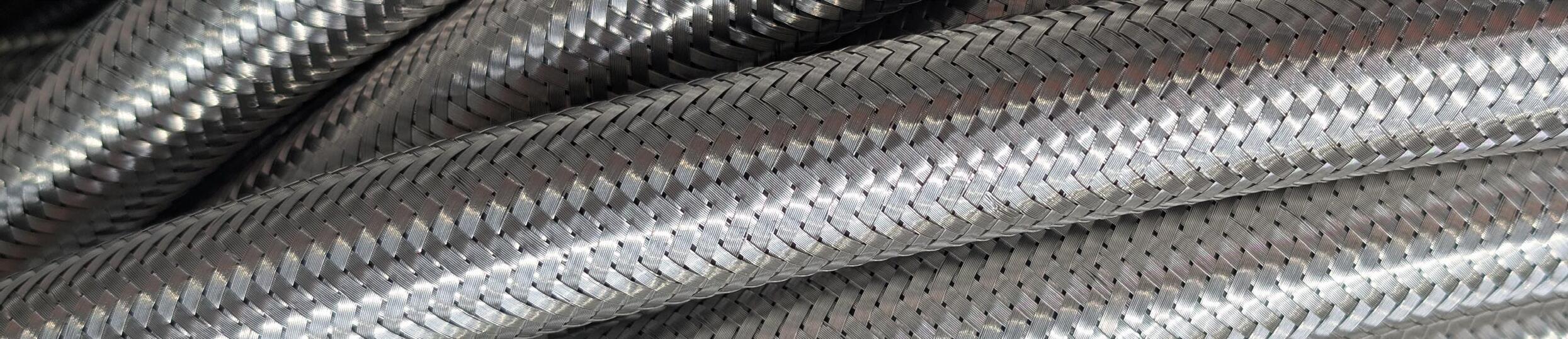

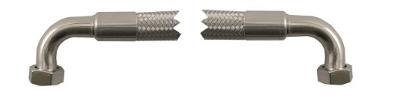

13mm Stainless Hoses

12mm Straight x Bent

All with 3/4” nickel plated brass and fittings and nuts. 13mm bore for standard installations. Various lenghts and formats available. Suitable for use on hot water.

13mm Straight x Bent

13mm Bent x Bent

STRAIGHT X STRAIGHT AND OTHER LENGTHS ARE ALSO AVAILABLE

All our WRAS Approved hoses are made on site and in most cases if

Please contact

19mm Stainless Hoses

All with 3/4” nickel plated brass end fittings and nuts. 19mm bore for hi-flo installations. Various lengths and formats available. Suitable for use on hot water.

25mm Stainless Hoses

1” hoses for larger softeners. These are 25mm bore with 1” connections and supplied with fibre washers.

25mm Straight x Bent

Need Custom Made?

Hose Assemblies

We have our own hose assembly equipment which means that we can make custom made hoses quickly if required in either plastic or stainless braided. It also means we have a more reliable stock situation. By sourcing quality materials and investing in high pressure test equipment, we can be sure of the integrity of our products.

If you have a requirement for any hose assembly that is not shown, please call with your specifications for a quote.

Inlet Hose

This special food grade re-inforced hose has now been in use for many years and is the hose of choice for water softeners, supplied in white for neat and presentable installations, it has a black Hytrel liner to prevent the formation of bacteria. Available in 10mm, 12mm and 19mm. (30M rolls). We do not recommend this for hot water.

Drain Hose

H140. This is an unreinforced P.V.C. hose supplied in white to match inlet hoses and is suitable for drain and overflow applications on most water softeners. Use standard 12mm hose fittings and clips.

Heavy Duty Drain Hose

H145. This is a heavy duty version of the drain hose which has a thicker wall and is therefore much more resistant to kinking. You will need to use the larger clips, S183 or S184L

John Guest Tubing

John Guest drinking water tubing in both 3/8” and 1/4”. Both are available in white or blue on 150 Metre rolls. This is perfect tubing for R.O.s and drinking water systems.

Drinking Water Tubing

This type of tubing as well as being much more flexible and resistant to cracking has a black Hytrel liner (the same as used in the inlet hoses) to prevent the formation of bacteria. Available in 3/8” and 1/4”. Supplied in white on 30M rolls.

Tube Inserts

3/8” and 1/4” tube inserts now only available in plastic.

Hose Clips & Components

‘O’ Clips

Use 5/8” for 10mm inlet and drain hose connections and 3/4” for 12.5mm inlet hose connections. 25-28mm is for hi-flo inlet hoses.

Worm Drive Clips

Standard worm drive hose clips. 8-16mm is suitable for drain hose connections and 16-22mm is suitable for inlet hose connections.

‘1 Ear’ Clips

For use with our high pressure inlet hoses. Unique design ensures a full 360 degree contact with the fitting. Use the special tool shown (T702) for fast easy operation.

Stainless Worm Drive Clips

Same as above but all Stainless Steel. 8-16mm (S192) and 16-22mm (S193)

Normal Closing Pincer

Use this tool for closing both ‘O’ clips and ‘1 Ear’ clips above. Can also be used to remove clips if required.

Pin plugs for nail clips.

Pipe Covers

Particularly useful for tidying the overflow pipe. Fits 15mm pipes. Not suitable for HD drain hose.

Flexible driver

For worm drive hose clips. The socket end with flexible shaft means you can apply ample pressure at any angle without the usual slipping.

Nail Clips

For drinking tube and drain hose respectively.

9mm Nail Clips (Box of 100)

16mm Nail Clips (Box of 100)

22mm Nail Clips

Herbie Clips

Ideal for drain hoses. They are quick and simple to use, can be reused and will not corrode.

Hose Components

10mm Inlet Hose Connectors

Available with or without nut and washer. Spare nuts and washers are also available as are screened filter washers (P157)

10mm Hose Conns w/ Captive Washer

These are now very popular fittings. They have a much better nut and the washers are attached to the fitting. They are not suitable for use with filter washers.

P660 10mm H/C Str w/nut & Captive Washer P661 10mm H/C Bnt w/nut & Captive Washer

10mm Hose Fittings

Various fittings for use with 10mm inlet hose.

12mm Inlet Hose Connectors

Available with or without nut and washer. Spare nuts and washers are also available as are screened filter washers (P157)

12mm Inlet Hose Conns w/ Captive Washer

These are now very popular fittings. They have a much better nut and the washers are attached to the fitting. They are not suitable for use with filter washers.

12mm Hose Fittings

Various fittings for use with 12mm inlet hose & drain hose. Use 5/8 clip for drain hose & 3/4 clip for inlet hose.

12mm Brass Hose Connectors

Brass fittings for use with 12mm inlet hose. Nut is the popular deep version.

19mm Inlet Hose Connectors

Use these fittings with H149 19mm inlet hose. Fittings, nuts and washers all sold seperately.

Secure with ‘O’ clip (S752) 2 recommended.

Nipples

Useful fittings for connecting to female components or joining hoses.

Nuts

3/4” nuts. P158 can be used with most of the 3/4” fittings on this page. P903 is for use with any fitting except 19mm fittings and the bent 12mm fitting. P904 has a larger hole and is the recommended nut for the 12mm bent.

Washers 3/4”

Rubber Washer for use with any of our fittings. Fibre washers are for use where the hose connector and the component that is being connected to are both metal.

3/4” Filter Washers

These can be used with any of the 3/4” fittings except ones with captive washers.

19mm Brass Hose Connectors

Use these fittings with H149 19mm inlet hose. Fittings, nuts and washers all sold seperately.

Secure with ‘O’ clip (S752) 2 recommended.

1” Washers

Blanking Disks

To cap off by-pass valves when softeners are removed. You will need P158 nut and P155 washer.

1/2” Fitings

For use with 12mm hose or drain hose.

Bypass Sets & Fitting Kits

• Premium quality bypass sets.

• Large bore size for high flow rate.

• Bypass valve 15mm compression x 15mm compression.

• Inlet/outlet valves are 15mm compression x 3/4” BSP for connecton to hose fittings.

• Supplied with labelled levers and instruction label.

15mm Bypass Set

B30 15mm copper x hose by-pass set.

Full Flow Bypass Sets & Packs

15mm Bypass Pack

Same as B30 plus a pair of tees with check valve.

A full range of 15, 22 and 28, bypass sets and packs using the new full flow valves and tees shown on the previous pages. They all feature the same colour coding and labelling so that you have a complete matching ‘family’ of valves. All are individually labelled and have a customer instruction label as well.

15mm Full Flow

B538 15mm copper x hose bypass set.

15mm Full Flow Bypass Pack

Same as B538 plus a pair of tees with check valve.

22mm Full Flow

B535 22mm copper x hose bypass set.

28mm Full Flow

B883 28mm copper x hose by-pass set.

Fitting Kits

Standard 15mm Fitting Kits

Suitable for installation of most water softeners in properties with vented systems.

Kit contains the following items:

• 1 x Pair of 12mm Hoses. (see below for length options)

• 1 x B30 Chrome Bypass Set.

• 1 x B840 Pair of Bypass Tees w/Check.

• 1 x S182 Clip for Drain.

• 3M x Drain Hose.

• 4 x P155 Washer.

All components except drain hose have WRAS approval

22mm Full Flow Bypass Pack

Same as B535 plus a pair of tees with check valve

Hi-flo 15mm Fitting Kits

Suitable for installation in properties with a combi boiler.

Kit contains the following items:

• 1 x Pair of 12mm Hoses. (see below for length options)

• 1 x B538 Full Flow Bypass

• 1 x B840 Pair of Bypass Tees w/Check

• 1 x S182 Clip for Drain

• 3M x Drain Hose

• 4 x P155 Washer

All components except drain hose have WRAS approval

15mm Fitting Kit

with Plumbing Out Kit

This kit comprises of all of the above plus a plumbing out kit. (Plumbing out kit is not WRAS approved)

22mm Fitting Kits

Suitable for installation of water softeners on direct mains systems Kit contains the following items:

Kit contains the following items:

• 1 x Pair of 19mm Stainless Steel Hoses. (see below for length options)

• 1 x B535 22mm Full Flow Bypass Set

• 1 x B841 Pair of 22mm ByPass Tees

• 3M x Drain Hose.

• 4 x P155 Washer.

• 2 x B876 Fibre Washer

• 1 x S182 Clip for Drain

All components except drain hose have WRAS approval

22mm Fitting Kits with Plumbing Out Kit

This kit contains all of the above plus a plumbing out kit. (plumbing out kit is not WRAS approved).

15mm Hi-flo Fitting Kit

with Plumbing Out Kit

This kit comprises of all of the above plus a plumbing out kit. (Plumbing out kit is not WRAS approved)

28mm Fitting Kits

Highest flow rate, for systems with 28mm pipework and softeners with 1” connections.

Kit contains the following items:

• 1 x Pair of 25mm Stainless Steel Hoses with 4 x Fibre Washers

• 1 x B883 28mm Full Flow Bypass Set

• 3M x Drain Hose

• 1 x B877 28mm Check Valve

• 2 x B818 28mm Compression Tees

• 1 x S182 Clip for Drain

All components except drain hose have WRAS approval

28mm Fitting Kits with Plumbing Out Kit

This kit contains all of the above plus a plumbing out kit. (plumbing out kit is not WRAS approved).

Installation

Full Flow Ball Valves

These valves are extremely popular as they have been designed to our exact specification for use when installing softeners. Here are some of the useful features that we have designed into them.

• Smallest possible profile for a full bore valve.

• Metal levers long enough to provide easy operation.

• Smooth easy action.

• Fully compatible with our tees and hoses.

• Universal colouring and labelling across the entire range for easy customer identification.

Bypass Tees

Our tees have a check valve built into one of them to provide the best value for money while taking up the smallest amount of space.

• Money saving - less cost than a check valve and 2 tees.

• Time saving - less time to assemble.

• Space saving - smaller than conventional arrangement.

Available in:

15mm Bypass Tees

• All nickel plated for a visually appealing installation.

• Grouped close together for easier customer identification.

• Can be used in a variety of configurations.

22mm Bypass Tees

Isolating Valves

15mm Compression Fitting

22mm Compression Fittings

28mm Fittings

End Feed Fittings

15mm End Feed Fittings

22mm End Feed Fittings

Single Check Valves

Hose Union Bibcocks

Double Check Valves

Stopcock

Basic 15mm and 22mm Compression Stopcocks.

Backplates/Wallplates

B11. Standard backplate elbow for use with any of the taps here.

Pre-soldered Wallplate*

Speedfit Tube Fittings

P105 1/4” Elbow

P106 1/4” Coupling

P107 1/4” Tee

P109 38” Tee

P110 3/8” Coupling

P111 3/8” Elbow

P112 3/8” x 1/4” Reducer

P680 3/8” x 1/4” Reducing Elbow

Tap Adaptors

P113 1/4” x 7/16” Tap Adaptor

P114 3/8” x 7/16” Tap Adaptor

P115 1/4” x 1/2” Tap Adaptor

P116 3/8” x 1/2” Tap Adaptor

P635 10mm x 1/2” Tap Adaptor

P637 10mm x 7/16” Tap Adaptor

Bulkhead Connections

P924 1/4” Bulkhead Connector P925

Metric to Imperial Adaptors

Rigid Elbows

P911 1/4” x 1/4” NPTF Rigid Elbow

P912 1/4” x 3/8” NPTF Rigid Elbow

P914 3/8” x 1/4” NPTF Rigid Elbow

P915 1/4” x 1/8” NPTF White Rigid Elbow

P917 3/8” x 3/8” NPTF Rigid Elbow

P940 3/8” x 3/8” NPTF White Rigid Elbow

Male Adaptors

P117 1/4” x 3/8” Male Adaptor

P118 3/8” x 3/8” Male Adaptor

P119 1/4” x 1/4” Male Adaptor

P123 3/8” x1/4” Male Adaptor

P128 1/4” x1/8” Male Adaptor

P129 3/8” x 1/8” Male Adaptor

P620 15mm x 1/2” Male Adaptor

P636 10mm x 1/2” Male Adaptor

P670 6mm x 1/4” Male Adaptor

P931 3/8” x 1/2” Male Adaptor

P938 1/2” x1/2” Male Adaptor

5/16” Fittings

x 1/4” Reducing Elbow

5/16” Elbow

5/16” Coupling

3/8” x 5/16” Reducer

Stem Fittings

1/2” Fittings

Stop Ends & Plugs

Speed-Fit Plumbing Fittings

Speedfit Check Valves

15mm x 3/8” JG Coupling

Speedfit Isolating Valves

22mm Speed-Fit

Adaptors and Nipples

Brass Adaptors

B863 & B894 for converting compression fittings to accept hose connectors. B895 can be used on a ¾” valve to provide a 15mm tail.

Connector Nipples

Primarily used for joining filter housings but can be used for some other applications.

Drain Air Gaps

• Reasonable cost.

• Small size.

• Can be used for softeners and/or R.O’s.

• Optional saddle and trap.

• Unique design allows fitment to any make of 11/2” waste pipe.

• Is available for 3/8” or 1/2” drain line, both have 1/4” straight spigot for R.O connection.

• Easy to install - simply make a normal stand pipe with trap (or Tee into an existing one) and solvent weld or silicone into place.

• Alternatively use the Gap Trap Kit on existing waste pipes.

Plumbing Out Kits

Overflow Elbow

Softener Removal Kit

Small Tube Cutter

Small cutter for use on all 3/8” and 1//4” tubes.

JG Hose and Tube Cutter

Large hose cutter made by John Guest is for use on all of our hoses and tubes.

Mini Stand Pipe Kit

It’s versatility and universal fitting means it will suit most applications. Supplied with cutting tool.

Hose

and Tube Cutter

Large hose cutter is for use on all of our hoses and tubes.

Tank Air Gauge

Very accurate simple gauge for testing the air pressure in R.O storage tanks.

Faucet Box Spanner

A useful box spanner for installing faucets. Comes with a bar, but is sometimes easier to use an adjustable wrench to turn it.

Normal Closing Pincer

Use this tool for closing both ‘O’ clips and ‘1 ear’ clips above. Can also be used to remove clips if required.

Faucet Installation Tool

Purpose made for installing faucets. The unusual style makes it easy and quick to use, even in the tightest spots.

Monobloc Spanners

A useful set of box spanners for installing most types of monobloc mixer taps. 3 pieces (6 sizes) + bar.

Flexible Driver

Flexible driver specifically for worn drive hose clips. The socket end with flexible shaft means you will be able to apply ample pressure at any angle without the usual slipping.

• Order anytime, anywhere

• Works and syncs on all devices: PC, Mobile, Tablets

• Features a handy ‘downloads’ section

• News updates

• Order history so you can easily see ‘what I had before’

• Easy checkout process

• All your favourites in one place for faster ordering

As this App is for our trade customers only, you will need to contact us so that we can set this up for you. Send us an email with your business name address and phone number via sales@aquamatic.co.uk and we will send you your login details. We are more than happy to spend time talking you through it and customising it for your use. And of course, if you still want to chat with us, we are more than happy to hear from you on the same number as always. To access the desktop version please go to www.aquamatic.co.uk/shop

PRV’S, Meters & Float Valves

Pressure Reducing Valves

15mm Water Weter

Fluidmaster Float Valves

The Fluidmaster (S209) offers good flow rates and more reliable operation. Use with any meter controlled softener to provide consistent flow rates.

NOW HAS BRASS TAIL to prevent crossed threads.

Remote Mains Water Switch

Pressure Test Kit

Simple test kit utilising our liquid filled gauge. Fittings included allow for connection to outside taps, hoses or washing machine/appliance valves.

Quick Stop Valve Adjustable

Whilst the Fluidmaster valves are in excellent product, sometimes you just need a more flexible option to hand. Available in 1/2” and 3/4”.

Testing

Hardness Water Test Strips

Pack of 50 Strips for testing the hardness of water, with a handy colour comparison chart on the reverse.

Soft Water Test Kit

Use this Water Soap Test Kit for a quick check to see if the water is soft.

Total Hardness Test Kit

Gives results of water hardness in PPM.

T.D.S Meter

A good quality pocket TDS Meter. It features a temperature function and hold facility as well as a leatherette case.

Pressure Gauge

These gauges are filled with glycerine to provide accurate readings with no shock. Scale IS 0-300 PSI. Stainless case with 1/4” bottom inlet connection.

Hardness Yes/No Test Tablets

Use 1 tablet. Colour indicates either Hard or Soft water.

Tank Air Gauge

Very accurate simple for testing the air pressure in R.O storage tanks.

Sundries

Silicone Grease

Salt Scoop

Simple plastic salt scoop.

Customer Bypass Instruction Lables

For sticking on the softener or on a wall/cupboard nearby. Can be used for any bypass but is especially suitable for use with our valve sets. Supplied in packs of 10 or 50.

L655-10 Bypass Instructions Sticker (Pack of 10)

L655-50 Bypass Instructions Sticker (Pack of 50)

Valve Labels

Made from plastic, these labels make identification of valves very easy for all customers. Bypass lables are supplied as a set, all others are supplied individually.

All supplied with ties for attaching to pipe or valve.

Customer Bypass Instruction Hanging Card

Supplied with tie for hanging directly on the bypass set. Can be used for any bypass but is especially suitable for use with our valve sets. Supplied with ties in pack of 10 or 50.

L656-10 Bypass Instructions Sticker (Pack of 10)

L656-50 Bypass Instructions Sticker (Pack of 50)

Boiler Bypass Label

An additon to our range of labels, for customers who have a boiler with an aluminium heat exchanger. It tells them to bypass the softener when filling the heating system so that the boiler manufacturers cannot claim that the soft was has damaged the boiler. Simply attach to the valve on the filling loop of the boiler.

Guide to Hoses & Fittings

We have produced this guide to our most common hoses/ tubes and their associated fittings to help you to select and use the most appropriate product for the required job. See the relevant pages in the catalogue for the full range.

Installation Guide

Stress points

Assembled Hoses

Range of different hoses ready assembled for immediate use. Large range of different fittings available for many applications. Assemblies available in plastic or stainless.

Pros:

Professional looking and ready to use. Much higher pressure rating due to machine swaged ends. Much better for DIY installations.

Cons:

Slightly more expensive than self asssembled. Not always correct length. Cannot be easily passed through walls, cabinets etc.

Tips:

Keep a variety of lengths, formats on the van

Needs clipping/supporting

Avoid torsional (twisting) stress

? X X

Stress points

Stainless Hoses

Range of stainless overbraided EPDM rubber hoses available in 13, 19, and 25mm id. Suitable for use on cold and hot water. Also useful for industrial applications e.g. anti vibration for pumps etc.

Pros:

Radius too tight

Smart professional looking. Generally slightly more flexible than plastic hoses. Can be used on hot water. WRAS approved

Cons:

Only available as assembled hose as difficult to cut and fittings need to be machine swaged with ferrules.

Tips:

Make sure that there is no torsional stress on the hose when fitted. If necessary use grips on the ferrule and a screwdriver in the elbow to turn it to the required angle. Keep away from corrosive materials

Reinforced Inlet Hose

Range of reinforced inlet hose available in 6,10,12 and 19mm id. Can tolerate hot water but as pressure and bore size increase temperature limits decrease so we only recommend this for use on cold water. Commonly used on mains water supply for water softeners, vending machines, coolers etc.

Pros:

Smart looking, available as assembled hoses or can be assembled on site. Wras approved product that will not grow bacteria.

Cons:

Not recommended for use on hot water.

Tips:

Keep away from heat sources - hot water/ heating pipes/boilers etc

JG Tubing

LLDP tubing which is slightly more flexible that the standard LDP tube and is probably tougher and longer lasting.

Pros:

Works consistently well with JG fittings (as you would expect).

Cons:

Only available on 500’ (150M) rolls

Fittings with Captive Washer

Available for 10 & 12mm inlet hose. These are probably tougher than the standard Siroflex type and look good too. They also have the advantage that the washer does not keep dropping off, thus making the hose quicker and easier to connect. They cannot be used with filter washers.

Pros:

Quicker easier to connect hose.

Cons:

Cannot be used with filter/screen washers.

Tips:

Ensure that washer retaining shoulder fits inside the valve or fitting that you are connecting to, otherwise you risk a leak. This is unusual though. Beware that 12mm elbow requires nut with large hole, all others in this range require nut with small hole.

Drain Hose

White unreinforced PVC hose for use on drains and overflow. Heavy duty version has thicker wall for more resistance to kinking. Must not be used on mains water pressure.

Pros:

Low cost attractive product.

Tips:

Remember heavy duty version uses same fittings BUT needs bigger drill and clips. Clip frequently to prevent sags and kinks.

Brass Fittings

We stock these for 12/13 mm, 19mm and 25mm hose. They can be used with brass or plastic nuts. P903/4 recommended if plastic.

Pros:

Extremely tough and professional looking. Preferred fittings for use on hot water.

Cons:

Pricier than equivalent plastic fittings.

Tips:

If connecting to another metal/brass fitting use a fibre washer.

Siroflex Hose Connectors

Available in both 10mm and 12mm sizes bents and straights. Been around for years and familiar to most people. Items can be bought separately.

Tips:

12mm straight has been discontinued (10mm version and elbows are fine).

Worm Drive Clips

Standard clip which can be used in many applications. Not recommended for 19mm inlet hose. Also available in all stainless.

Pros:

Can be reused. No special tools required.

Cons:

Can only be tightened a limited amount (sometimes not enough).

Tips:

Use all stainless version if corrosion is a possibility.

Herbie Clips

Standard clip which can be used in many applications. Not recommended for 19mm inlet hose. Also available in all stainless.

Pros:

Can be reused. No special tools required.

Cons:

Can only be tightened a limited amount (sometimes not enough).

Tips:

Use all stainless version if corrosion is a possibility.

1 Ear Clips

Otherwise known as stepless clamps. These clips are available for 10 & 12mm inlet hose and are very popular as there is only one quick operation to secure. The tongue inside ensures a full 360º contact.

Pros:

Quick, reliable and simple clamp.

Cons:

Pricier than standard ‘O’ clips.

Tips:

Ensure clip is at a perfect right angle to hose and that it is in the centre of the barb of the fitting. Close fully.

‘O’ Clips

Standard type of hose clip. Primarily for use on inlet hose.

Pros:

Simple established design.

Cons:

Needs special tool to close. Cannot be reused.

Tips:

Ensure clip is at right angle to hose and is in the centre of the barb. Recommend you use 2 clips with ears at 90º on 19mm hose. Ensure even closure of both sides.

Terms & Conditions

1. These conditions apply to all Aquamatic Products Ltd.’s (APL) sales and any variation to these conditions and any representations about the Goods shall have no effect unless expressly agreed in writing and signed by a director of APL. The Buyer acknowledges that it has not relied on any statement, promise or representation made or given by or on behalf of APL which is not set out in the Contract. Nothing in this condition shall exclude or limit APL’s liability for fraudulent misrepresentation.

2. These conditions supersede any previous conditions on any other literature published by APL. Orders placed are deemed to be in accordance with these conditions which have precedence over any conditions the Buyer may wish to apply.

3. Payment. This is payment with order, unless otherwise agreed in writing.

4. All price lists are subject to alteration without notice. Goods are invoiced at prices ruling at the date of despatch and orders are deemed to be placed on this basis.

5. Estimated delivery dates are those on which in good faith, we expect goods to be delivered to the Buyer. Every effort will be made to adhere to these dates. However we cannot accept responsibility for delays caused by circumstances beyond our control.

6. Acceptance of goods and liability. Any claims of damage in transit or short delivery must be notified to APL in writing within 1 day.

7. Claims of non delivery must be notified to APL within 7 days of receipt of invoice. Goods claimed to be not in accordance with the order must be retained as delivered for inspection and instruction. Failing this no liability will be accepted.

8. Product liability insurance must be carried by the Buyer against claims of damage arising from malfunction of any fittings or components supplied or any malfunction arising from their use.

9. Retention of title. Risk in the Goods sold shall pass to the Buyer at the time of delivery. Ownership of the Goods shall pass to the Buyer only when payment is made in full.

10. If the Buyer shall default in punctual payment of any sum due to us, we shall be entitled to recover any Goods seen to be our property. In addition, interest will be charged on overdue accounts.

11. (a) Alleged faulty or defective Goods shall be returned to APL’s premises immediately, carriage paid and properly packed and clearly marked with the Buyer’s full name and address together with a complete description of the respects in which it is alleged that the Goods are defective. Such Goods will be examined and should APL be satisfied that the Goods are defective, they will be repaired or new Goods will be supplied in exchange and the Goods so repaired or such new Goods will be delivered free of charge to the buyer at APL’s expense. Provided that the foregoing warranty shall only be applicable if, upon being required by APL to do so, the Buyer proves to APL’s satisfaction.

i) that the defect was due solely to APL’s defective workmanship;

(ii) that no alteration or repairs have been made to the Goods except with specific written consent;

(iii) that the defect or defects were not caused by incorrect or negligent handling or storage, disregard of fitting instructions (where given),overloading, unsuitable application, faulty or negligent installation or any other default by the Buyer, his servants or agents.

(iv) That the defect was not caused by fair wear and tear, accident or any other reason beyond APL’s reasonable control occurring after the date of the receipt by the Buyer.

(b) All costs and expenses, including freight charges, customs duties and insurance costs incurred in returning the Goods to APL in accordance with this condition shall be to the account of the Buyer. The benefits of this warranty shall not be assigned by the Buyer.

(c) The warranty contained in sub paragraph (a) above does not extend to any Goods or components not manufactured by APL although supplied by APL nor does it extend to any second-hand or reconditioned Goods or components. Goods or components not manufactured by APL carry only the warranty (if any) of their makers and the buyer is entitled to benefit thereof only so far as APL has the power to transfer it.

(d) The terms of this condition are in lieu of all conditions, warranties or other terms as to description, fitness for purpose, condition, merchantable quality or otherwise in respect of the Goods or repaired or replacement Goods whether expressed in the contract or implied by common law, custom or statute and notwithstanding that such purpose or condition may be, may become or may have been known to APL. Apart from APL’s obligation to repair or replace Goods in accordance with the terms of this condition, no liability is accepted in respect of the Goods whether for consequential loss or loss or damages to third parties or otherwise.

(e) APL excludes any consequential losses occurring howsoever caused.

12. Descriptions and suggestions offered by APL throughout this catalogue or via any other media are for general guidance only. The installer is responsible for ensuring that any fittings used are suitable for purpose and fitted in accordance with professional standards

TAP WARRANTY

APL taps are sold on a trade basis. The warranty extends to the supply of replacement parts and does not cover on site service. This is the responsibiltiy of the supplying dealer.The warranty for Franke and Abode taps is with the manufacturer but is on a similar basisThe following 5 year warranty applies to APL 3 way taps.

Terms and Conditions

All working parts and valves are guaranteed for a period of 5 years from purchase. Surface finishes and O-rings are guaranteed for 1 year from the date of purchase provided that no scouring agents or chemicals have been used and that our care advice has been followed. This is provided that the tap has been used for normal domestic purposes and that the guidance in the installation instructions has been observed.

The following are not covered by the warranty damage including scuffs, scratches etc caused by accident, abuse or improper installation. Damage or malfunction caused by debris, solder or carbon fines in the water. Replacement parts will be supplied under warranty at the discretion of APL
