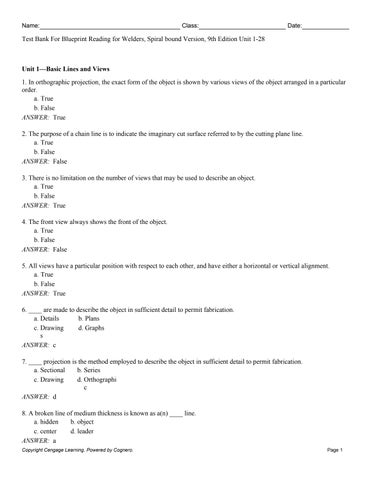

Test Bank For Blueprint Reading for Welders, Spiral bound Version, 9th Edition Unit 1-28
Unit 1—Basic Lines and Views 1. In orthographic projection, the exact form of the object is shown by various views of the object arranged in a particular order. a. True b. False ANSWER: True 2. The purpose of a chain line is to indicate the imaginary cut surface referred to by the cutting plane line. a. True b. False ANSWER: False 3. There is no limitation on the number of views that may be used to describe an object. a. True b. False ANSWER: True 4. The front view always shows the front of the object. a. True b. False ANSWER: False 5. All views have a particular position with respect to each other, and have either a horizontal or vertical alignment. a. True b. False ANSWER: True 6. ____ are made to describe the object in sufficient detail to permit fabrication. a. Details b. Plans c. Drawing d. Graphs s ANSWER: c 7. ____ projection is the method employed to describe the object in sufficient detail to permit fabrication. a. Sectional b. Series c. Drawing d. Orthographi c ANSWER: d 8. A broken line of medium thickness is known as a(n) ____ line. a. hidden b. object c. center d. leader ANSWER: a Copyright Cengage Learning. Powered by Cognero.
