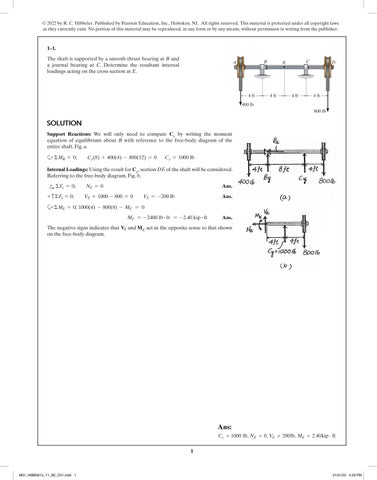

1–1. B and a journal bearing at C. Determine the resultant internal loadings acting on the cross section at E.
B
A
4 ft
C
E
4 ft
4 ft
D
4 ft
400 lb 800 lb
SOLUTION Support Reactions: We will only need to compute Cy by writing the moment equation of equilibrium about B with reference to the free-body diagram of the entire shaft, Fig. a. a+ ΣMB = 0;
Cy(8) + 400(4) - 800(12) = 0
Cy = 1000 lb
Internal Loadings: Using the result for Cy, section DE of the shaft will be considered. Referring to the free-body diagram, Fig. b, + ΣFx = 0; S
NE = 0
+ c ΣFy = 0;
VE + 1000 - 800 = 0
Ans. Ans.
VE = -200 lb
a+ ΣME = 0; 1000(4) - 800(8) - ME = 0
ME = - 2400 lb # ft = - 2.40 kip # ft
Ans.
The negative signs indicates that VE and ME act in the opposite sense to that shown on the free-body diagram.
Ans:
Ans: Cy = 1000 =E 0,=VE-200 = 200lb, 2.40kip NElb,=N0, lb, MEM=E -= 2.40 kip #⋅ ftft E V
1
